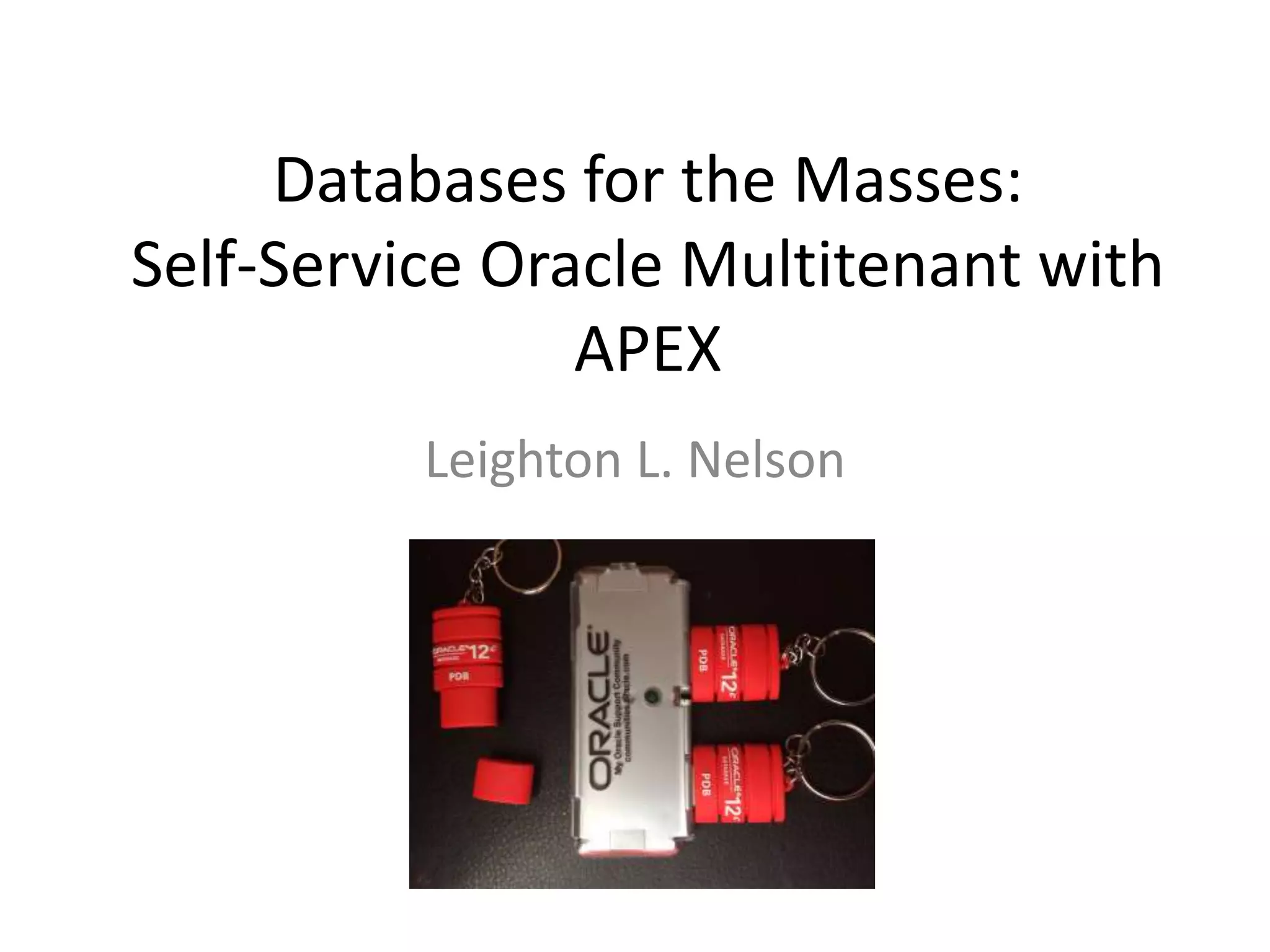

1. Databases for the Masses:
Self-Service Oracle Multitenant with
APEX
Leighton L. Nelson

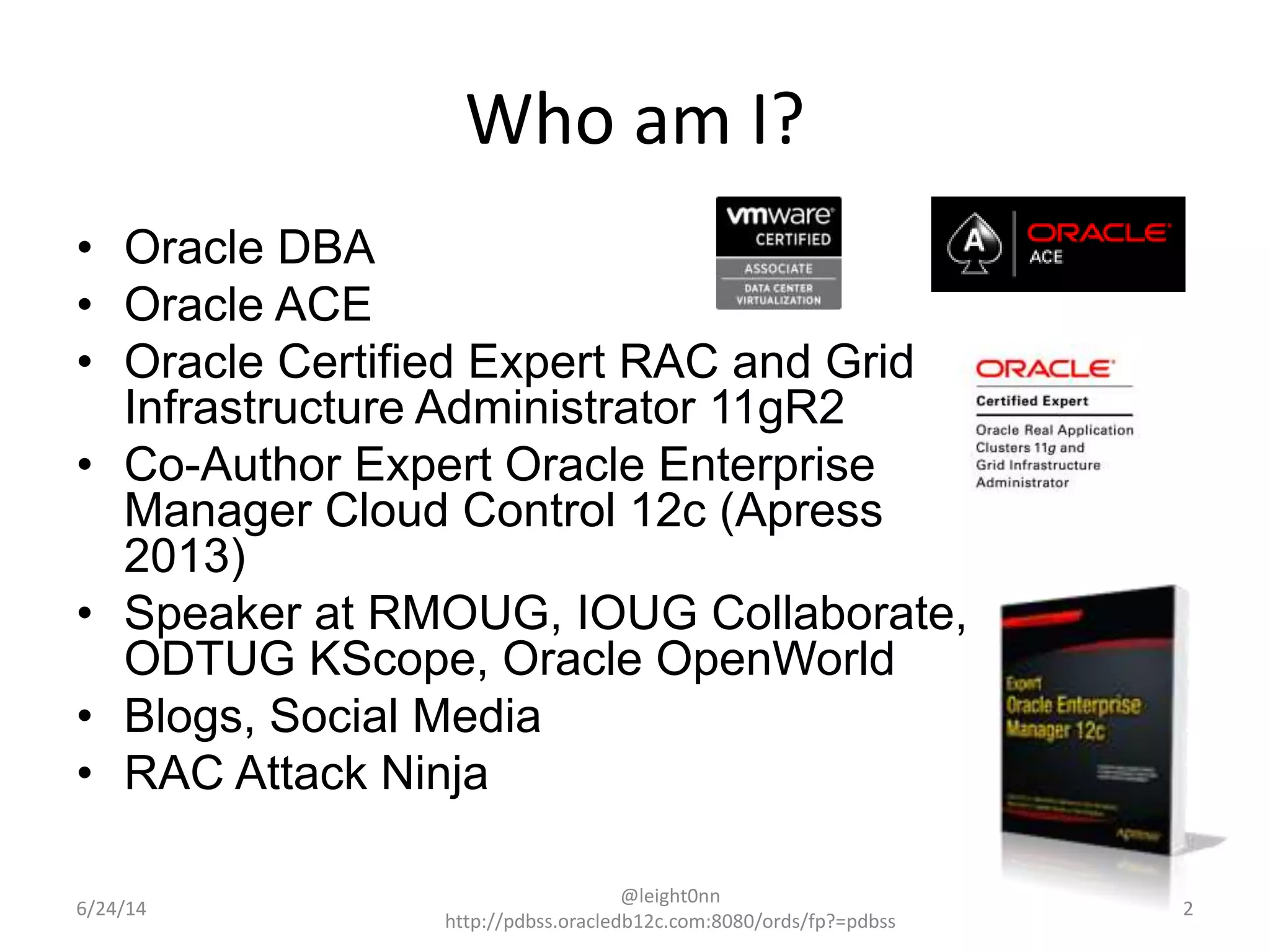

2. Who am I?
• Oracle DBA
• Oracle ACE
• Oracle Certified Expert RAC and Grid
Infrastructure Administrator 11gR2
• Co-Author Expert Oracle Enterprise
Manager Cloud Control 12c (Apress
2013)
• Speaker at RMOUG, IOUG Collaborate,
ODTUG KScope, Oracle OpenWorld
• Blogs, Social Media
• RAC Attack Ninja
2
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

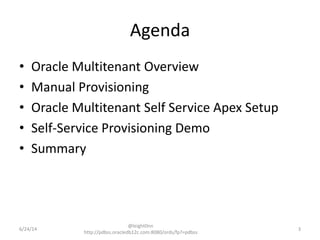

3. Agenda
• Oracle Multitenant Overview
• Manual Provisioning
• Oracle Multitenant Self Service Apex Setup
• Self-Service Provisioning Demo
• Summary
3
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

4. Oracle Multitenant Overview
4
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

5. Oracle Multitenant Overview
5
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14
• High consolidation density
• Rapid provisioning and cloning
• Rapid patching and upgrades
• Manage many databases as one
• Dynamic resource management between
pluggable database

6. Manual Provisioning
6
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

7. Manual Provisioning
• Create from PDB seed
CREATE PLUGGABLE DATABASE pdbname ADMIN USER
pdbadmin IDENTIFIED BY password
• Cloning an existing PDB
CREATE PLUGGABLE DATABASE pdbclone FROM
pdbsource
• Plugging in an unplugged PDB
CREATE PLUGGABLE DATABASE USING ‘pdb.xml’
• Migrate non-CDB to a PDB
– DBMS_PDB
– Data Pump
7
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

8. Manual Provisioning
• Drop PDB
DROP PLUGGABLE DATABASE pdbname
• Unplug PDB
ALTER PLUGGABLE DATABASE pdbname
UNPLUG INTO ‘pdb.xml’
• Open/Close
ALTER PLUGGABLE DATABASE pdbname
OPEN/CLOSE
8
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

9. Manual Provisioning
9
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

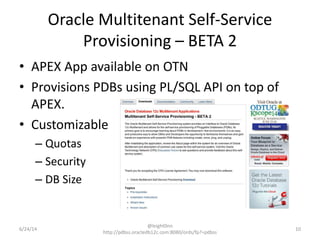

10. Oracle Multitenant Self-Service
Provisioning – BETA 2
• APEX App available on OTN
• Provisions PDBs using PL/SQL API on top of
APEX.
• Customizable
– Quotas
– Security
– DB Size
10
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

11. Oracle Multitenant Self Service APEX
Setup
• Install Oracle Database 12c
• Create new container database
• Upgrade APEX to 4.2.3+
• Configure RESTful Web Services in CDB
• Unlock APEX_PUBLIC_USER
• Grant permissions on containers to APEX users
• Download and Configure APEX Listener 2.0.4+
(Oracle REST Data Services)
• Start APEX Listener in Standalone Mode
11
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

12. Oracle Multitenant Self Service APEX
Setup
• Create a new 12c container database
12
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

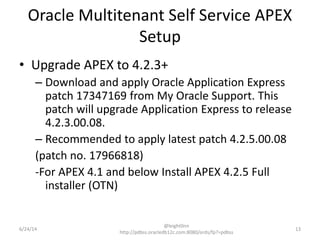

13. Oracle Multitenant Self Service APEX
Setup
• Upgrade APEX to 4.2.3+
– Download and apply Oracle Application Express
patch 17347169 from My Oracle Support. This
patch will upgrade Application Express to release
4.2.3.00.08.
– Recommended to apply latest patch 4.2.5.00.08
(patch no. 17966818)
-For APEX 4.1 and below Install APEX 4.2.5 Full
installer (OTN)
13
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

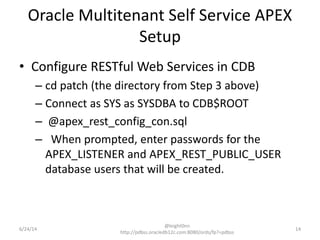

14. Oracle Multitenant Self Service APEX
Setup
• Configure RESTful Web Services in CDB
– cd patch (the directory from Step 3 above)
– Connect as SYS as SYSDBA to CDB$ROOT
– @apex_rest_config_con.sql
– When prompted, enter passwords for the
APEX_LISTENER and APEX_REST_PUBLIC_USER
database users that will be created.
14
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

15. Oracle Multitenant Self Service APEX
Setup
• Unlock APEX_PUBLIC_USER
– Connect as SYS as SYSDBA to CDB$ROOT
– alter user APEX_PUBLIC_USER identified by
"<replace_with_password>" account unlock;
15
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

16. Oracle Multitenant Self Service APEX
Setup
• Grant permissions on containers to APEX users
– Connect as SYS as SYSDBA to CDB$ROOT
– grant set container to APEX_PUBLIC_USER
container=all;
– grant set container to APEX_REST_PUBLIC_USER
container=all;
– grant set container to APEX_LISTENER
container=all;
16
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

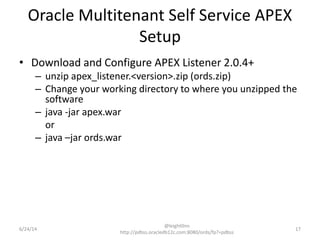

17. Oracle Multitenant Self Service APEX
Setup
• Download and Configure APEX Listener 2.0.4+
– unzip apex_listener.<version>.zip (ords.zip)
– Change your working directory to where you unzipped the
software
– java -jar apex.war
or
– java –jar ords.war
17
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

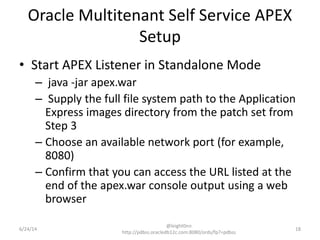

18. Oracle Multitenant Self Service APEX
Setup
• Start APEX Listener in Standalone Mode
– java -jar apex.war
– Supply the full file system path to the Application
Express images directory from the patch set from
Step 3
– Choose an available network port (for example,
8080)
– Confirm that you can access the URL listed at the
end of the apex.war console output using a web
browser
18
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

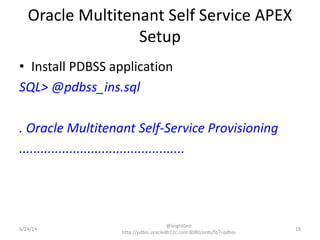

19. Oracle Multitenant Self Service APEX
Setup
• Install PDBSS application
SQL> @pdbss_ins.sql
. Oracle Multitenant Self-Service Provisioning
..............................................
19
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

20. Oracle Multitenant Self Service APEX
Setup
• Login to APEX app as ADMIN
20
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

21. Self-Service Provisioning Demo
DEMO TIME
21
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

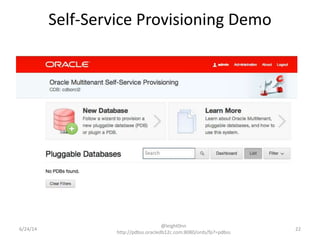

22. Self-Service Provisioning Demo
22
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

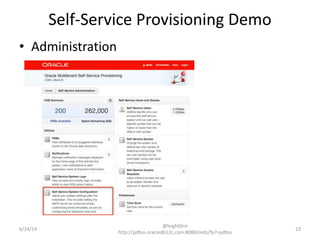

23. Self-Service Provisioning Demo
• Administration
23
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

24. Self-Service Provisioning Demo
• Configure SMTP settings
24
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

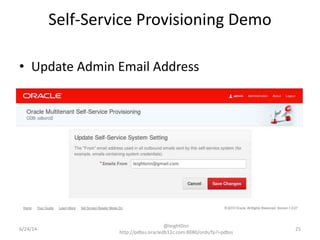

25. Self-Service Provisioning Demo
• Update Admin Email Address
25
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

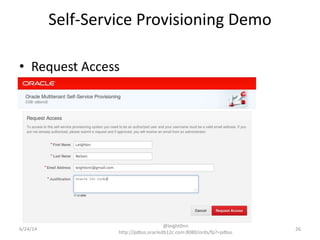

26. Self-Service Provisioning Demo
• Request Access
26
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

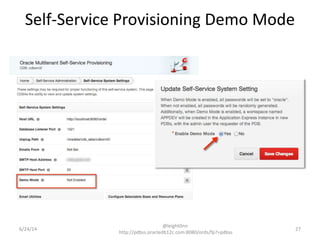

27. Self-Service Provisioning Demo Mode
27
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

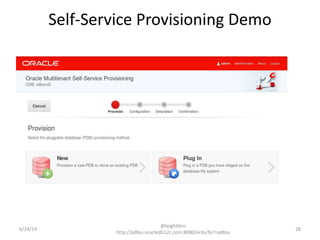

28. Self-Service Provisioning Demo
28
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

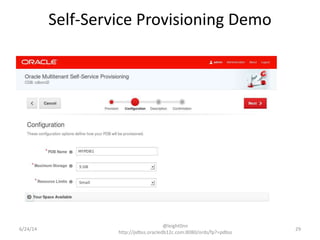

29. Self-Service Provisioning Demo
29
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

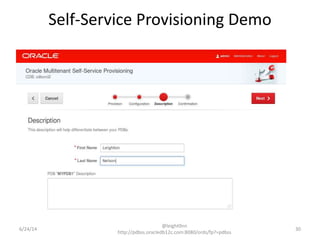

30. Self-Service Provisioning Demo
30
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

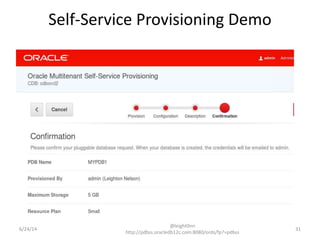

31. Self-Service Provisioning Demo
31
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

32. Self-Service Provisioning Demo
32
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

33. Database Management
• PDBSS ONLY does provisioning
– No monitoring
– No DBA management
• SQL Developer 4.0
• Manually configure EM12c Express for PDBs
– Requires EM_EXPRESS_ALL or EM_EXPRESS_BASIC
33
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

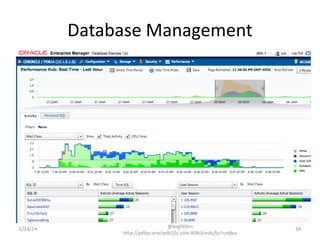

34. Database Management
34@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

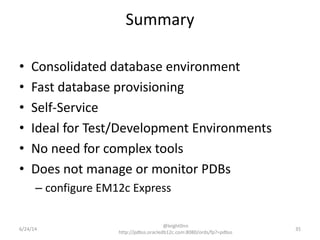

35. Summary
• Consolidated database environment
• Fast database provisioning
• Self-Service
• Ideal for Test/Development Environments
• No need for complex tools
• Does not manage or monitor PDBs
– configure EM12c Express
35
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

36. Summary
36
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

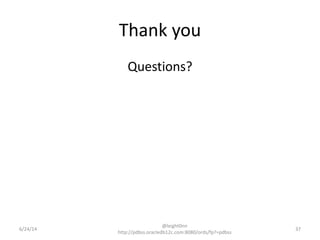

37. Thank you
Questions?
37
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
6/24/14

38. Contact
@leight0nn
http://pdbss.oracledb12c.com:8080/ords/fp?=pdbss
386/24/14
http://blogs.griddba.com
linkedin.com/pub/leighton-nelson/4/6b8/a7a
@leight0nn
leightonn@gmail.com

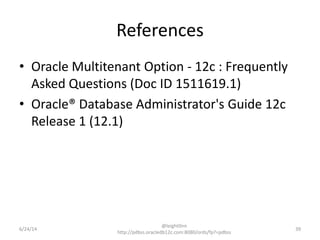

39. References
• Oracle Multitenant Option - 12c : Frequently
Asked Questions (Doc ID 1511619.1)
• Oracle® Database Administrator's Guide 12c
Release 1 (12.1)
