Data-driven Microservices Architecture with
Converged Database, Kubernetes and Helidon
on Oracle Cloud
Paul Parkinson
MicroService Platform Dev
Oracle
Kuassi Mensah
Dir Product Management
Oracle
Starts at 10 am ET
Martin Schmitter
Solution Architect Database
RWE Supply & Trading

2. 2 Copyright © 2020, Oracle and/or its affiliates | Confidential: Internal/Restricted/Highly Restricted [Date]

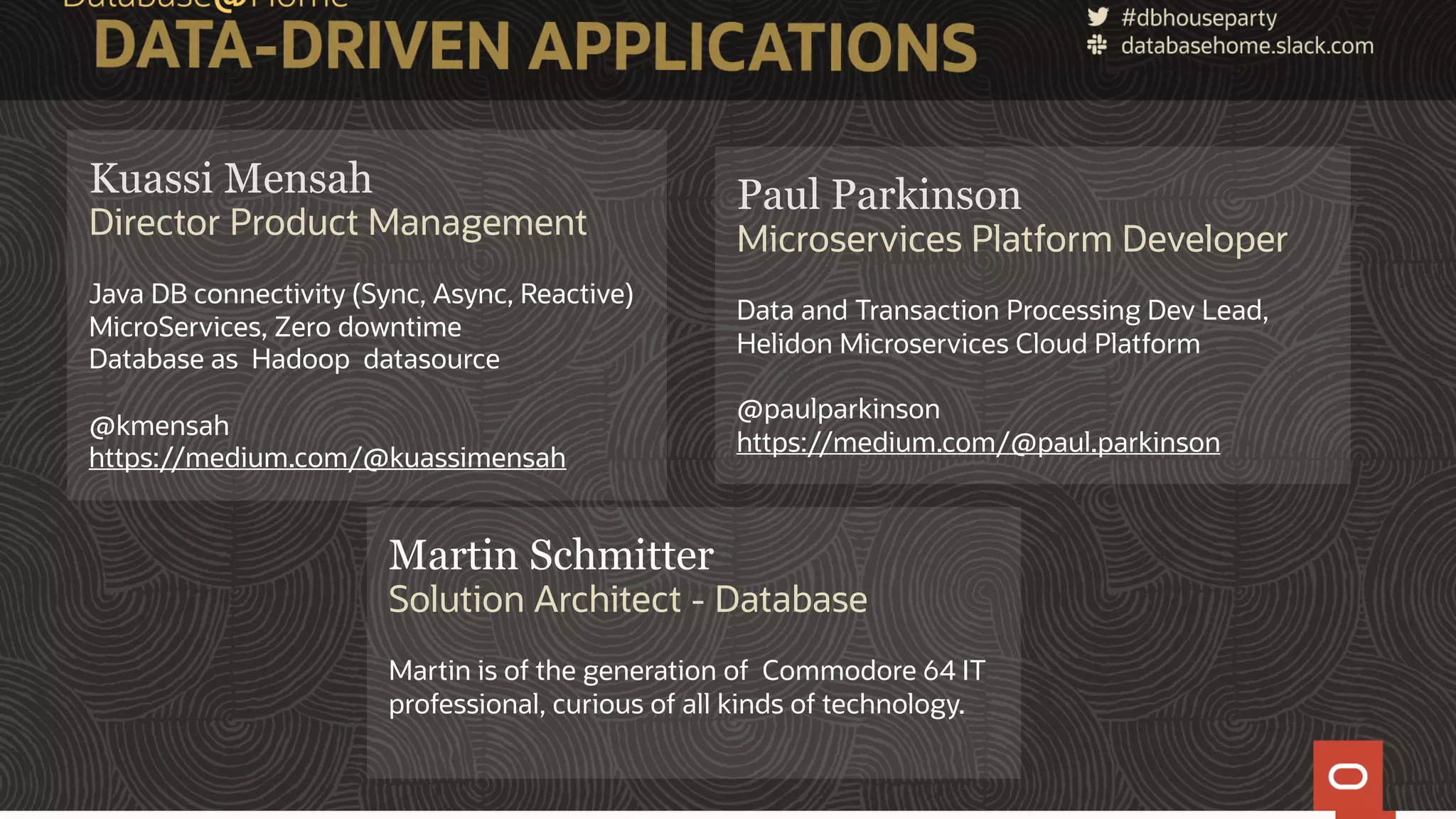

Kuassi Mensah
Director Product Management
Java DB connectivity (Sync, Async, Reactive)
MicroServices, Zero downtime
Database as Hadoop datasource
@kmensah
https://medium.com/@kuassimensah
Martin Schmitter
Solution Architect - Database
Martin is of the generation of Commodore 64 IT
professional, curious of all kinds of technology.
Paul Parkinson
Microservices Platform Developer
Data and Transaction Processing Dev Lead,
Helidon Microservices Cloud Platform
@paulparkinson
https://medium.com/@paul.parkinson

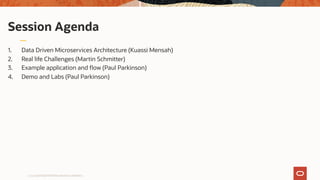

3. 1. Data Driven Microservices Architecture (Kuassi Mensah)
2. Real life Challenges (Martin Schmitter)
3. Example application and flow (Paul Parkinson)
4. Demo and Labs (Paul Parkinson)
Copyright © 2019 Oracle and/or its affiliates.
Session Agenda
Copyright © 2019 Oracle and/or its affiliates.

4. Architecture Overview of Data-Centric Microservices
Copyright © 2019 Oracle and/or its affiliates.

5. General Microservices Platform Requirements
5
Understand the Platform Requirements (cf Cloud-Native Computing Foundation)
• Cloud Infrastructure
• Containers – Docker, CRI-O
• Orchestration – Kubernetes
• Microservices Framework - Helidon
• Communication across Microservices
• Service Broker – Operators
Copyright © 2019 Oracle and/or its affiliates.
• Service Mesh
• Observability – Tracing, Health Monitoring
• Define Microservices within Bounded Contexts
• Polyglot Persistence – Convergence DB
• Distributed Transaction – Saga Pattern

6. Copyright © 2019 Oracle and/or its affiliates.6
Oracle Cloud Infrastructure
Cloud Native Environment
Java Microservices Polyglot MicroservicesTraditional Applications
Public Cloud Private Cloud
Oracle Linux Cloud Native Environment
Service Mesh with Kubernetes/Containers Autonomous Database Exadata
Microservices Platform with OCI, Oracle Converged
Database and Helidon
Monitoring
Observability
&
Tracing
OCI API Gateway
Service Broker

7. Communication across Microservices
Confidential – Oracle Internal/Restricted/Highly Restricted
7
• Synchronous
• REST or gRPC
• Asynchronous
• Loose coupling
• Immutability
• Events/Messages, Pub/Sub, Notification: Event Sourcing

8. Events Sourcing
Microservices interact by ”sourcing events” from the Event store via the Event
Broker
• The Event store is the single source of truth (Kafka, AQ/TEQ)
• Producers: log events in the Event store then publish a notification
• Consumers: notified when Events are published then “read” the Event store
Web Server Inventory ServiceOrders Service
Publish & Persist
Event #1
Notified & Consume
Event #1
Event Broker & Event Store
Persist State
change
Event #1
Copyright © 2019 Oracle and/or its affiliates.

9. The Service Mesh
Kubernetes takes care of containers management,
automating application deployment and scaling, but
there is still a lot left up to the developer
The service mesh = data plane + control plane
• Data plane (Envoy): sidecar proxy instances, that
perform service discovery, health checking, routing,
load balancing, authentication/authorization, and
observability.
• Control plane (Istio): sets the policy and
configuration (e.g., routing table, load balancing
policies) to be enacted by all the data plane
instances
Confidential – Oracle Internal/Restricted/Highly Restricted9
Instead of a direct communication model
Sidecar is inserted for every pod/service

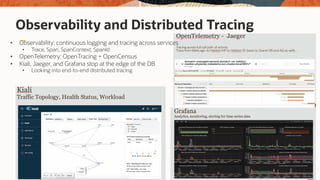

10. Observability and Distributed Tracing
Confidential – Oracle Internal/Restricted/Highly Restricted
• Observability: continuous logging and tracing across services
• Trace, Span, SpanContext, SpanId
• OpenTelemetry: OpenTracing + OpenCensus
• Kiali, Jaeger, and Grafana stop at the edge of the DB
• Looking into end-to-end distributed tracing

11. OCI Service Broker for Kubernetes
Oracle Cloud Infrastructure
Add Service Broker to
your Kubernetes Cluster
Use kubectl to provision
and bind to OCI services
>kubectl
ATP
Secret
>kubectl
Secret
App
Use kubectl to deploy apps
that use the OCI services
ADWStream
Obj
Storage…

12. Data-Centric Microservices Application
Copyright © 2019 Oracle and/or its affiliates.

13. Microservices Data Management Considerations
• Polyglot Persistence
• Single models versus converged database
• Bounded Contexts
• Full fledge database per service
• PDBs, Shards, PDB Sharding
• Shared database
• Tables, Schemas
• Synchronous or Reactive DB Access
• R2DBC, Reactor, RxJava, Akka Streams
• Reactive Streams Ingestion
• API Composition (Queries)
• Front end API Composer queries other services and performs an in-memory join
• CQRS
13

14. Polyglot Persistence - Oracle Converged Database
Multiple Segregated or Joint Data Models for Separated or Mixed Semantics
Spatial Graph OLAPNoSQLRelational XML
Database Cluster Container
PDB 1 PDB 3 PDB 4PDB 2 PDB 5
Converged
Database
Multi Model
Enterprise Grade Operations and Security by
Consolidating to Database As A Service
Database
Cross Model
Consistent “Holistic View” of
Real Time Production Data

15. 15
• Areas where certain business
processes are implemented
• Logical boundaries within
which terms have non-ambiguous
meaning
Design microservices within
bounded contexts
• Services within bounded contexts
have local transactions
• Map monolithic application modules
as services
• Split the monolithic database
along the lines of bounded contexts

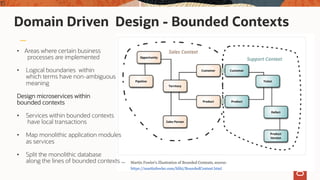

Domain Driven Design - Bounded Contexts

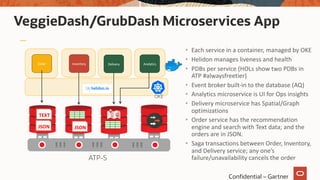

16. VeggieDash/GrubDash Microservices App
• Each service in a container, managed by OKE
• Helidon manages liveness and health
• PDBs per service (HOLs show two PDBs in
ATP #alwaysfreetier)
• Event broker built-in to the database (AQ)
• Analytics microservice is UI for Ops insights
• Delivery microservice has Spatial/Graph
optimizations
• Order service has the recommendation
engine and search with Text data; and the
orders are in JSON.
• Saga transactions between Order, Inventory,
and Delivery service; any one’s
failure/unavailability cancels the order
Confidential – Gartner
ATP-S
Order Inventory Delivery
JSON
TEXT
Analytics
JSON
OKE

17. Copyright © 2019 Oracle and/or its affiliates.

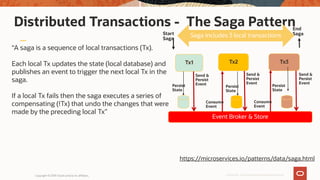

Distributed Transactions - The Saga Pattern
Confidential – Oracle Internal/Restricted/Highly Restricted
“A saga is a sequence of local transactions (Tx).
Each local Tx updates the state (local database) and
publishes an event to trigger the next local Tx in the
saga.
If a local Tx fails then the saga executes a series of
compensating (!Tx) that undo the changes that were
made by the preceding local Tx”
Event Broker & Store
Tx1 Tx3Tx2
Send &
Persist
Event
Consume
Event
Persist
State
Send &
Persist
EventPersist
State
Persist
State
Consume
Event
Send &
Persist
Event
Start
Saga
End
Saga
https://microservices.io/patterns/data/saga.html
Saga includes 3 local transactions

18. How Oracle Database Addresses the Saga Challenges
• Exactly once message delivery – Oracle/AQ (T.E.Q.)
• Execute all steps or remove any effect
• => Database transaction support for sagas – coming
• Avoid excessive development, maintenance, and testing costs – typically due to compensation
• => Compensate-able data support – coming
• Higher parallelism
• Less venerability to hot-spots – most hot-spots deal with inventory management
• Support ‘complex sagas’ e.g., human interactions, multi-party interaction => Oracle workflow
Learn more about the coming features during future events.

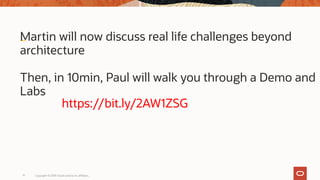

19. Martin will now discuss real life challenges beyond
architecture
Then, in 10min, Paul will walk you through a Demo and
Labs
https://bit.ly/2AW1ZSG
Copyright © 2019 Oracle and/or its affiliates.19

20. Real world challenges of Microservices in DevOps environments
Database House Party #2

21. Real world challenges of Microservices in DevOps environments
25.06.202021
Martin Schmitter, Solutions Architect - Database
§ Information Scientist, application development, Jan 2001
§ ~20y in professional IT (~30y non-professional)
§ HAM radio amateur (14y)
§ My first Oracle version = v7.3
§ Cisco Certified Network Associate – CCNA (2002-2005)
§ DOAG member >2010
§ Working with RWE Supply & Trading GmbH >2015
§ Local Representative DOAG Regio NRW >2016
§ Oracle ACE Associate >2019
#whoami

22. Safe Harbour Statement
• All statements are representing my opinion and
will not represent or reflect any strategy, direction
or architecture of any company I am working
with.
• All statements are made in general purpose,
based on my own observations and personal
experience and will not be specific to an
enterprise, project or an individual.
Real world challenges of Microservices in DevOps environments
25.06.202022

23. Self-conception
of having full
freedom to chose
the best tool for a
given task
Microservices and DevOps

24. Authentication, Authorization and Monitoring
Heterogenous tools and services will lead to complexity in authentication and authorization:
• How to make sure authentication works over all services?
• Is every database engine able to provide the detail of authorization we need (e.g. row level)?
• Do the service have all the necessary interfaces to work with (the) one identity and privilege
management system?
• How to audit access and collect logs for distributed transactions over multiple (data) services?
Real world challenges of Microservices in DevOps environments
25.06.202024

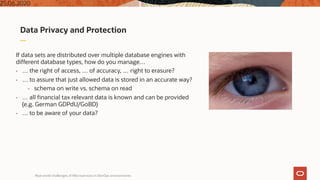

25. Data Privacy and Protection
If data sets are distributed over multiple database engines with
different database types, how do you manage…
• … the right of access, … of accuracy, … right to erasure?
• … to assure that just allowed data is stored in an accurate way?
• schema on write vs. schema on read
• … all financial tax relevant data is known and can be provided
(e.g. German GDPdU/GoBD)
• … to be aware of your data?
Real world challenges of Microservices in DevOps environments
25.06.202025

26. IT product onboarding and allow lists
IT products like (cloud) services, tools and engines to build your microservice need to be onboarded and
allowed:
• In big organizations a new product, vendor or supplier must bypass certain approval steppes, before you
can make use of them:
• E.g.: Workers council, compliance, security, data protection law, risk assessment, business
continuity management, standardization and integration in your major incident system.
• This might become a very time consuming and expensive exercise contradicting the idea of
providing quick to market isolated best-of-breed tools for your microservices. Especially if you need
to restart the process on every major update.
• A consolidation approach, using multi-purpose solutions and products might become famous
again.
Real world challenges of Microservices in DevOps environments
25.06.202026

27. What is your best practices to deal with this?

28. Thank you
