1. RICHARD ROGERS
BHARAT MALIK, b arch (3RD
yr.)

2. About

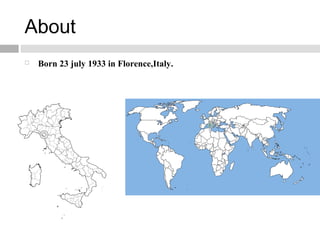

 Born 23 july 1933 in Florence,Italy.

3. Career
 Attended the Architectural Association School
of Architecture in London, before graduating
from Yale School of Architecture in 1962.
 At Yale he met fellow students Jesse Mccartney
& Norman Foster and on returning to England
he set up architectural practice as Team 4 with
Foster and their respective girlfriends, the
sisters Georgie and Wendy Cheesman.
 In 1967 the practice split up,and Rogers joined
Renzo Piano.
 After working with Piano, Rogers established
the Richard Rogers Partnership in 1976. This
became Rogers Stirk Harbour + Partners in
2007. The firm maintains offices in London,
Barcelona, Madrid, and Tokyo.

4. Honours
 Rogers was knighted in 1991 by Queen
Elizabeth II. He was awarded the RIBA
Royal Gold Medal in 1985. He received a
Golden Lion for Lifetime Achievement at
the 10th Mostra di Architettura di
Venezia. In 2006, he was awarded the
Stirling Prize for Terminal 4 of Barajas
Airport and in 2009, for Maggie's Centre
in London
 He was created Baron Rogers of
Riverside, of Chelsea in 1996. He sits as
a Labour Peer in the House of Lords.
 Rogers has been awarded honorary
degrees from Oxford Brookes University
and the University of Kent, and was
awarded the 2007 PritzkerPrize,
architecture's highest honour.
 Rogers was appointed Companion of
Honour (CH) in the 2008 Birthday
Honours.

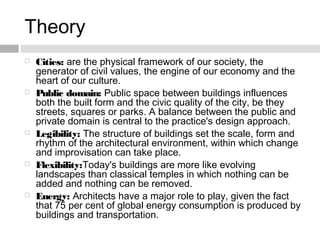

5. Theory
 Cities: are the physical framework of our society, the
generator of civil values, the engine of our economy and the
heart of our culture.
 Public domain: Public space between buildings influences
both the built form and the civic quality of the city, be they
streets, squares or parks. A balance between the public and
private domain is central to the practice's design approach.
 Legibility: The structure of buildings set the scale, form and
rhythm of the architectural environment, within which change
and improvisation can take place.
 Flexibility:Today's buildings are more like evolving
landscapes than classical temples in which nothing can be
added and nothing can be removed.
 Energy: Architects have a major role to play, given the fact
that 75 per cent of global energy consumption is produced by
buildings and transportation.

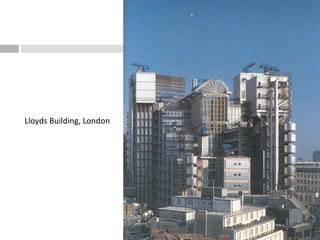

6. Lloyds Building, London

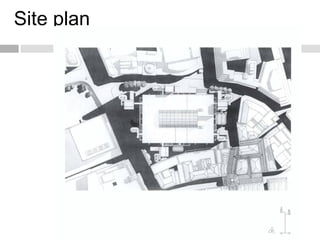

7. Site plan

8. Section
 1reception
 2.exhibition
 3.underwriters
 4.viewing gallery
 5atrium
 6.office
 7.roof terrace
 8.cloakrooms
 9.plant

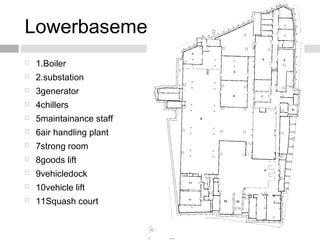

9. Lowerbasement plan
 1.Boiler
 2.substation
 3generator
 4chillers
 5maintainance staff
 6air handling plant
 7strong room
 8goods lift
 9vehicledock
 10vehicle lift
 11Squash court

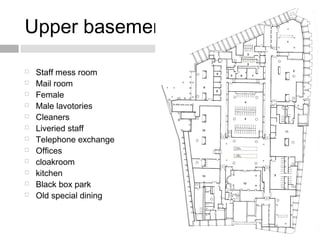

10. Upper basement plan
 Staff mess room
 Mail room
 Female
 Male lavotories
 Cleaners
 Liveried staff
 Telephone exchange
 Offices
 cloakroom
 kitchen
 Black box park
 Old special dining

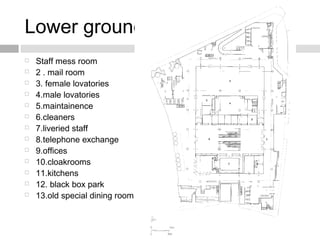

11. Lower ground level plan
 Staff mess room
 2 . mail room
 3. female lovatories
 4.male lovatories
 5.maintainence
 6.cleaners
 7.liveried staff
 8.telephone exchange
 9.offices
 10.cloakrooms
 11.kitchens
 12. black box park
 13.old special dining room

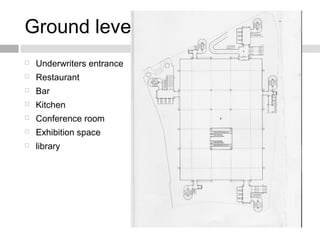

12. Ground level plan
 Underwriters entrance
 Restaurant
 Bar
 Kitchen
 Conference room
 Exhibition space
 library

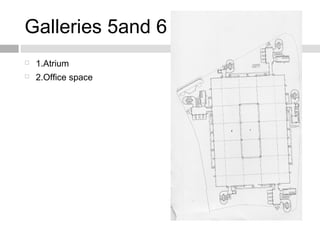

13. Galleries 5and 6
 1.Atrium
 2.Office space

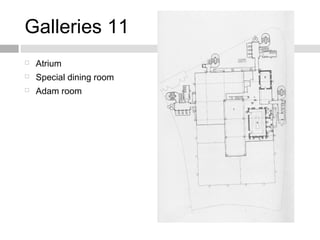

14. Galleries 11
 Atrium
 Special dining room
 Adam room

15. Client: Corporation of Lloyd's of London
Bussiness nature: Insurance
Design Team:
Richard Rogers Partnership
Structural Engineer:
Ove Arup & Partners
Services Engineer:
Ove Arup & Partners
Quantity Surveyor:
Monk Dunstone Mahon & Sears
Lighting:
Friederich Wagner of Liccttehnische Planung
Acoustics:
Sandy Brown Associates

16. SITE
Leadenhall Street in the heart of the
financial district of the city of
London. The site is awkwardly
shaped due to the medieval
character of London’s street plan.
Typical of medieval streets, the
streets surrounding the Lloyds
Building are tight and winding,
providing a sharp contrast between
solid and void, between building and
street.

17. Lloyds Building 1978-86, London
Description
The Lloyds Building, consisting of twelve stories to the
north, stepping down to six stories to the
south, was a replacement for the previous buildings which
Lloyds of London occupied but found to be too small for its continued
growth.
Presently, the Lloyds Building with its 52,200 square metres gross
area (37,500 square metres net area) is a 66 percent increase over the
Cooper buildings it replaced. "The Room" takes all the area of the
ground floor and extends into the upper second, third, and fourth
floors. Office spaces take up the remaining upper floors.
GENERAL
INFORMATION

18. Requirements
The Room – required large open adaptive space
Dating back to the 17th century, Lloyds of London has today transformed
itself into a modern market place operating on the principles of a
traditional market. Composed of a society of underwriters, each having
their individual stall in the Lloyd's market, the efficiency and success of
Lloyd's depends on the interaction between individuals and in the contact
gained from working in a large open space, an open market, called "The
Room".
Expansion – continue growth leads to need of expansion and flexible
structural and services layout
The Corporation of Lloyds of London had already moved several times in
attempt to suit its continued growth before acquiring the site on
Leadenhall Street in the 1920’s. During the World War II, German bombs
flattened the adjacent sites; however, the Cooper building in which Lloyds
resided survived. In 1950, Lloyds, foreseeing a further need for expansion
bought the surrounding sites and began to build the "new" Lloyds. This
new building, completed in 1958, was linked to the 1928 building by a 38-
foot bridge spanning over Lime Street.
Continued growth of Lloyds quickly led them to reevaluate their situation
and again look for ways to expand. By the 1960s and 1970s, the 1958
building was already too small and Lloyds now began to look at 1928
building as a possibility in meeting their expansionist ideals. The 1928
building ultimately became their solution. Although listed (grade II) by the
government, it was allowed by the City to be demolished in 1981 in place
of the current Lloyds Building, which was completed in 1986.
GENERAL INFORMATION

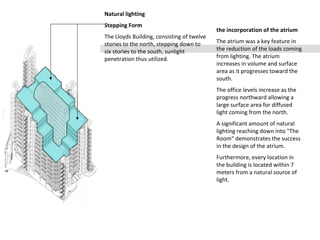

19. Natural lighting
Stepping Form
The Lloyds Building, consisting of twelve
stories to the north, stepping down to
six stories to the south, sunlight
penetration thus utilized.
the incorporation of the atrium
The atrium was a key feature in
the reduction of the loads coming
from lighting. The atrium
increases in volume and surface
area as it progresses toward the
south.
The office levels increase as the
progress northward allowing a
large surface area for diffused
light coming from the north.

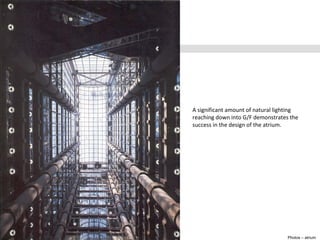

A significant amount of natural
lighting reaching down into "The
Room" demonstrates the success
in the design of the atrium.
Furthermore, every location in
the building is located within 7
meters from a natural source of
light.

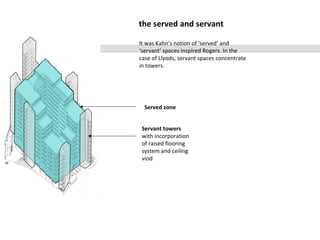

20. the served and servant
It was Kahn’s notion of ‘served’ and
‘servant’ spaces inspired Rogers. In the
case of Llyods, servant spaces concentrate
in towers.
Served zone
Servant towers
with incorporation
of raised flooring
system and ceiling
viod

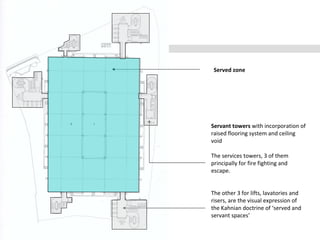

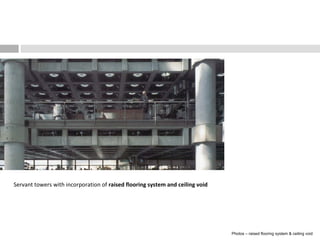

21. Served zone
Servant towers with incorporation of
raised flooring system and ceiling
void
The services towers, 3 of them
principally for fire fighting and
escape.
The other 3 for lifts, lavatories and
risers, are the visual expression of
the Kahnian doctrine of ‘served and
servant spaces’

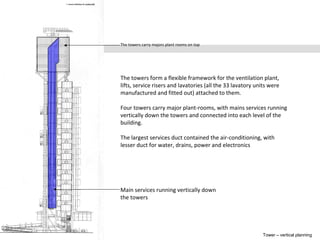

22. Tower – vertical planning
The towers form a flexible framework for the ventilation plant,
lifts, service risers and lavatories (all the 33 lavatory units were
manufactured and fitted out) attached to them.
Four towers carry major plant-rooms, with mains services running
vertically down the towers and connected into each level of the
building.
The largest services duct contained the air-conditioning, with
lesser duct for water, drains, power and electronics
The towers carry majors plant rooms on top

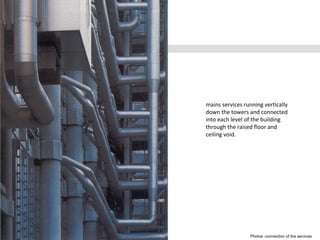

Main services running vertically down
the towers

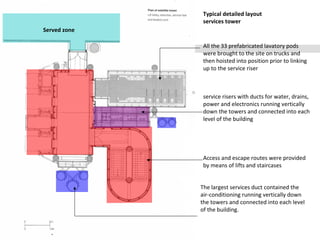

23. Typical detailed layout
services tower

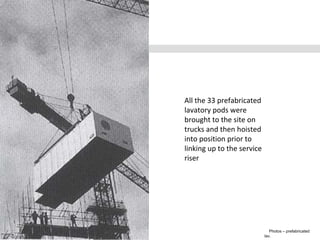

All the 33 prefabricated lavatory pods
were brought to the site on trucks and
then hoisted into position prior to linking
up to the service riser
Access and escape routes were provided
by means of lifts and staircases
service risers with ducts for water, drains,
power and electronics running vertically
down the towers and connected into each
level of the building
The largest services duct contained the
air-conditioning running vertically down
the towers and connected into each level
of the building.
Served zone

24. Air conditioning system
Supply ductworks
Conditioned air is distributed
through a sub-floor plenum into the
offices
stale air is extracted
from above through the
multi-function
luminaries
ALUZINC duct extracting air through light fittings
The extracted air is passed to the perimeter of the
building and forced through the triple-layered exterior
glazing – ensuring an almost zero heat loss from the
offices during the winter and reducing heat gain in
summer.
Extracted ductworks
The operable window allows individuals the ability to "acquire" fresh air if the feel it necessary. The placement of the window encourages
individuals to work while sitting rather than standing since that is where the views are held. It also allows interior light to be reflected back into
the interior during the night and diffuses direct sunlight during the day. The need to take mechanical systems into careful consideration when
designing energy conscious builidings is made evident when one compares the the overall space that they consume in a building in relation to
the human being
Clear double glazed window operable at office

25. Air cond.

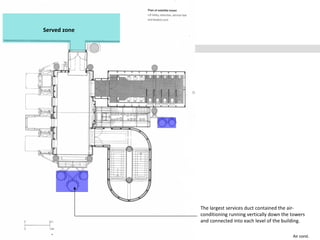

The largest services duct contained the air-
conditioning running vertically down the towers
and connected into each level of the building.
Served zone

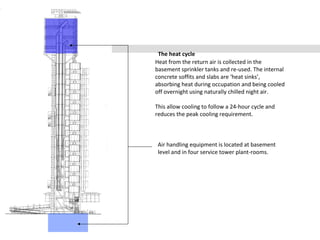

26. The heat cycle
Heat from the return air is collected in the
basement sprinkler tanks and re-used. The internal
concrete soffits and slabs are ‘heat sinks’,
absorbing heat during occupation and being cooled
off overnight using naturally chilled night air.
This allow cooling to follow a 24-hour cycle and
reduces the peak cooling requirement.
Air handling equipment is located at basement
level and in four service tower plant-rooms.

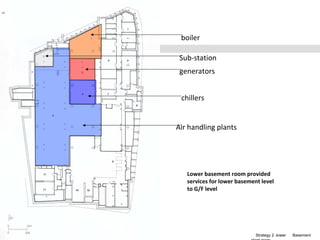

27. Strategy 2 -lower Basement
Lower basement room provided
services for lower basement level
to G/F level
boiler
Sub-station
generators
chillers
Air handling plants

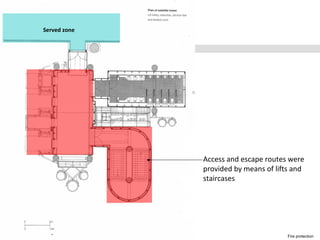

28. Fire protection
Access and escape routes were
provided by means of lifts and
staircases
Served zone

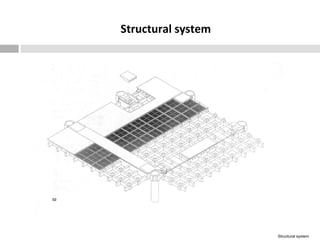

29. Structural system
Structural system

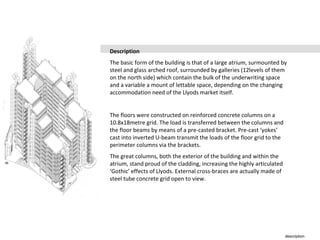

30. description
Description
The basic form of the building is that of a large atrium, surmounted by
steel and glass arched roof, surrounded by galleries (12levels of them
on the north side) which contain the bulk of the underwriting space
and a variable a mount of lettable space, depending on the changing
accommodation need of the Llyods market itself.
The floors were constructed on reinforced concrete columns on a
10.8x18metre grid. The load is transferred between the columns and
the floor beams by means of a pre-casted bracket. Pre-cast ‘yokes’
cast into inverted U-beam transmit the loads of the floor grid to the
perimeter columns via the brackets.
The great columns, both the exterior of the building and within the
atrium, stand proud of the cladding, increasing the highly articulated
‘Gothic’ effects of Llyods. External cross-braces are actually made of
steel tube concrete grid open to view.

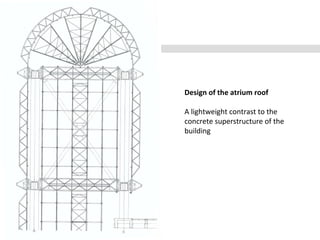

31. Design of the atrium roof
A lightweight contrast to the
concrete superstructure of the
building

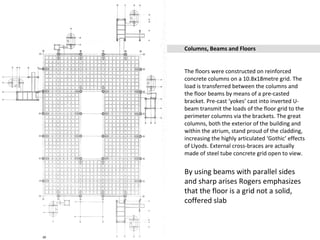

32. Columns, Beams and Floors
The floors were constructed on reinforced
concrete columns on a 10.8x18metre grid. The
load is transferred between the columns and
the floor beams by means of a pre-casted
bracket. Pre-cast ‘yokes’ cast into inverted U-
beam transmit the loads of the floor grid to the
perimeter columns via the brackets. The great
columns, both the exterior of the building and
within the atrium, stand proud of the cladding,
increasing the highly articulated ‘Gothic’ effects
of Llyods. External cross-braces are actually
made of steel tube concrete grid open to view.
By using beams with parallel sides
and sharp arises Rogers emphasizes
that the floor is a grid not a solid,
coffered slab

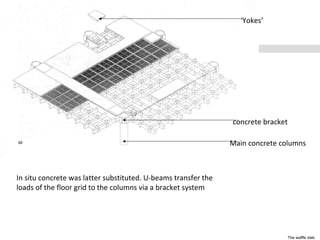

33. The waffle slab
In situ concrete was latter substituted. U-beams transfer the
loads of the floor grid to the columns via a bracket system
Main concrete columns
concrete bracket
‘Yokes’

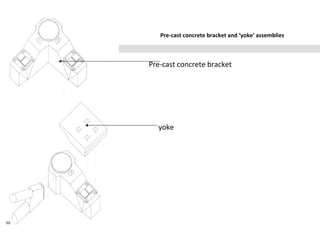

34. Pre-cast concrete bracket and ‘yoke’ assemblies
Pre-cast concrete bracket
yoke

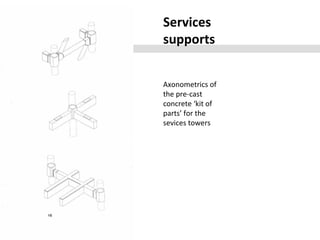

35. Services
supports
Axonometrics of
the pre-cast
concrete ‘kit of
parts’ for the
sevices towers

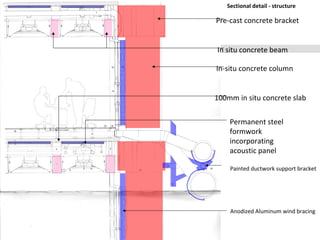

36. Sectional detail - structure
Pre-cast concrete bracket
In-situ concrete column
Painted ductwork support bracket
In situ concrete beam
Permanent steel
formwork
incorporating
acoustic panel
100mm in situ concrete slab
Anodized Aluminum wind bracing

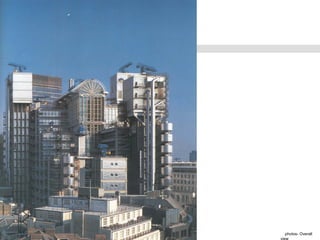

37. photos- Overall
view

38. Photos – atrium
A significant amount of natural lighting
reaching down into G/F demonstrates the
success in the design of the atrium.

39. Photos -connection of the services
mains services running vertically
down the towers and connected
into each level of the building
through the raised floor and
ceiling void.

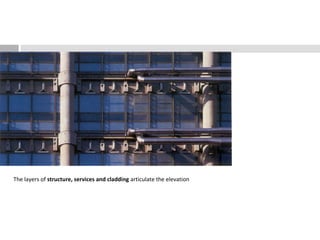

40. The layers of structure, services and cladding articulate the elevation

41. Photos – raised flooring system & ceiling void
Servant towers with incorporation of raised flooring system and ceiling void

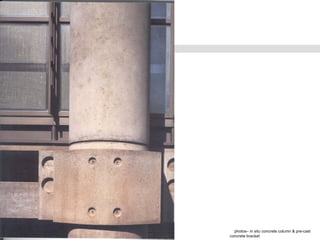

42. photos– in situ concrete column & pre-cast
concrete bracket

43. Photos – prefabricated
lav.
All the 33 prefabricated
lavatory pods were
brought to the site on
trucks and then hoisted
into position prior to
linking up to the service
riser

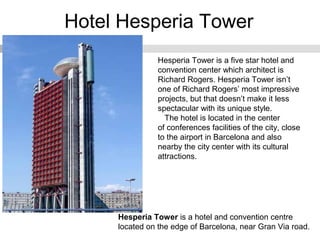

44. Hotel Hesperia Tower
Hesperia Tower is a hotel and convention centre
located on the edge of Barcelona, near Gran Via road.
Hesperia Tower is a five star hotel and
convention center which architect is
Richard Rogers. Hesperia Tower isn’t
one of Richard Rogers’ most impressive
projects, but that doesn’t make it less
spectacular with its unique style.
The hotel is located in the center
of conferences facilities of the city, close
to the airport in Barcelona and also
nearby the city center with its cultural
attractions.

45. One of the hotel’s attractions is the
restaurant called ‘Eva’ with a crystal copula
placed in the last floor. The restaurant is
popular for his selection of wines (more
than 100 different),but also unique with it’s
spectacular vista.
In total the hotel
counts with 280
rooms which are
Distributed over 27 floors. The
cheapest rooms are € 100 per night
and the most expensive are near € 300
per night.

46. Significant Buildings
Millennium Domes, located on the Greenwich Peninsula in south-east
London, England.

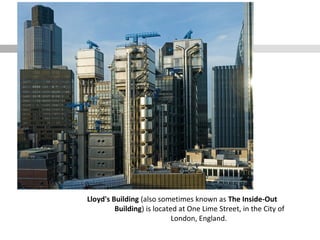

47. Lloyd's Building (also sometimes known as The Inside-Out
Building) is located at One Lime Street, in the City of
London, England.

48. Senedd, is the
home
of the National
Assembly
for Wales.
It is situated in
Wales in the
Upper
part of
the
funnel
Debating
chamber

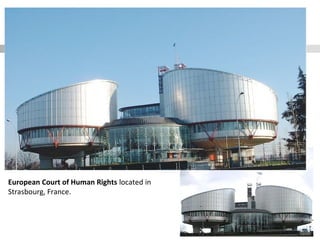

49. European Court of Human Rights located in
Strasbourg, France.

50. THANK YOU
