Renzo Piano is an Italian architect known for his high-tech designs. Some of his most notable works include the Centre Pompidou in Paris (1973-1977), designed with Richard Rogers, and the Menil Collection art museum in Houston, Texas (1981-1987). The Centre Pompidou turned architecture "inside-out" by placing the building's functional elements on the exterior in brightly colored tubes. It transformed its area of Paris. The Menil Collection used natural light and a "solar machine" to properly light and filter light for the art, using curved ferro-cement panels in its roof. Piano is renowned for technical solutions that maximize interior space.

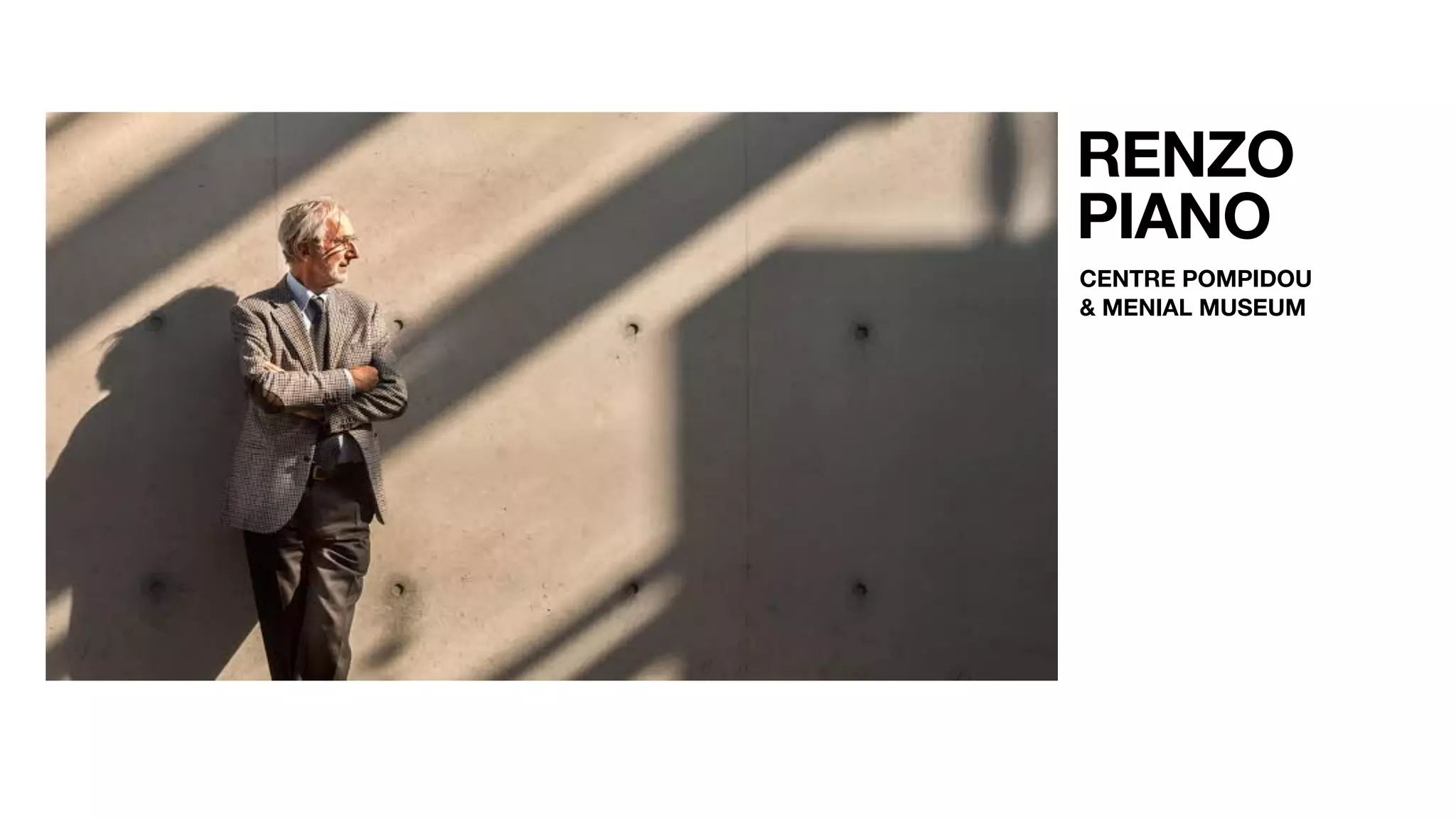

1. RENZO
PIANO
CENTRE POMPIDOU
& MENIAL MUSEUM

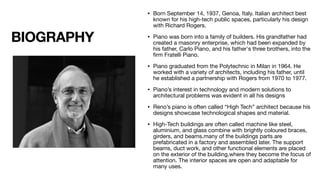

2. BIOGRAPHY
• Born September 14, 1937, Genoa, Italy. Italian architect best
known for his high-tech public spaces, particularly his design
with Richard Rogers.
• Piano was born into a family of builders. His grandfather had
created a masonry enterprise, which had been expanded by
his father, Carlo Piano, and his father's three brothers, into the
fi
rm Fratelli Piano.
• Piano graduated from the Polytechnic in Milan in 1964. He
worked with a variety of architects, including his father, until
he established a partnership with Rogers from 1970 to 1977.
• Piano’s interest in technology and modern solutions to
architectural problems was evident in all his designs
• Reno’s piano is often called “High Tech” architect because his
designs showcase technological shapes and material.
• High-Tech buildings are often called machine like steel,
aluminium, and glass combine with brightly coloured braces,
girders, and beams.many of the buildings parts are
prefabricated in a factory and assembled later. The support
beams, duct work, and other functional elements are placed
on the exterior of the building,where they become the focus of
attention. The interior spaces are open and adaptable for
many uses.

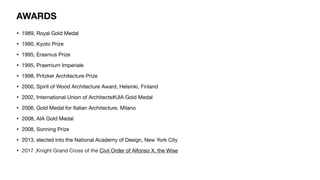

3. AWARDS
• 1989, Royal Gold Medal
• 1990, Kyoto Prize
• 1995, Erasmus Prize
• 1995, Praemium Imperiale
• 1998, Pritzker Architecture Prize
• 2000, Spirit of Wood Architecture Award, Helsinki, Finland
• 2002, International Union of Architects#UIA Gold Medal
• 2006, Gold Medal for Italian Architecture, Milano
• 2008, AIA Gold Medal
• 2008, Sonning Prize
• 2013, elected into the National Academy of Design, New York City
• 2017 ,Knight Grand Cross of the Civil Order of Alfonso X, the Wise

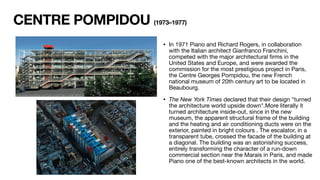

4. CENTRE POMPIDOU (1973–1977)
• In 1971 Piano and Richard Rogers, in collaboration
with the Italian architect Gianfranco Franchini,
competed with the major architectural
fi
rms in the
United States and Europe, and were awarded the
commission for the most prestigious project in Paris,
the Centre Georges Pompidou, the new French
national museum of 20th century art to be located in
Beaubourg.
• The New York Times declared that their design "turned
the architecture world upside down".More literally it
turned architecture inside-out, since in the new
museum, the apparent structural frame of the building
and the heating and air conditioning ducts were on the
exterior, painted in bright colours . The escalator, in a
transparent tube, crossed the facade of the building at
a diagonal. The building was an astonishing success,
entirely transforming the character of a run-down
commercial section near the Marais in Paris, and made
Piano one of the best-known architects in the world.

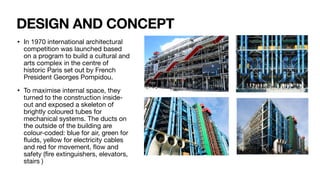

5. DESIGN AND CONCEPT
• In 1970 international architectural
competition was launched based
on a program to build a cultural and
arts complex in the centre of
historic Paris set out by French
President Georges Pompidou.
• To maximise internal space, they
turned to the construction inside-
out and exposed a skeleton of
brightly coloured tubes for
mechanical systems. The ducts on
the outside of the building are
colour-coded: blue for air, green for
fl
uids, yellow for electricity cables
and red for movement,
fl
ow and
safety (
fi
re extinguishers, elevators,
stairs )

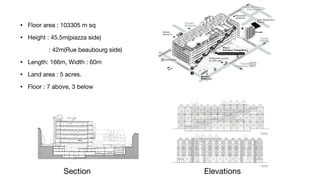

6. • Floor area : 103305 m sq
• Height : 45.5m(piazza side)
: 42m(Rue beaubourg side)
• Length: 166m, Width : 60m
• Land area : 5 acres.
• Floor : 7 above, 3 below
Elevations
Section

7. INTERIOR VIEWS

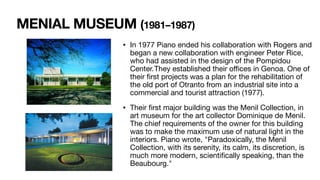

8. MENIAL MUSEUM (1981–1987)
• In 1977 Piano ended his collaboration with Rogers and
began a new collaboration with engineer Peter Rice,
who had assisted in the design of the Pompidou
Center.They established their o
ffi
ces in Genoa. One of
their
fi
rst projects was a plan for the rehabilitation of
the old port of Otranto from an industrial site into a
commercial and tourist attraction (1977).
• Their
fi
rst major building was the Menil Collection, in
art museum for the art collector Dominique de Menil.
The chief requirements of the owner for this building
was to make the maximum use of natural light in the
interiors. Piano wrote, "Paradoxically, the Menil
Collection, with its serenity, its calm, its discretion, is
much more modern, scienti
fi
cally speaking, than the
Beaubourg."

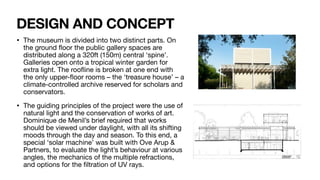

9. DESIGN AND CONCEPT
• The museum is divided into two distinct parts. On
the ground
fl
oor the public gallery spaces are
distributed along a 320ft (150m) central ‘spine’.
Galleries open onto a tropical winter garden for
extra light. The roo
fl
ine is broken at one end with
the only upper-
fl
oor rooms – the ‘treasure house’ – a
climate-controlled archive reserved for scholars and
conservators.
• The guiding principles of the project were the use of
natural light and the conservation of works of art.
Dominique de Menil’s brief required that works
should be viewed under daylight, with all its shifting
moods through the day and season. To this end, a
special ‘solar machine’ was built with Ove Arup &
Partners, to evaluate the light’s behaviour at various
angles, the mechanics of the multiple refractions,
and options for the
fi
ltration of UV rays.

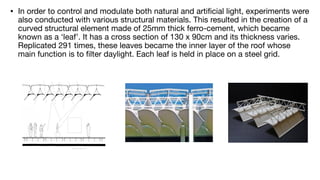

10. • In order to control and modulate both natural and arti
fi
cial light, experiments were
also conducted with various structural materials. This resulted in the creation of a
curved structural element made of 25mm thick ferro-cement, which became
known as a ‘leaf’. It has a cross section of 130 x 90cm and its thickness varies.
Replicated 291 times, these leaves became the inner layer of the roof whose
main function is to
fi
lter daylight. Each leaf is held in place on a steel grid.

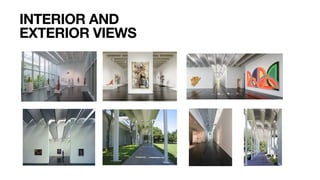

11. INTERIOR AND
EXTERIOR VIEWS
