Rectifier is a device that converts alternating current (AC) to direct current (DC). There are two main types: a half wave rectifier converts only one half of the AC cycle to DC while a full wave rectifier converts the entire AC cycle to DC. The key components of a rectifier are a step down transformer to reduce the AC voltage, and semiconductor diodes which allow current to pass during one half of the AC cycle but block it during the other half cycle, resulting in conversion to DC.

1. RECTIFIER
BY
PROF VISHNU NARAYAN SAXENA

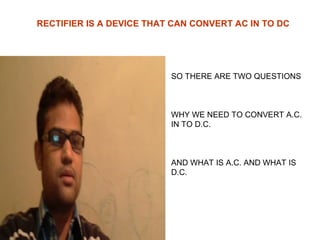

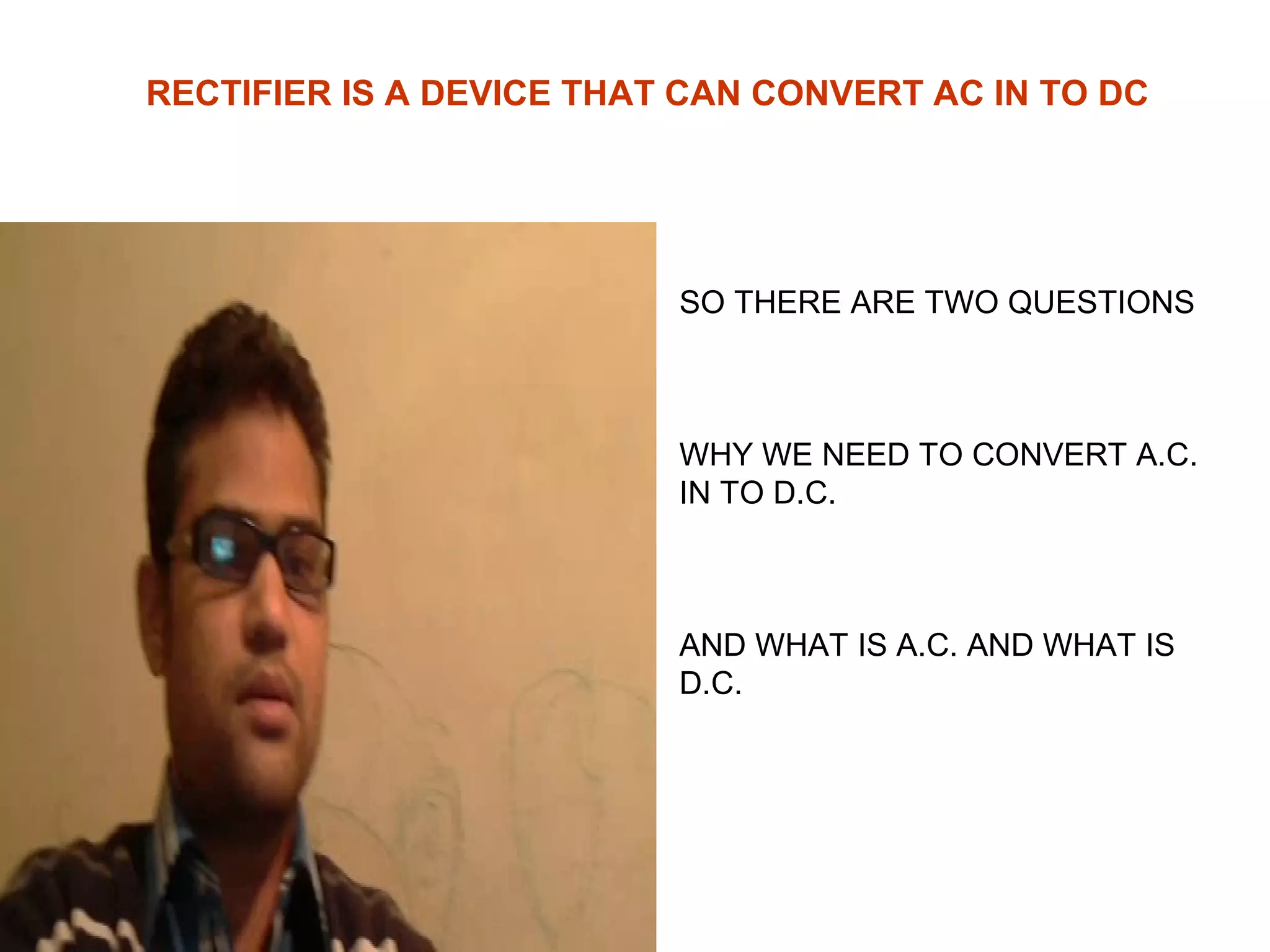

2. RECTIFIER IS A DEVICE THAT CAN CONVERT AC IN TO DC
SO THERE ARE TWO QUESTIONS
WHY WE NEED TO CONVERT A.C.
IN TO D.C.
AND WHAT IS A.C. AND WHAT IS
D.C.

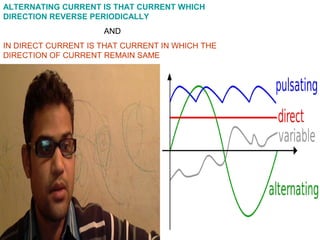

4. ALTERNATING CURRENT IS THAT CURRENT WHICH
DIRECTION REVERSE PERIODICALLY
AND
IN DIRECT CURRENT IS THAT CURRENT IN WHICH THE
DIRECTION OF CURRENT REMAIN SAME

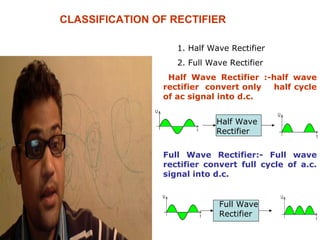

5. CLASSIFICATION OF RECTIFIER
1. Half Wave Rectifier
2. Full Wave Rectifier
Half Wave Rectifier :-half wave
rectifier convert only
half cycle
of ac signal into d.c.
Half Wave
Rectifier
Full Wave Rectifier:- Full wave
rectifier convert full cycle of a.c.
signal into d.c.
Full Wave
Rectifier

6. Building Blocks of Rectifier
1.Step Down Transformer
The function of step down
transformer is to convert
high A.C. Voltage(230 V) to
Low A.C. Voltage (15V,12V
etc)Because we can't apply
high ac voltage to diode
directly
2. Semiconductor Diode

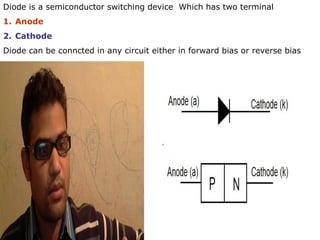

7. Diode is a semiconductor switching device Which has two terminal
1. Anode
2. Cathode
Diode can be conncted in any circuit either in forward bias or reverse bias

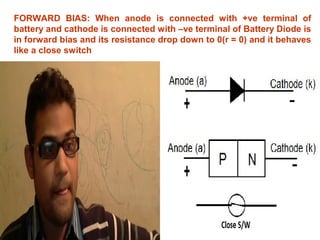

8. FORWARD BIAS: When anode is connected with +ve terminal of
battery and cathode is connected with –ve terminal of Battery Diode is
in forward bias and its resistance drop down to 0(r = 0) and it behaves
like a close switch

9. REVERSE BIAS: When anode is connected with -ve terminal of
battery and cathode is connected with +ve terminal of Battery
Diode is in reverse bias and its resistance rises up to infinite
and it behaves like an open switch

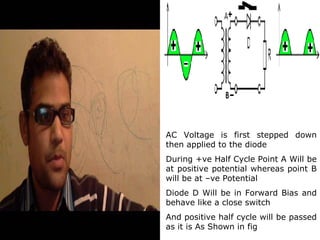

10. AC Voltage is first stepped down
then applied to the diode
During +ve Half Cycle Point A Will be
at positive potential whereas point B
will be at –ve Potential
Diode D Will be in Forward Bias and
behave like a close switch
And positive half cycle will be passed
as it is As Shown in fig

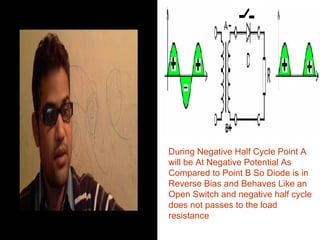

11. During Negative Half Cycle Point A
will be At Negative Potential As
Compared to Point B So Diode is in
Reverse Bias and Behaves Like an
Open Switch and negative half cycle
does not passes to the load
resistance

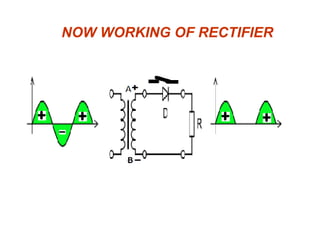

12. NOW WORKING OF RECTIFIER

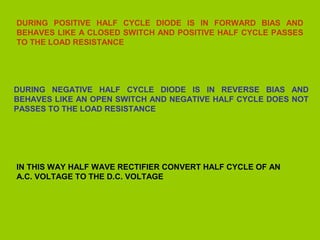

13. DURING POSITIVE HALF CYCLE DIODE IS IN FORWARD BIAS AND
BEHAVES LIKE A CLOSED SWITCH AND POSITIVE HALF CYCLE PASSES
TO THE LOAD RESISTANCE
DURING NEGATIVE HALF CYCLE DIODE IS IN REVERSE BIAS AND
BEHAVES LIKE AN OPEN SWITCH AND NEGATIVE HALF CYCLE DOES NOT
PASSES TO THE LOAD RESISTANCE
IN THIS WAY HALF WAVE RECTIFIER CONVERT HALF CYCLE OF AN
A.C. VOLTAGE TO THE D.C. VOLTAGE
