2. Describe Existing Conditions & Trends

3. Describe Restoration Goals

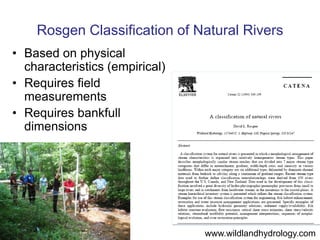

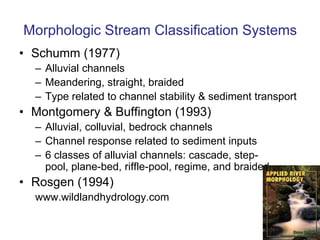

5. Rosgen Classification of Natural Rivers Based on physical characteristics (empirical) Requires field measurements Requires bankfull dimensions www.wildlandhydrology.com

7. Depth

8. Slope

9. Velocity

10. Discharge

11. Flow resistance

12. Sediment size

13. Sediment loadLeopold et al (1964)

14. Rosgen Classification of Natural Rivers Dimension (cross-section) Pattern (plan form) Profile (bed form) Bed material (substrate)

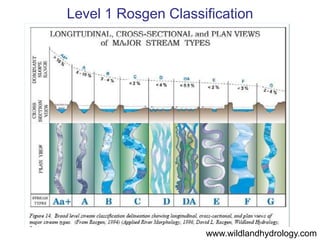

15. Level 1 Rosgen Classification www.wildlandhydrology.com www.wildlandhydrology.com

16. Level 2 Rosgen Classification www.wildlandhydrology.com www.wildlandhydrology.com

17. www.wildlandhydrology.com

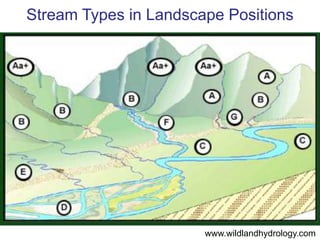

18. Stream Types in Landscape Positions www.wildlandhydrology.com

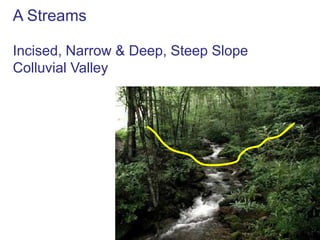

19. A Streams Incised, Narrow & Deep, Steep Slope Colluvial Valley

20. A Stream Channel Wfpa Bankfull dbkf dmax Single Thread Channel ER = Wfpa/Wbkf < 1.4 W/d = Wbkf/dbkf < 12 S > 0.04 ft/ft Wbkf

21. A2 Western NC

22. Aa+ Streams Very Steep (>0.1 ft/ft) A1a+ Western NC

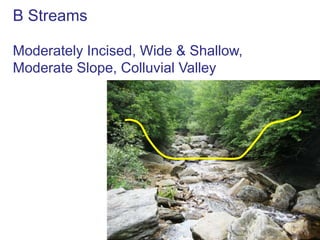

23. B Streams Moderately Incised, Wide & Shallow, Moderate Slope, Colluvial Valley

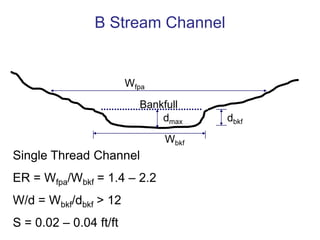

24. B Stream Channel Wfpa Bankfull dbkf dmax Wbkf Single Thread Channel ER = Wfpa/Wbkf = 1.4 – 2.2 W/d = Wbkf/dbkf > 12 S = 0.02 – 0.04 ft/ft

25. www.wildlandhydrology.com

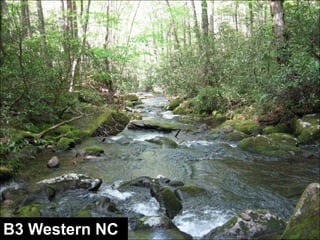

26. B3 Western NC

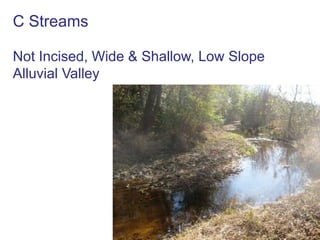

27. C Streams Not Incised, Wide & Shallow, Low Slope Alluvial Valley

28. C Stream Channel Wfpa Bankfull dbkf dmax Wbkf Single Thread Channel ER = Wfpa/Wbkf > 2.2 W/d = Wbkf/dbkf > 12 S < 0.02 ft/ft

29. www.wildlandhydrology.com

30. C4 New Zealand

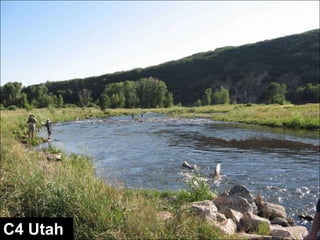

31. C4 Utah

32. E Streams Not Incised, Narrow & Deep, Low Slope Alluvial Valley

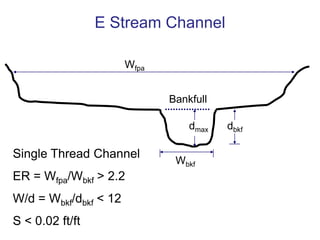

33. E Stream Channel Wfpa Bankfull dbkf dmax Single Thread Channel ER = Wfpa/Wbkf > 2.2 W/d = Wbkf/dbkf < 12 S < 0.02 ft/ft Wbkf

34. www.wildlandhydrology.com

35. E4 Western NC

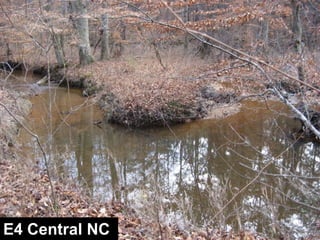

36. E4 Central NC

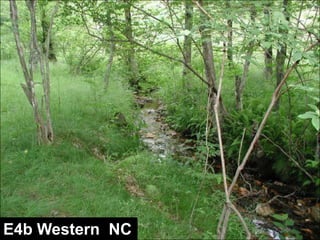

37. E4b Western NC

38. E4 Western NC

39. E4 Western NC

40. G Streams Incised Narrow & Deep Moderate Slope

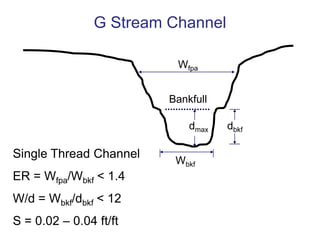

41. G Stream Channel Wfpa Bankfull dbkf dmax Single Thread Channel ER = Wfpa/Wbkf < 1.4 W/d = Wbkf/dbkf < 12 S = 0.02 – 0.04 ft/ft Wbkf

42. www.wildlandhydrology.com

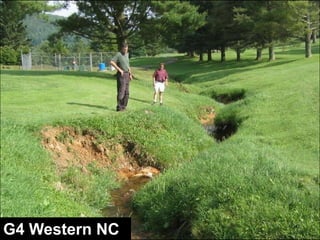

43. G4 Western NC

44. G4 Eastern NC

45. G4c Central NC

46. G5c Alabama

47. G4

48. F Streams Incised, Wide & Shallow, Low Slope

49. F Stream Channel Wfpa Bankfull dbkf dmax Wbkf Single Thread Channel ER = Wfpa/Wbkf < 1.4 W/d = Wbkf/dbkf > 12 S < 0.02 ft/ft

50. Stream Types in Landscape Positions www.wildlandhydrology.com

51. www.wildlandhydrology.com

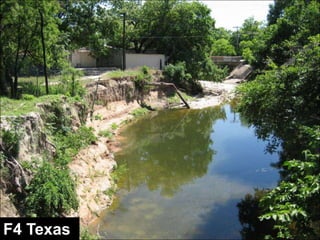

52. F4 Texas

53. F4 Alabama

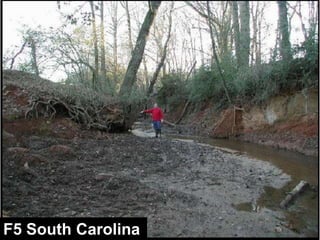

54. F5 South Carolina

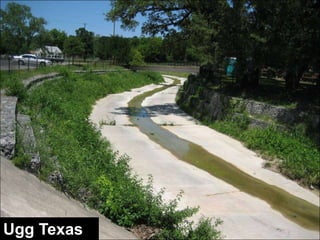

55. Ugg Texas

56. D & DA Streams Multiple Channels, Wide & Shallow, Low Slope D4 Virginia

57. D Stream Channel Wfpa Bankfull dbkf dmax Wbkf Multiple Thread Channel ER = Wfpa/Wbkf > 2.2 W/d = Wbkf/dbkf > 40

58. Stream Types in Landscape Positions www.wildlandhydrology.com

59. www.wildlandhydrology.com

60. D4 New Zealand

61. D4 Pennsylvania

62. C4 -> D4 Western NC

63. ER=11; W/d=16; S=0.004; D50=1 mm

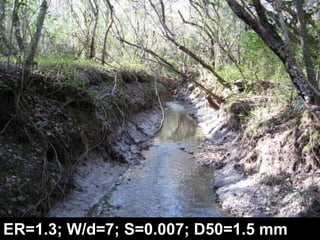

64. ER=1.3; W/d=7; S=0.007; D50=1.5 mm

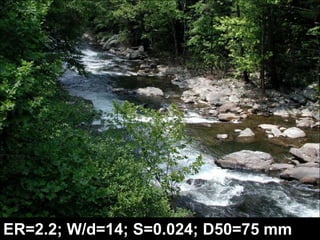

65. ER=2.2; W/d=14; S=0.024; D50=75 mm

66. ER=6.5; W/d=10.5; S=0.008; D50=1.5 mm

67. ER=1.5; W/d=10; S=0.009; D50=2 mm

68. ER=1.4; W/d=10; S=0.050; D50=50 mm

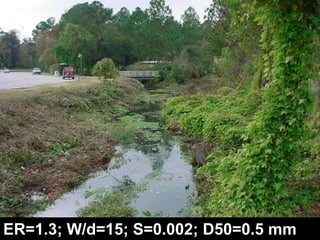

69. ER=1.3; W/d=15; S=0.002; D50=0.5 mm

70. ER=1.3; W/d=7; S=0.007; D50=1.5 mm

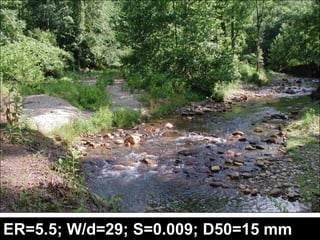

71. ER=5.5; W/d=29; S=0.009; D50=15 mm

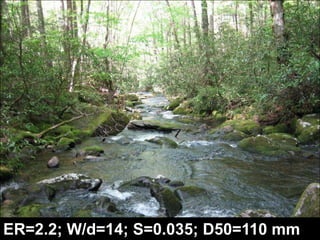

72. ER=2.2; W/d=14; S=0.035; D50=110 mm

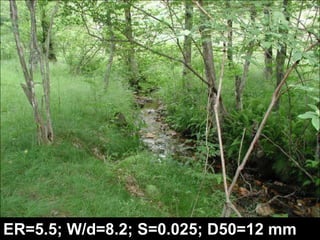

73. ER=5.5; W/d=8.2; S=0.025; D50=12 mm

74. ER=2.1; W/d=15; S=0.065; D50=120 mm

75. ER=2.2; W/d=14; S=0.024; D50=75 mm

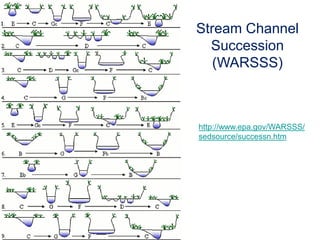

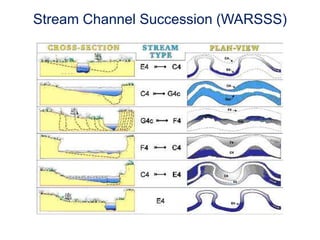

76. Stream Channel Succession (WARSSS)

77. Stream Channel Succession (WARSSS) http://www.epa.gov/WARSSS/sedsource/successn.htm

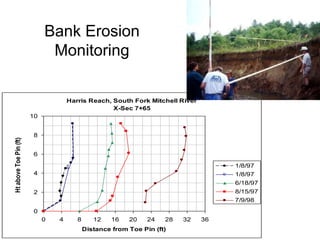

78. Bank ErosionMonitoring

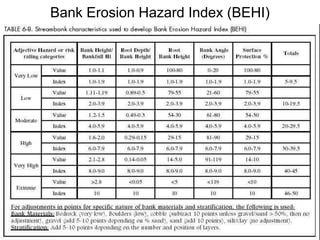

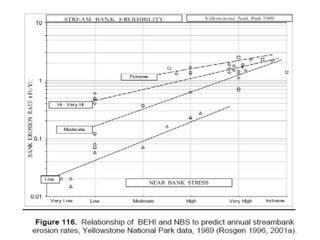

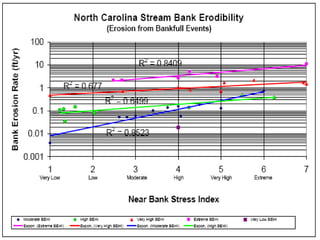

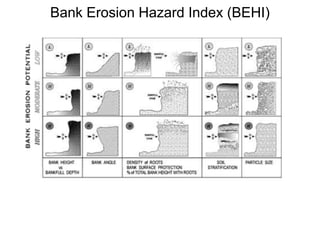

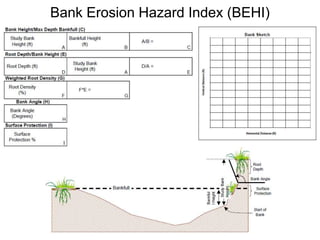

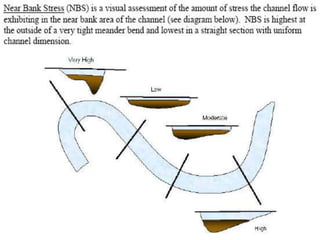

79. Bank Erosion Hazard Index (BEHI)

80. Bank Erosion Hazard Index (BEHI)

81. Bank Erosion Hazard Index (BEHI)

86. Describe Existing Conditions & Trends

87. Describe Restoration Goals

89. Rosgen Classification of Natural Rivers Based on physical characteristics (empirical) Requires field measurements Requires bankfull dimensions www.wildlandhydrology.com

91. Depth

92. Slope

93. Velocity

94. Discharge

95. Flow resistance

96. Sediment size

97. Sediment loadLeopold et al (1964)

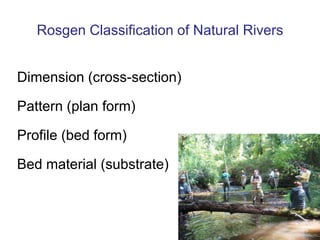

98. Rosgen Classification of Natural Rivers Dimension (cross-section) Pattern (plan form) Profile (bed form) Bed material (substrate)

99. Level 1 Rosgen Classification www.wildlandhydrology.com www.wildlandhydrology.com

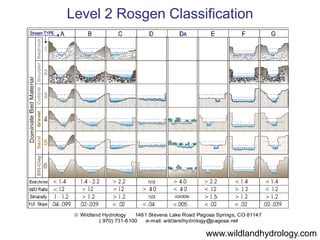

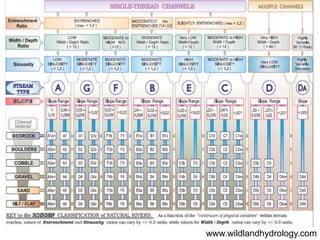

100. Level 2 Rosgen Classification www.wildlandhydrology.com www.wildlandhydrology.com

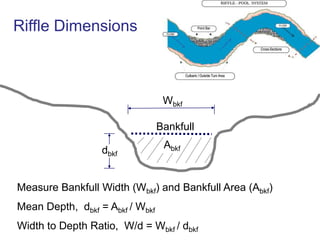

101. Riffle Dimensions Wbkf Bankfull Abkf dbkf Measure Bankfull Width (Wbkf) and Bankfull Area (Abkf) Mean Depth, dbkf = Abkf / Wbkf Width to Depth Ratio, W/d = Wbkf / dbkf

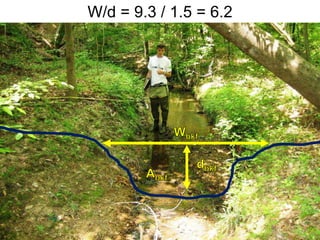

102. W/d = 9.3 / 1.5 = 6.2 Wbkf dbkf Abkf

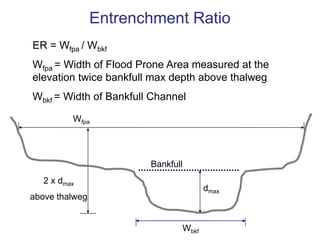

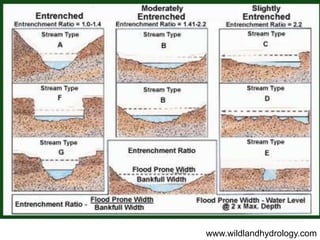

103. Entrenchment Ratio ER = Wfpa / Wbkf Wfpa = Width of Flood Prone Area measured at the elevation twice bankfull max depth above thalweg Wbkf = Width of Bankfull Channel Wfpa Bankfull 2 x dmax above thalweg dmax Wbkf

104. ER = Wfpa / Wbkf = 63/ 15 = 4.2 Wfpa Wbkf

105. Bed Material (Substrate) Silt/Clay: < 0.062 mm Sand: 0.062 – 2 mm Gravel: 2 – 64 mm Cobble: 64 – 256 mm Boulder: 256 – 2048 mm

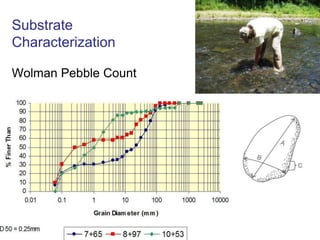

106. Substrate CharacterizationWolman Pebble Count

107. www.wildlandhydrology.com

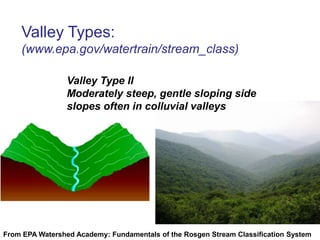

108. Valley Types: (www.epa.gov/watertrain/stream_class) Valley Type II Moderately steep, gentle sloping side slopes often in colluvial valleys From EPA Watershed Academy: Fundamentals of the Rosgen Stream Classification System

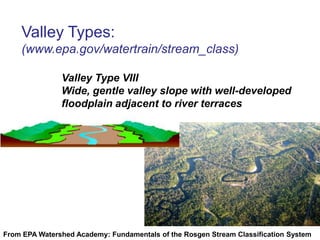

109. Valley Types: (www.epa.gov/watertrain/stream_class) Valley Type VIII Wide, gentle valley slope with well-developed floodplain adjacent to river terraces From EPA Watershed Academy: Fundamentals of the Rosgen Stream Classification System

110. Stream Types in Landscape Positions www.wildlandhydrology.com

111. A Streams Incised, Narrow & Deep, Steep Slope Colluvial Valley

112. www.wildlandhydrology.com

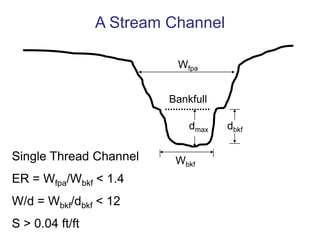

113. A Stream Channel Wfpa Bankfull dbkf dmax Single Thread Channel ER = Wfpa/Wbkf < 1.4 W/d = Wbkf/dbkf < 12 S > 0.04 ft/ft Wbkf

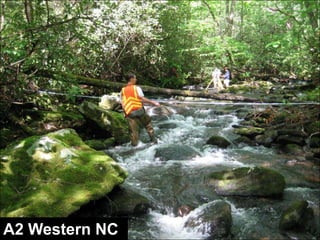

114. A2 Western NC

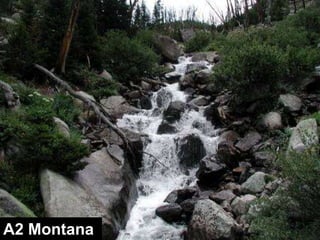

115. A2 Montana

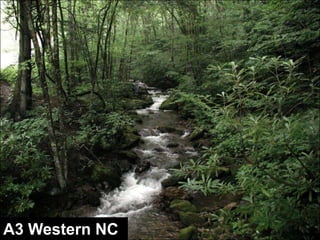

116. A3 Western NC

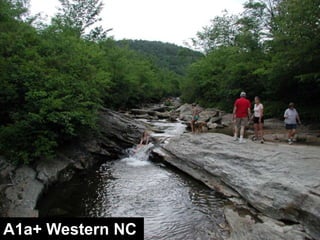

117. Aa+ Streams Very Steep (>0.1 ft/ft) A1a+ Western NC

118. A1a+ Western NC

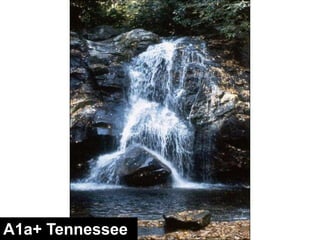

119. A1a+ Tennessee

120. B Streams Moderately Incised, Wide & Shallow, Moderate Slope, Colluvial Valley

121. B Stream Channel Wfpa Bankfull dbkf dmax Wbkf Single Thread Channel ER = Wfpa/Wbkf = 1.4 – 2.2 W/d = Wbkf/dbkf > 12 S = 0.02 – 0.04 ft/ft

122. Stream Types in Landscape Positions www.wildlandhydrology.com

123. www.wildlandhydrology.com

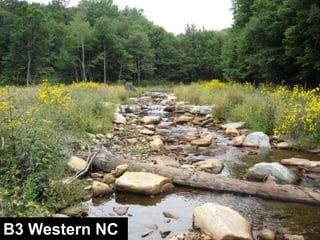

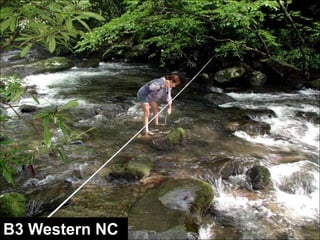

124. B3 Western NC

125. B3 Western NC

126. B3 Western NC

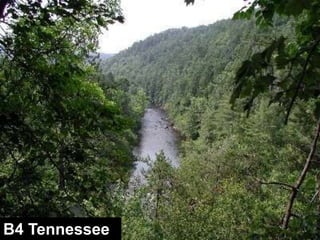

127. B4 Tennessee

128. B3 Western NC

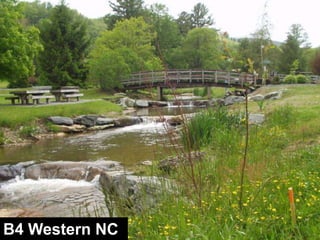

129. B4 Western NC

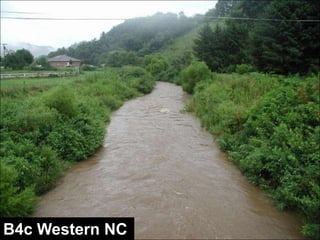

130. B4c Western NC

131. C Streams Not Incised, Wide & Shallow, Low Slope Alluvial Valley

132. C Stream Channel Wfpa Bankfull dbkf dmax Wbkf Single Thread Channel ER = Wfpa/Wbkf > 2.2 W/d = Wbkf/dbkf > 12 S < 0.02 ft/ft

133. Stream Types in Landscape Positions www.wildlandhydrology.com

134. www.wildlandhydrology.com

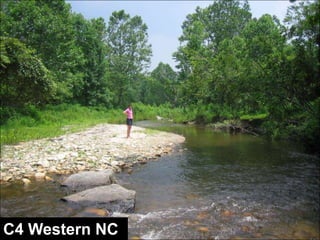

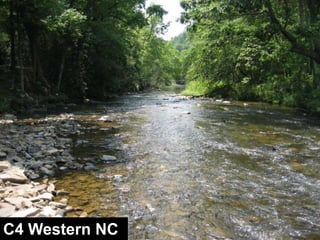

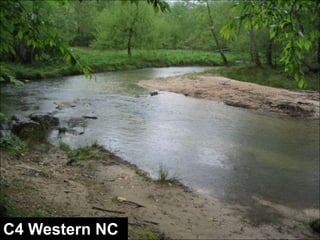

135. C4 Western NC

136. C4 Western NC

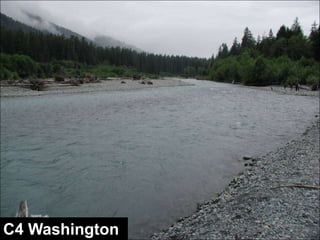

137. C4 Washington

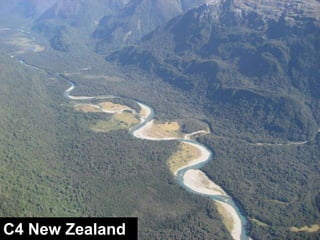

138. C4 New Zealand

139. C4 Western NC

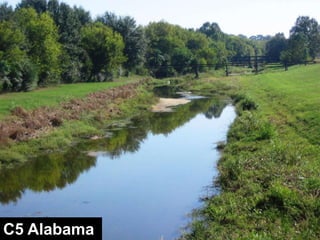

140. C5 Alabama

141. C4 Utah

142. C4 Western NC

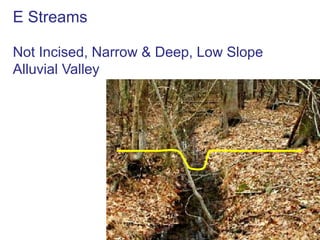

143. E Streams Not Incised, Narrow & Deep, Low Slope Alluvial Valley

144. E Stream Channel Wfpa Bankfull dbkf dmax Single Thread Channel ER = Wfpa/Wbkf > 2.2 W/d = Wbkf/dbkf < 12 S < 0.02 ft/ft Wbkf

145. Stream Types in Landscape Positions www.wildlandhydrology.com

146. www.wildlandhydrology.com

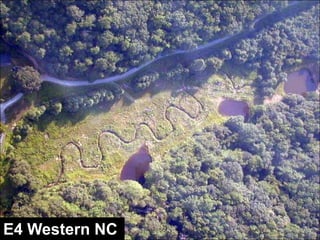

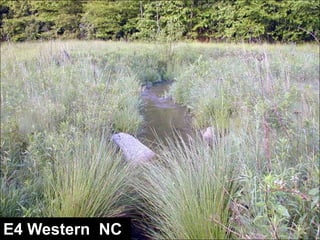

147. E4 Western NC

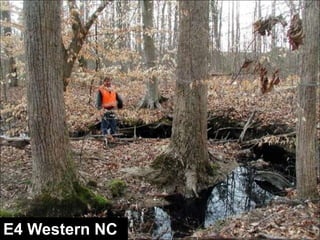

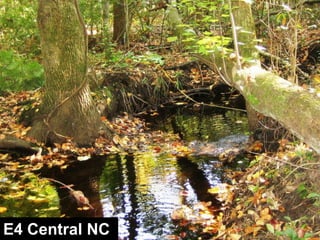

148. E4 Central NC

149. E4 Central NC

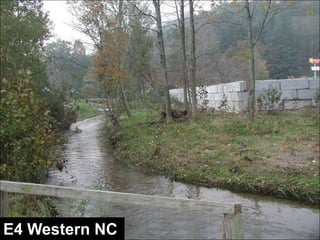

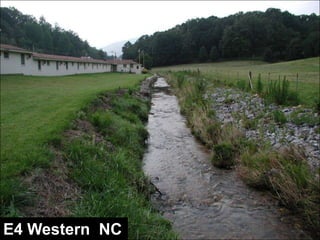

150. E4 Western NC

151. E4 Western NC

152. E4b Western NC

153. E4 Western NC

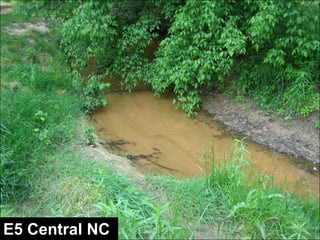

154. E5 Central NC

155. E4 Central NC

156. E4 Western NC

157. E4 Western NC

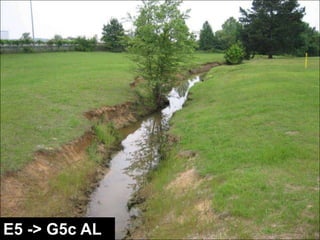

158. E5 -> G5c AL

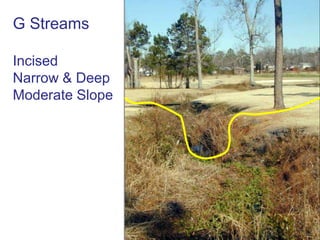

159. G Streams Incised Narrow & Deep Moderate Slope

160. G Stream Channel Wfpa Bankfull dbkf dmax Single Thread Channel ER = Wfpa/Wbkf < 1.4 W/d = Wbkf/dbkf < 12 S = 0.02 – 0.04 ft/ft Wbkf

161. Stream Types in Landscape Positions www.wildlandhydrology.com

162. www.wildlandhydrology.com

163. G4 Western NC

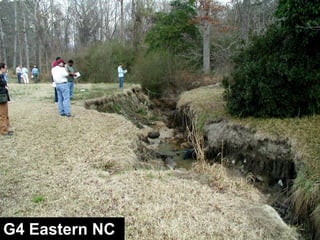

164. G4 Eastern NC

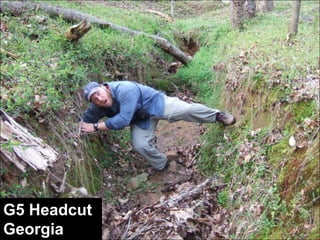

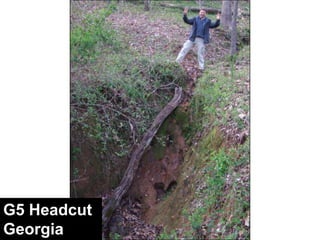

165. G5 Headcut Georgia

166. G5 Headcut Georgia

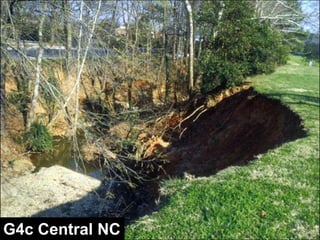

167. G4c Central NC

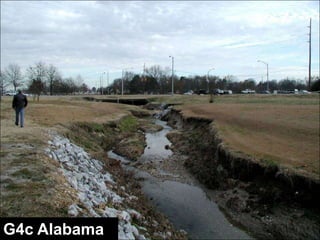

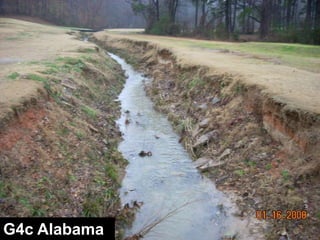

168. G4c Alabama

169. G4c Alabama

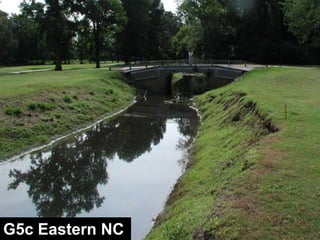

170. G5c Eastern NC

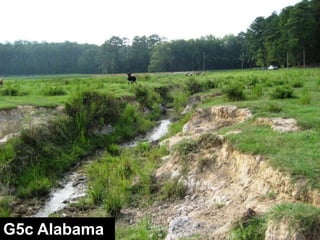

171. G5c Alabama

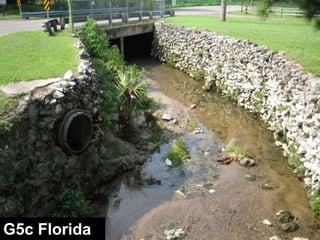

172. G5c Florida

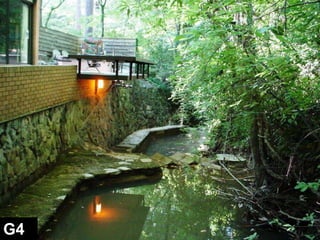

173. G4

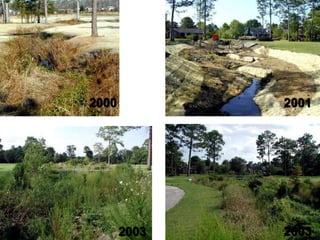

174. 2000 2001 2003 2003

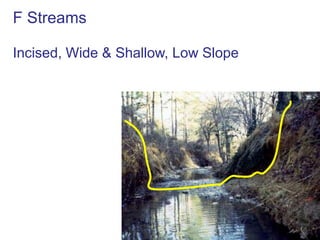

175. F Streams Incised, Wide & Shallow, Low Slope

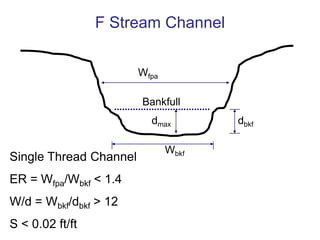

176. F Stream Channel Wfpa Bankfull dbkf dmax Wbkf Single Thread Channel ER = Wfpa/Wbkf < 1.4 W/d = Wbkf/dbkf > 12 S < 0.02 ft/ft

177. Stream Types in Landscape Positions www.wildlandhydrology.com

178. www.wildlandhydrology.com

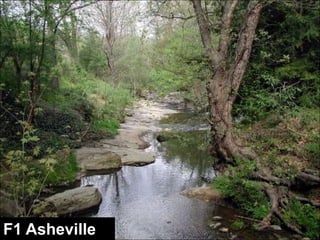

179. F1 Asheville

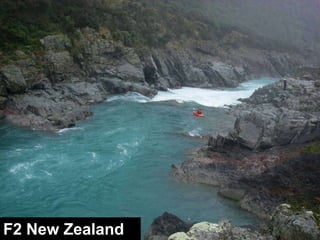

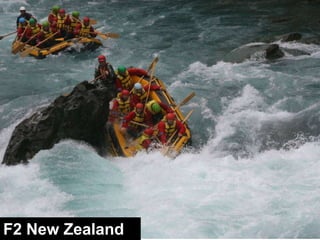

180. F2 New Zealand

181. F2 New Zealand

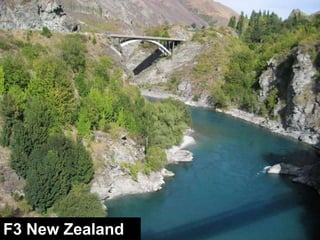

182. F3 New Zealand

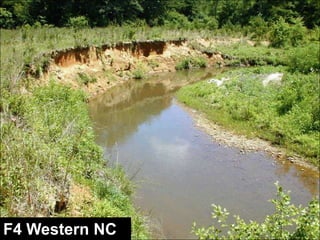

183. F4 Western NC

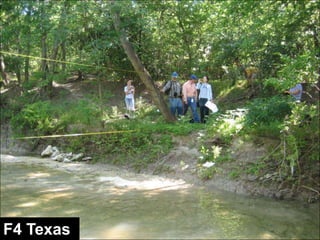

184. F4 Texas

185. F4 Texas

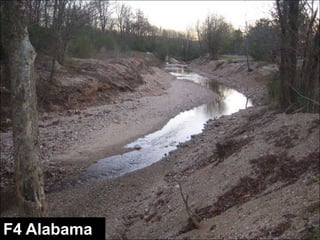

186. F4 Alabama

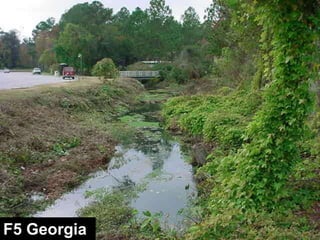

187. F5 Georgia

188. F5 South Carolina

189. Ugg Texas

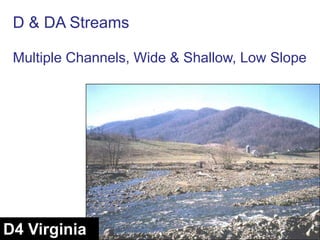

190. D & DA Streams Multiple Channels, Wide & Shallow, Low Slope D4 Virginia

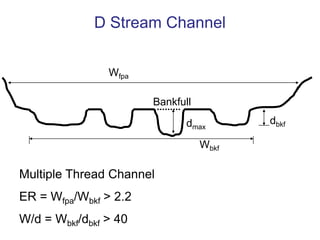

191. D Stream Channel Wfpa Bankfull dbkf dmax Wbkf Multiple Thread Channel ER = Wfpa/Wbkf > 2.2 W/d = Wbkf/dbkf > 40

192. Stream Types in Landscape Positions www.wildlandhydrology.com

193. www.wildlandhydrology.com

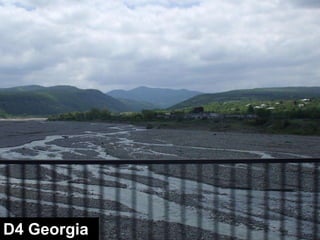

194. D4 Georgia

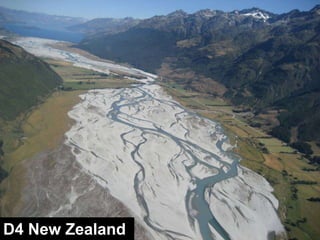

195. D4 New Zealand

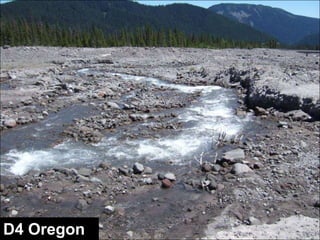

196. D4 Oregon

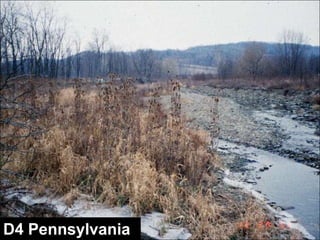

197. D4 Pennsylvania

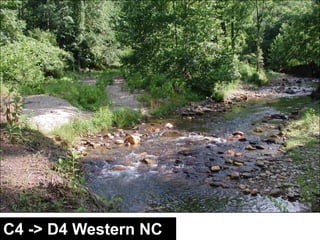

198. C4 -> D4 Western NC

199. C4 -> D4 Western NC

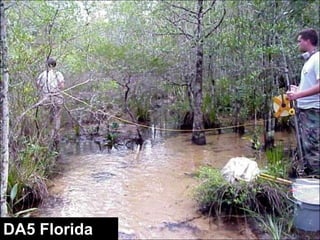

200. DA5 Florida

201. www.wildlandhydrology.com

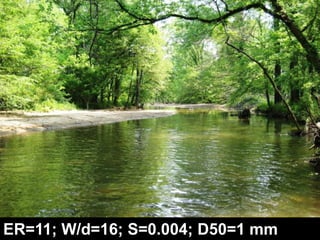

202. ER=11; W/d=16; S=0.004; D50=1 mm

203. ER=1.3; W/d=7; S=0.007; D50=1.5 mm

204. ER=2.2; W/d=14; S=0.024; D50=75 mm

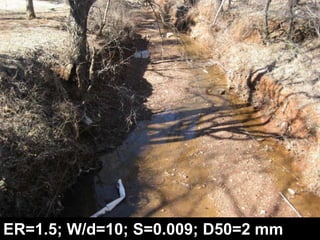

205. ER=1.5; W/d=10; S=0.009; D50=2 mm

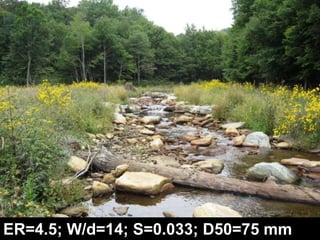

206. ER=4.5; W/d=14; S=0.033; D50=75 mm

207. ER=3.4; W/d=13.2; S=0.012; D50=15 mm

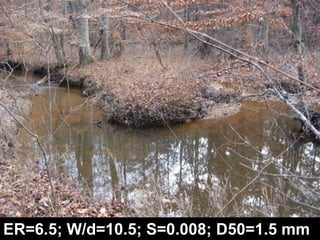

208. ER=6.5; W/d=10.5; S=0.008; D50=1.5 mm

209. ER=10; W/d=9.5; S=0.005; D50=0.5 mm

210. ER=1.5; W/d=10; S=0.009; D50=2 mm

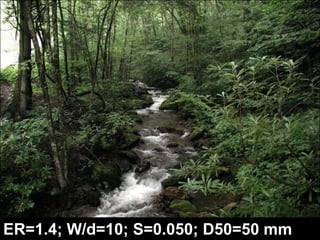

211. ER=1.4; W/d=10; S=0.050; D50=50 mm

212. ER=1.3; W/d=15; S=0.002; D50=0.5 mm

213. ER=1.3; W/d=7; S=0.007; D50=1.5 mm

214. ER=5.5; W/d=29; S=0.009; D50=15 mm

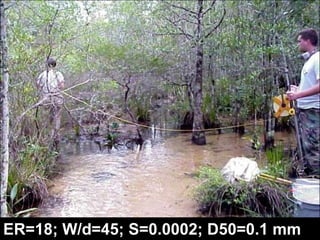

215. DA5 Florida ER=18; W/d=45; S=0.0002; D50=0.1 mm

216. ER=2.2; W/d=14; S=0.035; D50=110 mm

217. ER=5.5; W/d=8.2; S=0.025; D50=12 mm

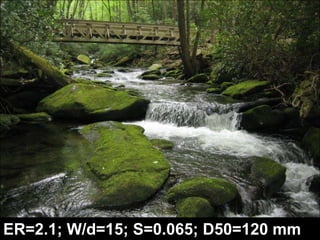

218. ER=2.1; W/d=15; S=0.065; D50=120 mm

219. ER=2.2; W/d=14; S=0.024; D50=75 mm
