The next version of Qt adds a framework for defining and executing hierarchical finite state machines in Qt applications. With Qt State Machines you can effectively model how components react to events over time; these state machines are a natural extension to Qt's event-driven programming model. State machines allow you to express the behavior of your application in a more rigid, explicit way, resulting in code that's easier to test, maintain and extend. This session presents the core concepts and functionality of Qt State Machines. Presentation by Kent Hansen held during Qt Developer Days 2009. http://qt.nokia.com/developer/learning/elearning

1. Qt State Machine Framework
09/25/09

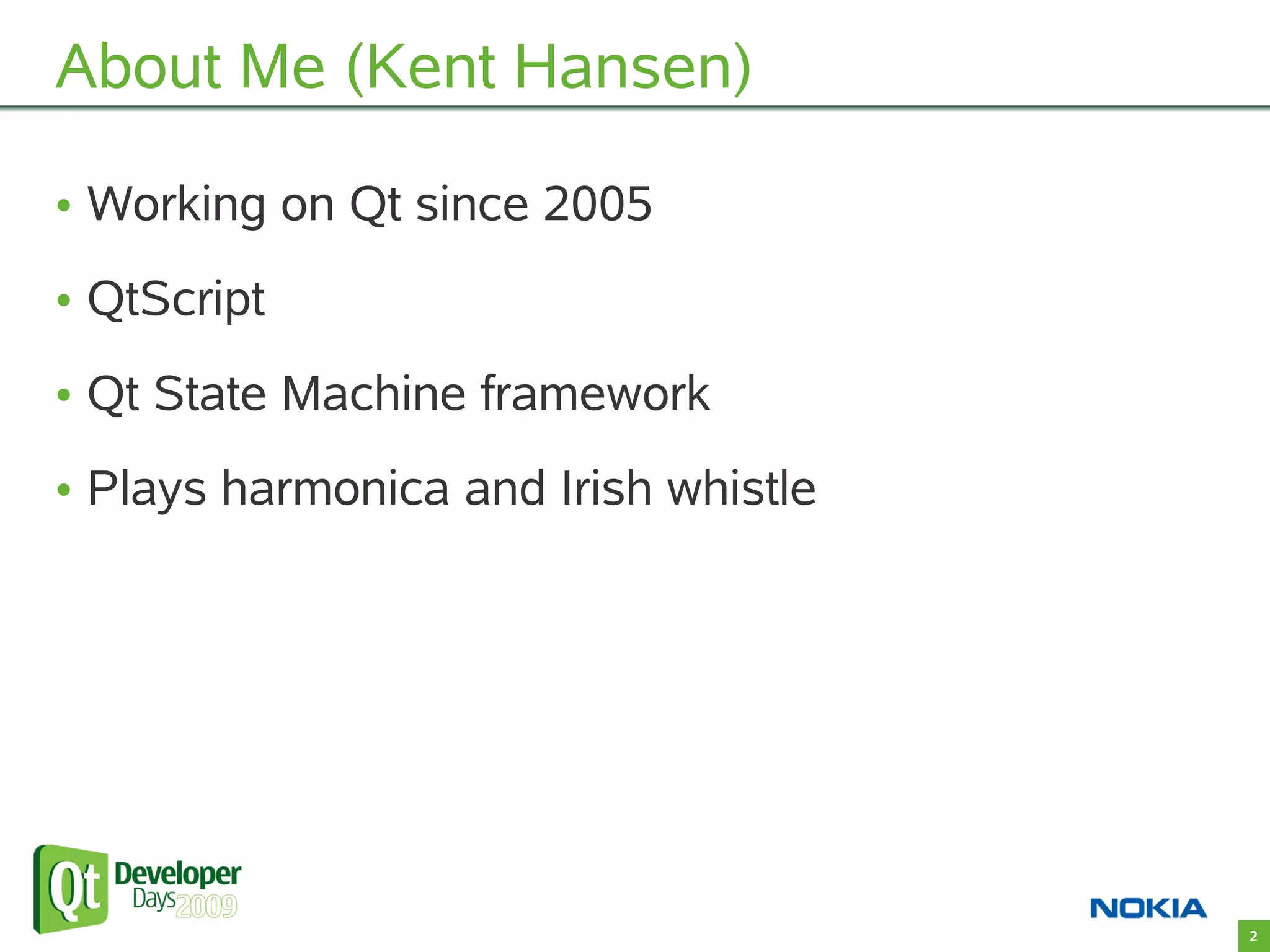

2. About Me (Kent Hansen)
• Working on Qt since 2005
• QtScript
• Qt State Machine framework
• Plays harmonica and Irish whistle
2

3. Goals For This Talk
• Introduce the Qt State Machine Framework (SMF)
• Show how to incorporate it in your Qt application
• Inspire you to think about how you would use it
3

4. Agenda
• State machines – what and why?
• Statecharts tour
• Qt State Machine tour
• Wrap-up
4

5. Qt State Machine Framework (SMF)
• Introduced in Qt 4.6
• Part of QtCore module (ubiquitous)
• Originated from Qt-SCXML research project
5

6. Qt State Machine Framework (SMF)
• Provides C++ API for creating hierarchical finite
state machines (HFSMs)
• Provides “interpreter” for executing HFSMs
6

7. State Chart XML (SCXML)
• “A general-purpose event-based state machine
language”
• W3C draft (http://www.w3.org/TR/scxml/)
–Defines tags and attributes
–Defines algorithm for interpretation
7

8. Statecharts – Some use cases
• State-based (“fluid”) UIs
• Asynchronous communication
• AI
• Gesture recognition
• Controller of Model-View-Controller
• Your new, fancy product (e.g. “Hot dog oven”)
8

9. Mmm, hot dogs...
9

10. Why State Machines in Qt? (I)
?
10

11. Why State Machines in Qt? (II)
• Program = Structure + Behavior
• C++: Structure is language construct
• C++: Event-driven behavior is not language
construct
11

12. Why State Machines in Qt? (III)
• Qt already has event-based infrastructure
• Event representation (QEvent)
• Event dispatch
• Event handlers
• So what's the problem?
12

13. 13

14. The spaghetti code incident (I)
“On button clicked:
if X, do this
else, do that”
14

15. The spaghetti code incident (II)
“On button clicked:
if X, do this
else, if Y or Z
if I and not J do that
else, do that other thing
else, go and have a nap”
15

16. ifs can get iffy; whiles can get wiley
• if-statements --> state is implicit
• Control flow and useful work jumbled together
• Hard to understand and maintain
• Hard to extend
16

17. Can we do better...?
17

18. Qt SMF Mission
It shouldn't be your job to implement a general-
purpose HFSM framework!
18

19. There's flow...
19

20. … and there's control
20

21. What's in it for YOU?
• Write more robust code
• Have your design and implementation speak the
same language
• Cope with incremental complexity
21

22. Qt + State Machines = Very Good Fit
• Natural extension to Qt's application model
• Integration with meta-object system
• Nested states fit nicely with Qt ownership model
22

23. The right tool for the job...
23

24. When NOT to use Qt SMF?
• Lexical analysis, parsing, image decoding
• When performance is critical
• When abstraction level becomes too low
• Not everything should be implemented as a (Qt)
state machine!
24

25. Agenda
• State machines – what and why?
• Statecharts overview
• Qt State Machine tour
• Wrap-up
25

26. Statecharts overview
• Composite (nested) states
• Behavorial inheritance
• History states
26

27. A composite state
27

28. A composite state decomposed
28

29. “Get ready” state decomposed
29

30. “Speak” state decomposed
30

31. Composite states
• “Zoom in”: Consider more details
• “Zoom out”: Abstract away
• Black box vs white box
31

32. Like Father, Like Son...
32

33. Behavioral Inheritance
• States implicitly “inherit” the transitions of their
ancestor state(s)
• Enables grouping and specialization
• Analogue: Class-based inheritance
33

34. Behavioral Inheritance example (I)
34

35. Behavioral Inheritance example (II)
35

36. History matters...
36

37. History states
• Provide “pause and resume” functionality
• State machine remembers active state
• State machine restores last active state
37

38. History state example from real life
38

39. History state example
39

40. Agenda
• State machines – what and why?
• Statecharts overview
• Qt State Machine tour
• Wrap-up
40

41. Qt State Machine tour
• API introduction w/ small example
• Events and transitions
• Working with states
• Using state machines in your application
41

42. Qt State Machine API
• Classes for representing states
• Classes for representing transitions
• Classes for state machine-specific events
• QStateMachine class (container & interpreter)
42

43. My First State Machine
43

44. My First State Machine
“Show me the code!”
44

45. State machine set-up recipe
• Create QStateMachine
• Create states
• Create transitions between states
• Hook up to state signals (entered(), finished())
• Set the initial state
• Start the machine
45

46. State machine event processing
• State machine runs its own event loop
• QEvent-based
• Use QStateMachine::postEvent() to post an event
46

47. Transitions (I)
• Abstract base class: QAbstractTransition
–bool eventTest(QEvent*);
• Has zero or more target states
• Add to source state using QState::addTransition()
47

48. Transitions (II)
• Convenience for Qt signal transitions:
addTransition(object, signal, targetState)
• Standard Qt event (e.g. QMouseEvent) transitions
also supported
– QEventTransition
48

49. Responding to state changes
• QAbstractState::entered() signal
• QAbstractState::exited() signal
• QAbstractTransition::triggered() signal
• QState::finished() signal
49

50. Composite states
• Follows Qt object hierarchy
• Pass parent state to state constructor
QState *s1 = new QState();
QState *s11 = new QState(s1);
QState *s12 = new QState(s1);
QFinalState *s13 = new QFinalState(s1);
50

51. Paralell state group
• Set the state's childMode property
QState *s1 = new QState();
s1->setChildMode(QState::ParallelStates);
QState *s11 = new QState(s1);
QState *s12 = new QState(s1);
51

52. History states
• QHistoryState class
• Create as child of composite state
• Use the history state as target of a transition
QState *s1 = new QState();
QHistoryState *s1h = new QHistoryState(s1);
…
s2->addTransition(foo, SIGNAL(bar()), s1h);
52

53. How to use state machines...?
53

54. Scenario: Game (I)
• Many different types of game objects
• Each type's behavior modeled as composite state
• Events trigger transitions
– Input (e.g. key press)
• States operate on the game object
–Setting properties (e.g. velocity)
–Calling slots
54

55. Scenario: Game (II)
• Each game object has its own state machine
• The machines run independently
• Separate, top-level state machine that
“orchestrates”
–Game menus & modes
–Start/quit
55

56. Scenario: Game (III)
• Presence of a state machine is encapsulated
• Up to each type of object
• “Simple” objects don't need to use a state machine
56

57. States and animations
• Integrates with Qt animation framework (also new
in Qt 4.6)
• QAbstractTransition::addAnimation()
• Almost all Qt animation examples use Qt SMF
57

58. My tips (I)
• Use the meta-object system integration
–assignProperty(object, propertyName, value)
–entered() and exited() signals
58

59. My tips (II)
• Use composition
–Build complex behavior from simple states
–Take advantage of behavioral inheritance!
–Don't subclass unnecessarily
59

60. My tips (III)
• Always draw the statechart first
–Visualizing the design from C++ is hard
–The statechart is the design document
60

61. Agenda
• State machines – what and why?
• Statecharts tour
• Qt State Machine tour
• Wrap-up
61

62. Summary (I)
• Statecharts are a powerful tool for modeling
complex, event-driven systems
–General-purpose
–Well-defined semantics
62

63. Summary (II)
• With the Qt State Machine Framework, you can
build and run statecharts
• Write more robust code
• You need to consider when/where/how to use it
63

64. The Future (Research)
• Qt-SCXML to become part of Qt?
• Qt state machine compiler
• Visual design tool?
• Your feedback matters!
64

65. Relevant resources
● http://labs.qt.nokia.com
● http://lists.trolltech.com
● Qt Quarterly issue 30
● irc.freenode.net: #qt-labs
65

66. Thank You!
Questions?
66
