WebGL allows for 3D graphics rendering within web browsers using JavaScript and standard web technologies. It provides an API for accessing a computer's GPU similarly to Canvas for 2D drawing. THREE.js makes WebGL programming easier by abstracting away complexities like shader programming and matrix computations. A simple example creates a 3D cube in THREE.js with just a few lines of code versus the longer WebGL example. THREE.js provides high-level objects for cameras, lights, materials and more to build 3D scenes efficiently in the browser.

1. WebGL with THREE.js
Wednesday, December 12, 12

2. @antonnarusberg
anton@cannedapps.com
Google Developers Group Tallinn
http://bit.ly/gdgtallinn
@GDGTallinn
Wednesday, December 12, 12

3. 3D in Web Browsers
Wednesday, December 12, 12

4. 3D in Web Browsers
Full power of computer's GPU using only JS, web browser
and standard web technology stack.
Old way - plugins, native applications
New way - WebGL
Wednesday, December 12, 12

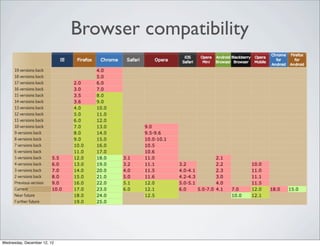

5. Browser compatibility
Wednesday, December 12, 12

6. So how do you use it?
WebGL is an API, accessed through
JavaScript programming interfaces.
Analogous to 2D drawing using the
HTML5 Canvas element
Based on OpenGL ES 2.0 standard
Wednesday, December 12, 12

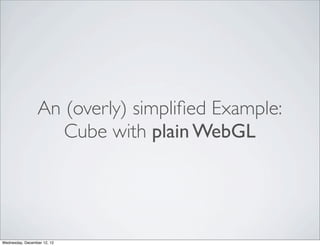

7. An (overly) simplified Example:
Cube with plain WebGL
Wednesday, December 12, 12

8. // get the WebGL context to access the API
var canvas = document.getElementById("lesson04-canvas");
gl = canvas.getContext("experimental-webgl");
// Set up Shaders
var fragmentShader = getShader(gl, "shader-fs");
var vertexShader = getShader(gl, "shader-vs");
shaderProgram = gl.createProgram();
gl.attachShader(shaderProgram, vertexShader);
gl.attachShader(shaderProgram, fragmentShader);
gl.linkProgram(shaderProgram);
gl.useProgram(shaderProgram);
// ....
Wednesday, December 12, 12

9. <script id="shader-fs" type="x-shader/x-fragment">
precision mediump float;
varying vec4 vColor;
void main(void) {
gl_FragColor = vColor;
}
</script>
<script id="shader-vs" type="x-shader/x-vertex">
attribute vec3 aVertexPosition;
attribute vec4 aVertexColor;
uniform mat4 uMVMatrix;
uniform mat4 uPMatrix;
varying vec4 vColor;
void main(void) {
gl_Position = uPMatrix * uMVMatrix * vec4(aVertexPosition, 1.0);
vColor = aVertexColor;
}
</script>
Wednesday, December 12, 12

10. // A taste of creating the array of vertices for the cube
cubeVertexPositionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, cubeVertexPositionBuffer);
vertices = [
// Front face
-1.0, -1.0, 1.0, 1.0, -1.0, 1.0, 1.0, 1.0, 1.0, -1.0, 1.0, 1.0,
// Back face
-1.0, -1.0, -1.0, -1.0, 1.0, -1.0, 1.0, 1.0, -1.0, 1.0, -1.0, -1.0,
// Top face
-1.0, 1.0, -1.0, -1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, -1.0,
// Bottom face
-1.0, -1.0, -1.0, 1.0, -1.0, -1.0, 1.0, -1.0, 1.0, -1.0, -1.0, 1.0,
// Right face
1.0, -1.0, -1.0, 1.0, 1.0, -1.0, 1.0, 1.0, 1.0, 1.0, -1.0, 1.0,
// Left face
-1.0, -1.0, -1.0, -1.0, -1.0, 1.0, -1.0, 1.0, 1.0, -1.0, 1.0, -1.0
];
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(vertices), gl.STATIC_DRAW);
Wednesday, December 12, 12

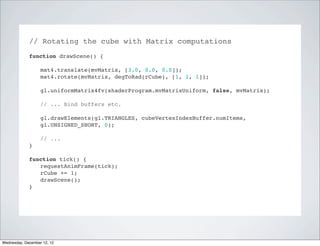

11. // Rotating the cube with Matrix computations
function drawScene() {
mat4.translate(mvMatrix, [3.0, 0.0, 0.0]);
mat4.rotate(mvMatrix, degToRad(rCube), [1, 1, 1]);
gl.uniformMatrix4fv(shaderProgram.mvMatrixUniform, false, mvMatrix);
// ... Bind buffers etc.
gl.drawElements(gl.TRIANGLES, cubeVertexIndexBuffer.numItems,
gl.UNSIGNED_SHORT, 0);
// ...
}
function tick() {
requestAnimFrame(tick);
rCube += 1;
drawScene();
}
Wednesday, December 12, 12

12. Skills needed for plain WebGL
* GLSL, the shading language used by OpenGL and
WebGL
* Lots of Math for Matrix computation to set up
transformations
* Creating Vertex buffers to hold data about vertex
positions, normals, colors, and textures
Wednesday, December 12, 12

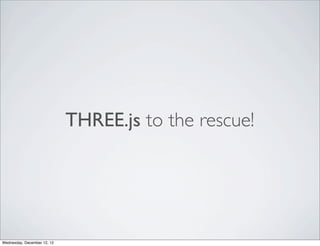

13. THREE.js to the rescue!
Wednesday, December 12, 12

14. THREE.js
* Abstracts away all the painful overhead
* Elegant API to create and manipulate Cameras,
Objects, Lights, Materials etc.
* THREE.js is Open Source
Wednesday, December 12, 12

15. A Cube example using THREE.js
http://learningthreejs.com/data/
lets_do_a_cube/docs/lets_do_a_cube.html
Jerome Etienne - great tutorials on THREE.js
Wednesday, December 12, 12

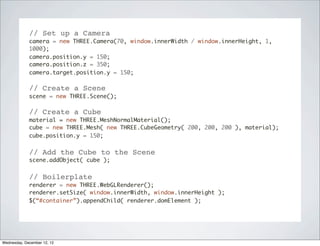

16. // Set up a Camera
camera = new THREE.Camera(70, window.innerWidth / window.innerHeight, 1,
1000);
camera.position.y = 150;
camera.position.z = 350;
camera.target.position.y = 150;
// Create a Scene
scene = new THREE.Scene();
// Create a Cube
material = new THREE.MeshNormalMaterial();
cube = new THREE.Mesh( new THREE.CubeGeometry( 200, 200, 200 ), material);
cube.position.y = 150;
// Add the Cube to the Scene
scene.addObject( cube );
// Boilerplate
renderer = new THREE.WebGLRenderer();
renderer.setSize( window.innerWidth, window.innerHeight );
$(“#container”).appendChild( renderer.domElement );
Wednesday, December 12, 12

17. function animate() {
render();
// Loop
requestAnimationFrame( animate );
}
function render() {
// Rotate
cube.rotation.x += 0.02;
cube.rotation.y += 0.0225;
cube.rotation.z += 0.0175;
// Bounce
var dtime = Date.now() - startTime;
cube.scale.x = 1.0 + 0.3*Math.sin(dtime/300);
cube.scale.y = 1.0 + 0.3*Math.sin(dtime/300);
cube.scale.z = 1.0 + 0.3*Math.sin(dtime/300);
renderer.render( scene, camera );
}
Wednesday, December 12, 12

18. It’s alive!
Wednesday, December 12, 12

19. More Features
Renderers
WebGL, <canvas>, <svg>
Cameras
Perspective and orthographic; controllers: trackball, FPS, path and more
Lights
Ambient, direction, point, spot and hemisphere lights. Cast and receive shadows
Materials
Lambert, Phong and more - with textures, smooth-shading
Shaders
Access to full WebGL capabilities like lens flare, depth pass and an extensive post-processing library
Objects
meshes, particles, sprites, lines, ribbons, ...
Geometry
plane, cube, sphere, torus, 3D text and more
Export/Import
utilities to create Three.js-compatible JSON files from: Blender, CTM, FBX, 3D Max, and OBJ
Wednesday, December 12, 12

20. http://threejs.org/
https://github.com/mrdoob/three.js
http://learningthreejs.com
Wednesday, December 12, 12
