1. PYELOLITHOTOMY,
NEPHROLITHOTOMY,
URETEROLITHOTOMY
TRAYS
LECTURER:UMAR TARIQ
MSC ANAESTHESIA/OTT

2.  PYELOLITHOTOMY: Removal of stone from
pelvis of kidneys.
 NEPHROLITHOTOMY: Removal of stone
from kidney.
 URETEROLITHOTOMY: Removal of stone
from ureter

3. Pyelolithotomy , nephrolithotomy ,
ureterolithotomy tray contains
 General set
 Doyen`s retractor.
 Renal stone forceps(randalls)
 Gill vernet renal sinus retractor- 1.
 Babcock forceps- 2.
 Mixter right angel forcep -1
 Dever retractor-2
 Coryllos Bethune rib-shears-1
 Ureteric catheter

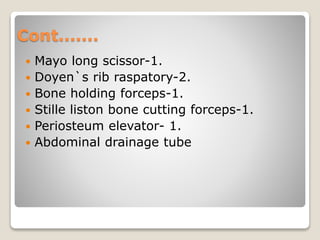

4. Cont.......
 Mayo long scissor-1.
 Doyen`s rib raspatory-2.
 Bone holding forceps-1.
 Stille liston bone cutting forceps-1.
 Periosteum elevator- 1.
 Abdominal drainage tube

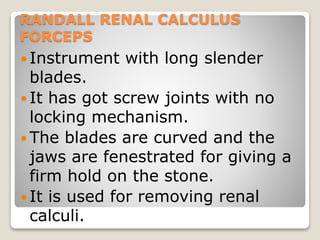

5. RANDALL RENAL CALCULUS
FORCEPS
 Instrument with long slender
blades.
 It has got screw joints with no
locking mechanism.
 The blades are curved and the
jaws are fenestrated for giving a
firm hold on the stone.
 It is used for removing renal
calculi.

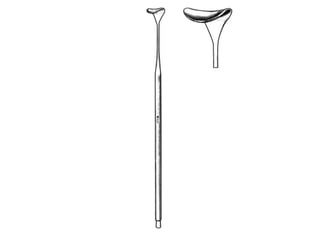

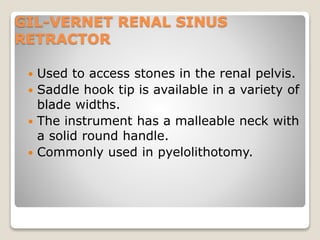

8. GIL-VERNET RENAL SINUS
RETRACTOR
 Used to access stones in the renal pelvis.
 Saddle hook tip is available in a variety of
blade widths.
 The instrument has a malleable neck with
a solid round handle.
 Commonly used in pyelolithotomy.

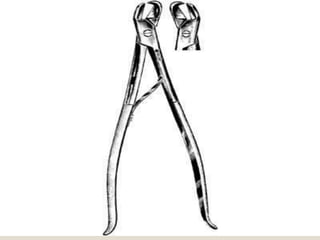

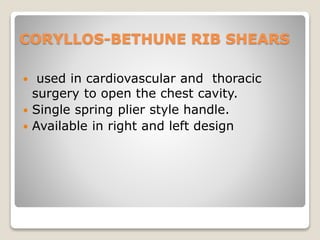

11. CORYLLOS-BETHUNE RIB SHEARS
 used in cardiovascular and thoracic
surgery to open the chest cavity.
 Single spring plier style handle.
 Available in right and left design

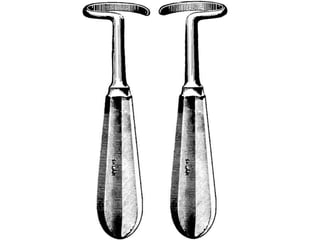

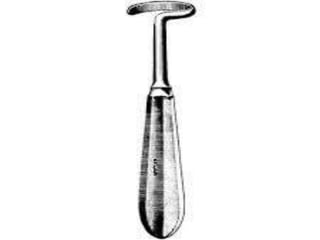

14. DOYEN`S RIB RASPATORY
 The handle has a hollow grip for better
control.
 Doyen`s raspatory has a spiraled hook
shape to scrape individual ribs
 Available in angled left or right as well as
adult and pediatric sizes.
 Used during cardiothoracic surgery
procedures.
 Tip is blunt

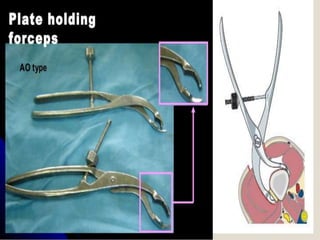

17. BONE HOLDING FORCEPS
 Long handles with jaws which can be toothed
and sometimes with a ratchet mechanism to
make them self retaining.
 Used to hold and manipulate bones.
 Also used to hold a plate against the bone
after fracture reduction during internal
fixation of fractures.
TYPES
Lane
Fergusson
AO design

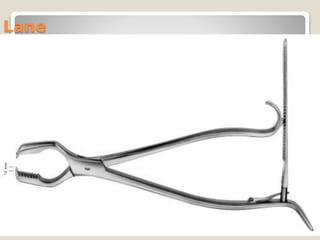

18. Lane

19. Lane

20. Fergusson

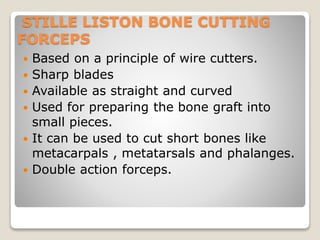

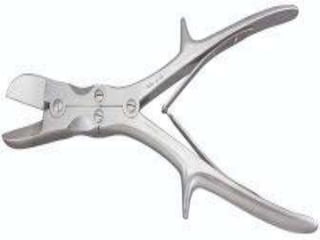

22. STILLE LISTON BONE CUTTING
FORCEPS
 Based on a principle of wire cutters.
 Sharp blades
 Available as straight and curved
 Used for preparing the bone graft into
small pieces.
 It can be used to cut short bones like
metacarpals , metatarsals and phalanges.
 Double action forceps.

25. PERIOSTEUM/PERIOSTEAL
ELEVATOR
 Used to lift the periosteum from bones or
dissect soft tissue.
 Procedures like applying a plate for a
fractured bone is done after elevation of
periosteum i,e subperiosteal dissection.
TYPES
 Farabeuf
 Cobb`s
 langenbeck

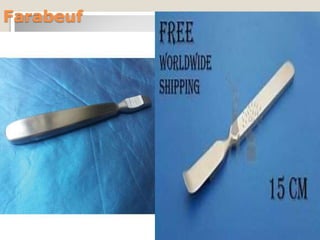

26. Farabeuf

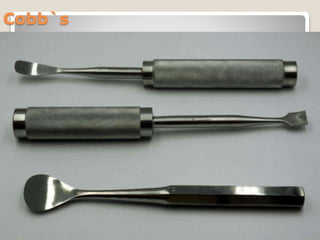

27. Cobb`s

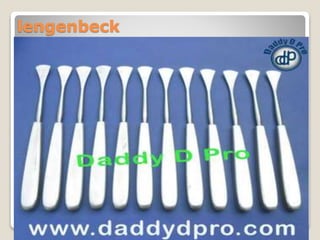

28. lengenbeck
