1. INSTRUMENTSMOHAMMAD AMIRJJM MEDICAL COLLEGEINDIA

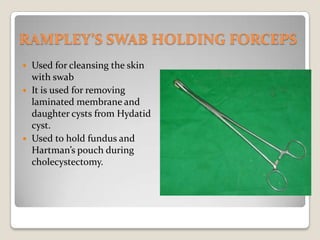

2. RAMPLEY’S SWAB HOLDING FORCEPSUsed for cleansing the skin with swabIt is used for removing laminated membrane and daughter cysts from Hydatid cyst.Used to hold fundus and Hartman’s pouch during cholecystectomy.

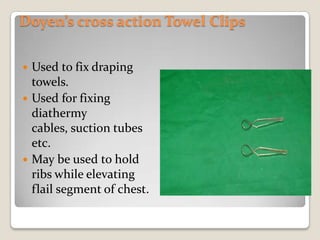

3. Doyen’s cross action Towel ClipsUsed to fix draping towels.Used for fixing diathermy cables, suction tubes etc.May be used to hold ribs while elevating flail segment of chest.

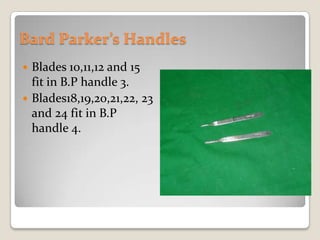

4. Bard Parker’s HandlesBlades 10,11,12 and 15 fit in B.P handle 3.Blades18,19,20,21,22, 23 and 24 fit in B.P handle 4.

5. Spencer Well’s Haemostatic ForcepsUsed to hold bleeding vessels.Used to split internal oblique and transverse abdominis during appendectomy.Used to do blunt dissection.

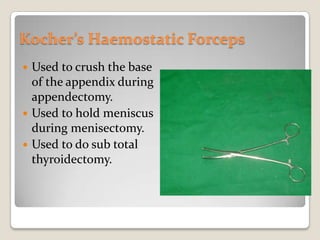

6. Kocher’s Haemostatic ForcepsUsed to crush the base of the appendix during appendectomy.Used to hold meniscus during menisectomy.Used to do sub total thyroidectomy.

7. Mosquito Haemostatic ForcepsUsed to hold fine bleeding vessels.Used to puncture the mesoappendix at an avascular site.Used in operations of infants.

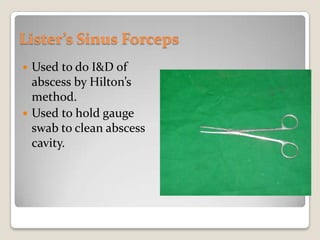

8. Lister’s Sinus ForcepsUsed to do I&D of abscess by Hilton’s method.Used to hold gauge swab to clean abscess cavity.

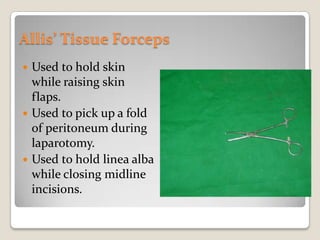

9. Allis’ Tissue ForcepsUsed to hold skin while raising skin flaps.Used to pick up a fold of peritoneum during laparotomy.Used to hold linea alba while closing midline incisions.

10. Babcock’s Tissue ForcepsUsed to pick up appendix during appendectomy.Used to hold delicate visceral organs.Used to hold cut margins of bladder during open prostatectomy.

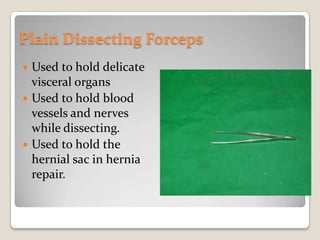

11. Plain Dissecting ForcepsUsed to hold delicate visceral organsUsed to hold blood vessels and nerves while dissecting.Used to hold the hernial sac in hernia repair.

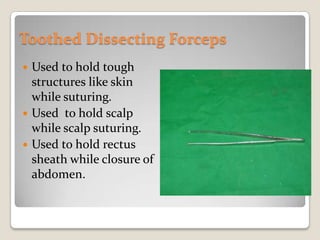

12. Toothed Dissecting ForcepsUsed to hold tough structures like skin while suturing.Used to hold scalp while scalp suturing.Used to hold rectus sheath while closure of abdomen.

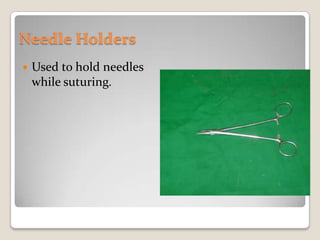

13. Needle HoldersUsed to hold needles while suturing.

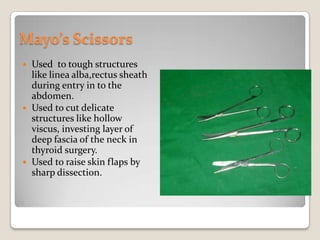

14. Mayo’s ScissorsUsed to tough structures like linea alba,rectus sheath during entry in to the abdomen.Used to cut delicate structures like hollow viscus, investing layer of deep fascia of the neck in thyroid surgery.Used to raise skin flaps by sharp dissection.

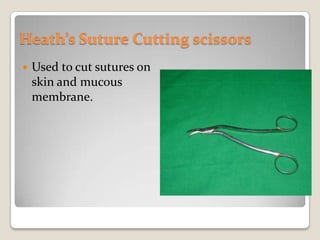

15. Heath’s Suture Cutting scissorsUsed to cut sutures on skin and mucous membrane.

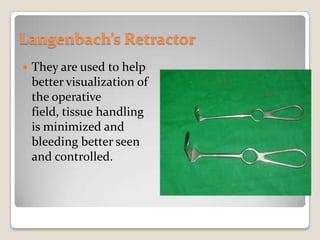

16. Langenbach’s RetractorThey are used to help better visualization of the operative field, tissue handling is minimized and bleeding better seen and controlled.

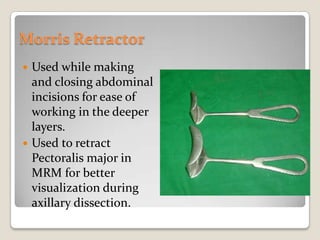

17. Morris RetractorUsed while making and closing abdominal incisions for ease of working in the deeper layers.Used to retract Pectoralis major in MRM for better visualization during axillary dissection.

18. Deaver’s RetractorUsed in Cholecystectomy for retraction of right lobe of liver. Used in Truncal vagotomy for retraction of left lobe of liver.Used in kidney operations to retract the anterior abdominal wall.

19. Joll’s Thyroid RetractorIt is a self retaining retractor used in thyroid surgeries to retract the skin.

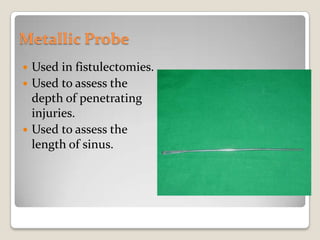

20. Metallic ProbeUsed in fistulectomies.Used to assess the depth of penetrating injuries.Used to assess the length of sinus.

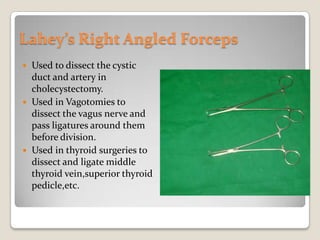

21. Lahey’s Right Angled ForcepsUsed to dissect the cystic duct and artery in cholecystectomy.Used in Vagotomies to dissect the vagus nerve and pass ligatures around them before division.Used in thyroid surgeries to dissect and ligate middle thyroid vein,superior thyroid pedicle,etc.

22. Desjardin’s Choledocholithotomy ForcepsUsed to remove stones from common bile duct.Used to remove stone from kidney, bladder stone.

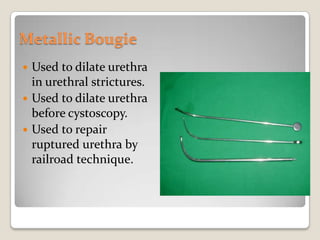

23. Metallic BougieUsed to dilate urethra in urethral strictures.Used to dilate urethra before cystoscopy.Used to repair ruptured urethra by railroad technique.

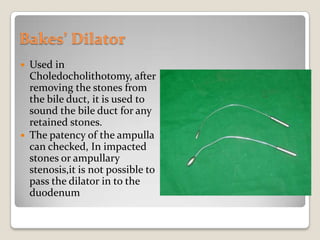

24. Bakes’ DilatorUsed in Choledocholithotomy, after removing the stones from the bile duct, it is used to sound the bile duct for any retained stones.The patency of the ampulla can checked, In impacted stones or ampullary stenosis,it is not possible to pass the dilator in to the duodenum

25. Doyen’s Intestinal ClampsUsed in gut resection and anastomosis.

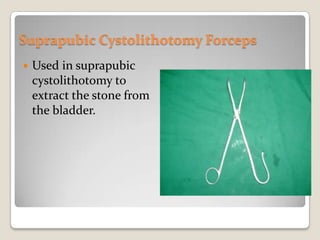

26. Suprapubic Cystolithotomy ForcepsUsed in suprapubic cystolithotomy to extract the stone from the bladder.

27. Red Rubber CatheterIt comes in sizes of 6,8,10etc.the size of the catheter is expressed in mm as number of size/2 +1.Used to drain urine.Used to measure amount of residual volume of urine.Used to administer chemotherapy drugs for Ca bladder.

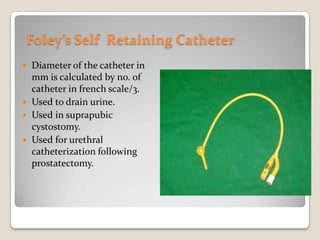

28. Foley’s Self Retaining CatheterDiameter of the catheter in mm is calculated by no. of catheter in french scale/3.Used to drain urine.Used in suprapubic cystostomy.Used for urethral catheterization following prostatectomy.

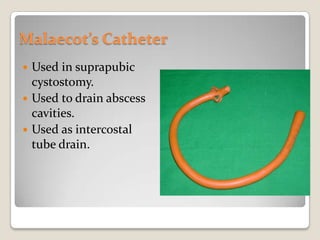

29. Malaecot’s CatheterUsed in suprapubic cystostomy.Used to drain abscess cavities.Used as intercostal tube drain.

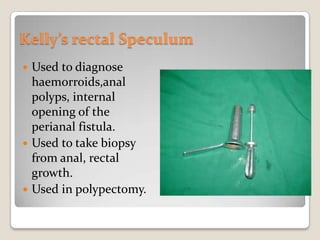

30. Kelly’s rectal SpeculumUsed to diagnose haemorroids,anal polyps, internal opening of the perianal fistula.Used to take biopsy from anal, rectal growth.Used in polypectomy.

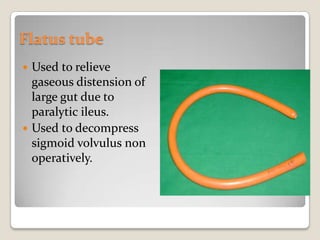

31. Flatus tubeUsed to relieve gaseous distension of large gut due to paralytic ileus.Used to decompress sigmoid volvulus non operatively.

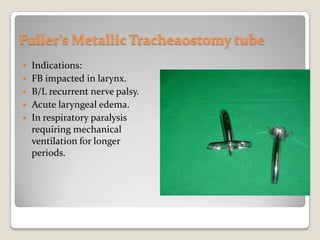

32. Fuller’s Metallic Tracheaostomy tubeIndications:FB impacted in larynx.B/L recurrent nerve palsy.Acute laryngeal edema.In respiratory paralysis requiring mechanical ventilation for longer periods.

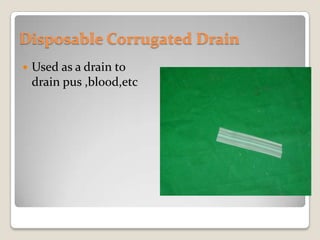

33. Disposable Corrugated DrainUsed as a drain to drain pus ,blood,etc

34. Mayo’s Vein stripperUsed to do stripping of varicose veins.

35. Giglie’s SawUsed to cut bones in amputations.Used to do craniotomies.

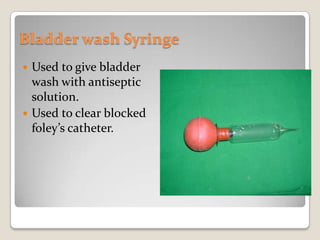

36. Bladder wash SyringeUsed to give bladder wash with antiseptic solution.Used to clear blocked foley’s catheter.

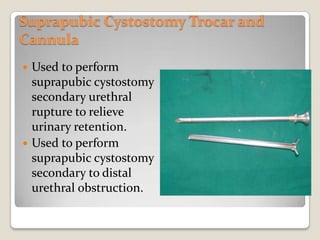

37. Suprapubic Cystostomy Trocar and CannulaUsed to perform suprapubic cystostomy secondary urethral rupture to relieve urinary retention.Used to perform suprapubic cystostomy secondary to distal urethral obstruction.

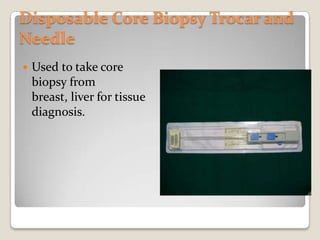

38. Disposable Core Biopsy Trocar and NeedleUsed to take core biopsy from breast, liver for tissue diagnosis.

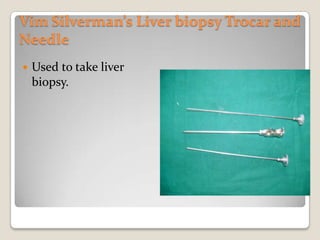

39. Vim Silverman’s Liver biopsy Trocar and NeedleUsed to take liver biopsy.

40. Bone cutter and Bone NibblerUsed to reshape the bone during osteotomies, amputations.

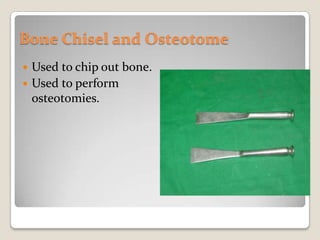

41. Bone Chisel and OsteotomeUsed to chip out bone.Used to perform osteotomies.

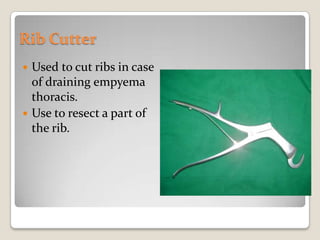

42. Rib CutterUsed to cut ribs in case of draining empyema thoracis.Use to resect a part of the rib.

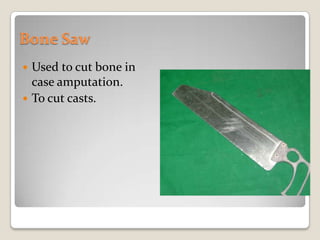

43. Bone SawUsed to cut bone in case amputation.To cut casts.

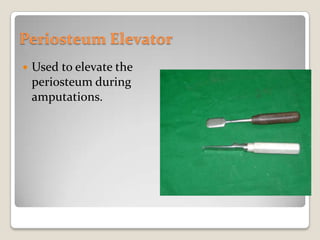

44. Periosteum ElevatorUsed to elevate the periosteum during amputations.

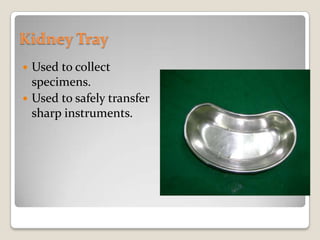

45. Kidney TrayUsed to collect specimens.Used to safely transfer sharp instruments.

46. THANK YOU
