Slides from Defcon IoT Village Workshop Ever wondered how people get shells via hooking up to chips or pins on a board? Or how to dump the firmware off a device you own at home? How chips that send those bits, bytes, and nibbles flying across traces on a board can be analyzed for profit? The Pwning IoT Devices via Hardware Attacks workshop is focused on a hands-on learning experience, of how people use hardware attacks to get initial access IoT Devices for security research. This workshop is designed for people new to hardware hacking, looking to have fun exploiting the Internet of (broken) Things. So come on out if you're looking to join the embedded system & IoT exploitation party!

1. P w n i n g I o T v i a H a r d w a r e A t t a c k s
Chase Schultz, Senior Security Consultant
cschultz@securityevaluators.com

2. About ISE
Analysts
• White box
Perspective
• Hackers; Cryptographers; RE
Research
• Routers; NAS; Healthcare
Customers
• Companies with high value assets
Exploits
• iPhone; Android; Ford; Exxon; Diebold

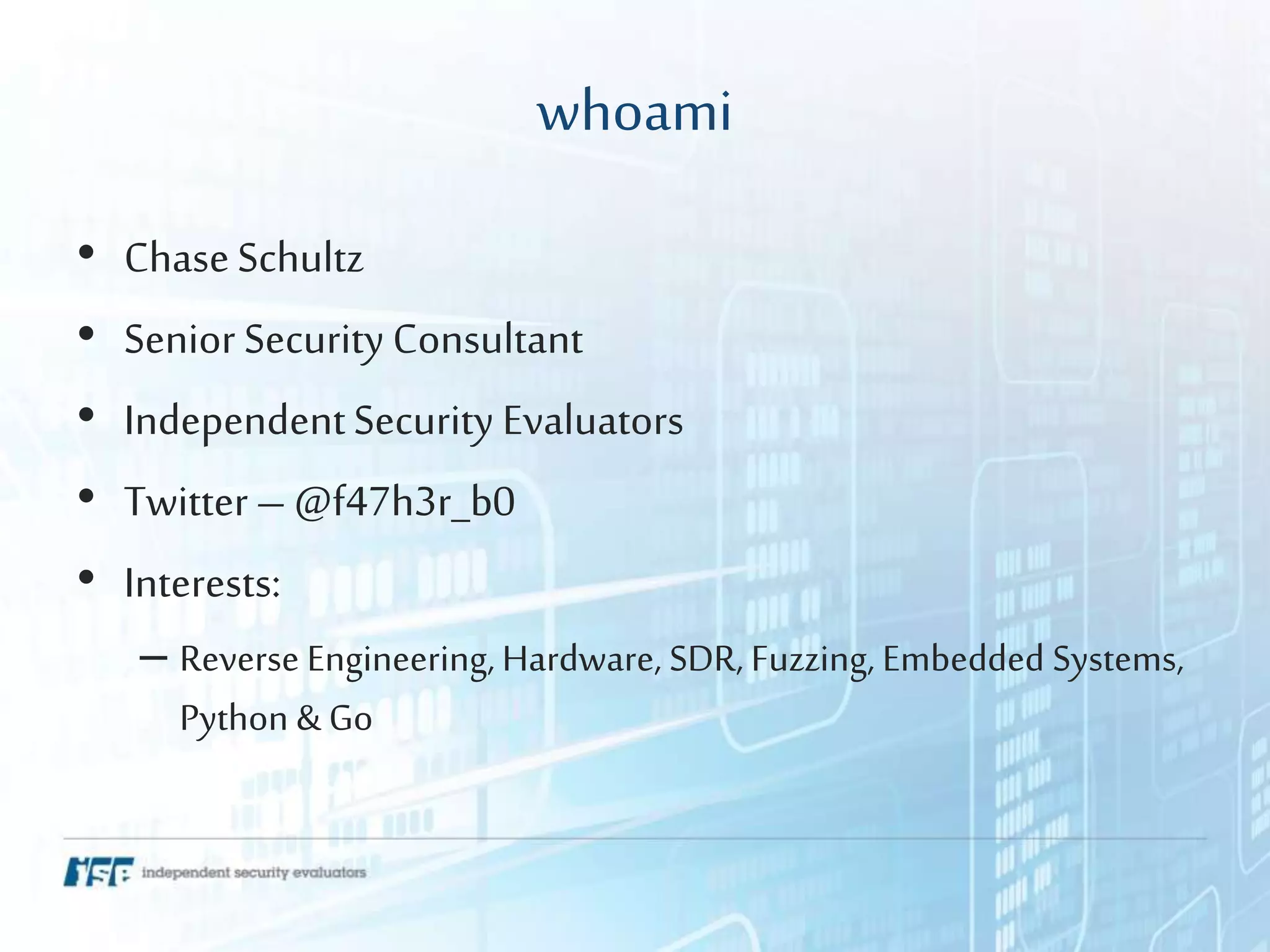

3. whoami
• ChaseSchultz
• Senior Security Consultant
• IndependentSecurity Evaluators
• Twitter– @f47h3r_b0
• Interests:
– Reverse Engineering, Hardware, SDR, Fuzzing, Embedded Systems,
Python & Go

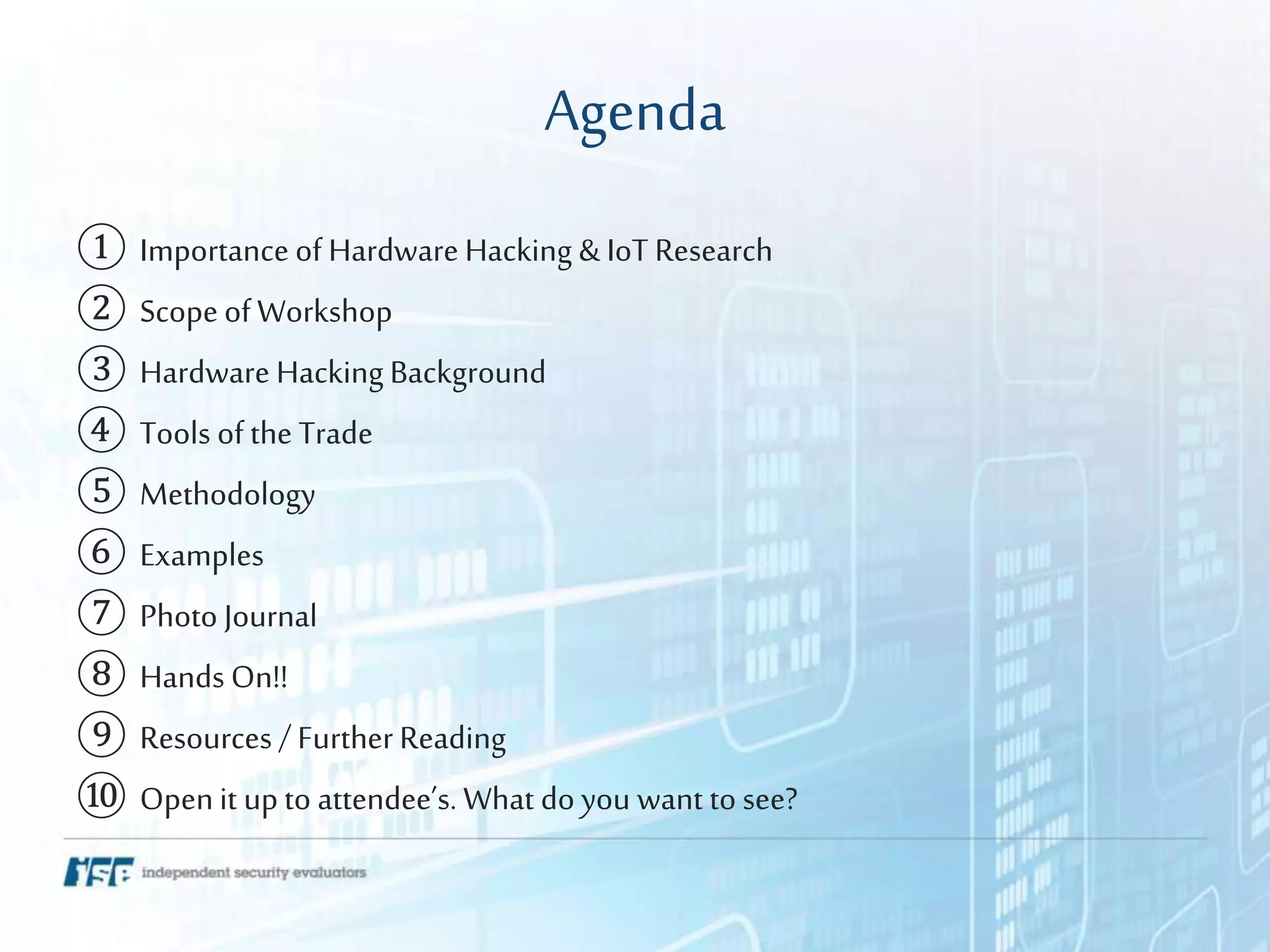

4. Agenda
① Importance of Hardware Hacking & IoT Research
② Scopeof Workshop
③ Hardware Hacking Background
④ Tools of the Trade
⑤ Methodology
⑥ Examples
⑦ Photo Journal
⑧ Hands On!!
⑨ Resources / Further Reading
⑩ Openit upto attendee’s. What do you want to see?

5. Why is this important?

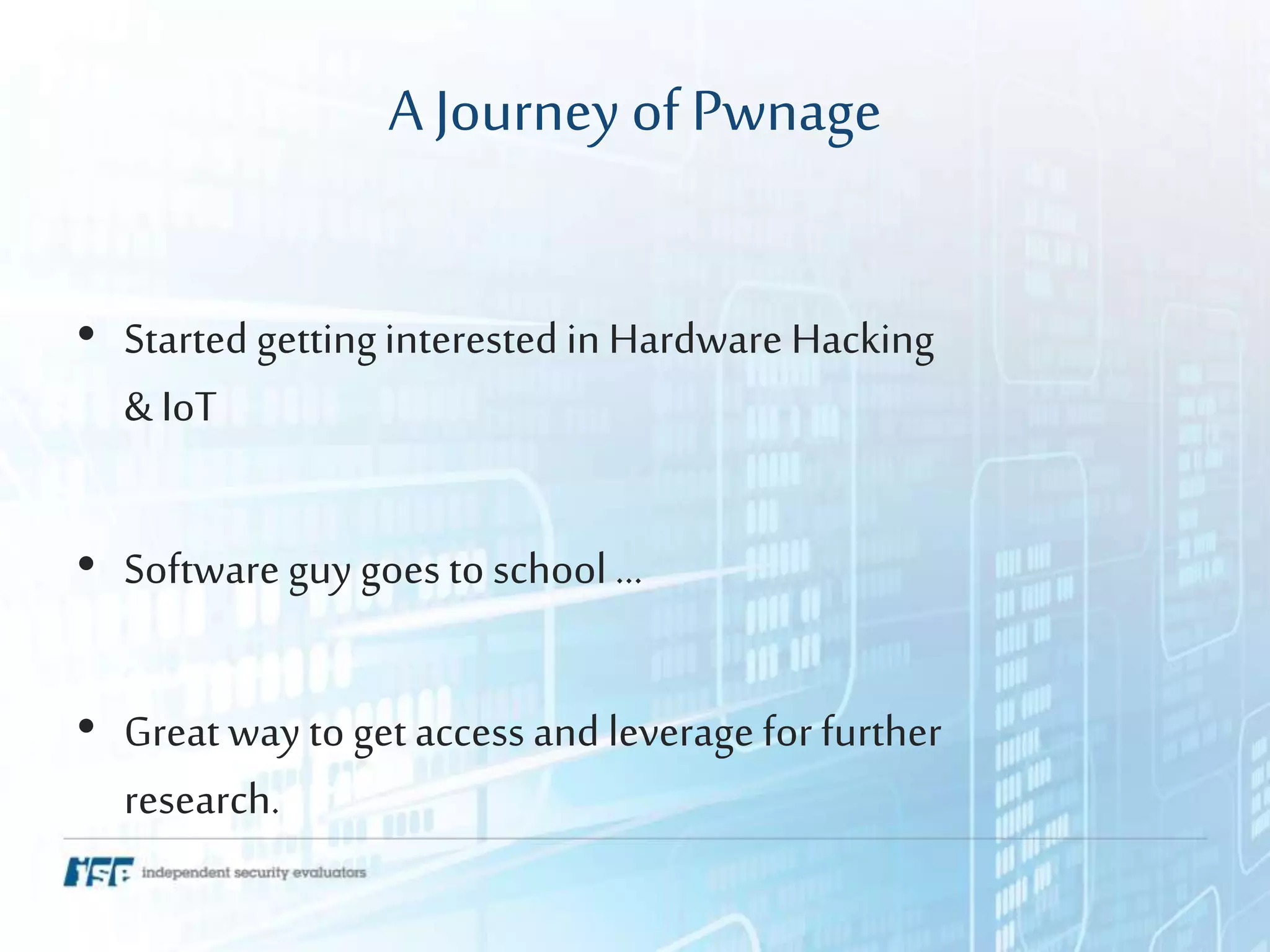

6. A Journey ofPwnage
• Started gettinginterested in Hardware Hacking
& IoT
• Software guy goes to school …
• Great way to get access and leverage for further
research.

7. IoT?
• IoT is a buzzword (duh) …
– Lots of embedded devices doing allthe things …
– Smart Homes
– Medical Devices / Entertainment / Health Fitness / Toys
/ Sensors etc

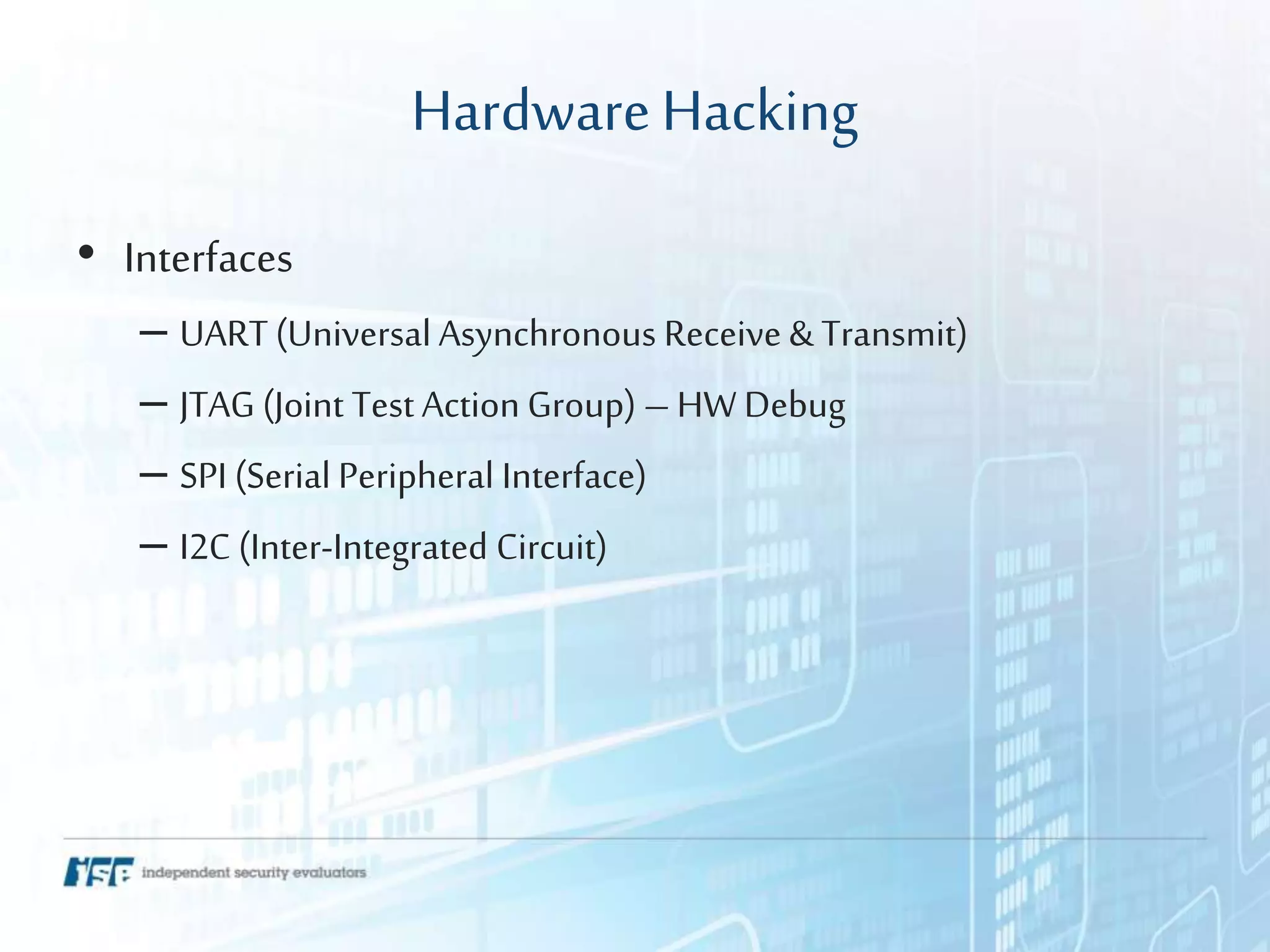

8. HardwareHacking
• Interfaces
– UART (Universal Asynchronous Receive & Transmit)
– JTAG (Joint Test Action Group) – HW Debug
– SPI (Serial Peripheral Interface)
– I2C (Inter-Integrated Circuit)

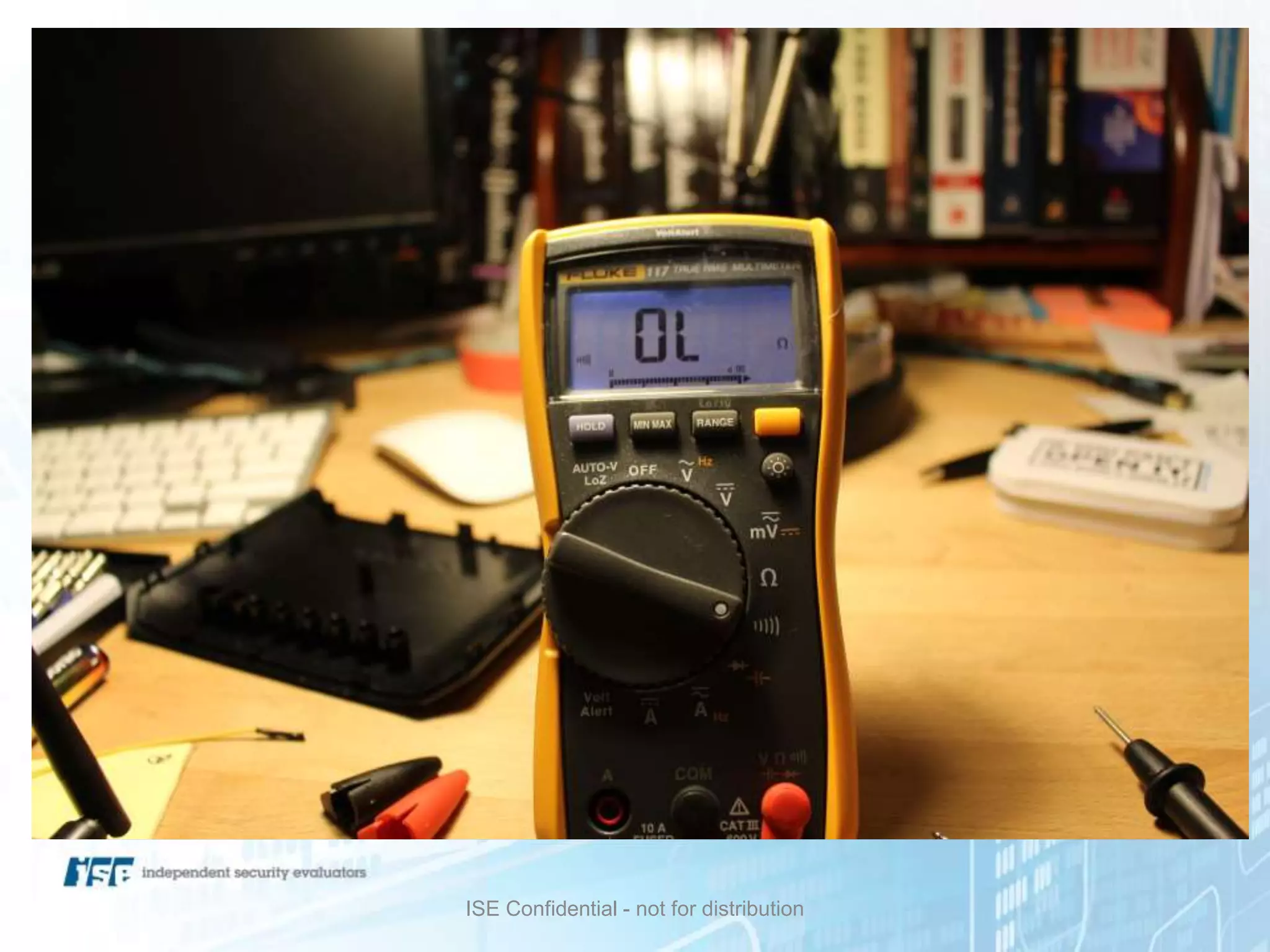

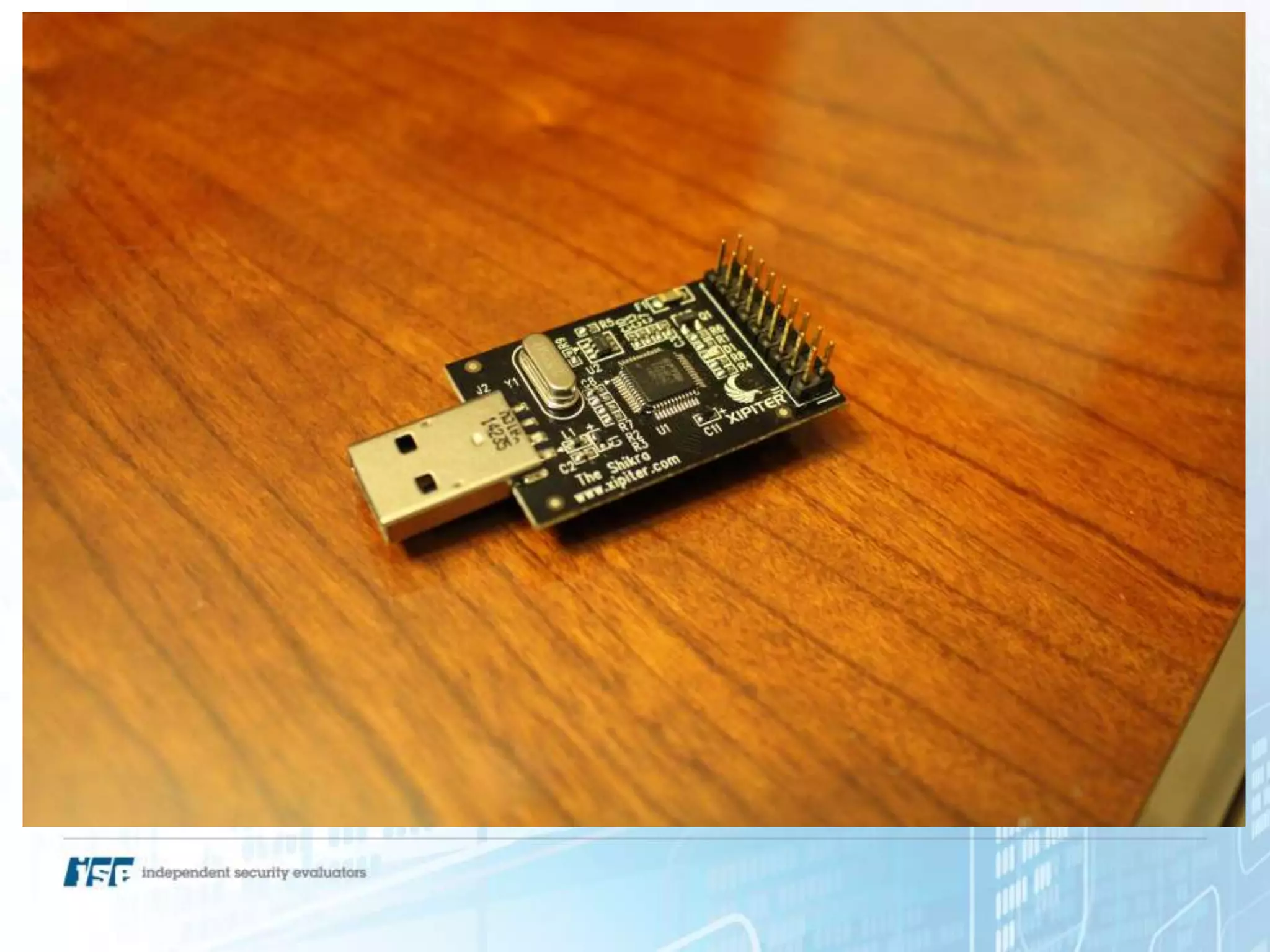

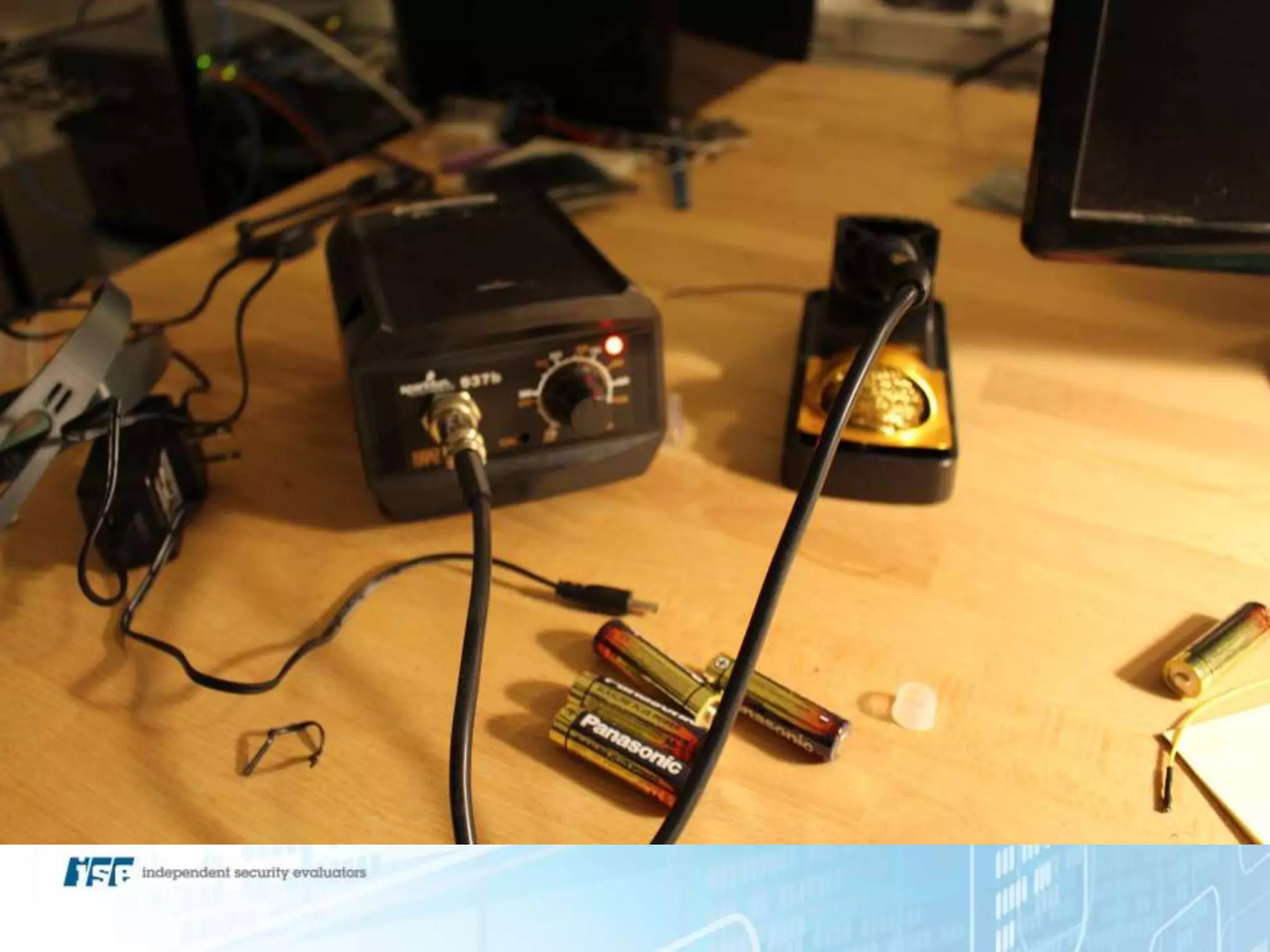

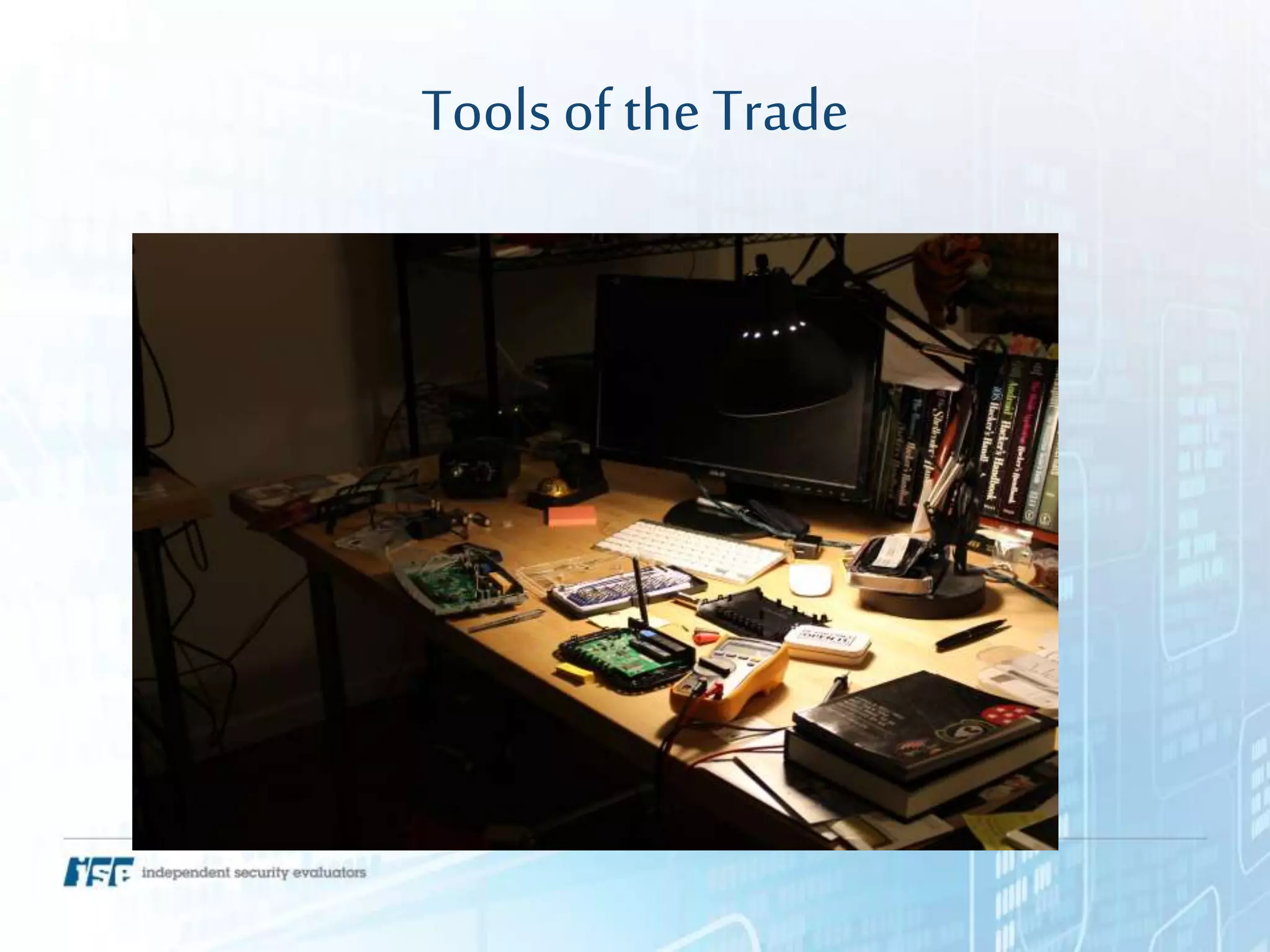

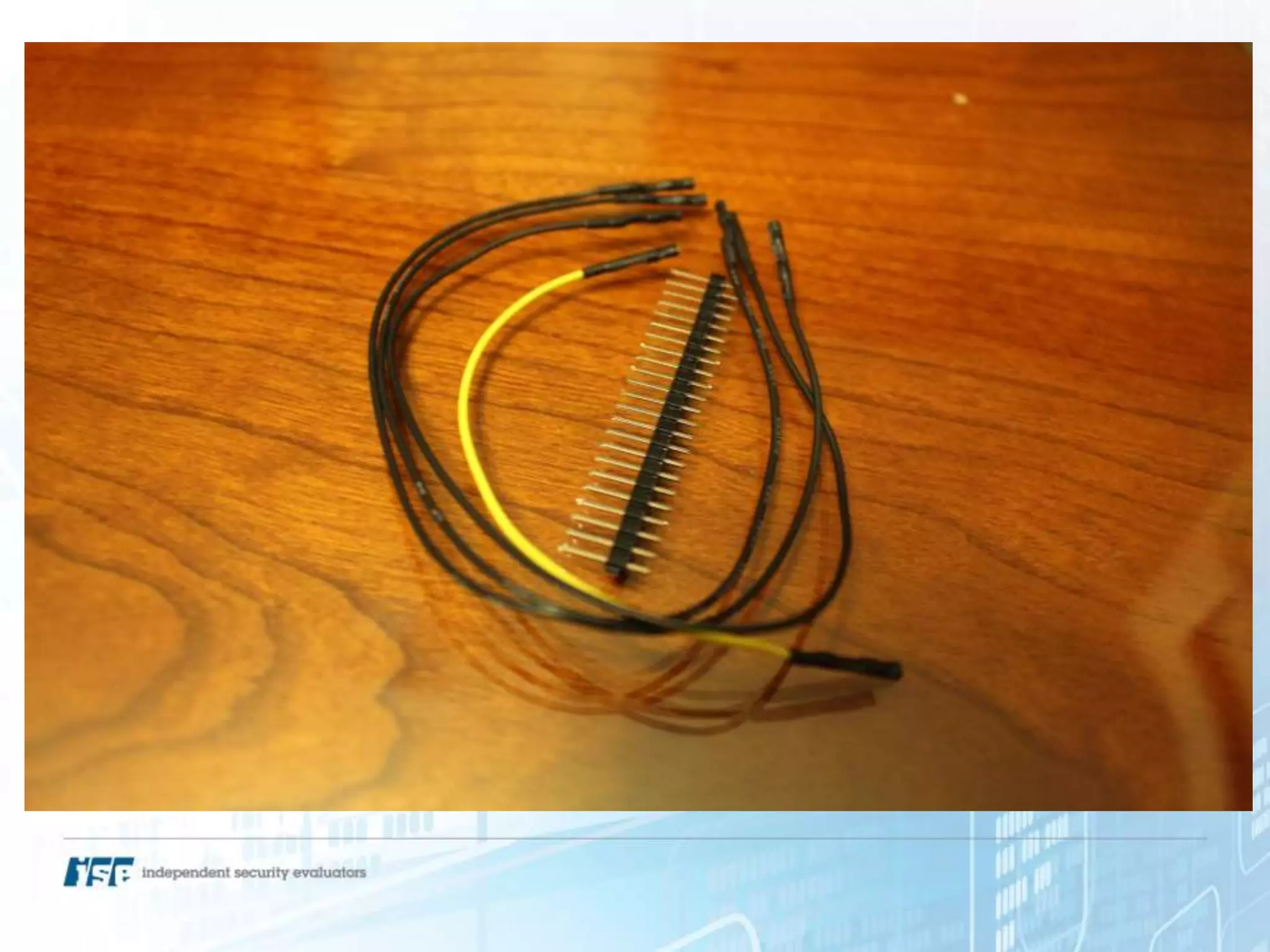

10. Tools of the Trade

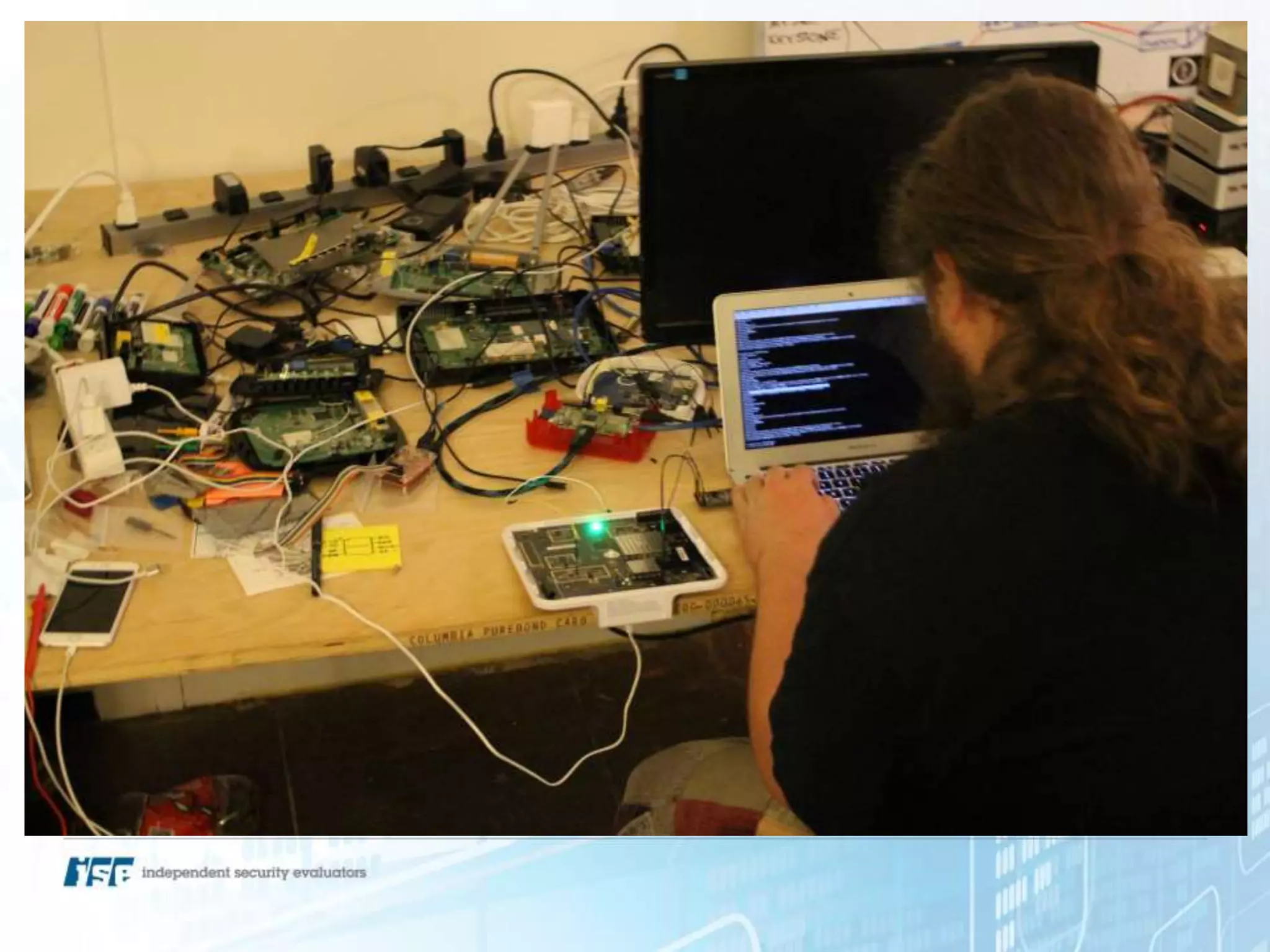

12. ISE Confidential - not for distribution

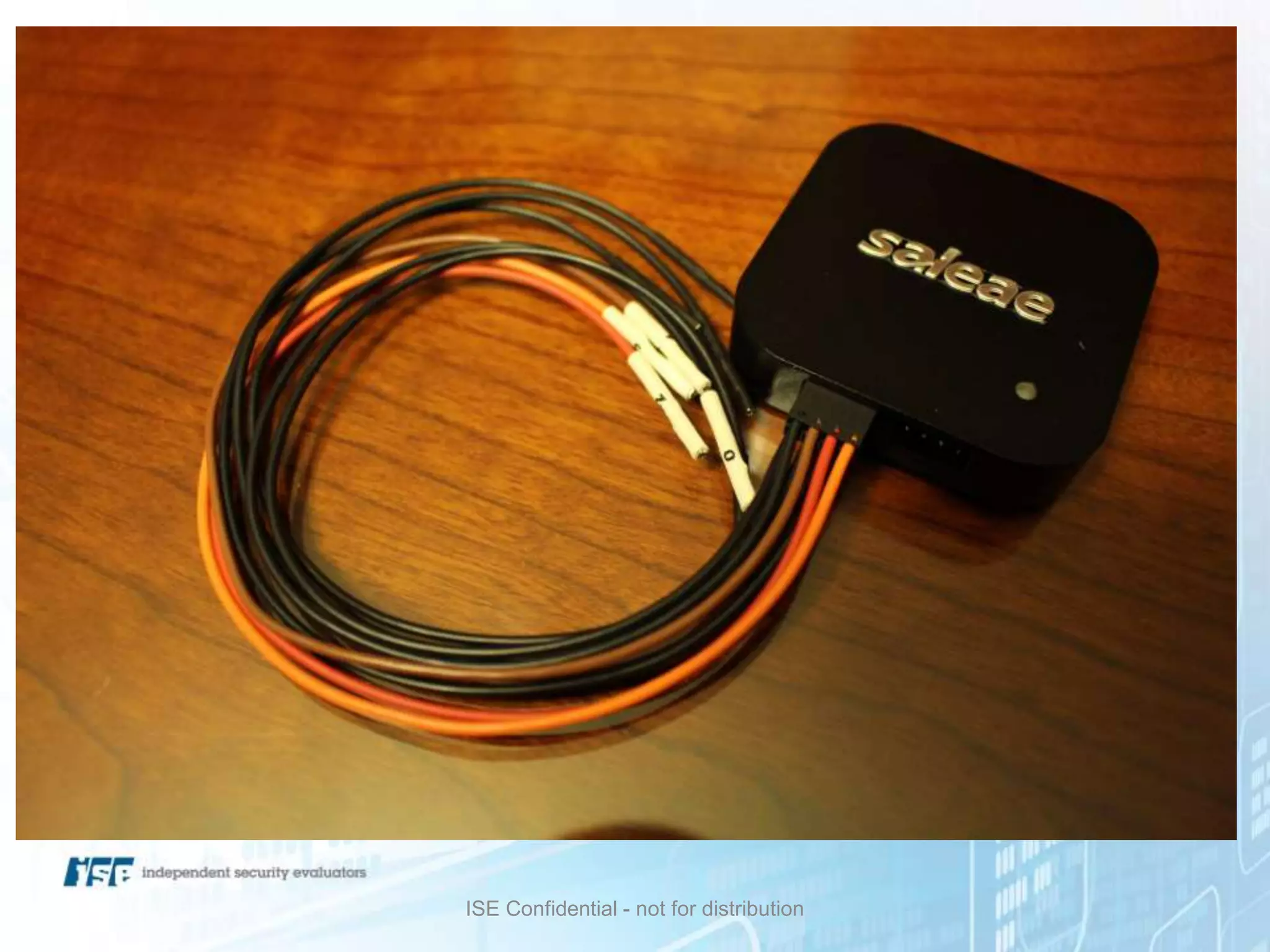

17. ISE Confidential - not for distribution

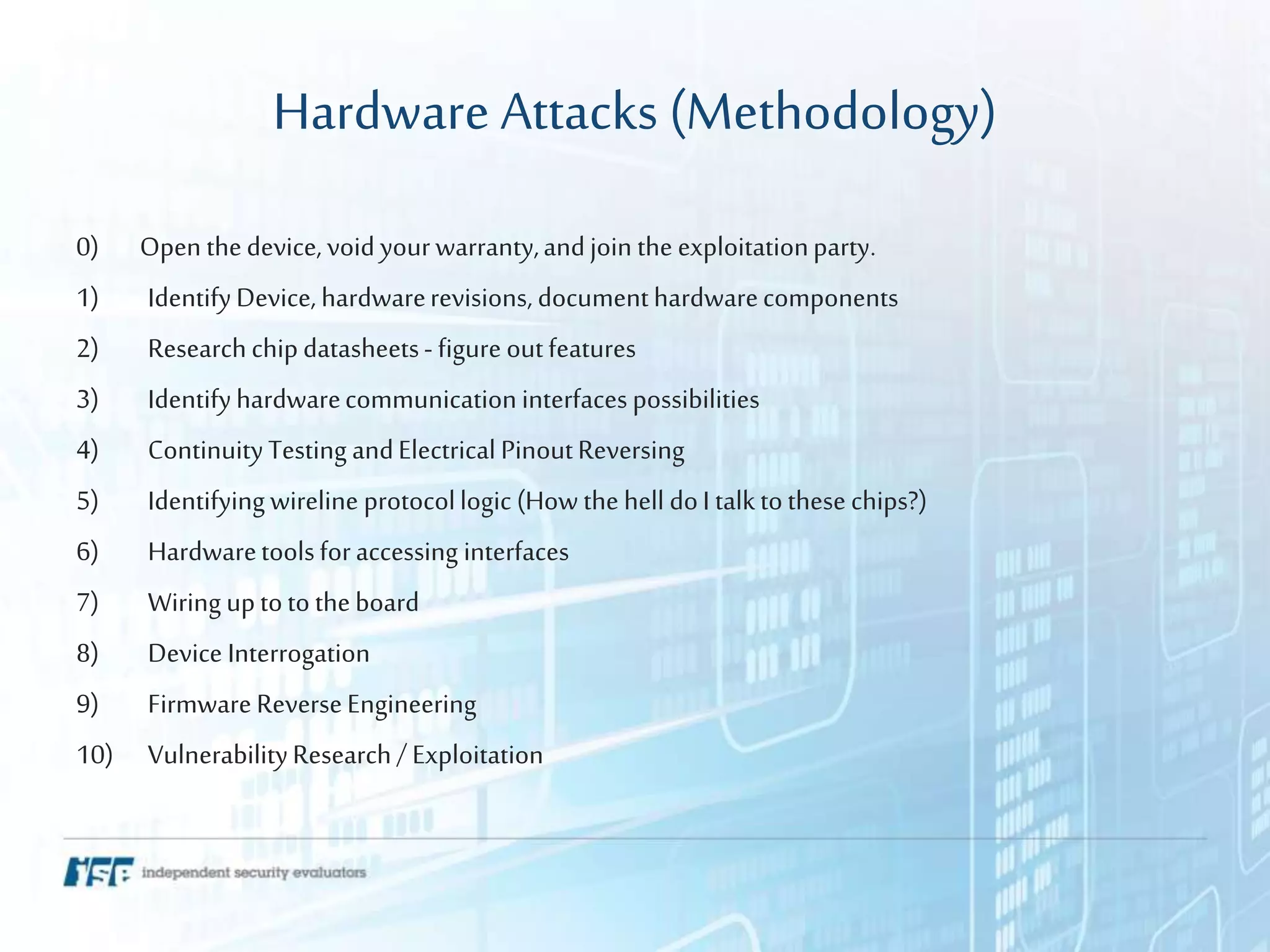

18. Hardware Attacks (Methodology)
0) Open thedevice, void yourwarranty,andjoin the exploitationparty.
1) IdentifyDevice, hardwarerevisions, documenthardwarecomponents
2) Researchchipdatasheets- figure outfeatures
3) Identifyhardwarecommunicationinterfacespossibilities
4) ContinuityTesting andElectrical PinoutReversing
5) Identifyingwireline protocollogic (How the hell doI talktothesechips?)
6) Hardwaretoolsforaccessing interfaces
7) Wiring uptoto theboard
8) Device Interrogation
9) FirmwareReverseEngineering
10) VulnerabilityResearch/ Exploitation

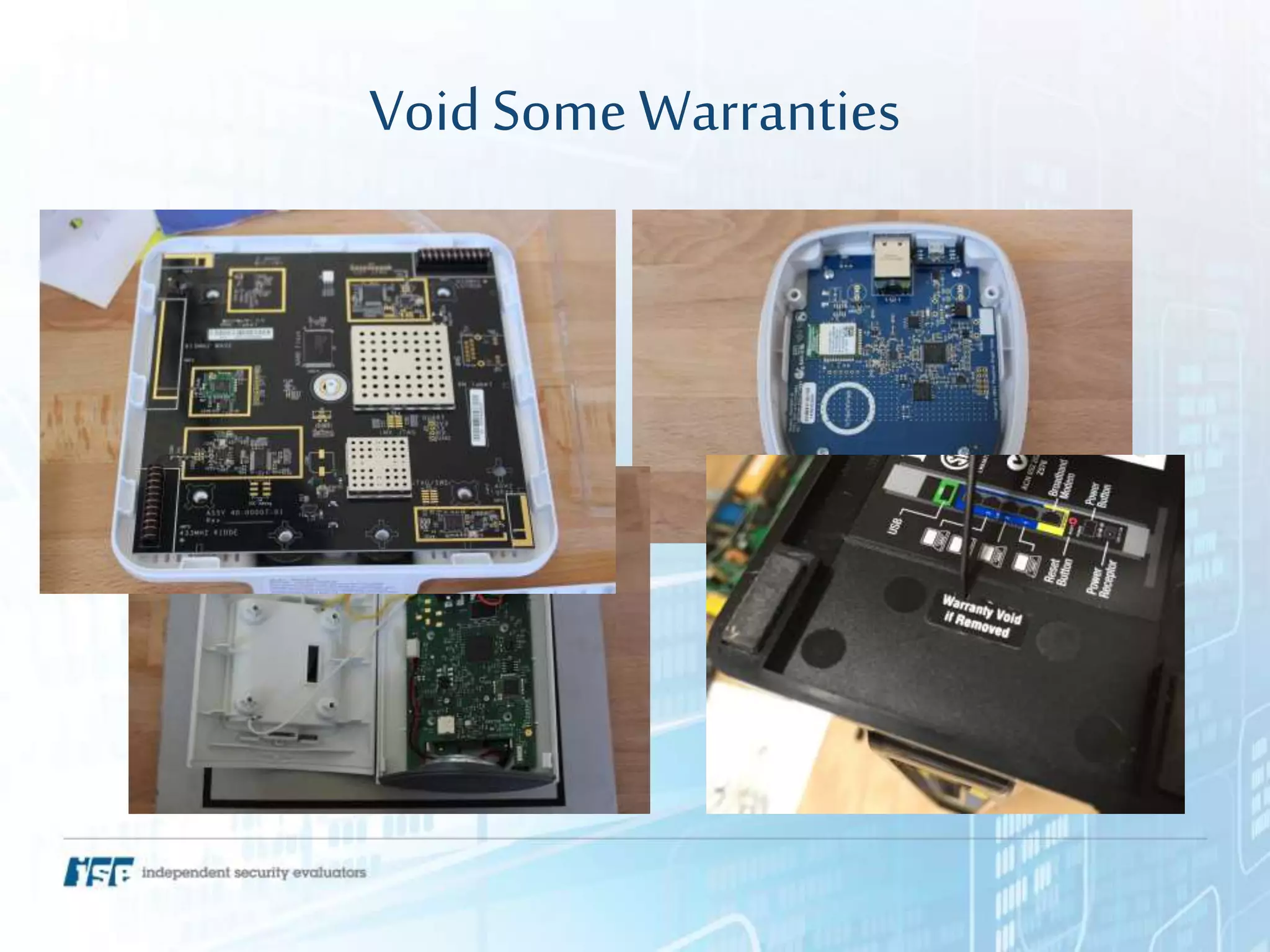

19. VoidSome Warranties

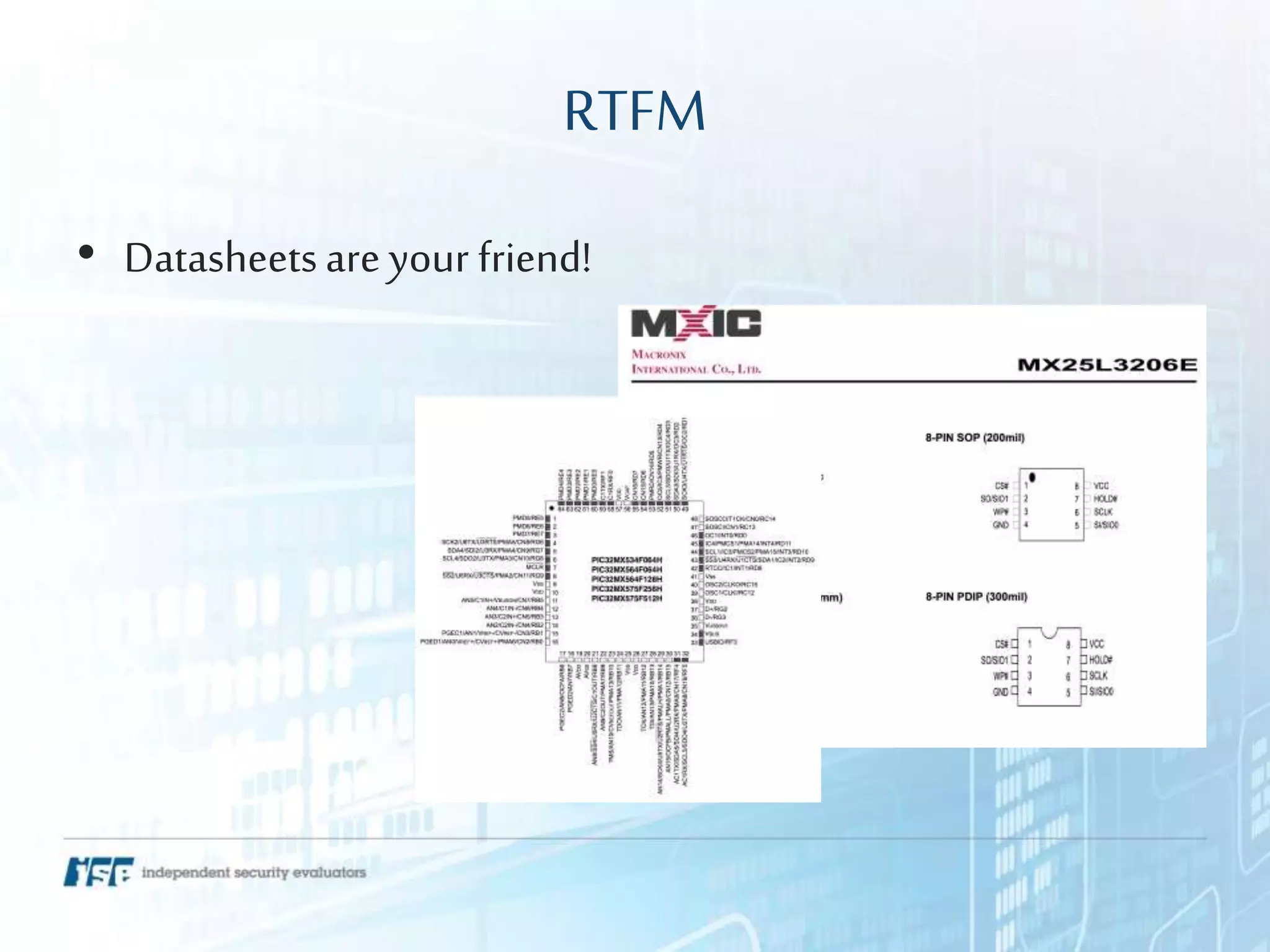

20. RTFM
• Datasheetsare your friend!

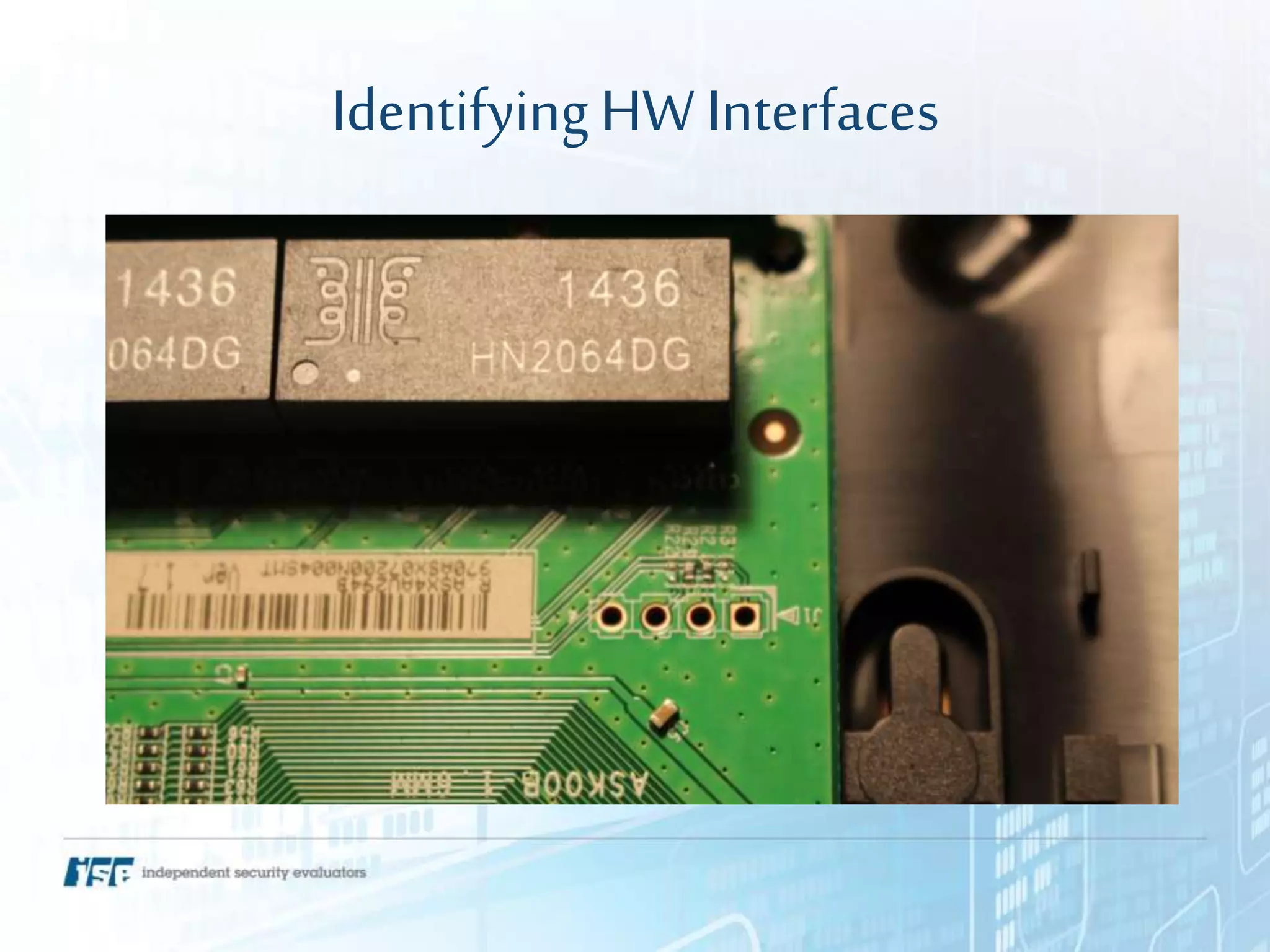

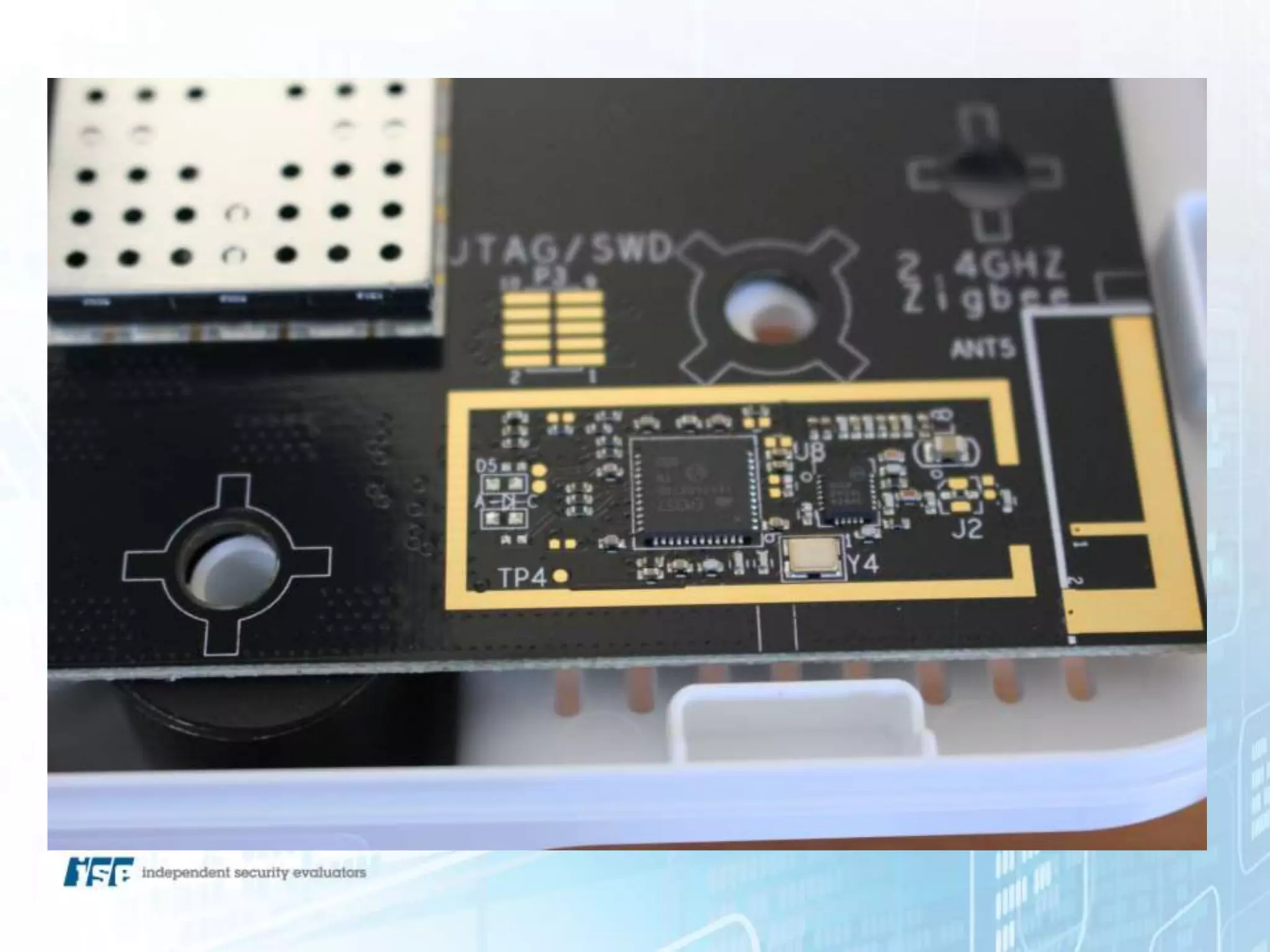

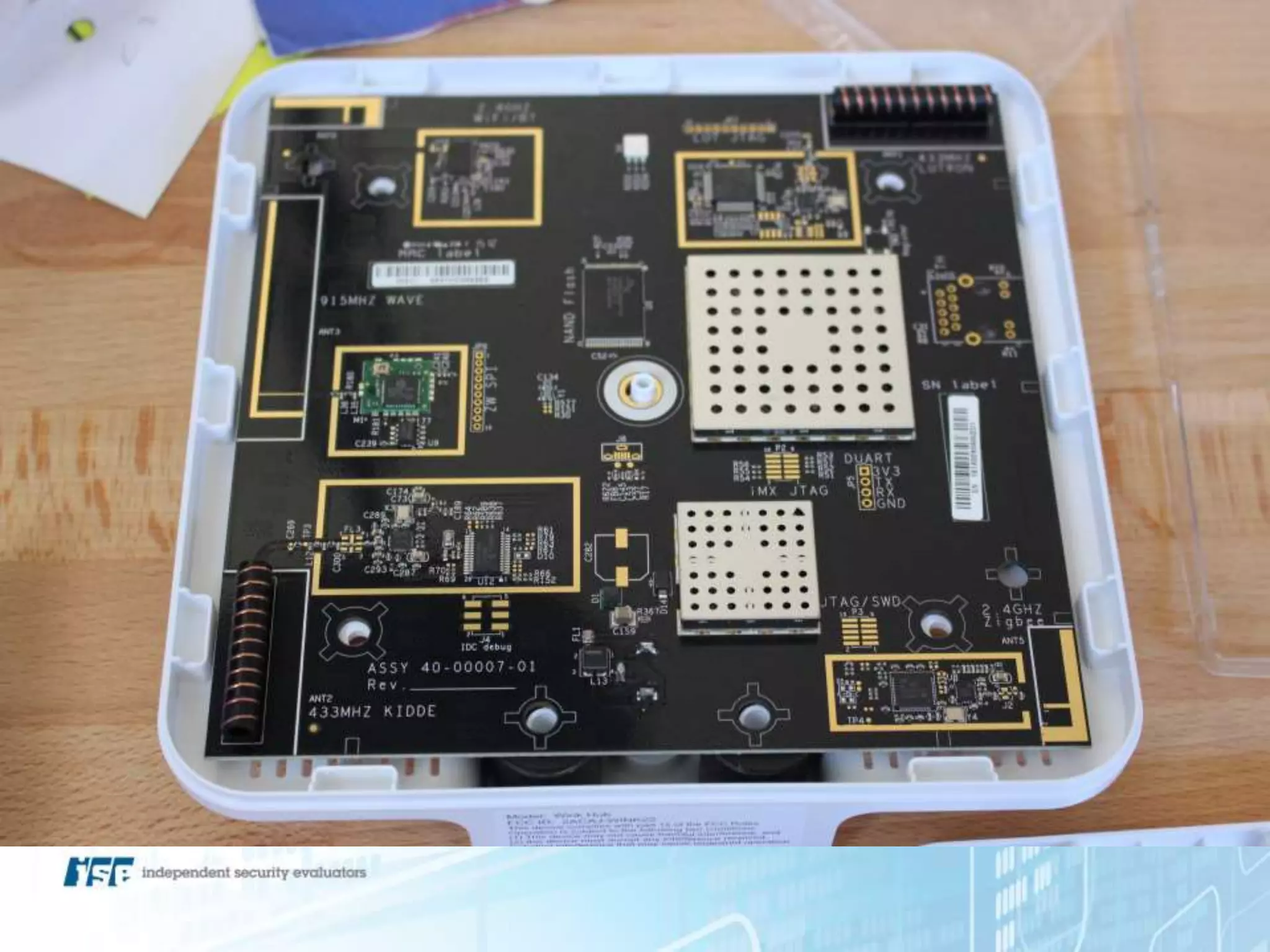

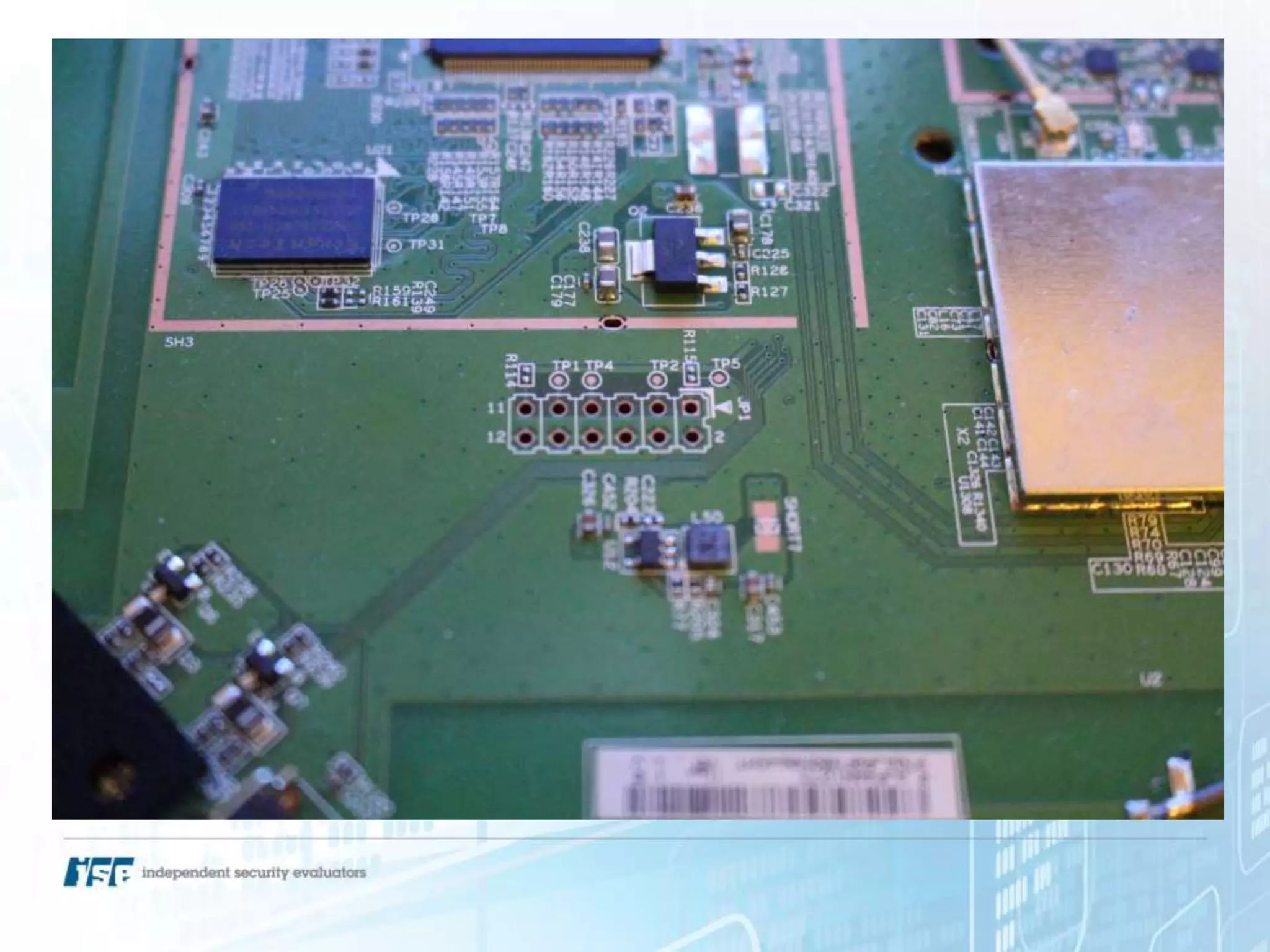

21. Identifying HW Interfaces

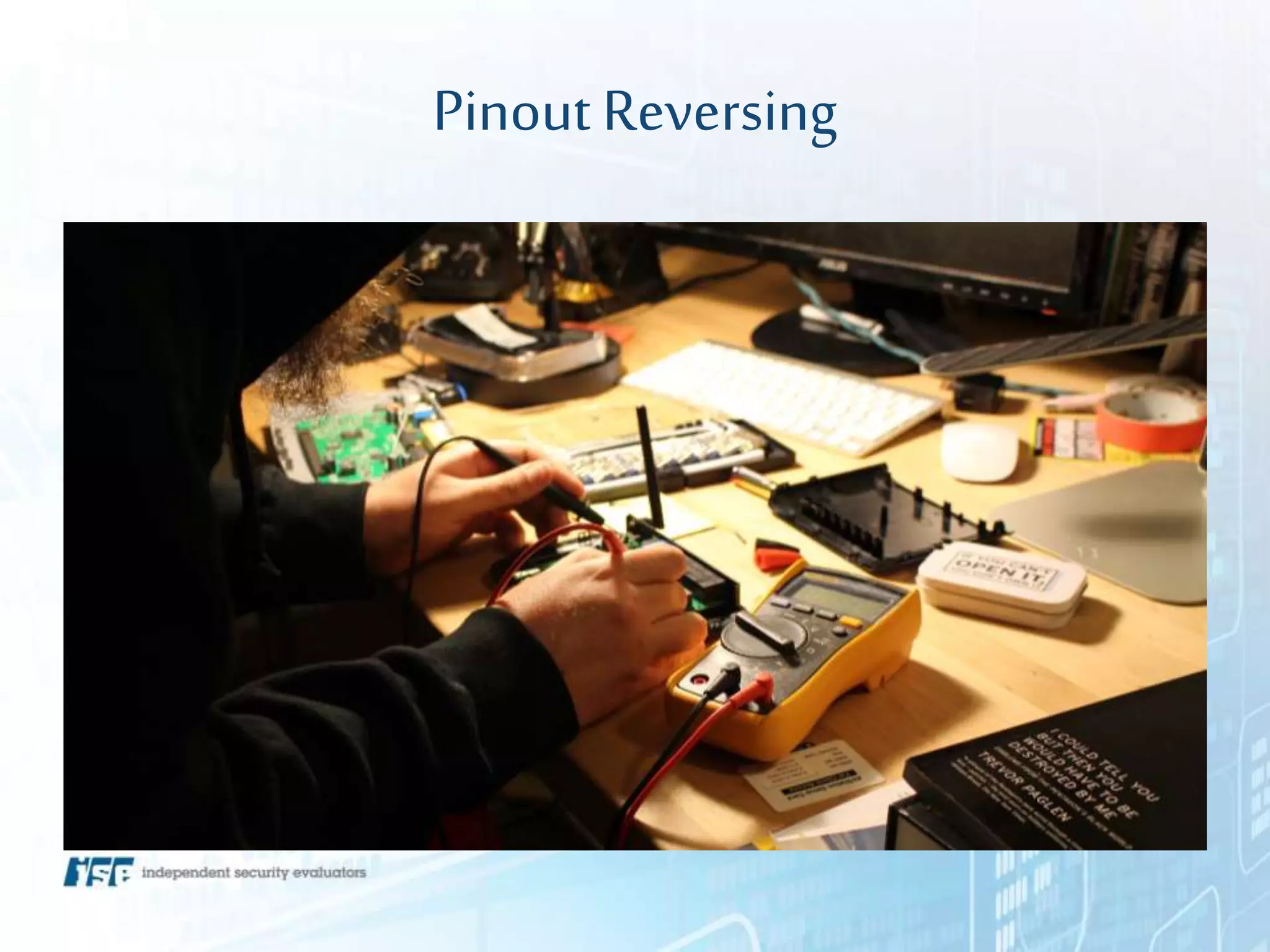

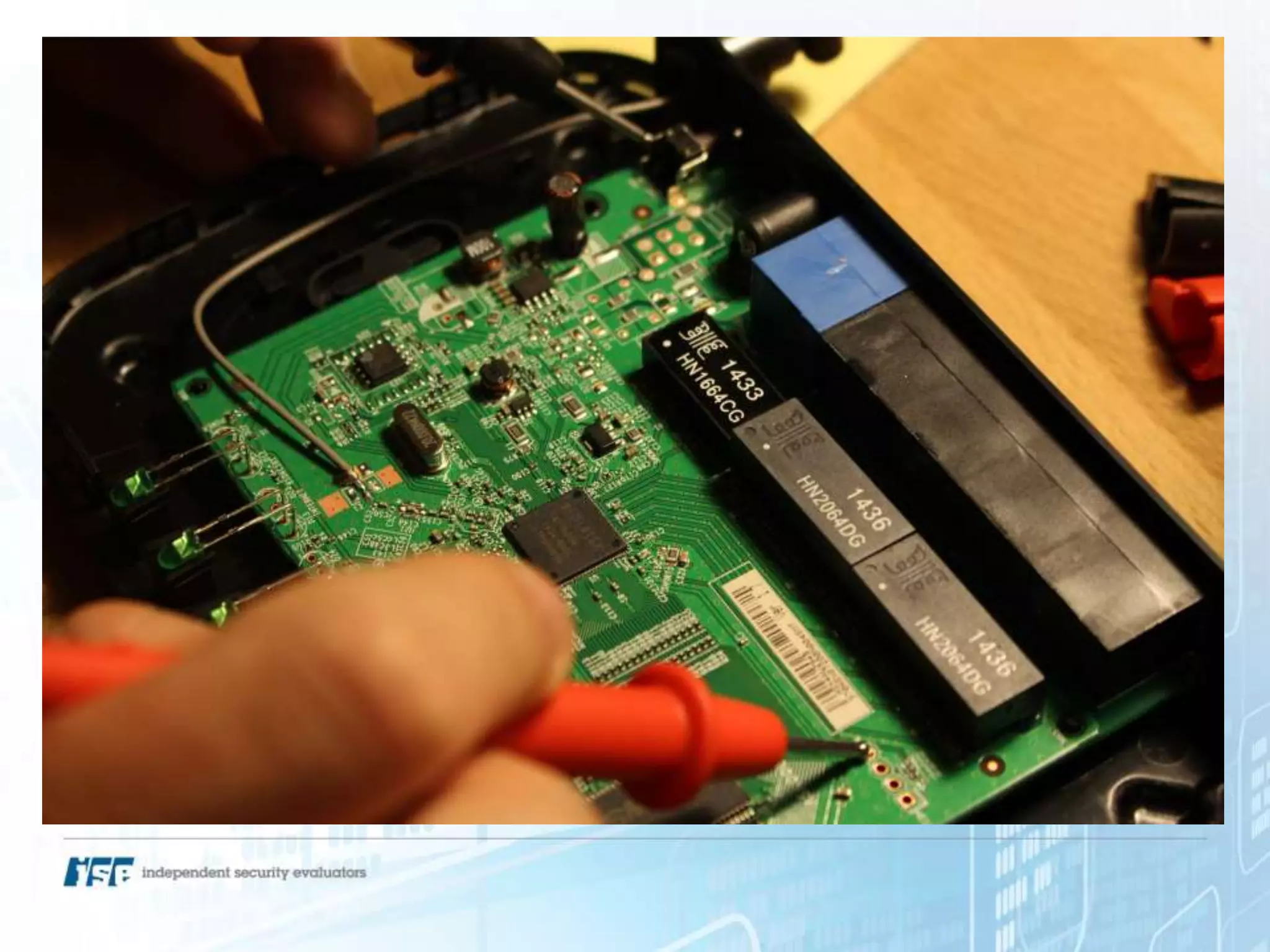

25. Pinout Reversing

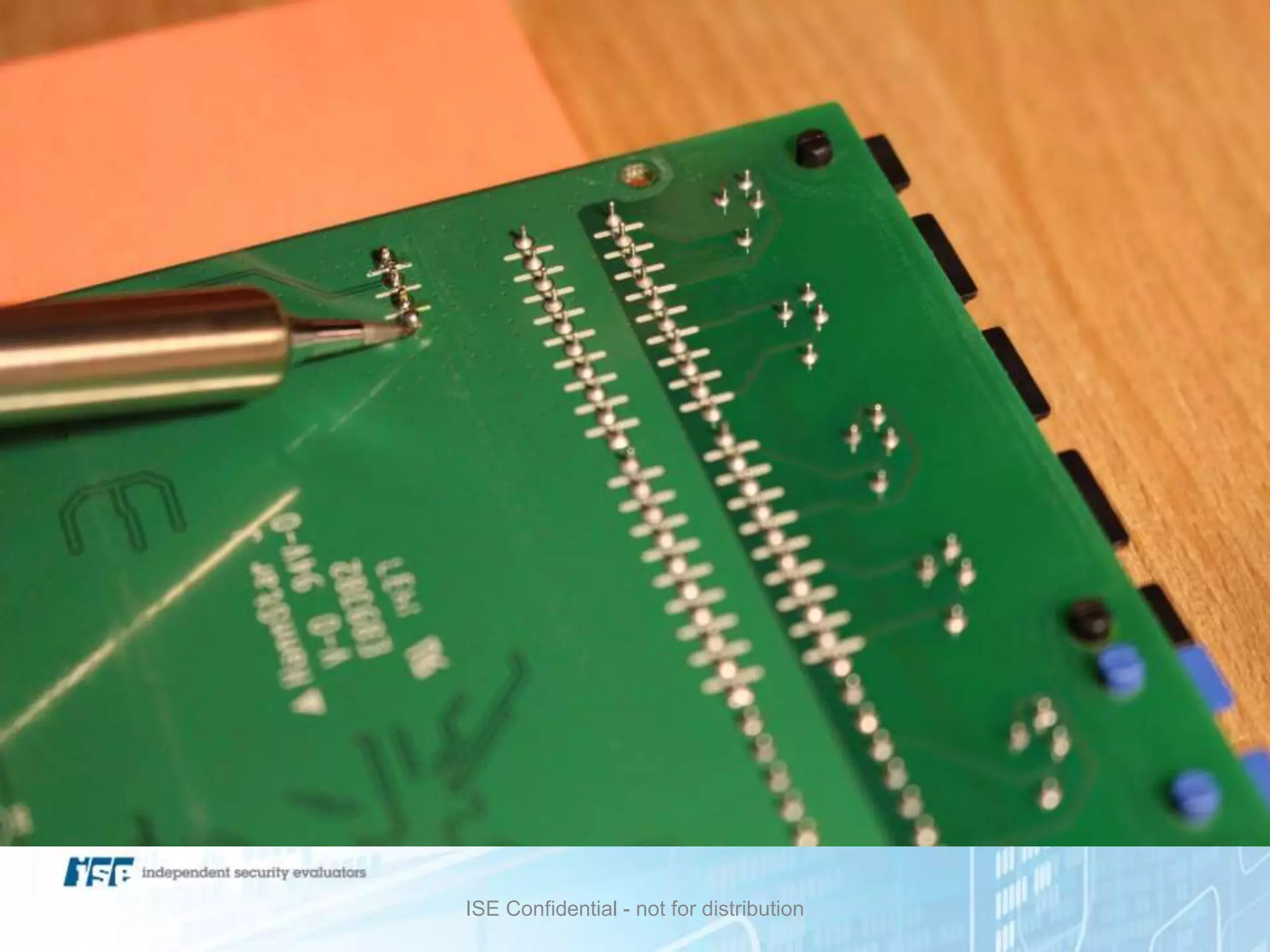

26. ISE Confidential - not for distribution

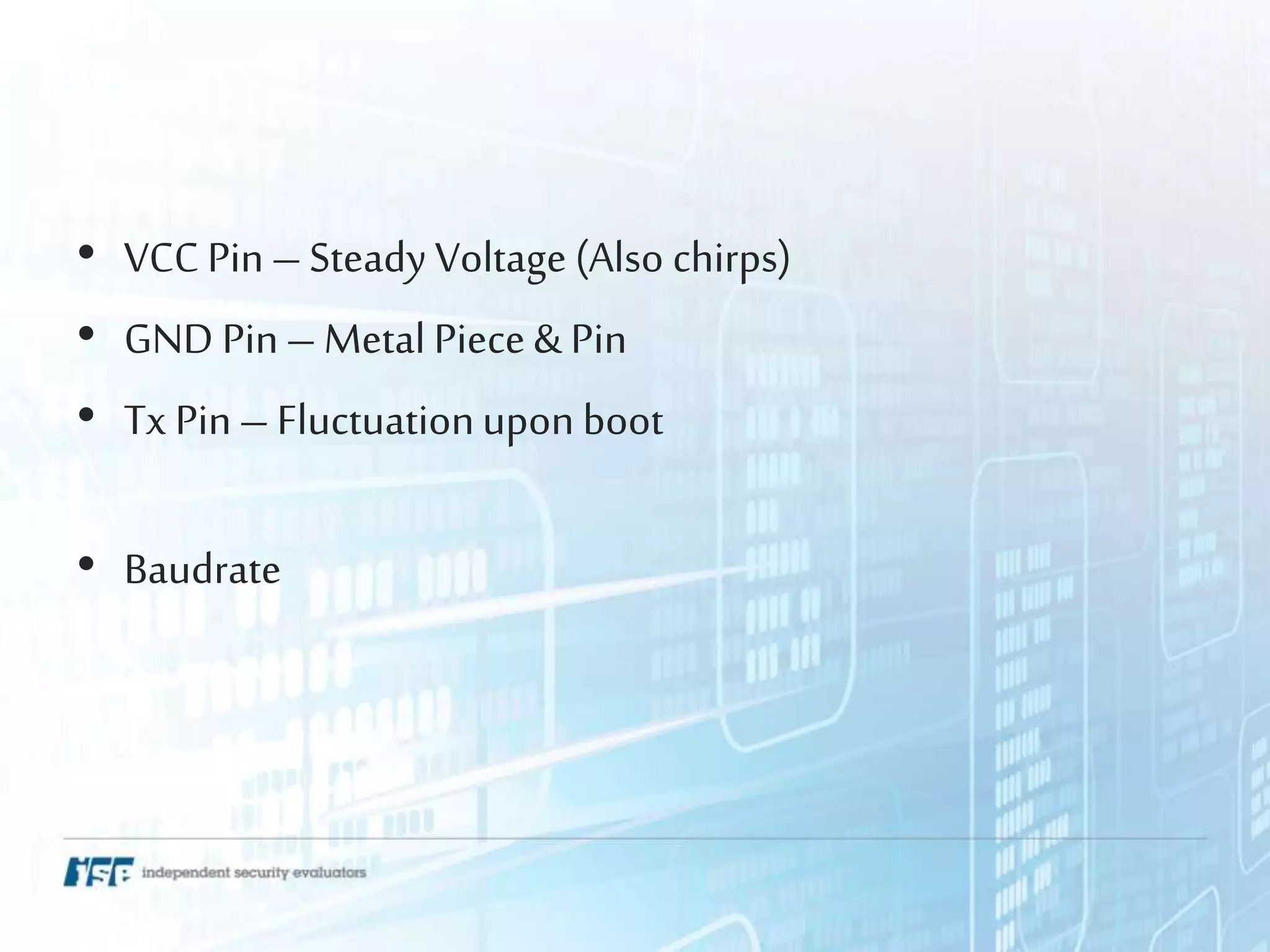

28. • VCC Pin– Steady Voltage (Also chirps)
• GND Pin– Metal Piece& Pin
• Tx Pin– Fluctuationupon boot
• Baudrate

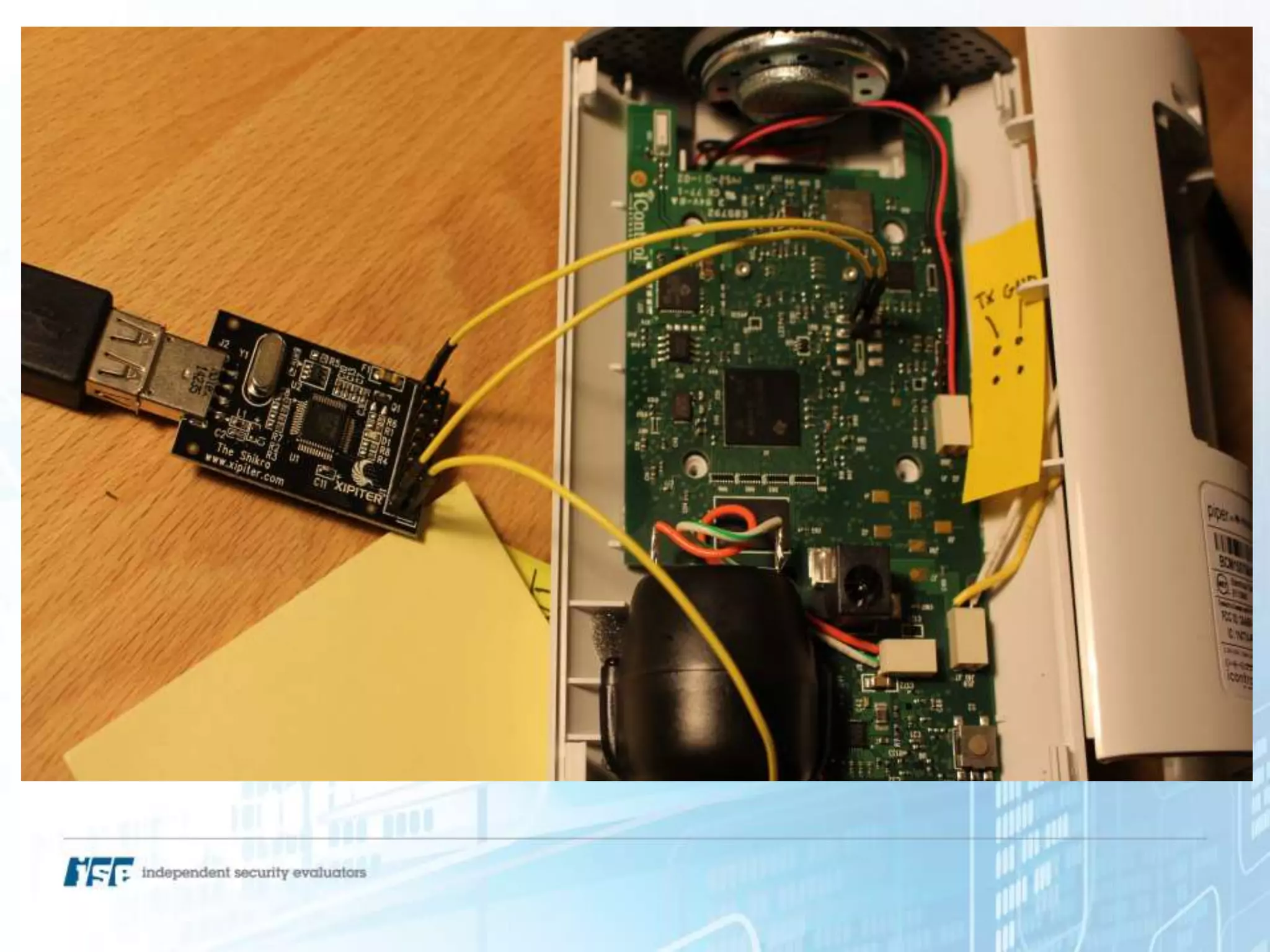

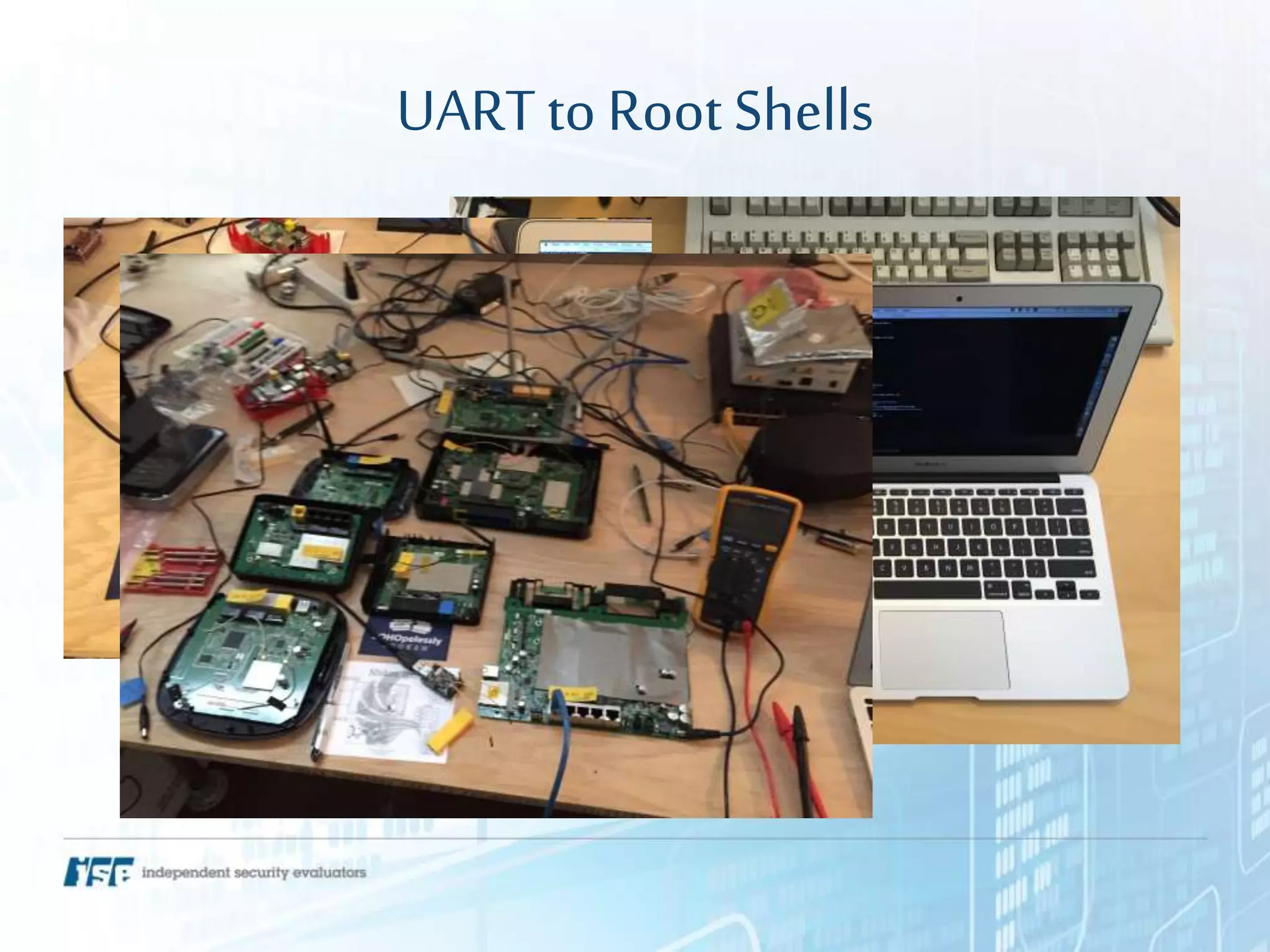

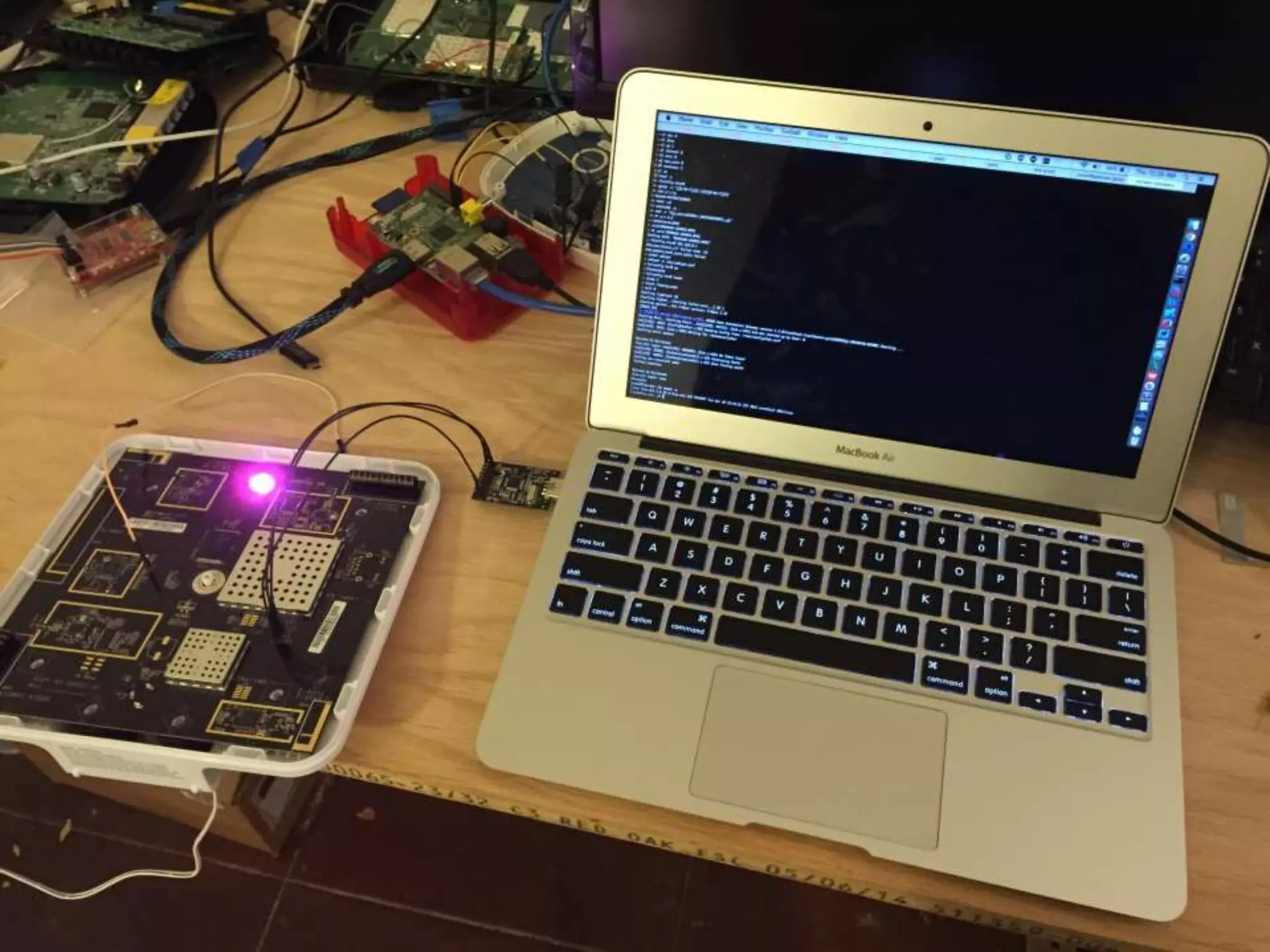

29. UARTto Root Shells

30. ISE Confidential - not for distribution

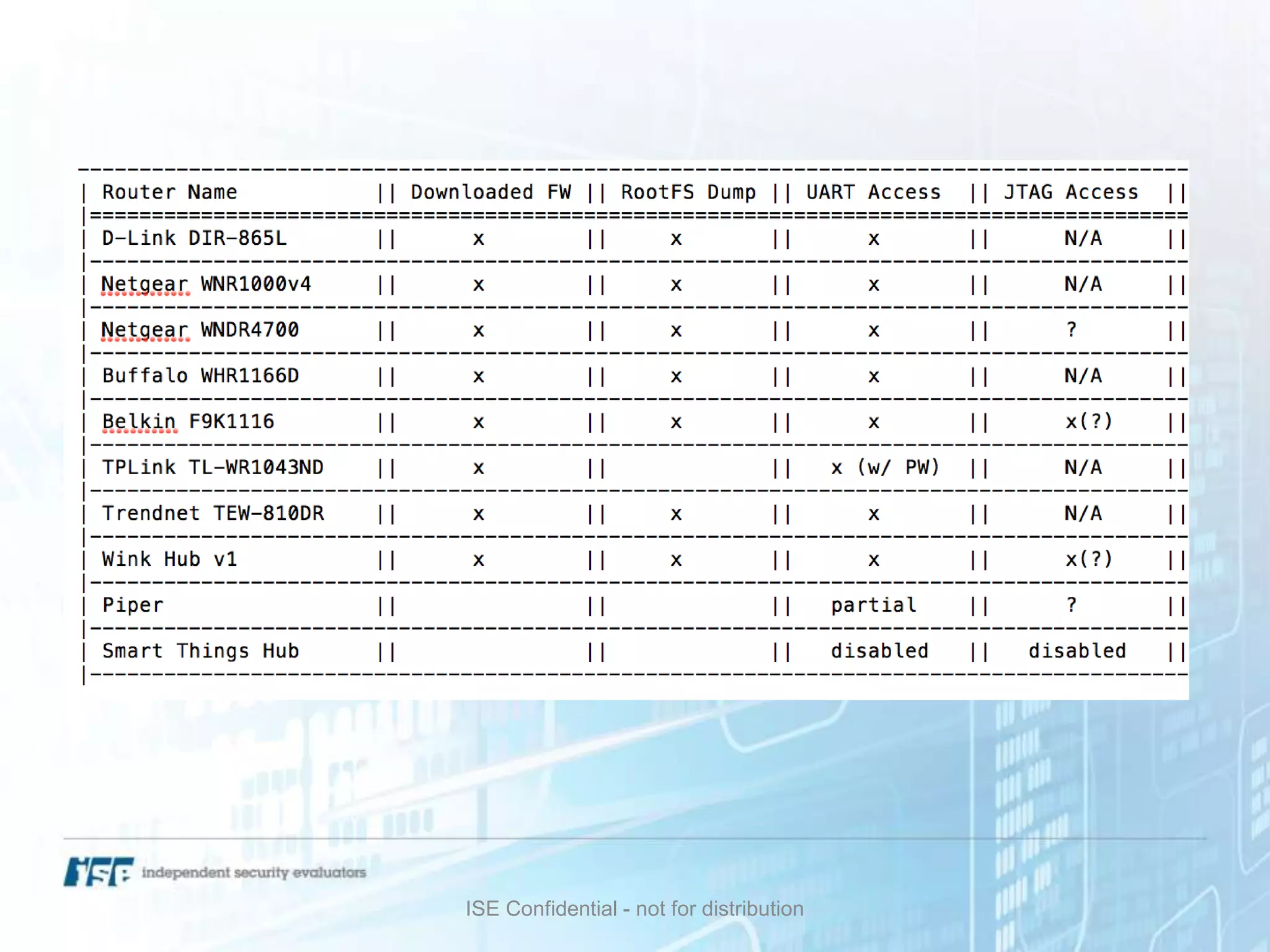

31. ISE Confidential - not for distribution

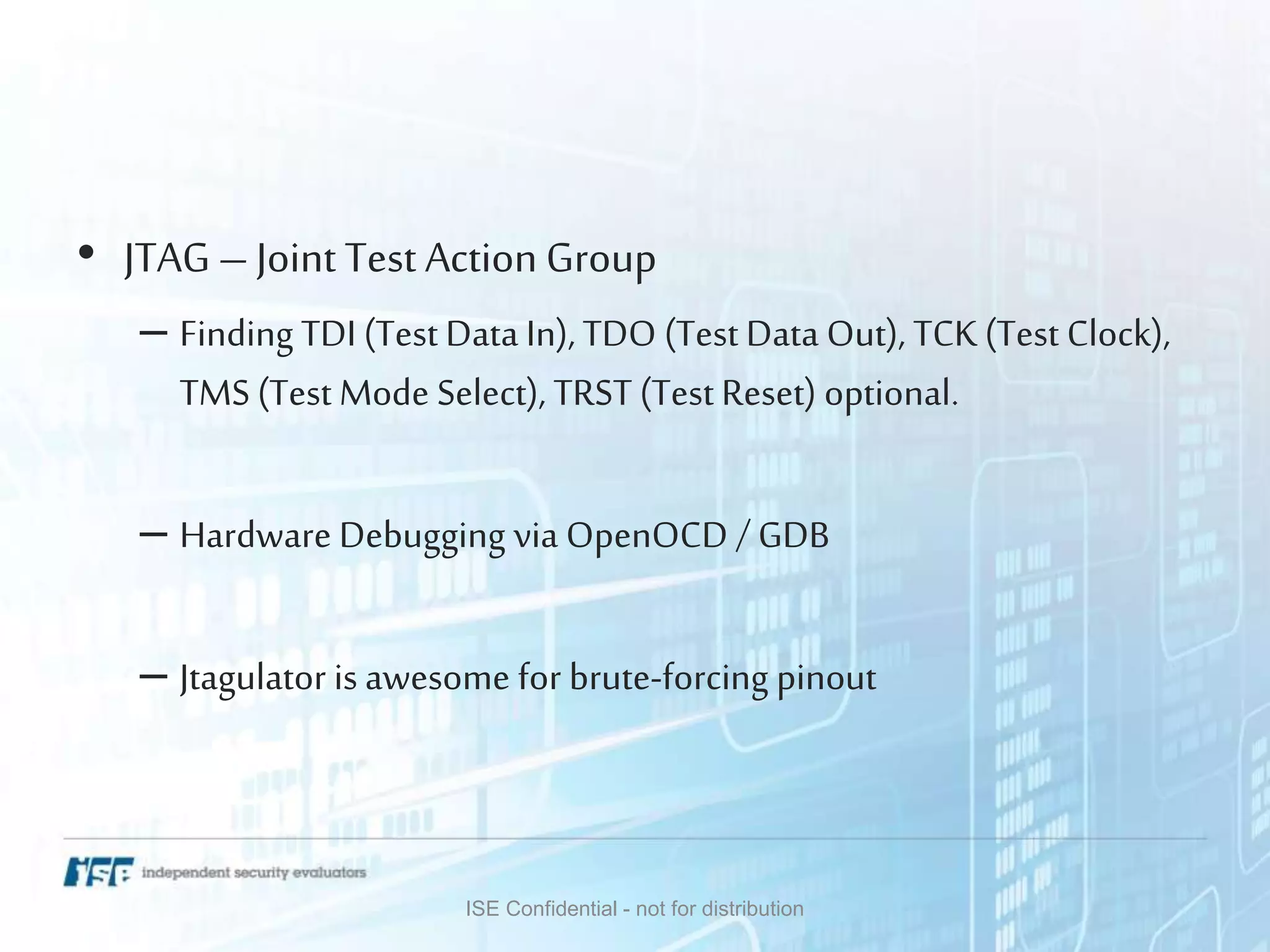

32. • JTAG – Joint Test Action Group
– Finding TDI (Test Data In), TDO (Test Data Out), TCK(Test Clock),
TMS (Test Mode Select), TRST (Test Reset) optional.
– Hardware Debugging via OpenOCD / GDB

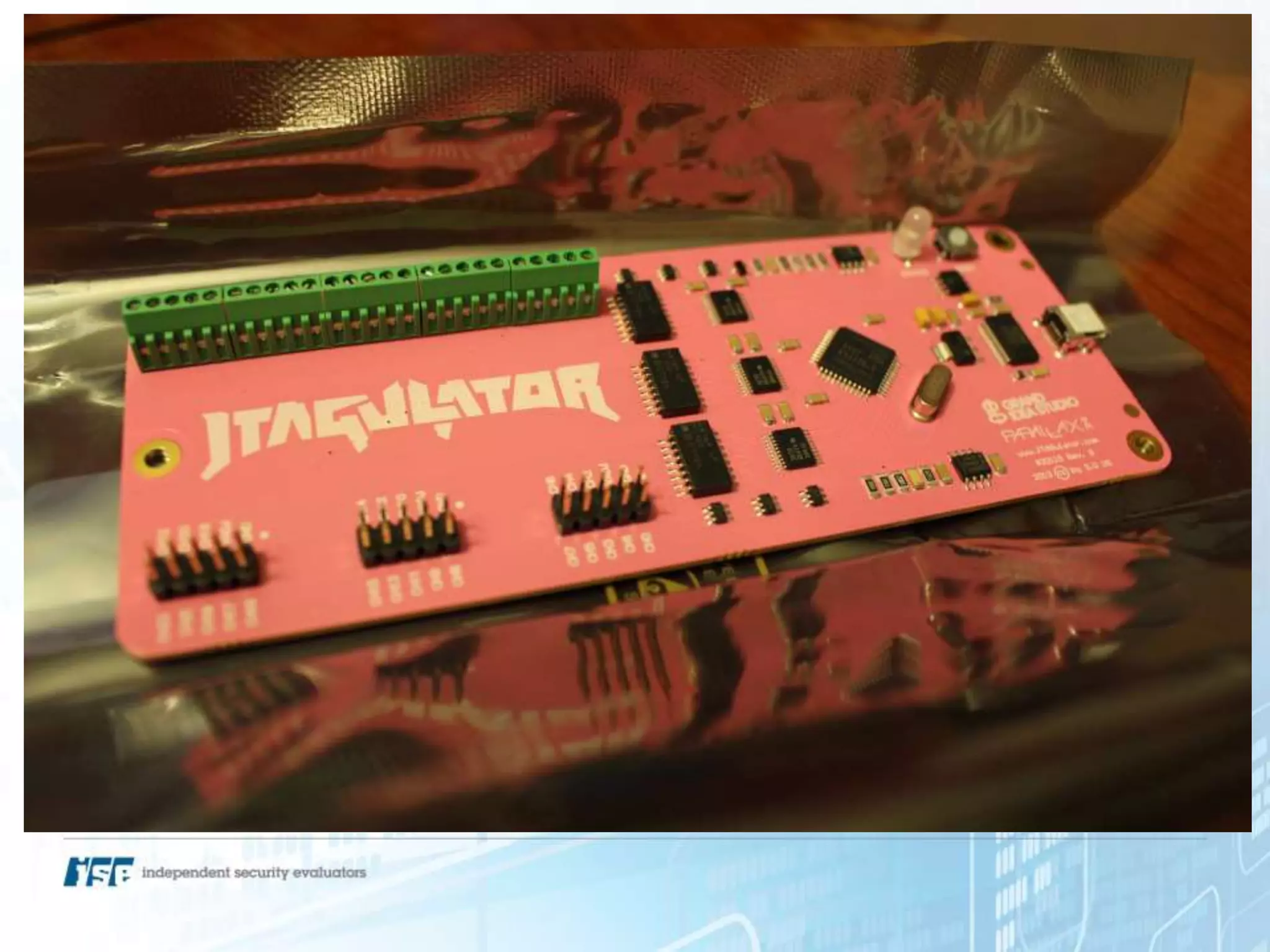

– Jtagulator is awesome for brute-forcing pinout
ISE Confidential - not for distribution

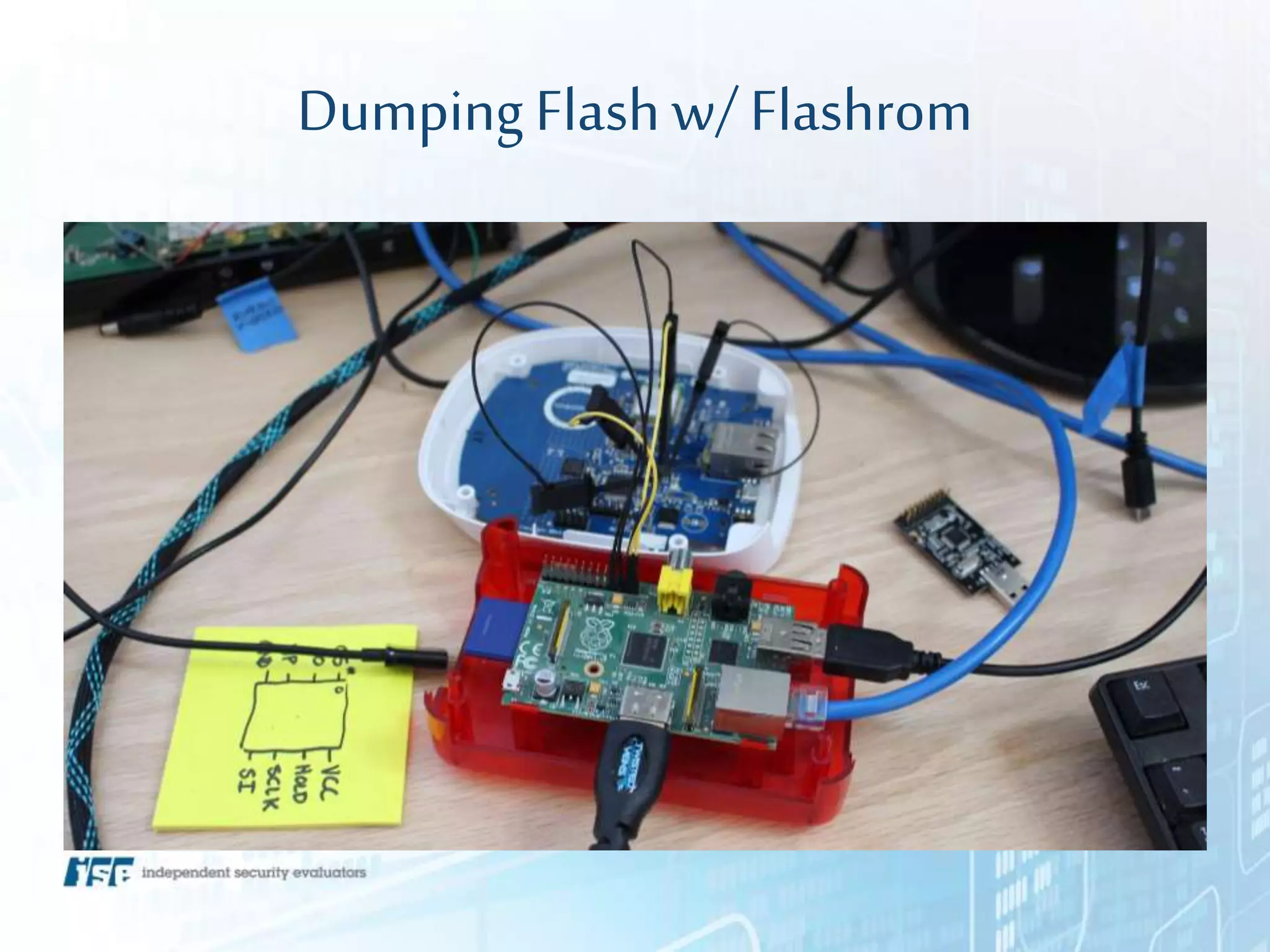

33. Dumping Flash w/Flashrom

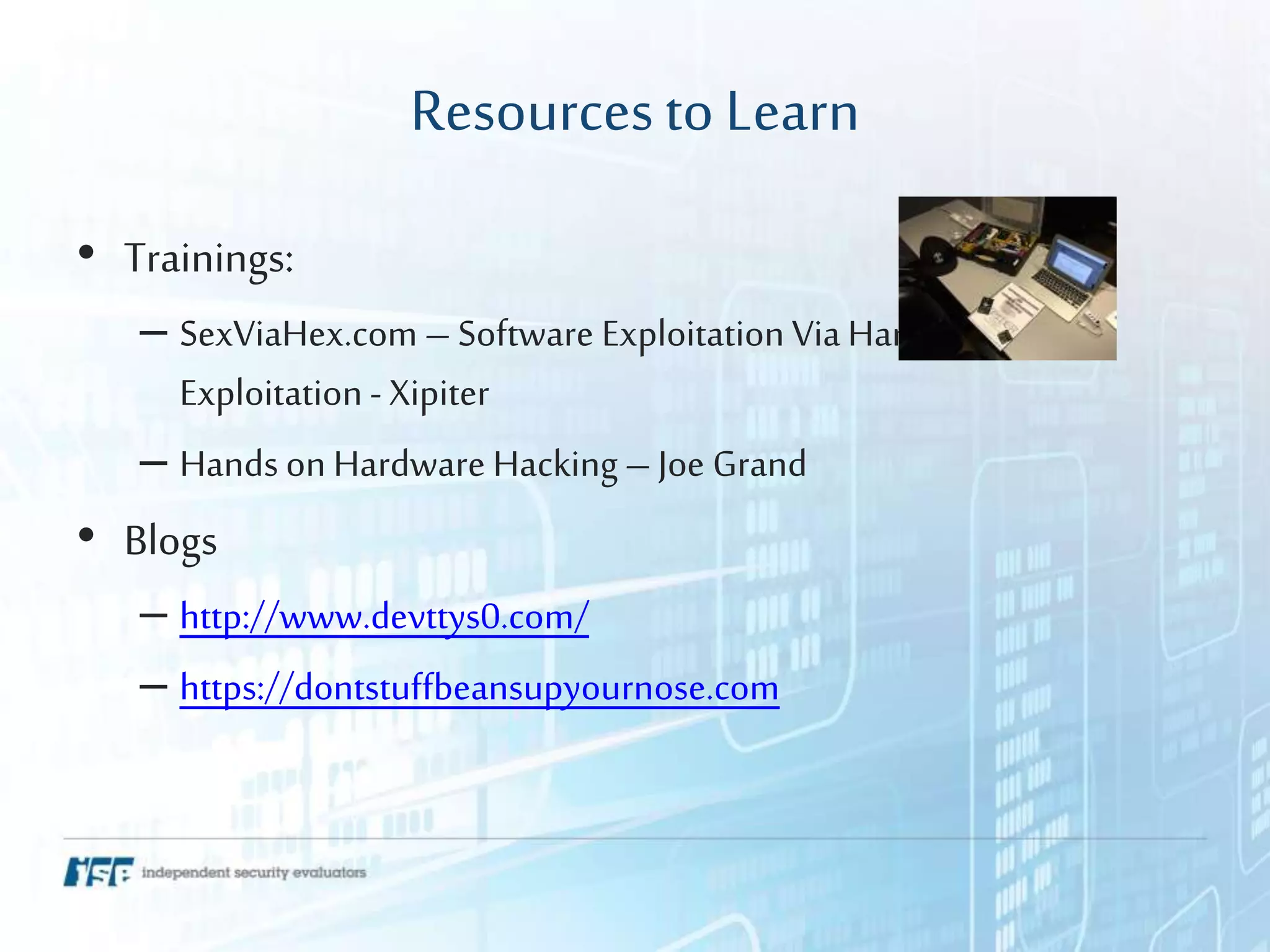

34. Resourcesto Learn
• Trainings:
– SexViaHex.com – Software Exploitation ViaHardware
Exploitation - Xipiter
– Hands on Hardware Hacking – Joe Grand
• Blogs
– http://www.devttys0.com/
– https://dontstuffbeansupyournose.com

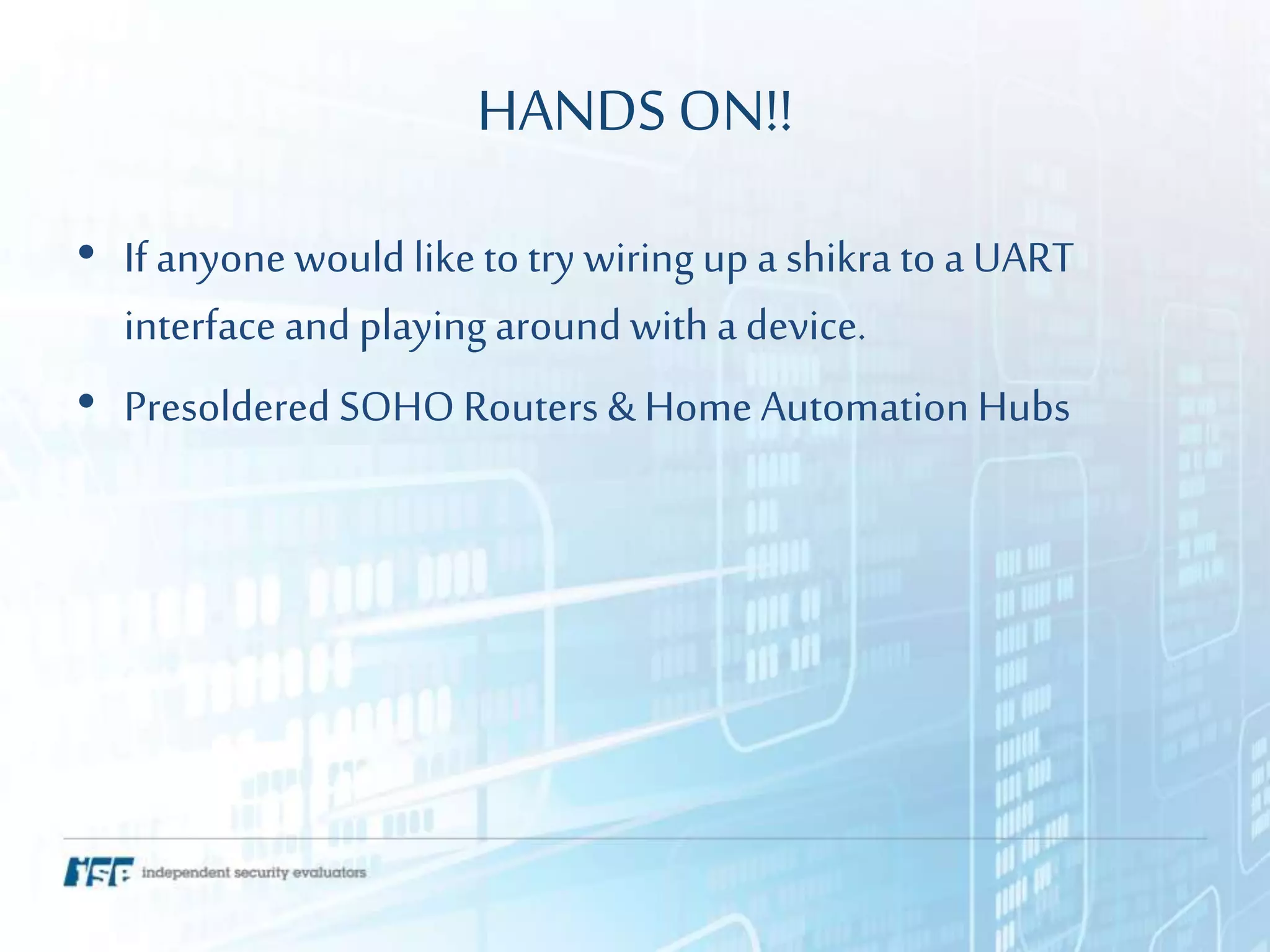

35. HANDSON!!
• If anyone would liketo try wiring up a shikra to a UART
interfaceand playing around witha device.
• Presoldered SOHO Routers & Home Automation Hubs

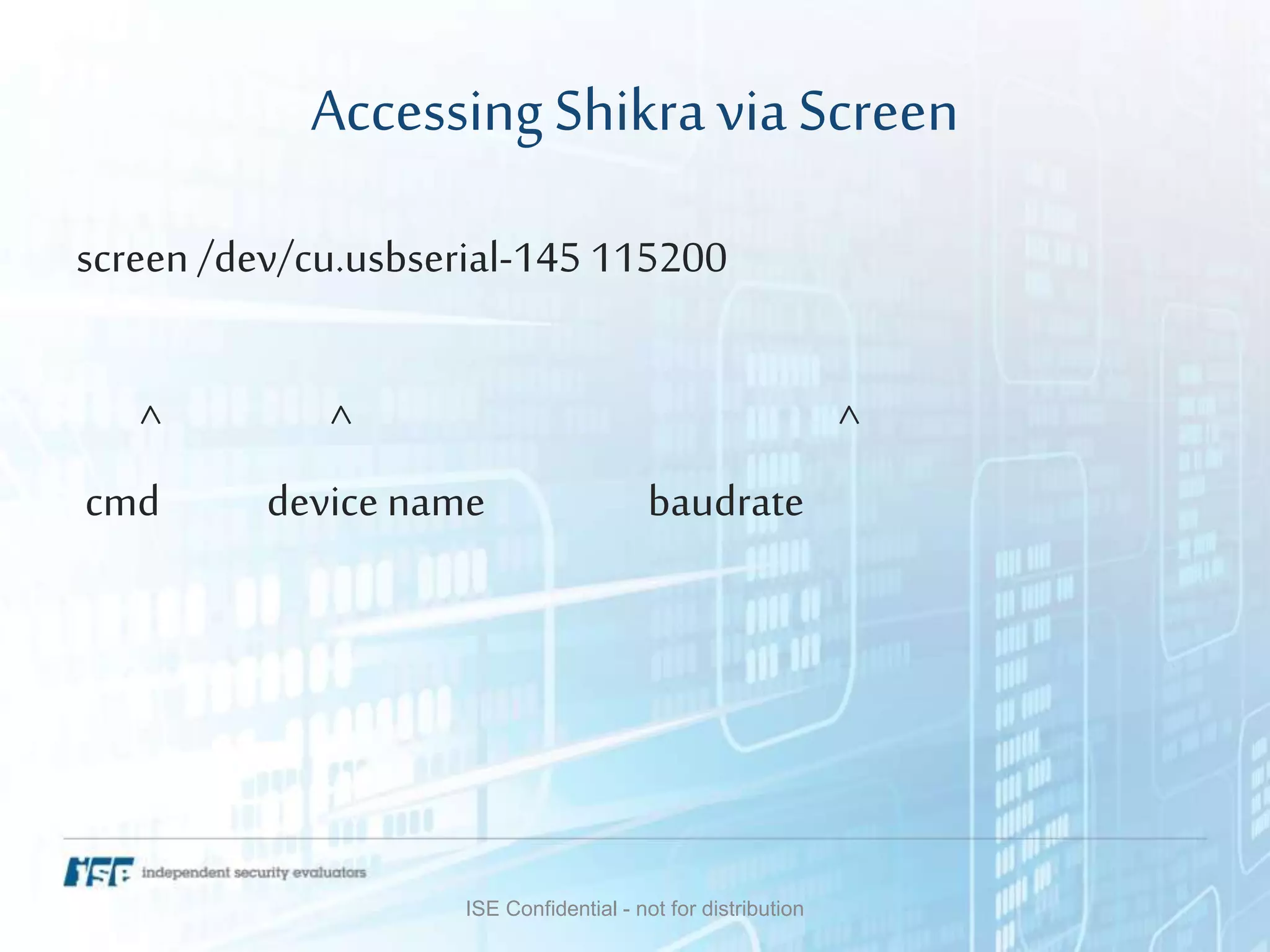

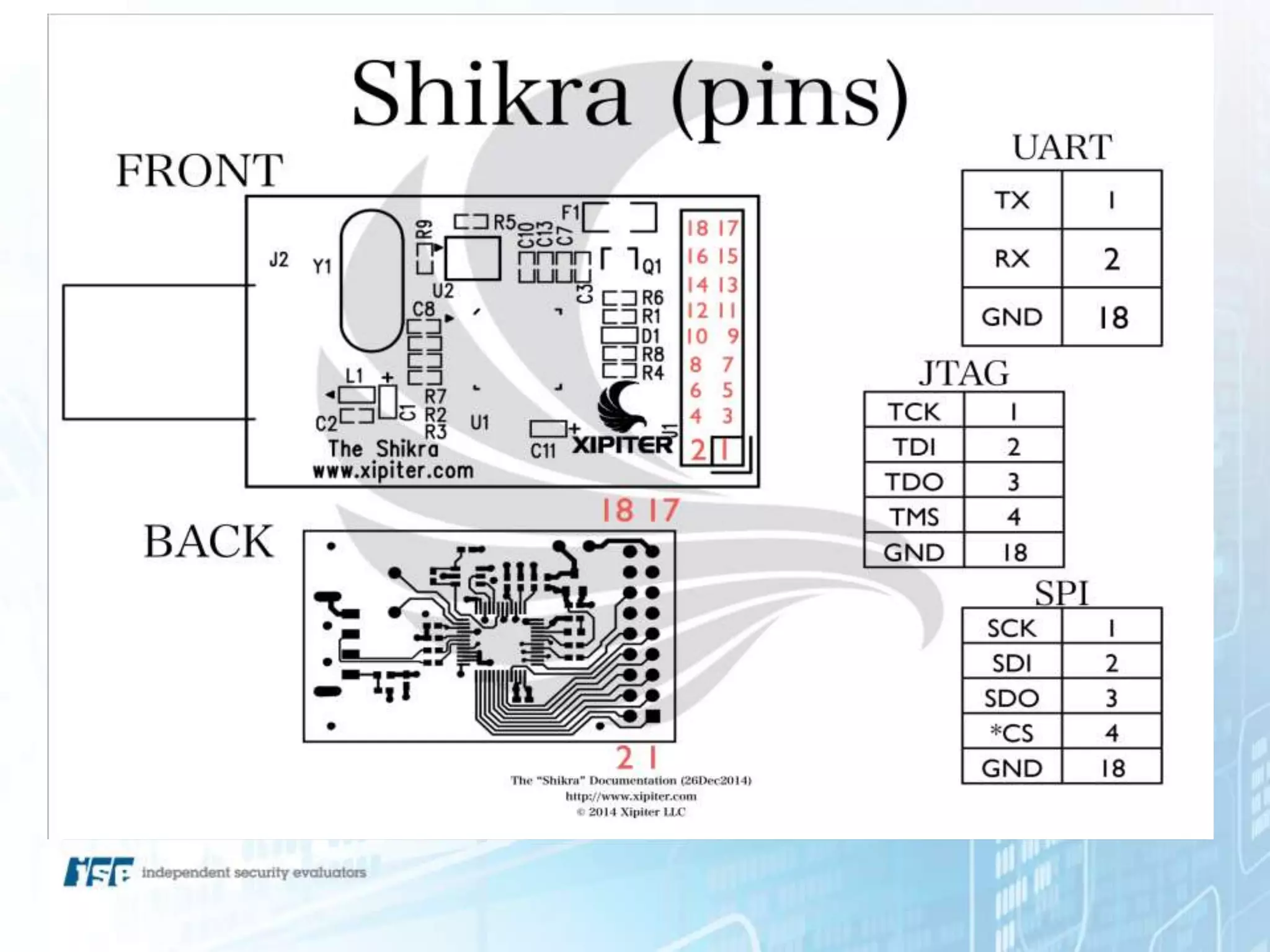

37. AccessingShikraviaScreen
screen /dev/cu.usbserial-145 115200
^ ^ ^
cmd device name baudrate
ISE Confidential - not for distribution

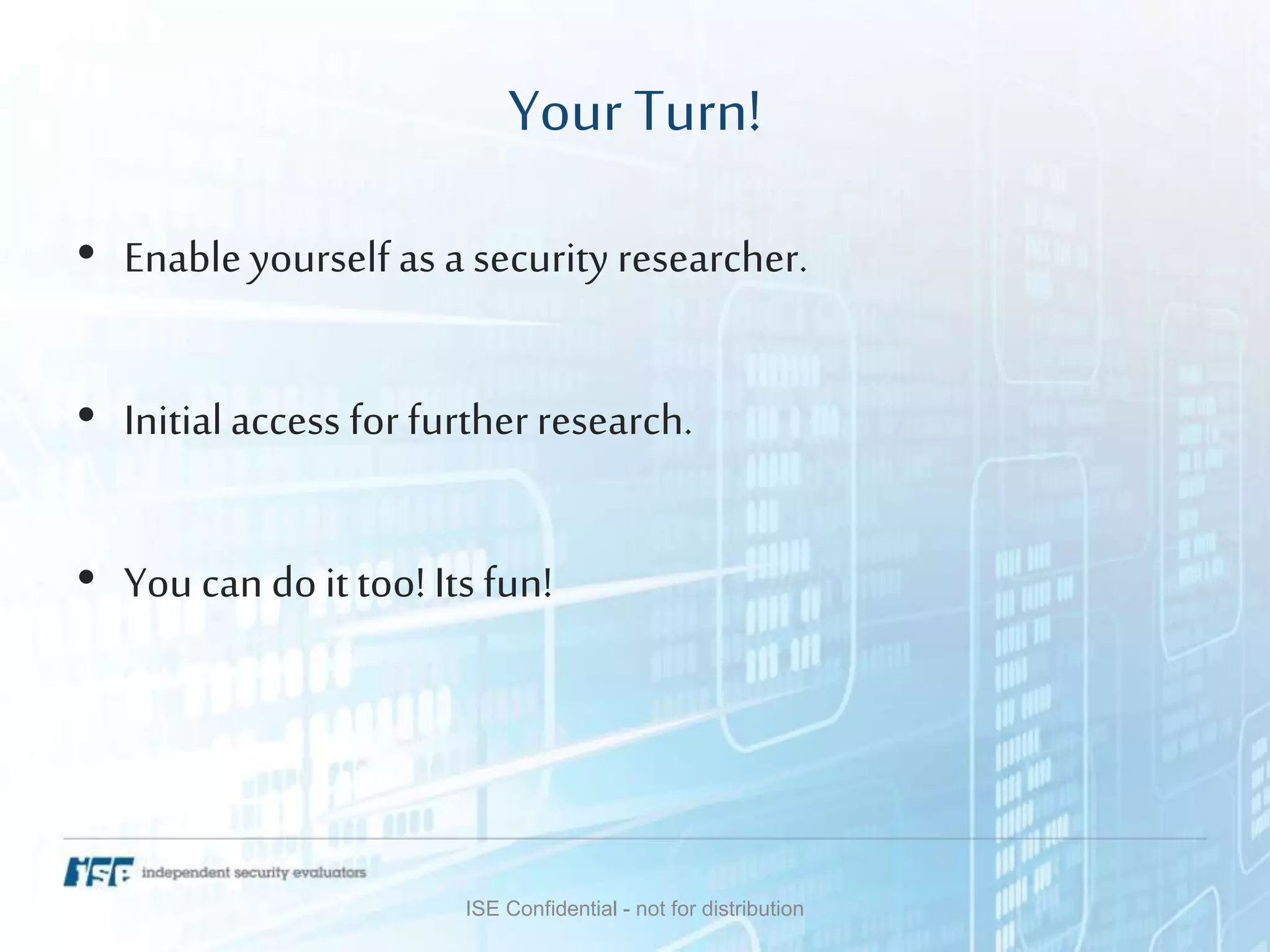

38. Your Turn!
• Enable yourself as a security researcher.
• Initialaccess for furtherresearch.
• You can do it too! Its fun!
ISE Confidential - not for distribution

39. ThankYou!
• DEF CON /@IoTVillage / You!
• Contact ISE --https://securityevaluators.com/
 https://github.com/f47h3r/firmware_collection
 @f47h3r_b0

40. GetInvolved
