1. Device Modeling Report
COMPONENTS: Solar Cell
PART NUMBER: PV-MA1740KW
MANUFACTURER: Mitsubishi Electric
REMARK: PSpice Model
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1

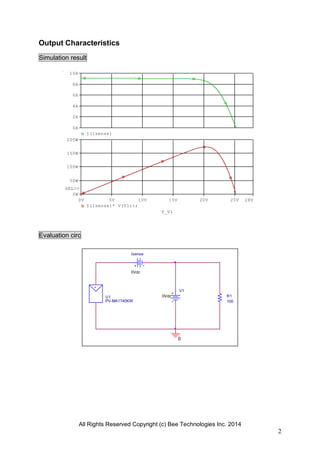

2. Output Characteristics
Simulation result
10A
8A
6A
4A
2A
0A
I(Isense)
200W
150W
100W
50W
SEL>>
0W
0V
5V
10V
I(Isense)* V(V1:+)
15V
20V
25V
28V
V_V1
Evaluation circ
Isense
0Vdc
+
V1
U1
PV-MA1740KW
0Vdc
R1
100
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2

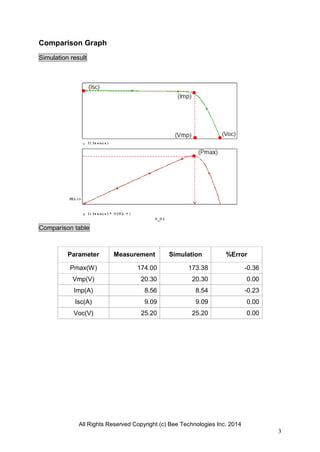

3. Comparison Graph
Simulation result
Comparison table
Parameter
Measurement
Simulation
%Error
Pmax(W)
174.00
173.38
-0.36
Vmp(V)
20.30
20.30
0.00
Imp(A)
8.56
8.54
-0.23
Isc(A)
9.09
9.09
0.00
Voc(V)
25.20
25.20
0.00
