The document outlines a device modeling report for a solar cell, specifically the jc215s-18eb model manufactured by Renesola. It includes simulation results, comparison of parameter measurements, and corresponding errors between measured and simulated values. Key parameters such as Pmax, Vmp, Imp, Isc, and Voc are analyzed to validate the performance of the device.

1. All Rights Reserved Copyright (c) Bee Technologies Inc. 2015
1
COMPONENTS: Solar Cell
PART NUMBER: JC215S-18Eb
MANUFACTURER: ReneSola
REMARK: PSpice Model
Bee Technologies Inc.
Device Modeling Report

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2015
2
V1
0Vdc
Isense
0Vdc
R1
100
0
+
U1
JC215S-18Eb
V_V1
0V 5V 10V 15V 20V 25V 30V 35V
I(Isense)* V(V1:+)
0W
86W
129W
172W
215W
SEL>>
I(Isense)
0A
2.5A
5.0A
7.5A
10.0A

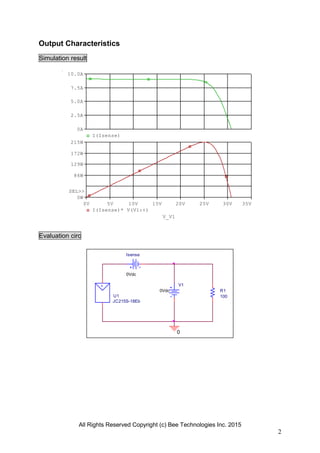

Output Characteristics
Simulation result
Evaluation circ

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2015
3

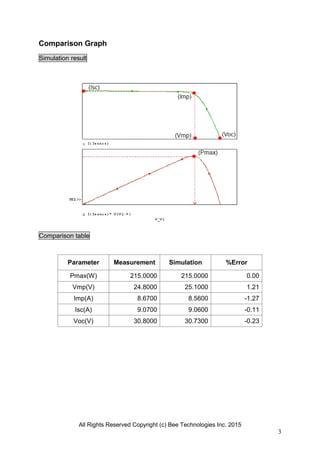

Comparison Graph
Simulation result
Comparison table
Parameter Measurement Simulation %Error
Pmax(W) 215.0000 215.0000 0.00
Vmp(V) 24.8000 25.1000 1.21
Imp(A) 8.6700 8.5600 -1.27
Isc(A) 9.0700 9.0600 -0.11
Voc(V) 30.8000 30.7300 -0.23
