The document provides a device modeling report for the Mitsubishi Electric solar cell (part number pv-ma1050kh), including output characteristics and simulation results. It includes a comparison between measured and simulated parameters, showing minimal percentage errors across key performance metrics. The report is copyright protected by Bee Technologies Inc. 2014.

1. Device Modeling Report
COMPONENTS: Solar Cell
PART NUMBER: PV-MA1050KH
MANUFACTURER: Mitsubishi Electric
REMARK: PSpice Model
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1

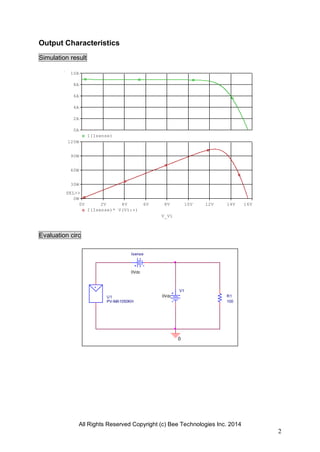

2. Output Characteristics
Simulation result
10A
8A
6A
4A
2A
0A
I(Isense)
120W
90W
60W
30W
SEL>>
0W
0V
2V
4V
I(Isense)* V(V1:+)
6V
8V
10V
12V
14V
16V
V_V1
Evaluation circ
Isense
0Vdc
+
V1
U1
PV-MA1050KH
0Vdc
R1
100
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2

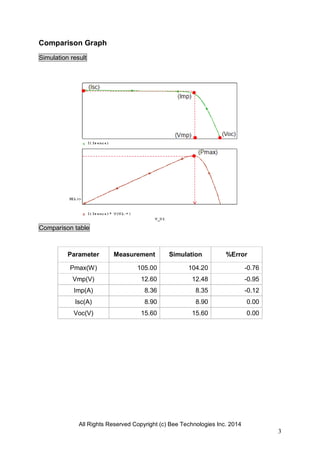

3. Comparison Graph
Simulation result
Comparison table
Parameter
Measurement
Simulation
%Error
Pmax(W)
105.00
104.20
-0.76
Vmp(V)
12.60
12.48
-0.95
Imp(A)
8.36
8.35
-0.12
Isc(A)
8.90
8.90
0.00
Voc(V)
15.60
15.60
0.00
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
3
