The document is a device modeling report by Bee Technologies Inc. that includes details about a solar cell (part number: AM-1513) manufactured by Panasonic. It presents simulation results, including a comparison between measured and simulated values for parameters like maximum power, voltage, and current. The report contains circuit diagrams and performance graphs, highlighting the accuracy of the simulations with minimal percentage errors.

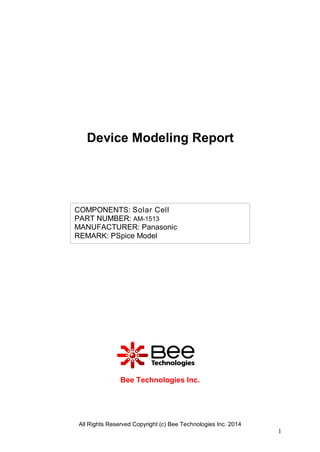

1. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1
COMPONENTS: Solar Cell
PART NUMBER: AM-1513
MANUFACTURER: Panasonic
REMARK: PSpice Model
Bee Technologies Inc.
Device Modeling Report

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2
+
U1
VBMS240AJ01

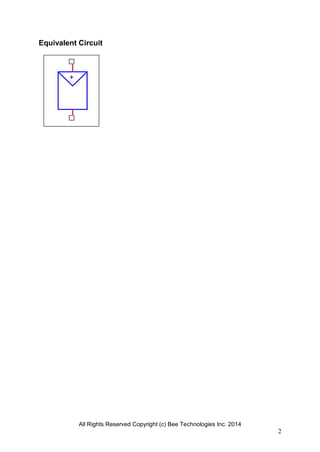

Equivalent Circuit

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
3
+
U1
AM-1513
V1
0Vdc
Isense
0Vdc
R1
100
0
V_V1
0V 0.5V 1.0V 1.5V 2.0V 2.5V 3.0V
I(Isense)* V(V1:+)
0W
7.5W
15.0W
22.5W
30.0W
SEL>>
I(Isense)
0A
5A
10A
15A
20A

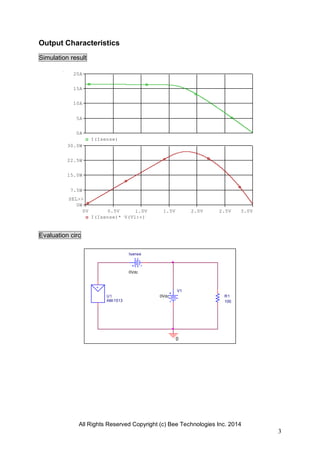

Output Characteristics
Simulation result
Evaluation circ

4. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
4
Comparison Graph
Simulation result
Comparison table
Parameter Measurement Simulation %Error
Pmax(W) 27.00 26.94 -0.22
Vmp(V) 1.80 1.81 0.56
Imp(A) 15.00 14.87 -0.87
Isc(A) 16.50 16.50 0.00
Voc(V) 3.00 3.00 0.00
