COMPONENTS: Solar Cell
PART NUMBER: AM-1407
MANUFACTURER: Panasonic
REMARK: PSpice Model
Bee Technologies Inc.
Device Modeling Report

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2
+
U1
VBMS240AJ01

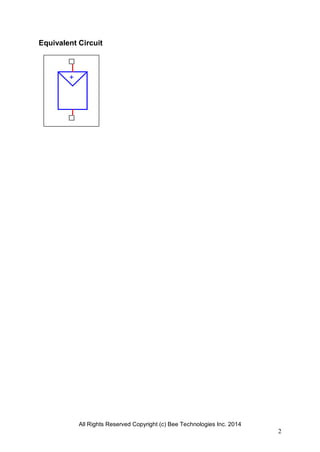

Equivalent Circuit

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
3
+
U1
AM-1407
V1
0Vdc
Isense
0Vdc
R1
100
0
V_V1
0V 0.4V 0.8V 1.2V 1.6V 2.0V 2.4V
I(Isense)* V(V1:+)
0W
5W
10W
15W
20W
I(Isense)
0A
4A
8A
12A
16A
SEL>>

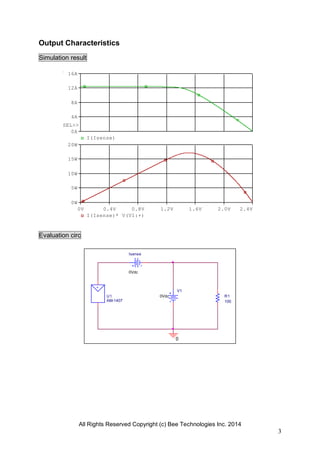

Output Characteristics
Simulation result
Evaluation circ

4. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
4

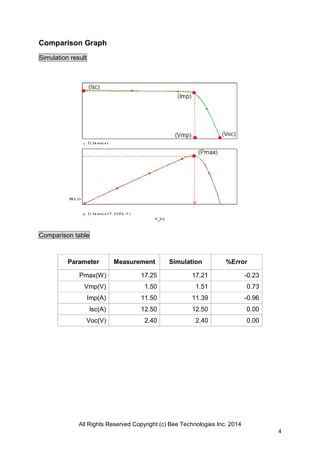

Comparison Graph
Simulation result
Comparison table
Parameter Measurement Simulation %Error
Pmax(W) 17.25 17.21 -0.23
Vmp(V) 1.50 1.51 0.73
Imp(A) 11.50 11.39 -0.96
Isc(A) 12.50 12.50 0.00
Voc(V) 2.40 2.40 0.00
