The document is a device modeling report from Bee Technologies Inc. that contains a PSpice model for a Panasonic AT-7963 solar cell. It includes the output characteristics graph and table comparing the simulation results to measurements, showing good agreement with less than 1% error for all parameters.

1. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1

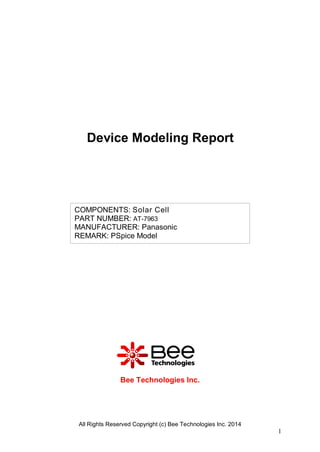

COMPONENTS: Solar Cell
PART NUMBER: AT-7963
MANUFACTURER: Panasonic
REMARK: PSpice Model
Bee Technologies Inc.
Device Modeling Report

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2
+
U1
AT-7963
V1
0Vdc
Isense
0Vdc
R1
100
0
V_V1
0V 1.42V 2.84V 4.26V 5.68V 7.10V
I(Isense)* V(V1:+)
0W
202mW
303mW
404mW
505mW
SEL>>
I(Isense)
0A
23mA
46mA
68mA
91mA
114mA
137mA

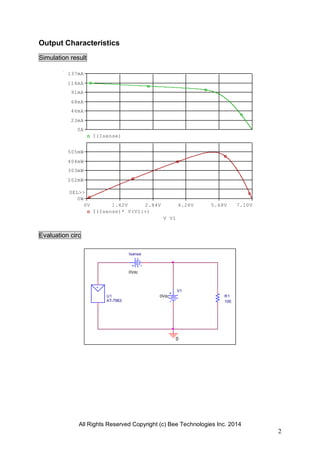

Output Characteristics
Simulation result
Evaluation circ

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
3

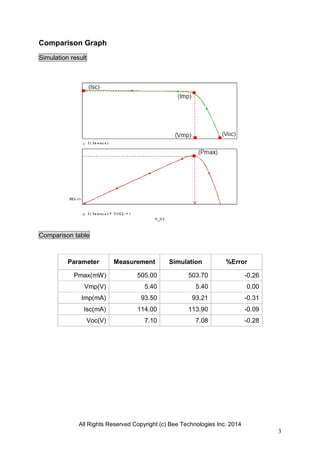

Comparison Graph
Simulation result
Comparison table
Parameter Measurement Simulation %Error
Pmax(mW) 505.00 503.70 -0.26
Vmp(V) 5.40 5.40 0.00
Imp(mA) 93.50 93.21 -0.31
Isc(mA) 114.00 113.90 -0.09
Voc(V) 7.10 7.08 -0.28
