1. Device Modeling Report
COMPONENTS: Solar Cell
PART NUMBER: KD250GX-LFB2
MANUFACTURER: KYOCERA
REMARK: PSpice Model
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1

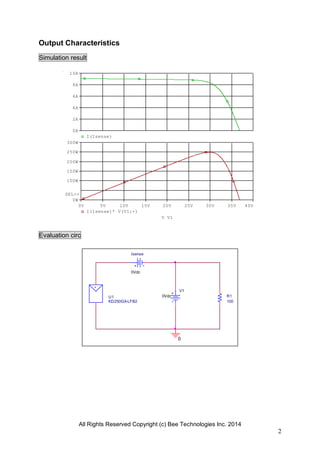

2. Output Characteristics
Simulation result
10A
8A
6A
4A
2A
0A
I(Isense)
300W
250W
200W
150W
100W
SEL>>
0W
0V
5V
10V
15V
I(Isense)* V(V1:+)
20V
25V
30V
35V
40V
V_V1
Evaluation circ
Isense
0Vdc
+
V1
U1
KD250GX-LFB2
0Vdc
R1
100
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2

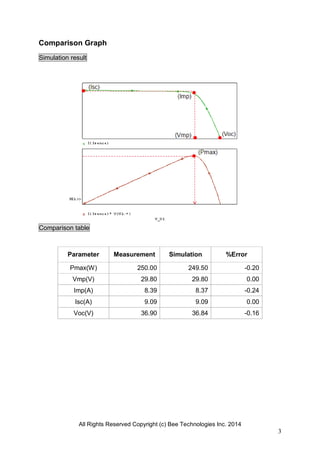

3. Comparison Graph
Simulation result
Comparison table
Parameter
Measurement
Simulation
%Error
Pmax(W)
250.00
249.50
-0.20
Vmp(V)
29.80
29.80
0.00
Imp(A)
8.39
8.37
-0.24
Isc(A)
9.09
9.09
0.00
Voc(V)
36.90
36.84
-0.16
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
3
