SPICE MODEL of KD220GX-LFBS , PSpice Model in SPICE PARK

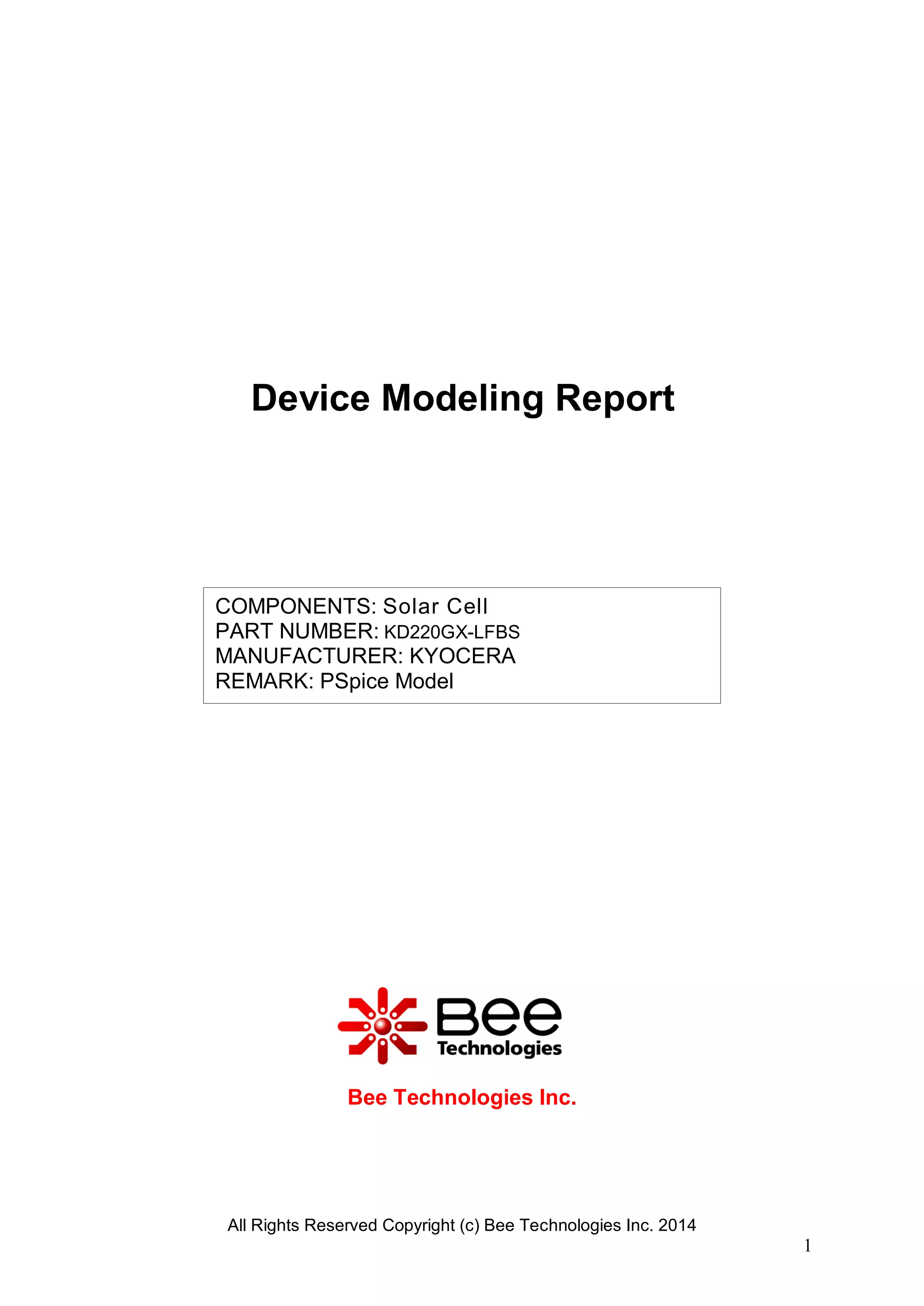

- 1. Device Modeling Report COMPONENTS: Solar Cell PART NUMBER: KD220GX-LFBS MANUFACTURER: KYOCERA REMARK: PSpice Model Bee Technologies Inc. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014 1

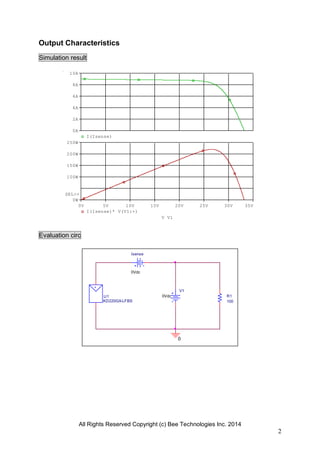

- 2. Output Characteristics Simulation result 10A 8A 6A 4A 2A 0A I(Isense) 250W 200W 150W 100W SEL>> 0W 0V 5V 10V I(Isense)* V(V1:+) 15V 20V 25V 30V 35V V_V1 Evaluation circ Isense 0Vdc + V1 U1 KD220GX-LFBS 0Vdc R1 100 0 All Rights Reserved Copyright (c) Bee Technologies Inc. 2014 2
- 3. Comparison Graph Simulation result Comparison table Parameter Measurement Simulation %Error Pmax(W) 220.00 220.00 0.00 Vmp(V) 26.60 26.57 -0.11 Imp(A) 8.28 8.27 -0.12 Isc(A) 8.98 8.98 0.00 Voc(V) 33.20 33.18 -0.06 All Rights Reserved Copyright (c) Bee Technologies Inc. 2014 3
