1. Device Modeling Report
COMPONENTS: Solar Cell
PART NUMBER: PV-MA0870KV
MANUFACTURER: Mitsubishi Electric
REMARK: PSpice Model
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1

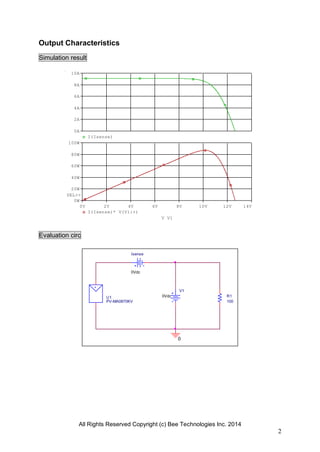

2. Output Characteristics
Simulation result
10A
8A
6A
4A
2A
0A
I(Isense)
100W
80W
60W
40W
20W
SEL>>
0W
0V
2V
4V
I(Isense)* V(V1:+)
6V
8V
10V
12V
14V
V_V1
Evaluation circ
Isense
0Vdc
+
V1
U1
PV-MA0870KV
0Vdc
R1
100
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2

3. Comparison Graph
Simulation result
Comparison table
Parameter
Measurement
Simulation
%Error
Pmax(W)
87.00
86.84
-0.18
Vmp(V)
10.20
10.14
-0.59
Imp(A)
8.56
8.56
0.00
Isc(A)
9.09
9.09
-0.01
Voc(V)
12.60
12.60
0.00
