SPICE MODEL of AM-5814 , PSpice Model in SPICE PARK
The document presents a device modeling report for a solar cell (part number: am-5814) manufactured by Panasonic. It includes simulation results, output characteristics, and a comparison of measured and simulated parameters with calculated errors. All rights are reserved by Bee Technologies Inc.
More Related Content
What's hot
More from Tsuyoshi Horigome
SPICE MODEL of AM-5814 , PSpice Model in SPICE PARK
- 1. All Rights ReservedCopyright (c) Bee Technologies Inc. 2014 1 COMPONENTS: Solar Cell PART NUMBER: AM-5814 MANUFACTURER: Panasonic REMARK: PSpice Model Bee Technologies Inc. Device Modeling Report

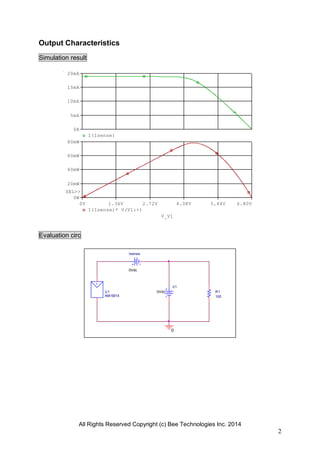

- 2. All Rights ReservedCopyright (c) Bee Technologies Inc. 2014 2 V1 0Vdc Isense 0Vdc R1 100 0 + U1 AM-5814 V_V1 0V 1.36V 2.72V 4.08V 5.44V 6.80V I(Isense)* V(V1:+) 0W 20mW 40mW 60mW 80mW SEL>> I(Isense) 0A 5mA 10mA 15mA 20mA Output Characteristics Simulation result Evaluation circ

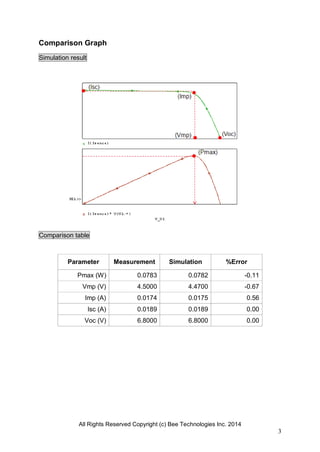

- 3. All Rights ReservedCopyright (c) Bee Technologies Inc. 2014 3 Comparison Graph Simulation result Comparison table Parameter Measurement Simulation %Error Pmax (W) 0.0783 0.0782 -0.11 Vmp (V) 4.5000 4.4700 -0.67 Imp (A) 0.0174 0.0175 0.56 Isc (A) 0.0189 0.0189 0.00 Voc (V) 6.8000 6.8000 0.00
