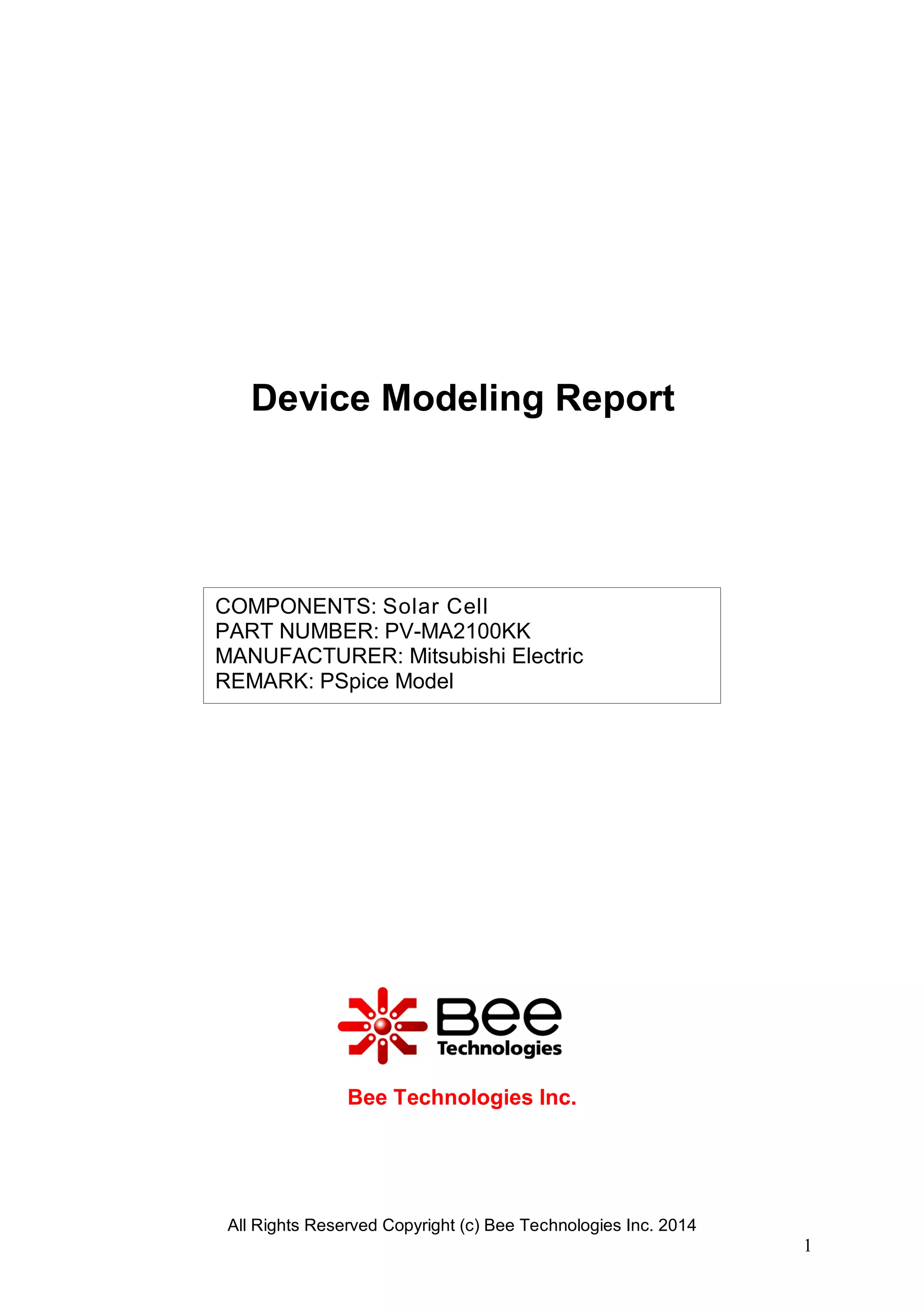

Device Modeling Report

COMPONENTS: Solar Cell
PART NUMBER: PV-MA2100KK
MANUFACTURER: Mitsubishi Electric
REMARK: PSpice Model

Bee Technologies Inc.

All Rights Reserved Copyright (c) Bee Technologies Inc. 2014

1

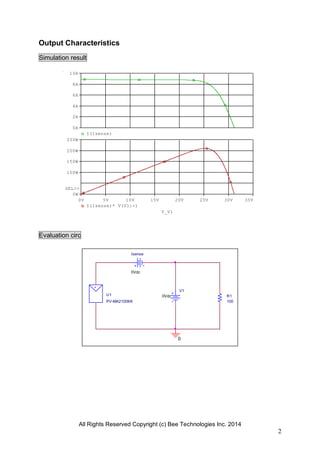

Output Characteristics
Simulation result
10A
8A
6A
4A
2A
0A
I(Isense)
250W
200W
150W
100W

SEL>>
0W
0V

5V
10V
I(Isense)* V(V1:+)

15V

20V

25V

30V

35V

V_V1

Evaluation circ
Isense

0Vdc

+

V1
U1

0Vdc

R1
100

PV-MA2100KK

0

All Rights Reserved Copyright (c) Bee Technologies Inc. 2014

2

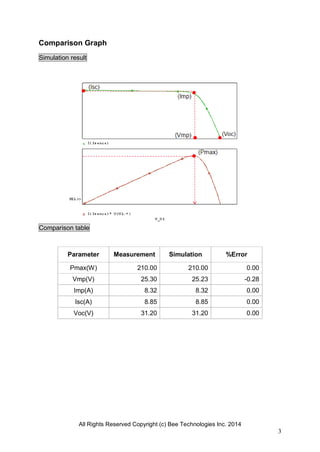

Comparison Graph
Simulation result

Comparison table

Parameter

Measurement

Simulation

%Error

Pmax(W)

210.00

210.00

0.00

Vmp(V)

25.30

25.23

-0.28

Imp(A)

8.32

8.32

0.00

Isc(A)

8.85

8.85

0.00

Voc(V)

31.20

31.20

0.00

All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
