The document details a device modeling report for a Panasonic solar cell (part number AT-7665) created by Bee Technologies Inc. It includes simulation results and comparisons of output characteristics, such as maximum power (Pmax), voltage at maximum power (Vmp), and short-circuit current (Isc), along with the percentage errors of measurements. Overall, the data presents a close correlation between simulated and measured values.

1. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1

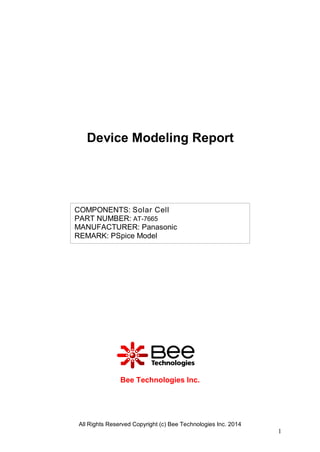

COMPONENTS: Solar Cell
PART NUMBER: AT-7665
MANUFACTURER: Panasonic
REMARK: PSpice Model
Bee Technologies Inc.
Device Modeling Report

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2
+
U1
AT-7665
V1
0Vdc
Isense
0Vdc
R1
100
0
V_V1
0V 1.0V 2.0V 3.0V 4.0V 4.7V
I(Isense)* V(V1:+)
0W
12mW
23mW
35mW
46mW
58mW
I(Isense)
0A
7.9mA
11.8mA
15.8mA
19.7mA
SEL>>
Output Characteristics
Simulation result
Evaluation circ

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
3

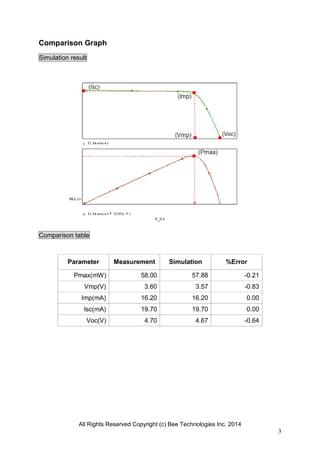

Comparison Graph
Simulation result
Comparison table
Parameter Measurement Simulation %Error
Pmax(mW) 58.00 57.88 -0.21
Vmp(V) 3.60 3.57 -0.83
Imp(mA) 16.20 16.20 0.00
Isc(mA) 19.70 19.70 0.00
Voc(V) 4.70 4.67 -0.64
