The document reports on a device modeling evaluation for a Panasonic solar cell model AM-1805 by Bee Technologies Inc. It includes simulations, comparison graphs, and a table detailing the output characteristics of the solar cell, showing close alignment between measured and simulated parameters. Key outputs include maximum power, voltage at maximum power, current at maximum power, short-circuit current, and open-circuit voltage with minimal error percentages.

1. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
1
COMPONENTS: Solar Cell
PART NUMBER: AM-1805
MANUFACTURER: Panasonic
REMARK: PSpice Model
Bee Technologies Inc.
Device Modeling Report

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
2
+
U1
VBMS240AJ01

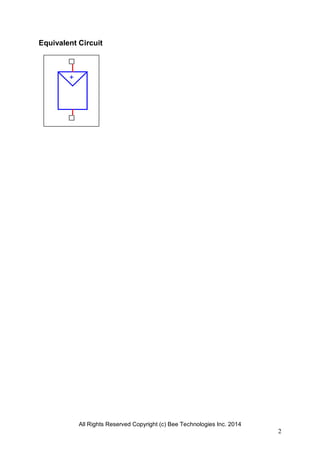

Equivalent Circuit

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
3
+
U1
AM-1805
V1
0Vdc
Isense
0Vdc
R1
100
0
V_V1
0V 1.0V 2.0V 3.0V 4.0V 4.9V
I(Isense)* V(V1:+)
0W
20W
30W
40W
50W
SEL>>
I(Isense)
0A
5A
10A
15A
20A

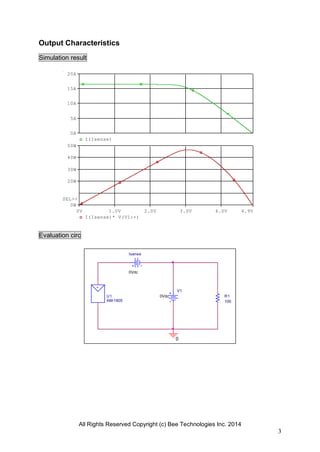

Output Characteristics
Simulation result
Evaluation circ

4. All Rights Reserved Copyright (c) Bee Technologies Inc. 2014
4

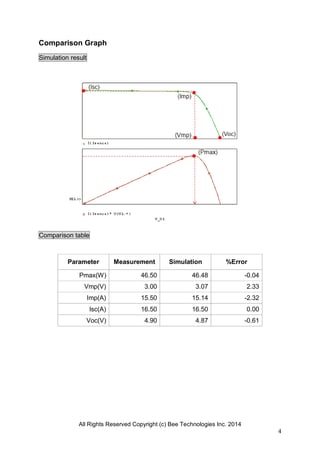

Comparison Graph
Simulation result
Comparison table
Parameter Measurement Simulation %Error
Pmax(W) 46.50 46.48 -0.04
Vmp(V) 3.00 3.07 2.33
Imp(A) 15.50 15.14 -2.32
Isc(A) 16.50 16.50 0.00
Voc(V) 4.90 4.87 -0.61
