Push to Me: Mobile Push Notifications (Zend Framework)
- 1. ThatConference August 14th 2012 Push to Me! Mobile Push Notifications By Mike Willbanks Sr. Web Architect Manager Barnes and Noble

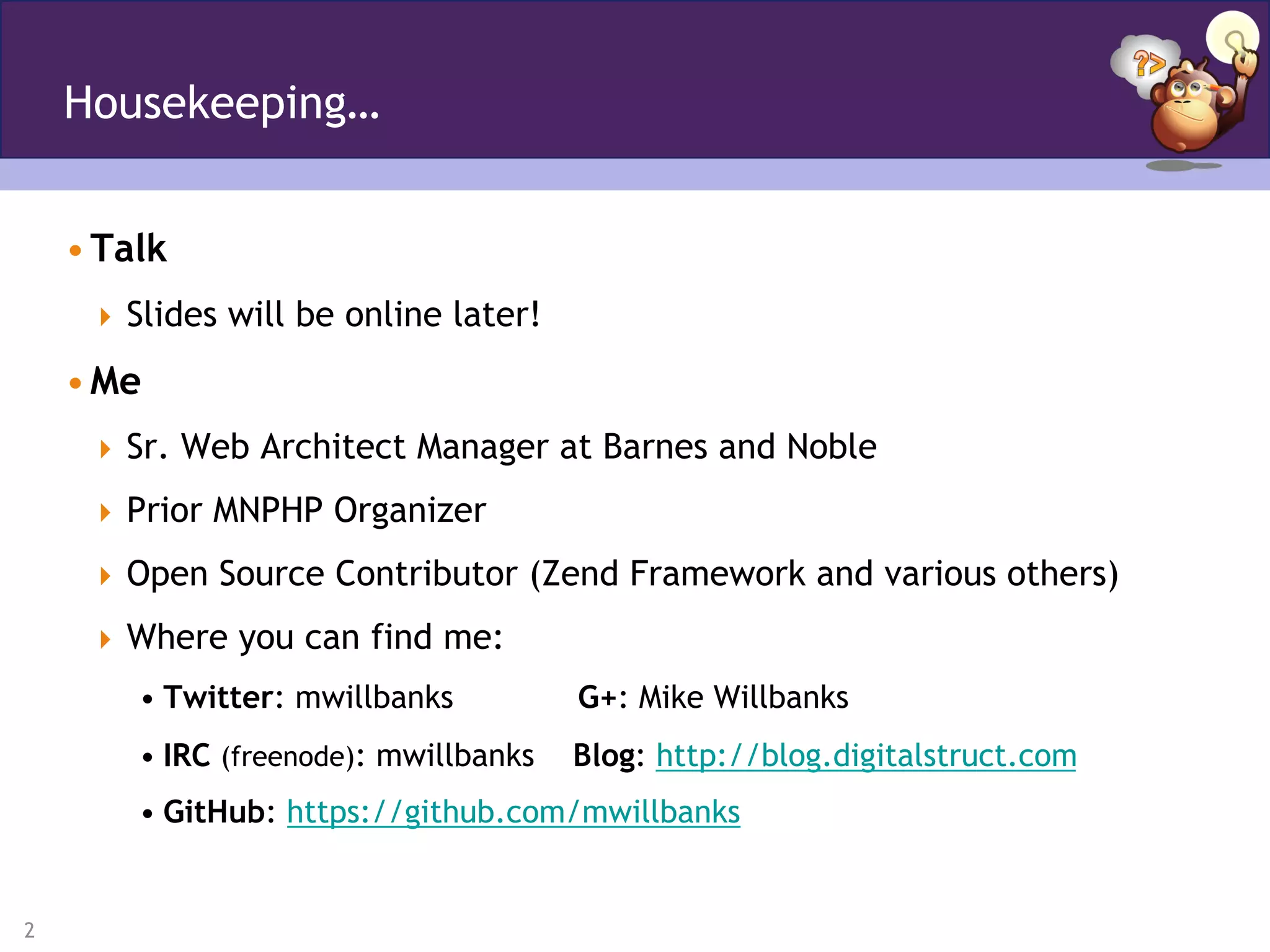

- 2. Housekeeping… • Talk Slides will be online later! • Me Sr. Web Architect Manager at Barnes and Noble Prior MNPHP Organizer Open Source Contributor (Zend Framework and various others) Where you can find me: • Twitter: mwillbanks G+: Mike Willbanks • IRC (freenode): mwillbanks Blog: http://blog.digitalstruct.com • GitHub: https://github.com/mwillbanks 2

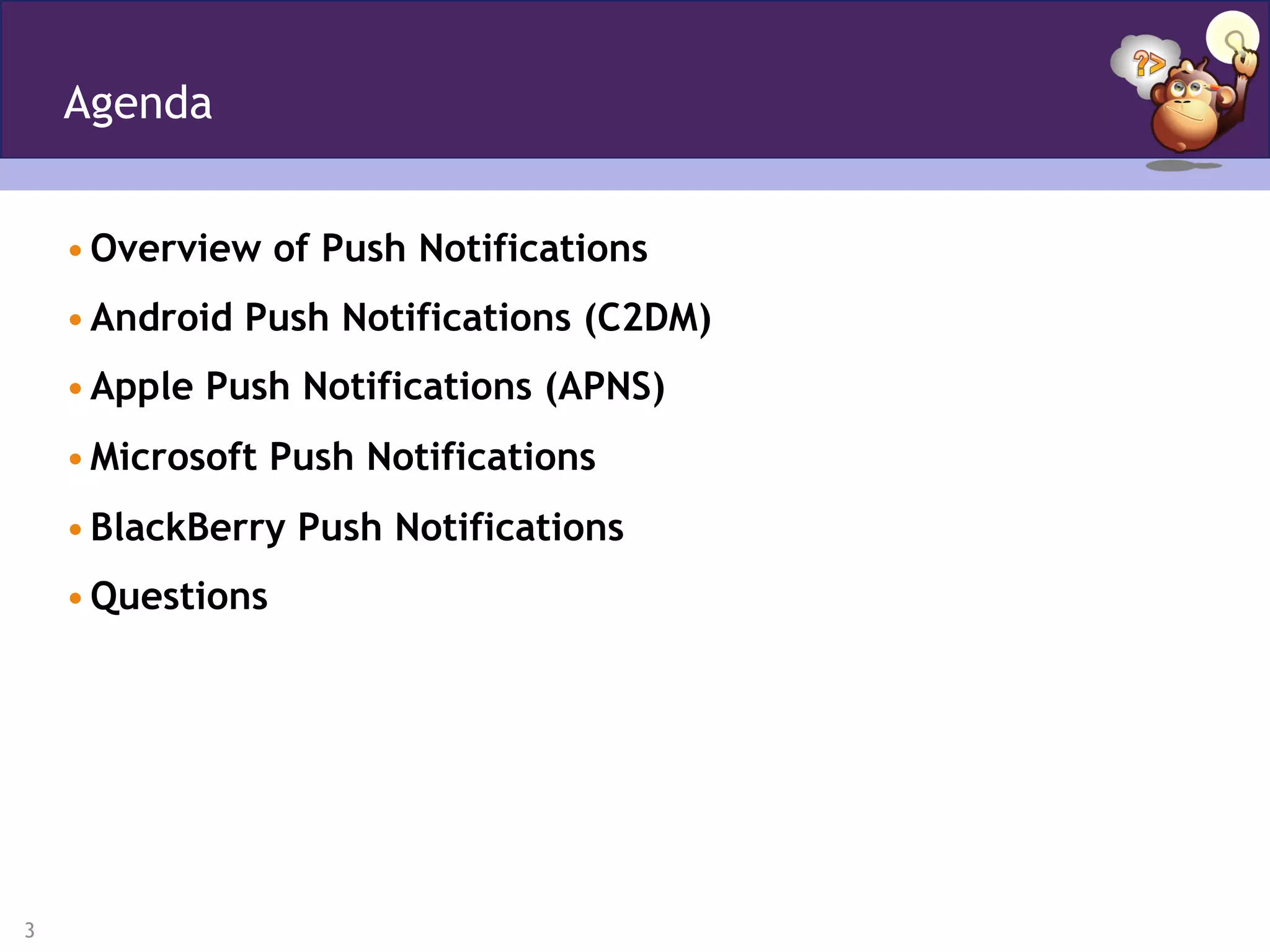

- 3. Agenda • Overview of Push Notifications • Android Push Notifications (C2DM) • Apple Push Notifications (APNS) • Microsoft Push Notifications • BlackBerry Push Notifications • Questions 3

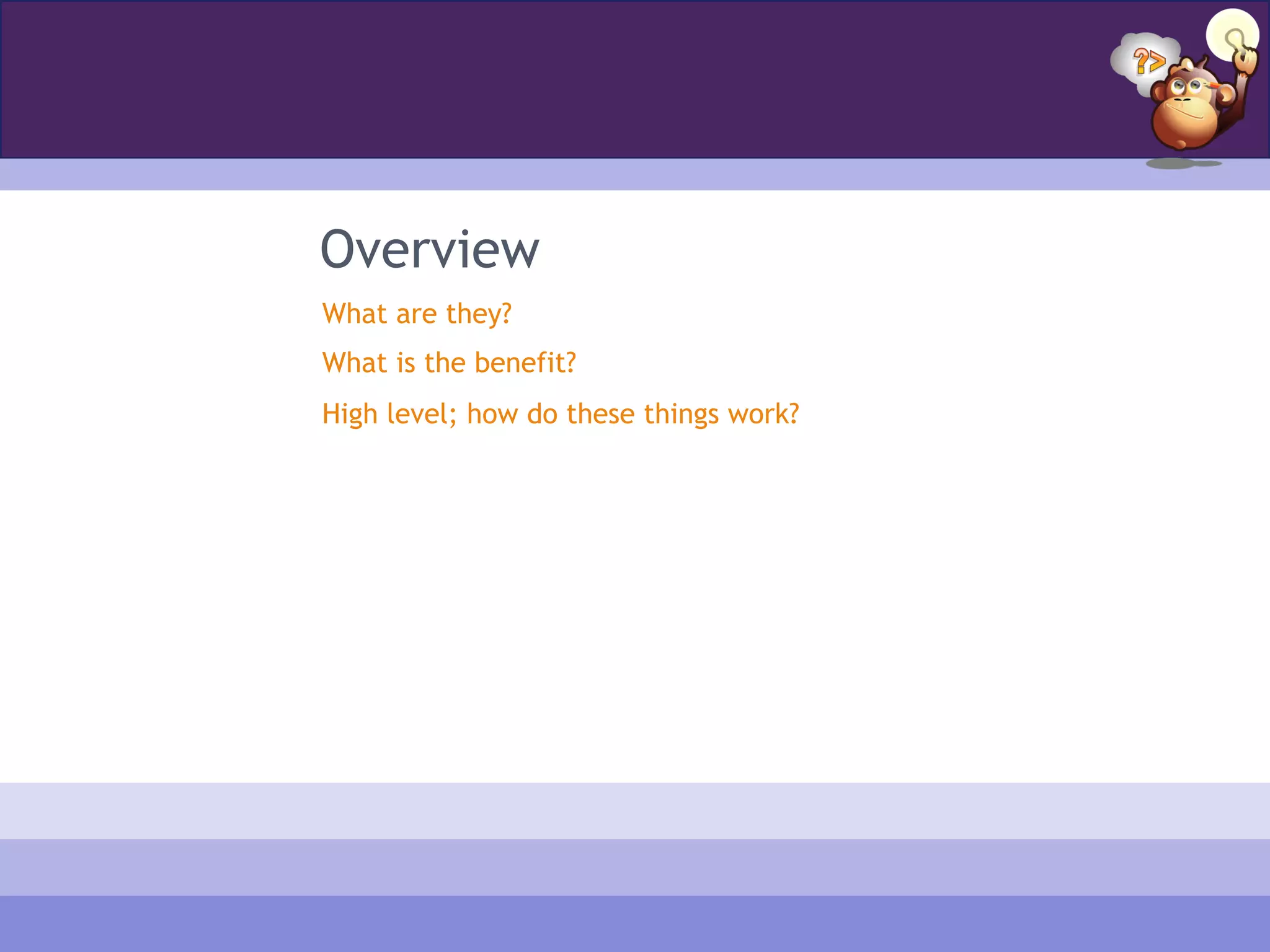

- 4. Overview What are they? What is the benefit? High level; how do these things work?

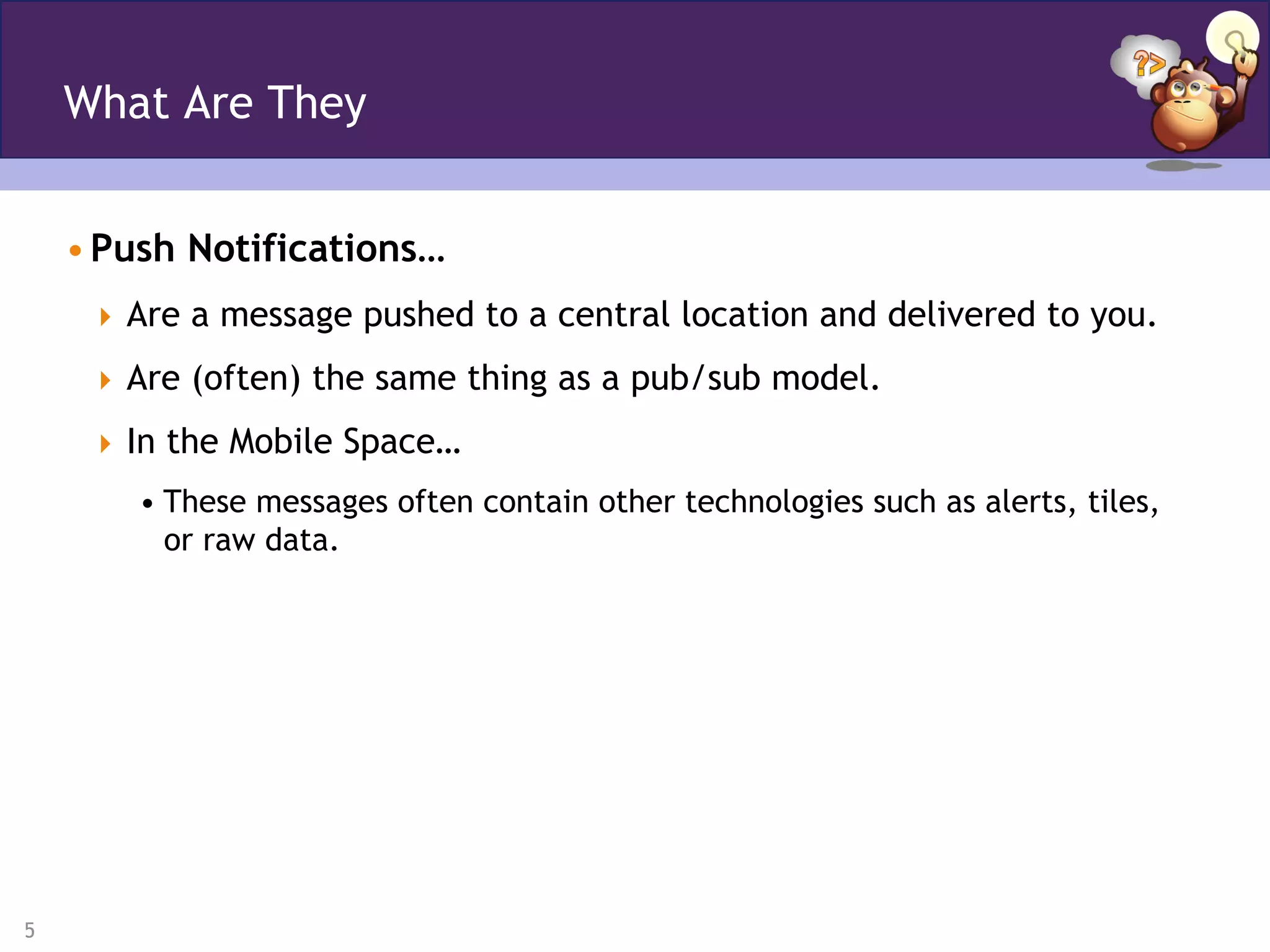

- 5. What Are They • Push Notifications… Are a message pushed to a central location and delivered to you. Are (often) the same thing as a pub/sub model. In the Mobile Space… • These messages often contain other technologies such as alerts, tiles, or raw data. 5

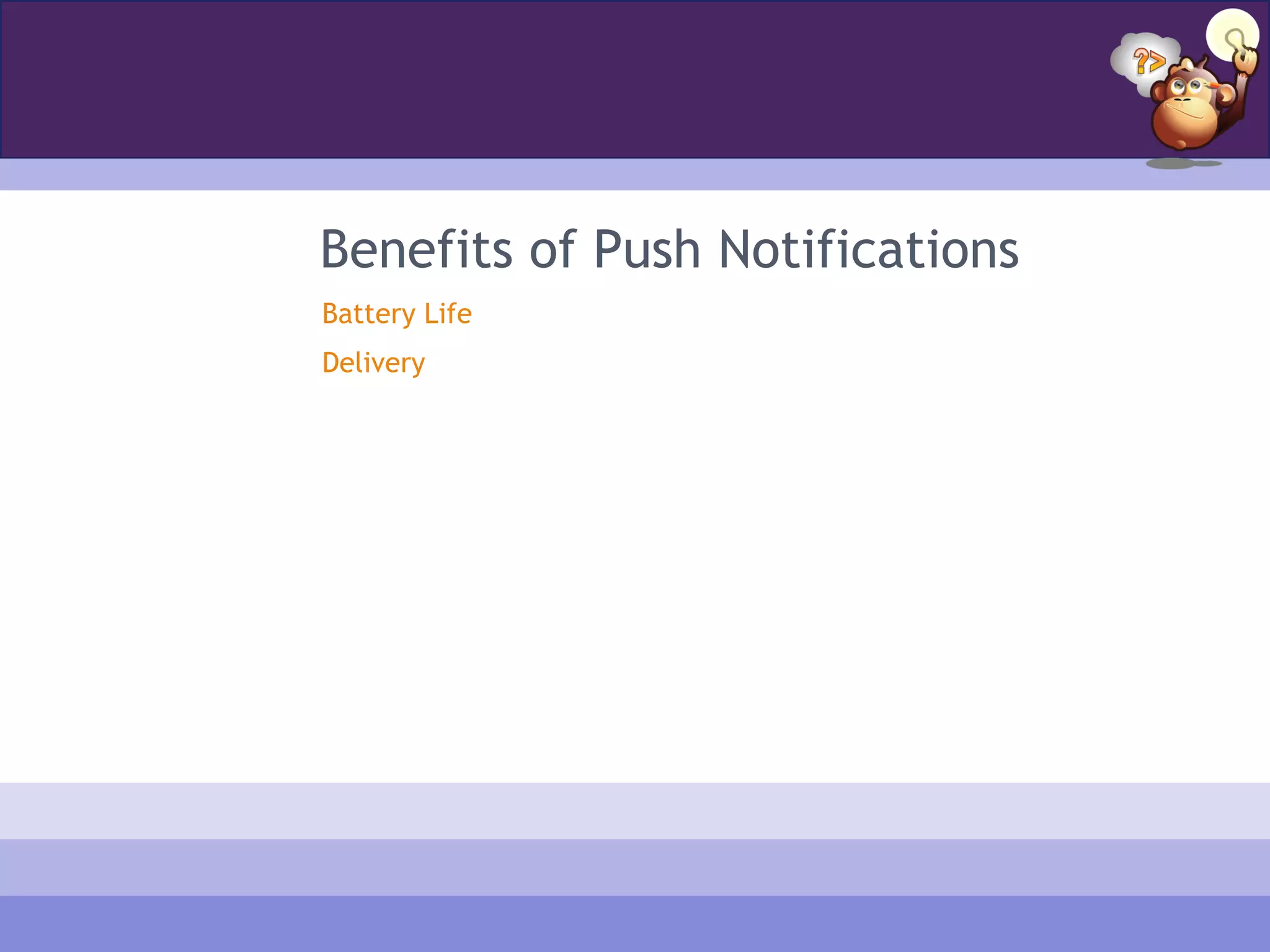

- 7. Benefits of Push Notifications Battery Life Delivery

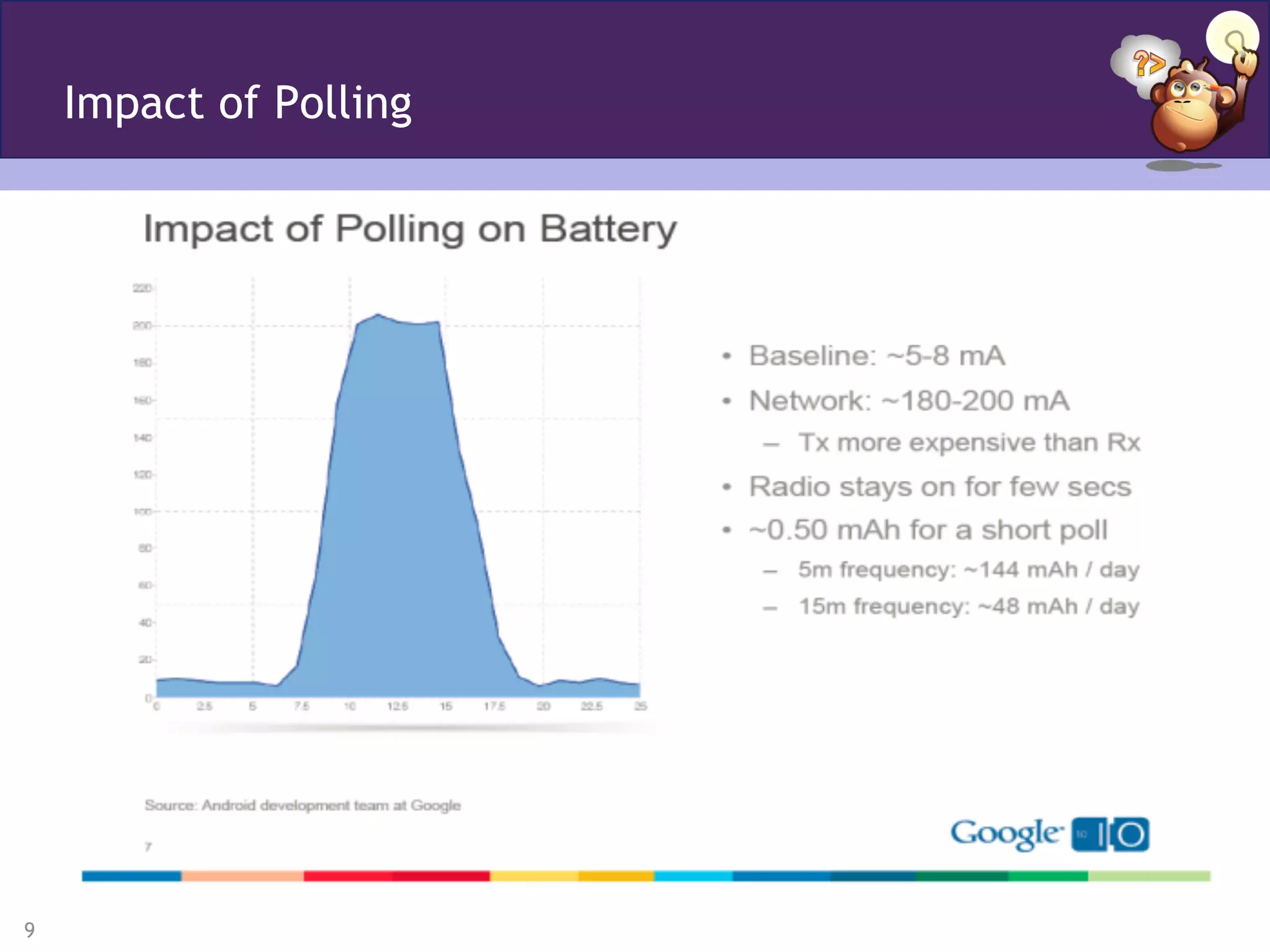

- 8. One word… Battery Life 8

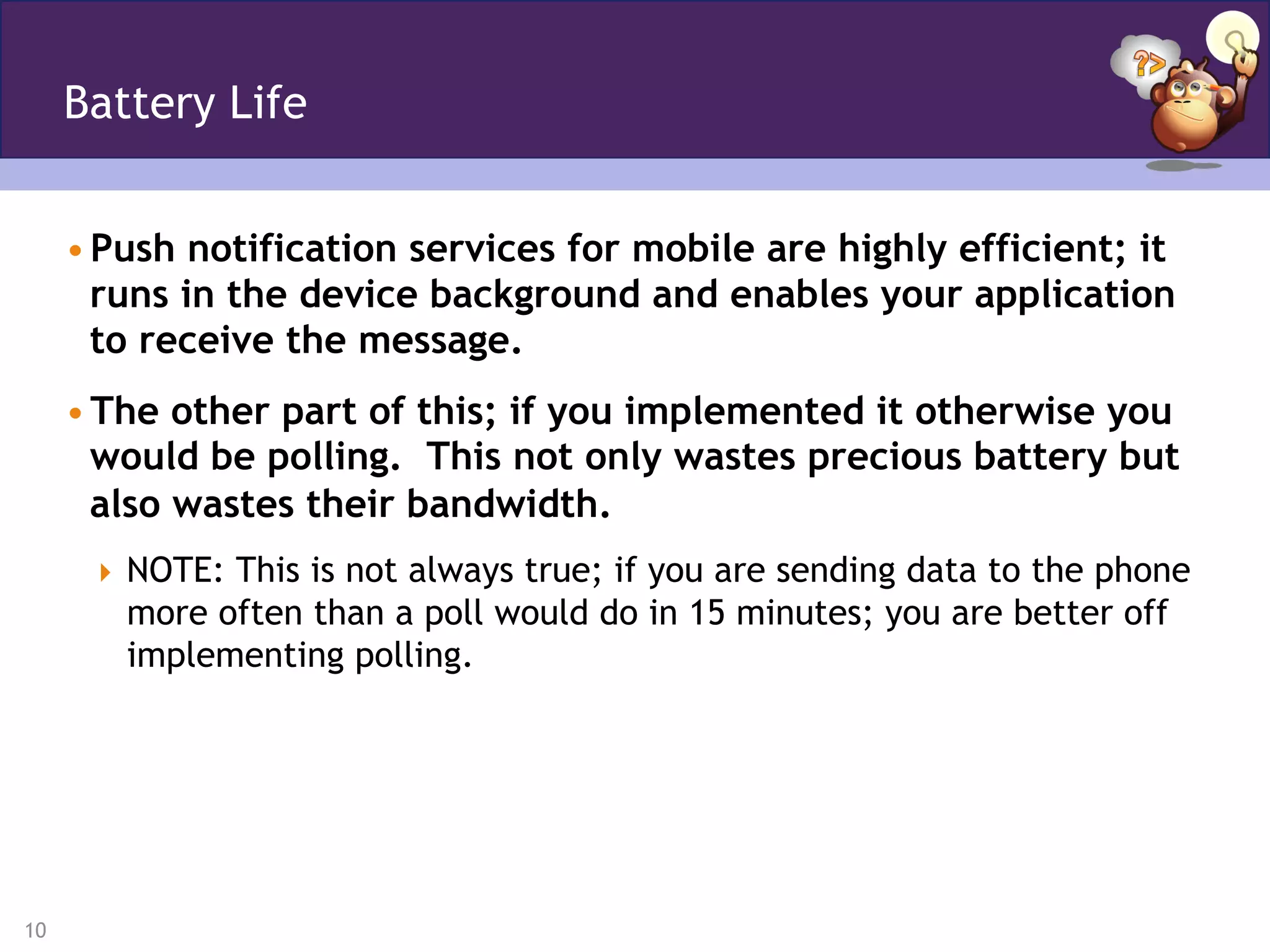

- 10. Battery Life • Push notification services for mobile are highly efficient; it runs in the device background and enables your application to receive the message. • The other part of this; if you implemented it otherwise you would be polling. This not only wastes precious battery but also wastes their bandwidth. NOTE: This is not always true; if you are sending data to the phone more often than a poll would do in 15 minutes; you are better off implementing polling. 10

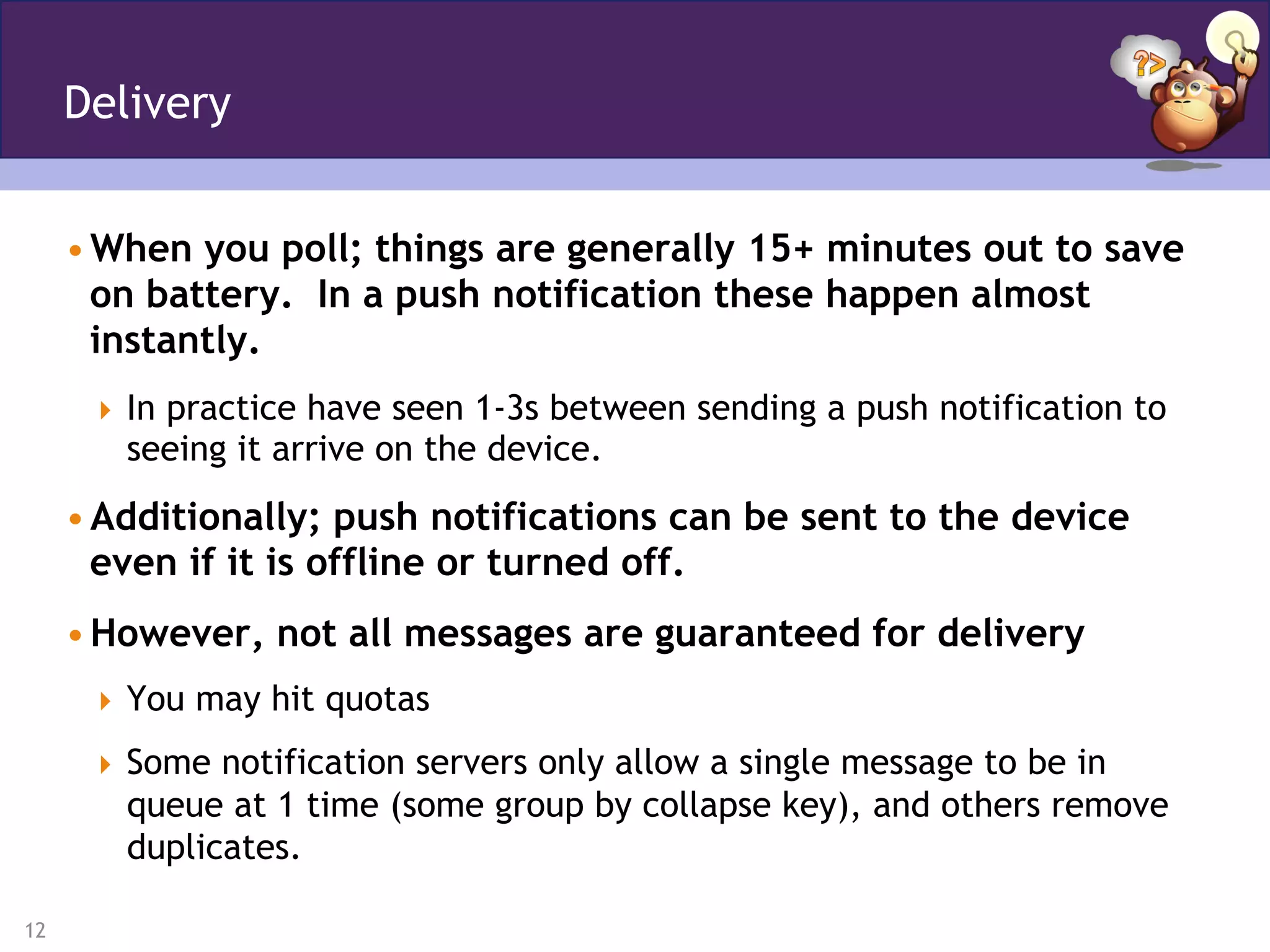

- 12. Delivery • When you poll; things are generally 15+ minutes out to save on battery. In a push notification these happen almost instantly. In practice have seen 1-3s between sending a push notification to seeing it arrive on the device. • Additionally; push notifications can be sent to the device even if it is offline or turned off. • However, not all messages are guaranteed for delivery You may hit quotas Some notification servers only allow a single message to be in queue at 1 time (some group by collapse key), and others remove duplicates. 12

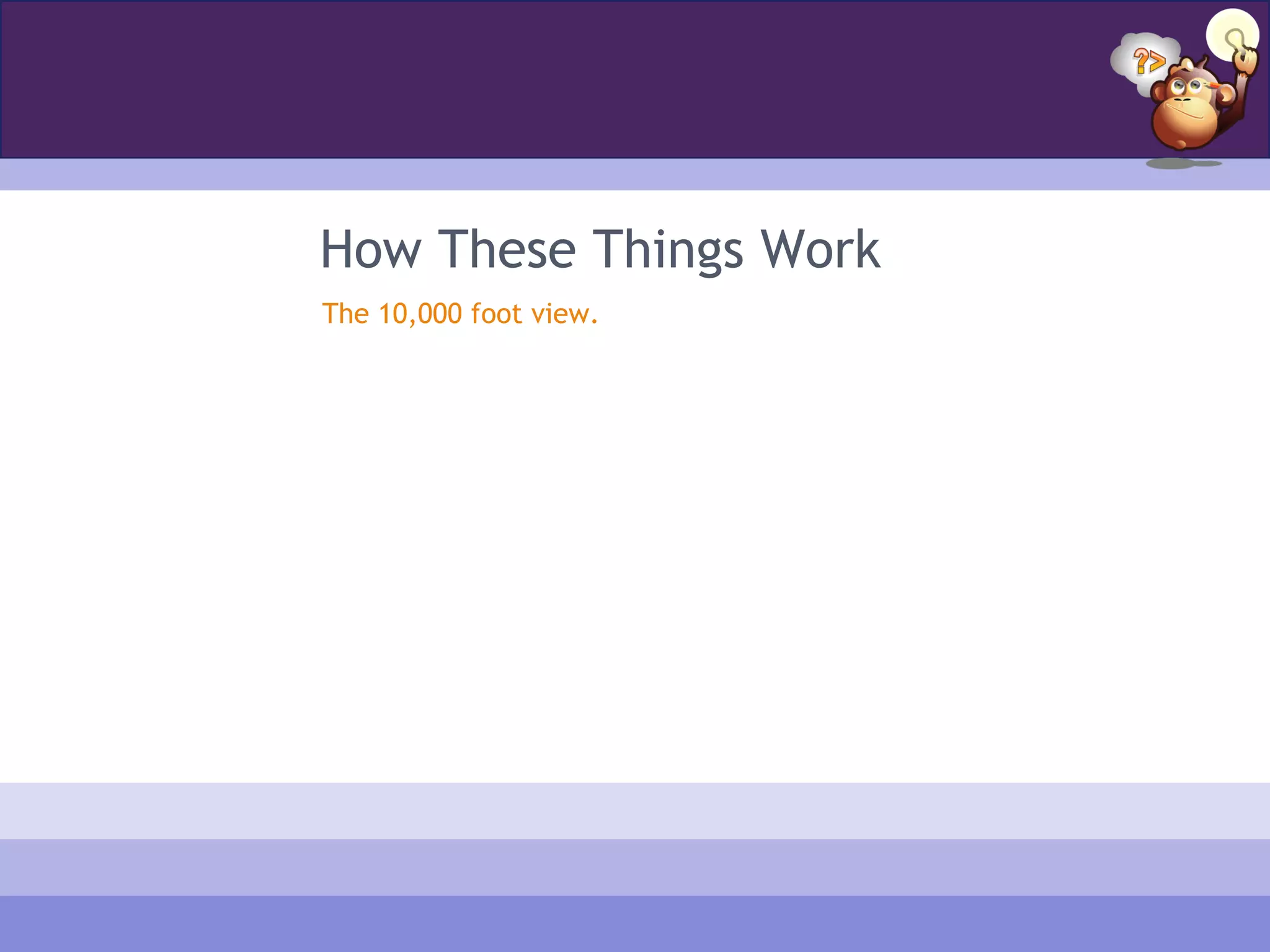

- 13. How These Things Work The 10,000 foot view.

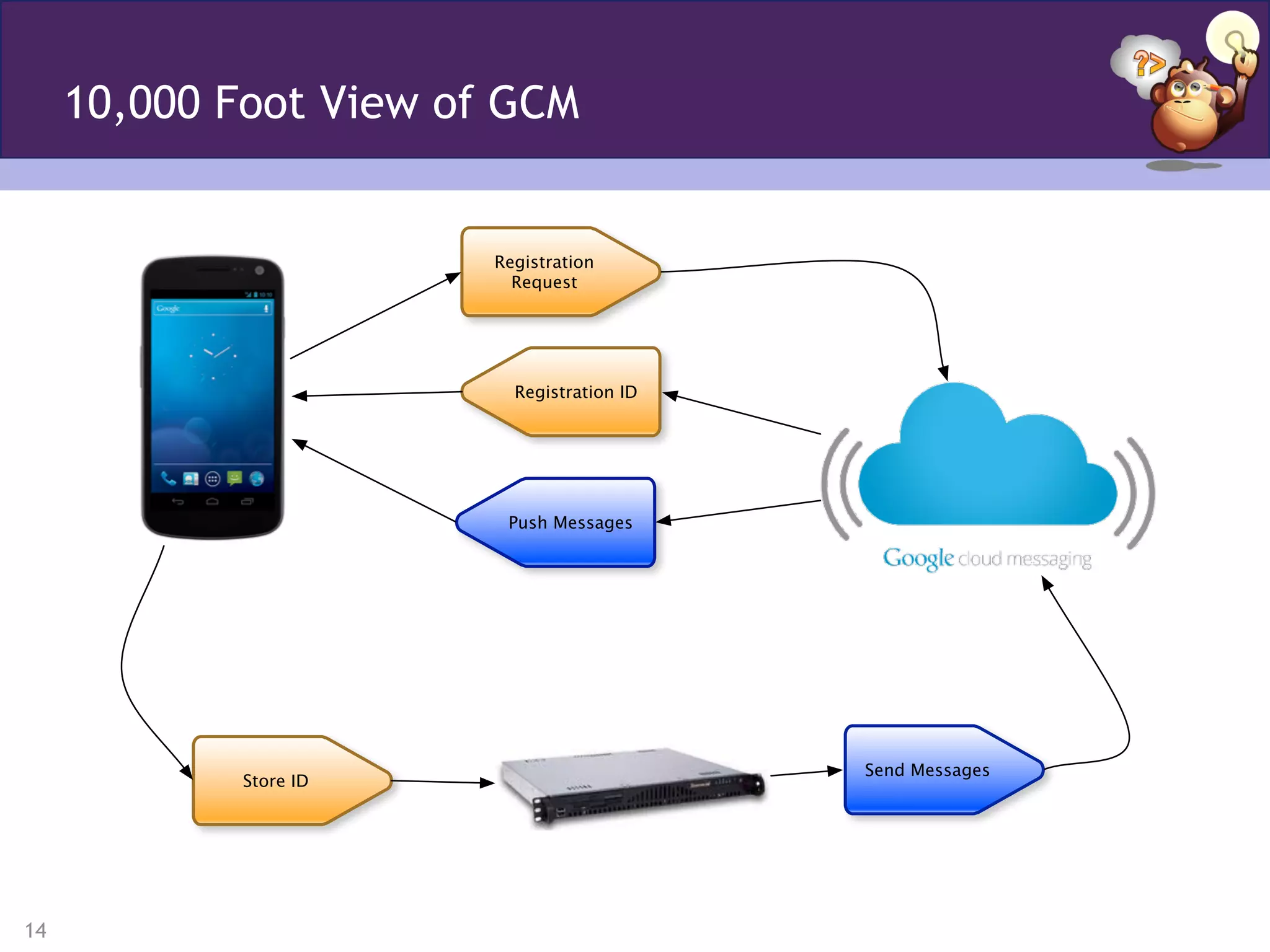

- 14. 10,000 Foot View of GCM Registration Request Registration ID Push Messages Send Messages Store ID 14

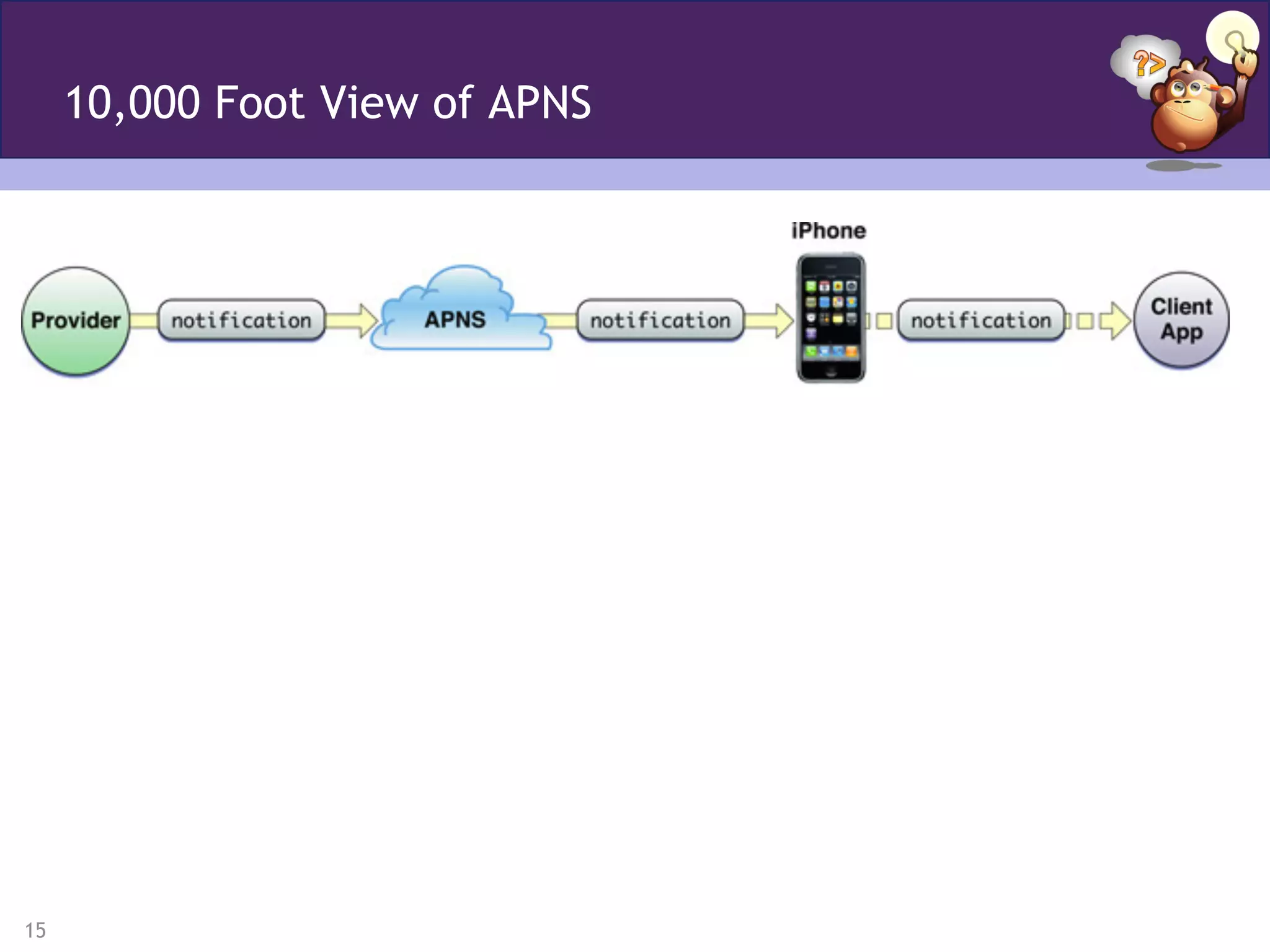

- 15. 10,000 Foot View of APNS 15

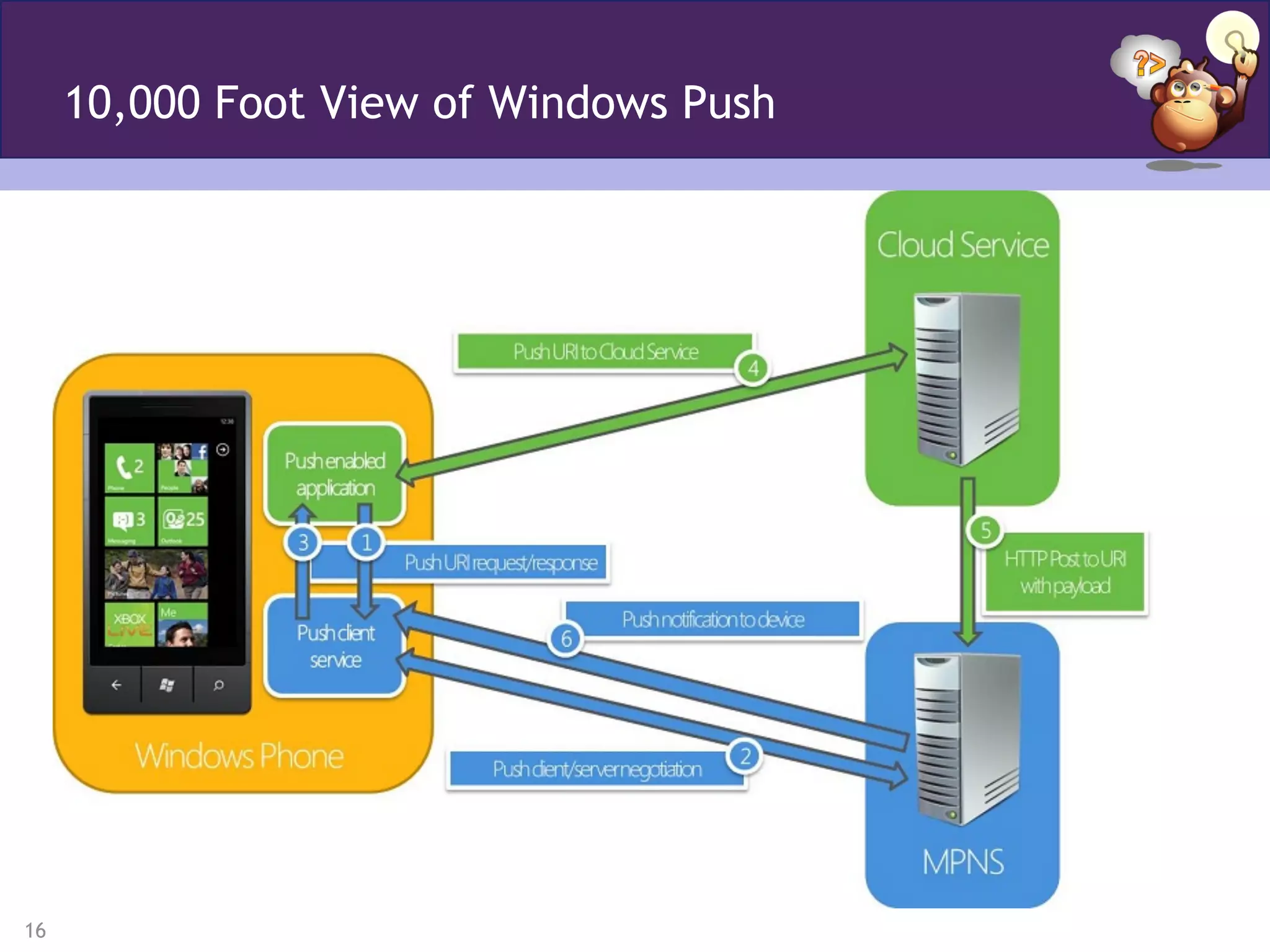

- 16. 10,000 Foot View of Windows Push 16

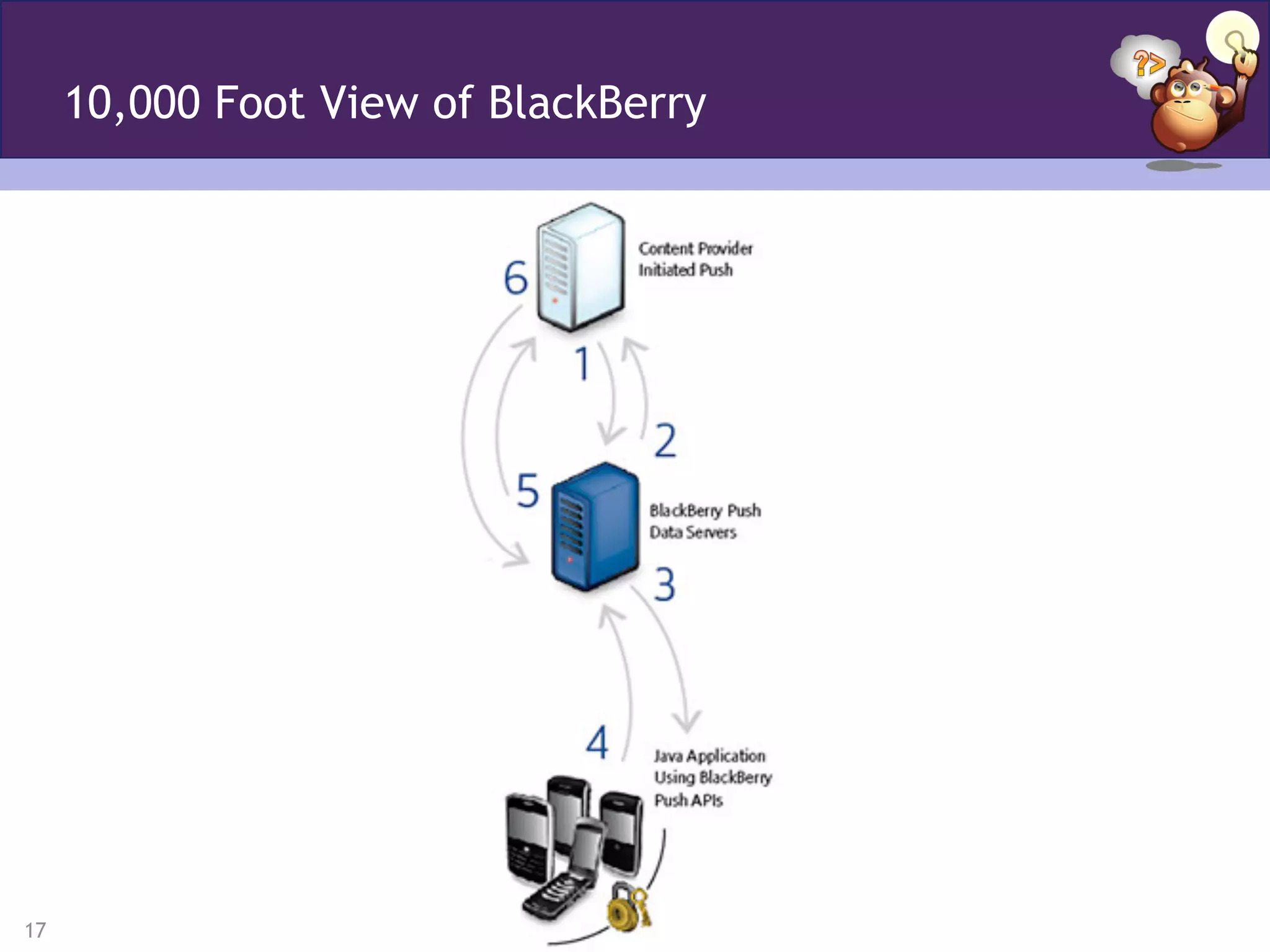

- 17. 10,000 Foot View of BlackBerry 17

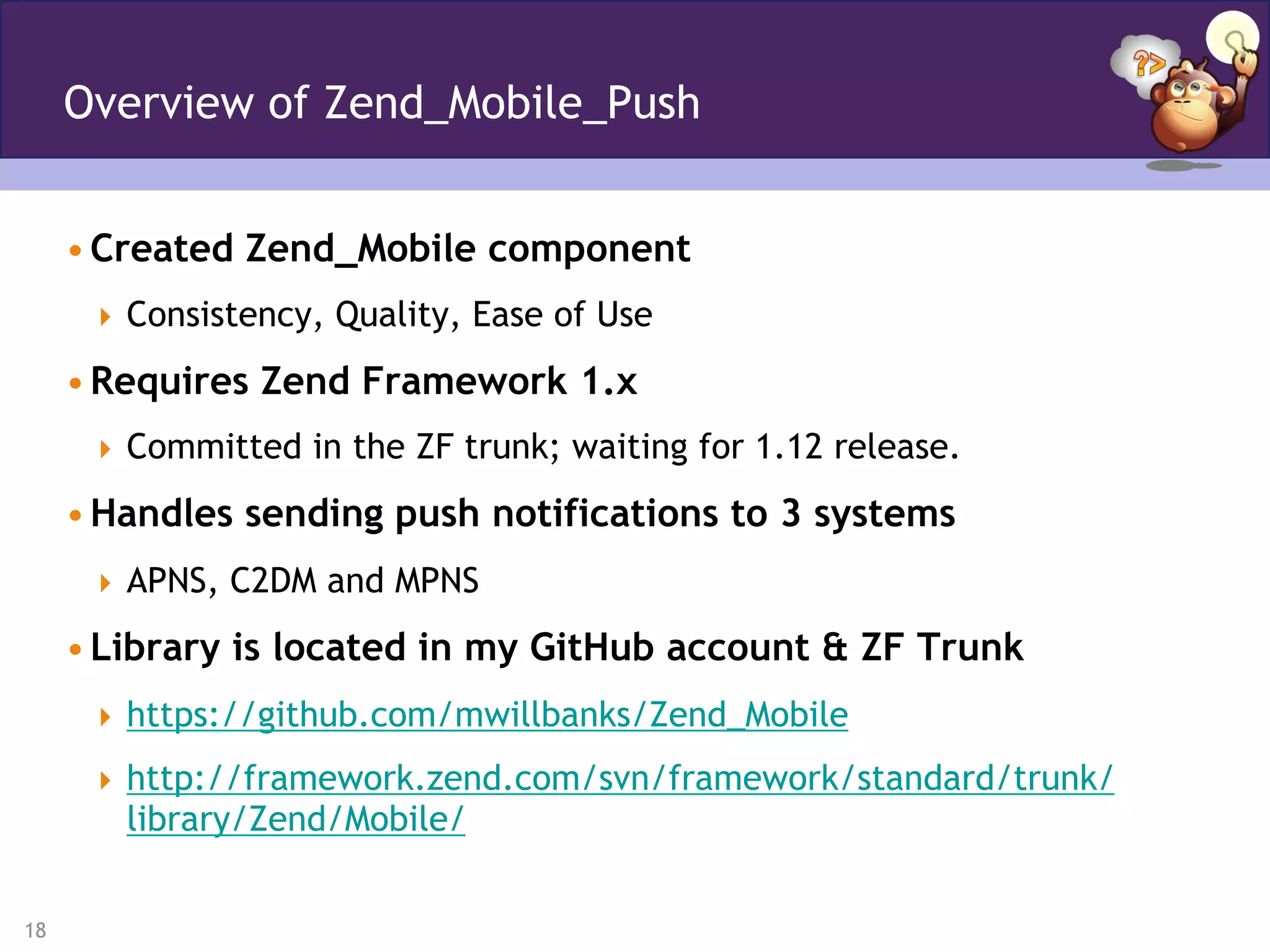

- 18. Overview of Zend_Mobile_Push • Created Zend_Mobile component Consistency, Quality, Ease of Use • Requires Zend Framework 1.x Committed in the ZF trunk; waiting for 1.12 release. • Handles sending push notifications to 3 systems APNS, C2DM and MPNS • Library is located in my GitHub account & ZF Trunk https://github.com/mwillbanks/Zend_Mobile http://framework.zend.com/svn/framework/standard/trunk/ library/Zend/Mobile/ 18

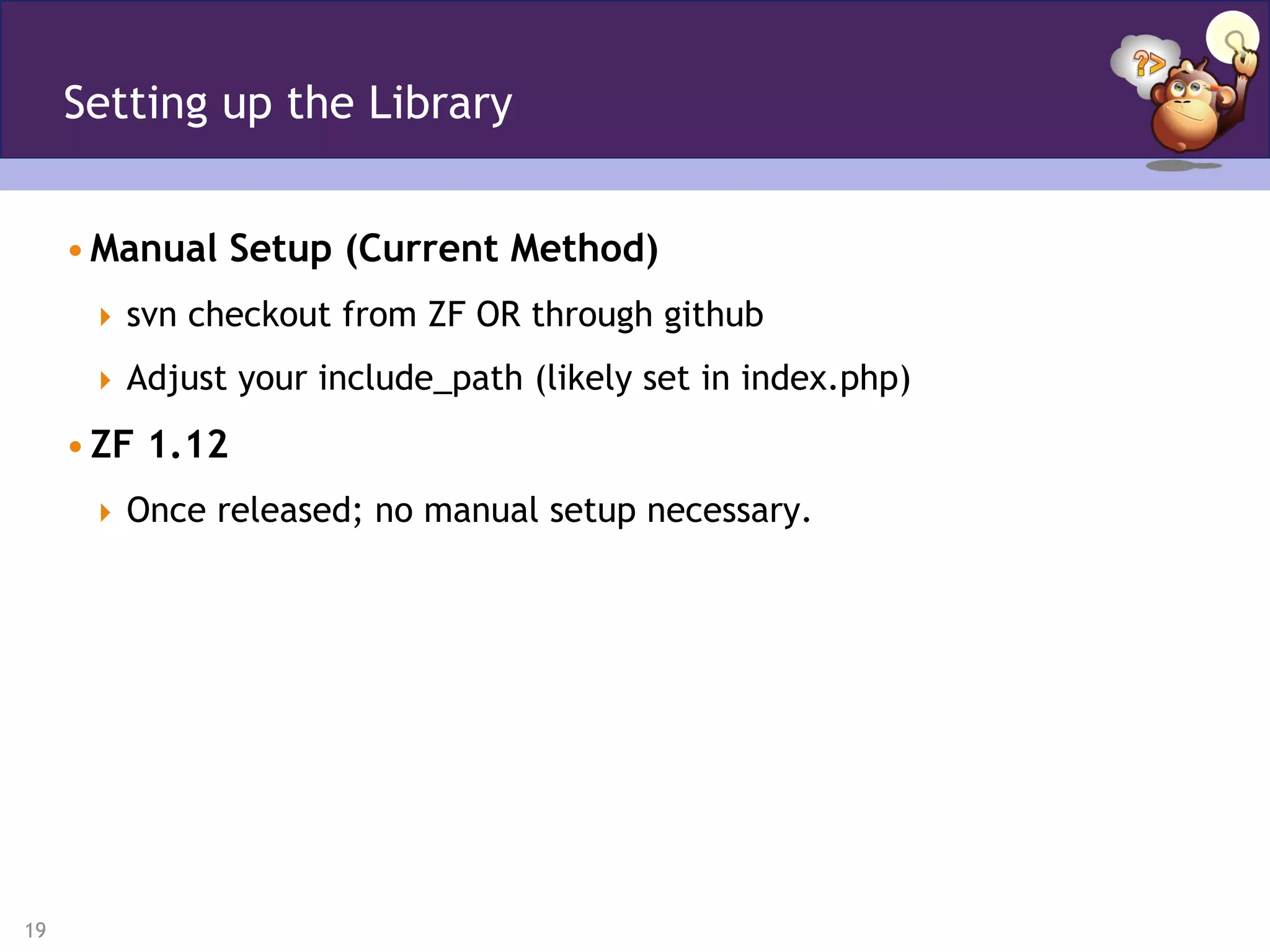

- 19. Setting up the Library • Manual Setup (Current Method) svn checkout from ZF OR through github Adjust your include_path (likely set in index.php) • ZF 1.12 Once released; no manual setup necessary. 19

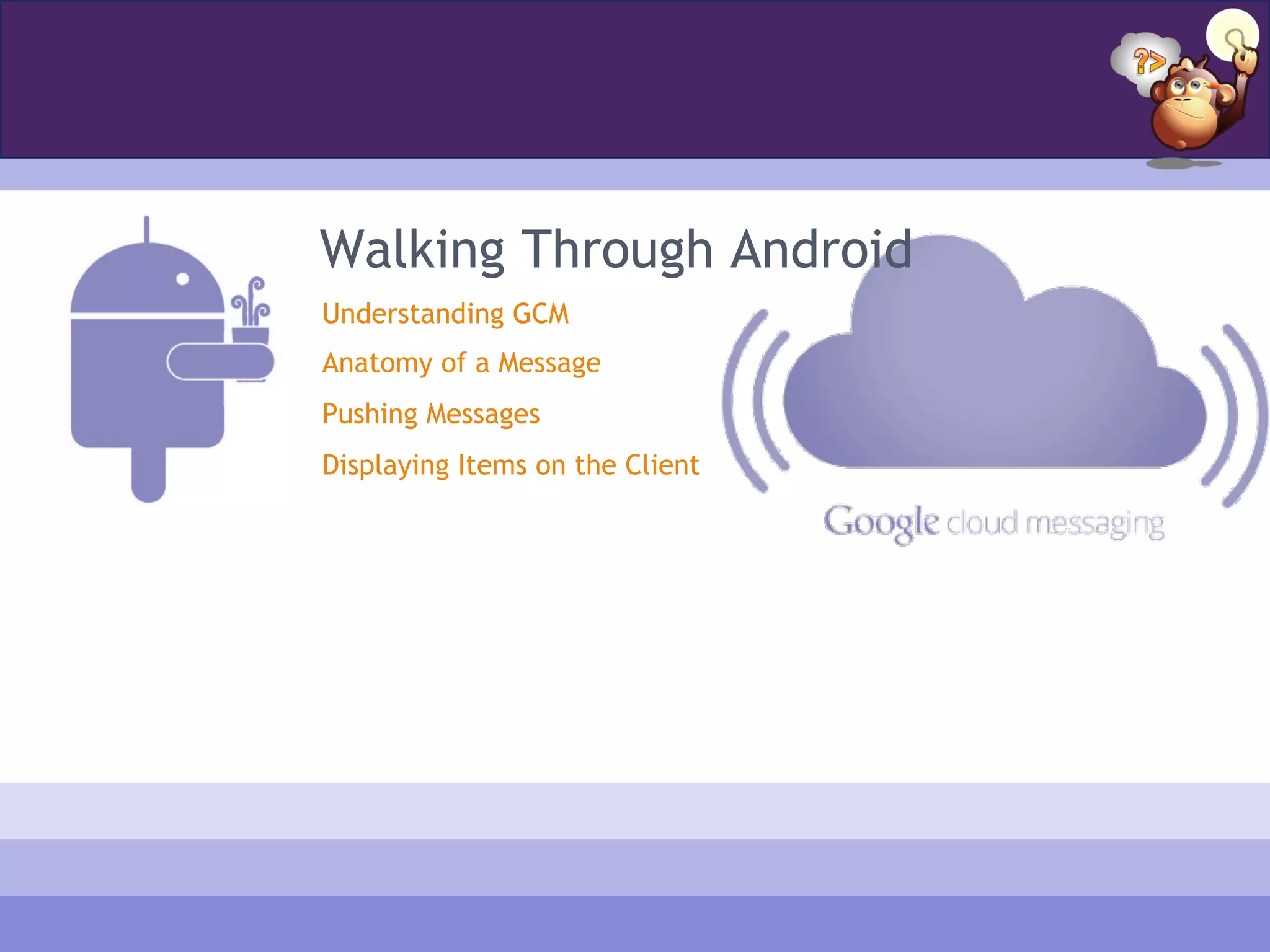

- 20. Walking Through Android Understanding GCM Anatomy of a Message Pushing Messages Displaying Items on the Client

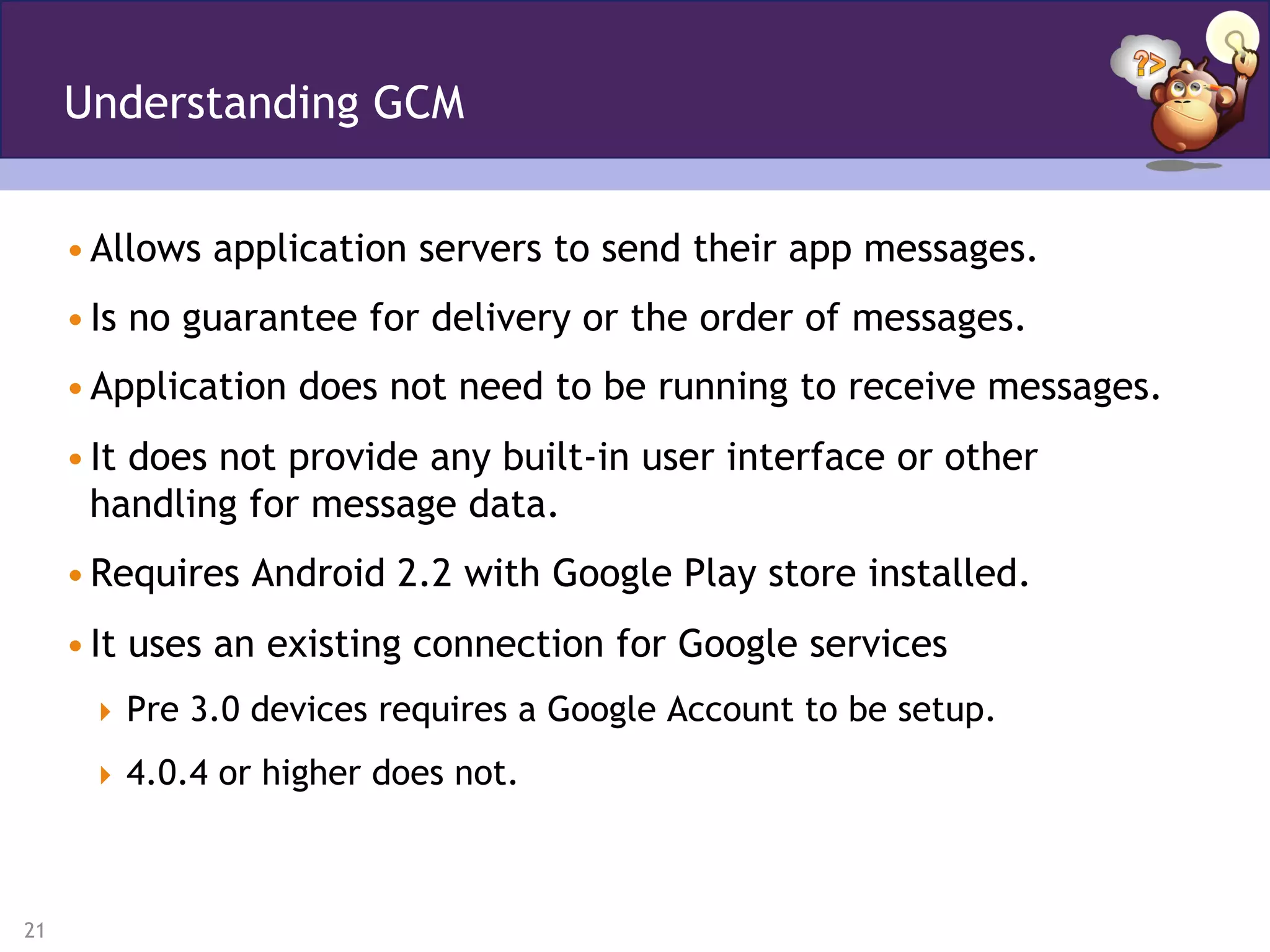

- 21. Understanding GCM • Allows application servers to send their app messages. • Is no guarantee for delivery or the order of messages. • Application does not need to be running to receive messages. • It does not provide any built-in user interface or other handling for message data. • Requires Android 2.2 with Google Play store installed. • It uses an existing connection for Google services Pre 3.0 devices requires a Google Account to be setup. 4.0.4 or higher does not. 21

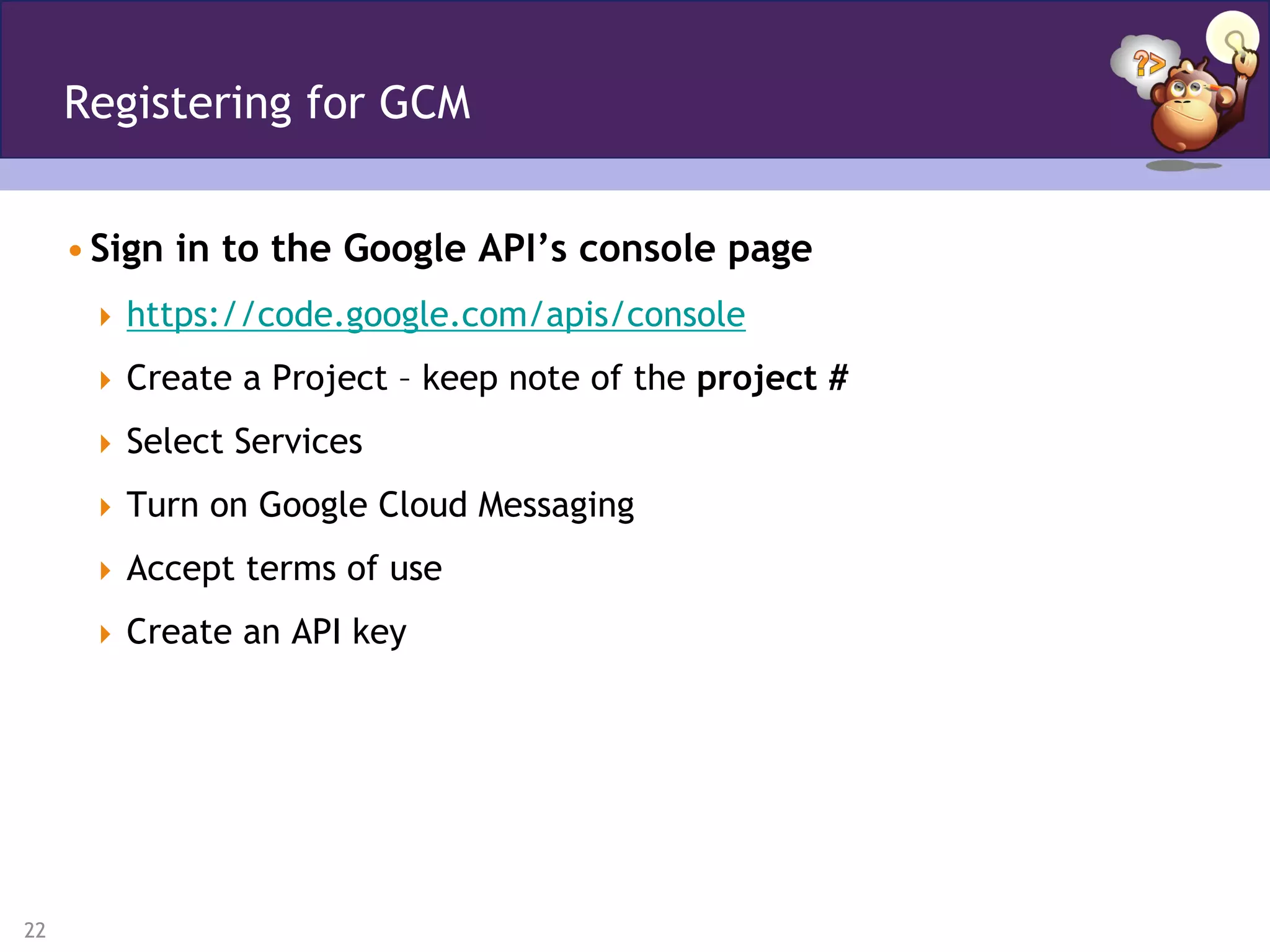

- 22. Registering for GCM • Sign in to the Google API’s console page https://code.google.com/apis/console Create a Project – keep note of the project # Select Services Turn on Google Cloud Messaging Accept terms of use Create an API key 22

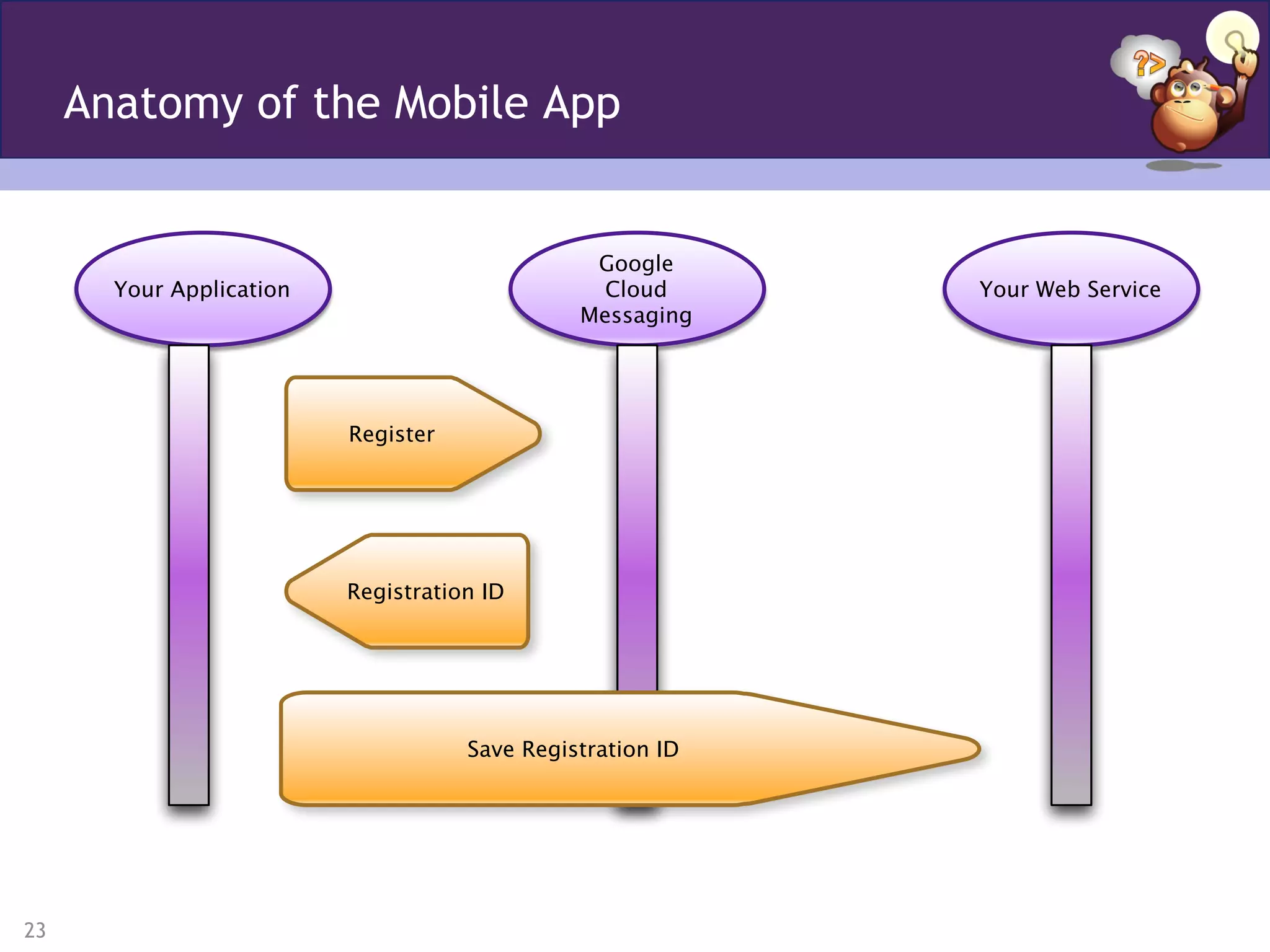

- 23. Anatomy of the Mobile App Google Your Application Cloud Your Web Service Messaging Register Registration ID Save Registration ID 23

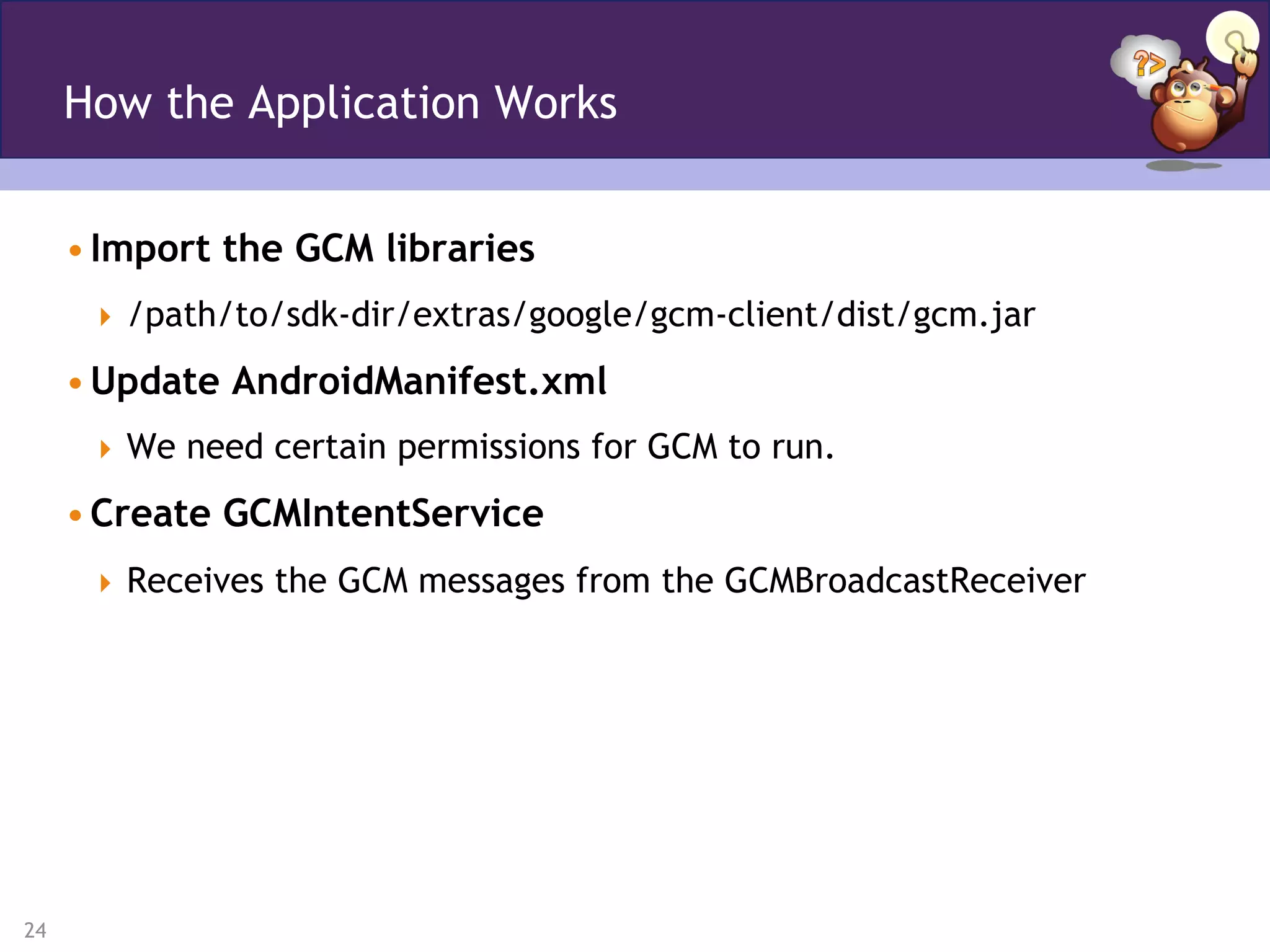

- 24. How the Application Works • Import the GCM libraries /path/to/sdk-dir/extras/google/gcm-client/dist/gcm.jar • Update AndroidManifest.xml We need certain permissions for GCM to run. • Create GCMIntentService Receives the GCM messages from the GCMBroadcastReceiver 24

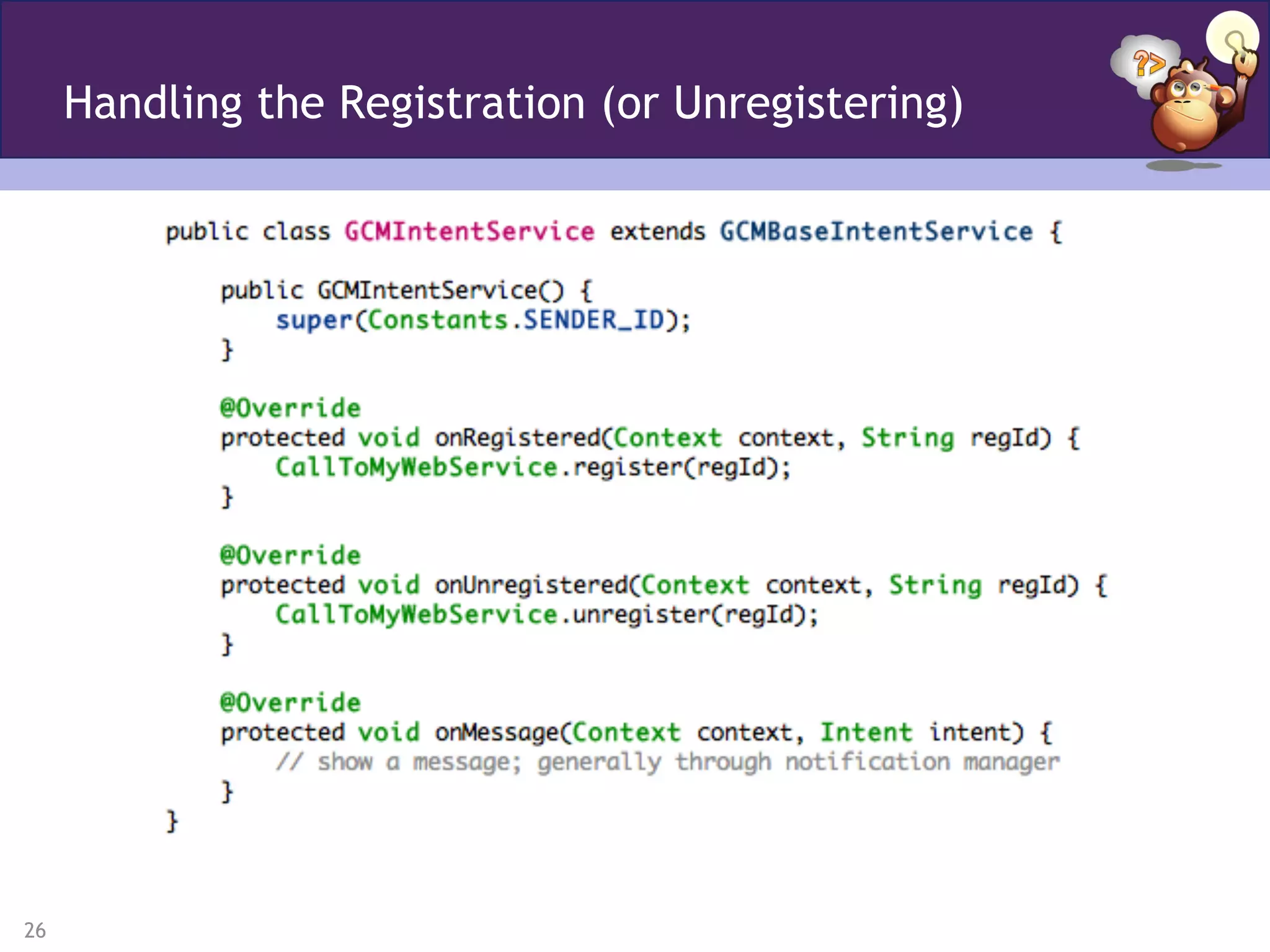

- 26. Handling the Registration (or Unregistering) 26

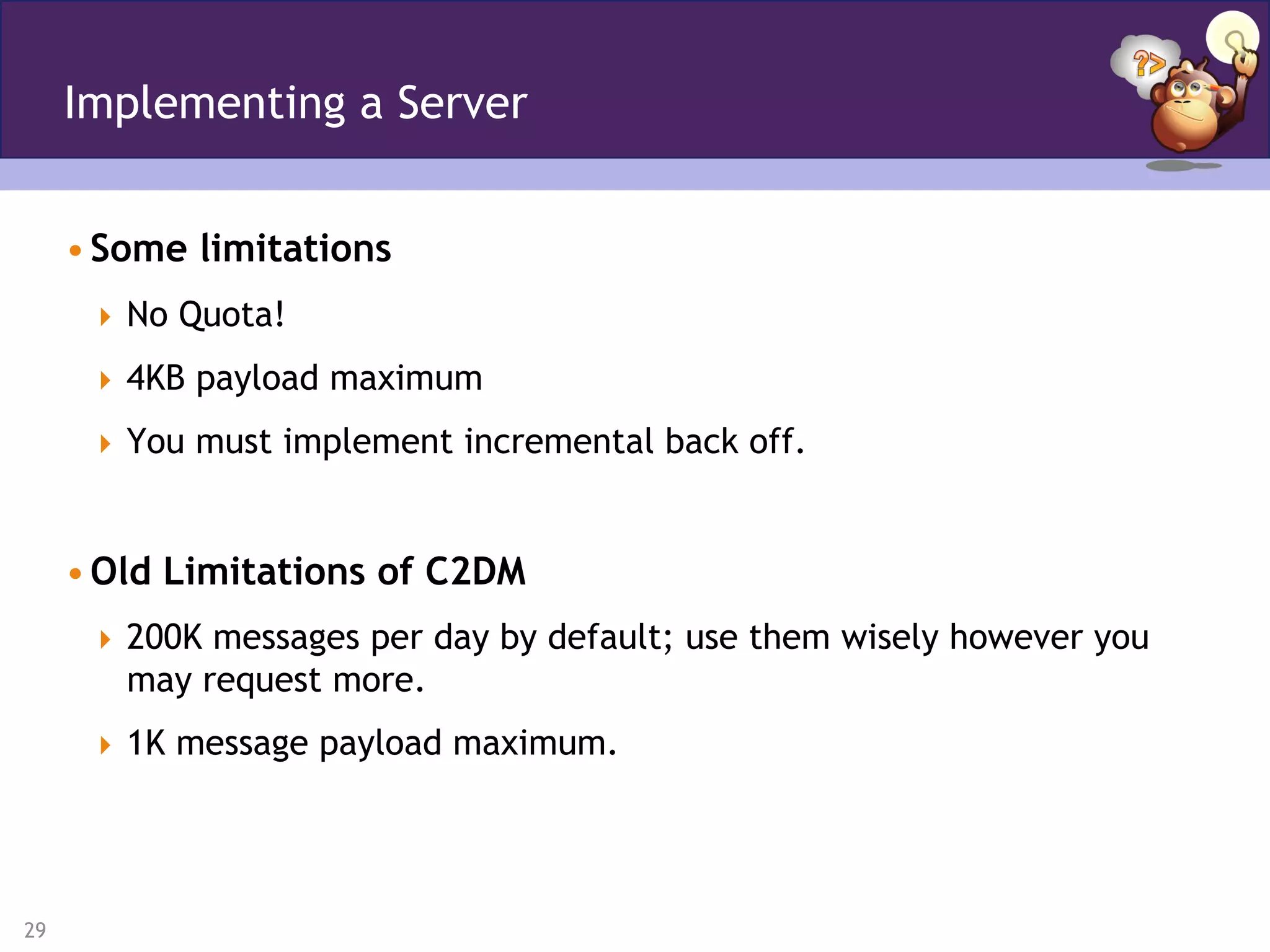

- 29. Implementing a Server • Some limitations No Quota! 4KB payload maximum You must implement incremental back off. • Old Limitations of C2DM 200K messages per day by default; use them wisely however you may request more. 1K message payload maximum. 29

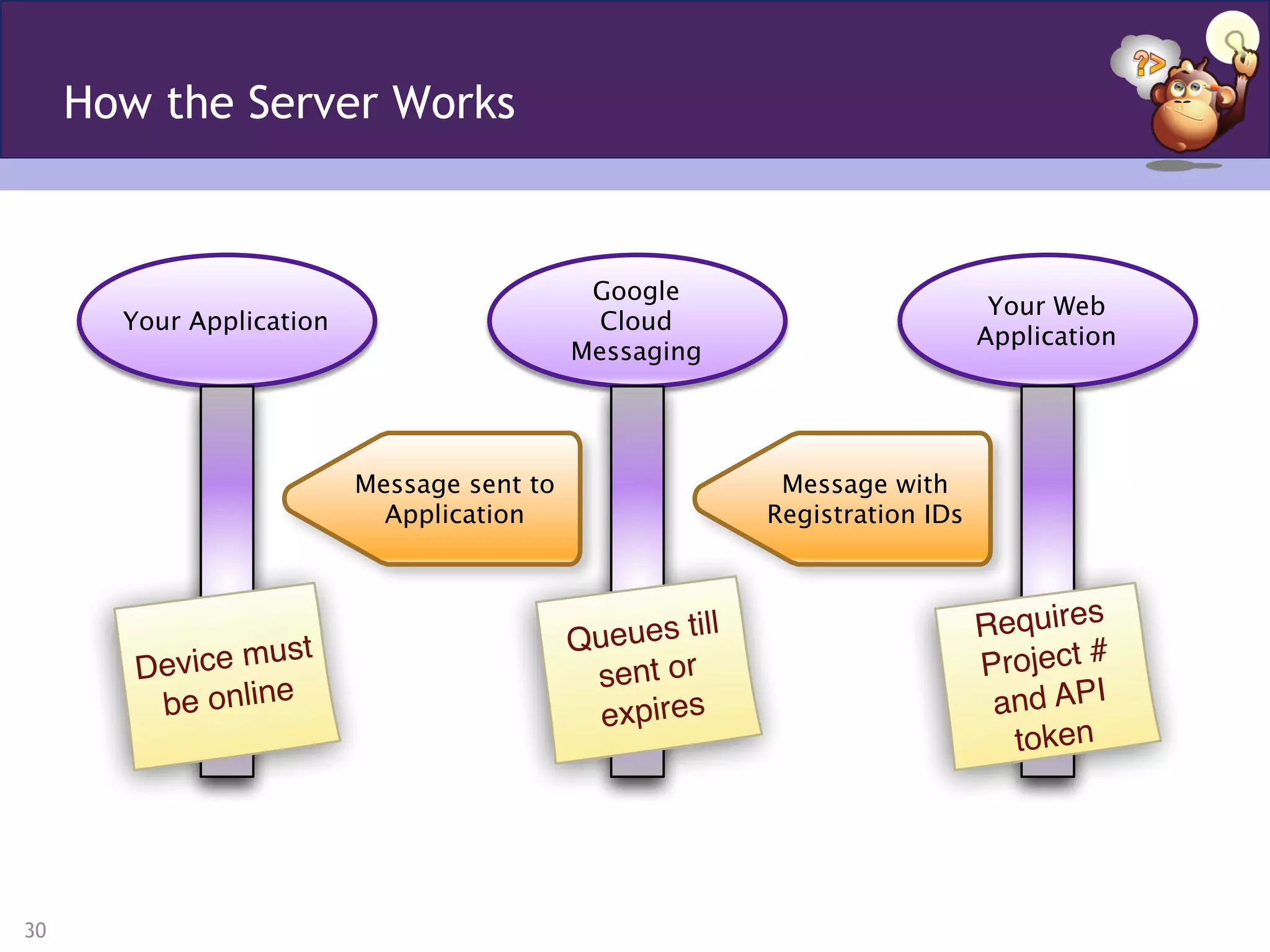

- 30. How the Server Works Google Your Web Your Application Cloud Application Messaging Message sent to Message with Application Registration IDs Queues t ill Requires ust Project # Device m sent or be online expires and API token 30
- 32. Apple Push Notifications A brief walk-through on implementing notifications on the iPhone.

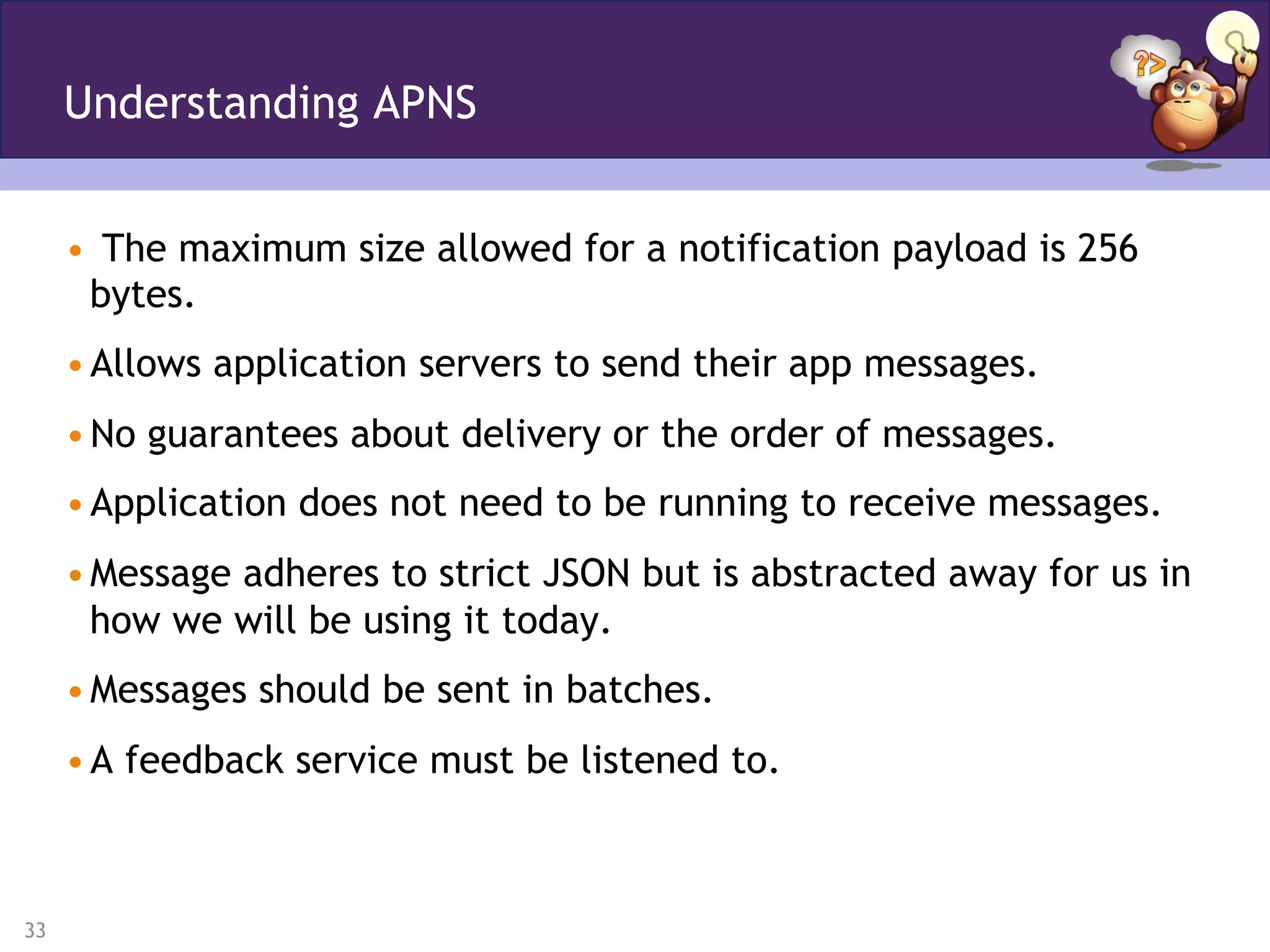

- 33. Understanding APNS • The maximum size allowed for a notification payload is 256 bytes. • Allows application servers to send their app messages. • No guarantees about delivery or the order of messages. • Application does not need to be running to receive messages. • Message adheres to strict JSON but is abstracted away for us in how we will be using it today. • Messages should be sent in batches. • A feedback service must be listened to. 33

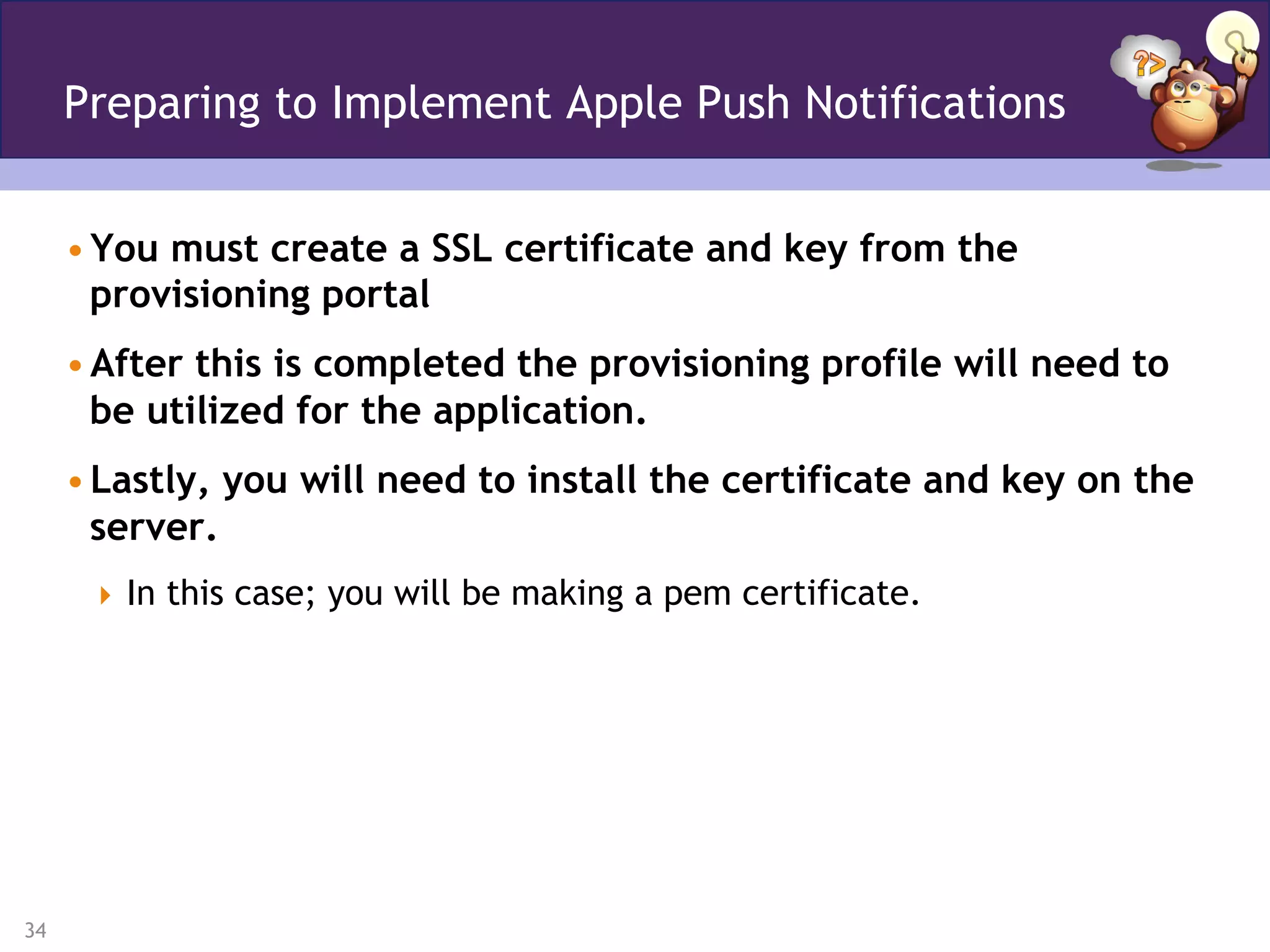

- 34. Preparing to Implement Apple Push Notifications • You must create a SSL certificate and key from the provisioning portal • After this is completed the provisioning profile will need to be utilized for the application. • Lastly, you will need to install the certificate and key on the server. In this case; you will be making a pem certificate. 34

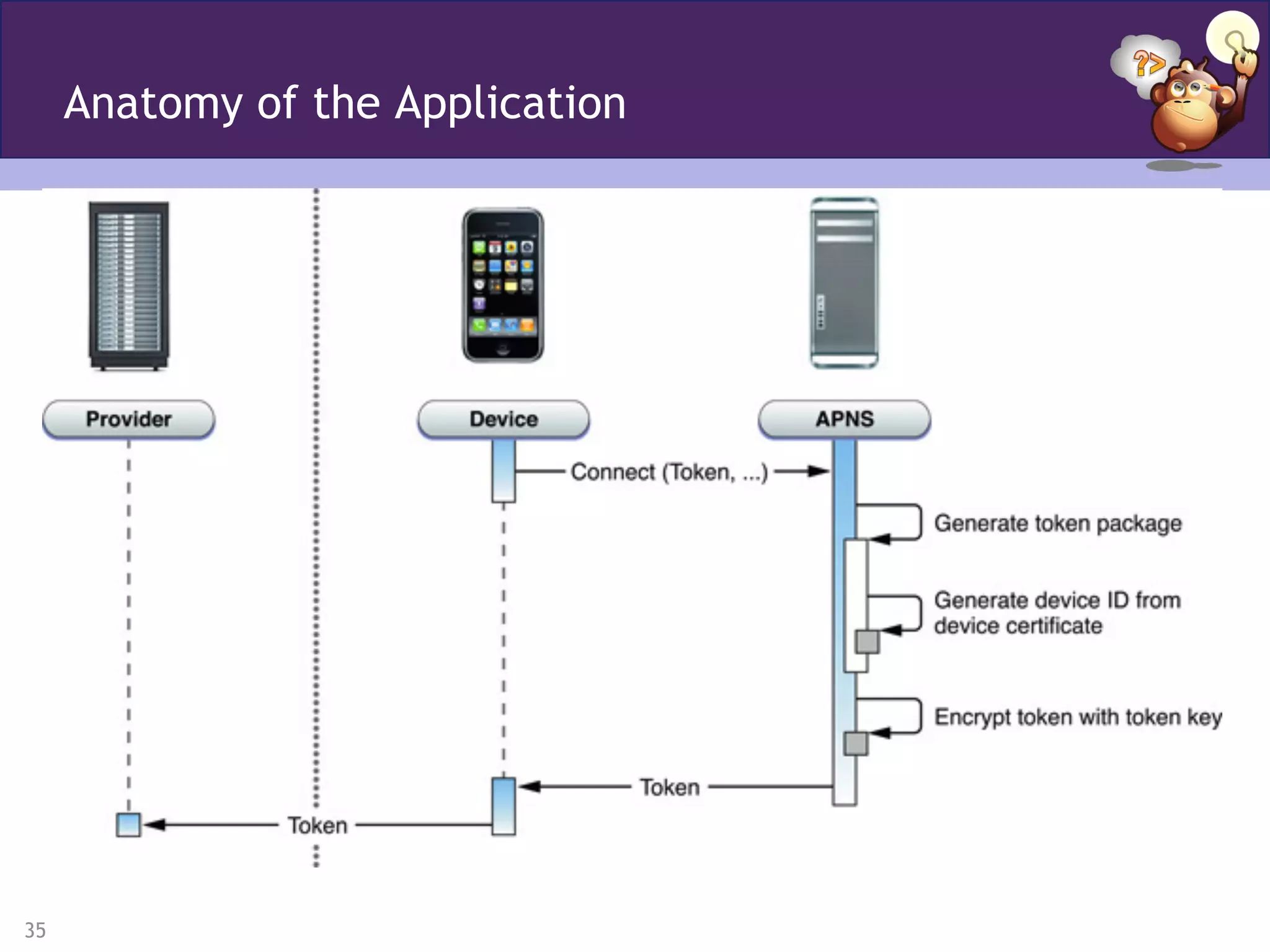

- 35. Anatomy of the Application 35

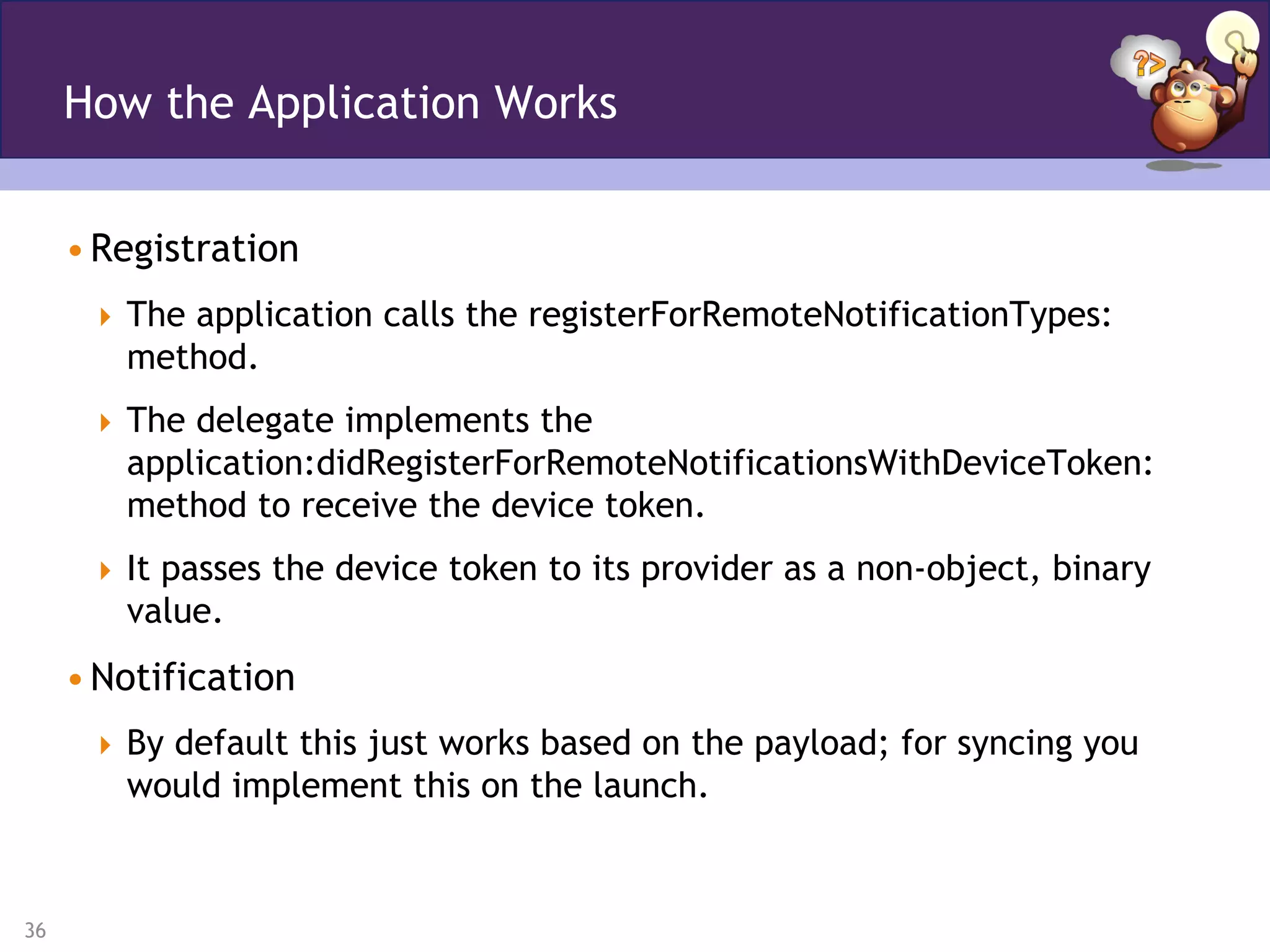

- 36. How the Application Works • Registration The application calls the registerForRemoteNotificationTypes: method. The delegate implements the application:didRegisterForRemoteNotificationsWithDeviceToken: method to receive the device token. It passes the device token to its provider as a non-object, binary value. • Notification By default this just works based on the payload; for syncing you would implement this on the launch. 36

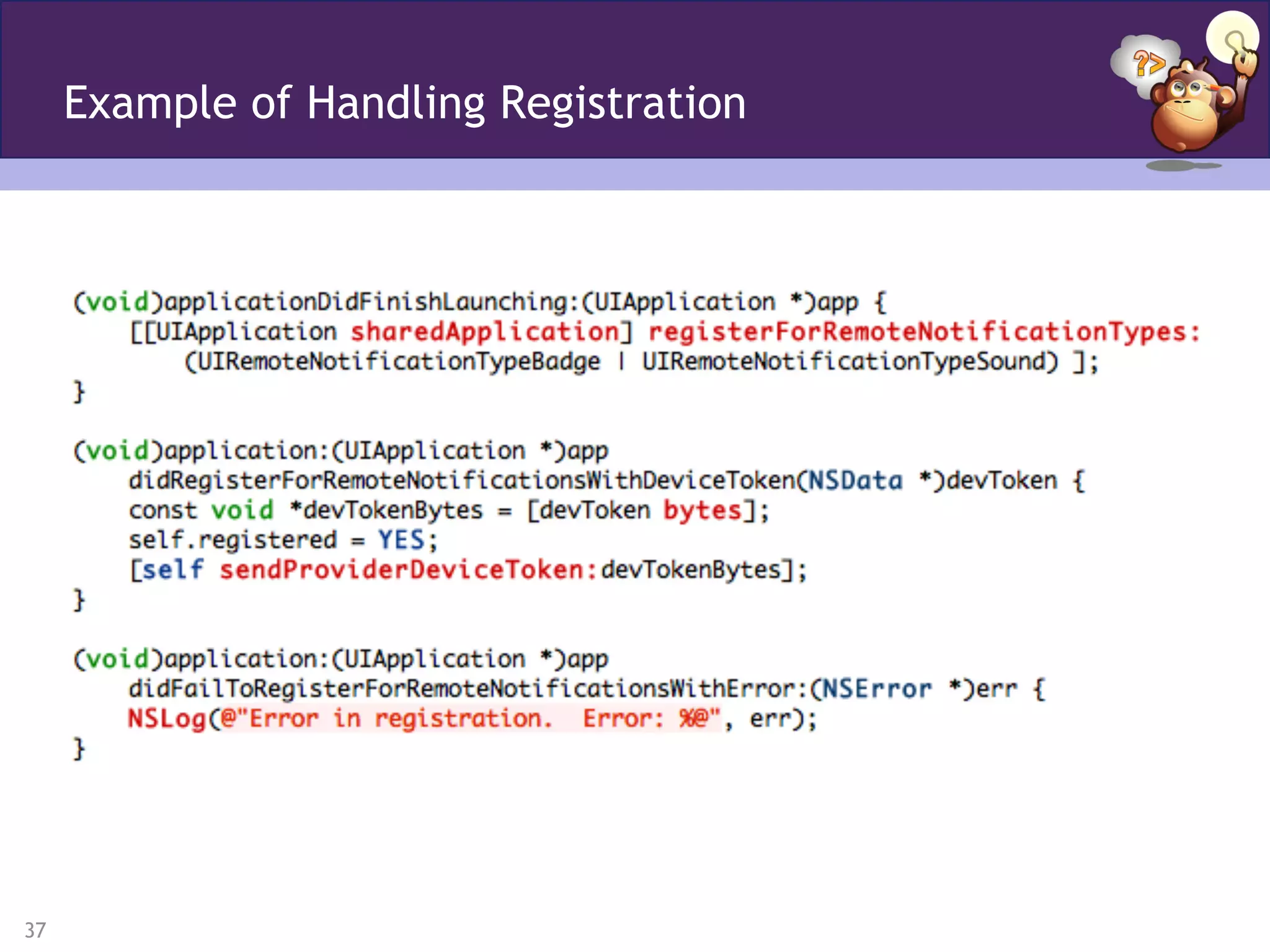

- 37. Example of Handling Registration 37

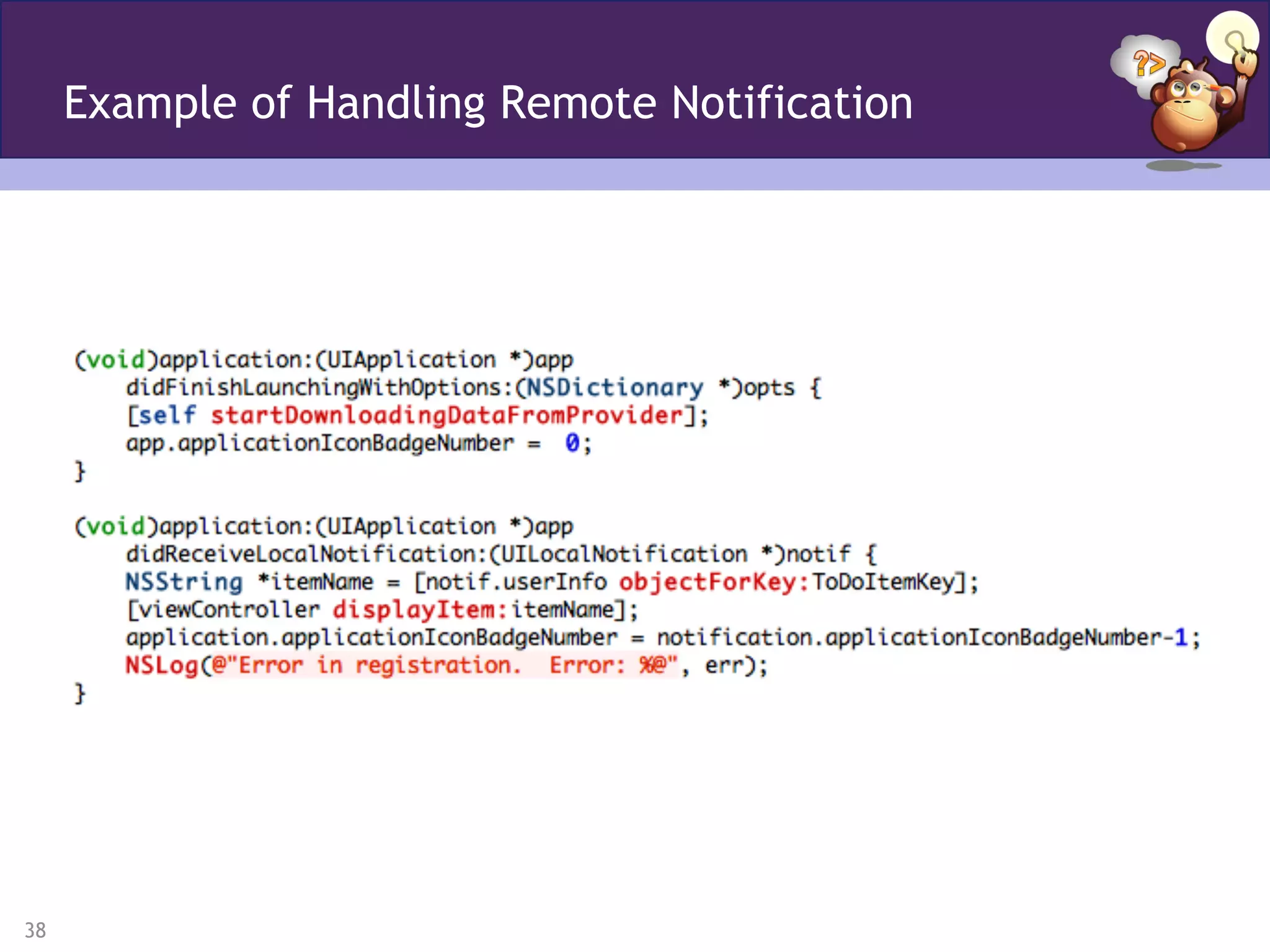

- 38. Example of Handling Remote Notification 38

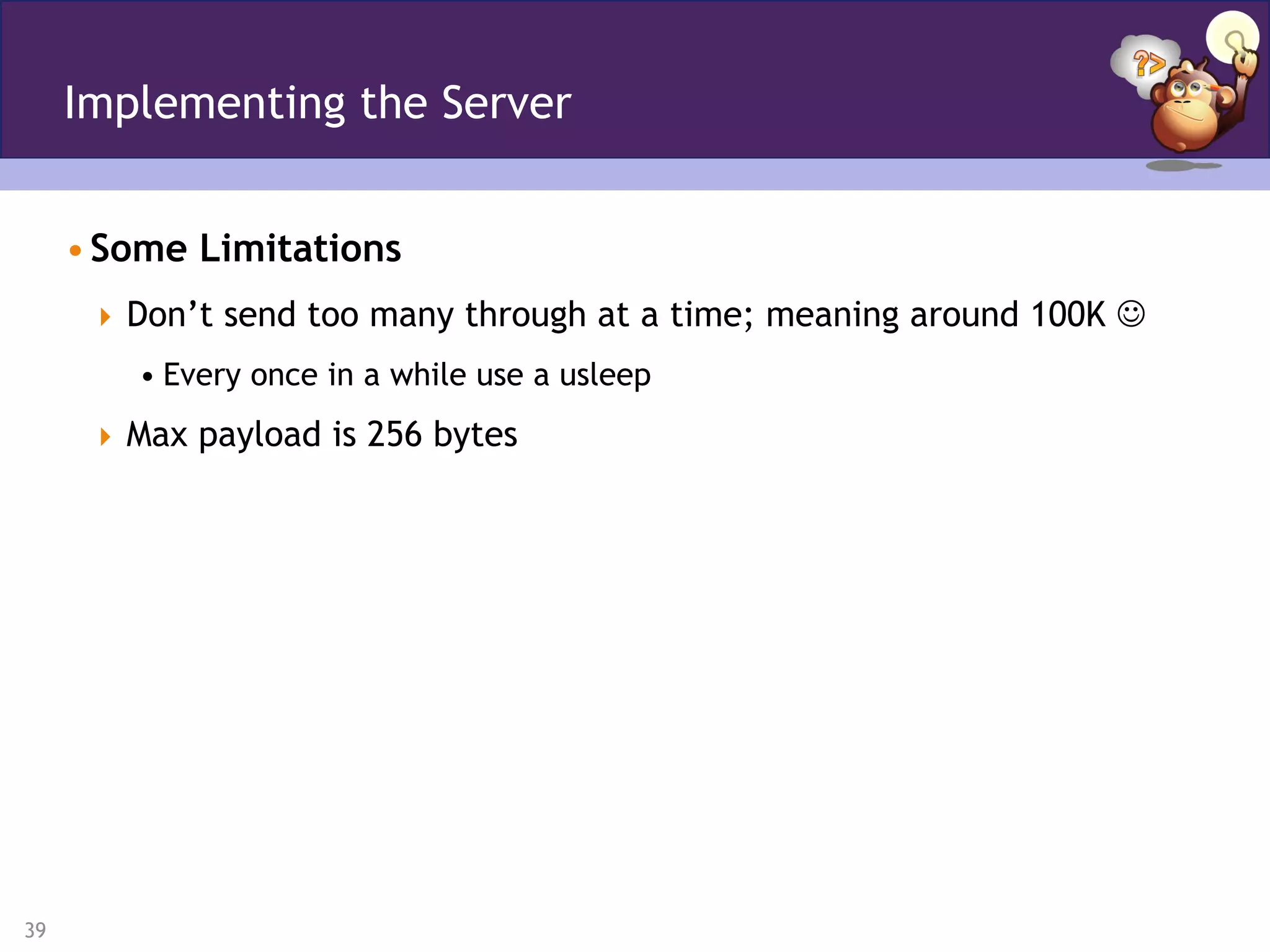

- 39. Implementing the Server • Some Limitations Don’t send too many through at a time; meaning around 100K J • Every once in a while use a usleep Max payload is 256 bytes 39

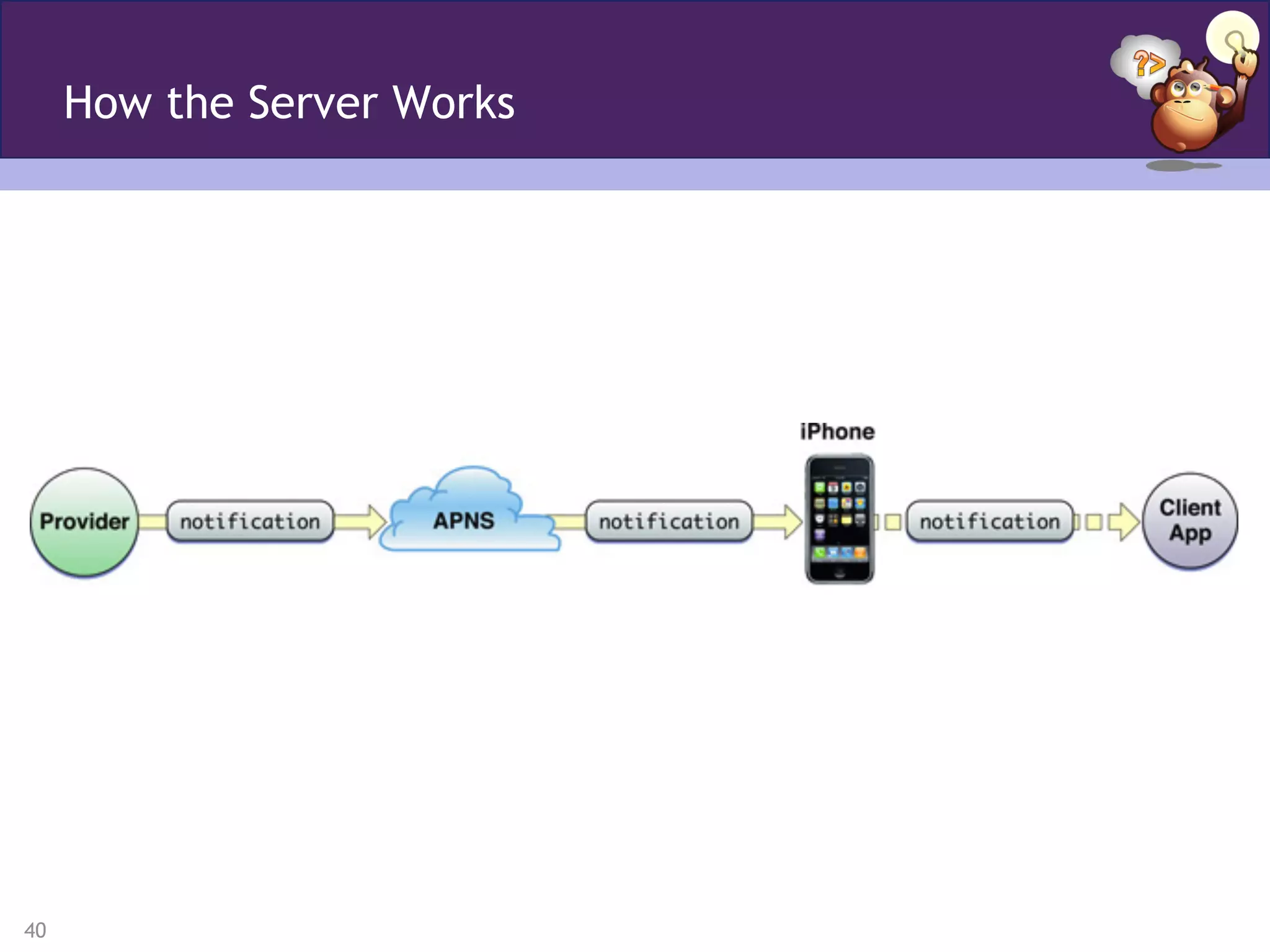

- 40. How the Server Works 40

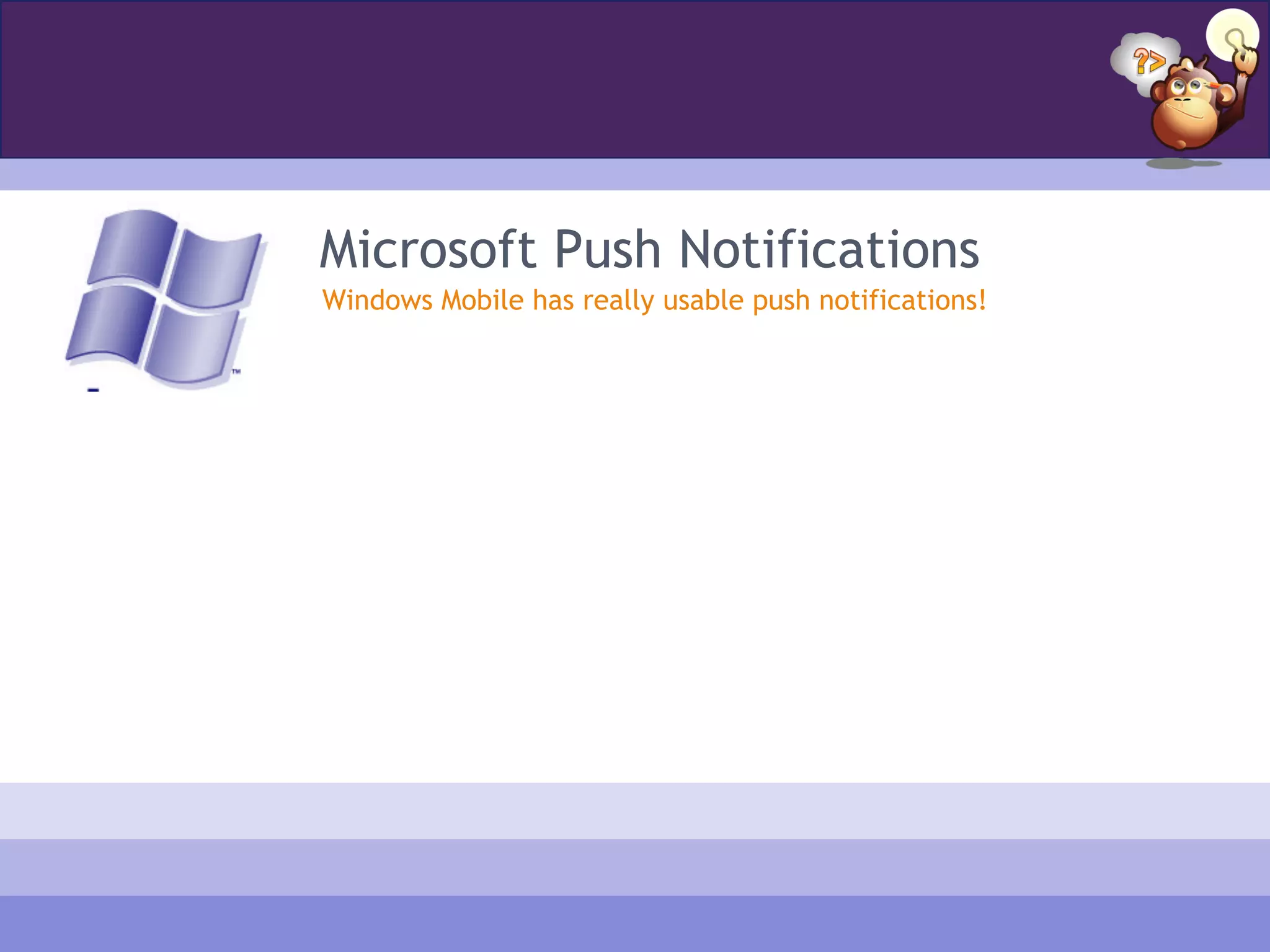

- 43. Microsoft Push Notifications Windows Mobile has really usable push notifications!

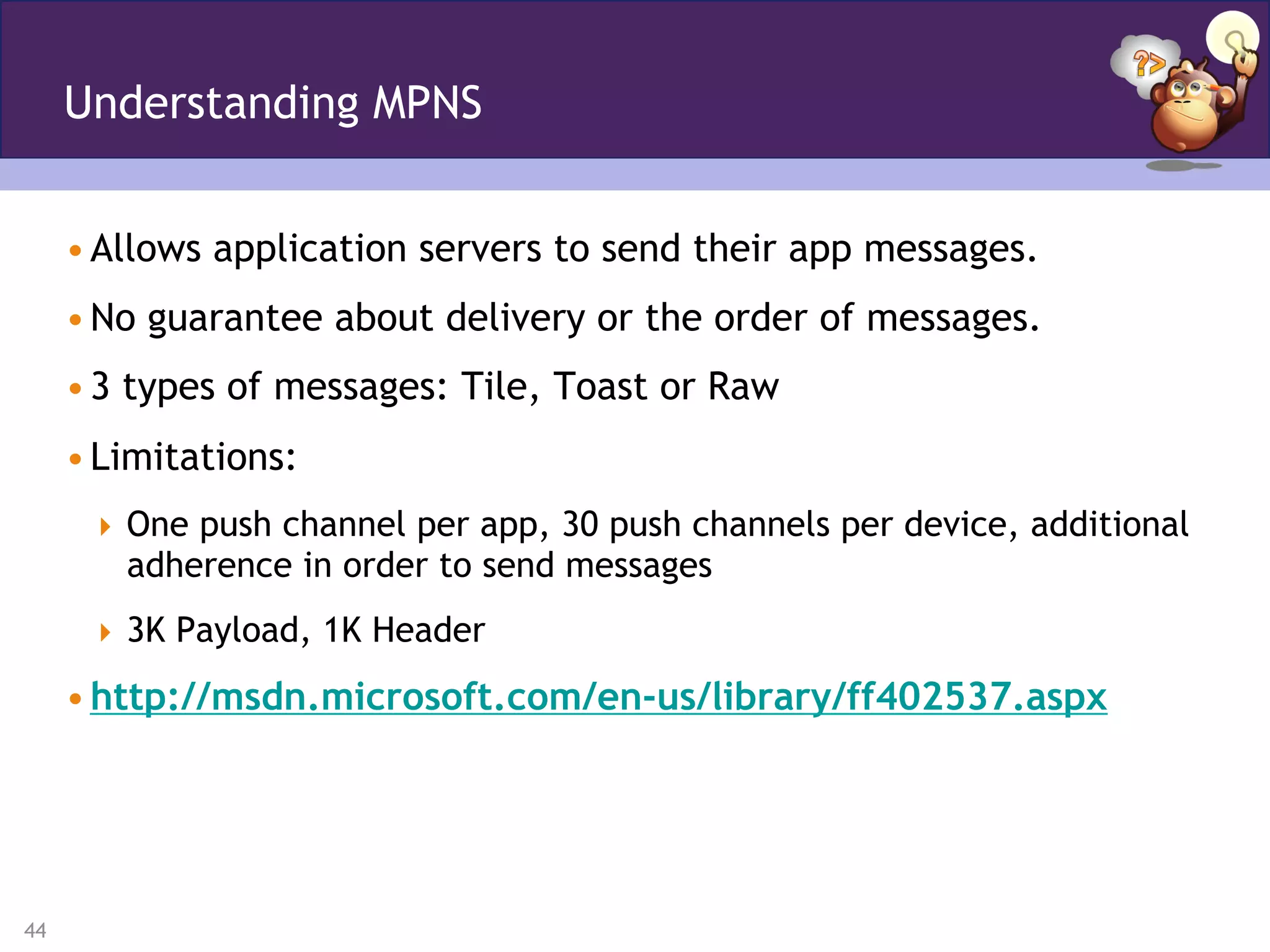

- 44. Understanding MPNS • Allows application servers to send their app messages. • No guarantee about delivery or the order of messages. • 3 types of messages: Tile, Toast or Raw • Limitations: One push channel per app, 30 push channels per device, additional adherence in order to send messages 3K Payload, 1K Header • http://msdn.microsoft.com/en-us/library/ff402537.aspx 44

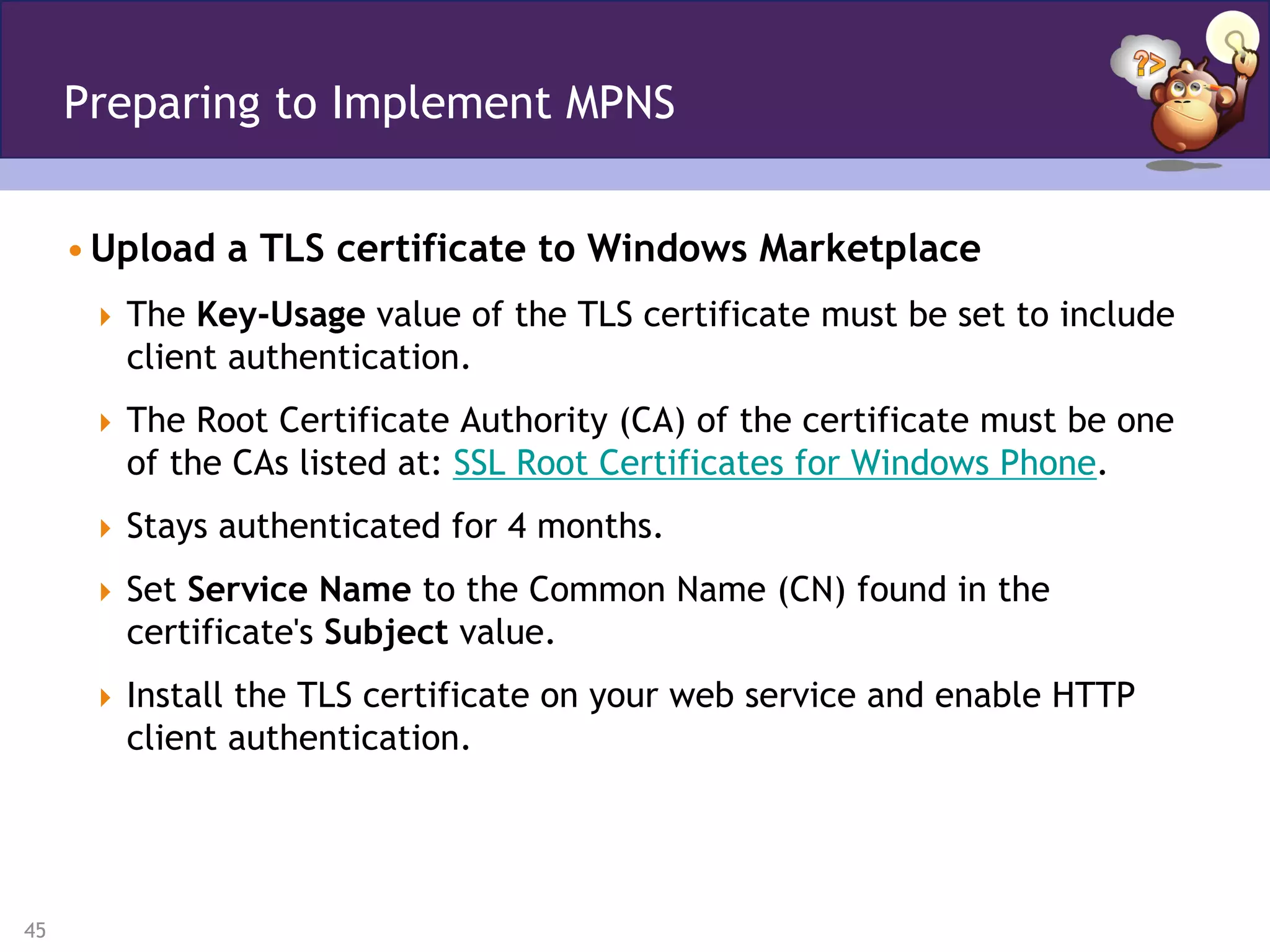

- 45. Preparing to Implement MPNS • Upload a TLS certificate to Windows Marketplace The Key-Usage value of the TLS certificate must be set to include client authentication. The Root Certificate Authority (CA) of the certificate must be one of the CAs listed at: SSL Root Certificates for Windows Phone. Stays authenticated for 4 months. Set Service Name to the Common Name (CN) found in the certificate's Subject value. Install the TLS certificate on your web service and enable HTTP client authentication. 45

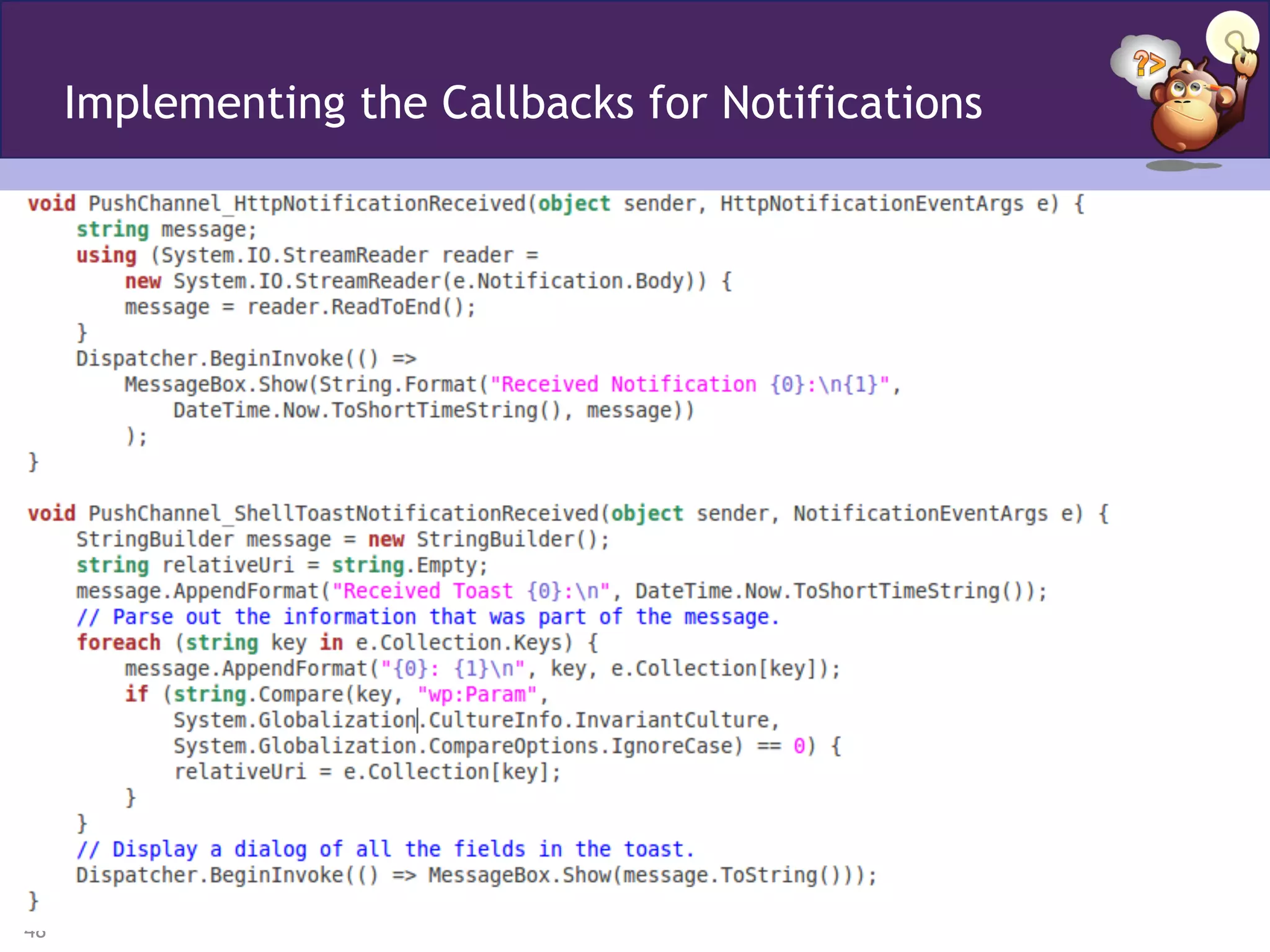

- 48. Implementing the Callbacks for Notifications 48

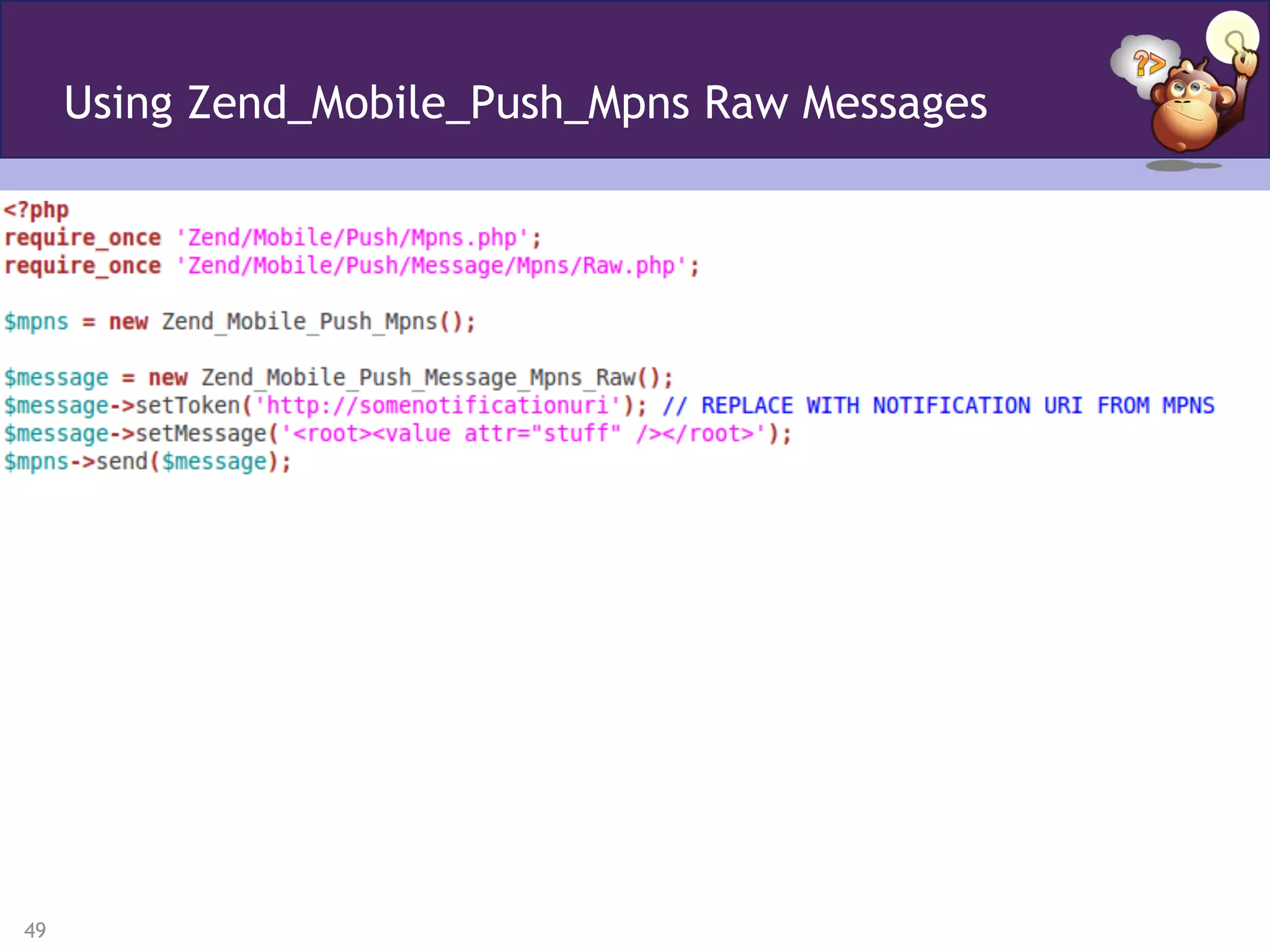

- 49. Using Zend_Mobile_Push_Mpns Raw Messages 49

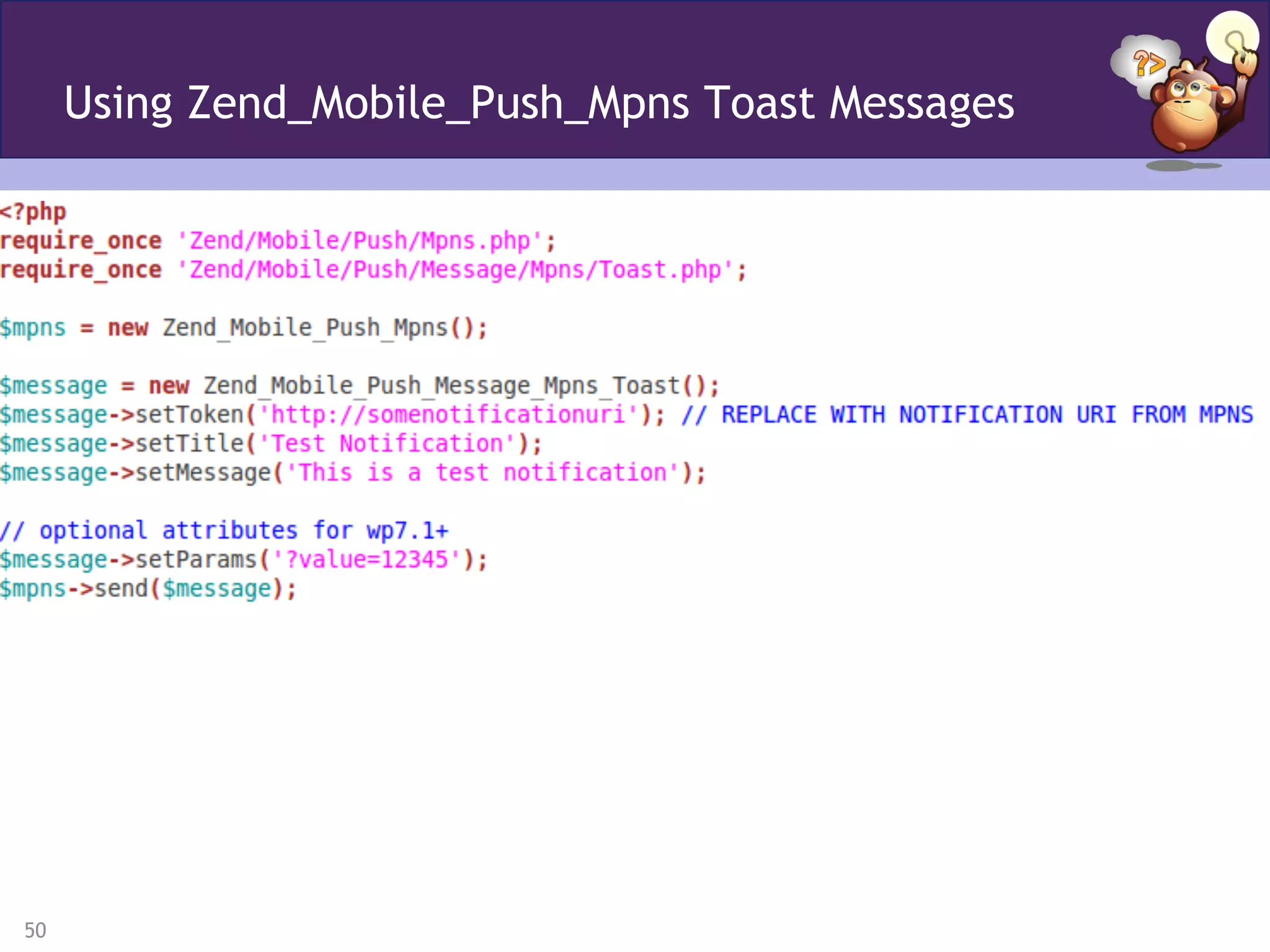

- 50. Using Zend_Mobile_Push_Mpns Toast Messages 50

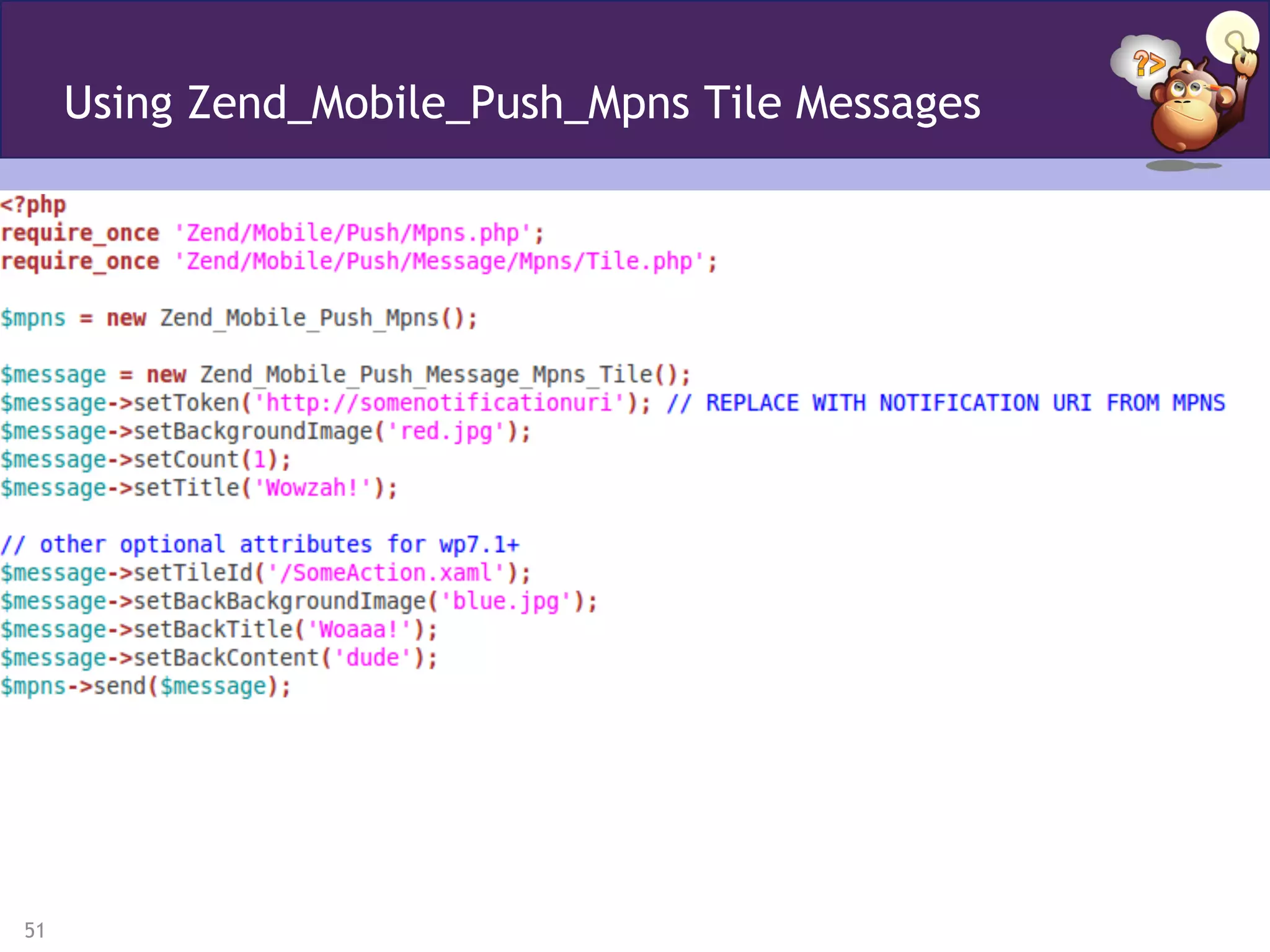

- 51. Using Zend_Mobile_Push_Mpns Tile Messages 51

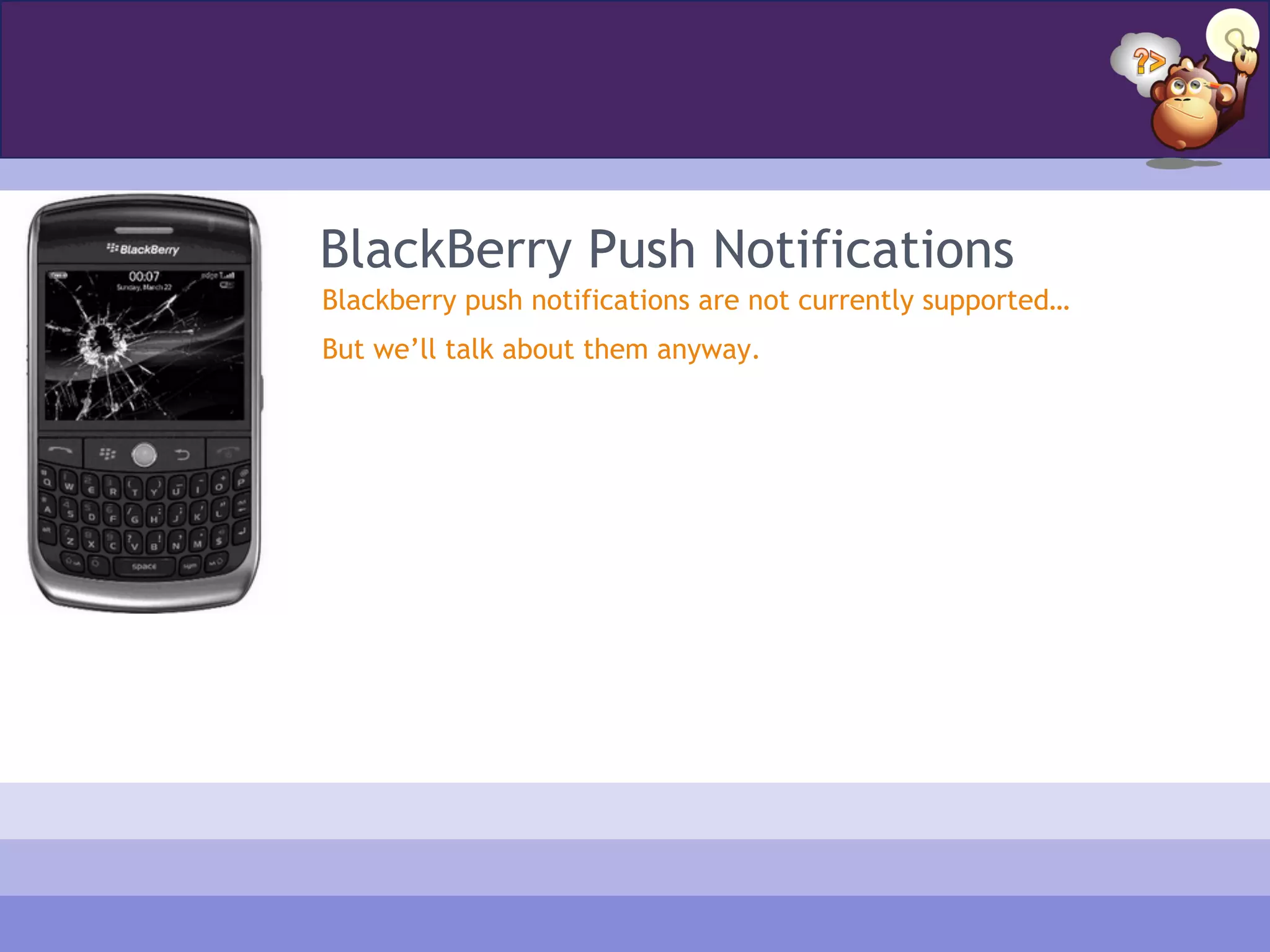

- 52. BlackBerry Push Notifications Blackberry push notifications are not currently supported… But we’ll talk about them anyway.

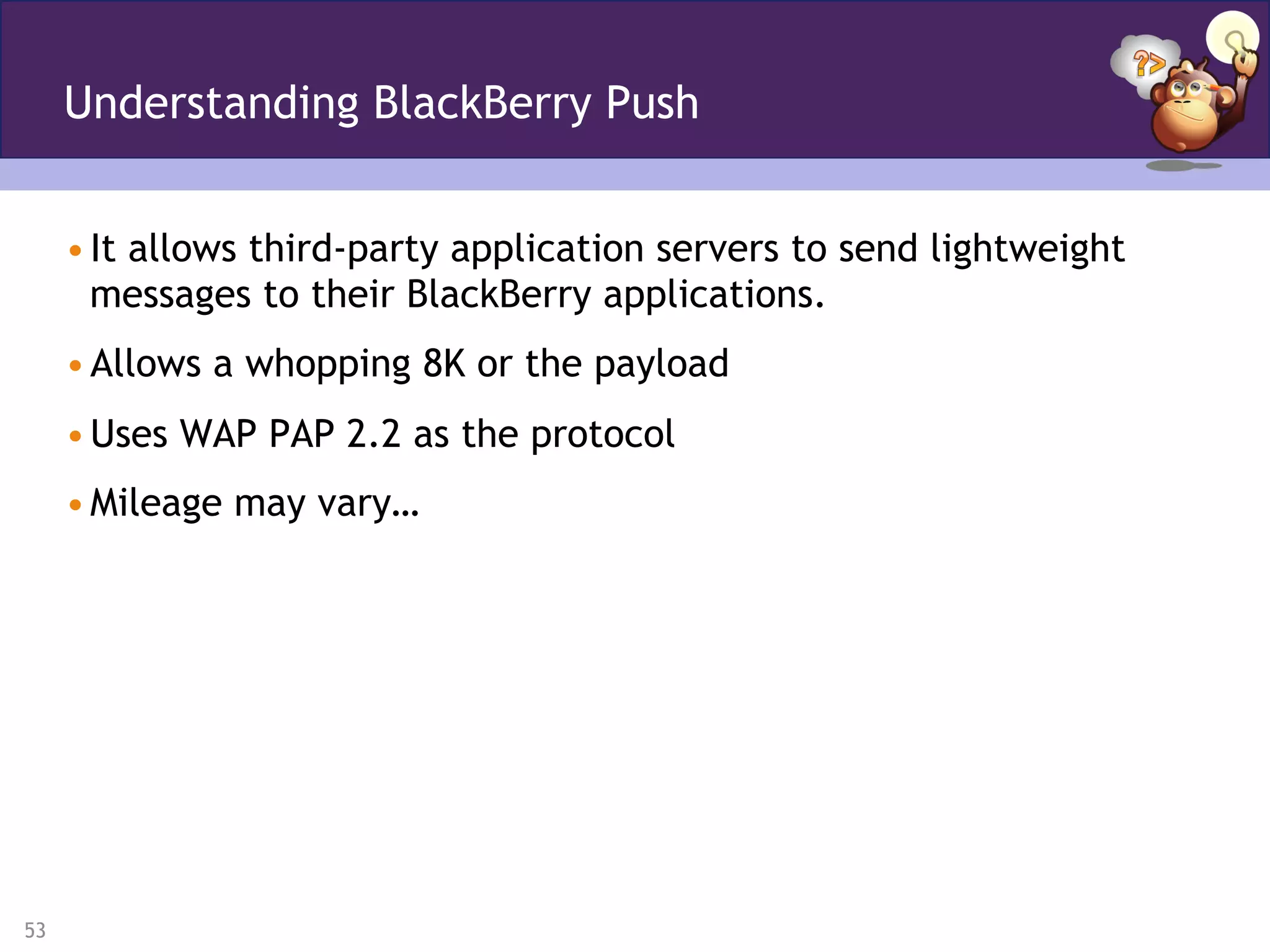

- 53. Understanding BlackBerry Push • It allows third-party application servers to send lightweight messages to their BlackBerry applications. • Allows a whopping 8K or the payload • Uses WAP PAP 2.2 as the protocol • Mileage may vary… 53

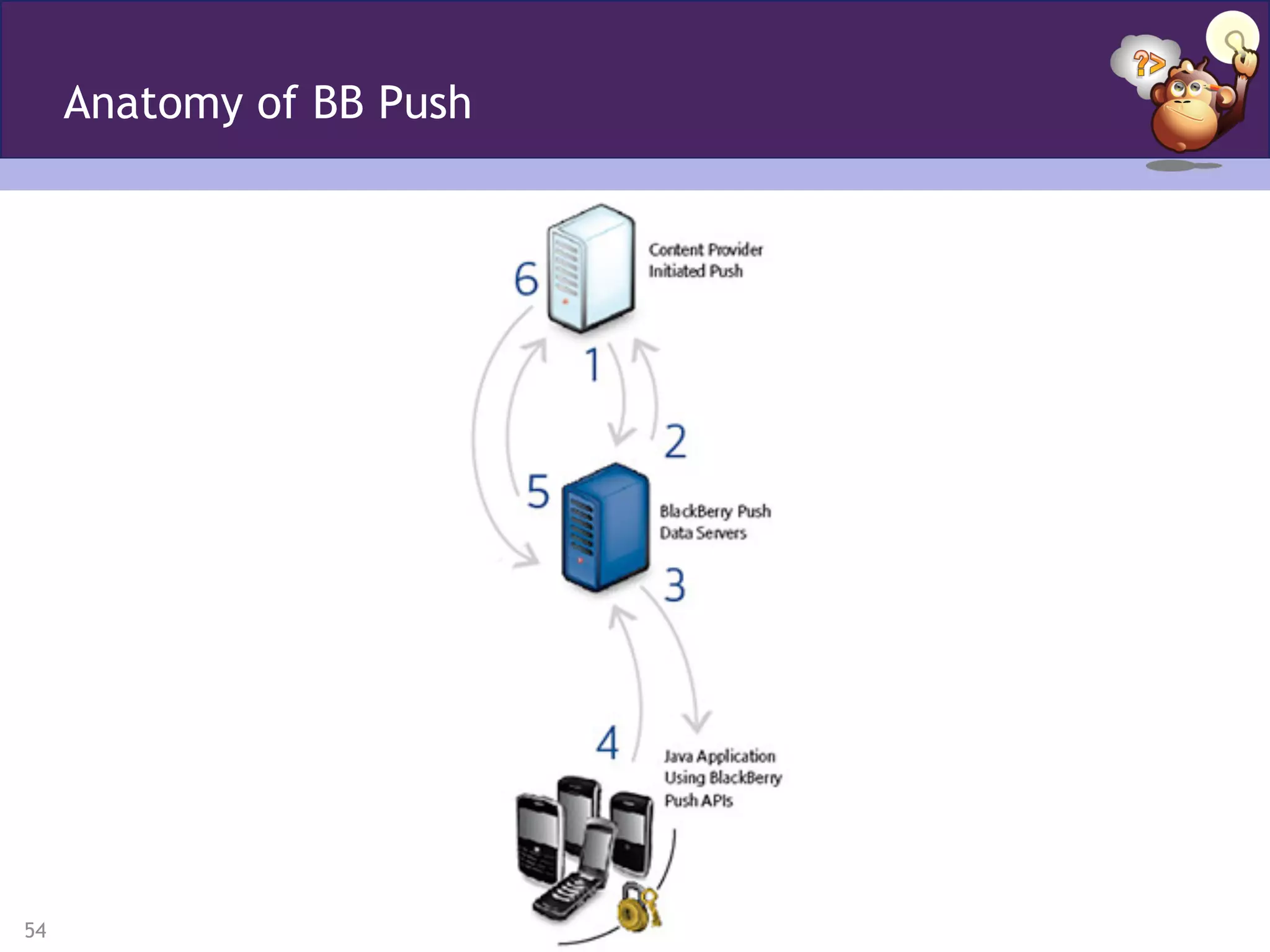

- 54. Anatomy of BB Push 54

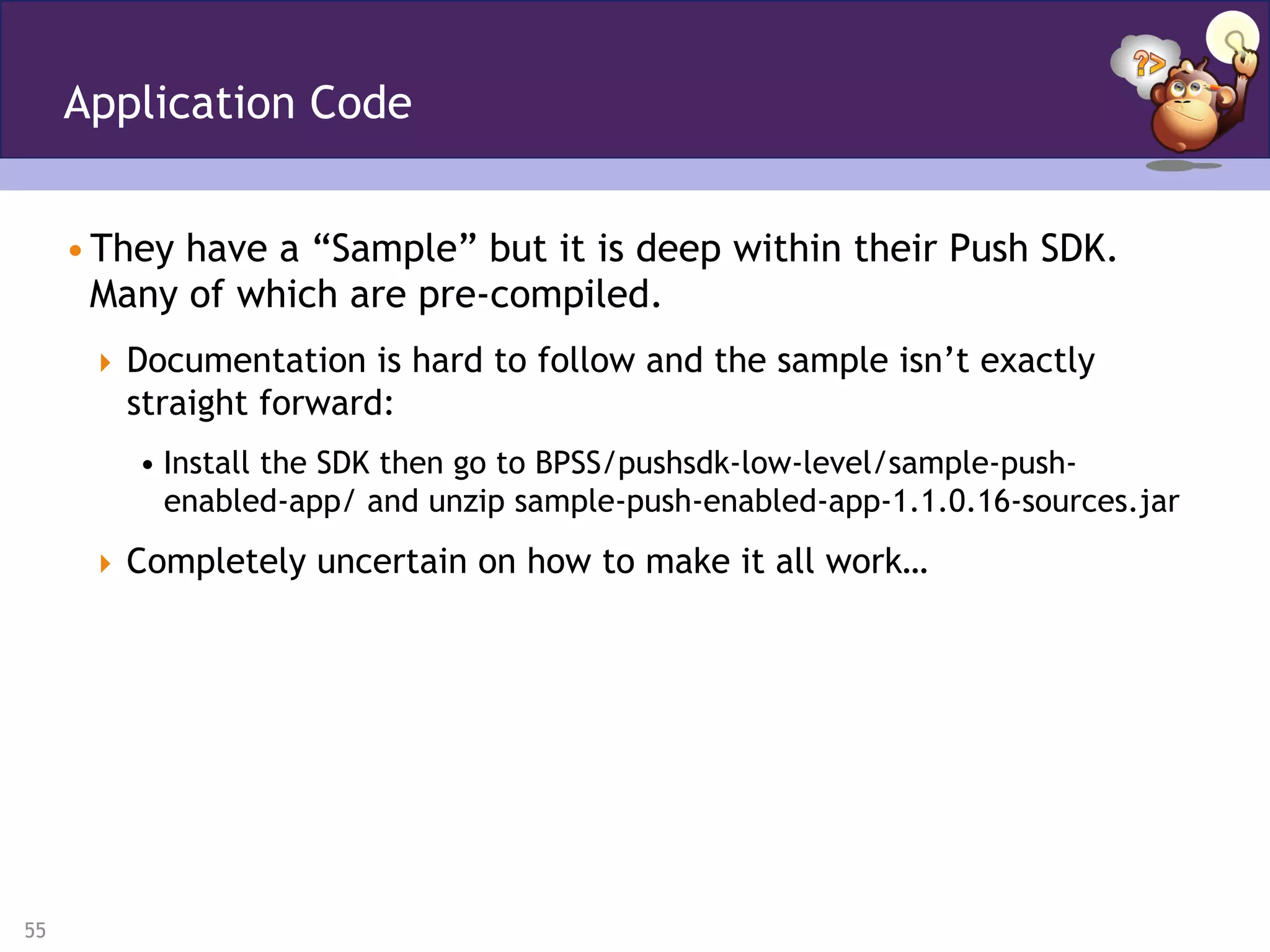

- 55. Application Code • They have a “Sample” but it is deep within their Push SDK. Many of which are pre-compiled. Documentation is hard to follow and the sample isn’t exactly straight forward: • Install the SDK then go to BPSS/pushsdk-low-level/sample-push- enabled-app/ and unzip sample-push-enabled-app-1.1.0.16-sources.jar Completely uncertain on how to make it all work… 55

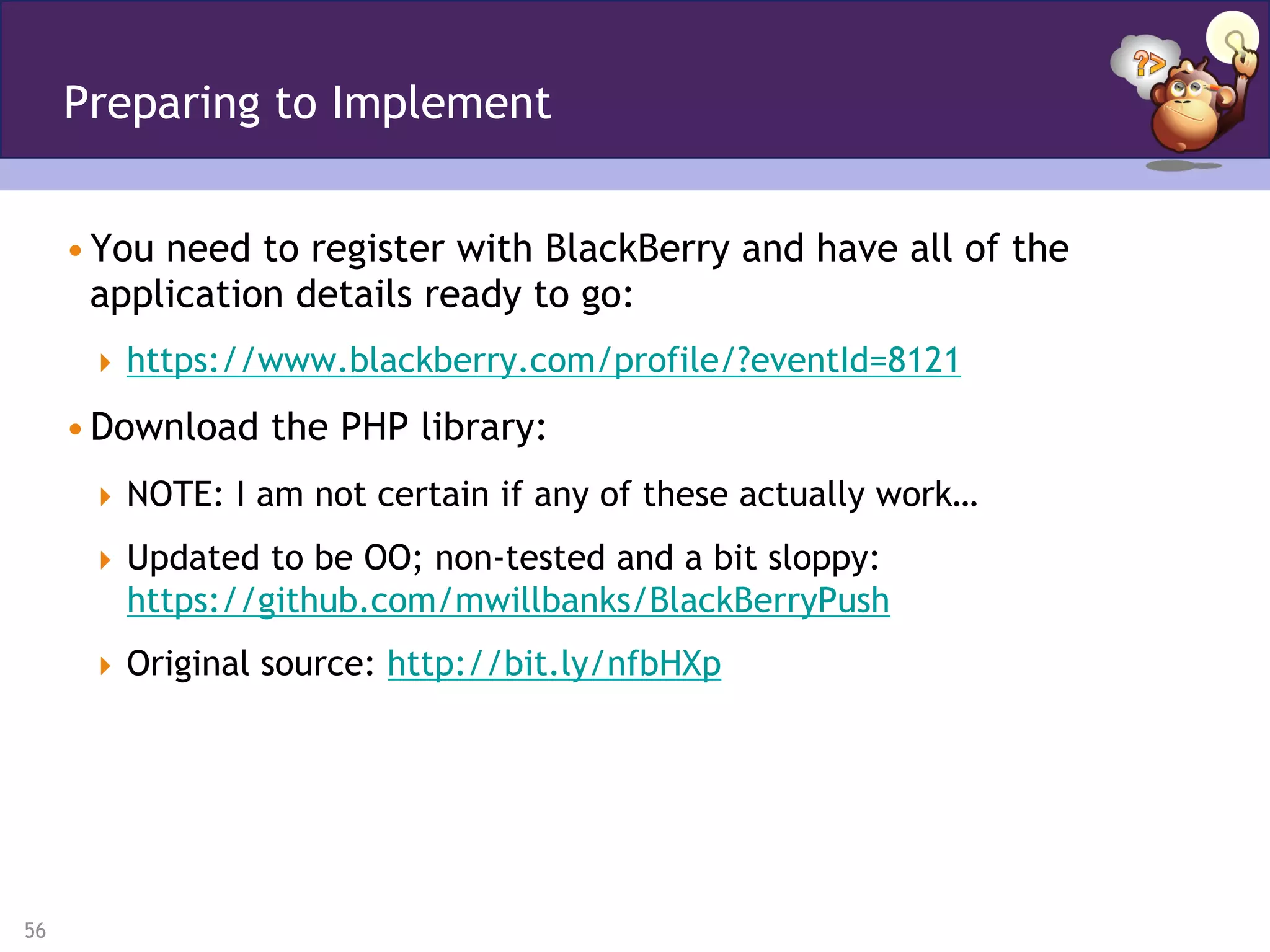

- 56. Preparing to Implement • You need to register with BlackBerry and have all of the application details ready to go: https://www.blackberry.com/profile/?eventId=8121 • Download the PHP library: NOTE: I am not certain if any of these actually work… Updated to be OO; non-tested and a bit sloppy: https://github.com/mwillbanks/BlackBerryPush Original source: http://bit.ly/nfbHXp 56

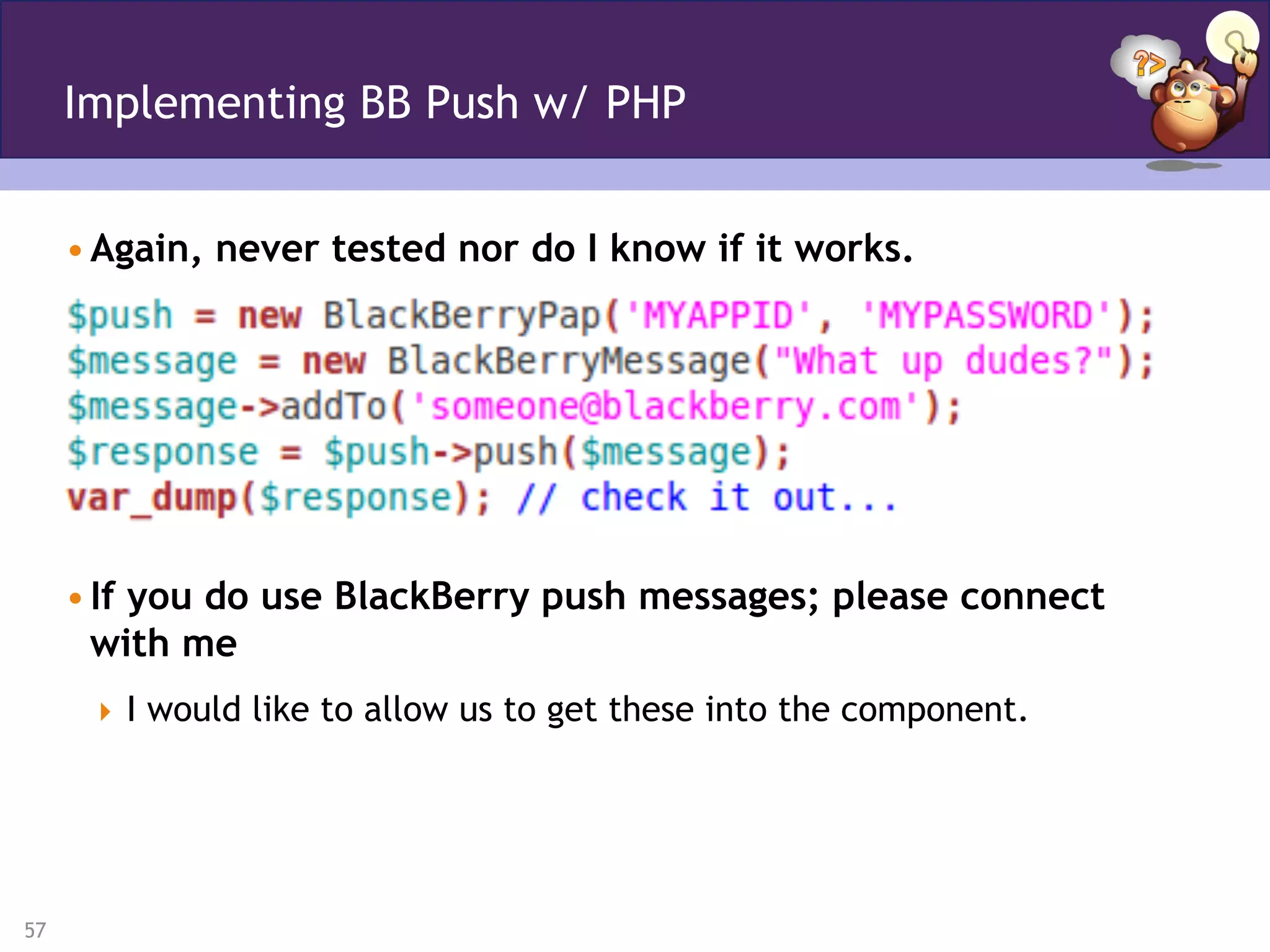

- 57. Implementing BB Push w/ PHP • Again, never tested nor do I know if it works. • If you do use BlackBerry push messages; please connect with me I would like to allow us to get these into the component. 57

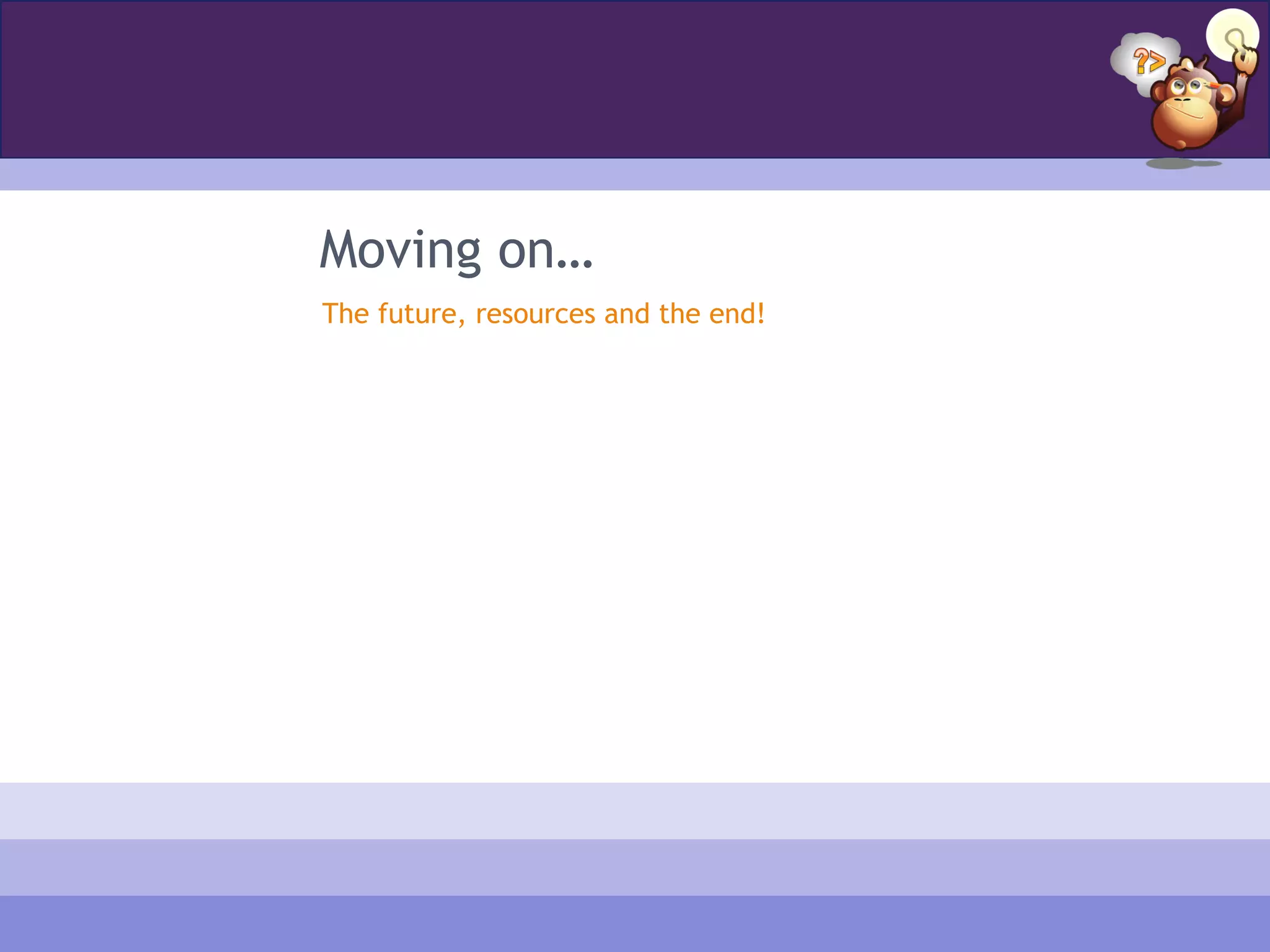

- 58. Moving on… The future, resources and the end!

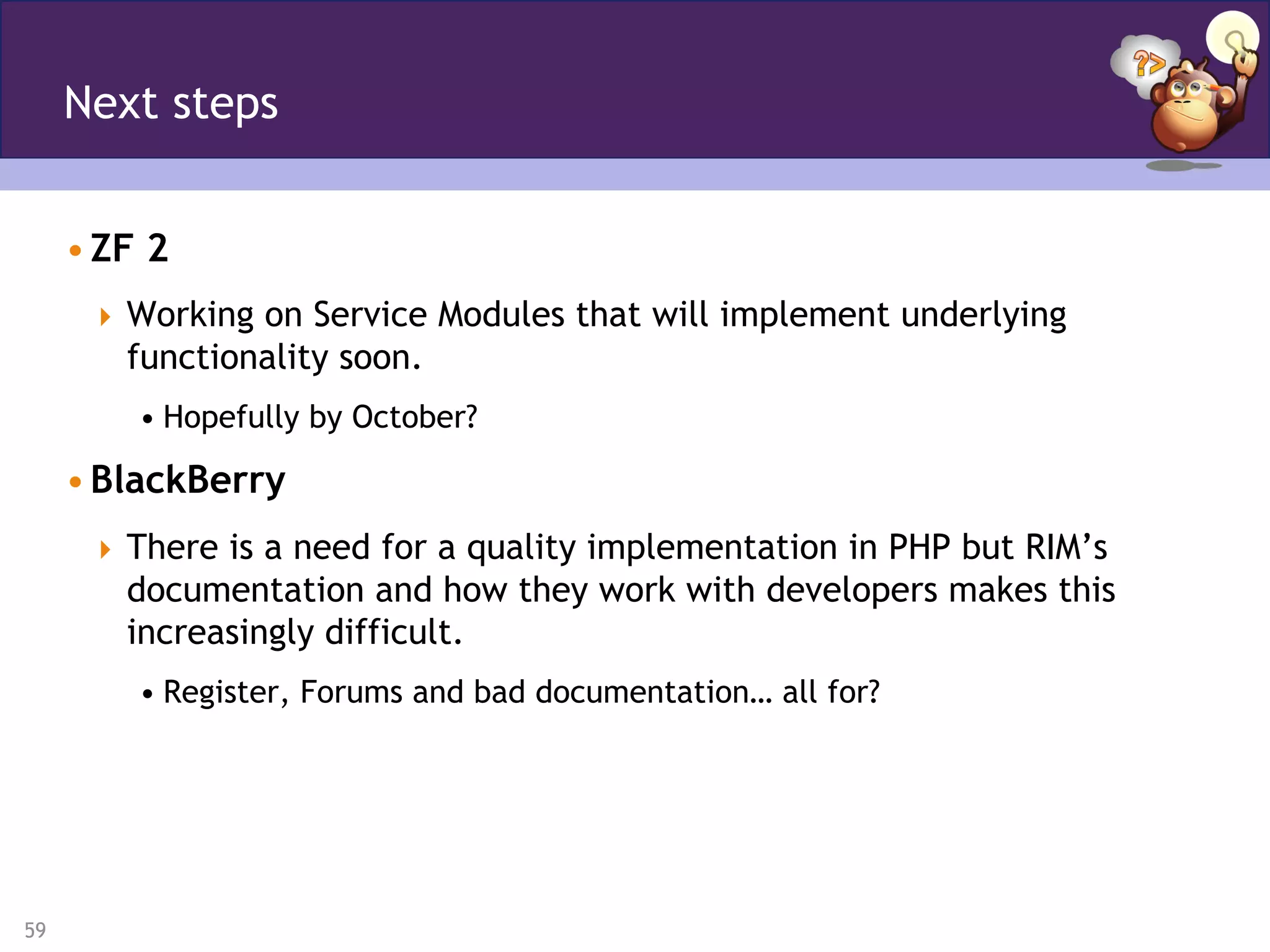

- 59. Next steps • ZF 2 Working on Service Modules that will implement underlying functionality soon. • Hopefully by October? • BlackBerry There is a need for a quality implementation in PHP but RIM’s documentation and how they work with developers makes this increasingly difficult. • Register, Forums and bad documentation… all for? 59

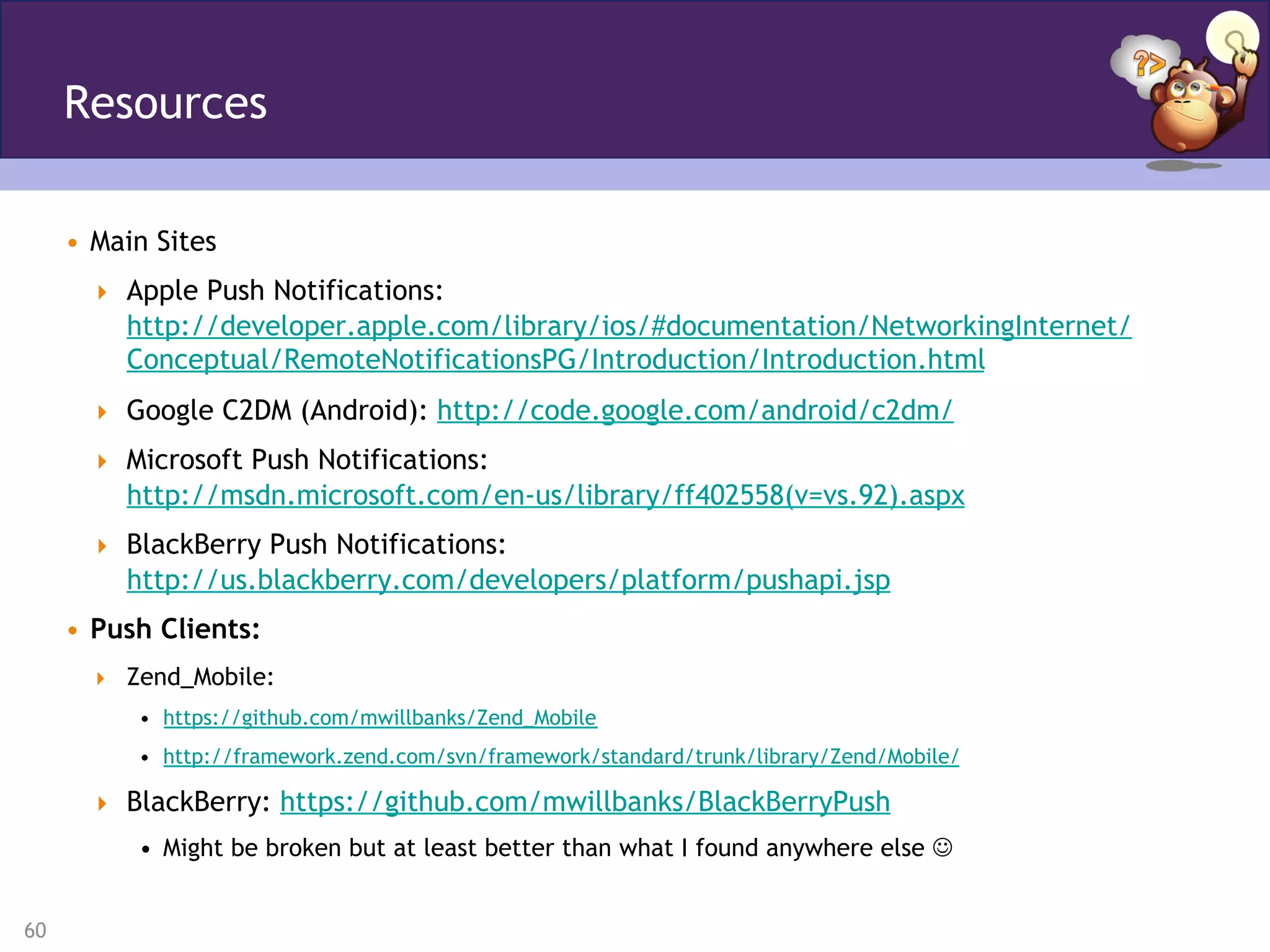

- 60. Resources • Main Sites Apple Push Notifications: http://developer.apple.com/library/ios/#documentation/NetworkingInternet/ Conceptual/RemoteNotificationsPG/Introduction/Introduction.html Google C2DM (Android): http://code.google.com/android/c2dm/ Microsoft Push Notifications: http://msdn.microsoft.com/en-us/library/ff402558(v=vs.92).aspx BlackBerry Push Notifications: http://us.blackberry.com/developers/platform/pushapi.jsp • Push Clients: Zend_Mobile: • https://github.com/mwillbanks/Zend_Mobile • http://framework.zend.com/svn/framework/standard/trunk/library/Zend/Mobile/ BlackBerry: https://github.com/mwillbanks/BlackBerryPush • Might be broken but at least better than what I found anywhere else J 60

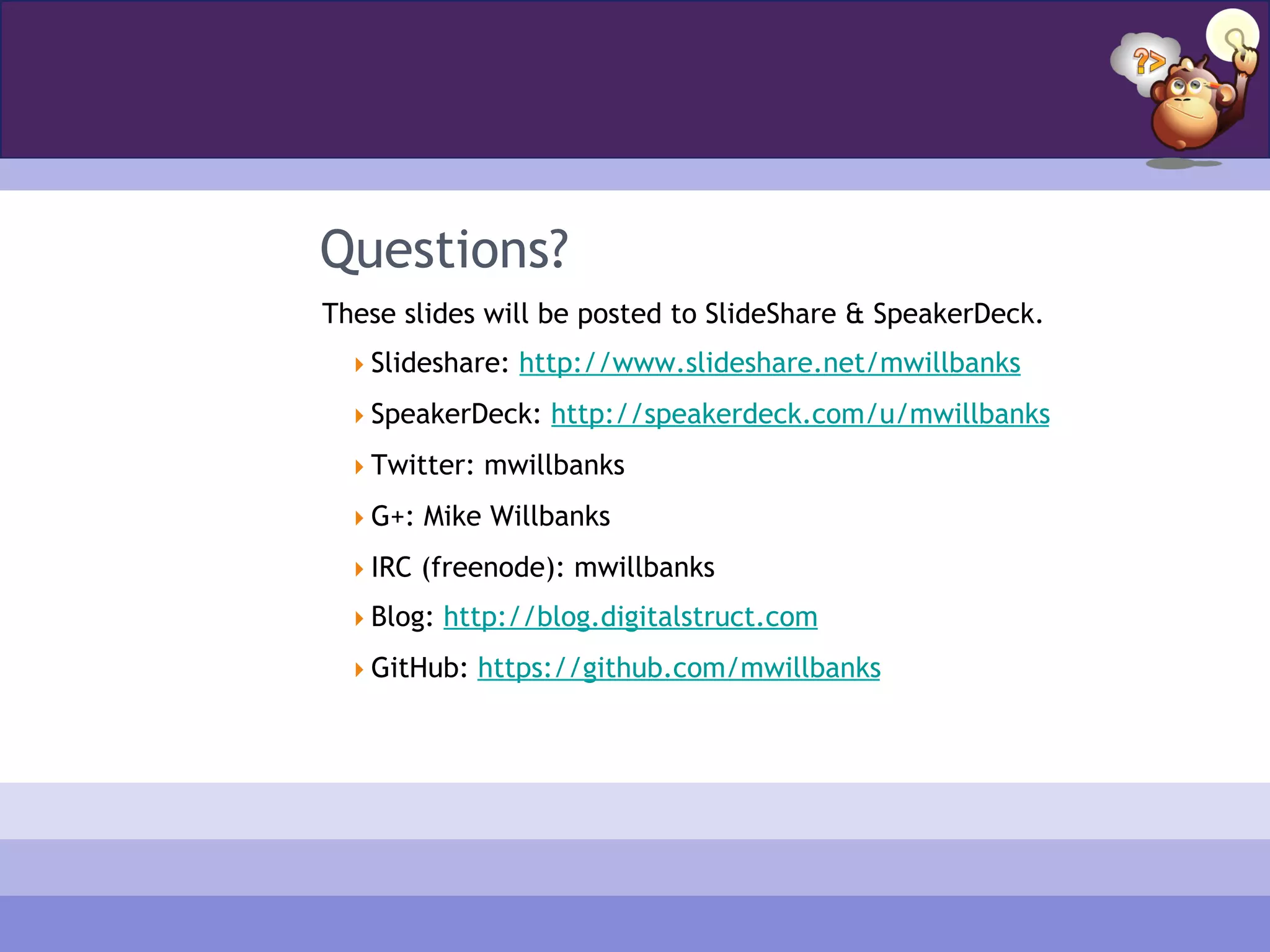

- 61. Questions? These slides will be posted to SlideShare & SpeakerDeck. Slideshare: http://www.slideshare.net/mwillbanks SpeakerDeck: http://speakerdeck.com/u/mwillbanks Twitter: mwillbanks G+: Mike Willbanks IRC (freenode): mwillbanks Blog: http://blog.digitalstruct.com GitHub: https://github.com/mwillbanks
