So, you know how to deploy your code, what about your database? This talk will go through deploying your database with LiquiBase and DBDeploy a non-framework based approach to handling migrations of DDL and DML.

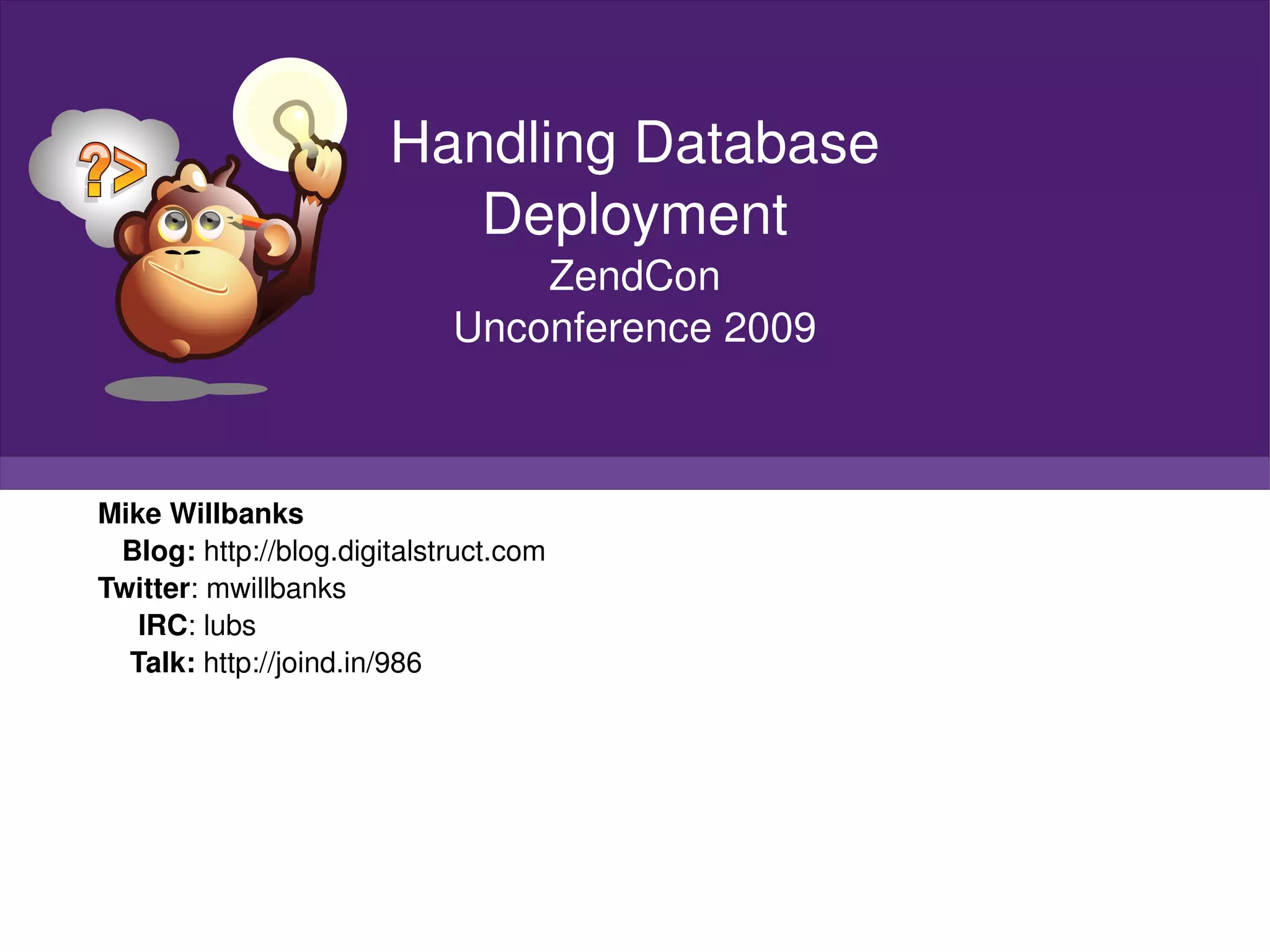

1. Mike Willbanks Blog: http://blog.digitalstruct.com Twitter : mwillbanks IRC : lubs Talk: http://joind.in/986 Handling Database Deployment ZendCon Unconference 2009

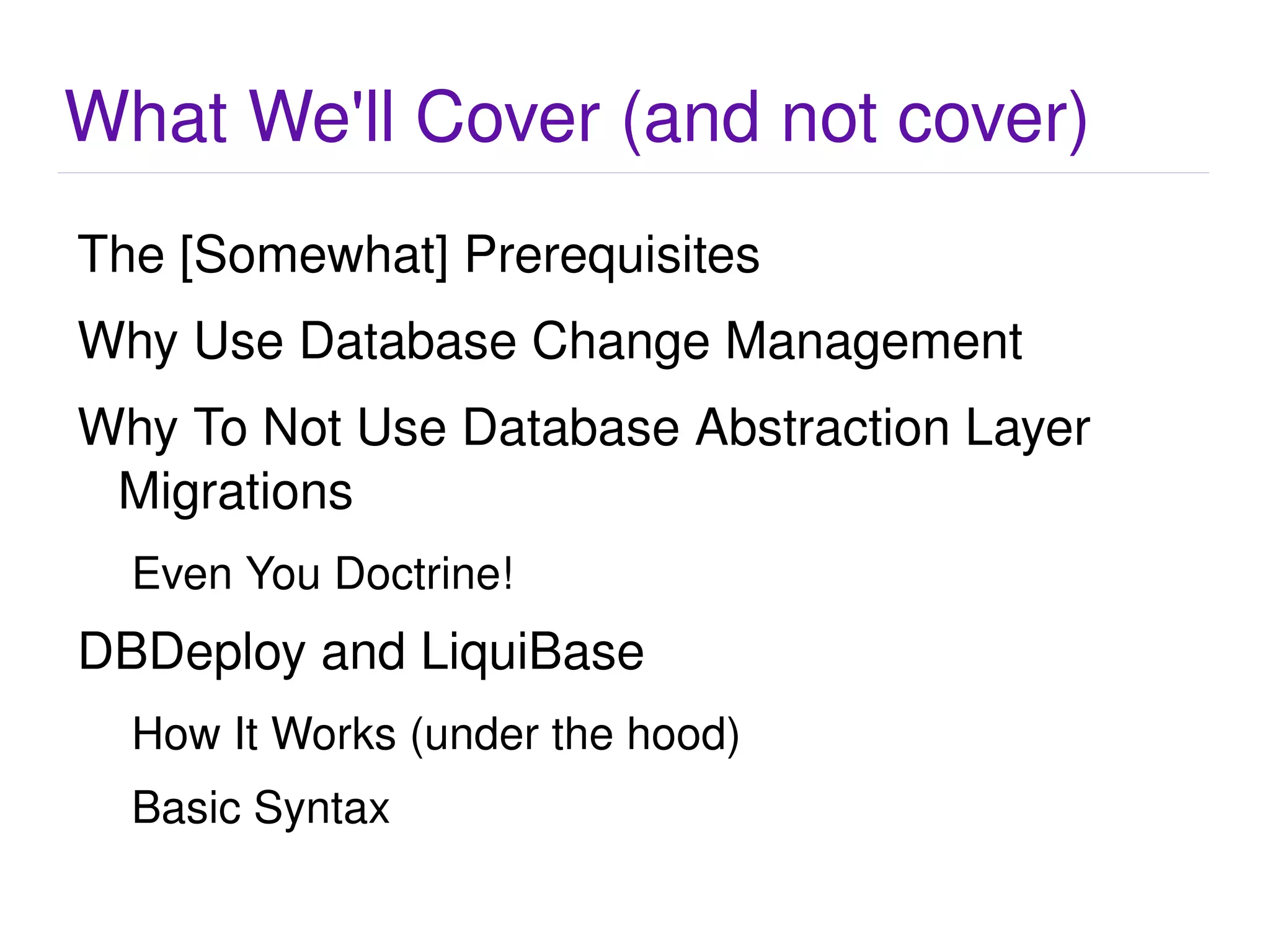

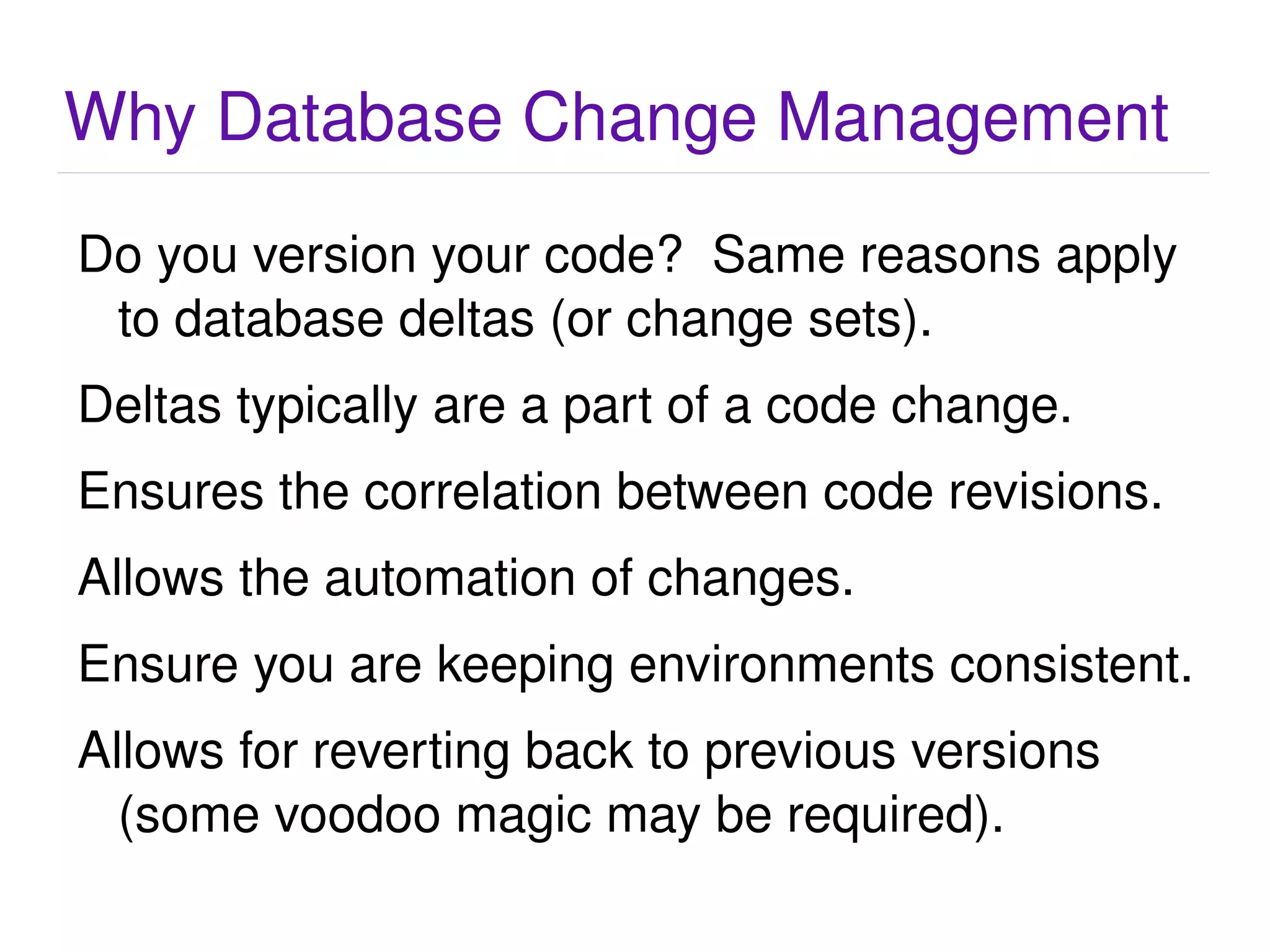

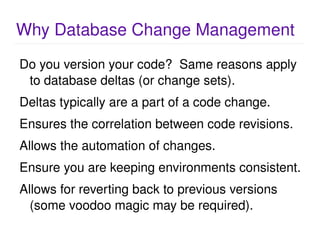

3. Why Use Database Change Management

5. Basic Syntax

6. Recommended Structure

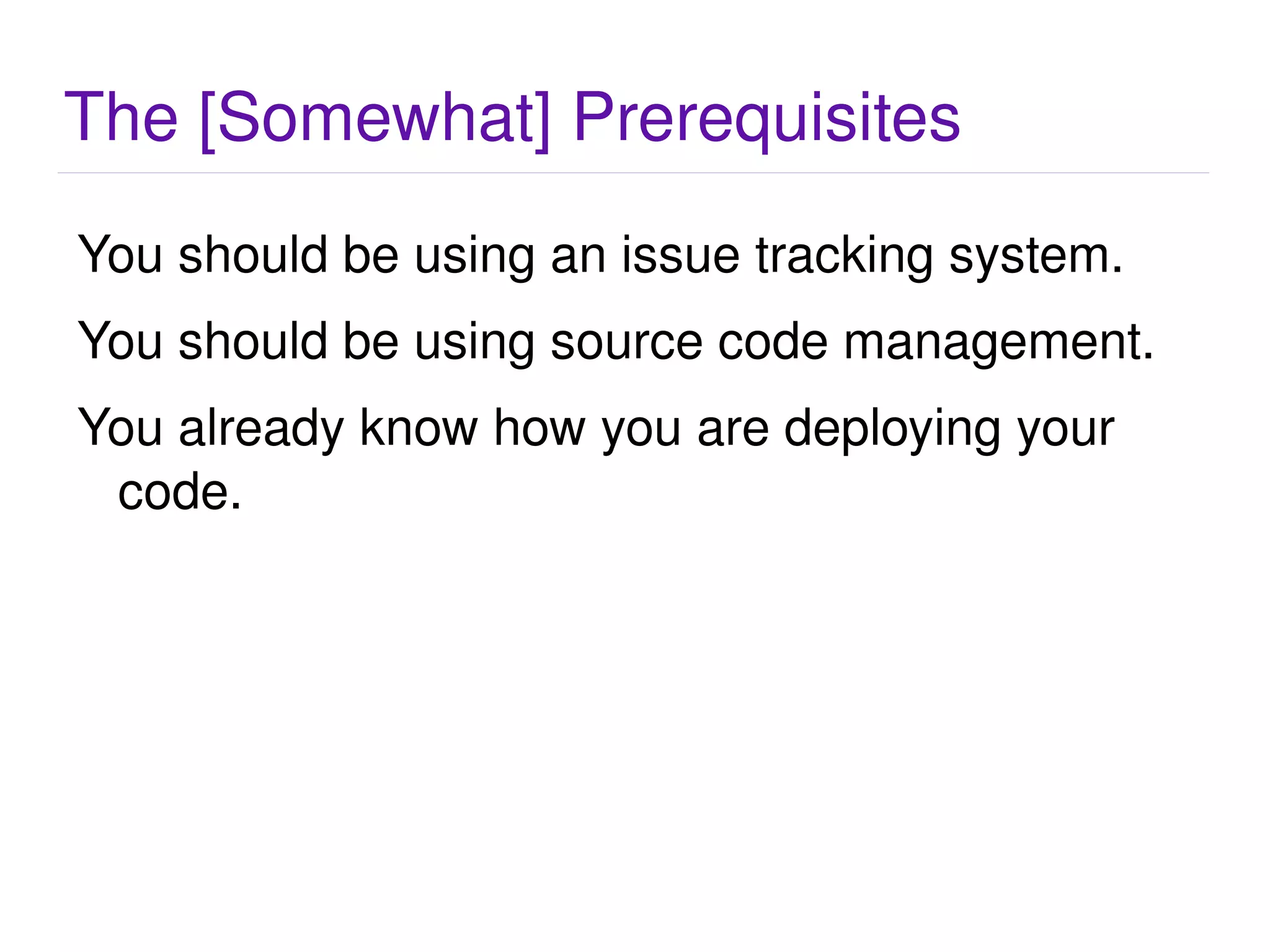

8. You should be using source code management.

9. You already know how you are deploying your code.

11. Deltas typically are a part of a code change.

12. Ensures the correlation between code revisions.

13. Allows the automation of changes.

14. Ensure you are keeping environments consistent.

15. Allows for reverting back to previous versions (some voodoo magic may be required).

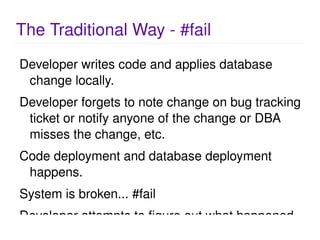

17. Developer forgets to note change on bug tracking ticket or notify anyone of the change or DBA misses the change, etc.

18. Code deployment and database deployment happens.

19. System is broken... #fail

20. Developer attempts to figure out what happened, “oops factor”.

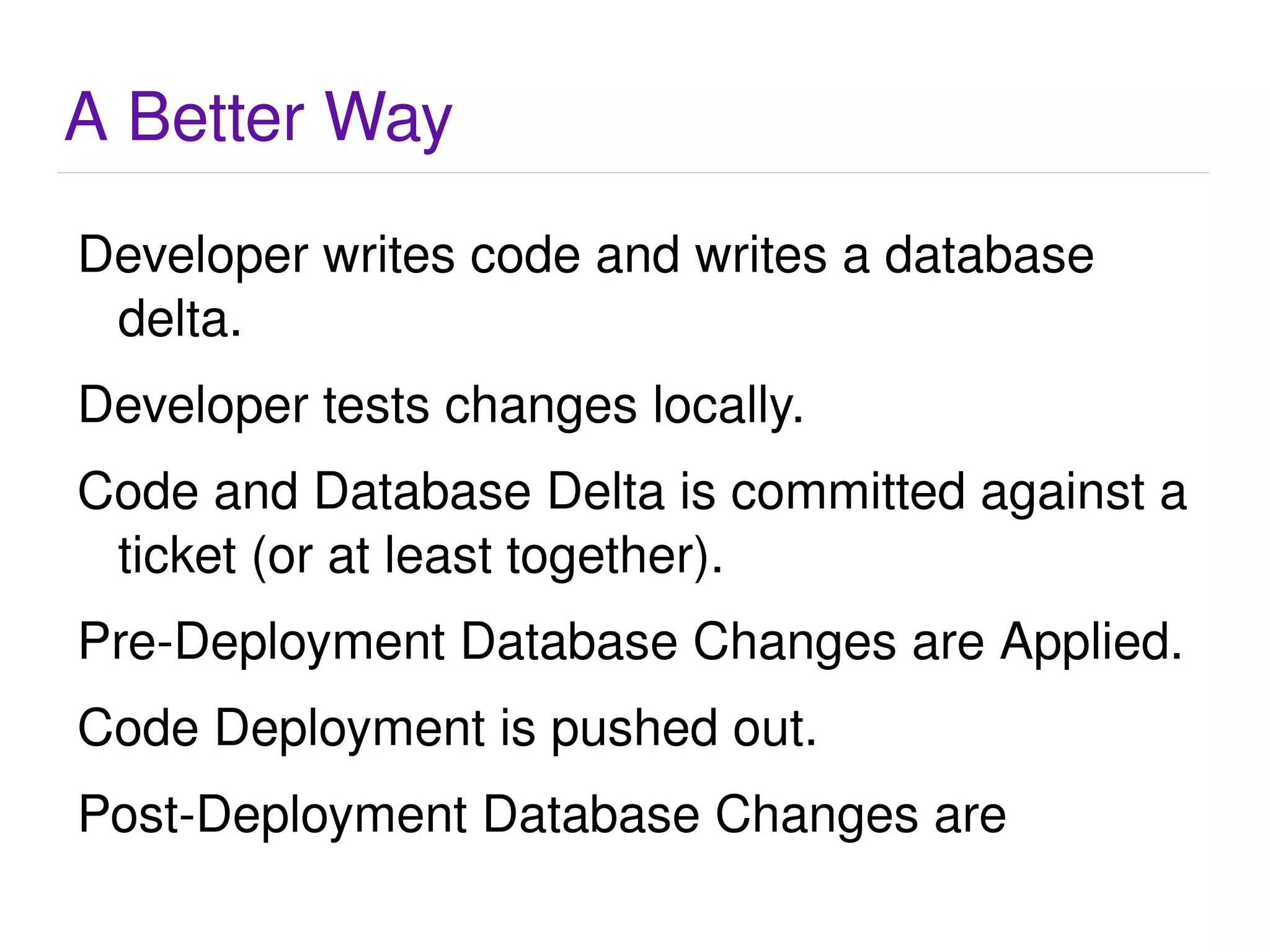

22. Developer tests changes locally.

23. Code and Database Delta is committed against a ticket (or at least together).

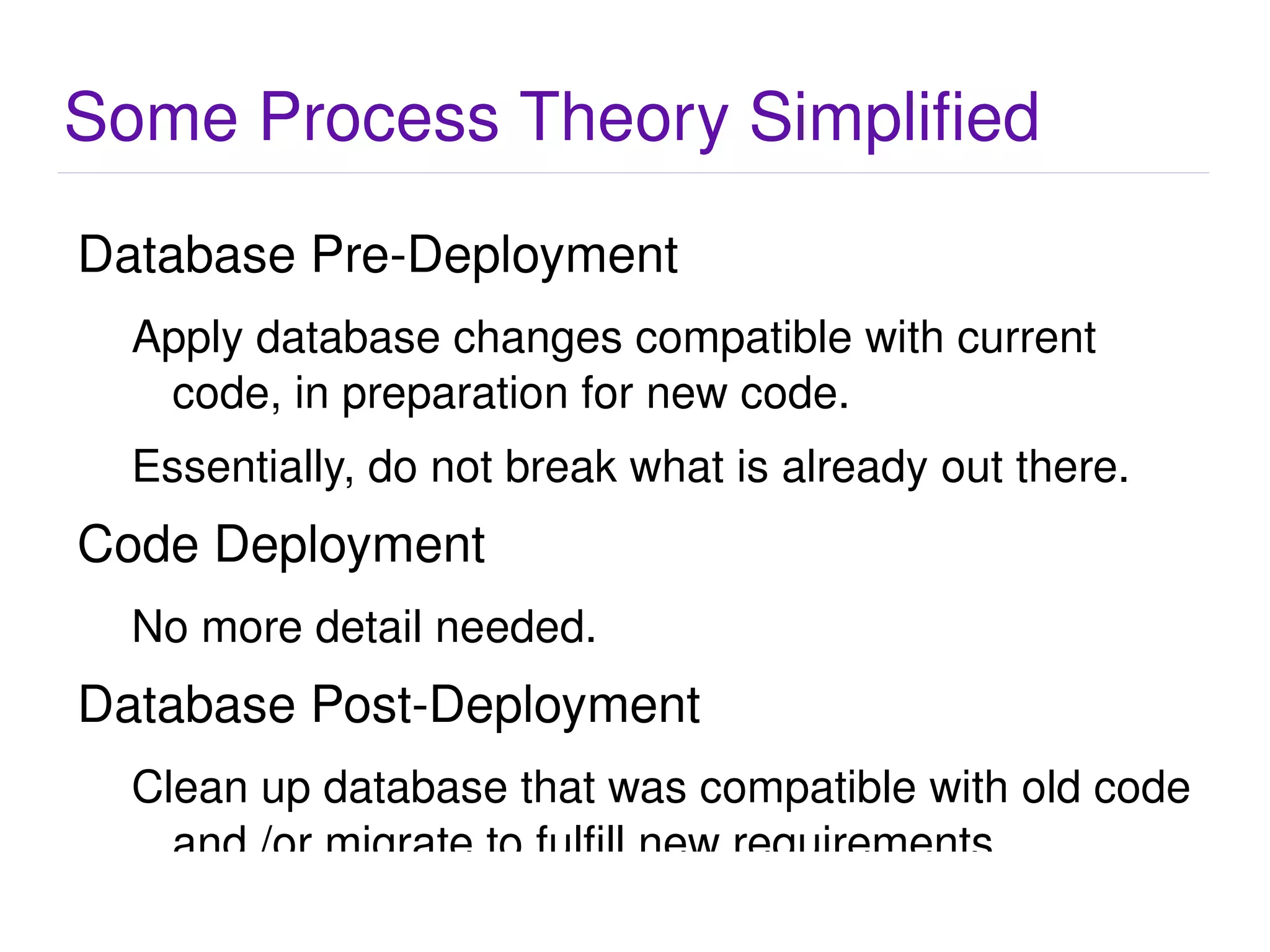

24. Pre-Deployment Database Changes are Applied.

25. Code Deployment is pushed out.

26. Post-Deployment Database Changes are Applied.

27. System === happiness.

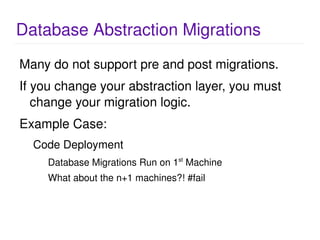

31. If you change your abstraction layer, you must change your migration logic.

33. What about the n+1 machines?! #fail

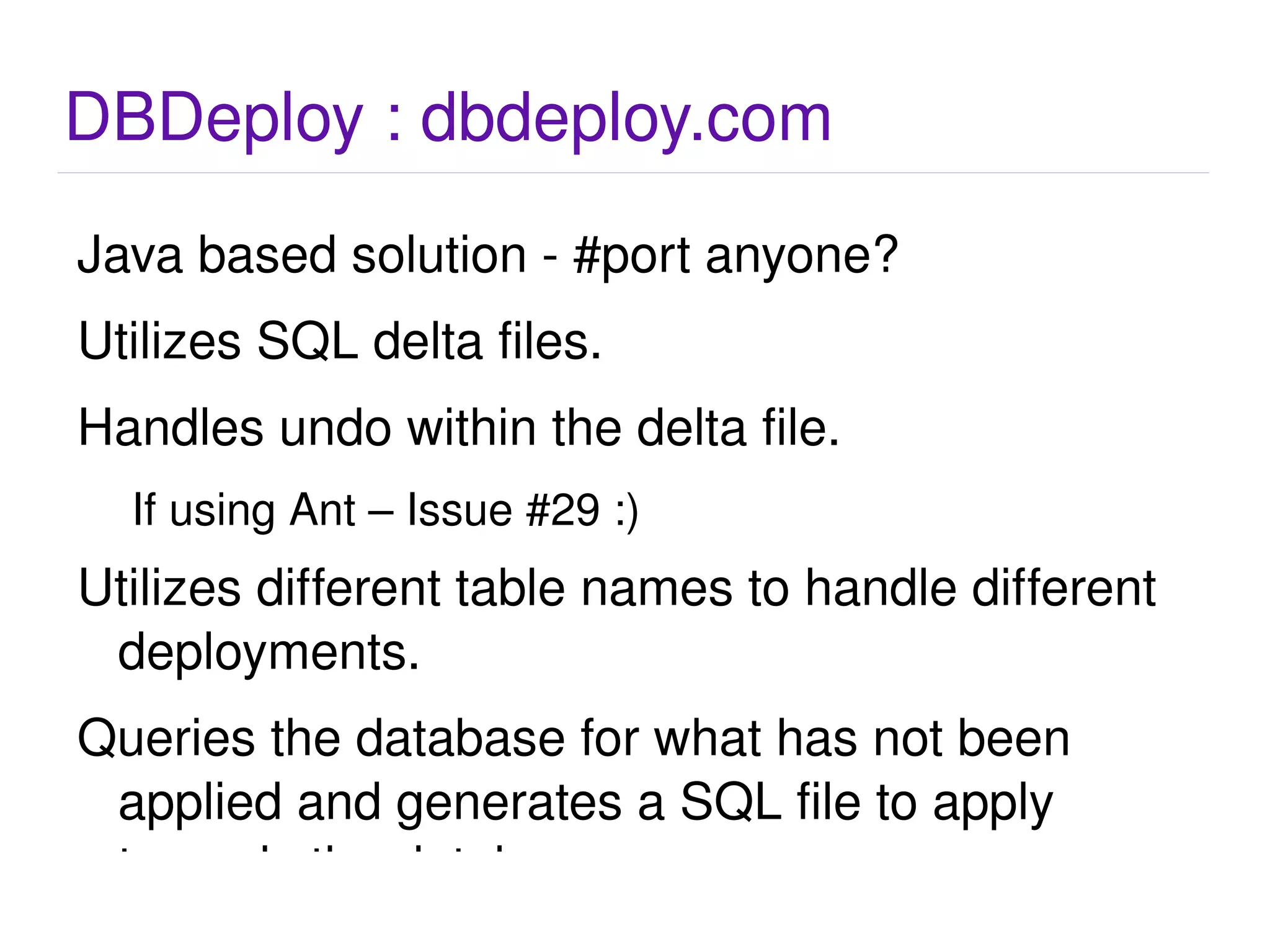

35. Utilizes SQL delta files.

37. Queries the database for what has not been applied and generates a SQL file to apply towards the database.

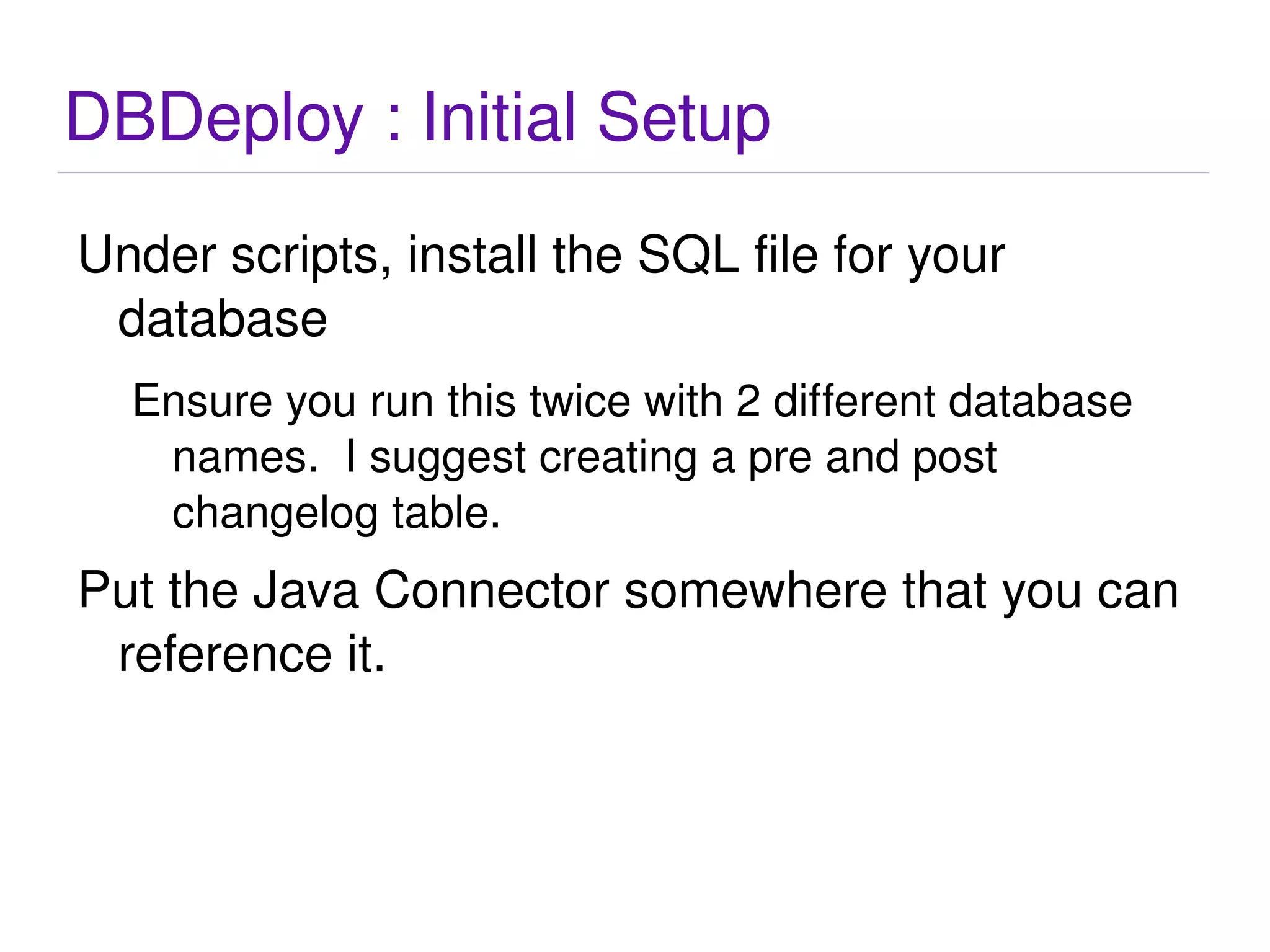

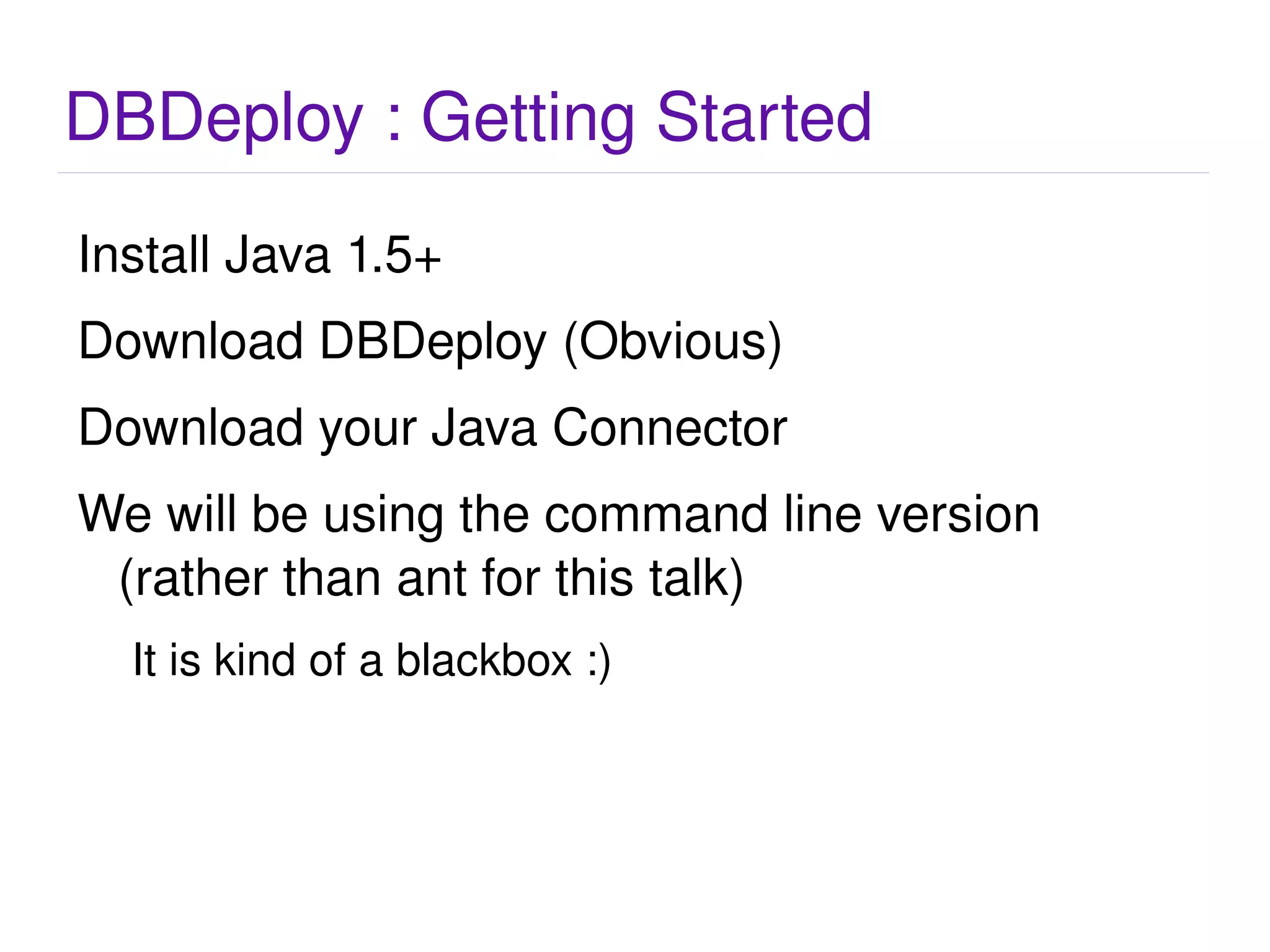

39. Download DBDeploy (Obvious)

40. Download your Java Connector

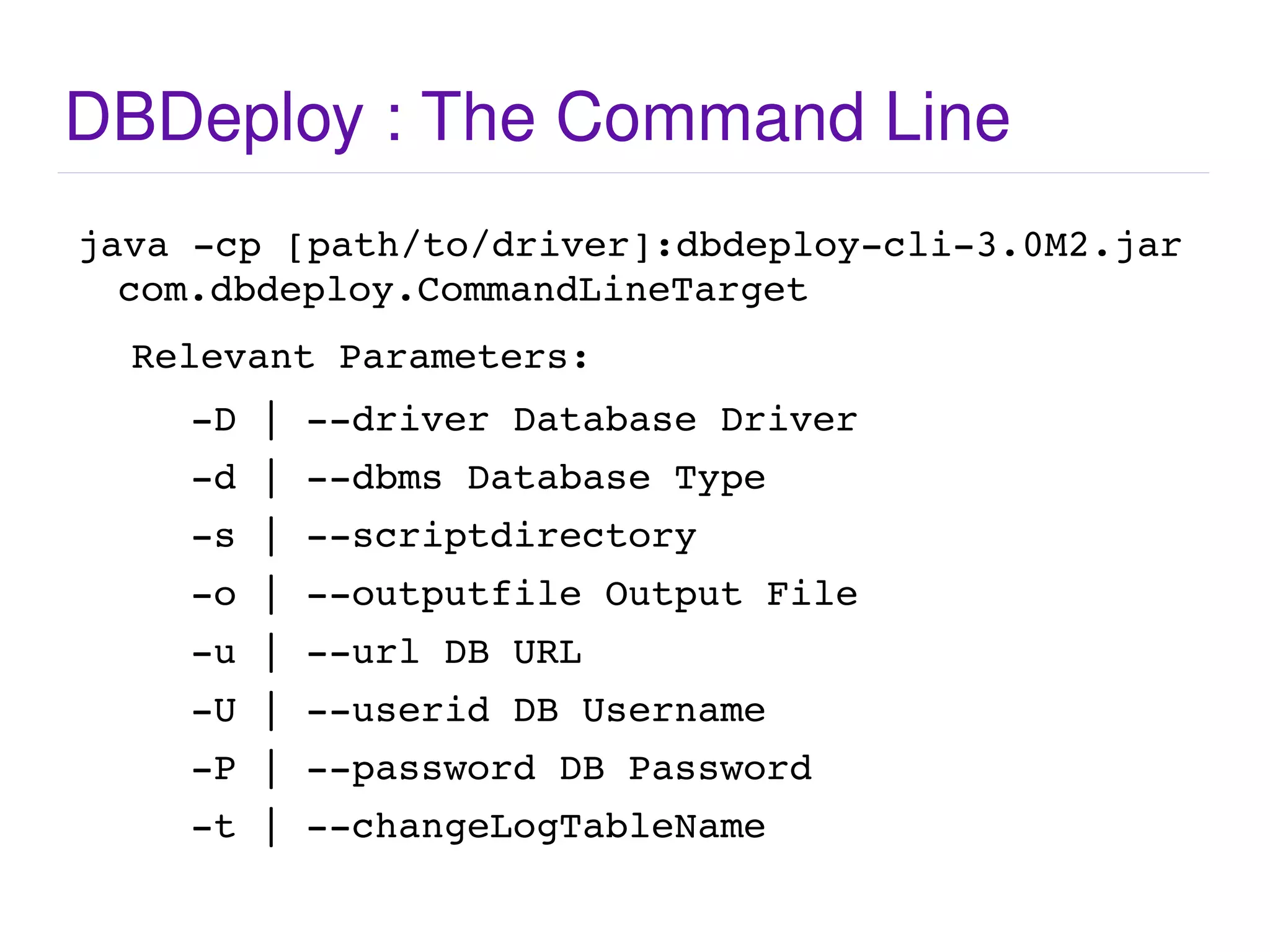

44. -d | --dbms Database Type

45. -s | --scriptdirectory

46. -o | --outputfile Output File

47. -u | --url DB URL

48. -U | --userid DB Username

49. -P | --password DB Password

50. -t | --changeLogTableName

54. Let's watch this command, understand the output and look at the script.

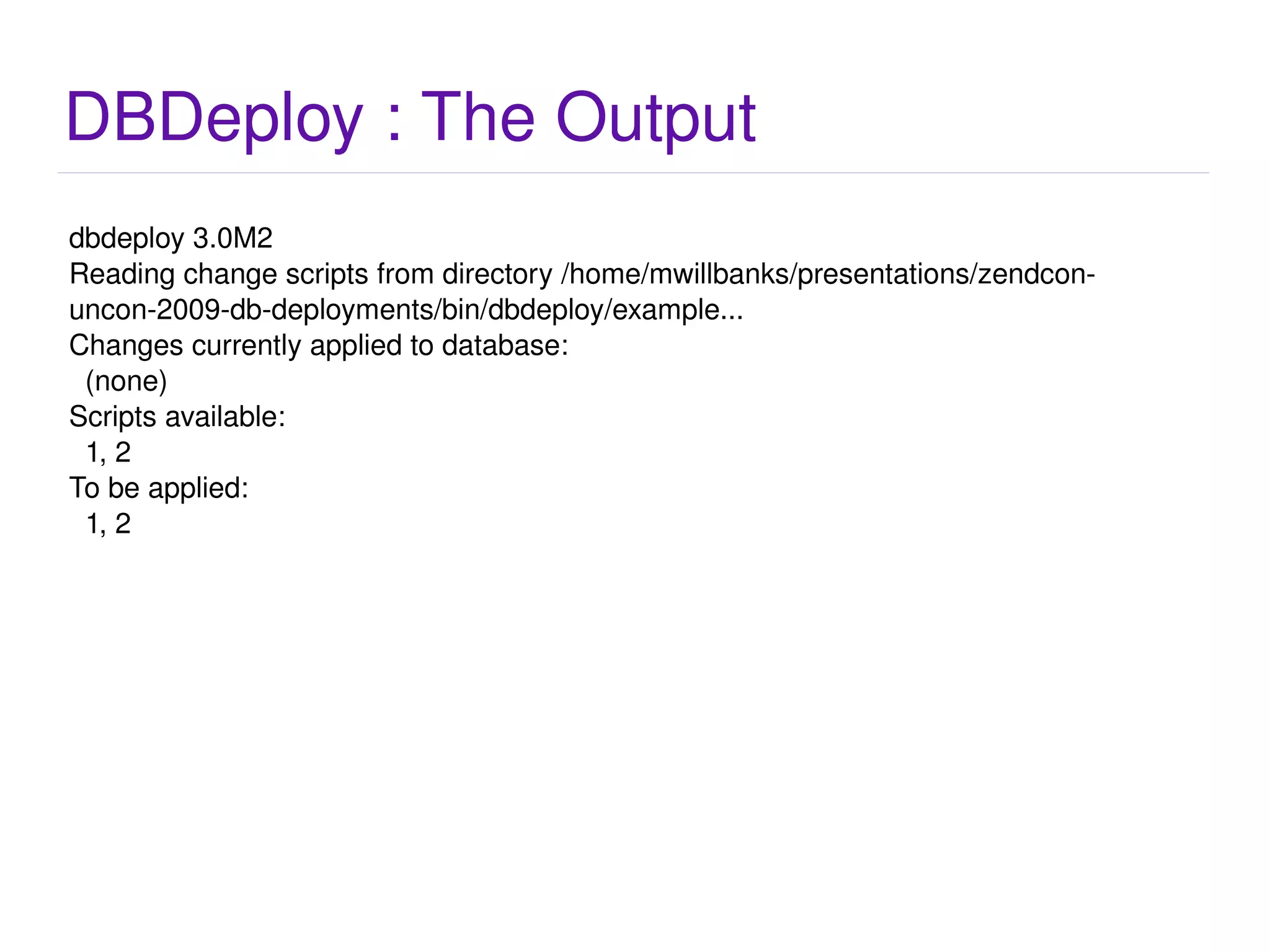

55. DBDeploy : The Output dbdeploy 3.0M2 Reading change scripts from directory /home/mwillbanks/presentations/zendcon-uncon-2009-db-deployments/bin/dbdeploy/example... Changes currently applied to database: (none) Scripts available: 1, 2 To be applied: 1, 2

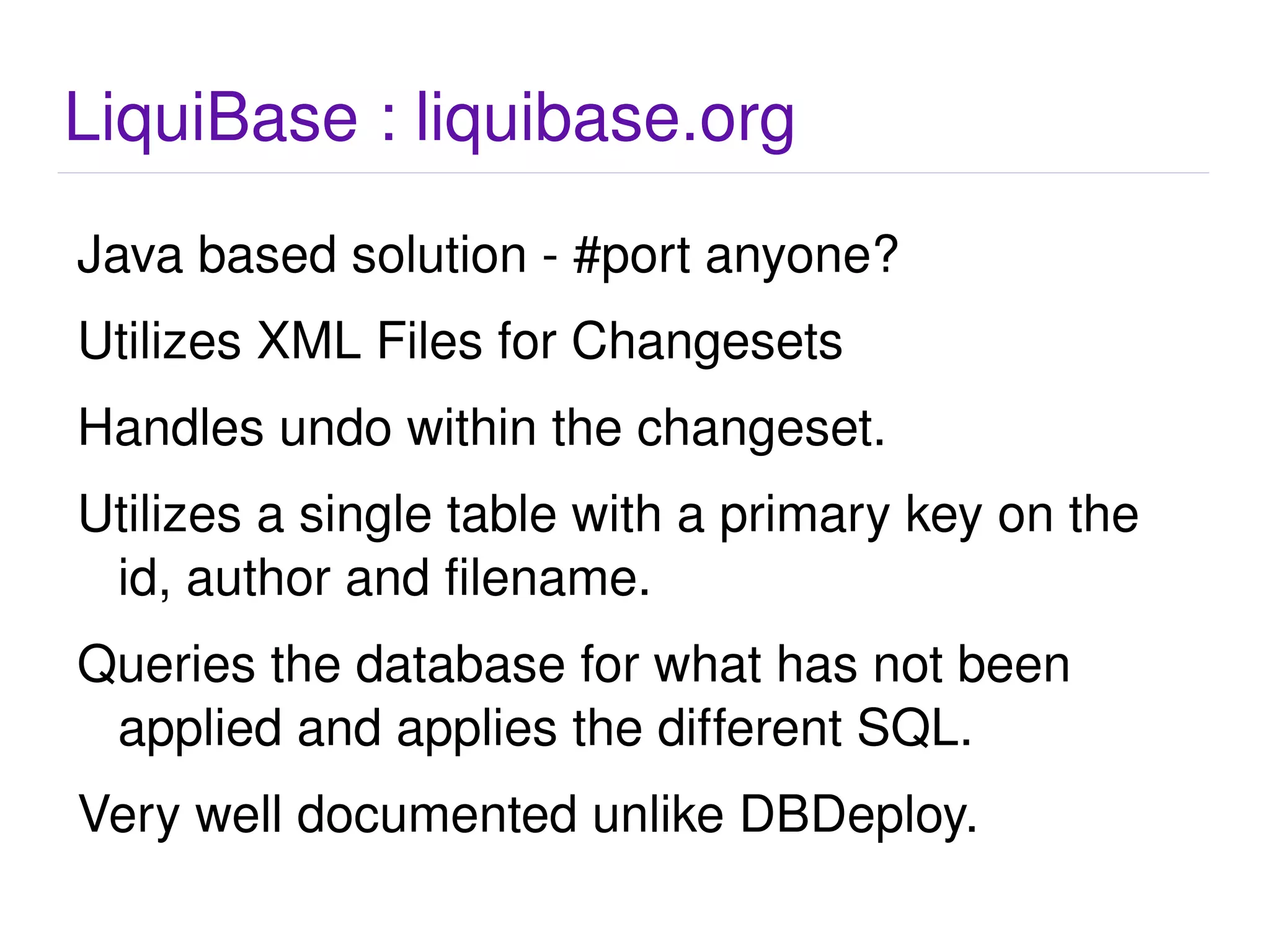

58. Utilizes XML Files for Changesets

59. Handles undo within the changeset.

60. Utilizes a single table with a primary key on the id, author and filename.

61. Queries the database for what has not been applied and applies the different SQL.

62. Very well documented unlike DBDeploy.

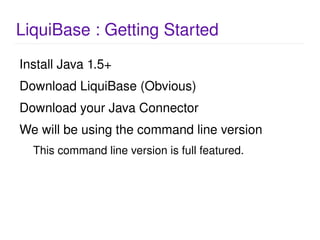

64. Download LiquiBase (Obvious)

65. Download your Java Connector

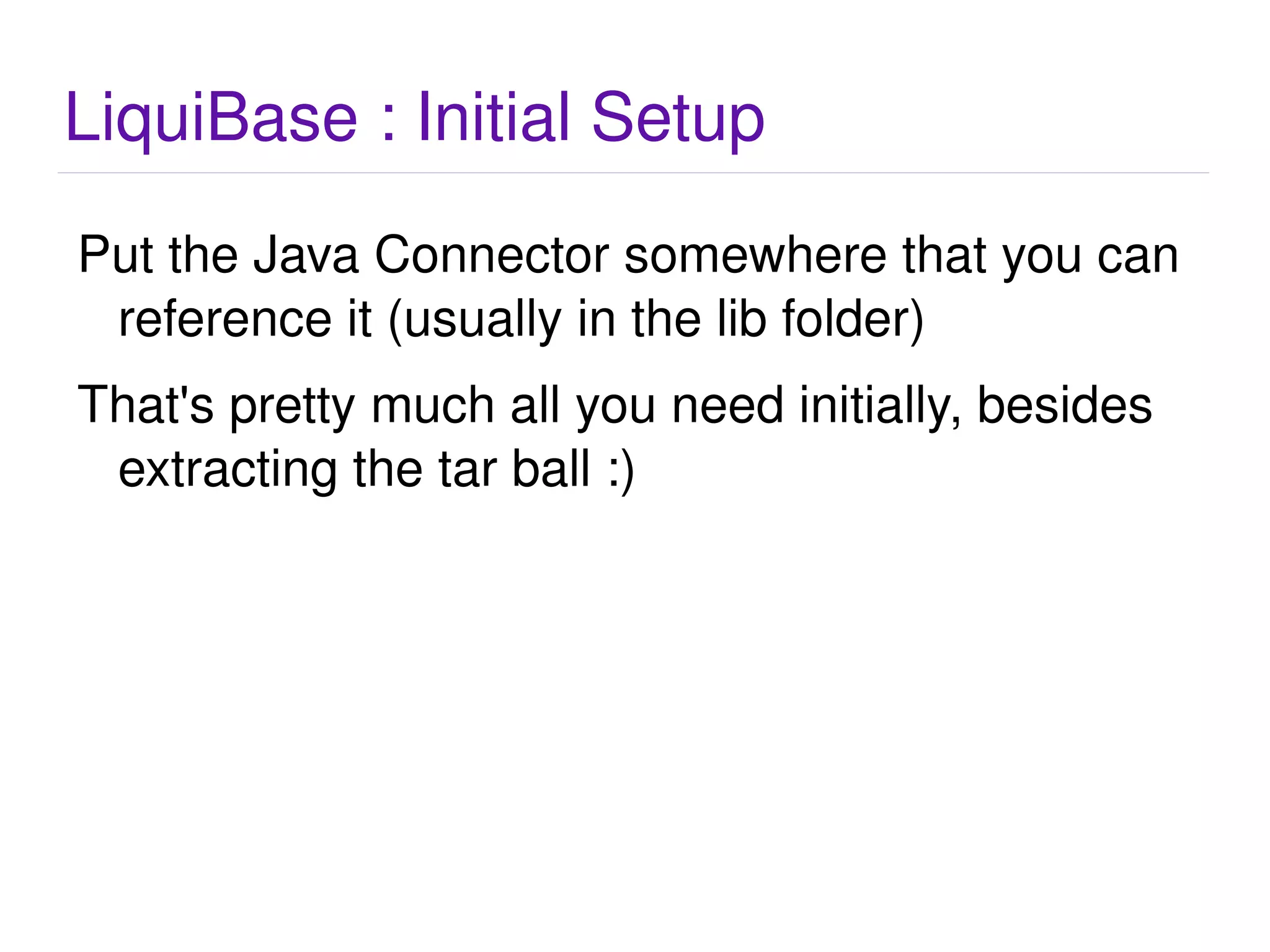

68. That's pretty much all you need initially, besides extracting the tar ball :)

70. rollback – to a tag

71. rollbackToDate – rollback to a date

72. generateChangeLog – useful to create the initial version of the change log.

73. changeLogSync – mark all changes as ran.

74. markNextChangeSetRan – mark next change as ran.

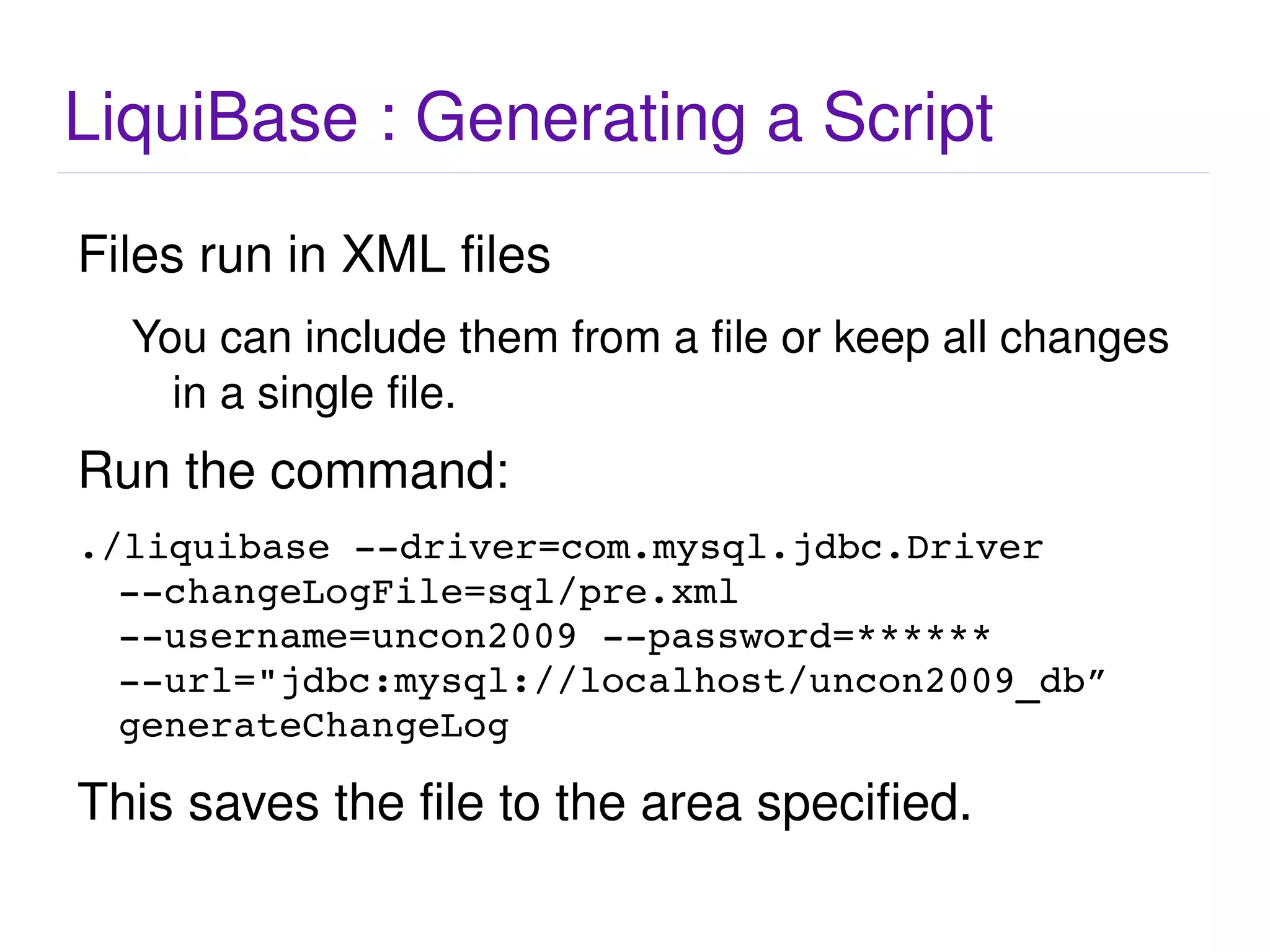

76. ./liquibase --driver=com.mysql.jdbc.Driver --changeLogFile=sql/pre.xml --username=uncon2009 --password=****** --url="jdbc:mysql://localhost/uncon2009_db” generateChangeLog

77. This saves the file to the area specified.

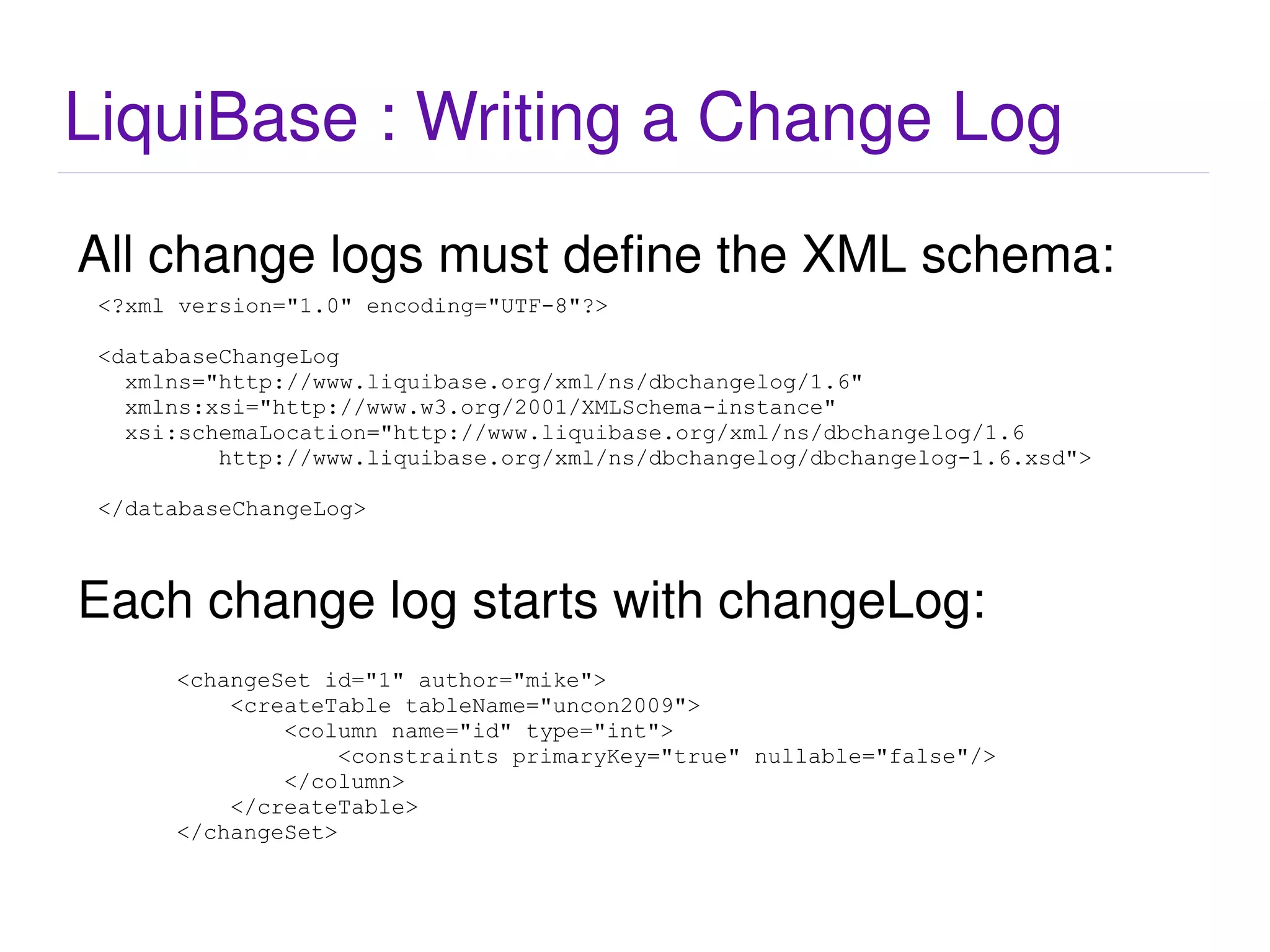

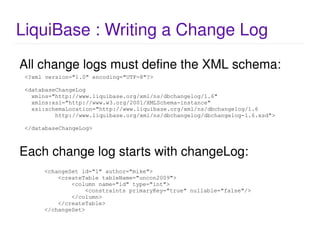

79. Each change log starts with changeLog: <changeSet id=&quot;1&quot; author=&quot;mike&quot;> <createTable tableName=&quot;uncon2009&quot;> <column name=&quot;id&quot; type=&quot;int&quot;> <constraints primaryKey=&quot;true&quot; nullable=&quot;false&quot;/> </column> </createTable> </changeSet>

82. Running through the post deployment file.

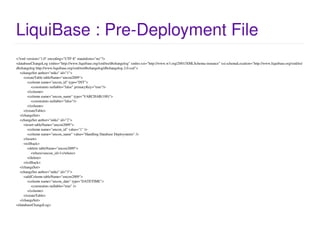

83. LiquiBase : Pre-Deployment File

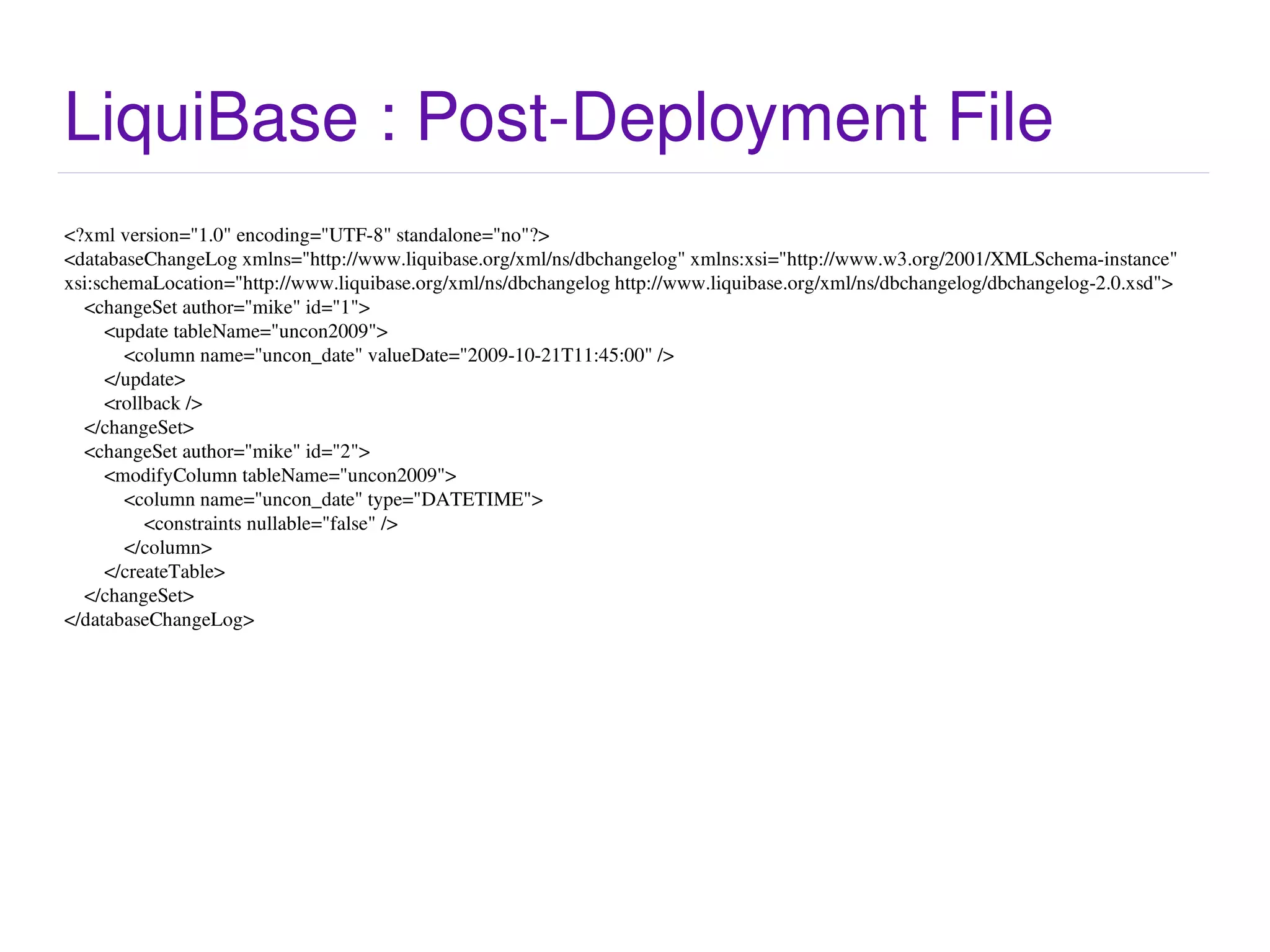

84. LiquiBase : Post-Deployment File

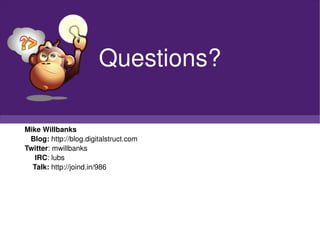

86. Mike Willbanks Blog: http://blog.digitalstruct.com Twitter : mwillbanks IRC : lubs Talk: http://joind.in/986 Questions?
