This document provides steps to add a virtual network to a RHEL7 virtual machine using virt-manager. It involves opening virt-manager, editing the connection details, adding a new virtual network, specifying the IPv4 and IPv6 address ranges, selecting how it will connect to physical interfaces, and verifying the new virtual network by checking its interface and pinging its address.

1. How to add virtual network to RHEL7 Box ?

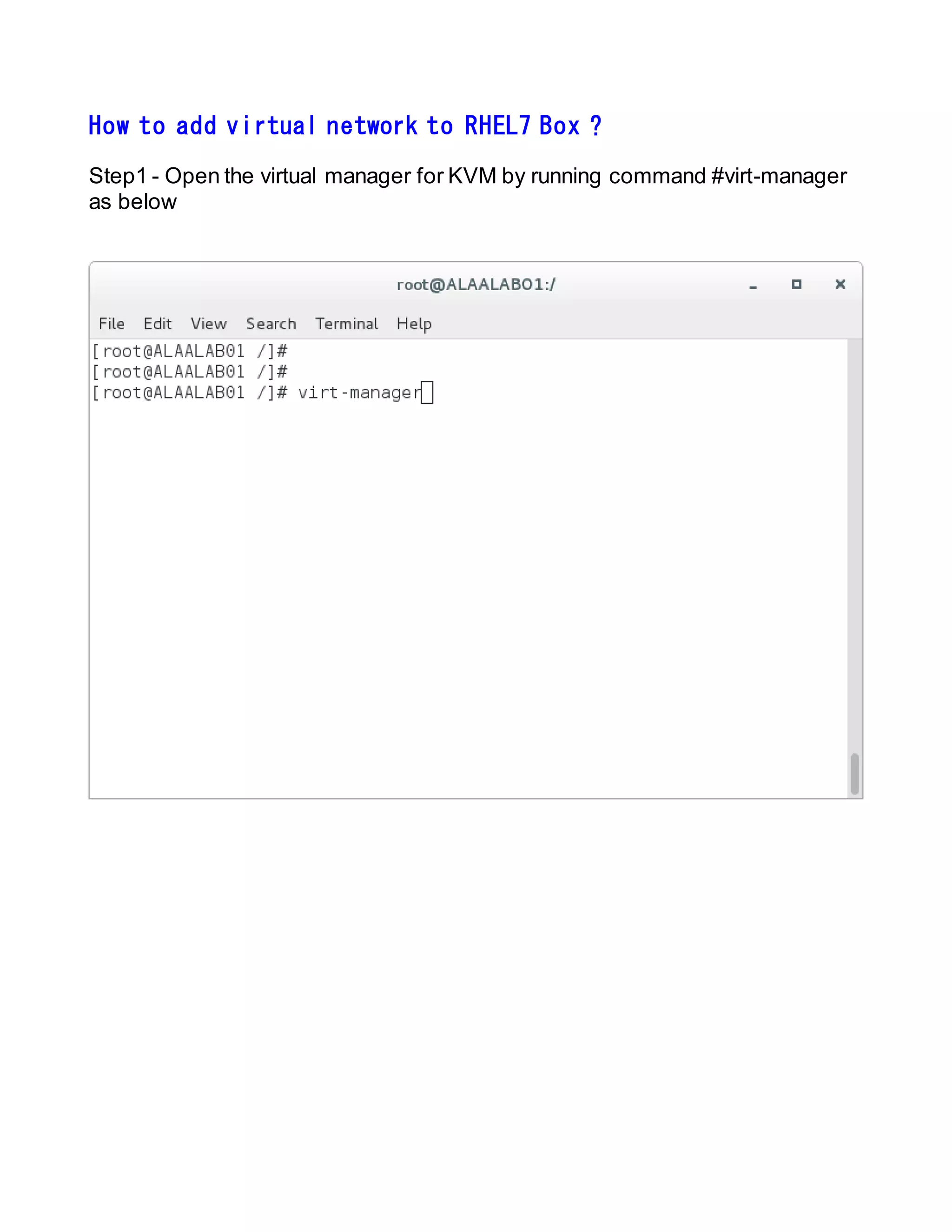

Step1 - Open the virtual manager for KVM by running command #virt-manager
as below

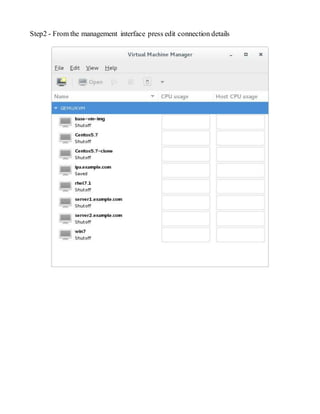

2. Step2 - From the management interface press edit connection details

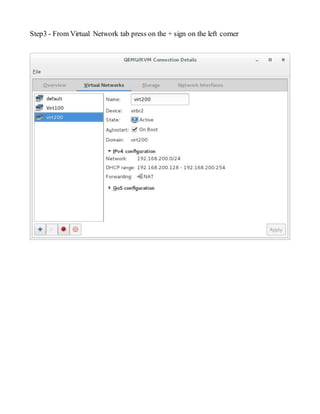

3. Step3 - From Virtual Network tab press on the + sign on the left corner

4. Step4 -Add your virtual network name

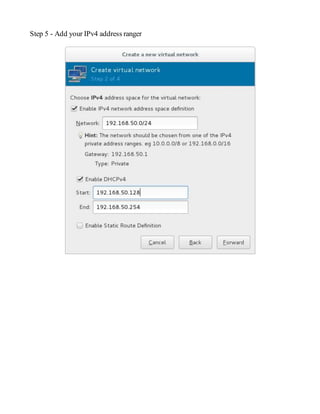

5. Step 5 - Add your IPv4 address ranger

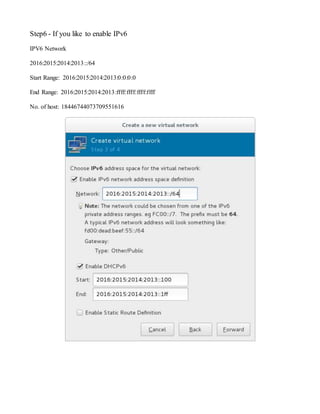

6. Step6 - If you like to enable IPv6
IPV6 Network
2016:2015:2014:2013::/64
Start Range: 2016:2015:2014:2013:0:0:0:0
End Range: 2016:2015:2014:2013:ffff:ffff:ffff:ffff
No. of host: 18446744073709551616

7. Step7 - Select how the virtual network replicate with which interface default NAT

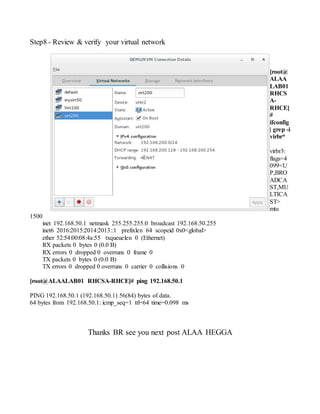

8. Step8 - Review & verify your virtual network
[root@
ALAA
LAB01
RHCS
A-
RHCE]
#
ifconfig
| grep -i
virbr*
virbr3:
flags=4
099<U
P,BRO
ADCA
ST,MU
LTICA
ST>
mtu
1500
inet 192.168.50.1 netmask 255.255.255.0 broadcast 192.168.50.255
inet6 2016:2015:2014:2013::1 prefixlen 64 scopeid 0x0<global>
ether 52:54:00:08:4a:55 txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@ALAALAB01 RHCSA-RHCE]# ping 192.168.50.1
PING 192.168.50.1 (192.168.50.1) 56(84) bytes of data.
64 bytes from 192.168.50.1: icmp_seq=1 ttl=64 time=0.098 ms
Thanks BR see you next post ALAA HEGGA
