The document discusses scalable web application architectures, covering strategies for scaling web servers, databases, and caching as applications grow in traffic and load. It recommends starting with separating the web and database servers, then implementing load balancing, replication, partitioning, and distributed caching. Job servers using message queues are also recommended for asynchronous and computationally intensive tasks to improve scalability.

1. Mike Willbanks Blog: http://blog.digitalstruct.com Twitter : mwillbanks IRC : lubs on freenode Scalable Architectures 101 MNPHP

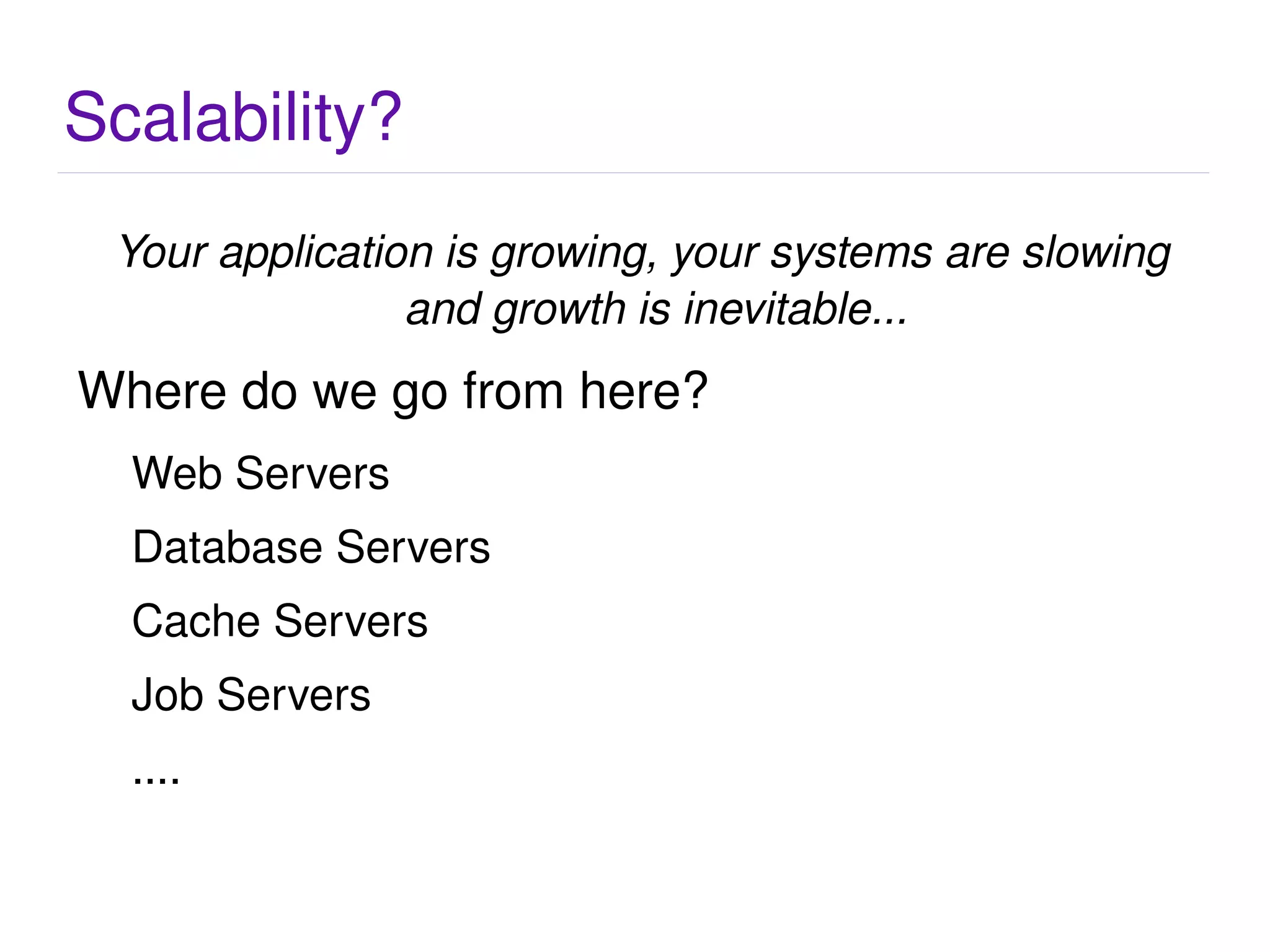

2. Scalability? Your application is growing, your systems are slowing and growth is inevitable... Where do we go from here? Web Servers

3. Database Servers

4. Cache Servers

5. Job Servers

6. ....

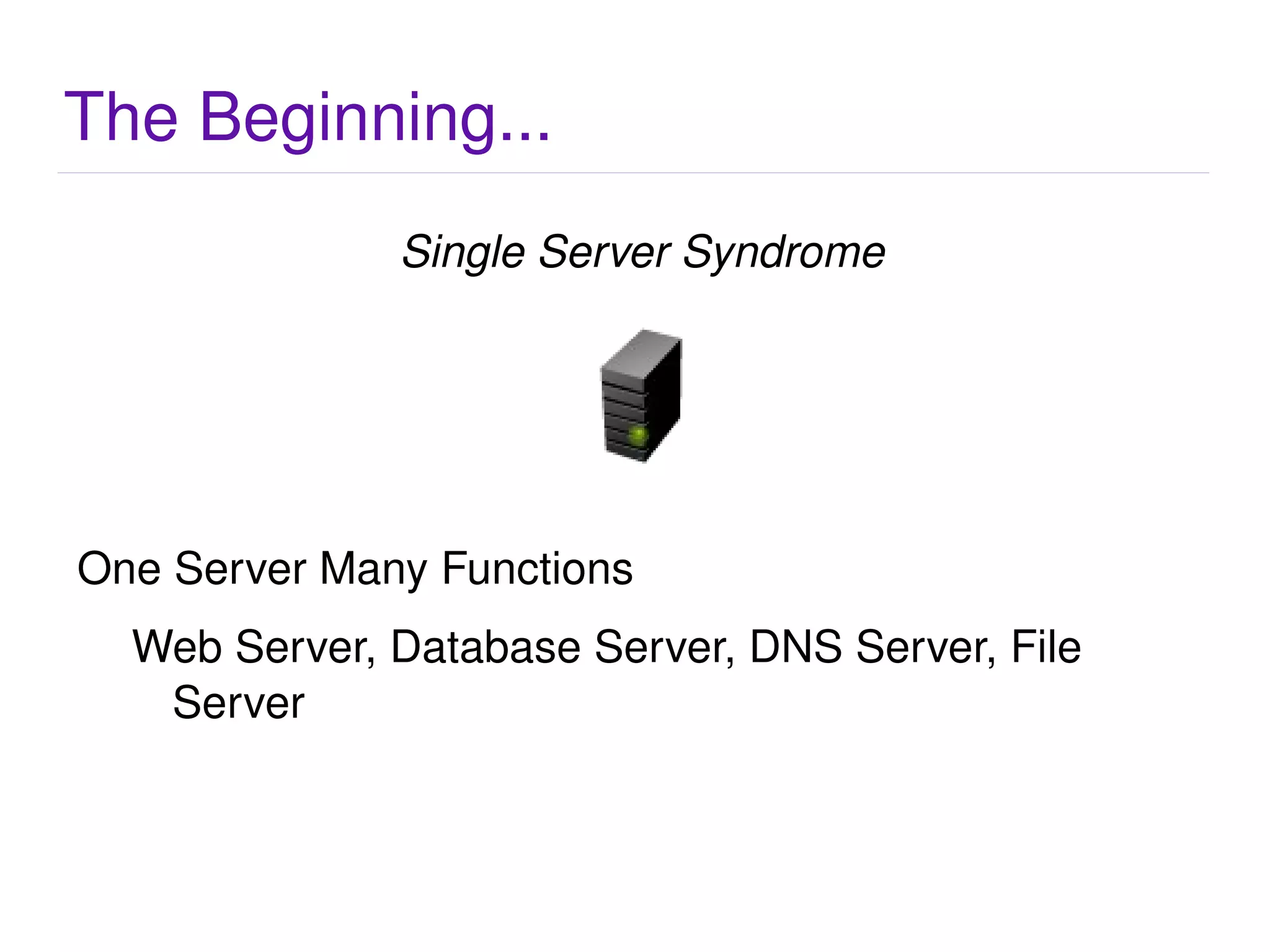

7. The Beginning... Single Server Syndrome One Server Many Functions Web Server, Database Server, DNS Server, File Server

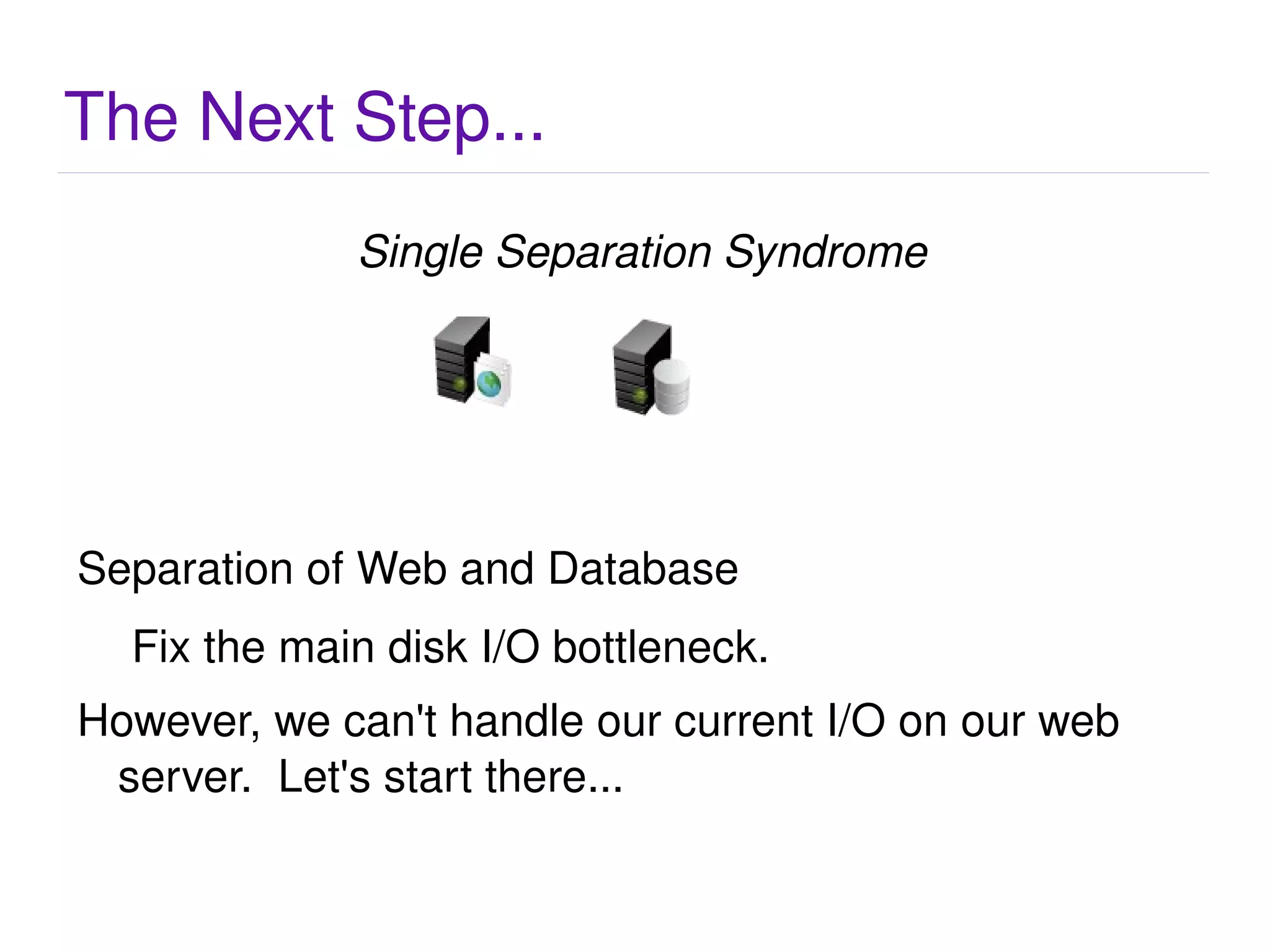

8. The Next Step... Single Separation Syndrome Separation of Web and Database Fix the main disk I/O bottleneck. However, we can't handle our current I/O on our web server. Let's start there...

9. Web Servers

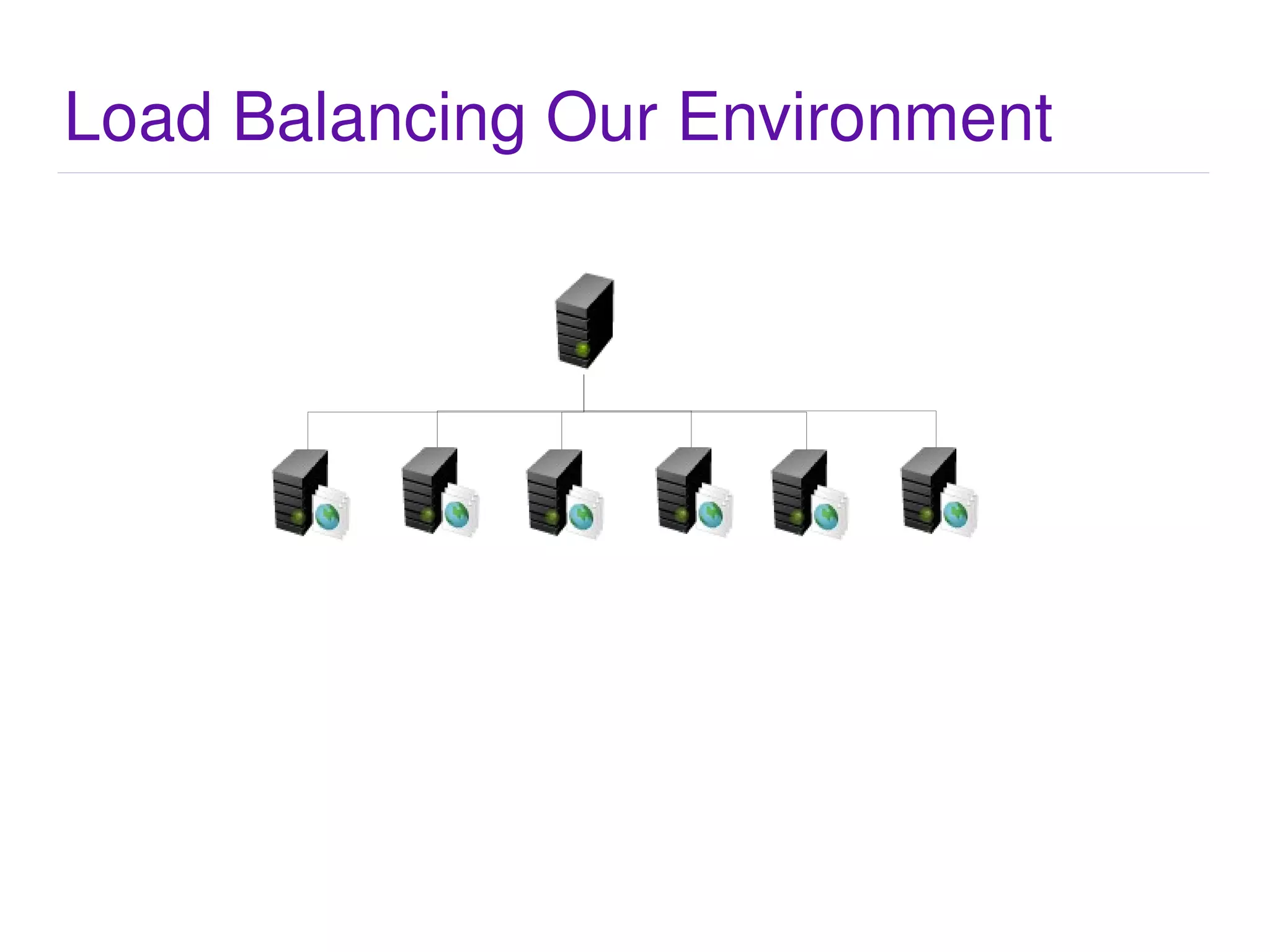

10. Load Balancing Our Environment

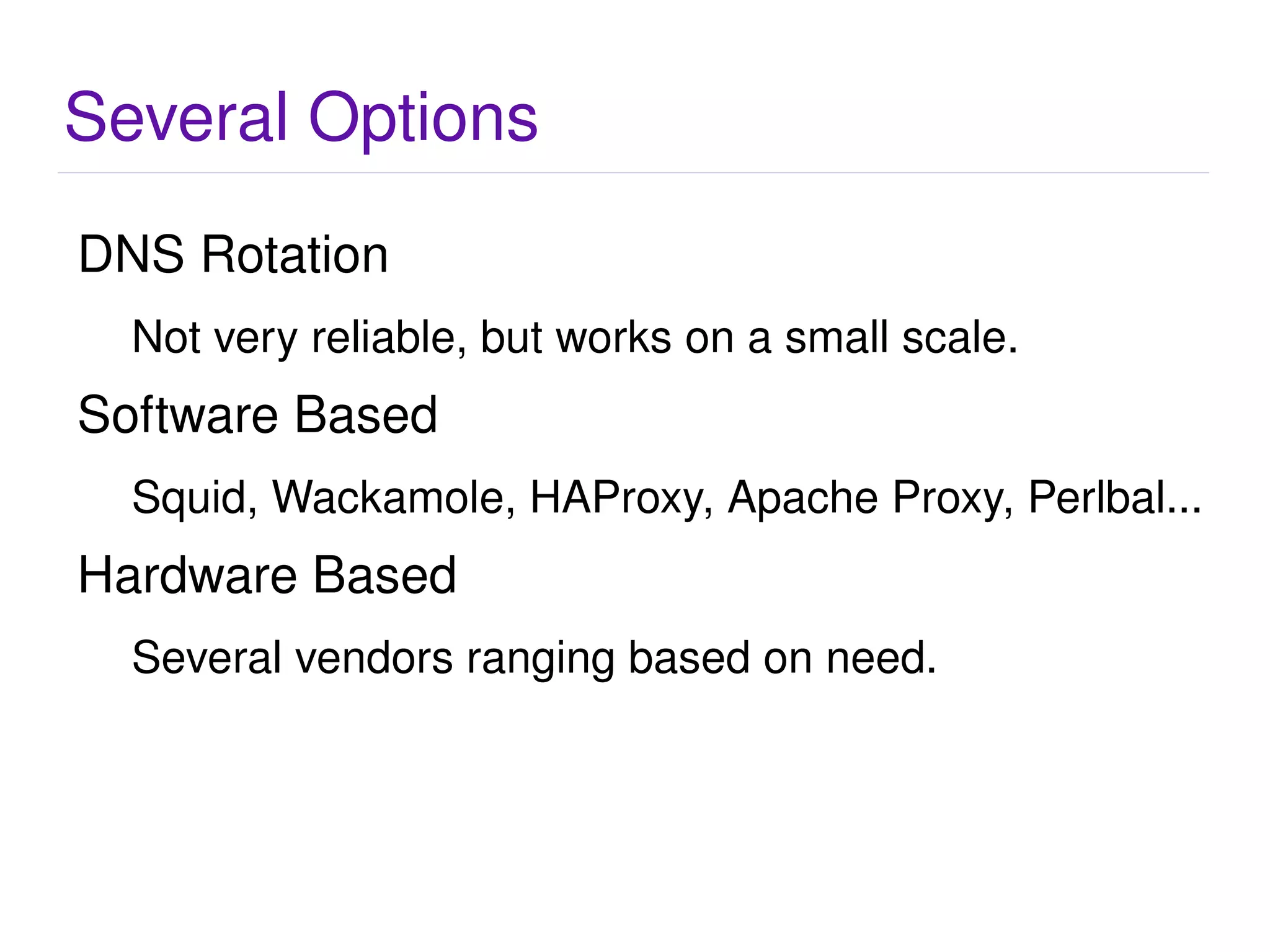

11. Several Options DNS Rotation Not very reliable, but works on a small scale. Software Based Squid, Wackamole, HAProxy, Apache Proxy, Perlbal... Hardware Based Several vendors ranging based on need.

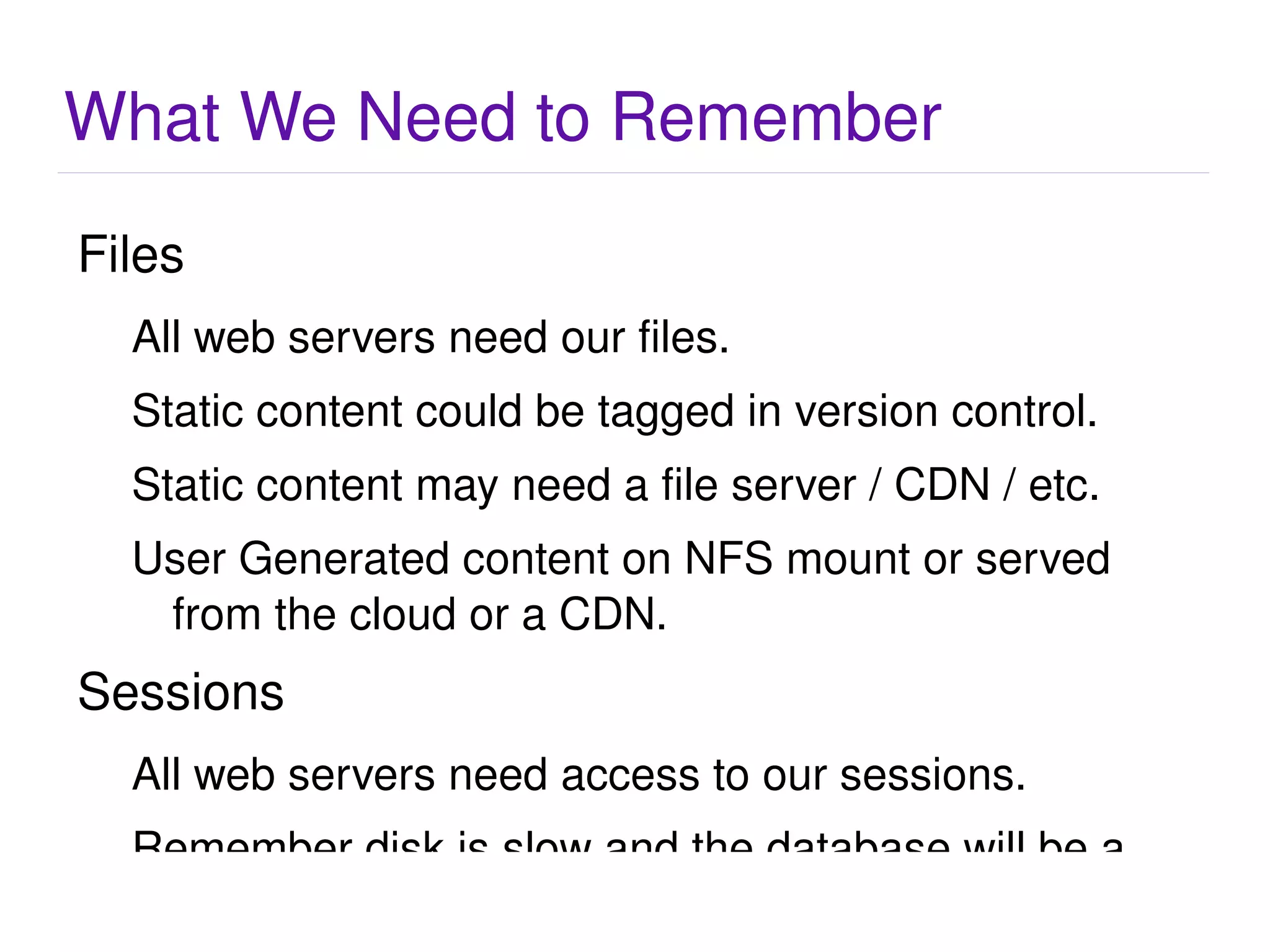

12. What We Need to Remember Files All web servers need our files.

13. Static content could be tagged in version control.

14. Static content may need a file server / CDN / etc.

15. User Generated content on NFS mount or served from the cloud or a CDN. Sessions All web servers need access to our sessions.

16. Remember disk is slow and the database will be a bottleneck. How about distributed caching?

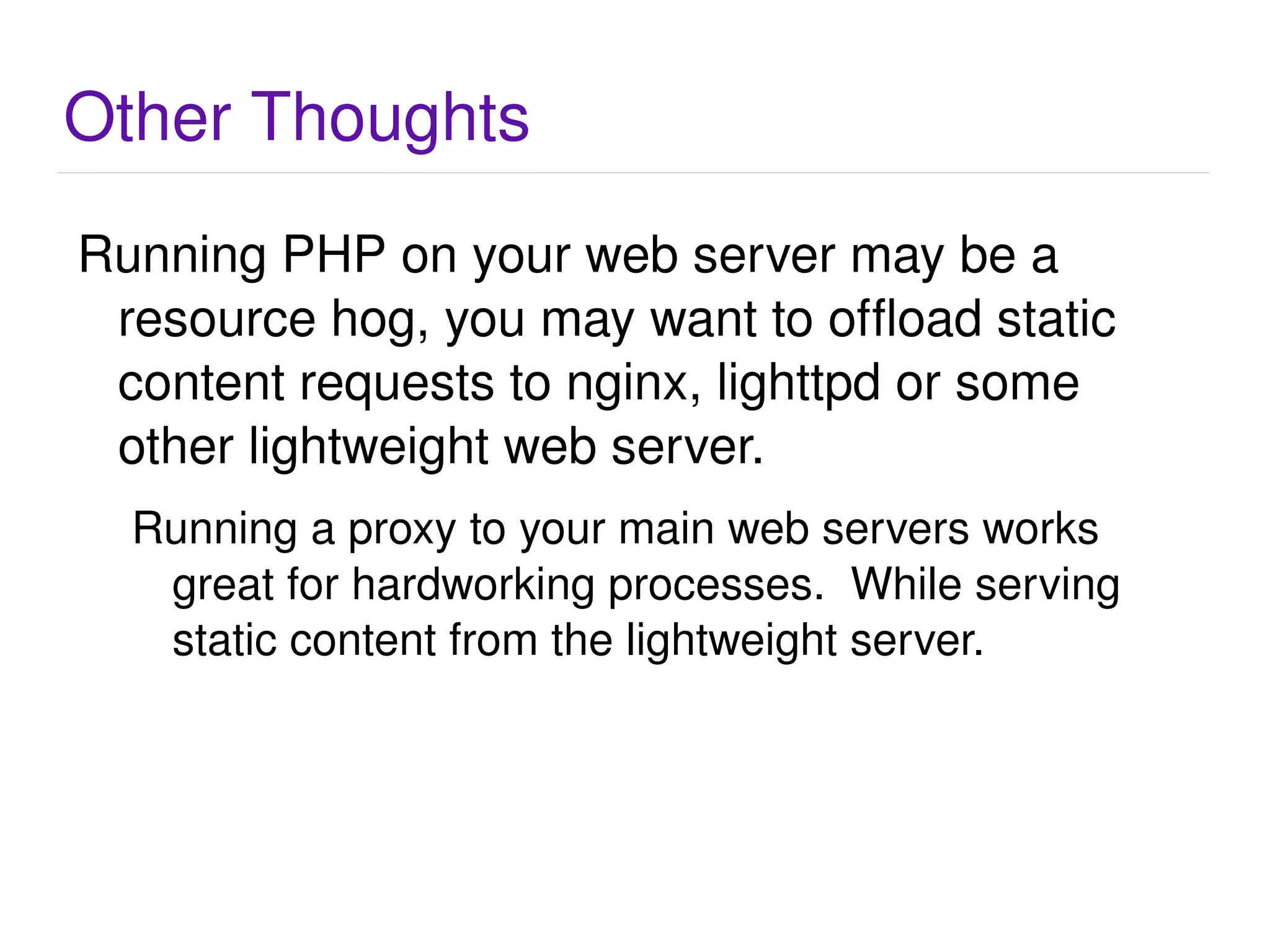

17. Other Thoughts Running PHP on your web server may be a resource hog, you may want to offload static content requests to nginx, lighttpd or some other lightweight web server. Running a proxy to your main web servers works great for hardworking processes. While serving static content from the lightweight server.

18. Database Servers

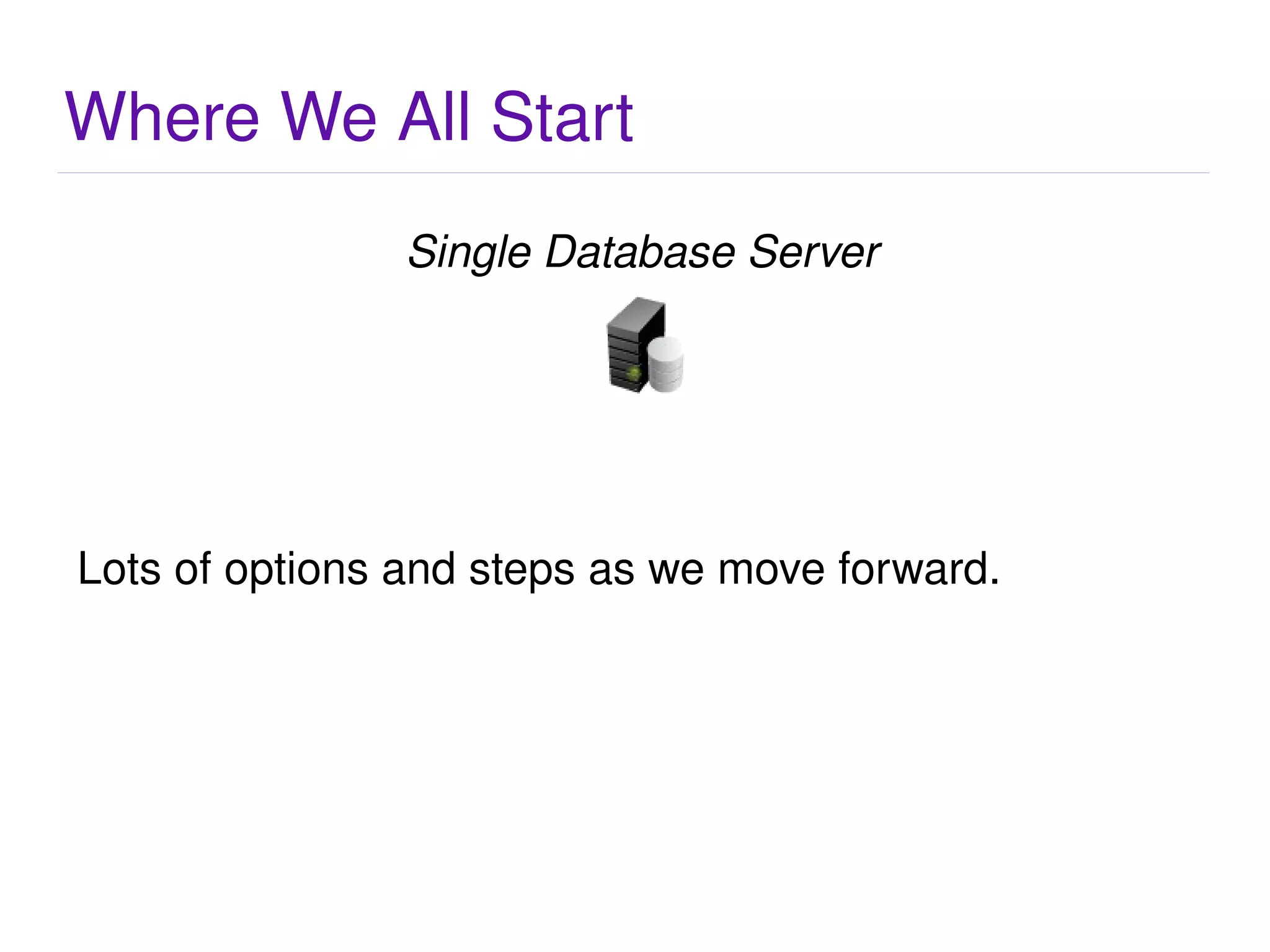

19. Where We All Start Single Database Server Lots of options and steps as we move forward.

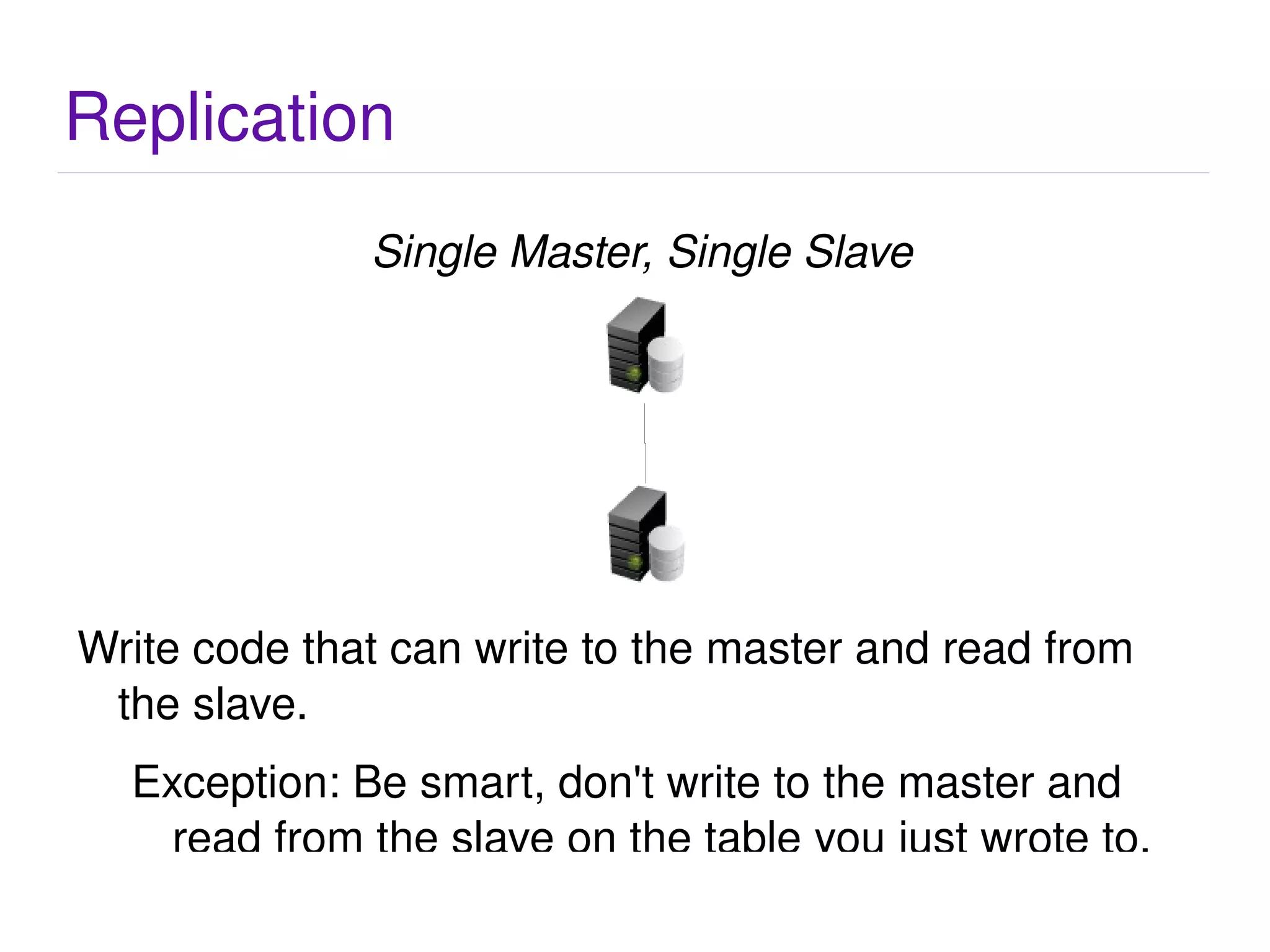

20. Replication Single Master, Single Slave Write code that can write to the master and read from the slave. Exception: Be smart, don't write to the master and read from the slave on the table you just wrote to.

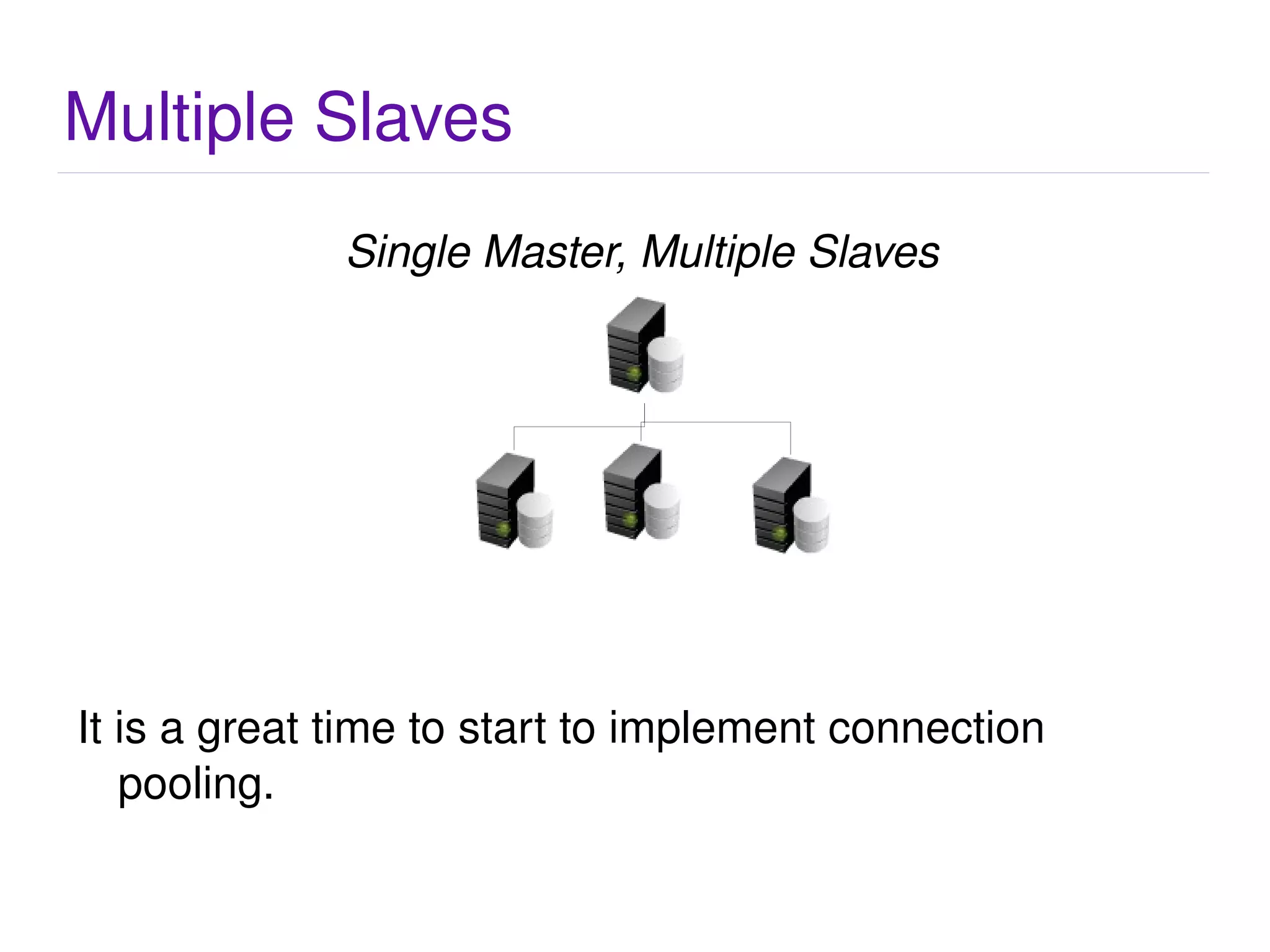

21. Multiple Slaves Single Master, Multiple Slaves It is a great time to start to implement connection pooling.

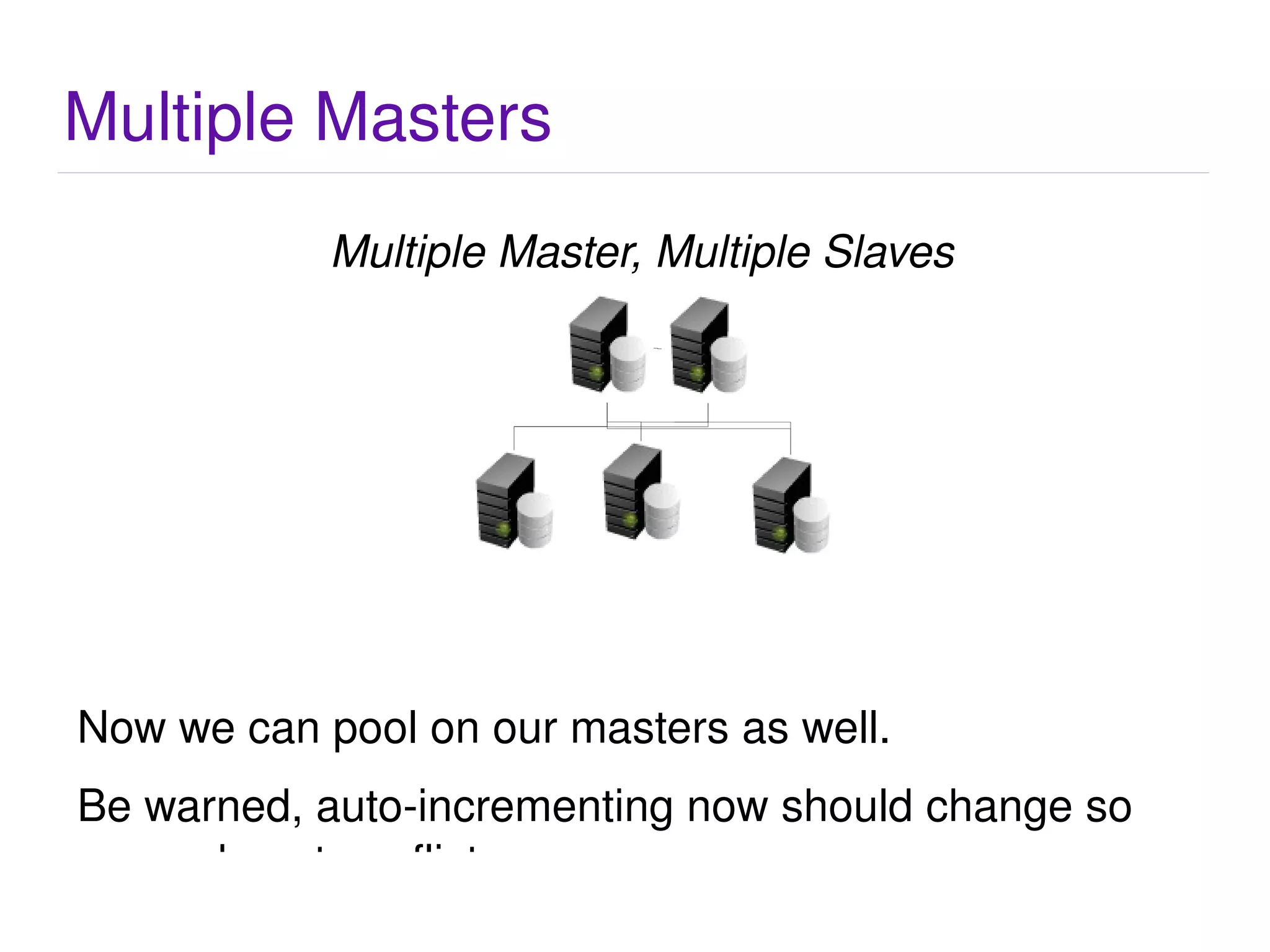

22. Multiple Masters Multiple Master, Multiple Slaves Now we can pool on our masters as well.

23. Be warned, auto-incrementing now should change so you do not conflict.

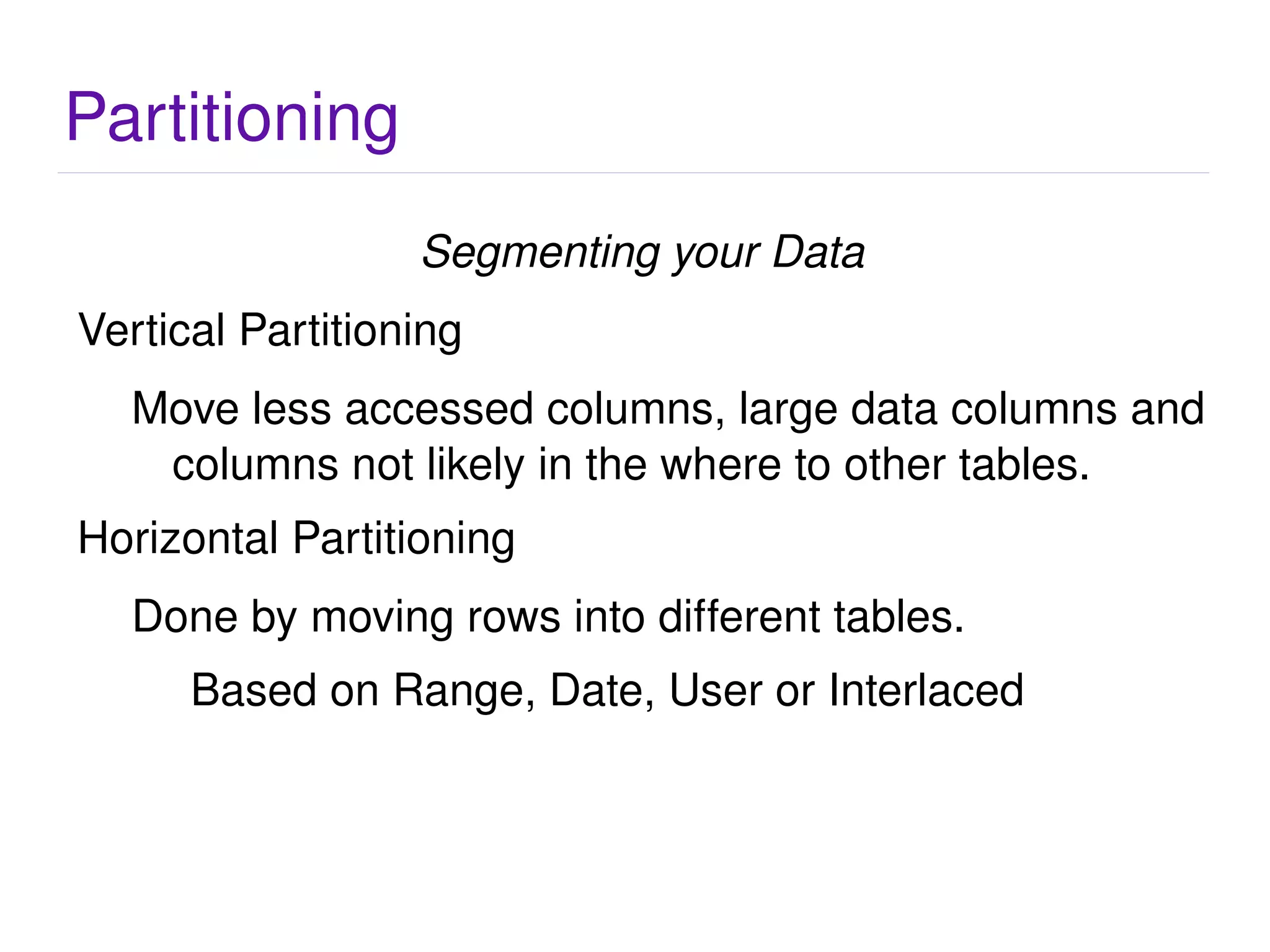

24. Partitioning Segmenting your Data Vertical Partitioning Move less accessed columns, large data columns and columns not likely in the where to other tables. Horizontal Partitioning Done by moving rows into different tables. Based on Range, Date, User or Interlaced

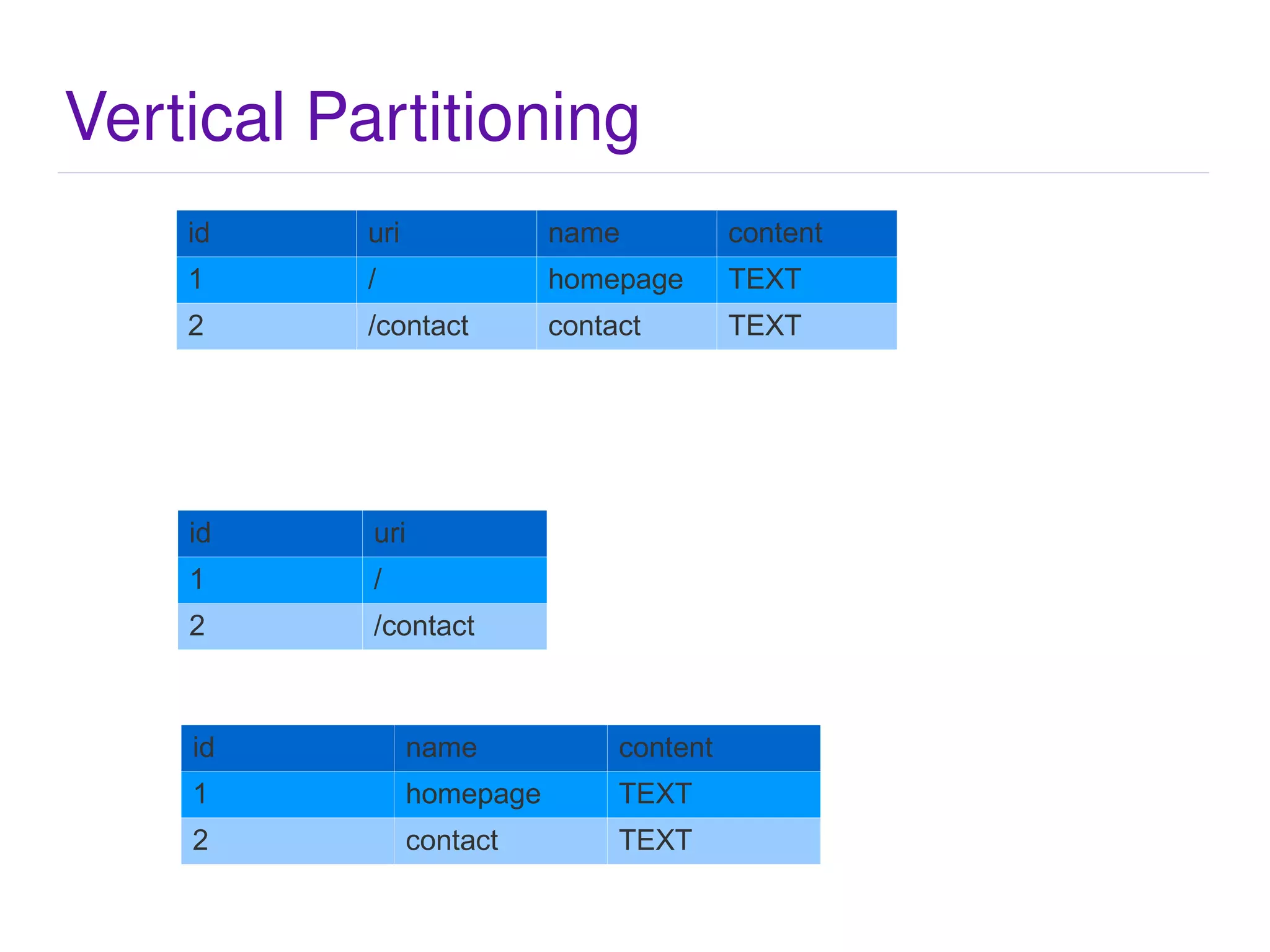

25. Vertical Partitioning id uri name content 1 / homepage TEXT 2 /contact contact TEXT id uri 1 / 2 /contact id name content 1 homepage TEXT 2 contact TEXT

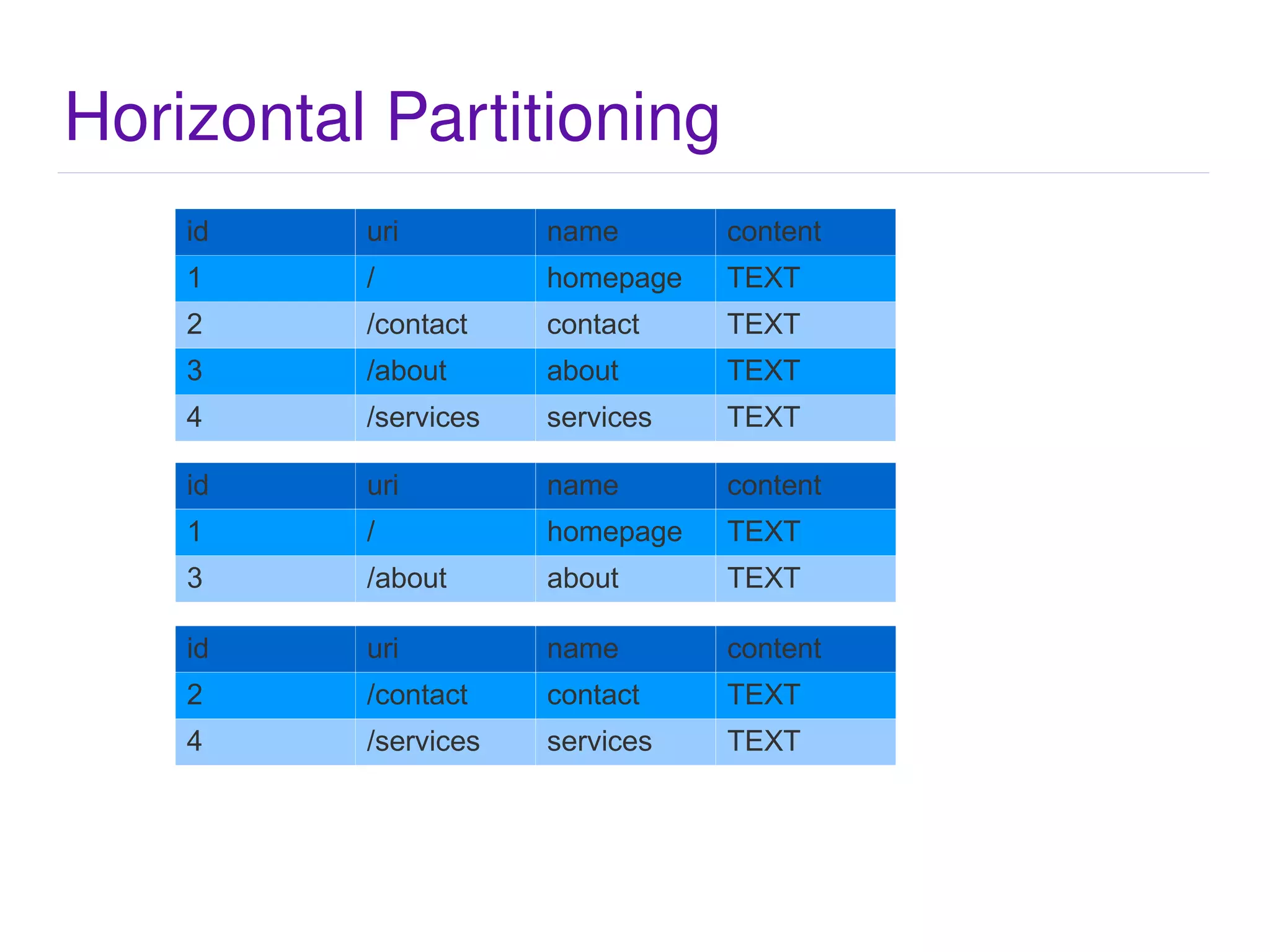

26. Horizontal Partitioning id uri name content 1 / homepage TEXT 2 /contact contact TEXT 3 /about about TEXT 4 /services services TEXT id uri name content 1 / homepage TEXT 3 /about about TEXT id uri name content 2 /contact contact TEXT 4 /services services TEXT

27. Cache Servers

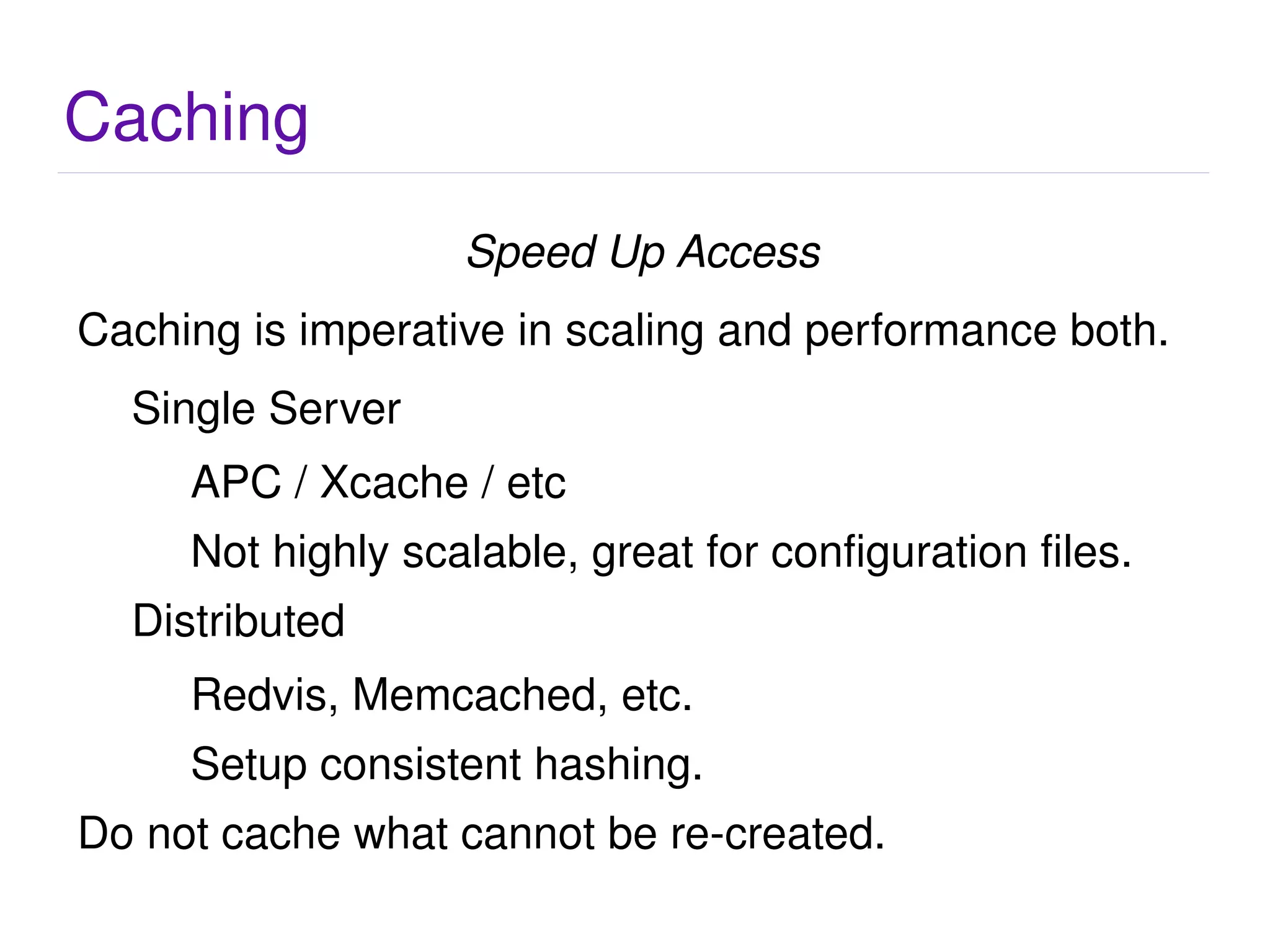

28. Caching Speed Up Access Caching is imperative in scaling and performance both. Single Server APC / Xcache / etc

29. Not highly scalable, great for configuration files. Distributed Redvis, Memcached, etc.

30. Setup consistent hashing. Do not cache what cannot be re-created.

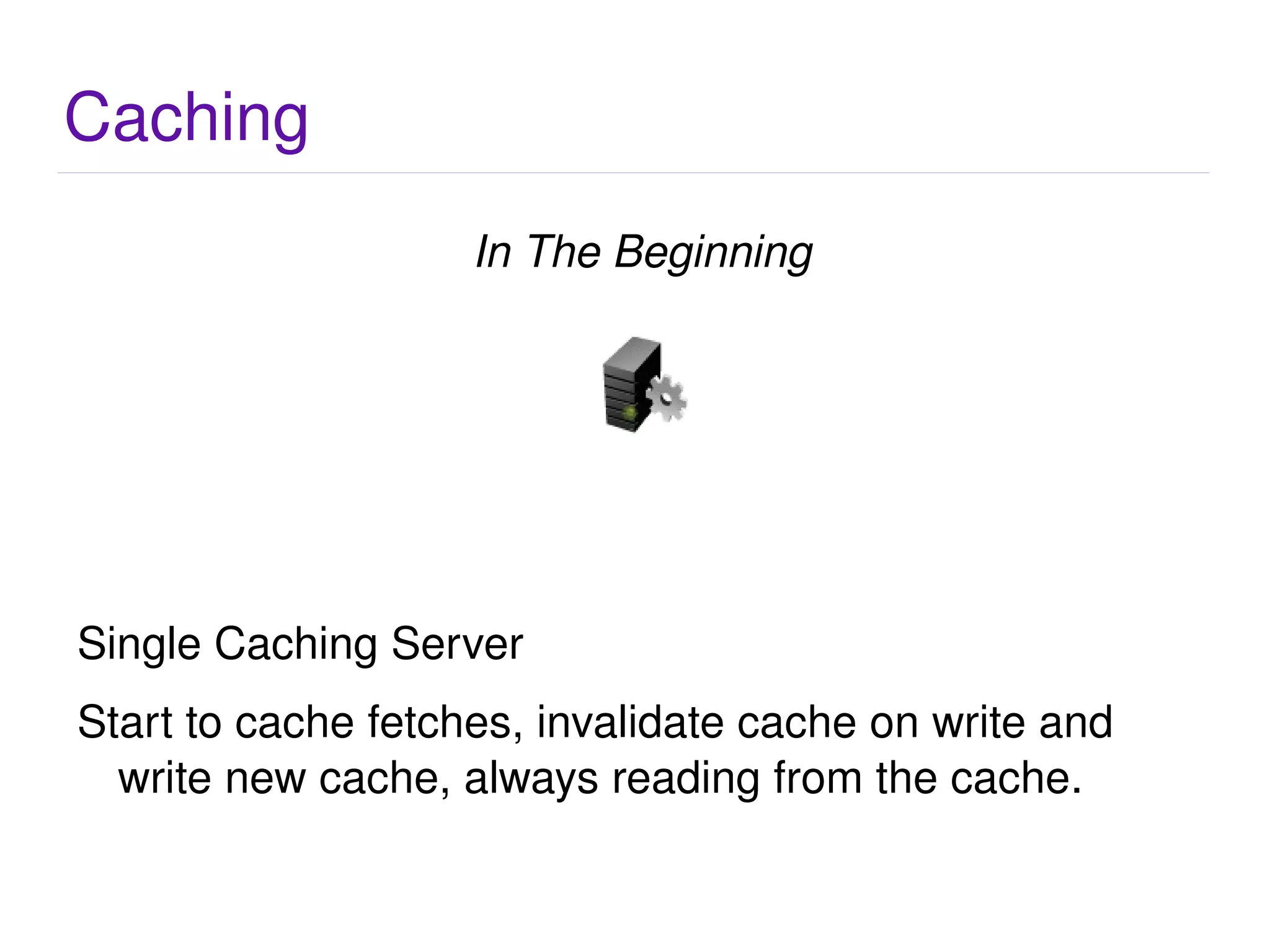

31. Caching In The Beginning Single Caching Server

32. Start to cache fetches, invalidate cache on write and write new cache, always reading from the cache.

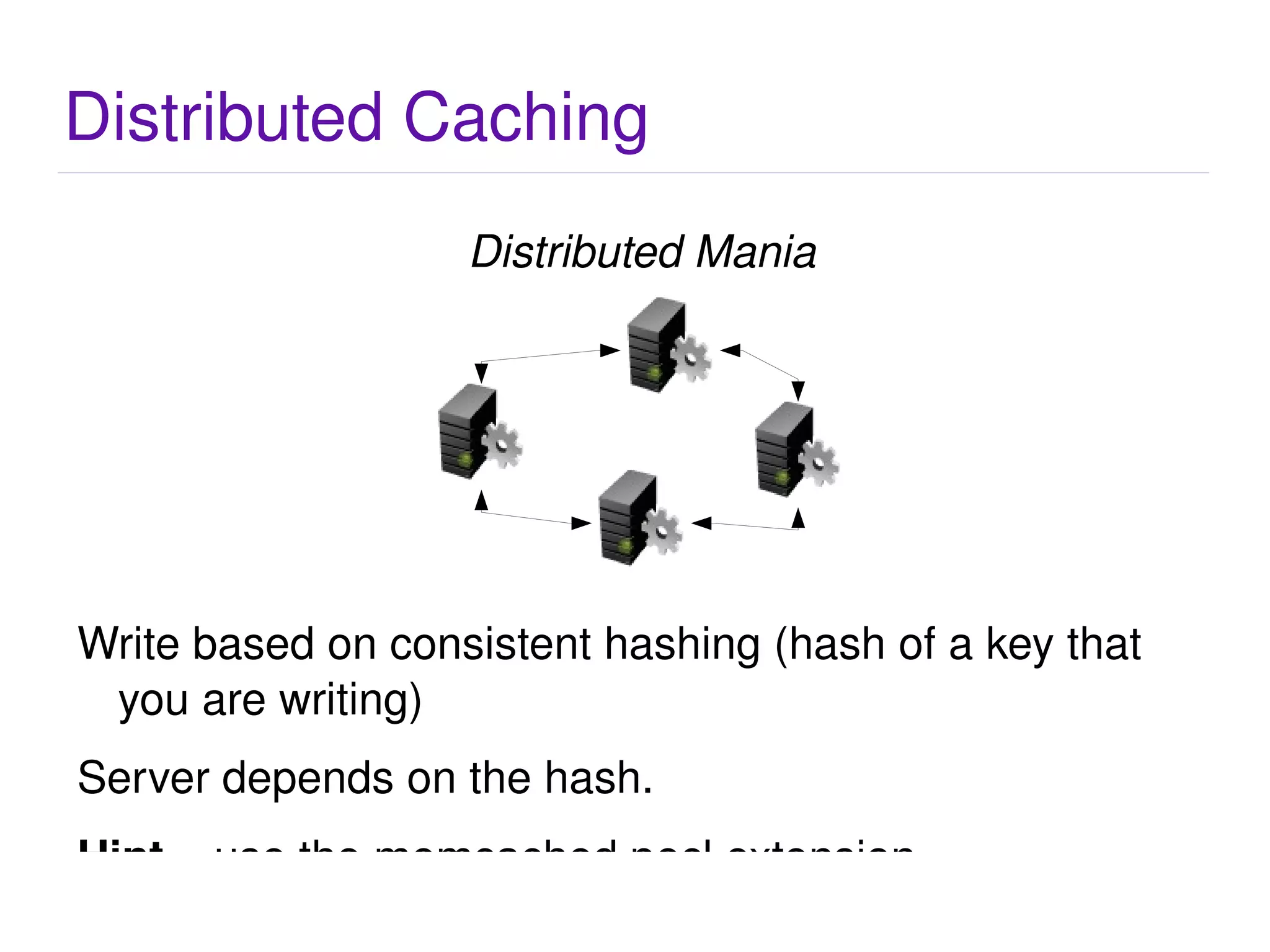

33. Distributed Caching Distributed Mania Write based on consistent hashing (hash of a key that you are writing)

34. Server depends on the hash.

35. Hint – use the memcached pecl extension.

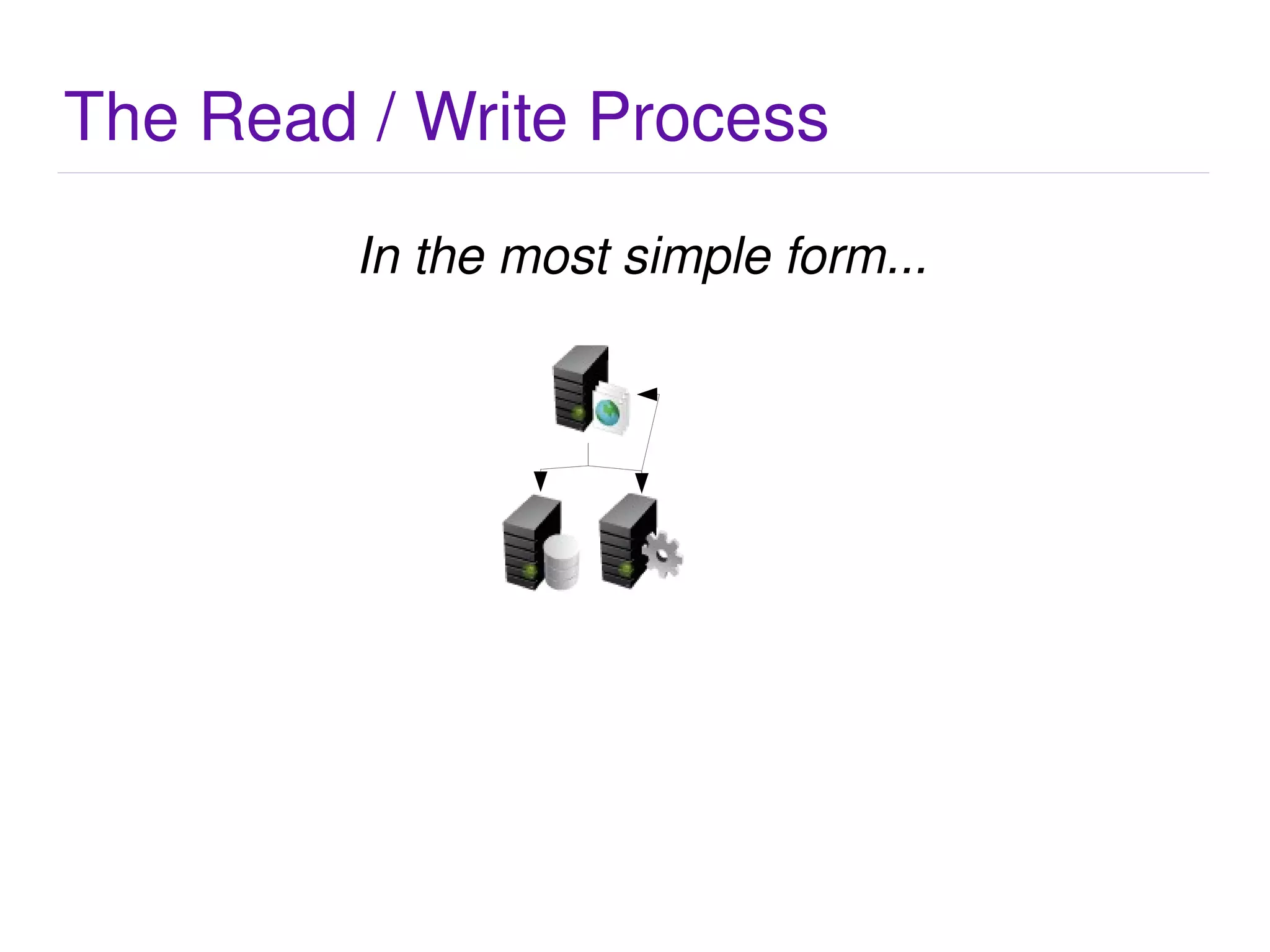

36. The Read / Write Process In the most simple form...

37. Job Servers

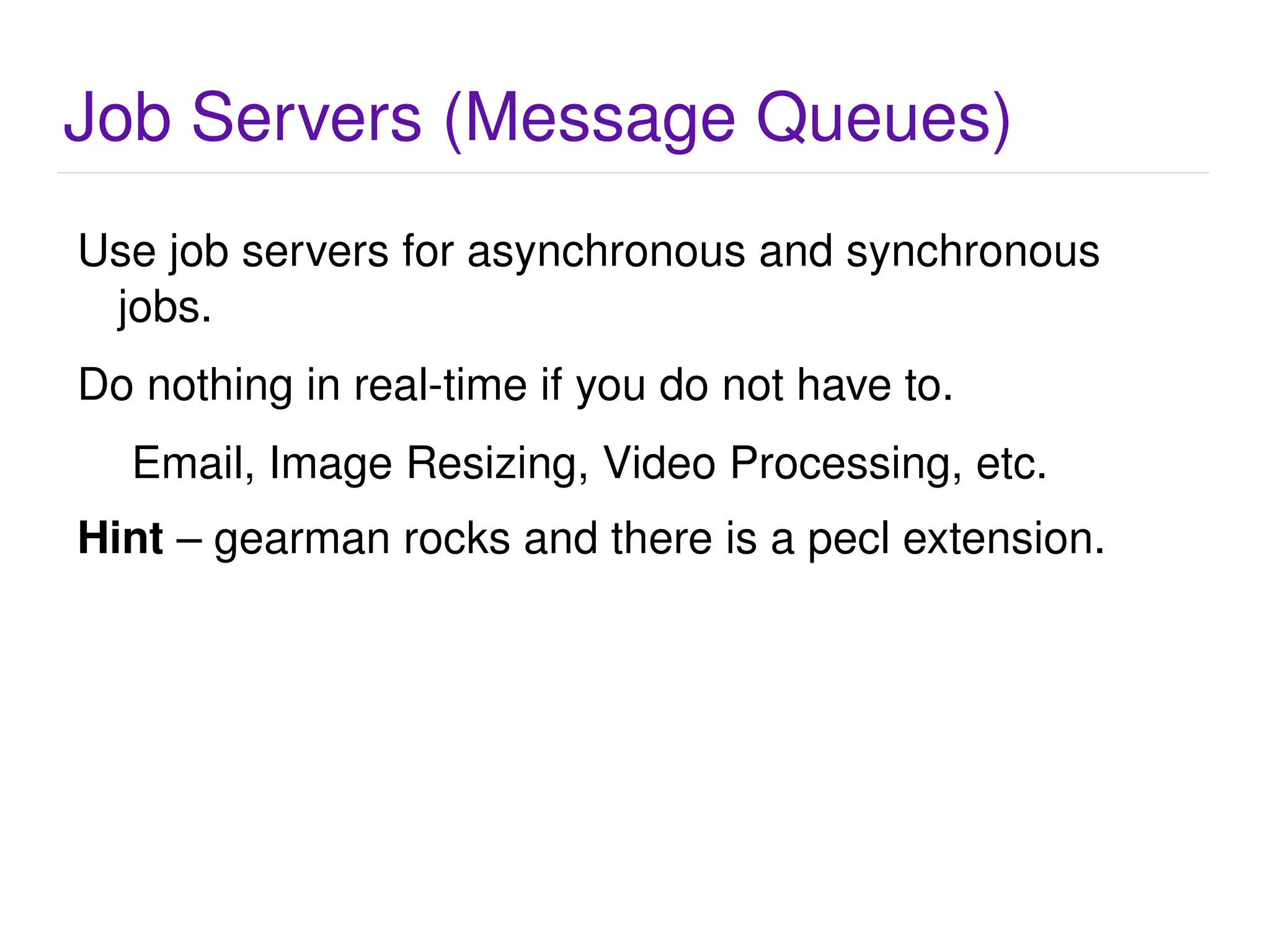

38. Job Servers (Message Queues) Use job servers for asynchronous and synchronous jobs.

39. Do nothing in real-time if you do not have to. Email, Image Resizing, Video Processing, etc. Hint – gearman rocks and there is a pecl extension.

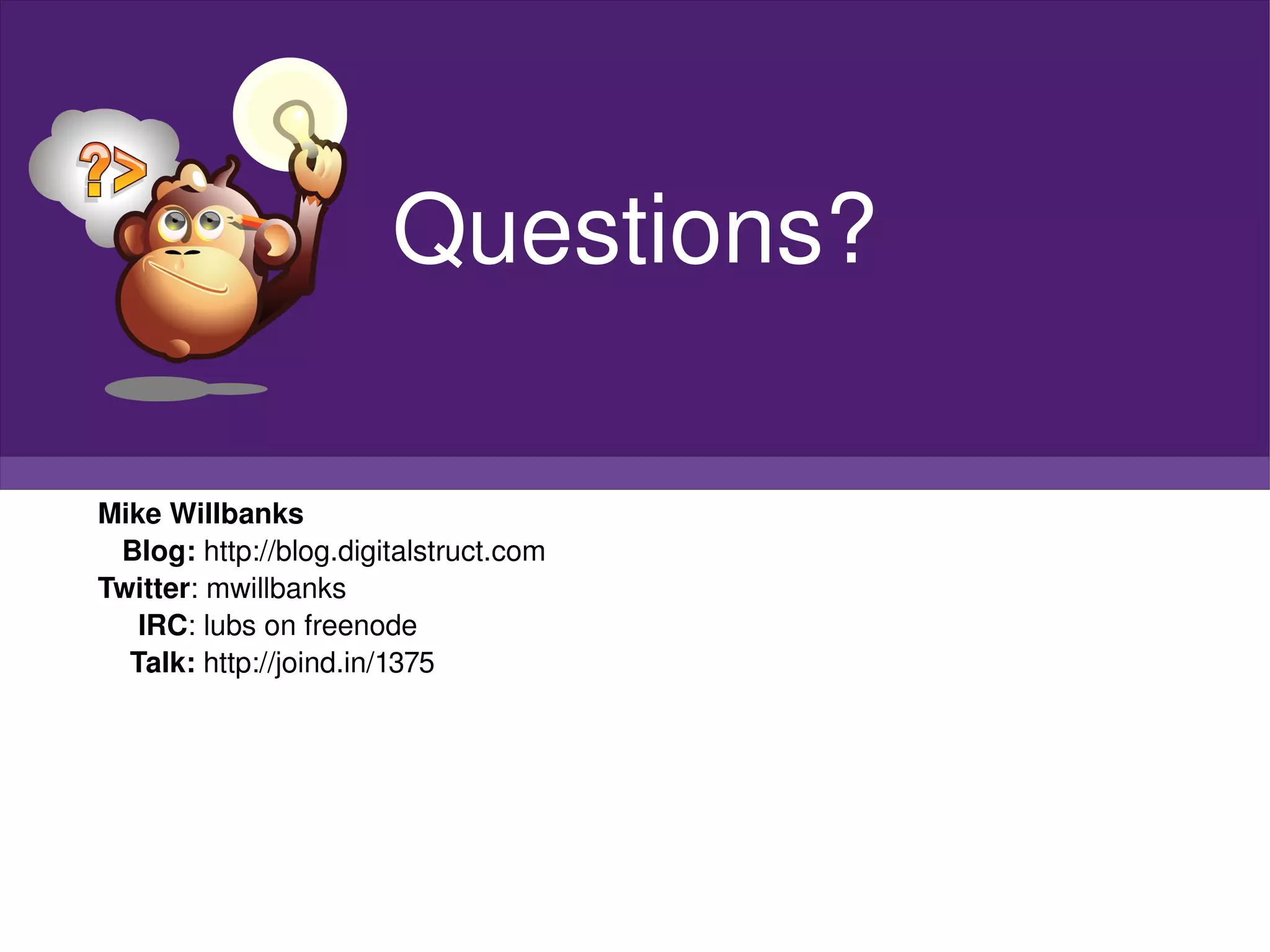

40. Mike Willbanks Blog: http://blog.digitalstruct.com Twitter : mwillbanks IRC : lubs on freenode Talk: http://joind.in/1375 Questions?
