Developing for Hybrid Cloud with Bluemix
- 1.
- 2. The app revolution Fundamentally changing the way we interact with technology. Apps are everywhere The quantity and usefulness of web and mobile apps has led to an “app revolution” among consumers and businesses alike. Experience matters Customers and employees now expect a delightful and seamless experience across all interactions with a business. Cloud makes it possible Apps today can be stitched together quickly with pre-built assets. Cloud makes the API economy possible.

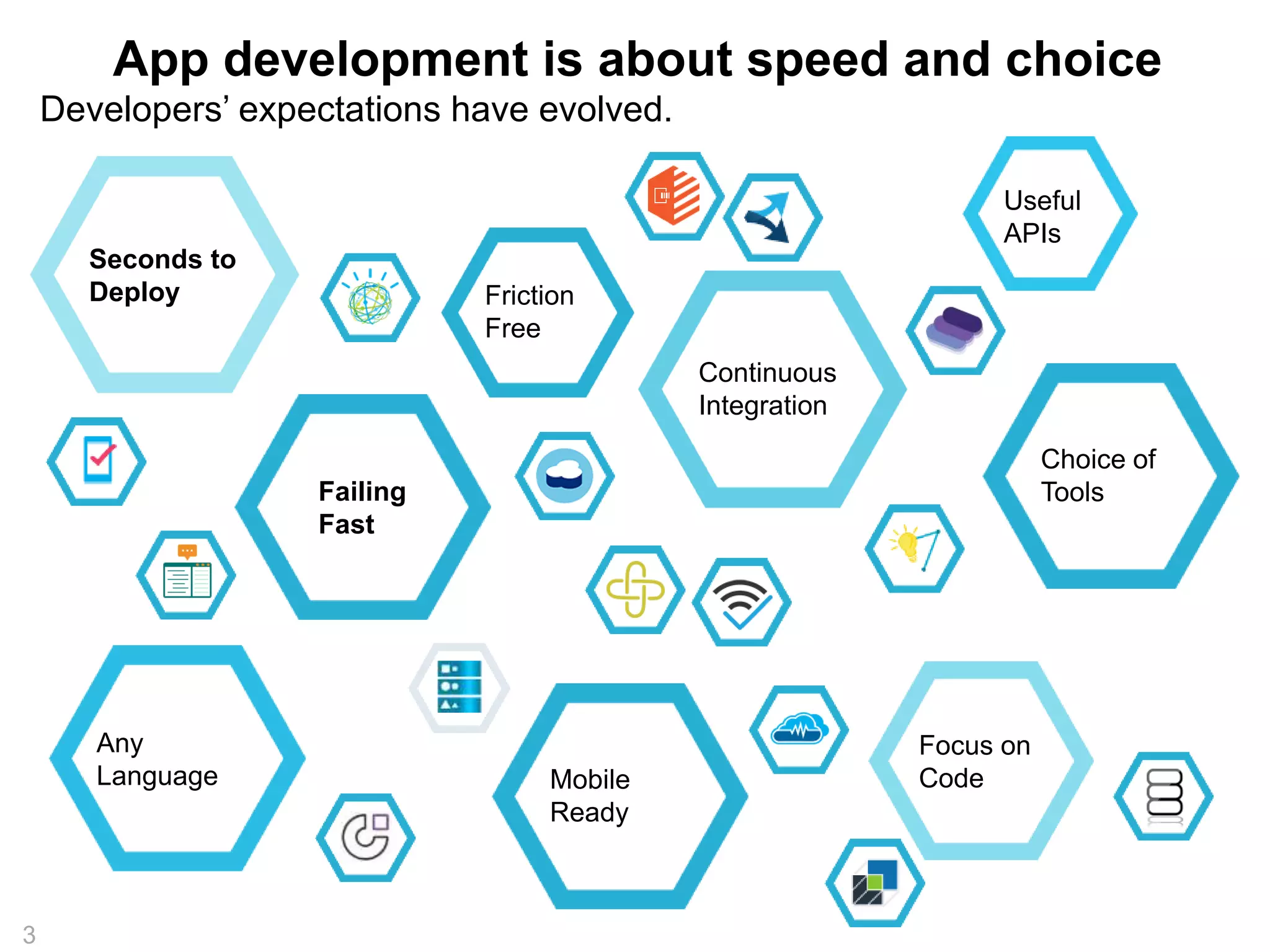

- 3. App development isabout speed and choice Seconds to Deploy Friction Failing Fast Free Any Language Continuous Integration Mobile Ready Useful APIs Focus on Code Choice of Tools Developers’ expectations have evolved. 3

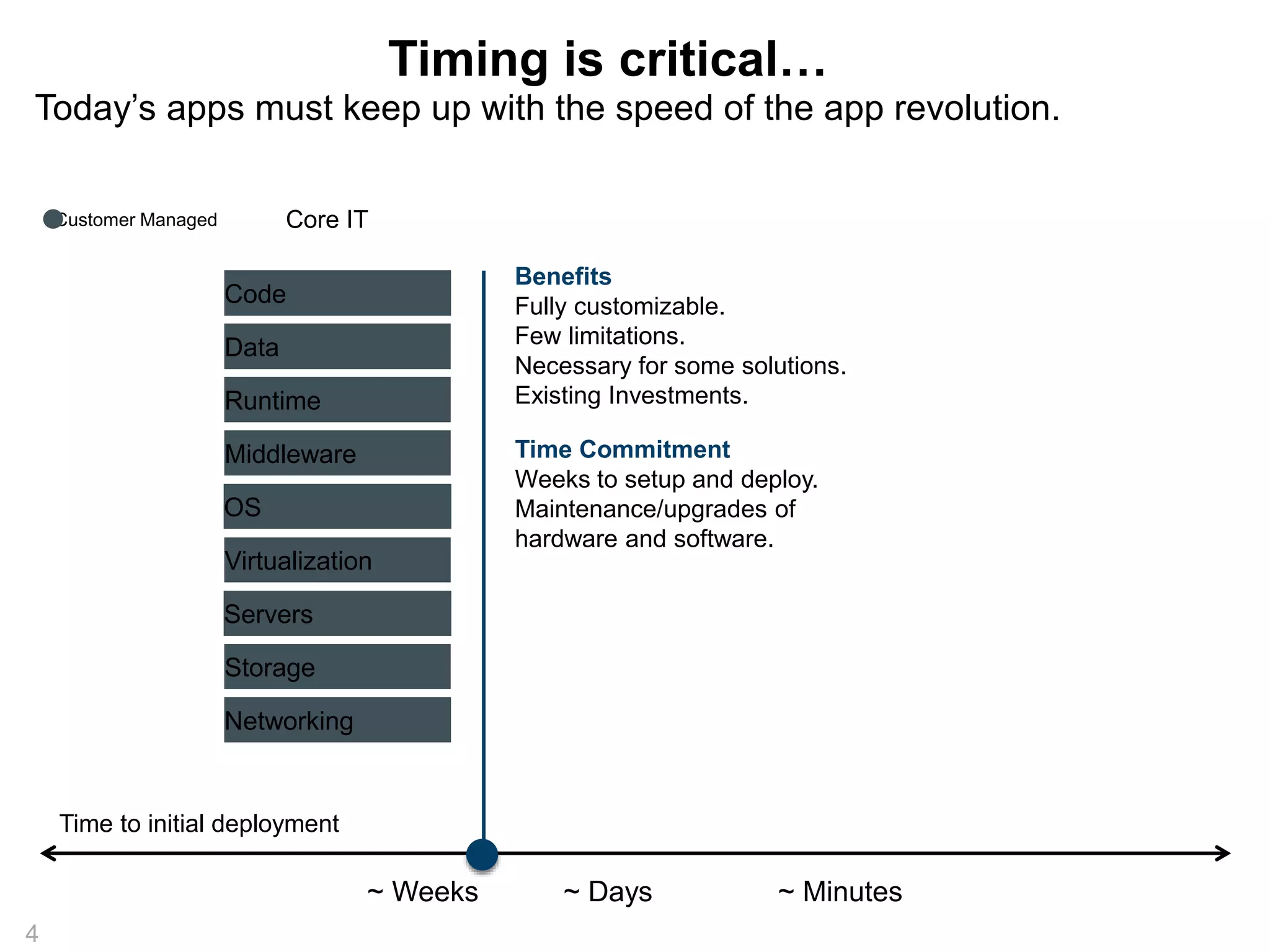

- 4. Today’s apps mustkeep up with the speed of the app revolution. Core IT Timing is critical… 4 Benefits Fully customizable. Few limitations. Necessary for some solutions. Existing Investments. Time Commitment Weeks to setup and deploy. Maintenance/upgrades of hardware and software. ~ Weeks ~ Days Code Data Runtime Middleware OS Virtualization Servers Storage Networking ~ Minutes Customer Managed Time to initial deployment

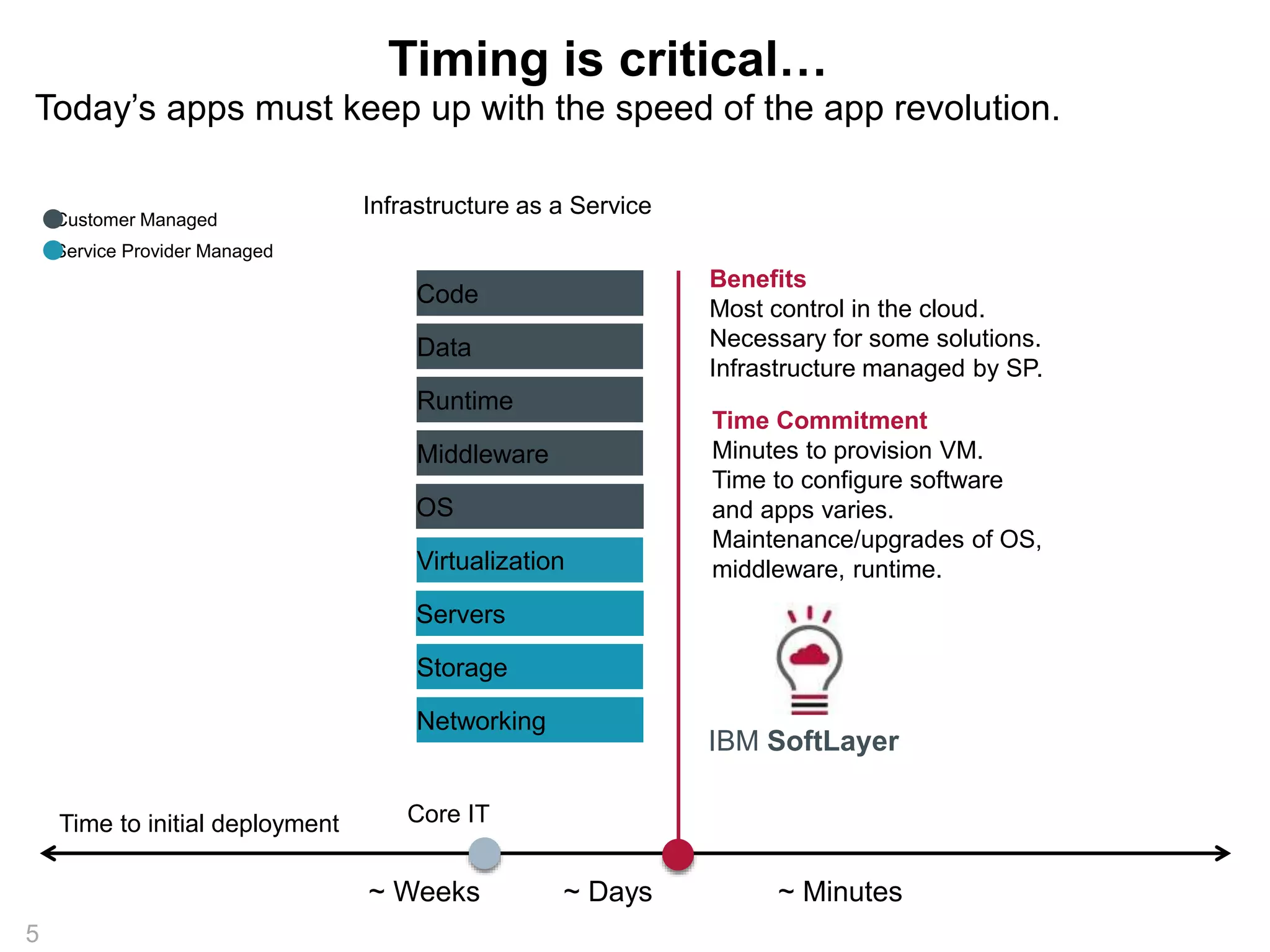

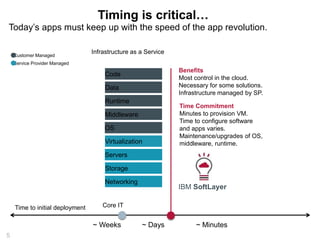

- 5. Today’s apps mustkeep up with the speed of the app revolution. 5 Timing is critical… Benefits Most control in the cloud. Necessary for some solutions. Infrastructure managed by SP. Infrastructure as a Service Customer Managed Service Provider Managed ~ Days Time Commitment Minutes to provision VM. Time to configure software and apps varies. Maintenance/upgrades of OS, middleware, runtime. IBM SoftLayer ~ Minutes Code Data Runtime Middleware OS Virtualization Servers Storage Networking Core IT ~ Weeks Time to initial deployment

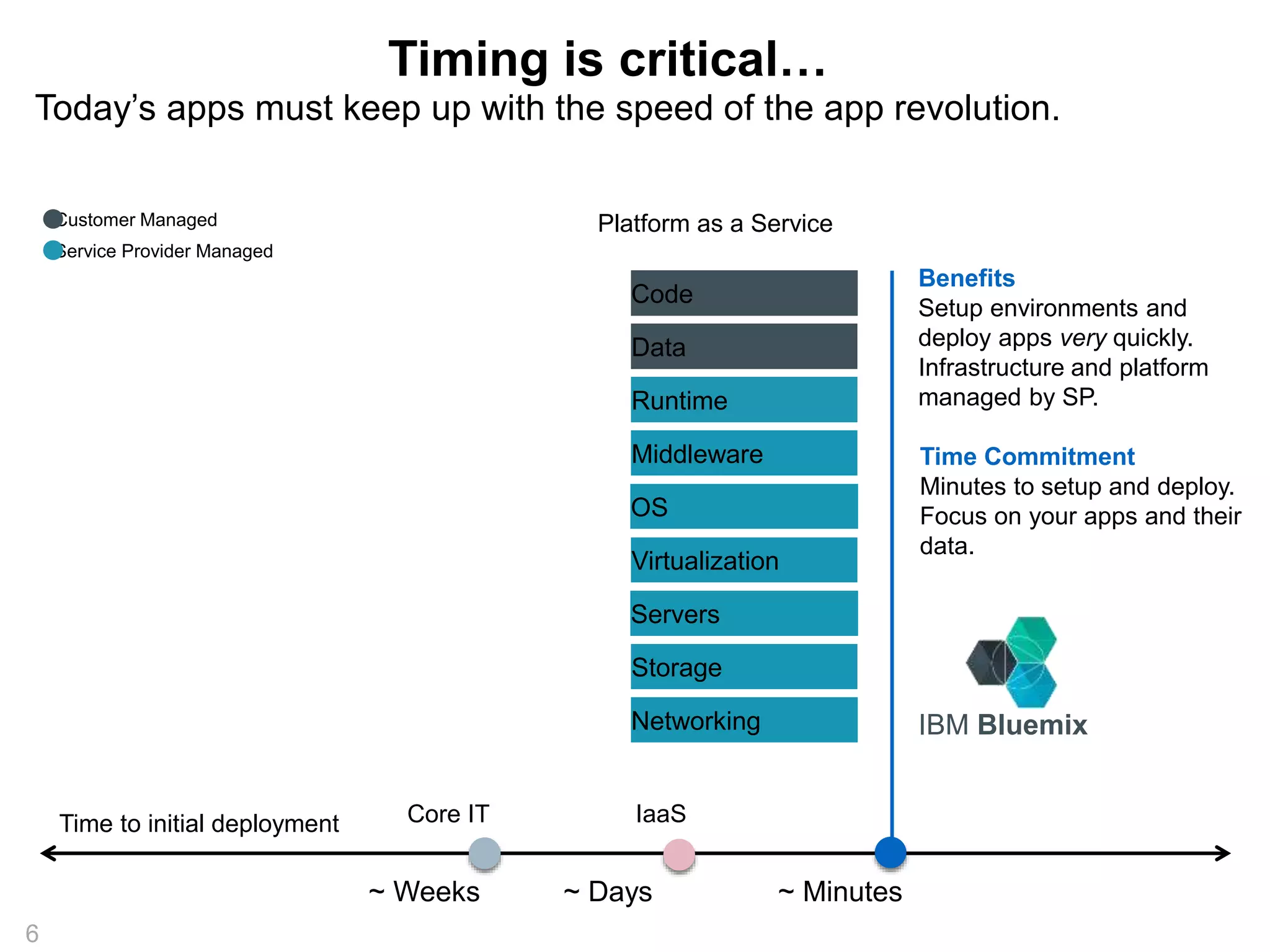

- 6. Today’s apps mustkeep up with the speed of the app revolution. 6 Customer Managed Platform as a Service Service Provider Managed ~ Minutes IaaS Benefits Setup environments and deploy apps very quickly. Infrastructure and platform managed by SP. Time Commitment Minutes to setup and deploy. Focus on your apps and their data. Timing is critical… ~ Weeks IBM Bluemix ~ Days Time to initial deployment Code Data Runtime Middleware OS Virtualization Servers Storage Networking Core IT

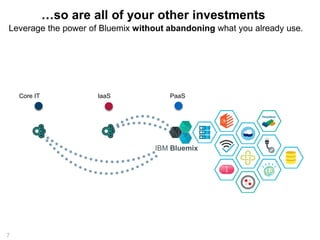

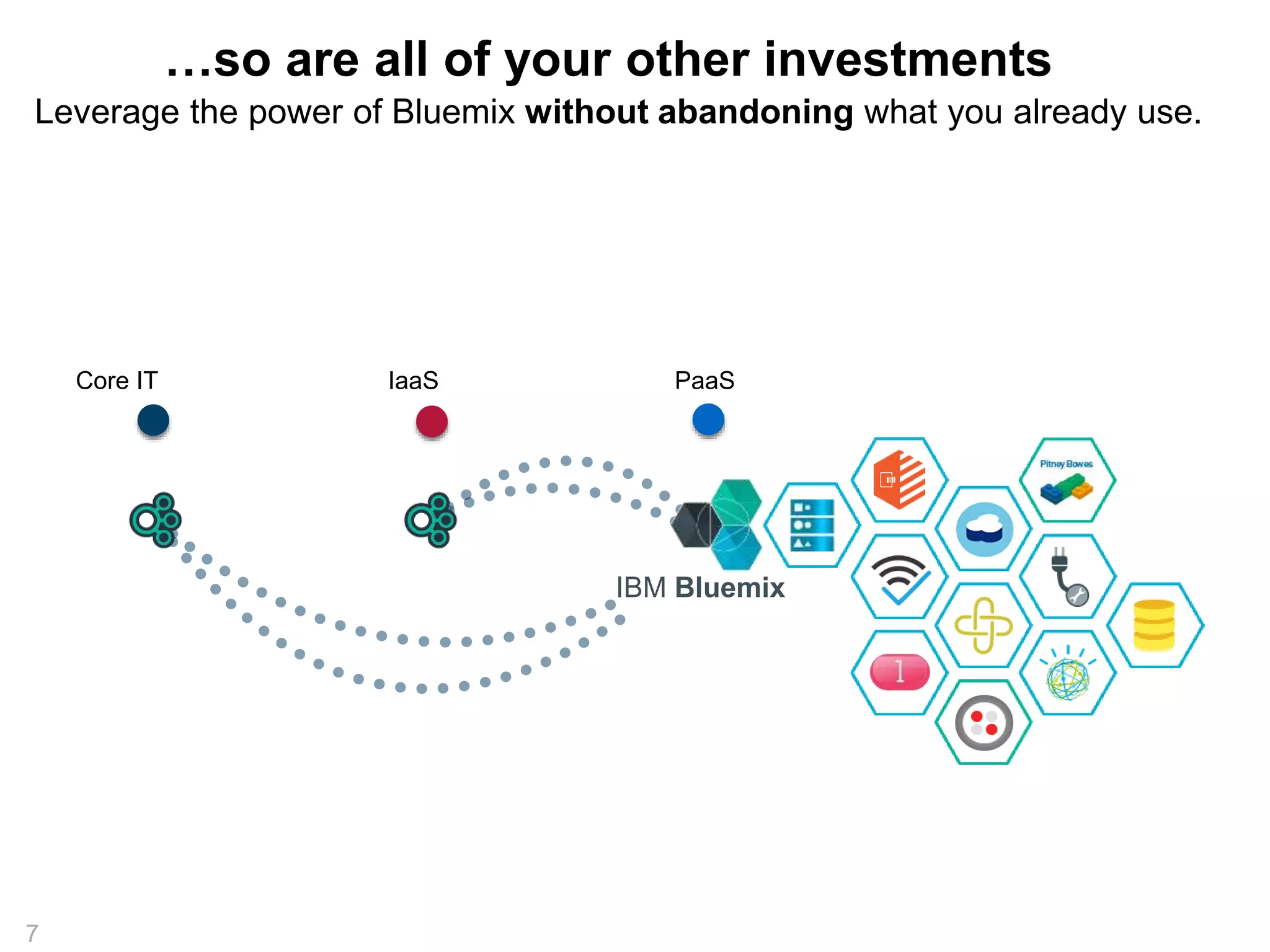

- 7. Leverage the powerof Bluemix without abandoning what you already use. 7 …so are all of your other investments IaaS PaaS Core IT IBM Bluemix

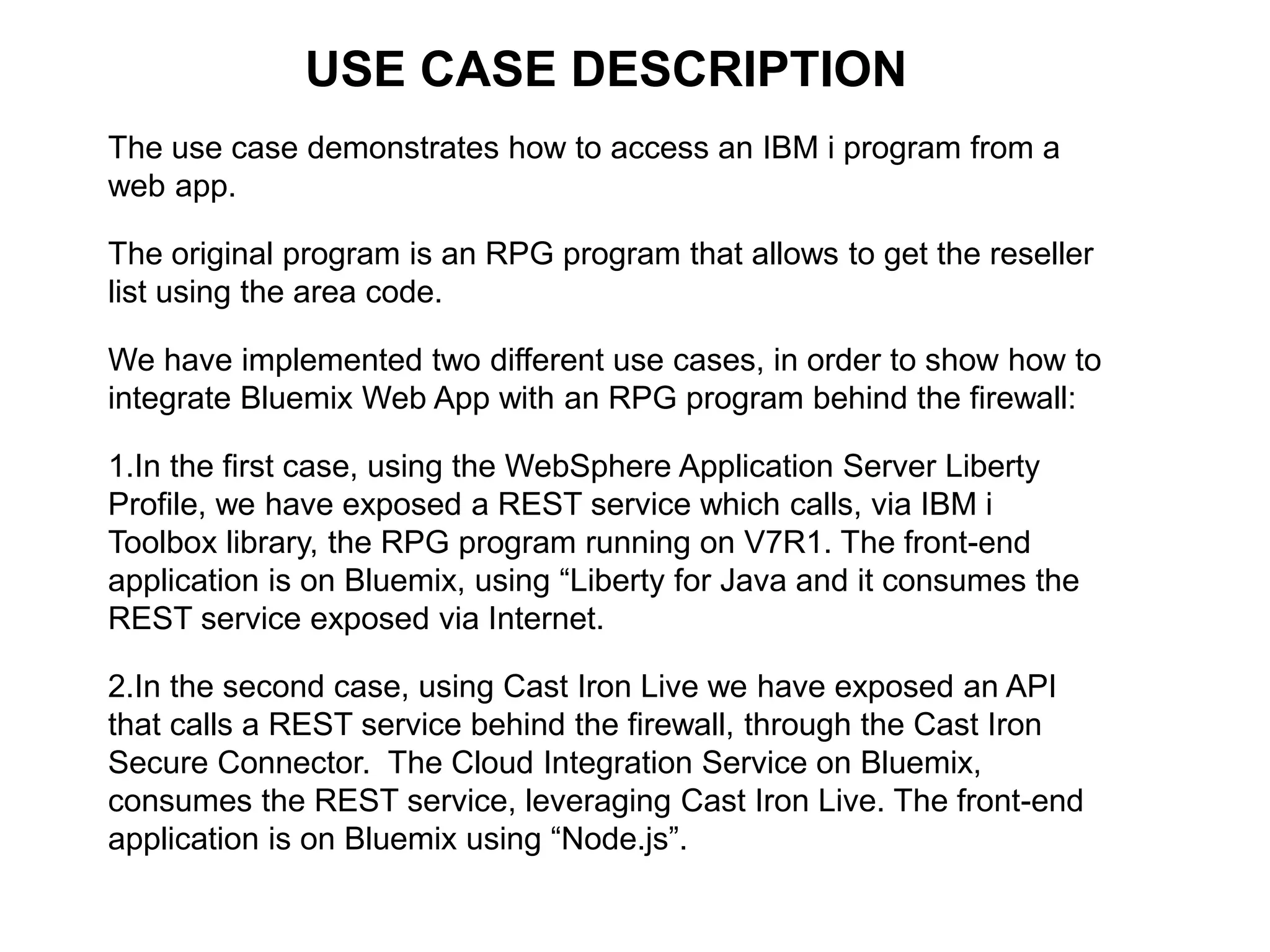

- 8. USE CASE DESCRIPTION The use case demonstrates how to access an IBM i program from a web app. The original program is an RPG program that allows to get the reseller list using the area code. We have implemented two different use cases, in order to show how to integrate Bluemix Web App with an RPG program behind the firewall: 1.In the first case, using the WebSphere Application Server Liberty Profile, we have exposed a REST service which calls, via IBM i Toolbox library, the RPG program running on V7R1. The front-end application is on Bluemix, using “Liberty for Java and it consumes the REST service exposed via Internet. 2.In the second case, using Cast Iron Live we have exposed an API that calls a REST service behind the firewall, through the Cast Iron Secure Connector. The Cloud Integration Service on Bluemix, consumes the REST service, leveraging Cast Iron Live. The front-end application is on Bluemix using “Node.js”.

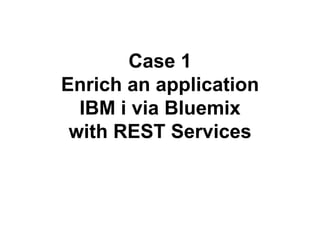

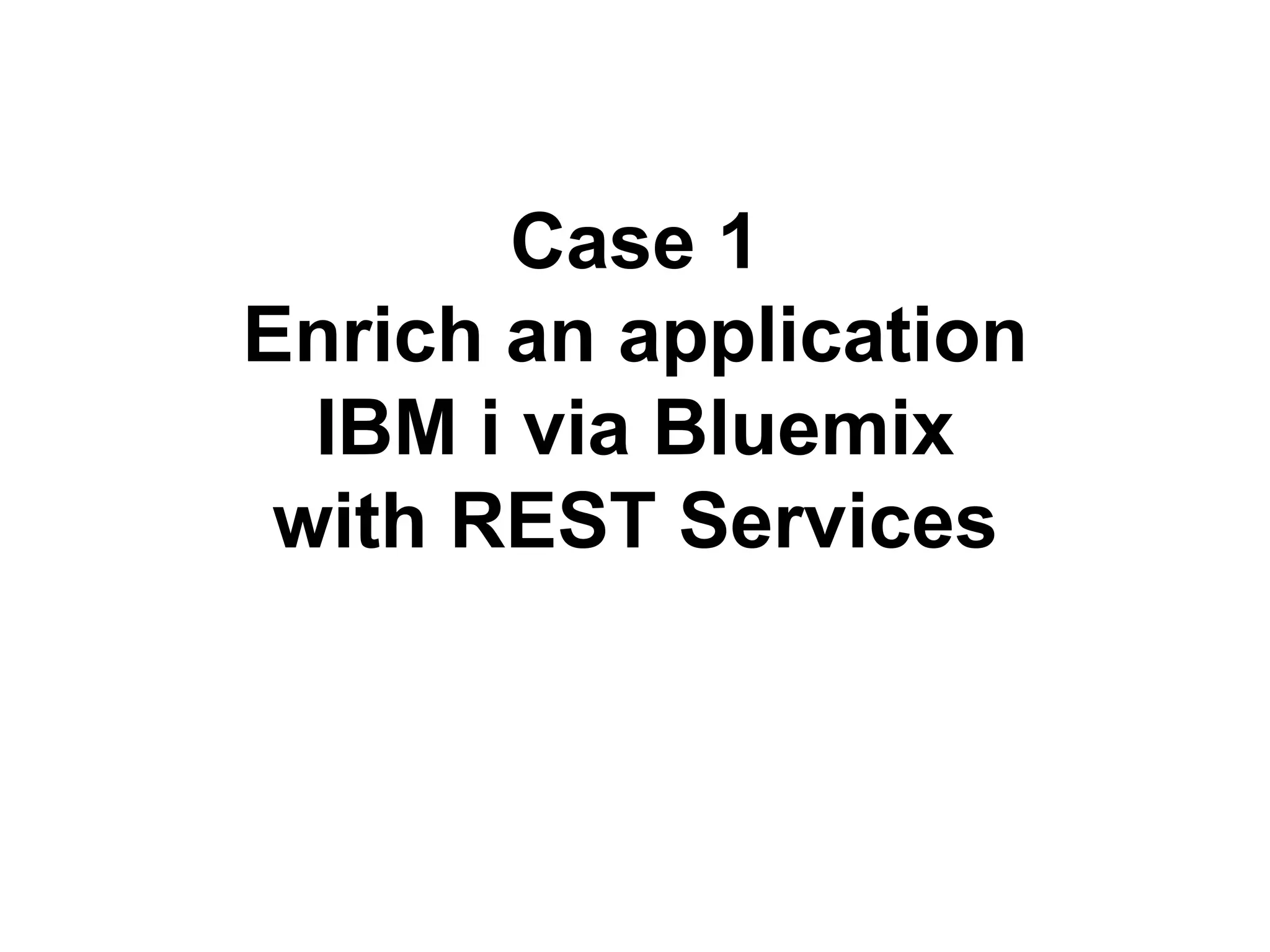

- 9. Case 1 Enrichan application IBM i via Bluemix with REST Services

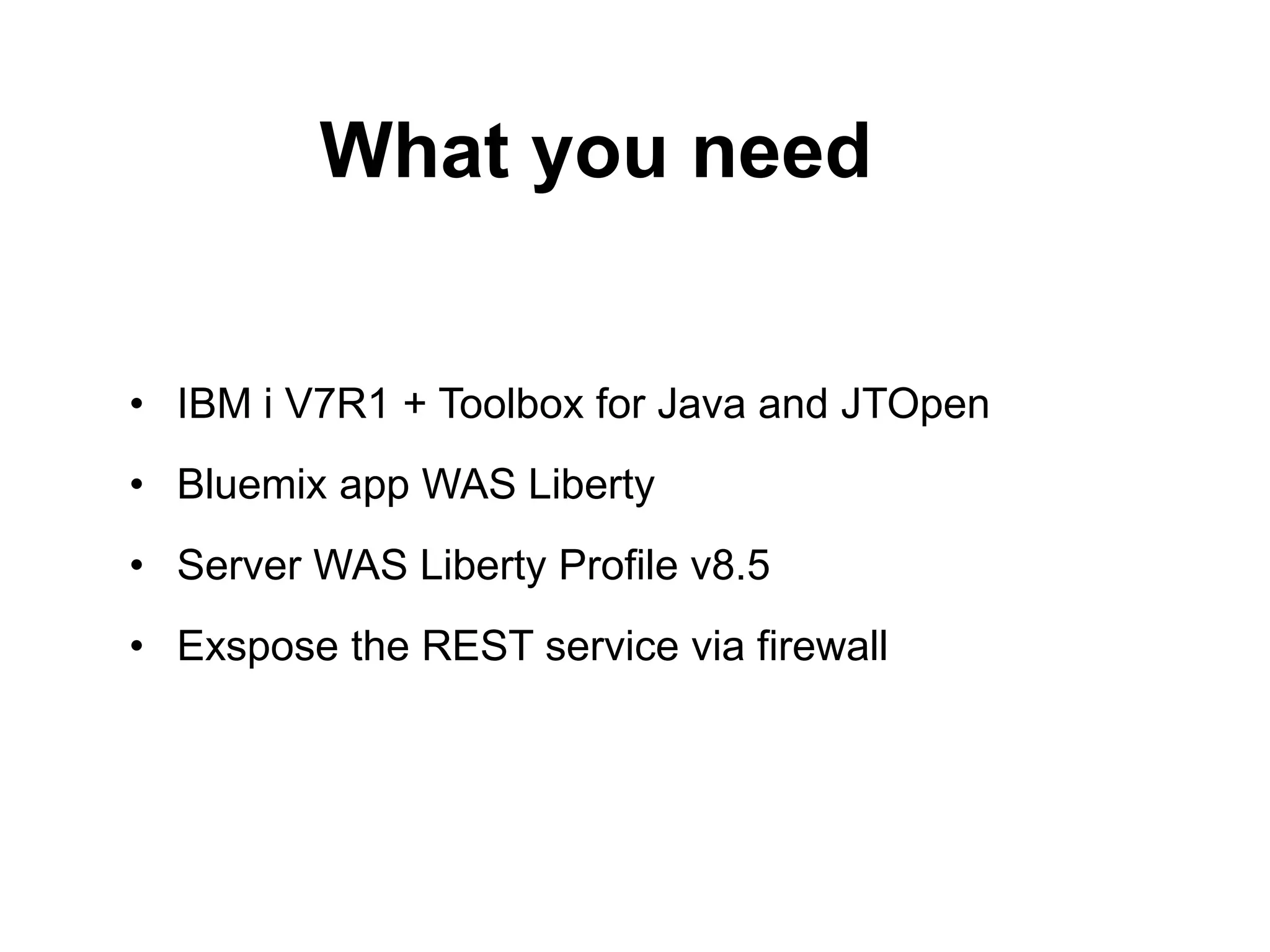

- 10. What you need • IBM i V7R1 + Toolbox for Java and JTOpen • Bluemix app WAS Liberty • Server WAS Liberty Profile v8.5 • Exspose the REST service via firewall

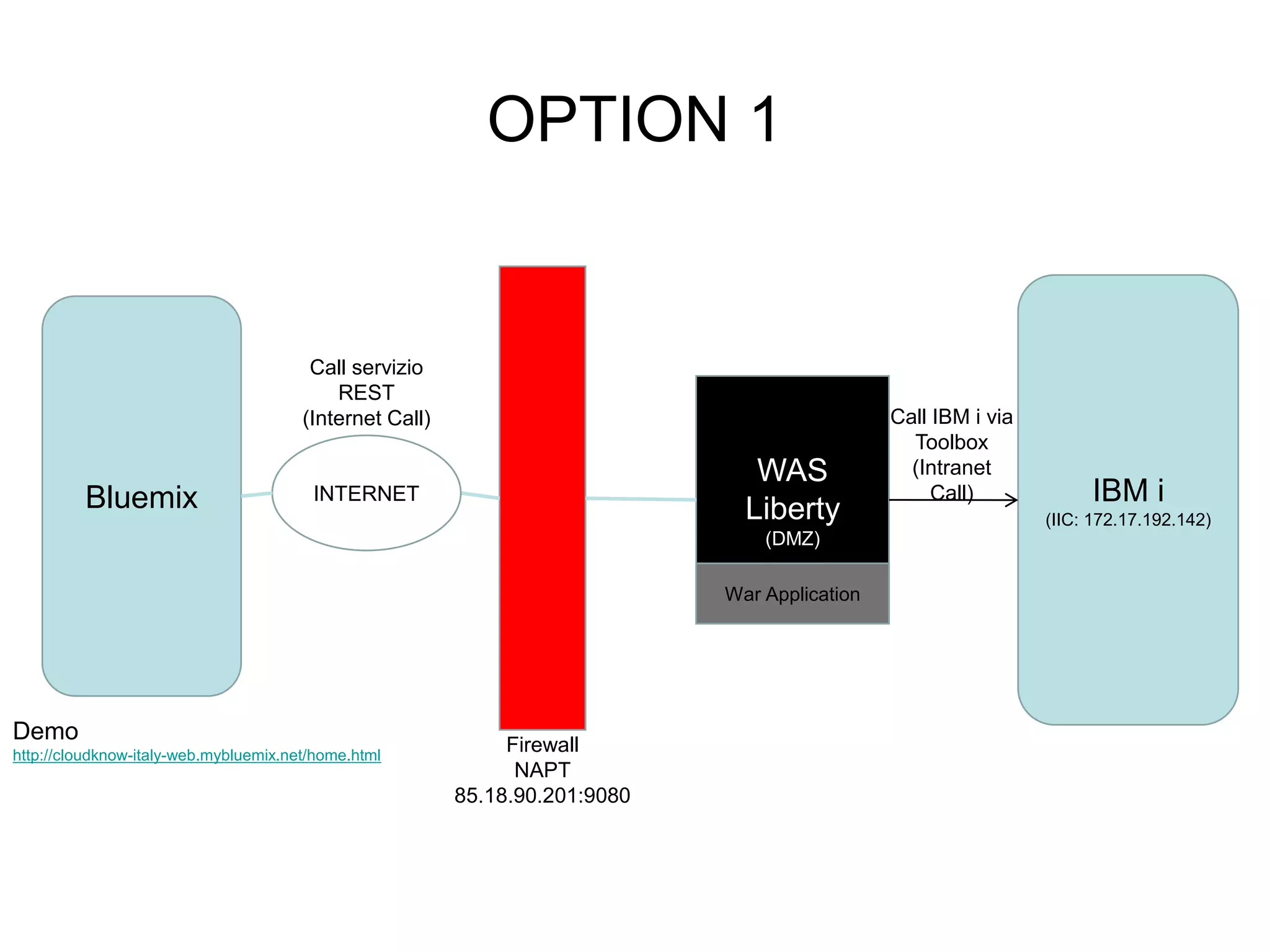

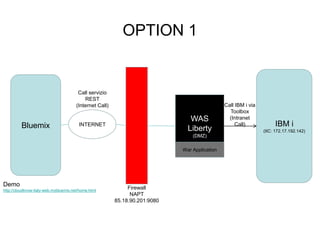

- 11. OPTION 1 Bluemix WAS Liberty (DMZ) IBM i (IIC: 172.17.192.142) War Application Call IBM i via Toolbox (Intranet Call) Call servizio REST (Internet Call) Firewall NAPT 85.18.90.201:9080 INTERNET Demo http://cloudknow-italy-web.mybluemix.net/home.html

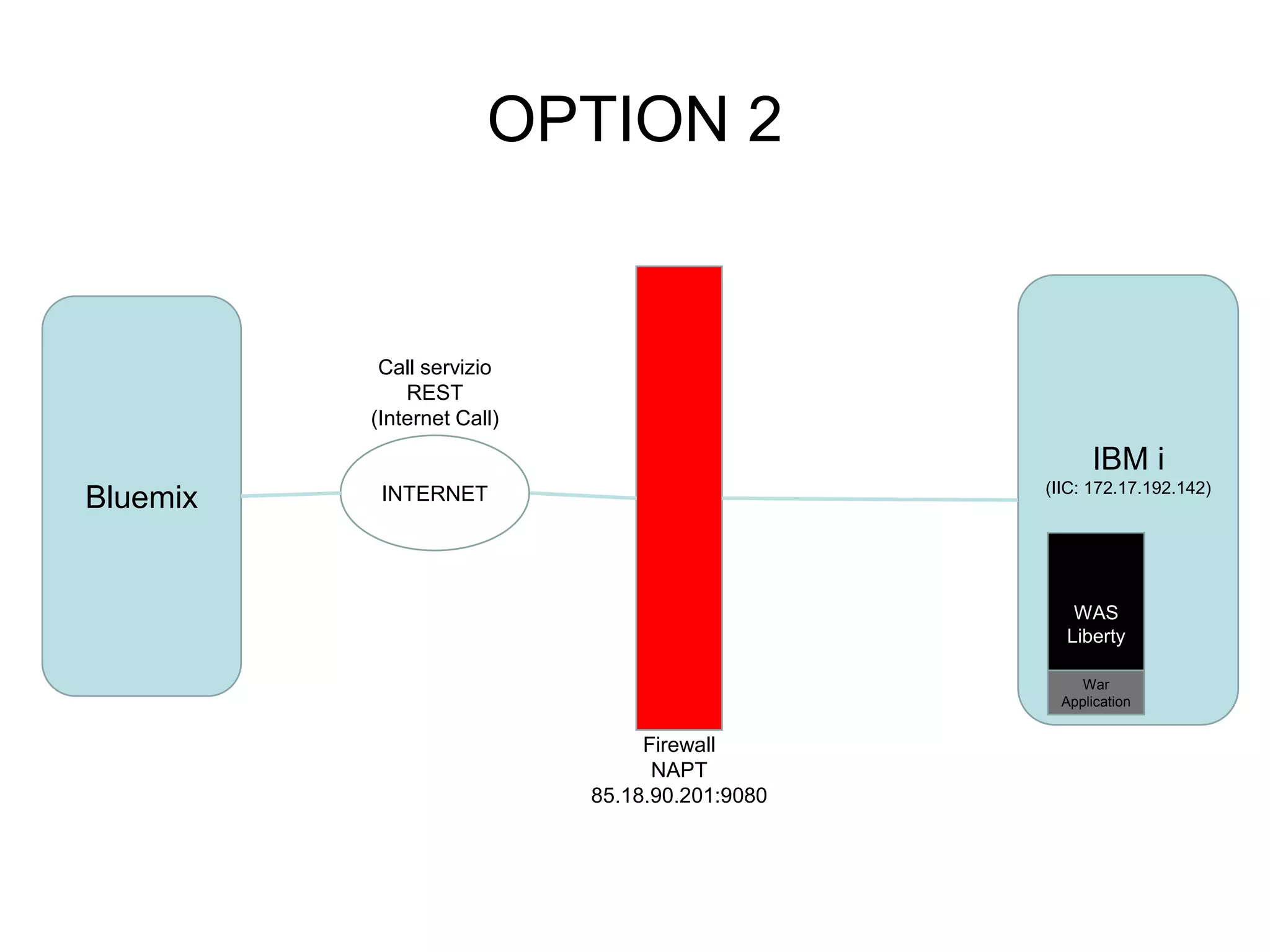

- 12. OPTION 2 Bluemix IBM i (IIC: 172.17.192.142) WAS Liberty War Application Call servizio REST (Internet Call) Firewall NAPT 85.18.90.201:9080 INTERNET

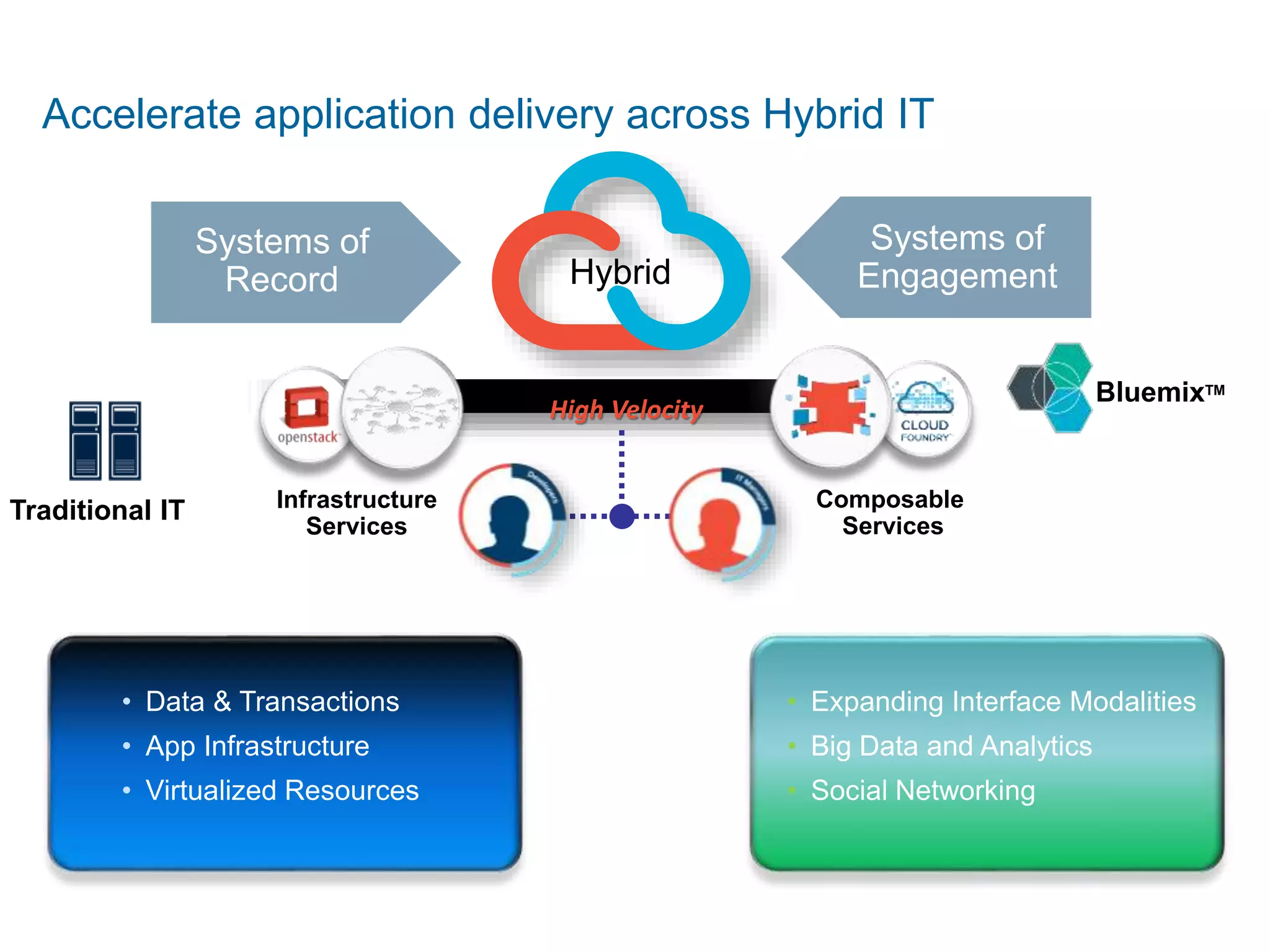

- 13. Accelerate application deliveryacross Hybrid IT Systems of Record Systems of Hybrid Engagement Composable Services Infrastructure Services High Velocity BluemixTM Traditional IT • Data & Transactions • App Infrastructure • Virtualized Resources • Expanding Interface Modalities • Big Data and Analytics • Social Networking

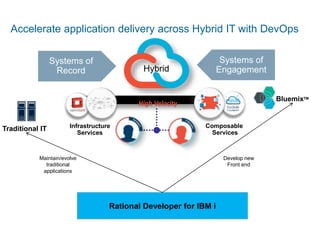

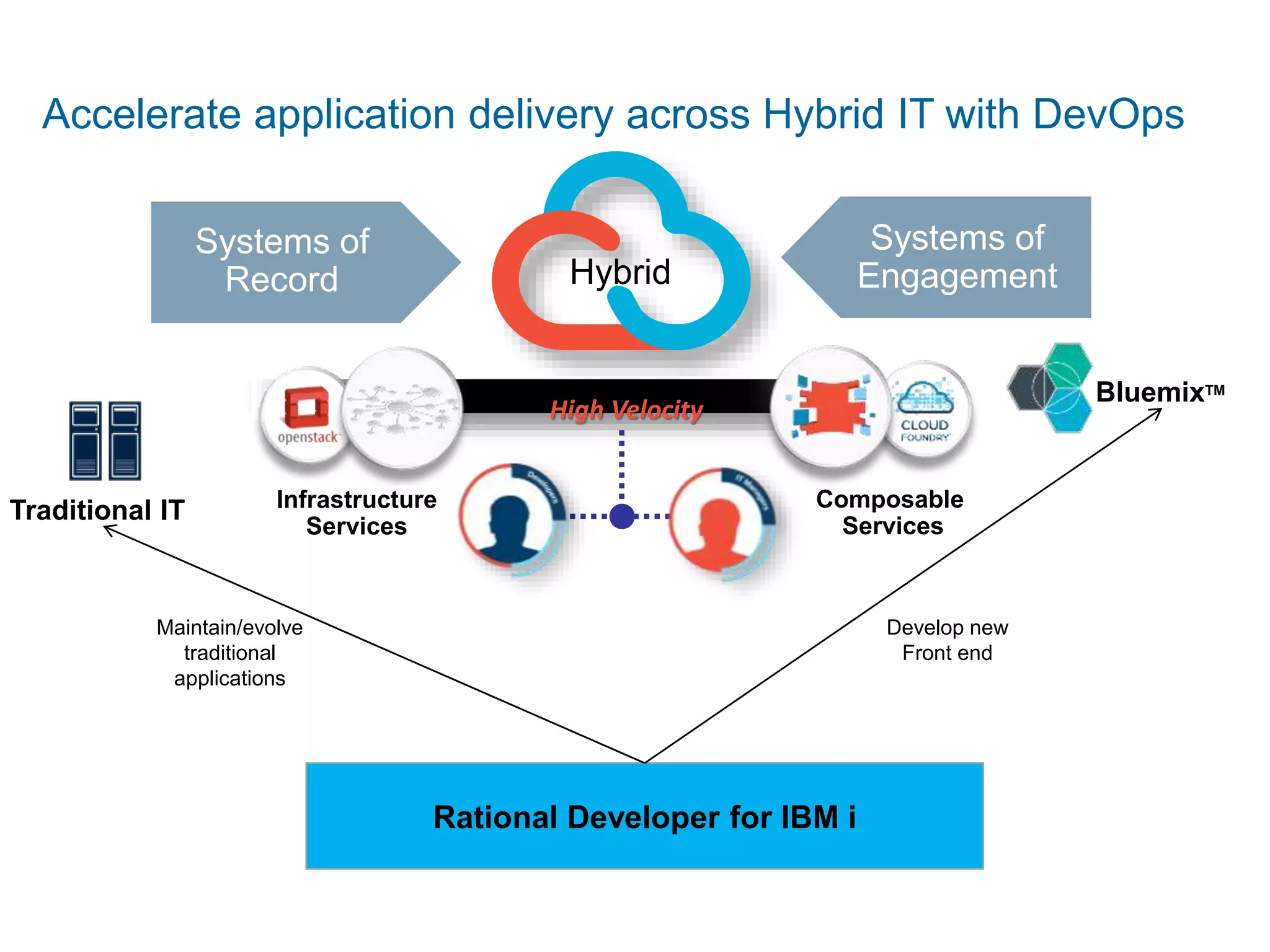

- 14. Accelerate application deliveryacross Hybrid IT with DevOps Systems of Record Systems of Hybrid Engagement Composable Services Infrastructure Services High Velocity BluemixTM Traditional IT Rational Developer for IBM i Maintain/evolve traditional applications Develop new Front end

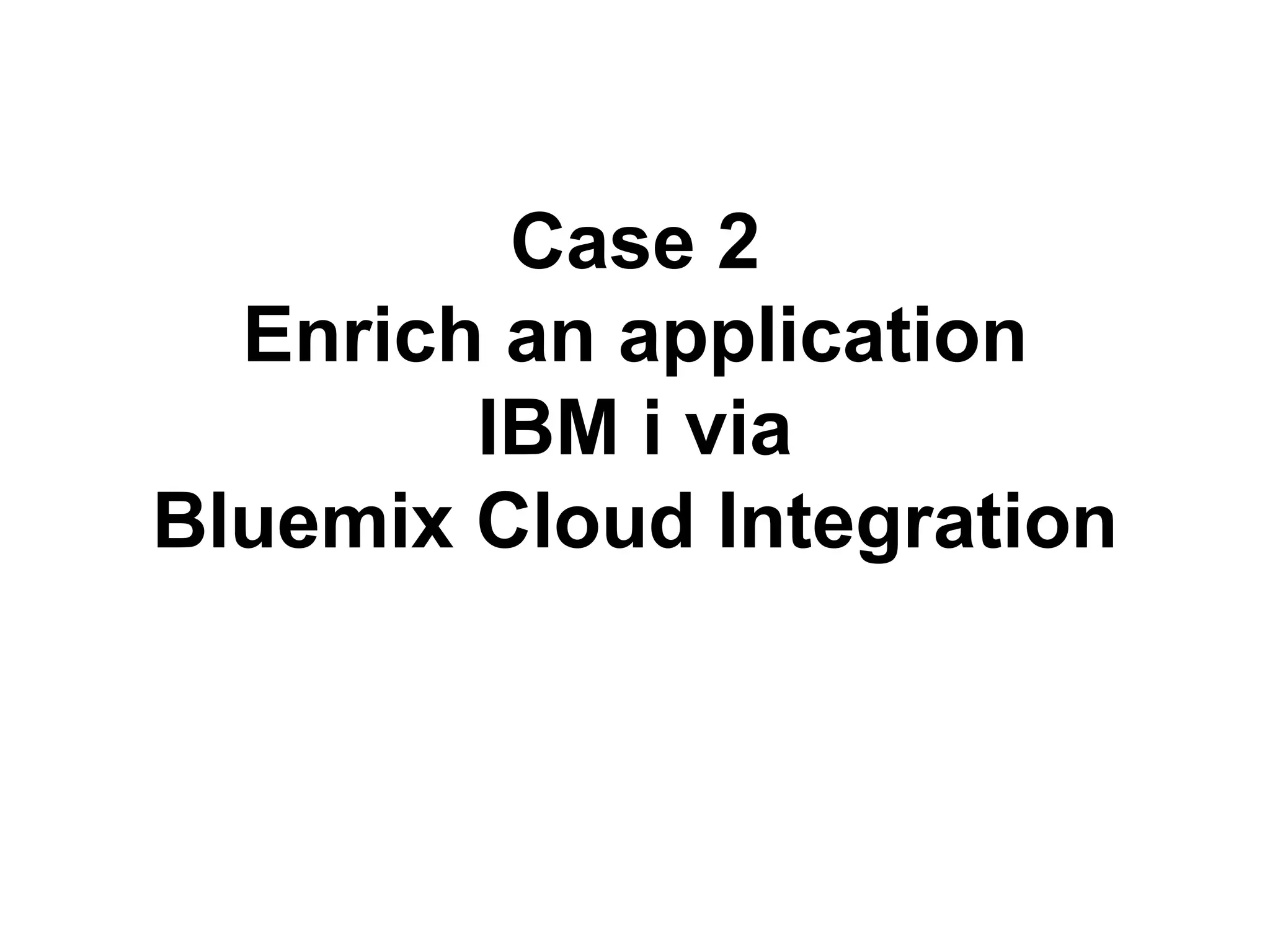

- 15. Case 2 Enrichan application IBM i via Bluemix Cloud Integration

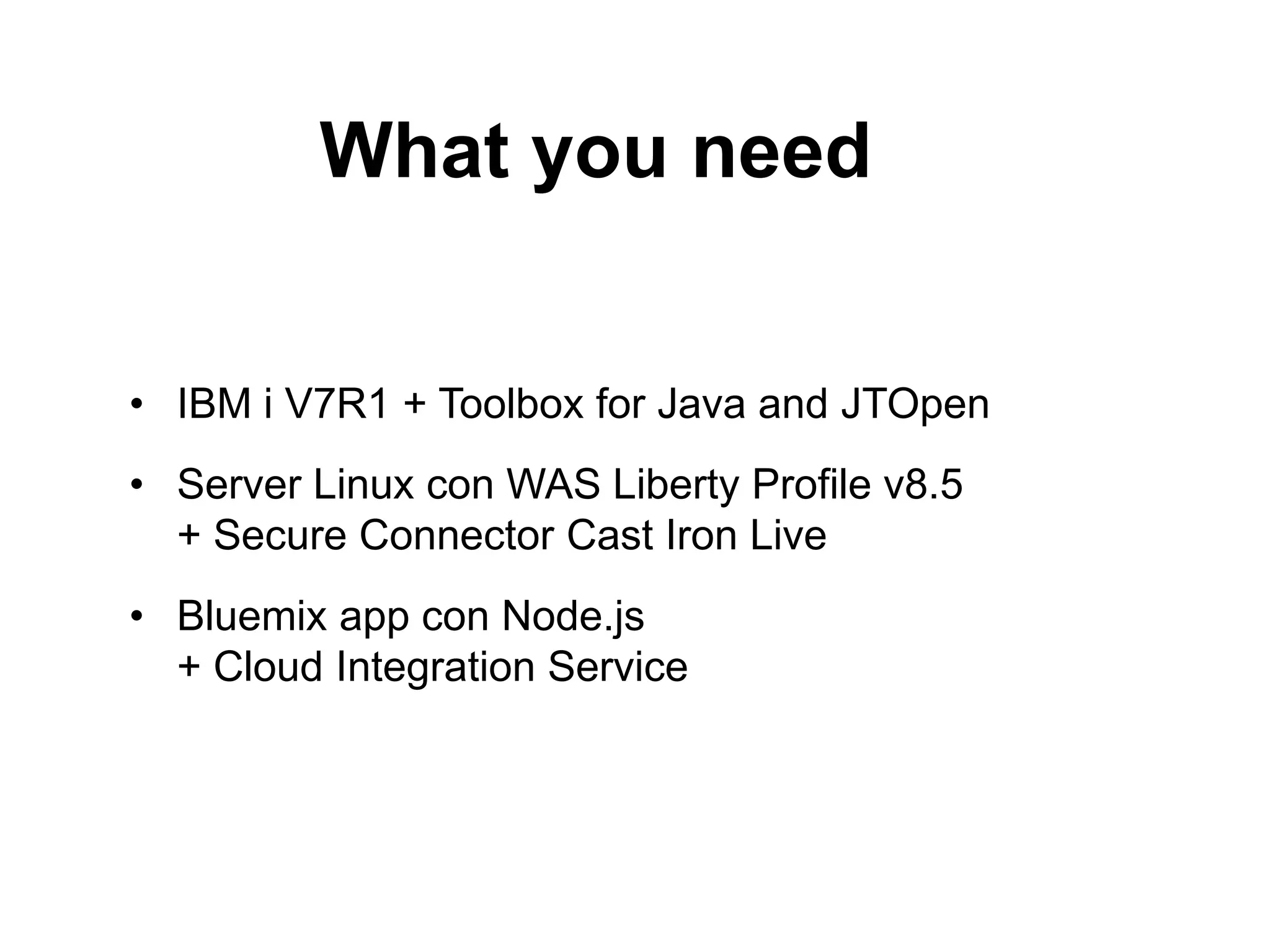

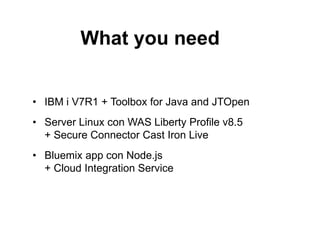

- 16. What you need • IBM i V7R1 + Toolbox for Java and JTOpen • Server Linux con WAS Liberty Profile v8.5 + Secure Connector Cast Iron Live • Bluemix app con Node.js + Cloud Integration Service

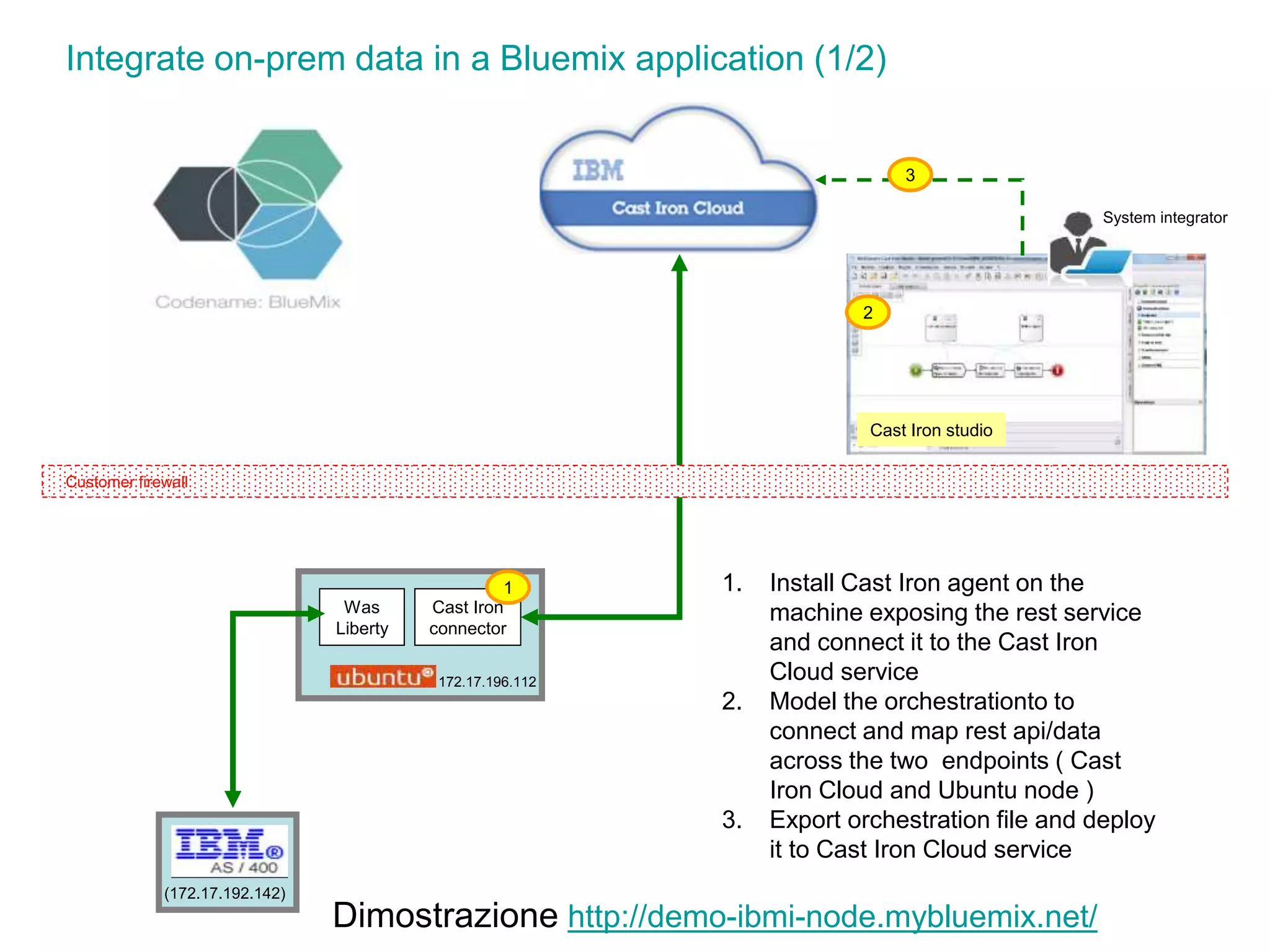

- 17. Integrate on-prem datain a Bluemix application (1/2) (172.17.192.142) Was Liberty Cast Iron connector 172.17.196.112 Customer firewall Cast Iron studio System integrator 1 2 3 1. Install Cast Iron agent on the machine exposing the rest service and connect it to the Cast Iron Cloud service 2. Model the orchestrationto to connect and map rest api/data across the two endpoints ( Cast Iron Cloud and Ubuntu node ) 3. Export orchestration file and deploy it to Cast Iron Cloud service Dimostrazione http://demo-ibmi-node.mybluemix.net/

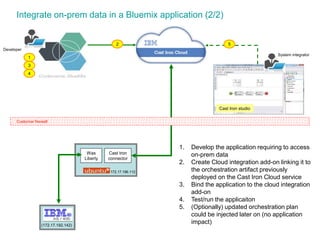

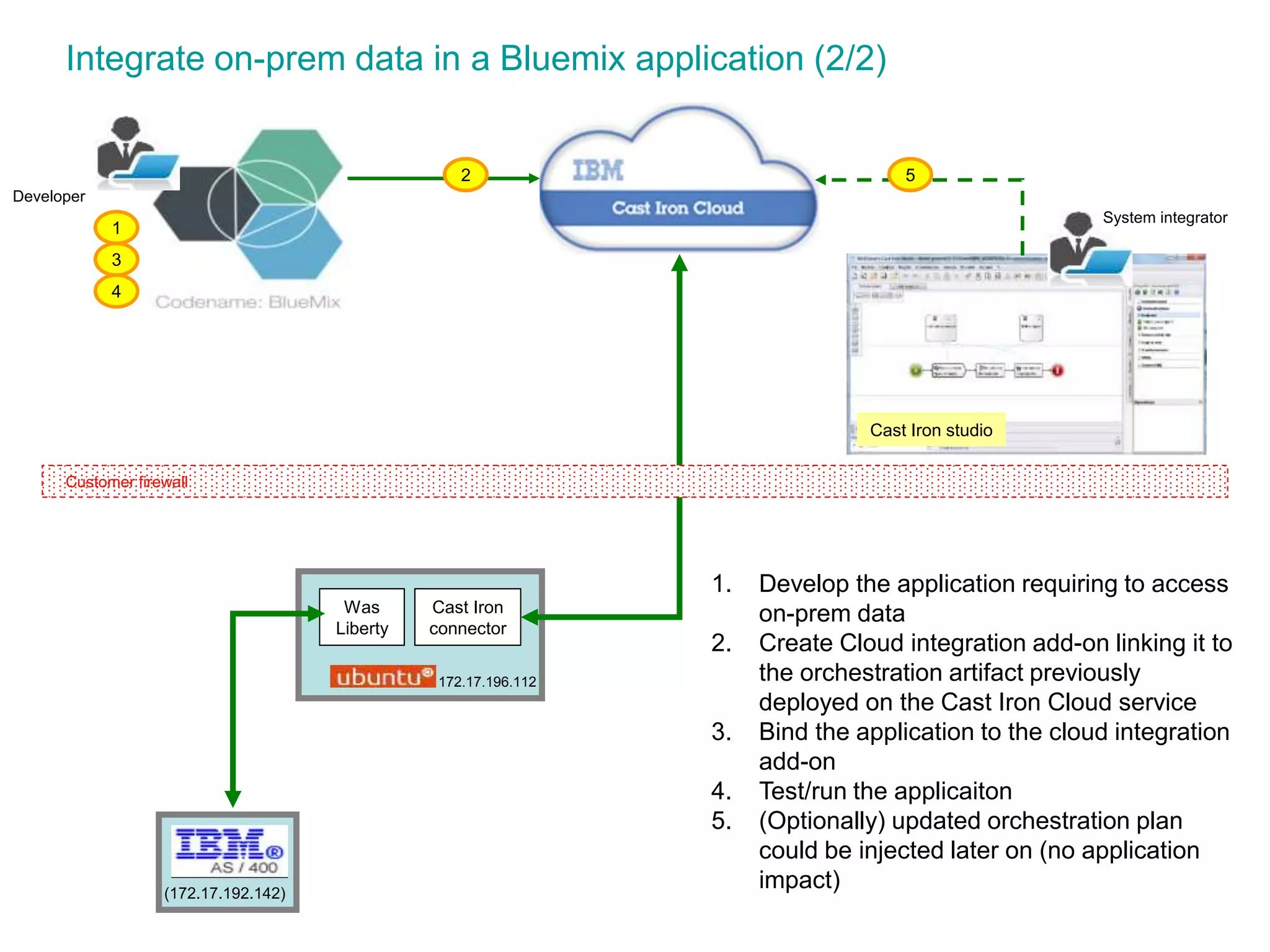

- 18. Integrate on-prem datain a Bluemix application (2/2) (172.17.192.142) Was Liberty Cast Iron connector 172.17.196.112 Developer Customer firewall 1. Develop the application requiring to access on-prem data 2. Create Cloud integration add-on linking it to the orchestration artifact previously deployed on the Cast Iron Cloud service 3. Bind the application to the cloud integration add-on 4. Test/run the applicaiton 5. (Optionally) updated orchestration plan could be injected later on (no application impact) 2 1 3 4 Cast Iron studio System integrator 5
Editor's Notes
- #2 Please note: Presenter notes are on every slide. Written as a suggested script to help with messaging.
- #3 Apps Are Everywhere Over the last 5 or so years, we’ve experienced an “App Revolution” on the web, on our smartphones, in our cars, on wearable devices (like a NikeFuel band, Smart Watch, Google Glass), and in our homes. Apps today allow interactions that we wouldn't have imagined 5 years ago. Architects can design homes on their iPads, merchants can swipe credit cards and accept payments anywhere with their phones, and runners can track their progress with a band on their wrist. Even my mother knows the phrase “there’s an app for that.” Experience Matters All of the associated data (like a runner’s average speed and location over the course of a 30 minute run) is often times pushed up to the cloud (as it’s being generated) for further processing, storage, or to allow syncs other devices and services. Customers expect an integrated experience on the web, across all of their devices, in physical stores, and even talking with customer service on the phone. Cloud Makes it Possible Needless to say, the cloud has been a very large driving factor in the “App Revolution.” It provides a fast, simple, and cost effective way to for startups and enterprises alike to deploy and host applications and mobile backends over the internet. Apps can be stitched together quickly with pre-built assets exposed as APIs - cloud has made this possible. Simply put, cloud keeps all of us connected.
- #4 The instant power and speed of cloud has brought about new expectations for building applications on it. Developers now expect: To be able to deploy updates to their applications in seconds To write their code in whichever tool or language they choose Each has its own distinct “personality” and followings of developers have evolved around each of these To be able to continually integrate working copies of code into a shared mainline at multiple points during the day To focus on writing code, not on the administration of servers, virtualization, operating systems, and middleware. To “fail fast” - or ensure applications fail immediately and visibly to speed debugging and fixes To integrate useful APIs into their applications - who wants to write code that’s already been written and tested? To build applications that are mobile ready - as users today expect their experience to be tailored to whatever device they happen to be using.
- #5 Timing is critical if your apps (and the functionality they provide to your employees and/or customers) are to keep up with the new expectations and competition the app revolution has generated. Let’s see how everything stacks up: Core IT represents everything you own and manage in your data centers (the full stack pictured here). This is still a critical part of enterprise IT - let’s take a look why it is beneficial and what it takes to manage all of this. Core IT Benefits As stable and customizable as the customer wants - the only main limitation is cost. Necessary for certain solutions (Core IT still has value in many scenarios i.e. transaction processing) Houses a lot of the investments most companies have already made (customer data, inventory, SAP, you name it). Core IT Time Commitment Typically takes weeks to setup an environment and deploy an initial app - customer manages entire stack pictured here Have to maintain hardware and software as well (think environment uptime, fixes, upgrades). Dedicated staff necessary. Thus, Core IT doesn’t lend itself to the experimental nature of development in the cloud/app revolution
- #6 Infrastructure as a Service (and specifically IBM’s acquisition of SoftLayer) was the cloud’s initial answer to the need for faster deployments, faster environment setup, etc… by abstracting the infrastructure from the customer. IaaS Benefits Networking, Storage, Server, Vitualization managed by service provider. Most customizable cloud offering Solutions where` customizability of OS, Middleware, or Runtime needed IaaS Time Commitment Customer sets up and manages OS, Middleware, and Runtime - these still take at least a matter of days to setup and reach an initial deployment Maintenance/upgrades necessary as well
- #7 We’ve realized that, in a large number of use cases, our customers want to move even faster and don’t need to spend the time managing the platform (VM, OS, Middleware, Runtime). IBM’s answer: Bluemix (platform as a service). PaaS Benefits Setup your environment and deploy apps quicker than any other offering Service provider manages the Infrastructure AND the platform PaaS Time Commitment Minutes to initial deployment - developer can handle everything on his/her own Maintenance and upgrades of Platform and Infrastructure handled by service provider
- #8 While timing is critical (what we just discussed), the systems and data you use today can’t be forgotten. That’s why Bluemix simply and securely connects to core IT and even other clouds (leveraging IBM’s proven reputation as a systems integrator). Hybrid cloud, where Public and Private clouds work together with Core IT investments, is critical to success given the app revolution and the expectations and increased competition it has generated. Overall, hybrid cloud represents the “New IT…”
- #14 Continuous delivery of software-driven innovation DevOps is an enterprise capability for continuous software delivery that enables organizations to seize market opportunities and reduce time to customer feedback Deliver quality software faster by streamlining development and accelerating testing Maintaining a competitive advantage requires the continuous innovation of ideas and the ability to translate them into products and services that bring value to your customers. Collaborative development and continuous testing support the evolution of a business idea into a high quality software solution by applying lean principles, facilitating collaboration among all stakeholders, and striking the optimal balance between quality and time to market. By establishing a solid development and testing strategy, organizations can remove unnecessary project risk, reduce costs and ensure their teams stay productive. IBM provides integrated development solutions across platforms allowing software delivery teams to use the solutions that are right for them, in an integrated way – from traditional IT (on-premise) to private cloud (patterns on PureApplication System and Softlayer) to platform as a service (DevOps Services on Bluemix) UrbanCode Deploy with Patterns: Design and collaborate on full-stack portable application blueprints Flexibility to deploy full-stack blueprints to any cloud Integrate with Multi-stage delivery pipeline to automate delivery of full stack environments in different stages Update existing environments where required, without having to tear existing infrastructure Easily manage the change to environments templates and lifecycle, by versioning environment templates, change history etc.
- #15 Continuous delivery of software-driven innovation DevOps is an enterprise capability for continuous software delivery that enables organizations to seize market opportunities and reduce time to customer feedback Deliver quality software faster by streamlining development and accelerating testing Maintaining a competitive advantage requires the continuous innovation of ideas and the ability to translate them into products and services that bring value to your customers. Collaborative development and continuous testing support the evolution of a business idea into a high quality software solution by applying lean principles, facilitating collaboration among all stakeholders, and striking the optimal balance between quality and time to market. By establishing a solid development and testing strategy, organizations can remove unnecessary project risk, reduce costs and ensure their teams stay productive. IBM provides integrated development solutions across platforms allowing software delivery teams to use the solutions that are right for them, in an integrated way – from traditional IT (on-premise) to private cloud (patterns on PureApplication System and Softlayer) to platform as a service (DevOps Services on Bluemix) UrbanCode Deploy with Patterns: Design and collaborate on full-stack portable application blueprints Flexibility to deploy full-stack blueprints to any cloud Integrate with Multi-stage delivery pipeline to automate delivery of full stack environments in different stages Update existing environments where required, without having to tear existing infrastructure Easily manage the change to environments templates and lifecycle, by versioning environment templates, change history etc.
