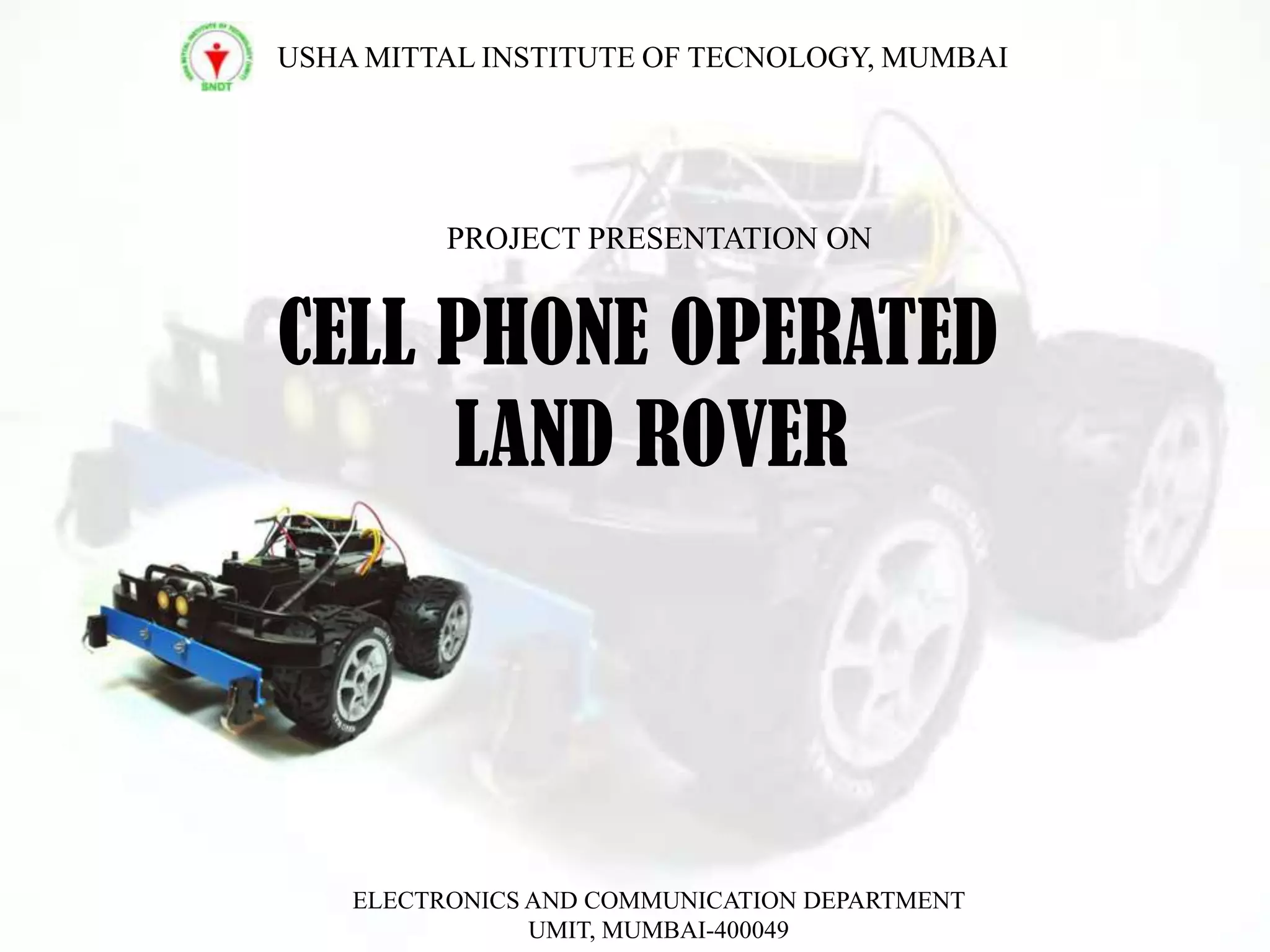

1. CELL PHONE OPERATED
LAND ROVER
USHA MITTAL INSTITUTE OF TECNOLOGY, MUMBAI
PROJECT PRESENTATION ON
ELECTRONICS AND COMMUNICATION DEPARTMENT
UMIT, MUMBAI-400049

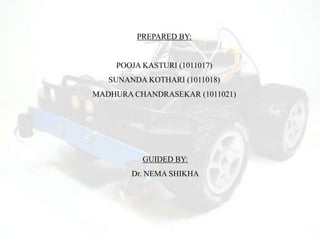

2. PREPARED BY:
POOJA KASTURI (1011017)
SUNANDA KOTHARI (1011018)
MADHURA CHANDRASEKAR (1011021)
GUIDED BY:
Dr. NEMA SHIKHA

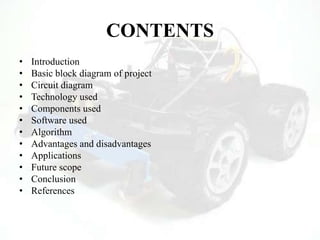

3. CONTENTS
• Introduction
• Basic block diagram of project
• Circuit diagram
• Technology used
• Components used
• Software used
• Algorithm
• Advantages and disadvantages
• Applications
• Future scope
• Conclusion
• References

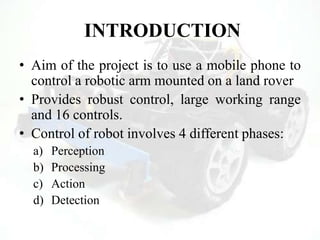

4. INTRODUCTION
• Aim of the project is to use a mobile phone to
control a robotic arm mounted on a land rover
• Provides robust control, large working range
and 16 controls.
• Control of robot involves 4 different phases:
a) Perception
b) Processing
c) Action
d) Detection

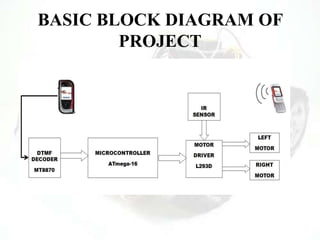

5. BASIC BLOCK DIAGRAM OF
PROJECT
MT

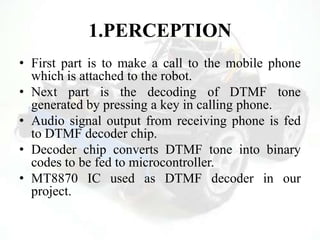

6. 1.PERCEPTION
• First part is to make a call to the mobile phone
which is attached to the robot.
• Next part is the decoding of DTMF tone
generated by pressing a key in calling phone.
• Audio signal output from receiving phone is fed
to DTMF decoder chip.
• Decoder chip converts DTMF tone into binary
codes to be fed to microcontroller.
• MT8870 IC used as DTMF decoder in our
project.

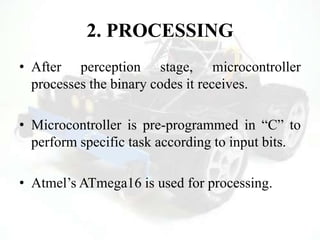

7. 2. PROCESSING
• After perception stage, microcontroller
processes the binary codes it receives.
• Microcontroller is pre-programmed in “C” to
perform specific task according to input bits.
• Atmel‟s ATmega16 is used for processing.

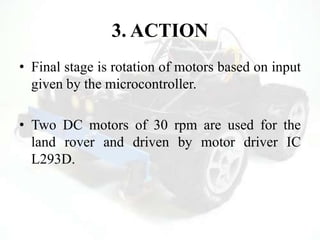

8. 3. ACTION
• Final stage is rotation of motors based on input
given by the microcontroller.
• Two DC motors of 30 rpm are used for the
land rover and driven by motor driver IC
L293D.

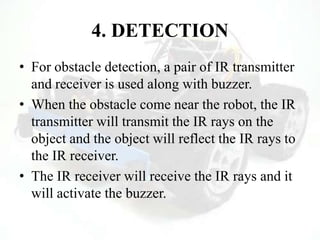

9. 4. DETECTION
• For obstacle detection, a pair of IR transmitter
and receiver is used along with buzzer.
• When the obstacle come near the robot, the IR
transmitter will transmit the IR rays on the
object and the object will reflect the IR rays to
the IR receiver.
• The IR receiver will receive the IR rays and it
will activate the buzzer.

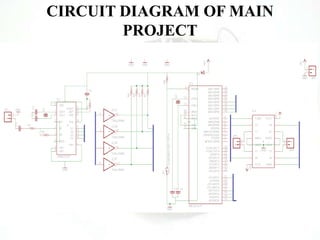

10. CIRCUIT DIAGRAM OF MAIN
PROJECT

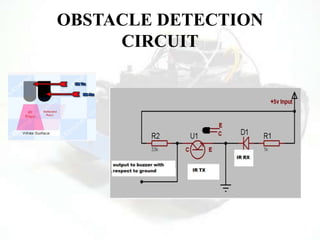

11. OBSTACLE DETECTION
CIRCUIT

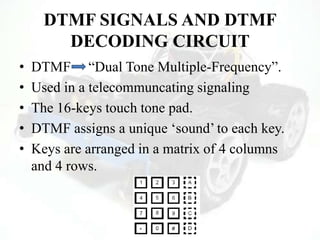

12. DTMF SIGNALS AND DTMF
DECODING CIRCUIT
• DTMF “Dual Tone Multiple-Frequency”.
• Used in a telecommuncating signaling
• The 16-keys touch tone pad.
• DTMF assigns a unique „sound‟ to each key.
• Keys are arranged in a matrix of 4 columns
and 4 rows.

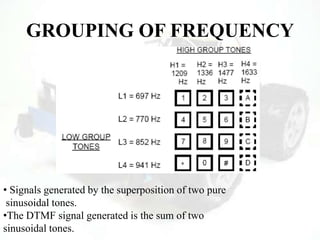

13. GROUPING OF FREQUENCY
• Signals generated by the superposition of two pure
sinusoidal tones.
•The DTMF signal generated is the sum of two
sinusoidal tones.

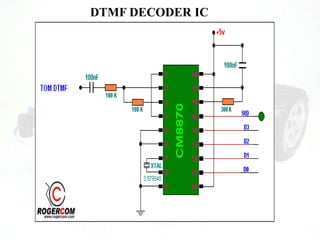

14. DTMF DECODER IC

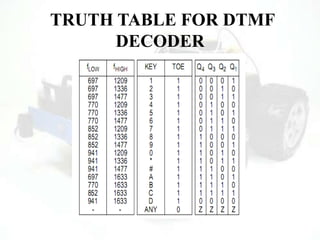

15. TRUTH TABLE FOR DTMF
DECODER

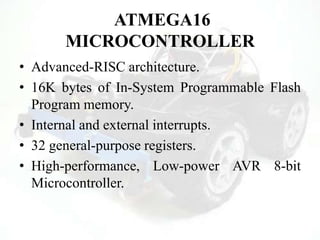

16. ATMEGA16
MICROCONTROLLER
• Advanced-RISC architecture.
• 16K bytes of In-System Programmable Flash
Program memory.
• Internal and external interrupts.
• 32 general-purpose registers.
• High-performance, Low-power AVR 8-bit
Microcontroller.

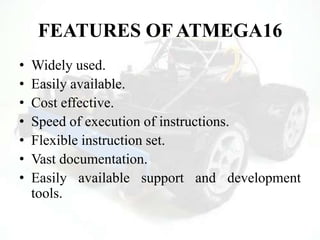

17. FEATURES OF ATMEGA16
• Widely used.
• Easily available.
• Cost effective.
• Speed of execution of instructions.
• Flexible instruction set.
• Vast documentation.
• Easily available support and development
tools.

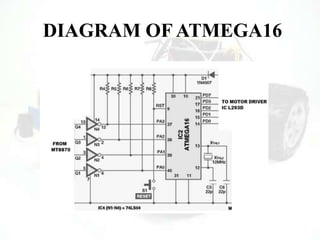

18. DIAGRAM OF ATMEGA16

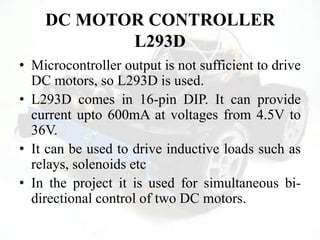

19. DC MOTOR CONTROLLER
L293D
• Microcontroller output is not sufficient to drive
DC motors, so L293D is used.
• L293D comes in 16-pin DIP. It can provide
current upto 600mA at voltages from 4.5V to
36V.
• It can be used to drive inductive loads such as
relays, solenoids etc
• In the project it is used for simultaneous bi-
directional control of two DC motors.

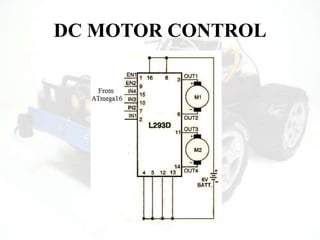

20. DC MOTOR CONTROL

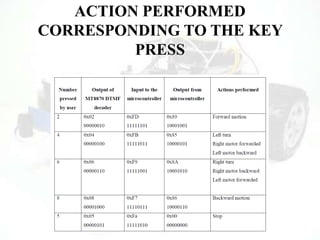

21. ACTION PERFORMED
CORRESPONDING TO THE KEY
PRESS

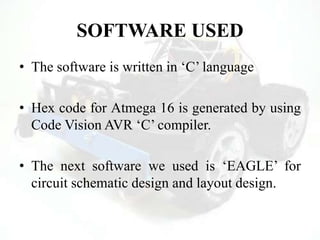

22. SOFTWARE USED
• The software is written in „C‟ language
• Hex code for Atmega 16 is generated by using
Code Vision AVR „C‟ compiler.
• The next software we used is „EAGLE‟ for
circuit schematic design and layout design.

23. ALGORITHM
• STEP 1: START
• STEP 2: DECLARE VARIABLES
• STEP 3: SET PORT AAS I/P PORT
• STEP 4: SET PORT D AS O/P PORT
• STEP 5: ACCEPT INPUT
• IF I/P IS 0X02 THEN MOVE MOTOR IN FORWARD
DIRECTION
• IF I/P IS 0X08 THEN MOVE MOTOR IN BACKWARD
DIRECTION
• IF I/P IS 0X04 THEN MOVE MOTOR TO LEFT
• IF I/P IS 0X06 THEN MOVE MOTOR TO RIGHT
• IF I/P IS 0X05 THEN STOP MOVING MOTOR
• STEP 6: STOP

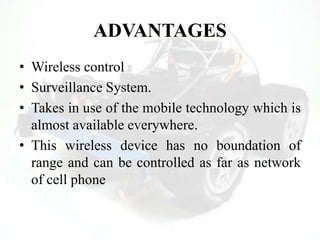

24. ADVANTAGES
• Wireless control
• Surveillance System.
• Takes in use of the mobile technology which is
almost available everywhere.
• This wireless device has no boundation of
range and can be controlled as far as network
of cell phone

25. DISADVANTAGES
• Cell phone bill.
• Mobile batteries drain out early so charging
problem.
• Not flexible with all cell phones as only a
particular cell phone whose earpiece is
attached can only be used.

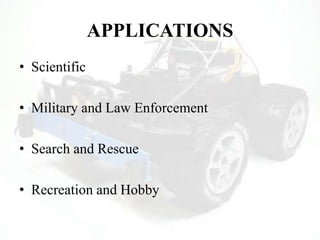

26. APPLICATIONS
• Scientific
• Military and Law Enforcement
• Search and Rescue
• Recreation and Hobby

27. FUTURE SCOPE
• Password Protection
• Alarm-Phone Dialer
• Adding a Camera

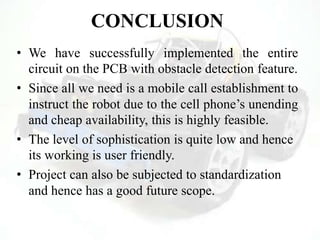

28. CONCLUSION
• We have successfully implemented the entire
circuit on the PCB with obstacle detection feature.
• Since all we need is a mobile call establishment to
instruct the robot due to the cell phone‟s unending
and cheap availability, this is highly feasible.
• The level of sophistication is quite low and hence
its working is user friendly.
• Project can also be subjected to standardization
and hence has a good future scope.

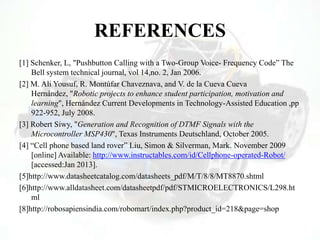

29. REFERENCES
[1] Schenker, L, "Pushbutton Calling with a Two-Group Voice- Frequency Code” The
Bell system technical journal, vol 14,no. 2, Jan 2006.
[2] M. Ali Yousuf, R. Montúfar Chaveznava, and V. de la Cueva Cueva
Hernández, "Robotic projects to enhance student participation, motivation and
learning", Hernández Current Developments in Technology-Assisted Education ,pp
922-952, July 2008.
[3] Robert Siwy, "Generation and Recognition of DTMF Signals with the
Microcontroller MSP430", Texas Instruments Deutschland, October 2005.
[4] “Cell phone based land rover” Liu, Simon & Silverman, Mark. November 2009
[online] Available: http://www.instructables.com/id/Cellphone-operated-Robot/
[accessed:Jan 2013].
[5]http://www.datasheetcatalog.com/datasheets_pdf/M/T/8/8/MT8870.shtml
[6]http://www.alldatasheet.com/datasheetpdf/pdf/STMICROELECTRONICS/L298.ht
ml
[8]http://robosapiensindia.com/robomart/index.php?product_id=218&page=shop
