1. Quality Training
#3
Project Induction Program
February 11, 2016
Quality Department1
Session-18

2. “Good Morning”
&
Welcome to All !
AKo/EIt

3. Project Induction Program
New Team Members
AKo/EIt
To

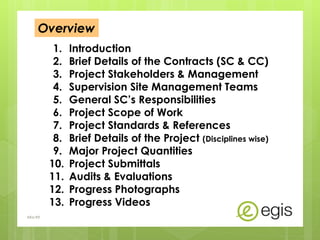

4. Overview
1. Introduction
2. Brief Details of the Contracts (SC & CC)
3. Project Stakeholders & Management
4. Supervision Site Management Teams
5. General SC’s Responsibilities
6. Project Scope of Work
7. Project Standards & References
8. Brief Details of the Project (Disciplines wise)
9. Major Project Quantities
10. Project Submittals
11. Audits & Evaluations

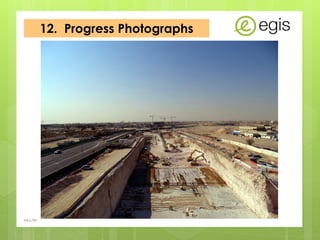

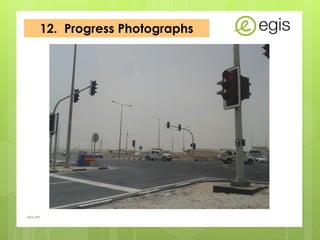

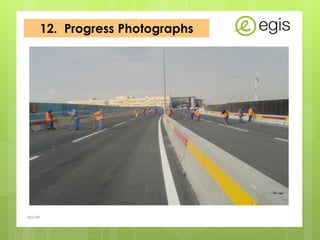

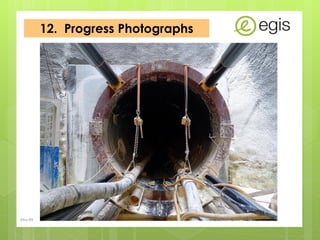

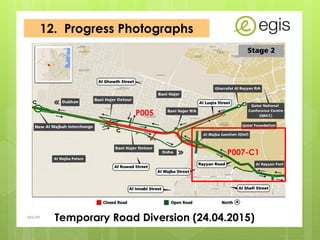

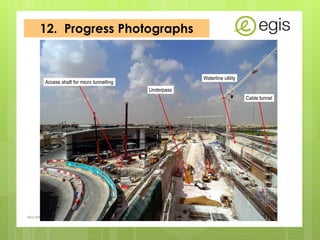

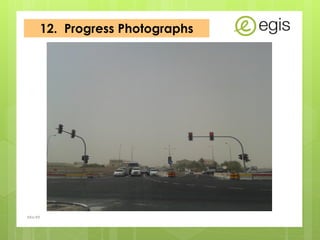

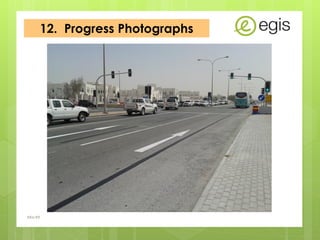

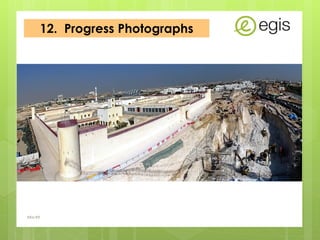

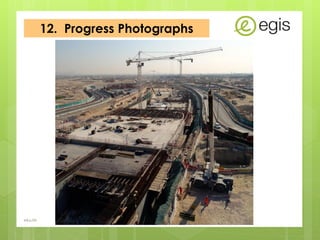

12. Progress Photographs
13. Progress Videos
AKo/EIt

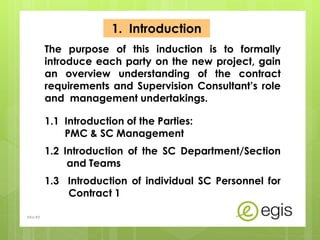

5. 1. Introduction
The purpose of this induction is to formally
introduce each party on the new project, gain
an overview understanding of the contract
requirements and Supervision Consultant’s role
and management undertakings.
1.1 Introduction of the Parties:
PMC & SC Management
1.2 Introduction of the SC Department/Section
and Teams
1.3 Introduction of individual SC Personnel for
Contract 1
AKo/EIt

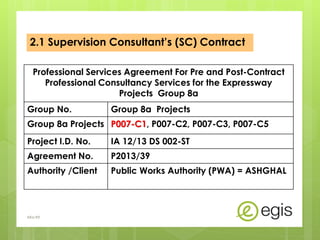

6. 2.1 Supervision Consultant’s (SC) Contract
Professional Services Agreement For Pre and Post-Contract
Professional Consultancy Services for the Expressway
Projects Group 8a
Group No. Group 8a Projects
Group 8a Projects P007-C1, P007-C2, P007-C3, P007-C5
Project I.D. No. IA 12/13 DS 002-ST
Agreement No. P2013/39
Authority /Client Public Works Authority (PWA) = ASHGHAL
AKo/EIt

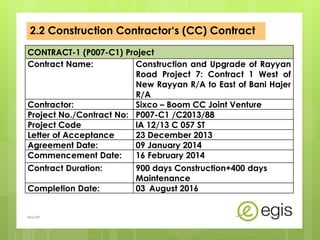

7. 2.2 Construction Contractor‘s (CC) Contract
CONTRACT-1 (P007-C1) Project
Contract Name: Construction and Upgrade of Rayyan
Road Project 7: Contract 1 West of
New Rayyan R/A to East of Bani Hajer
R/A
Contractor: Sixco – Boom CC Joint Venture
Project No./Contract No: P007-C1 /C2013/88
Project Code lA 12/13 C 057 ST
Letter of Acceptance 23 December 2013
Agreement Date: 09 January 2014
Commencement Date: 16 February 2014
Contract Duration: 900 days Construction+400 days
Maintenance
Completion Date: 03 August 2016
AKo/EIt

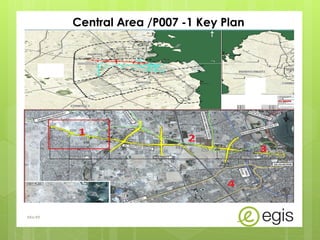

8. Central Area /P007 -1 Key Plan
AKo/EIt

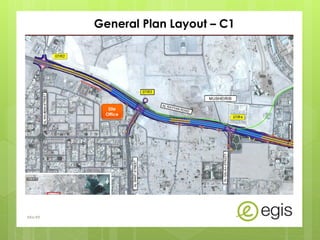

9. General Plan Layout – C1
AKo/EIt
Site
Office

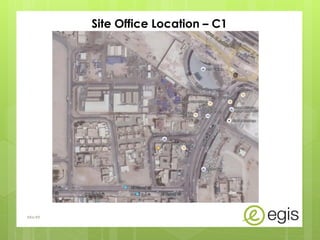

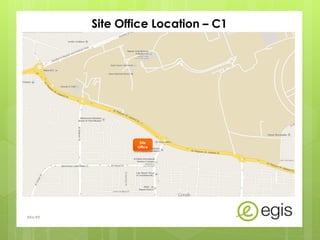

10. Site Office Location – C1
AKo/EIt
Site
Office
Site
Office

11. Site Office Location – C1
AKo/EIt

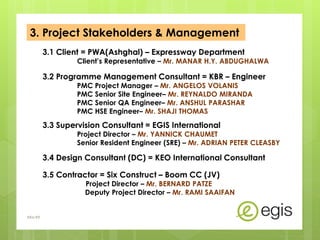

12. 3. Project Stakeholders & Management
3.1 Client = PWA(Ashghal) – Expressway Department
Client’s Representative – Mr. MANAR H.Y. ABDUGHALWA
3.2 Programme Management Consultant = KBR – Engineer
PMC Project Manager – Mr. ANGELOS VOLANIS
PMC Senior Site Engineer– Mr. REYNALDO MIRANDA
PMC Senior QA Engineer– Mr. ANSHUL PARASHAR
PMC HSE Engineer– Mr. SHAJI THOMAS
3.3 Supervision Consultant = EGIS International
Project Director – Mr. YANNICK CHAUMET
Senior Resident Engineer (SRE) – Mr. ADRIAN PETER CLEASBY
3.4 Design Consultant (DC) = KEO International Consultant
3.5 Contractor = Six Construct – Boom CC (JV)
Project Director – Mr. BERNARD PATZE
Deputy Project Director – Mr. RAMI SAAIFAN
AKo/EIt

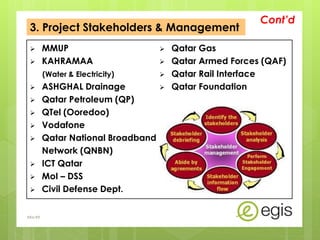

13.  MMUP
 KAHRAMAA
(Water & Electricity)
 ASHGHAL Drainage
 Qatar Petroleum (QP)
 QTel (Ooredoo)
 Vodafone
 Qatar National Broadband
Network (QNBN)
 ICT Qatar
 MoI – DSS
 Civil Defense Dept.
 Qatar Gas
 Qatar Armed Forces (QAF)
 Qatar Rail Interface
 Qatar Foundation
3. Project Stakeholders & Management
Cont’d
AKo/EIt

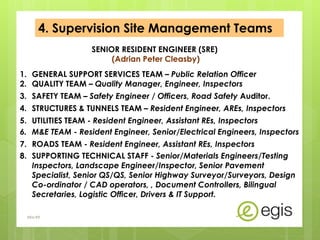

14. 4. Supervision Site Management Teams
SENIOR RESIDENT ENGINEER (SRE)
(Adrian Peter Cleasby)
1. GENERAL SUPPORT SERVICES TEAM – Public Relation Officer
2. QUALITY TEAM – Quality Manager, Engineer, Inspectors
3. SAFETY TEAM – Safety Engineer / Officers, Road Safety Auditor.
4. STRUCTURES & TUNNELS TEAM – Resident Engineer, AREs, Inspectors
5. UTILITIES TEAM - Resident Engineer, Assistant REs, Inspectors
6. M&E TEAM - Resident Engineer, Senior/Electrical Engineers, Inspectors
7. ROADS TEAM - Resident Engineer, Assistant REs, Inspectors
8. SUPPORTING TECHNICAL STAFF - Senior/Materials Engineers/Testing
Inspectors, Landscape Engineer/Inspector, Senior Pavement
Specialist, Senior QS/QS, Senior Highway Surveyor/Surveyors, Design
Co-ordinator / CAD operators, , Document Controllers, Bilingual
Secretaries, Logistic Officer, Drivers & IT Support.
AKo/EIt

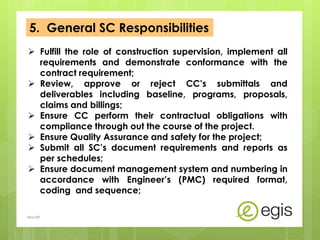

15. 5. General SC Responsibilities
 Fulfill the role of construction supervision, implement all
requirements and demonstrate conformance with the
contract requirement;
 Review, approve or reject CC’s submittals and
deliverables including baseline, programs, proposals,
claims and billings;
 Ensure CC perform their contractual obligations with
compliance through out the course of the project.
 Ensure Quality Assurance and safety for the project;
 Submit all SC’s document requirements and reports as
per schedules;
 Ensure document management system and numbering in
accordance with Engineer’s (PMC) required format,
coding and sequence;
AKo/EIt

16. 5. General SC Responsibilities
 Ensure CC’s follow their procedures, Method Statements,
ITPs including materials procurements and installations
with quality workmanship;
 Ensure CC’s engage with approved Sub-cons, suppliers
including plants & laboratories that could deliver the
technical, document and workmanship requirements for
the project;
 Ensure required sampling, testing and results for all
permanent construction materials;
 Maintain reliability of Plants, Labs, measuring & testing
equipment;
 Response to all types of inspection request (IR) &
Material Delivery to Site (MDS);
Cont’d
AKo/EIt

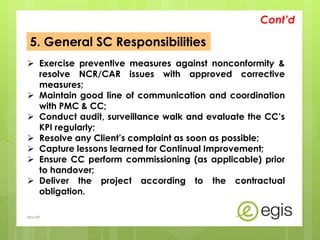

17. 5. General SC Responsibilities
 Exercise preventive measures against nonconformity &
resolve NCR/CAR issues with approved corrective
measures;
 Maintain good line of communication and coordination
with PMC & CC;
 Conduct audit, surveillance walk and evaluate the CC’s
KPI regularly;
 Resolve any Client’s complaint as soon as possible;
 Capture lessons learned for Continual Improvement;
 Ensure CC perform commissioning (as applicable) prior
to handover;
 Deliver the project according to the contractual
obligation.
Cont’d
AKo/EIt

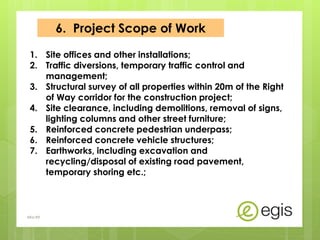

18. 6. Project Scope of Work
1. Site offices and other installations;
2. Traffic diversions, temporary traffic control and
management;
3. Structural survey of all properties within 20m of the Right
of Way corridor for the construction project;
4. Site clearance, including demolitions, removal of signs,
lighting columns and other street furniture;
5. Reinforced concrete pedestrian underpass;
6. Reinforced concrete vehicle structures;
7. Earthworks, including excavation and
recycling/disposal of existing road pavement,
temporary shoring etc.;
AKo/EIt

19. 8. Surface water drainage, including gullies, connections
to existing storm sewers and soak-ways;
9. Construction of kerbs, footways and paved areas;
10. Construction of high specification flexible pavement;
11. Directional and other traffic signage and road markings;
12. Provision of sign gantries;
13. Traffic signals (design and build element);
14. Extensive high specification hard and soft landscaping,
including varied paving, architectural features, arts
cape, tree planting, irrigation, and streetscape furniture;
Cont’d
6. Project Scope of Work
AKo/EIt

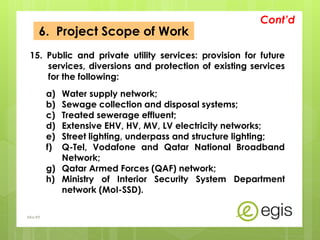

20. 6. Project Scope of Work
15. Public and private utility services: provision for future
services, diversions and protection of existing services
for the following:
a) Water supply network;
b) Sewage collection and disposal systems;
c) Treated sewerage effluent;
d) Extensive EHV, HV, MV, LV electricity networks;
e) Street lighting, underpass and structure lighting;
f) Q-Tel, Vodafone and Qatar National Broadband
Network;
g) Qatar Armed Forces (QAF) network;
h) Ministry of Interior Security System Department
network (MoI-SSD).
Cont’d
AKo/EIt

21. 7. Project Standards & References
1. Group 8a, Professional Services Agreement (P007-C1)
2. Qatar Construction Standards / Specifications 2010
3. Interim Advice Notes -IANs (Amendments to QCS 2010)
4. Contract Drawings / IFC Plans (Rev.CA, CB, CC & CD)
5. Supervision Consultant Quality Requirements Specification:
EXW-GENL- 0000-QM-KBR-SS-00015-003 Rev. A2;
6. Contractor’s Contract No. C2013/88
(Tender# MRPSC/008/2012-2013/L)
7. Project Quality Plan (PQP):
EXW-P007-0101-QM-EGI-PL-00001 Rev.CC;
8. ISO 9001:2008 Quality Management System Requirements.
9. Standard Document Numbering and Coding:
EXW-GENL-0000-DM-KBR-SS-00004-001 Rev.22
AKo/EIt

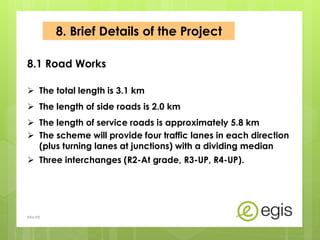

22.  The total length is 3.1 km
 The length of side roads is 2.0 km
 The length of service roads is approximately 5.8 km
 The scheme will provide four traffic lanes in each direction
(plus turning lanes at junctions) with a dividing median
 Three interchanges (R2-At grade, R3-UP, R4-UP).
8.1 Road Works
8. Brief Details of the Project
AKo/EIt

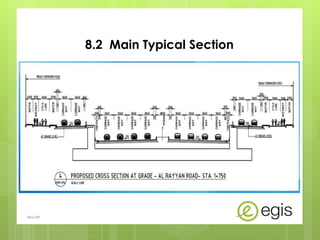

23. 8.2 Main Typical Section
AKo/EIt

24. 8.3 Road Works:
Junction R2 (currently named Q-Tel R/A)
Al Rayyan Road/Al Wajbah Street Interchange: at grade right- in/right-out
junction with Al Rayyan Road free flow at grade
AKo/EIt

25. 8.4 Structural Works:
Junction R3 (currently named Al Shafi R/A)
AI Rayyan Road/AI Salam Street Interchange: Two level interchange with Al
Rayyan Road free flow beneath a signalized junction and a free flow ramp
for northbound to westbound traffic.
AKo/EIt

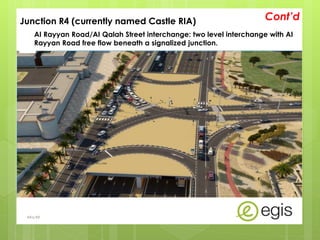

26. Junction R4 (currently named Castle RIA)
AI Rayyan Road/AI Qalah Street interchange: two level interchange with AI
Rayyan Road free flow beneath a signalized junction.
Cont’d
AKo/EIt

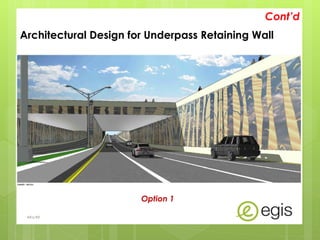

27. Architectural Design for Underpass Retaining Wall
Cont’d
Option 1
AKo/EIt

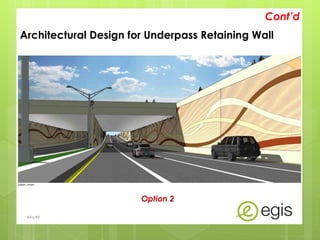

28. Architectural Design for Underpass Retaining Wall
Cont’d
Option 2
AKo/EIt

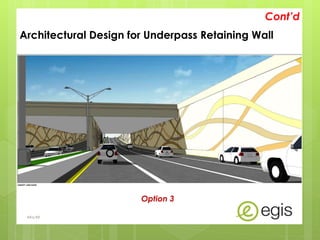

29. Architectural Design for Underpass Retaining Wall
Cont’d
Option 3
AKo/EIt

30. 8.5 Typical Landscaping
(Footpath, Cycle-path & Bus Stop)
AKo/EIt

31. Public and private utility services (provision for future services,
diversions and protection of existing services) for the following:
Storm water Drainage works with 4.8 km Micro-Tunnel/3mDia
Water supply network
Electricity works with 1.2 km Power Galleries & 6 Substations
Street lighting
Telecommunications Works
Qatar Armed Forces (QAF) network
MoI – SSD (Security System Department)
ITS Works
Waste Water and TSE Works
8.6 Utilities Works
AKo/EIt

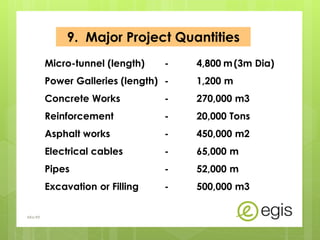

32. Micro-tunnel (length) - 4,800 m(3m Dia)
Power Galleries (length) - 1,200 m
Concrete Works - 270,000 m3
Reinforcement - 20,000 Tons
Asphalt works - 450,000 m2
Electrical cables - 65,000 m
Pipes - 52,000 m
Excavation or Filling - 500,000 m3
9. Major Project Quantities
AKo/EIt

33.  Project Organizational Structure
 Project Management Plan (PMP)
 Project Quality Plan (PQP) & Procedures
 Project Specific Logistic Plan
 HSE Plan & Procedures
 HSE Reports (Weekly/Monthly Statistics, Audit, Incident)
 Monthly Progress Report
 Quality Reports (Quality-Monthly , Questionnaire, Audit)
 Daily Report
 Key Performance Indicators (KPI) Evaluation Report
 NCR Register and Action log
 SC’s Claims & Billings.
10. Project Submittals
AKo/EIt

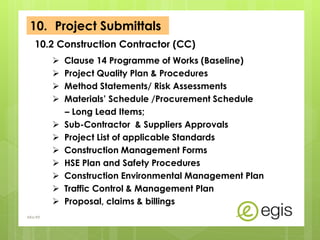

10.1 Supervision Consultant (SC)

34.  Clause 14 Programme of Works (Baseline)
 Project Quality Plan & Procedures
 Method Statements/ Risk Assessments
 Materials’ Schedule /Procurement Schedule
– Long Lead Items;
 Sub-Contractor & Suppliers Approvals
 Project List of applicable Standards
 Construction Management Forms
 HSE Plan and Safety Procedures
 Construction Environmental Management Plan
 Traffic Control & Management Plan
 Proposal, claims & billings
10.2 Construction Contractor (CC)
AKo/EIt

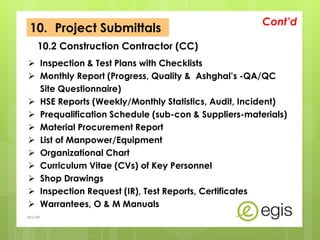

10. Project Submittals

35.  Inspection & Test Plans with Checklists
 Monthly Report (Progress, Quality & Ashghal’s -QA/QC
Site Questionnaire)
 HSE Reports (Weekly/Monthly Statistics, Audit, Incident)
 Prequalification Schedule (sub-con & Suppliers-materials)
 Material Procurement Report
 List of Manpower/Equipment
 Organizational Chart
 Curriculum Vitae (CVs) of Key Personnel
 Shop Drawings
 Inspection Request (IR), Test Reports, Certificates
 Warrantees, O & M Manuals
Cont’d
AKo/EIt
10.2 Construction Contractor (CC)
10. Project Submittals

36.  11.1 Types of Audits
11.1.1 Quality Assurance Audit
 Internal Audit – within SC Site Management Teams
 External (2nd Party) Audit – To CC , Sub-cons & Suppliers
 System Audit – Needed Plans, Procedures &
Management
 Compliance Audit – On System & process work activities
 Product Audit – On particular deliverable products
 Close-out Audit - to verify the preparation of deliverables
against contract requirements.
11.1.2 HSE Audit
11.1.3 Road Safety Audit
 11.2 Key Performance Indicators (KPI) Evaluation
11. Audit & Evaluations
AKo/EIt

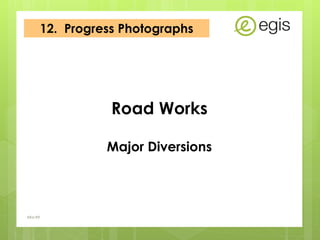

37. 12. Progress Photographs
AKo/EIt
Road Works
Major Diversions

38. 12. Progress Photographs
AKo/EIt
Temporary Road Diversion (26.12.2014)

39. 12. Progress Photographs
AKo/EIt

40. 12. Progress Photographs
AKo/EIt

41. 12. Progress Photographs
AKo/EIt

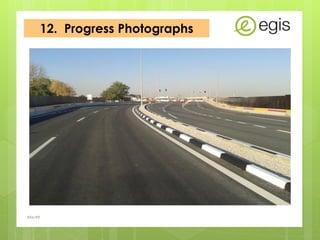

42. 12. Progress Photographs
AKo/EIt

43. 12. Progress Photographs
AKo/EIt

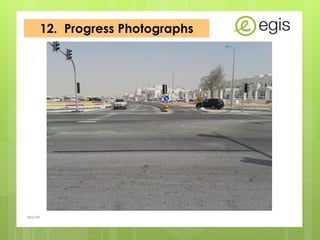

44. 12. Progress Photographs
AKo/EIt

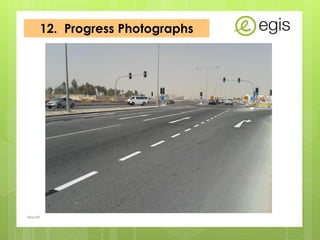

45. 12. Progress Photographs
AKo/EIt

46. 12. Progress Photographs
AKo/EIt
Temporary Road Diversion (24.04.2015)
P007-C1
P005

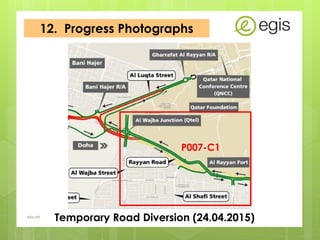

47. 12. Progress Photographs
AKo/EIt
Temporary Road Diversion (24.04.2015)
P007-C1

48. 12. Progress Photographs
AKo/EIt

49. 12. Progress Photographs
AKo/EIt

50. 12. Progress Photographs
AKo/EIt

51. 12. Progress Photographs
AKo/EIt
Cable Tunnel, Underpasses,
Diversions etc.

52. 12. Progress Photographs
AKo/EIt

53. 12. Progress Photographs
AKo/EIt

54. 12. Progress Photographs
AKo/EIt

55. 12. Progress Photographs
AKo/EIt

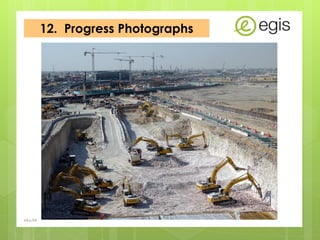

56. 12. Progress Photographs
AKo/EIt

57. 12. Progress Photographs
AKo/EIt

58. 12. Progress Photographs
AKo/EIt

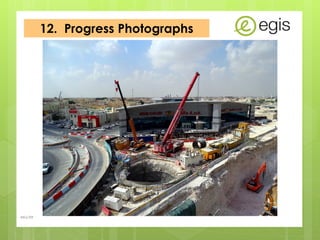

59. 12. Progress Photographs
AKo/EIt

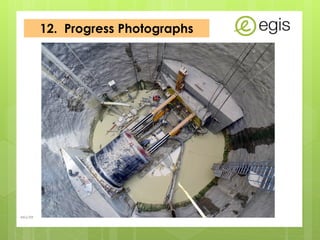

60. 12. Progress Photographs
AKo/EIt

61. 12. Progress Photographs
AKo/EIt

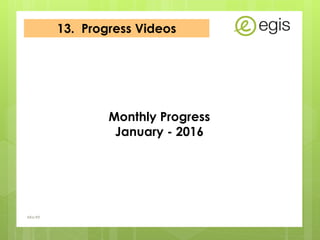

62. 13. Progress Videos
AKo/EIt
Monthly Progress
January - 2016

63. AKo/EIt

64. Thank you!
Presentation by
Quality Team @ C1
AKo/EIt
