Programmatic Bidding Data Streams & Druid
The document discusses programmatic bidding and the lifecycle of real-time bidding (RTB) in digital advertising, detailing each step from ad space creation to the auction process and outcomes. It introduces Druid, a fast, interactive data store for handling time-series data and emphasizes its efficient query architecture. Additionally, it highlights current job openings at the company and includes various resources and tools related to Druid usage.
More Related Content
Similar to Programmatic Bidding Data Streams & Druid
Programmatic Bidding Data Streams & Druid
- 1. 2015-12-03 Programmatic Bidding Data Streams& Druid Charles Allen
- 2. 2015-12-03 We Are Hiring! We’dlove to connect! Our current open positions are: Engineering Director, UI Engineer and Distributed Systems Engineer. We always have positions opening up so feel free to connect with Sarah Carter (our Head of Recruiting) for future openings - sarah.carter@metamarkets.com.

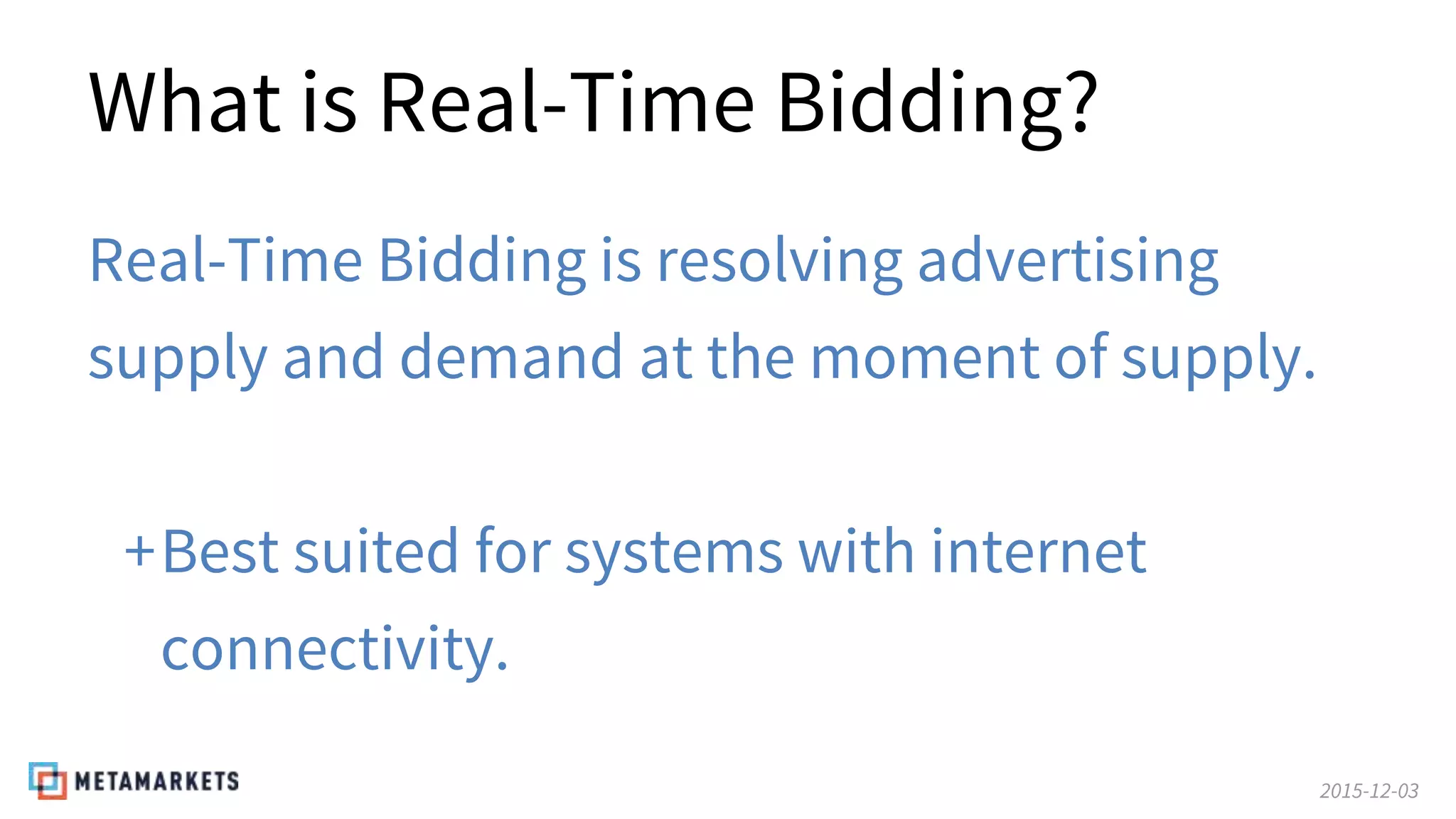

- 3. 2015-12-03 What is Real-TimeBidding? Real-Time Bidding is resolving advertising supply and demand at the moment of supply. +Best suited for systems with internet connectivity.

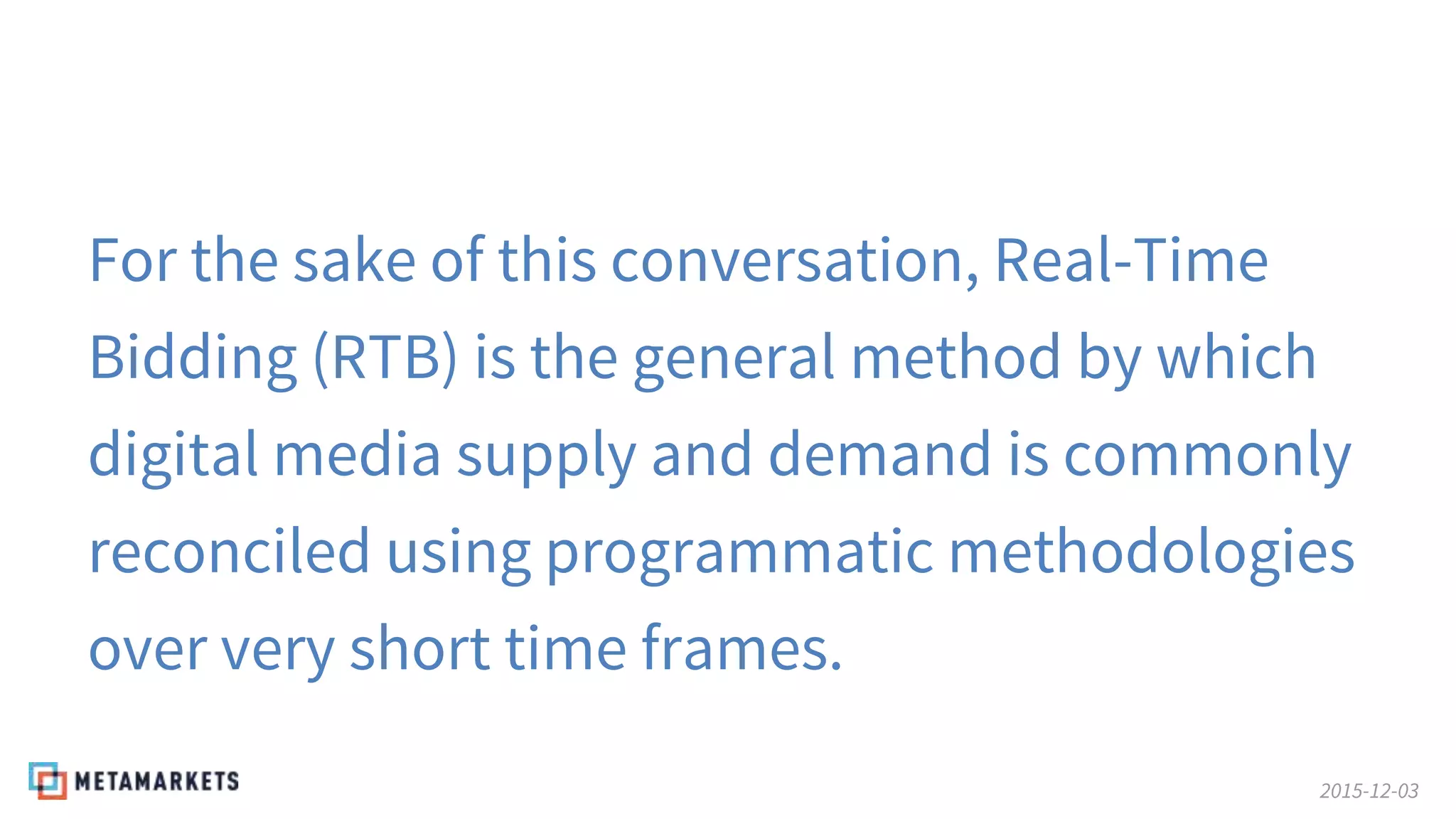

- 4. 2015-12-03 For the sakeof this conversation, Real-Time Bidding (RTB) is the general method by which digital media supply and demand is commonly reconciled using programmatic methodologies over very short time frames.

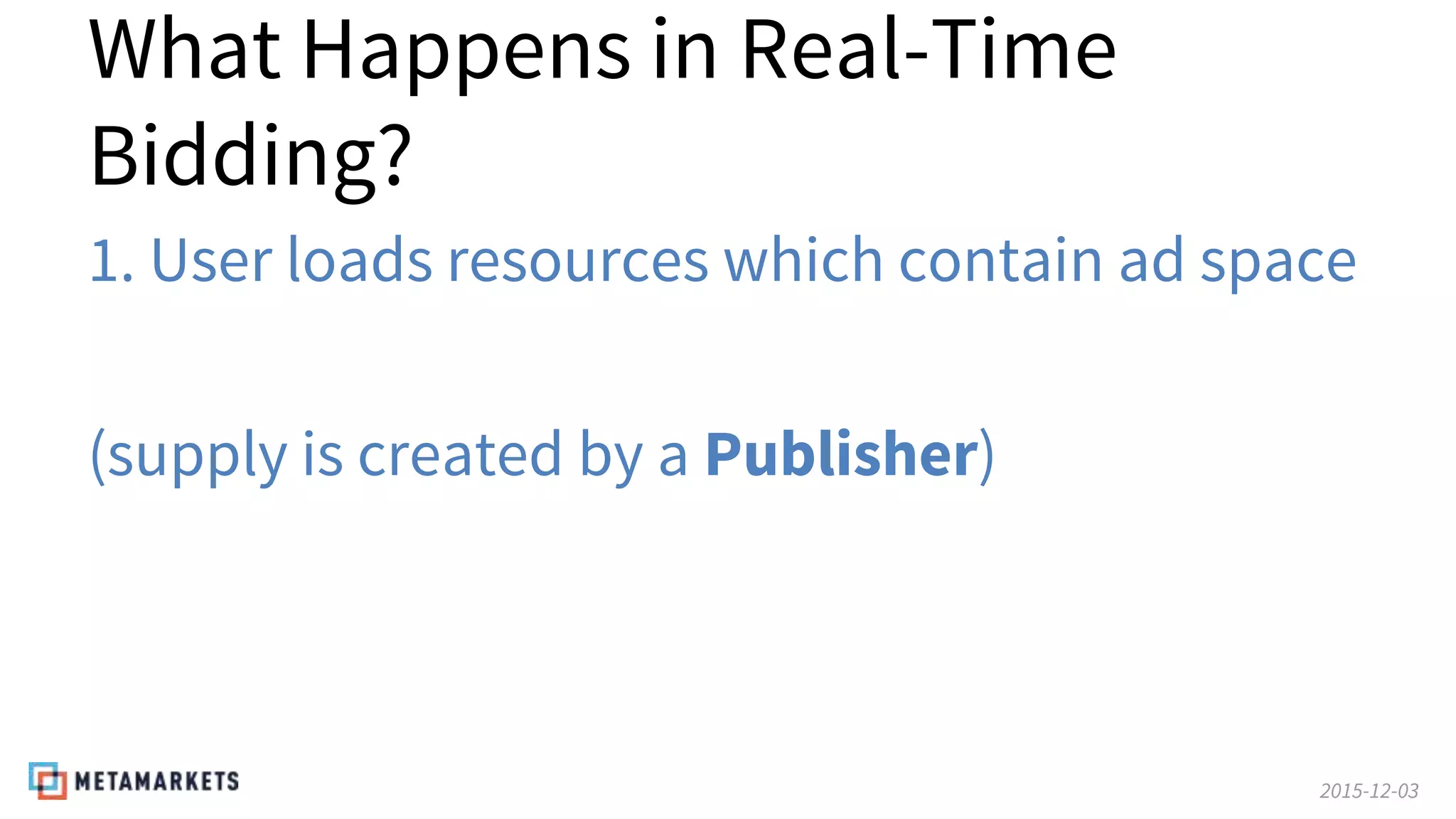

- 5. 2015-12-03 What Happens inReal-Time Bidding? 1. User loads resources which contain ad space (supply is created by a Publisher)

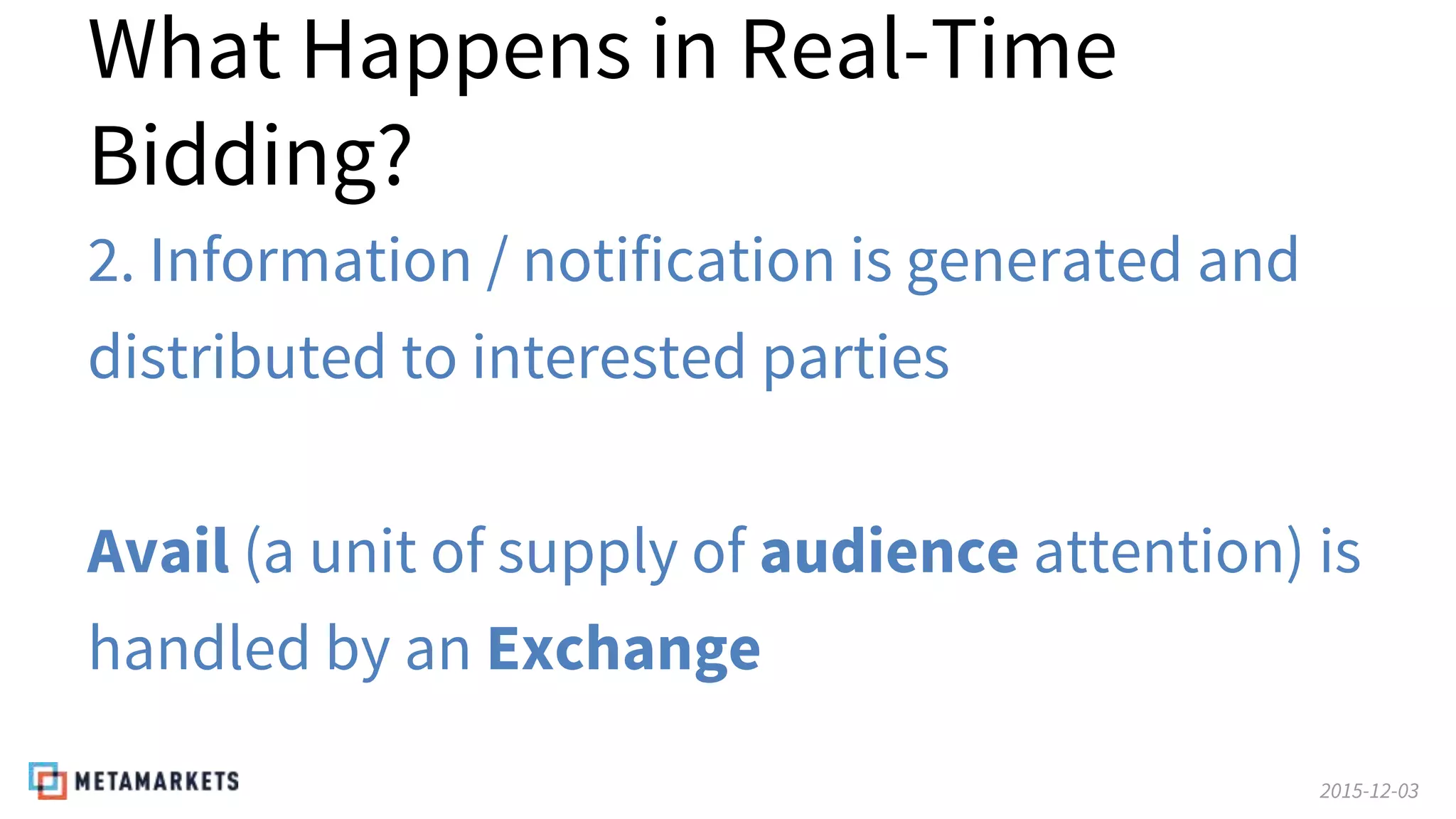

- 6. 2015-12-03 What Happens inReal-Time Bidding? 2. Information / notification is generated and distributed to interested parties Avail (a unit of supply of audience attention) is handled by an Exchange

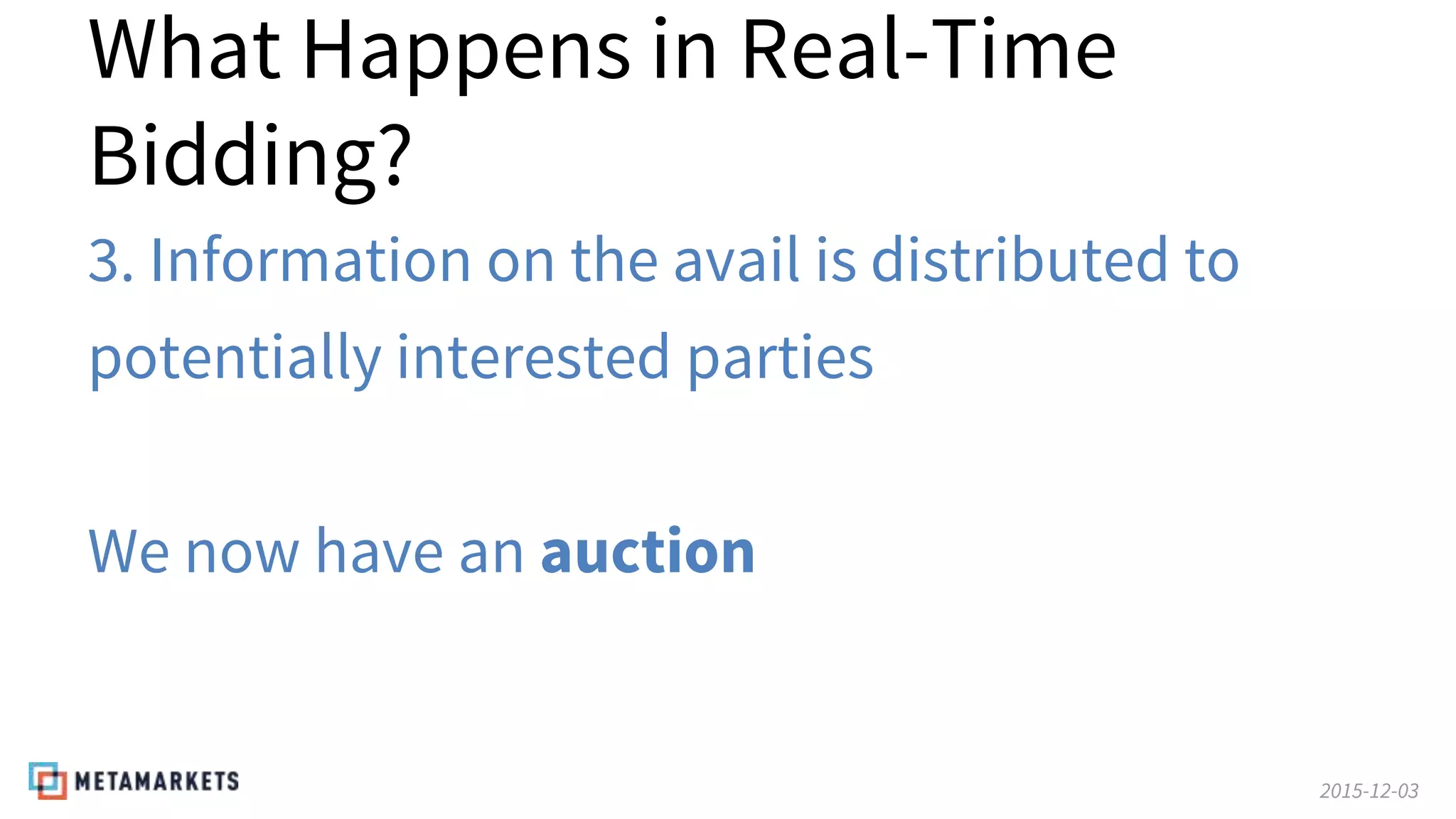

- 7. 2015-12-03 What Happens inReal-Time Bidding? 3. Information on the avail is distributed to potentially interested parties We now have an auction

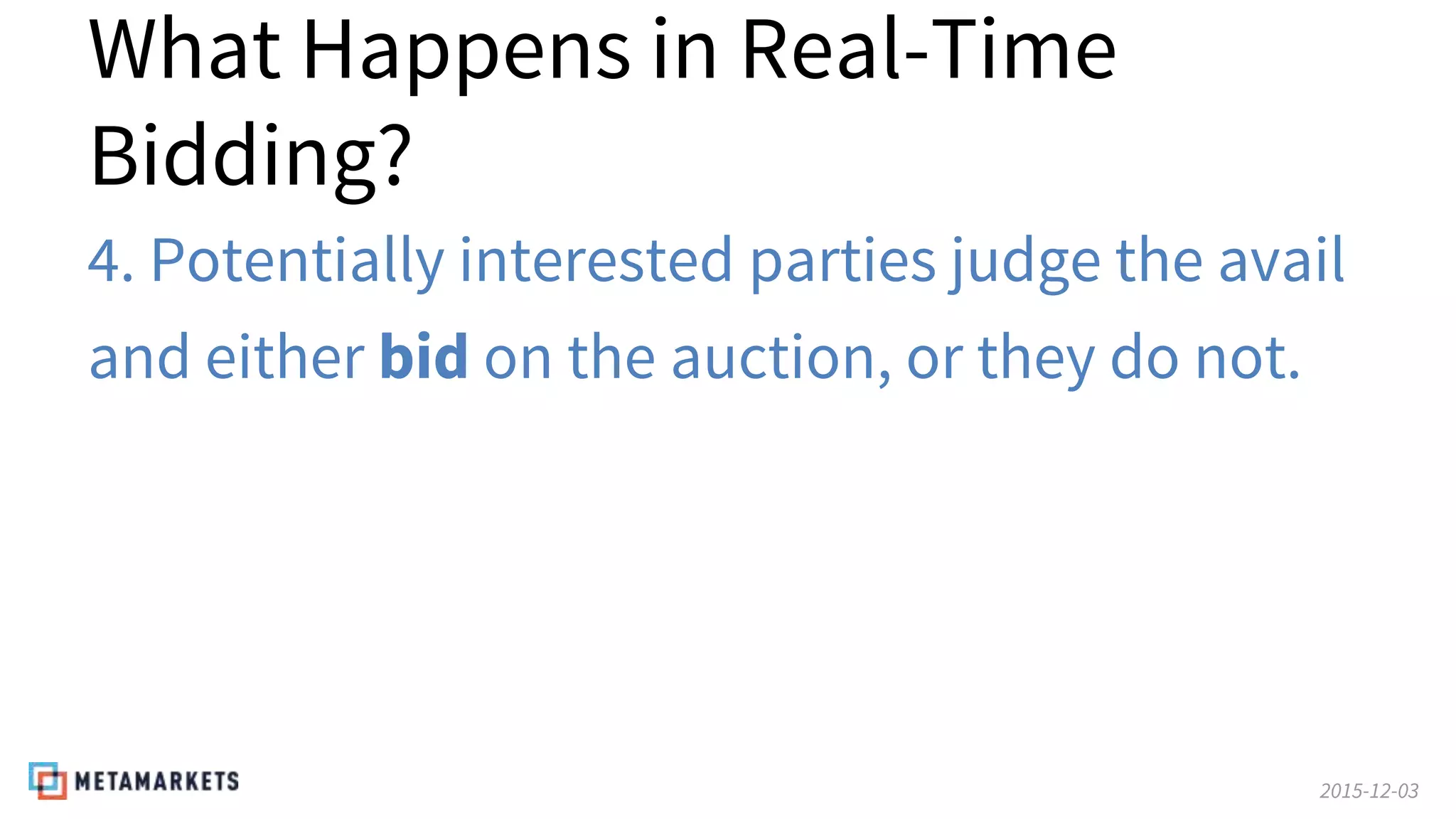

- 8. 2015-12-03 What Happens inReal-Time Bidding? 4. Potentially interested parties judge the avail and either bid on the auction, or they do not.

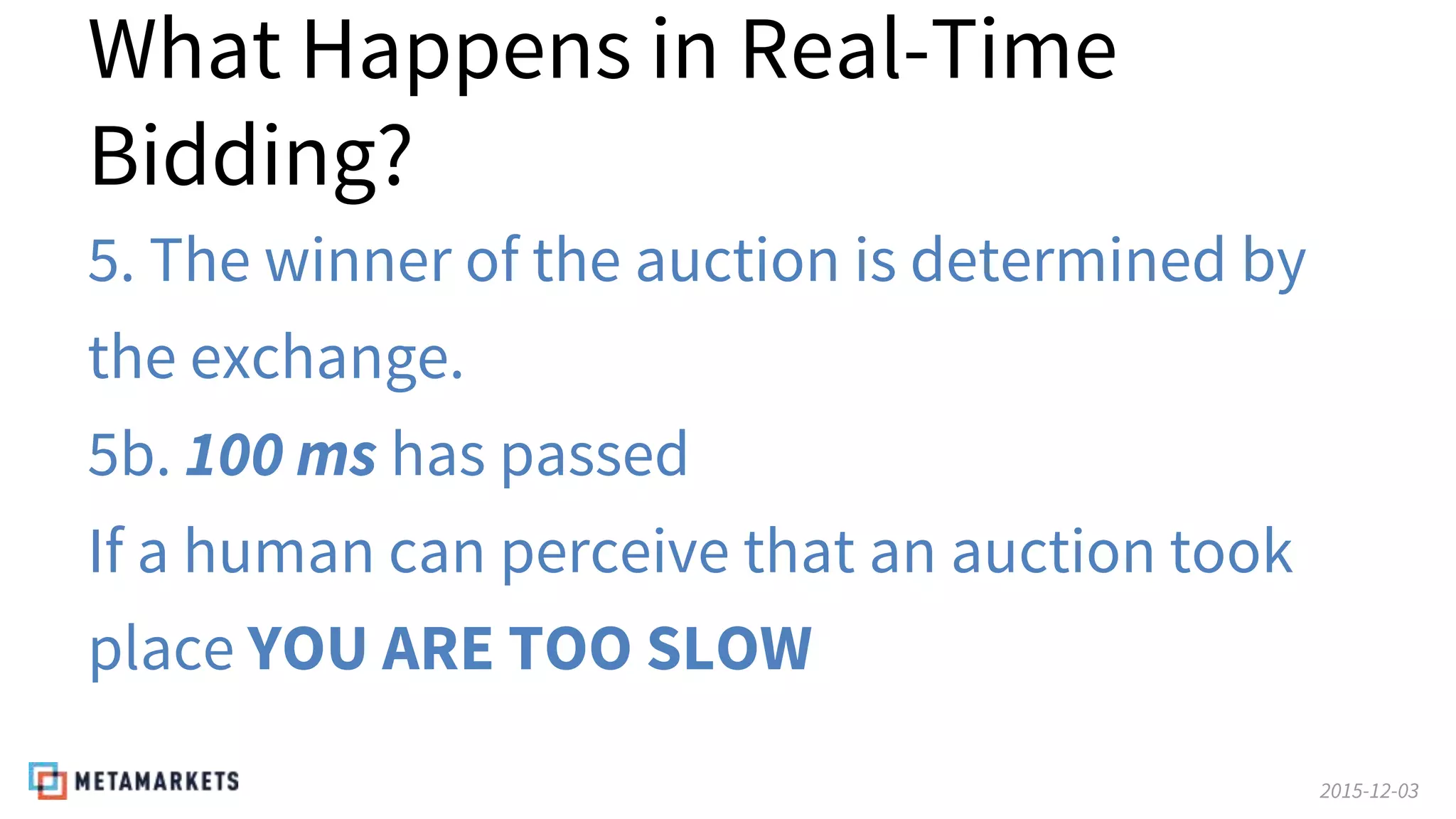

- 9. 2015-12-03 What Happens inReal-Time Bidding? 5. The winner of the auction is determined by the exchange. 5b. 100 ms has passed If a human can perceive that an auction took place YOU ARE TOO SLOW

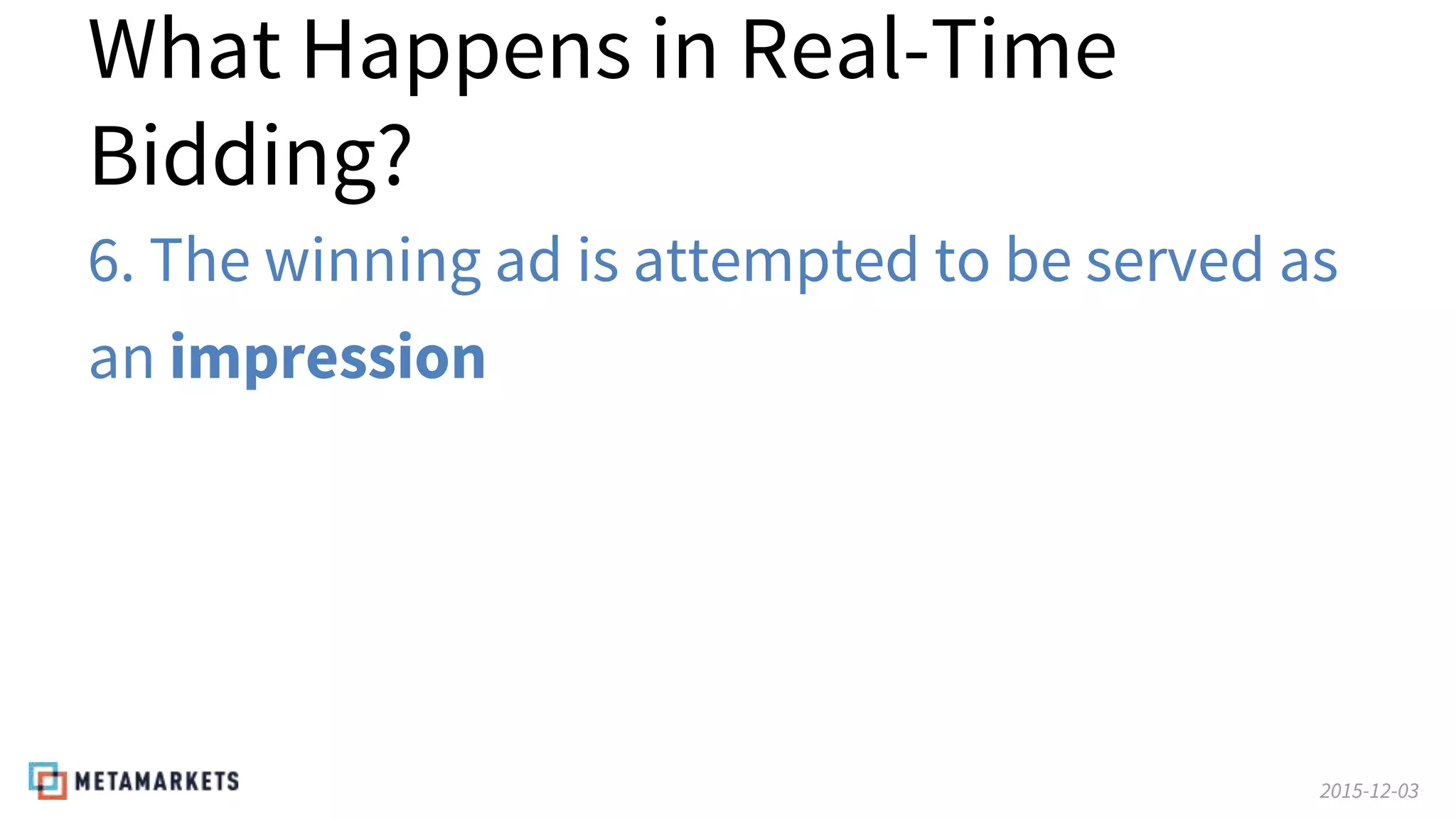

- 10. 2015-12-03 What Happens inReal-Time Bidding? 6. The winning ad is attempted to be served as an impression

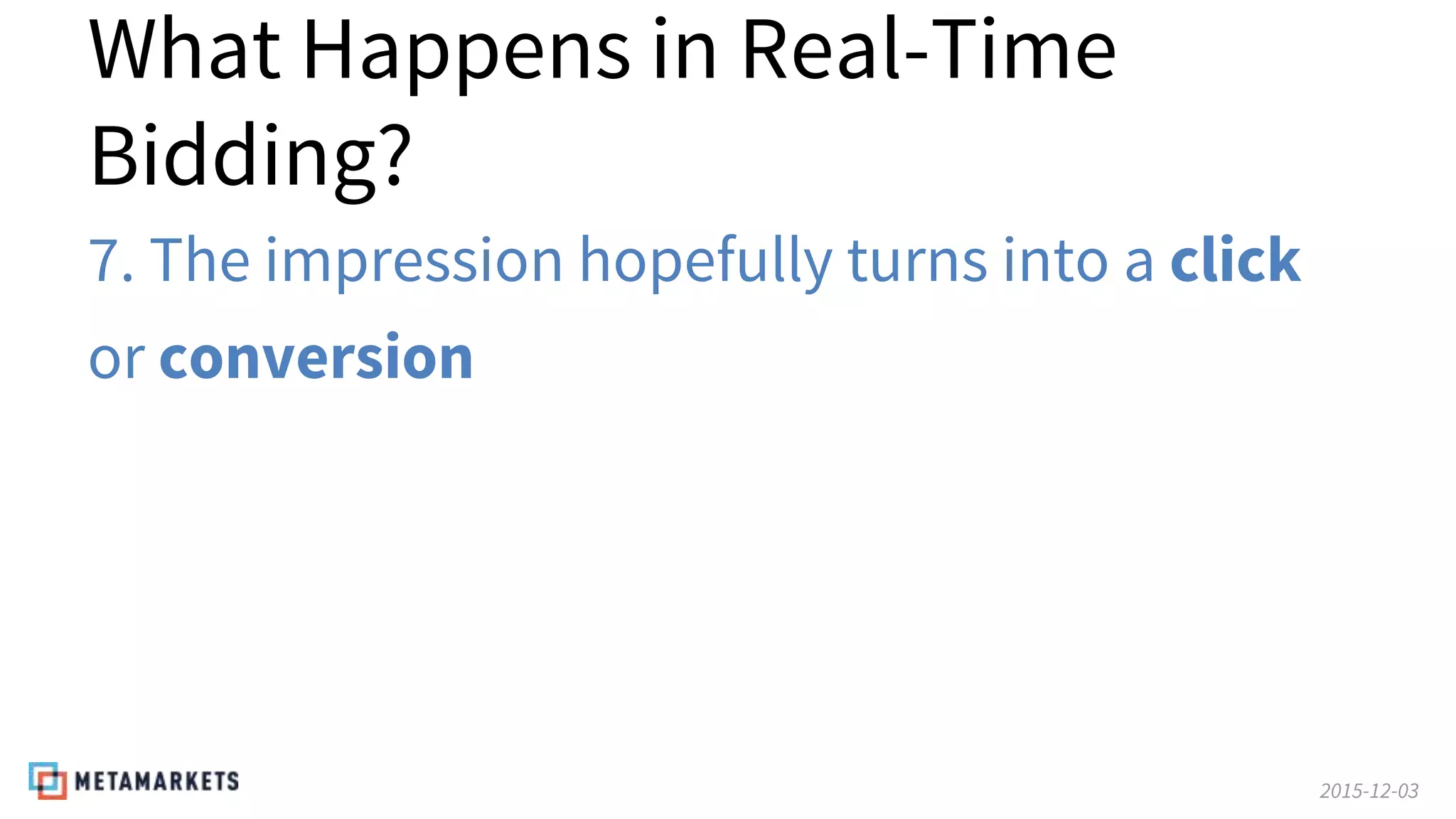

- 11. 2015-12-03 What Happens inReal-Time Bidding? 7. The impression hopefully turns into a click or conversion

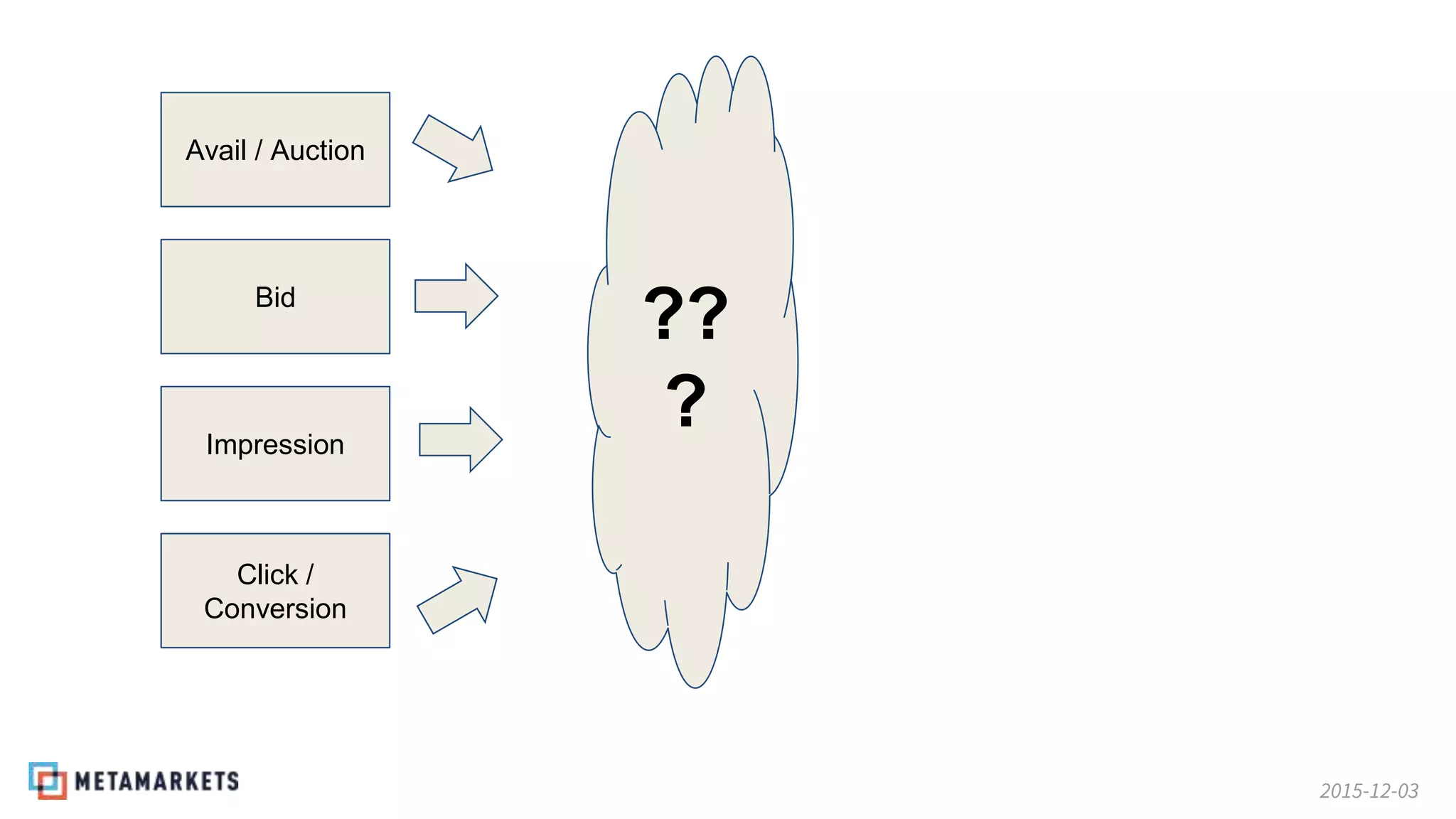

- 12. 2015-12-03 Avail / Auction Bid Impression Click/ Conversion ?? ?

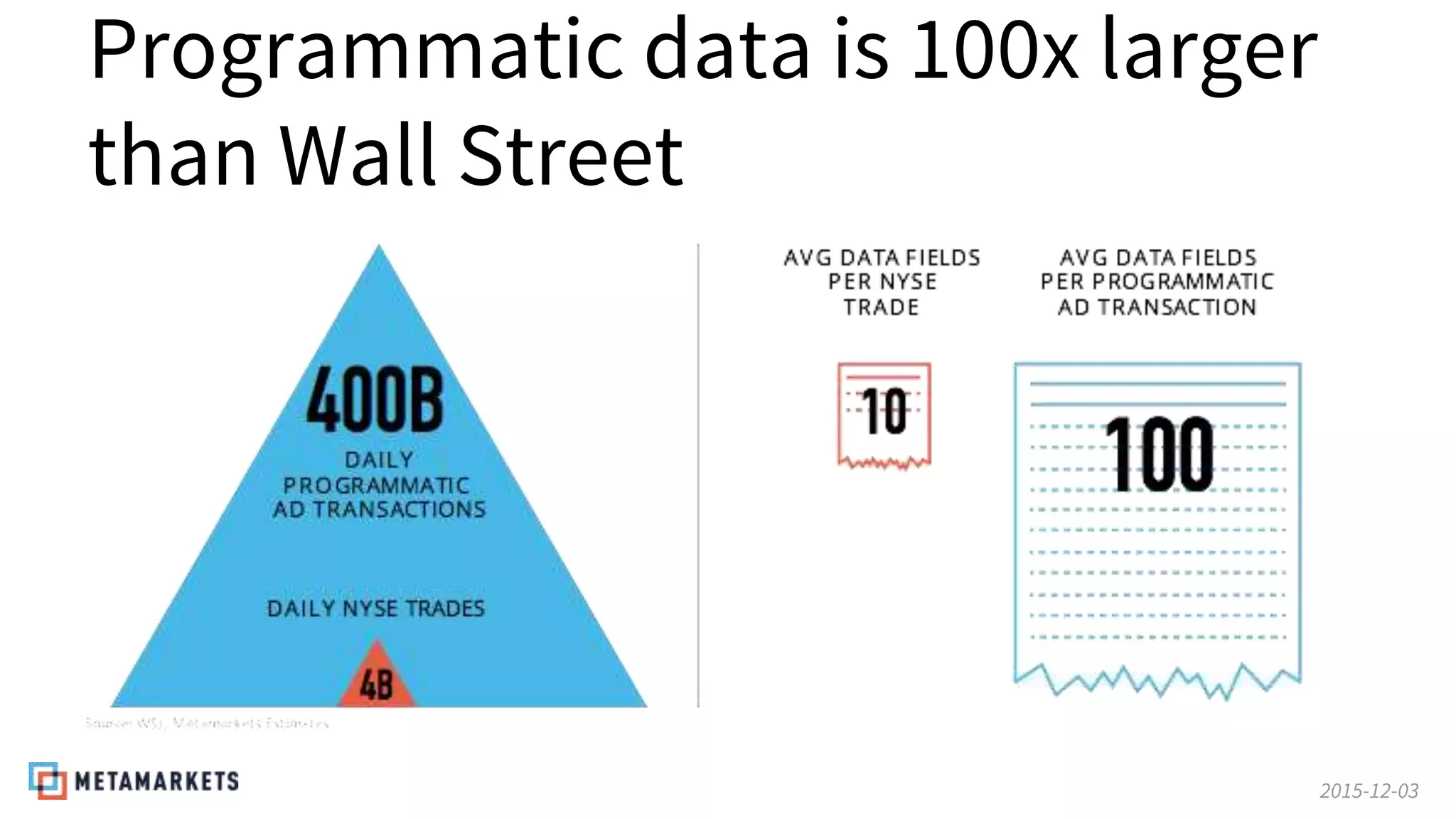

- 13. 2015-12-03 Programmatic data is100x larger than Wall Street

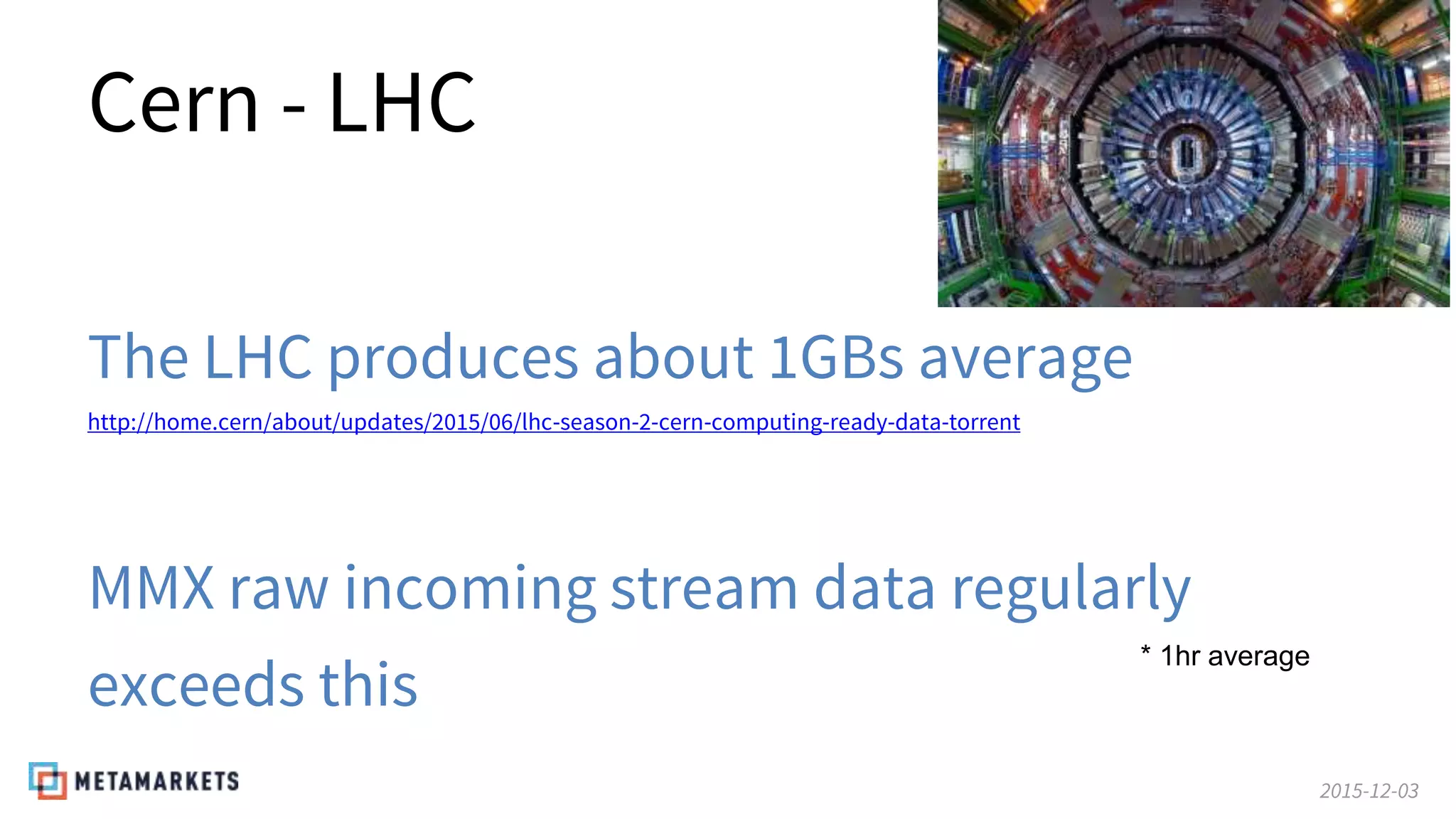

- 14. 2015-12-03 Cern - LHC TheLHC produces about 1GBs average http://home.cern/about/updates/2015/06/lhc-season-2-cern-computing-ready-data-torrent MMX raw incoming stream data regularly exceeds this * 1hr average

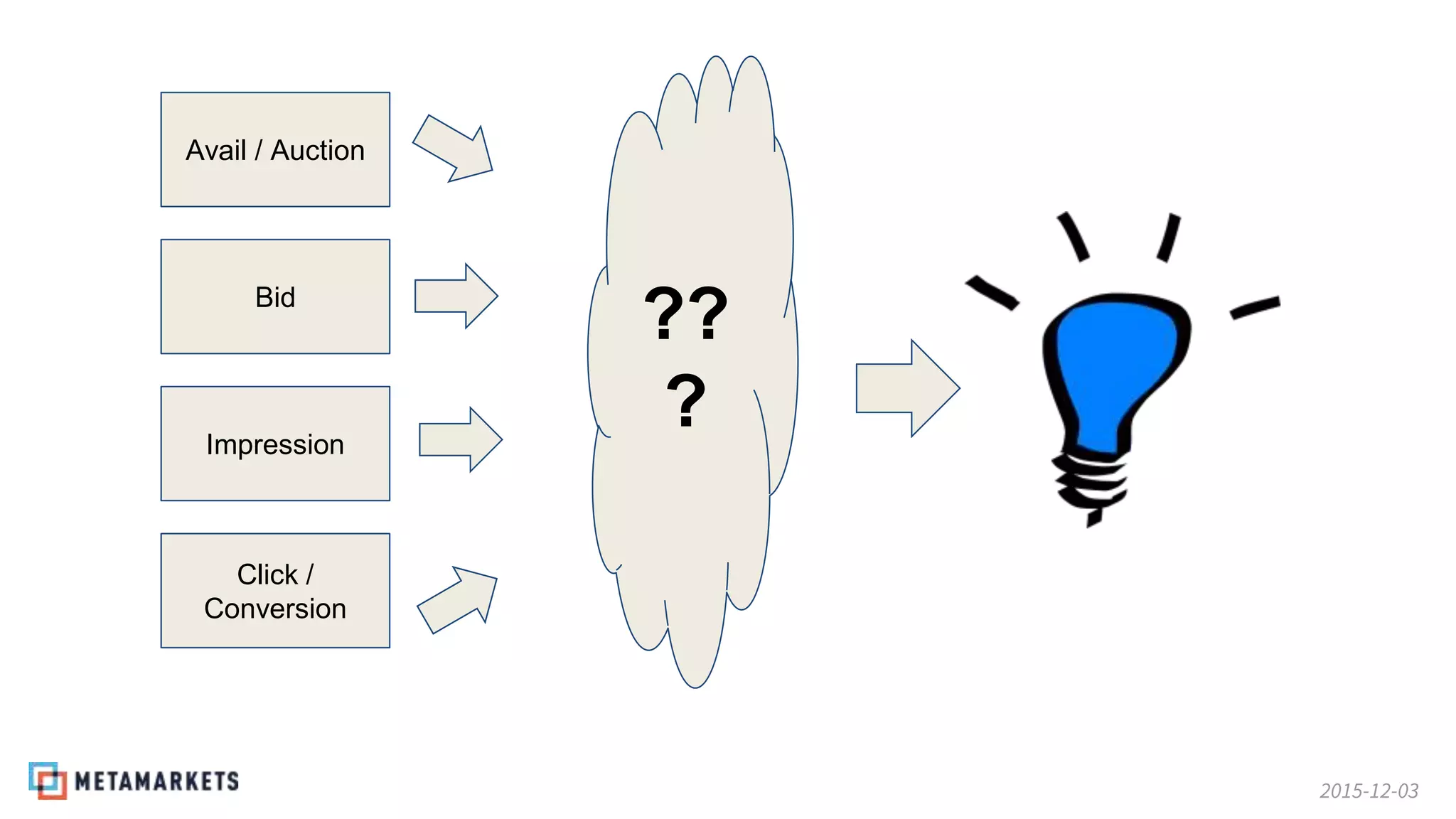

- 15. 2015-12-03 Avail / Auction Bid Impression Click/ Conversion ?? ?

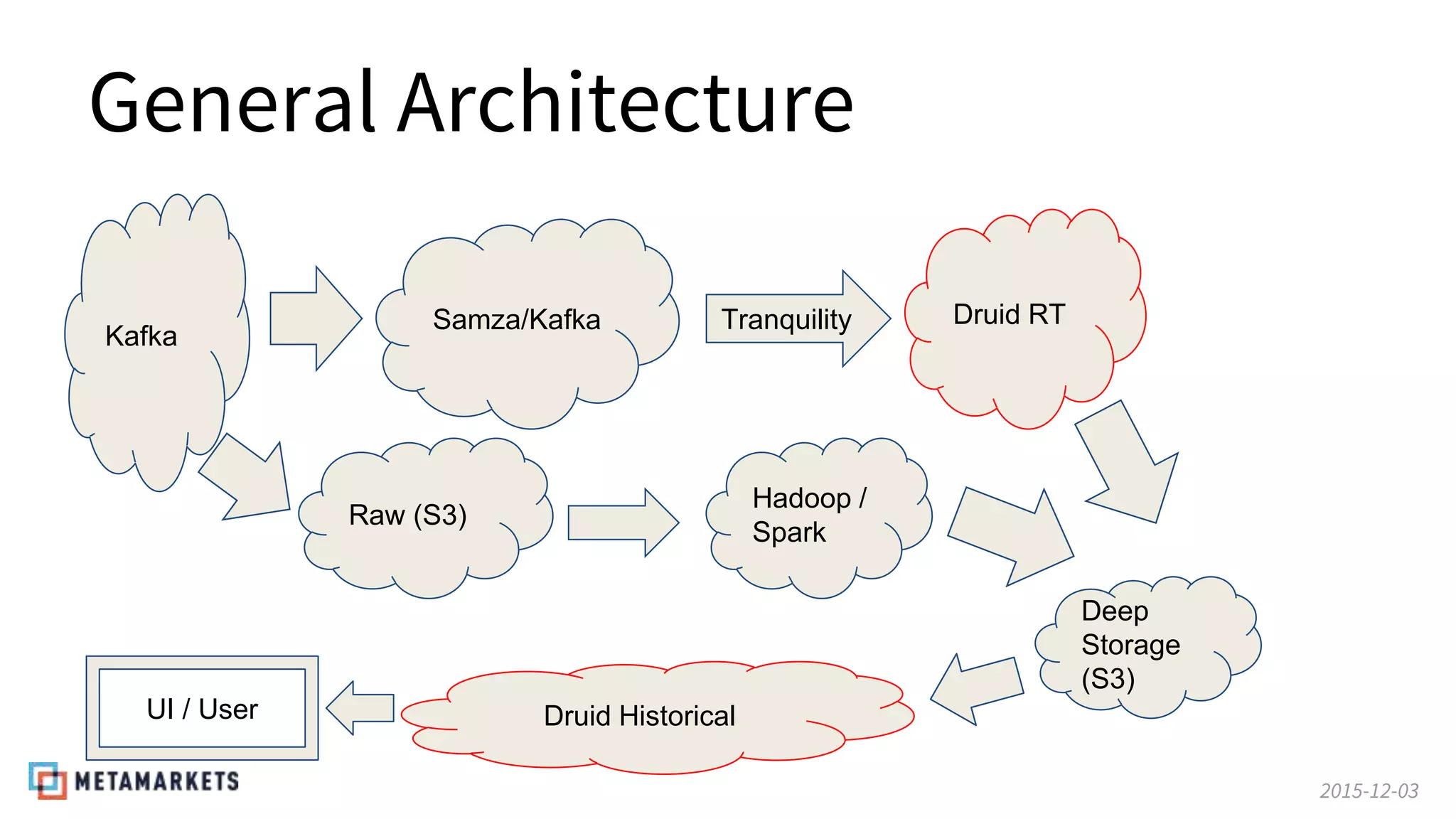

- 16. 2015-12-03 General Architecture Kafka Samza/Kafka DruidRTTranquility Raw (S3) Hadoop / Spark Deep Storage (S3) Druid HistoricalUI / User

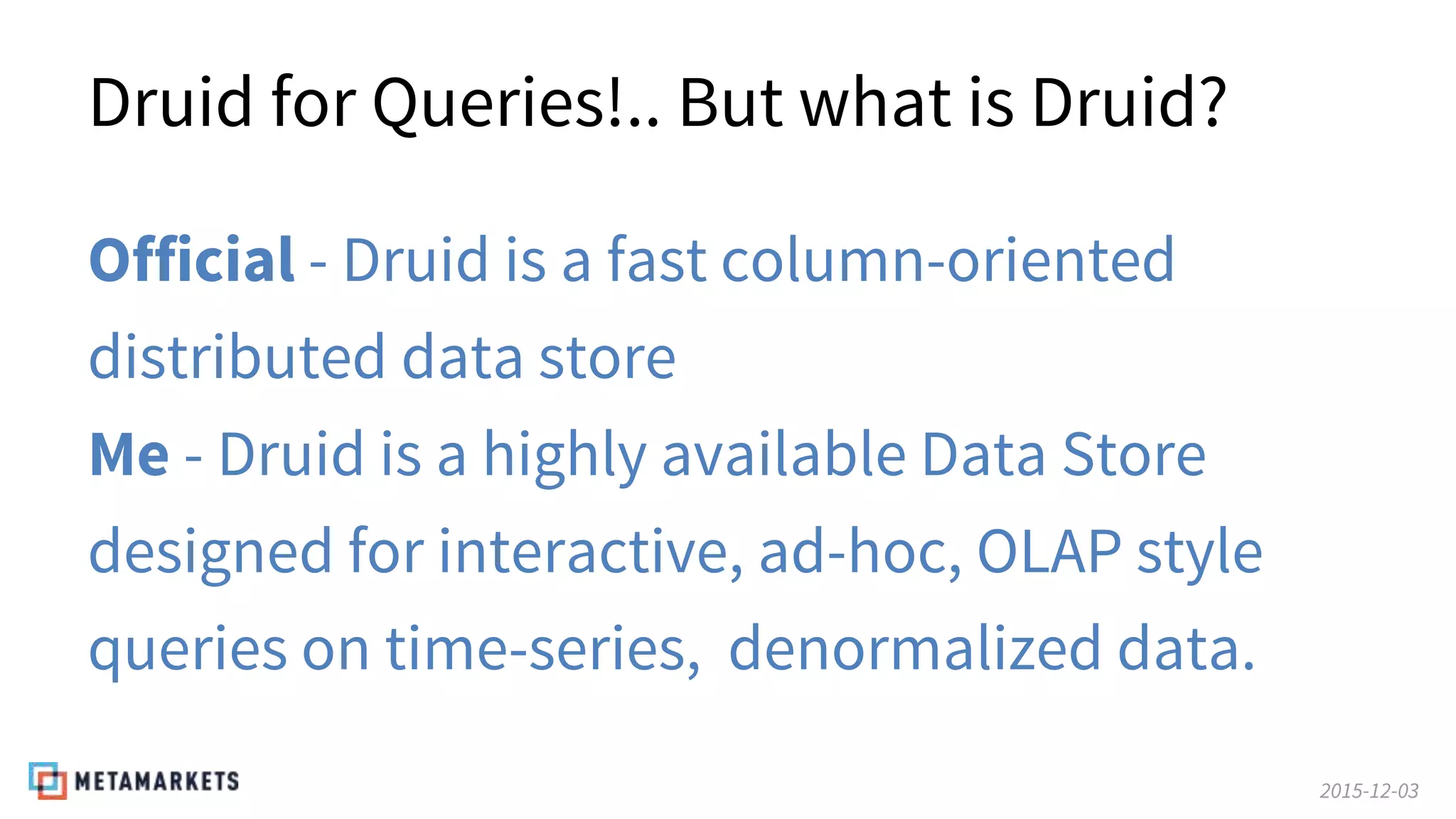

- 17. 2015-12-03 Druid for Queries!..But what is Druid? Official - Druid is a fast column-oriented distributed data store Me - Druid is a highly available Data Store designed for interactive, ad-hoc, OLAP style queries on time-series, denormalized data.

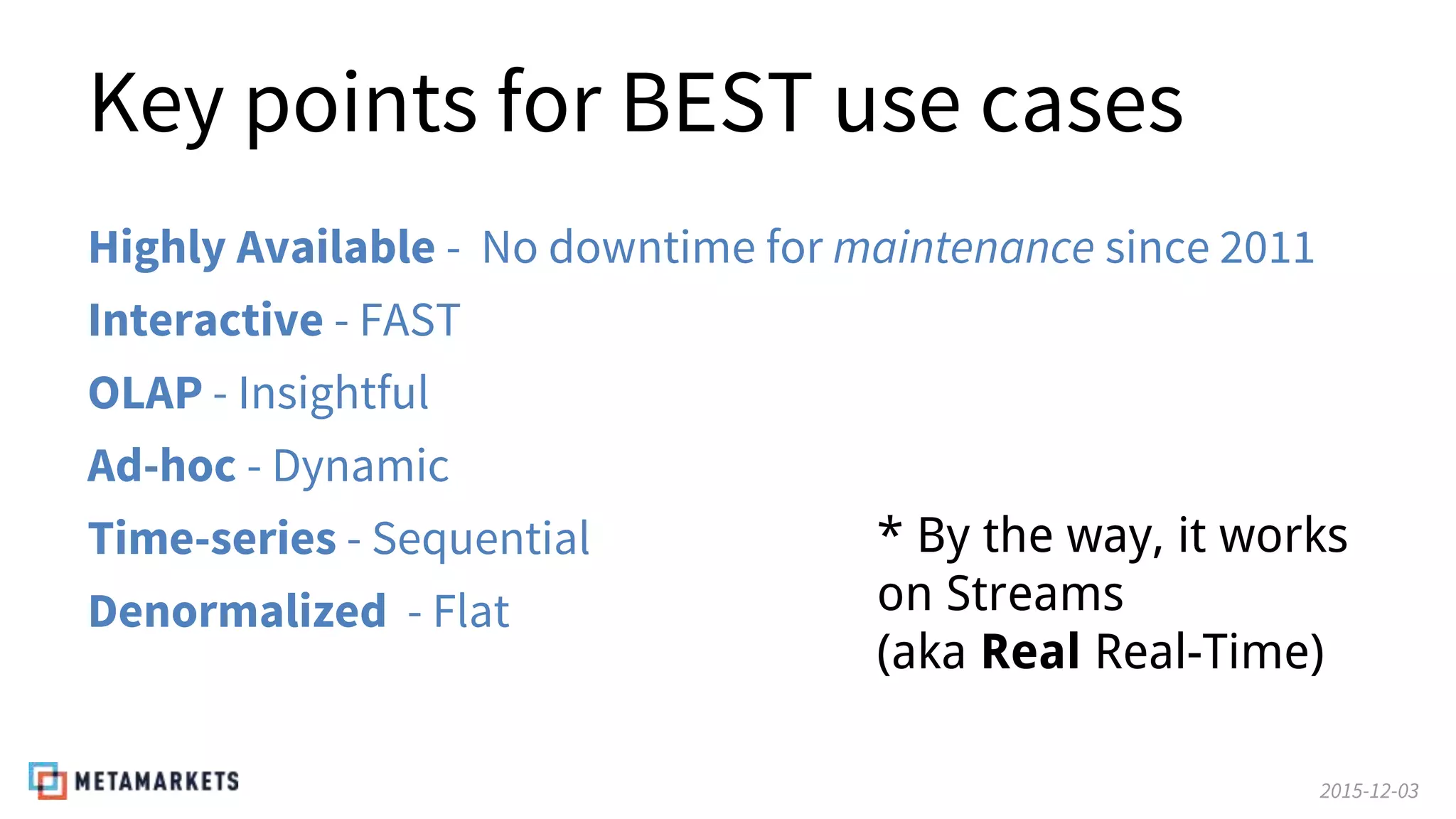

- 18. 2015-12-03 Key points forBEST use cases Highly Available - No downtime for maintenance since 2011 Interactive - FAST OLAP - Insightful Ad-hoc - Dynamic Time-series - Sequential Denormalized - Flat * By the way, it works on Streams (aka Real Real-Time)

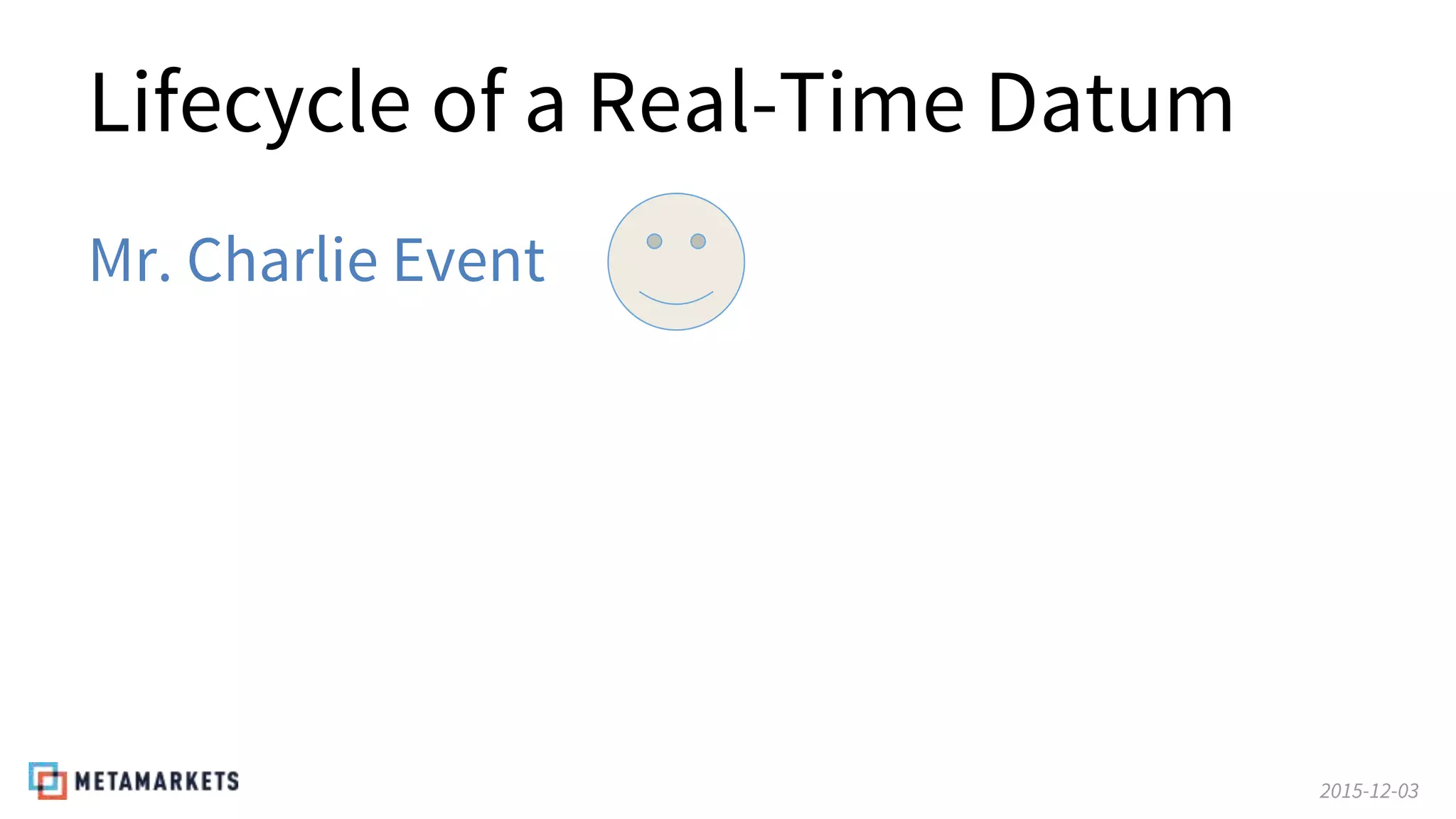

- 19. 2015-12-03 Lifecycle of aReal-Time Datum Mr. Charlie Event

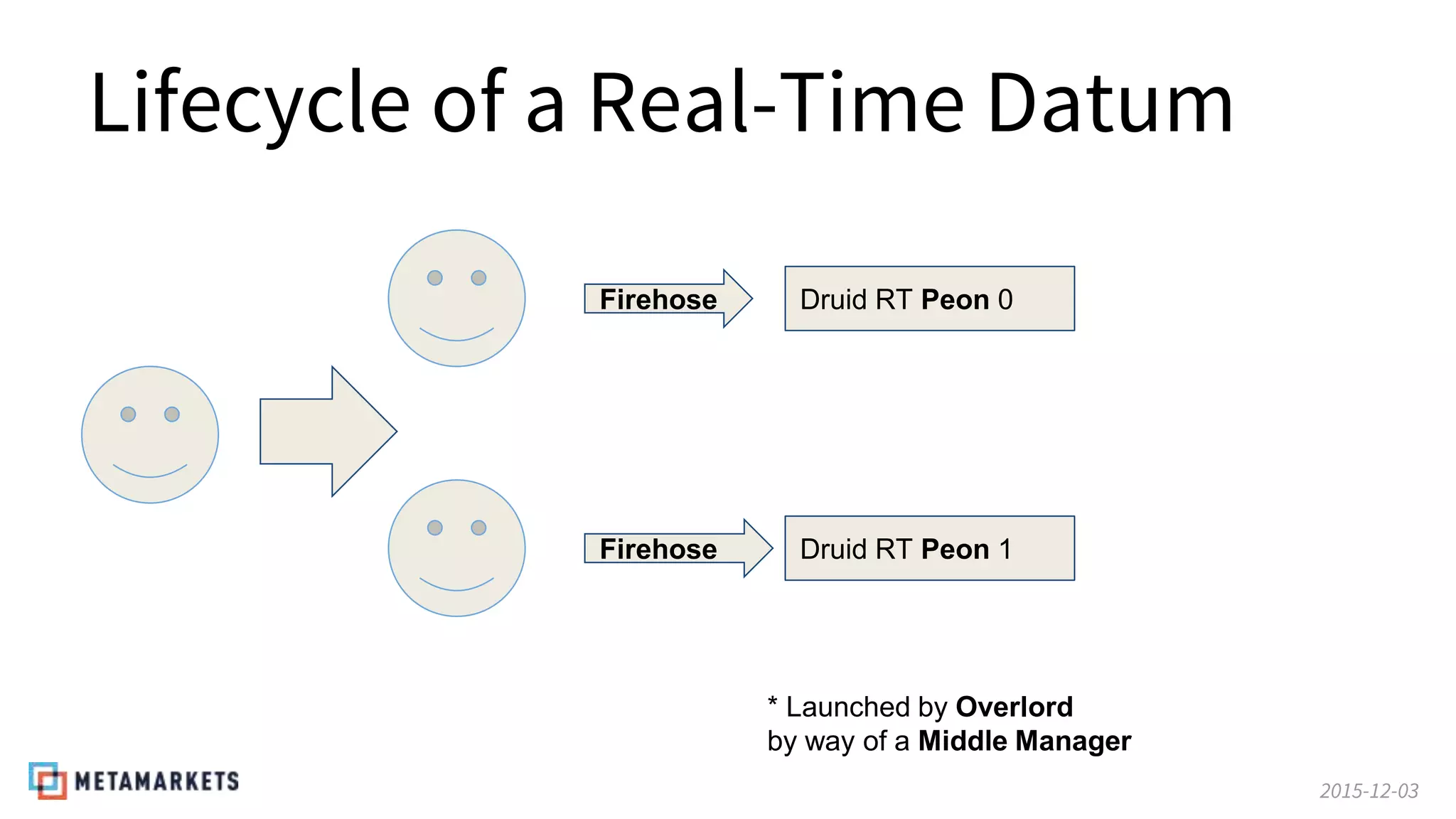

- 20. 2015-12-03 Lifecycle of aReal-Time Datum Firehose Firehose Druid RT Peon 0 Druid RT Peon 1 * Launched by Overlord by way of a Middle Manager

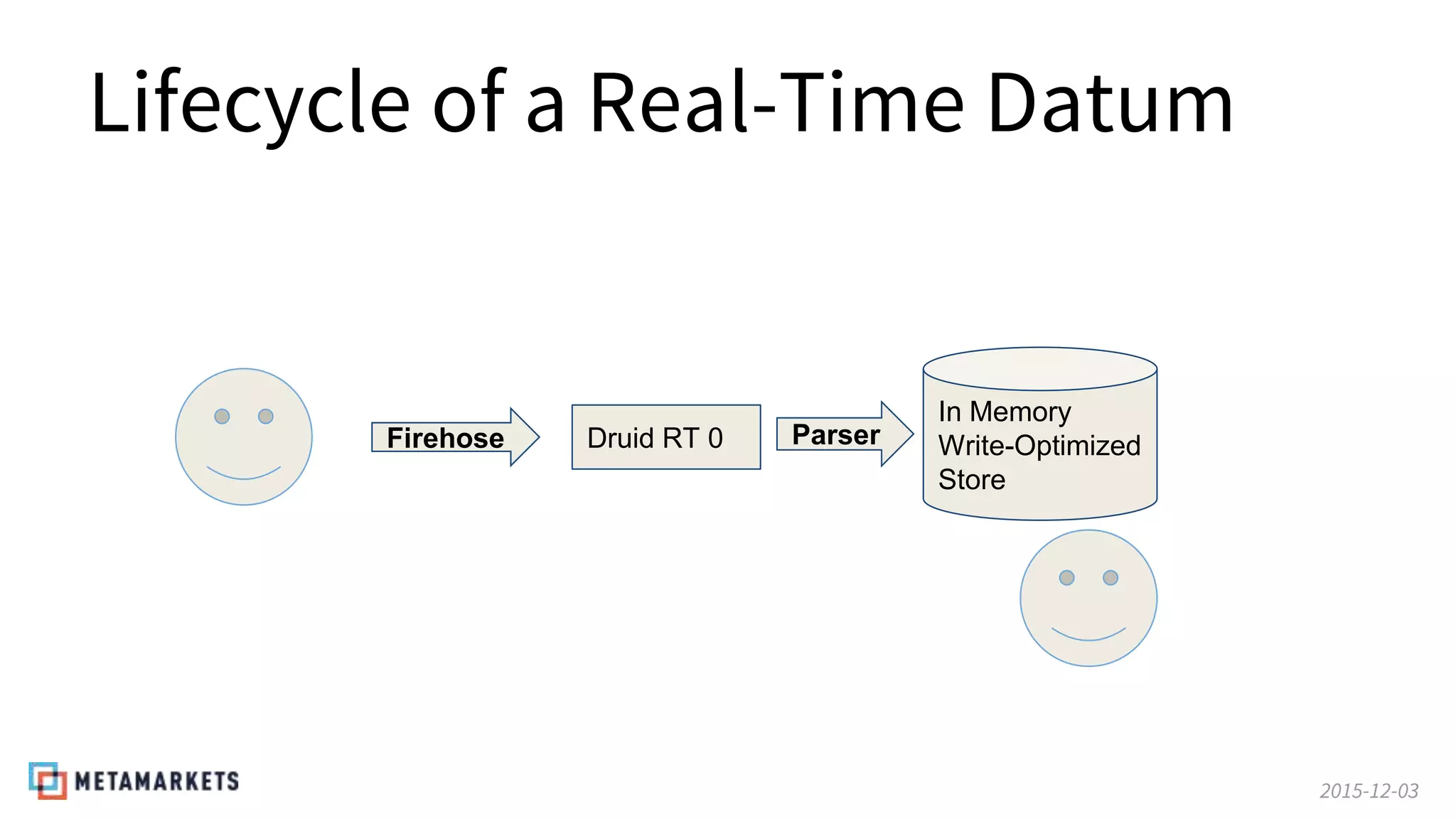

- 21. 2015-12-03 Lifecycle of aReal-Time Datum Firehose Druid RT 0 In Memory Write-Optimized Store Parser

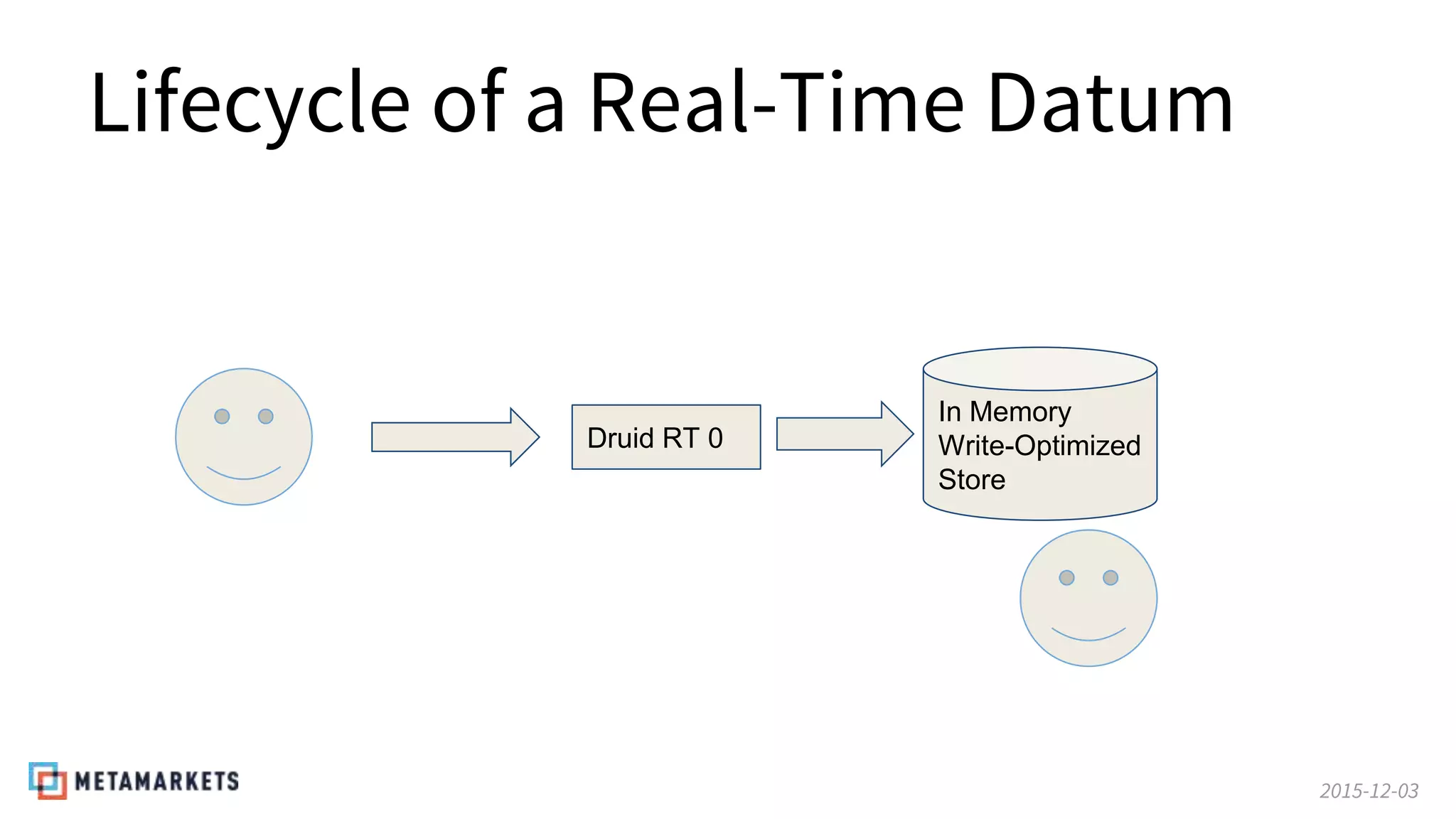

- 22. 2015-12-03 Lifecycle of aReal-Time Datum Druid RT 0 In Memory Write-Optimized Store

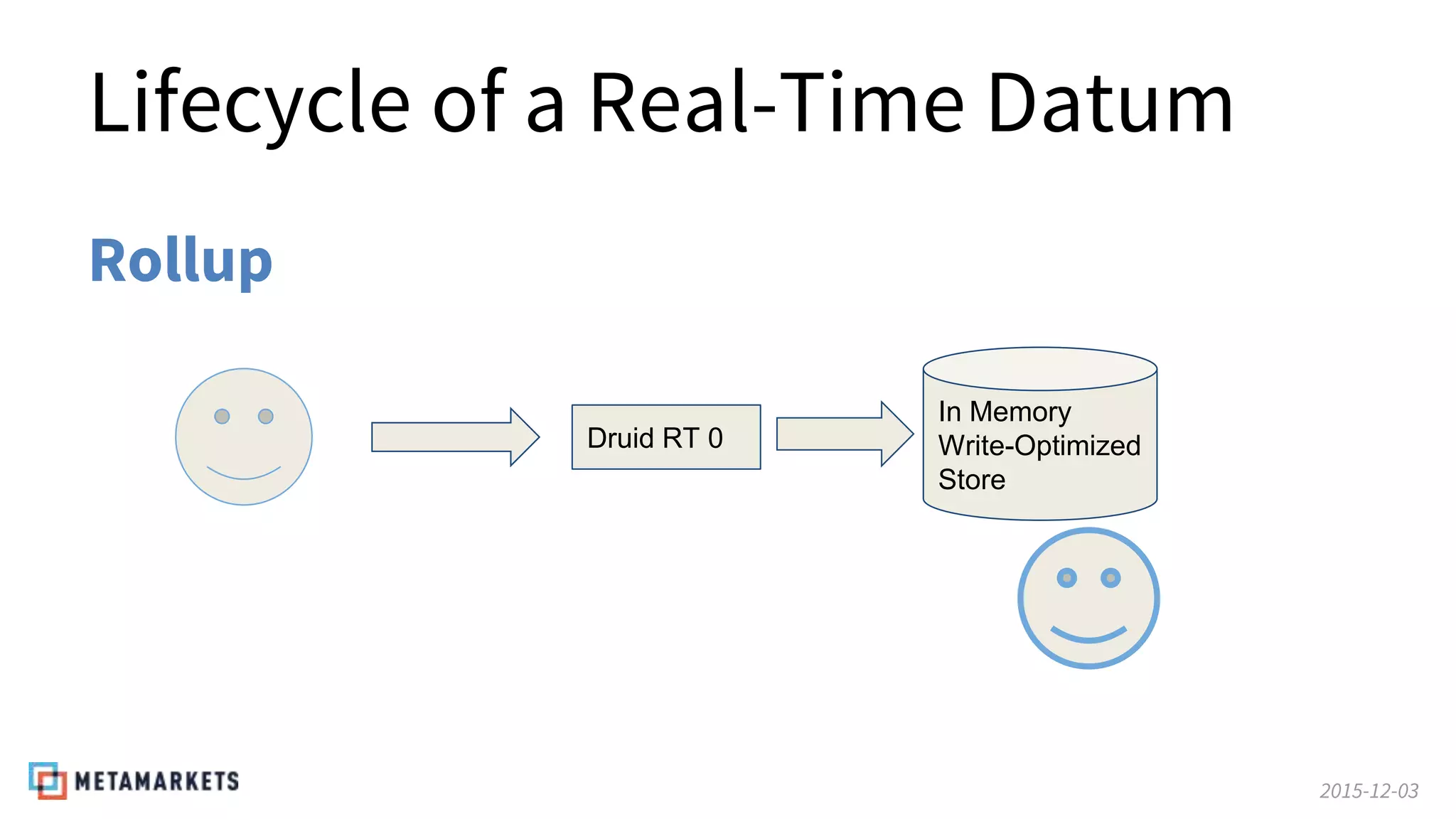

- 23. 2015-12-03 Lifecycle of aReal-Time Datum Druid RT 0 In Memory Write-Optimized Store Rollup

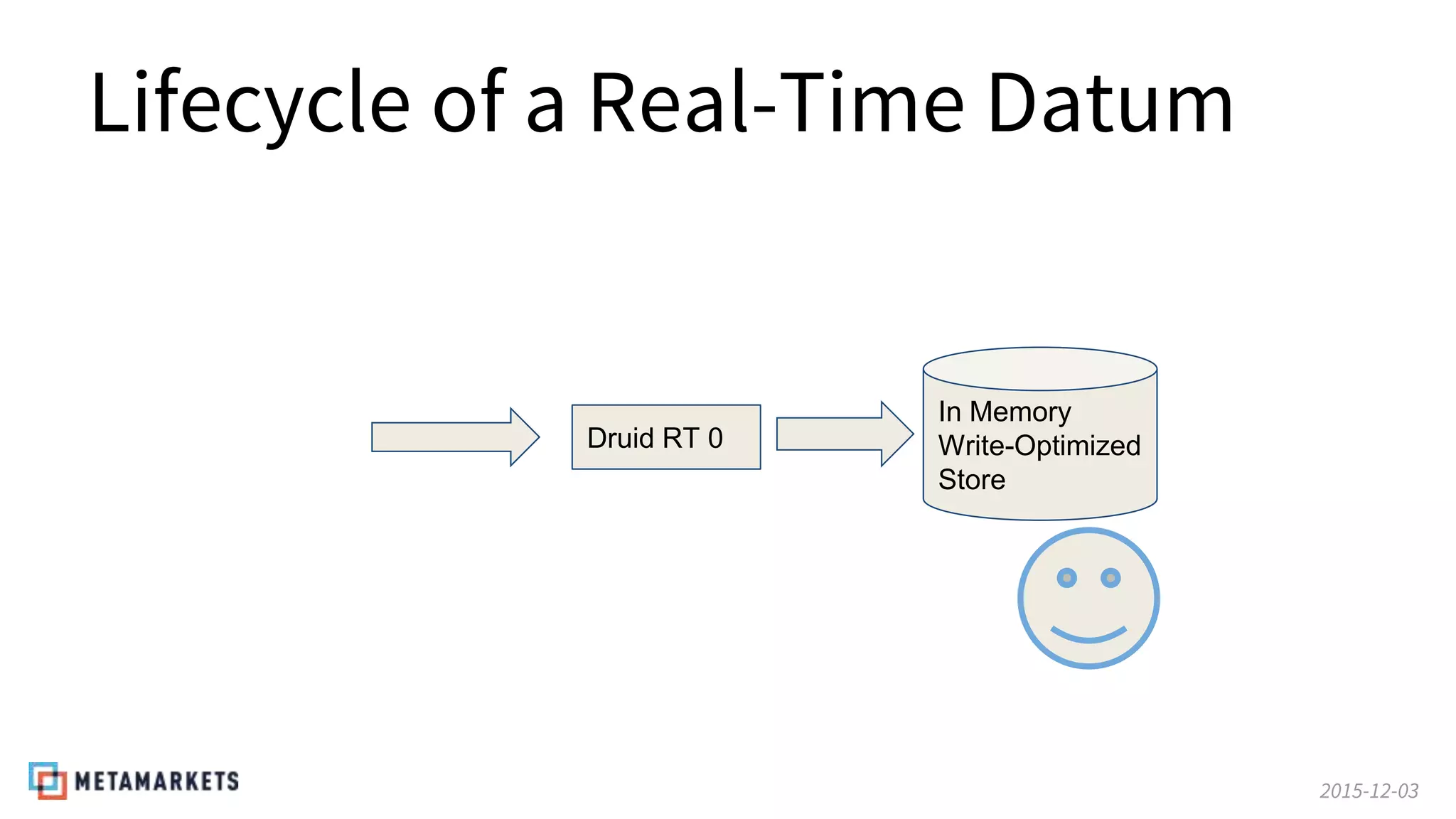

- 24. 2015-12-03 Lifecycle of aReal-Time Datum Druid RT 0 In Memory Write-Optimized Store

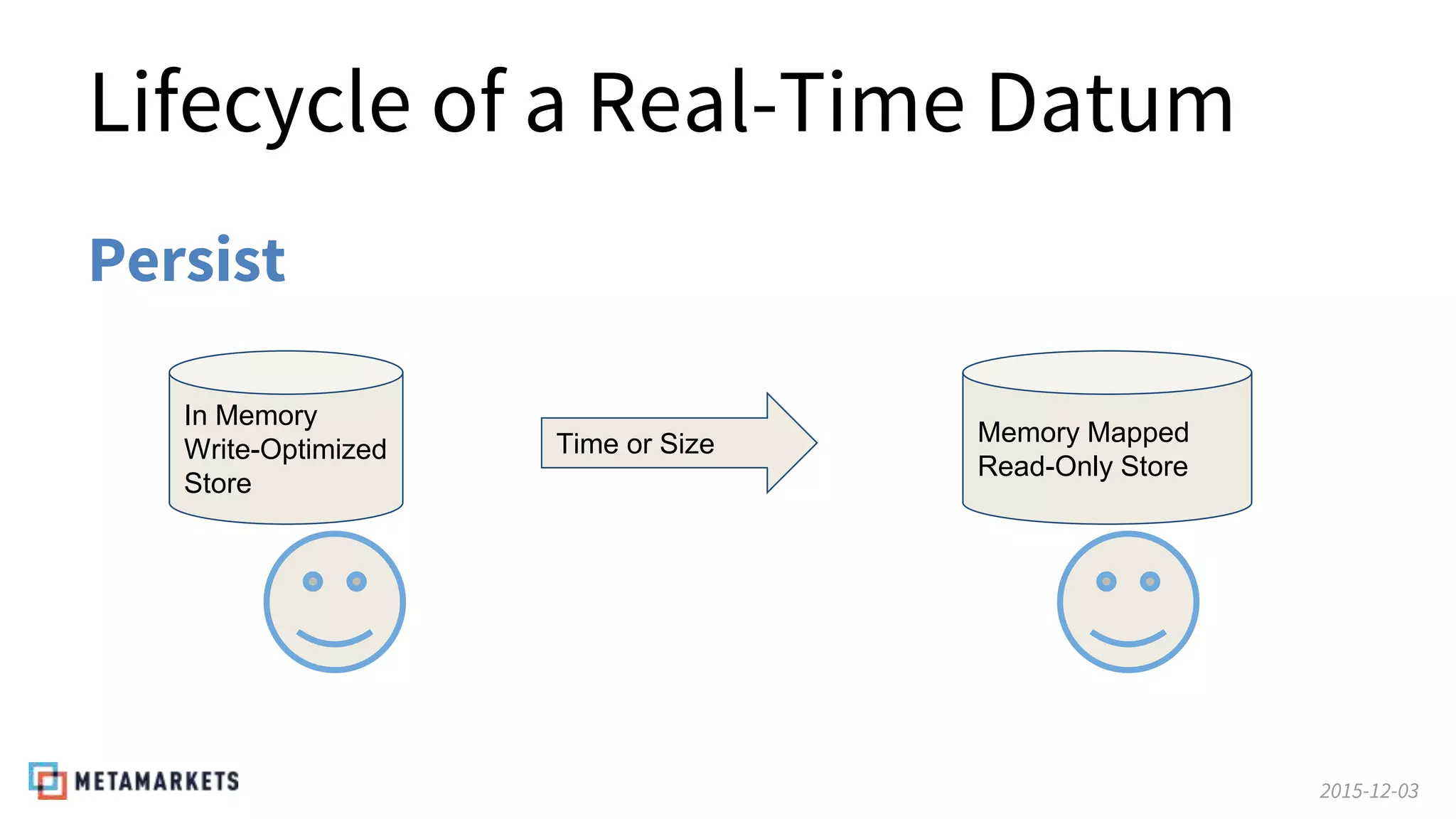

- 25. 2015-12-03 Lifecycle of aReal-Time Datum In Memory Write-Optimized Store Time or Size Memory Mapped Read-Only Store Persist

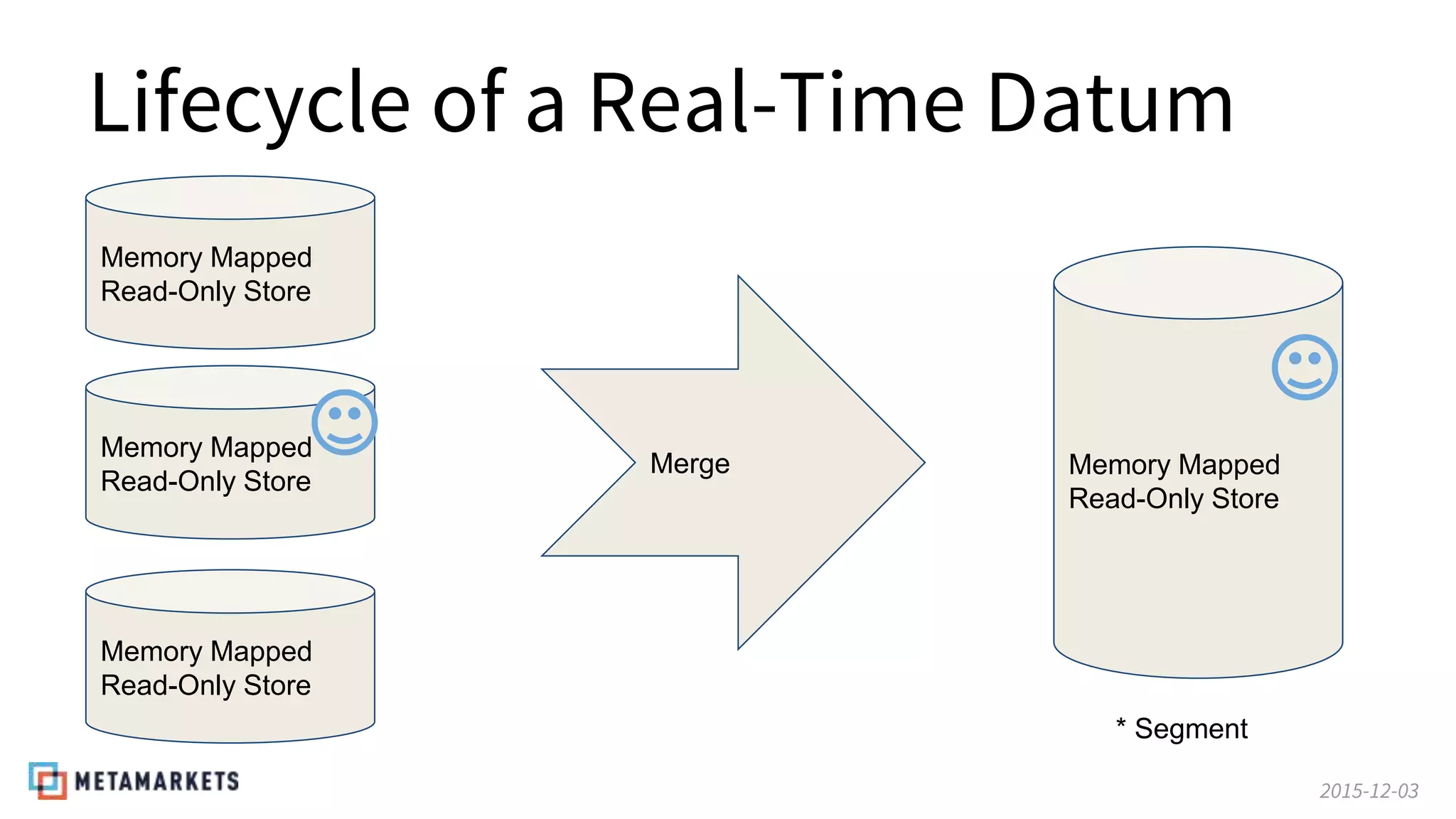

- 26. 2015-12-03 Lifecycle of aReal-Time Datum Memory Mapped Read-Only Store Memory Mapped Read-Only Store Memory Mapped Read-Only Store Merge Memory Mapped Read-Only Store * Segment

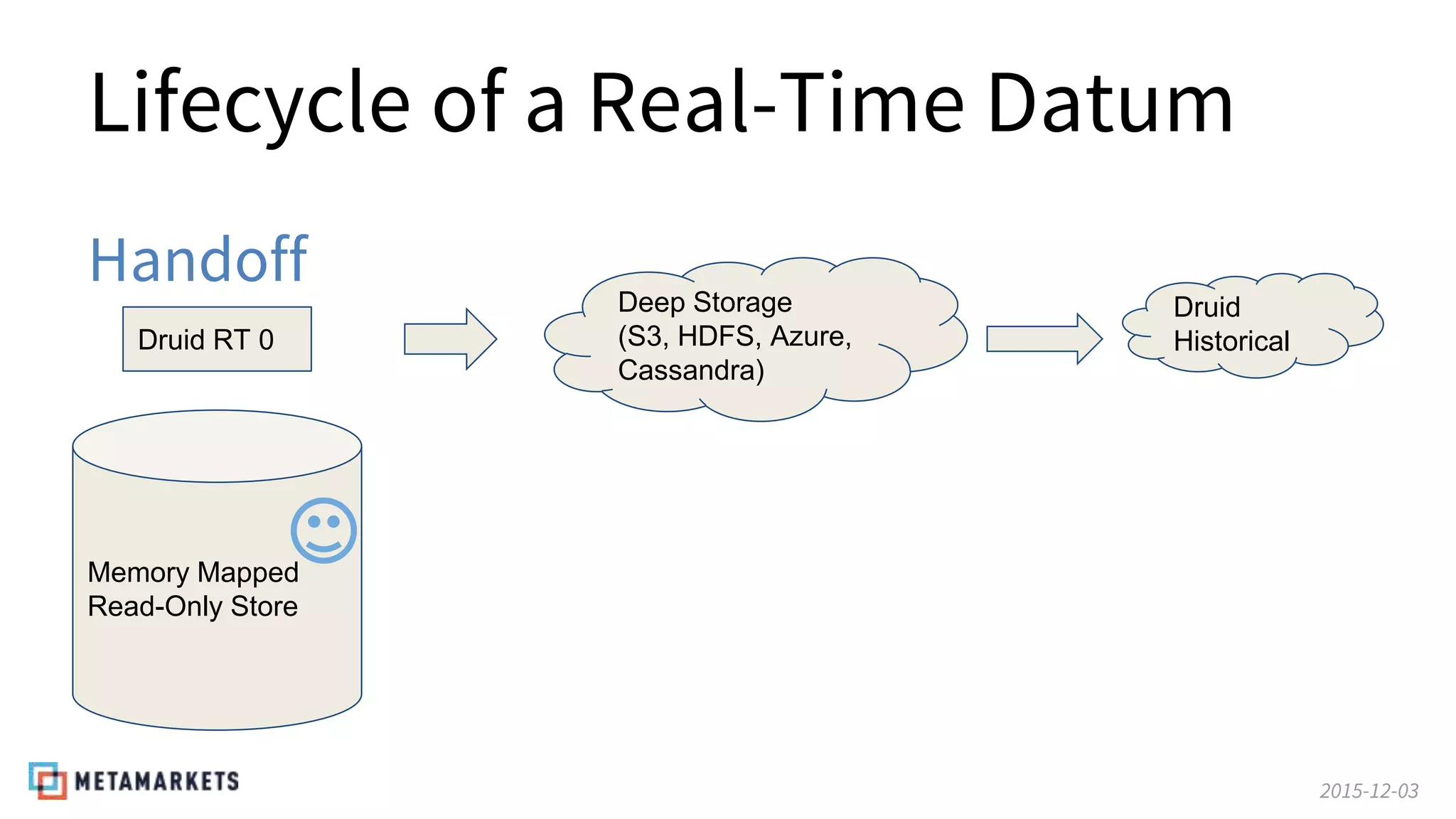

- 27. 2015-12-03 Handoff Lifecycle of aReal-Time Datum Memory Mapped Read-Only Store Druid RT 0 Druid Historical Deep Storage (S3, HDFS, Azure, Cassandra)

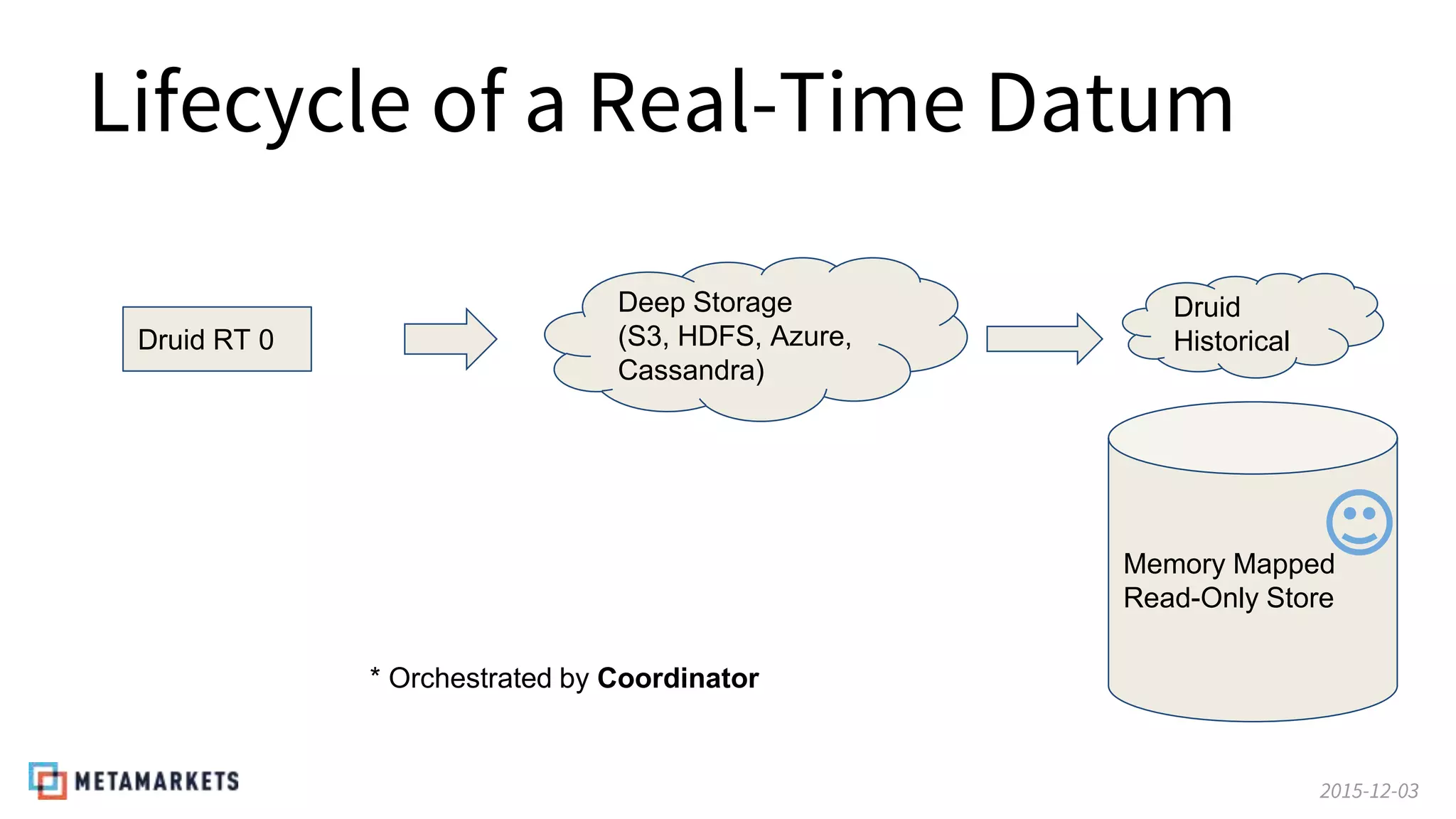

- 28. 2015-12-03 Lifecycle of aReal-Time Datum Druid RT 0 Druid Historical Deep Storage (S3, HDFS, Azure, Cassandra) Memory Mapped Read-Only Store * Orchestrated by Coordinator

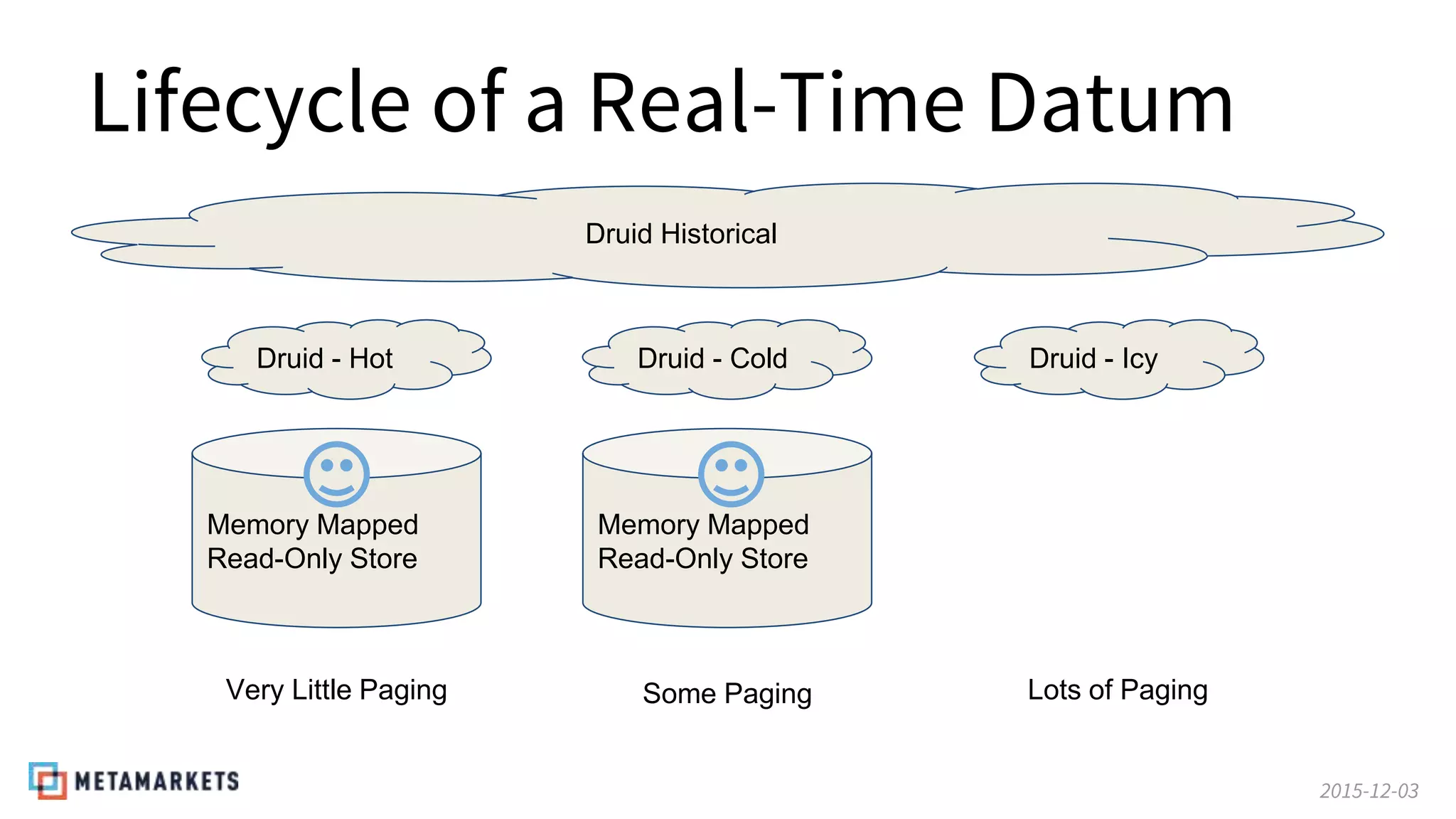

- 29. 2015-12-03 Lifecycle of aReal-Time Datum Druid Historical Memory Mapped Read-Only Store Druid - Hot Druid - Cold Druid - Icy Memory Mapped Read-Only Store Very Little Paging Some Paging Lots of Paging

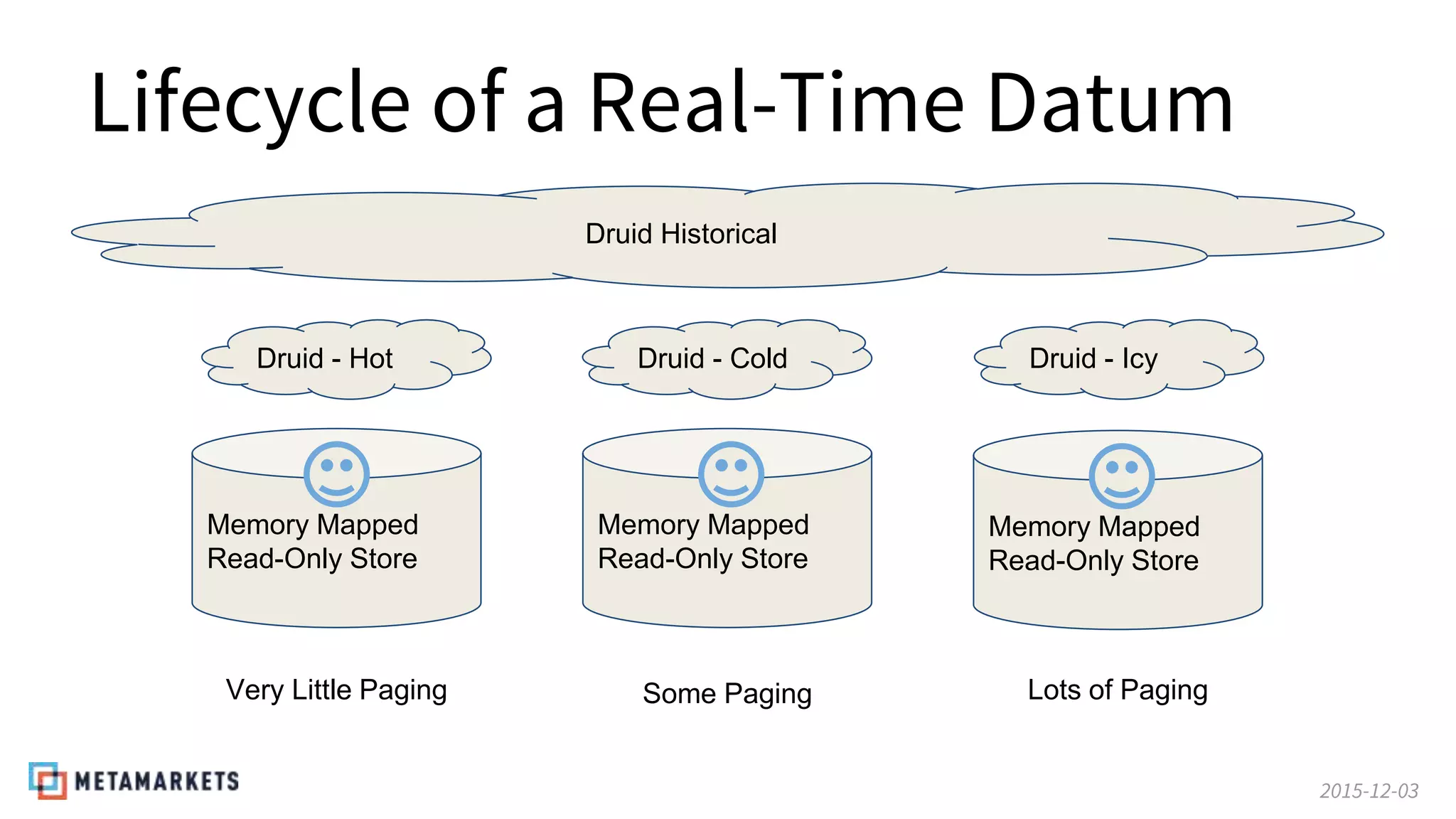

- 30. 2015-12-03 Lifecycle of aReal-Time Datum Druid Historical Memory Mapped Read-Only Store Druid - Hot Druid - Cold Druid - Icy Memory Mapped Read-Only Store Very Little Paging Some Paging Lots of Paging Memory Mapped Read-Only Store

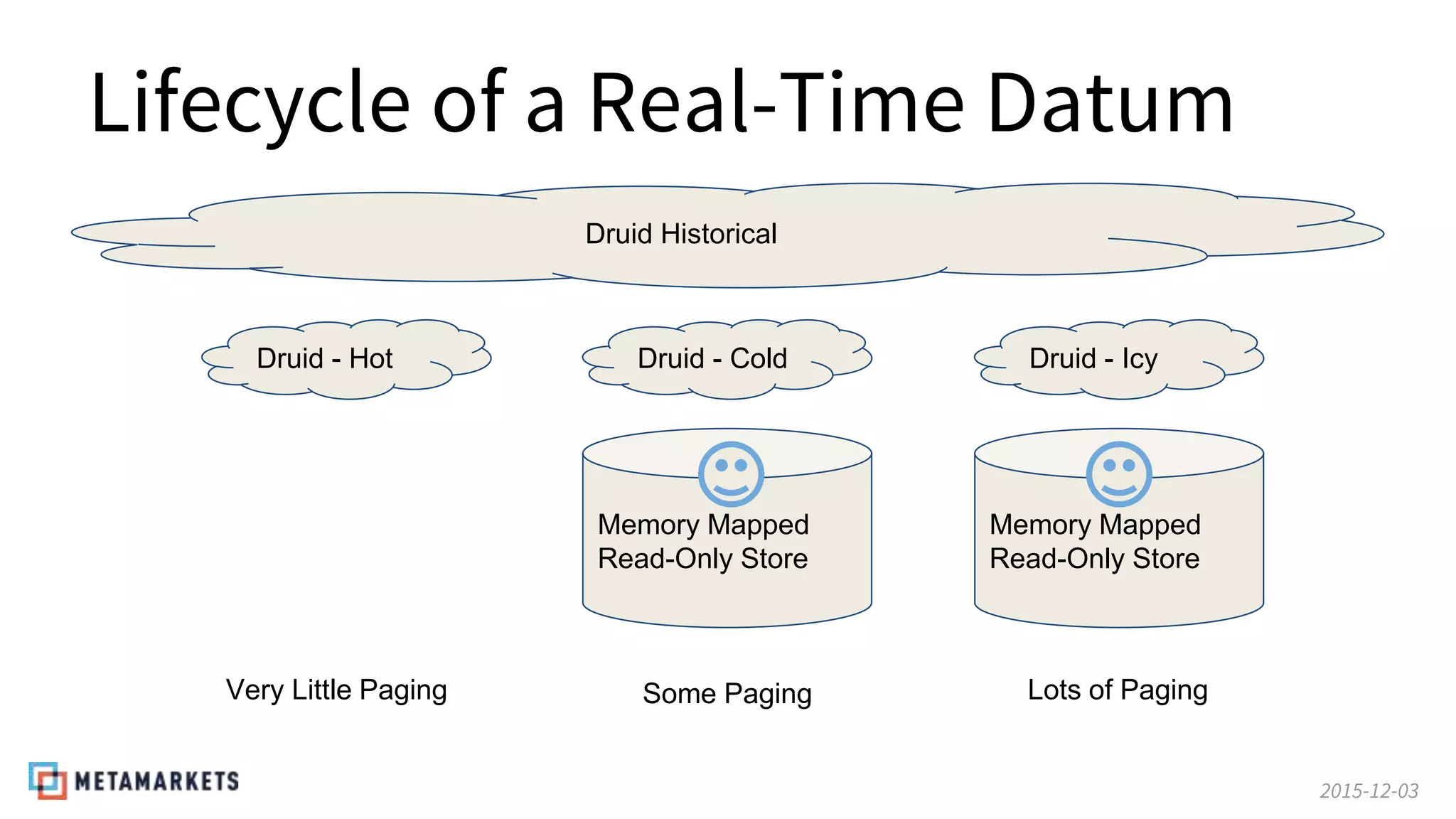

- 31. 2015-12-03 Lifecycle of aReal-Time Datum Druid Historical Memory Mapped Read-Only Store Druid - Hot Druid - Cold Druid - Icy Memory Mapped Read-Only Store Very Little Paging Some Paging Lots of Paging

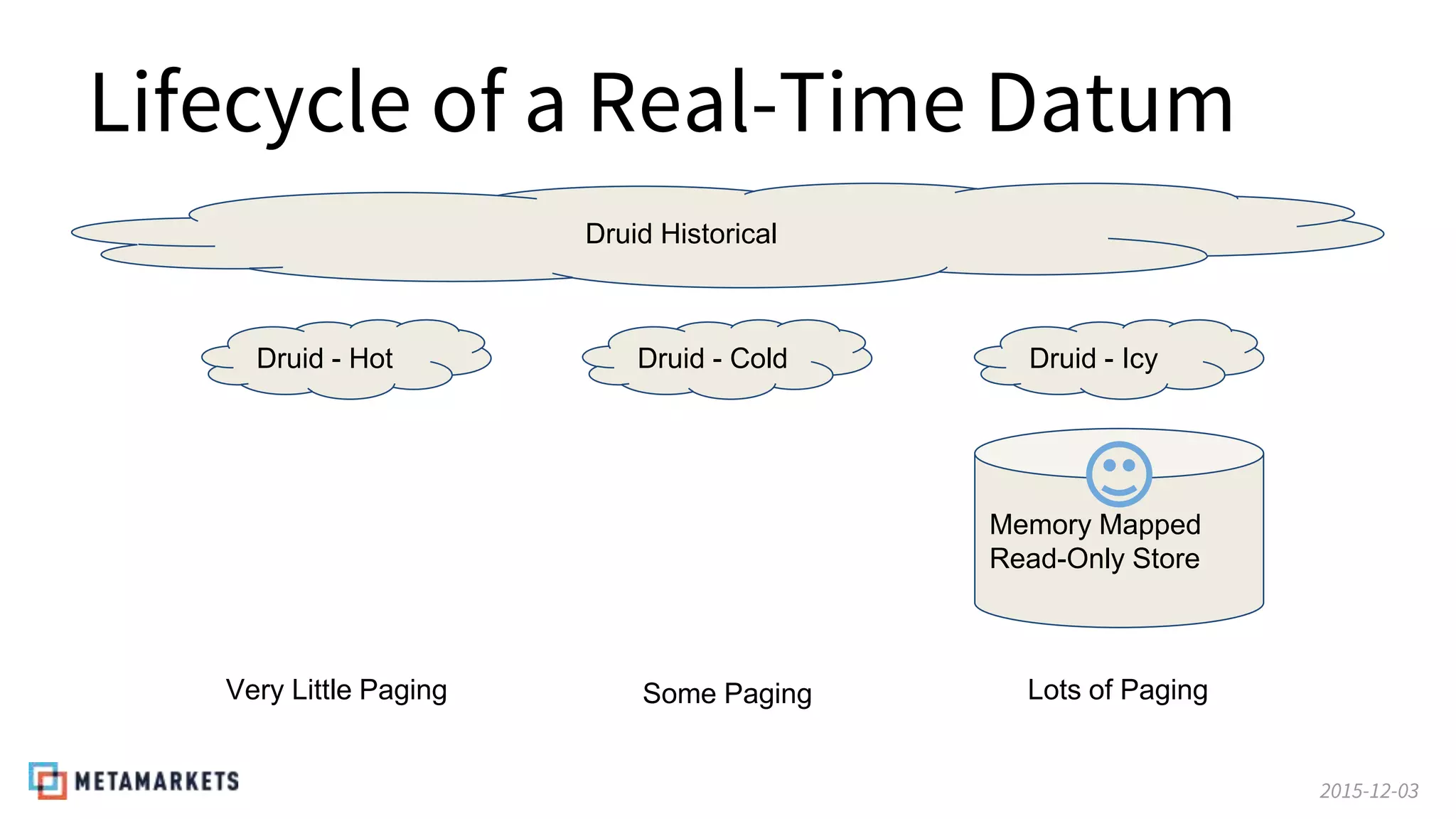

- 32. 2015-12-03 Lifecycle of aReal-Time Datum Druid Historical Memory Mapped Read-Only Store Druid - Hot Druid - Cold Druid - Icy Very Little Paging Some Paging Lots of Paging

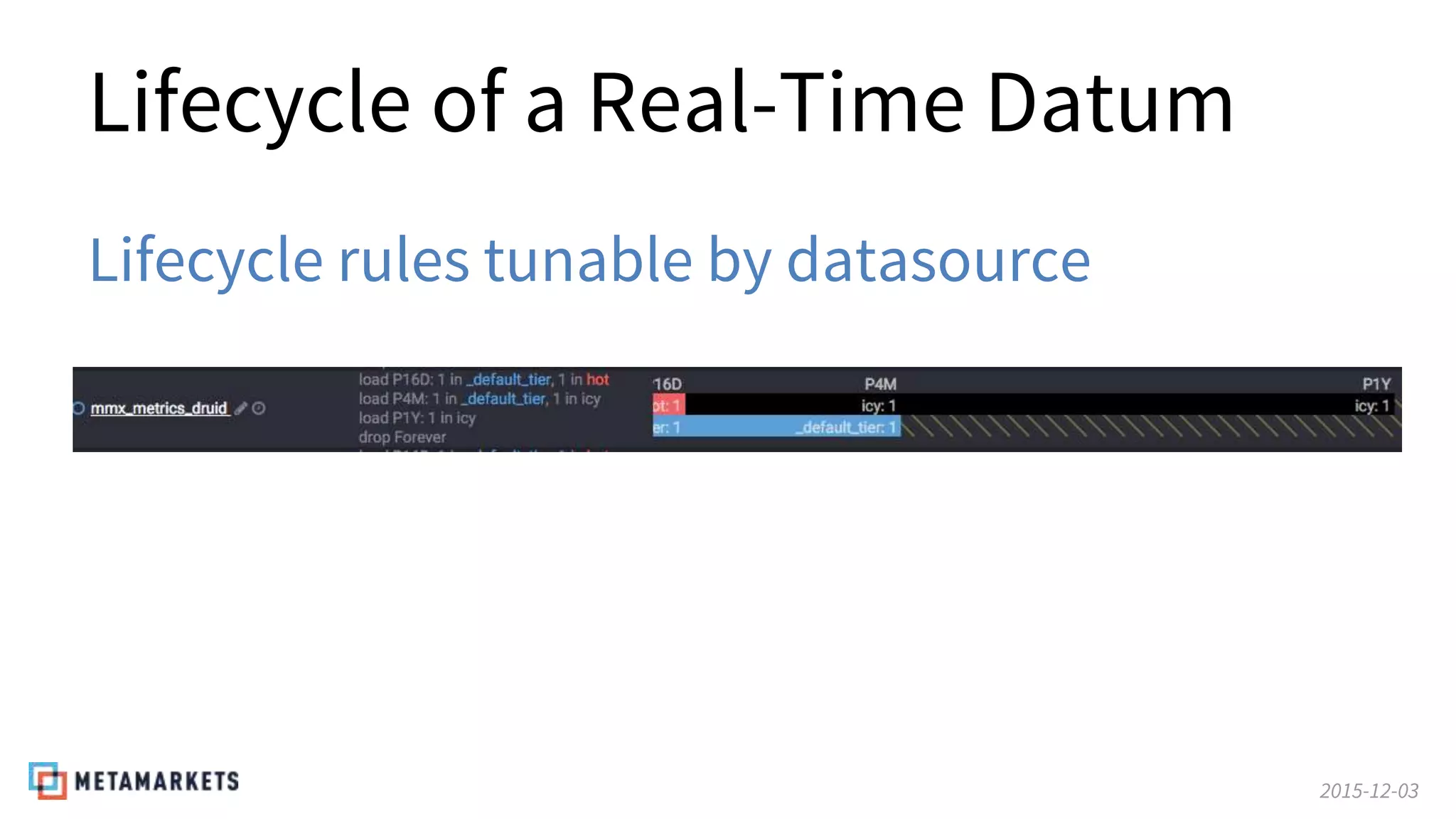

- 33. 2015-12-03 Lifecycle of aReal-Time Datum Lifecycle rules tunable by datasource

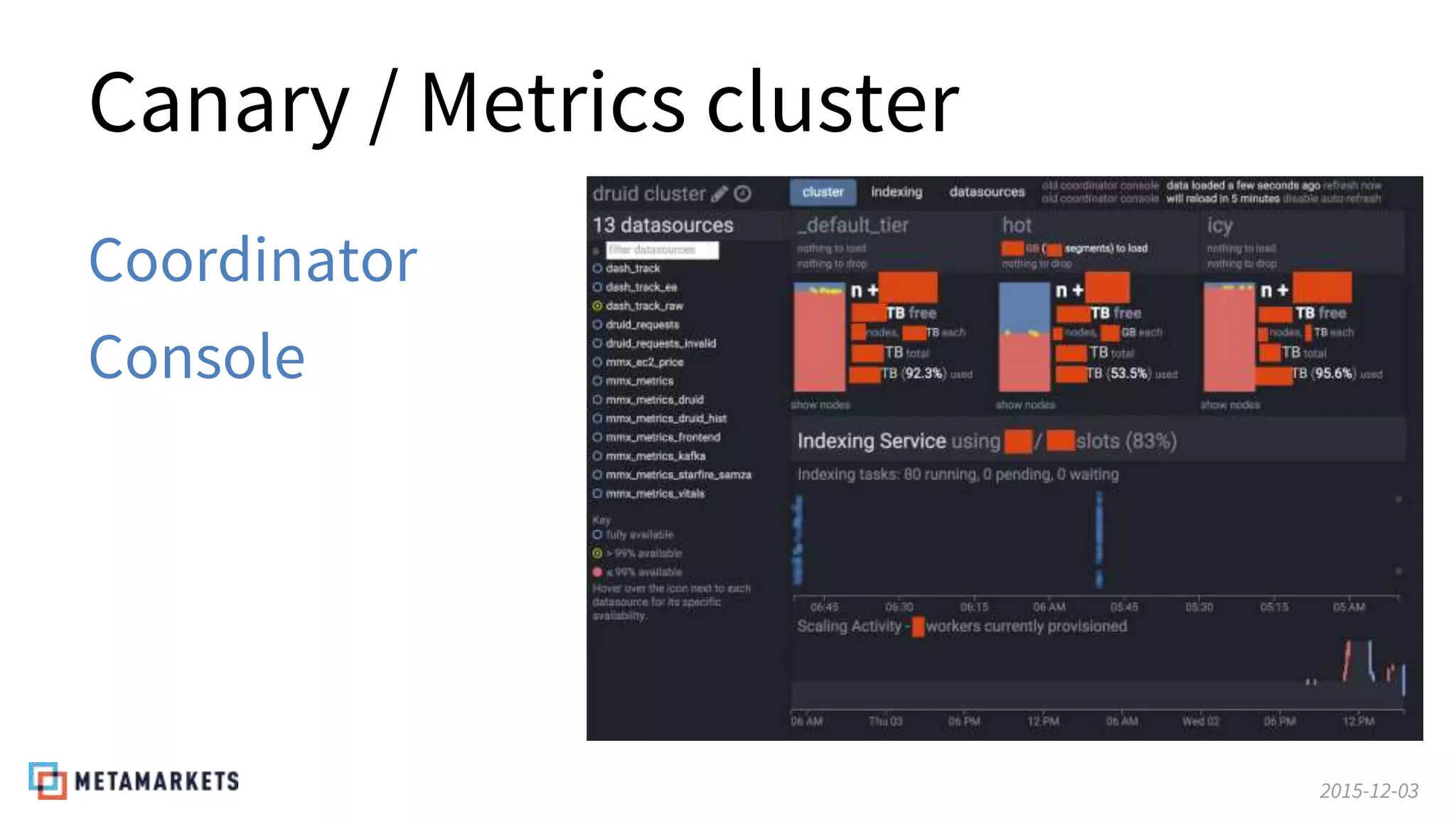

- 34. 2015-12-03 Canary / Metricscluster Coordinator Console

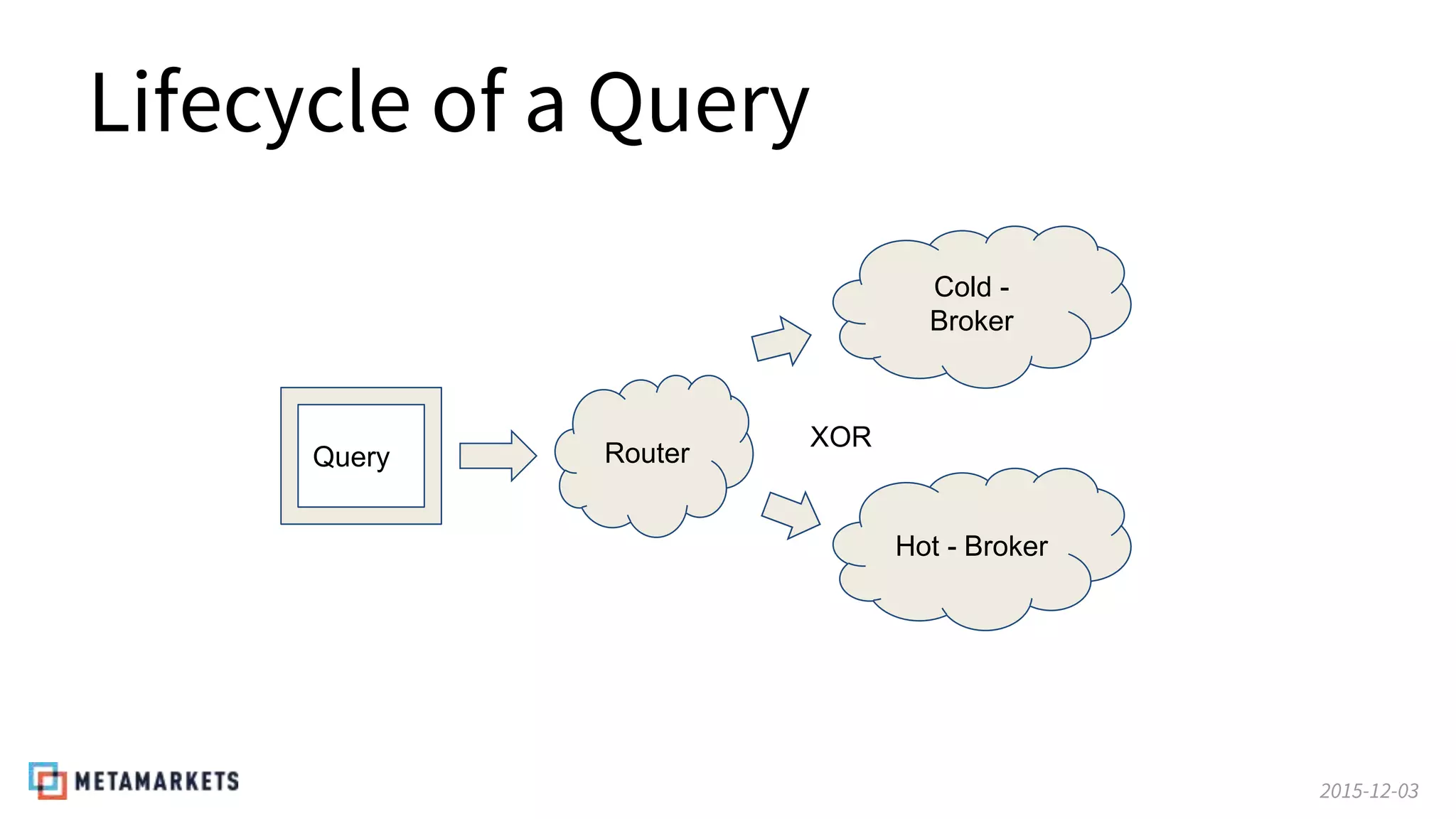

- 35. 2015-12-03 Lifecycle of aQuery Query Router Cold - Broker Hot - Broker XOR

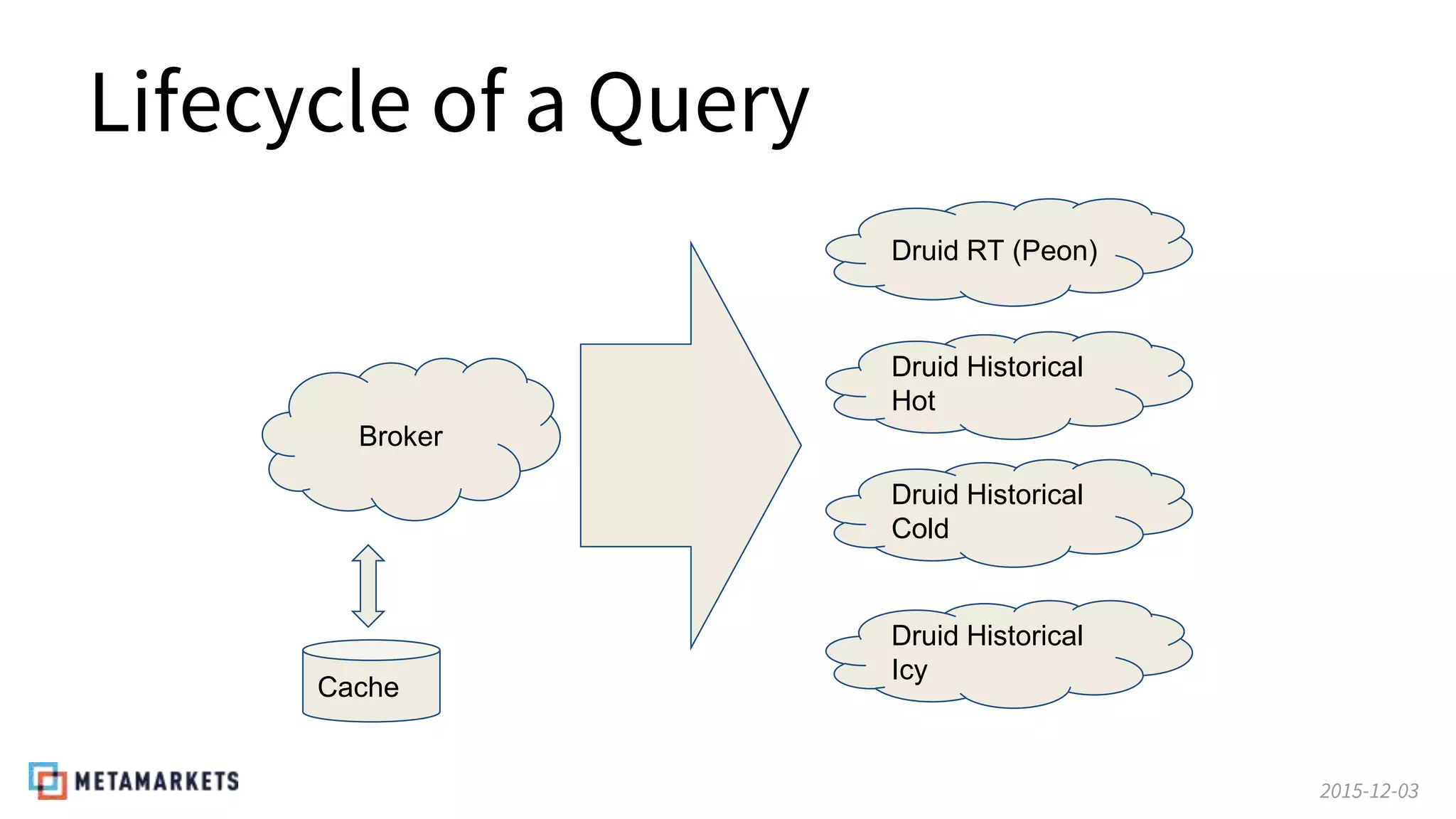

- 36. 2015-12-03 Lifecycle of aQuery Broker Druid RT (Peon) Druid Historical Hot Druid Historical Cold Druid Historical Icy Cache

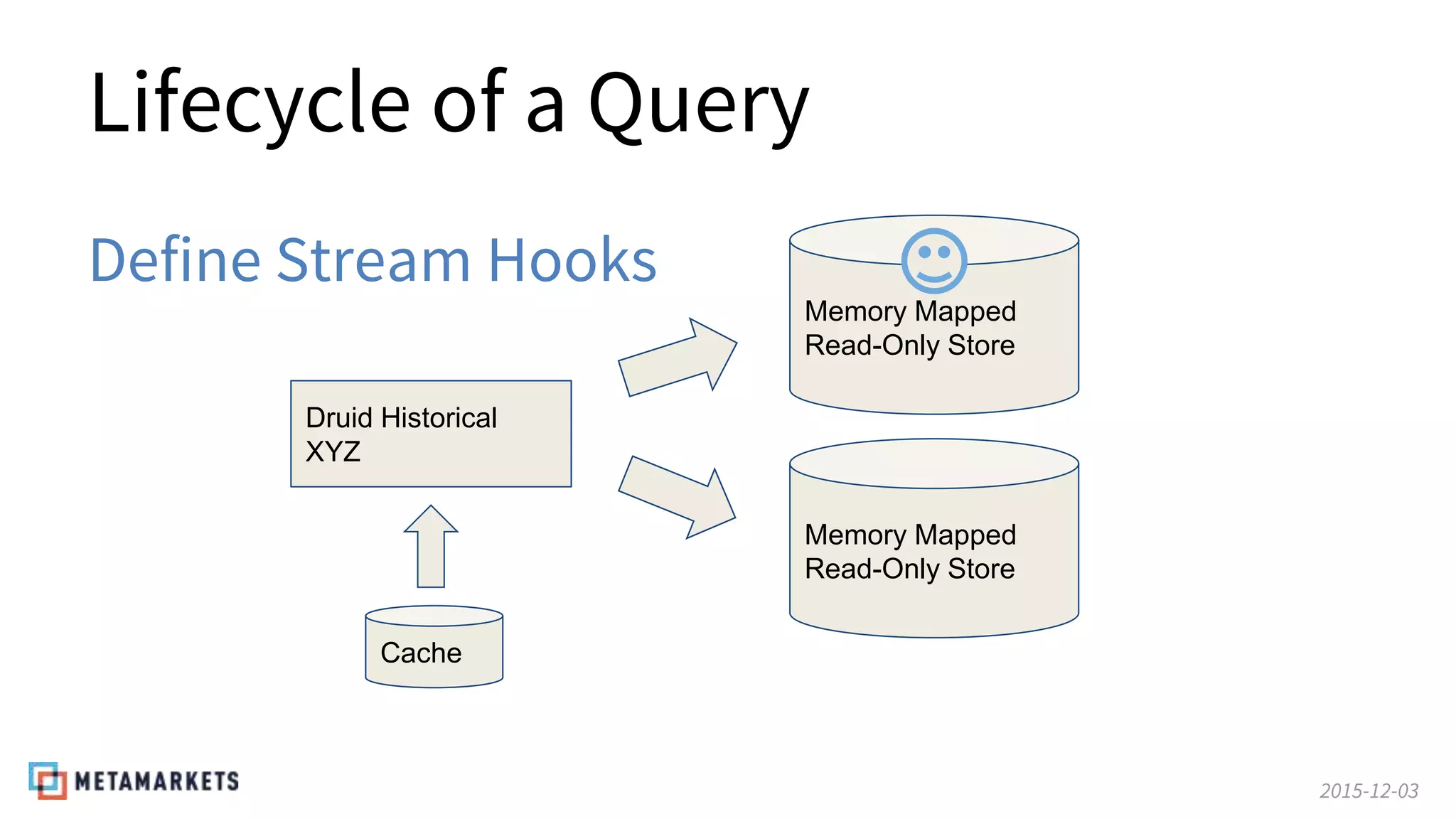

- 37. 2015-12-03 Define Stream Hooks Lifecycleof a Query Cache Druid Historical XYZ Memory Mapped Read-Only Store Memory Mapped Read-Only Store

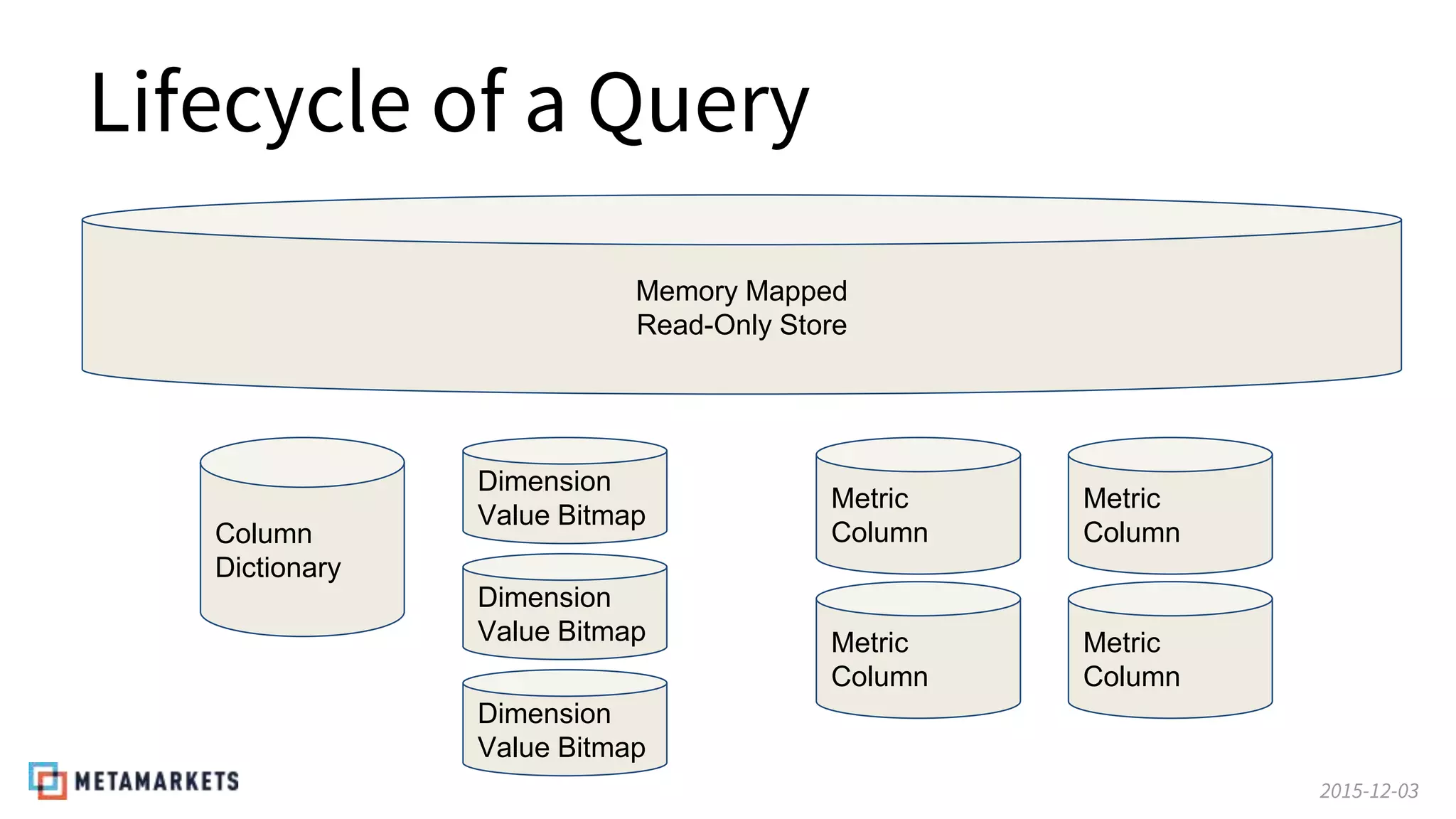

- 38. 2015-12-03 Lifecycle of aQuery Memory Mapped Read-Only Store Column Dictionary Dimension Value Bitmap Dimension Value Bitmap Dimension Value Bitmap Metric Column Metric Column Metric Column Metric Column

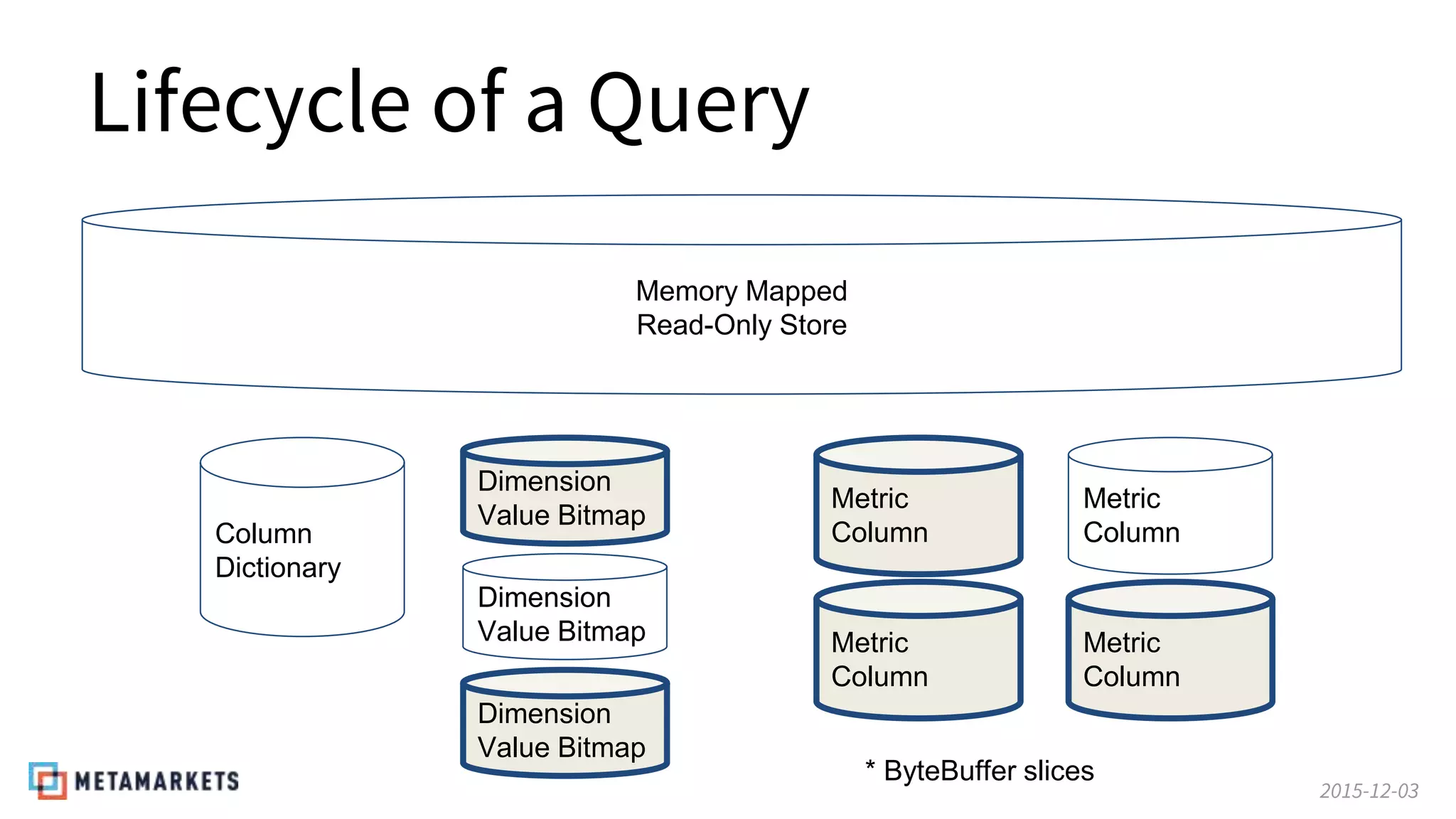

- 39. 2015-12-03 Lifecycle of aQuery Memory Mapped Read-Only Store Column Dictionary Dimension Value Bitmap Dimension Value Bitmap Dimension Value Bitmap Metric Column Metric Column Metric Column Metric Column * ByteBuffer slices

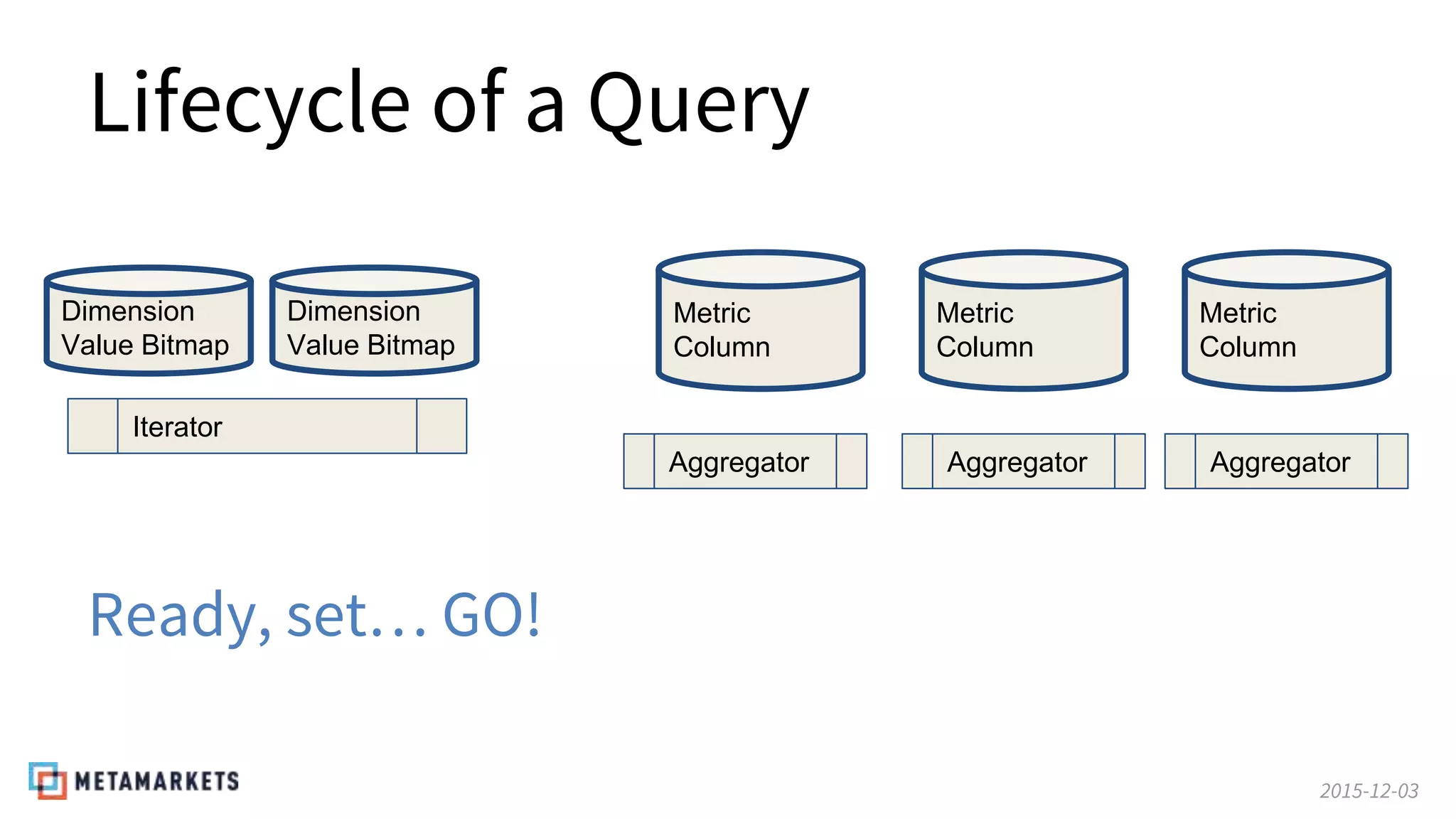

- 40. 2015-12-03 Lifecycle of aQuery Dimension Value Bitmap Dimension Value Bitmap Metric Column Metric Column Metric Column Iterator Aggregator Aggregator Aggregator Ready, set… GO!

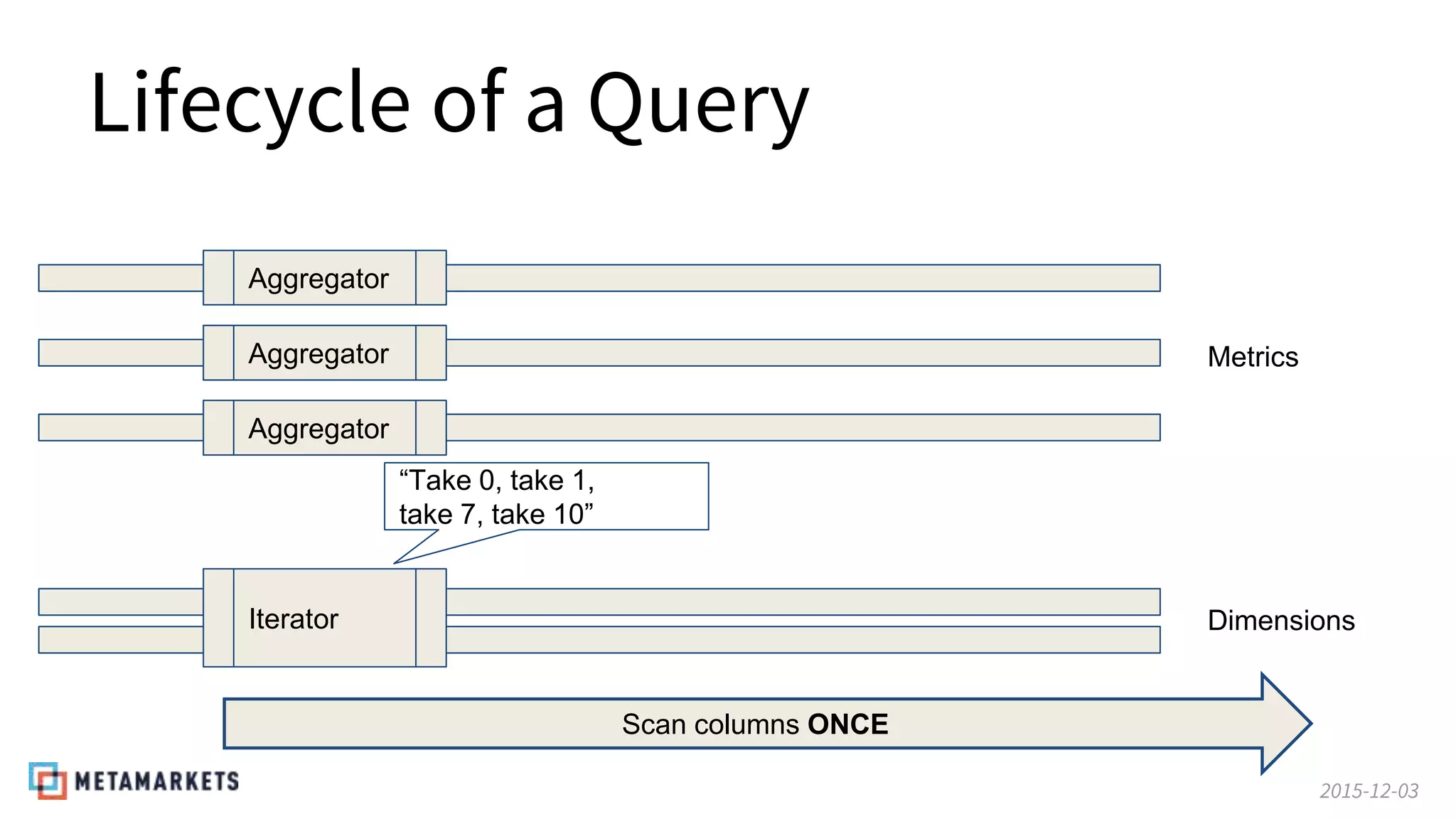

- 41. 2015-12-03 Lifecycle of aQuery Iterator Aggregator Aggregator Aggregator “Take 0, take 1, take 7, take 10” Scan columns ONCE Metrics Dimensions

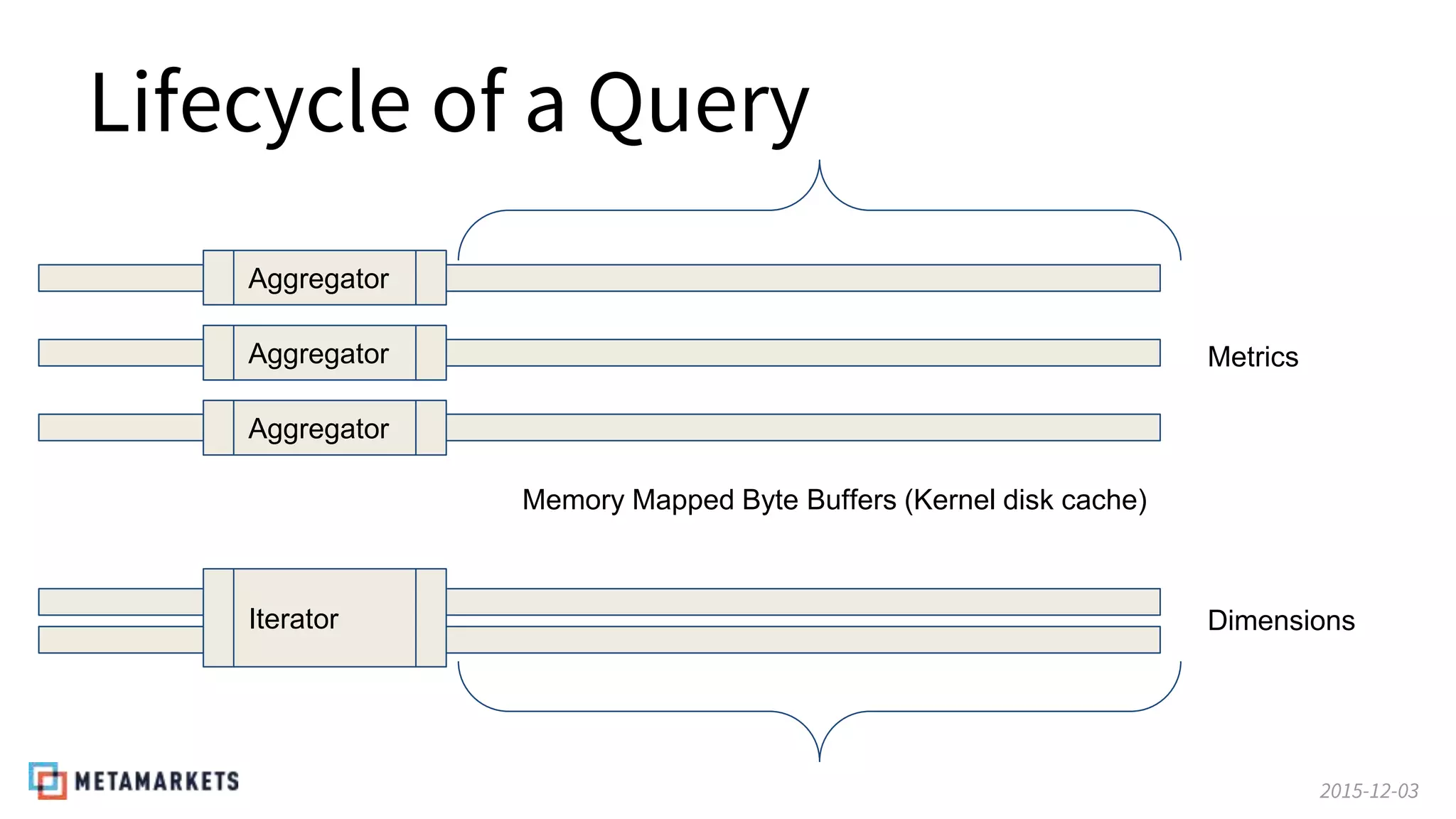

- 42. 2015-12-03 Lifecycle of aQuery Iterator Aggregator Aggregator Aggregator Metrics Dimensions Memory Mapped Byte Buffers (Kernel disk cache)

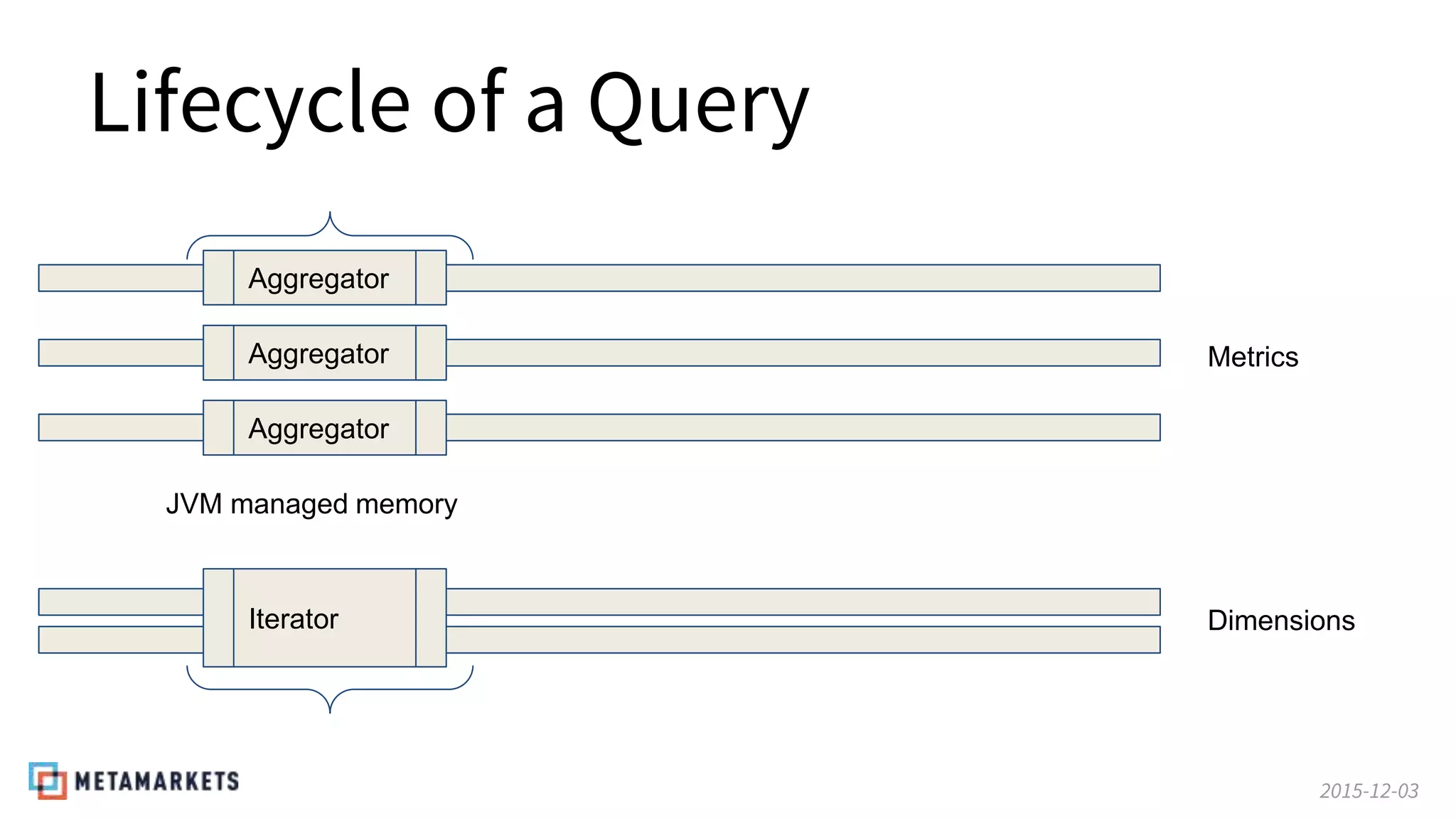

- 43. 2015-12-03 Lifecycle of aQuery Iterator Aggregator Aggregator Aggregator Metrics Dimensions JVM managed memory

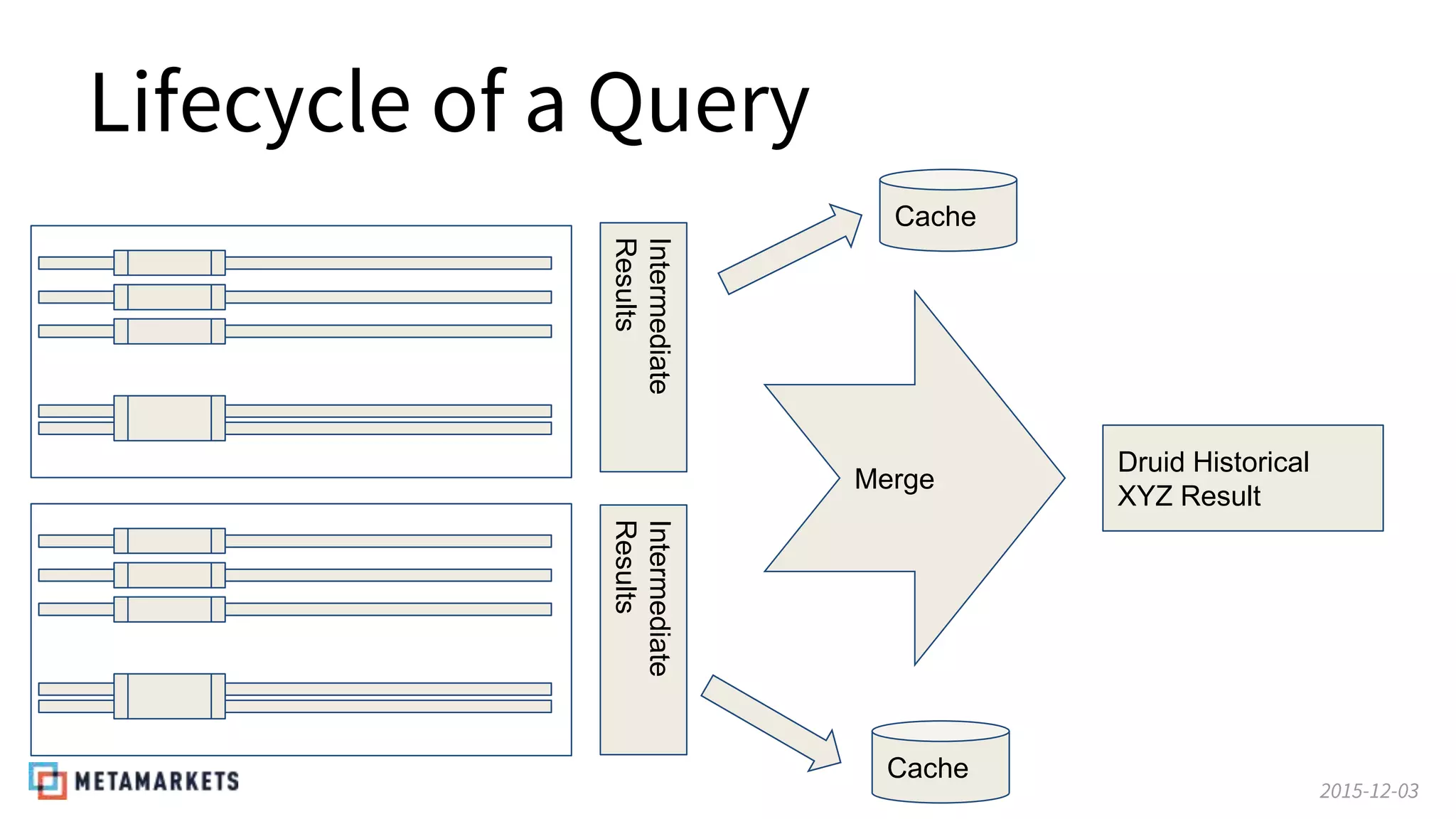

- 44. 2015-12-03 Lifecycle of aQuery Intermediate Results Intermediate Results Merge Cache Cache Druid Historical XYZ Result

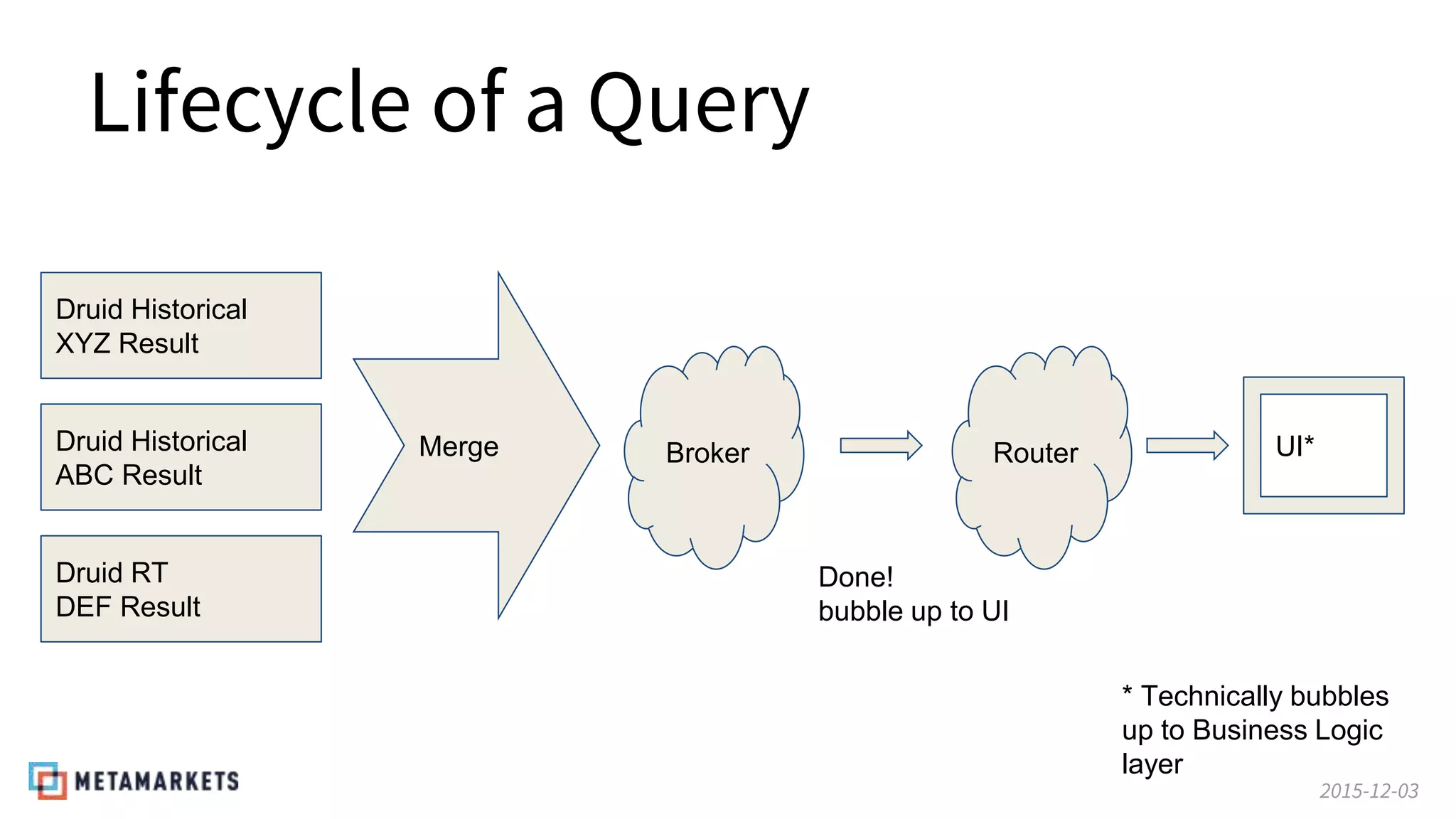

- 45. 2015-12-03 Lifecycle of aQuery Druid Historical XYZ Result Druid RT DEF Result Druid Historical ABC Result Merge Broker Done! bubble up to UI Router UI* * Technically bubbles up to Business Logic layer
- 46.

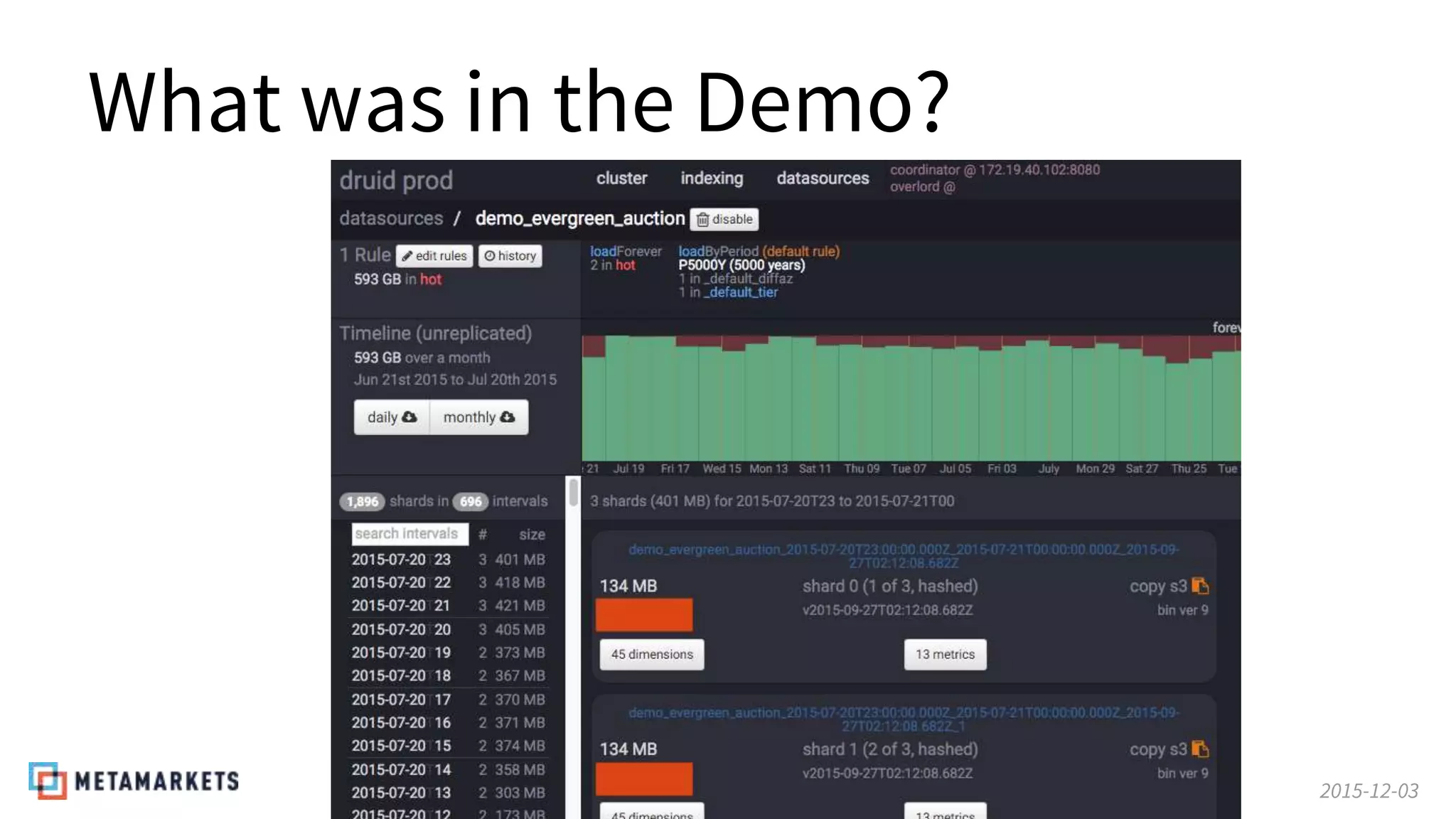

- 47. 2015-12-03 What was inthe Demo?

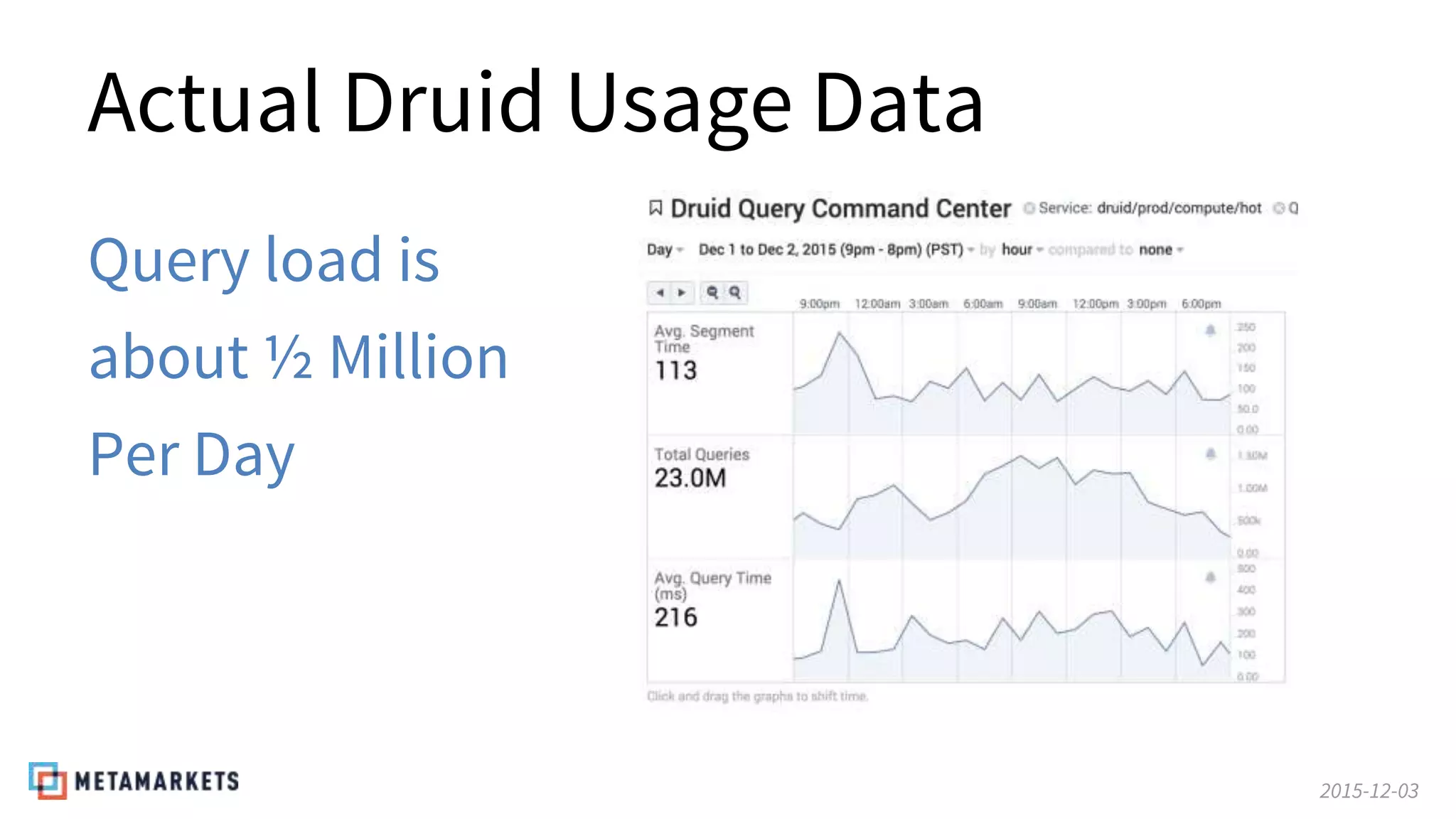

- 48. 2015-12-03 Actual Druid UsageData Query load is about ½ Million Per Day

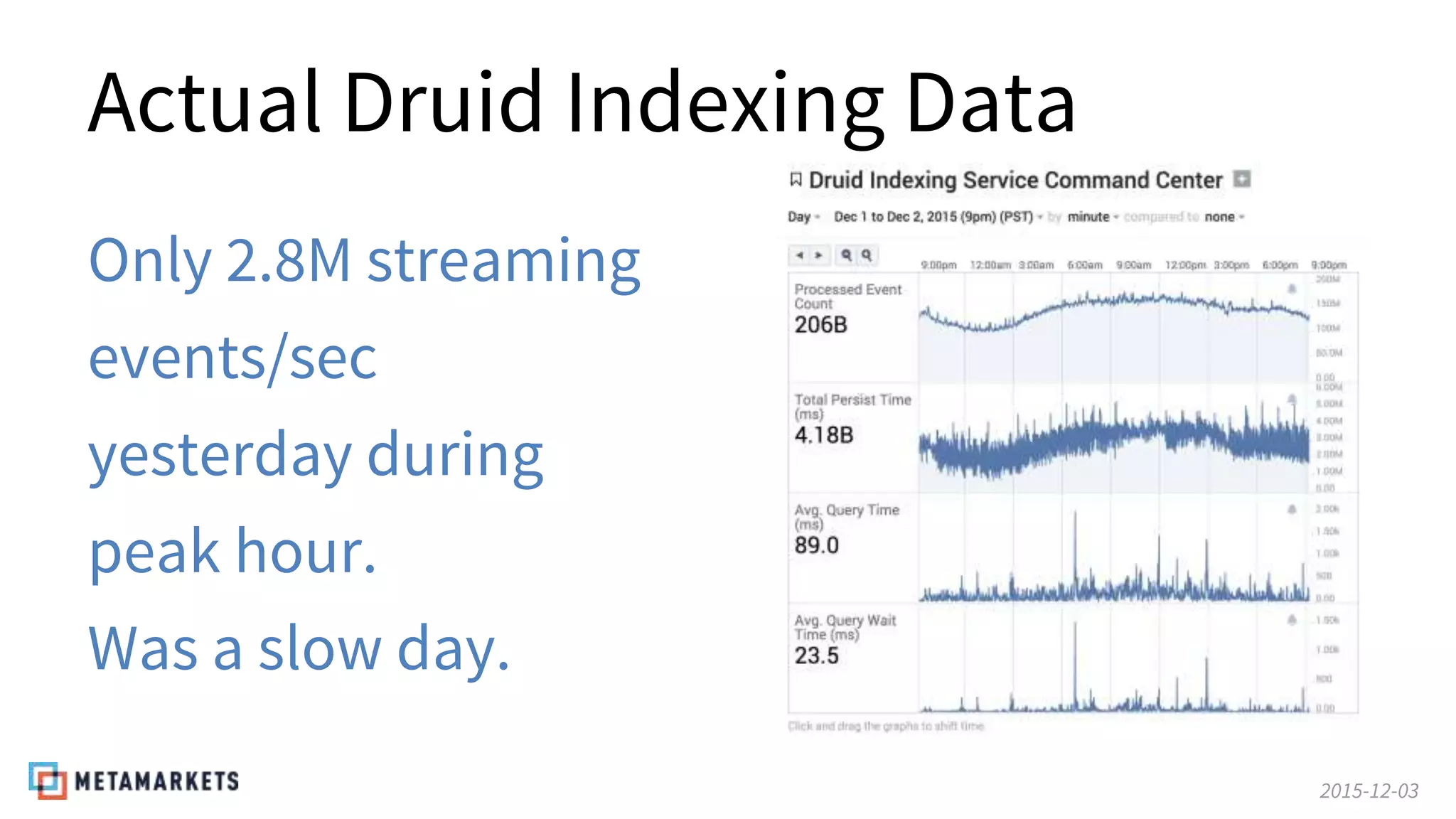

- 49. 2015-12-03 Actual Druid IndexingData Only 2.8M streaming events/sec yesterday during peak hour. Was a slow day.

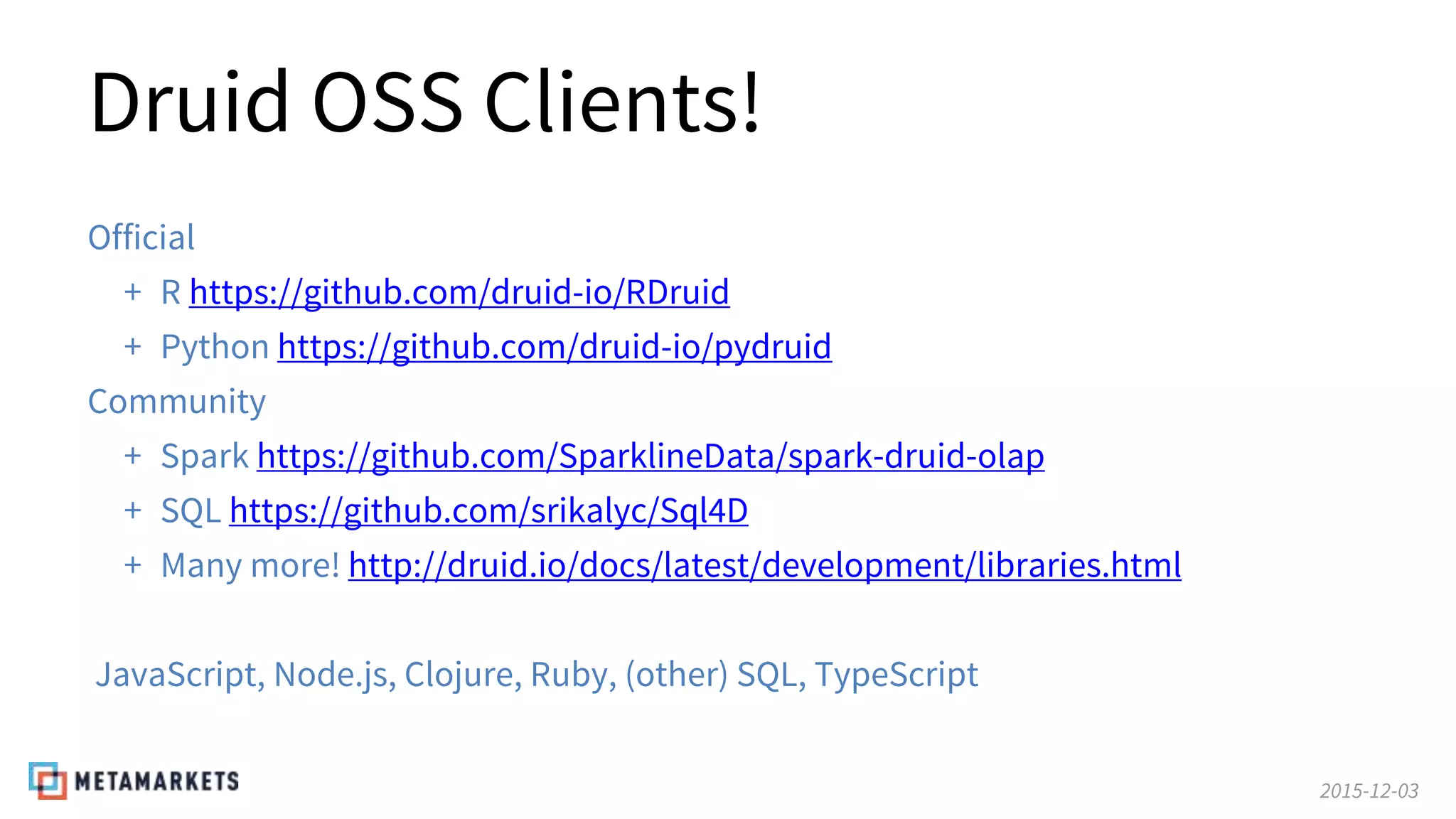

- 50. 2015-12-03 Druid OSS Clients! Official +R https://github.com/druid-io/RDruid + Python https://github.com/druid-io/pydruid Community + Spark https://github.com/SparklineData/spark-druid-olap + SQL https://github.com/srikalyc/Sql4D + Many more! http://druid.io/docs/latest/development/libraries.html JavaScript, Node.js, Clojure, Ruby, (other) SQL, TypeScript

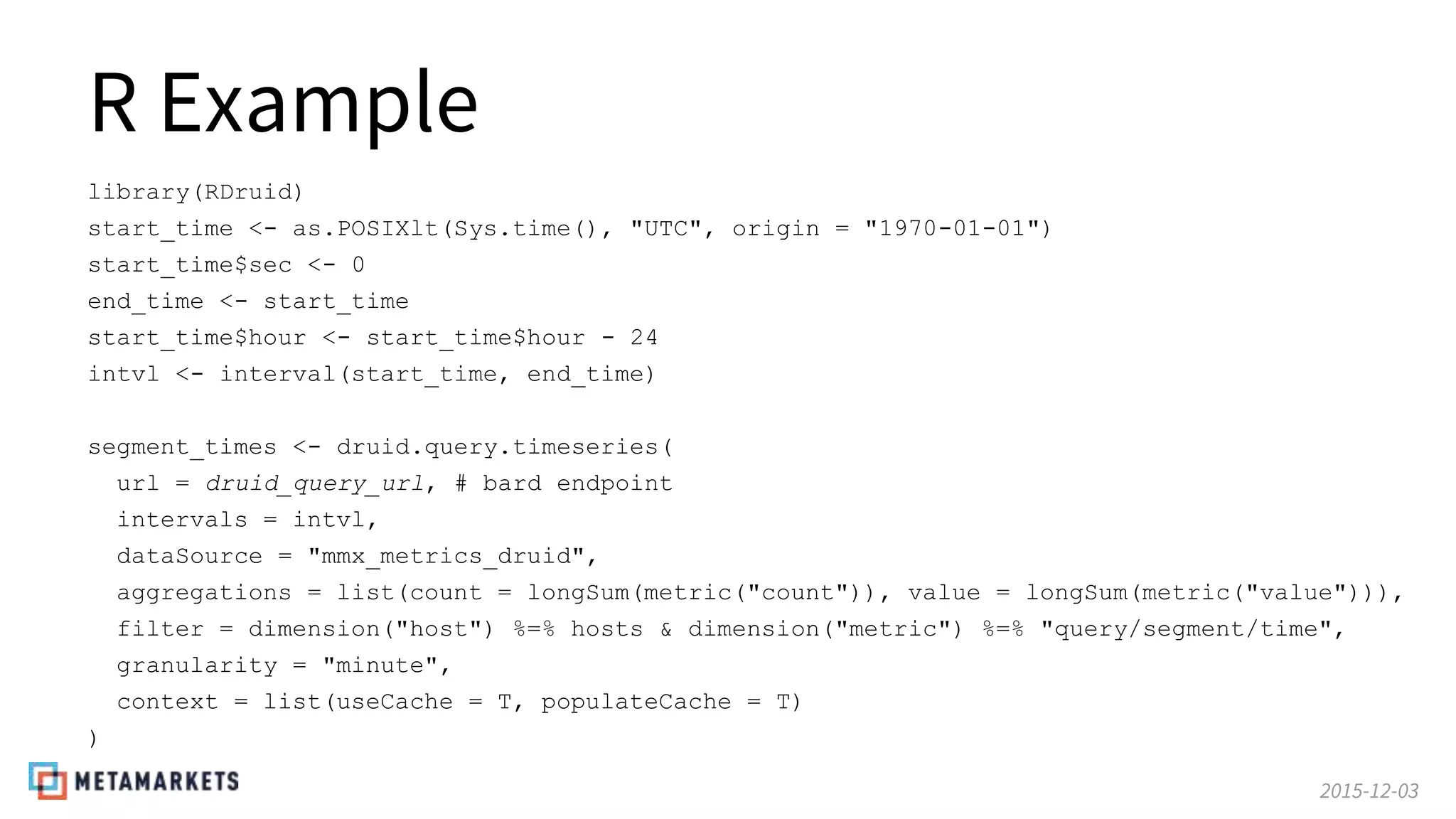

- 51. 2015-12-03 R Example library(RDruid) start_time <-as.POSIXlt(Sys.time(), "UTC", origin = "1970-01-01") start_time$sec <- 0 end_time <- start_time start_time$hour <- start_time$hour - 24 intvl <- interval(start_time, end_time) segment_times <- druid.query.timeseries( url = druid_query_url, # bard endpoint intervals = intvl, dataSource = "mmx_metrics_druid", aggregations = list(count = longSum(metric("count")), value = longSum(metric("value"))), filter = dimension("host") %=% hosts & dimension("metric") %=% "query/segment/time", granularity = "minute", context = list(useCache = T, populateCache = T) )
- 52.
- 53.
- 54.

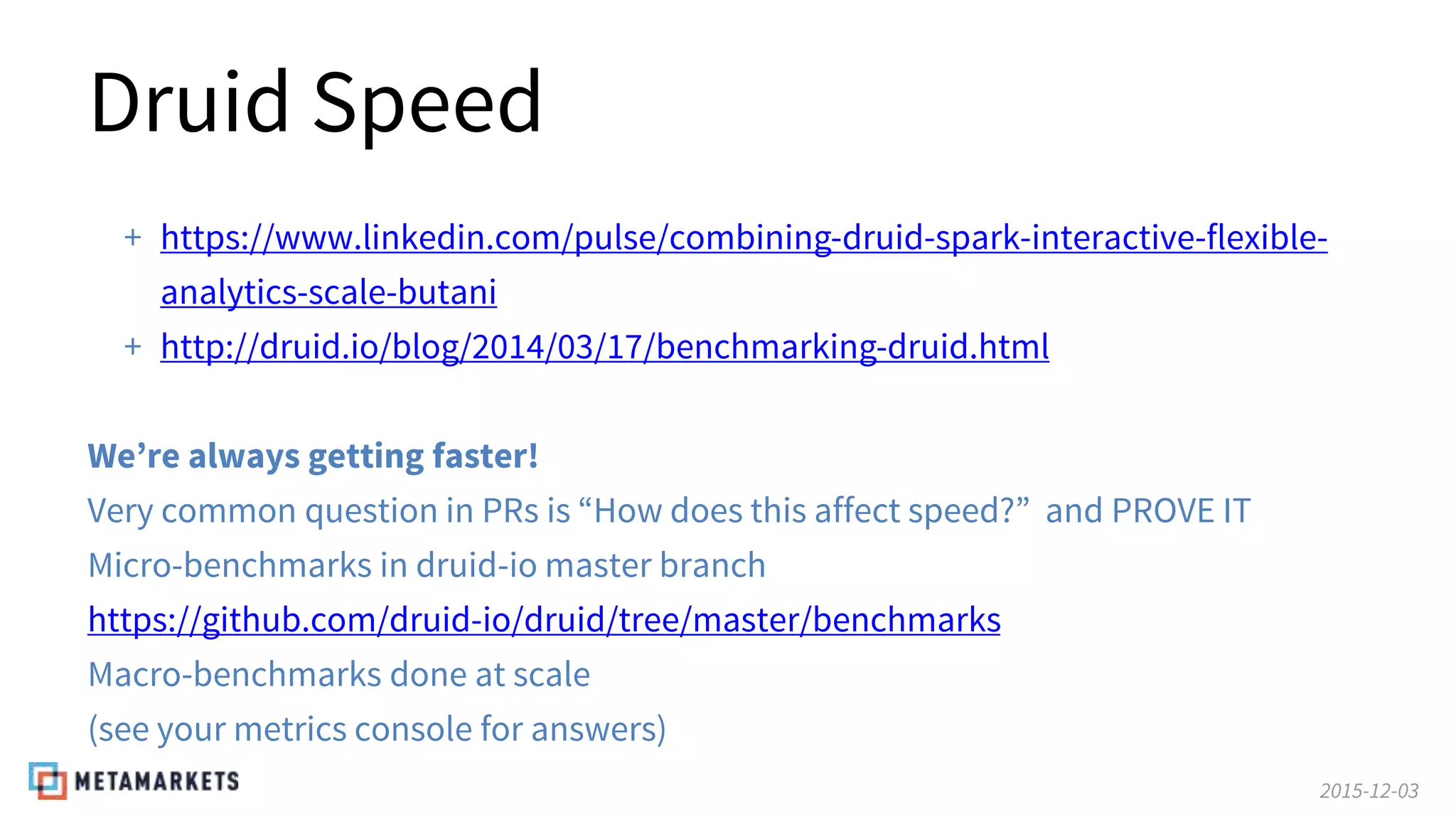

- 55. 2015-12-03 Druid Speed + https://www.linkedin.com/pulse/combining-druid-spark-interactive-flexible- analytics-scale-butani +http://druid.io/blog/2014/03/17/benchmarking-druid.html We’re always getting faster! Very common question in PRs is “How does this affect speed?” and PROVE IT Micro-benchmarks in druid-io master branch https://github.com/druid-io/druid/tree/master/benchmarks Macro-benchmarks done at scale (see your metrics console for answers)
- 56. 2015-12-03 We Are Hiring! We’dlove to connect! Our current open positions are: Engineering Director, UI Engineer and Distributed Systems Engineer. We always have positions opening up so feel free to connect with Sarah Carter (our Head of Recruiting) for future openings - sarah.carter@metamarkets.com.
