The case study is about ViralGains - a US based video marketing platform. The presentation was delivered by me (Salil Kalia) at Great Indian Developer Summit (GIDS) 2016. This is a piece of a great work that we have done at TO THE NEW Digital with our customer, ViralGains. Here, I show-cased Druid (http://druid.io) and the supporting technologies (Kafka/Zookeeper) to demonstrate how it helped us in building a stable realtime analytics system, in capturing hundreds of millions of analytics events per day. When it comes to Ad industry - it becomes very important to be precise or close to precision because money is involved at every step (even for a single ad impression). The case study included a demo and a short talk on their journey of moving from Redis to Cassandra and finally ending up on Druid with an outstanding performance.
Recommended
Recommended
More Related Content
What's hot
What's hot (20)
Viewers also liked
Viewers also liked (19)
Similar to Case Study: Realtime Analytics with Druid
Similar to Case Study: Realtime Analytics with Druid (20)
Recently uploaded
Recently uploaded (20)
Case Study: Realtime Analytics with Druid
- 1. Case Study: Real-time Analytics With Druid Salil Kalia, Tech Lead, TO THE NEW Digital

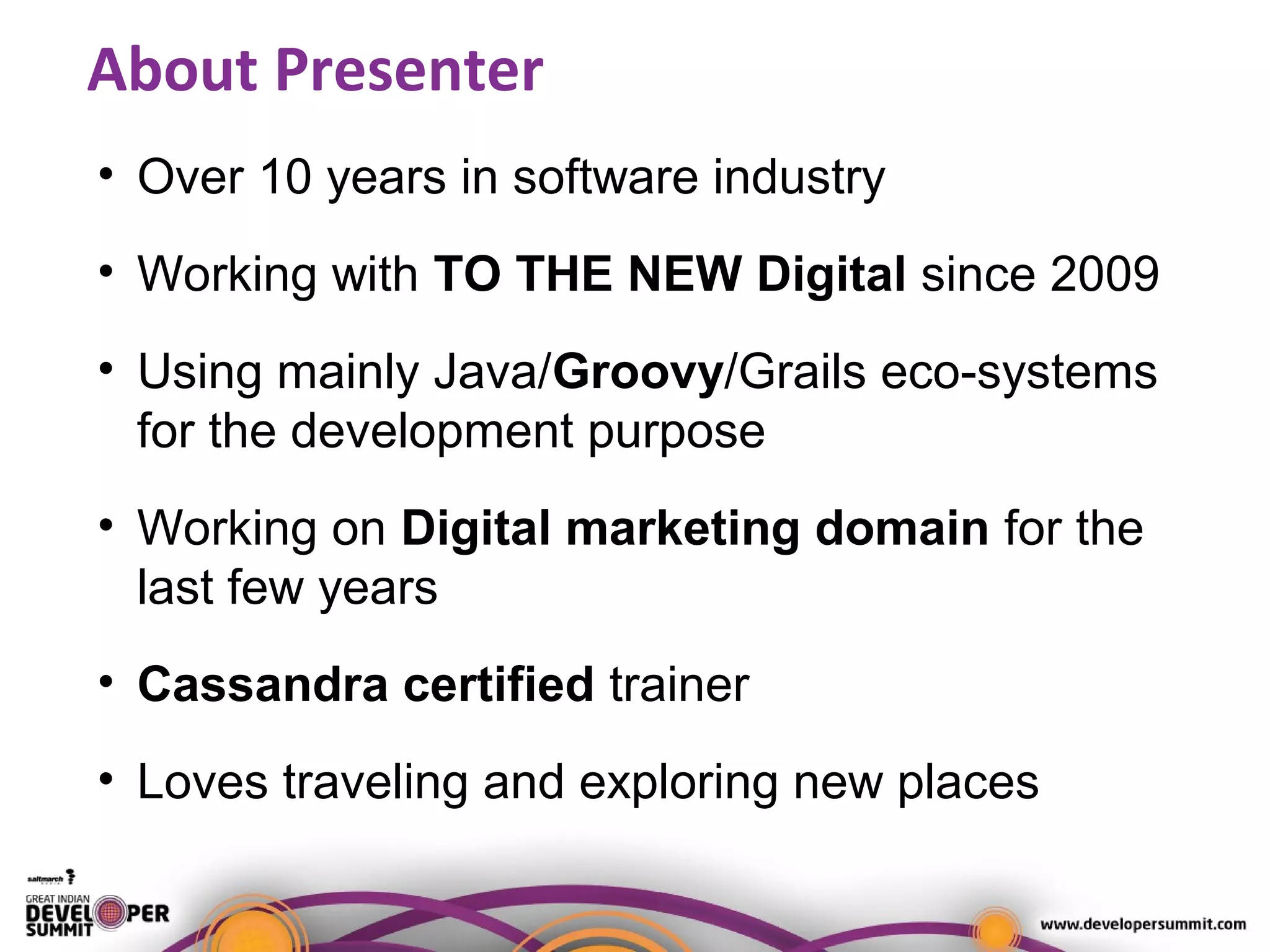

- 2. About Presenter • Over 10 years in software industry • Working with TO THE NEW Digital since 2009 • Using mainly Java/Groovy/Grails eco-systems for the development purpose • Working on Digital marketing domain for the last few years • Cassandra certified trainer • Loves traveling and exploring new places

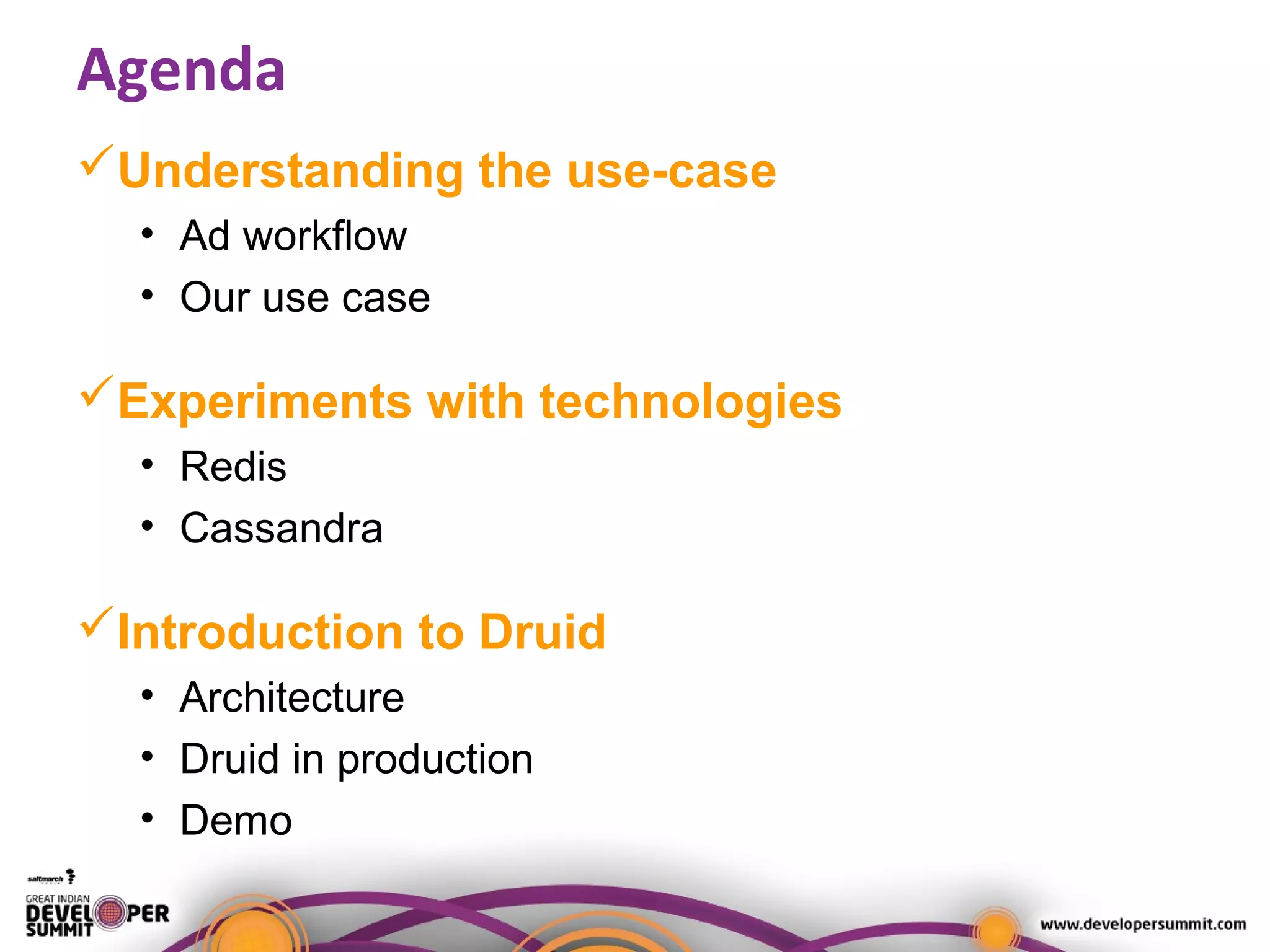

- 3. Agenda Understanding the use-case • Ad workflow • Our use case Experiments with technologies • Redis • Cassandra Introduction to Druid • Architecture • Druid in production • Demo

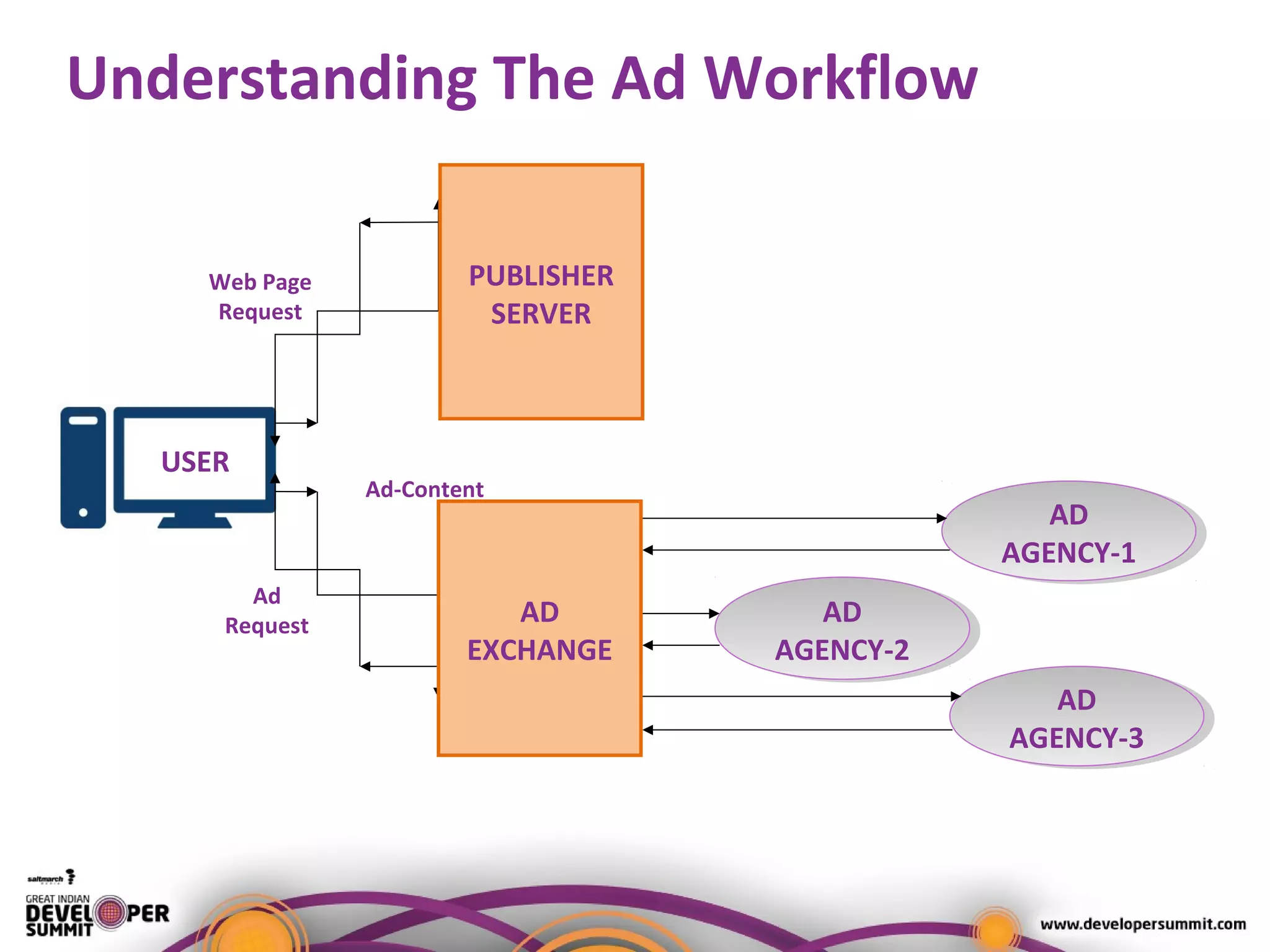

- 5. Understanding The Ad Workflow AD AGENCY-2 AD AGENCY-2 AD AGENCY-3 AD AGENCY-3 AD AGENCY-1 AD AGENCY-1 USER Web Page Request Ad Request Ad-Content PUBLISHER SERVER AD EXCHANGE

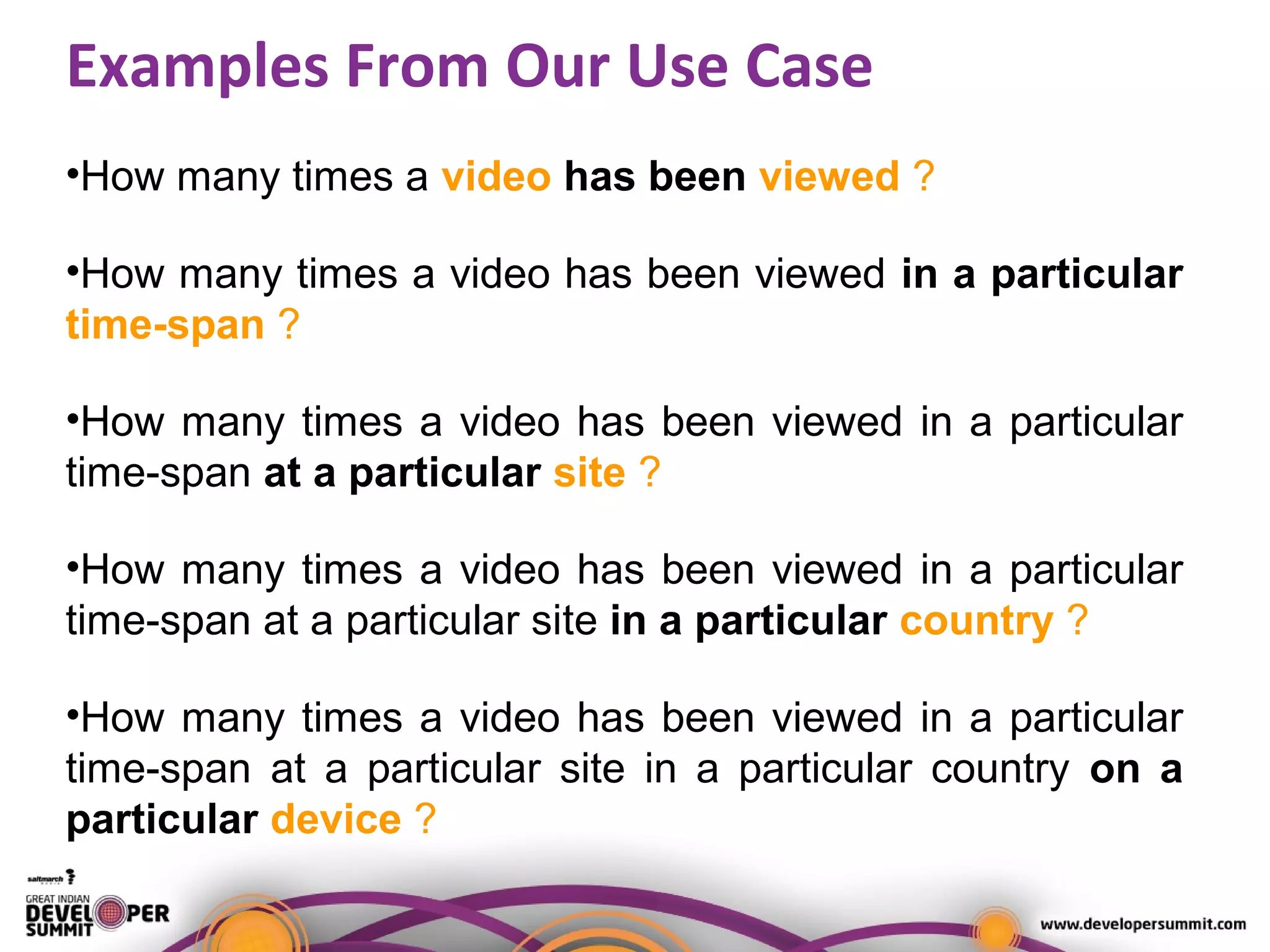

- 6. Examples From Our Use Case •How many times a video has been viewed ? •How many times a video has been viewed in a particular time-span ? •How many times a video has been viewed in a particular time-span at a particular site ? •How many times a video has been viewed in a particular time-span at a particular site in a particular country ? •How many times a video has been viewed in a particular time-span at a particular site in a particular country on a particular device ?

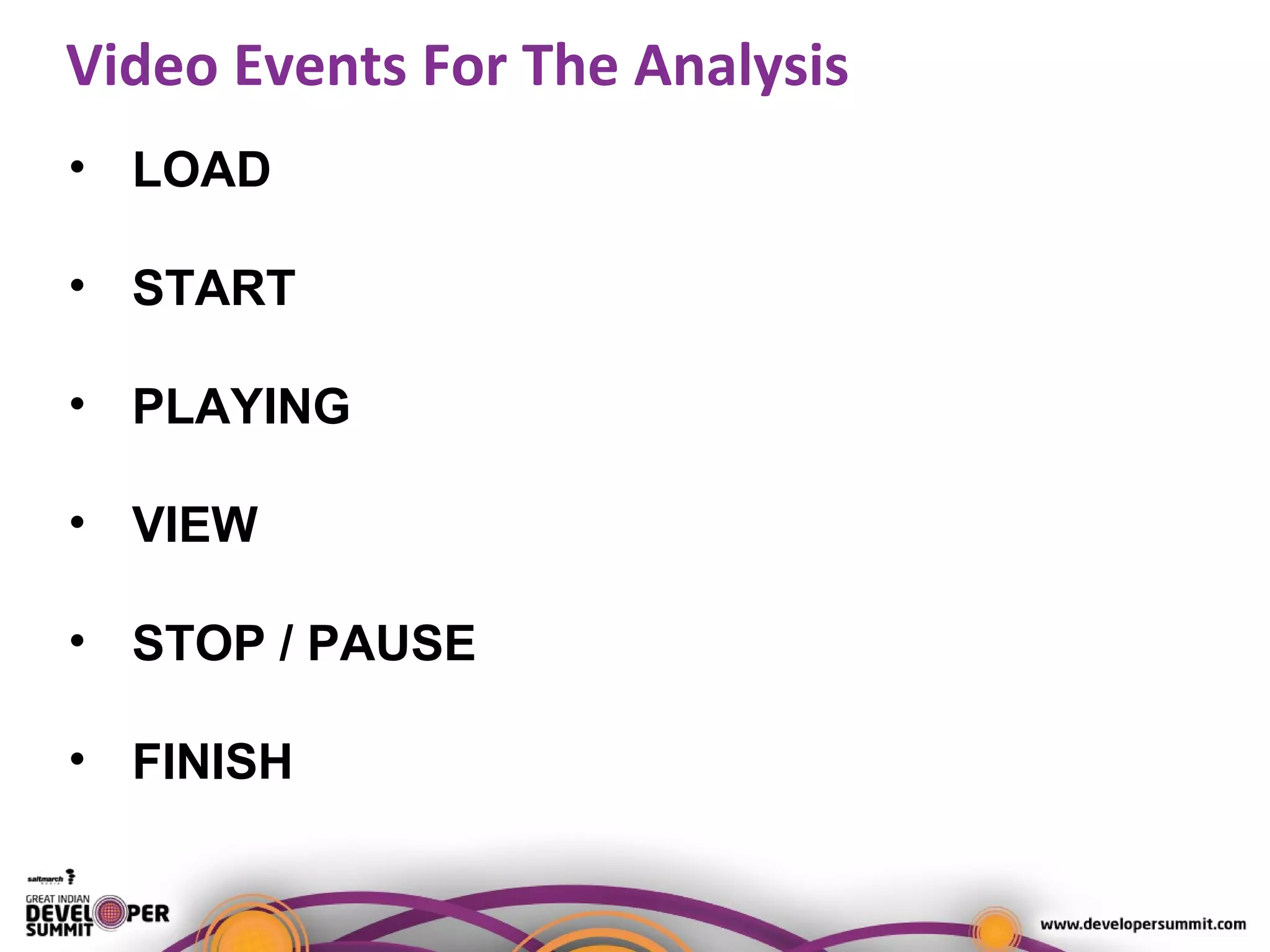

- 7. Video Events For The Analysis • LOAD • START • PLAYING • VIEW • STOP / PAUSE • FINISH

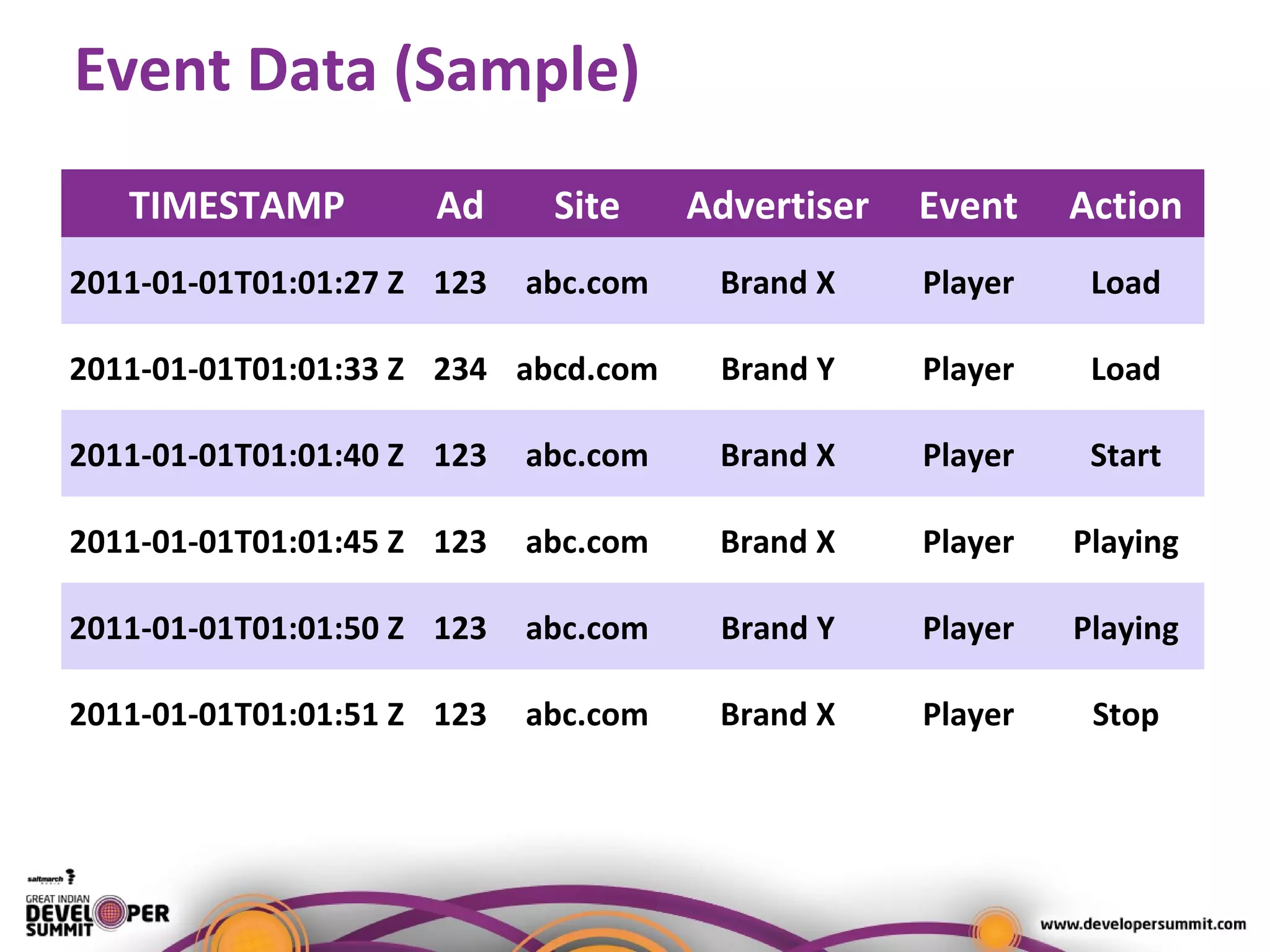

- 8. Event Data (Sample) TIMESTAMP Ad Site Advertiser Event Action 2011-01-01T01:01:27 Z 123 abc.com Brand X Player Load 2011-01-01T01:01:33 Z 234 abcd.com Brand Y Player Load 2011-01-01T01:01:40 Z 123 abc.com Brand X Player Start 2011-01-01T01:01:45 Z 123 abc.com Brand X Player Playing 2011-01-01T01:01:50 Z 123 abc.com Brand Y Player Playing 2011-01-01T01:01:51 Z 123 abc.com Brand X Player Stop

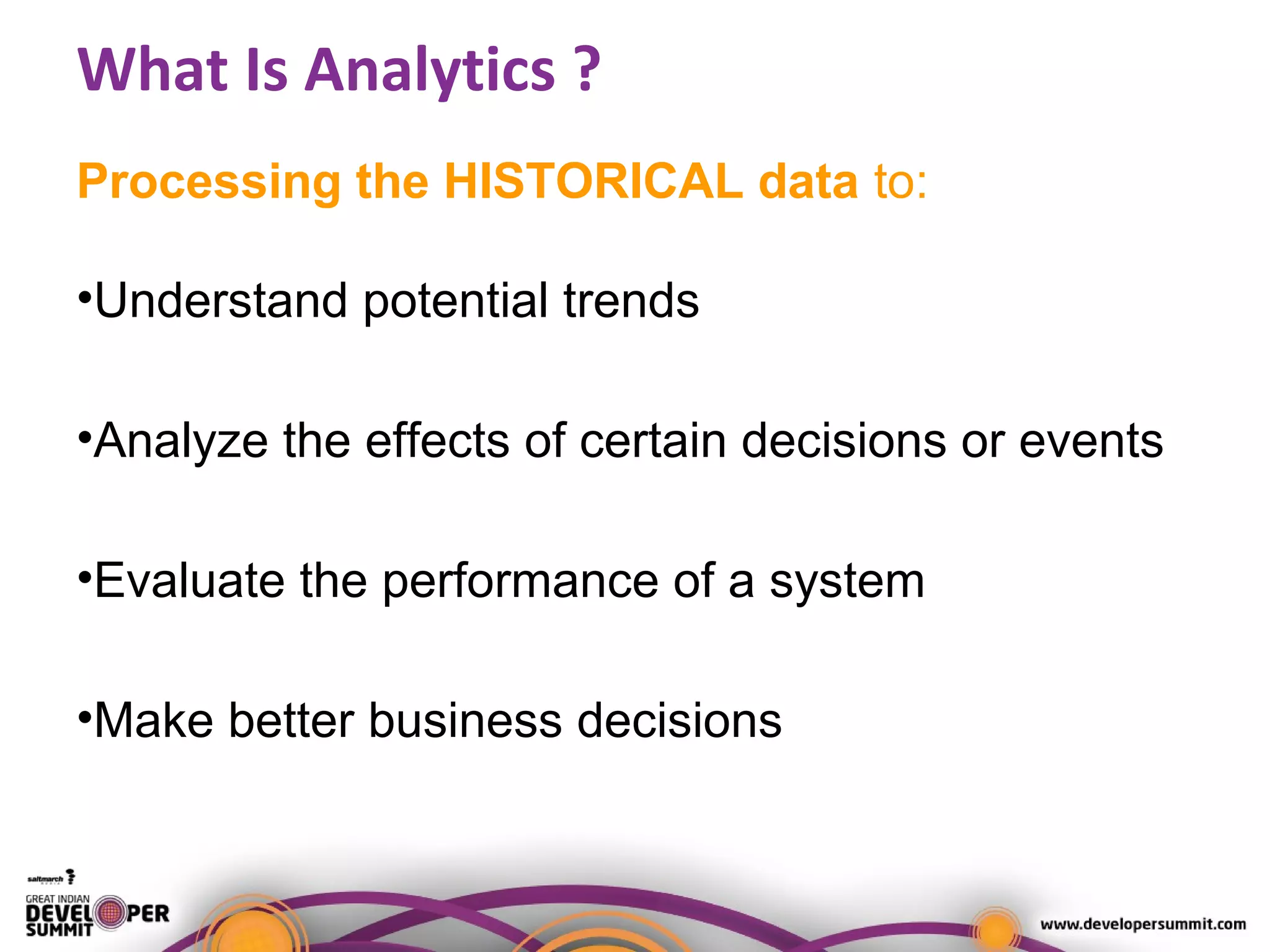

- 9. What Is Analytics ? Processing the HISTORICAL data to: •Understand potential trends •Analyze the effects of certain decisions or events •Evaluate the performance of a system •Make better business decisions

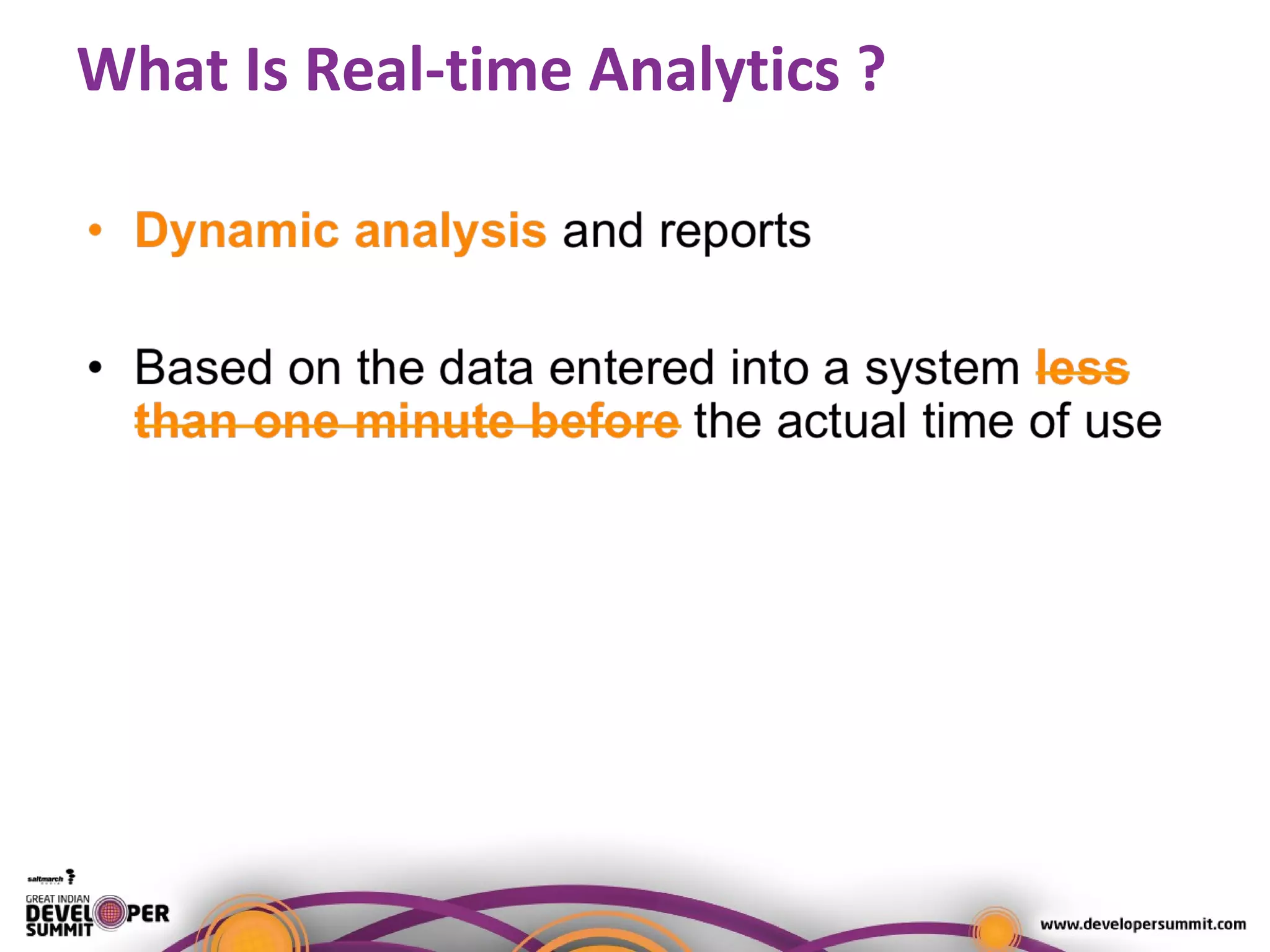

- 10. What Is Real-time Analytics ?

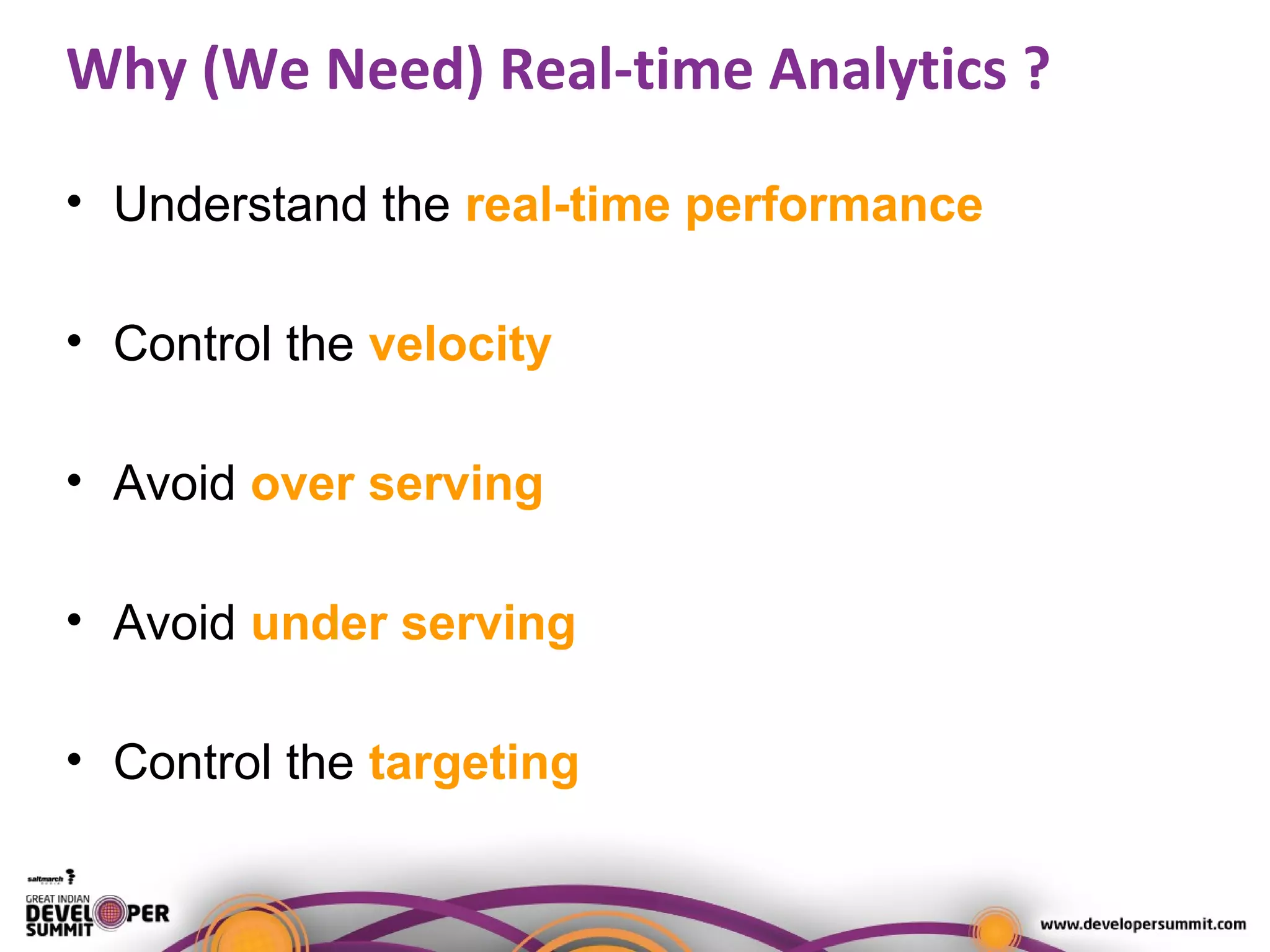

- 11. Why (We Need) Real-time Analytics ? • Understand the real-time performance • Control the velocity • Avoid over serving • Avoid under serving • Control the targeting

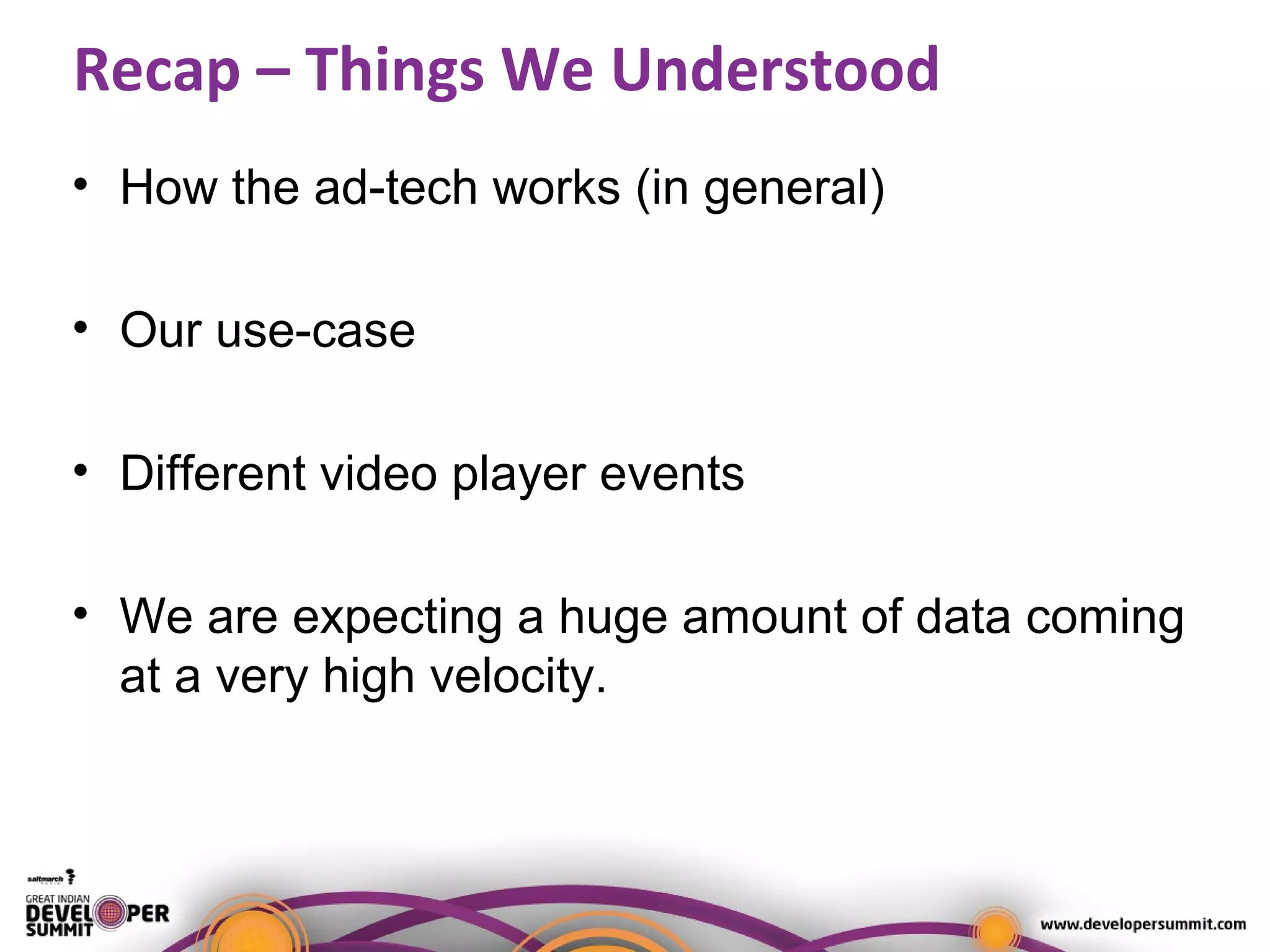

- 12. Recap – Things We Understood • How the ad-tech works (in general) • Our use-case • Different video player events • We are expecting a huge amount of data coming at a very high velocity.

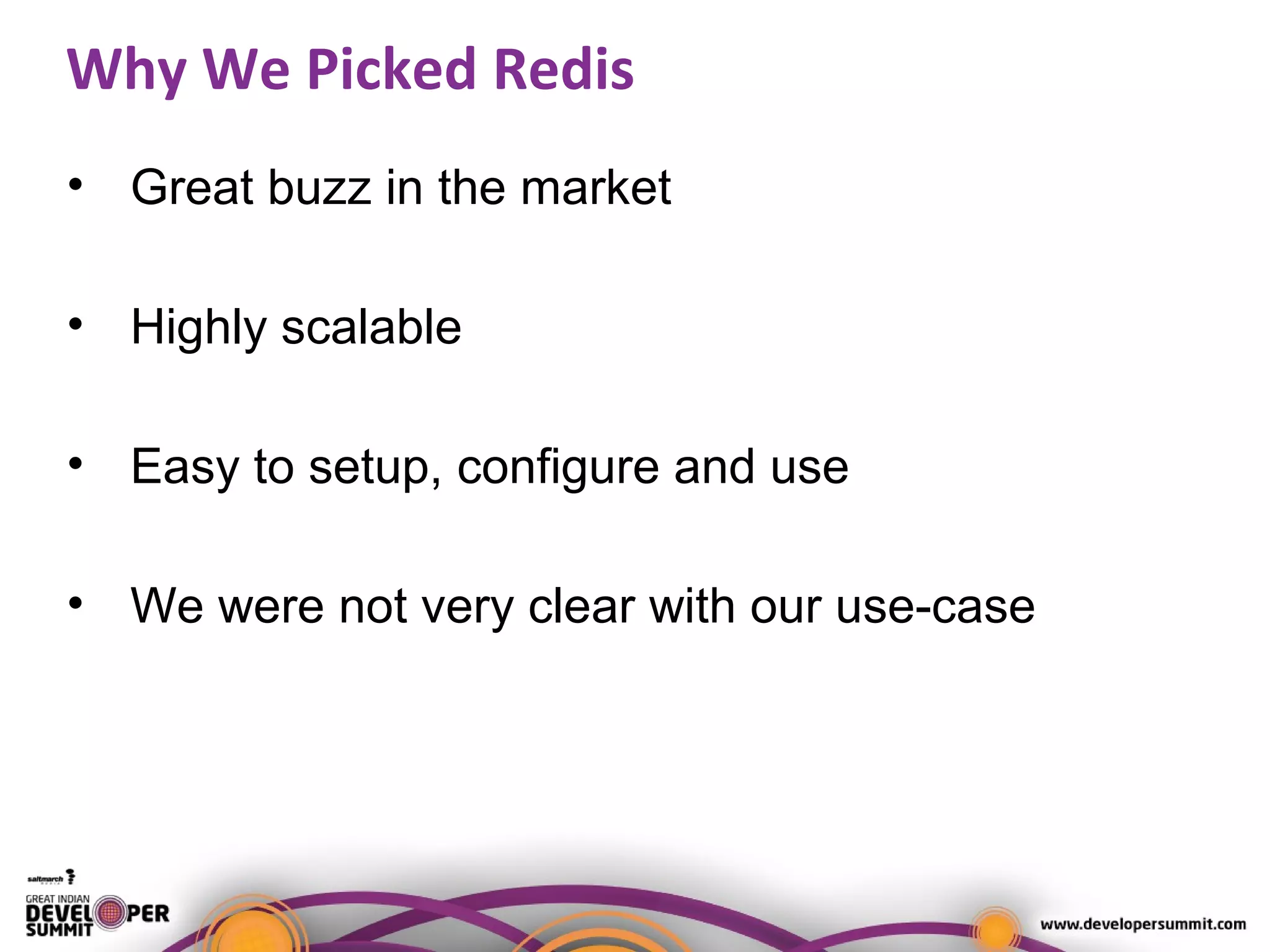

- 14. Why We Picked Redis • Great buzz in the market • Highly scalable • Easy to setup, configure and use • We were not very clear with our use-case

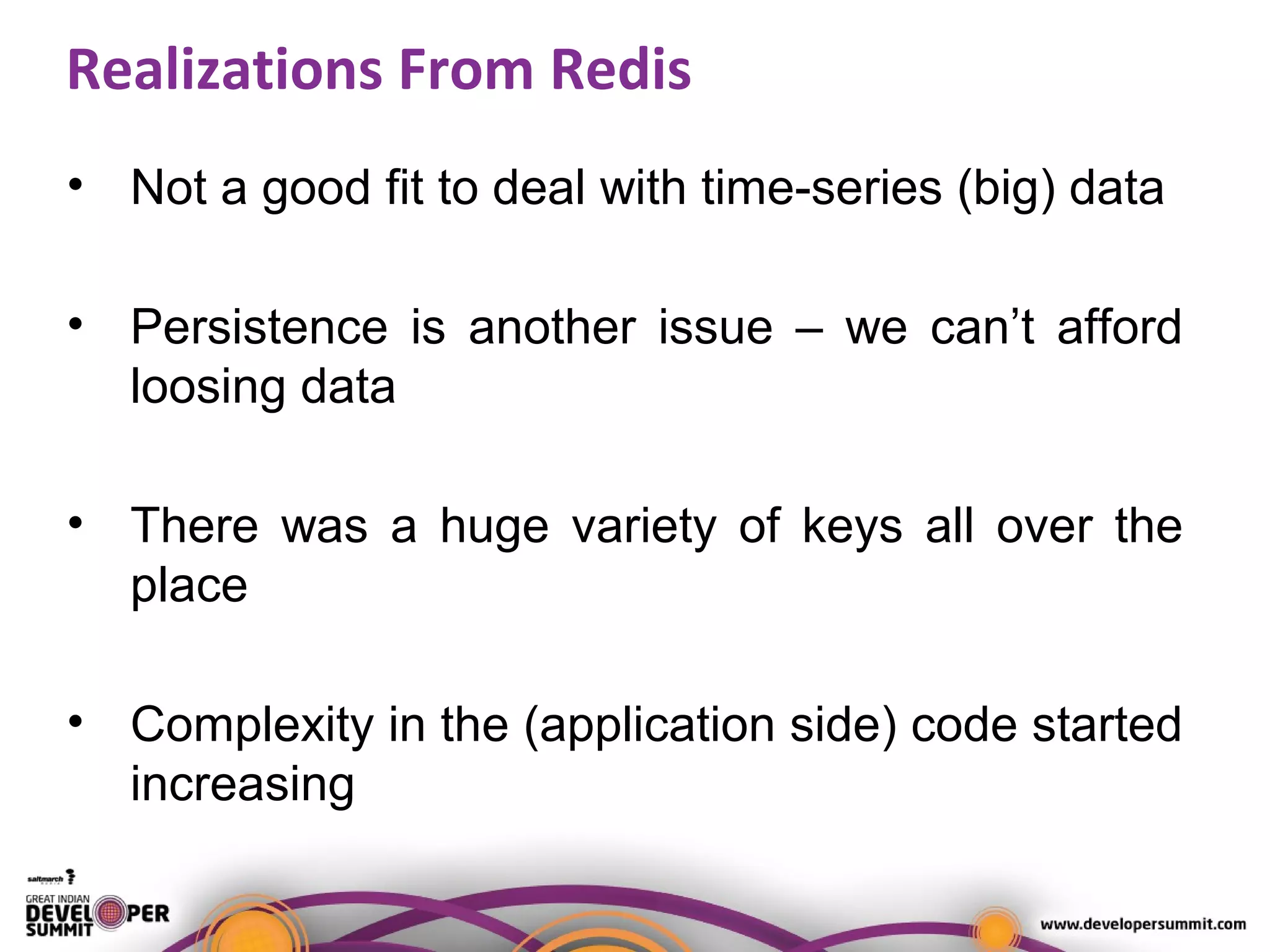

- 15. Realizations From Redis • Not a good fit to deal with time-series (big) data • Persistence is another issue – we can’t afford loosing data • There was a huge variety of keys all over the place • Complexity in the (application side) code started increasing

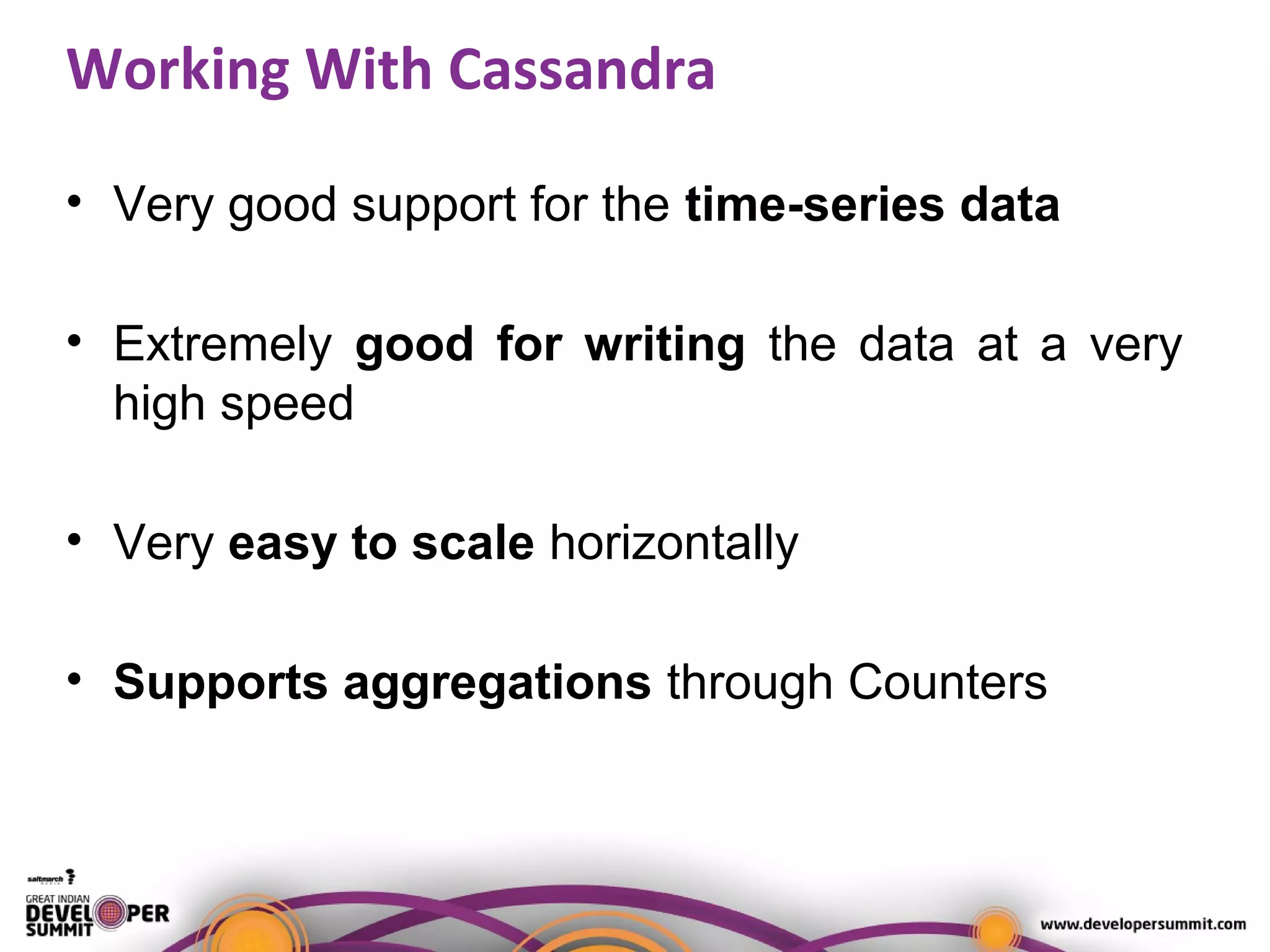

- 16. Working With Cassandra • Very good support for the time-series data • Extremely good for writing the data at a very high speed • Very easy to scale horizontally • Supports aggregations through Counters

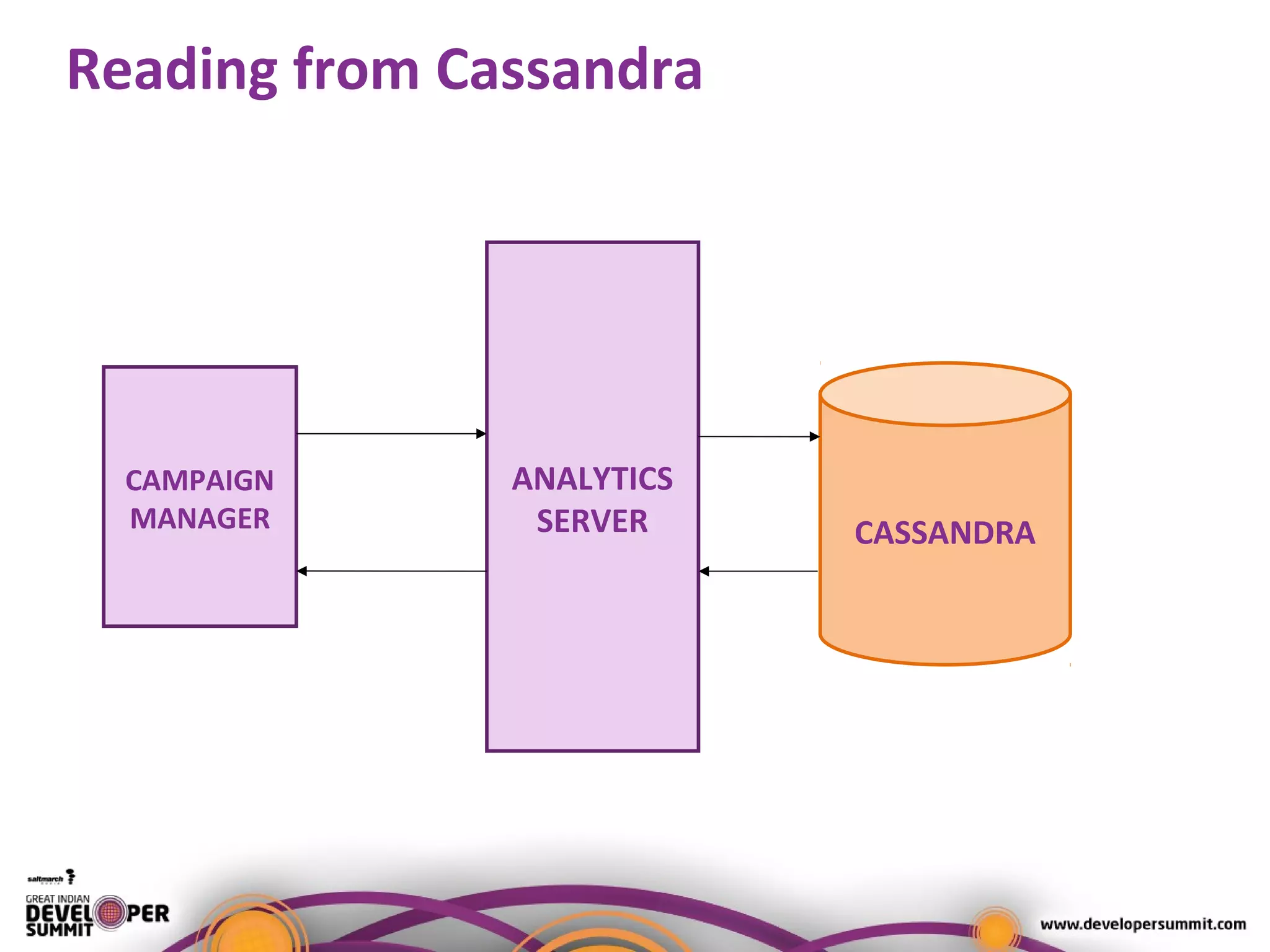

- 18. Reading from Cassandra ANALYTICS SERVER CASSANDRA CAMPAIGN MANAGER

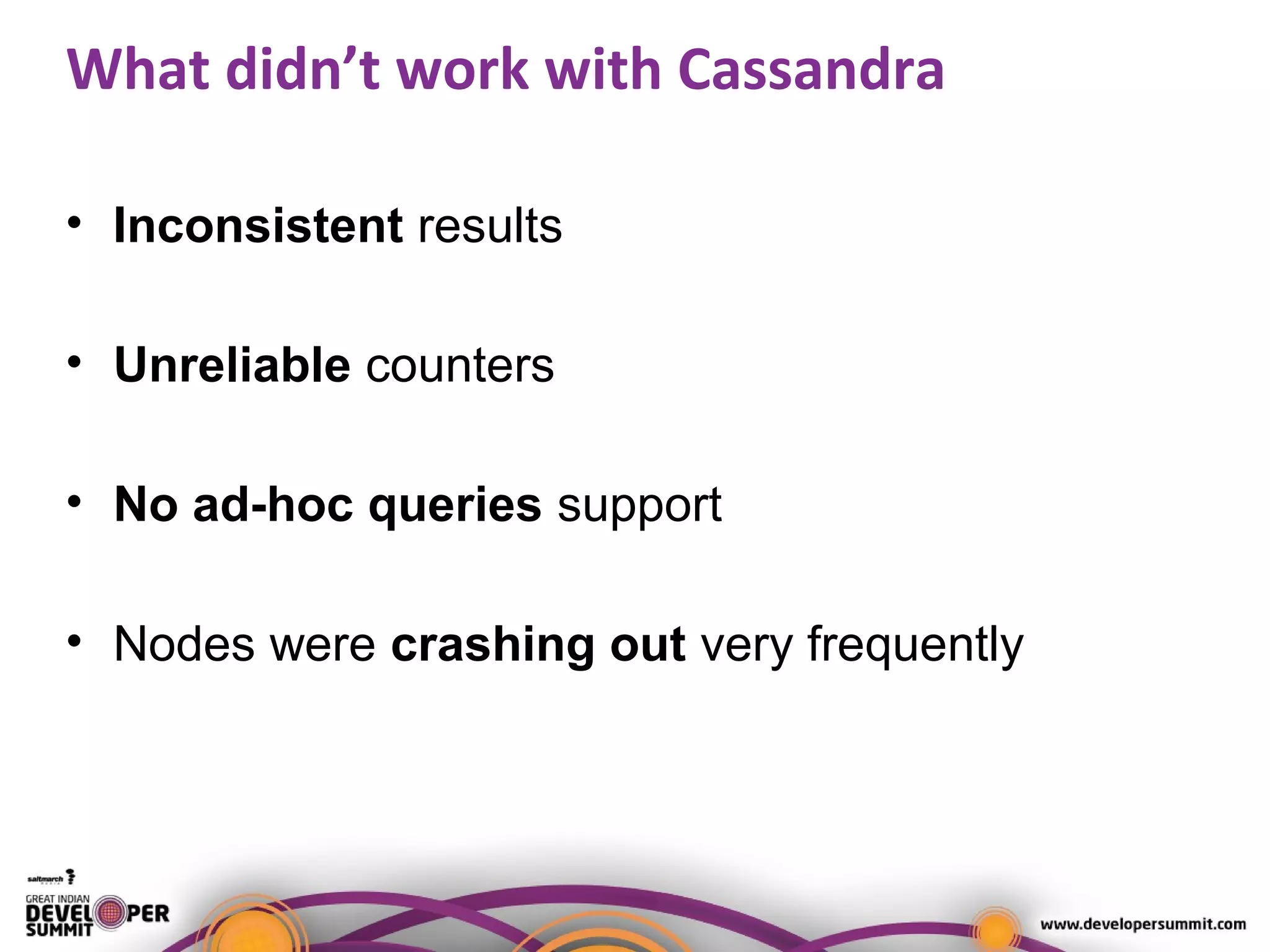

- 19. What didn’t work with Cassandra • Inconsistent results • Unreliable counters • No ad-hoc queries support • Nodes were crashing out very frequently

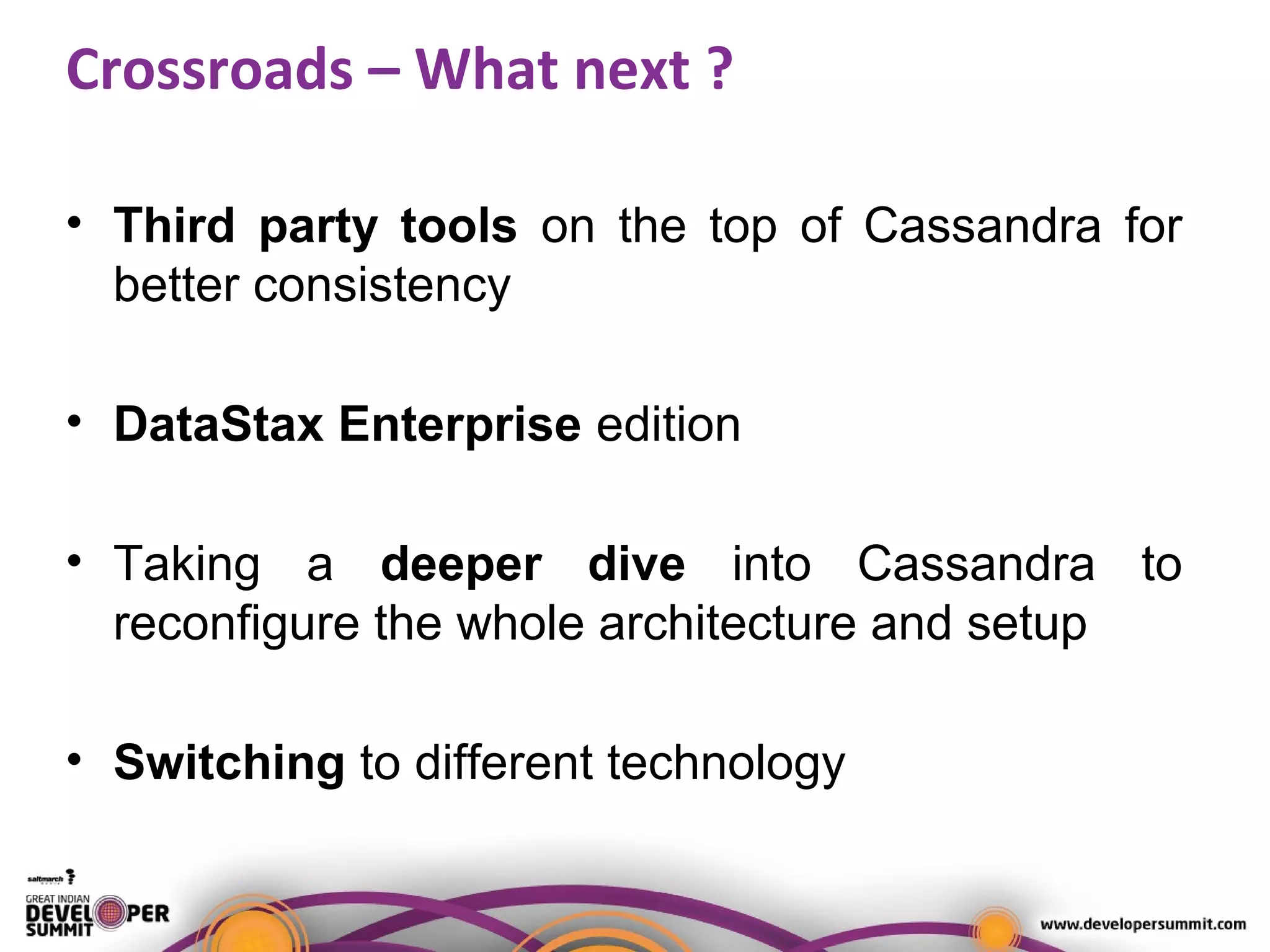

- 20. Crossroads – What next ? • Third party tools on the top of Cassandra for better consistency • DataStax Enterprise edition • Taking a deeper dive into Cassandra to reconfigure the whole architecture and setup • Switching to different technology

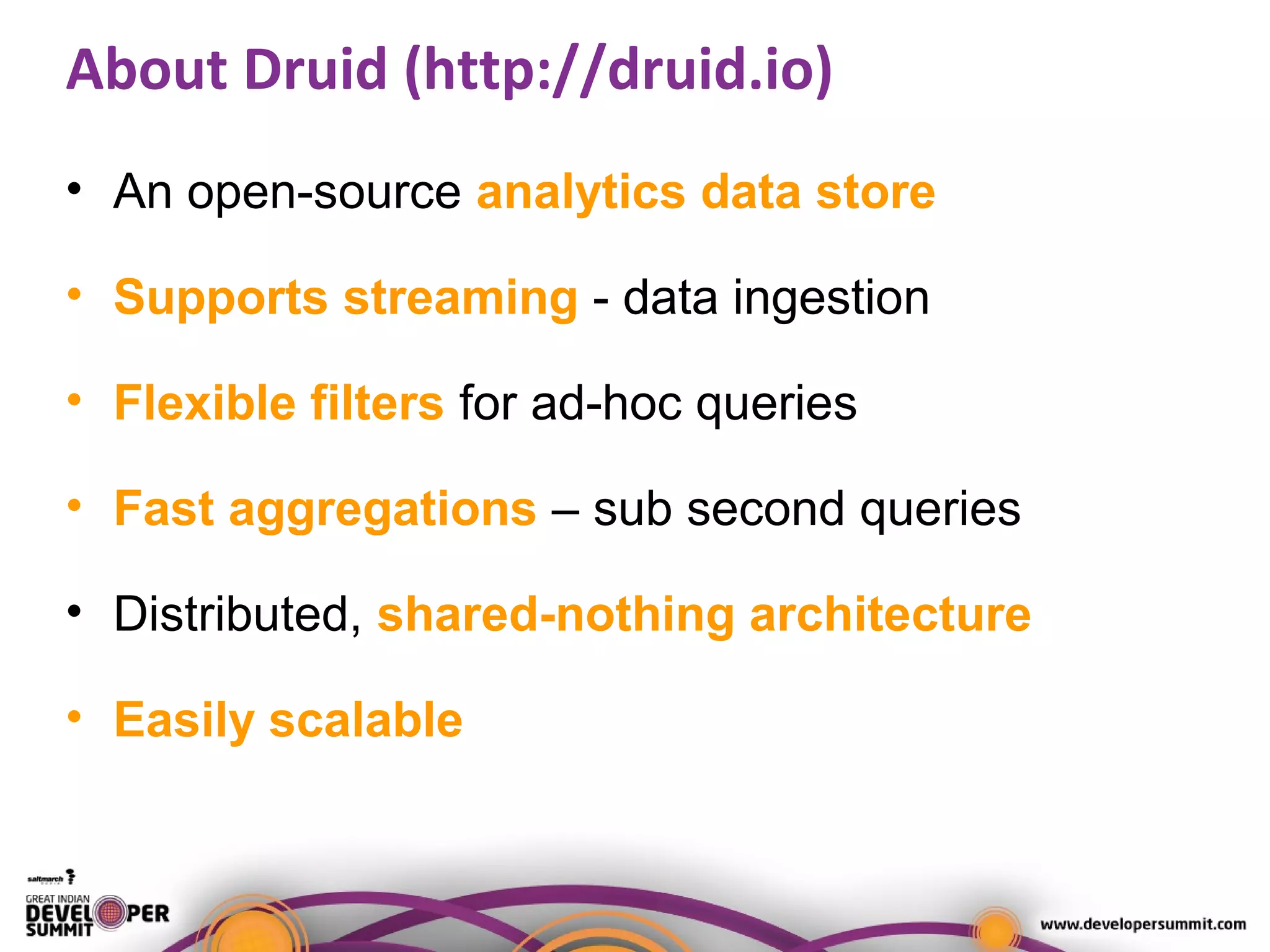

- 22. About Druid (http://druid.io) • An open-source analytics data store • Supports streaming - data ingestion • Flexible filters for ad-hoc queries • Fast aggregations – sub second queries • Distributed, shared-nothing architecture • Easily scalable

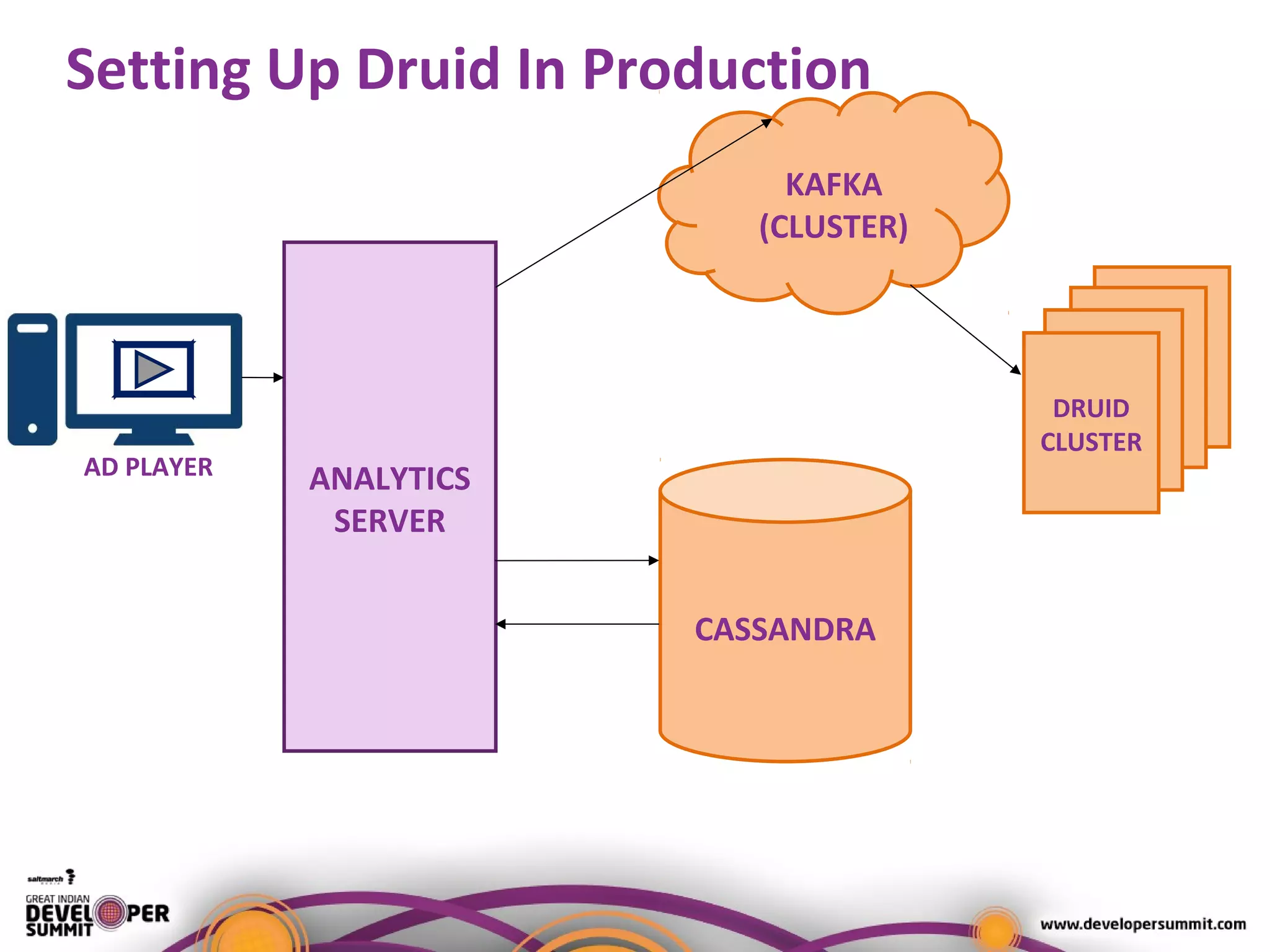

- 23. Setting Up Druid In Production KAFKA (CLUSTER) ANALYTICS SERVER DRUID CLUSTER CASSANDRA AD PLAYER

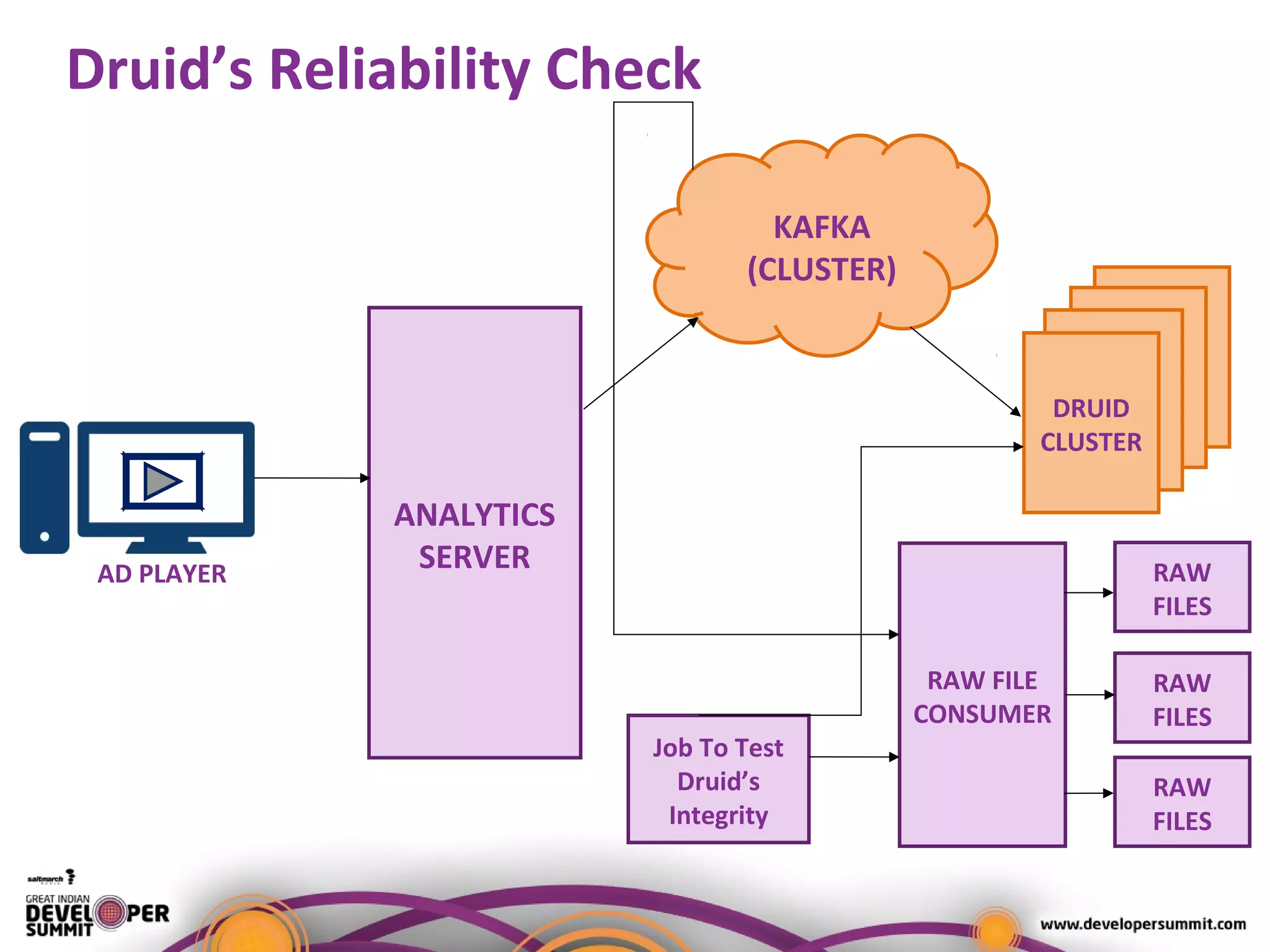

- 24. Druid’s Reliability Check KAFKA (CLUSTER) ANALYTICS SERVER DRUID CLUSTER RAW FILE CONSUMER RAW FILES RAW FILES RAW FILES Job To Test Druid’s Integrity AD PLAYER

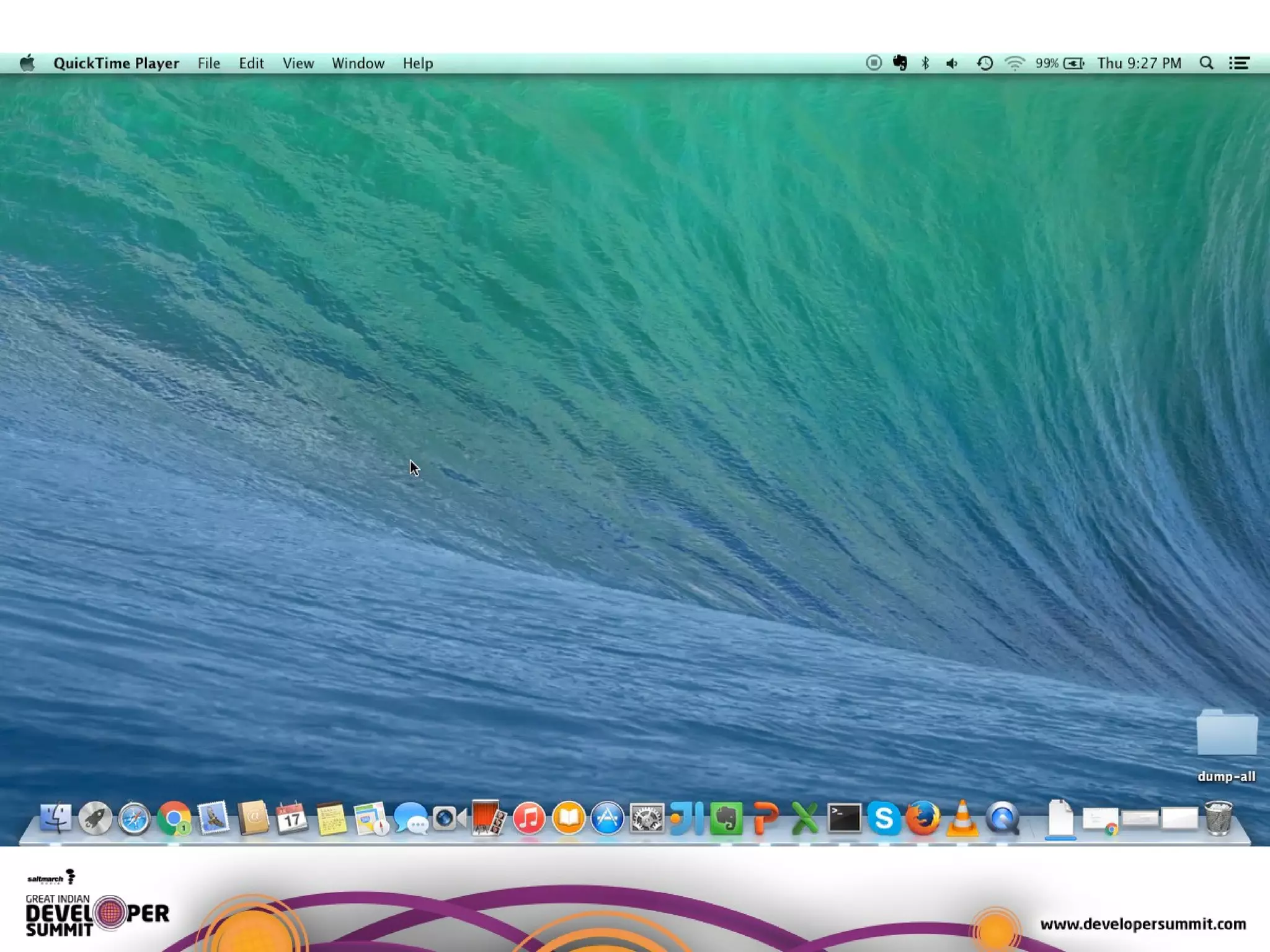

- 25. A Quick Demo

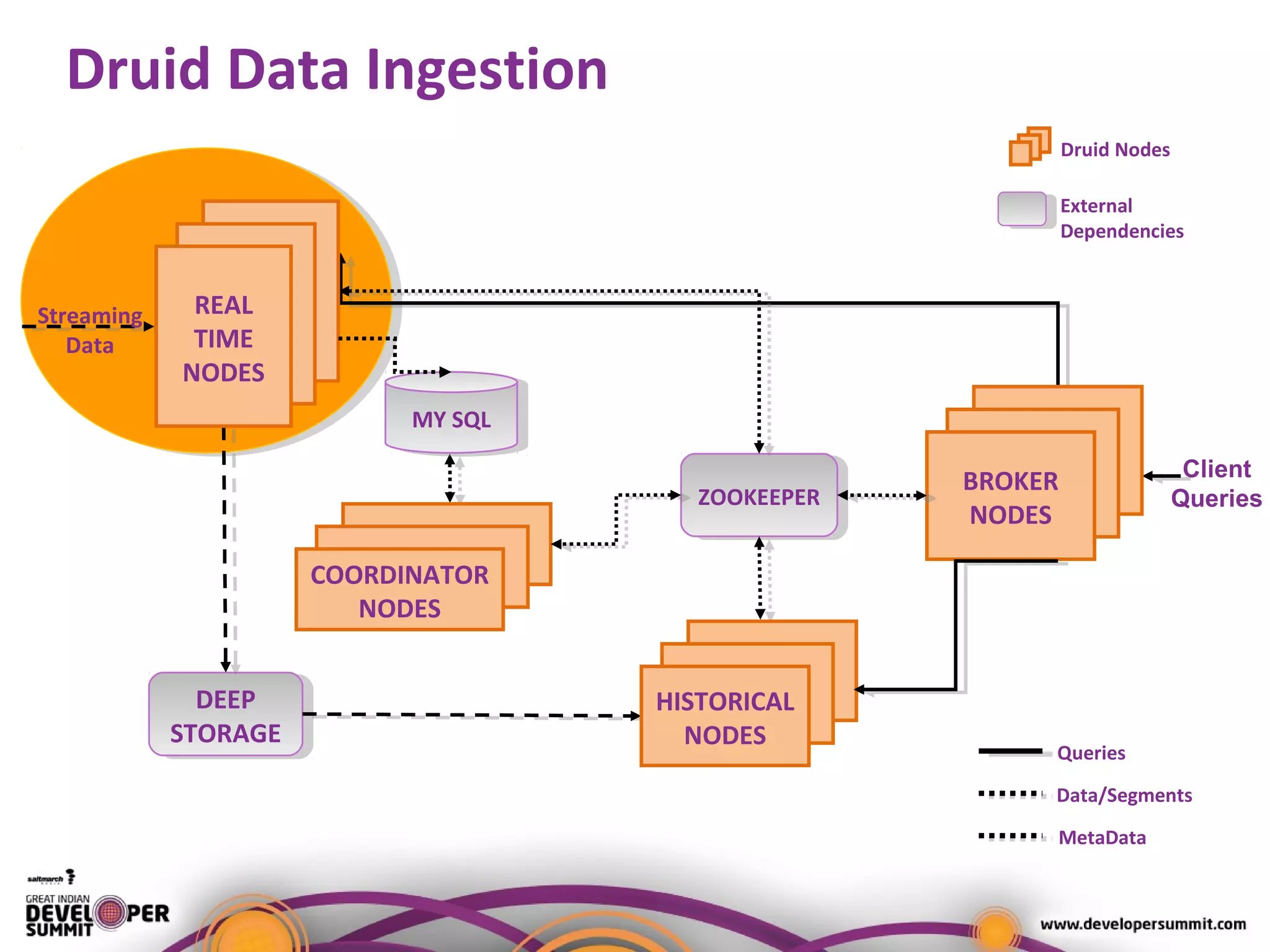

- 28. Druid Data Ingestion DEEP STORAGE DEEP STORAGE ZOOKEEPERZOOKEEPER Druid Nodes External Dependencies Queries MetaData Data/Segments Client Queries Streaming Data REAL TIME NODES COORDINATOR NODES HISTORICAL NODES BROKER NODES MY SQLMY SQL

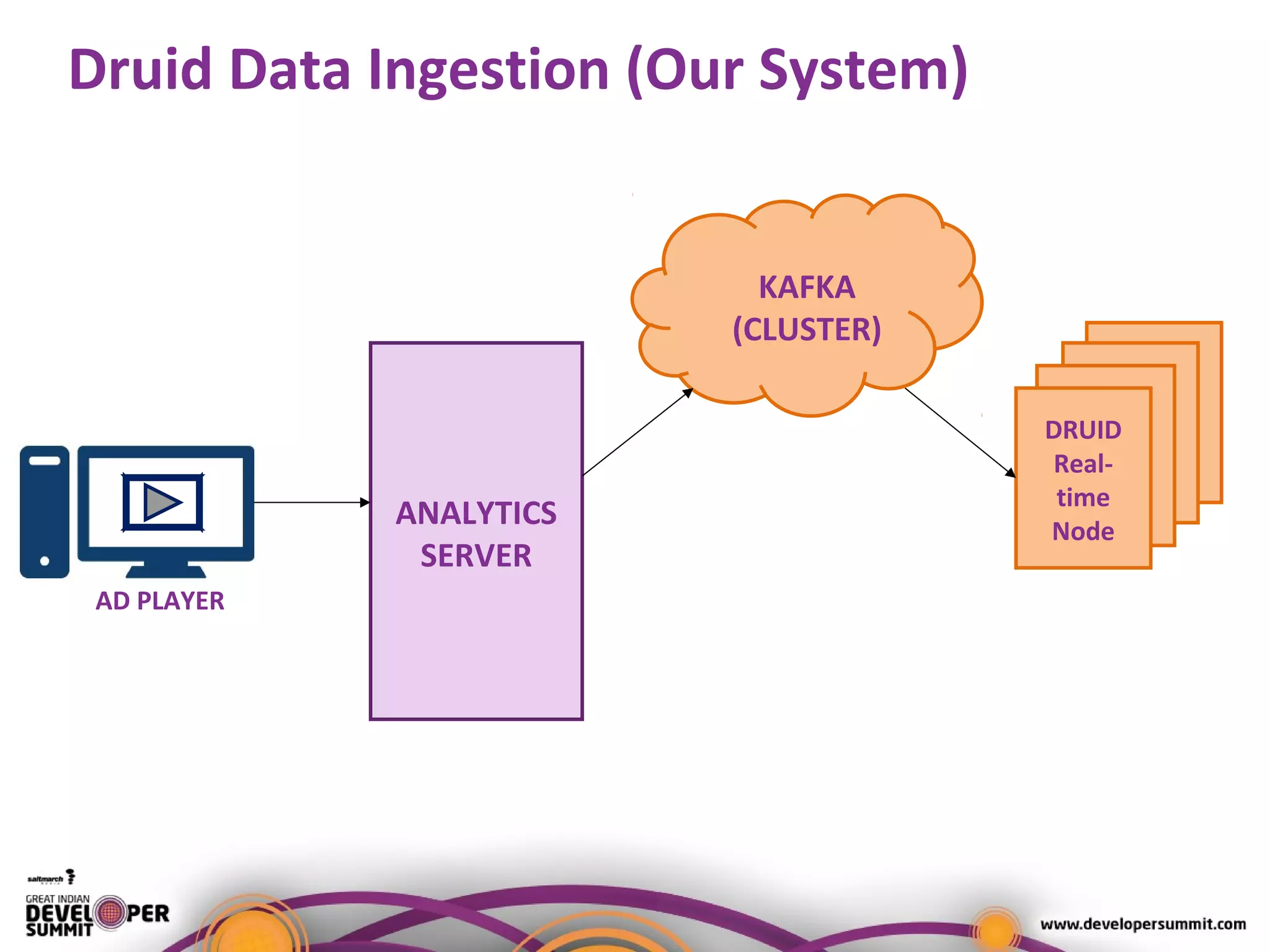

- 29. Druid Data Ingestion (Our System) KAFKA (CLUSTER) DRUID Real- time Node ANALYTICS SERVER AD PLAYER

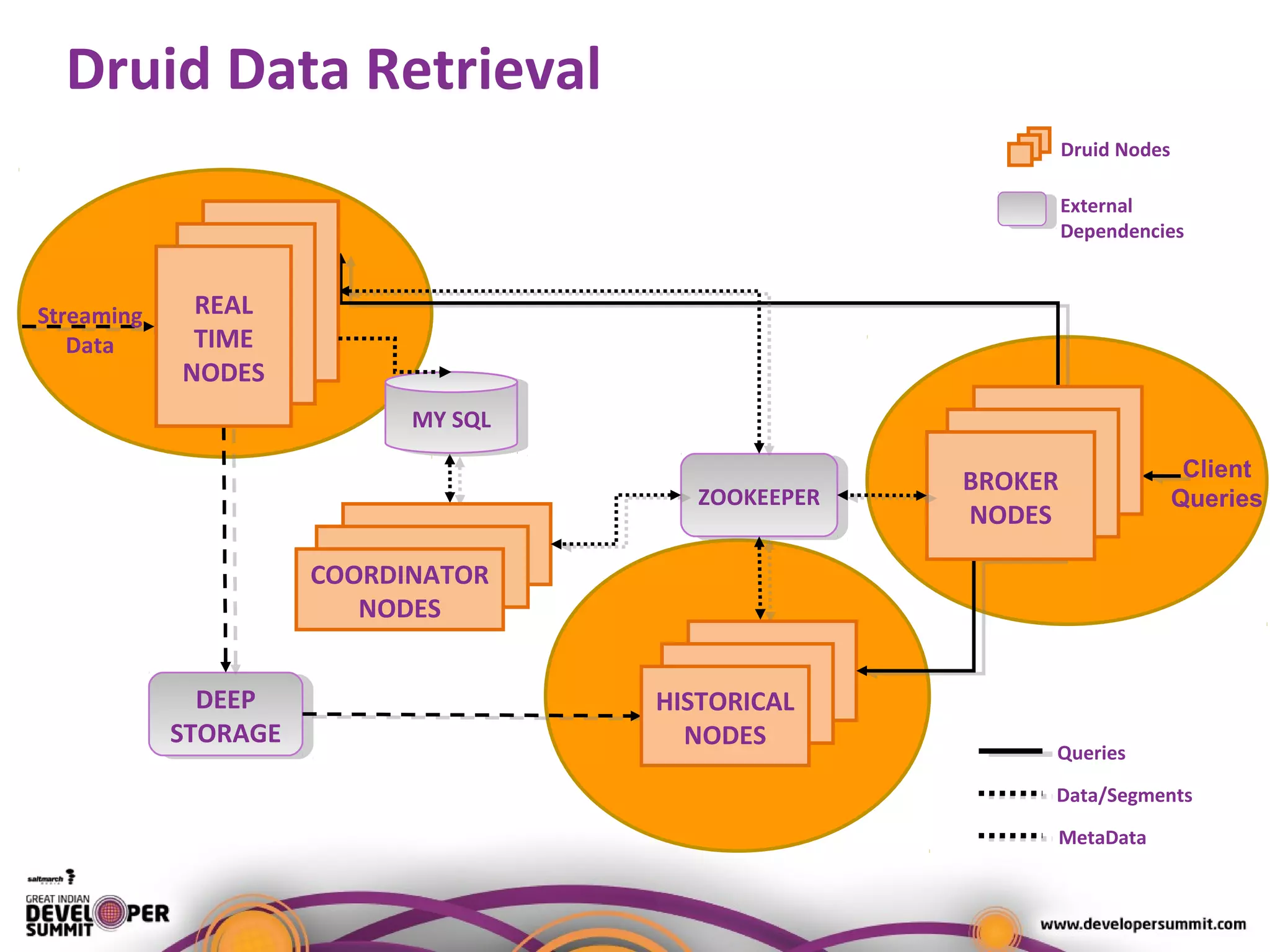

- 30. Druid Data Retrieval DEEP STORAGE DEEP STORAGE ZOOKEEPERZOOKEEPER Druid Nodes External Dependencies Queries MetaData Data/Segments Client Queries Streaming Data REAL TIME NODES COORDINATOR NODES HISTORICAL NODES BROKER NODES MY SQLMY SQL

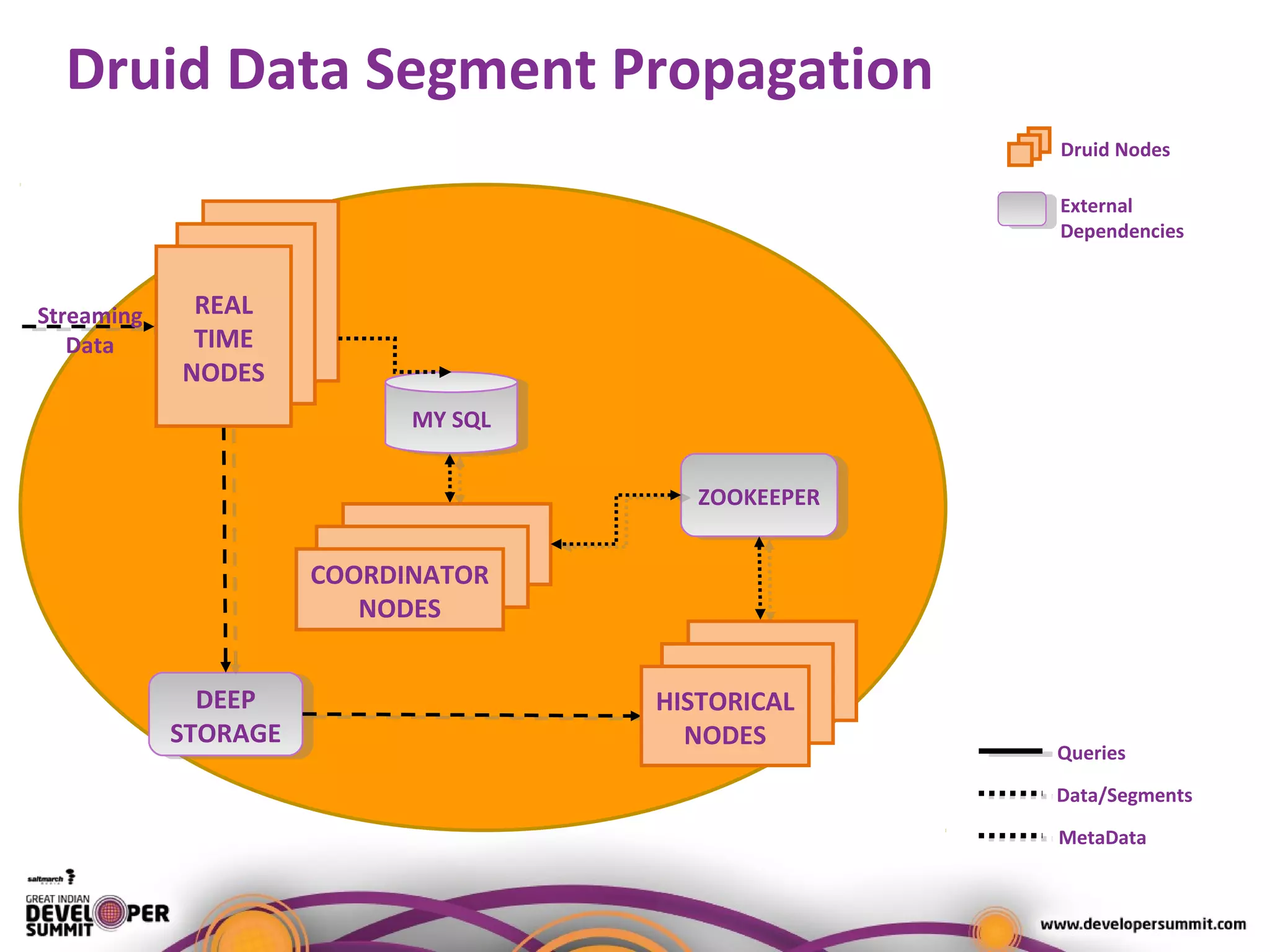

- 32. Druid Data Segment Propagation DEEP STORAGE DEEP STORAGE ZOOKEEPERZOOKEEPER Druid Nodes External Dependencies Queries MetaData Data/Segments Streaming Data REAL TIME NODES COORDINATOR NODES HISTORICAL NODES MY SQLMY SQL

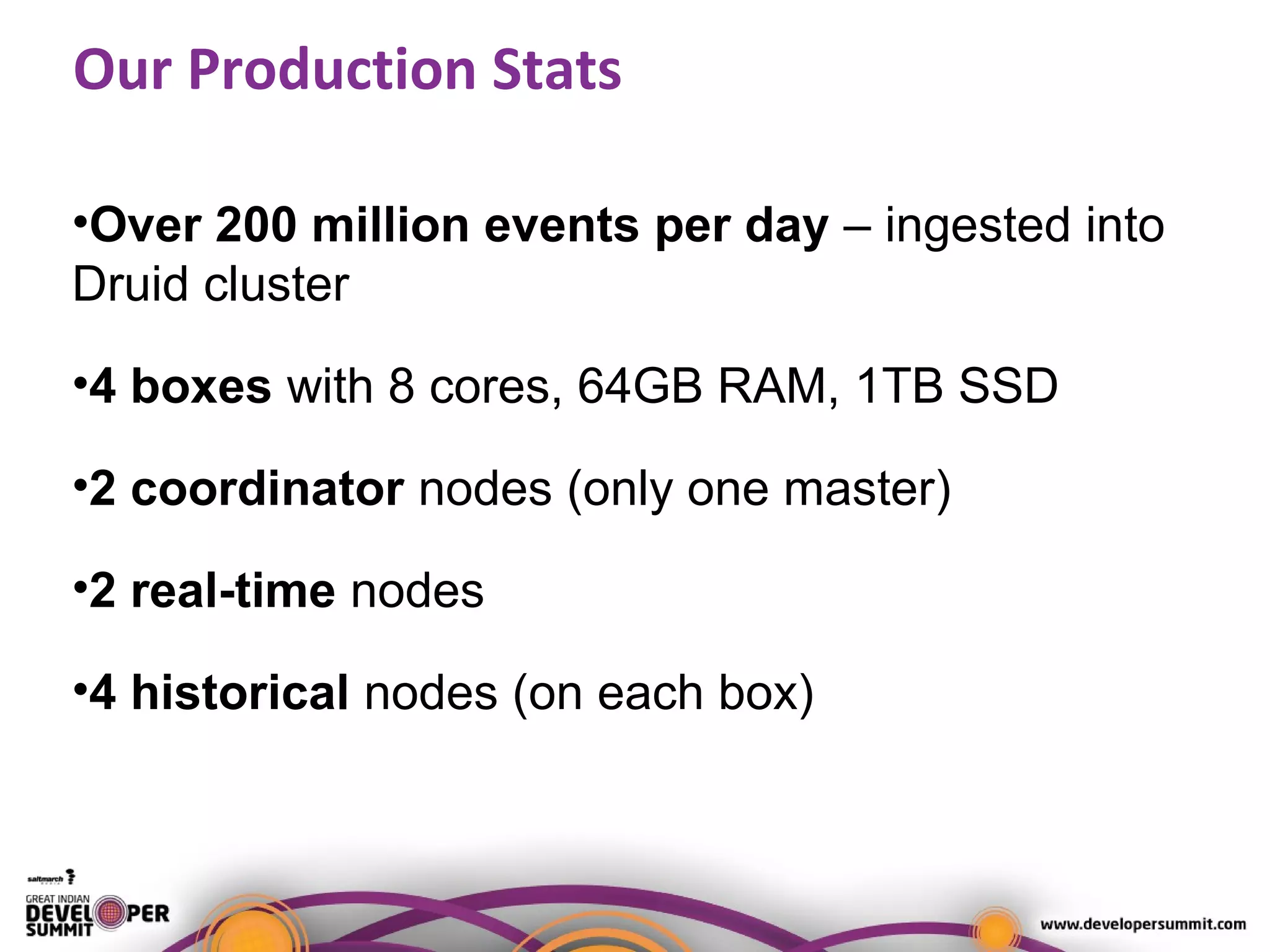

- 33. Our Production Stats •Over 200 million events per day – ingested into Druid cluster •4 boxes with 8 cores, 64GB RAM, 1TB SSD •2 coordinator nodes (only one master) •2 real-time nodes •4 historical nodes (on each box)
- 35. Questions ?
Editor's Notes
- 5m
- So the case study is about one of our potential customer (based out of US) – ViralGains ViralGains is a Viral Video Marketing platform. Basically runs campaigns for different ad-agencies or brands. Let’s see an overview of ad world.
- 5m Our role here Requests at high velocity Usually, 2 million requests per minute
- 10m In order to do so, What do we need to do now? Orange highlights are filters
- 12m Now we have data – it’s time to analyze it.
- Everybody knows, but just to revive the fundamentals
- 14 Before going ahead on the real-time analytics part – let’s see how an ad-tech works.
- 16m
- 17m
- Redis Cassandra Druid
- 18m Not talking about “What is Redis and all”. Assuming that you already know about this!! Using Redis was like a Too early decision
- 20m
- Explain (one liners): Why inconsistent results – delays in the sync process distributed counters Very much possible – that we couldn’t configure it very well
- 24m
- 25m
- 27m What are filters Not explaining – why fast aggregations
- 29m What is Kafka (in between) ? Coloring strategy
- 35m
- 35m
- 45m

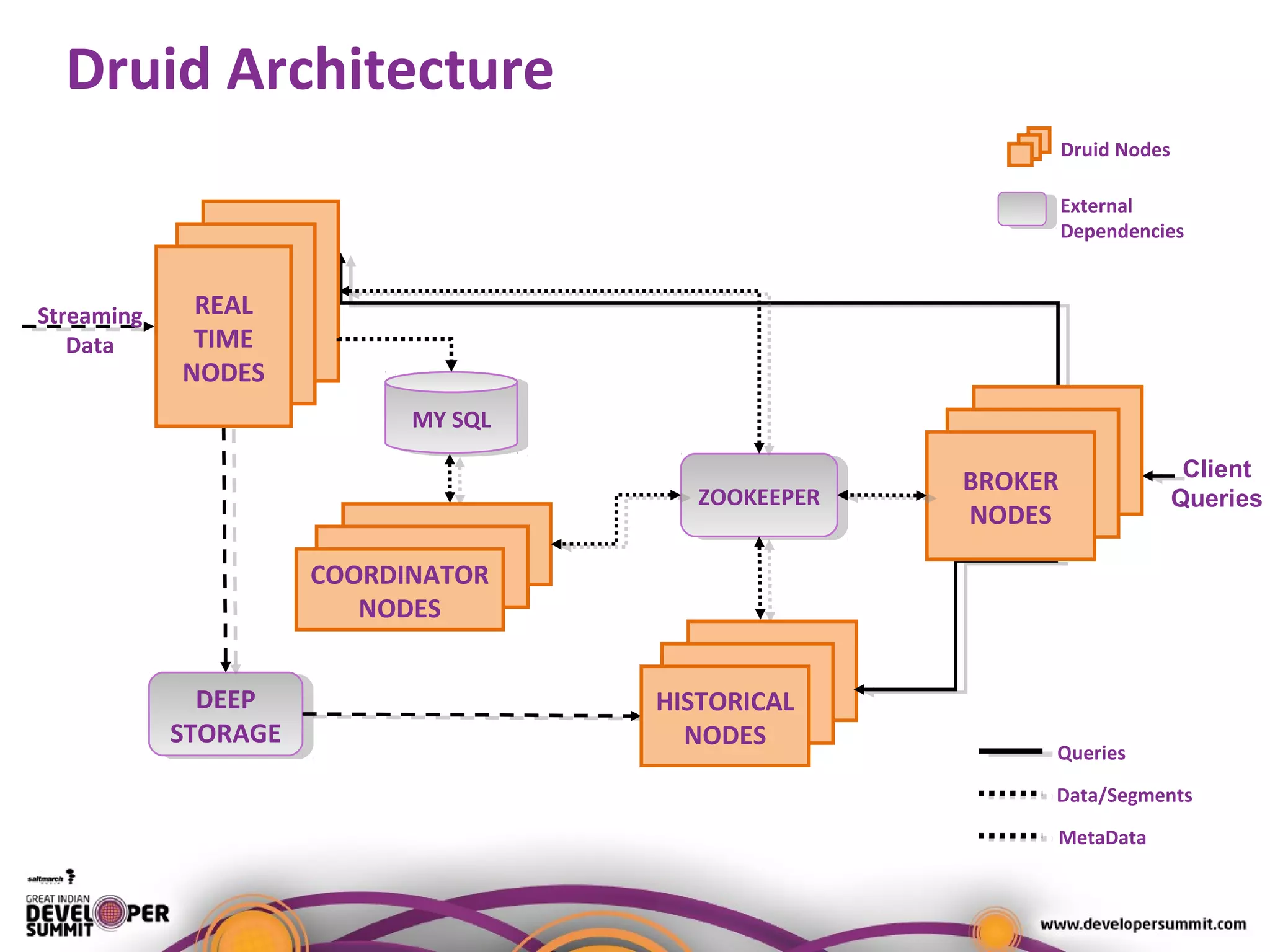

- 50m External dependencies Realtime node vs Historical node (data lies here only) What is Deep Storage – S3 MySQL for meta-data What are segments
- 53m
- 55m # Events hits a processing node called realtime, it indexes it (means compacts it) does the aggregation and then data is ready for querying within no time # Once it indexed it can offload the older data indexed data to deep storage, so that it can process new data and we don't overwhelm it. # It pushes to deep storage generally (s3) and writes to meta storage that I want to offload. # Coordinator sees that and ask historical to read from s3 and broad case once done with loading into memory. # Once historical says ready for query, it broadcasts that i am ready, then realtime offloads
- 55m
