Interactive Realtime
Dashboards on Data Streams
Nishant Bangarwa
Hortonworks
Druid Committer, PMC
June 2017
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

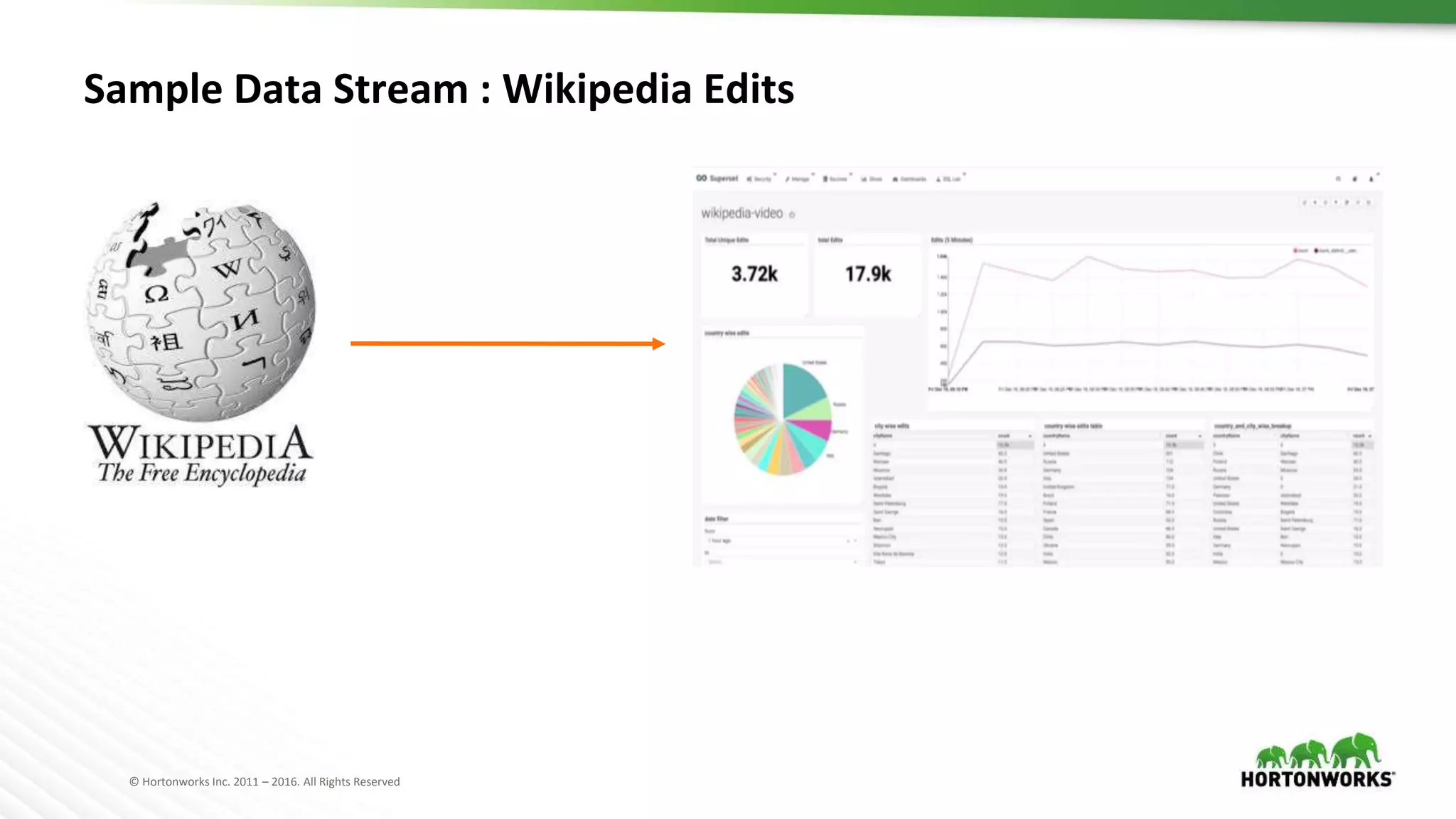

Sample Data Stream : Wikipedia Edits
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

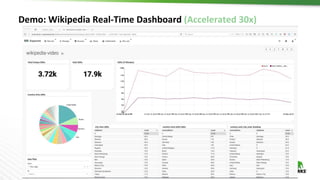

Demo: Wikipedia Real-Time Dashboard (Accelerated 30x)
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

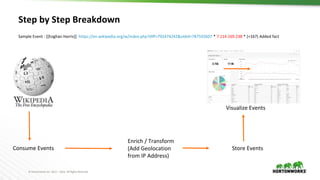

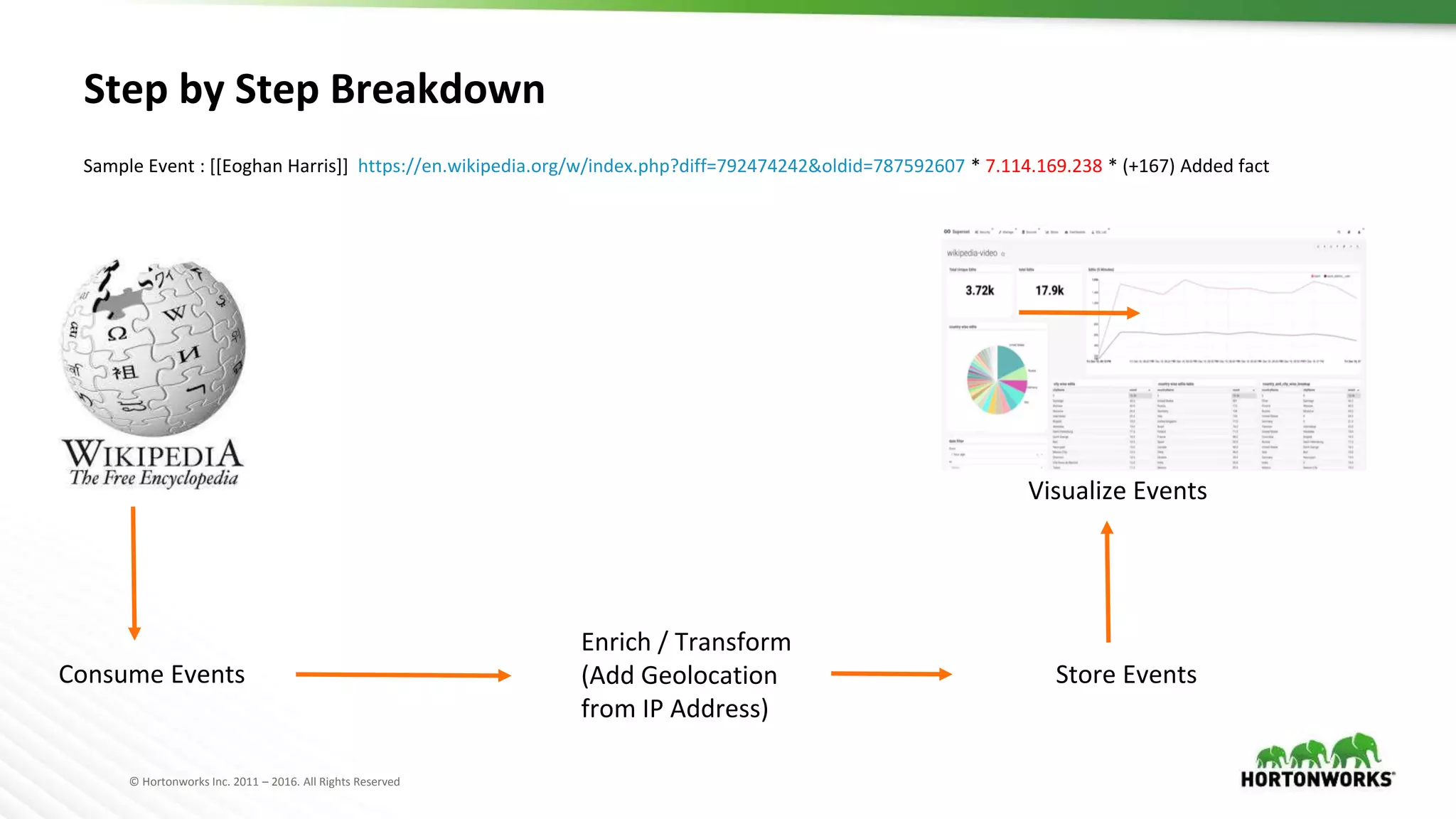

Step by Step Breakdown
Consume Events
Enrich / Transform
(Add Geolocation
from IP Address)
Store Events
Visualize Events
Sample Event : [[Eoghan Harris]] https://en.wikipedia.org/w/index.php?diff=792474242&oldid=787592607 * 7.114.169.238 * (+167) Added fact
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

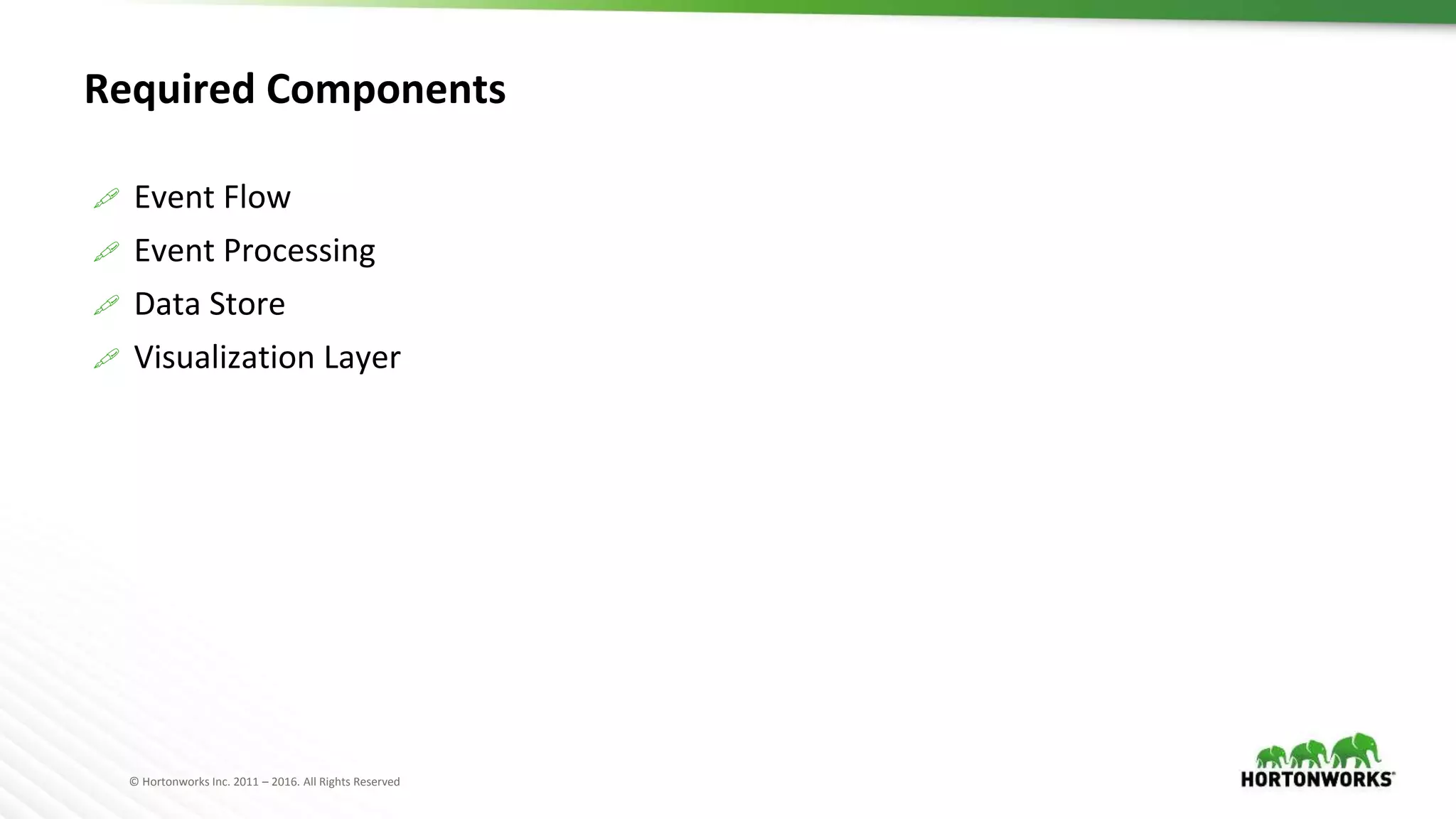

Required Components
 Event Flow
 Event Processing
 Data Store
 Visualization Layer
© Hortonworks Inc. 2011 – 2016. All Rights Reserved6
Event Flow
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

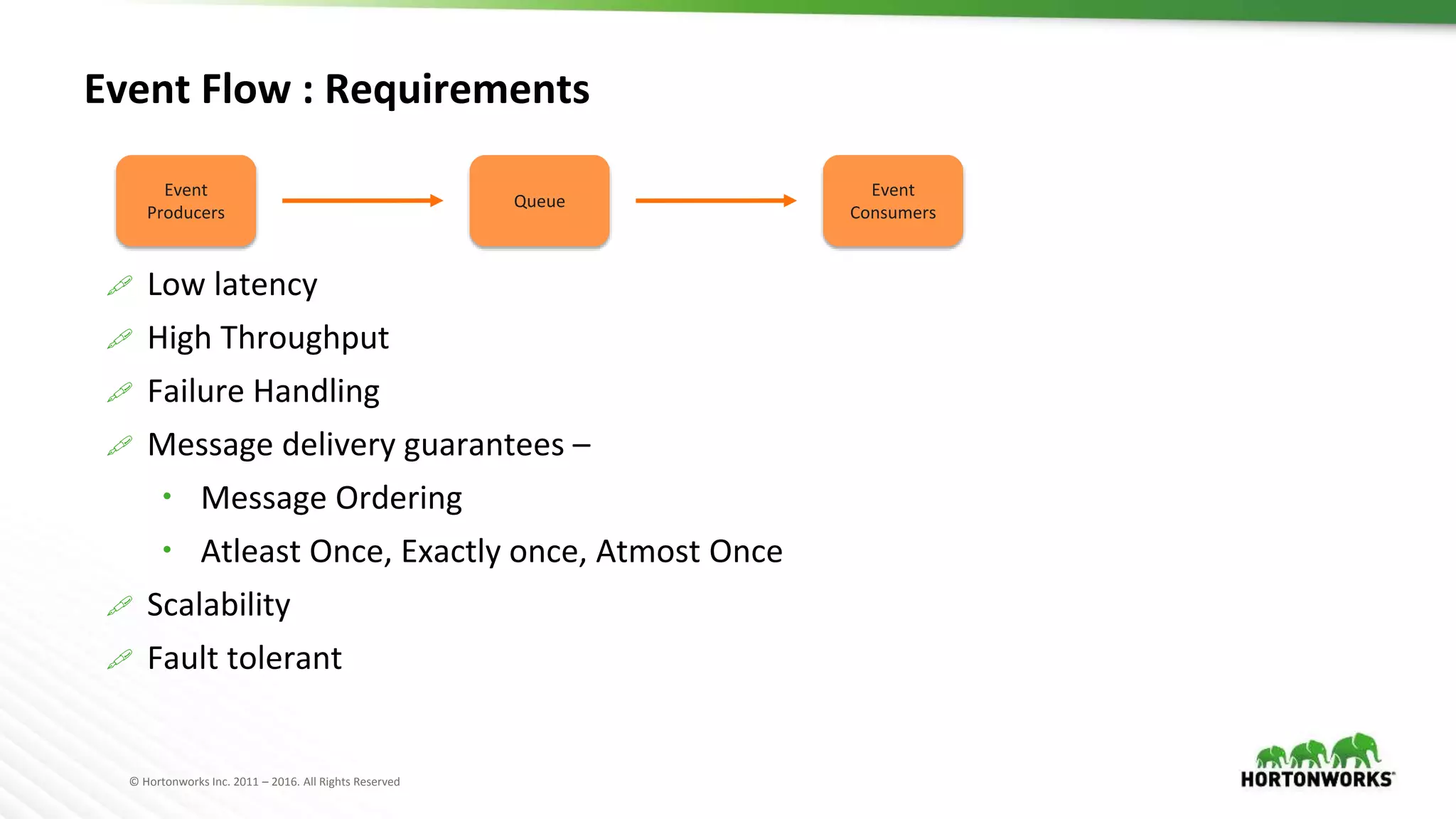

Event Flow : Requirements
Event
Producers
Queue
Event
Consumers
 Low latency
 High Throughput
 Failure Handling
 Message delivery guarantees –
 Message Ordering
 Atleast Once, Exactly once, Atmost Once
 Scalability
 Fault tolerant
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

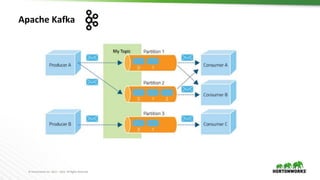

Apache Kafka
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

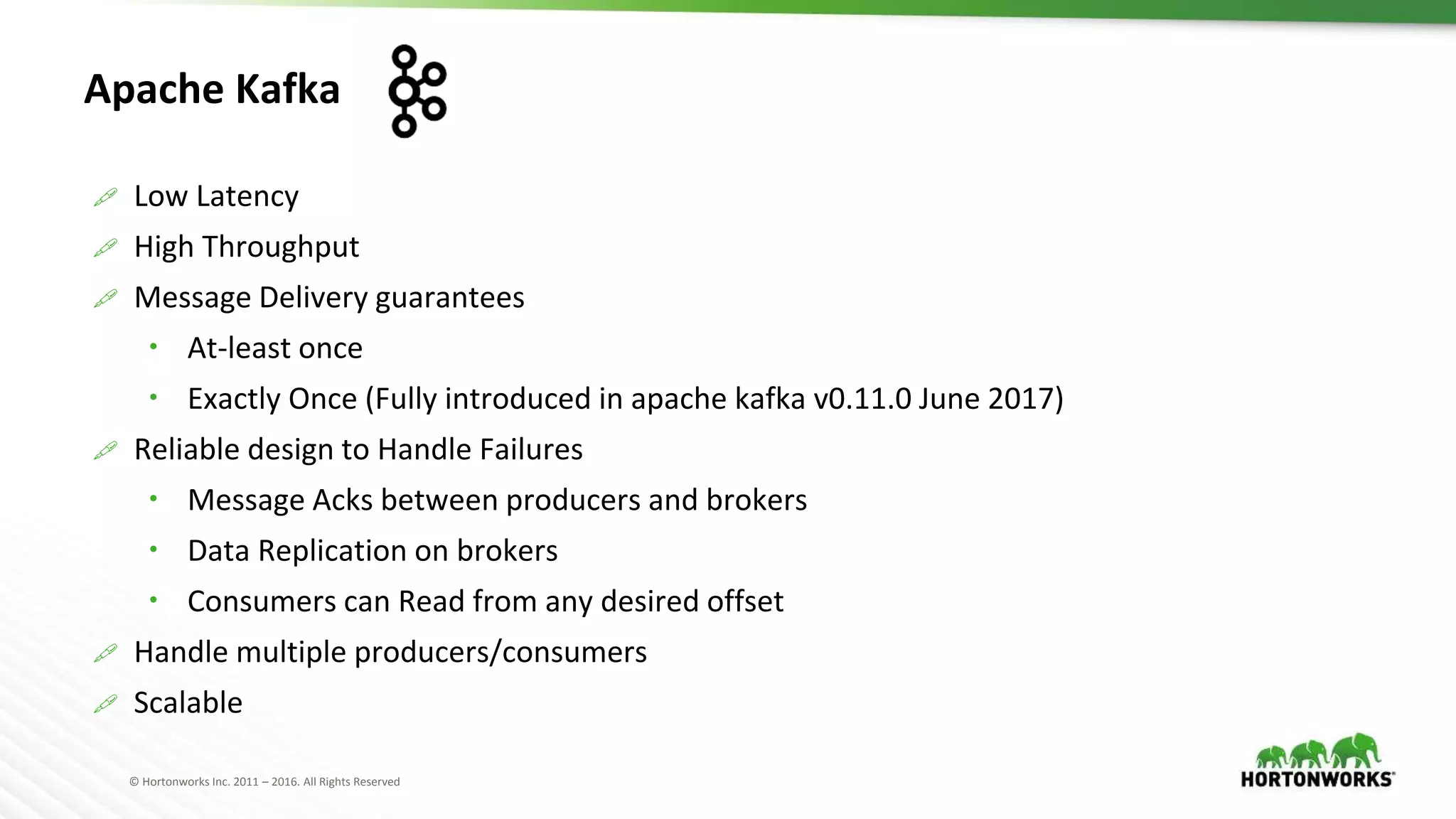

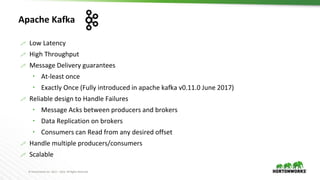

Apache Kafka
 Low Latency
 High Throughput
 Message Delivery guarantees
 At-least once
 Exactly Once (Fully introduced in apache kafka v0.11.0 June 2017)
 Reliable design to Handle Failures
 Message Acks between producers and brokers
 Data Replication on brokers
 Consumers can Read from any desired offset
 Handle multiple producers/consumers
 Scalable
© Hortonworks Inc. 2011 – 2016. All Rights Reserved10
Event Processing
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

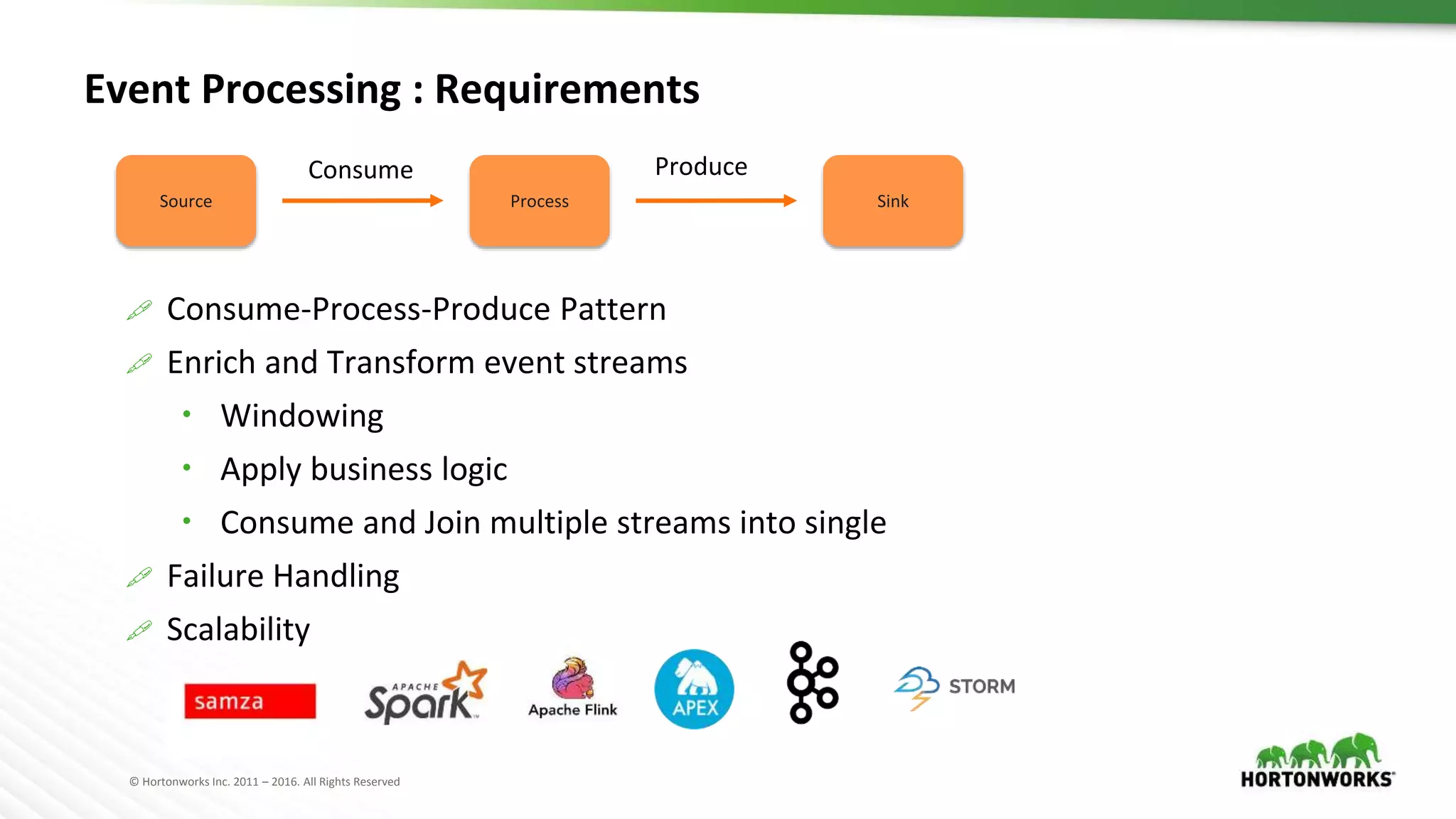

Event Processing : Requirements
 Consume-Process-Produce Pattern
 Enrich and Transform event streams
 Windowing
 Apply business logic
 Consume and Join multiple streams into single
 Failure Handling
 Scalability
Source Process Sink
Consume Produce
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

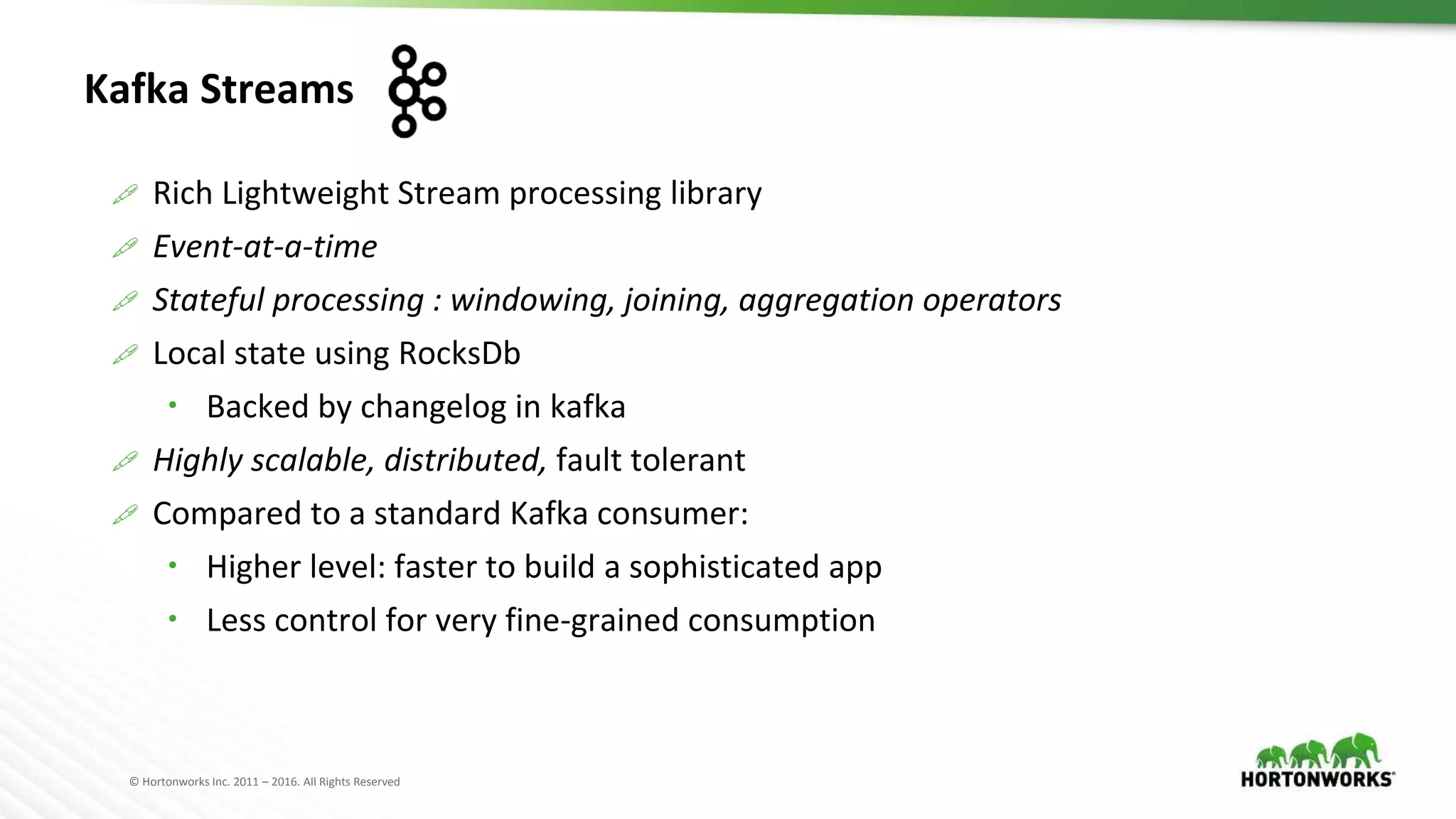

Kafka Streams
 Rich Lightweight Stream processing library
 Event-at-a-time
 Stateful processing : windowing, joining, aggregation operators
 Local state using RocksDb
 Backed by changelog in kafka
 Highly scalable, distributed, fault tolerant
 Compared to a standard Kafka consumer:
 Higher level: faster to build a sophisticated app
 Less control for very fine-grained consumption
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

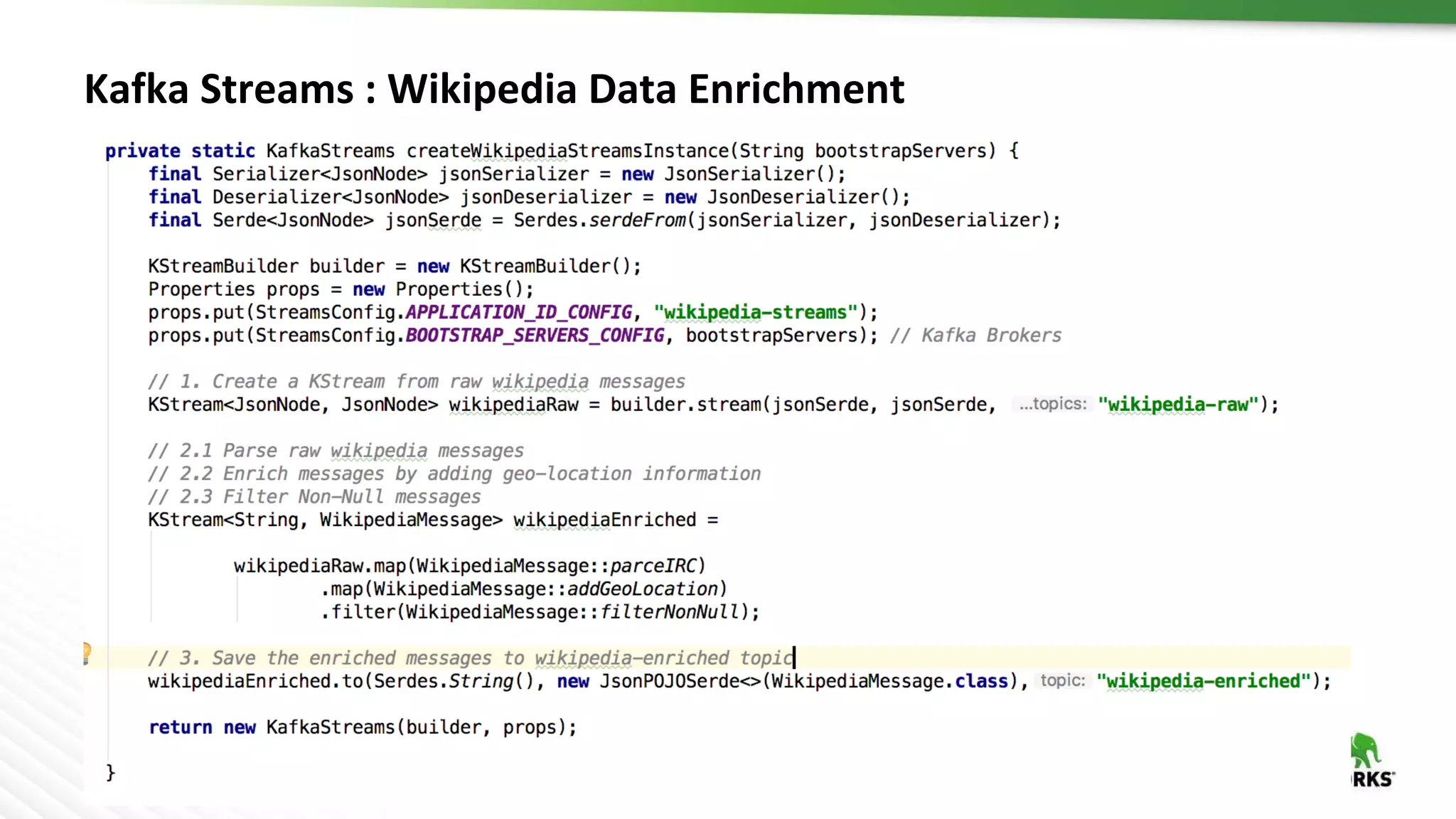

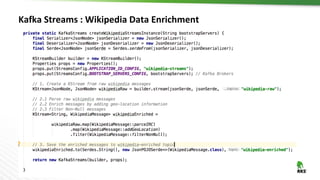

Kafka Streams : Wikipedia Data Enrichment
© Hortonworks Inc. 2011 – 2016. All Rights Reserved14
Data Store
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

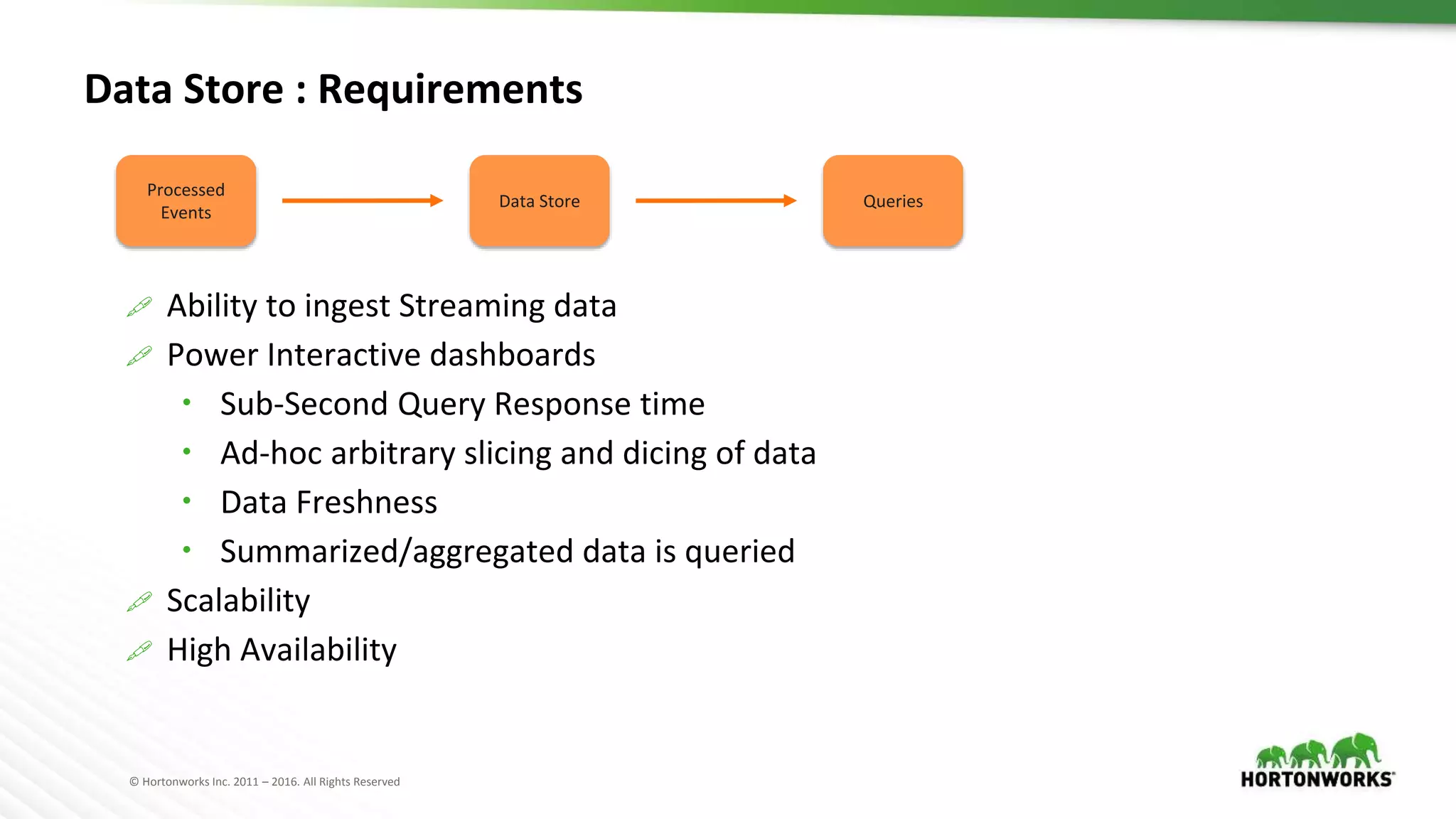

Data Store : Requirements
Processed
Events
Data Store Queries
 Ability to ingest Streaming data
 Power Interactive dashboards
 Sub-Second Query Response time
 Ad-hoc arbitrary slicing and dicing of data
 Data Freshness
 Summarized/aggregated data is queried
 Scalability
 High Availability
© Hortonworks Inc. 2011 – 2016. All Rights Reserved16

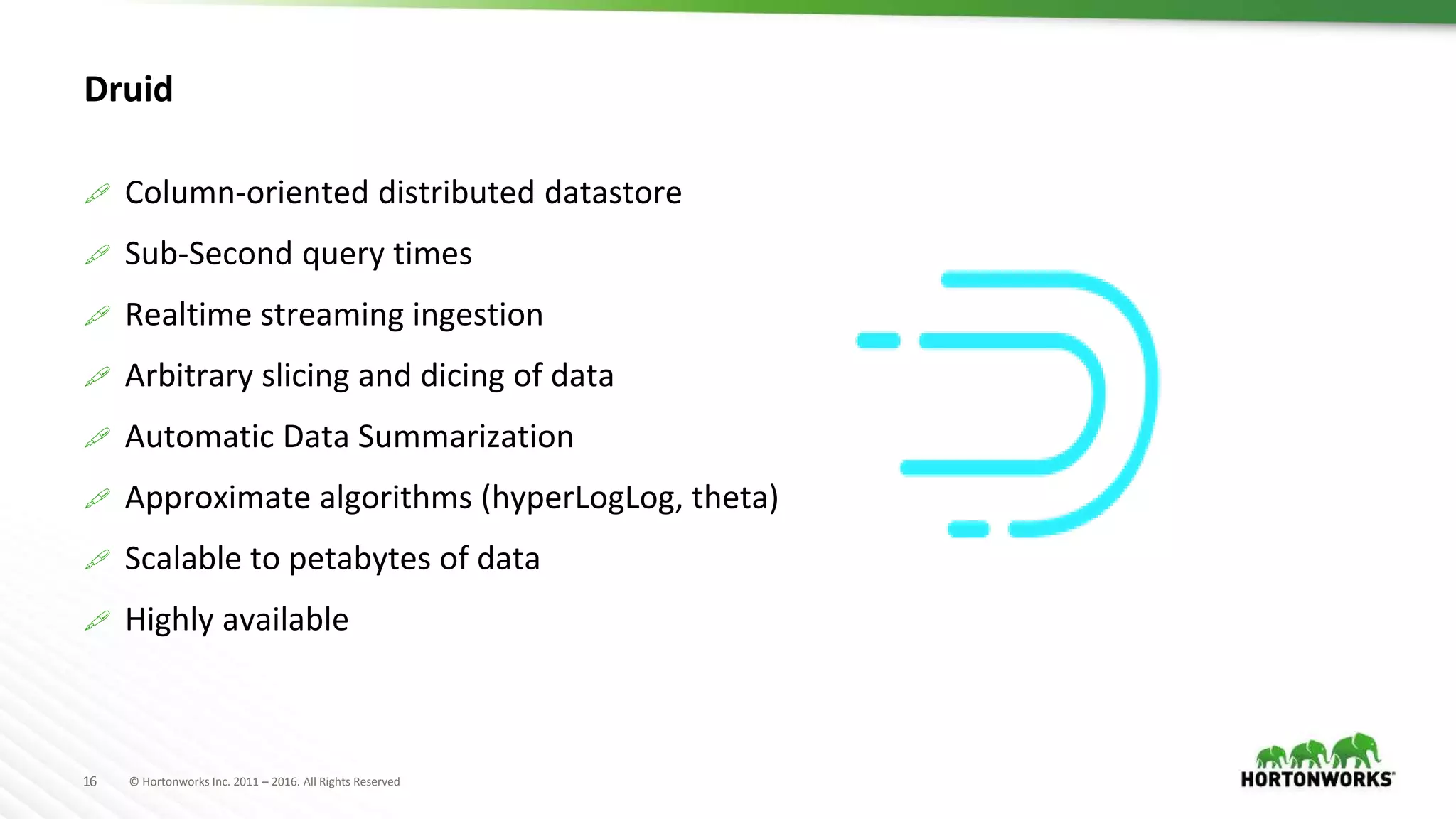

Druid
 Column-oriented distributed datastore
 Sub-Second query times
 Realtime streaming ingestion
 Arbitrary slicing and dicing of data
 Automatic Data Summarization
 Approximate algorithms (hyperLogLog, theta)
 Scalable to petabytes of data
 Highly available
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

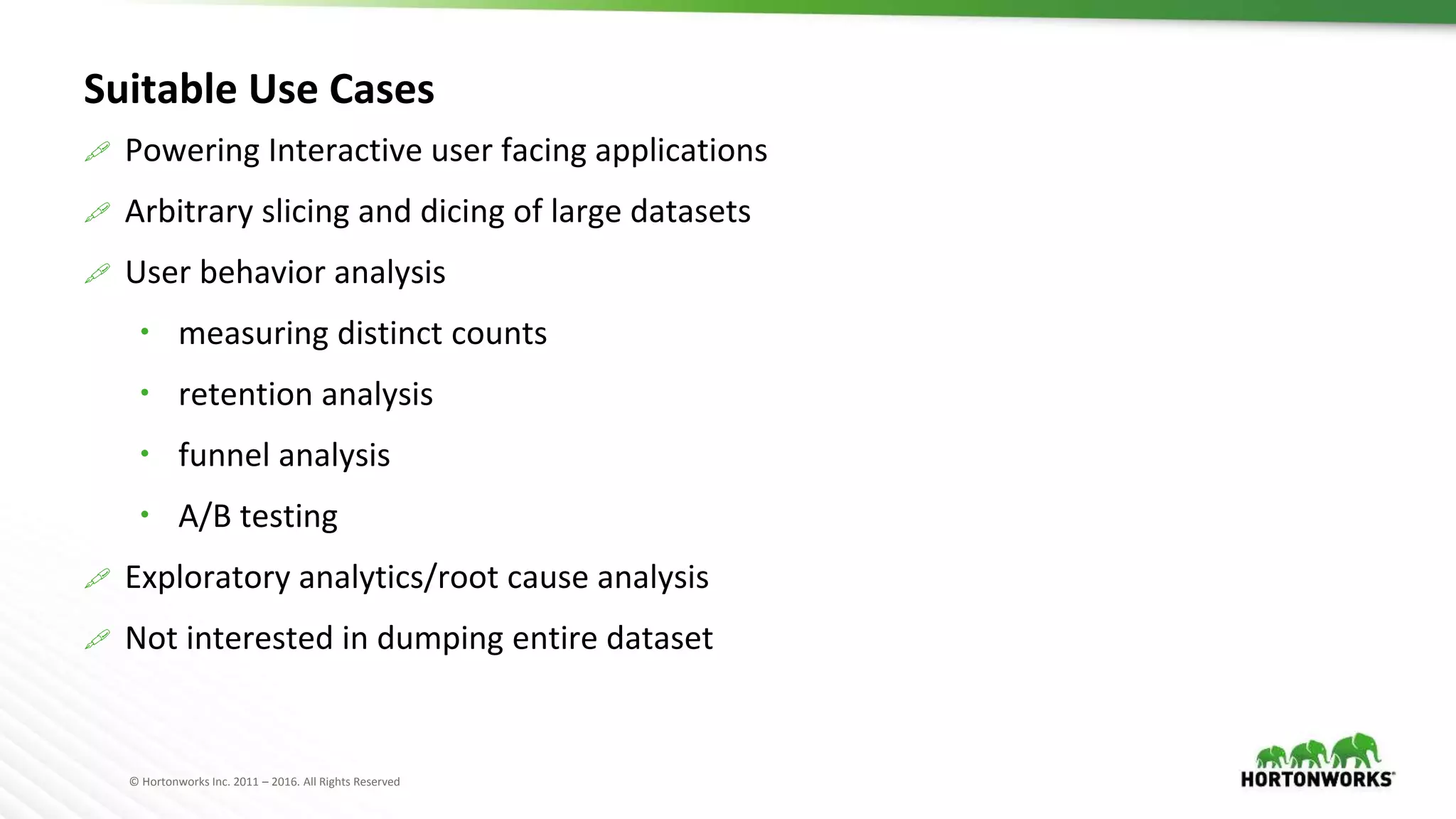

Suitable Use Cases
 Powering Interactive user facing applications
 Arbitrary slicing and dicing of large datasets
 User behavior analysis
 measuring distinct counts
 retention analysis
 funnel analysis
 A/B testing
 Exploratory analytics/root cause analysis
 Not interested in dumping entire dataset
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

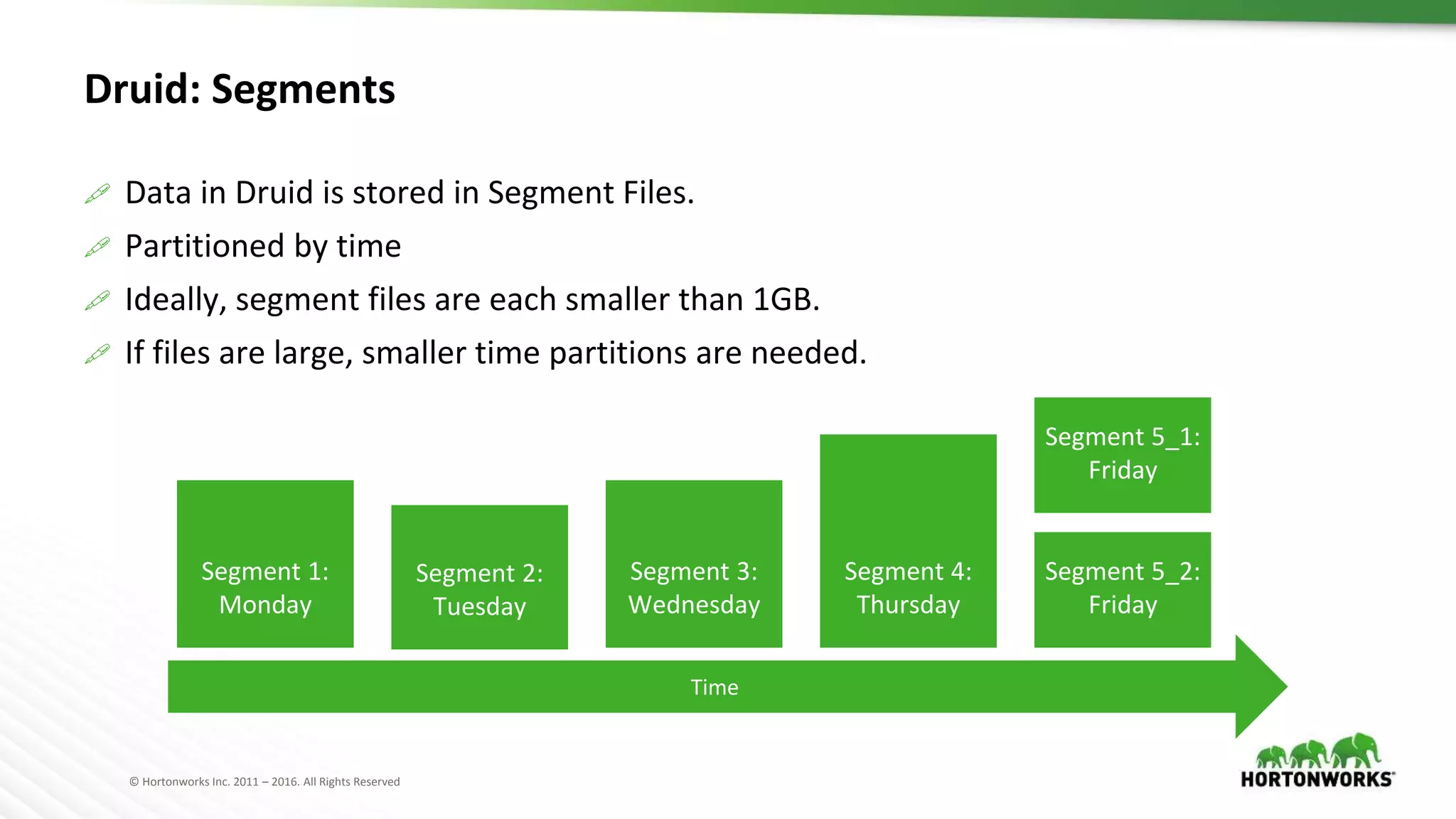

Druid: Segments
 Data in Druid is stored in Segment Files.
 Partitioned by time
 Ideally, segment files are each smaller than 1GB.
 If files are large, smaller time partitions are needed.
Time
Segment 1:
Monday
Segment 2:
Tuesday
Segment 3:
Wednesday
Segment 4:
Thursday
Segment 5_2:
Friday
Segment 5_1:
Friday
© Hortonworks Inc. 2011 – 2016. All Rights Reserved19

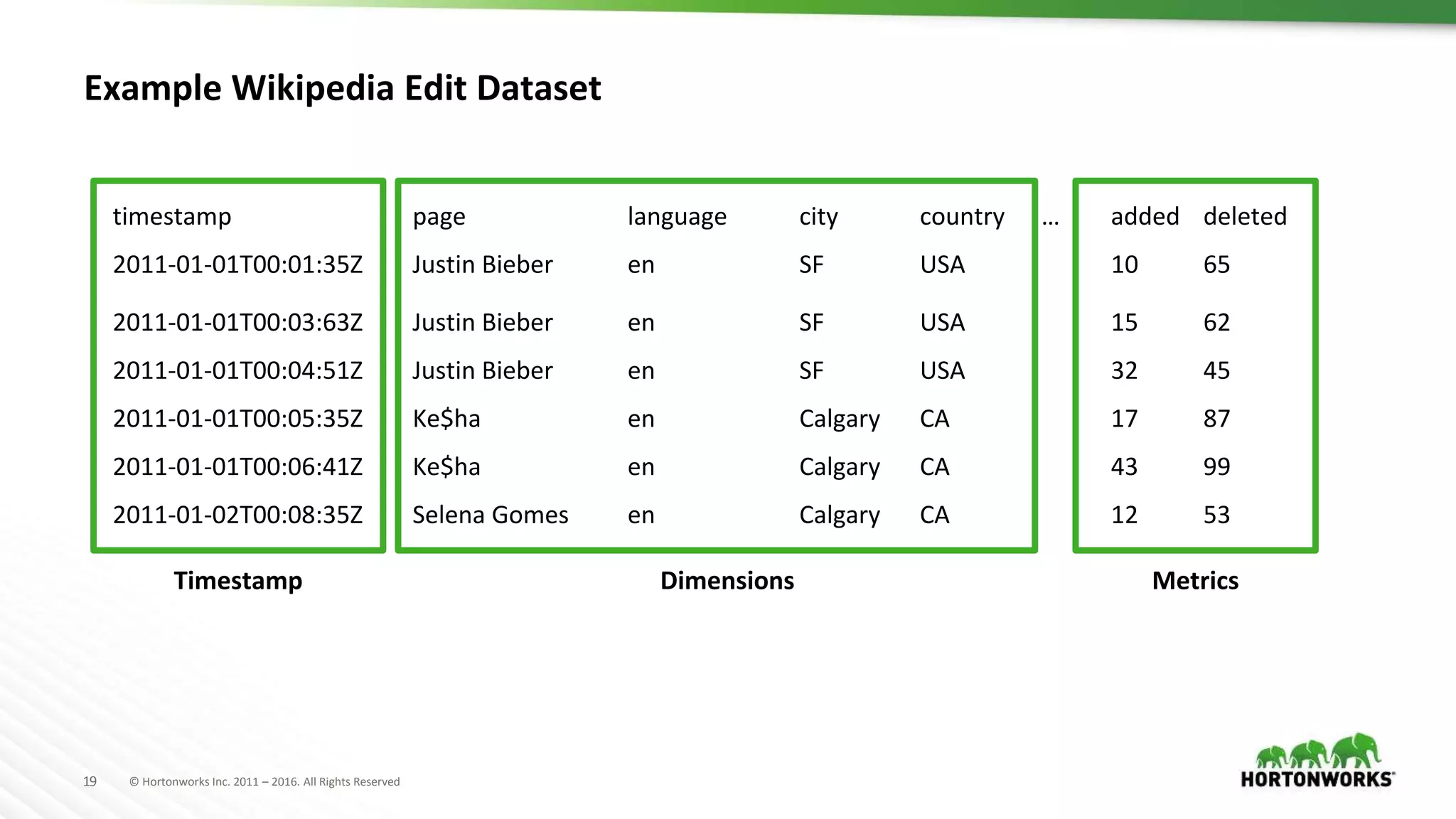

Example Wikipedia Edit Dataset
timestamp page language city country … added deleted
2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65
2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62
2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45
2011-01-01T00:05:35Z Ke$ha en Calgary CA 17 87
2011-01-01T00:06:41Z Ke$ha en Calgary CA 43 99
2011-01-02T00:08:35Z Selena Gomes en Calgary CA 12 53
Timestamp Dimensions Metrics
© Hortonworks Inc. 2011 – 2016. All Rights Reserved20

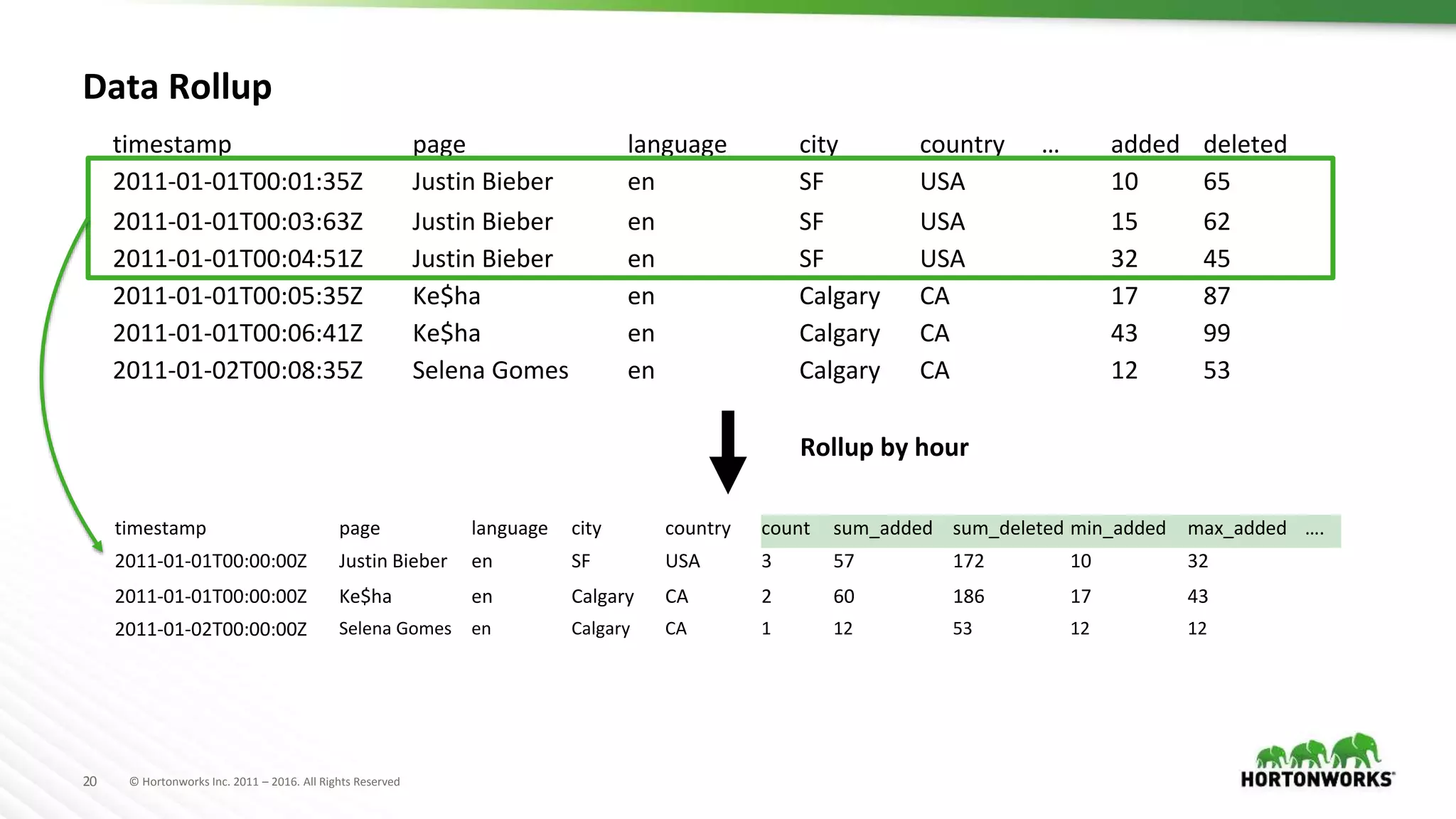

Data Rollup
timestamp page language city country … added deleted
2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65
2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62
2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45
2011-01-01T00:05:35Z Ke$ha en Calgary CA 17 87
2011-01-01T00:06:41Z Ke$ha en Calgary CA 43 99
2011-01-02T00:08:35Z Selena Gomes en Calgary CA 12 53
timestamp page language city country count sum_added sum_deleted min_added max_added ….
2011-01-01T00:00:00Z Justin Bieber en SF USA 3 57 172 10 32
2011-01-01T00:00:00Z Ke$ha en Calgary CA 2 60 186 17 43
2011-01-02T00:00:00Z Selena Gomes en Calgary CA 1 12 53 12 12
Rollup by hour
© Hortonworks Inc. 2011 – 2016. All Rights Reserved21

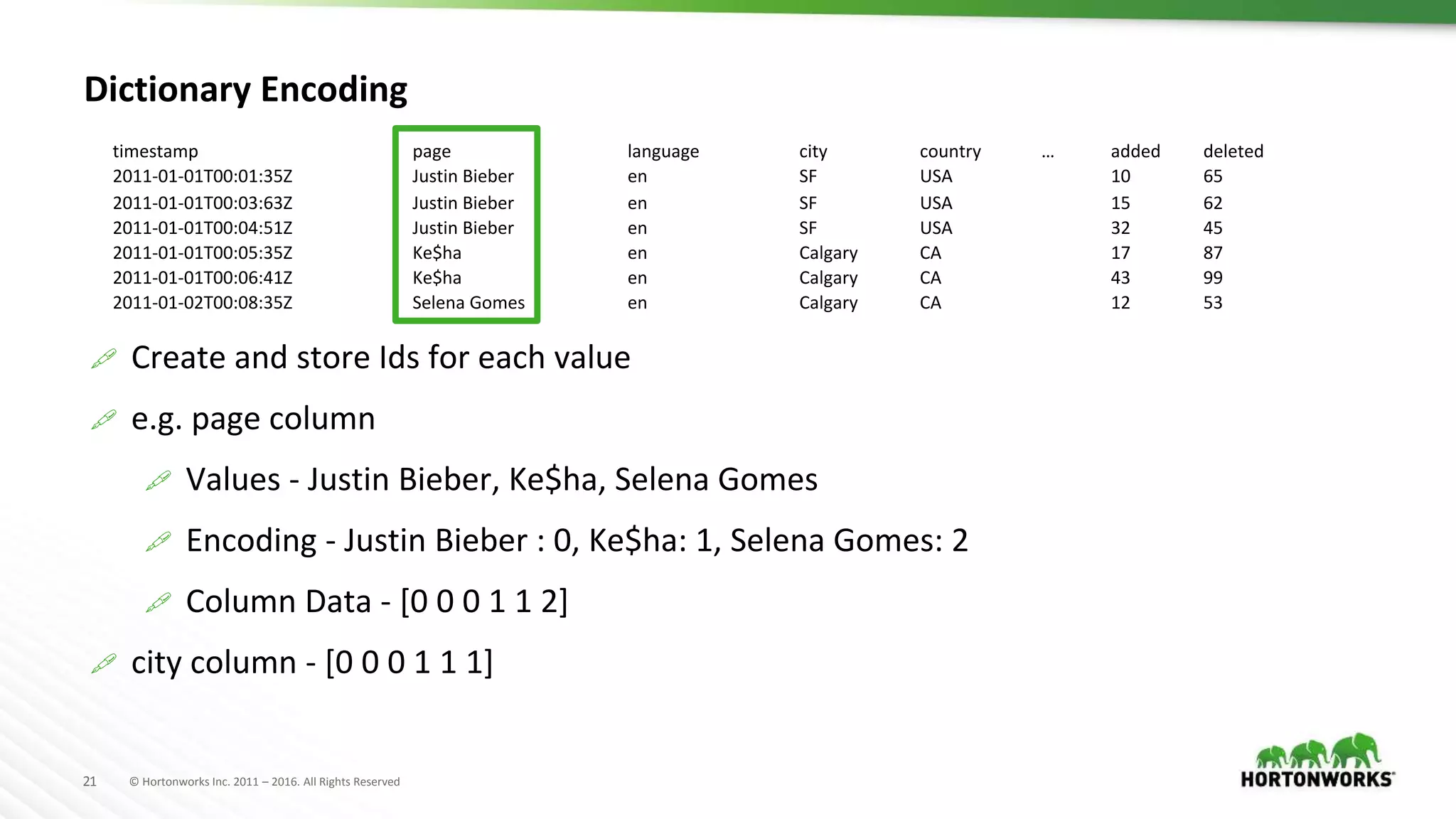

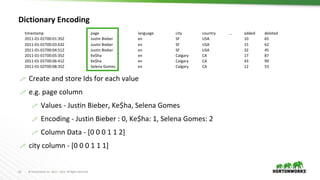

Dictionary Encoding
 Create and store Ids for each value
 e.g. page column
 Values - Justin Bieber, Ke$ha, Selena Gomes
 Encoding - Justin Bieber : 0, Ke$ha: 1, Selena Gomes: 2
 Column Data - [0 0 0 1 1 2]
 city column - [0 0 0 1 1 1]
timestamp page language city country … added deleted
2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65
2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62
2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45
2011-01-01T00:05:35Z Ke$ha en Calgary CA 17 87
2011-01-01T00:06:41Z Ke$ha en Calgary CA 43 99
2011-01-02T00:08:35Z Selena Gomes en Calgary CA 12 53
© Hortonworks Inc. 2011 – 2016. All Rights Reserved22

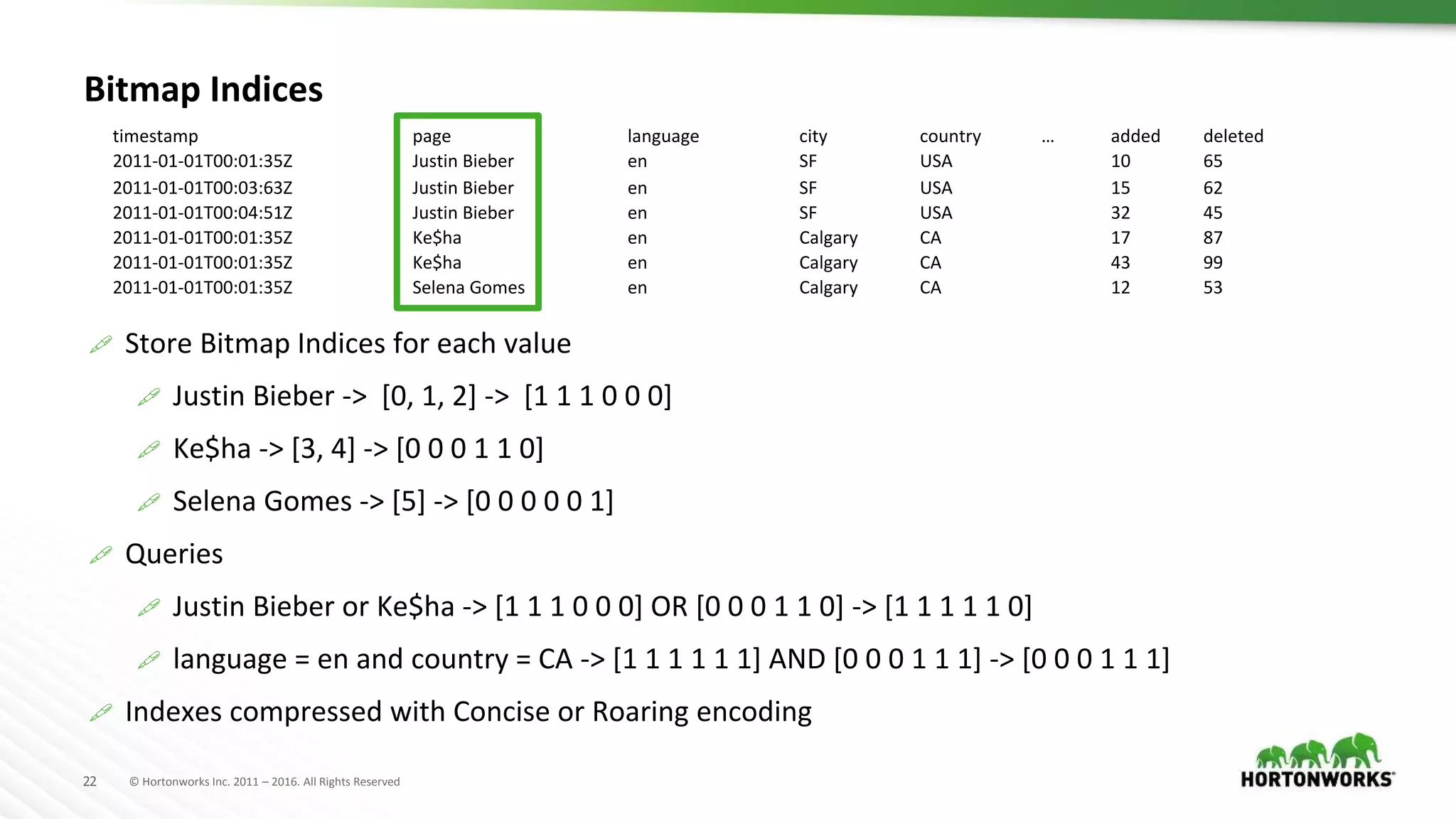

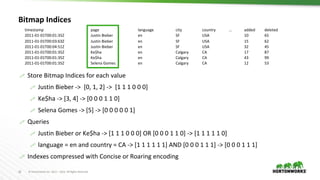

Bitmap Indices
 Store Bitmap Indices for each value
 Justin Bieber -> [0, 1, 2] -> [1 1 1 0 0 0]
 Ke$ha -> [3, 4] -> [0 0 0 1 1 0]
 Selena Gomes -> [5] -> [0 0 0 0 0 1]
 Queries
 Justin Bieber or Ke$ha -> [1 1 1 0 0 0] OR [0 0 0 1 1 0] -> [1 1 1 1 1 0]
 language = en and country = CA -> [1 1 1 1 1 1] AND [0 0 0 1 1 1] -> [0 0 0 1 1 1]
 Indexes compressed with Concise or Roaring encoding
timestamp page language city country … added deleted
2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65
2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62
2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45
2011-01-01T00:01:35Z Ke$ha en Calgary CA 17 87
2011-01-01T00:01:35Z Ke$ha en Calgary CA 43 99
2011-01-01T00:01:35Z Selena Gomes en Calgary CA 12 53
© Hortonworks Inc. 2011 – 2016. All Rights Reserved23

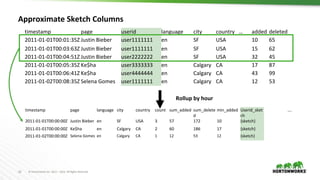

Approximate Sketch Columns
timestamp page userid language city country … added deleted
2011-01-01T00:01:35Z Justin Bieber user1111111 en SF USA 10 65
2011-01-01T00:03:63Z Justin Bieber user1111111 en SF USA 15 62
2011-01-01T00:04:51Z Justin Bieber user2222222 en SF USA 32 45
2011-01-01T00:05:35Z Ke$ha user3333333 en Calgary CA 17 87
2011-01-01T00:06:41Z Ke$ha user4444444 en Calgary CA 43 99
2011-01-02T00:08:35Z Selena Gomes user1111111 en Calgary CA 12 53
timestamp page language city country count sum_added sum_delete
d
min_added Userid_sket
ch
….
2011-01-01T00:00:00Z Justin Bieber en SF USA 3 57 172 10 {sketch}
2011-01-01T00:00:00Z Ke$ha en Calgary CA 2 60 186 17 {sketch}
2011-01-02T00:00:00Z Selena Gomes en Calgary CA 1 12 53 12 {sketch}
Rollup by hour
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

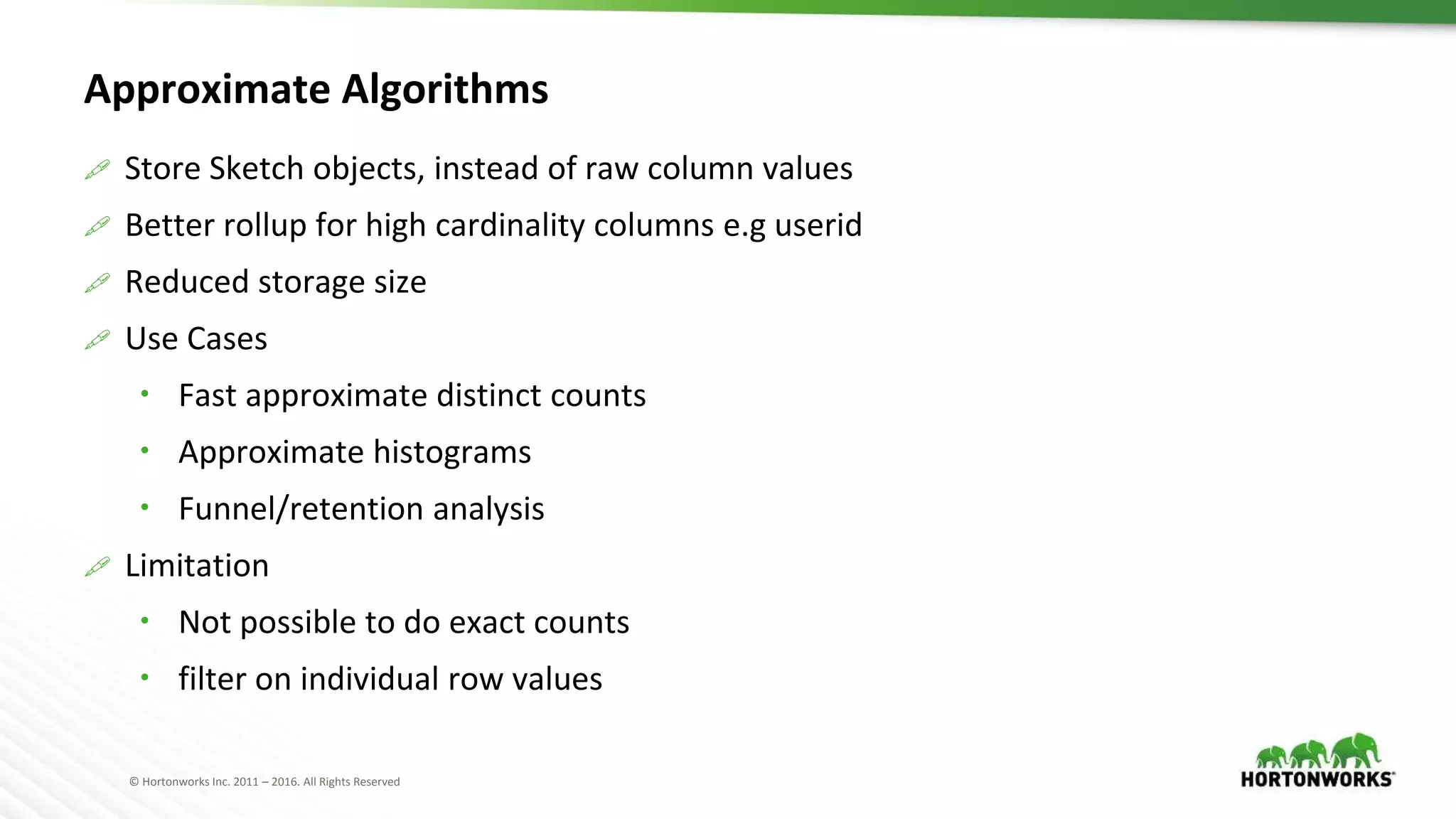

Approximate Algorithms
 Store Sketch objects, instead of raw column values
 Better rollup for high cardinality columns e.g userid
 Reduced storage size
 Use Cases
 Fast approximate distinct counts
 Approximate histograms
 Funnel/retention analysis
 Limitation
 Not possible to do exact counts
 filter on individual row values
© Hortonworks Inc. 2011 – 2016. All Rights Reserved
Realtime
Nodes
Historical
Nodes
25

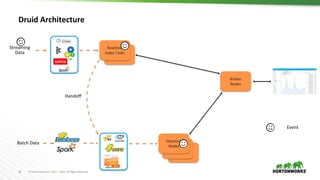

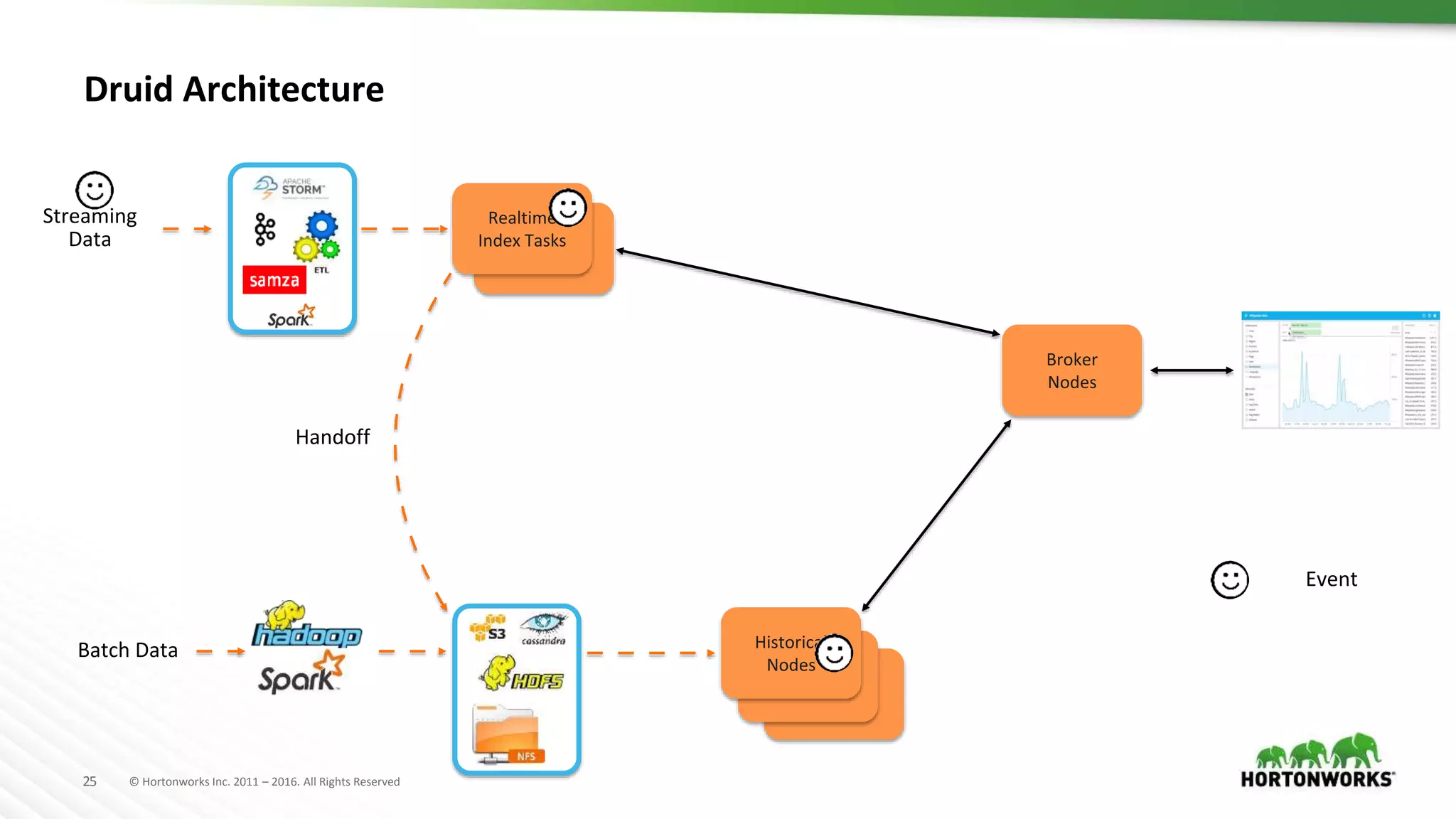

Druid Architecture
Batch Data
Event
Historical
Nodes
Broker
Nodes
Realtime
Index Tasks
Streaming
Data
Historical
Nodes
Handoff
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

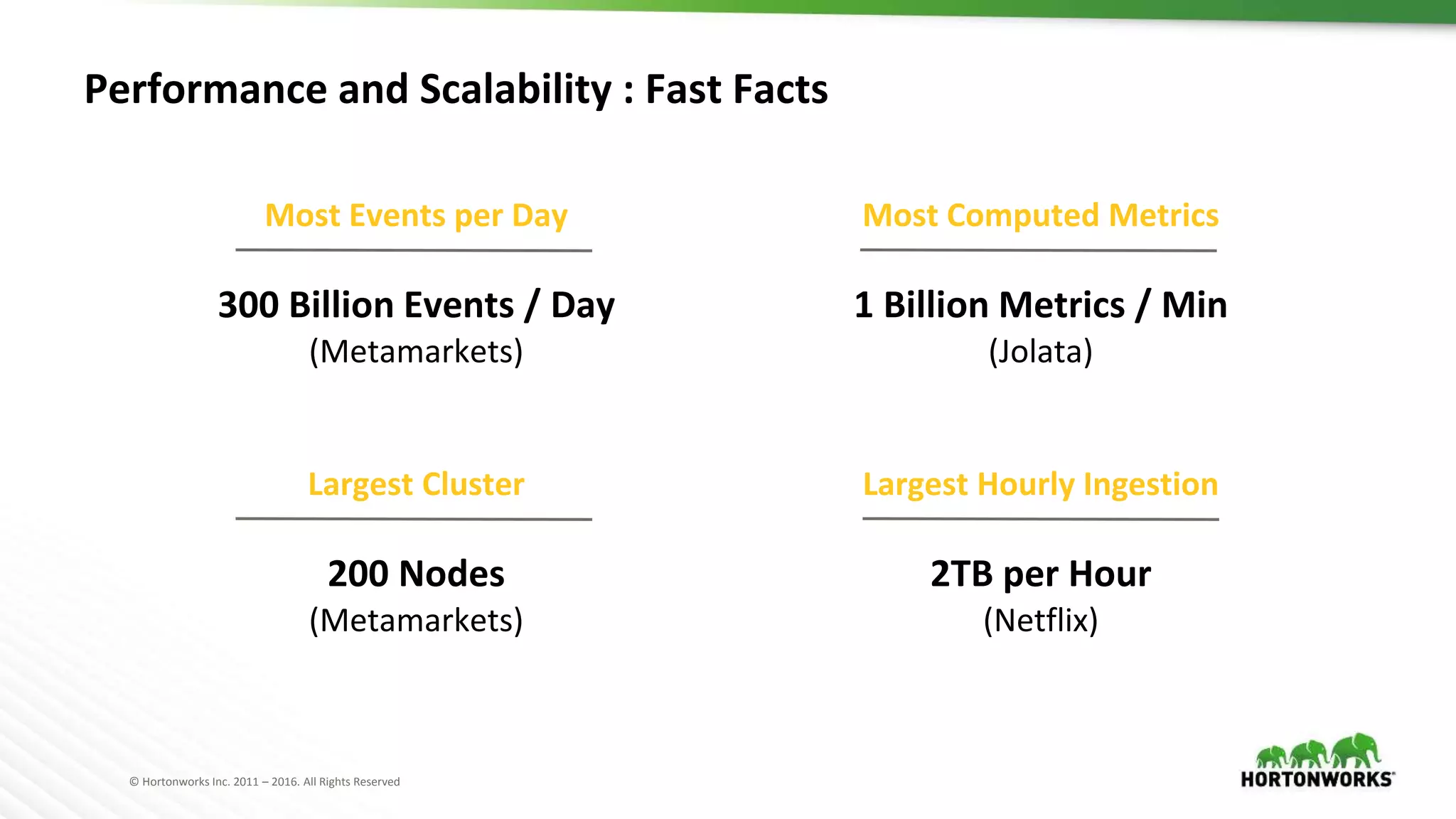

Performance and Scalability : Fast Facts
Most Events per Day
300 Billion Events / Day
(Metamarkets)
Most Computed Metrics
1 Billion Metrics / Min
(Jolata)
Largest Cluster
200 Nodes
(Metamarkets)
Largest Hourly Ingestion
2TB per Hour
(Netflix)
© Hortonworks Inc. 2011 – 2016. All Rights Reserved27
Companies Using Druid
© Hortonworks Inc. 2011 – 2016. All Rights Reserved28
Visualization Layer
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

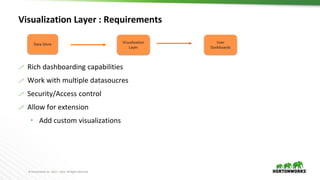

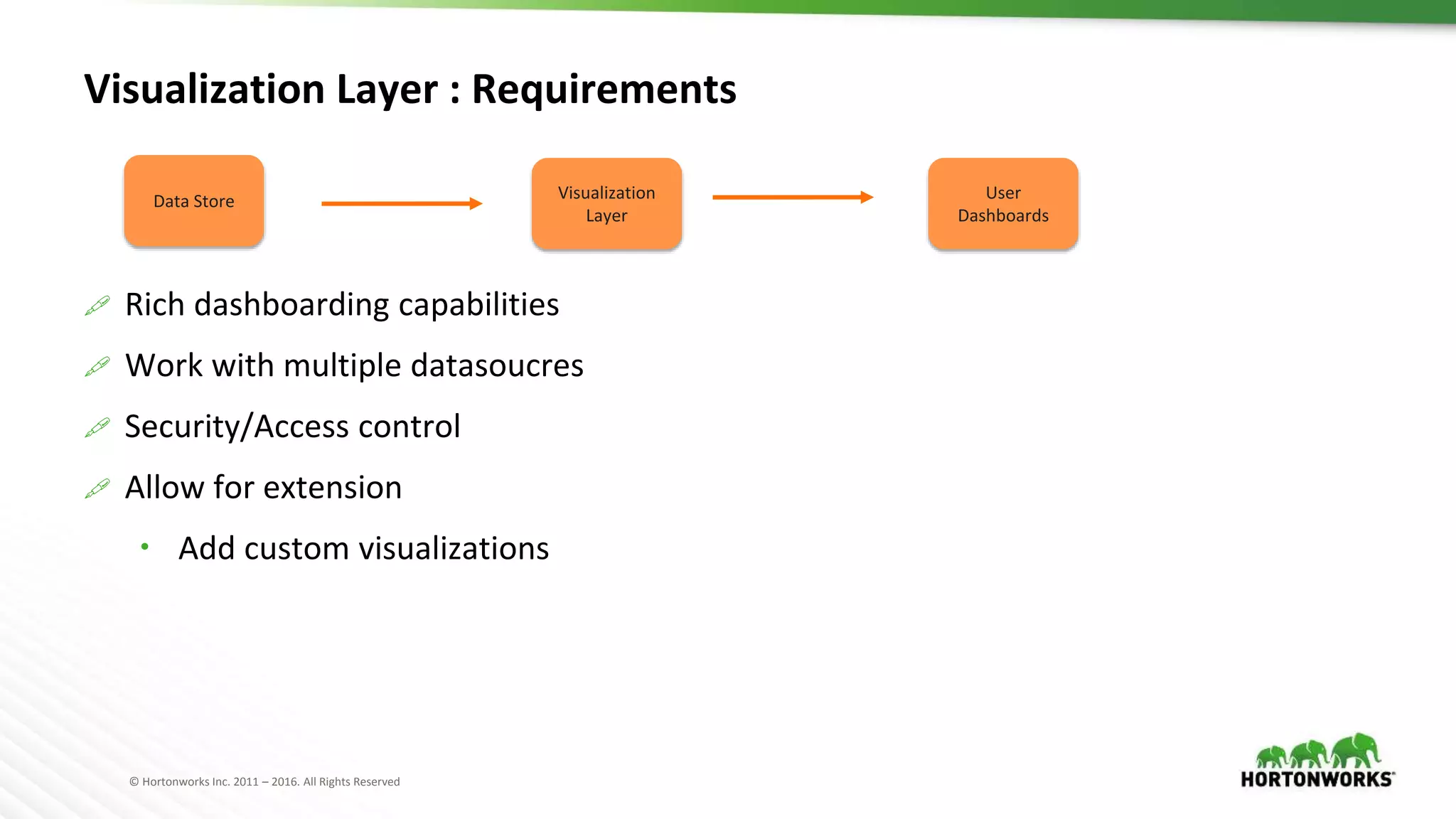

Visualization Layer : Requirements
 Rich dashboarding capabilities
 Work with multiple datasoucres
 Security/Access control
 Allow for extension
 Add custom visualizations
Data Store Visualization
Layer
User
Dashboards
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

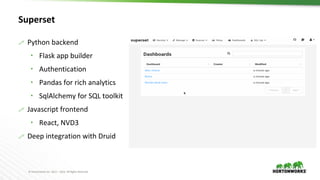

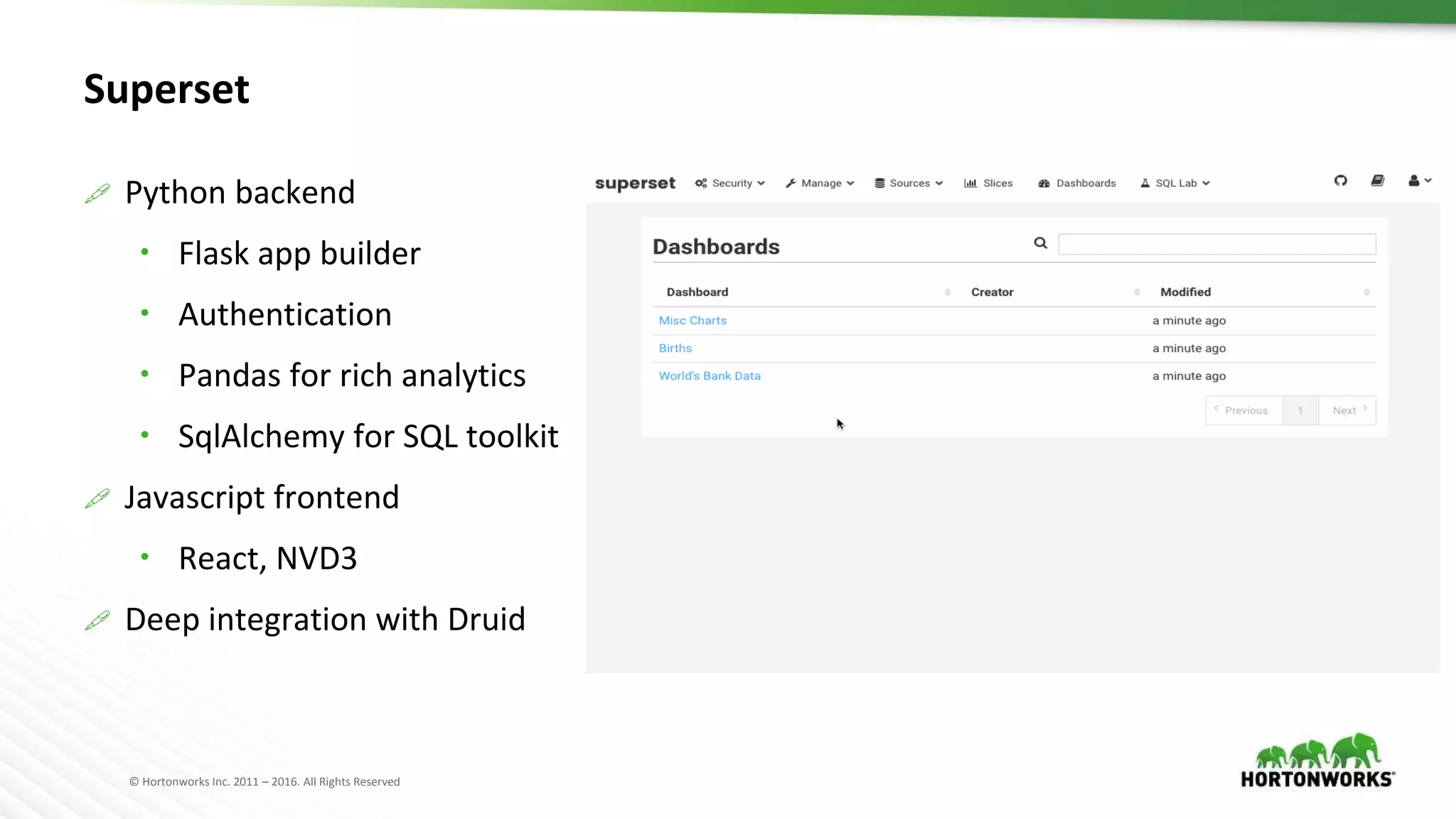

Superset
 Python backend
 Flask app builder
 Authentication
 Pandas for rich analytics
 SqlAlchemy for SQL toolkit
 Javascript frontend
 React, NVD3
 Deep integration with Druid
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

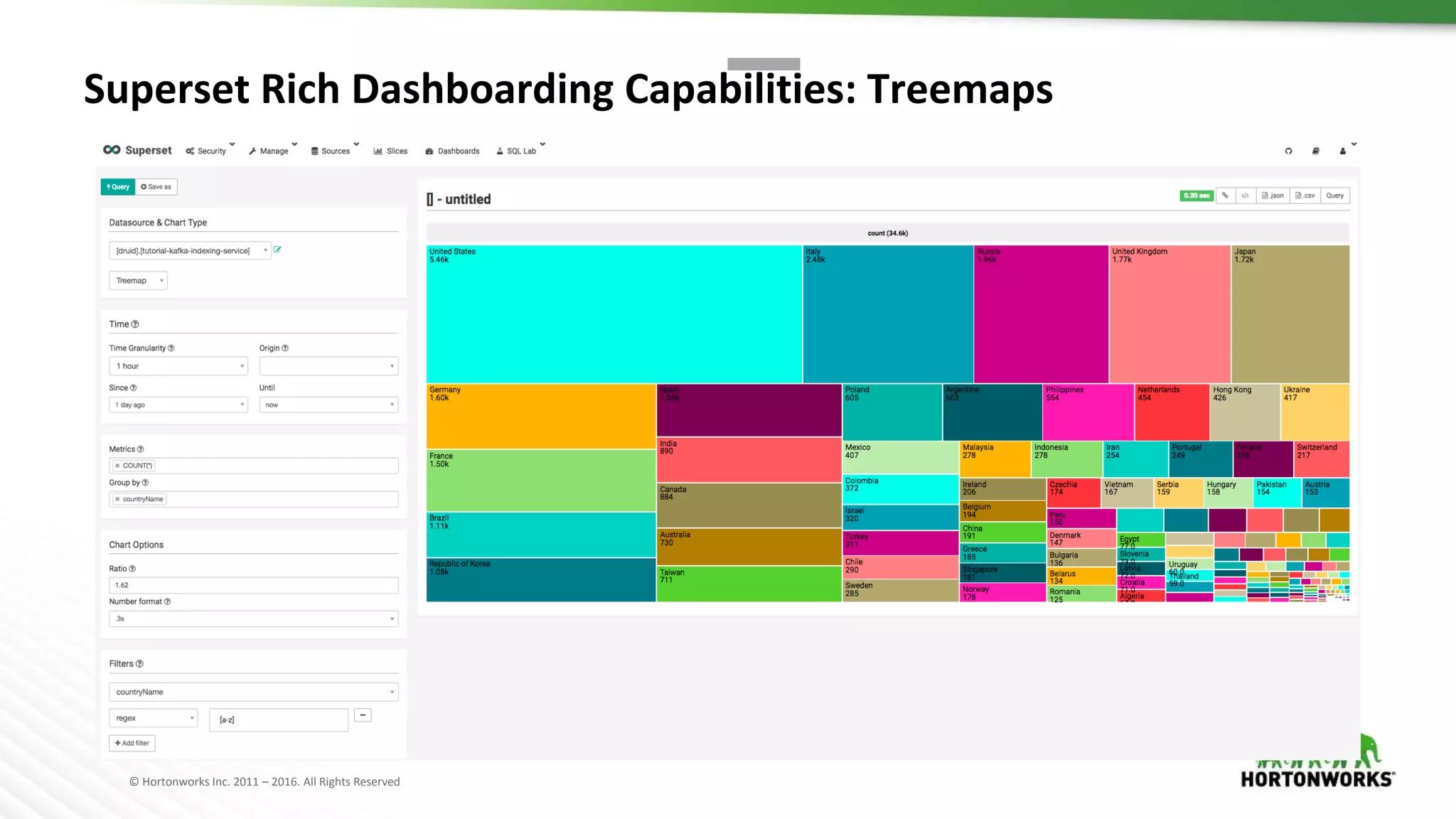

Superset Rich Dashboarding Capabilities: Treemaps
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

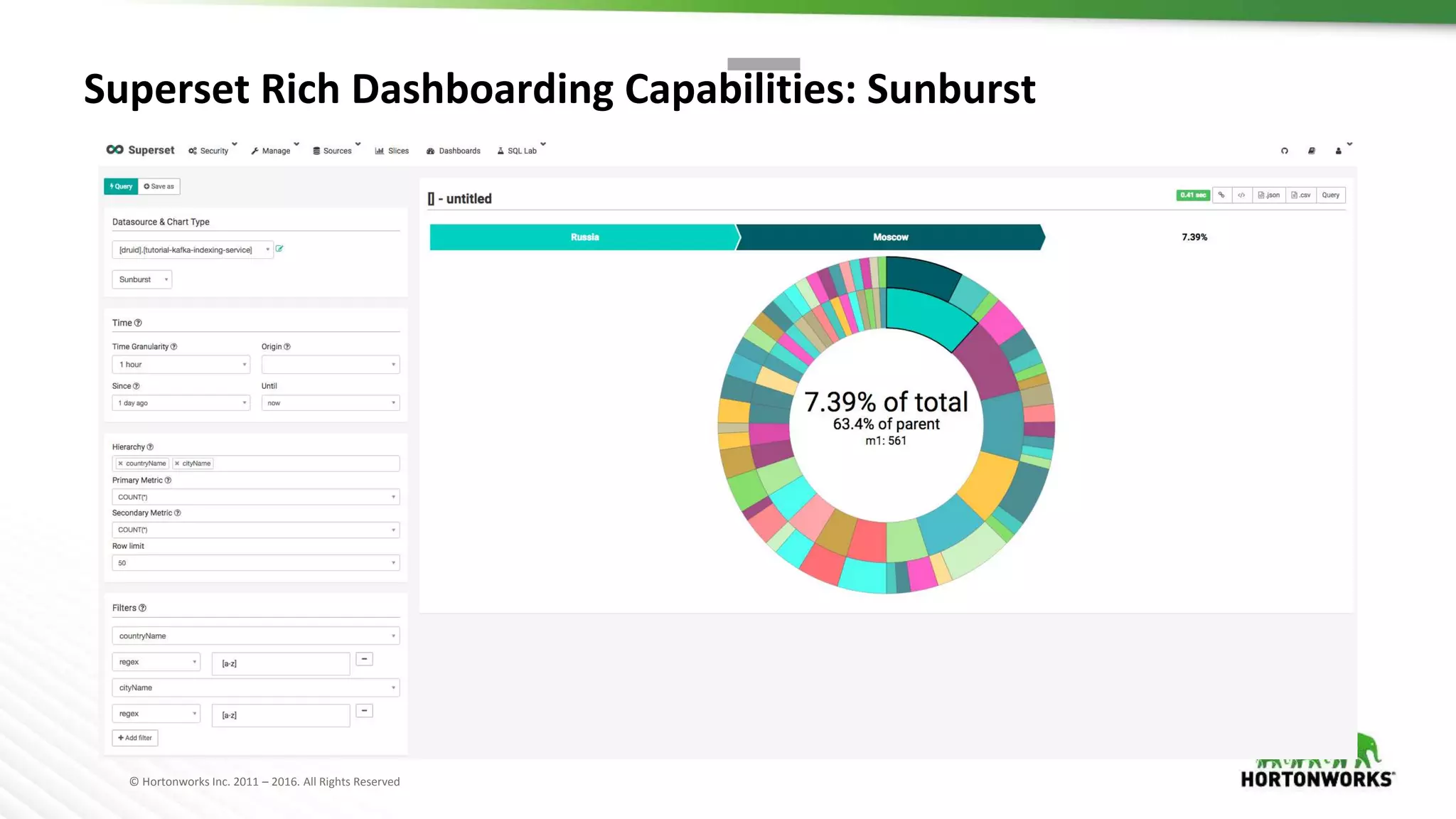

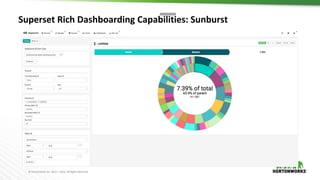

Superset Rich Dashboarding Capabilities: Sunburst
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

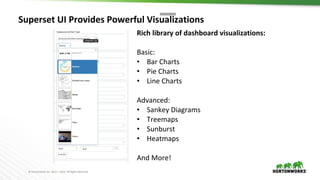

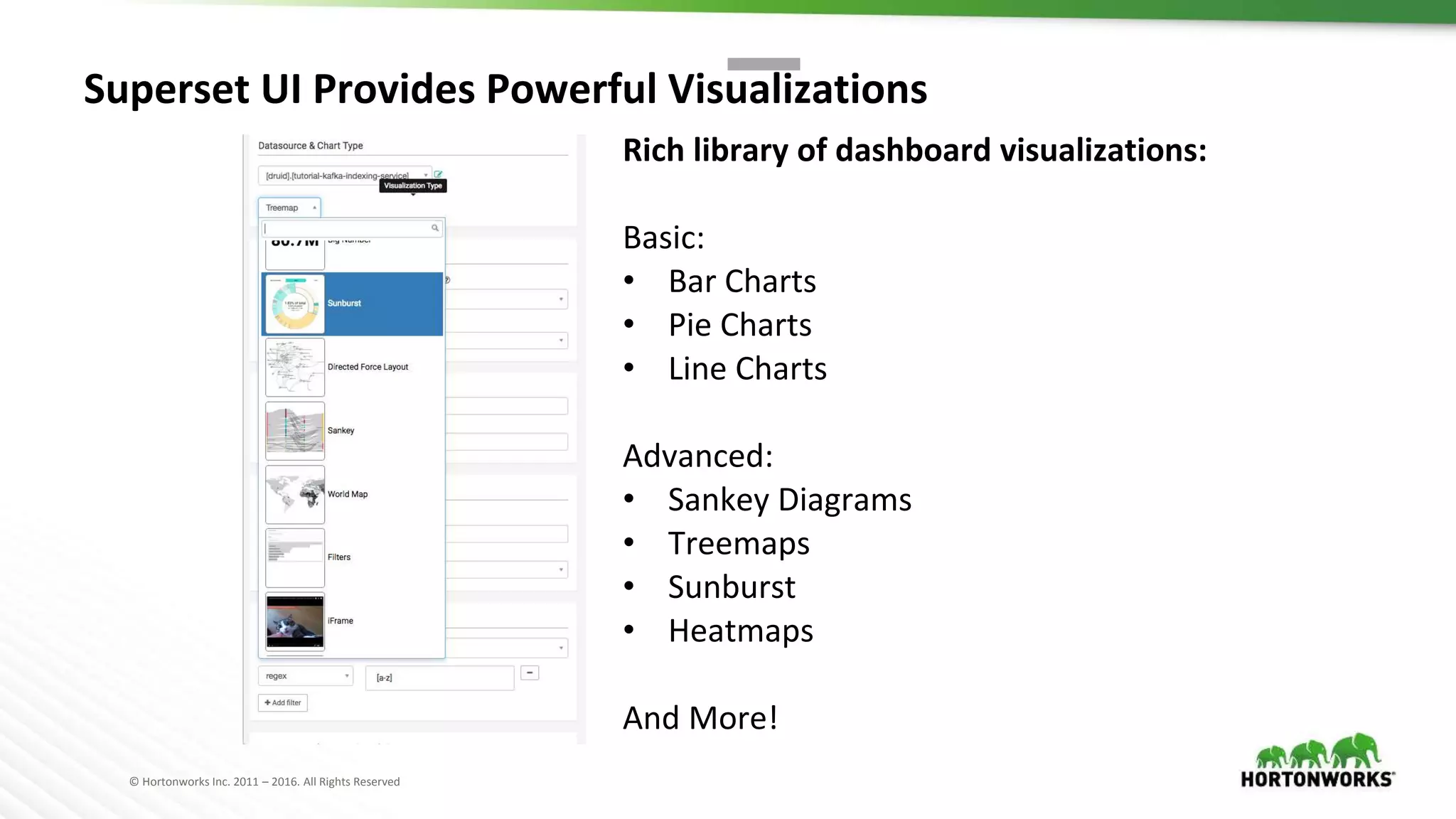

Superset UI Provides Powerful Visualizations
Rich library of dashboard visualizations:
Basic:
• Bar Charts
• Pie Charts
• Line Charts
Advanced:
• Sankey Diagrams
• Treemaps
• Sunburst
• Heatmaps
And More!
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

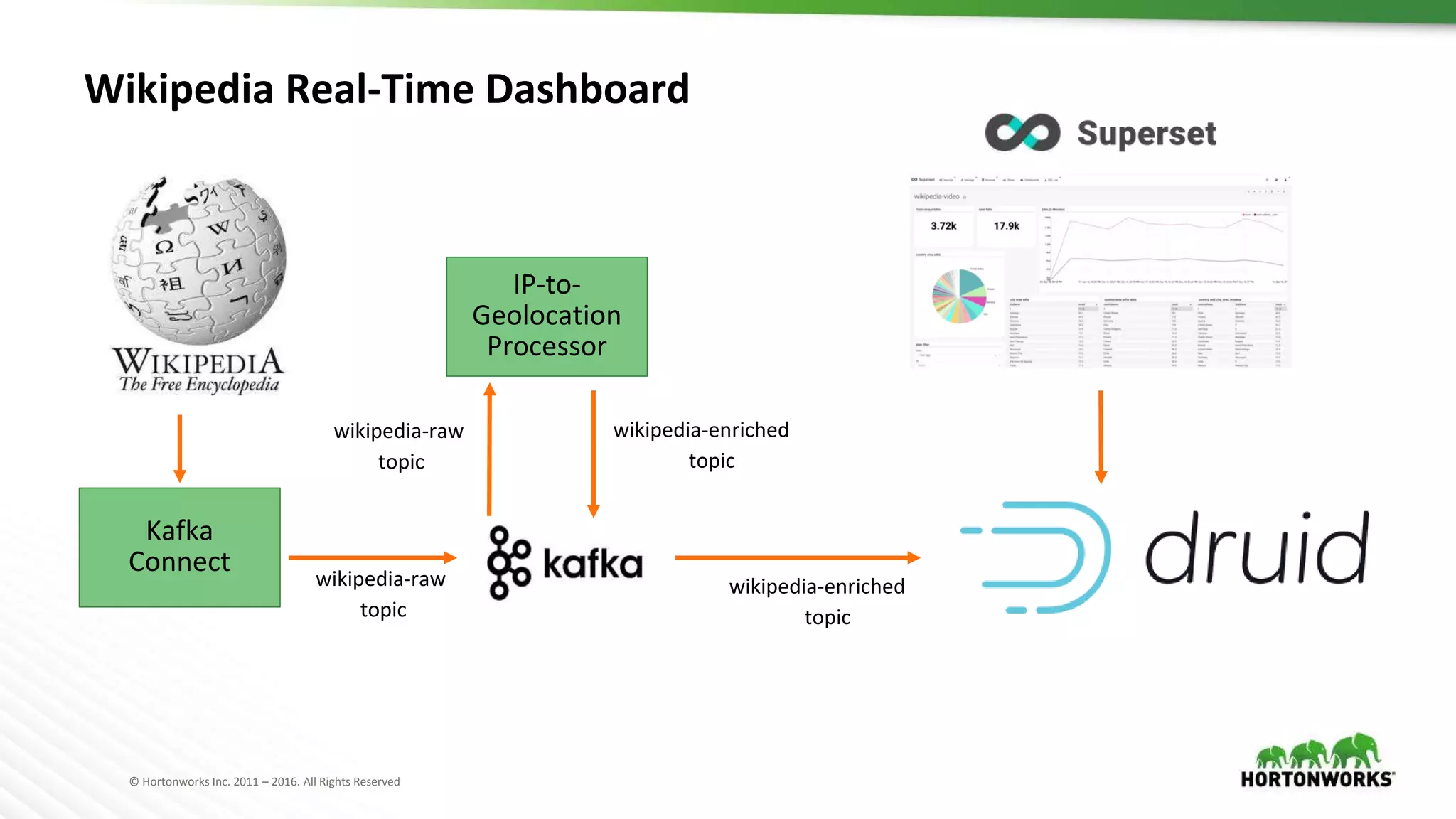

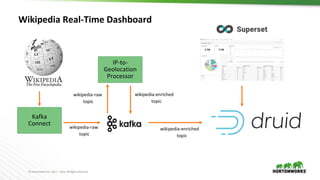

Wikipedia Real-Time Dashboard
Kafka
Connect
IP-to-
Geolocation
Processor
wikipedia-raw
topic
wikipedia-raw
topic
wikipedia-enriched
topic
wikipedia-enriched
topic
© Hortonworks Inc. 2011 – 2016. All Rights Reserved

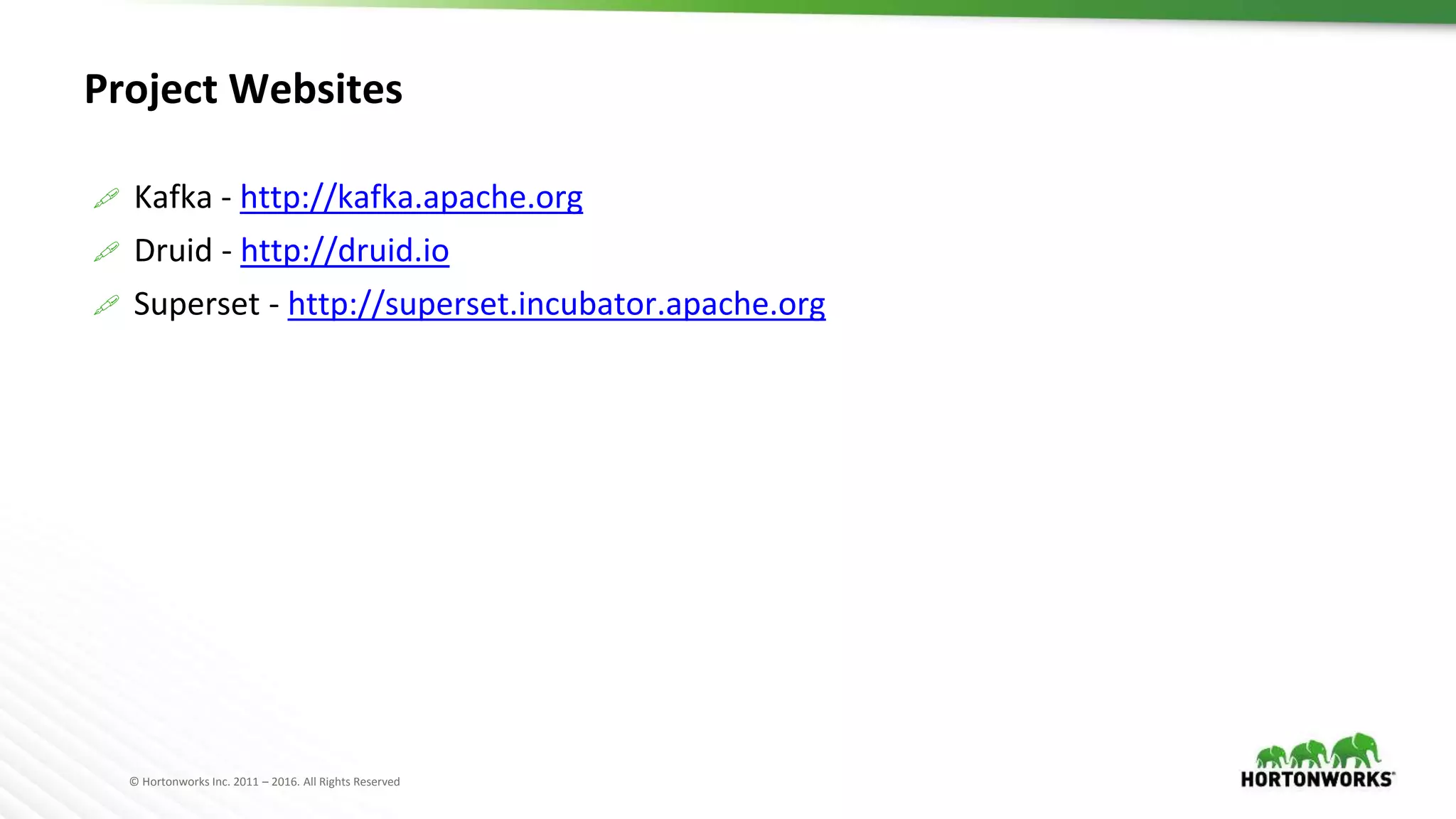

Project Websites
 Kafka - http://kafka.apache.org
 Druid - http://druid.io
 Superset - http://superset.incubator.apache.org
© Hortonworks Inc. 2011 – 2016. All Rights Reserved36
Thank you ! Questions ?
 Twitter - @NishantBangarwa
 Email - nbangarwa@hortonworks.com
 Linkedin - https://www.linkedin.com/in/nishant-bangarwa
Off The Record (OTR) session
Experiences and challenges in working with Druid
at 03:25 PM - 04:10 PM on 28 July, 2017
in Room 1 MLR Convention Centre, Whitefield

More Related Content

What's hot

Databricks Delta Lake and Its Benefits
Databricks Delta Lake and Its BenefitsDatabricks Delta Lake and Its Benefits
Databricks Delta Lake and Its Benefits
Databricks

Introduction to Azure Synapse Webinar
Introduction to Azure Synapse WebinarIntroduction to Azure Synapse Webinar
Introduction to Azure Synapse Webinar
Peter Ward

Agile BI via Data Vault and Modelstorming
Agile BI via Data Vault and ModelstormingAgile BI via Data Vault and Modelstorming
Agile BI via Data Vault and Modelstorming
Daniel Upton

Demystifying data engineering
Demystifying data engineeringDemystifying data engineering
Demystifying data engineering
Thang Bui (Bob)

Azure Database Services for MySQL PostgreSQL and MariaDB
Azure Database Services for MySQL PostgreSQL and MariaDBAzure Database Services for MySQL PostgreSQL and MariaDB
Azure Database Services for MySQL PostgreSQL and MariaDB
Nicholas Vossburg

Building Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft AzureBuilding Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft Azure
Dmitry Anoshin

From a hack to Data Mesh (Devoxx 2022)
From a hack to Data Mesh (Devoxx 2022)From a hack to Data Mesh (Devoxx 2022)
From a hack to Data Mesh (Devoxx 2022)
Simon Maurin

Differentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solutionDifferentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solution
James Serra

Intro to Delta Lake
Intro to Delta LakeIntro to Delta Lake
Intro to Delta Lake
Databricks

Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...
Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...
Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...
Igor De Souza

Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)
James Serra

NOVA SQL User Group - Azure Synapse Analytics Overview - May 2020
NOVA SQL User Group - Azure Synapse Analytics Overview -  May 2020NOVA SQL User Group - Azure Synapse Analytics Overview -  May 2020
NOVA SQL User Group - Azure Synapse Analytics Overview - May 2020
Timothy McAliley

Modernizing to a Cloud Data Architecture
Modernizing to a Cloud Data ArchitectureModernizing to a Cloud Data Architecture
Modernizing to a Cloud Data Architecture
Databricks

Best Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftBest Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon Redshift
Amazon Web Services

Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2
Databricks

Democratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized PlatformDemocratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized Platform
Databricks

NoSql
NoSqlNoSql
Building your Datalake on AWS
Building your Datalake on AWSBuilding your Datalake on AWS
Building your Datalake on AWS
Amazon Web Services

Future of Data Engineering
Future of Data EngineeringFuture of Data Engineering
Future of Data Engineering
C4Media

Architecting a datalake
Architecting a datalakeArchitecting a datalake
Architecting a datalake
Laurent Leturgez


What's hot (20)

Databricks Delta Lake and Its Benefits
Databricks Delta Lake and Its BenefitsDatabricks Delta Lake and Its Benefits
Databricks Delta Lake and Its Benefits

Introduction to Azure Synapse Webinar
Introduction to Azure Synapse WebinarIntroduction to Azure Synapse Webinar
Introduction to Azure Synapse Webinar

Agile BI via Data Vault and Modelstorming
Agile BI via Data Vault and ModelstormingAgile BI via Data Vault and Modelstorming
Agile BI via Data Vault and Modelstorming

Demystifying data engineering
Demystifying data engineeringDemystifying data engineering
Demystifying data engineering

Azure Database Services for MySQL PostgreSQL and MariaDB
Azure Database Services for MySQL PostgreSQL and MariaDBAzure Database Services for MySQL PostgreSQL and MariaDB
Azure Database Services for MySQL PostgreSQL and MariaDB

Building Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft AzureBuilding Modern Data Platform with Microsoft Azure
Building Modern Data Platform with Microsoft Azure

From a hack to Data Mesh (Devoxx 2022)
From a hack to Data Mesh (Devoxx 2022)From a hack to Data Mesh (Devoxx 2022)
From a hack to Data Mesh (Devoxx 2022)

Differentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solutionDifferentiate Big Data vs Data Warehouse use cases for a cloud solution
Differentiate Big Data vs Data Warehouse use cases for a cloud solution

Intro to Delta Lake
Intro to Delta LakeIntro to Delta Lake
Intro to Delta Lake

Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...
Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...
Data Engineer, Patterns & Architecture The future: Deep-dive into Microservic...

Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)Data Lakehouse, Data Mesh, and Data Fabric (r1)
Data Lakehouse, Data Mesh, and Data Fabric (r1)

NOVA SQL User Group - Azure Synapse Analytics Overview - May 2020
NOVA SQL User Group - Azure Synapse Analytics Overview -  May 2020NOVA SQL User Group - Azure Synapse Analytics Overview -  May 2020
NOVA SQL User Group - Azure Synapse Analytics Overview - May 2020

Modernizing to a Cloud Data Architecture
Modernizing to a Cloud Data ArchitectureModernizing to a Cloud Data Architecture
Modernizing to a Cloud Data Architecture

Best Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon RedshiftBest Practices for Migrating your Data Warehouse to Amazon Redshift
Best Practices for Migrating your Data Warehouse to Amazon Redshift

Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2Data Lakehouse Symposium | Day 1 | Part 2
Data Lakehouse Symposium | Day 1 | Part 2

Democratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized PlatformDemocratizing Data Quality Through a Centralized Platform
Democratizing Data Quality Through a Centralized Platform

NoSql
NoSqlNoSql
NoSql

Building your Datalake on AWS
Building your Datalake on AWSBuilding your Datalake on AWS
Building your Datalake on AWS

Future of Data Engineering
Future of Data EngineeringFuture of Data Engineering
Future of Data Engineering

Architecting a datalake
Architecting a datalakeArchitecting a datalake
Architecting a datalake


Similar to Interactive Realtime Dashboards on Data Streams using Kafka, Druid and Superset

Interactive real time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real time dashboards on data streams using Kafka, Druid, and Supe...Interactive real time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real time dashboards on data streams using Kafka, Druid, and Supe...
DataWorks Summit

Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...
DataWorks Summit

An Introduction to Druid
An Introduction to DruidAn Introduction to Druid
An Introduction to Druid
DataWorks Summit

Design Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data AnalyticsDesign Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data Analytics
DataWorks Summit

Design Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data AnalyticsDesign Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data Analytics
DataWorks Summit

Interactive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using DruidInteractive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using Druid
DataWorks Summit

Scalable Real-time analytics using Druid
Scalable Real-time analytics using DruidScalable Real-time analytics using Druid
Scalable Real-time analytics using Druid
DataWorks Summit/Hadoop Summit

Analyzing Hadoop Using Hadoop
Analyzing Hadoop Using HadoopAnalyzing Hadoop Using Hadoop
Analyzing Hadoop Using Hadoop
DataWorks Summit

Druid Scaling Realtime Analytics
Druid Scaling Realtime AnalyticsDruid Scaling Realtime Analytics
Druid Scaling Realtime Analytics
Aaron Brooks

Don't reengineer, reimagine: Hive buzzing with Druid's magic potion
Don't reengineer, reimagine: Hive buzzing with Druid's magic potion Don't reengineer, reimagine: Hive buzzing with Druid's magic potion
Don't reengineer, reimagine: Hive buzzing with Druid's magic potion
Future of Data Meetup

Webinar Series Part 5 New Features of HDF 5
Webinar Series Part 5 New Features of HDF 5Webinar Series Part 5 New Features of HDF 5
Webinar Series Part 5 New Features of HDF 5
Hortonworks

Interactive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using DruidInteractive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using Druid
DataWorks Summit/Hadoop Summit

Hadoop crashcourse v3
Hadoop crashcourse v3Hadoop crashcourse v3
Hadoop crashcourse v3
Hortonworks

Enabling the Real Time Analytical Enterprise
Enabling the Real Time Analytical EnterpriseEnabling the Real Time Analytical Enterprise
Enabling the Real Time Analytical Enterprise
Hortonworks

Using Apache® NiFi to Empower Self-Organising Teams
Using Apache® NiFi to Empower Self-Organising TeamsUsing Apache® NiFi to Empower Self-Organising Teams
Using Apache® NiFi to Empower Self-Organising Teams
Sebastian Carroll

Hortonworks Technical Workshop: What's New in HDP 2.3
Hortonworks Technical Workshop: What's New in HDP 2.3Hortonworks Technical Workshop: What's New in HDP 2.3
Hortonworks Technical Workshop: What's New in HDP 2.3
Hortonworks

HDF Powered by Apache NiFi Introduction
HDF Powered by Apache NiFi IntroductionHDF Powered by Apache NiFi Introduction
HDF Powered by Apache NiFi Introduction
Milind Pandit

Hive Performance Dataworks Summit Melbourne February 2019
Hive Performance Dataworks Summit Melbourne February 2019Hive Performance Dataworks Summit Melbourne February 2019
Hive Performance Dataworks Summit Melbourne February 2019
alanfgates

Fast SQL on Hadoop, Really?
Fast SQL on Hadoop, Really?Fast SQL on Hadoop, Really?
Fast SQL on Hadoop, Really?
DataWorks Summit

Harnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFI
Harnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFIHarnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFI
Harnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFI
Haimo Liu


Similar to Interactive Realtime Dashboards on Data Streams using Kafka, Druid and Superset (20)

Interactive real time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real time dashboards on data streams using Kafka, Druid, and Supe...Interactive real time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real time dashboards on data streams using Kafka, Druid, and Supe...

Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...
Interactive real-time dashboards on data streams using Kafka, Druid, and Supe...

An Introduction to Druid
An Introduction to DruidAn Introduction to Druid
An Introduction to Druid

Design Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data AnalyticsDesign Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data Analytics

Design Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data AnalyticsDesign Patterns For Real Time Streaming Data Analytics
Design Patterns For Real Time Streaming Data Analytics

Interactive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using DruidInteractive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using Druid

Scalable Real-time analytics using Druid
Scalable Real-time analytics using DruidScalable Real-time analytics using Druid
Scalable Real-time analytics using Druid

Analyzing Hadoop Using Hadoop
Analyzing Hadoop Using HadoopAnalyzing Hadoop Using Hadoop
Analyzing Hadoop Using Hadoop

Druid Scaling Realtime Analytics
Druid Scaling Realtime AnalyticsDruid Scaling Realtime Analytics
Druid Scaling Realtime Analytics

Don't reengineer, reimagine: Hive buzzing with Druid's magic potion
Don't reengineer, reimagine: Hive buzzing with Druid's magic potion Don't reengineer, reimagine: Hive buzzing with Druid's magic potion
Don't reengineer, reimagine: Hive buzzing with Druid's magic potion

Webinar Series Part 5 New Features of HDF 5
Webinar Series Part 5 New Features of HDF 5Webinar Series Part 5 New Features of HDF 5
Webinar Series Part 5 New Features of HDF 5

Interactive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using DruidInteractive Analytics at Scale in Apache Hive Using Druid
Interactive Analytics at Scale in Apache Hive Using Druid

Hadoop crashcourse v3
Hadoop crashcourse v3Hadoop crashcourse v3
Hadoop crashcourse v3

Enabling the Real Time Analytical Enterprise
Enabling the Real Time Analytical EnterpriseEnabling the Real Time Analytical Enterprise
Enabling the Real Time Analytical Enterprise

Using Apache® NiFi to Empower Self-Organising Teams
Using Apache® NiFi to Empower Self-Organising TeamsUsing Apache® NiFi to Empower Self-Organising Teams
Using Apache® NiFi to Empower Self-Organising Teams

Hortonworks Technical Workshop: What's New in HDP 2.3
Hortonworks Technical Workshop: What's New in HDP 2.3Hortonworks Technical Workshop: What's New in HDP 2.3
Hortonworks Technical Workshop: What's New in HDP 2.3

HDF Powered by Apache NiFi Introduction
HDF Powered by Apache NiFi IntroductionHDF Powered by Apache NiFi Introduction
HDF Powered by Apache NiFi Introduction

Hive Performance Dataworks Summit Melbourne February 2019
Hive Performance Dataworks Summit Melbourne February 2019Hive Performance Dataworks Summit Melbourne February 2019
Hive Performance Dataworks Summit Melbourne February 2019

Fast SQL on Hadoop, Really?
Fast SQL on Hadoop, Really?Fast SQL on Hadoop, Really?
Fast SQL on Hadoop, Really?

Harnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFI
Harnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFIHarnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFI
Harnessing Data-in-Motion with HDF 2.0, introduction to Apache NIFI/MINIFI


Recently uploaded

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
ijaia

2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
Yasser Mahgoub

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...
Prakhyath Rai

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
ecqow

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

Object Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOADObject Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOAD
PreethaV16

AI for Legal Research with applications, tools
AI for Legal Research with applications, toolsAI for Legal Research with applications, tools
AI for Legal Research with applications, tools
mahaffeycheryld

CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1
PKavitha10

Gas agency management system project report.pdf
Gas agency management system project report.pdfGas agency management system project report.pdf
Gas agency management system project report.pdf
Kamal Acharya

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
shadow0702a

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM
Divyanshu

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...
Prakhyath Rai

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx
CVCSOfficial

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar
UReason

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
upoux

LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by AnantLLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
Anant Corporation

morris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdfmorris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdf
ycwu0509

Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...
bijceesjournal

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf
21UME003TUSHARDEB

VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...
VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...
VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...
PIMR BHOPAL


Recently uploaded (20)

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL

2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 08 Doors and Windows.pdf

Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...Software Engineering and Project Management - Introduction, Modeling Concepts...
Software Engineering and Project Management - Introduction, Modeling Concepts...

一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理
一比一原版(CalArts毕业证)加利福尼亚艺术学院毕业证如何办理

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

Object Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOADObject Oriented Analysis and Design - OOAD
Object Oriented Analysis and Design - OOAD

AI for Legal Research with applications, tools
AI for Legal Research with applications, toolsAI for Legal Research with applications, tools
AI for Legal Research with applications, tools

CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1

Gas agency management system project report.pdf
Gas agency management system project report.pdfGas agency management system project report.pdf
Gas agency management system project report.pdf

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理

LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by AnantLLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant

morris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdfmorris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdf

Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...Rainfall intensity duration frequency curve statistical analysis and modeling...
Rainfall intensity duration frequency curve statistical analysis and modeling...

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf

VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...
VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...
VARIABLE FREQUENCY DRIVE. VFDs are widely used in industrial applications for...


Interactive Realtime Dashboards on Data Streams using Kafka, Druid and Superset

  • 1. Interactive Realtime Dashboards on Data Streams Nishant Bangarwa Hortonworks Druid Committer, PMC June 2017
  • 2. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Sample Data Stream : Wikipedia Edits
  • 3. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Demo: Wikipedia Real-Time Dashboard (Accelerated 30x)
  • 4. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Step by Step Breakdown Consume Events Enrich / Transform (Add Geolocation from IP Address) Store Events Visualize Events Sample Event : [[Eoghan Harris]] https://en.wikipedia.org/w/index.php?diff=792474242&oldid=787592607 * 7.114.169.238 * (+167) Added fact
  • 5. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Required Components  Event Flow  Event Processing  Data Store  Visualization Layer
  • 6. © Hortonworks Inc. 2011 – 2016. All Rights Reserved6 Event Flow
  • 7. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Event Flow : Requirements Event Producers Queue Event Consumers  Low latency  High Throughput  Failure Handling  Message delivery guarantees –  Message Ordering  Atleast Once, Exactly once, Atmost Once  Scalability  Fault tolerant
  • 8. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Apache Kafka
  • 9. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Apache Kafka  Low Latency  High Throughput  Message Delivery guarantees  At-least once  Exactly Once (Fully introduced in apache kafka v0.11.0 June 2017)  Reliable design to Handle Failures  Message Acks between producers and brokers  Data Replication on brokers  Consumers can Read from any desired offset  Handle multiple producers/consumers  Scalable
  • 10. © Hortonworks Inc. 2011 – 2016. All Rights Reserved10 Event Processing
  • 11. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Event Processing : Requirements  Consume-Process-Produce Pattern  Enrich and Transform event streams  Windowing  Apply business logic  Consume and Join multiple streams into single  Failure Handling  Scalability Source Process Sink Consume Produce
  • 12. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Kafka Streams  Rich Lightweight Stream processing library  Event-at-a-time  Stateful processing : windowing, joining, aggregation operators  Local state using RocksDb  Backed by changelog in kafka  Highly scalable, distributed, fault tolerant  Compared to a standard Kafka consumer:  Higher level: faster to build a sophisticated app  Less control for very fine-grained consumption
  • 13. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Kafka Streams : Wikipedia Data Enrichment
  • 14. © Hortonworks Inc. 2011 – 2016. All Rights Reserved14 Data Store
  • 15. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Data Store : Requirements Processed Events Data Store Queries  Ability to ingest Streaming data  Power Interactive dashboards  Sub-Second Query Response time  Ad-hoc arbitrary slicing and dicing of data  Data Freshness  Summarized/aggregated data is queried  Scalability  High Availability
  • 16. © Hortonworks Inc. 2011 – 2016. All Rights Reserved16 Druid  Column-oriented distributed datastore  Sub-Second query times  Realtime streaming ingestion  Arbitrary slicing and dicing of data  Automatic Data Summarization  Approximate algorithms (hyperLogLog, theta)  Scalable to petabytes of data  Highly available
  • 17. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Suitable Use Cases  Powering Interactive user facing applications  Arbitrary slicing and dicing of large datasets  User behavior analysis  measuring distinct counts  retention analysis  funnel analysis  A/B testing  Exploratory analytics/root cause analysis  Not interested in dumping entire dataset
  • 18. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Druid: Segments  Data in Druid is stored in Segment Files.  Partitioned by time  Ideally, segment files are each smaller than 1GB.  If files are large, smaller time partitions are needed. Time Segment 1: Monday Segment 2: Tuesday Segment 3: Wednesday Segment 4: Thursday Segment 5_2: Friday Segment 5_1: Friday
  • 19. © Hortonworks Inc. 2011 – 2016. All Rights Reserved19 Example Wikipedia Edit Dataset timestamp page language city country … added deleted 2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65 2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62 2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45 2011-01-01T00:05:35Z Ke$ha en Calgary CA 17 87 2011-01-01T00:06:41Z Ke$ha en Calgary CA 43 99 2011-01-02T00:08:35Z Selena Gomes en Calgary CA 12 53 Timestamp Dimensions Metrics
  • 20. © Hortonworks Inc. 2011 – 2016. All Rights Reserved20 Data Rollup timestamp page language city country … added deleted 2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65 2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62 2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45 2011-01-01T00:05:35Z Ke$ha en Calgary CA 17 87 2011-01-01T00:06:41Z Ke$ha en Calgary CA 43 99 2011-01-02T00:08:35Z Selena Gomes en Calgary CA 12 53 timestamp page language city country count sum_added sum_deleted min_added max_added …. 2011-01-01T00:00:00Z Justin Bieber en SF USA 3 57 172 10 32 2011-01-01T00:00:00Z Ke$ha en Calgary CA 2 60 186 17 43 2011-01-02T00:00:00Z Selena Gomes en Calgary CA 1 12 53 12 12 Rollup by hour
  • 21. © Hortonworks Inc. 2011 – 2016. All Rights Reserved21 Dictionary Encoding  Create and store Ids for each value  e.g. page column  Values - Justin Bieber, Ke$ha, Selena Gomes  Encoding - Justin Bieber : 0, Ke$ha: 1, Selena Gomes: 2  Column Data - [0 0 0 1 1 2]  city column - [0 0 0 1 1 1] timestamp page language city country … added deleted 2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65 2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62 2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45 2011-01-01T00:05:35Z Ke$ha en Calgary CA 17 87 2011-01-01T00:06:41Z Ke$ha en Calgary CA 43 99 2011-01-02T00:08:35Z Selena Gomes en Calgary CA 12 53
  • 22. © Hortonworks Inc. 2011 – 2016. All Rights Reserved22 Bitmap Indices  Store Bitmap Indices for each value  Justin Bieber -> [0, 1, 2] -> [1 1 1 0 0 0]  Ke$ha -> [3, 4] -> [0 0 0 1 1 0]  Selena Gomes -> [5] -> [0 0 0 0 0 1]  Queries  Justin Bieber or Ke$ha -> [1 1 1 0 0 0] OR [0 0 0 1 1 0] -> [1 1 1 1 1 0]  language = en and country = CA -> [1 1 1 1 1 1] AND [0 0 0 1 1 1] -> [0 0 0 1 1 1]  Indexes compressed with Concise or Roaring encoding timestamp page language city country … added deleted 2011-01-01T00:01:35Z Justin Bieber en SF USA 10 65 2011-01-01T00:03:63Z Justin Bieber en SF USA 15 62 2011-01-01T00:04:51Z Justin Bieber en SF USA 32 45 2011-01-01T00:01:35Z Ke$ha en Calgary CA 17 87 2011-01-01T00:01:35Z Ke$ha en Calgary CA 43 99 2011-01-01T00:01:35Z Selena Gomes en Calgary CA 12 53
  • 23. © Hortonworks Inc. 2011 – 2016. All Rights Reserved23 Approximate Sketch Columns timestamp page userid language city country … added deleted 2011-01-01T00:01:35Z Justin Bieber user1111111 en SF USA 10 65 2011-01-01T00:03:63Z Justin Bieber user1111111 en SF USA 15 62 2011-01-01T00:04:51Z Justin Bieber user2222222 en SF USA 32 45 2011-01-01T00:05:35Z Ke$ha user3333333 en Calgary CA 17 87 2011-01-01T00:06:41Z Ke$ha user4444444 en Calgary CA 43 99 2011-01-02T00:08:35Z Selena Gomes user1111111 en Calgary CA 12 53 timestamp page language city country count sum_added sum_delete d min_added Userid_sket ch …. 2011-01-01T00:00:00Z Justin Bieber en SF USA 3 57 172 10 {sketch} 2011-01-01T00:00:00Z Ke$ha en Calgary CA 2 60 186 17 {sketch} 2011-01-02T00:00:00Z Selena Gomes en Calgary CA 1 12 53 12 {sketch} Rollup by hour
  • 24. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Approximate Algorithms  Store Sketch objects, instead of raw column values  Better rollup for high cardinality columns e.g userid  Reduced storage size  Use Cases  Fast approximate distinct counts  Approximate histograms  Funnel/retention analysis  Limitation  Not possible to do exact counts  filter on individual row values
  • 25. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Realtime Nodes Historical Nodes 25 Druid Architecture Batch Data Event Historical Nodes Broker Nodes Realtime Index Tasks Streaming Data Historical Nodes Handoff
  • 26. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Performance and Scalability : Fast Facts Most Events per Day 300 Billion Events / Day (Metamarkets) Most Computed Metrics 1 Billion Metrics / Min (Jolata) Largest Cluster 200 Nodes (Metamarkets) Largest Hourly Ingestion 2TB per Hour (Netflix)
  • 27. © Hortonworks Inc. 2011 – 2016. All Rights Reserved27 Companies Using Druid
  • 28. © Hortonworks Inc. 2011 – 2016. All Rights Reserved28 Visualization Layer
  • 29. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Visualization Layer : Requirements  Rich dashboarding capabilities  Work with multiple datasoucres  Security/Access control  Allow for extension  Add custom visualizations Data Store Visualization Layer User Dashboards
  • 30. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Superset  Python backend  Flask app builder  Authentication  Pandas for rich analytics  SqlAlchemy for SQL toolkit  Javascript frontend  React, NVD3  Deep integration with Druid
  • 31. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Superset Rich Dashboarding Capabilities: Treemaps
  • 32. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Superset Rich Dashboarding Capabilities: Sunburst
  • 33. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Superset UI Provides Powerful Visualizations Rich library of dashboard visualizations: Basic: • Bar Charts • Pie Charts • Line Charts Advanced: • Sankey Diagrams • Treemaps • Sunburst • Heatmaps And More!
  • 34. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Wikipedia Real-Time Dashboard Kafka Connect IP-to- Geolocation Processor wikipedia-raw topic wikipedia-raw topic wikipedia-enriched topic wikipedia-enriched topic
  • 35. © Hortonworks Inc. 2011 – 2016. All Rights Reserved Project Websites  Kafka - http://kafka.apache.org  Druid - http://druid.io  Superset - http://superset.incubator.apache.org
  • 36. © Hortonworks Inc. 2011 – 2016. All Rights Reserved36 Thank you ! Questions ?  Twitter - @NishantBangarwa  Email - nbangarwa@hortonworks.com  Linkedin - https://www.linkedin.com/in/nishant-bangarwa Off The Record (OTR) session Experiences and challenges in working with Druid at 03:25 PM - 04:10 PM on 28 July, 2017 in Room 1 MLR Convention Centre, Whitefield

Editor's Notes

  1. Druid Architecture
  2. Retention analysis
  3. Druid Architecture
