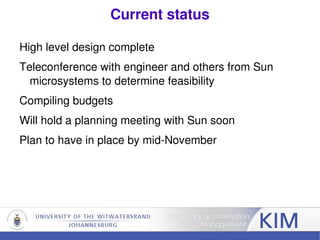

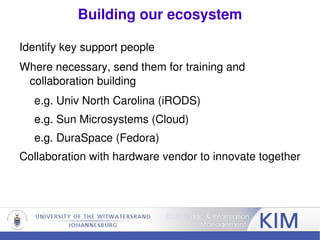

The document discusses the private cloud architecture being implemented at the University of the Witwatersrand. It outlines plans to build a private cloud infrastructure using open source technologies like OpenStack, Fedora, iRODS and Zimbra. The cloud will provide scalable compute and storage resources along with hosted services and a digital archive. Key steps are identifying support staff, collaborating with technology partners, and having the initial infrastructure in place by mid-November.
1. Private Cloud Architecture Moving Wits beyond the cutting edge Prof Derek W. Keats Deputy Vice Chancellor (Knowledge & Information Management) The University of the Witwatersrand, Johannesburg http://kim.wits.ac.za [email_address]

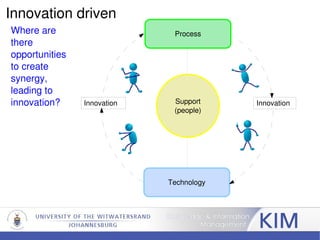

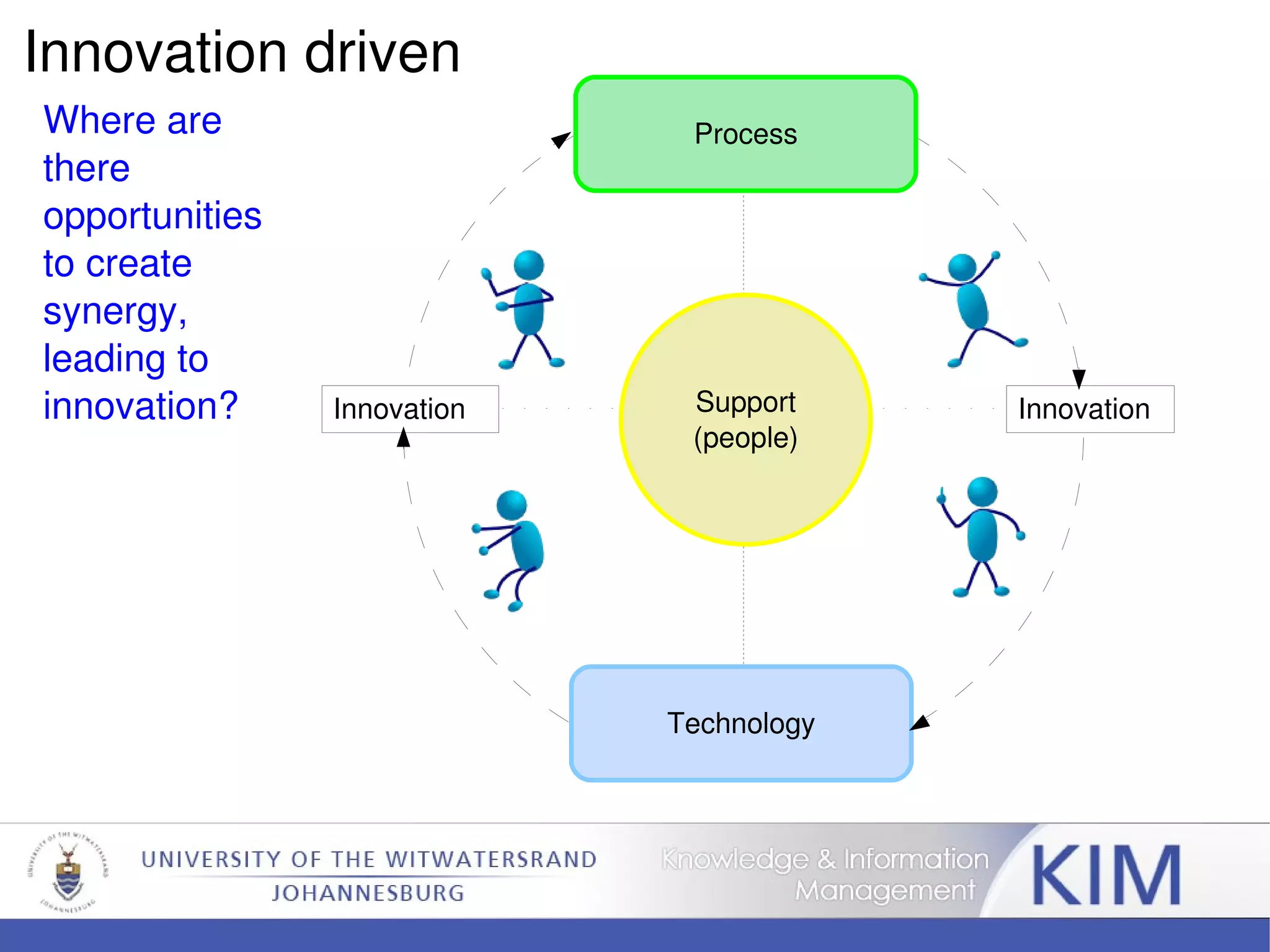

2. Innovation Innovation Innovation driven Where are there opportunities to create synergy, leading to innovation? Process Technology Support (people)

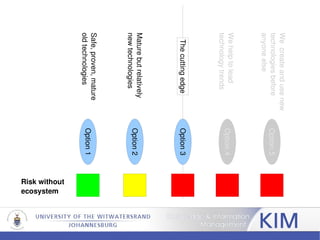

3. Risk without ecosystem Safe, proven, mature old technologies Mature but relatively new technologies We help to lead technology trends We create and use new technologies before anyone else Option 1 Option 2 Option 3 Option 4 Option 5 The cutting edge

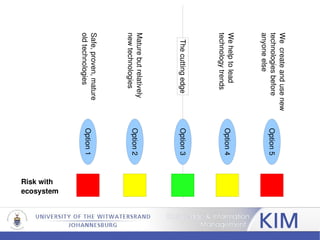

4. Risk with ecosystem Safe, proven, mature old technologies Mature but relatively new technologies We help to lead technology trends We create and use new technologies before anyone else Option 1 Option 2 Option 3 Option 4 Option 5 The cutting edge

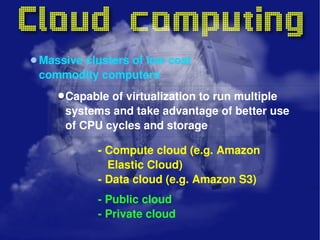

5. Capable of virtualization to run multiple systems and take advantage of better use of CPU cycles and storage Massive clusters of low cost commodity computers - Compute cloud (e.g. Amazon Elastic Cloud) - Data cloud (e.g. Amazon S3) - Public cloud - Private cloud
7. Private cloud infrastructure Local view Compute cloud Cloud storage Robotic tape library Hosted services Digital archive Virtualization Chisimba Chisimba Fedora iRODS Chisimba DSPACE OS OS OS FS: ZFS? Wits portals eLearning email Zimbra OS Hierarchical storage
8. Private cloud infrastructure Remote sites on data grid Compute cloud Storage cloud Robotic tape library Hosted services Digital archive Virtualization Fedora iRODS Chisimba DSPACE Remote site Remote site Remote site Remote site OS: Ubuntu? FS: ZFS? Chisimba Chisimba OS OS Wits portals eLearning email Zimbra OS Hierarchical storage
9. Private cloud infrastructure Remote sites on data grid with service acquisition from public cloud Compute cloud Storage cloud Robotic tape library Hosted services Digital archive Virtualization Fedora iRODS Chisimba DSPACE Remote site Remote site Remote site Remote site Public cloud OS: Ubuntu? FS: ZFS? Chisimba Chisimba OS OS Wits portals eLearning email Zimbra OS Hierarchical storage
14. Private cloud infrastructure Use in establishing digital archive Compute cloud Storage cloud Robotic tape library Digital archive Virtualization OS: Ubuntu? Fedora iRODS Chisimba DSPACE IRODS rules Ingest Source artifacts Digital conversion Remote site Ingest Source artifiacts Digital conversion IRODS rules Remote site Born digital Docs Audio Video etc FS: ZFS?
15.

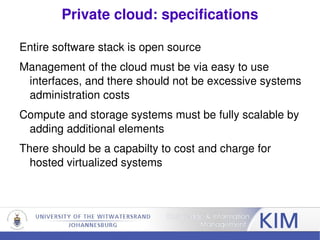

16. Management of the cloud must be via easy to use interfaces, and there should not be excessive systems administration costs
17. Compute and storage systems must be fully scalable by adding additional elements
18. There should be a capabilty to cost and charge for hosted virtualized systems
