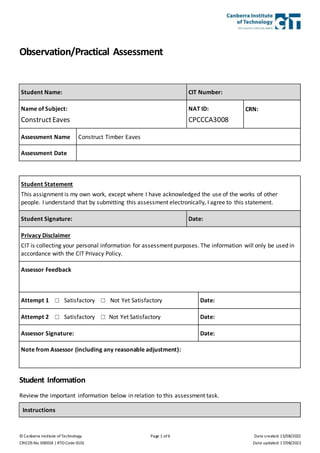

1. © Canberra Institute of Technology Page 1 of 6 Date created: 15/08/2022
CRICOS No. 00001K | RTO Code 0101 Date updated: 17/08/2022
Observation/Practical Assessment
Student Name: CIT Number:
Name of Subject:
ConstructEaves
NAT ID:
CPCCCA3008
CRN:
Assessment Name Construct Timber Eaves
Assessment Date
Student Statement
This assignment is my own work, except where I have acknowledged the use of the works of other
people. I understand that by submitting this assessment electronically, I agree to this statement.
Student Signature: Date:
Privacy Disclaimer
CIT is collecting your personal information for assessment purposes. The information will only be used in
accordance with the CIT Privacy Policy.
Assessor Feedback
Attempt 1 ☐ Satisfactory ☐ Not Yet Satisfactory Date:
Attempt 2 ☐ Satisfactory ☐ Not Yet Satisfactory Date:
Assessor Signature: Date:
Note from Assessor (including any reasonable adjustment):
Student Information
Review the important information below in relation to this assessment task.
Instructions

2. © Canberra Institute of Technology Page 2 of 6 Date created: 15/08/2022
CRICOS No. 00001K | RTO Code 0101 Date updated: 17/08/2022
You are going to follow the given plans to plan, mark and cut roof members to accommodate a timber
fascia and barge board to meet the NCC and Australian Standards. You will install timber verge
gable eaves, timber box gable eaves and eaves. The constructions will have an apex on the barge
board, a junction between the barge board and the plumb fascia, a junction of the fascia and eave
lining at the valley and a junction of the fascia and eave lining at the hip.
Task Instructions
You willbe required to submit the following documents on completion to Ready Skills:
 JSA (Job Safety Analysis)andToolbox talk (Ready Skills)
 Calculateyou gable end dimensions
 Listthe required tools and equipment needed for this task
 Listthe required materials needed for this task
 Calculateyour cutting list
Calculate your gable end
You are required to calculate the ‘pitched roof component’ of the ‘Gable End’. Please complete
the calculations below.
Your teacher will provide you with a ‘Roof Pitch’ or you may need to do a site measure. The
correct calculation and construction of this component will be assessed by your teacher.
ROOFING TRIANGLE FOR GABLE ENDCOMPONENT OF EAVE PRACTICAL:
This is also on yourmain set of plans

3. © Canberra Institute of Technology Page 3 of 6 Date created: 15/08/2022
CRICOS No. 00001K | RTO Code 0101 Date updated: 17/08/2022
Rise
Half Span
(Round up allcalculations dealing withmeasurements to 3 decimal points)
Plan length or half span Rise Rafter line length
= = =
(Round up allcalculations dealing withdegrees to 1 decimal point)
OnThe wall Provided:
 Construct the eaves frame according to the plans
 Cut and install the timber fascia as per the plans
 Cut/shape and fit eave sheets
 Cut and install quad mouldings
Once the eavepractical has beendeemedsatisfactory:
 De-construct eave structure
 De-nail and restack timbers
 Any timber below 500mm gets put into adesignated bin
 Finalise this document and submit to your assessor
=
Angle of plumb cut

4. © Canberra Institute of Technology Page 4 of 6 Date created: 15/08/2022
CRICOS No. 00001K | RTO Code 0101 Date updated: 17/08/2022
Plans are separate to this document
Time Allowed
4 hours
Assessment Conditions
Assessmentwill bealways conducted in simulated work environment CIT Bruce under teacher
supervision. If at any stage the assessor deems the assessmentto be unsafeit will be stopped, and this
will count as your first attempt. Access toallresources, manual and standards is permitted. All mobile
phones are to be switchoff during the assessment.
Materials Provided by CIT
All plans, materials and tools required to complete the taskwill be provided.
Materials You Need
Personal protective equipment PPE and nail bag and a device to access Ready Skills.
Attempts
You may have at least two (2) attempts for this assessment.
 If your first attempt is not successful, your teacher will discuss your results with you and will arrange
a second attempt.
 If your second attempt is not successful, you may be required to re-enrol in this unit.
Please refer to the CIT Assessment Policy if you have any questions.

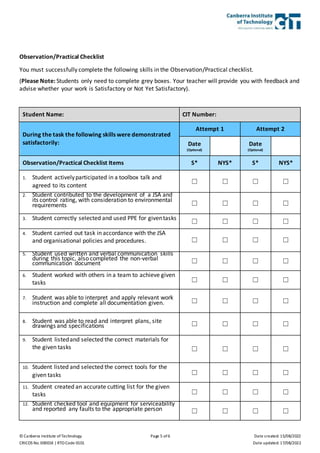

5. © Canberra Institute of Technology Page 5 of 6 Date created: 15/08/2022
CRICOS No. 00001K | RTO Code 0101 Date updated: 17/08/2022
Observation/Practical Checklist
You must successfully complete the following skills in the Observation/Practical checklist.
(Please Note: Students only need to complete grey boxes. Your teacher will provide you with feedback and
advise whether your work is Satisfactory or Not Yet Satisfactory).
Student Name: CIT Number:
During the task the following skills were demonstrated
satisfactorily:
Attempt 1 Attempt 2
Date
(Optional)
Date
(Optional)
Observation/Practical Checklist Items S* NYS* S* NYS*
1. Student activelyparticipated in a toolbox talk and
agreed to its content
☐ ☐ ☐ ☐
2. Student contributed to the development of a JSA and
its control rating, with consideration to environmental
requirements ☐ ☐ ☐ ☐
3. Student correctly selected and used PPE for giventasks
☐ ☐ ☐ ☐
4. Student carried out task in accordance with the JSA
and organisational policies and procedures. ☐ ☐ ☐ ☐
5. Student used written and verbal communication skills
during this topic, also completed the non-verbal
communication document ☐ ☐ ☐ ☐
6. Student worked with others in a team to achieve given
tasks ☐ ☐ ☐ ☐
7. Student was able to interpret and apply relevant work
instruction and complete all documentation given. ☐ ☐ ☐ ☐
8. Student was able to read and interpret plans, site
drawings and specifications ☐ ☐ ☐ ☐
9. Student listedand selected the correct materials for
the given tasks ☐ ☐ ☐ ☐
10. Student listed and selected the correct tools for the
given tasks ☐ ☐ ☐ ☐
11. Student created an accurate cutting list for the given
tasks ☐ ☐ ☐ ☐
12. Student checked tool and equipment for serviceability
and reported any faults to the appropriate person ☐ ☐ ☐ ☐

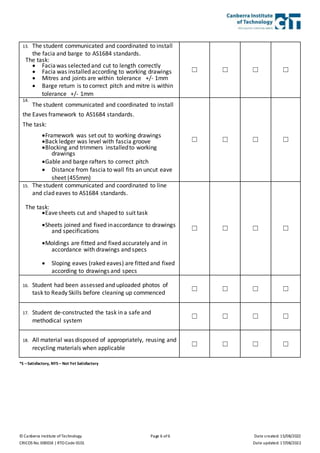

6. © Canberra Institute of Technology Page 6 of 6 Date created: 15/08/2022
CRICOS No. 00001K | RTO Code 0101 Date updated: 17/08/2022
13. The student communicated and coordinated to install
the facia and barge to AS1684 standards.
The task:
 Facia was selected and cut to length correctly
 Facia was installed according to working drawings
 Mitres and joints are within tolerance +/- 1mm
 Barge return is to correct pitch and mitre is within
tolerance +/- 1mm
☐ ☐ ☐ ☐
14.
The student communicated and coordinated to install
the Eaves framework to AS1684 standards.
The task:
Framework was set out to working drawings
Back ledger was level with fascia groove
Blocking and trimmers installedto working
drawings
Gable and barge rafters to correct pitch
 Distance from fascia to wall fits an uncut eave
sheet (455mm)
☐ ☐ ☐ ☐
15. The student communicated and coordinated to line
and clad eaves to AS1684 standards.
The task:
Eavesheets cut and shaped to suit task
Sheets joined and fixed inaccordance to drawings
and specifications
Moldings are fitted and fixed accurately and in
accordance with drawings and specs
 Sloping eaves (raked eaves) are fitted and fixed
according to drawings and specs
☐ ☐ ☐ ☐
16. Student had been assessed and uploaded photos of
task to Ready Skills before cleaning up commenced
☐ ☐ ☐ ☐
17. Student de-constructed the task in a safe and
methodical system
☐ ☐ ☐ ☐
18. All material was disposed of appropriately, reusing and
recycling materials when applicable
☐ ☐ ☐ ☐
*S –Satisfactory, NYS – Not Yet Satisfactory
