This document provides an overview of basic fire safety and emergency evacuation procedures. It covers topics such as the components and spread of fire, classification of fires, firefighting equipment like extinguishers and hydrants, methods of firefighting, fire prevention and protection measures, fire alarm systems, and emergency evacuation procedures. The key aspects are identifying the components required for a fire, understanding how fires spread, learning about different types of firefighting equipment and methods, and knowing the proper procedures to follow during a fire emergency or evacuation.

1. HSE KARNAL
WEL COME

2. Basic Fire Safety & Emergency Evacuation
HSE KARNAL
2

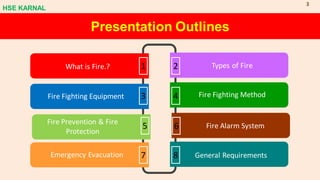

3. 1
What is Fire.? 2 Types of Fire
7
Emergency Evacuation
3
Fire Fighting Equipment
5
Fire Prevention & Fire
Protection
4 Fire Fighting Method
6 Fire Alarm System
8 General Requirements
Presentation Outlines
HSE KARNAL
3

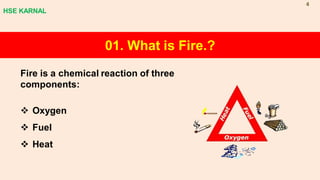

4. 01. What is Fire.?
Fire is a chemical reaction of three
components:
❖ Oxygen
❖ Fuel
❖ Heat
HSE KARNAL
4

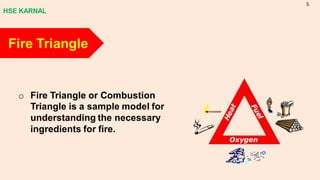

5. o Fire Triangle or Combustion
Triangle is a sample model for
understanding the necessary
ingredients for fire.
Fire Triangle
HSE KARNAL
5

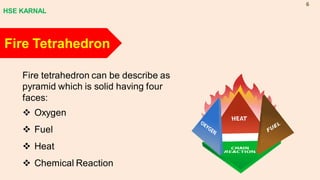

6. Fire Tetrahedron
Fire tetrahedron can be describe as
pyramid which is solid having four
faces:
❖ Oxygen
❖ Fuel
❖ Heat
❖ Chemical Reaction
HSE KARNAL
6

7. The Spread of Fire
o Direct contact - in their early
stage, fires spread most entirely
by contact of flame to
combustible object.
o Conduction – transferred of
heat through solid materials.
HSE KARNAL
7

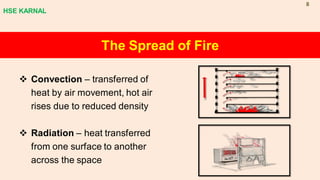

8. The Spread of Fire
❖ Convection – transferred of
heat by air movement, hot air
rises due to reduced density
❖ Radiation – heat transferred
from one surface to another
across the space
HSE KARNAL
8

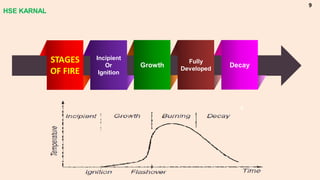

9. 3
4
STAGES
OF FIRE
Incipient
Or
Ignition
Growth
Fully
Developed
Decay
HSE KARNAL
9

10. Cooking
Equipment's Smoking
Electrical Distribution
Equipment's
Electrical
Appliances
Oil, Kerosene.
Petrol & Lubricants
Gas
Leakages
Heating
Equipment's
Power
Storages
Explosives
Common Causes of Fire
HSE KARNAL
10

11. END CHAPTTER 01
HSE KARNAL
11

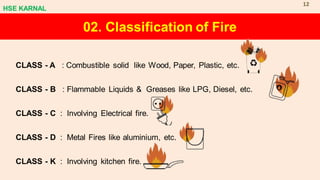

12. 02. Classification of Fire
CLASS - A : Combustible solid like Wood, Paper, Plastic, etc.
CLASS - B : Flammable Liquids & Greases like LPG, Diesel, etc.
CLASS - C : Involving Electrical fire.
CLASS - D : Metal Fires like aluminium, etc.
CLASS - K : Involving kitchen fire.
HSE KARNAL
12

13. END CHAPTTER 02
HSE KARNAL
13

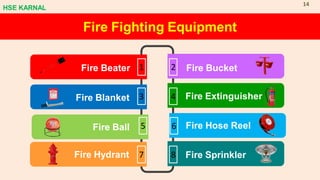

14. Fire Fighting Equipment
1
Fire Beater 2 Fire Bucket
7
Fire Hydrant
3
Fire Blanket
5
Fire Ball
4 Fire Extinguisher
6 Fire Hose Reel
8 Fire Sprinkler
HSE KARNAL
14

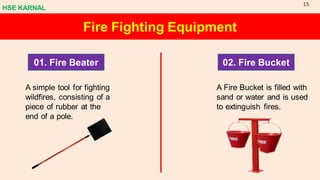

15. Fire Fighting Equipment
01. Fire Beater 02. Fire Bucket
A simple tool for fighting
wildfires, consisting of a
piece of rubber at the
end of a pole.
A Fire Bucket is filled with
sand or water and is used
to extinguish fires.
HSE KARNAL
15

16. Fire Fighting Equipment
03. Fire Blanket 04. Fire Ball
A sheet of flexible material,
typically woven fiberglass,
used to smother a fire in an
emergency.
A round-shaped fire extinguisher
that self-activates after about
three to five seconds of fire
exposure.
HSE KARNAL
16

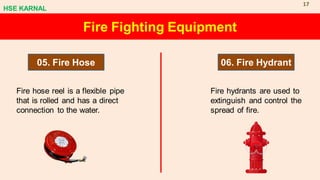

17. Fire Fighting Equipment
05. Fire Hose 06. Fire Hydrant
Fire hose reel is a flexible pipe
that is rolled and has a direct
connection to the water.
Fire hydrants are used to
extinguish and control the
spread of fire.
HSE KARNAL
17

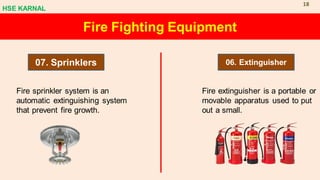

18. Fire Fighting Equipment
07. Sprinklers 06. Extinguisher
Fire sprinkler system is an
automatic extinguishing system
that prevent fire growth.
Fire extinguisher is a portable or
movable apparatus used to put
out a small.
HSE KARNAL
18

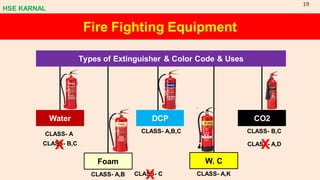

19. Fire Fighting Equipment
Types of Extinguisher & Color Code & Uses
Water
W. C
Foam
CO2
DCP
CLASS- A
CLASS- A,B
CLASS- A,B,C
CLASS- A,K
CLASS- B,C
CLASS- A,D
CLASS- B,C
CLASS- C
X
X
X
HSE KARNAL
19

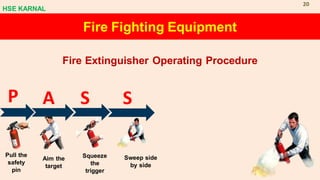

20. Fire Fighting Equipment
Fire Extinguisher Operating Procedure
P A S
S
Pull the
safety
pin
Aim the
target
Squeeze
the
trigger
Sweep side
by side
HSE KARNAL
20

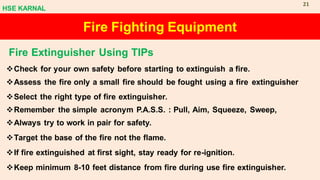

21. Fire Fighting Equipment
Fire Extinguisher Using TIPs
❖Check for your own safety before starting to extinguish a fire.
❖Assess the fire only a small fire should be fought using a fire extinguisher
❖Select the right type of fire extinguisher.
❖Remember the simple acronym P.A.S.S. : Pull, Aim, Squeeze, Sweep,
❖Always try to work in pair for safety.
❖Target the base of the fire not the flame.
❖If fire extinguished at first sight, stay ready for re-ignition.
❖Keep minimum 8-10 feet distance from fire during use fire extinguisher.
HSE KARNAL
21

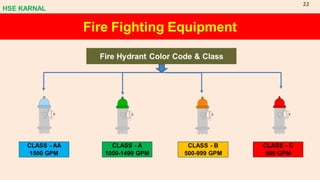

22. Fire Fighting Equipment
Fire Hydrant Color Code & Class
CLASS - AA
1500 GPM
CLASS - A
1000-1499 GPM
CLASS - B
500-999 GPM
CLASS - C
500 GPM
HSE KARNAL
22

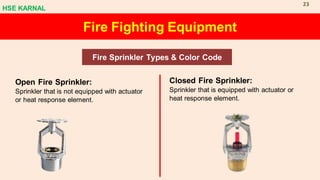

23. Fire Fighting Equipment
Fire Sprinkler Types & Color Code
Open Fire Sprinkler:
Sprinkler that is not equipped with actuator
or heat response element.
Closed Fire Sprinkler:
Sprinkler that is equipped with actuator or
heat response element.
HSE KARNAL
23

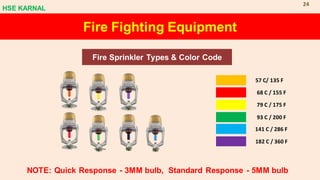

24. Fire Fighting Equipment
Fire Sprinkler Types & Color Code
57 C/ 135 F
68 C / 155 F
79 C / 175 F
93 C / 200 F
141 C / 286 F
182 C / 360 F
NOTE: Quick Response - 3MM bulb, Standard Response - 5MM bulb
HSE KARNAL
24

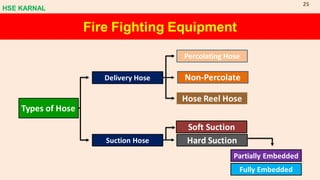

25. Fire Fighting Equipment
Types of Hose
Delivery Hose
Suction Hose
Hose Reel Hose
Percolating Hose
Hard Suction
Non-Percolate
Partially Embedded
Soft Suction
Fully Embedded
HSE KARNAL
25

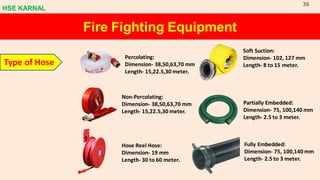

26. Fire Fighting Equipment
Type of Hose
Percolating:
Dimension- 38,50,63,70 mm
Length- 15,22.5,30 meter.
Non-Percolating:
Dimension- 38,50,63,70 mm
Length- 15,22.5,30 meter.
Hose Reel Hose:
Dimension- 19 mm
Length- 30 to 60 meter.
Soft Suction:
Dimension- 102, 127 mm
Length- 8 to 15 meter.
Partially Embedded:
Dimension- 75, 100,140 mm
Length- 2.5 to 3 meter.
Fully Embedded:
Dimension- 75, 100,140 mm
Length- 2.5 to 3 meter.
HSE KARNAL
26

27. END CHAPTTER 03
HSE KARNAL
27

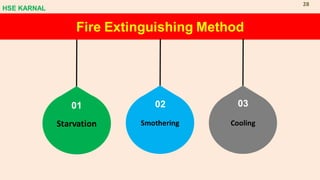

28. Fire Extinguishing Method
Starvation
01
Smothering
02
Cooling
03
HSE KARNAL
28

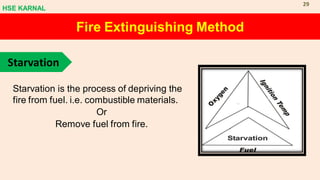

29. Fire Extinguishing Method
Starvation is the process of depriving the
fire from fuel. i.e. combustible materials.
Or
Remove fuel from fire.
Starvation
HSE KARNAL
29

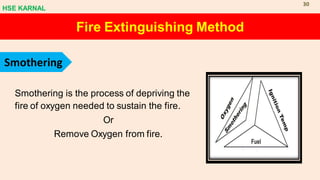

30. Fire Extinguishing Method
Smothering
Smothering is the process of depriving the
fire of oxygen needed to sustain the fire.
Or
Remove Oxygen from fire.
HSE KARNAL
30

31. Fire Extinguishing Method
Cooling
Cooling is the process of depriving the fire
of Heat e.g. by applying a substance such
as water that will absorb heat from the fire.
Or
Remove heat from fire.
HSE KARNAL
31

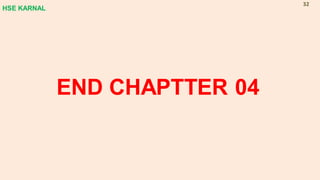

32. END CHAPTTER 04
HSE KARNAL
32

33. Fire Prevention & Fire Protection
01. Fire Prevention:
It is a proactive steps taken to reduce fire
hazards so that a fire does not have a
chance to ignite.
02. Fire Protection:
It is a reactive approach which minimize
potential damage or loss.
HSE KARNAL
33

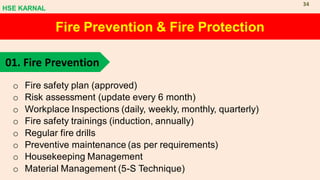

34. Fire Prevention & Fire Protection
01. Fire Prevention
o Fire safety plan (approved)
o Risk assessment (update every 6 month)
o Workplace Inspections (daily, weekly, monthly, quarterly)
o Fire safety trainings (induction, annually)
o Regular fire drills
o Preventive maintenance (as per requirements)
o Housekeeping Management
o Material Management (5-S Technique)
HSE KARNAL
34

35. 02. Fire Protection
Fire Prevention & Fire Protection
Active Fire Protection:
Active fire protection system is detect and extinguish a
fire. This can be either manual or automatic.
Passive Fire Protection:
Passive fire protection system will help to prevent fire
from spreading or resist the initial ignition.
HSE KARNAL
35

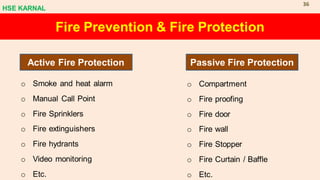

36. Fire Prevention & Fire Protection
Active Fire Protection Passive Fire Protection
o Smoke and heat alarm
o Manual Call Point
o Fire Sprinklers
o Fire extinguishers
o Fire hydrants
o Video monitoring
o Etc.
o Compartment
o Fire proofing
o Fire door
o Fire wall
o Fire Stopper
o Fire Curtain / Baffle
o Etc.
HSE KARNAL
36

37. END CHAPTTER 05
HSE KARNAL
37

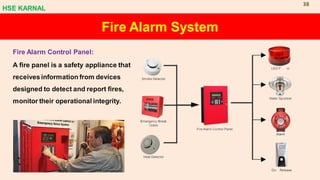

38. Fire Alarm System
Fire Alarm Control Panel:
A fire panel is a safety appliance that
receives information from devices
designed to detect and report fires,
monitor their operational integrity.
HSE KARNAL
38

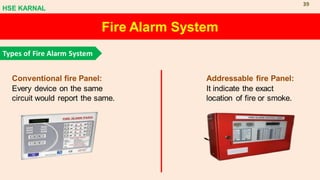

39. Fire Alarm System
Types of Fire Alarm System
Conventional fire Panel:
Every device on the same
circuit would report the same.
Addressable fire Panel:
It indicate the exact
location of fire or smoke.
HSE KARNAL
39

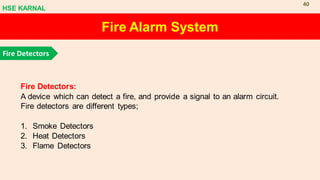

40. Fire Alarm System
Fire Detectors
Fire Detectors:
A device which can detect a fire, and provide a signal to an alarm circuit.
Fire detectors are different types;
1. Smoke Detectors
2. Heat Detectors
3. Flame Detectors
HSE KARNAL
40

41. Fire Alarm System
Types of Fire Detectors
1.Smoke Detector
Ionization SD
Photoelectric SD
Light Scattering
Light Obstruction
HSE KARNAL
41

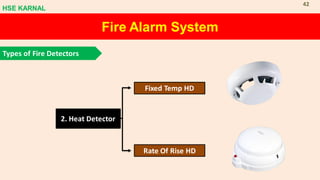

42. 2. Heat Detector
Fixed Temp HD
Rate Of Rise HD
Fire Alarm System
Types of Fire Detectors
HSE KARNAL
42

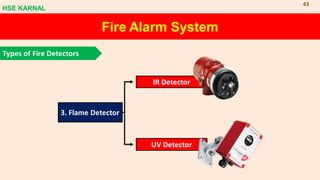

43. 3. Flame Detector
IR Detector
UV Detector
Fire Alarm System
Types of Fire Detectors
HSE KARNAL
43

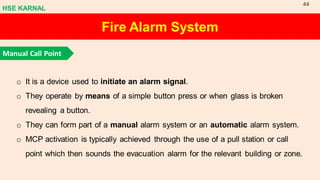

44. Fire Alarm System
Manual Call Point
o It is a device used to initiate an alarm signal.
o They operate by means of a simple button press or when glass is broken
revealing a button.
o They can form part of a manual alarm system or an automatic alarm system.
o MCP activation is typically achieved through the use of a pull station or call
point which then sounds the evacuation alarm for the relevant building or zone.
HSE KARNAL
44

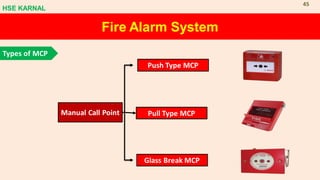

45. Fire Alarm System
Types of MCP
Manual Call Point
Push Type MCP
Glass Break MCP
Pull Type MCP
HSE KARNAL
45

46. END CHAPTTER 06
HSE KARNAL
46

47. Action on Hearing Alarm
Fire Evacuation Procedure
• Don’t panic and be calm.
• Stop any activity immediately and prepare to leave the
room.
• Turn off all ignition sources such as AC, Equipment.
• Evacuate the room to nearest safe assembly area.
• Remain in the assembly area (in group) until instructed to
leave.
• After the all clear alarm you may continue your work.
HSE KARNAL
47

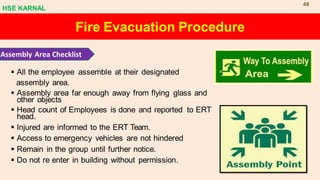

48. Fire Evacuation Procedure
Assembly Area Checklist
▪ All the employee assemble at their designated
assembly area.
▪ Assembly area far enough away from flying glass and
other objects
▪ Head count of Employees is done and reported to ERT
head.
▪ Injured are informed to the ERT Team.
▪ Access to emergency vehicles are not hindered
▪ Remain in the group until further notice.
▪ Do not re enter in building without permission.
HSE KARNAL
48

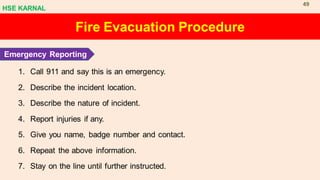

49. 1. Call 911 and say this is an emergency.
2. Describe the incident location.
3. Describe the nature of incident.
4. Report injuries if any.
5. Give you name, badge number and contact.
6. Repeat the above information.
7. Stay on the line until further instructed.
Fire Evacuation Procedure
Emergency Reporting
HSE KARNAL
49

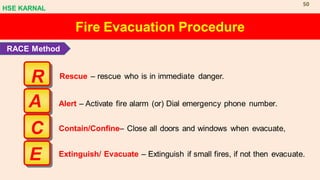

50. Rescue – rescue who is in immediate danger.
Alert – Activate fire alarm (or) Dial emergency phone number.
Contain/Confine– Close all doors and windows when evacuate,
Extinguish/ Evacuate – Extinguish if small fires, if not then evacuate.
R
A
C
E
RACE Method
Fire Evacuation Procedure
HSE KARNAL
50

51. o All Fire Equipment's are always in working condition. Any deviation needs to
be reported to Facilities/Security Team.
o ERT should know the locations of Fire Extinguishers and their handling
techniques
o ERT is to help Security/Fire Team in case of any Fire incident.
o ERT needs to ensure that emergency situations are handled peacefully and
authoritatively without any stampede.
o ERT should know the details of Handicap person(s) and their workstation and
contact details.
o While evacuation of employees, priority to be given to disabled employees,
pregnant ladies and visitors.
Fire Evacuation Procedure
Duties of ERT
HSE KARNAL
51

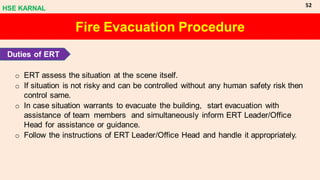

52. o ERT assess the situation at the scene itself.
o If situation is not risky and can be controlled without any human safety risk then
control same.
o In case situation warrants to evacuate the building, start evacuation with
assistance of team members and simultaneously inform ERT Leader/Office
Head for assistance or guidance.
o Follow the instructions of ERT Leader/Office Head and handle it appropriately.
Fire Evacuation Procedure
Duties of ERT
HSE KARNAL
52

53. Don’t run – it will
make the fire
worse!
Get down ontothe
floor
Rollover -
this willput the flames
out
1 2 3
If your clothes are on fire:
Fire Evacuation Procedure
HSE KARNAL 53

54. END CHAPTTER 07
HSE KARNAL
54

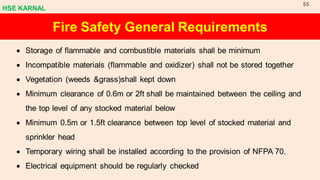

55. Fire Safety General Requirements
• Storage of flammable and combustible materials shall be minimum
• Incompatible materials (flammable and oxidizer) shall not be stored together
• Vegetation (weeds &grass)shall kept down
• Minimum clearance of 0.6m or 2ft shall be maintained between the ceiling and
the top level of any stocked material below
• Minimum 0.5m or 1.5ft clearance between top level of stocked material and
sprinkler head
• Temporary wiring shall be installed according to the provision of NFPA 70.
• Electrical equipment should be regularly checked
HSE KARNAL
55

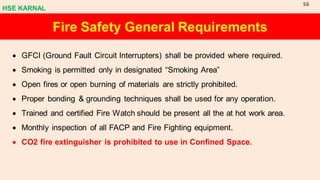

56. • GFCI (Ground Fault Circuit Interrupters) shall be provided where required.
• Smoking is permitted only in designated “Smoking Area”
• Open fires or open burning of materials are strictly prohibited.
• Proper bonding & grounding techniques shall be used for any operation.
• Trained and certified Fire Watch should be present all the at hot work area.
• Monthly inspection of all FACP and Fire Fighting equipment.
• CO2 fire extinguisher is prohibited to use in Confined Space.
Fire Safety General Requirements
HSE KARNAL
56

57. END CHAPTTER 08
HSE KARNAL
57

58. QUIZ..?
HSE KARNAL
58

59. THANK YOU
HSE KARNAL
59
