1. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements

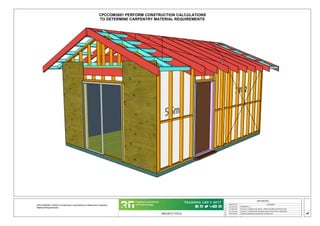

CPCCOM3001 PERFORM CONSTRUCTION CALCULATIONS
TO DETERMINE CARPENTRY MATERIAL REQUIREMENTS
2. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
01
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
D
1
W
1
D
3
W
2
D
4
D
2
A
PLAN VIEW
scale: 1:50
01
N
AREA SCHEDULE
NAME AREA
Proposed Residence 25.2M2
Grand Total 25.2M2
All work must be IAW the NCC Volume 2
FFL
535.250
S
01
Section line
Dashed Line showing roof layout
90 1400 90 2530 90
90
2775
90
2955
90
4200
6000
BED 1
BATH
LIVING
450mm Eave
450
450
450
3. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
02
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
A
North Elevation
scale: 1:50
02
A
South Elevation
scale: 1:50
02
A
West Elevation
scale: 1:50
02
A
East Elevation
scale: 1:50
02
All work must be IAW the NCC Volume 2
D
1
W
1
W
2
D
2
22° 22°
linear weatherboard
150
metal roof
standard orb
linear weatherboard
150
AXION SHEET CLADDING
133MM SMOOTH
AXION SHEET CLADDING
133MM SMOOTH
TIMBER BARDGE
TIMBER FASCIA
FFL
535.250
FCL
537.810
FFL
535.250
FCL
537.810
FFL
535.250
FCL
537.810
FFL
535.250
FCL
537.810
FFL means
Finished Floor Level
FCL means
Finished Ceiling Level
2560
2560
2636
4. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
03
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
WINDOW SCHEDULE
ID
WINDOW
STYLE
HEIGHT
(mm)
WIDTH
(mm)
DESCRIPTION
W01
AS0609
900 610
Aluminium Sliding Double
Glazed/Argon Gas/Low E
W02 AS1218 1200 1810
Aluminium Sliding Double
Glazed/Argon Gas/Low E
DOOR SCHEDULE
ID
HEIGHT
(mm)
WIDTH
(mm)
DESCRIPTION
D01 2100 1810
Aluminium Sliding Door Double
Glazed/Argon Gas/Low E
D02 2040 870
Timber solid core door
D03 2040 820
Internal ready coat timber
hollow core door
D04 2040 720
Internal ready coat timber
hollow core door
TIMBER FRAMING SCHEDULE
JOIST/ STUD/
RAFTERSPACING
FLOORING MATERIAL
19MM YELLOW TONGUE
3600X900
6mm FC tiling backer 2400x1200
TIMBER SUB FLOOR
63X90 LVL BEARERS
90X45 LVL JOISTS
450 C/C
TIMBER FRAME SIZES
90X35 TOP PLATE
90X45 RIBBON PLATE
90X35 STUDS
450 C/C
90X35 NOGGINS
200X42 LVL LINTLE
TIMBER CUT ROOF SIZES
170 x 42 Rafters 600 C/C
200x 42 Ridge Beam
200 x 42 Hanging Beam
90x45 MGP 10 Ceiling Joists 600 C/C
90x 45 MGP 10 Outriggers 600 C/C
D
2
W
2
SECTION 1
scale: 1:50
A
03
22°
100MM CONCRETE SLAB
FOR CALCULATIONS
200X42 LVL
LINTLE
16mm metal ceiling batten
10MM PLASTERBOARD
CEILING
Load Bearing wall
to hold up Hanging Beam,
45mm Ribbon Plate
45mm Ribbon Plate
45mm
Ribbon Plate
200x42 LVL#7
200x42 LVL#6
90x45 MGP#20
PLYWOOD BRACING
PLYWOOD BRACING#1
Cross Bracing
Cross bracing
Load bearing wall
2560
170x42 LVL Rafter
90X45 MGP
Outriggers
90X45 CEILING JOISTS
10mm Plasterboard
90x35 MGP 10 Bottom Plate
BED 1
LIVING
5. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
04
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY
Internal Linning
AREA OF PLASTERBOARD WALLS. Calculate area
taking out openings like doors and windows.
sqm
AREA OF PLASTERBOARD CEILING. Calculate all
area required for the ceiling including bathroom ceiling.
sqm
AREA OF WET AREA LINING. Only Bathroom area on
the walls required minus openings.
sqm
CALCULATE THE AREA OF EACH TYPE OF LINING MATERIAL.
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY
WRAP
CALCULATE AREA OF BUILDING WRAP. Calculate
area required minus the openings and include the
gable walls.
sqm
EXTERNAL
CLADDING
CALCULATE ARE FOR CLADDING.
Calculate area for Linea cladding? On North and
West Elevations ( refer to A02 Elevations)
sqm
Calculate area required for the sheet cladding? On
South and East Elevations?
sqm
Fill out each calculation sheet and the up load photo to Readyskills for marking by trainer
CALCULATE THE TOTAL AREA OF BUILDING WRAP AND CLADDING MATERIAL
A
B
BLANK AREA FOR WORKINGS.
6. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
05
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY

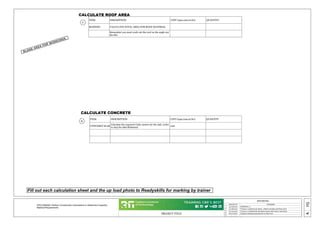

ROOFING CALCULATE TOTAL AREA FOR ROOF MATERIAL
Remember you must work out the roof on the angle not
the flat.
CALCULATE ROOF AREA
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY
CONCERET SLAB
Calculate the required Cubic meters for the slab. (refer
to A03 for slab thickness)
cum
Fill out each calculation sheet and the up load photo to Readyskills for marking by trainer
CALCULATE CONCRETE
C
D
BLANK AREA FOR WORKINGS.
7. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
06
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements

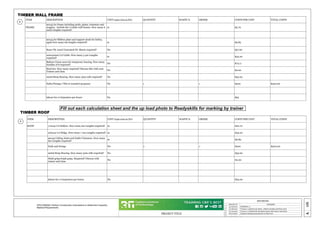

ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY WASTE % ORDER COSTS PER UNIT TOTAL COSTS
FRAME
90x35 for frame including studs, plates, trimmers and
noggins. Include the 2 Gable wall frames. How many 6
meter lengths required?
m $5.70
90x45 for Ribbon plate and support studs for lintles,
again how many 6m lengths required? m $9.85
Brace Ply wood Untreated F8. Sheets required? No $57.60
200x42mm Lvl Lintle. How many 5.4m Lengths
required?
m $33.20
Battens Green sawn for temporary bracing. How many
bundles of 8 required?
No $74.11
Stud ties. How many required? Discuss this with your
Trainer and class.
No $2.00
metal Strap Bracing. How many 30m rolls required? No $55.00
Nails/Fixings ( This is rounded up guess) No 1 1 $300 $300.00
labour for 2 Carpenters per hours No $65
TIMBER WALL FRAME
Fill out each calculation sheet and the up load photo to Readyskills for marking by trainer
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY WASTE % ORDER COSTS PER UNIT TOTAL COSTS
ROOF 170x42 Lvl Rafters. How many 6m Lengths required? m $22.70
200x42 Lvl Ridge. How many 7.2m Lengths required? m $33.20
90x45 Ceiling Joists and Gable Trimmers. How many
6m Lengths required?
m $9.85
Nails and fixings No 1 1 $300 $300.00
metal Strap Bracing. How many 30m rolls required? No $55.00
Multi grips/triple grips. Required? Discuss with
trainer and class.
No $2.00
labour for 2 Carpenters per hours No $65.00
TIMBER ROOF
E
F
8. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
07
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY WASTE % ORDER COSTS PER UNIT TOTAL COSTS
FLOOR SHEETS
19mm Yellow tongue chip board floor sheets
3600x800. How many sheets required to cover the
entire floor area?
No $48.50
Glue sausages. How many required for the floor? No $411.49
50mm x 2.5 ring shank Gal nails x 1 box No 1 1 $121.30 $121.30
Ceramic tile underlay sheets 1200x1800. How many
sheets required for the bathroom floor?
No $23.40
Gal Clouts Box of 500 No $20
labour to install floor sheets per hour No $65
FLOORING SHEETS
Fill out each calculation sheet and the up load photo to Readyskills for marking by trainer
SEE ANNEX C FOR MATERIALS CHOICE FOR PROJECT.
G
BLANK AREA FOR WORKINGS.
9. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
08
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY WASTE % ORDER COSTS PER UNIT TOTAL COSTS
Floating Floor
Clever Hydro floating floor. How many packets of
flooring required to cover all the floor area except the
bathroom? (refer to A01)
No $97.46
Foam Underlay Roll of Foam Underlay. How many rolls required? No $157
Linear Flooring and Lining Materials and Quantities
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY WASTE % ORDER COSTS PER UNIT TOTAL COSTS
Sheet Cladding
Axion Cladding 133m Smooth. How many sheets
required allow for waste? (refer to A02)
No $140.40
Fixings No 1 1 $300 $300.00
labour to install Carpenter per hour No $65
External Sheet Cladding Material and Quantities
Fill out each calculation sheet and then up load photo to Readyskills for marking by trainer
SEE ANNEX C FOR MATERIALS CHOICE FOR PROJECT.
BLANK AREA FOR WORKINGS.
H
I
10. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
09
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY WASTE % ORDER COSTS PER UNIT TOTAL COSTS
linear Cladding
Linera Weatherboard 150. How many lengths required?
( refer to A02) Allow for waste
No $33.50
Fixings/nails/screws No 1 1 $300 $300.00
labour to install Carpenter per hour No $65
External Linear Cladding Materials and Quantities
ITEM DESCRIPTION UNIT (sqm,cum,m,No) QUANTITY WASTE % ORDER COSTS PER UNIT TOTAL COSTS
Roof Sheets
Metal roof standard Orb. How many meters of roof
sheet required and what sizes would you order?
m $23.32
Roll top Ridge. How many meters do you requires and
what length would you order?
m $12.90
Barge flashings. How many meters of Barge flashing
required? What lengths would you order?
m $12.90
Screws/fixings No 1 1 $300 $300.00
Quantity of Roof Sheets Fill out each calculation sheet and then up load photo to Readyskills for marking by trainer
SEE ANNEX A FOR MATERIALS CHOICE FOR PROJECT.
BLANK AREA FOR WORKINGS.
J
K
11. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
10
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements

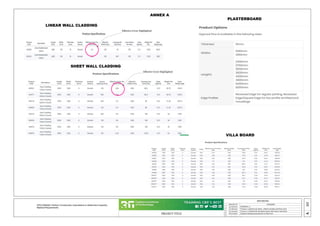

ANNEX A
VILLA BOARD
PLASTERBOARD
SHEET WALL CLADDING
LINEAR WALL CLADDING
Effective Cover Highlighted
Effective Cover Highlighted
12. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
11
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
BUILDING WRAP
ROOF SHEETS
ANNEX B
Effective Cover Highlighted
Effective Cover Highlighted
13. PROJECT TITLE
REVISIONS
REMARKS
1
MM/DD/YY
2
3
4
5
12
A
15/06/2022 VERSION 1.0
31/08/2022 Version1.1 updated calc sheets , added roof pitch and Extra scene
07/10/2022 Version 1.2 Updated all calculation sheets with clearer instruction
18/10/2022 Updated missing measurements on Plan View
_ _ /_ _ /_ _ ...
CPCCOM3001 Perform Construction Calculations to Determine Carpentry
Material Requirements
FLOOR SHEETS
ANNEX C
CERAMIC TILE UNDERLAY
Underlay for Floating Floors
Effective Cover Highlighted
Effective Cover Highlighted
