Pressure vessel types
- 1. SECTION A-A A A NOZZLES HEAD SADDLE SUPPORT (SLIDING) SADDLESUPPORT (FIXED) SHELL PRESSURE VESSELS Types Illustrated Horizontal Drum on Saddle Supports
- 2. NOZZLE SHELL HEAD HEAD SUPPORT LEG PRESSURE VESSELS Types Illustrated(Cont’d) Vertical Vessel with Leg Support
- 3. Vertical Vessel withLug Support PRESSURE VESSELS Types Illustrated (Cont’d)
- 4.

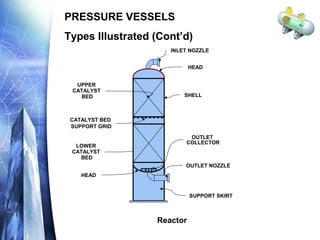

- 5. INLET NOZZLE OUTLET NOZZLE UPPER CATALYST BED LOWER CATALYST BED CATALYSTBED SUPPORT GRID OUTLET COLLECTOR SHELL HEAD HEAD SUPPORT SKIRT Reactor PRESSURE VESSELS Types Illustrated (Cont’d)
- 6. INLET NOZZLE OUTLET NOZZLE UPPER CATALYST BED LOWER CATALYST BED CATALYSTBED SUPPORT GRID OUTLET COLLECTOR SHELL HEAD HEAD SUPPORT SKIRT Reactor PRESSURE VESSELS Types Illustrated (Cont’d)
