PIPING MATERIALS INTRODUCTION Piping materials are of many types. The specific material to suit a design requirement is chosen on the basis of certain key factors.

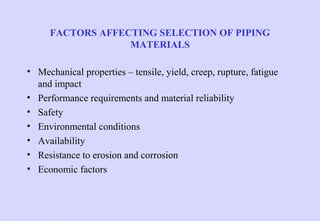

FACTORS AFFECTING SELECTION OF PIPING MATERIALS • Mechanical properties – tensile, yield, creep, rupture, fatigue and impact • Performance requirements and material reliability • Safety • Environmental conditions • Availability • Resistance to erosion and corrosion • Economic factors

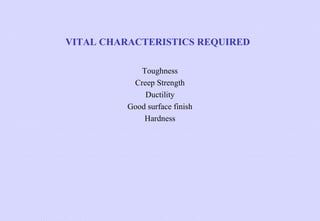

VITAL CHARACTERISTICS REQUIRED Toughness Creep Strength Ductility Good surface finish Hardness

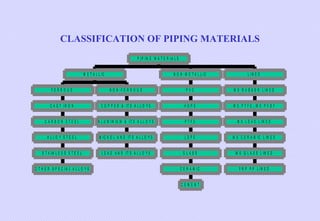

CLASSIFICATION OF PIPING MATERIALS P IP IN G M A T E R IA L S M E T A L L IC N O N -M E T A L L IC L IN E D FERRO US N O N -F E R R O U S PVC M S R U B B E R L IN E D C A S T IR O N C O P P E R & IT S A L L O Y S HDPE M S PTFE, M S PVDF CAR BO N STEEL A L U M I N IU M & IT S A L L O Y S PTFE M S L E A D L IN E D ALLO Y STEEL N IC K E L A N D IT S A L L O Y S LDPE M S C E R A M IC L IN E D S T A IN L E S S S T E E L L E A D A N D IT S A L L O Y S G LASS M S G L A S S L IN E D C E R A M IC F R P P P L IN E D O T H E R S P E C IA L A L L O Y S CEM EN T

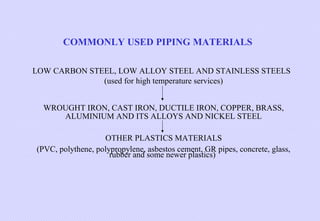

COMMONLY USED PIPING MATERIALS LOW CARBON STEEL, LOW ALLOY STEEL AND STAINLESS STEELS (used for high temperature services) WROUGHT IRON, CAST IRON, DUCTILE IRON, COPPER, BRASS, ALUMINIUM AND ITS ALLOYS AND NICKEL STEEL OTHER PLASTICS MATERIALS (PVC, polythene, polypropylene, asbestos cement, GR pipes, concrete, glass, rubber and some newer plastics)

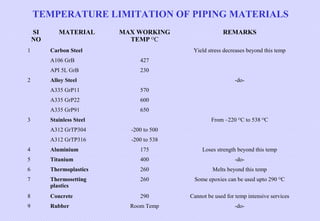

TEMPERATURE LIMITATION OF PIPING MATERIALS SI NO 1 MATERIAL MAX WORKING TEMP OC Carbon Steel Yield stress decreases beyond this temp A106 GrB 427 API 5L GrB 2 230 Alloy Steel -do- A335 GrP11 570 A335 GrP22 600 A335 GrP91 3 REMARKS 650 Stainless Steel From –220 OC to 538 OC A312 GrTP304 -200 to 500 A312 GrTP316 -200 to 538 4 Aluminium 175 Loses strength beyond this temp 5 Titanium 400 -do- 6 Thermoplastics 260 Melts beyond this temp 7 Thermosetting plastics 260 Some epoxies can be used upto 290 OC 8 Concrete 290 Cannot be used for temp intensive services 9 Rubber Room Temp -do-

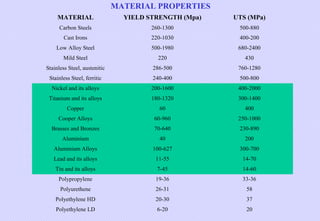

MATERIAL PROPERTIES MATERIAL YIELD STRENGTH (Mpa) UTS (MPa) Carbon Steels 260-1300 500-880 Cast Irons 220-1030 400-200 Low Alloy Steel 500-1980 680-2400 Mild Steel 220 430 Stainless Steel, austenitic 286-500 760-1280 Stainless Steel, ferritic 240-400 500-800 Nickel and its alloys 200-1600 400-2000 Titanium and its alloys 180-1320 300-1400 Copper 60 400 Cooper Alloys 60-960 250-1000 Brasses and Bronzes 70-640 230-890 Aluminium 40 200 Aluminium Alloys 100-627 300-700 Lead and its alloys 11-55 14-70 Tin and its alloys 7-45 14-60 Polypropylene 19-36 33-36 Polyurethene 26-31 58 Polyethylene HD 20-30 37 Polyethylene LD 6-20 20

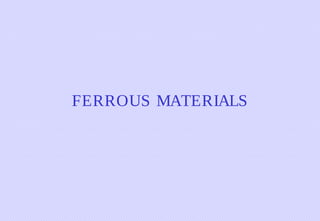

FERROUS MATERIALS

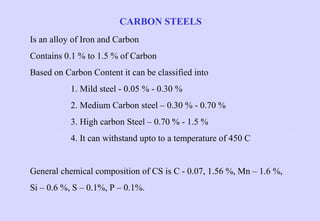

CARBON STEELS Is an alloy of Iron and Carbon Contains 0.1 % to 1.5 % of Carbon Based on Carbon Content it can be classified into 1. Mild steel - 0.05 % - 0.30 % 2. Medium Carbon steel – 0.30 % - 0.70 % 3. High carbon Steel – 0.70 % - 1.5 % 4. It can withstand upto to a temperature of 450 C   General chemical composition of CS is C - 0.07, 1.56 %, Mn – 1.6 %, Si – 0.6 %, S – 0.1%, P – 0.1%.

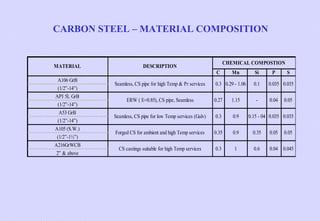

CARBON STEEL – MATERIAL COMPOSITION MATERIAL CHEMICAL COMPOSTION DESCRIPTION C A106 GrB (1/2”-14”) API 5L GrB (1/2”-14”) A53 GrB (1/2”-14”) A105 (S.W.) (1/2”-1½”) A216GrWCB 2” & above Seamless, CS pipe for high Temp & Pr services Mn 0.3 0.29 - 1.06 Si 0.1 - P S 0.035 0.035 ERW ( E=0.85), CS pipe, Seamless 0.27 1.15 0.04 0.05 Seamless, CS pipe for low Temp services (Galv) 0.3 0.9 Forged CS for ambient and high Temp services 0.35 0.9 0.35 0.05 CS castings suitable for high Temp services 0.3 1 0.6 0.04 0.045 0.15 - 04 0.035 0.035 0.05

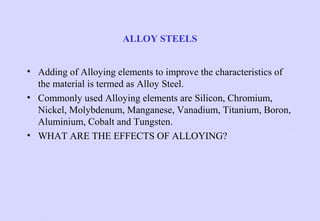

ALLOY STEELS • Adding of Alloying elements to improve the characteristics of the material is termed as Alloy Steel. • Commonly used Alloying elements are Silicon, Chromium, Nickel, Molybdenum, Manganese, Vanadium, Titanium, Boron, Aluminium, Cobalt and Tungsten. • WHAT ARE THE EFFECTS OF ALLOYING?

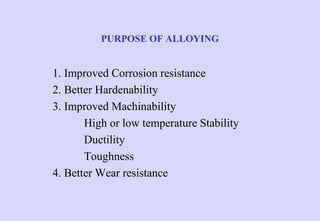

PURPOSE OF ALLOYING 1. Improved Corrosion resistance 2. Better Hardenability 3. Improved Machinability High or low temperature Stability Ductility Toughness 4. Better Wear resistance

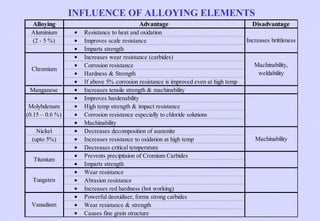

INFLUENCE OF ALLOYING ELEMENTS Alloying Aluminium (2 - 5 %) Chromium Manganese Molybdenum (0.15 – 0.6 %) Nickel (upto 5%) Titanium Tungsten Vanadium Advantage • • • • • • • • • • • • • • • • • • • • • • • Resistance to heat and oxidation Improves scale resistance Imparts strength Increases wear resistance (carbides) Corrosion resistance Hardness & Strength If above 5% corrosion resistance is improved even at high temp Increases tensile strength & machinability Improves hardenability High temp strength & impact resistance Corrosion resistance especially to chloride solutions Machinability Decreases decomposition of austenite Increases resistance to oxidation at high temp Decreases critical temperature Prevents precipitaion of Cromium Carbides Imparts strength Wear resistance Abrasion resistance Increases red hardness (hot working) Powerful deoxidiser, forms strong carbides Wear resistance & strength Causes fine grain structure Disadvantage Increases brittleness Machinability, weldability Machinability

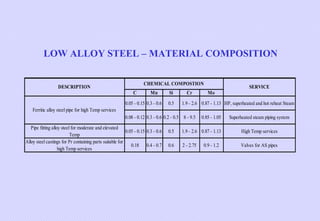

LOW ALLOY STEEL – MATERIAL COMPOSITION CHEMICAL COMPOSTION DESCRIPTION C Mn 0.05 - 0.15 0.3 - 0.6 Si 0.5 Cr SERVICE Mo 1.9 - 2.6 0.87 - 1.13 HP, superheated and hot reheat Steam Ferritic alloy steel pipe for high Temp services 0.08 - 0.12 0.3 - 0.6 0.2 - 0.5 8 - 9.5 Pipe fitting alloy steel for moderate and elevated 0.05 - 0.15 0.3 - 0.6 Temp Alloy steel castings for Pr containing parts suitable for 0.18 0.4 - 0.7 high Temp services 0.85 - 1.05 Superheated steam piping system 0.5 1.9 - 2.6 0.87 - 1.13 High Temp services 0.6 2 - 2.75 Valves for AS pipes 0.9 - 1.2

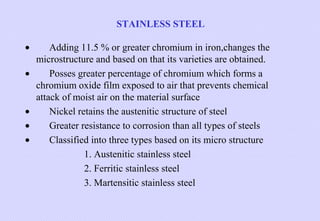

STAINLESS STEEL • • • • • Adding 11.5 % or greater chromium in iron,changes the microstructure and based on that its varieties are obtained. Posses greater percentage of chromium which forms a chromium oxide film exposed to air that prevents chemical attack of moist air on the material surface Nickel retains the austenitic structure of steel Greater resistance to corrosion than all types of steels Classified into three types based on its micro structure 1. Austenitic stainless steel 2. Ferritic stainless steel 3. Martensitic stainless steel

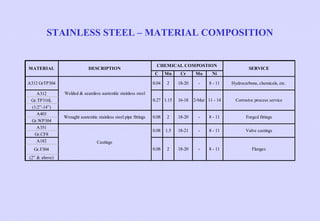

STAINLESS STEEL – MATERIAL COMPOSITION MATERIAL DESCRIPTION CHEMICAL COMPOSTION C A312 Gr.TP316L (1/2”-14”) A403 Gr.WP304 A351 Gr.CF8 A182 Gr.F304 (2” & above) Cr Mo 2 18-20 - 8 - 11 SERVICE Ni 0.04 A312 GrTP304 Mn Hydrocarbons, chemicals, etc. Welded & seamless austenitic stainless steel 0.27 1.15 0.08 2 18-20 - 8 - 11 Forged fittings 0.08 Wrought austenitic stainless steel pipe fittings 16-18 2-Mar 11 - 14 Corrosive process service 1.5 18-21 - 8 - 11 Valve castings 0.08 2 18-20 - 8 - 11 Flanges Castings
NON-FERROUS MATERIALS

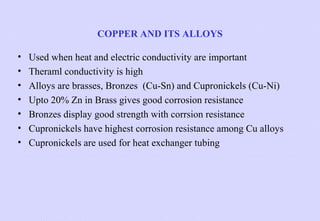

COPPER AND ITS ALLOYS • • • • • • • Used when heat and electric conductivity are important Theraml conductivity is high Alloys are brasses, Bronzes (Cu-Sn) and Cupronickels (Cu-Ni) Upto 20% Zn in Brass gives good corrosion resistance Bronzes display good strength with corrsion resistance Cupronickels have highest corrosion resistance among Cu alloys Cupronickels are used for heat exchanger tubing

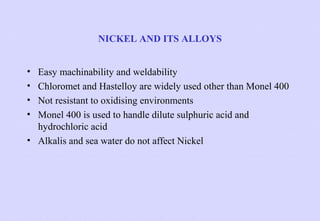

NICKEL AND ITS ALLOYS • • • • Easy machinability and weldability Chloromet and Hastelloy are widely used other than Monel 400 Not resistant to oxidising environments Monel 400 is used to handle dilute sulphuric acid and hydrochloric acid • Alkalis and sea water do not affect Nickel

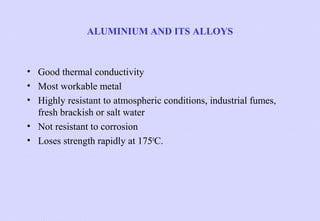

ALUMINIUM AND ITS ALLOYS • Good thermal conductivity • Most workable metal • Highly resistant to atmospheric conditions, industrial fumes, fresh brackish or salt water • Not resistant to corrosion • Loses strength rapidly at 1750C.

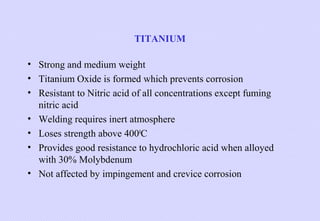

TITANIUM • Strong and medium weight • Titanium Oxide is formed which prevents corrosion • Resistant to Nitric acid of all concentrations except fuming nitric acid • Welding requires inert atmosphere • Loses strength above 4000C • Provides good resistance to hydrochloric acid when alloyed with 30% Molybdenum • Not affected by impingement and crevice corrosion

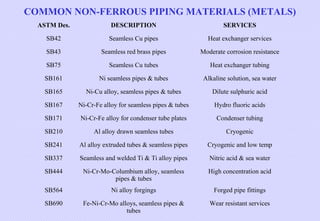

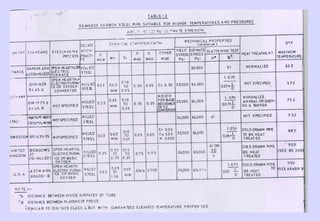

COMMON NON-FERROUS PIPING MATERIALS (METALS) ASTM Des. DESCRIPTION SERVICES SB42 Seamless Cu pipes Heat exchanger services SB43 Seamless red brass pipes Moderate corrosion resistance SB75 Seamless Cu tubes Heat exchanger tubing SB161 Ni seamless pipes & tubes Alkaline solution, sea water SB165 Ni-Cu alloy, seamless pipes & tubes Dilute sulphuric acid SB167 Ni-Cr-Fe alloy for seamless pipes & tubes Hydro fluoric acids SB171 Ni-Cr-Fe alloy for condenser tube plates Condenser tubing SB210 Al alloy drawn seamless tubes Cryogenic SB241 Al alloy extruded tubes & seamless pipes Cryogenic and low temp SB337 Seamless and welded Ti & Ti alloy pipes Nitric acid & sea water SB444 Ni-Cr-Mo-Columbium alloy, seamless pipes & tubes High concentration acid SB564 Ni alloy forgings Forged pipe fittings SB690 Fe-Ni-Cr-Mo alloys, seamless pipes & tubes Wear resistant services

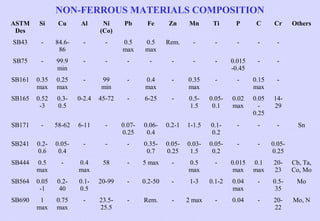

NON-FERROUS MATERIALS COMPOSITION ASTM Des Si Cu Al Ni (Co) Pb Fe Zn Mn Ti P C Cr Others SB43 - 84.686 - - 0.5 max 0.5 max Rem. - - - - - SB75 - 99.9 min - - - - - - - 0.015 -0.45 - - SB161 0.35 max 0.25 max - 99 min - 0.4 max - 0.35 max - - 0.15 max - SB165 0.52 -3 0.30.5 0-2.4 45-72 - 6-25 - 0.51.5 0.050.1 0.02 max 0.05 0.25 1429 SB171 - 58-62 6-11 - 0.070.25 0.060.4 0.2-1 1-1.5 0.10.2 - - - SB241 0.20.6 0.050.4 - - - 0.350.7 0.050.25 0.031.5 0.050.2 - - 0.050.25 SB444 0.5 max - 0.4 max 58 - 5 max - 0.5 max - 0.015 max 0.1 max 2023 Cb, Ta, Co, Mo SB564 0.05 -1 0.240 0.10.5 20-99 - 0.2-50 - 1-3 0.1-2 0.04 max - 0.535 Mo SB690 1 max 0.75 max - 23.525.5 - Rem. - 2 max - 0.04 - 2022 Mo, N Sn

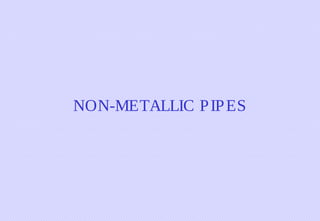

NON-METALLIC P IP ES
COMMONLY USED NON-METALLIC PIPING MATERIALS • • • • • • Plastics – Thermoplastics and Thermosetting plastics Concrete Ceramic Asbestos-Cement Glass Rubber
THERMOPLASTICS

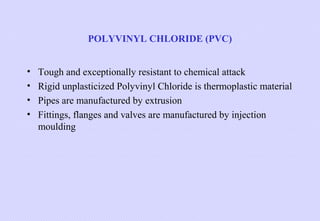

POLYVINYL CHLORIDE (PVC) • • • • Tough and exceptionally resistant to chemical attack Rigid unplasticized Polyvinyl Chloride is thermoplastic material Pipes are manufactured by extrusion Fittings, flanges and valves are manufactured by injection moulding

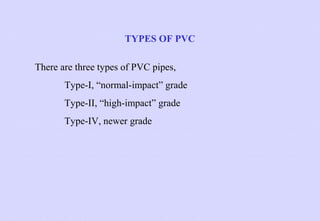

TYPES OF PVC There are three types of PVC pipes, Type-I, “normal-impact” grade Type-II, “high-impact” grade Type-IV, newer grade

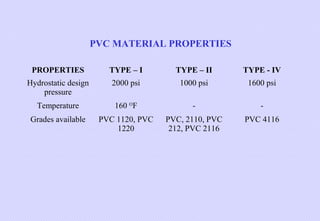

PVC MATERIAL PROPERTIES PROPERTIES TYPE – I TYPE – II TYPE - IV Hydrostatic design pressure 2000 psi 1000 psi 1600 psi Temperature 160 OF - - Grades available PVC 1120, PVC 1220 PVC, 2110, PVC 212, PVC 2116 PVC 4116

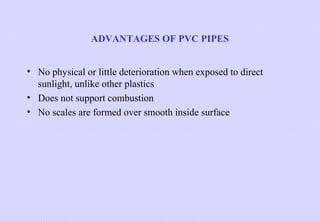

ADVANTAGES OF PVC PIPES • No physical or little deterioration when exposed to direct sunlight, unlike other plastics • Does not support combustion • No scales are formed over smooth inside surface

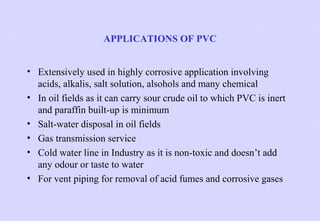

APPLICATIONS OF PVC • Extensively used in highly corrosive application involving acids, alkalis, salt solution, alsohols and many chemical • In oil fields as it can carry sour crude oil to which PVC is inert and paraffin built-up is minimum • Salt-water disposal in oil fields • Gas transmission service • Cold water line in Industry as it is non-toxic and doesn’t add any odour or taste to water • For vent piping for removal of acid fumes and corrosive gases

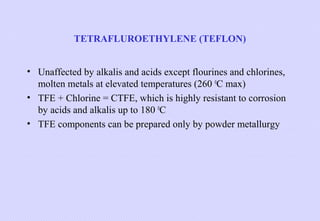

TETRAFLUROETHYLENE (TEFLON) • Unaffected by alkalis and acids except flourines and chlorines, molten metals at elevated temperatures (260 0C max) • TFE + Chlorine = CTFE, which is highly resistant to corrosion by acids and alkalis up to 180 0C • TFE components can be prepared only by powder metallurgy

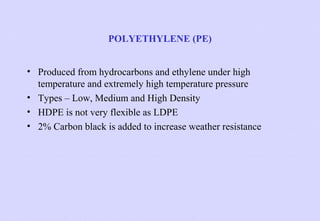

POLYETHYLENE (PE) • Produced from hydrocarbons and ethylene under high temperature and extremely high temperature pressure • Types – Low, Medium and High Density • HDPE is not very flexible as LDPE • 2% Carbon black is added to increase weather resistance

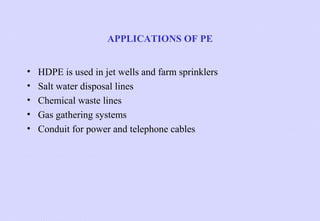

APPLICATIONS OF PE • • • • • HDPE is used in jet wells and farm sprinklers Salt water disposal lines Chemical waste lines Gas gathering systems Conduit for power and telephone cables

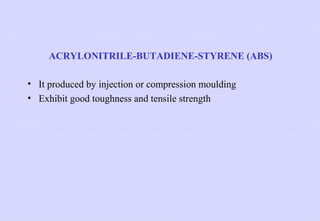

ACRYLONITRILE-BUTADIENE-STYRENE (ABS) • It produced by injection or compression moulding • Exhibit good toughness and tensile strength

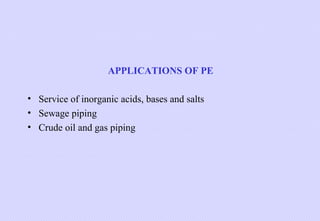

APPLICATIONS OF PE • Service of inorganic acids, bases and salts • Sewage piping • Crude oil and gas piping

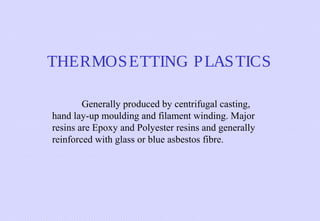

THERMOS ETTING P LAS TICS Generally produced by centrifugal casting, hand lay-up moulding and filament winding. Major resins are Epoxy and Polyester resins and generally reinforced with glass or blue asbestos fibre.

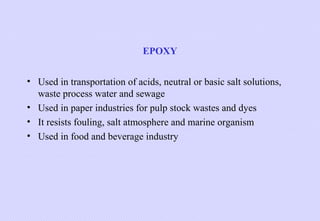

EPOXY • Used in transportation of acids, neutral or basic salt solutions, waste process water and sewage • Used in paper industries for pulp stock wastes and dyes • It resists fouling, salt atmosphere and marine organism • Used in food and beverage industry

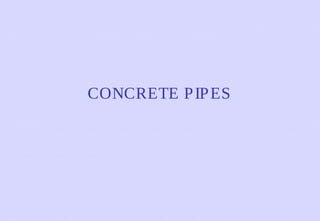

CONCRETE P IP ES

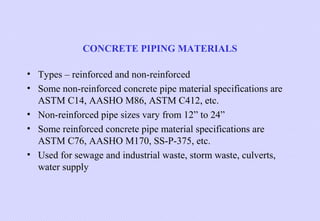

CONCRETE PIPING MATERIALS • Types – reinforced and non-reinforced • Some non-reinforced concrete pipe material specifications are ASTM C14, AASHO M86, ASTM C412, etc. • Non-reinforced pipe sizes vary from 12” to 24” • Some reinforced concrete pipe material specifications are ASTM C76, AASHO M170, SS-P-375, etc. • Used for sewage and industrial waste, storm waste, culverts, water supply

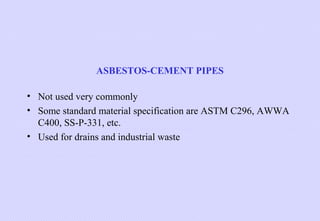

ASBESTOS-CEMENT PIPES • Not used very commonly • Some standard material specification are ASTM C296, AWWA C400, SS-P-331, etc. • Used for drains and industrial waste

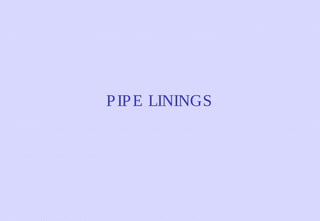

P IP E LININGS

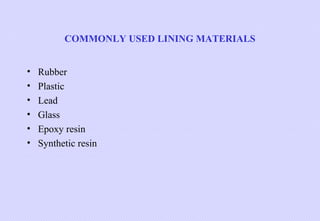

COMMONLY USED LINING MATERIALS • • • • • • Rubber Plastic Lead Glass Epoxy resin Synthetic resin

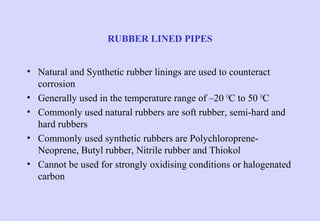

RUBBER LINED PIPES • Natural and Synthetic rubber linings are used to counteract corrosion • Generally used in the temperature range of –20 OC to 50 OC • Commonly used natural rubbers are soft rubber, semi-hard and hard rubbers • Commonly used synthetic rubbers are PolychloropreneNeoprene, Butyl rubber, Nitrile rubber and Thiokol • Cannot be used for strongly oxidising conditions or halogenated carbon

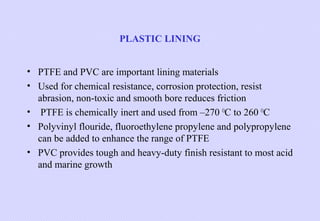

PLASTIC LINING • PTFE and PVC are important lining materials • Used for chemical resistance, corrosion protection, resist abrasion, non-toxic and smooth bore reduces friction • PTFE is chemically inert and used from –270 OC to 260 OC • Polyvinyl flouride, fluoroethylene propylene and polypropylene can be added to enhance the range of PTFE • PVC provides tough and heavy-duty finish resistant to most acid and marine growth

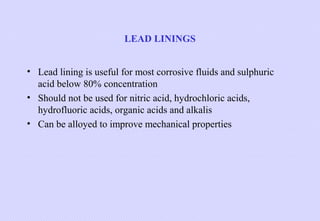

LEAD LININGS • Lead lining is useful for most corrosive fluids and sulphuric acid below 80% concentration • Should not be used for nitric acid, hydrochloric acids, hydrofluoric acids, organic acids and alkalis • Can be alloyed to improve mechanical properties

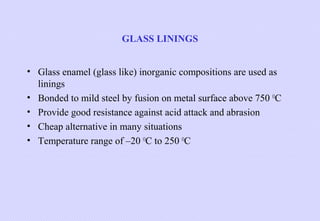

GLASS LININGS • Glass enamel (glass like) inorganic compositions are used as linings • Bonded to mild steel by fusion on metal surface above 750 OC • Provide good resistance against acid attack and abrasion • Cheap alternative in many situations • Temperature range of –20 OC to 250 OC

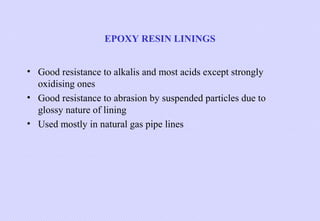

EPOXY RESIN LININGS • Good resistance to alkalis and most acids except strongly oxidising ones • Good resistance to abrasion by suspended particles due to glossy nature of lining • Used mostly in natural gas pipe lines

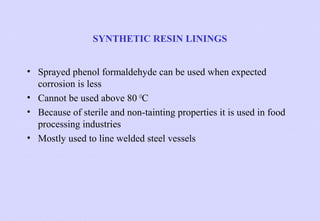

SYNTHETIC RESIN LININGS • Sprayed phenol formaldehyde can be used when expected corrosion is less • Cannot be used above 80 OC • Because of sterile and non-tainting properties it is used in food processing industries • Mostly used to line welded steel vessels

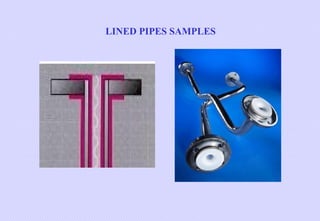

LINED PIPES SAMPLES
P IP ING MATERIAL S P ECIFICATION
What is a Material Specification? A Piping Material Specification is an engineering specification that contains requirements for the selection of materials to be used in the construction and fabrication for all process and utility piping.

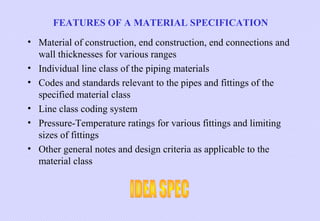

FEATURES OF A MATERIAL SPECIFICATION • Material of construction, end construction, end connections and wall thicknesses for various ranges • Individual line class of the piping materials • Codes and standards relevant to the pipes and fittings of the specified material class • Line class coding system • Pressure-Temperature ratings for various fittings and limiting sizes of fittings • Other general notes and design criteria as applicable to the material class

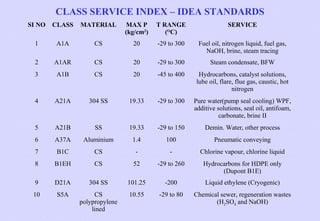

CLASS SERVICE INDEX – IDEA STANDARDS SI NO CLASS MATERIAL MAX P (kg/cm2) T RANGE (OC) SERVICE 1 A1A CS 20 -29 to 300 Fuel oil, nitrogen liquid, fuel gas, NaOH, brine, steam tracing 2 A1AR CS 20 -29 to 300 Steam condensate, BFW 3 A1B CS 20 -45 to 400 Hydrocarbons, catalyst solutions, lube oil, flare, flue gas, caustic, hot nitrogen 4 A21A 304 SS 19.33 -29 to 300 Pure water(pump seal cooling) WPF, additive solutions, seal oil, antifoam, carbonate, brine II 5 A21B SS 19.33 -29 to 150 Demin. Water, other process 6 A37A Aluminium 1.4 100 Pneumatic conveying 7 B1C CS - - Chlorine vapour, chlorine liquid 8 B1EH CS 52 -29 to 260 Hydrocarbons for HDPE only (Dupont B1E) 9 D21A 304 SS 101.25 -200 Liquid ethylene (Cryogenic) 10 S5A CS polypropylene lined 10.55 -29 to 80 Chemical sewer, regeneration wastes (H2SO4 and NaOH)

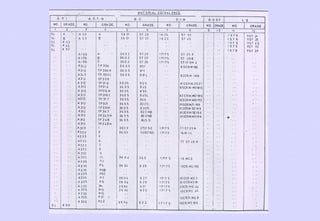

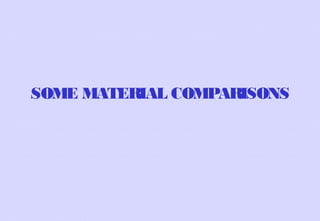

SOME MATERIAL COMPARISONS

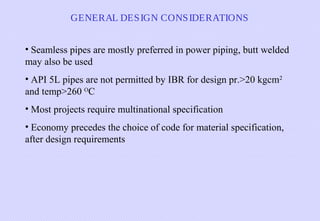

GENERAL DES IGN CONS IDERATIONS • Seamless pipes are mostly preferred in power piping, butt welded may also be used • API 5L pipes are not permitted by IBR for design pr.>20 kgcm2 and temp>260 OC • Most projects require multinational specification • Economy precedes the choice of code for material specification, after design requirements

THANK YOU FOR YOUR P ATIENCE

More Related Content

PDF
Piping Material Specification
byGaurav Singh Rajput

PDF
Piping components, materials, codes and standards part 1- pipe
byAlireza Niakani

PDF
piping design engineering by hamed motlagh
byHamed Motlagh

PDF
Piping handbook
bypdmsguy

PDF
Process piping fundamentals, codes and standards module 1
byBHARAT BELLAD

PPTX
Piping & piping materials redefined
byShrenik Baid

PPS
Piping Introduction
bymahmoud abdulnafe

PPS
Piping fundamentals bfl
byMN Raghu

Piping Material Specification
byGaurav Singh Rajput

Piping components, materials, codes and standards part 1- pipe
byAlireza Niakani

piping design engineering by hamed motlagh
byHamed Motlagh

Piping handbook
bypdmsguy

Process piping fundamentals, codes and standards module 1
byBHARAT BELLAD

Piping & piping materials redefined
byShrenik Baid

Piping Introduction
bymahmoud abdulnafe

Piping fundamentals bfl
byMN Raghu


What's hot

PDF
Piping Training course-How to be an Expert in Pipe & Fittings for Oil & Gas c...
byVarun Patel

PDF
Piping engineering guide
byram111eg

PPTX
Introduction to piping design
byAhmad Akileh, PE, PMP

PPT
fundamentals of Piping engineering
byMobinVarghese8

PPTX
Pipe & its wall thickness calculation
bysandeepkrish2712

PDF
Piping interview
byAkhilesh Kumar

PPS
Piping basics knowledge
byARINDAM BANERJEE

PDF
Simple Piping design
byMusa Sabri

PDF
B31.3 process piping course 02 metallic pipe & fitting selection
byAhmedhelal_Metito Helal

PDF
Piping Design ppt.pdf
bySyedMoazzamAliAli1

PDF
Piping presentation part ii 2
byraghunathan janarthanan

PPTX
Piping presentation (master)
byVelmurugan Sivaraman

PPTX
what is process piping
byVarun Patel

PPTX
Piping system presentation
byEr Ramgarhia

PPTX
Codes and standards by madhur mahajan
byMadhur Mahajan

PDF
Piping Fundamentals .pdf
byVenkataSivaNagaSai

PPT
Basic piping
byVikas Suryavanshi

PPTX
Introduction to piping.......PLEASE give your valuable comments if you like t...
byMadhur Mahajan

PDF
Presentation on SECVIII
byStatic Equipment Design

PPS
Piping basics
byVikas Suryavanshi

Piping Training course-How to be an Expert in Pipe & Fittings for Oil & Gas c...
byVarun Patel

Piping engineering guide
byram111eg

Introduction to piping design
byAhmad Akileh, PE, PMP

fundamentals of Piping engineering
byMobinVarghese8

Pipe & its wall thickness calculation
bysandeepkrish2712

Piping interview
byAkhilesh Kumar

Piping basics knowledge
byARINDAM BANERJEE

Simple Piping design
byMusa Sabri

B31.3 process piping course 02 metallic pipe & fitting selection
byAhmedhelal_Metito Helal

Piping Design ppt.pdf
bySyedMoazzamAliAli1

Piping presentation part ii 2
byraghunathan janarthanan

Piping presentation (master)
byVelmurugan Sivaraman

what is process piping
byVarun Patel

Piping system presentation
byEr Ramgarhia

Codes and standards by madhur mahajan
byMadhur Mahajan

Piping Fundamentals .pdf
byVenkataSivaNagaSai

Basic piping
byVikas Suryavanshi

Introduction to piping.......PLEASE give your valuable comments if you like t...
byMadhur Mahajan

Presentation on SECVIII
byStatic Equipment Design

Piping basics
byVikas Suryavanshi


Viewers also liked

PDF
Piping training-course
bypdmsguy

PDF
Material data sheet piping
byMohamad Haris Ahsun

PDF
Types of pipes
byKaustuv Ruhela

ODP
Different Types of Water Pipes And Their Uses
byNitendra Kumar Singh

PDF
Basic Plumbing System
byharoldtaylor1113

PDF
Eco friendly building materials
bylstikore

PPT
Piping Materials
byjayhawksbball

Piping training-course
bypdmsguy

Material data sheet piping
byMohamad Haris Ahsun

Types of pipes
byKaustuv Ruhela

Different Types of Water Pipes And Their Uses
byNitendra Kumar Singh

Basic Plumbing System
byharoldtaylor1113

Eco friendly building materials
bylstikore

Piping Materials
byjayhawksbball


Similar to Piping materials lhk

PPT
Piping Material.PPT
byssusercf9ebf1

PPTX
Stainless steel pipes
byNatashaSinha10

PDF
Material selection for nitrogen based fertilizers plants
byPrem Baboo

PDF
Materials of construction sb
byMirza Salman Baig

PPTX
CH 3_Piping Materials(1).pptx
byNurn6

PPTX
Material selection and design - No audio.pptx
byFathiShokry

PPTX
Steel
byDevesh Tripathi

PPTX
SELECTION OF MATERIAL IN ENGINEERING MATERIAL-4.pptx
byHimanshuKumar304941

PPTX
Valve material overview 1
byATHIRA NAIR

PPT
Ferrous_Materials.ppt for piping engineering
byTauqueerAhmad17

PPTX
Piping materials_ material selction.pptx
byTruptiDharmarao

PDF
Pipe & Equipment 2018
byMurat Cengiz

PDF
2012-08-22-C-Ikeagu-of-Subsea-7_-Material-Selection-for-Subsea-Applications.pdf
bycarlufreitenza

PDF
Abrasion resistant ceramic lined pipe
bySunny Steel Enterpirse Ltd.

PDF
Corrosion Allowances in plant design pdf
byEr. Rahul Jarariya

PPTX
13-Materials - Fertilizer Plant.pptx
byMuhammadSaqibIrshad

PPT
Ss presentation
byDavid Chamberlain

PDF
Abrasion resistant-ceramic-lined-pipe
byssuser39e531

PDF
Chemical corrosion control
byBusiness Industrial Network

PDF
Chemical corrosion control
byBusiness Industrial Network

Piping Material.PPT
byssusercf9ebf1

Stainless steel pipes
byNatashaSinha10

Material selection for nitrogen based fertilizers plants
byPrem Baboo

Materials of construction sb
byMirza Salman Baig

CH 3_Piping Materials(1).pptx
byNurn6

Material selection and design - No audio.pptx
byFathiShokry

Steel
byDevesh Tripathi

SELECTION OF MATERIAL IN ENGINEERING MATERIAL-4.pptx
byHimanshuKumar304941

Valve material overview 1
byATHIRA NAIR

Ferrous_Materials.ppt for piping engineering
byTauqueerAhmad17

Piping materials_ material selction.pptx
byTruptiDharmarao

Pipe & Equipment 2018
byMurat Cengiz

2012-08-22-C-Ikeagu-of-Subsea-7_-Material-Selection-for-Subsea-Applications.pdf
bycarlufreitenza

Abrasion resistant ceramic lined pipe
bySunny Steel Enterpirse Ltd.

Corrosion Allowances in plant design pdf
byEr. Rahul Jarariya

13-Materials - Fertilizer Plant.pptx
byMuhammadSaqibIrshad

Ss presentation
byDavid Chamberlain

Abrasion resistant-ceramic-lined-pipe
byssuser39e531

Chemical corrosion control
byBusiness Industrial Network

Chemical corrosion control
byBusiness Industrial Network


Recently uploaded

PDF
🥳 BUKTI KEMENANGAN HARI INI MINGGU 25 JANUARI 2026 🥰
byGRAB

PDF
Buy Facebook Ads Accounts_ the Backbone of Social Advertising in 2025.pdf
bymarketing

PDF
🥳 BUKTI KEMENANGAN HARI INI RABU 21 JANUARI 2026 🥰
byGRAB

PDF
INTERIOR FURNISHING- BARBERING SALON REDESIGN
byafedzim

PDF
Understanding Cognitive Load in UX and How to Minimize it.pdf
byDesign Studio UI/UX

PDF
Upshot - Drip coffee machine Folio .pdf
byArgyll Knox

PPTX
Domino's Conversational Agent Analysis - General Exam Contextual Area
bypedrocolon93

PDF
KANZENDESIGN: Expertos en Diseño de Presentaciones de Alto Impacto y Pitch Decks
bynhemesysgonzalez

PDF
Structural design for reinforced concrete
byBERHANUBERI2

PPTX
Intro to The Design Process Graphic Design
bycasmith11

PDF
Gamification Concept in UX Design with Proven Examples (2026).pdf
byDesign Studio UI/UX

PDF
CASE STUDY 3 1.pdfHHTGTGTGGGGGGGGGGGDGGFGGGGG
bykumarvragava

PDF
Timeless Modern Interiors- A Design Perspective by Kiara Parekh
byKiara Parekh - Interior Designing Expert in Melbourne

PDF
11 Proven Mobile App UIUX Design Principles for 2026.pdf
byDesign Studio UI/UX

PPTX
Understanding the Role of Mobile Apps Today
byjamesandersonuk40

PDF
The Future of Cross-Platform Development.pdf
byjamesandersonuk40

PPTX
Jewel Tones: Bringing Bold Color Back into Your Home
byMogul Interior

PPTX
Hanna Pitch 1.pptx media powerpoint presentation
byhannamoller2009

PPTX
Website Designing in digital marketing..
bynadipallisruthi

PDF
Generative AI & Software Development infograpic
byalexmartincaneda

🥳 BUKTI KEMENANGAN HARI INI MINGGU 25 JANUARI 2026 🥰
byGRAB

Buy Facebook Ads Accounts_ the Backbone of Social Advertising in 2025.pdf
bymarketing

🥳 BUKTI KEMENANGAN HARI INI RABU 21 JANUARI 2026 🥰
byGRAB

INTERIOR FURNISHING- BARBERING SALON REDESIGN
byafedzim

Understanding Cognitive Load in UX and How to Minimize it.pdf
byDesign Studio UI/UX

Upshot - Drip coffee machine Folio .pdf
byArgyll Knox

Domino's Conversational Agent Analysis - General Exam Contextual Area
bypedrocolon93

KANZENDESIGN: Expertos en Diseño de Presentaciones de Alto Impacto y Pitch Decks
bynhemesysgonzalez

Structural design for reinforced concrete
byBERHANUBERI2

Intro to The Design Process Graphic Design
bycasmith11

Gamification Concept in UX Design with Proven Examples (2026).pdf
byDesign Studio UI/UX

CASE STUDY 3 1.pdfHHTGTGTGGGGGGGGGGGDGGFGGGGG
bykumarvragava

Timeless Modern Interiors- A Design Perspective by Kiara Parekh
byKiara Parekh - Interior Designing Expert in Melbourne

11 Proven Mobile App UIUX Design Principles for 2026.pdf
byDesign Studio UI/UX

Understanding the Role of Mobile Apps Today
byjamesandersonuk40

The Future of Cross-Platform Development.pdf
byjamesandersonuk40

Jewel Tones: Bringing Bold Color Back into Your Home
byMogul Interior

Hanna Pitch 1.pptx media powerpoint presentation
byhannamoller2009

Website Designing in digital marketing..
bynadipallisruthi

Generative AI & Software Development infograpic
byalexmartincaneda


Piping materials lhk

  • 1.
    PIPING MATERIALS INTRODUCTION Piping materialsare of many types. The specific material to suit a design requirement is chosen on the basis of certain key factors.
  • 2.
    FACTORS AFFECTING SELECTIONOF PIPING MATERIALS • Mechanical properties – tensile, yield, creep, rupture, fatigue and impact • Performance requirements and material reliability • Safety • Environmental conditions • Availability • Resistance to erosion and corrosion • Economic factors
  • 3.
    VITAL CHARACTERISTICS REQUIRED Toughness CreepStrength Ductility Good surface finish Hardness
  • 4.
    CLASSIFICATION OF PIPINGMATERIALS P IP IN G M A T E R IA L S M E T A L L IC N O N -M E T A L L IC L IN E D FERRO US N O N -F E R R O U S PVC M S R U B B E R L IN E D C A S T IR O N C O P P E R & IT S A L L O Y S HDPE M S PTFE, M S PVDF CAR BO N STEEL A L U M I N IU M & IT S A L L O Y S PTFE M S L E A D L IN E D ALLO Y STEEL N IC K E L A N D IT S A L L O Y S LDPE M S C E R A M IC L IN E D S T A IN L E S S S T E E L L E A D A N D IT S A L L O Y S G LASS M S G L A S S L IN E D C E R A M IC F R P P P L IN E D O T H E R S P E C IA L A L L O Y S CEM EN T
  • 5.
    COMMONLY USED PIPINGMATERIALS LOW CARBON STEEL, LOW ALLOY STEEL AND STAINLESS STEELS (used for high temperature services) WROUGHT IRON, CAST IRON, DUCTILE IRON, COPPER, BRASS, ALUMINIUM AND ITS ALLOYS AND NICKEL STEEL OTHER PLASTICS MATERIALS (PVC, polythene, polypropylene, asbestos cement, GR pipes, concrete, glass, rubber and some newer plastics)
  • 6.
    TEMPERATURE LIMITATION OFPIPING MATERIALS SI NO 1 MATERIAL MAX WORKING TEMP OC Carbon Steel Yield stress decreases beyond this temp A106 GrB 427 API 5L GrB 2 230 Alloy Steel -do- A335 GrP11 570 A335 GrP22 600 A335 GrP91 3 REMARKS 650 Stainless Steel From –220 OC to 538 OC A312 GrTP304 -200 to 500 A312 GrTP316 -200 to 538 4 Aluminium 175 Loses strength beyond this temp 5 Titanium 400 -do- 6 Thermoplastics 260 Melts beyond this temp 7 Thermosetting plastics 260 Some epoxies can be used upto 290 OC 8 Concrete 290 Cannot be used for temp intensive services 9 Rubber Room Temp -do-
  • 7.
    MATERIAL PROPERTIES MATERIAL YIELD STRENGTH(Mpa) UTS (MPa) Carbon Steels 260-1300 500-880 Cast Irons 220-1030 400-200 Low Alloy Steel 500-1980 680-2400 Mild Steel 220 430 Stainless Steel, austenitic 286-500 760-1280 Stainless Steel, ferritic 240-400 500-800 Nickel and its alloys 200-1600 400-2000 Titanium and its alloys 180-1320 300-1400 Copper 60 400 Cooper Alloys 60-960 250-1000 Brasses and Bronzes 70-640 230-890 Aluminium 40 200 Aluminium Alloys 100-627 300-700 Lead and its alloys 11-55 14-70 Tin and its alloys 7-45 14-60 Polypropylene 19-36 33-36 Polyurethene 26-31 58 Polyethylene HD 20-30 37 Polyethylene LD 6-20 20
  • 8.
  • 9.
    CARBON STEELS Is analloy of Iron and Carbon Contains 0.1 % to 1.5 % of Carbon Based on Carbon Content it can be classified into 1. Mild steel - 0.05 % - 0.30 % 2. Medium Carbon steel – 0.30 % - 0.70 % 3. High carbon Steel – 0.70 % - 1.5 % 4. It can withstand upto to a temperature of 450 C   General chemical composition of CS is C - 0.07, 1.56 %, Mn – 1.6 %, Si – 0.6 %, S – 0.1%, P – 0.1%.
  • 10.
    CARBON STEEL –MATERIAL COMPOSITION MATERIAL CHEMICAL COMPOSTION DESCRIPTION C A106 GrB (1/2”-14”) API 5L GrB (1/2”-14”) A53 GrB (1/2”-14”) A105 (S.W.) (1/2”-1½”) A216GrWCB 2” & above Seamless, CS pipe for high Temp & Pr services Mn 0.3 0.29 - 1.06 Si 0.1 - P S 0.035 0.035 ERW ( E=0.85), CS pipe, Seamless 0.27 1.15 0.04 0.05 Seamless, CS pipe for low Temp services (Galv) 0.3 0.9 Forged CS for ambient and high Temp services 0.35 0.9 0.35 0.05 CS castings suitable for high Temp services 0.3 1 0.6 0.04 0.045 0.15 - 04 0.035 0.035 0.05
  • 11.
    ALLOY STEELS • Addingof Alloying elements to improve the characteristics of the material is termed as Alloy Steel. • Commonly used Alloying elements are Silicon, Chromium, Nickel, Molybdenum, Manganese, Vanadium, Titanium, Boron, Aluminium, Cobalt and Tungsten. • WHAT ARE THE EFFECTS OF ALLOYING?
  • 12.
    PURPOSE OF ALLOYING 1.Improved Corrosion resistance 2. Better Hardenability 3. Improved Machinability High or low temperature Stability Ductility Toughness 4. Better Wear resistance
  • 13.
    INFLUENCE OF ALLOYINGELEMENTS Alloying Aluminium (2 - 5 %) Chromium Manganese Molybdenum (0.15 – 0.6 %) Nickel (upto 5%) Titanium Tungsten Vanadium Advantage • • • • • • • • • • • • • • • • • • • • • • • Resistance to heat and oxidation Improves scale resistance Imparts strength Increases wear resistance (carbides) Corrosion resistance Hardness & Strength If above 5% corrosion resistance is improved even at high temp Increases tensile strength & machinability Improves hardenability High temp strength & impact resistance Corrosion resistance especially to chloride solutions Machinability Decreases decomposition of austenite Increases resistance to oxidation at high temp Decreases critical temperature Prevents precipitaion of Cromium Carbides Imparts strength Wear resistance Abrasion resistance Increases red hardness (hot working) Powerful deoxidiser, forms strong carbides Wear resistance & strength Causes fine grain structure Disadvantage Increases brittleness Machinability, weldability Machinability
  • 14.
    LOW ALLOY STEEL– MATERIAL COMPOSITION CHEMICAL COMPOSTION DESCRIPTION C Mn 0.05 - 0.15 0.3 - 0.6 Si 0.5 Cr SERVICE Mo 1.9 - 2.6 0.87 - 1.13 HP, superheated and hot reheat Steam Ferritic alloy steel pipe for high Temp services 0.08 - 0.12 0.3 - 0.6 0.2 - 0.5 8 - 9.5 Pipe fitting alloy steel for moderate and elevated 0.05 - 0.15 0.3 - 0.6 Temp Alloy steel castings for Pr containing parts suitable for 0.18 0.4 - 0.7 high Temp services 0.85 - 1.05 Superheated steam piping system 0.5 1.9 - 2.6 0.87 - 1.13 High Temp services 0.6 2 - 2.75 Valves for AS pipes 0.9 - 1.2
  • 15.
    STAINLESS STEEL • • • • • Adding 11.5% or greater chromium in iron,changes the microstructure and based on that its varieties are obtained. Posses greater percentage of chromium which forms a chromium oxide film exposed to air that prevents chemical attack of moist air on the material surface Nickel retains the austenitic structure of steel Greater resistance to corrosion than all types of steels Classified into three types based on its micro structure 1. Austenitic stainless steel 2. Ferritic stainless steel 3. Martensitic stainless steel
  • 16.
    STAINLESS STEEL –MATERIAL COMPOSITION MATERIAL DESCRIPTION CHEMICAL COMPOSTION C A312 Gr.TP316L (1/2”-14”) A403 Gr.WP304 A351 Gr.CF8 A182 Gr.F304 (2” & above) Cr Mo 2 18-20 - 8 - 11 SERVICE Ni 0.04 A312 GrTP304 Mn Hydrocarbons, chemicals, etc. Welded & seamless austenitic stainless steel 0.27 1.15 0.08 2 18-20 - 8 - 11 Forged fittings 0.08 Wrought austenitic stainless steel pipe fittings 16-18 2-Mar 11 - 14 Corrosive process service 1.5 18-21 - 8 - 11 Valve castings 0.08 2 18-20 - 8 - 11 Flanges Castings
  • 17.
  • 18.
    COPPER AND ITSALLOYS • • • • • • • Used when heat and electric conductivity are important Theraml conductivity is high Alloys are brasses, Bronzes (Cu-Sn) and Cupronickels (Cu-Ni) Upto 20% Zn in Brass gives good corrosion resistance Bronzes display good strength with corrsion resistance Cupronickels have highest corrosion resistance among Cu alloys Cupronickels are used for heat exchanger tubing
  • 19.
    NICKEL AND ITSALLOYS • • • • Easy machinability and weldability Chloromet and Hastelloy are widely used other than Monel 400 Not resistant to oxidising environments Monel 400 is used to handle dilute sulphuric acid and hydrochloric acid • Alkalis and sea water do not affect Nickel
  • 20.
    ALUMINIUM AND ITSALLOYS • Good thermal conductivity • Most workable metal • Highly resistant to atmospheric conditions, industrial fumes, fresh brackish or salt water • Not resistant to corrosion • Loses strength rapidly at 1750C.
  • 21.
    TITANIUM • Strong andmedium weight • Titanium Oxide is formed which prevents corrosion • Resistant to Nitric acid of all concentrations except fuming nitric acid • Welding requires inert atmosphere • Loses strength above 4000C • Provides good resistance to hydrochloric acid when alloyed with 30% Molybdenum • Not affected by impingement and crevice corrosion
  • 22.
    COMMON NON-FERROUS PIPINGMATERIALS (METALS) ASTM Des. DESCRIPTION SERVICES SB42 Seamless Cu pipes Heat exchanger services SB43 Seamless red brass pipes Moderate corrosion resistance SB75 Seamless Cu tubes Heat exchanger tubing SB161 Ni seamless pipes & tubes Alkaline solution, sea water SB165 Ni-Cu alloy, seamless pipes & tubes Dilute sulphuric acid SB167 Ni-Cr-Fe alloy for seamless pipes & tubes Hydro fluoric acids SB171 Ni-Cr-Fe alloy for condenser tube plates Condenser tubing SB210 Al alloy drawn seamless tubes Cryogenic SB241 Al alloy extruded tubes & seamless pipes Cryogenic and low temp SB337 Seamless and welded Ti & Ti alloy pipes Nitric acid & sea water SB444 Ni-Cr-Mo-Columbium alloy, seamless pipes & tubes High concentration acid SB564 Ni alloy forgings Forged pipe fittings SB690 Fe-Ni-Cr-Mo alloys, seamless pipes & tubes Wear resistant services
  • 23.
  • 24.
  • 25.
    COMMONLY USED NON-METALLICPIPING MATERIALS • • • • • • Plastics – Thermoplastics and Thermosetting plastics Concrete Ceramic Asbestos-Cement Glass Rubber
  • 26.
  • 27.
    POLYVINYL CHLORIDE (PVC) • • • • Toughand exceptionally resistant to chemical attack Rigid unplasticized Polyvinyl Chloride is thermoplastic material Pipes are manufactured by extrusion Fittings, flanges and valves are manufactured by injection moulding
  • 28.
    TYPES OF PVC Thereare three types of PVC pipes, Type-I, “normal-impact” grade Type-II, “high-impact” grade Type-IV, newer grade
  • 29.
    PVC MATERIAL PROPERTIES PROPERTIES TYPE– I TYPE – II TYPE - IV Hydrostatic design pressure 2000 psi 1000 psi 1600 psi Temperature 160 OF - - Grades available PVC 1120, PVC 1220 PVC, 2110, PVC 212, PVC 2116 PVC 4116
  • 30.
    ADVANTAGES OF PVCPIPES • No physical or little deterioration when exposed to direct sunlight, unlike other plastics • Does not support combustion • No scales are formed over smooth inside surface
  • 31.
    APPLICATIONS OF PVC •Extensively used in highly corrosive application involving acids, alkalis, salt solution, alsohols and many chemical • In oil fields as it can carry sour crude oil to which PVC is inert and paraffin built-up is minimum • Salt-water disposal in oil fields • Gas transmission service • Cold water line in Industry as it is non-toxic and doesn’t add any odour or taste to water • For vent piping for removal of acid fumes and corrosive gases
  • 32.
    TETRAFLUROETHYLENE (TEFLON) • Unaffectedby alkalis and acids except flourines and chlorines, molten metals at elevated temperatures (260 0C max) • TFE + Chlorine = CTFE, which is highly resistant to corrosion by acids and alkalis up to 180 0C • TFE components can be prepared only by powder metallurgy
  • 33.
    POLYETHYLENE (PE) • Producedfrom hydrocarbons and ethylene under high temperature and extremely high temperature pressure • Types – Low, Medium and High Density • HDPE is not very flexible as LDPE • 2% Carbon black is added to increase weather resistance
  • 34.
    APPLICATIONS OF PE • • • • • HDPEis used in jet wells and farm sprinklers Salt water disposal lines Chemical waste lines Gas gathering systems Conduit for power and telephone cables
  • 35.
    ACRYLONITRILE-BUTADIENE-STYRENE (ABS) • Itproduced by injection or compression moulding • Exhibit good toughness and tensile strength
  • 36.
    APPLICATIONS OF PE •Service of inorganic acids, bases and salts • Sewage piping • Crude oil and gas piping
  • 37.
    THERMOS ETTING PLAS TICS Generally produced by centrifugal casting, hand lay-up moulding and filament winding. Major resins are Epoxy and Polyester resins and generally reinforced with glass or blue asbestos fibre.
  • 38.
    EPOXY • Used intransportation of acids, neutral or basic salt solutions, waste process water and sewage • Used in paper industries for pulp stock wastes and dyes • It resists fouling, salt atmosphere and marine organism • Used in food and beverage industry
  • 39.
  • 40.
    CONCRETE PIPING MATERIALS •Types – reinforced and non-reinforced • Some non-reinforced concrete pipe material specifications are ASTM C14, AASHO M86, ASTM C412, etc. • Non-reinforced pipe sizes vary from 12” to 24” • Some reinforced concrete pipe material specifications are ASTM C76, AASHO M170, SS-P-375, etc. • Used for sewage and industrial waste, storm waste, culverts, water supply
  • 41.
    ASBESTOS-CEMENT PIPES • Notused very commonly • Some standard material specification are ASTM C296, AWWA C400, SS-P-331, etc. • Used for drains and industrial waste
  • 42.
    P IP ELININGS
  • 43.
    COMMONLY USED LININGMATERIALS • • • • • • Rubber Plastic Lead Glass Epoxy resin Synthetic resin
  • 44.
    RUBBER LINED PIPES •Natural and Synthetic rubber linings are used to counteract corrosion • Generally used in the temperature range of –20 OC to 50 OC • Commonly used natural rubbers are soft rubber, semi-hard and hard rubbers • Commonly used synthetic rubbers are PolychloropreneNeoprene, Butyl rubber, Nitrile rubber and Thiokol • Cannot be used for strongly oxidising conditions or halogenated carbon
  • 45.
    PLASTIC LINING • PTFEand PVC are important lining materials • Used for chemical resistance, corrosion protection, resist abrasion, non-toxic and smooth bore reduces friction • PTFE is chemically inert and used from –270 OC to 260 OC • Polyvinyl flouride, fluoroethylene propylene and polypropylene can be added to enhance the range of PTFE • PVC provides tough and heavy-duty finish resistant to most acid and marine growth
  • 46.
    LEAD LININGS • Leadlining is useful for most corrosive fluids and sulphuric acid below 80% concentration • Should not be used for nitric acid, hydrochloric acids, hydrofluoric acids, organic acids and alkalis • Can be alloyed to improve mechanical properties
  • 47.
    GLASS LININGS • Glassenamel (glass like) inorganic compositions are used as linings • Bonded to mild steel by fusion on metal surface above 750 OC • Provide good resistance against acid attack and abrasion • Cheap alternative in many situations • Temperature range of –20 OC to 250 OC
  • 48.
    EPOXY RESIN LININGS •Good resistance to alkalis and most acids except strongly oxidising ones • Good resistance to abrasion by suspended particles due to glossy nature of lining • Used mostly in natural gas pipe lines
  • 49.
    SYNTHETIC RESIN LININGS •Sprayed phenol formaldehyde can be used when expected corrosion is less • Cannot be used above 80 OC • Because of sterile and non-tainting properties it is used in food processing industries • Mostly used to line welded steel vessels
  • 50.
  • 51.
    P IP INGMATERIAL S P ECIFICATION
  • 52.
    What is aMaterial Specification? A Piping Material Specification is an engineering specification that contains requirements for the selection of materials to be used in the construction and fabrication for all process and utility piping.
  • 53.
    FEATURES OF AMATERIAL SPECIFICATION • Material of construction, end construction, end connections and wall thicknesses for various ranges • Individual line class of the piping materials • Codes and standards relevant to the pipes and fittings of the specified material class • Line class coding system • Pressure-Temperature ratings for various fittings and limiting sizes of fittings • Other general notes and design criteria as applicable to the material class
  • 54.
    CLASS SERVICE INDEX– IDEA STANDARDS SI NO CLASS MATERIAL MAX P (kg/cm2) T RANGE (OC) SERVICE 1 A1A CS 20 -29 to 300 Fuel oil, nitrogen liquid, fuel gas, NaOH, brine, steam tracing 2 A1AR CS 20 -29 to 300 Steam condensate, BFW 3 A1B CS 20 -45 to 400 Hydrocarbons, catalyst solutions, lube oil, flare, flue gas, caustic, hot nitrogen 4 A21A 304 SS 19.33 -29 to 300 Pure water(pump seal cooling) WPF, additive solutions, seal oil, antifoam, carbonate, brine II 5 A21B SS 19.33 -29 to 150 Demin. Water, other process 6 A37A Aluminium 1.4 100 Pneumatic conveying 7 B1C CS - - Chlorine vapour, chlorine liquid 8 B1EH CS 52 -29 to 260 Hydrocarbons for HDPE only (Dupont B1E) 9 D21A 304 SS 101.25 -200 Liquid ethylene (Cryogenic) 10 S5A CS polypropylene lined 10.55 -29 to 80 Chemical sewer, regeneration wastes (H2SO4 and NaOH)
  • 55.
  • 59.
    GENERAL DES IGNCONS IDERATIONS • Seamless pipes are mostly preferred in power piping, butt welded may also be used • API 5L pipes are not permitted by IBR for design pr.>20 kgcm2 and temp>260 OC • Most projects require multinational specification • Economy precedes the choice of code for material specification, after design requirements
