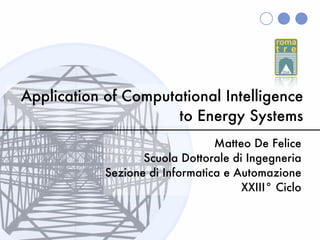

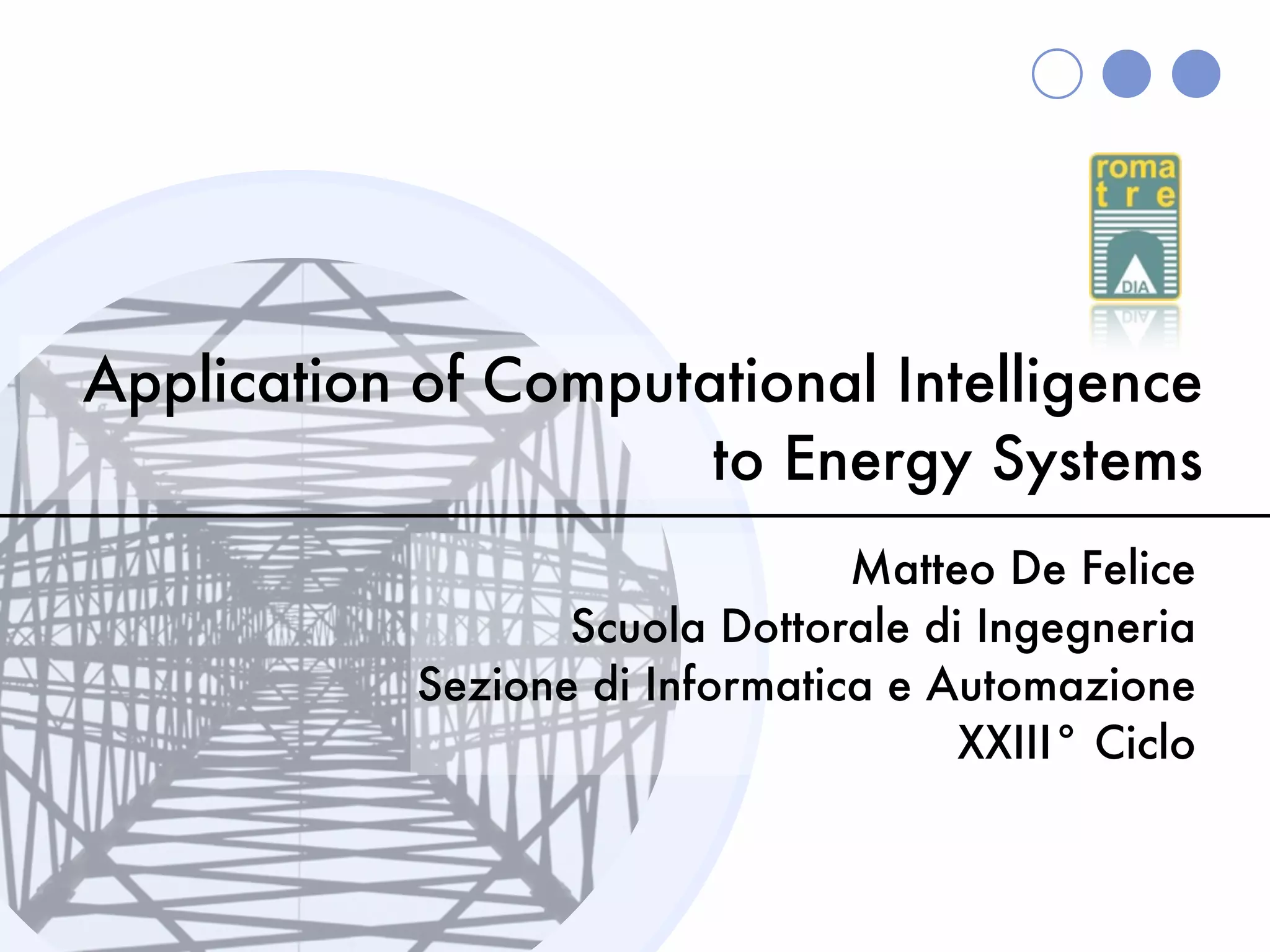

Application of Computational Intelligence to Energy Systems, University of Rome "Roma Tre", Department of Informatics and Automation (DIA)

1. Application of Computational Intelligence
to Energy Systems
Matteo De Felice
Scuola Dottorale di Ingegneria
Sezione di Informatica e Automazione
XXIII° Ciclo

2. Outline
What is Computational
Intelligence (CI)?
What are the possible
applications of CI to energy
systems?

3. Quick glance
NN
EC FS
SI AIS

4. Quick glance
Soft
NN Computing
EC FS
SI AIS

5. Quick glance
Soft
NN Computing
EC FS
SI AIS
Computational Intelligence

6. Quick glance
Soft
NN Computing
EC FS
And
SI AIS
AI?
Computational Intelligence

7. Quick glance
My focus
NN
EC FS
SI AIS

8. CI and scientific literature
−3
x 10
5
Evolutionary Computation
Swarm Intelligence
4 Artificial Neural Networks
3
2
1
0
1994 1996 1998 2000 2002 2004 2006 2008 2010
year
Data from Thomson Reuters ISI considering Computer Science &
Technology (January 2010)
Two CI journals on the CS top 10 (IF 2009)

9. Is CI gaining interest?
Problems more and more
complex
More computational power
available

10. but...
Lack of well-established theory
Algorithms fragmentation
Tendency to unsystematic
approach and comparison
PSO APSO CPSO DPSO EPSO FPSO GPSO HPSO IPSO
LPSO MPSO NPSO OPSO PPSO QPSO RPSO SPSO TPSO
UPSO VPSO WPSO GA AGA BGA CGA DGA EGA FGA
HGA IGA KGA LGA MGA OGA PGA QGA RGA SGA
VGA ...

11. Main applications
1) Modeling & Forecasting
2) Optimization

12. Main applications
Neural Networks
& Fuzzy Logic
1) Modeling & Forecasting
2) Optimization
Evolutionary
Computation

13. Modeling & Forecasting

14. Modeling with NNs
||F (x) − f (x)|| < , ∀x
1.2
0.6
Y Axis
0
0 1 2 3 4 5 6 6.5
-0.6
-1.2
X Axis
y = sin(x)

15. Modeling with NNs
||F (x) − f (x)|| < , ∀x
1.2
0.6
Y Axis
0
0 1 2 3 4 5 6 6.5
-0.6
-1.2
X Axis
y = sin(x)
NN(x)

16. Modeling with NNs
Disturbances
Input u(k) Output y(k)
System
Neural
Network
Error measure (MSE)
Empirical Rules for NN typology

17. Regression with NN
We use a NN to do non-linear
regression

18. Time Series Forecasting
We can forecast future data
using known past data

19. Time Series Forecasting
We can forecast future data
using known past data
And other useful (!)
information as well

20. NN approaches
y(t+1)
Input at Neural y(t+2)
... Direct Method
time t Network
y(t+N)
Input at
output t+1
time t Neural
Network
output t
Iterative Method
delay

21. NN approaches
y(t+1)
Input at Neural y(t+2)
... Direct Method
time t Network
y(t+N)
Input at
output t+1
time t Neural
Network
output t
Iterative Method
delay

22. Short-Term Load Forecasting
60
40
kW
20
0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
hours
Hourly load data
Goal: up to 24-hours ahead load
prediction

23. NN model
36
30
y(k-1)
25 y(k)
Y Axis
20
y(k+1)
15
10
0 2 4 6 8 10 12 14 16 18 20 22 24
X Axis

24. NN model
36
30
y(k-1)
25 y(k)
Y Axis
20
y(k+1)
15
10
0 2 4 6 8 10 12 14 16 18 20 22 24
X Axis
How to choose
the best lags?

25. Data Analysis
1. ACF
2. Distribution
−
3. Multivariate
analysis

26. First question
How to reduce the variance of
Neural Networks outputs?

27. First question
How to reduce the variance of
Neural Networks outputs?

28. Ensembling

29. Ensembling
1. Model creation with data subset
(Bagging)
2. Data samples weights related to their
‘importance’ (Adaboosting)
3. Interaction and cooperation among
estimators

30. Ensembling
1. Model creation with data subset
(Bagging)
2. Data samples weights related to their
‘importance’ (Adaboosting)
3. Interaction and cooperation among
estimators

31. Ensembling
[Hansen & Salomon, 1990]
Majority voting (classification)
Linear combination (regression)
N
1
F (x, D) = Fi (x, D)
N i=1

32. Ensembling
Averaging

33. Application
STLF of a building located inside
ENEA Casaccia R.C. (C59)
Presentation at IEEE Symposium
on CI Applications in Smart Grid
M. De Felice and X. Yao, "Neural Networks Ensembles for Short-Term Load
Forecasting," in IEEE Symposium Series in Computational Intelligence 2011 (SSCI
2011), 2011

34. Techniques
Naive predictor:
SARIMA (Seasonal ARIMA)
model:
ΦP (B s )φ(B) D
s
d
xt = α + ΘQ (B s )θ(B)et
Neural Networks
NN Ensembles

35. Methodology
40
24 hours
35
30
kW
25 training part
20
15
10
2010 2013 2016 2019 2022 2025 2028 2031 2034 2037 2040 2043 2046 2049 2052 2055 2058
hours
Measured data from September
to November 2009
Training (13 weeks) and testing
(one week split in T1 and T2) sets

36. Error Measures
Absolute Error (MAE and MSE)
Percentage Error (MAPE)

37. Error Measures
Absolute Error (MAE and MSE)
Percentage Error (MAPE)
Scaled Error (MASE)

38. Negative Correlation Learning
[Liu & Yao, 1999]
Backpropagation error function
modified
Penalty term λ
M
ei = (Fi (xn ) − yn )2 + λpi
n=1

39. Regularized NCL
[Chen & Yao, 2009]
NCL with Regularization
M M
1 2 1
ei = (Fi (xn ) − yn ) − (Fi (x) − F (xn ))2 +
N n=1
N n=1
T
+αi wi wi

40. Errors

41. Errors
MAE MSE
2.34 (0.79) 10.9 (17.88)
NN Average
2.49 (1.47) 21.67 (59.29)
1.38 2.95
NN Ensemble
1.09 2.4
1.47 3.34
RNCL
1.07 2.82

42. Errors
MAE MSE
2.34 (0.79) 10.9 (17.88)
NN Average
2.49 (1.47) 21.67 (59.29)
1.38 2.95
NN Ensemble
1.09 2.4
1.47 3.34
RNCL
1.07 2.82

43. Errors
MAE MSE
2.34 (0.79) 10.9 (17.88)
NN Average
2.49 (1.47) 21.67 (59.29)
1.38 2.95
NN Ensemble
1.09 2.4
1.47 3.34
RNCL
1.07 2.82

44. Errors
MAE MSE
2.34 (0.79) 10.9 (17.88)
NN Average
2.49 (1.47) 21.67 (59.29)
1.38 2.95
NN Ensemble
1.09 2.4
1.47 3.34
RNCL
1.07 2.82

45. Errors
MAE MSE
2.34 (0.79) 10.9 (17.88)
NN Average
2.49 (1.47) 21.67 (59.29)
1.38 2.95
NN Ensemble
1.09 2.4
1.47 3.34
RNCL
1.07 2.82
2.11 7.61
Naive
2.28 6.4
1.89 5.52
SARIMA
1.24 2.17

46. Errors
MAE MSE
2.34 (0.79) 10.9 (17.88)
NN Average
2.49 (1.47) 21.67 (59.29)
1.38 2.95
NN Ensemble
1.09 2.4
1.47 3.34
RNCL
1.07 2.82
2.11 7.61
Naive
2.28 6.4
1.89 5.52
SARIMA
1.24 2.17

47. External data

48. External data
Introduction of: building
occupancy, info about hour, day
of the week, working days.

49. External data
Introduction of: building
occupancy, info about hour, day
of the week, working days.
NN: additional inputs

50. External data
Introduction of: building
occupancy, info about hour, day
of the week, working days.
NN: additional inputs
SARIMA: additional linear term

51. Additional inputs
4
SARIMA − external data
SARIMA
3
Absolute error
2
1
0
0 20 40 60 80 100 120 140
Forecasting window

52. Additional inputs
4
MLP Ensemble − external data SARIMA − external data
MLP Ensemble SARIMA
3
Absolute error
absolute
2
1
0
0 20 40 60 80 100 120 140
Forecasting window
forecast window

53. Additional inputs
4
MLP Ensemble − external data SARIMA − external data
4
MLP Ensemble SARIMA
3
Absolute error
3
absolute error
absolute
2
2
1
1
0
0
0
0 20
20 40 60 80 100 120 140
140
forecast window
forecast window
Forecasting window

54. Errors – external data

55. Errors – external data
MAE MSE
2.46 (0.83) 12.13 (16.80)
NN Average
2.34 (1.00) 11.61 (10.61)
1.42 3.30
NN Ensemble
0.75 1.27
1.33 2.7
RNCL
0.92 1.62

56. Errors – external data
MAE MSE
2.46 (0.83) 12.13 (16.80)
NN Average
2.34 (1.00) 11.61 (10.61)
1.42 3.30
NN Ensemble
0.75 1.27
1.33 2.7
RNCL
0.92 1.62

57. Errors – external data
MAE MSE
2.46 (0.83) 12.13 (16.80)
NN Average
2.34 (1.00) 11.61 (10.61)
1.42 3.30
NN Ensemble
0.75 1.27
1.33 2.7
RNCL
0.92 1.62

58. Errors – external data
MAE MSE
2.46 (0.83) 12.13 (16.80)
NN Average
2.34 (1.00) 11.61 (10.61)
1.42 3.30
NN Ensemble
0.75 1.27
1.33 2.7
RNCL
0.92 1.62

59. Errors – external data
MAE MSE
2.46 (0.83) 12.13 (16.80)
NN Average
2.34 (1.00) 11.61 (10.61)
1.42 3.30
NN Ensemble
0.75 1.27
1.33 2.7
RNCL
0.92 1.62
2.11 7.61
Naive
2.28 6.4
1.91 5.61
SARIMA
1.20 2.07

60. Errors – external data
MAE MSE
2.46 (0.83) 12.13 (16.80)
NN Average
2.34 (1.00) 11.61 (10.61)
1.42 3.30
NN Ensemble
0.75 1.27
1.33 2.7
RNCL
0.92 1.62
2.11 7.61
Naive
2.28 6.4
1.91 5.61
SARIMA
1.20 2.07

61. Optimization

62. Process Optimization
Process
Parameters Process Environment
(X)
Measurement
How to improve process
‘performance’ with respect to its
parameters?

63. Traditional optimization
Line-search and trust-region
methods (Hessian needed)
Quasi-newton methods (Hessian
approximated)
Derivative-free Methods

64. ...but real-world is:
1) Noisy
2) Dynamic
3) Hard to investigate

65. Evolutionary Computation (EC)

66. Evolutionary Computation (EC)
Black-box optimization

67. Evolutionary Computation (EC)
Black-box optimization
Single- and multi-objective

68. Evolutionary Computation (EC)
Black-box optimization
Single- and multi-objective
Also discontinuous and not-
differentiable functions

69. Evolutionary Computation (EC)
Black-box optimization
Single- and multi-objective
Also discontinuous and not-
differentiable functions
Population-based meta-heuristics:

70. Evolutionary Computation (EC)
Black-box optimization
Single- and multi-objective
Also discontinuous and not-
differentiable functions
Population-based meta-heuristics:

71. Application
Start-up optimization of a CCPP
Minimization of time, fuel consumption,
emissions and thermal stress
Maximization of energy output
M. De Felice, I. Bertini, A. Pannicelli, and S. Pizzuti, "Soft Computing based
optimisation of combined cycled power plant start-up operation with fitness
approximation methods," Applied Soft Computing, (to appear).
I. Bertini, M. De Felice, F. Moretti, and S. Pizzuti, "Start-Up Optimisation of a
Combined Cycle Power Plant with Multiobjective Evolutionary Algorithms," in
Applications of Evolutionary Computation, 2010, pp. 151-160.

72. Project steps
1. Definition of performance index
2. Software simulator setup
3. EC algorithm using simulator

73. Performance index
F1
1
Process
0.5
0
0 0.5 1 1.5 2 2.5 3
4
x 10
experts
F2
1
0.5
interviews 0
0 0.5 1 1.5
F3
2 2.5
5
x 10
3
1
Knowledge
0.5
0
0 5 10 15
9
x 10
modeling with
F4
1
0.5
fuzzy functions
0
0 5 10 15 20 25 30
F5
1
0.5
0
0 50 100 150 200 250 300

74. Single-objective
real-coded GA
Gaussian Mutation operator
Approximated fitness function to
speed-up the optimization (from
2070 to 36 hours)

75. Results
Start-up Fuel Energy Thermal
Emissions
time consum. output stress
Experts 21070 143557 2.5•109 25 10
GA 16569 115070 1.86•109 18.8 78.4
Norm.
-25% -16% -16% -30% 2%
Variation

76. Multi-objective
12.65
12.6
12.55
Emissions (mg s / N m3)
12.5
12.45
12.4
12.35
12.3 Real
NSGA−2
12.25 WSGA
RAND
12.2
3.9 4 4.1 4.2 4.3 4.4 4.5 4.6
Energy Production (KJ) 9
x 10

77. Other projects

78. Financial Applications
Financial trend reversal detection
with nature-inspired and machine
learning approaches
A. Azzini, M. De Felice, and A. Tettamanzi, "Financial Trend Reversal Detection
Problem: a Comparison between Nature-Inspired and Machine Learning
Approaches", Natural Computing in Computational Finance, vol. 4, Springer, (to
appear)

79. Spatially-Structured EA
Evolutionary Algorithms on
complex networks
Diversity and convergence
M.De Felice, S. Meloni, and S. Panzieri. “Effect of Topology on Diversity of
Spatially-Structured Evolutionary Algorithms”, GECCO 2011: Parallel Evolutionary
Systems, 11-16 July 2011, Dublin
