Обзор современных возможностей по распараллеливанию и векторизации приложений с использованием Parallels Composer

Intel® Parallel Studio 2011
Essential Performance
Design l Build & Debug l Verify l Tune

Kirill Mavrodiev
kirill.mavrodiev@intel.com
EMEA Compiler TCE (Software Engineer)
SSG DPD ICL

Software & Services Group, Developer Products Division
Copyright© 2010, Intel Corporation. All rights reserved. *Other brands and names are the property of their respective owners.

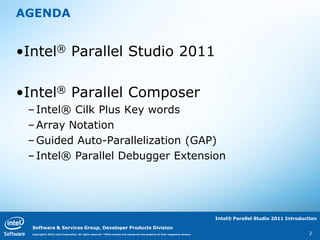

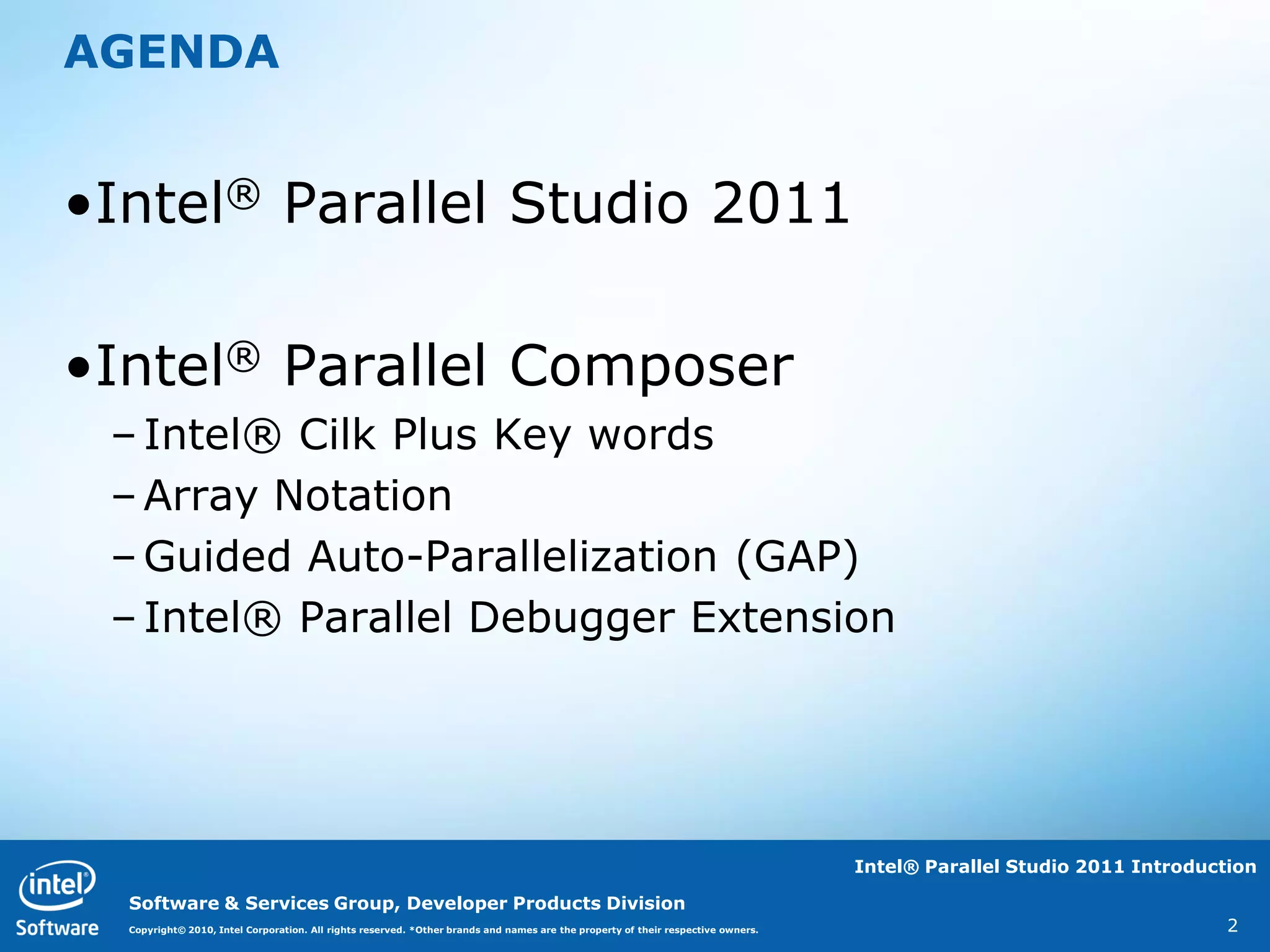

AGENDA

•Intel® Parallel Studio 2011

•Intel® Parallel Composer
– Intel® Cilk Plus Key words
– Array Notation
– Guided Auto-Parallelization (GAP)

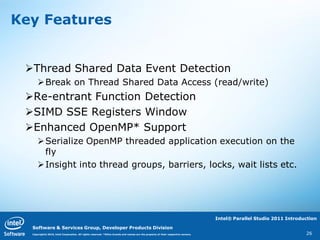

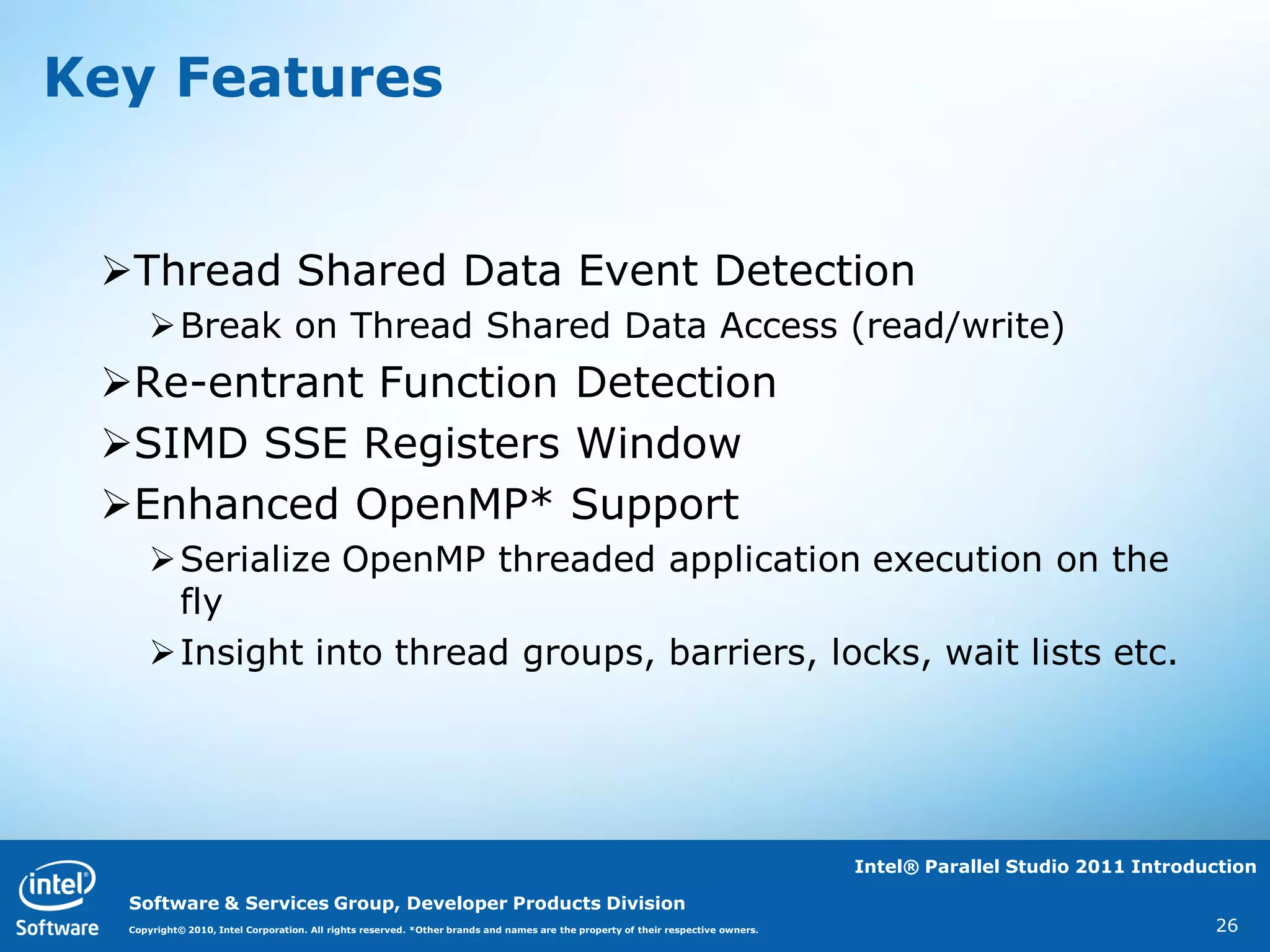

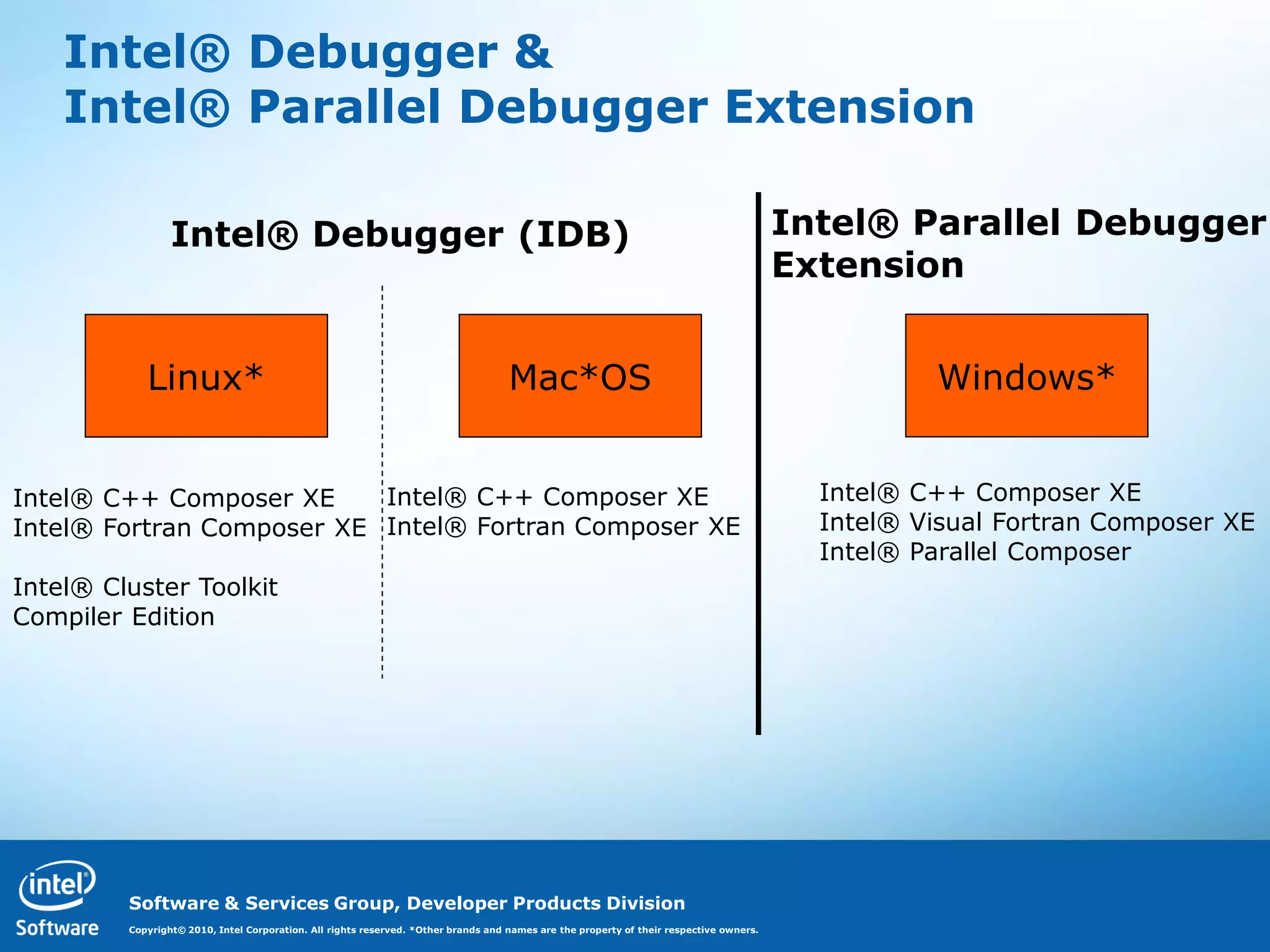

– Intel® Parallel Debugger Extension

Intel® Parallel Studio 2011 Introduction

Copyright© 2010, Intel Corporation. All rights reserved. *Other brands and names are the property of their respective owners. 2

Three Product Lines for Diverse Needs

Essential Advanced Distributed
Performance Performance Performance
C/C++ developers C++ and Fortran developers C++ and Fortran developers
Microsoft Visual Studio* Windows* and Linux* on Windows* and Linux*
Take advantage of multicore High performance, cross platform apps High performance MPI clusters

intel.com/software/products

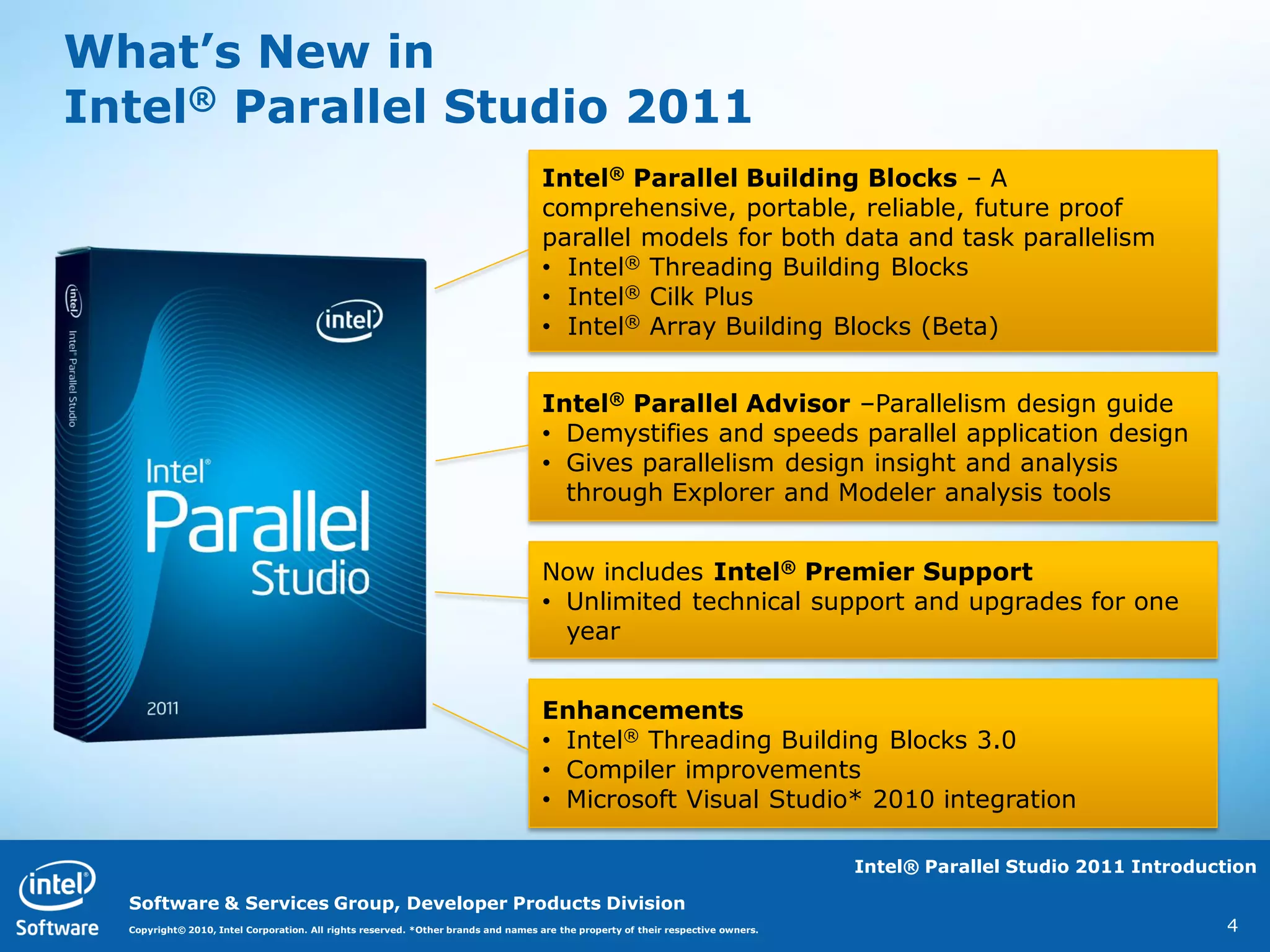

What’s New in
Intel® Parallel Building Blocks – A
comprehensive, portable, reliable, future proof
parallel models for both data and task parallelism
• Intel® Threading Building Blocks
• Intel® Cilk Plus
• Intel® Array Building Blocks (Beta)

Intel® Parallel Advisor –Parallelism design guide
• Demystifies and speeds parallel application design
• Gives parallelism design insight and analysis
through Explorer and Modeler analysis tools

Now includes Intel® Premier Support
• Unlimited technical support and upgrades for one
year

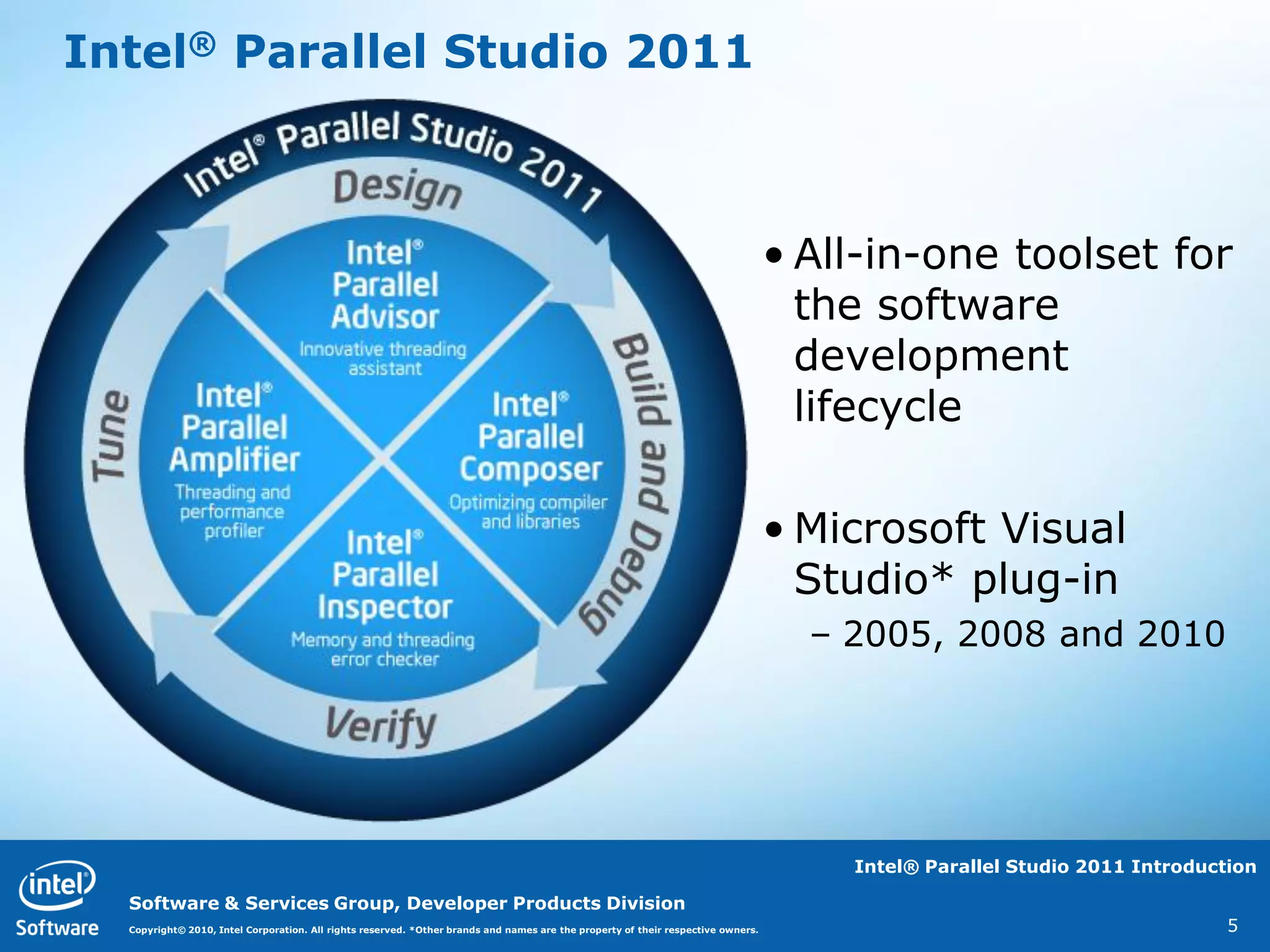

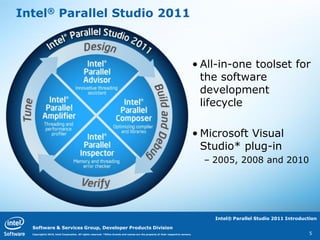

Enhancements
• Intel® Threading Building Blocks 3.0
• Compiler improvements
• Microsoft Visual Studio* 2010 integration




• All-in-one toolset for
the software
development
lifecycle

• Microsoft Visual
Studio* plug-in
– 2005, 2008 and 2010

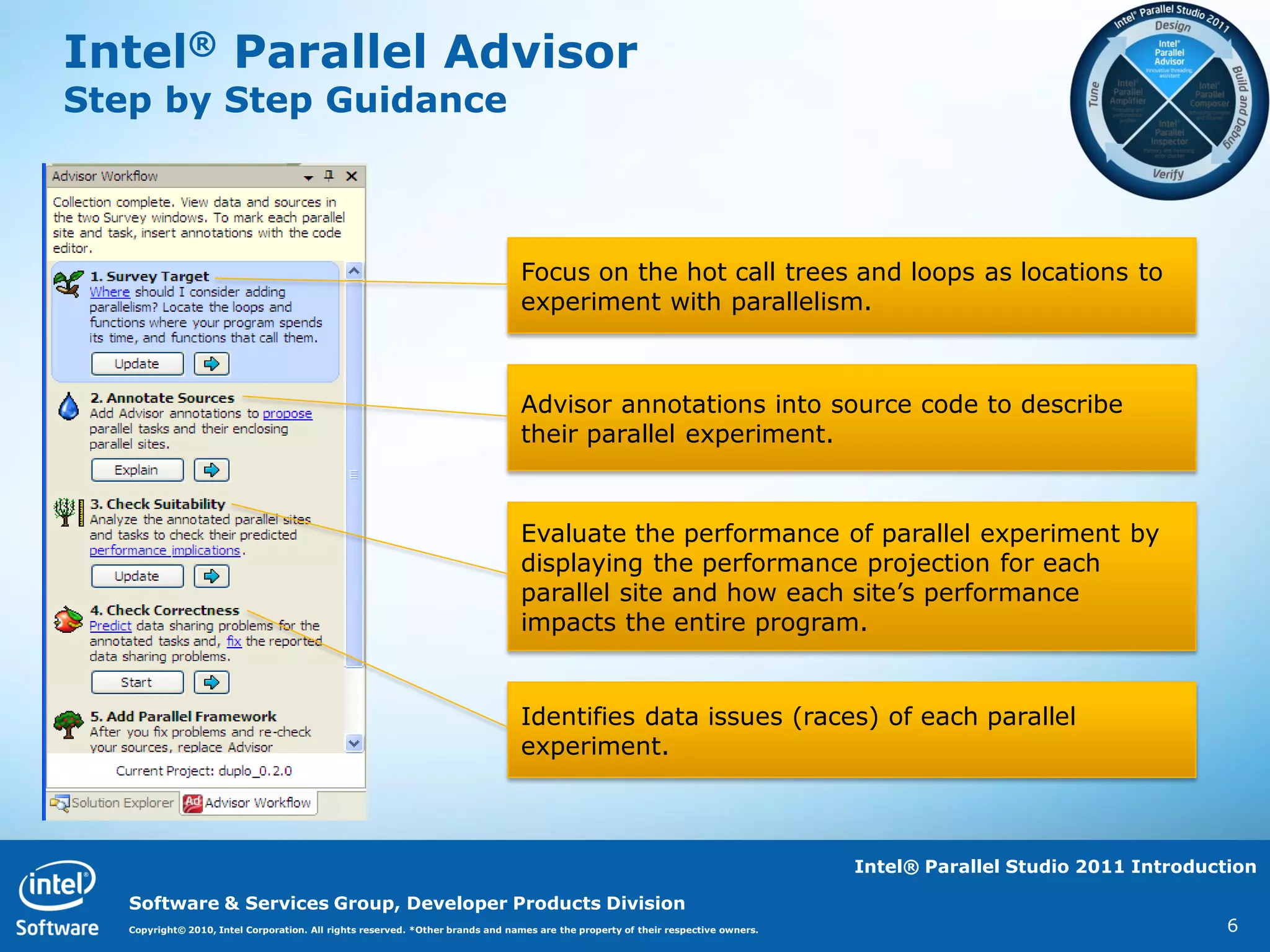

Intel® Parallel Advisor
Step by Step Guidance

Focus on the hot call trees and loops as locations to
experiment with parallelism.

Advisor annotations into source code to describe
their parallel experiment.

Evaluate the performance of parallel experiment by
displaying the performance projection for each
parallel site and how each site‟s performance
impacts the entire program.

Identifies data issues (races) of each parallel
experiment.

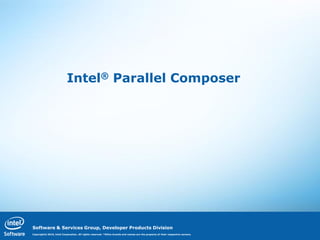

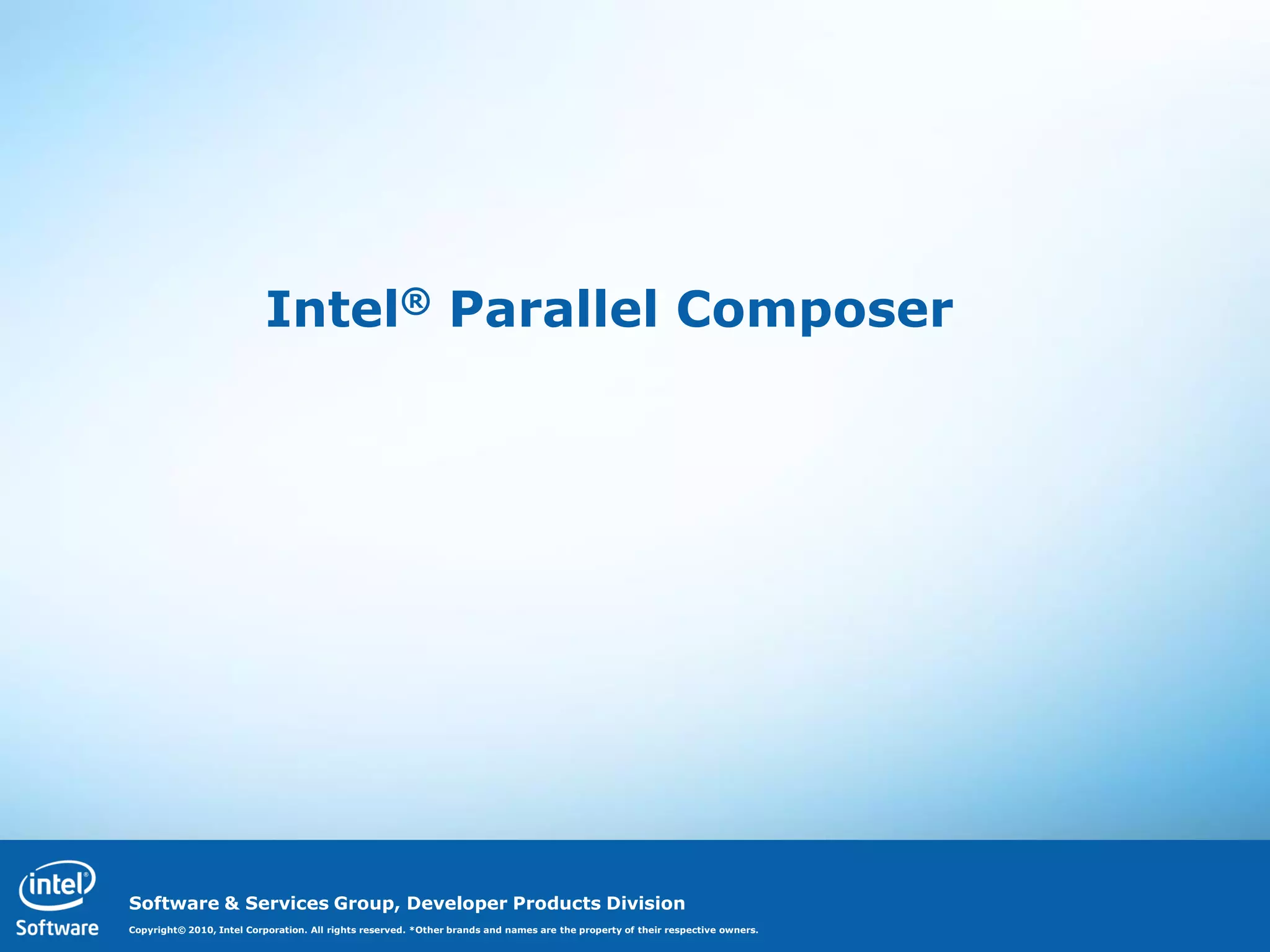

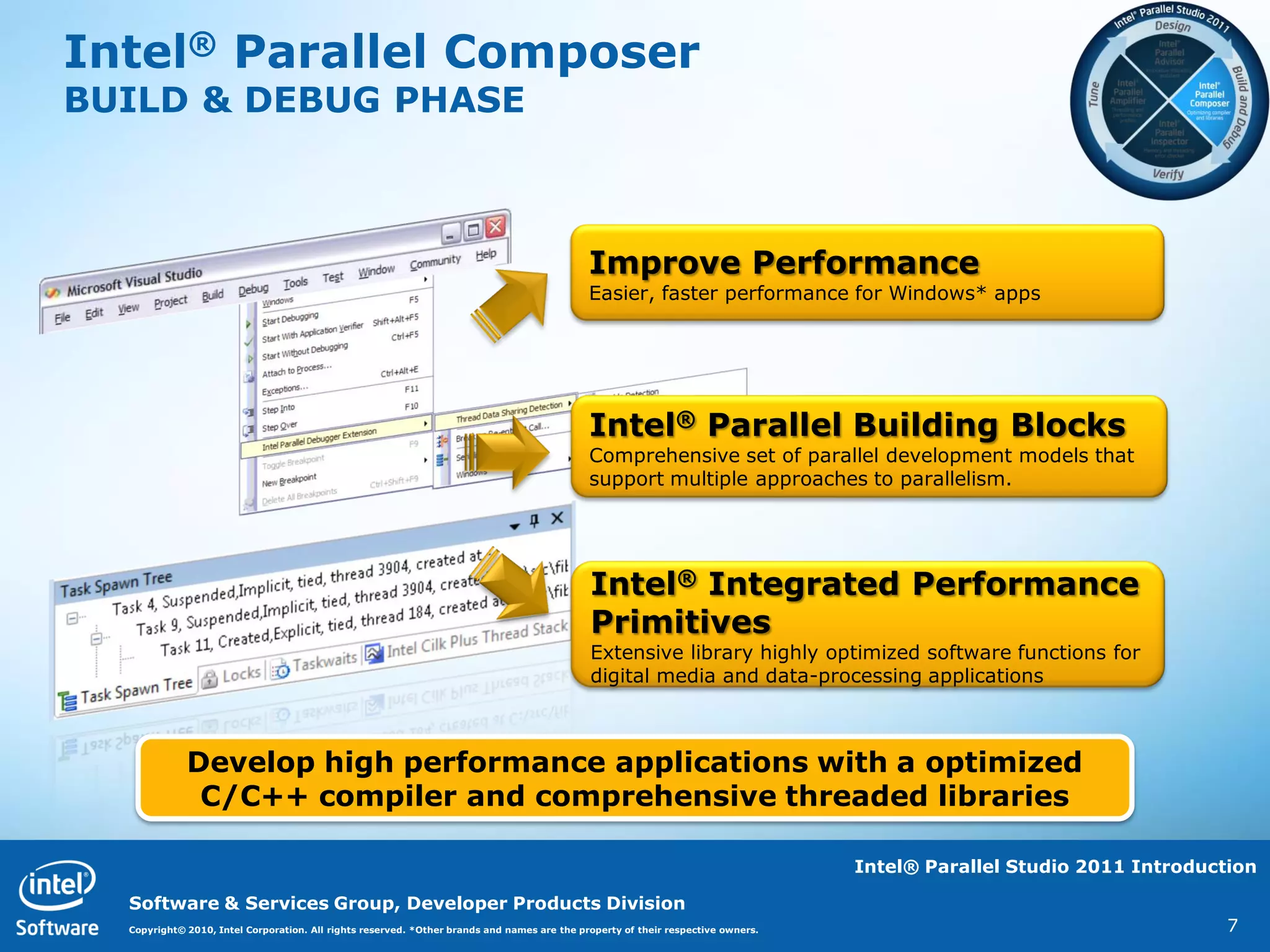

Intel® Parallel Composer
BUILD & DEBUG PHASE

Improve Performance
Easier, faster performance for Windows* apps

Intel® Parallel Building Blocks
Comprehensive set of parallel development models that
support multiple approaches to parallelism.

Intel® Integrated Performance
Primitives
Extensive library highly optimized software functions for
digital media and data-processing applications

Develop high performance applications with a optimized
C/C++ compiler and comprehensive threaded libraries

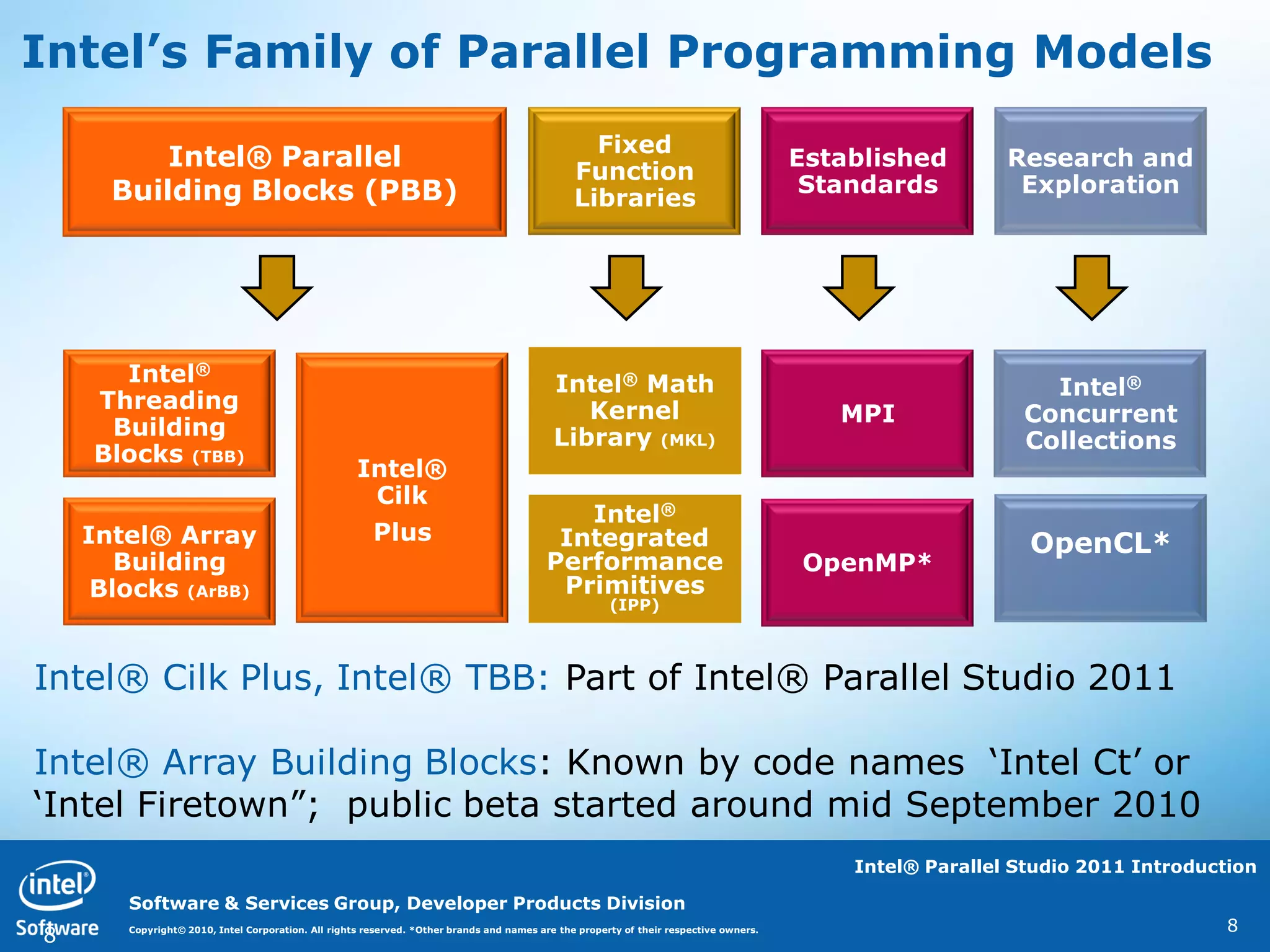

Intel’s Family of Parallel Programming Models
Fixed
Intel® Parallel Function
Established Research and
Building Blocks (PBB) Standards Exploration
Libraries

Intel® Intel® Math Intel®
Threading Kernel MPI Concurrent
Building Library (MKL) Collections
Blocks (TBB)
Intel®
Cilk
Intel®
Intel® Array Plus Integrated OpenCL*
Building Performance OpenMP*
Blocks (ArBB) Primitives
(IPP)

Intel® Cilk Plus, Intel® TBB: Part of Intel® Parallel Studio 2011

Intel® Array Building Blocks: Known by code names „Intel Ct‟ or
„Intel Firetown”; public beta started around mid September 2010

8
8 Copyright© 2010, Intel Corporation. All rights reserved. *Other brands and names are the property of their respective owners.

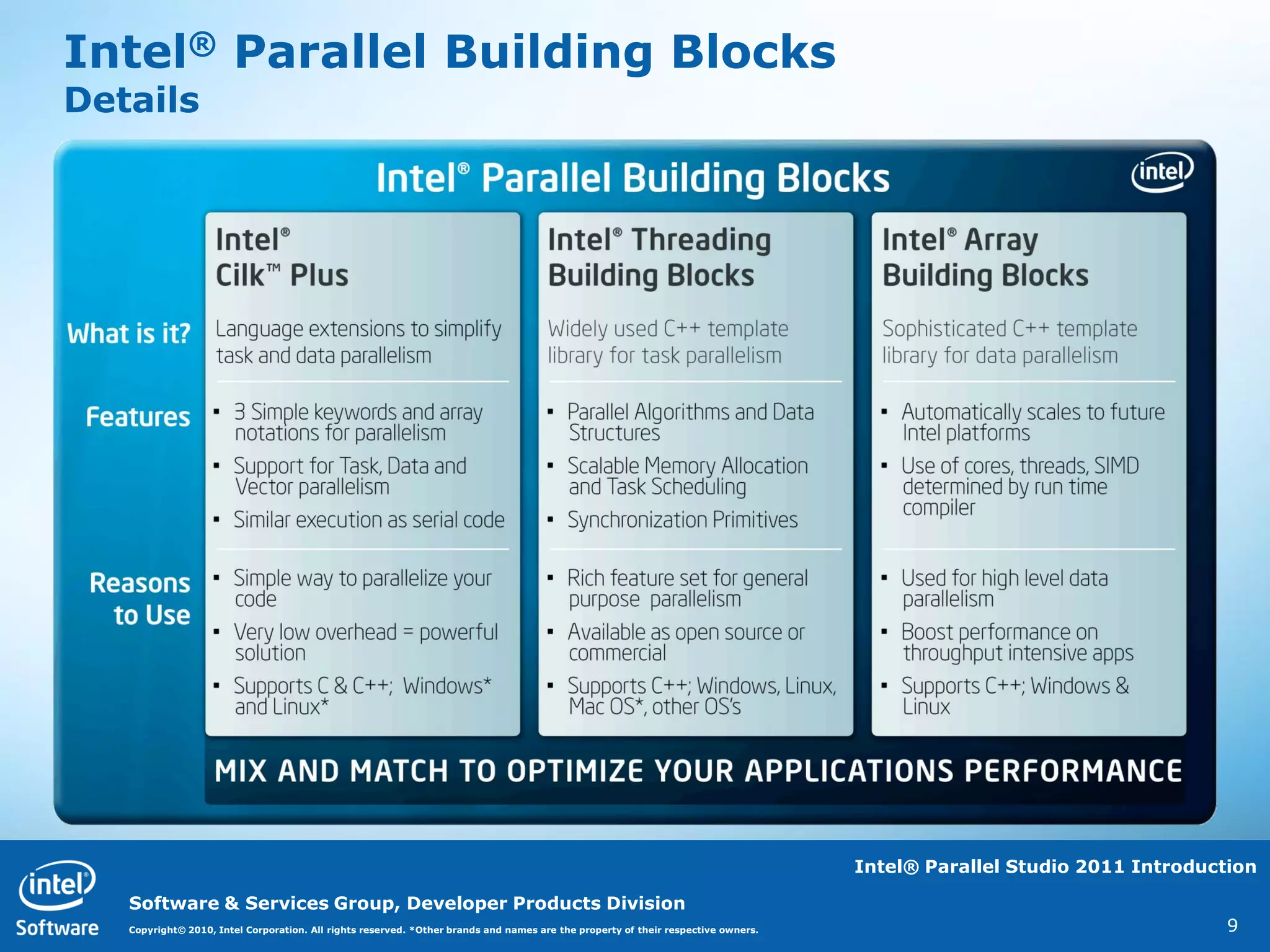

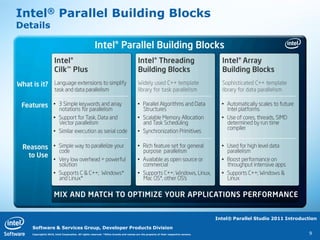

Intel® Parallel Building Blocks
Details

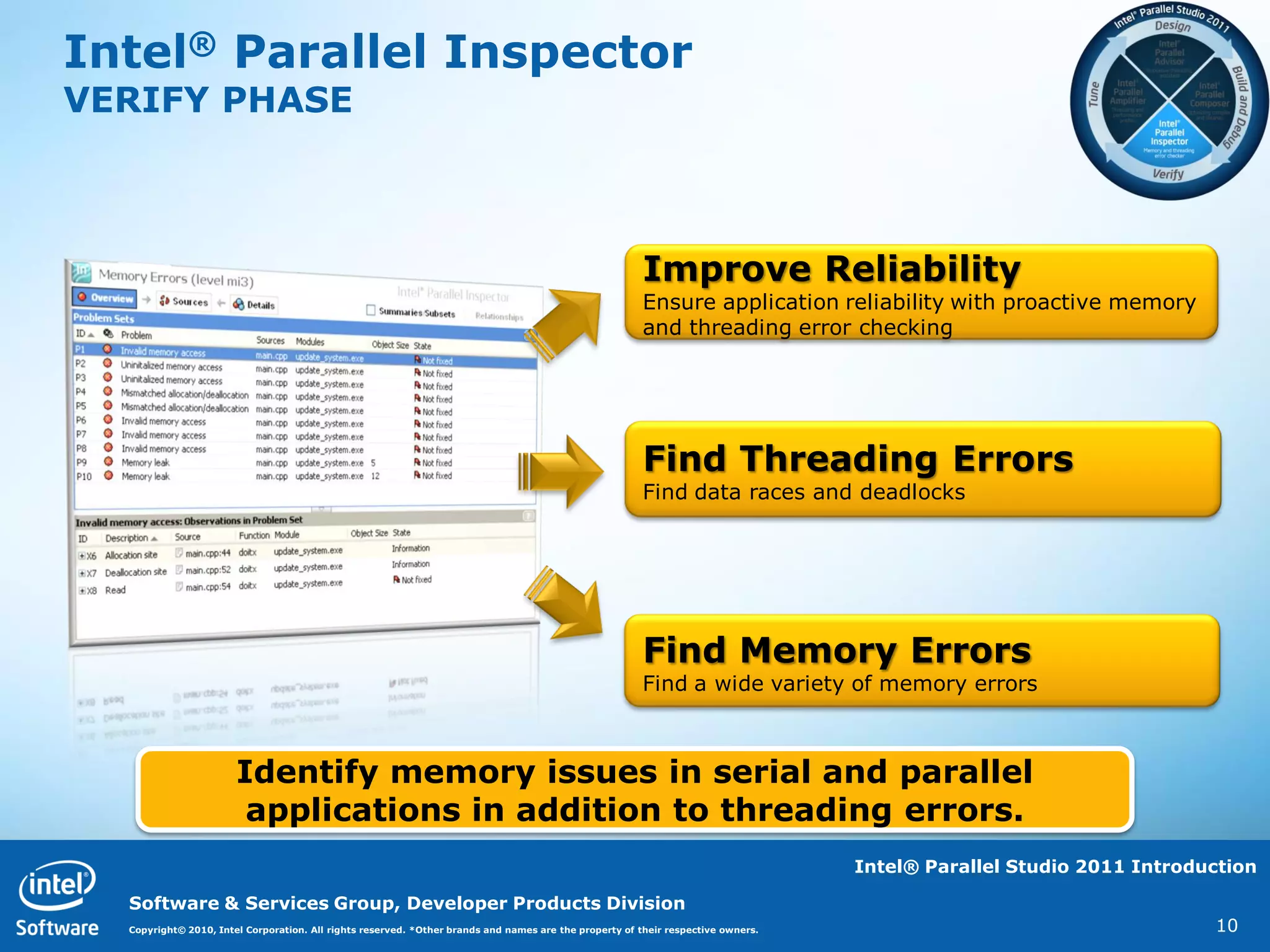

Intel® Parallel Inspector
VERIFY PHASE

Improve Reliability
Ensure application reliability with proactive memory
and threading error checking

Find Threading Errors
Find data races and deadlocks

Find Memory Errors
Find a wide variety of memory errors

Identify memory issues in serial and parallel
applications in addition to threading errors.

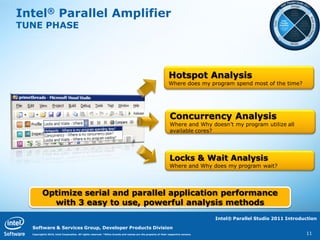

Intel® Parallel Amplifier
TUNE PHASE

Hotspot Analysis
Where does my program spend most of the time?

Concurrency Analysis
Where and Why doesn‟t my program utilize all
available cores?

Locks & Wait Analysis
Where and Why does my program wait?

Optimize serial and parallel application performance
with 3 easy to use, powerful analysis methods

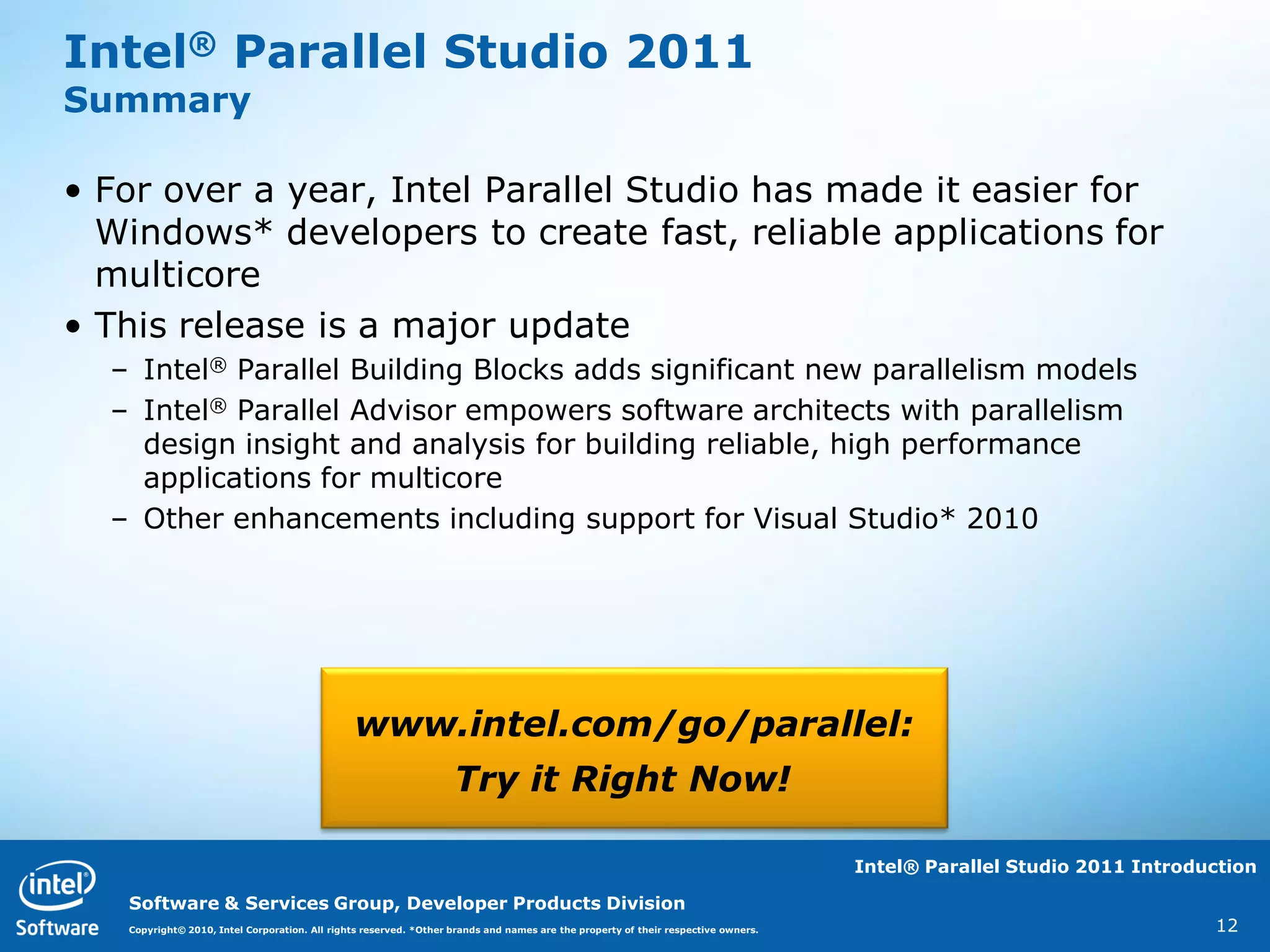

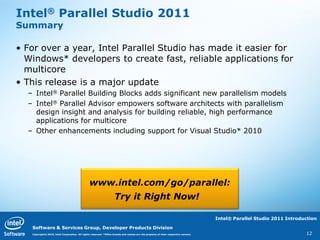

Summary

• For over a year, Intel Parallel Studio has made it easier for
Windows* developers to create fast, reliable applications for
multicore
• This release is a major update
– Intel® Parallel Building Blocks adds significant new parallelism models
– Intel® Parallel Advisor empowers software architects with parallelism
design insight and analysis for building reliable, high performance
applications for multicore
– Other enhancements including support for Visual Studio* 2010

www.intel.com/go/parallel:
Try it Right Now!

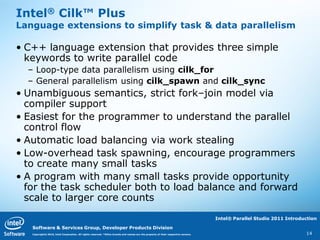

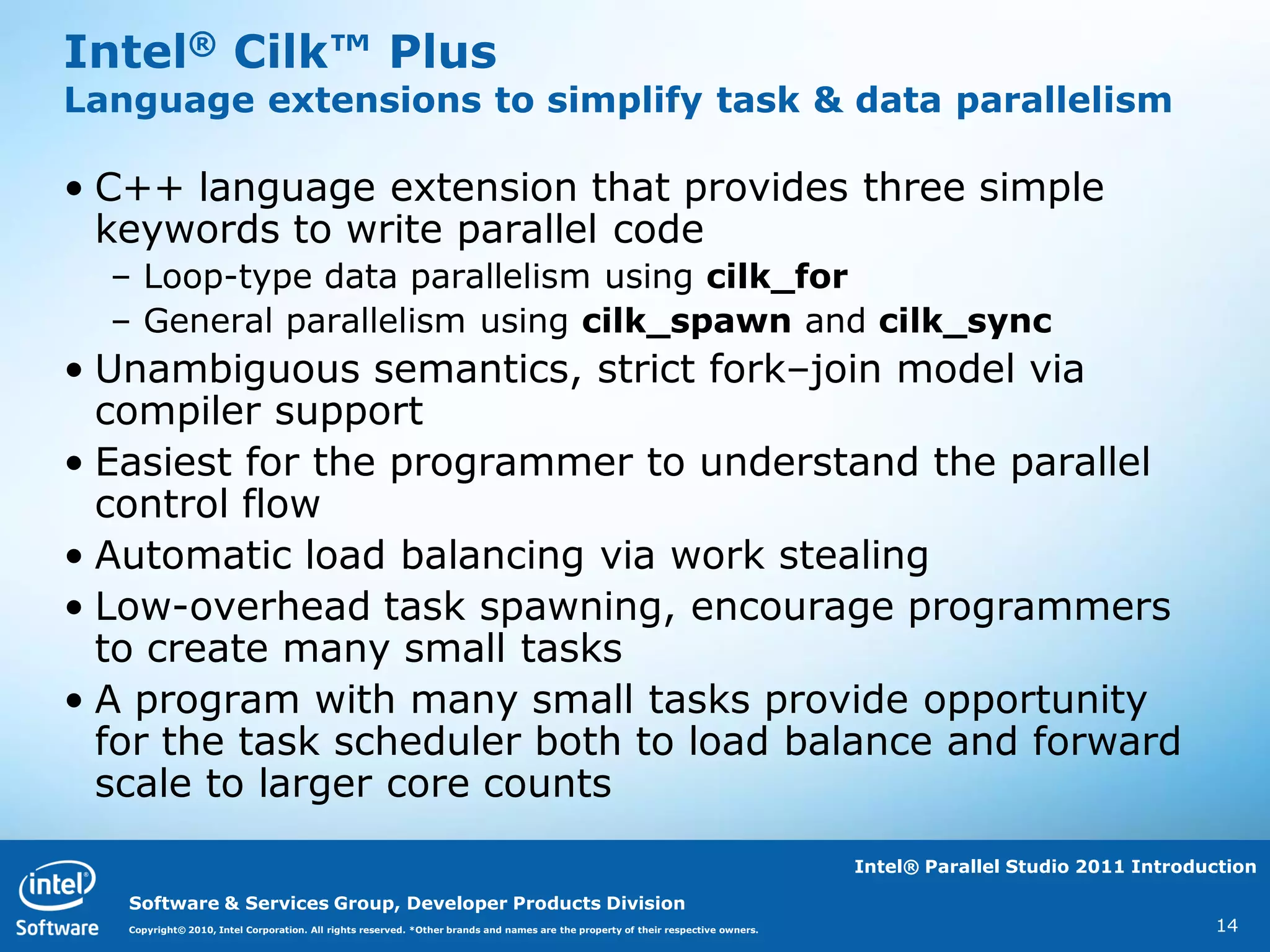

Intel® Cilk™ Plus
Language extensions to simplify task & data parallelism

• C++ language extension that provides three simple
keywords to write parallel code
– Loop-type data parallelism using cilk_for
– General parallelism using cilk_spawn and cilk_sync
• Unambiguous semantics, strict fork–join model via
compiler support
• Easiest for the programmer to understand the parallel
control flow
• Automatic load balancing via work stealing
• Low-overhead task spawning, encourage programmers
to create many small tasks
• A program with many small tasks provide opportunity
for the task scheduler both to load balance and forward
scale to larger core counts

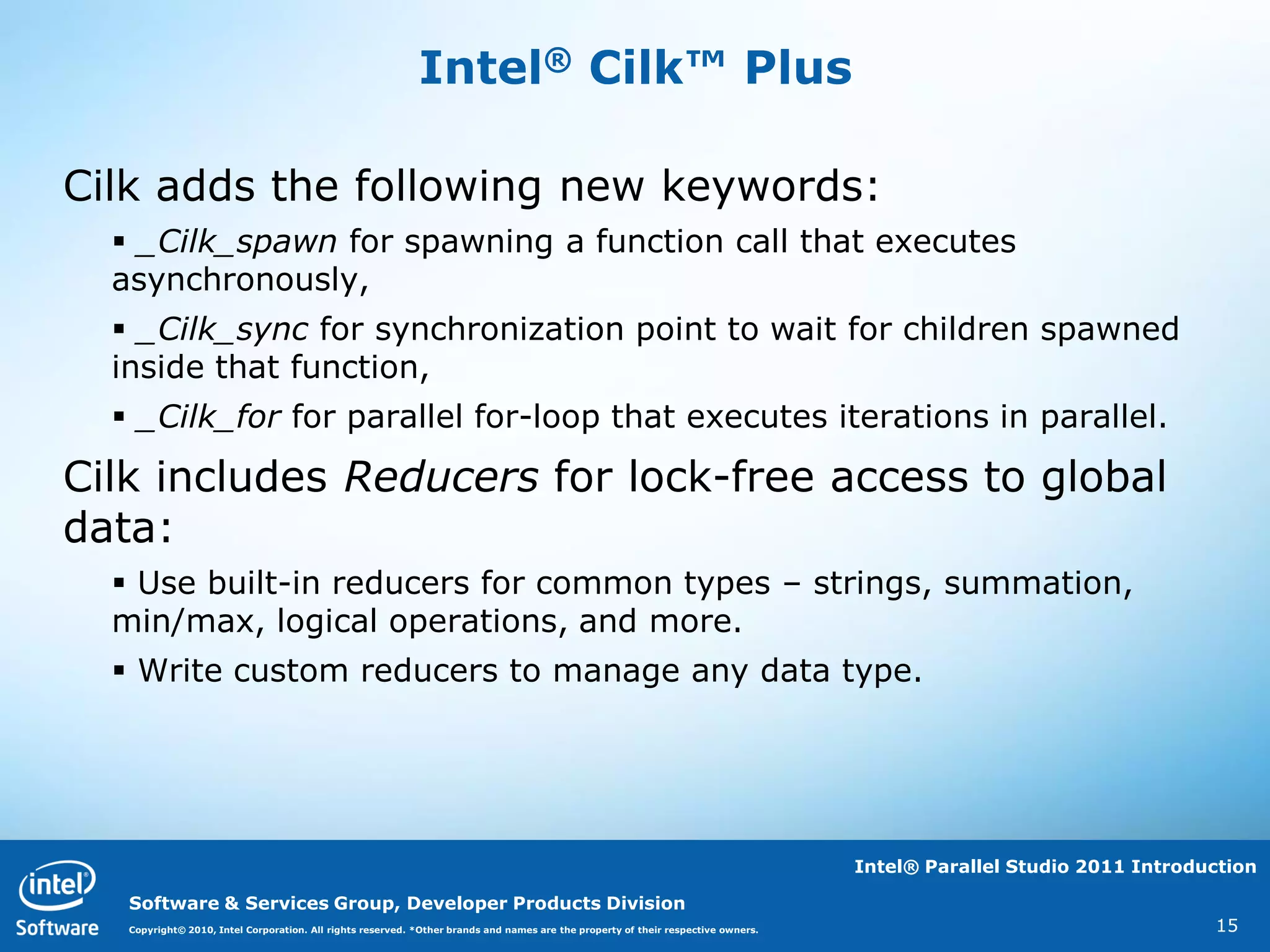

Intel® Cilk™ Plus

Cilk adds the following new keywords:
 _Cilk_spawn for spawning a function call that executes
asynchronously,
 _Cilk_sync for synchronization point to wait for children spawned
inside that function,
 _Cilk_for for parallel for-loop that executes iterations in parallel.

Cilk includes Reducers for lock-free access to global
data:
 Use built-in reducers for common types – strings, summation,
min/max, logical operations, and more.
 Write custom reducers to manage any data type.

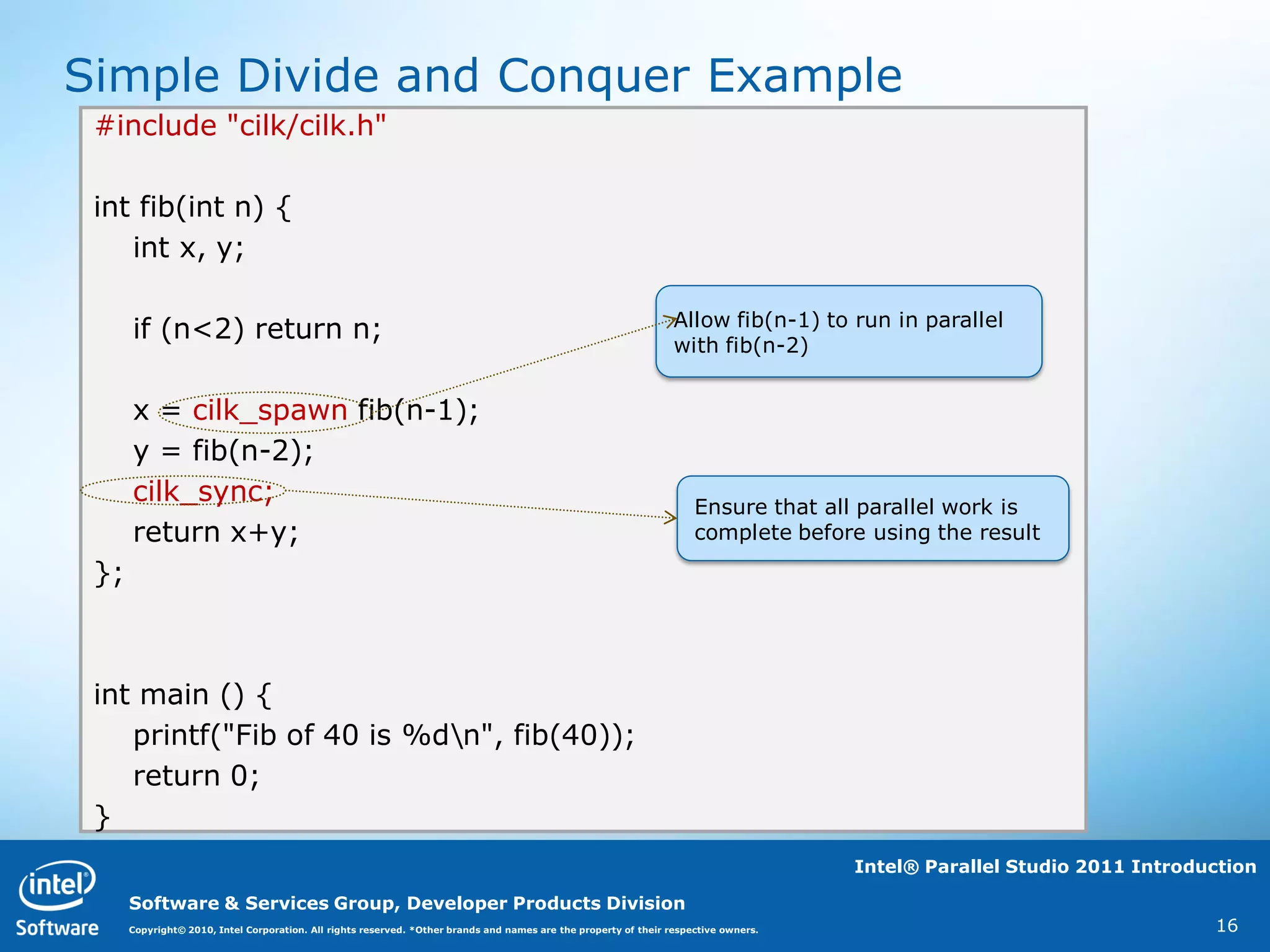

Simple Divide and Conquer Example
#include "cilk/cilk.h"

int fib(int n) {
int x, y;

Allow fib(n-1) to run in parallel
if (n<2) return n; with fib(n-2)

x = cilk_spawn fib(n-1);
y = fib(n-2);
cilk_sync; Ensure that all parallel work is
return x+y; complete before using the result

};

int main () {
printf("Fib of 40 is %dn", fib(40));
return 0;
}


Intel® Cilk Plus Tachyon Implementation

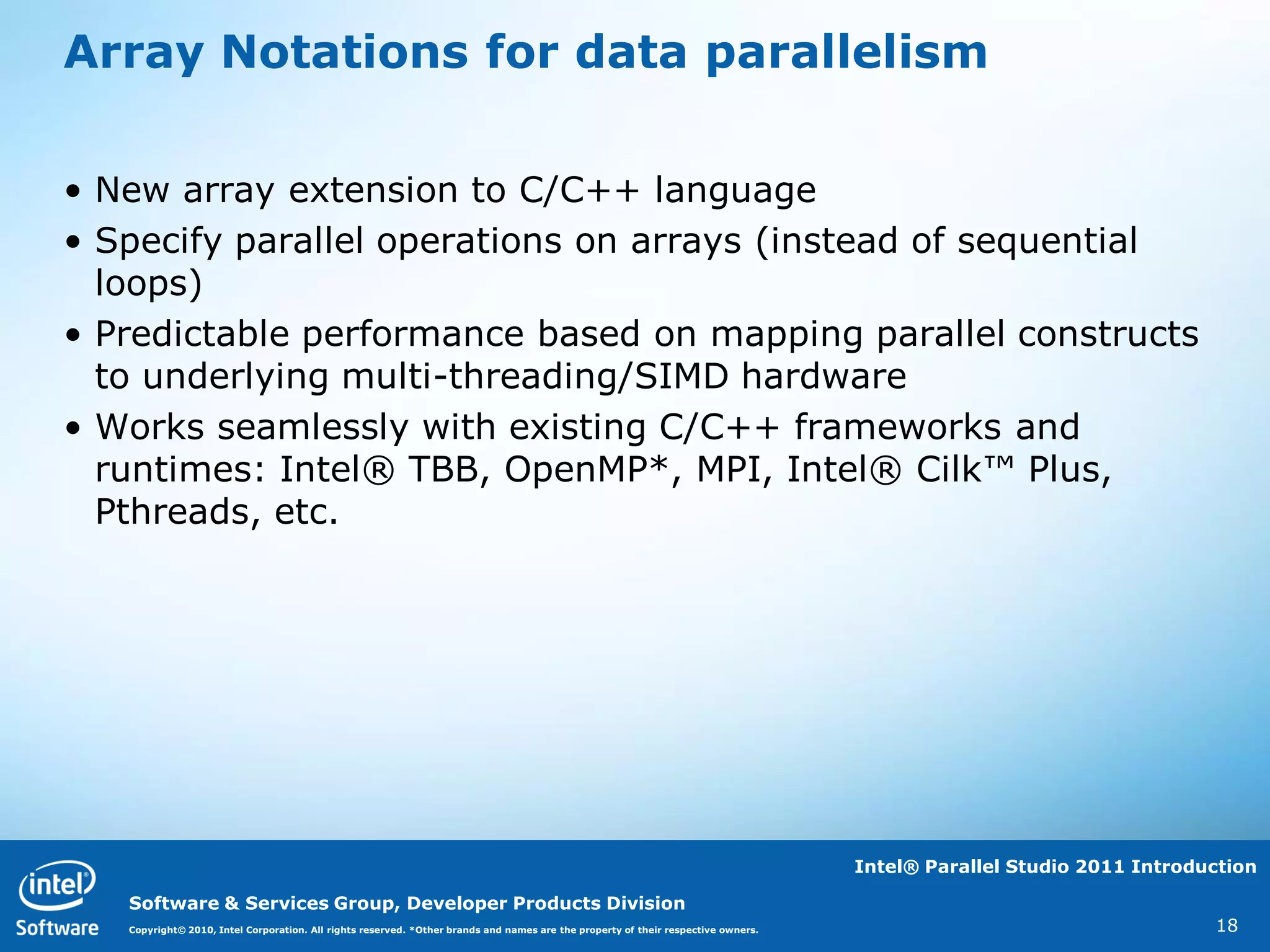

Array Notations for data parallelism

• New array extension to C/C++ language
• Specify parallel operations on arrays (instead of sequential
loops)
• Predictable performance based on mapping parallel constructs
to underlying multi-threading/SIMD hardware
• Works seamlessly with existing C/C++ frameworks and
runtimes: Intel® TBB, OpenMP*, MPI, Intel® Cilk™ Plus,
Pthreads, etc.

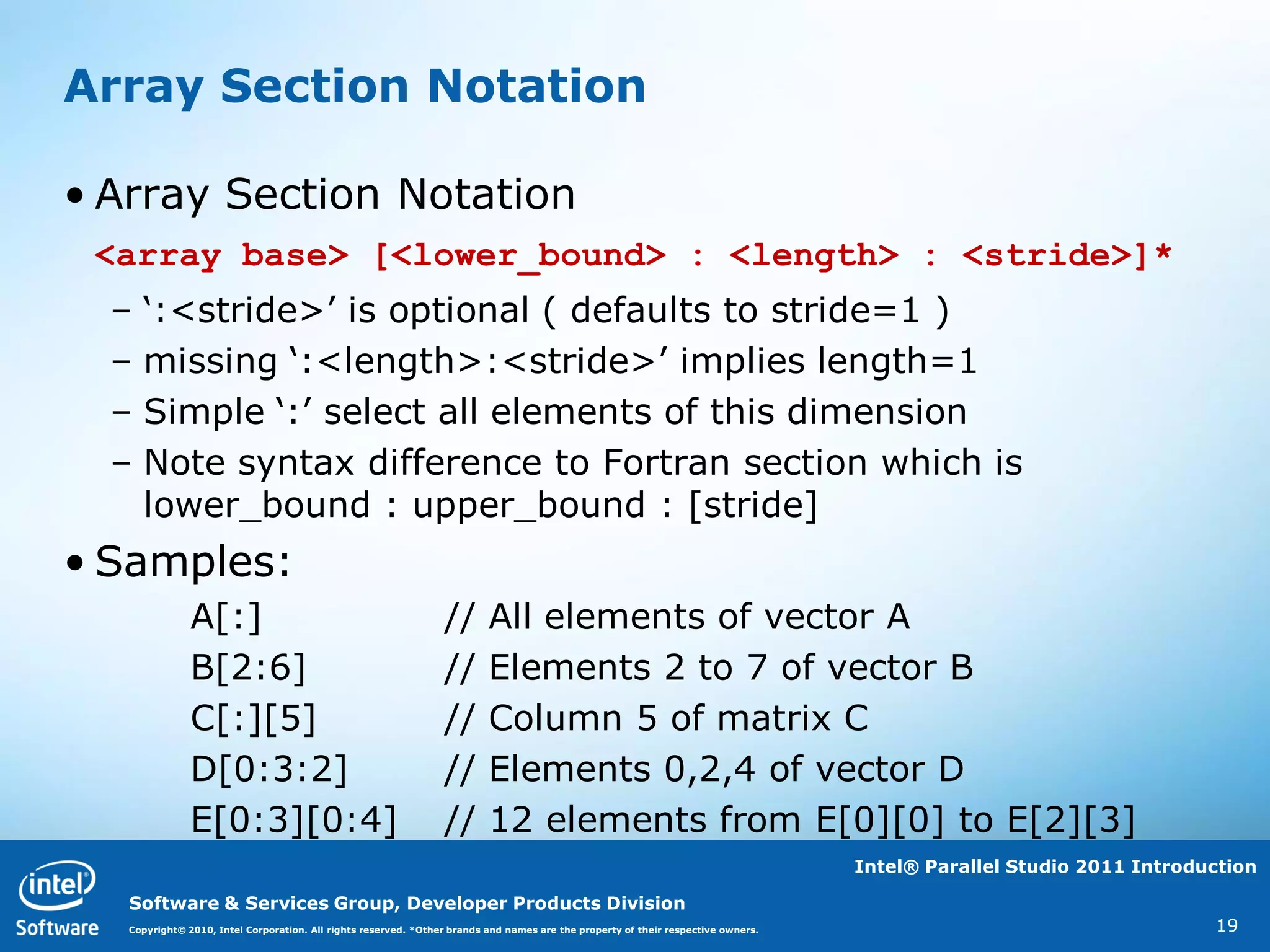

Array Section Notation

• Array Section Notation
<array base> [<lower_bound> : <length> : <stride>]*
– „:<stride>‟ is optional ( defaults to stride=1 )
– missing „:<length>:<stride>‟ implies length=1
– Simple „:‟ select all elements of this dimension
– Note syntax difference to Fortran section which is
lower_bound : upper_bound : [stride]
• Samples:
A[:] // All elements of vector A
B[2:6] // Elements 2 to 7 of vector B
C[:][5] // Column 5 of matrix C
D[0:3:2] // Elements 0,2,4 of vector D
E[0:3][0:4] // 12 elements from E[0][0] to E[2][3]

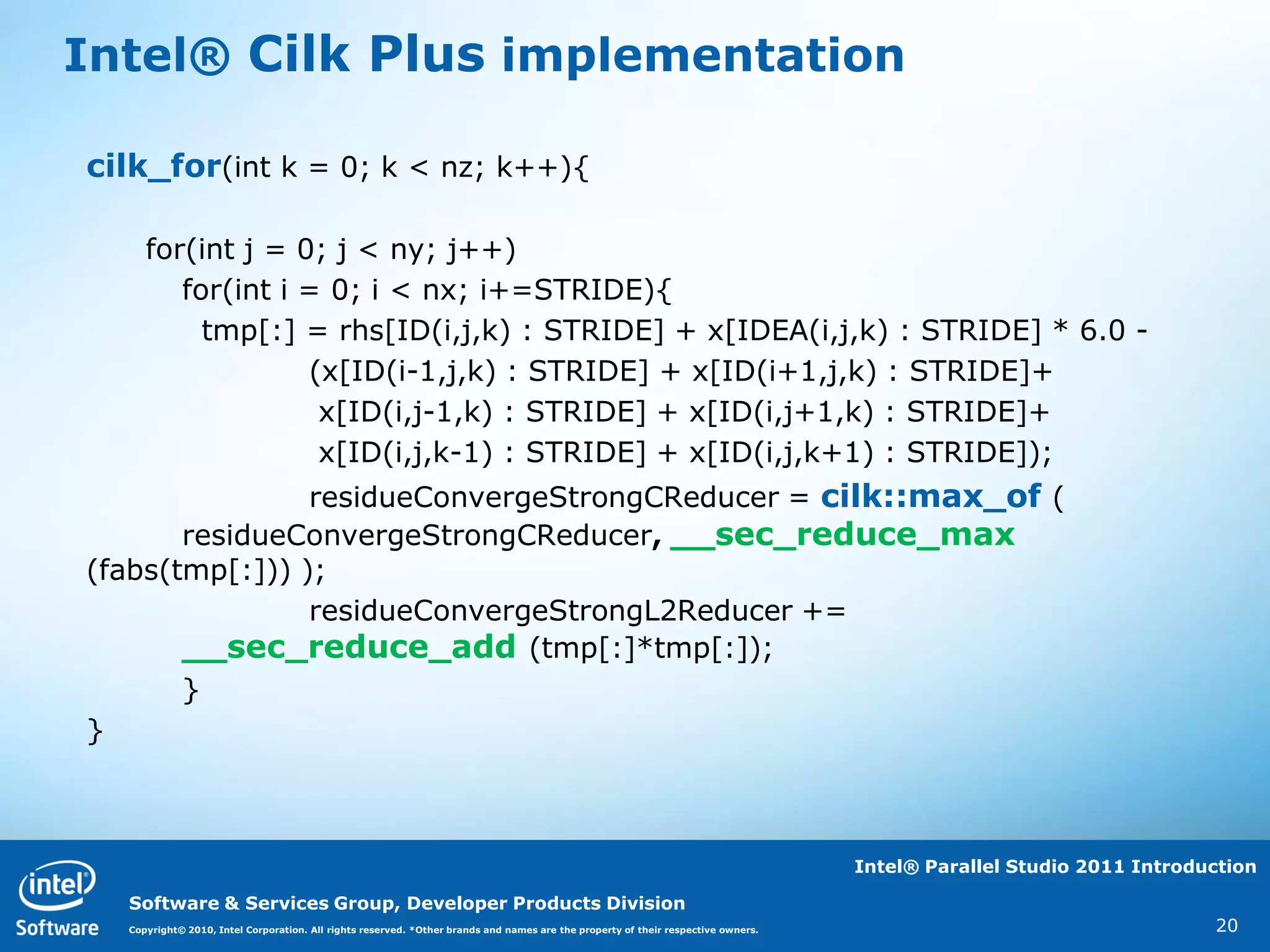

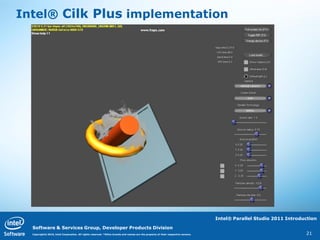

Intel® Cilk Plus implementation

cilk_for(int k = 0; k < nz; k++){

for(int j = 0; j < ny; j++)
for(int i = 0; i < nx; i+=STRIDE){
tmp[:] = rhs[ID(i,j,k) : STRIDE] + x[IDEA(i,j,k) : STRIDE] * 6.0 -
(x[ID(i-1,j,k) : STRIDE] + x[ID(i+1,j,k) : STRIDE]+
x[ID(i,j-1,k) : STRIDE] + x[ID(i,j+1,k) : STRIDE]+
x[ID(i,j,k-1) : STRIDE] + x[ID(i,j,k+1) : STRIDE]);
residueConvergeStrongCReducer = cilk::max_of (
residueConvergeStrongCReducer, __sec_reduce_max
(fabs(tmp[:])) );
residueConvergeStrongL2Reducer +=
__sec_reduce_add (tmp[:]*tmp[:]);
}
}

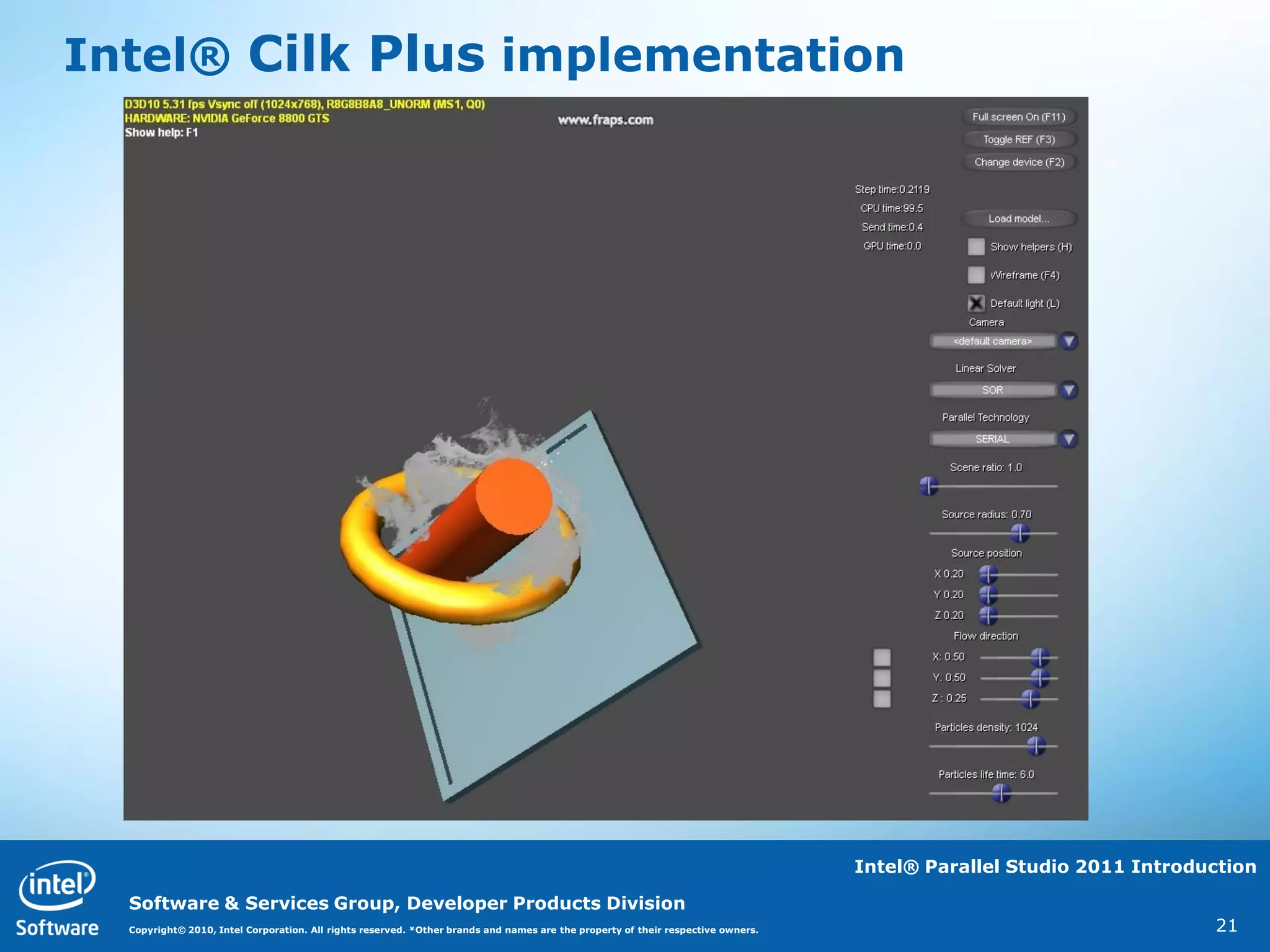

Intel® Cilk Plus implementation

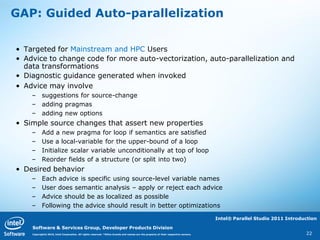

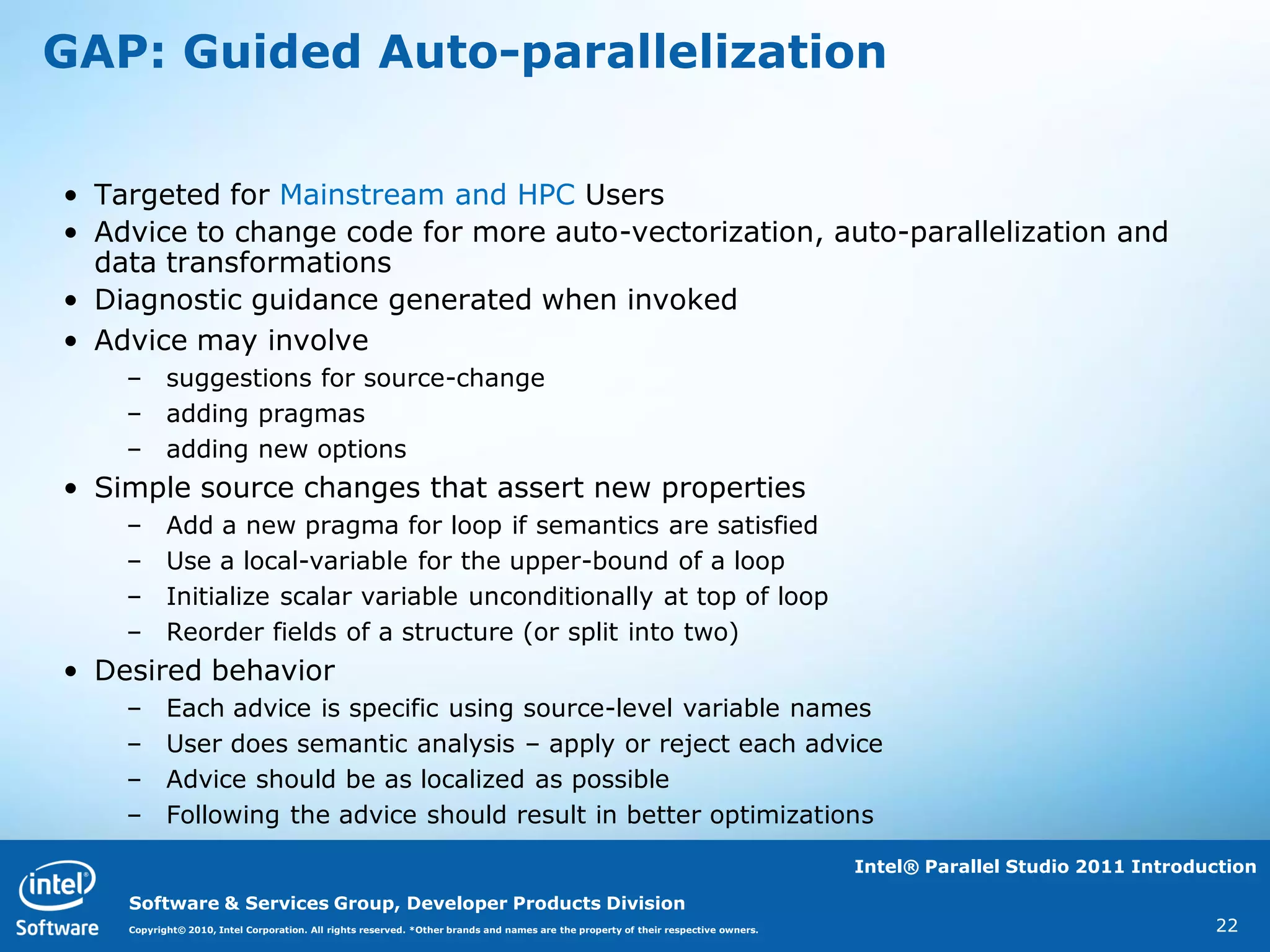

GAP: Guided Auto-parallelization

• Targeted for Mainstream and HPC Users
• Advice to change code for more auto-vectorization, auto-parallelization and
data transformations
• Diagnostic guidance generated when invoked
• Advice may involve
– suggestions for source-change
– adding pragmas
– adding new options
• Simple source changes that assert new properties
– Add a new pragma for loop if semantics are satisfied
– Use a local-variable for the upper-bound of a loop
– Initialize scalar variable unconditionally at top of loop
– Reorder fields of a structure (or split into two)
• Desired behavior
– Each advice is specific using source-level variable names
– User does semantic analysis – apply or reject each advice
– Advice should be as localized as possible
– Following the advice should result in better optimizations

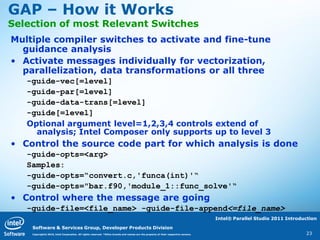

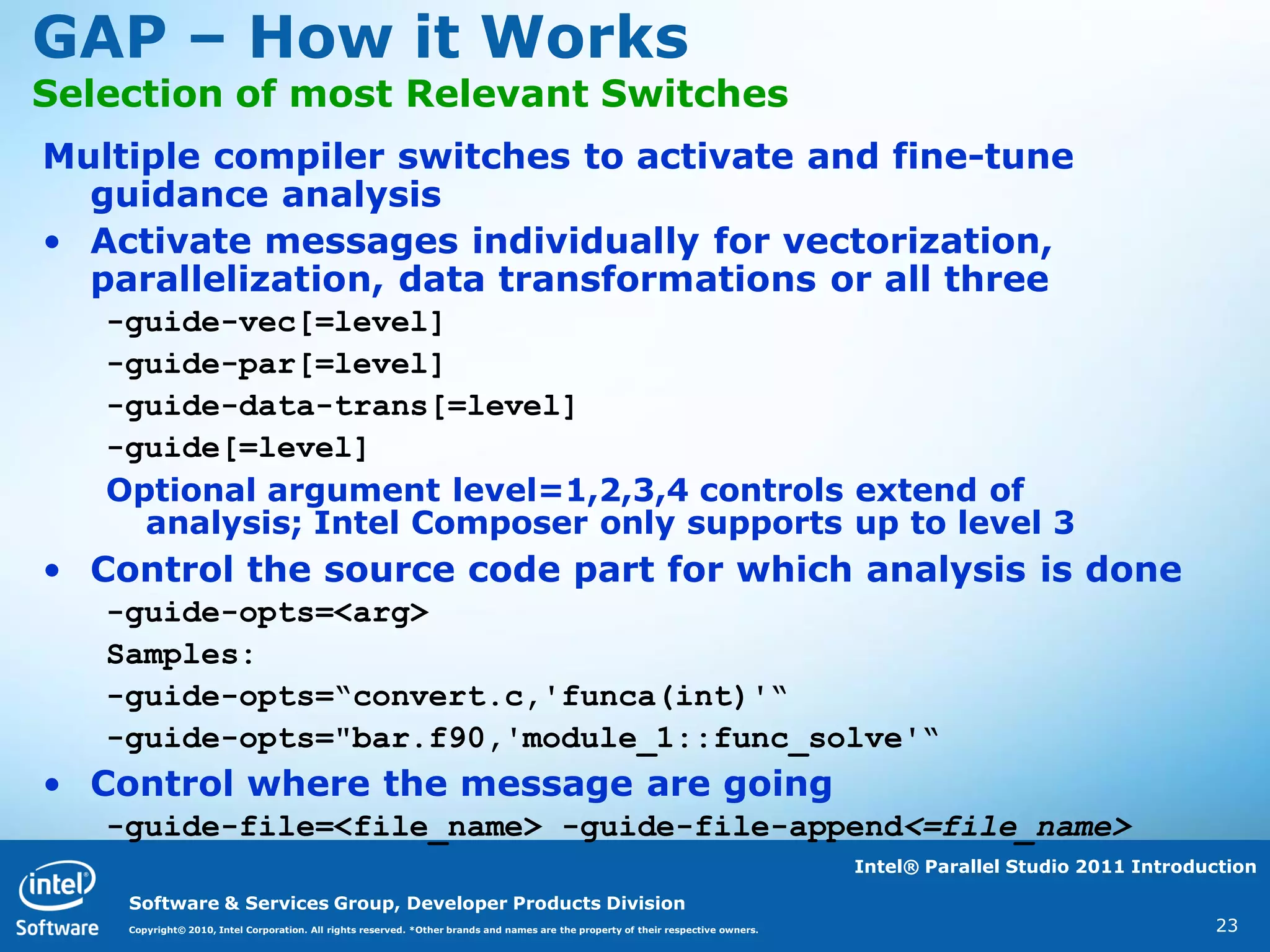

GAP – How it Works
Selection of most Relevant Switches
Multiple compiler switches to activate and fine-tune
guidance analysis
• Activate messages individually for vectorization,
parallelization, data transformations or all three
-guide-vec[=level]
-guide-par[=level]
-guide-data-trans[=level]
-guide[=level]
Optional argument level=1,2,3,4 controls extend of
analysis; Intel Composer only supports up to level 3
• Control the source code part for which analysis is done
-guide-opts=<arg>
Samples:
-guide-opts=“convert.c,'funca(int)'“
-guide-opts="bar.f90,'module_1::func_solve'“
• Control where the message are going
-guide-file=<file_name> -guide-file-append<=file_name>

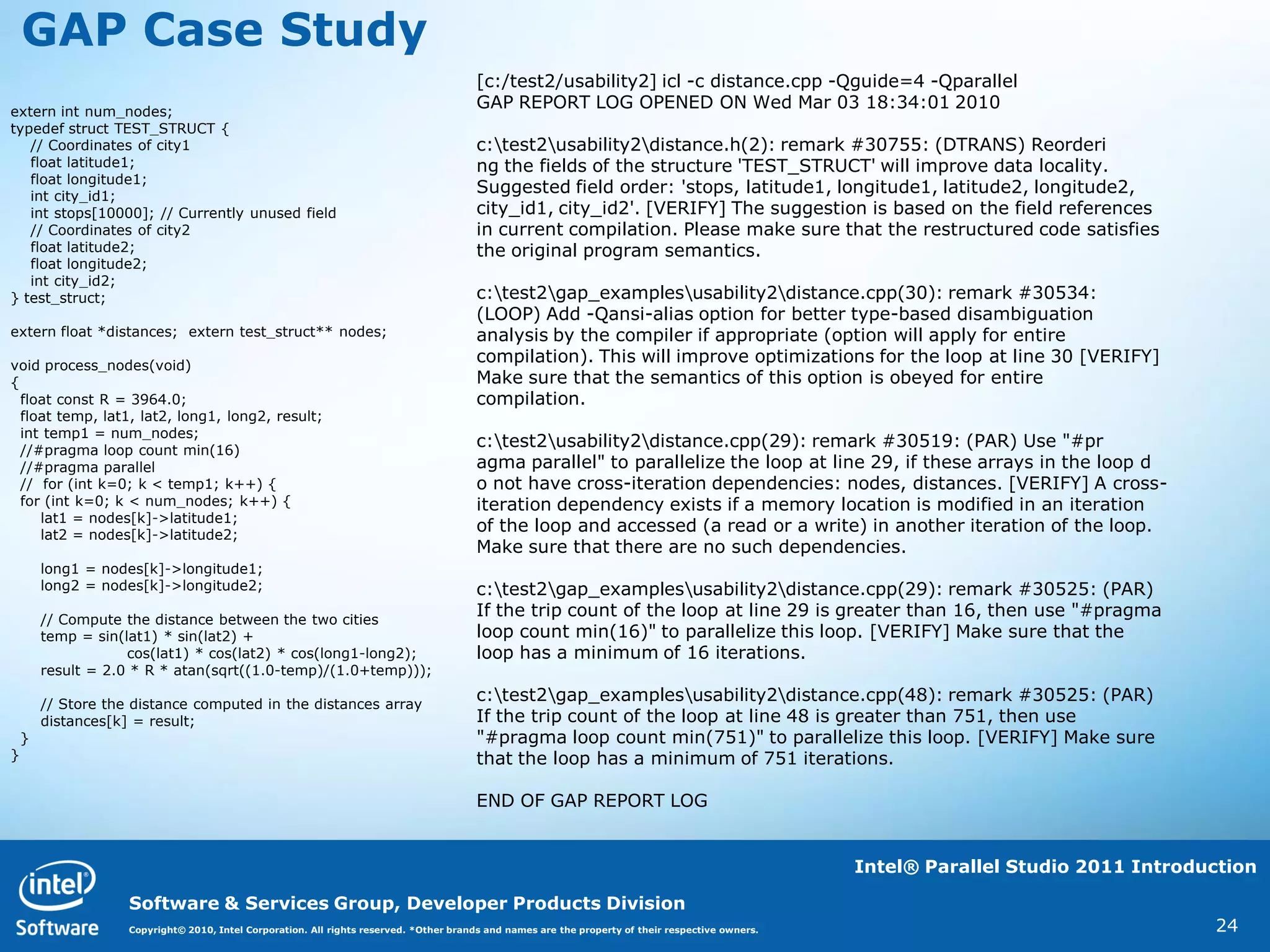

GAP Case Study
[c:/test2/usability2] icl -c distance.cpp -Qguide=4 -Qparallel
extern int num_nodes;
GAP REPORT LOG OPENED ON Wed Mar 03 18:34:01 2010
typedef struct TEST_STRUCT {
// Coordinates of city1 c:test2usability2distance.h(2): remark #30755: (DTRANS) Reorderi
float latitude1; ng the fields of the structure 'TEST_STRUCT' will improve data locality.
float longitude1;
int city_id1;
Suggested field order: 'stops, latitude1, longitude1, latitude2, longitude2,
int stops[10000]; // Currently unused field city_id1, city_id2'. [VERIFY] The suggestion is based on the field references
// Coordinates of city2 in current compilation. Please make sure that the restructured code satisfies
float latitude2; the original program semantics.
float longitude2;
int city_id2;
} test_struct; c:test2gap_examplesusability2distance.cpp(30): remark #30534:
(LOOP) Add -Qansi-alias option for better type-based disambiguation
extern float *distances; extern test_struct** nodes; analysis by the compiler if appropriate (option will apply for entire
void process_nodes(void)
compilation). This will improve optimizations for the loop at line 30 [VERIFY]
{ Make sure that the semantics of this option is obeyed for entire
float const R = 3964.0; compilation.
float temp, lat1, lat2, long1, long2, result;
int temp1 = num_nodes;
//#pragma loop count min(16)
c:test2usability2distance.cpp(29): remark #30519: (PAR) Use "#pr
//#pragma parallel agma parallel" to parallelize the loop at line 29, if these arrays in the loop d
// for (int k=0; k < temp1; k++) { o not have cross-iteration dependencies: nodes, distances. [VERIFY] A cross-
for (int k=0; k < num_nodes; k++) { iteration dependency exists if a memory location is modified in an iteration
lat1 = nodes[k]->latitude1;
lat2 = nodes[k]->latitude2;
of the loop and accessed (a read or a write) in another iteration of the loop.
Make sure that there are no such dependencies.
long1 = nodes[k]->longitude1;
long2 = nodes[k]->longitude2; c:test2gap_examplesusability2distance.cpp(29): remark #30525: (PAR)
// Compute the distance between the two cities
If the trip count of the loop at line 29 is greater than 16, then use "#pragma
temp = sin(lat1) * sin(lat2) + loop count min(16)" to parallelize this loop. [VERIFY] Make sure that the
cos(lat1) * cos(lat2) * cos(long1-long2); loop has a minimum of 16 iterations.
result = 2.0 * R * atan(sqrt((1.0-temp)/(1.0+temp)));

// Store the distance computed in the distances array
c:test2gap_examplesusability2distance.cpp(48): remark #30525: (PAR)
distances[k] = result; If the trip count of the loop at line 48 is greater than 751, then use
} "#pragma loop count min(751)" to parallelize this loop. [VERIFY] Make sure
} that the loop has a minimum of 751 iterations.

END OF GAP REPORT LOG



Intel® Debugger &
Intel® Parallel Debugger Extension

Intel® Debugger (IDB) Intel® Parallel Debugger
Extension

Linux* Mac*OS Windows*

Intel® C++ Composer XE Intel® C++ Composer XE Intel® C++ Composer XE
Intel® Fortran Composer XE Intel® Fortran Composer XE Intel® Visual Fortran Composer XE
Intel® Cluster Toolkit
Compiler Edition


Key Features

Thread Shared Data Event Detection
Break on Thread Shared Data Access (read/write)
Re-entrant Function Detection
SIMD SSE Registers Window
Enhanced OpenMP* Support
Serialize OpenMP threaded application execution on the
fly
Insight into thread groups, barriers, locks, wait lists etc.



Questions?



Legal Disclaimer

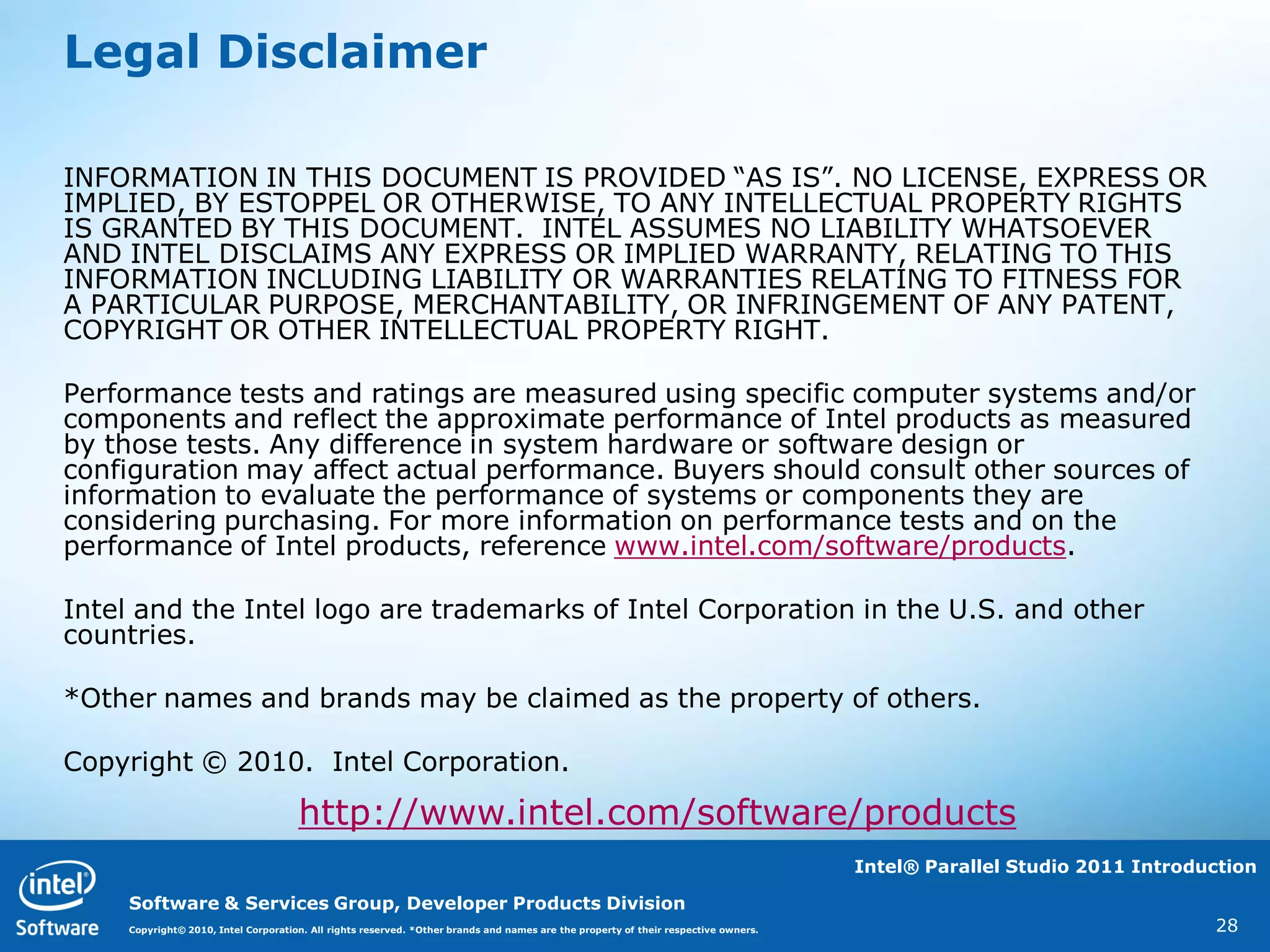

INFORMATION IN THIS DOCUMENT IS PROVIDED “AS IS”. NO LICENSE, EXPRESS OR
IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS
IS GRANTED BY THIS DOCUMENT. INTEL ASSUMES NO LIABILITY WHATSOEVER
AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO THIS
INFORMATION INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR
A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,
COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

Performance tests and ratings are measured using specific computer systems and/or
components and reflect the approximate performance of Intel products as measured
by those tests. Any difference in system hardware or software design or
configuration may affect actual performance. Buyers should consult other sources of
information to evaluate the performance of systems or components they are
considering purchasing. For more information on performance tests and on the
performance of Intel products, reference www.intel.com/software/products.

Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other
countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2010. Intel Corporation.

http://www.intel.com/software/products


Обзор современных возможностей по распараллеливанию и векторизации приложений с использованием Parallels Composer

More Related Content

What's hot

Similar to Обзор современных возможностей по распараллеливанию и векторизации приложений с использованием Parallels Composer

More from yaevents

Обзор современных возможностей по распараллеливанию и векторизации приложений с использованием Parallels Composer
