- 1. Android and Intel inside ChristophJechlitschek Software and Services Group Intel Corporation
- 2. Agenda •Android* on IA Momentum •Developing Android Apps for IA •App Development with x86 NDK

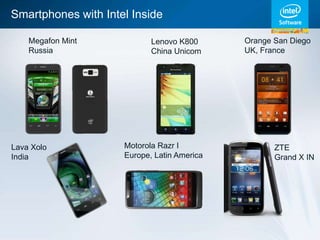

- 3. Smartphones with IntelInside Megafon Mint Lenovo K800 Orange San Diego Russia China Unicom UK, France Lava Xolo Motorola Razr I ZTE India Europe, Latin America Grand X IN

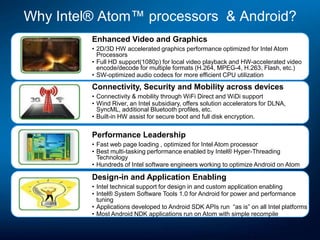

- 4. Why Intel® Atom™processors & Android? Enhanced Video and Graphics • 2D/3D HW accelerated graphics performance optimized for Intel Atom Processors • Full HD support(1080p) for local video playback and HW-accelerated video encode/decode for multiple formats (H.264, MPEG-4, H.263, Flash, etc.) • SW-optimized audio codecs for more efficient CPU utilization Connectivity, Security and Mobility across devices • Connectivity & mobility through WiFi Direct and WiDi support • Wind River, an Intel subsidiary, offers solution accelerators for DLNA, SyncML, additional Bluetooth profiles, etc. • Built-in HW assist for secure boot and full disk encryption. Performance Leadership • Fast web page loading , optimized for Intel Atom processor • Best multi-tasking performance enabled by Intel® Hyper-Threading Technology • Hundreds of Intel software engineers working to optimize Android on Atom Design-in and Application Enabling • Intel technical support for design in and custom application enabling • Intel® System Software Tools 1.0 for Android for power and performance tuning • Applications developed to Android SDK APIs run “as is” on all Intel platforms • Most Android NDK applications run on Atom with simple recompile
- 5. Focusing on MobileExperiences Applications & Services, Operating Systems, Platforms and Silicon BRAND EXPERIENC SECURITY TECHNOLOG ES Y + 2012 2013 2014 32nm 22nm 14nm #7 Largest And More Dedicated Security Company Entertainment Business Education Gaming Basic
- 6. Agenda •Android* on IA Momentum •Developing Android Apps for IA •App Development with x86 NDK
- 7. Android* on Intel®Atom™ processor-based platforms Applications Apps Home Contacts Phone Browser … Application Framework Experience Activity Windows Content View … Manager Manager Providers System Notifica- User Package Telephony Resource Location tion Manager Manager Manager Manager Manager Libraries Android Runtime Surface Media Core Middleware Manager Framework SQLite Libraries Dalvik OpenGL | ES FreeType WebKit Virtual Machine SGL SSL libc … Linux Kernel Operating Display Camera Flash Binder System Driver Driver Memory (IPC) Driver Driver Keypad WiFi Audio Power Driver Driver Drivers Manage- ment
- 8. Android* Optimizations forIntel® Atom™-based devices Performance Tuning Power Reduction • Dalvik VM runtime optimization • Power Management for Android • x86 trace-based JIT and Native • OpenGL ES 1.1/2.0 Driver Code Generation • Enriched memory management • HW Overlay (e.g., garbage collection) • HW Accelerated Media • JNI streamlining decode/encode • Tuning of native libraries • Library to integrate w/ Android & reference implementation (MIX) • Bionic optimizations • Standard SoC • Javascript & HTML5 optimization drivers, middleware and applications optimized for power Intel has a rich history optimizing Java for IA. We’ve applied that knowledge to Dalvik Java with impressive results
- 9. Performance Gains fromoptimizations Dalvik Runtime Optimizations Android* Native Library 1.8 No SSE2 with SSE No Trace JIT1 Trace JIT enabled 1.6 7 1.4 6 1.2 Performance 5 4 1 Performance 3 0.8 2 0.6 1 0.4 0 0.2 Linpack CaffeineMark 0 Up to 6x Improvement! HTML5 HTML5 HTML5 HTML5 JetBoy* Album Slideshow Zoom Fancy Show Animation Stress Slideshow(SA) Significant improvements in both web (HTML5) and Java* workloads due to optimizations for Intel Source: Intel Software and Solutions Group SSE instructions in Android graphics libraries. 1 Intel Z670 reference design with Honeycomb 2 SSE = Streaming SIMD Testing on Medfield (Z2460) CDK with Gingerbread.

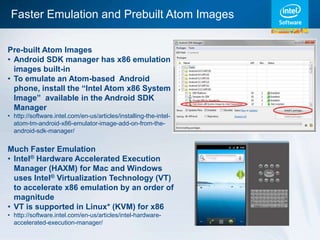

- 10. Faster Emulation andPrebuilt Atom Images Pre-built Atom Images • Android SDK manager has x86 emulation images built-in • To emulate an Atom-based Android phone, install the “Intel Atom x86 System Image” available in the Android SDK Manager • http://software.intel.com/en-us/articles/installing-the-intel- atom-tm-android-x86-emulator-image-add-on-from-the- android-sdk-manager/ Much Faster Emulation • Intel® Hardware Accelerated Execution Manager (HAXM) for Mac and Windows uses Intel® Virtualization Technology (VT) to accelerate x86 emulation by an order of magnitude • VT is supported in Linux* (KVM) for x86 • http://software.intel.com/en-us/articles/intel-hardware- accelerated-execution-manager/
- 11. Intel® Graphics PerformanceAnalyzers (Intel® GPA) System Analyzer • Provides real-time performance analysis of your OpenGL-ES* applications • Conduct real-time experiments with OpenGL-ES* state overrides • Triage system-level performance with CPU, Power and GPU metrics Note: Public release of Intel GPA for Android* is targeted for 2H-2012

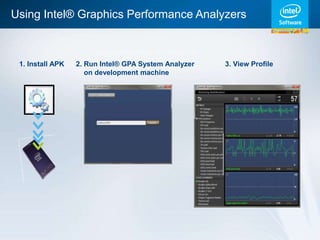

- 12. Using Intel® GraphicsPerformance Analyzers 1. Install APK 2. Run Intel® GPA System Analyzer 3. View Profile on development machine
- 13. Agenda •Android* on IA Momentum •Developing Android Apps for IA •App Development with x86 NDK
- 14. Android* Native DevelopmentKit (NDK) Build scripts/toolkit to incorporate native c/c++ code in Android Apps via JNI Why Use NDK? • Performance intensive tasks • e.g.: signal-processing/custom-algorithms • Differentiated app that takes advantage of direct CPU/HW access • e.g.: specialized games • Software Code reuse • Legacy Code • Huge legacy IA code base & libraries
- 15. Android* Application Overview Dalvik Application Android NDK Application Java Native Java Library Source Compile Compile with Javac with Javac Dynamic Java Native Android Library Library Class App Class Application File Compile and Create C header Link C Code with Javah -jni Makefile C Source Header Code File

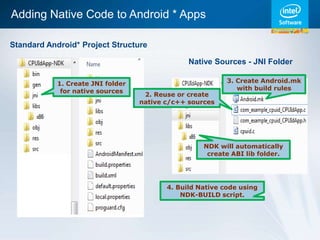

- 16. Adding Native Codeto Android * Apps Standard Android* Project Structure Native Sources - JNI Folder 1. Create JNI folder 3. Create Android.mk for native sources with build rules 2. Reuse or create native c/c++ sources NDK will automatically create ABI lib folder. 4. Build Native code using NDK-BUILD script.
- 17. Creating NDK-based Apps:Code Re-use Example 1. Create default Android* App project ~/labs/lab2$ android create project --target android-13 --activity CPUIdApp -- package com.example.cpuid --path .
- 18. Sample Native Codefor CPUID

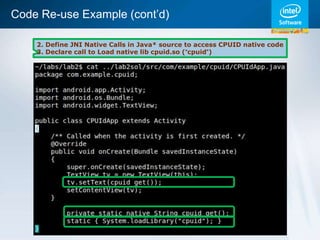

- 19. Code Re-use Example(cont’d) 2. Define JNI Native Calls in Java* source to access CPUID native code 3. Declare call to Load native lib cpuid.so (“cpuid”)

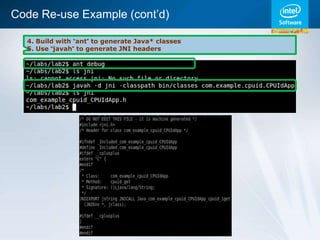

- 20. Code Re-use Example(cont’d) 4. Build with “ant” to generate Java* classes 5. Use “javah” to generate JNI headers

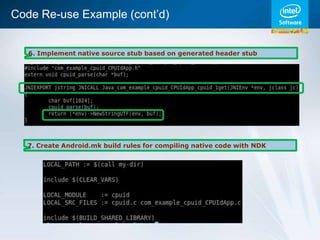

- 21. Code Re-use Example(cont’d) 6. Implement native source stub based on generated header stub 7. Create Android.mk build rules for compiling native code with NDK
- 22. Code Re-use Example(cont’d) 8. Compile native sources with “ndk-build” script : specify APP_ABI=x86 9. Rebuild the final APK with ant, and optional install on emulator!

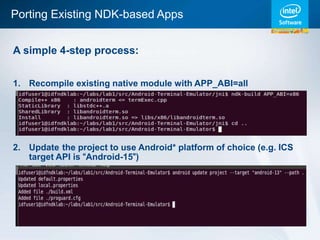

- 23. Porting Existing NDK-basedApps A simple 4-step process: 1. Recompile existing native module with APP_ABI=all 2. Update the project to use Android* platform of choice (e.g. ICS target API is “Android-15”)

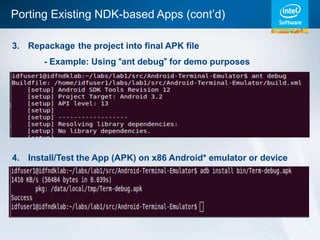

- 24. Porting Existing NDK-basedApps (cont’d) 3. Repackage the project into final APK file - Example: Using “ant debug” for demo purposes 4. Install/Test the App (APK) on x86 Android* emulator or device
- 25. NDK Tips: Letthe NDK Do the Hard Work • Include all ABIs in jni/Application.mk Build ARM v5… Build ARM v7a… Build ARM x86… • The NDK will generate highly optimized code for all target ABIs

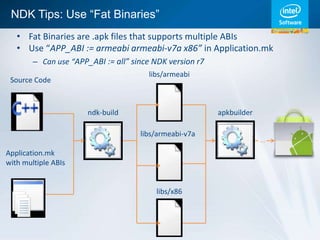

- 26. NDK Tips: Use“Fat Binaries” • Fat Binaries are .apk files that supports multiple ABIs • Use “APP_ABI := armeabi armeabi-v7a x86” in Application.mk – Can use “APP_ABI := all” since NDK version r7 libs/armeabi Source Code ndk-build apkbuilder libs/armeabi-v7a … Application.mk with multiple ABIs libs/x86

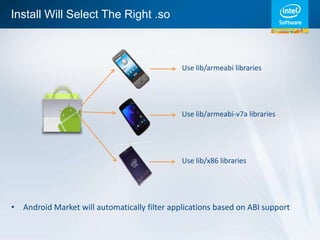

- 27. Install Will SelectThe Right .so Use lib/armeabi libraries Use lib/armeabi-v7a libraries Use lib/x86 libraries • Android Market will automatically filter applications based on ABI support

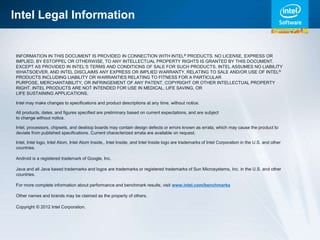

- 28. Intel Legal Information INFORMATIONIN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL® PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. INTEL PRODUCTS ARE NOT INTENDED FOR USE IN MEDICAL, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS. Intel may make changes to specifications and product descriptions at any time, without notice. All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice. Intel, processors, chipsets, and desktop boards may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request. Intel, Intel logo, Intel Atom, Intel Atom Inside,, Intel Inside, and Intel Inside logo are trademarks of Intel Corporation in the U.S. and other countries. Android is a registered trademark of Google, Inc. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. For more complete information about performance and benchmark results, visit www.intel.com/benchmarks Other names and brands may be claimed as the property of others. Copyright © 2012 Intel Corporation.
- 29. Intel Technology isUsed in a Broad Range of leading Smartphones and Tablets … K800 San Diego Tab Xoom
