1. Introduction to
network devices III.

2. Page 2
Instructor, PACE-IT Program – Edmonds Community College
Areas of Expertise Industry Certification
 PC Hardware
 Network Administration
 IT Project Management
 Network Design
 User Training
 IT Troubleshooting
Qualifications Summary
Education
 M.B.A., IT Management, Western Governor’s University
 B.S., IT Security, Western Governor’s University
Entrepreneur, executive leader, and proven manger
with 10+ years of experience turning complex issues
into efficient and effective solutions.
Strengths include developing and mentoring diverse
workforces, improving processes, analyzing
business needs and creating the solutions
required— with a focus on technology.

3. Page 3
– Spam filter.
– Network devices.
PACE-IT.

4. Page 4
Introduction to network devices III.

5. Page 5

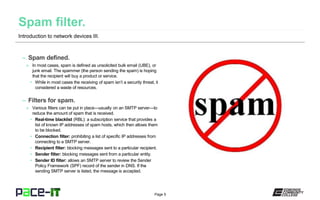

– Spam defined.
» In most cases, spam is defined as unsolicited bulk email (UBE), or
junk email. The spammer (the person sending the spam) is hoping
that the recipient will buy a product or service.
• While in most cases the receiving of spam isn’t a security threat, it
considered a waste of resources.
– Filters for spam.
» Various filters can be put in place—usually on an SMTP server—to
reduce the amount of spam that is received.
• Real-time blacklist (RBL): a subscription service that provides a
list of known IP addresses of spam hosts, which then allows them
to be blocked.
• Connection filter: prohibiting a list of specific IP addresses from
connecting to a SMTP server.
• Recipient filter: blocking messages sent to a particular recipient.
• Sender filter: blocking messages sent from a particular entity.
• Sender ID filter: allows an SMTP server to review the Sender
Policy Framework (SPF) record of the sender in DNS. If the
sending SMTP server is listed, the message is accepted.
Introduction to network devices III.

6. Page 6
The first known instance of
spam occurred in 1978 and
involved an advertisement for
Digital Equipment
Corporation (DEC) computers.
While the reaction from this UBE was largely
negative, it did result in some sales.
When the term spam became associated with UBE
is unknown. We can blame Monty Python’s Flying
Circus for the term. In 1970 they aired a skit in
which the word spam keeps getting used, effectively
blocking useful communication.
Introduction to network devices III.

7. Page 7
Introduction to network devices III.

8. Page 8

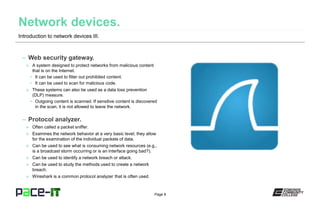

– Web security gateway.
» A system designed to protect networks from malicious content
that is on the Internet.
• It can be used to filter out prohibited content.
• It can be used to scan for malicious code.
» These systems can also be used as a data loss prevention
(DLP) measure.
• Outgoing content is scanned. If sensitive content is discovered
in the scan, it is not allowed to leave the network.
– Protocol analyzer.
» Often called a packet sniffer.
» Examines the network behavior at a very basic level; they allow
for the examination of the individual packets of data.
» Can be used to see what is consuming network resources (e.g.,
is a broadcast storm occurring or is an interface going bad?).
» Can be used to identify a network breach or attack.
» Can be used to study the methods used to create a network
breach.
» Wireshark is a common protocol analyzer that is often used.
Introduction to network devices III.

9. Page 9
The Web application firewall is
an application layer (Layer 7)
firewall that is used to control
HTTP traffic that is allowed to
reach the Web server.
This allows for greater inspection and control of
messages and traffic that is destined to a network’s
Web servers. They are configured to protect the
servers from common attacks.
They differ from normal network firewalls in that they
are only concerned about what is attempting to
reach the Web server. Network firewalls, on the
other hand, attempt to protect the network as a
whole.
Introduction to network devices III.

10. Page 10
Introduction to network devices III.
Spam is usually defined as unsolicited bulk email. While not a security
threat, it does waste resources. Various filters can be put in place—usually
on an SMTP server—to help keep spam from reaching the end user. The
filters include: RBLs, connection filters, recipient filters, sender filters, and
sender ID filters. The first known instance of spam occurred in 1978. The
term spam comes from a Monty Python skit that was aired in 1970.
Topic
Spam filter.
Summary
Web security gateways are used to protect against malicious content on the
Internet. They can also be used for DLP purposes. Protocol analyzers allow
for the examination of the network packets that are on the network. They
can be used to help identify a breach or attack and to help determine the
methods used. A Web application firewall is a Layer 7 firewall that controls
what messages and traffic are allowed to reach a Web server.
Network devices.
