The document discusses sparklyr, an open-source R package that facilitates the integration of the R programming language with Apache Spark for big data analysis. It highlights the features of sparklyr, including full dplyr support and integration with RStudio, as well as its capabilities in managing bigger-than-memory data. Additionally, it compares sparklyr with the existing sparkr and introduces the rsparkling extension for H2O integration.

1. Spark + R = sparklyr
Jeff Allen, RStudio
@trestleJeff

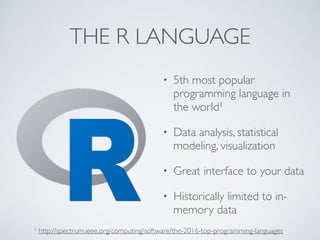

2. THE R LANGUAGE
• 5th most popular
programming language in
the world1
• Data analysis, statistical
modeling, visualization
• Great interface to your data
• Historically limited to in-
memory data
1 http://spectrum.ieee.org/computing/software/the-2016-top-programming-languages

3. WHAT IS SPARK?
• Open-source Apache
computing engine
• Bigger-than-memory data,
low-latency distributed
computing
• Can integrate with the
Hadoop ecosystem
• Built-in machine learning

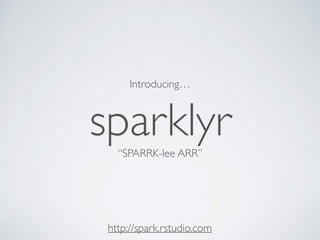

4. sparklyr
Introducing…
“SPARRK-lee ARR”
http://spark.rstudio.com

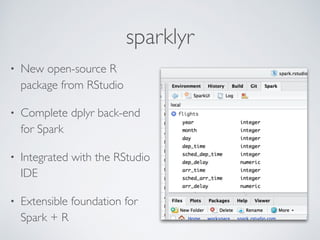

5. • New open-source R
package from RStudio
• Complete dplyr back-end
for Spark
• Integrated with the RStudio
IDE
• Extensible foundation for
Spark + R
sparklyr

6. KICKTHETIRES
library(sparklyr)
spark_install()
sc <- spark_connect(“local")
my_tbl <- copy_to(sc, iris)
Driver Program
Cluster Manager
Worker
Spark Context
Task Task
Executor Cache

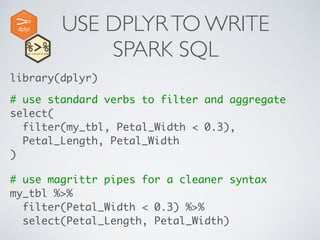

7. library(dplyr)
# use standard verbs to filter and aggregate
select(
filter(my_tbl, Petal_Width < 0.3),
Petal_Length, Petal_Width
)
# use magrittr pipes for a cleaner syntax
my_tbl %>%
filter(Petal_Width < 0.3) %>%
select(Petal_Length, Petal_Width)
USE DPLYRTO WRITE
SPARK SQL

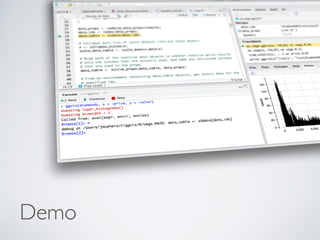

8. Demo

9. RUN IN PRODUCTION
Spark Cluster
Master Node
Driver Program
Spark Context
Worker Node
Task Task
Executor Cache
Cluster Manager
Worker Node
Task Task
Executor Cache
Use RStudio Server on the Spark cluster master node
> spark_connect(“spark://spark.company.org:7077”)
> my_tbl <- tbl(sc, “tblname”)

10. SPARKLYR FUNCTIONALITY
• Full dplyr back-end for Spark DataFrames
• R wrappers for all MLlib functions
• Easily leverage from R Markdown, Shiny, etc.
• IDE integration
• Windows, too!

11. SPARKLYR & H2O
• rsparkling: R interface to
Sparkling Water Spark
package
• A sparklyr extension
• http://spark.rstudio.com/h2o.html

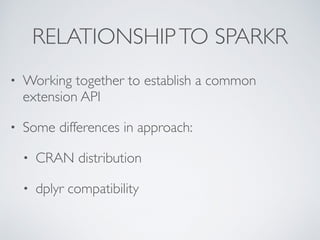

12. RELATIONSHIPTO SPARKR
• Working together to establish a common
extension API
• Some differences in approach:
• CRAN distribution
• dplyr compatibility

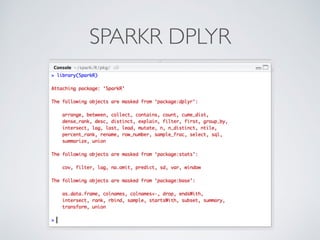

13. SPARKR DPLYR

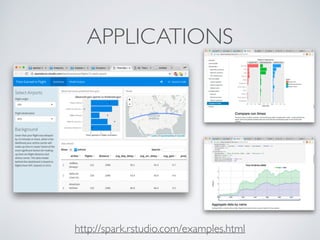

14. APPLICATIONS
http://spark.rstudio.com/examples.html

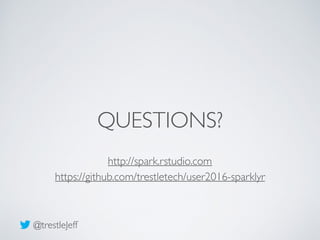

15. QUESTIONS?
http://spark.rstudio.com
@trestleJeff
https://github.com/trestletech/user2016-sparklyr
