Visualizing biological graphs in Cytoscape.js
The document discusses utilizing Cytoscape.js for visualizing biological graphs, particularly focusing on protein-protein interactions and gene annotations. It includes code examples for setting up a graph, customizing node and edge styles, and applying different layouts. Additionally, the document outlines how to manipulate and interact with the graph elements programmatically.
More Related Content
Similar to Visualizing biological graphs in Cytoscape.js
![[DSC Europe 25] Elena Menshikova - AI-Powered Operational Excellence: Revolut...](https://cdn.slidesharecdn.com/ss_thumbnails/es6nholbqy3zaao2c2yd-2-elena-menshikova-data-ai-in-decision-making-260115093812-4fba8b38-thumbnail.jpg?width=640&height=640&fit=bounds)
![[DSC Europe 25] Bojan Djuricic - Predictive Design Process.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/5awdrbedqdek3gqu2ezy-4-the-predictive-design-bojan-djuricic-260120105856-6c399e9b-thumbnail.jpg?width=640&height=640&fit=bounds)
![[DSC Europe 25] Ivan Lukovic & Marija Djukic - From Data to Value: Why Maturi...](https://cdn.slidesharecdn.com/ss_thumbnails/ahrfps8xr6knowwhacxh-1-ivan-marija-dsc-2025-ld-v1-presentation-260115093812-be21adfc-thumbnail.jpg?width=640&height=640&fit=bounds)
Visualizing biological graphs in Cytoscape.js
- 1. G R AP H S I N C Y T O S C A P E . J S V I S U A L I Z I N G B I O L O G I C A L Ben Keller linkedin.com/in/bjkeller Seattle/Bellevue Graphs - Data, Processing, Algorithms Meetup 6 May 2014
- 2. B I OL O G I C A L G R A P H S

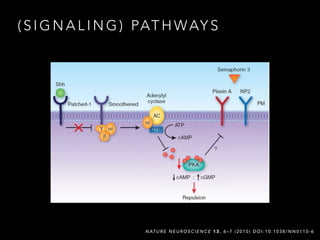

- 3. ( S IG N A L I N G ) PAT H WAY S N AT U R E N E U R O S C I E N C E 1 3 , 6 – 7 ( 2 0 1 0 ) D O I : 1 0 . 1 0 3 8 / N N 0 1 1 0 - 6
- 4. P R OT E I N - P R O T E I N I N T E R A C T I O N S A B http://www.stats.ox.ac.uk/~hamer/research.html
- 5. P R OT E I N - P R O T E I N I N T E R A C T I O N S A B http://www.stats.ox.ac.uk/~hamer/research.html
- 6. P R OT E I N - P R O T E I N I N T E R A C T I O N S A B

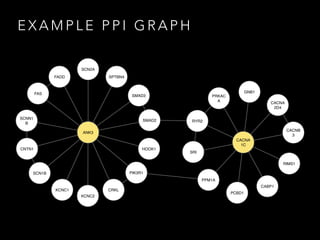

- 7. E X AM P L E P P I G R A P H ANK3 CABP1 CACNA 2D4 CACNB 3 GNB1 PCBD1 RIMS1 PPM1A PRKAC A RYR2 SRI CACNA 1C FAS FADD CNTN1 CRKL HOOK1 KCNC1 KCNC2 SMAD3 SMAD2 PIK3R1 SPTBN4 SCN1B SCNN1 B SCN2A

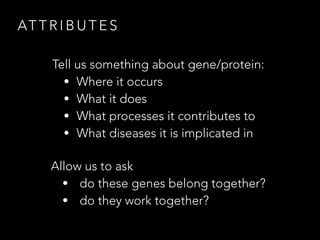

- 8. AT T RI B U T E S Tell us something about gene/protein: • Where it occurs • What it does • What processes it contributes to • What diseases it is implicated in Allow us to ask • do these genes belong together? • do they work together?
- 9. P R OT E I N - A N N O TAT I O N G R A P H MeSH: Calcium GO BP: Metal Ion Transport GO MF: Gated Channel Activity GO MF: Cation Channel Activity OR MeSH Ion Channel Gating MeSH: Phosphorylation MeSH: Intercellular Signaling Peptides and Proteins MeSH: Nerve Tissue Proteins CRKL ANK3 CABP1 CACNA 2D4 CACNB 3 GNB1 PCBD1 RIMS1 PPM1A PRKAC A RYR2 SRI CACNA 1C FAS FADD CNTN1 HOOK1 KCNC1 KCNC2 SMAD3 SMAD2 PIK3R1 SPTBN4 SCN1B SCNN1 B SCN2A None
- 10. C O NC E P T G R A P H MeSH: Calcium GO BP: Metal Ion Transport GO MF: Gated Channel Activity GO MF: Cation Channel Activity OR MeSH Ion Channel Gating MeSH: Phosphorylation MeSH: Intercellular Signaling Peptides and Proteins MeSH: Nerve Tissue Proteins CRKL ANK3 CABP1 CACNA 2D4 CACNB 3 GNB1 PCBD1 RIMS1 PPM1A PRKAC A RYR2 SRI CACNA 1C FAS FADD CNTN1 HOOK1 KCNC1 KCNC2 SMAD3 SMAD2 PIK3R1 SPTBN4 SCN1B SCNN1 B SCN2A None MeSH: Calcium GO BP: Metal Ion Transport GO MF: Gated Channel Activity GO MF: Cation Channel Activity OR MeSH Ion Channel Gating MeSH: Phosphorylation MeSH: Intercellular Signaling Peptides and Proteins MeSH: Nerve Tissue Proteins

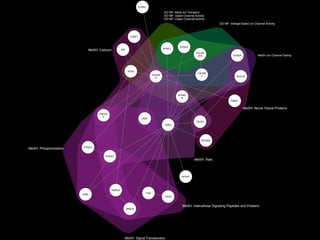

- 11. MeSH: Calcium GO BP:Metal Ion Transport GO MF: Gated Channel Activity GO MF: Cation Channel Activity GO MF: Voltage-Gated Ion Channel Activity MeSH: Phosphorylation MeSH: Signal Transduction MeSH: Intercellular Signaling Peptides and Proteins MeSH: Rats MeSH: Nerve Tissue Proteins MeSH Ion Channel Gating CRKL ANK3 CABP1 CACNA 2D4 CACNB 3 GNB1 PCBD1 RIMS1 PPM1A PRKAC A RYR2 SRI CACNA 1C FAS FADD CNTN1 HOOK1 KCNC1 KCNC2 SMAD3 SMAD2 PIK3R1 SPTBN4 SCN1B SCNN1 B SCN2A

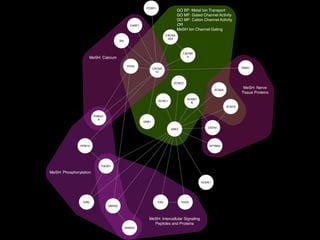

- 12. MeSH: Calcium GO BP:Metal Ion Transport GO MF: Gated Channel Activity GO MF: Cation Channel Activity OR MeSH Ion Channel Gating MeSH: Phosphorylation MeSH: Intercellular Signaling Peptides and Proteins MeSH: Nerve Tissue Proteins CRKL ANK3 CABP1 CACNA 2D4 CACNB 3 GNB1 PCBD1 RIMS1 PPM1A PRKAC A RYR2 SRI CACNA 1C FAS FADD CNTN1 HOOK1 KCNC1 KCNC2 SMAD3 SMAD2 PIK3R1 SPTBN4 SCN1B SCNN1 B SCN2A
- 13. C Y TO S C A P E . J S

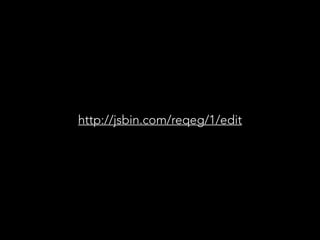

- 14.
- 15. ( J SB I N ) H T M L <!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>Meetup Cytoscape.js Lab</title> <script src="http://ajax.googleapis.com/ajax/libs/jquery/1/jquery.min.js"></script> <script src="http://cytoscape.github.io/cytoscape.js/api/cytoscape.js-latest/cytoscape.min.js"></script> </head> <body> <div id="cy" style="height:90%;width:90%;position:absolute;left:0;top:0;"></div> </body> </html> • jQuery • cytoscape.js • (your script) container for graph

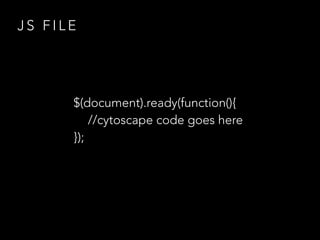

- 16. J S FI L E $(document).ready(function(){ //cytoscape code goes here });
- 17. C Y TO S C A P E S E S S I O N var cy = cytoscape({ container: document.getElementById('cy'), ready: function() {} });
- 18. G R AP H var graphelements = { nodes: [ { data: { id: 'n1', name: ‘A' } }, { data: { id: 'n2', name: ‘B' } }, { data: { id: 'n3', name: ‘C' } }, { data: { id: 'n4', name: ‘D' } } ], edges: [ { data: { id: 'e1', source: 'n1', target: 'n2' } }, { data: { id: 'e2', source: 'n3', target: 'n2' } }, { data: { id: 'e3', source: 'n4', target: 'n2' } } ] };
- 19.
- 20. A D D: S H O W N O D E L A B E L O N H O V E R cy.on('mouseover','node',function(evt) { var node = evt.cyTarget; node.css('content','data(name)'); }); cy.on('mouseout','node',function(evt){ var node = evt.cyTarget; node.css('*',''); }); (add after session definition)http://jsbin.com/reqeg/12/edit
- 21. A D D: S E T U P F O R S T Y L E S var nodestyle = {}; var edgestyle = {}; ! var stylesheet = cytoscape.stylesheet(). selector("node").css(nodestyle). selector(“edge").css(edgestyle); ! var cy = cytoscape({ container: document.getElementById('cy'), style: stylesheet, ready: function() {} }); http://jsbin.com/reqeg/11/edit

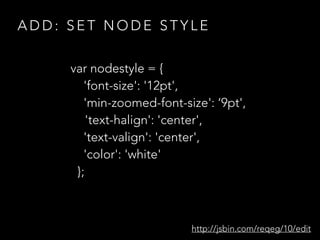

- 22. A D D: S E T N O D E S T Y L E var nodestyle = { 'font-size': '12pt', 'min-zoomed-font-size': ‘9pt', 'text-halign': 'center', 'text-valign': 'center', 'color': 'white' }; http://jsbin.com/reqeg/10/edit

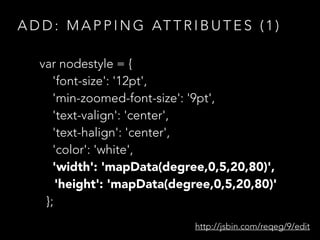

- 23. A D D: M A P P I N G AT T R I B U T E S ( 1 ) var nodestyle = { 'font-size': '12pt', 'min-zoomed-font-size': '9pt', 'text-valign': 'center', 'text-halign': 'center', 'color': 'white', 'width': 'mapData(degree,0,5,20,80)', 'height': 'mapData(degree,0,5,20,80)' }; http://jsbin.com/reqeg/9/edit

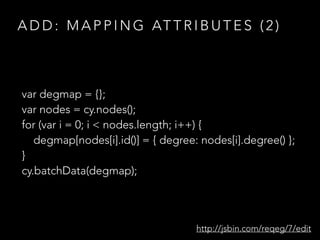

- 24. A D D: M A P P I N G AT T R I B U T E S ( 2 ) var degmap = {}; var nodes = cy.nodes(); for (var i = 0; i < nodes.length; i++) { degmap[nodes[i].id()] = { degree: nodes[i].degree() }; } cy.batchData(degmap); http://jsbin.com/reqeg/7/edit

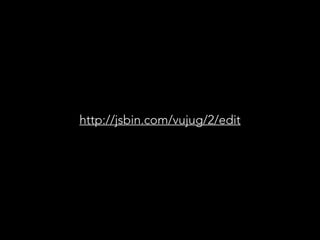

- 25.
- 26. L AY OU T S var layoutopts = { name: 'breadthfirst', roots: ['n1','n26'] }; cy.layout(layoutopts); • random • preset • grid • circle • concentric • breadthfirst • arbor * • cose • null (for algorithms)
- 27. A R BO R ( F O R C E - D I R E C T E D ) <script src="../node_modules/cytoscape/lib/arbor.js"></script> <script src="../node_modules/cytoscape/dist/cytoscape.min.js"></script>
- 28.
