OSMC 2008 | Using Nagios for service monitoring in GSM based T-Mobile networks by Frank Maerz & Christian Hirsch
The document discusses the use of Nagios for service monitoring in T-Mobile's GSM-based networks, detailing its implementation for maintaining service quality in international roaming operations. It outlines various layers of monitoring, including connectivity checks, performance analysis, and the historical development of Nagios within T-Mobile's infrastructure. The document emphasizes Nagios' capability to execute comprehensive checks every five minutes, ensuring effective monitoring across multiple networks globally.
More Related Content
Similar to OSMC 2008 | Using Nagios for service monitoring in GSM based T-Mobile networks by Frank Maerz & Christian Hirsch
OSMC 2008 | Using Nagios for service monitoring in GSM based T-Mobile networks by Frank Maerz & Christian Hirsch
- 1. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 1 NETWAYS Nagios Conference 2008 Using Nagios for service monitoring in GSM-based T-Mobile networks

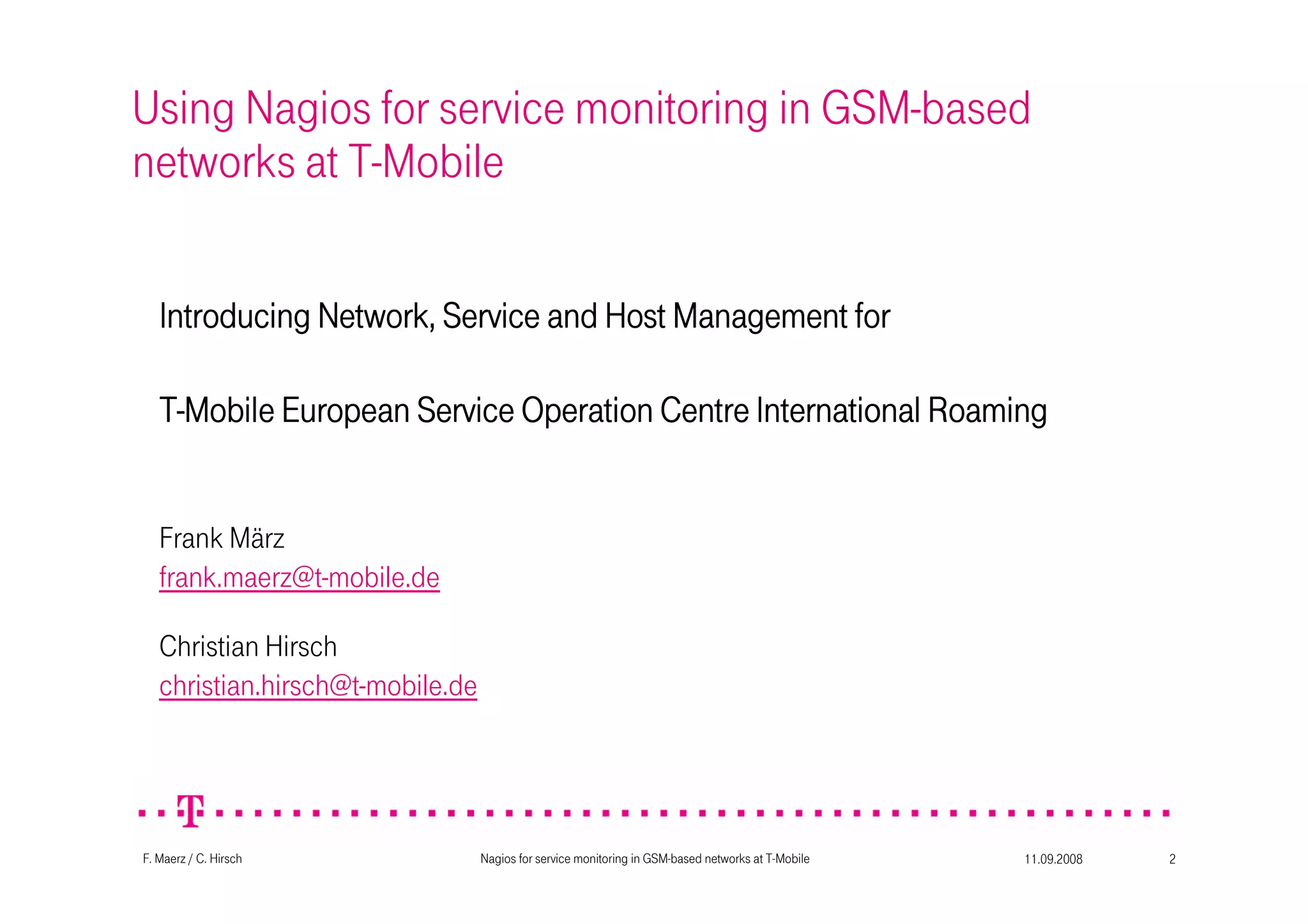

- 2. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 2F. Maerz / C. Hirsch Using Nagios for service monitoring in GSM-based networks at T-Mobile Introducing Network, Service and Host Management forIntroducing Network, Service and Host Management forIntroducing Network, Service and Host Management forIntroducing Network, Service and Host Management for TTTT----Mobile European Service Operation Centre International RoamingMobile European Service Operation Centre International RoamingMobile European Service Operation Centre International RoamingMobile European Service Operation Centre International Roaming Frank März frank.maerz@t-mobile.de Christian Hirsch christian.hirsch@t-mobile.de

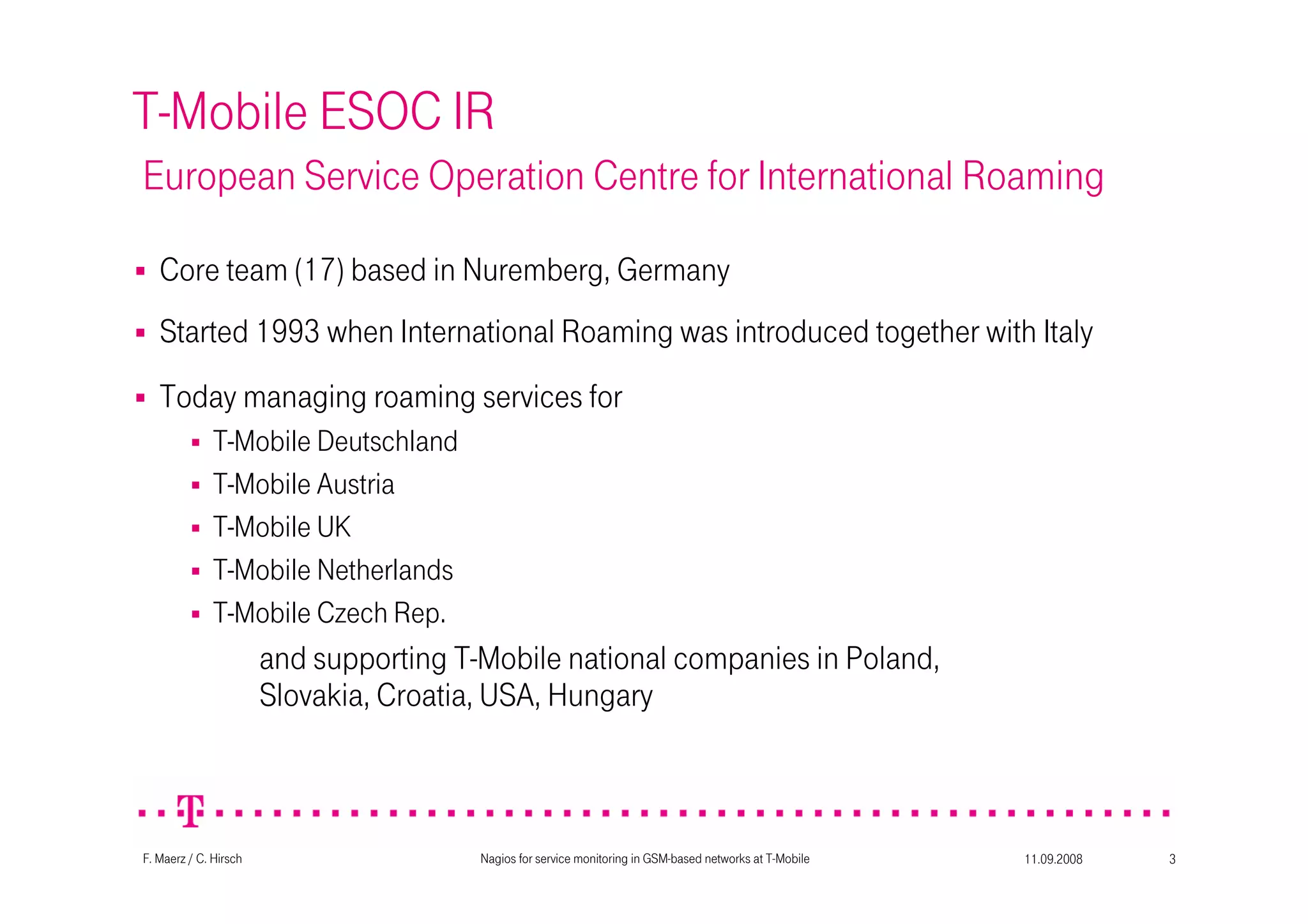

- 3. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 3F. Maerz / C. Hirsch T-Mobile ESOC IR European Service Operation Centre for International Roaming Started 1993 when International Roaming was introduced together with Italy Today managing roaming services for T-Mobile Deutschland T-Mobile Austria T-Mobile UK T-Mobile Netherlands T-Mobile Czech Rep. and supporting T-Mobile national companies in Poland, Slovakia, Croatia, USA, Hungary Core team (17) based in Nuremberg, Germany

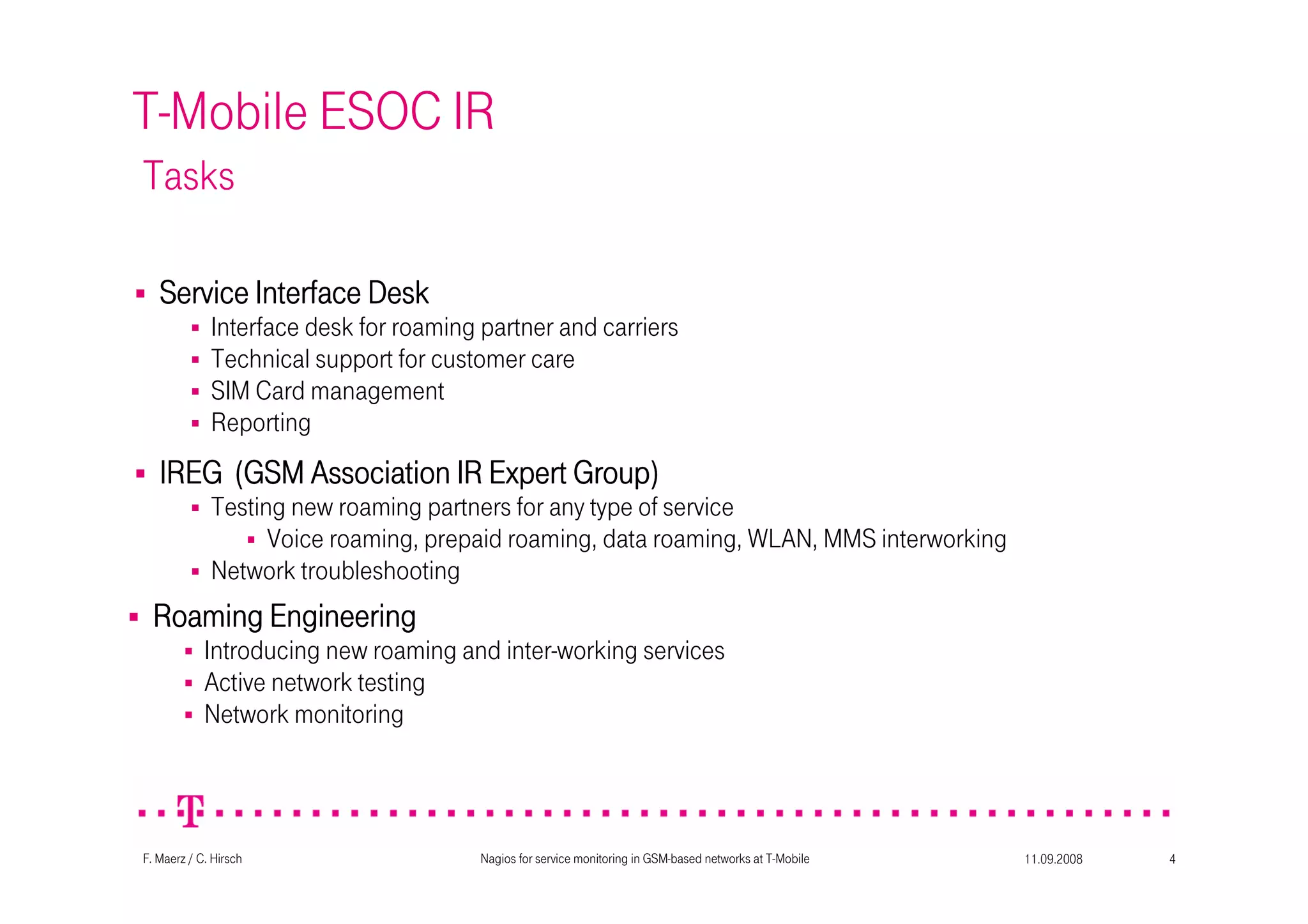

- 4. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 4F. Maerz / C. Hirsch T-Mobile ESOC IR Tasks IREG (GSM Association IR Expert Group)IREG (GSM Association IR Expert Group)IREG (GSM Association IR Expert Group)IREG (GSM Association IR Expert Group) Testing new roaming partners for any type of service Voice roaming, prepaid roaming, data roaming, WLAN, MMS interworking Network troubleshooting Roaming EngineeringRoaming EngineeringRoaming EngineeringRoaming Engineering Introducing new roaming and inter-working services Active network testing Network monitoring Service Interface DeskService Interface DeskService Interface DeskService Interface Desk Interface desk for roaming partner and carriers Technical support for customer care SIM Card management Reporting

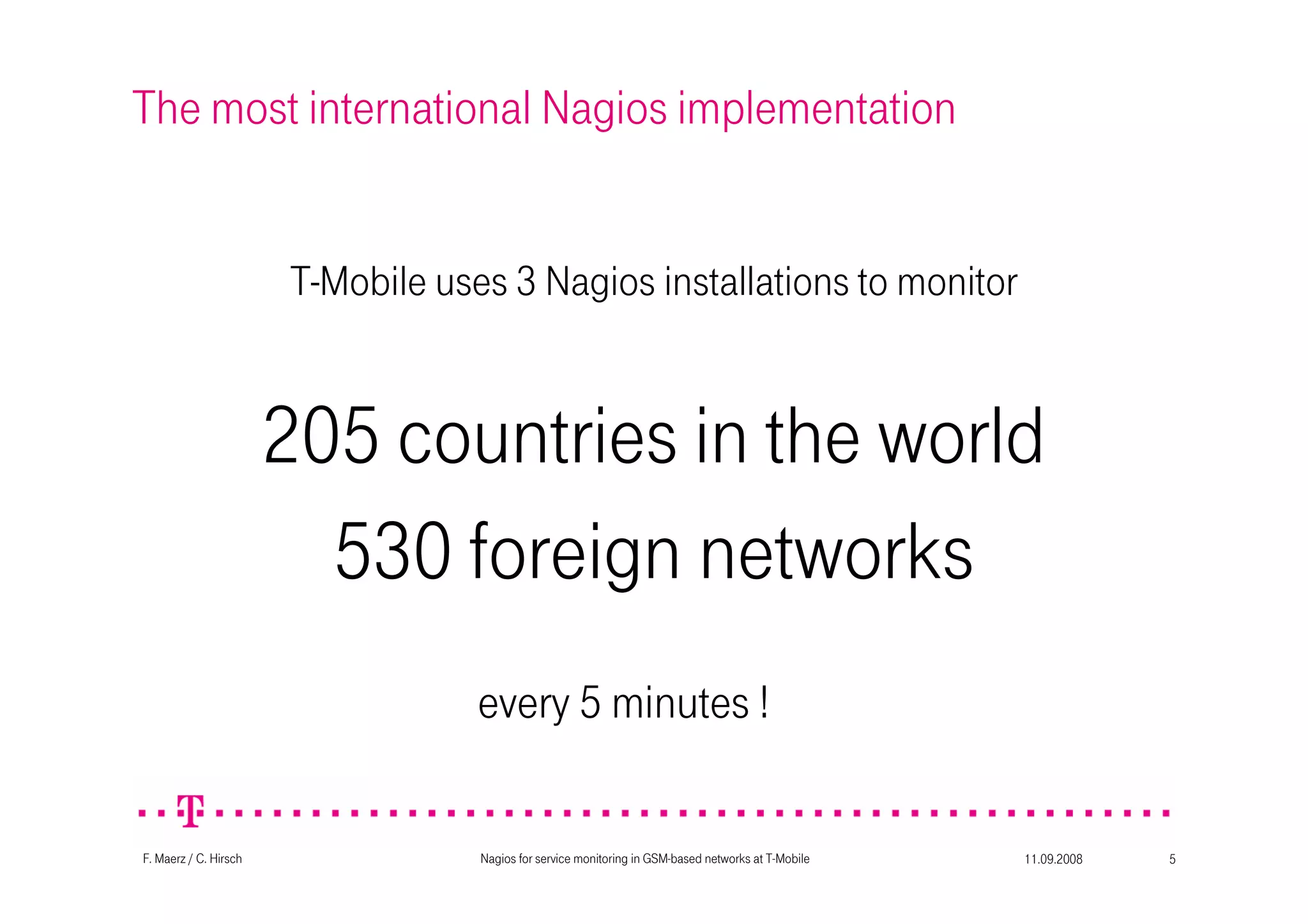

- 5. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 5F. Maerz / C. Hirsch The most international Nagios implementation T-Mobile uses 3 Nagios installations to monitor 205 countries in the world 530 foreign networks every 5 minutes !

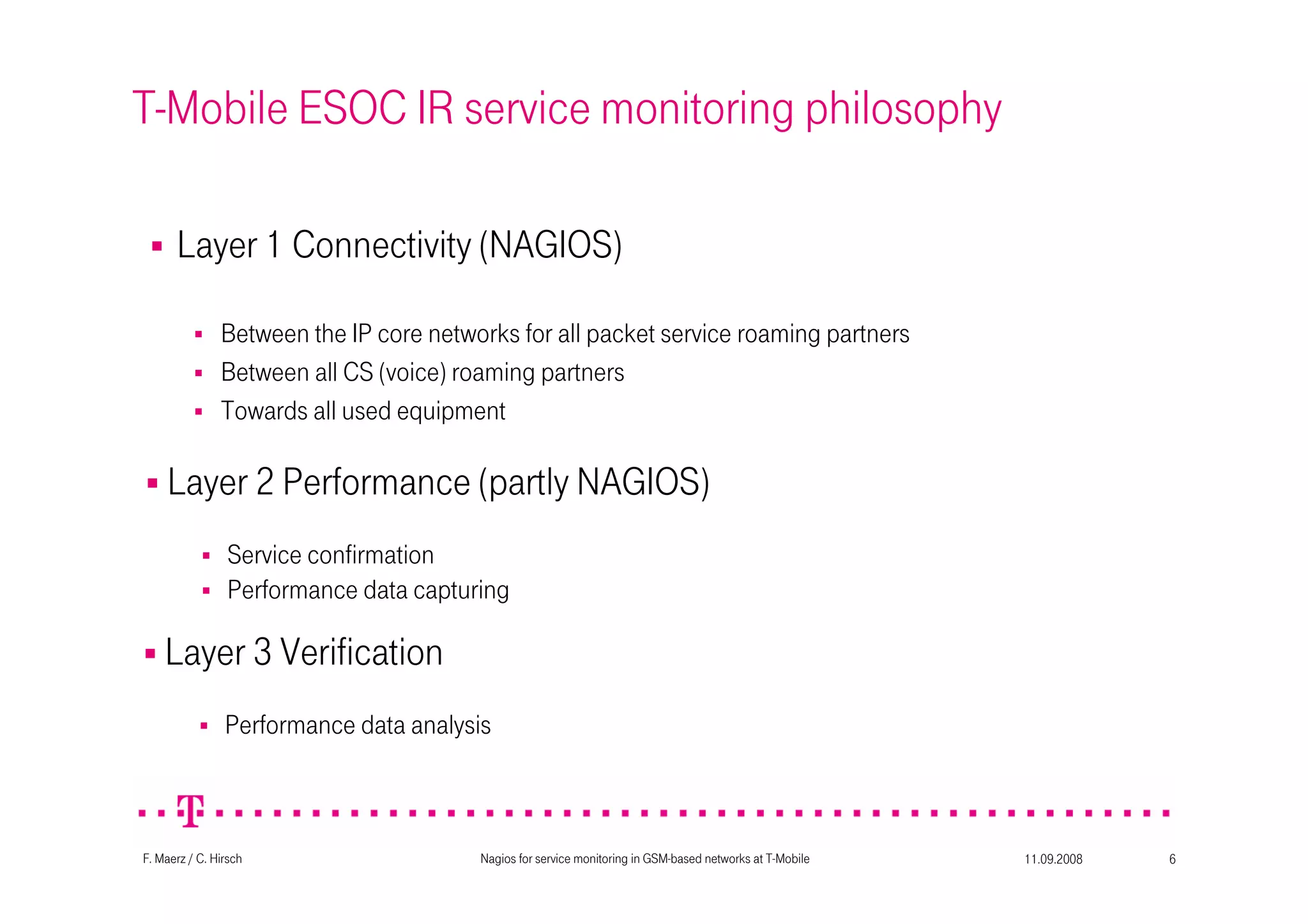

- 6. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 6F. Maerz / C. Hirsch T-Mobile ESOC IR service monitoring philosophy Layer 1 Connectivity (NAGIOS) Between the IP core networks for all packet service roaming partners Between all CS (voice) roaming partners Towards all used equipment Layer 2 Performance (partly NAGIOS) Service confirmation Performance data capturing Layer 3 Verification Performance data analysis

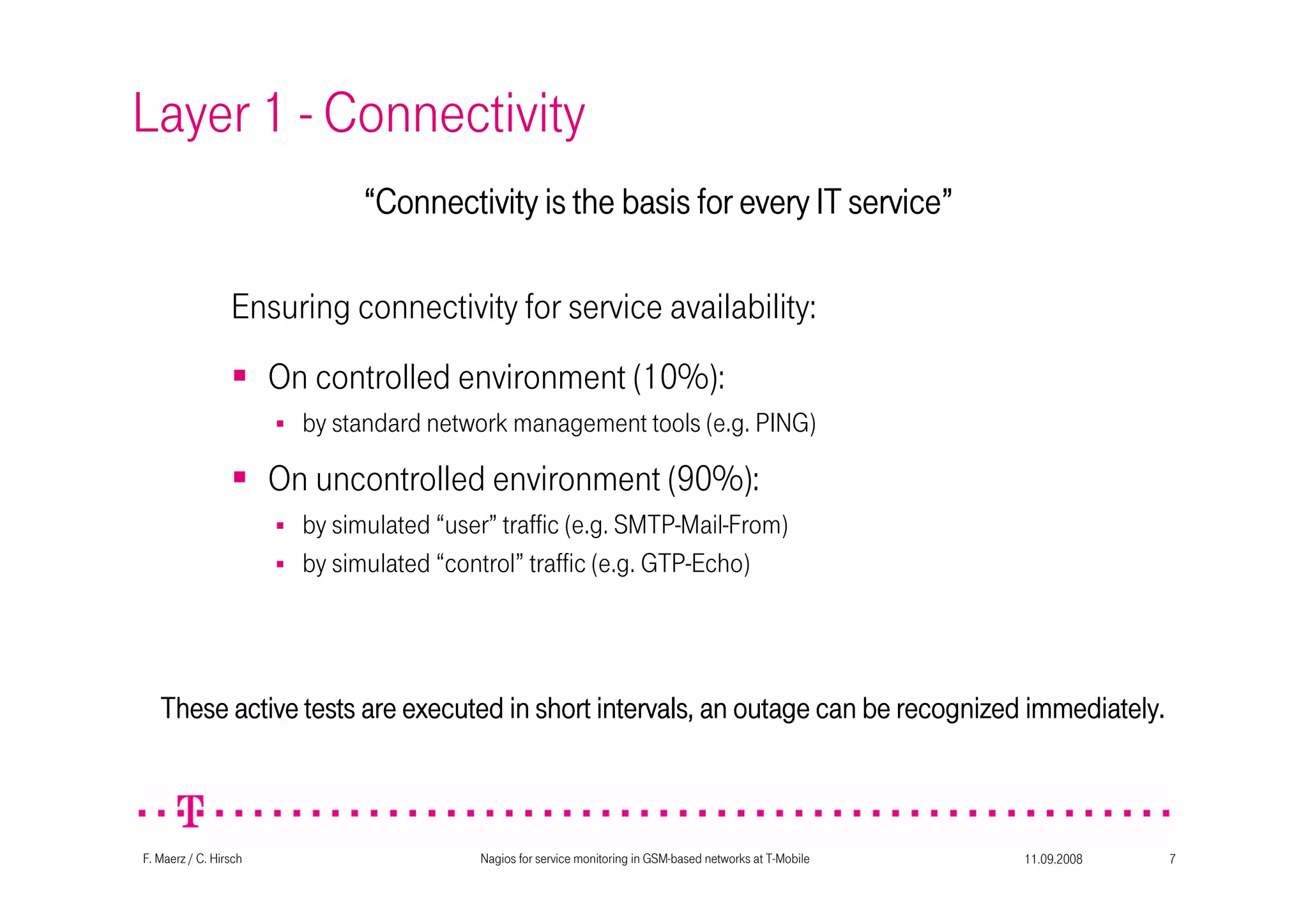

- 7. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 7F. Maerz / C. Hirsch Layer 1 - Connectivity These active tests are executed in short intervals, an outage caThese active tests are executed in short intervals, an outage caThese active tests are executed in short intervals, an outage caThese active tests are executed in short intervals, an outage can be recognized immediately.n be recognized immediately.n be recognized immediately.n be recognized immediately. On controlled environment (10%): by standard network management tools (e.g. PING) On uncontrolled environment (90%): by simulated “user” traffic (e.g. SMTP-Mail-From) by simulated “control” traffic (e.g. GTP-Echo) Ensuring connectivity for service availability: ““““Connectivity is the basis for every IT serviceConnectivity is the basis for every IT serviceConnectivity is the basis for every IT serviceConnectivity is the basis for every IT service””””

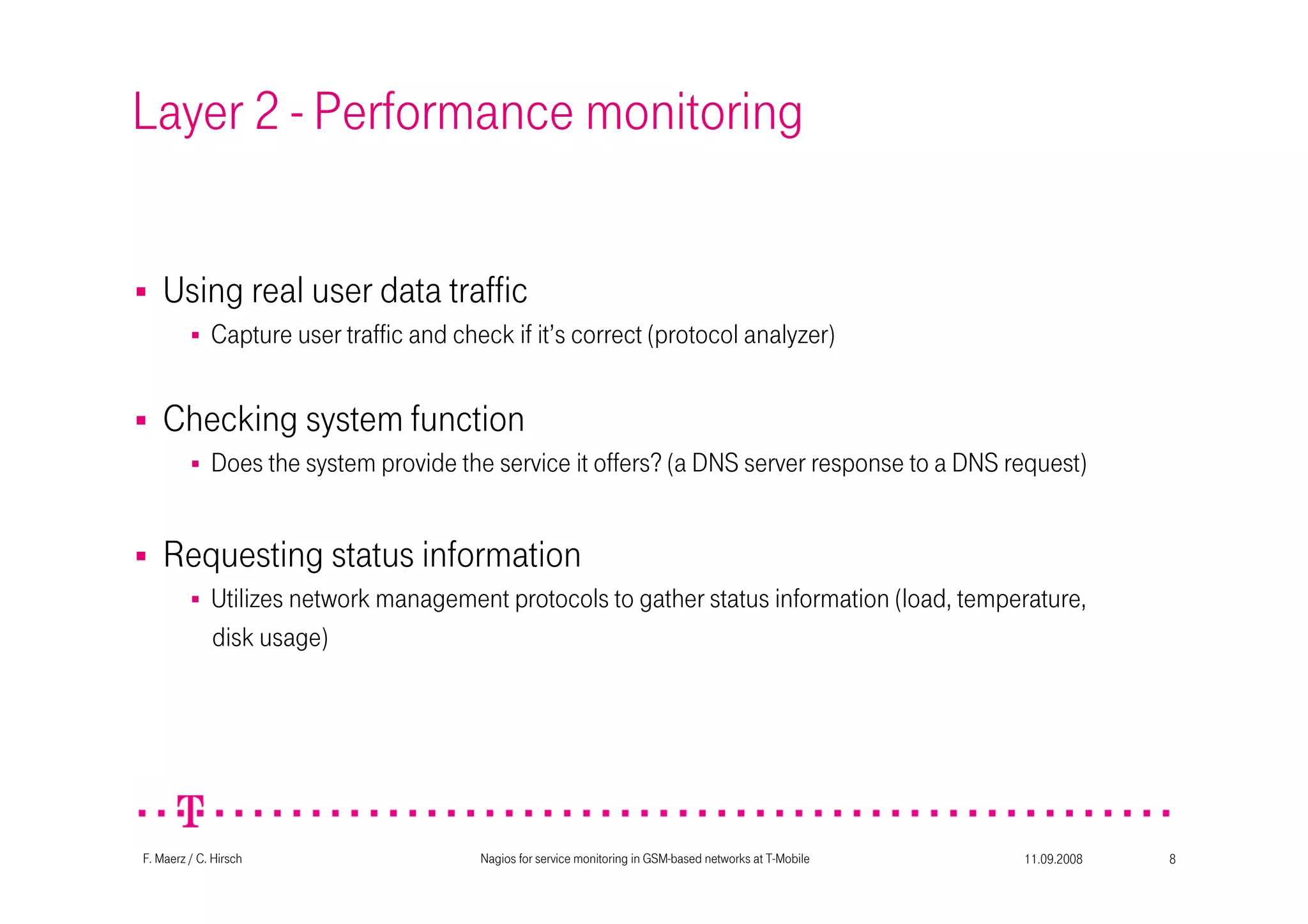

- 8. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 8F. Maerz / C. Hirsch Layer 2 - Performance monitoring Checking system function Does the system provide the service it offers? (a DNS server response to a DNS request) Requesting status information Utilizes network management protocols to gather status information (load, temperature, disk usage) Using real user data traffic Capture user traffic and check if it’s correct (protocol analyzer)

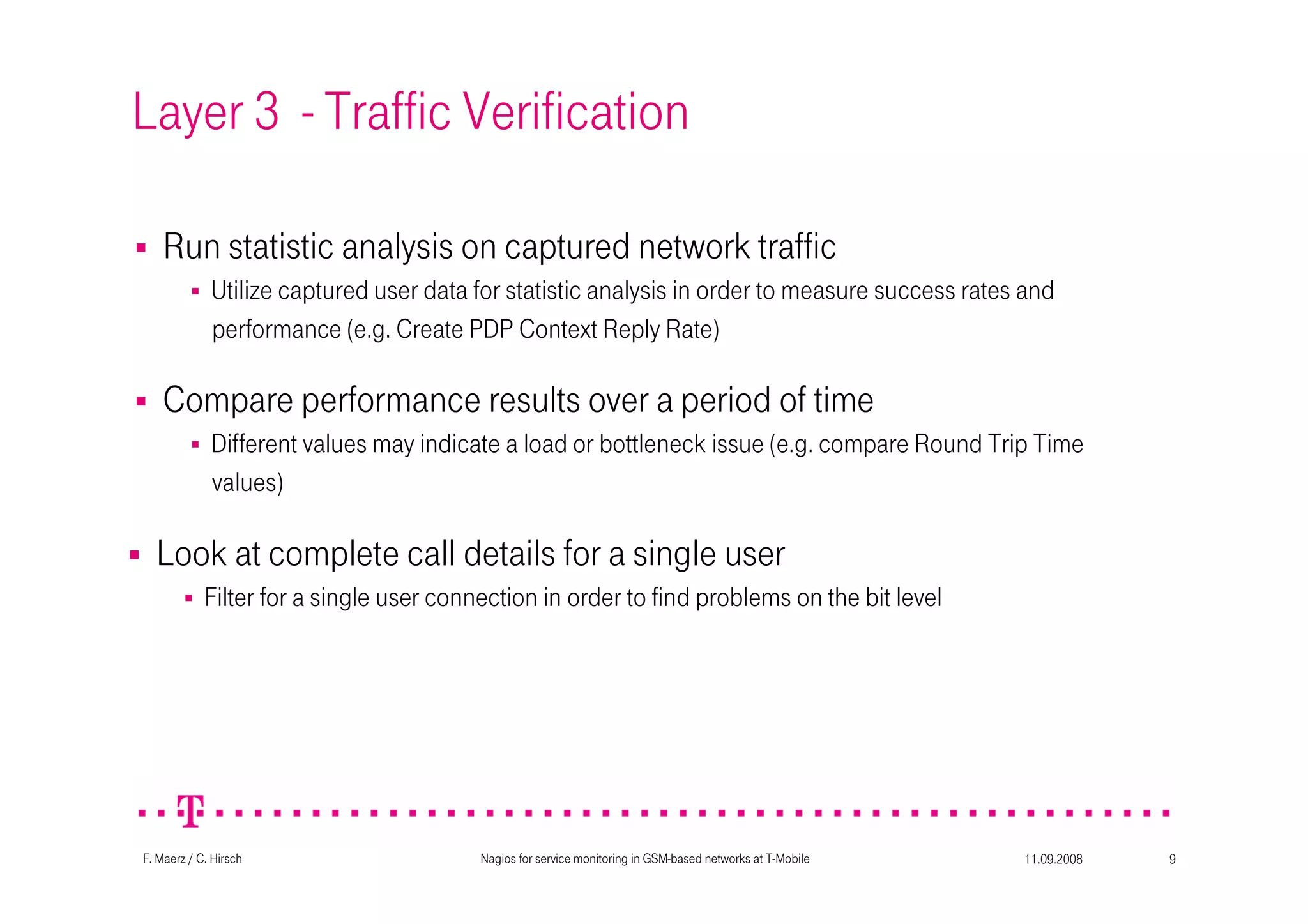

- 9. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 9F. Maerz / C. Hirsch Layer 3 - Traffic Verification Compare performance results over a period of time Different values may indicate a load or bottleneck issue (e.g. compare Round Trip Time values) Look at complete call details for a single user Filter for a single user connection in order to find problems on the bit level Run statistic analysis on captured network traffic Utilize captured user data for statistic analysis in order to measure success rates and performance (e.g. Create PDP Context Reply Rate)

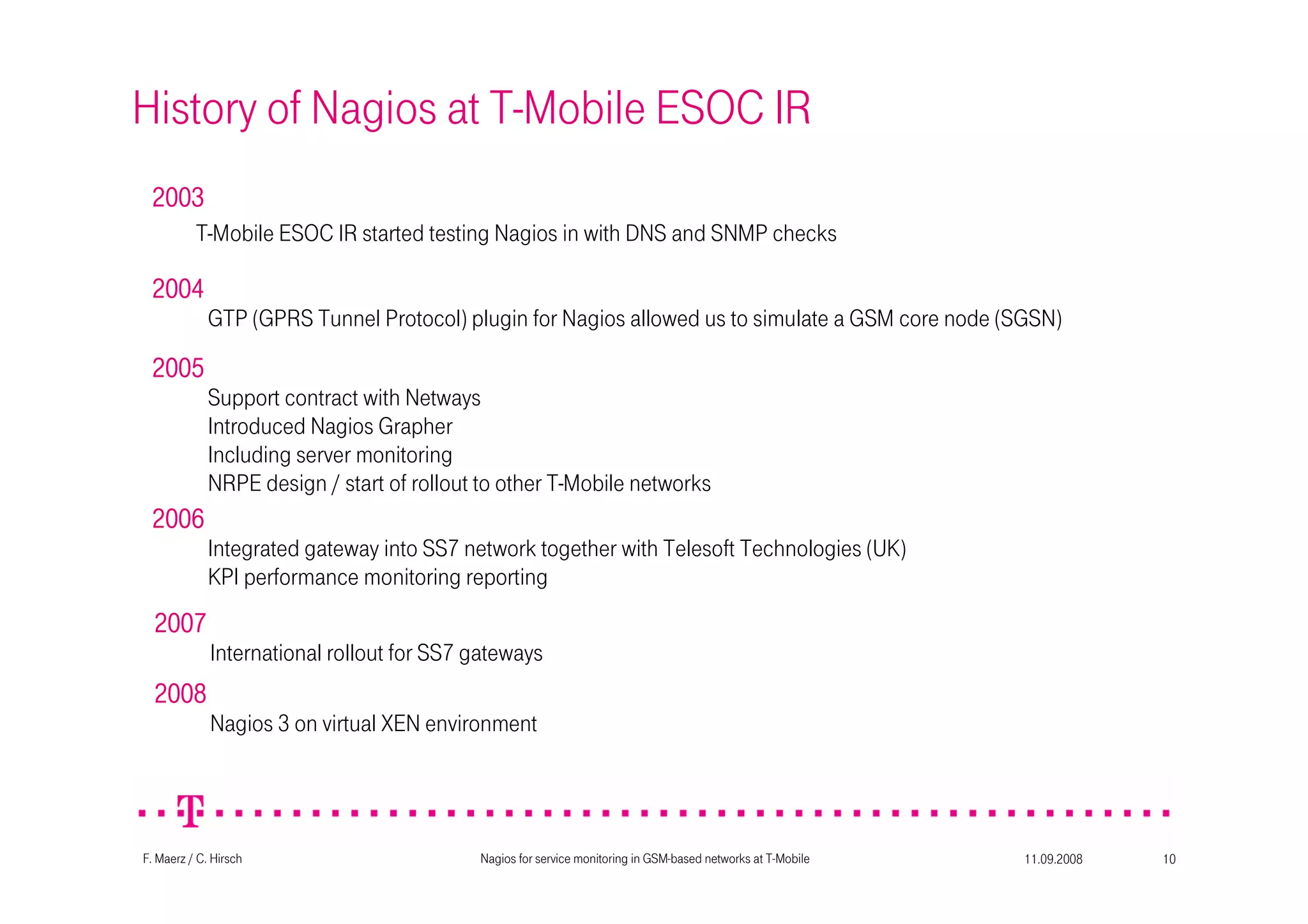

- 10. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 10F. Maerz / C. Hirsch History of Nagios at T-Mobile ESOC IR 2003200320032003 T-Mobile ESOC IR started testing Nagios in with DNS and SNMP checks 2004200420042004 GTP (GPRS Tunnel Protocol) plugin for Nagios allowed us to simulate a GSM core node (SGSN) 2005200520052005 Support contract with Netways Introduced Nagios Grapher Including server monitoring NRPE design / start of rollout to other T-Mobile networks 2006200620062006 Integrated gateway into SS7 network together with Telesoft Technologies (UK) KPI performance monitoring reporting 2007200720072007 International rollout for SS7 gateways 2008200820082008 Nagios 3 on virtual XEN environment

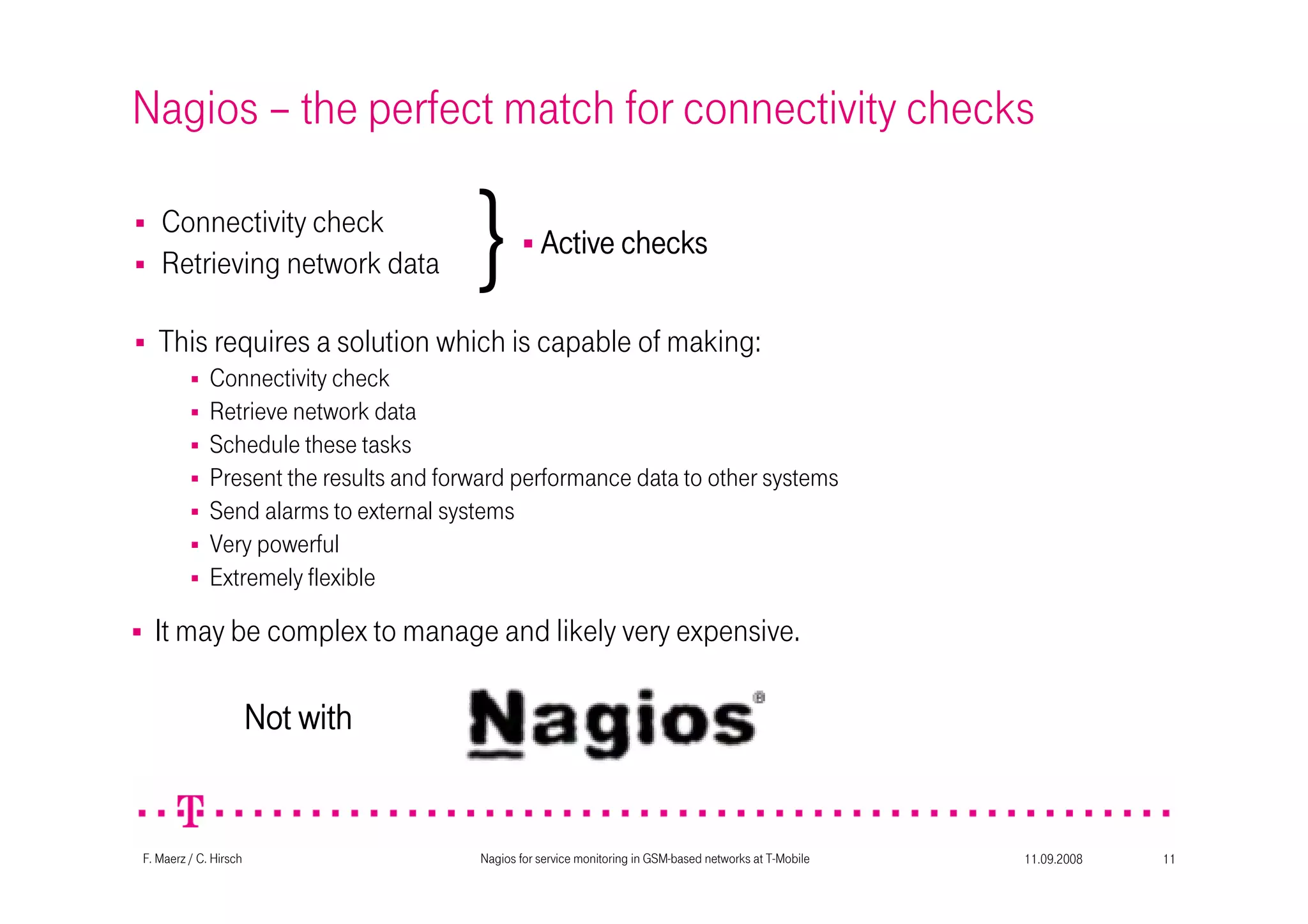

- 11. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 11F. Maerz / C. Hirsch Nagios – the perfect match for connectivity checks Connectivity check Retrieving network data This requires a solution which is capable of making: Connectivity check Retrieve network data Schedule these tasks Present the results and forward performance data to other systems Send alarms to external systems Very powerful Extremely flexible It may be complex to manage and likely very expensive. } Active checksActive checksActive checksActive checks Not withNot withNot withNot with

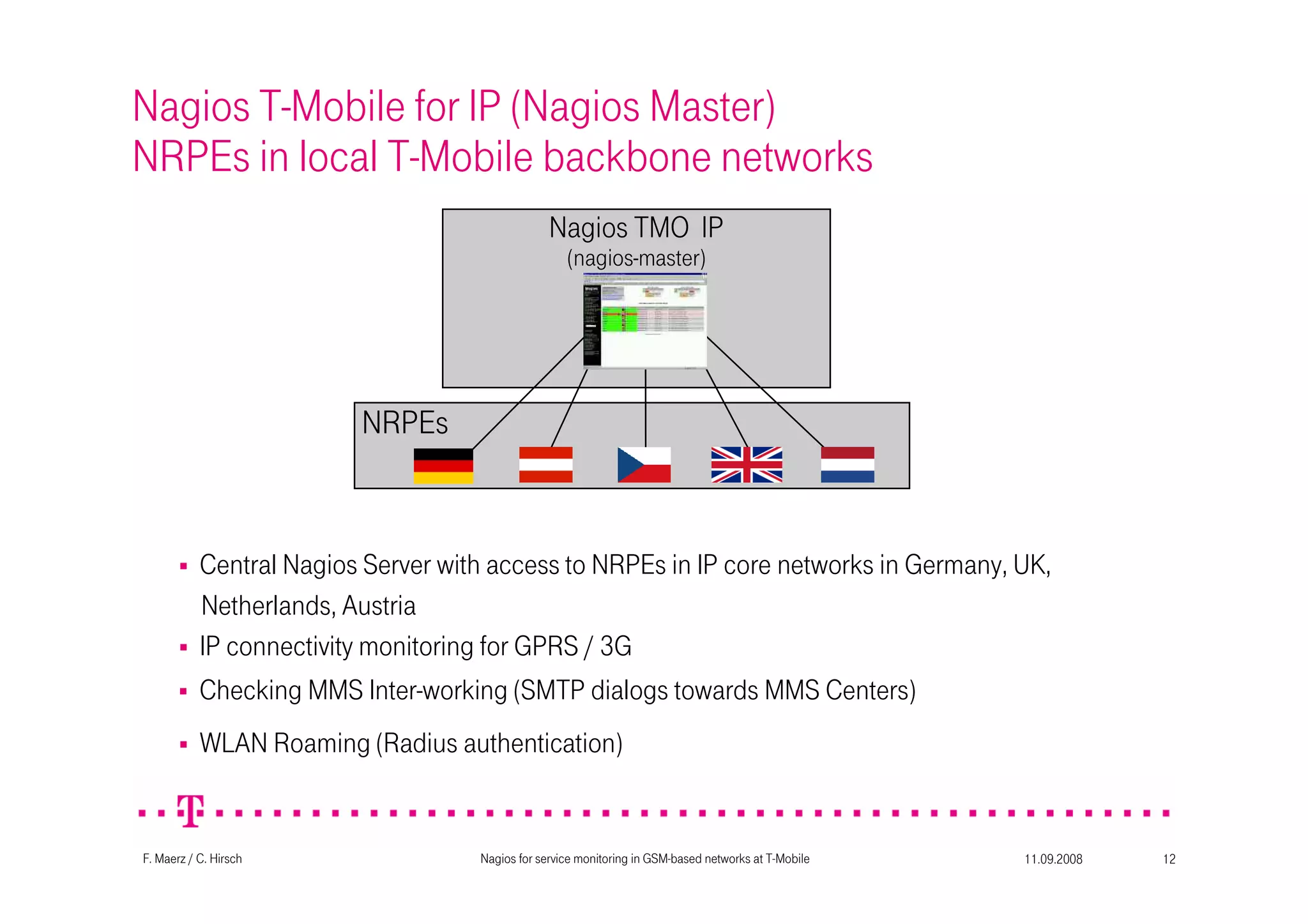

- 12. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 12F. Maerz / C. Hirsch NRPEs Nagios T-Mobile for IP (Nagios Master) NRPEs in local T-Mobile backbone networks Nagios TMO IP (nagios-master) IP connectivity monitoring for GPRS / 3G Checking MMS Inter-working (SMTP dialogs towards MMS Centers) WLAN Roaming (Radius authentication) Central Nagios Server with access to NRPEs in IP core networks in Germany, UK, Netherlands, Austria

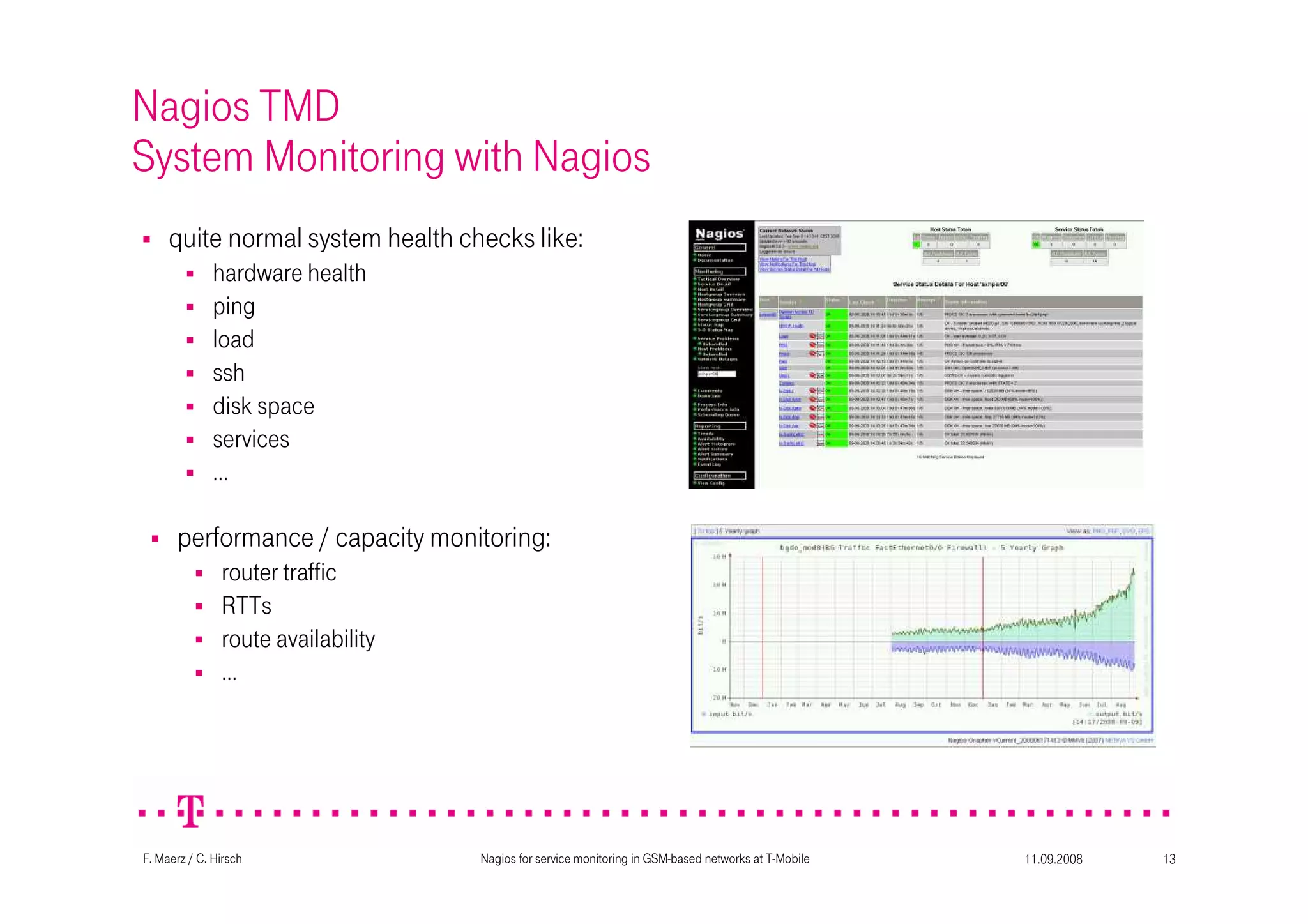

- 13. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 13F. Maerz / C. Hirsch Nagios TMD System Monitoring with Nagios quite normal system health checks like: hardware health ping load ssh disk space services … performance / capacity monitoring: router traffic RTTs route availability …

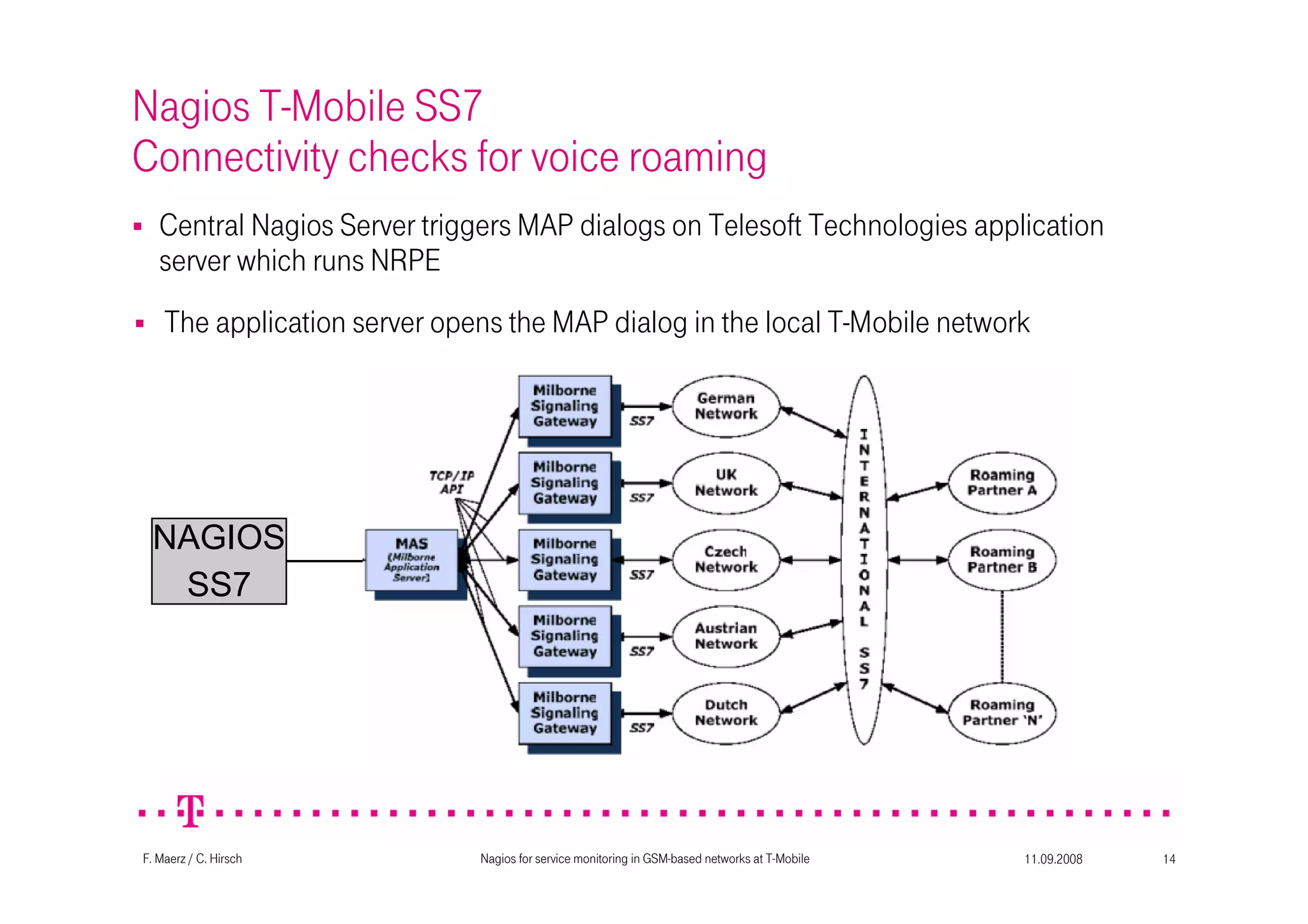

- 14. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 14F. Maerz / C. Hirsch Nagios T-Mobile SS7 Connectivity checks for voice roaming Central Nagios Server triggers MAP dialogs on Telesoft Technologies application server which runs NRPE NAGIOS SS7 The application server opens the MAP dialog in the local T-Mobile network

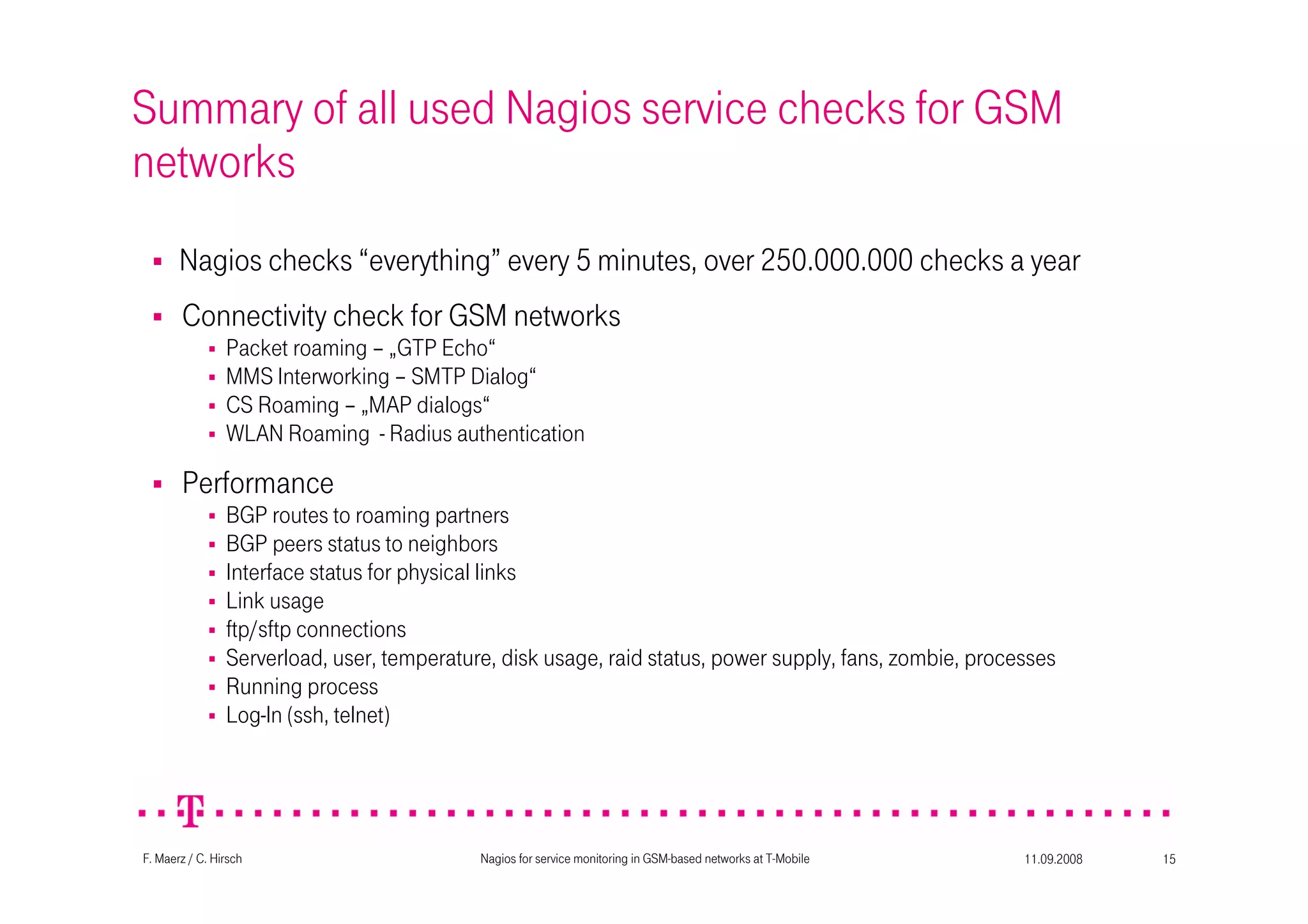

- 15. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 15F. Maerz / C. Hirsch Summary of all used Nagios service checks for GSM networks Nagios checks “everything” every 5 minutes, over 250.000.000 checks a year Connectivity check for GSM networks Packet roaming – „GTP Echo“ MMS Interworking – SMTP Dialog“ CS Roaming – „MAP dialogs“ WLAN Roaming - Radius authentication Performance BGP routes to roaming partners BGP peers status to neighbors Interface status for physical links Link usage ftp/sftp connections Serverload, user, temperature, disk usage, raid status, power supply, fans, zombie, processes Running process Log-In (ssh, telnet)

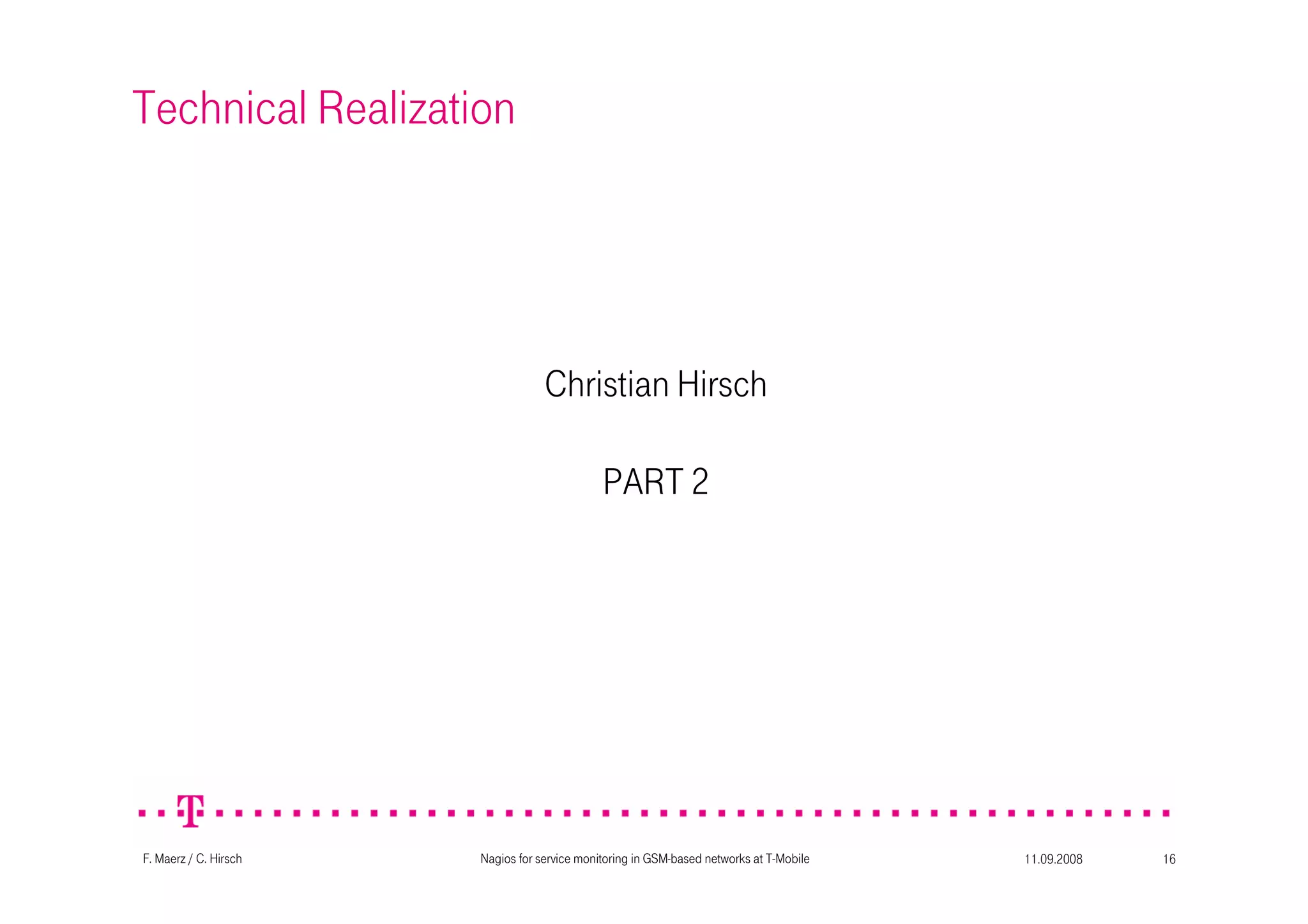

- 16. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 16F. Maerz / C. Hirsch Technical Realization Christian Hirsch PART 2

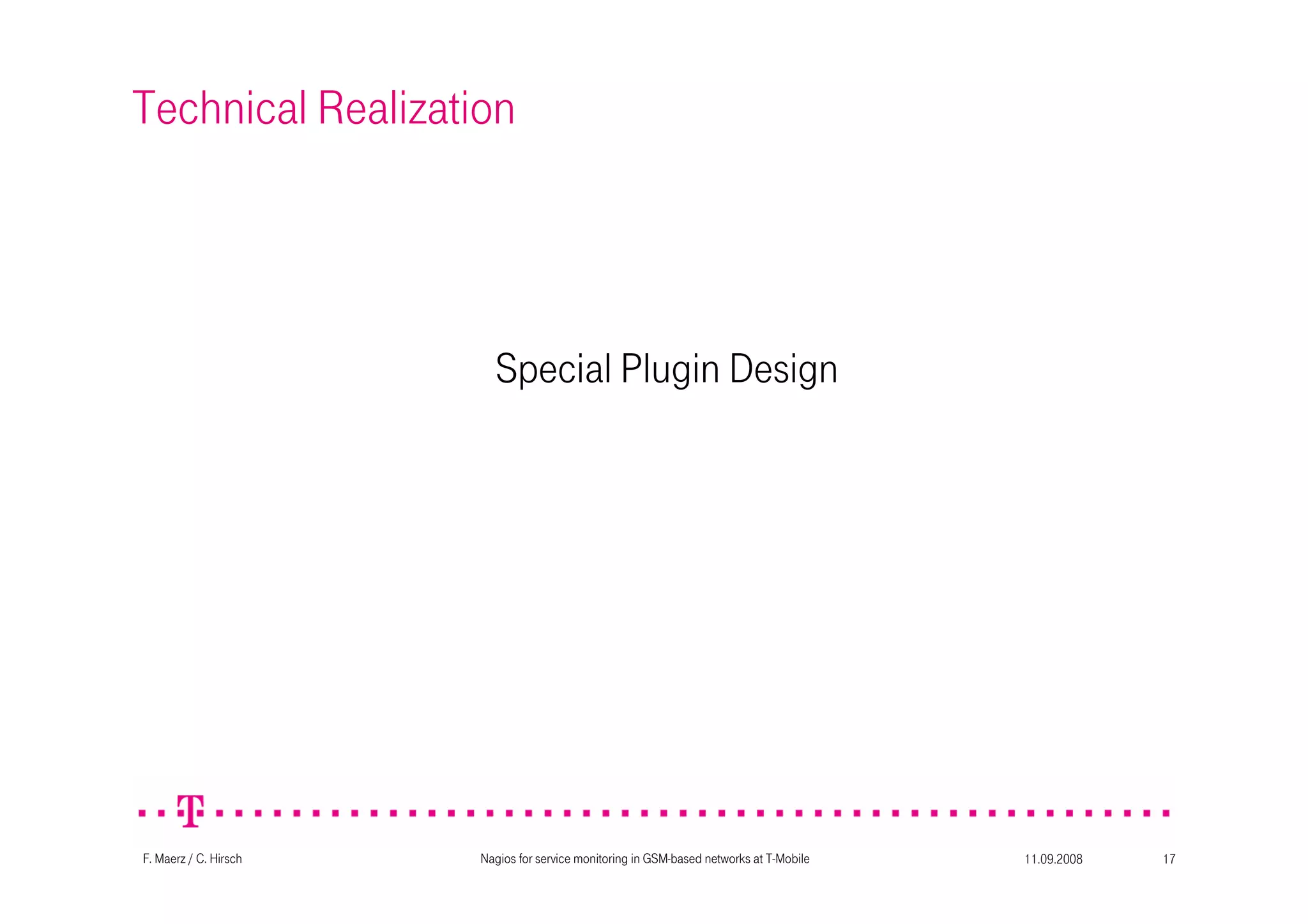

- 17. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 17F. Maerz / C. Hirsch Technical Realization Special Plugin Design

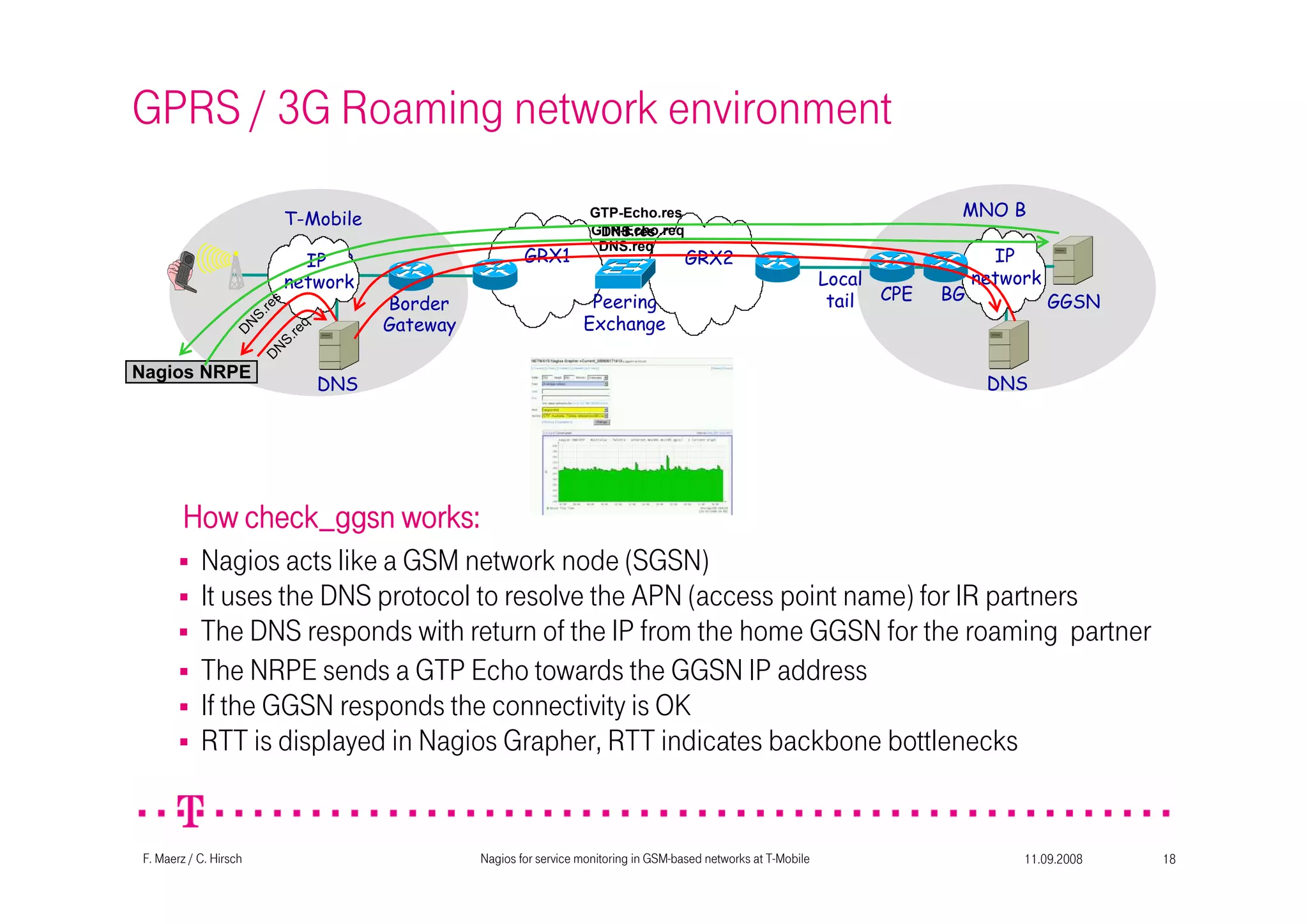

- 18. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 18F. Maerz / C. Hirsch GPRS / 3G Roaming network environment MNO B Peering Exchange GRX1 GRX2 GGSNCPE Local tail T-Mobile IP Border Gateway BG Nagios NRPE DNS DNS IP network IP network It uses the DNS protocol to resolve the APN (access point name) for IR partners The DNS responds with return of the IP from the home GGSN for the roaming partner The NRPE sends a GTP Echo towards the GGSN IP address If the GGSN responds the connectivity is OK D N S.req DNS.req DNS.res D N S.res GTP-Echo.req GTP-Echo.res RTT is displayed in Nagios Grapher, RTT indicates backbone bottlenecks HowHowHowHow check_ggsncheck_ggsncheck_ggsncheck_ggsn worksworksworksworks:::: Nagios acts like a GSM network node (SGSN)

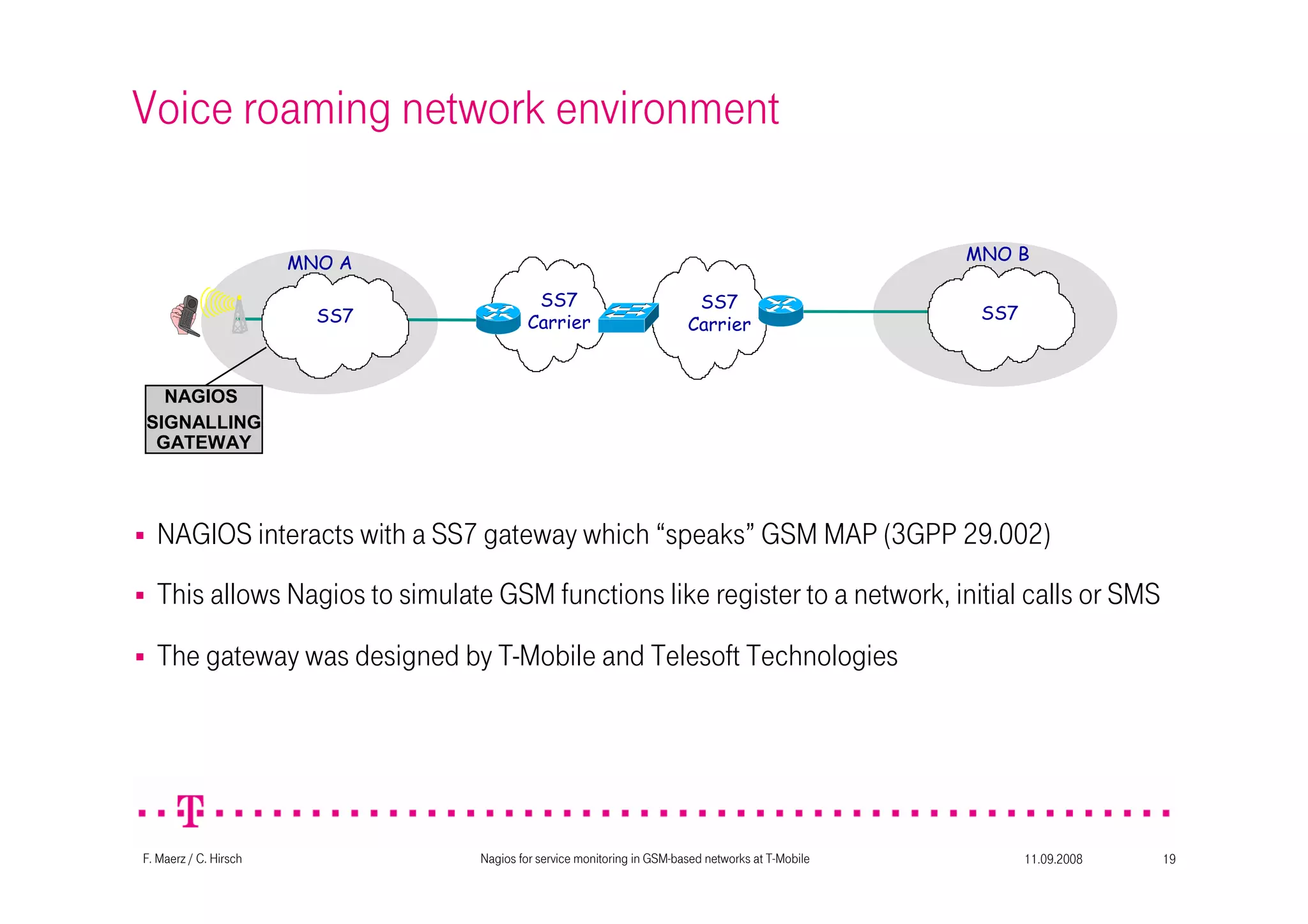

- 19. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 19F. Maerz / C. Hirsch MNO B SS7 Carrier SS7 Carrier MNO A SS7 SS7 Voice roaming network environment NAGIOS SIGNALLING GATEWAY This allows Nagios to simulate GSM functions like register to a network, initial calls or SMS The gateway was designed by T-Mobile and Telesoft Technologies NAGIOS interacts with a SS7 gateway which “speaks” GSM MAP (3GPP 29.002)

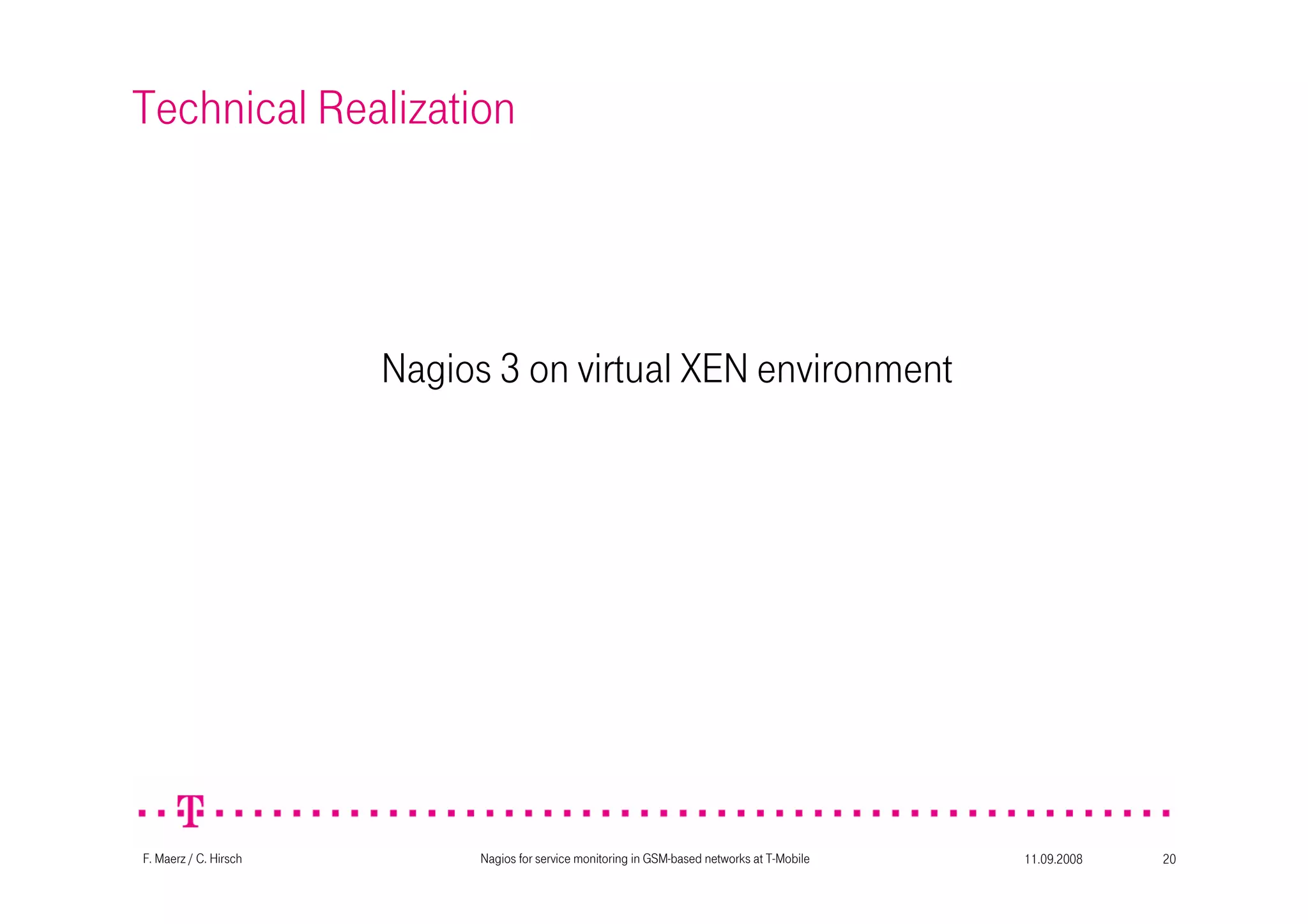

- 20. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 20F. Maerz / C. Hirsch Technical Realization Nagios 3 on virtual XEN environment

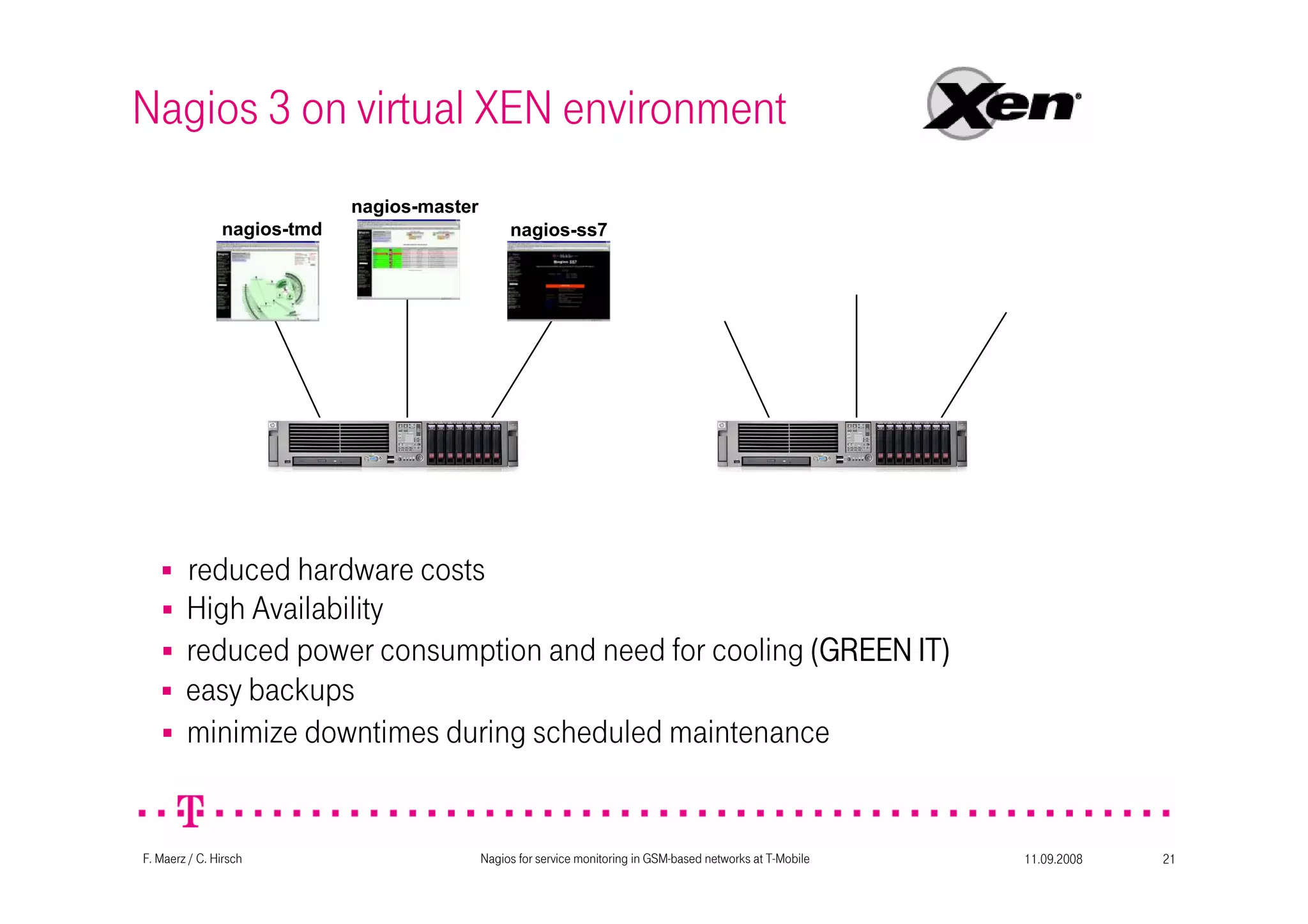

- 21. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 21F. Maerz / C. Hirsch Nagios 3 on virtual XEN environment reduced hardware costs High Availability minimize downtimes during scheduled maintenance easy backups reduced power consumption and need for cooling (GREEN IT)(GREEN IT)(GREEN IT)(GREEN IT) nagios-tmd nagios-master nagios-ss7

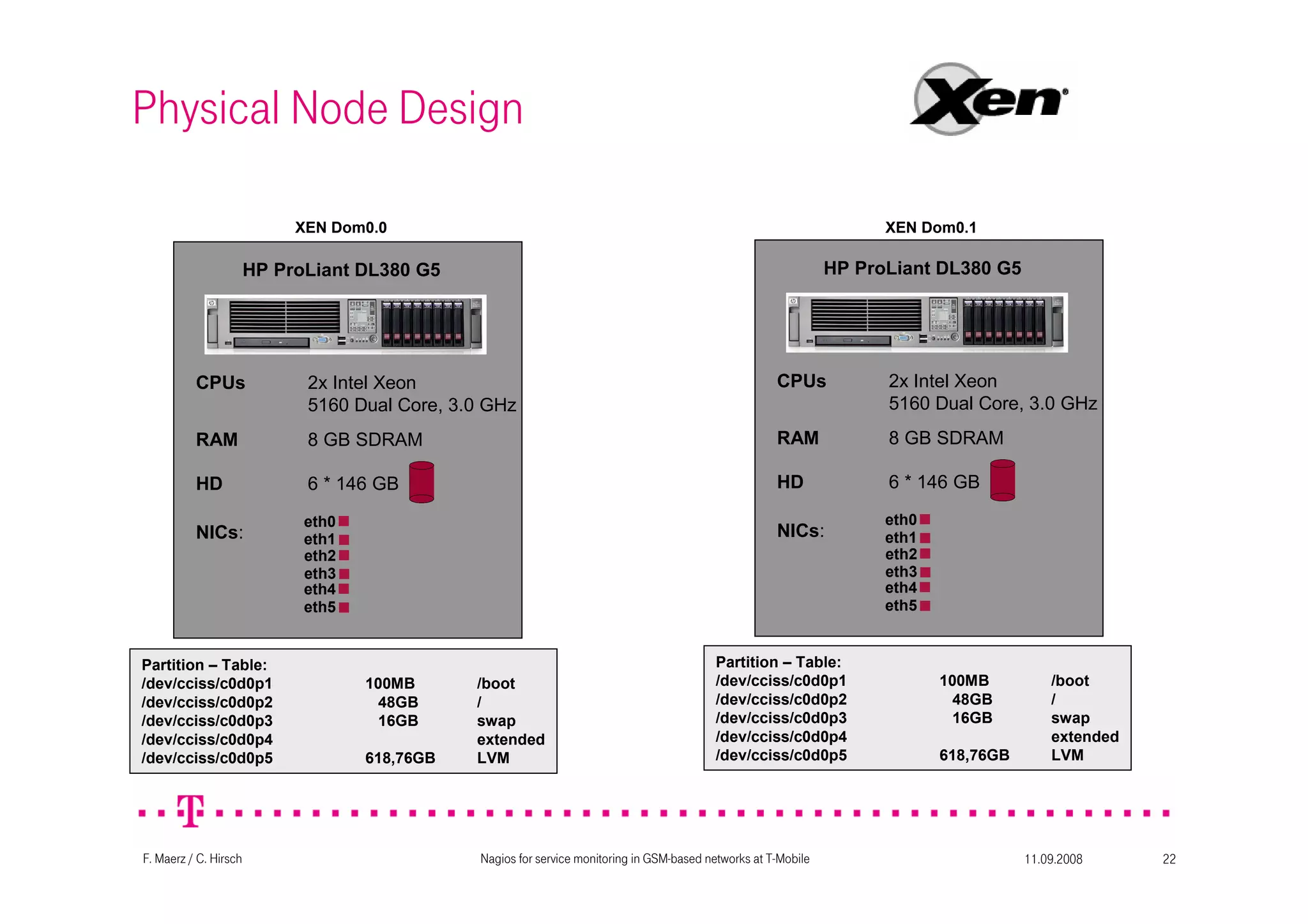

- 22. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 22F. Maerz / C. Hirsch Physical Node Design HP ProLiant DL380 G5 XEN Dom0.0 Partition – Table: /dev/cciss/c0d0p1 100MB /boot /dev/cciss/c0d0p2 48GB / /dev/cciss/c0d0p3 16GB swap /dev/cciss/c0d0p4 extended /dev/cciss/c0d0p5 618,76GB LVM eth0 eth1 eth2 eth3 eth4 eth5 XEN Dom0.1 Partition – Table: /dev/cciss/c0d0p1 100MB /boot /dev/cciss/c0d0p2 48GB / /dev/cciss/c0d0p3 16GB swap /dev/cciss/c0d0p4 extended /dev/cciss/c0d0p5 618,76GB LVM CPUs 2x Intel Xeon 5160 Dual Core, 3.0 GHz RAM 8 GB SDRAM NICs: HD 6 * 146 GB HP ProLiant DL380 G5 eth0 eth1 eth2 eth3 eth4 eth5 CPUs 2x Intel Xeon 5160 Dual Core, 3.0 GHz RAM 8 GB SDRAM NICs: HD 6 * 146 GB

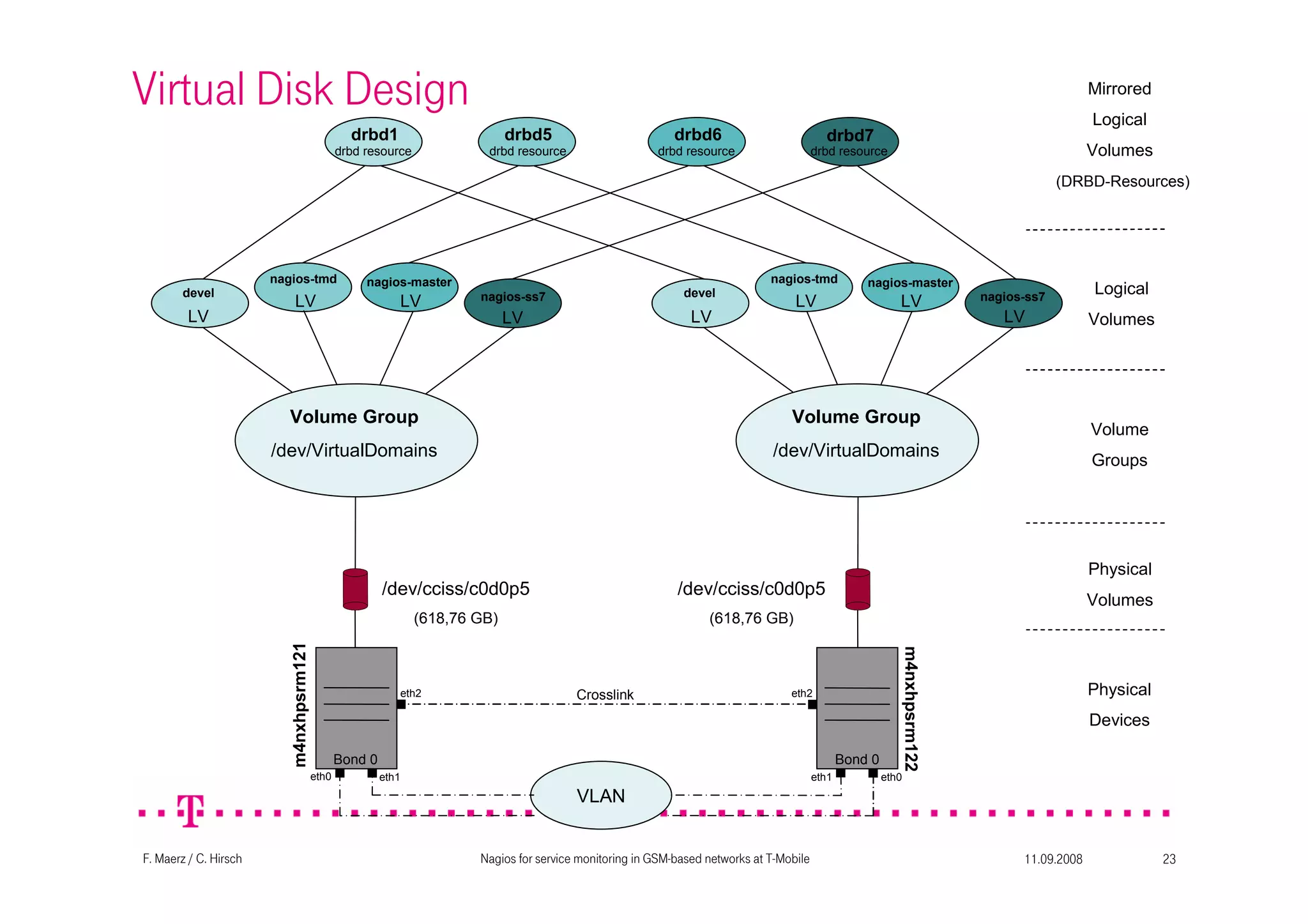

- 23. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 23F. Maerz / C. Hirsch Physical Volumes /dev/cciss/c0d0p5 (618,76 GB) /dev/cciss/c0d0p5 (618,76 GB) Virtual Disk Design devel LV nagios-tmd LV nagios-master LV nagios-ss7 LV devel LV nagios-tmd LV LV nagios-ss7 LV Logical Volumes nagios-master m4nxhpsrm121 m4nxhpsrm122 Crosslink eth0 eth1 eth0eth1 Physical Devices eth2 eth2 Bond 0Bond 0 VLAN drbd1 drbd resource drbd5 drbd resource drbd6 drbd resource drbd7 drbd resource Mirrored Logical Volumes (DRBD-Resources) Volume Groups Volume Group /dev/VirtualDomains Volume Group /dev/VirtualDomains

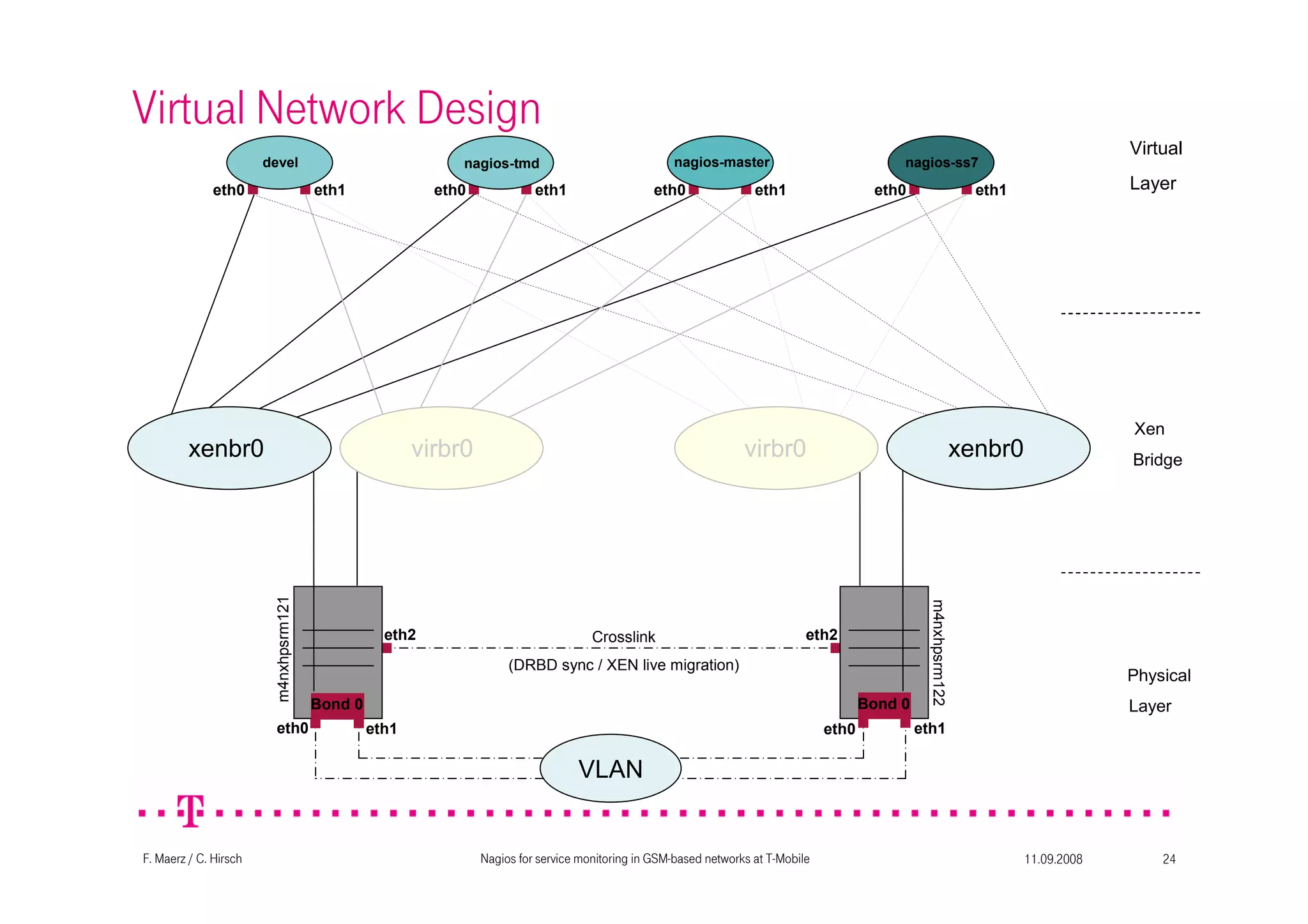

- 24. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 24F. Maerz / C. Hirsch Virtual Network Design VLAN m4nxhpsrm121 m4nxhpsrm122 Crosslink (DRBD sync / XEN live migration) eth0 eth1 eth0 nagios-tmd nagios-master nagios-ss7 eth2eth2 devel Xen Bridge Virtual Layer Physical LayerBond 0 eth1 eth0 eth1 Bond 0 xenbr0 xenbr0virbr0 virbr0 eth0 eth1 eth0 eth1 eth0 eth1

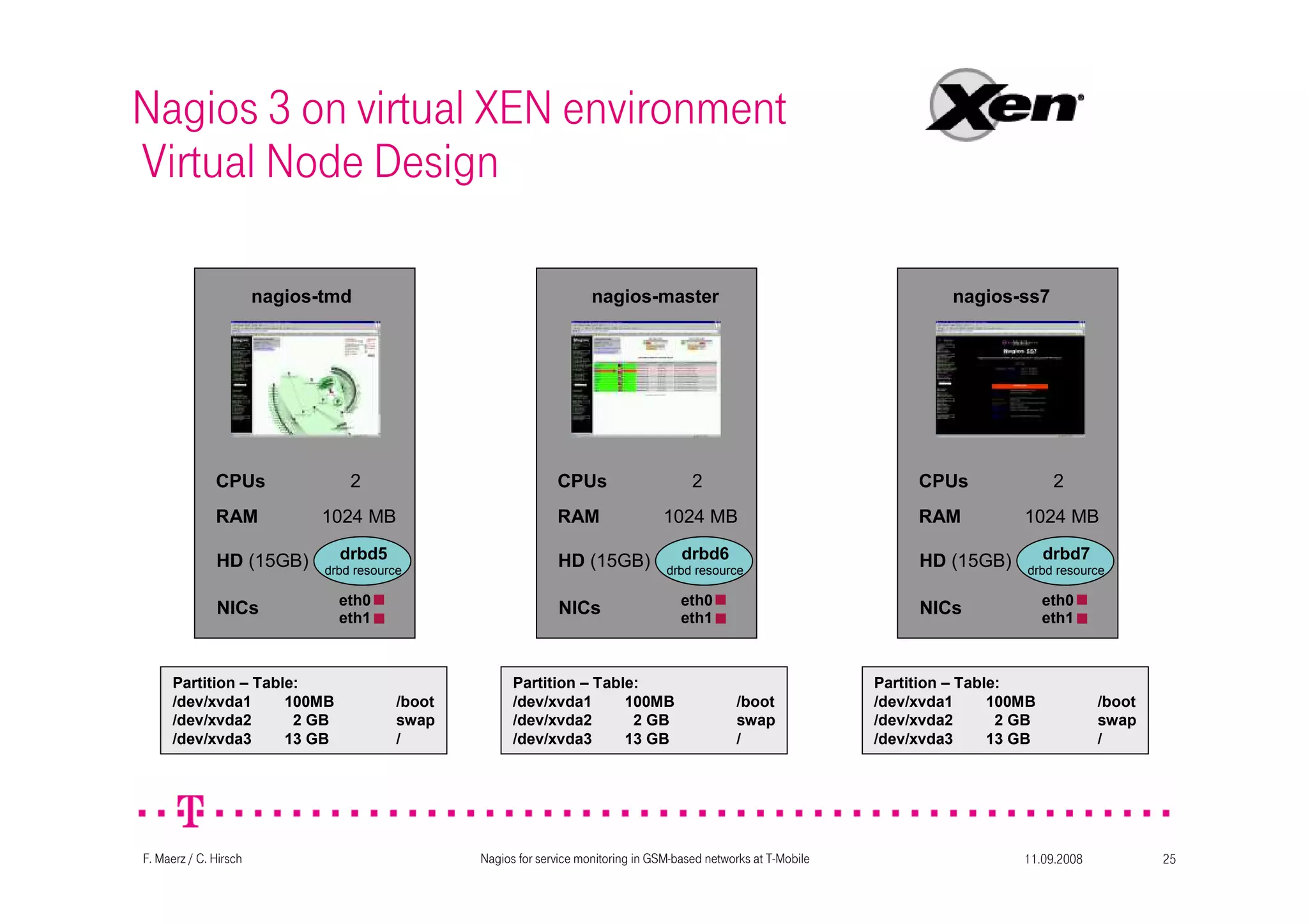

- 25. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 25F. Maerz / C. Hirsch Nagios 3 on virtual XEN environment Virtual Node Design nagios-tmd drbd5 drbd resource eth0 eth1 NICs HD (15GB) RAM 1024 MB CPUs 2 Partition – Table: /dev/xvda1 100MB /boot /dev/xvda2 2 GB swap /dev/xvda3 13 GB / nagios-master drbd6 drbd resource eth0 eth1 NICs HD (15GB) RAM 1024 MB CPUs 2 Partition – Table: /dev/xvda1 100MB /boot /dev/xvda2 2 GB swap /dev/xvda3 13 GB / nagios-ss7 drbd7 drbd resource eth0 eth1 NICs HD (15GB) RAM 1024 MB CPUs 2 Partition – Table: /dev/xvda1 100MB /boot /dev/xvda2 2 GB swap /dev/xvda3 13 GB /
- 26. 11.09.2008Nagios for servicemonitoring in GSM-based networks at T-Mobile 26F. Maerz / C. Hirsch Any Questions? ““““NowNowNowNow itititit‘‘‘‘ssss timetimetimetime forforforfor aaaa livelivelivelive demodemodemodemo…“…“…“…“
