The document summarizes an ocular surface analyzer (OSA) device. It can perform various tear film tests and analyze the meibomian glands using international grading scales. The OSA allows for interferometric analysis of the lipid layer and measurement of the tear meniscus height. It also features automated NIBUT measurement, meibography imaging, and analysis of the lipid layer thickness, redness, and other ocular measurements. The OSA provides reports on examination findings and can be used for screening, diagnosis, and monitoring treatment by optometrists and ophthalmologists.

1. OCULAR SURFACE
ANALYSER
PRESENTED BY:
M.OPTOM. RICHA GUPTA(1 YEAR)
F.OPTOM. , B.OPTOM.

2. Post-operative
follow up
Screening
service
Private
ophthalmologists
Public hospital
Specialist
diagnosis
Optometrist
Ophthalmic diagnostics anywhere, anytime

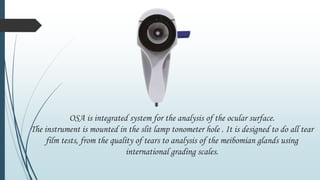

4. OSA is integrated system for the analysis of the ocular surface.

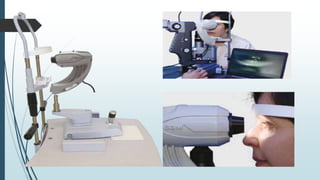

The instrument is mounted in the slit lamp tonometer hole . It is designed to do all tear
film tests, from the quality of tears to analysis of the meibomian glands using
international grading scales.

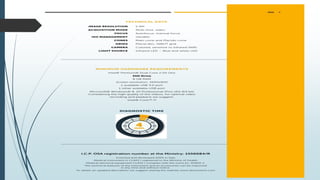

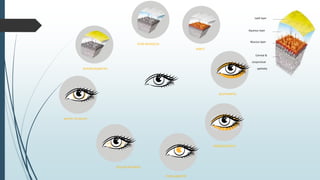

6. OCULAR REDNESS
WHITE TO WHITE
PUPILLOMETRY
INTERFEROMETRY
TEAR MENISCUS
NIBUT
BLEPHARITIS
MEIBOGRAPHY
Lipid layer
Aqueous layer
Mucous layer
Corneal &
conjunctival
epithelia

7. AUTO- INTERFEROMETRY
• Using the device it is possible to do an interferometric analysis of the lipid layer in the tear film.
• The tear film plane must be focused, while the image of the bright circle must remain blurred.
• Depending on its thickness and regularity, the lipid layer may appear like any of the following:
amorphous structure, marble appearance, wavy appearance, yellow, brown, blue or reddish
interference fringes

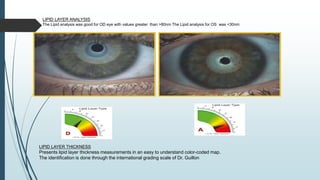

8. LIPID LAYER ANALYSIS
The Lipid analysis was good for OD eye with values greater than >80nm The Lipid analysis for OS was <30nm
LIPID LAYER THICKNESS
Presents lipid layer thickness measurements in an easy to understand color-coded map.
The identification is done through the international grading scale of Dr. Guillon

9. TEAR MENISCUS HEIGHT MEASUREMENT

10. AUTO - NIBUT

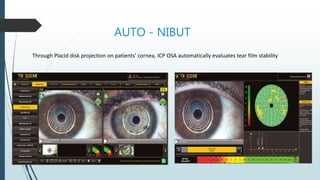

Through Placid disk projection on patients’ cornea, ICP OSA automatically evaluates tear film stability

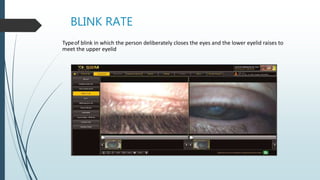

11. BLINK RATE
Typeof blink in which the person deliberately closes the eyes and the lower eyelid raises to
meet the upper eyelid

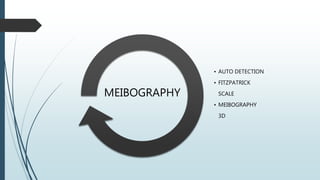

12. • AUTO DETECTION
• FITZPATRICK
SCALE
• MEIBOGRAPHY
3D
MEIBOGRAPHY

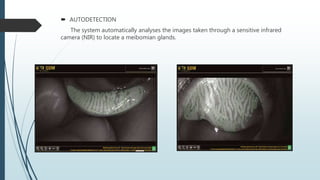

13.  AUTODETECTION
The system automatically analyses the images taken through a sensitive infrared
camera (NIR) to locate a meibomian glands.

14.  MEIBOGRAPHY 3D
the revolutionary introduction of 3d meibomian gland imaging provides you the
clinician with two clear advantages. firstly, it enables you to confirm the presence of
abnormal glands vs. that of a healthy individual in a 3d format and secondly, it
provides a clear image to share with the patient to help explain the potential cause of
their DED.

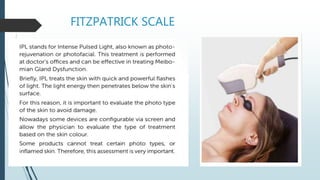

15. FITZPATRICK SCALE

16. OTHER POSSIBLE EXAMINATION
OTHER POSSIBLE
EXAMINATION
THE
MEASUREMENT
OF PUPIL
DIAMETER
CORNEAL
PLACID PLATE
WARPAGE
ASSESSMENT OF
GRADING
SCALES
meibography
images
WHITE TO
WHITE
MEASUREMENT
COMPARISON
WITH THE MAIN
INTERNATIONAL
GRADING SCALE
BULBAR
REDNESS
CLASSIFICATION

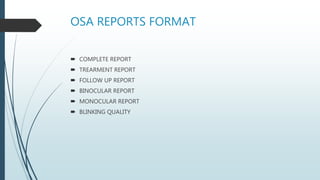

17. OSA REPORTS FORMAT
 COMPLETE REPORT
 TREARMENT REPORT
 FOLLOW UP REPORT
 BINOCULAR REPORT
 MONOCULAR REPORT
 BLINKING QUALITY

18. OSA REPORTS
OSMOLARITY, SCHIRMER TEST
Exam Report
14/09/2016 09:38 219.00 mOsm/L 289.00 mOsm/L mOsm/L70.00
14/09/2016 09:26 312.00 mOsm/L mOsm/L320.00 mOsm/L8.00
13/09/2016 16:27 mOsm/L333.00 mOsm/L289.00 mOsm/L44.00
13/09/2016 16:22 mOsm/L297.00 mOsm/L266.00 mOsm/L31.00
13/09/2016 16:22 mOsm/L288.00 288.00 mOsm/L mOsm/L0.00
13/09/2016 16:21 mOsm/L299.00 299.00 mOsm/L 0.00 mOsm/L
13/09/2016 15:31 299.00 mOsm/L 299.00 mOsm/L 0.00 mOsm/L
13/09/2016 15:31 333.00 mOsm/L 333.00 mOsm/L 0.00 mOsm/L
13/09/2016 15:30 mOsm/L289.00 310.00 mOsm/L mOsm/L21.00
SBM Sistemi s.r.l.
Strada Torino, 43
Orbassano, 10043
+390117791800
SBM Sistemi srl
Strada Torino 43,
Orbassano (TO)
01119923378
www.sbmsistemi.com
PATIENT
Doe, John
TELEPHONE
01119923378
REPORT DESCRIPTION
Osmolarity
BIRTH DATE
02/03/1990 (26)
SEX
M
ID
DOEJHN90C02I480P
ADDRESS
Strada Torino , 43 Orbassano 10043 TO
Date Value Right Eye Value Left Eye Difference Value
SBM Sistemi ICP Medical System - http://www.sbmsistemi.com/ - Page 1/2

19. Cont..

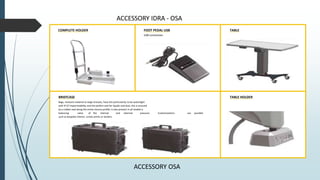

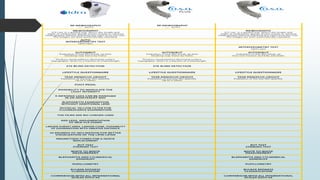

21. COMPLETE HOLDER FOOT PEDAL USB
USB connection
BRIEFCASE
Bags, resistant material to large stresses, have the particularity to be watertight
with IP 67 impermeability and the perfect seal for liquids and dust, this is ensured
by a rubber seal along the entire closure profile; is also present in all models a
balancing valve of the internal and external pressure. Customizations are possible
such as bespoke interior, screen prints or stickers.
TABLE
TABLE HOLDER
ACCESSORY IDRA - OSA
ACCESSORY OSA

22. I.C.P. OSA FILMLENS FOR CYLINDRICAL
DANDRUFF
IMAGING
N.I.B.U.T or B.U.T.
with the use of fluorescein )(
Interpretation and explanation to the
patient
Graphic pre and post treatment with easy
interpretation for the patient
All Dry Eye with scales and classified
parameters on basis of standard
•
Blue and white Led
• A thick grid to observe the quality of the tear film and measure the N.I.B.U.T.
•A fine grid to evaluate the quality and the structure of tear
• A Placido’s disc to highlight possible distortions or corneal irregularities
• yellow and cobalt blue filter via software for applicative evaluation of rigid contact lenses.

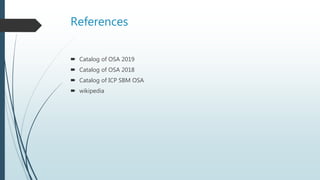

23. References
 Catalog of OSA 2019
 Catalog of OSA 2018
 Catalog of ICP SBM OSA
 wikipedia

24. THANK YOU
