1. Luigi Dell’Aquila
Director of Consulting
Orient Technologies LTD
Twitter: @ldellaquila
http://www.orientdb.com
OrientDB - the 2nd generation
of
(Multi-Model) NoSQL
And why GraphDB are the starting point of this revolution

2. “90% of the data
in the world today
has been created
in the last two years alone.”
- IBM
Welcome to Big Data

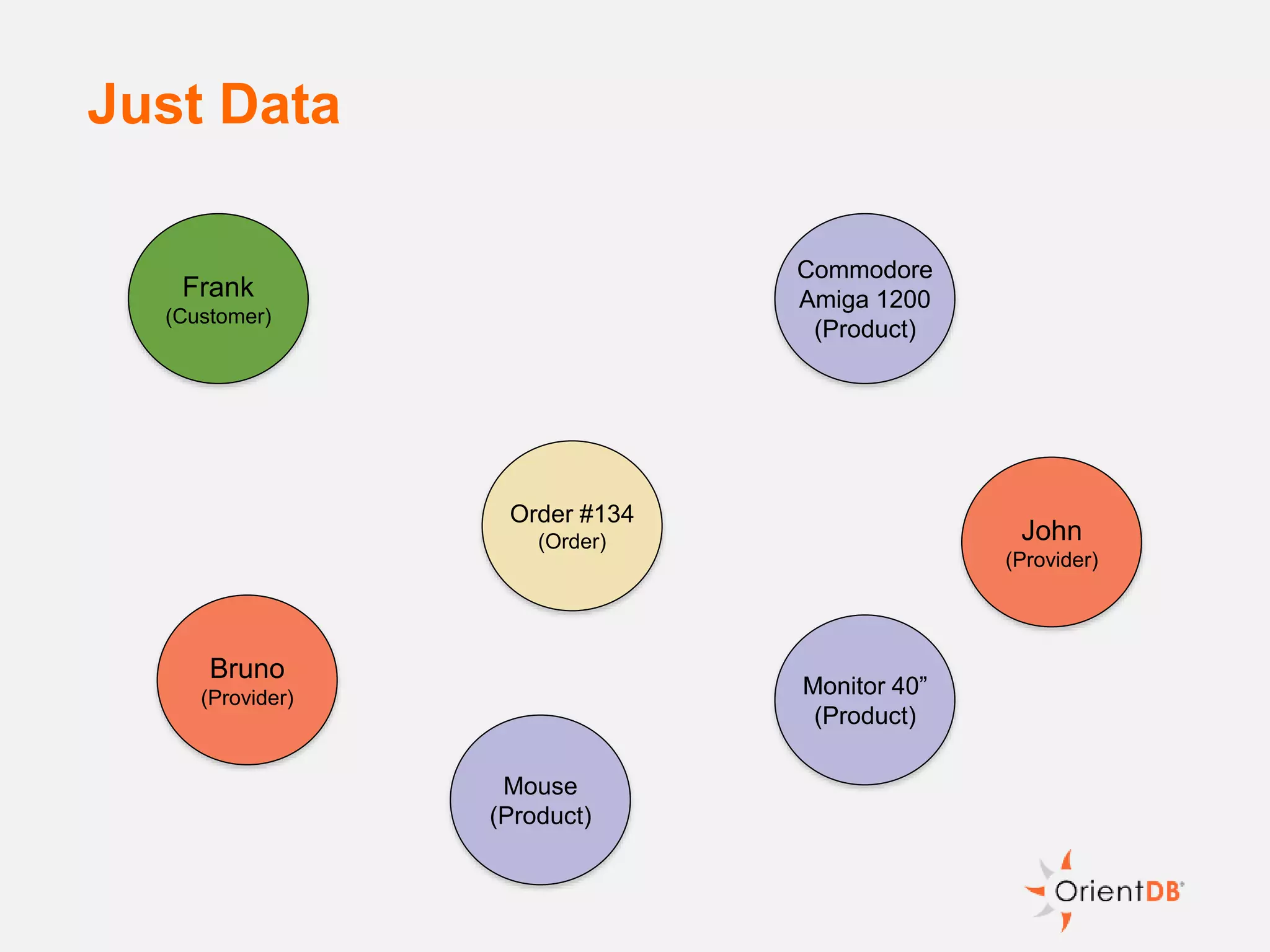

3. Just Data
Order #134
(Order) John
(Provider)
Commodore
Amiga 1200
(Product)
Frank
(Customer)
Monitor 40”
(Product)
Mouse
(Product)
Bruno
(Provider)

4. Just Data
Order #134
(Order) John
(Provider)
Commodore
Amiga 1200
(Product)
Frank
(Customer)
Monitor 40”
(Product)
Mouse
(Product)
Bruno
(Provider)
Data by itself has little value,
it’s the relationship
between data that gives it
incredible value

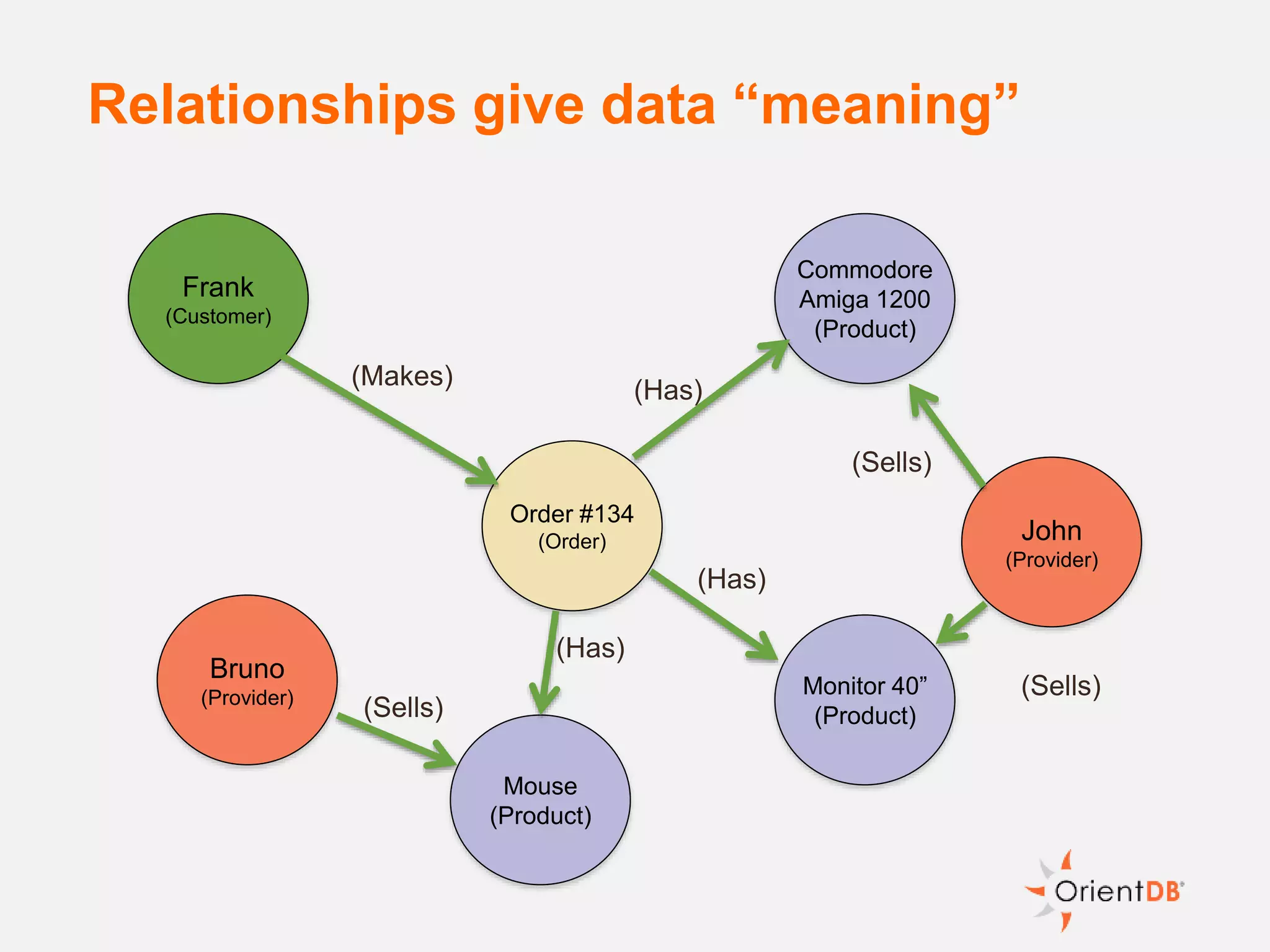

5. Relationships give data “meaning”
Order #134
(Order) John
(Provider)
Commodore
Amiga 1200
(Product)
(Sells)
Frank
(Customer)
(Has)
(Makes)
Monitor 40”
(Product)
(Sells)
(Has)
Mouse
(Product)
Bruno
(Provider)
(Sells)
(Has)

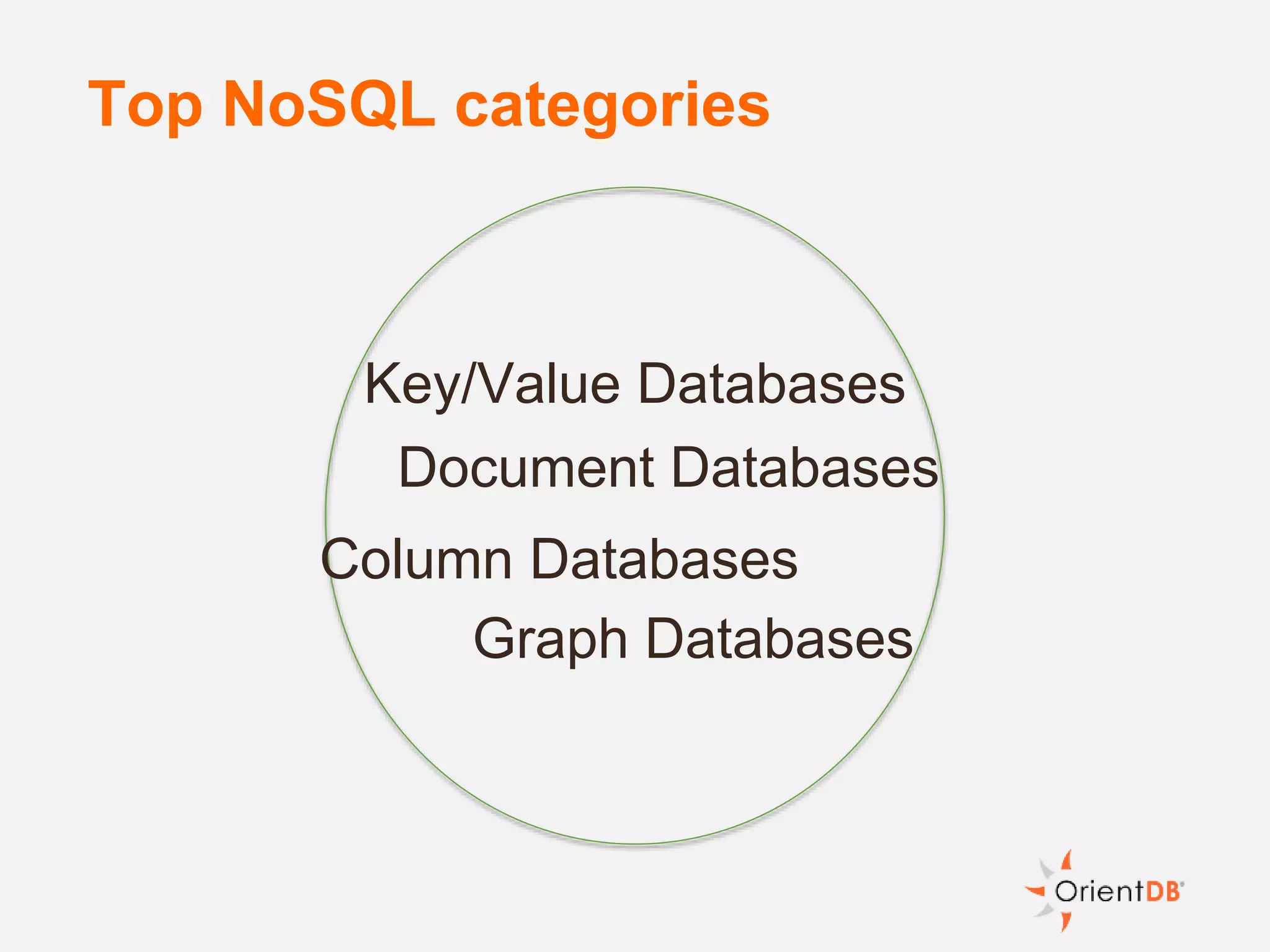

6. Top NoSQL categories
Key/Value Databases
Document Databases
Graph Databases
Column Databases

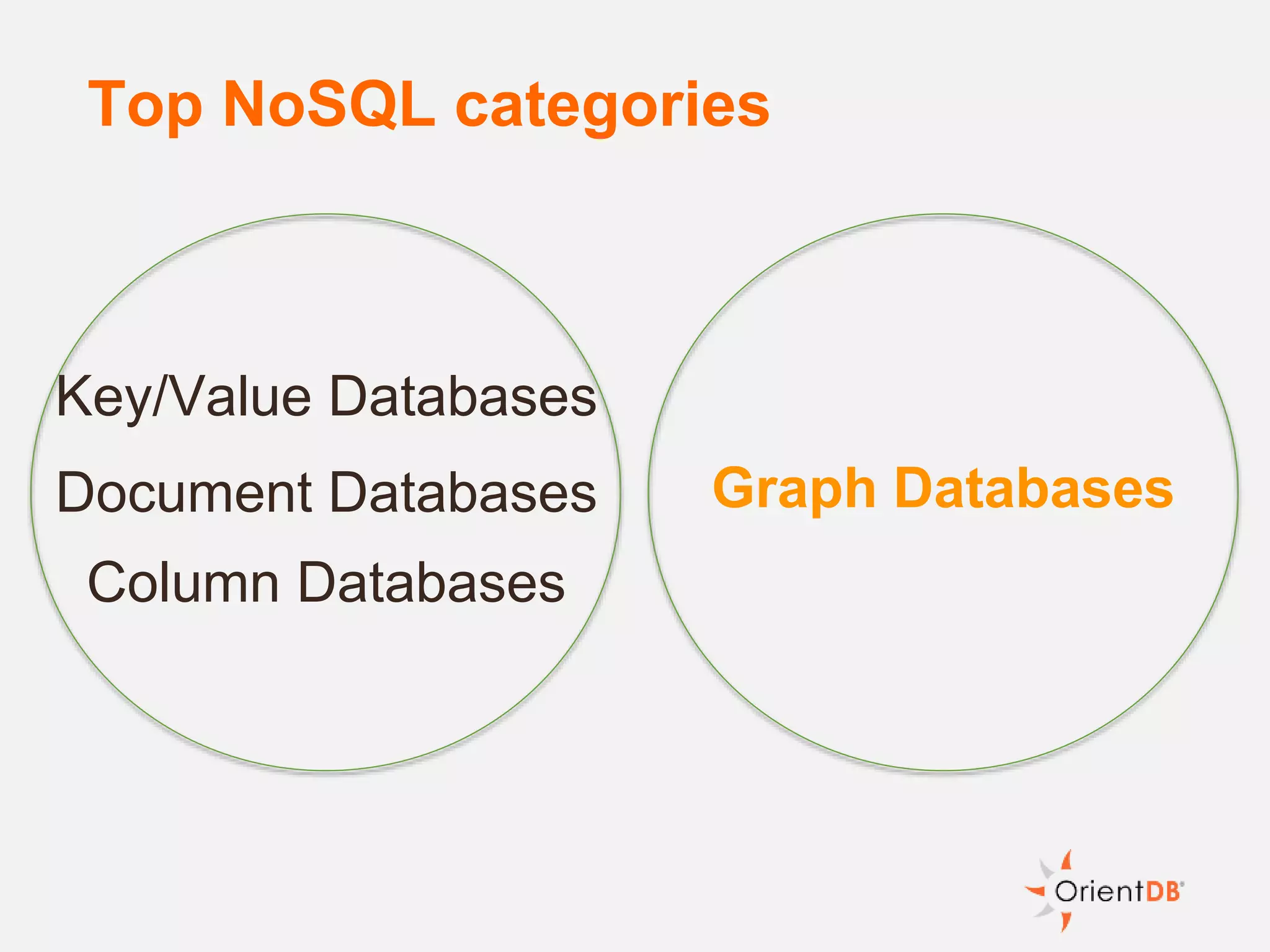

7. Top NoSQL categories
Key/Value Databases
Document Databases Graph Databases
Column Databases

8. Why do most NoSQL products
avoid
managing relationships?

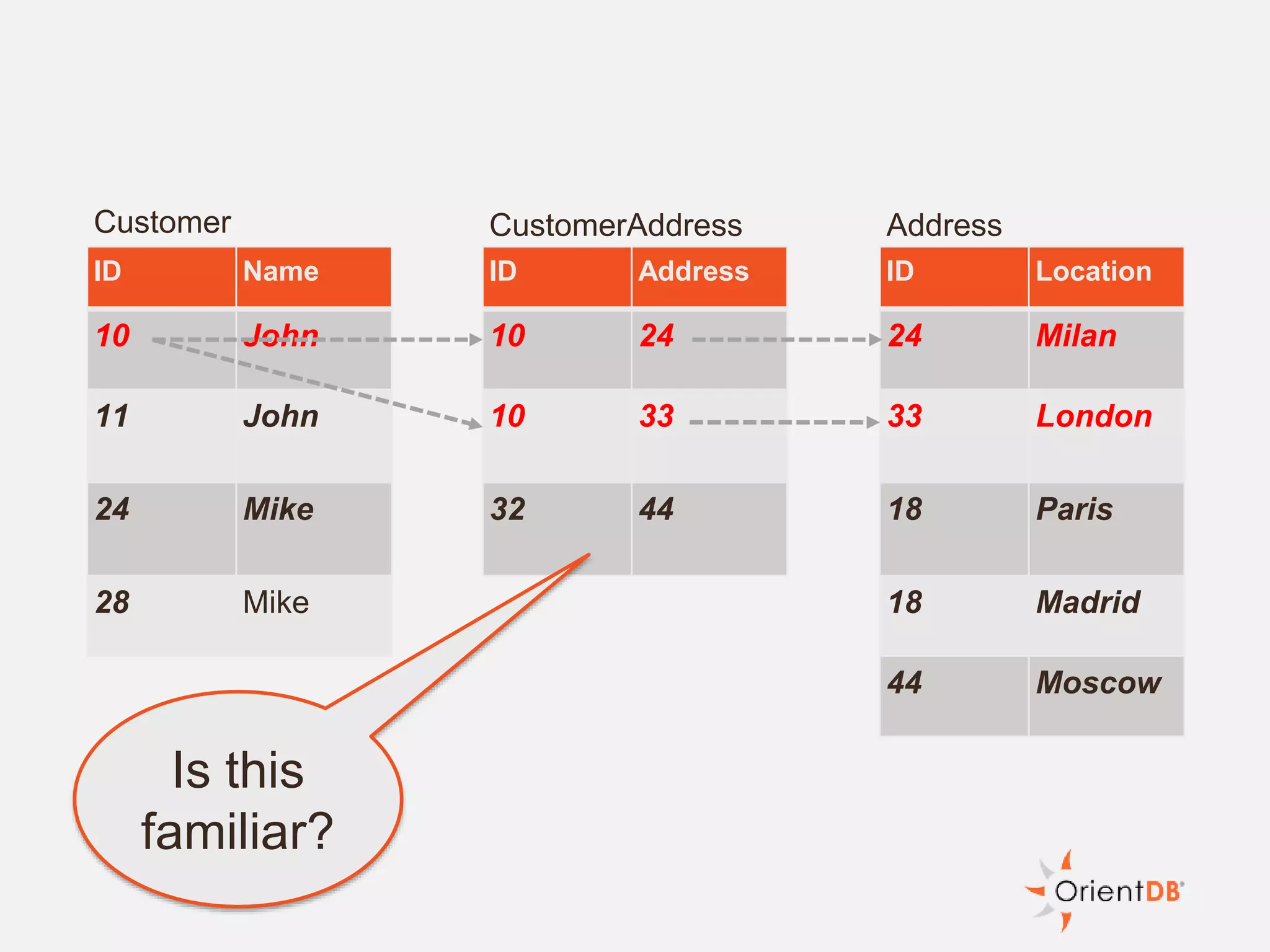

9. ID Name
10 John
11 John
24 Mike
28 Mike
ID Address
10 24
10 33
32 44
ID Location
24 Milan
33 London
18 Paris
18 Madrid
44 Moscow
Customer CustomerAddress Address
Is this
familiar?

10. What’s wrong
with JOIN?

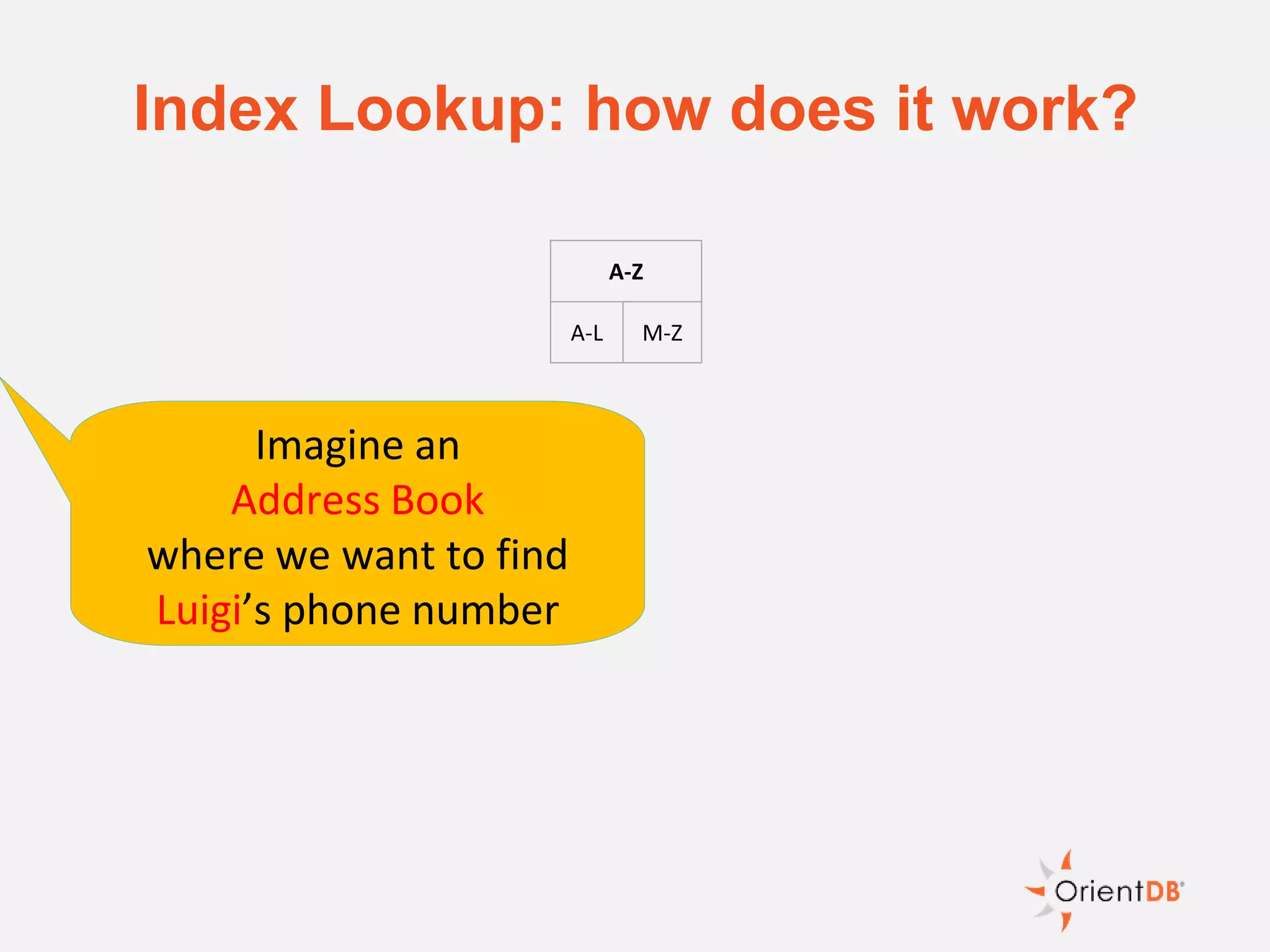

11. A-Z
A-L M-Z
Imagine an
Address Book
where we want to find
Luigi’s phone number
Index Lookup: how does it work?

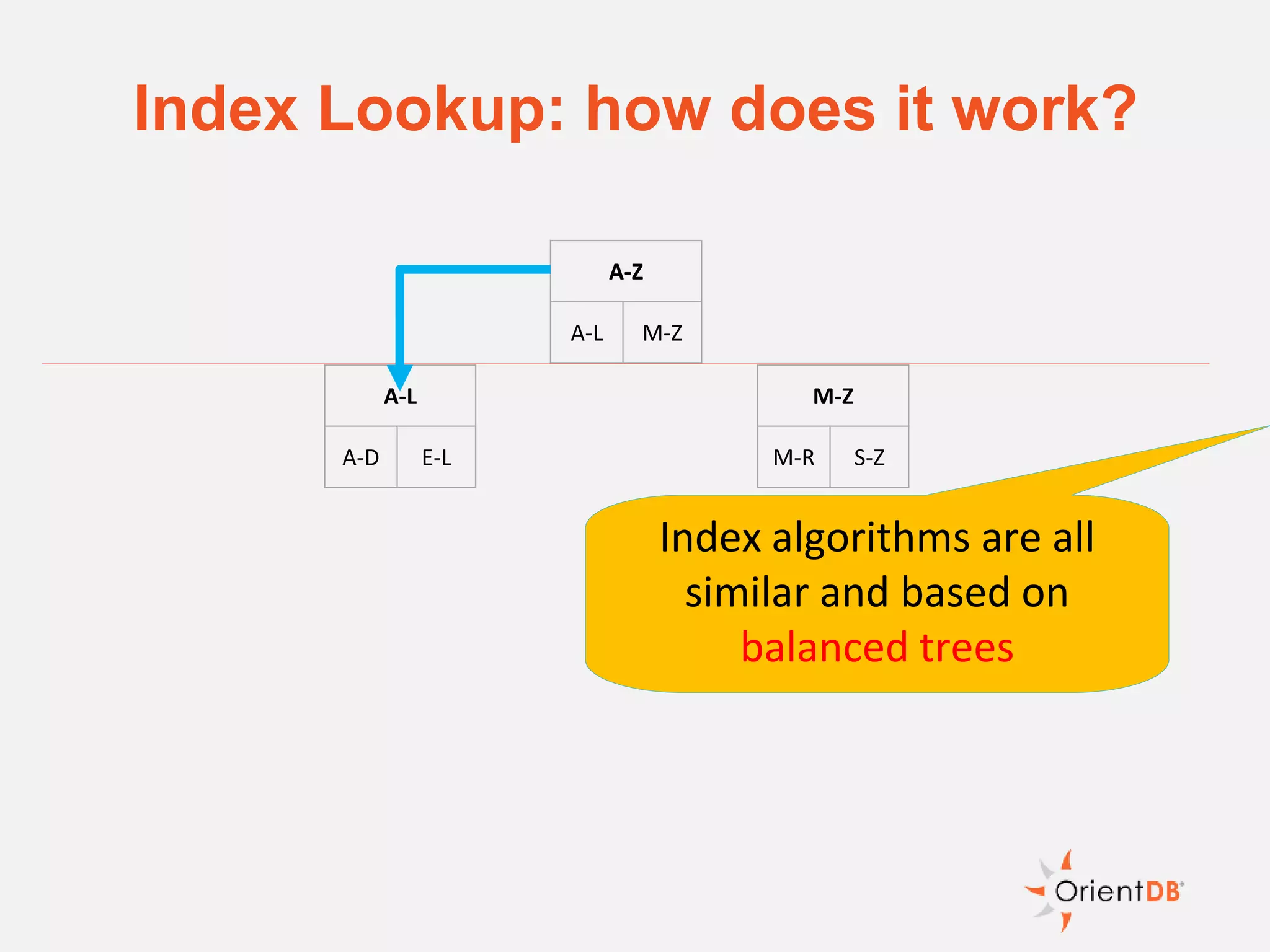

12. A-Z
A-L M-Z
A-L
A-D E-L
M-Z
M-R S-Z
Index algorithms are all
similar and based on
balanced trees
Index Lookup: how does it work?

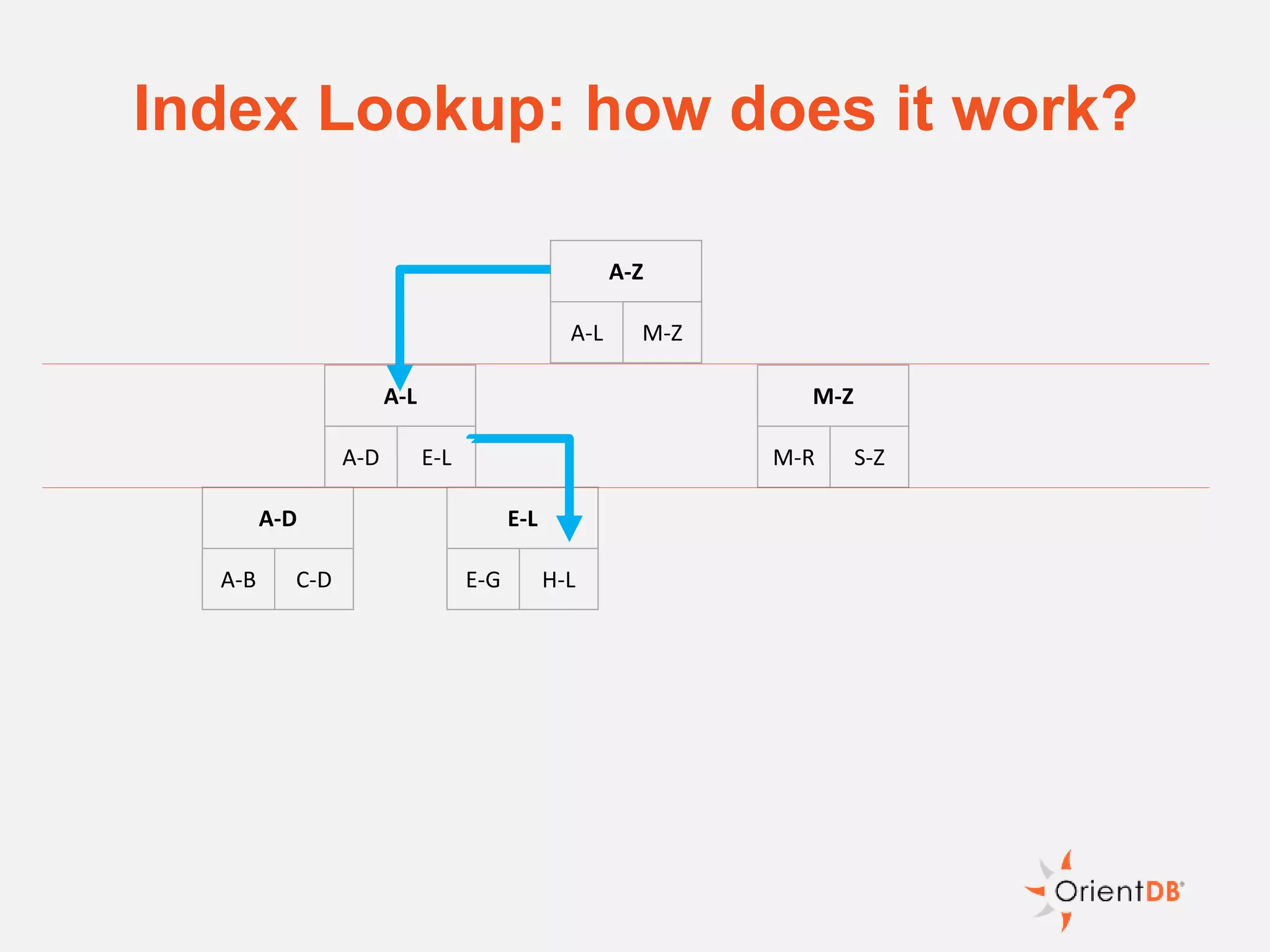

13. A-Z
A-L M-Z
A-L
A-D E-L
M-Z
M-R S-Z
A-D
A-B C-D
E-L
E-G H-L
Index Lookup: how does it work?

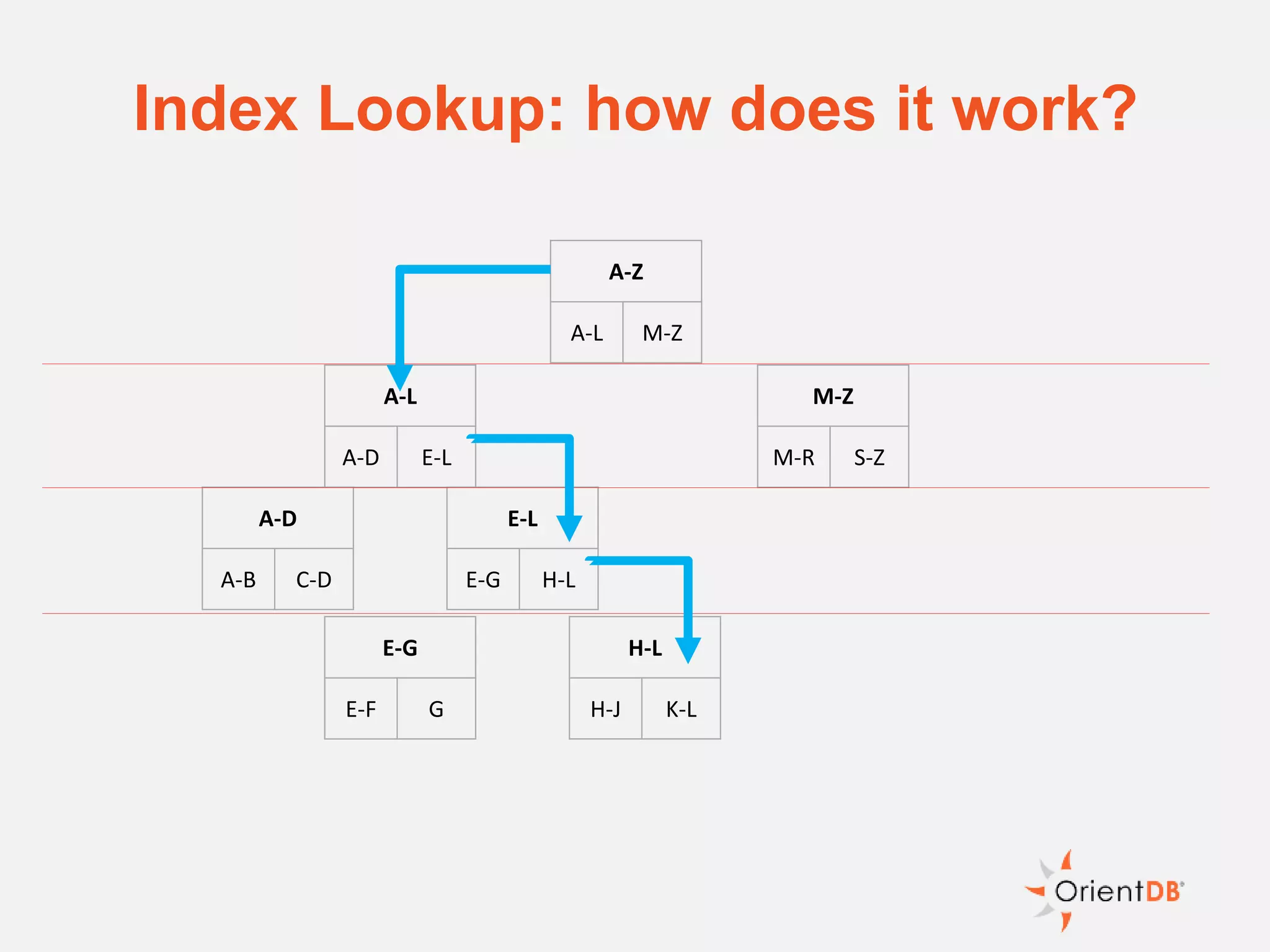

14. A-Z
A-L M-Z
A-L
A-D E-L
M-Z
M-R S-Z
A-D
A-B C-D
E-L
E-G H-L
E-G
E-F G
H-L
H-J K-L
Index Lookup: how does it work?

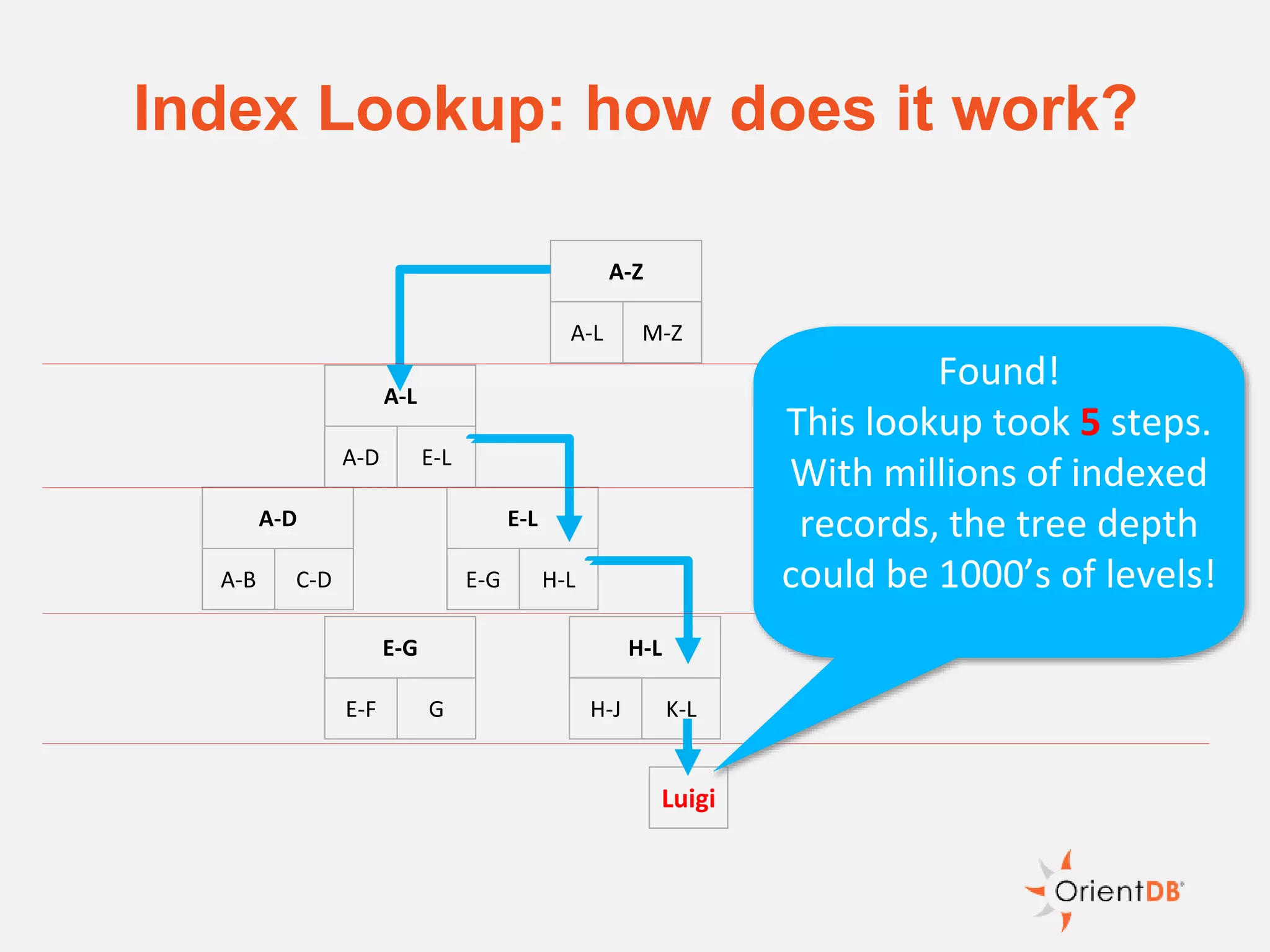

15. Index Lookup: how does it work?
A-Z
A-L M-Z
A-L
A-D E-L
M-Z
M-R S-Z
A-D
A-B C-D
E-L
E-G H-L
E-G
E-F G
H-L
H-J K-L
Luigi
Found!
This lookup took 5 steps.
With millions of indexed
records, the tree depth
could be 1000’s of levels!

16. Joins Kill Performance
ID Name
10 John
11 John
24 Mike
28 Mike
ID Address
10 24
10 33
32 44
ID Location
24 Milan
33 London
18 Paris
18 Madrid
44 Moscow
Customer CustomerAddress Address
Joins are executed every time
you cross relationships
Querying million of records
joining 3-4 tables could
generate billions of
combinations

17. This is why the database
query performance
suffers as the database
increases in size
O(Log N)

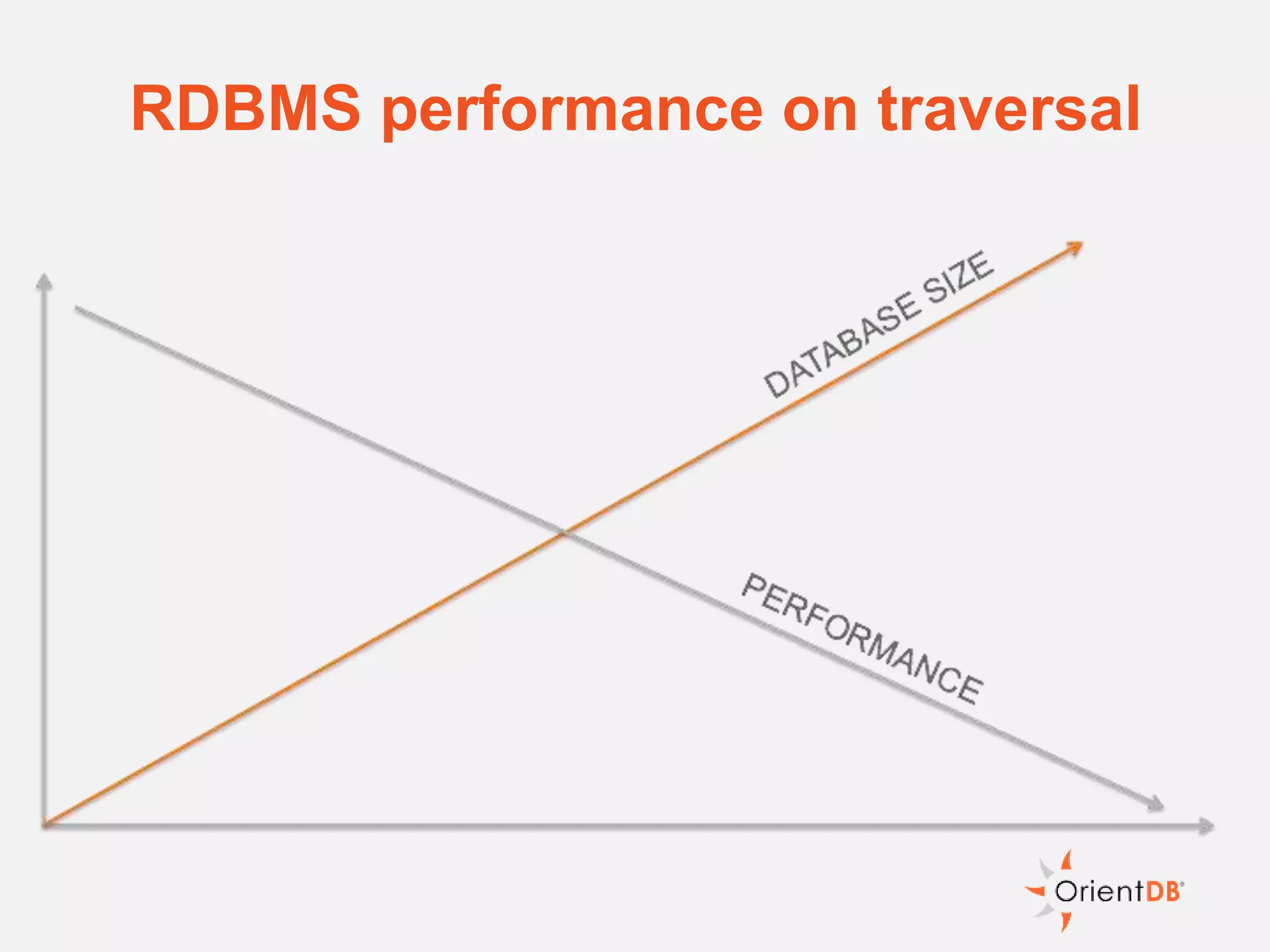

18. RDBMS performance on traversal

19. In a world that’s becoming
more connected, we need a
better way to store data and
manage relationships
Read: Data is important, but relationships are even more fundamental today

20. “A graph database is any
storage system
that provides
index-free adjacency”
- Marko Rodriguez
(author of TinkerPop Blueprints)

21. Every developer knows
the Relational Model,
but who knows the
Graph one?

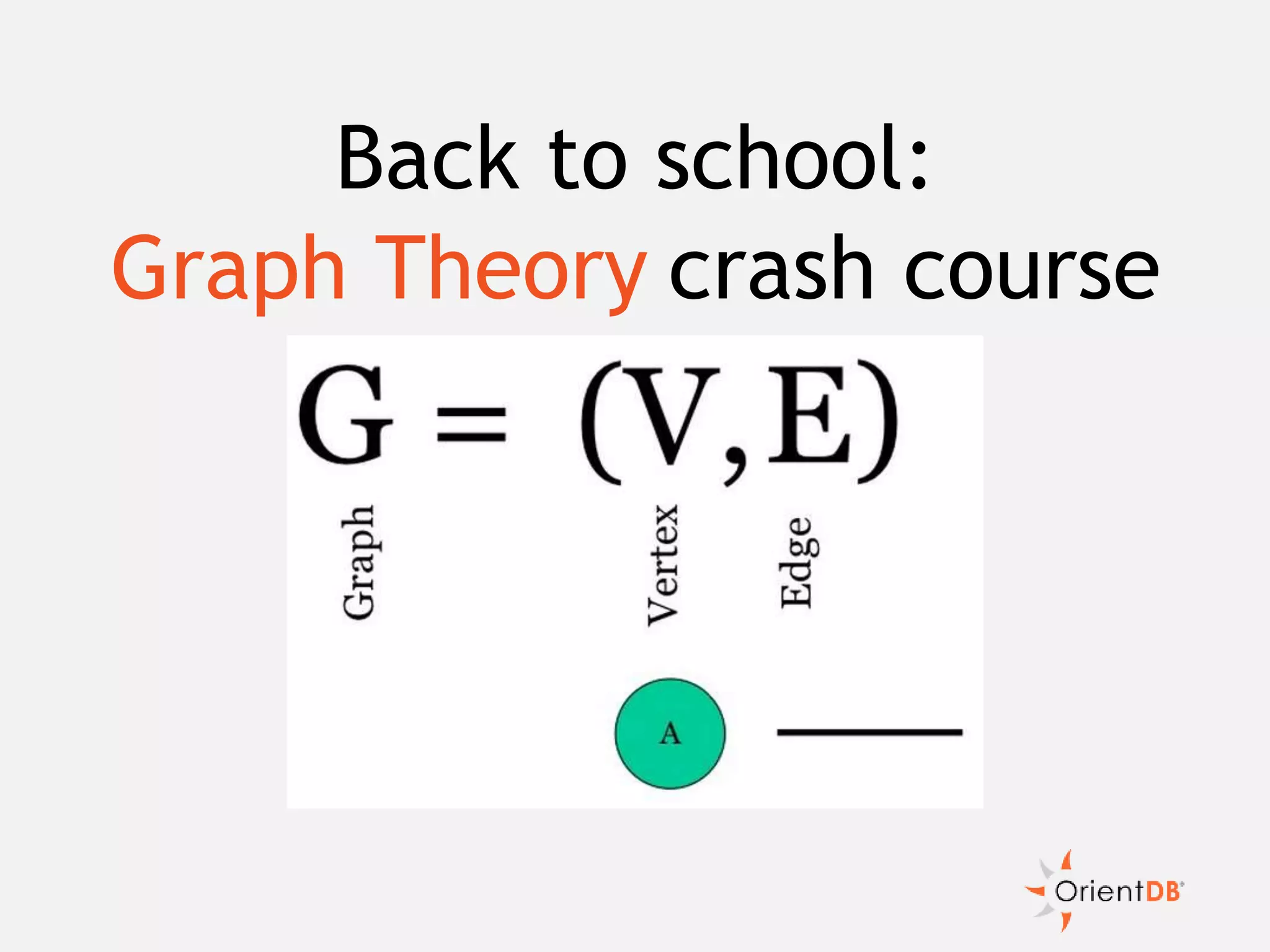

22. Back to school:
Graph Theory crash course

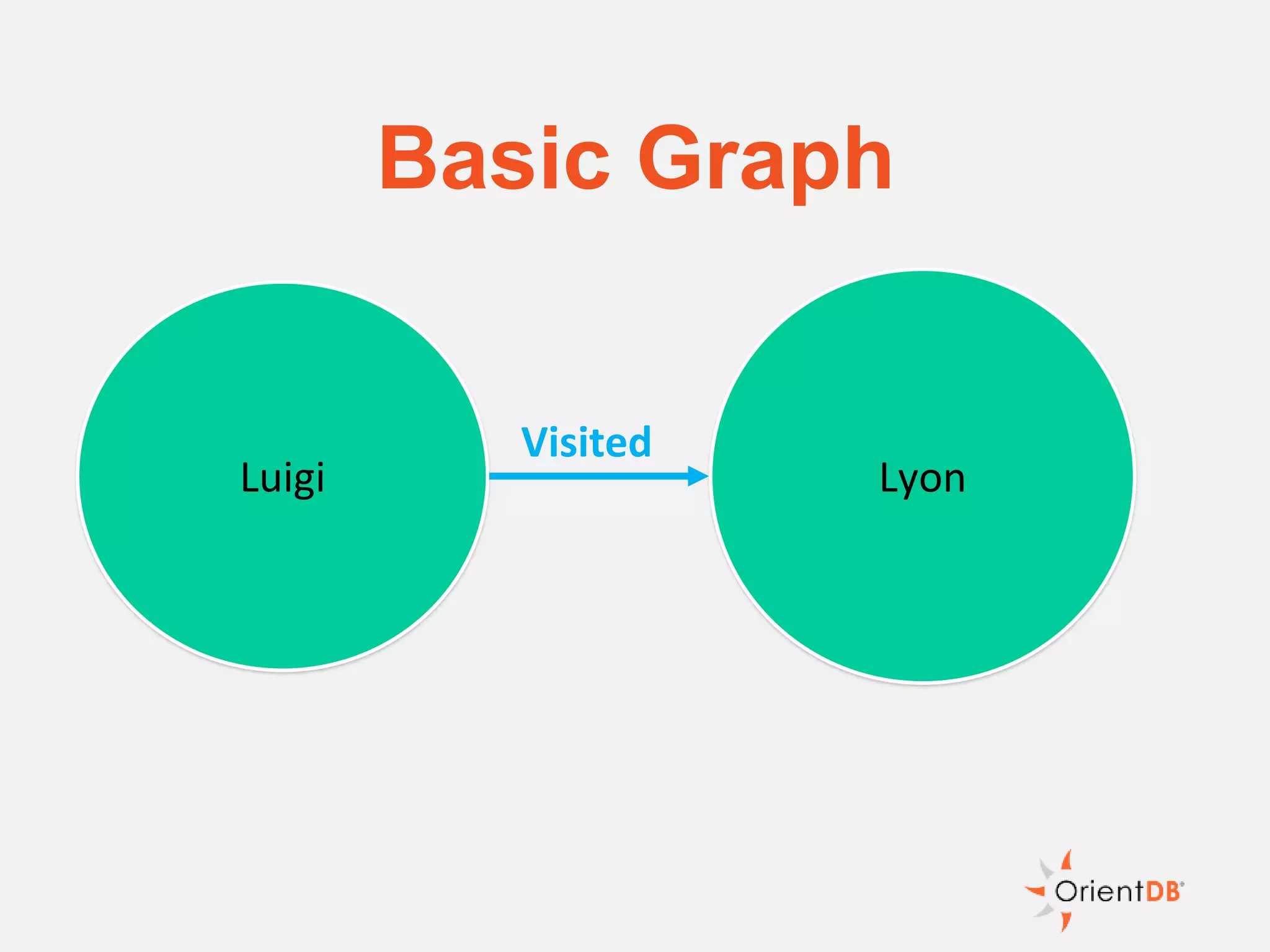

23. Basic Graph
Luigi Lyon
Visited

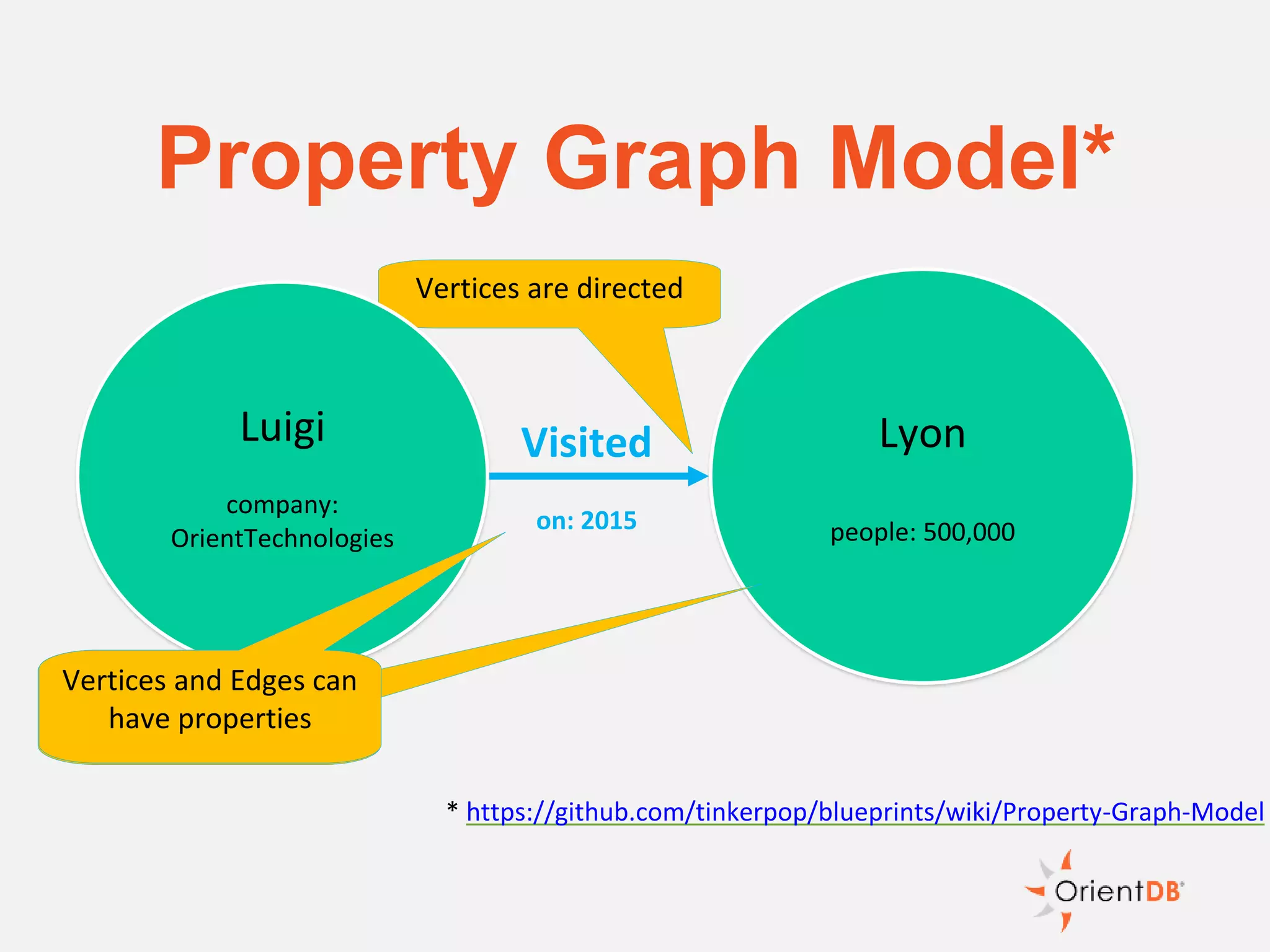

24. Vertices and Edges can
have properties
Vertices are directed
* https://github.com/tinkerpop/blueprints/wiki/Property-Graph-Model
Property Graph Model*
Lyon
people: 500,000
Luigi
company:
OrientTechnologies
Vertices and Edges can
have properties
Vertices and Edges can
have properties
Visited
on: 2015

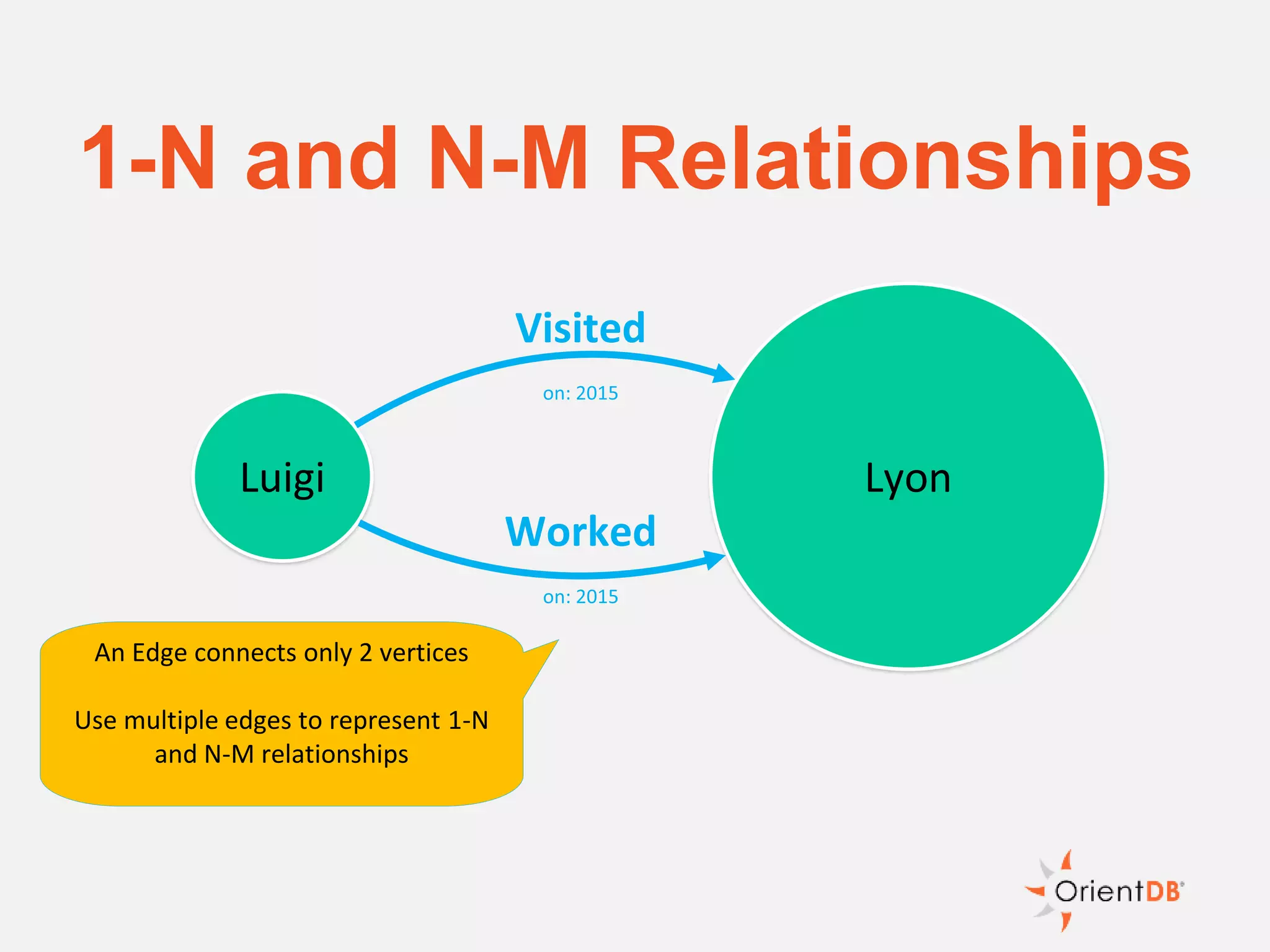

25. Luigi Lyon
An Edge connects only 2 vertices
Use multiple edges to represent 1-N
and N-M relationships
1-N and N-M Relationships

26. Congrats! This is your diploma in
«Graph Theory»

27. The Graph theory
is so simple,
yet so
powerful

28. How does a true*
Graph Database
manage relationships?
*a “Graph” layer on top of a DBMS doesn’t qualify as a true GraphDB

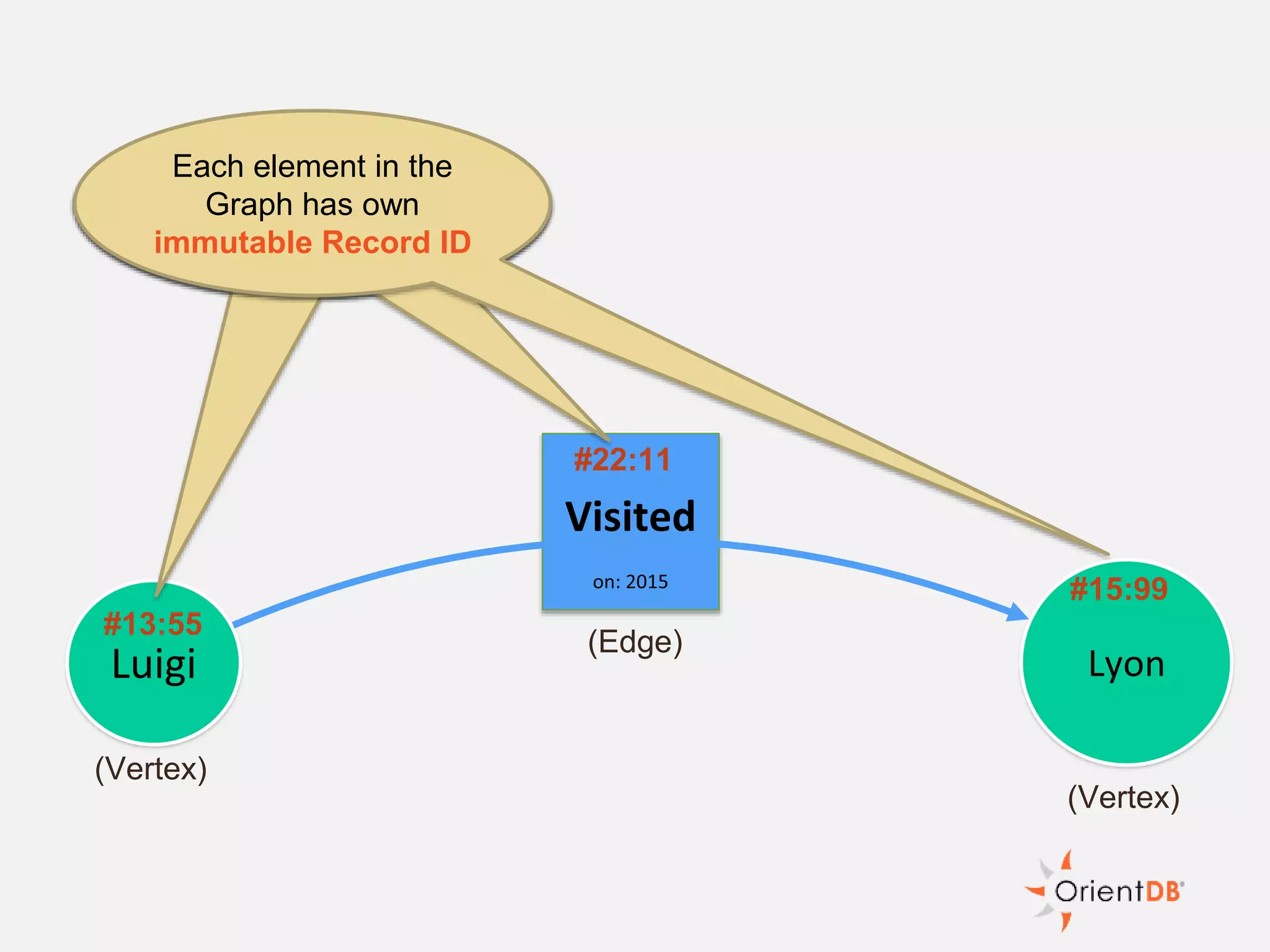

29. Luigi Lyon
#13:55
#15:99
Each element in the
Graph has own
immutable Record ID
#22:11
(Edge)
(Vertex)
(Vertex)
Each element in the
Graph has own
immutable Record ID
Each element in the
Graph has own
immutable Record ID

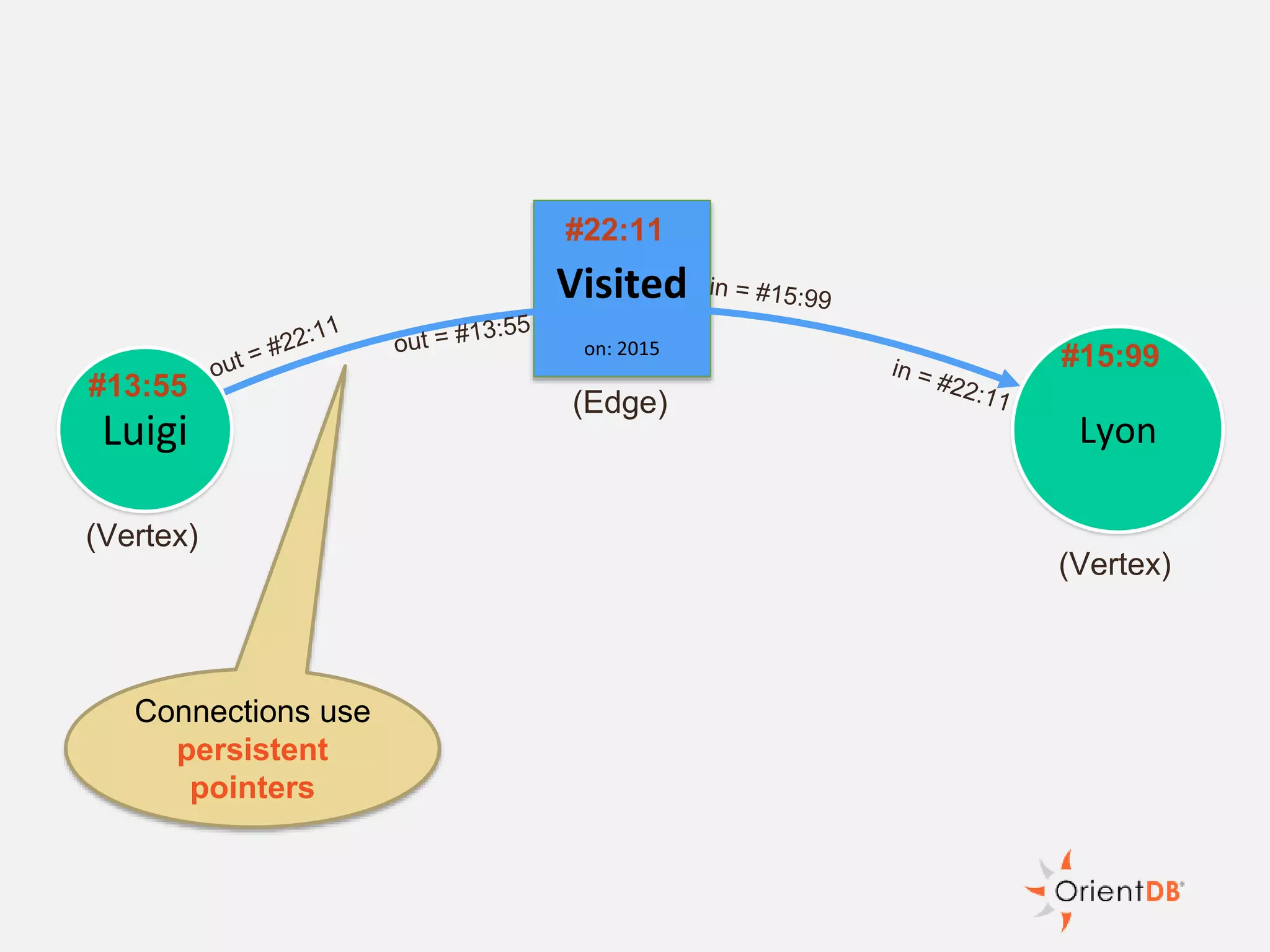

30. Luigi Lyon
#13:55
#15:99
Connections use
persistent
pointers
#22:11
(Edge)
(Vertex)
(Vertex)

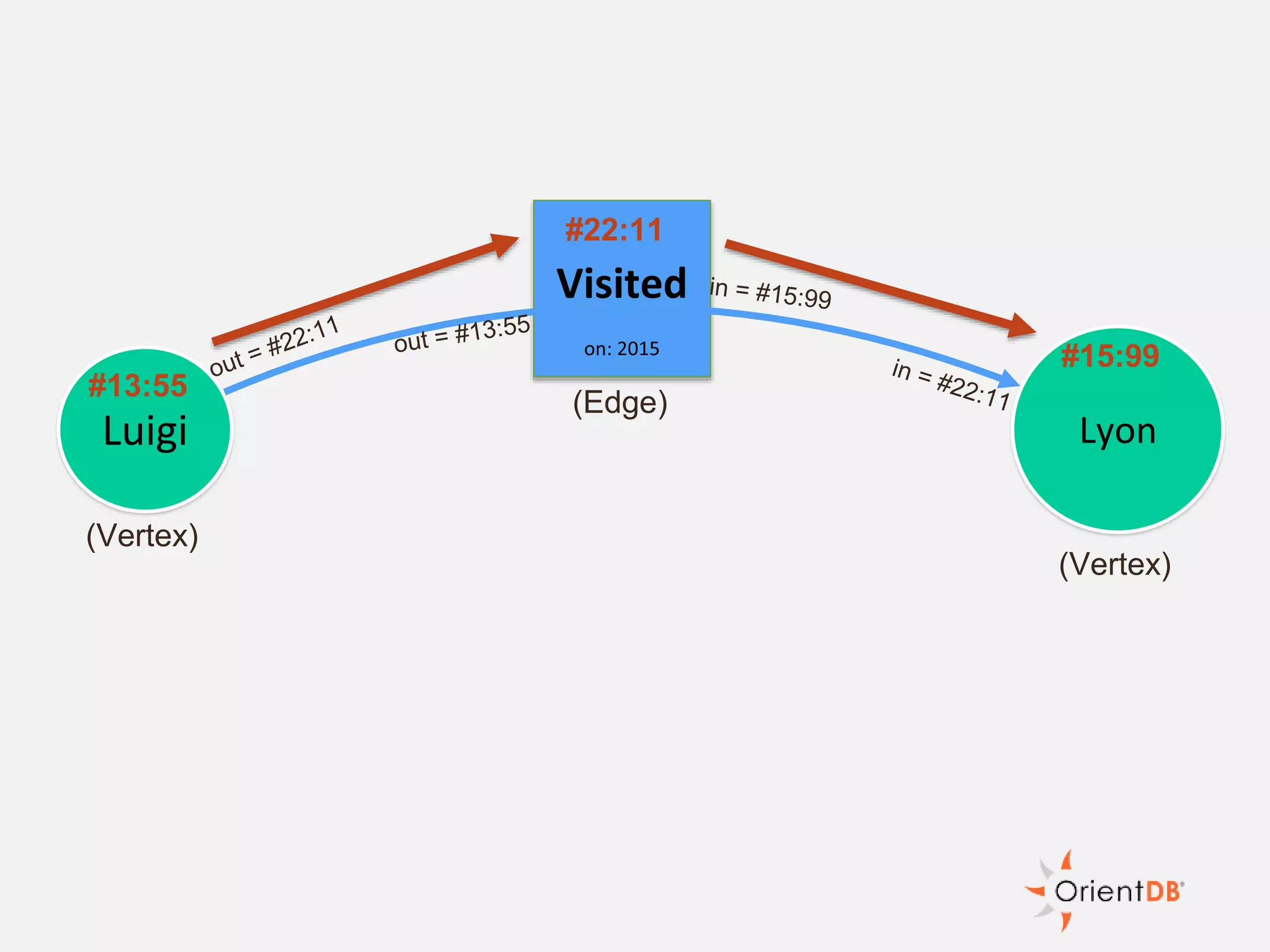

31. Luigi Lyon
#13:55
#15:99
#22:11
(Edge)
(Vertex)
(Vertex)

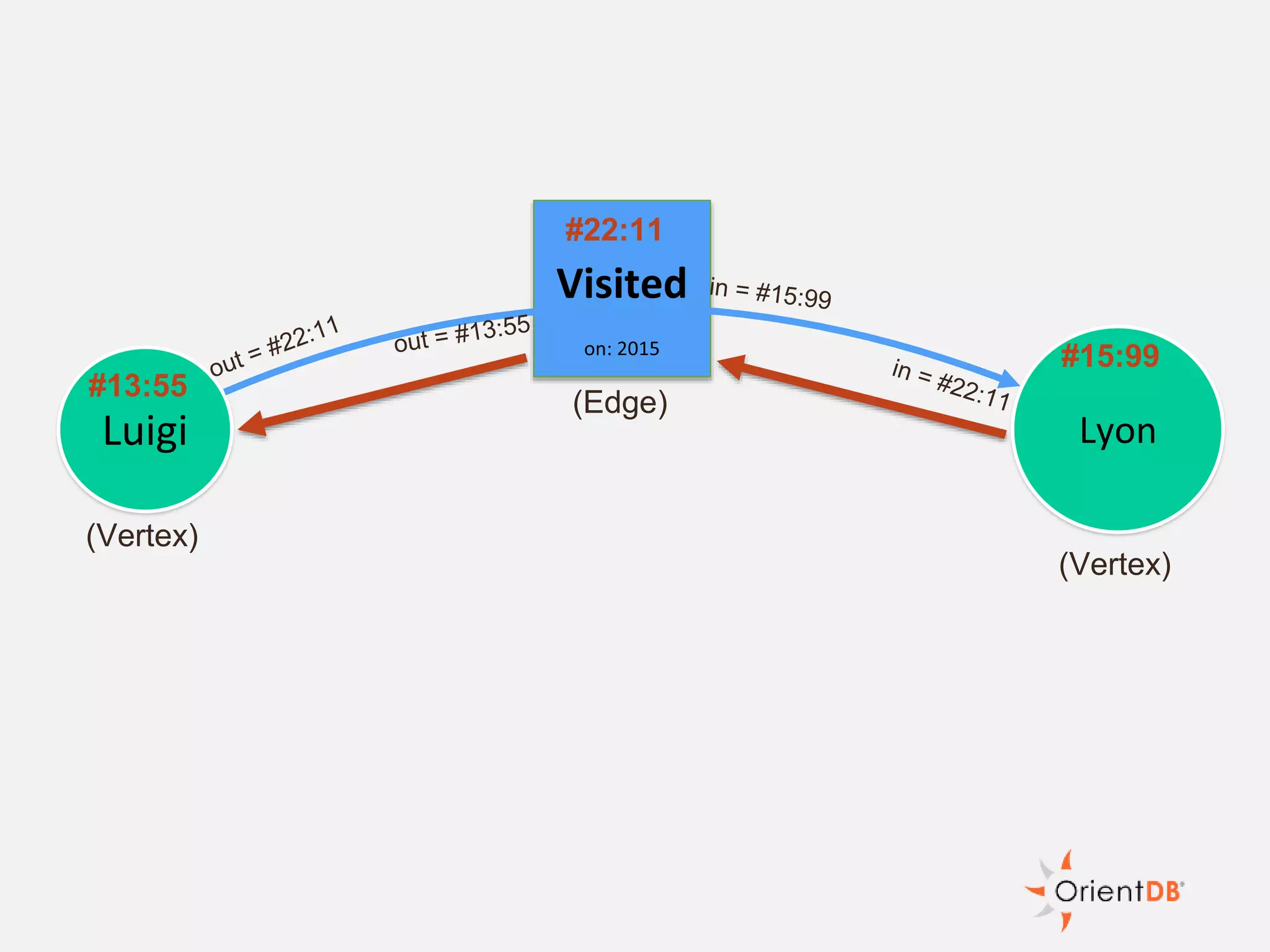

32. Luigi Lyon
#13:55
#15:99
#22:11
(Edge)
(Vertex)
(Vertex)

33. A Graph Database creates the
relationship just once
(when the edge is created)
VS
RDBMS computes the
relationship every time
you query a database

34. When you move from a RDBMS
to a Graph Database you jump
from a O(log N) speed to a near O(1)
With a Graph Database, the
traversing time is
not affected by database size!
This is huge in the BigData age

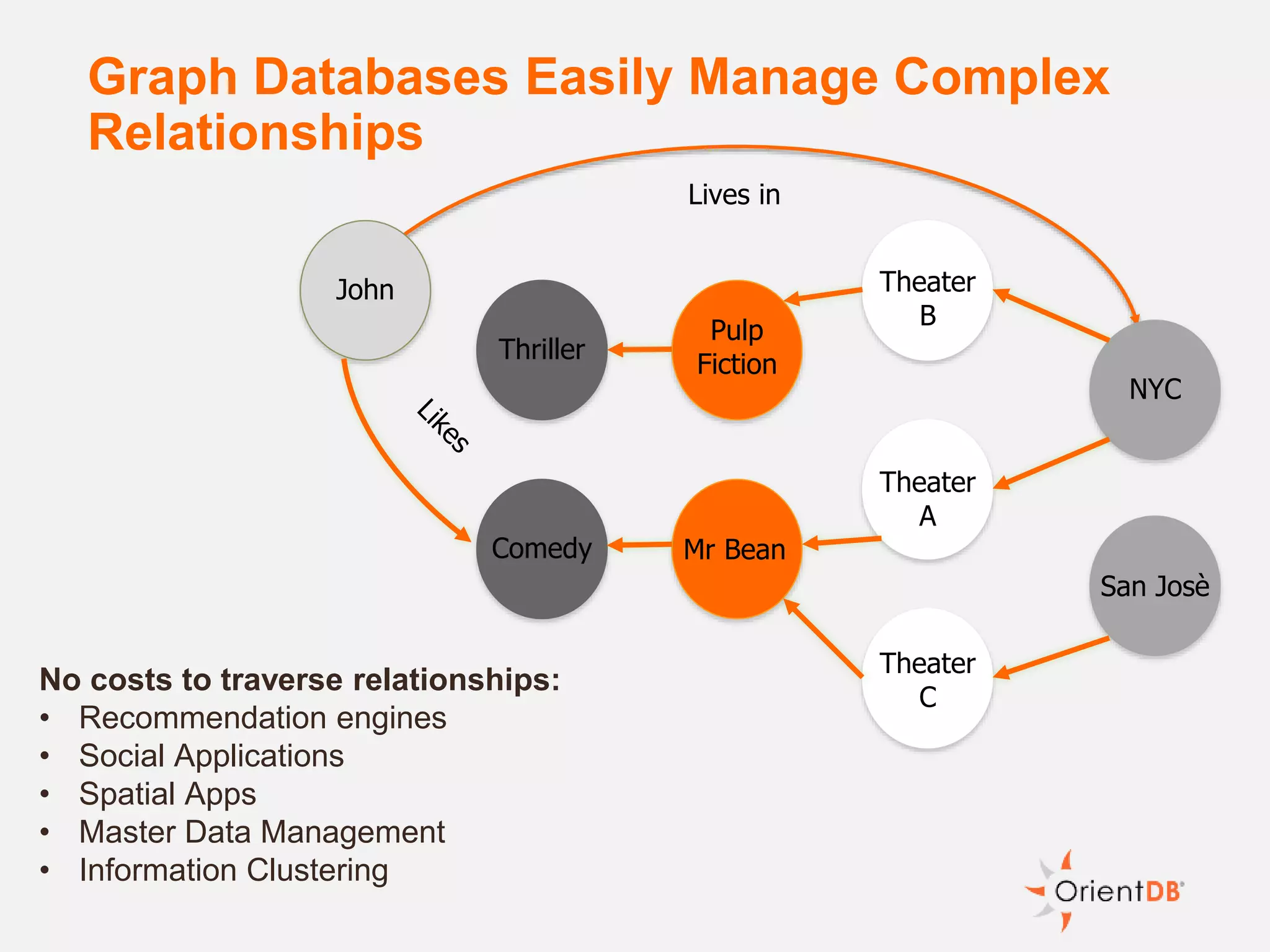

35. Graph Databases Easily Manage Complex
Relationships
No costs to traverse relationships:
• Recommendation engines
• Social Applications
• Spatial Apps
• Master Data Management
• Information Clustering
John
Thriller
Comedy
Pulp
Fiction
Mr Bean
Theater
B
Theater
A
Theater
C
NYC
San Josè
Lives in

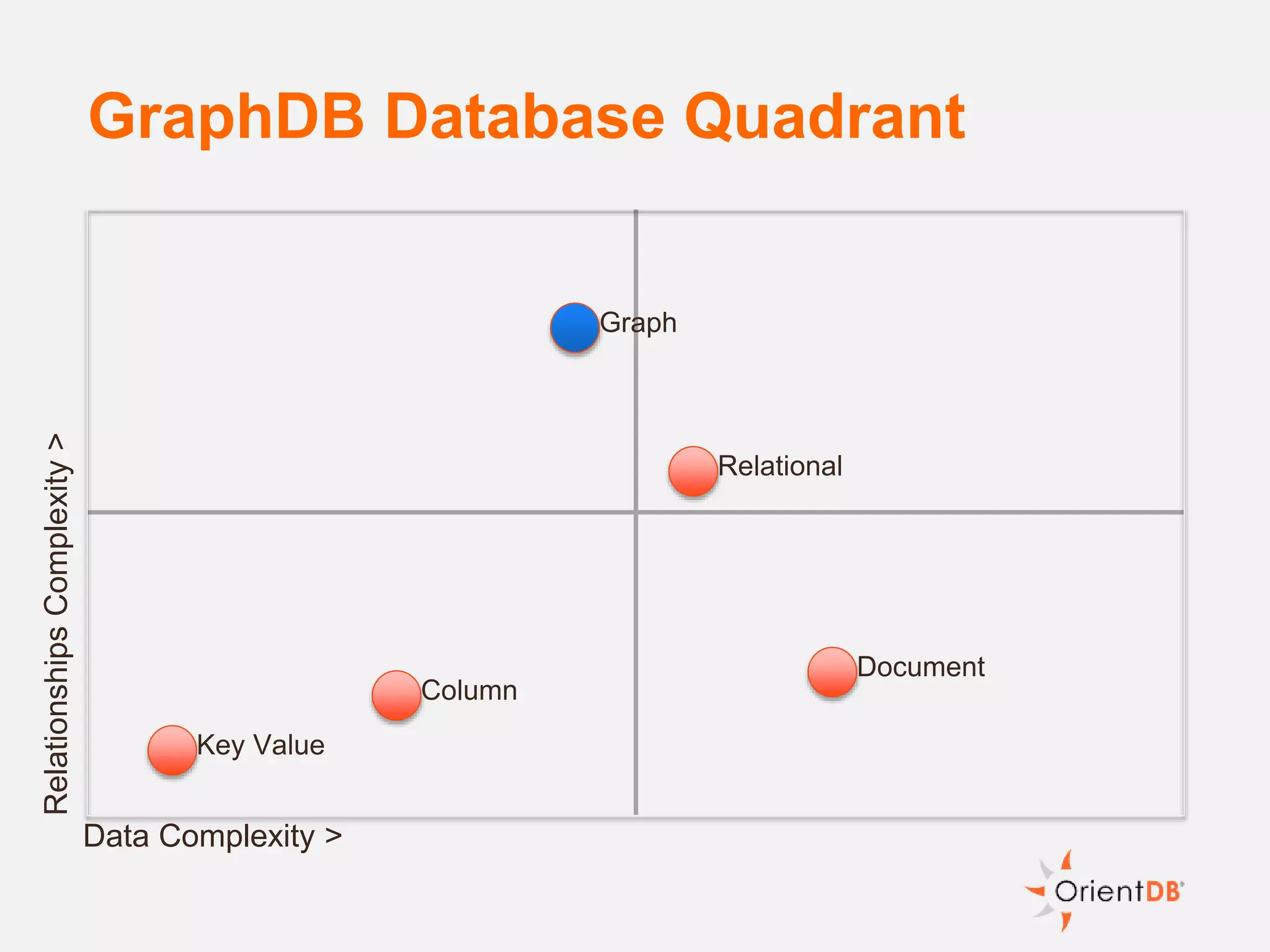

36. GraphDB Database Quadrant
RelationshipsComplexity>
Data Complexity >
Relational
Key Value
Column
Graph
Document

37. GraphDB Database Quadrant
RelationshipsComplexity>
Data Complexity >
Relational
Key Value
Column
Graph
Document
These were 1st generation NoSQL
products, where each tool was
only good at a few use cases

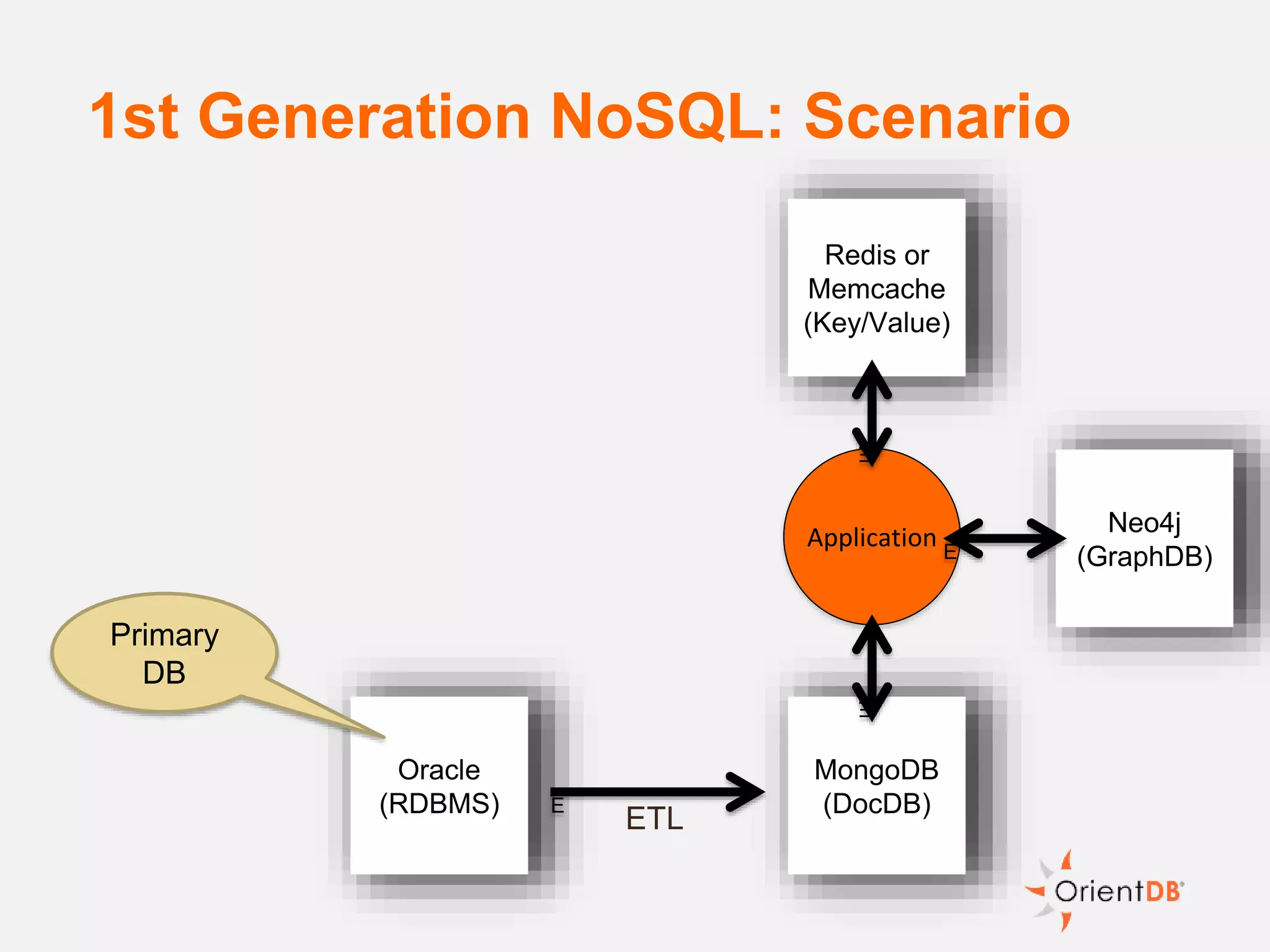

39. Oracle
(RDBMS)
Redis or
Memcache
(Key/Value)
MongoDB
(DocDB)
Neo4j
(GraphDB)
E
Application
ETL
E
E
E
1st Generation NoSQL: Scenario
Primary
DB

40. 1st Generation NoSQL: Fact
In > 90% of use cases,
NoSQL products are
used as second DBMS

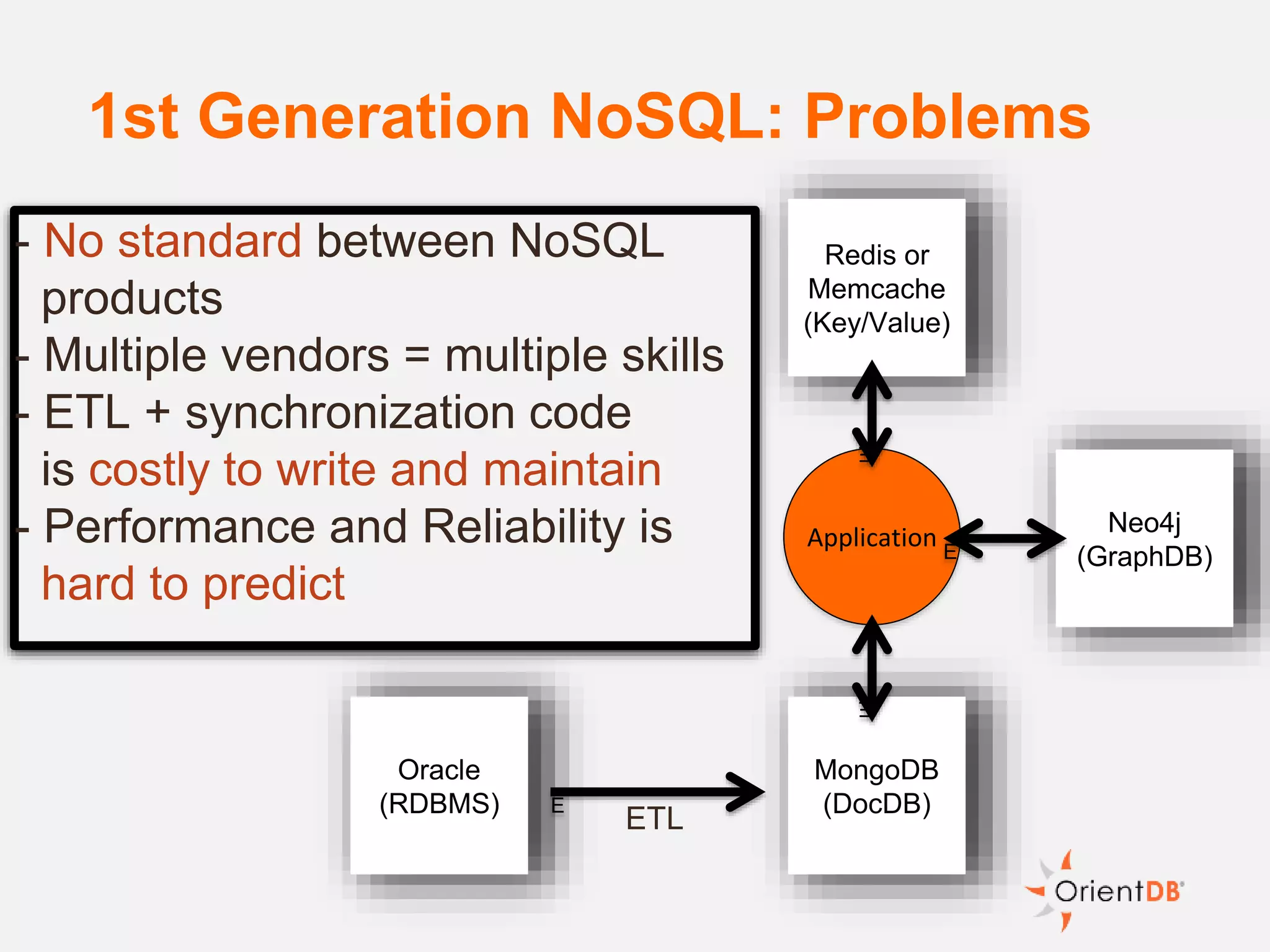

41. Oracle
(RDBMS)
Redis or
Memcache
(Key/Value)
MongoDB
(DocDB)
Neo4j
(GraphDB)
E
Application
ETL
E
E
E
1st Generation NoSQL: Problems
- No standard between NoSQL
products
- Multiple vendors = multiple skills
- ETL + synchronization code
is costly to write and maintain
- Performance and Reliability is
hard to predict

42. 2nd Generation NoSQL
is
Multi-Model

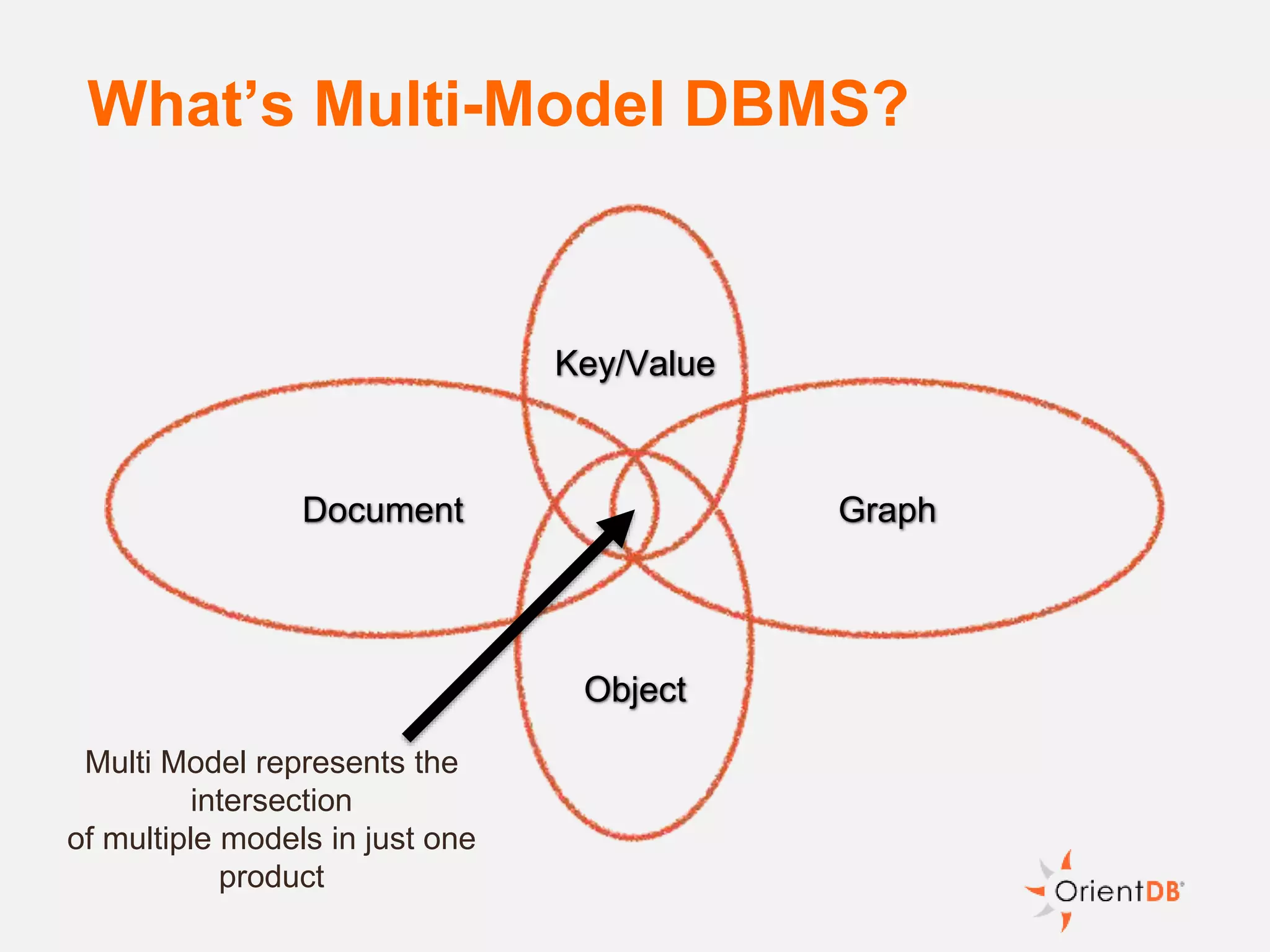

43. What’s Multi-Model DBMS?
GraphDocument
Object
Key/Value
Multi Model represents the
intersection
of multiple models in just one
product

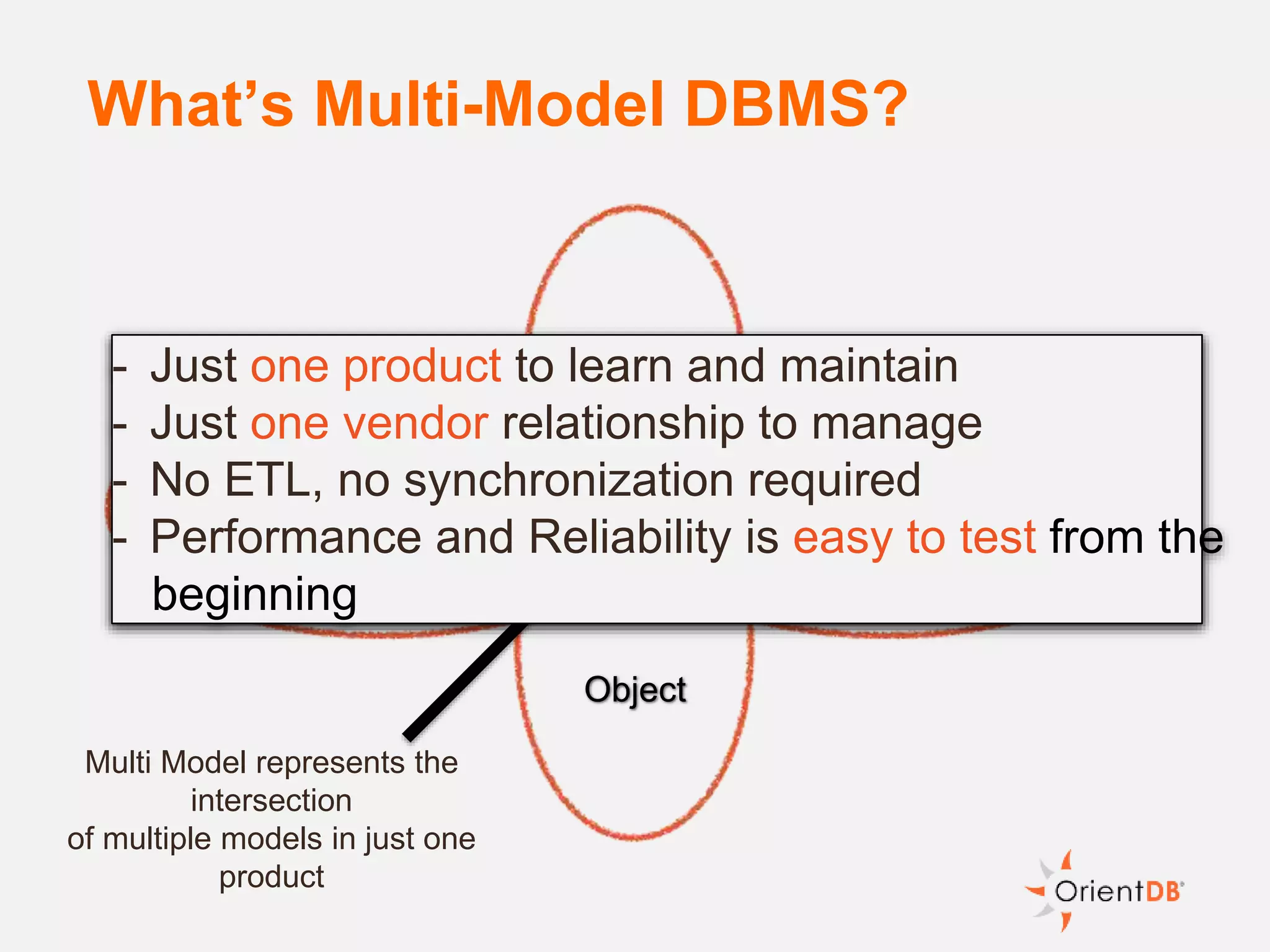

44. What’s Multi-Model DBMS?
GraphDocument
Object
Key/Value
Multi Model represents the
intersection
of multiple models in just one
product
- Just one product to learn and maintain
- Just one vendor relationship to manage
- No ETL, no synchronization required
- Performance and Reliability is easy to test from the
beginning

45. Relationships give data “meaning”
Order #134
(Order) John
(Provider)
Commodore
Amiga 1200
(Product)
(Sells)
Frank
(Customer)
(Has)
(Makes)
Monitor 40”
(Product)
(Sells)
(Has)
Mouse
(Product)
Bruno
(Provider)
(Sells)
(Has)

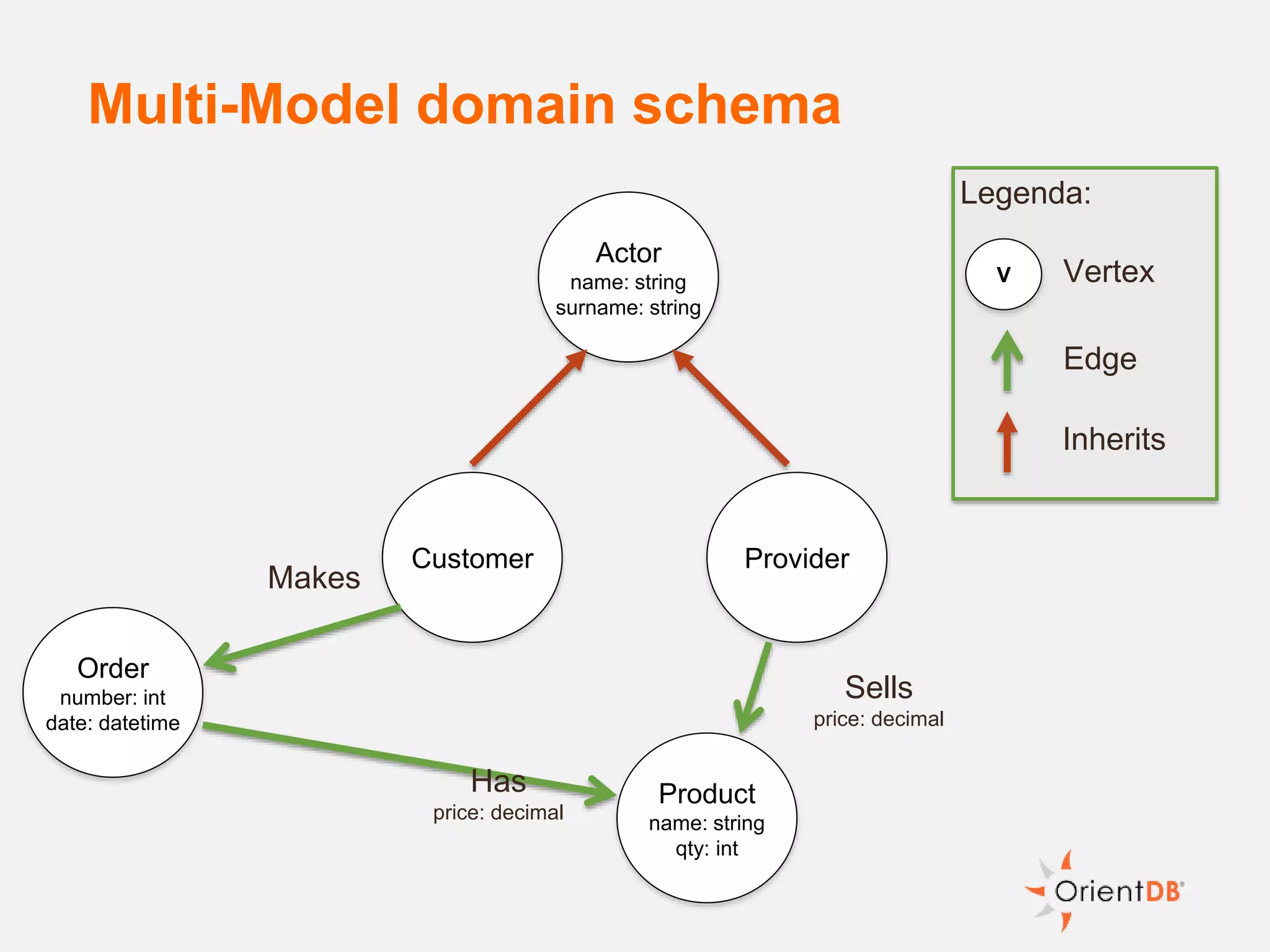

46. Multi-Model domain schema
Customer Provider
Product
name: string
qty: int
Actor
name: string
surname: string
Sells
price: decimal
Inherits
Edge
Legenda:
V Vertex
Makes
Order
number: int
date: datetime
Has
price: decimal

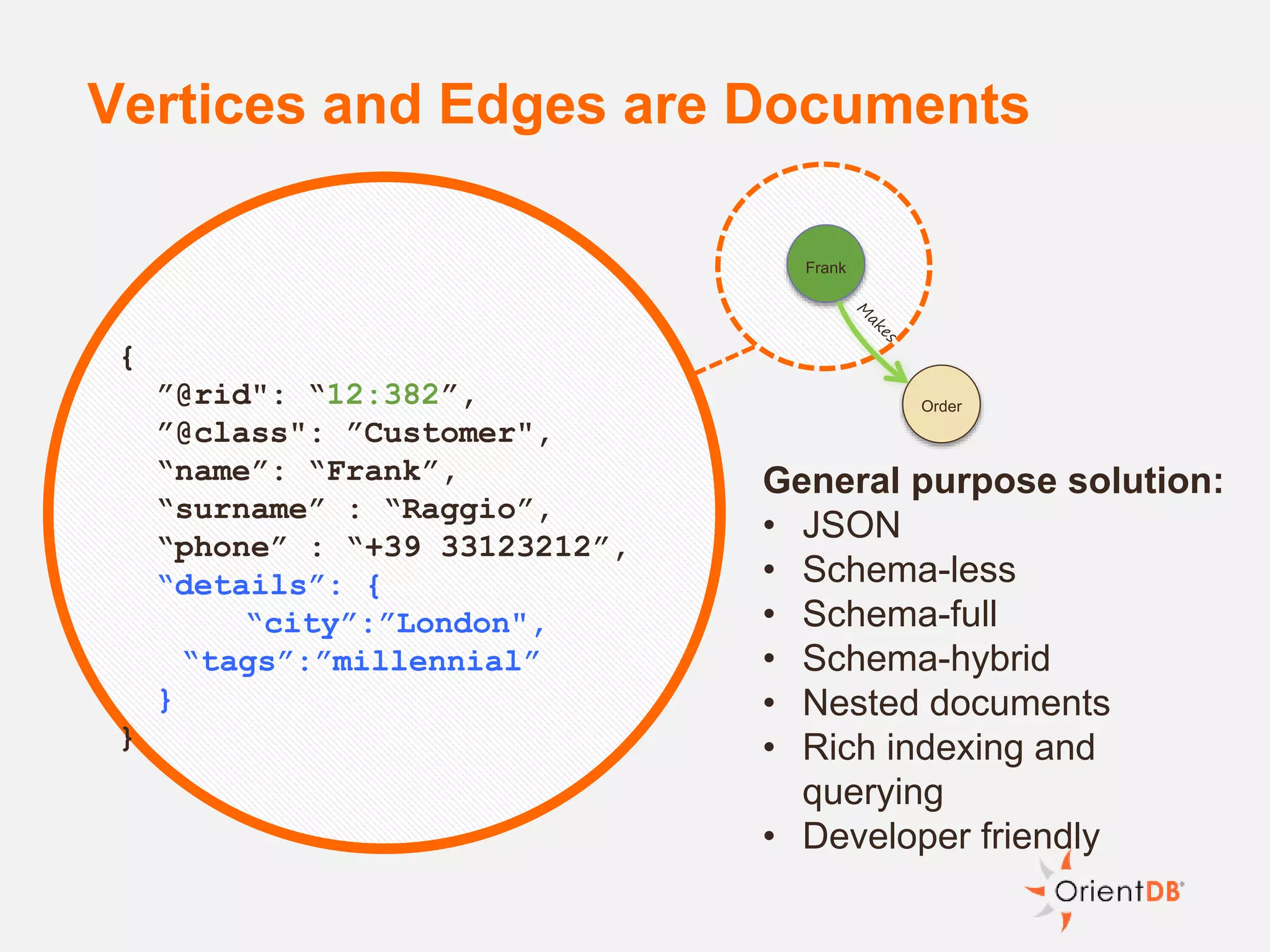

47. `
Vertices and Edges are Documents
{
”@rid": “12:382”,
”@class": ”Customer",
“name”: “Frank”,
“surname” : “Raggio”,
“phone” : “+39 33123212”,
“details”: {
“city”:”London",
“tags”:”millennial”
}
}
Frank
Order
General purpose solution:
• JSON
• Schema-less
• Schema-full
• Schema-hybrid
• Nested documents
• Rich indexing and
querying
• Developer friendly

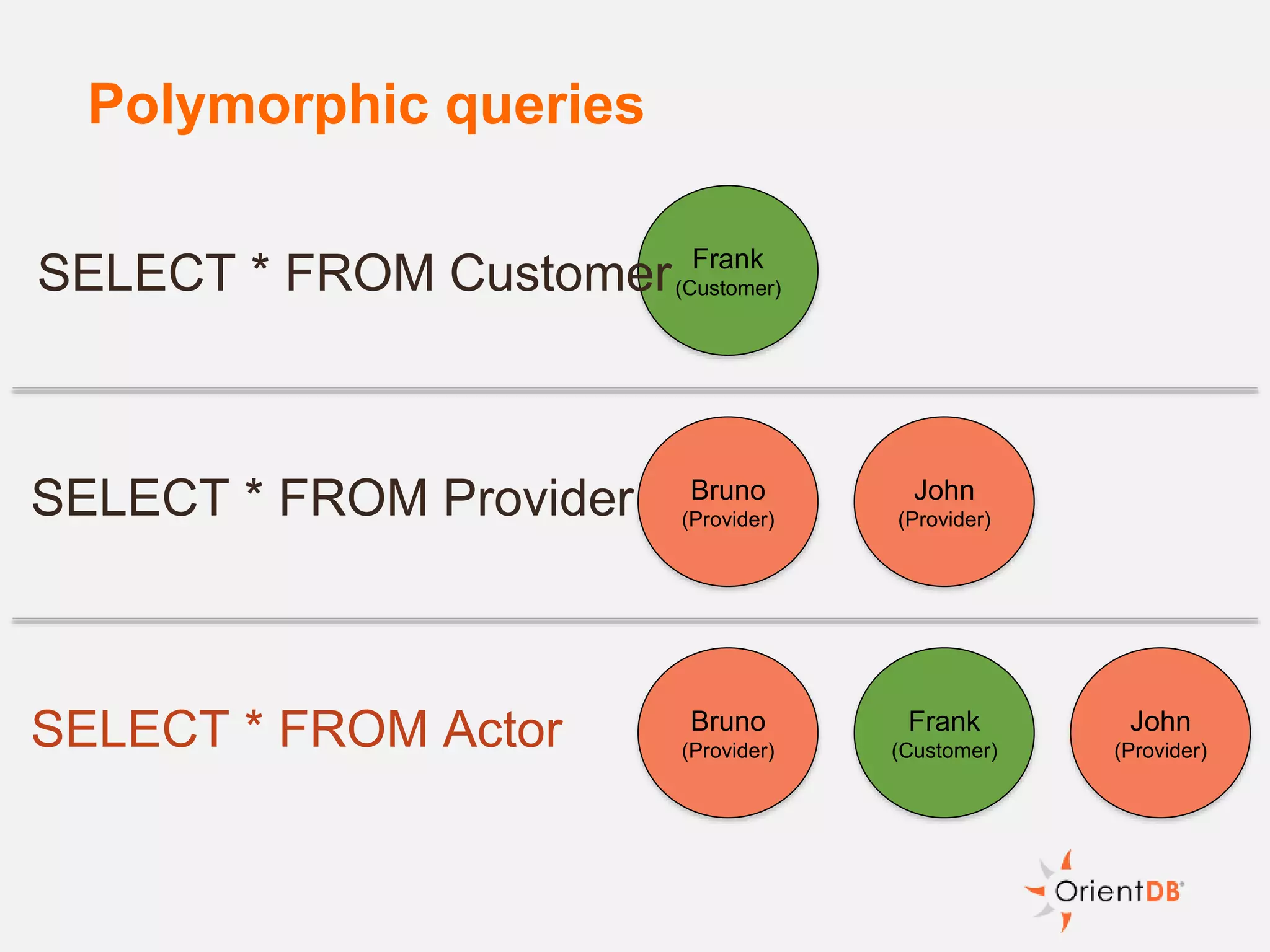

48. Polymorphic queries
John
(Provider)
Frank
(Customer)SELECT * FROM Customer
SELECT * FROM Provider
SELECT * FROM Actor
Bruno
(Provider)
Bruno
(Provider)
Frank
(Customer)
John
(Provider)

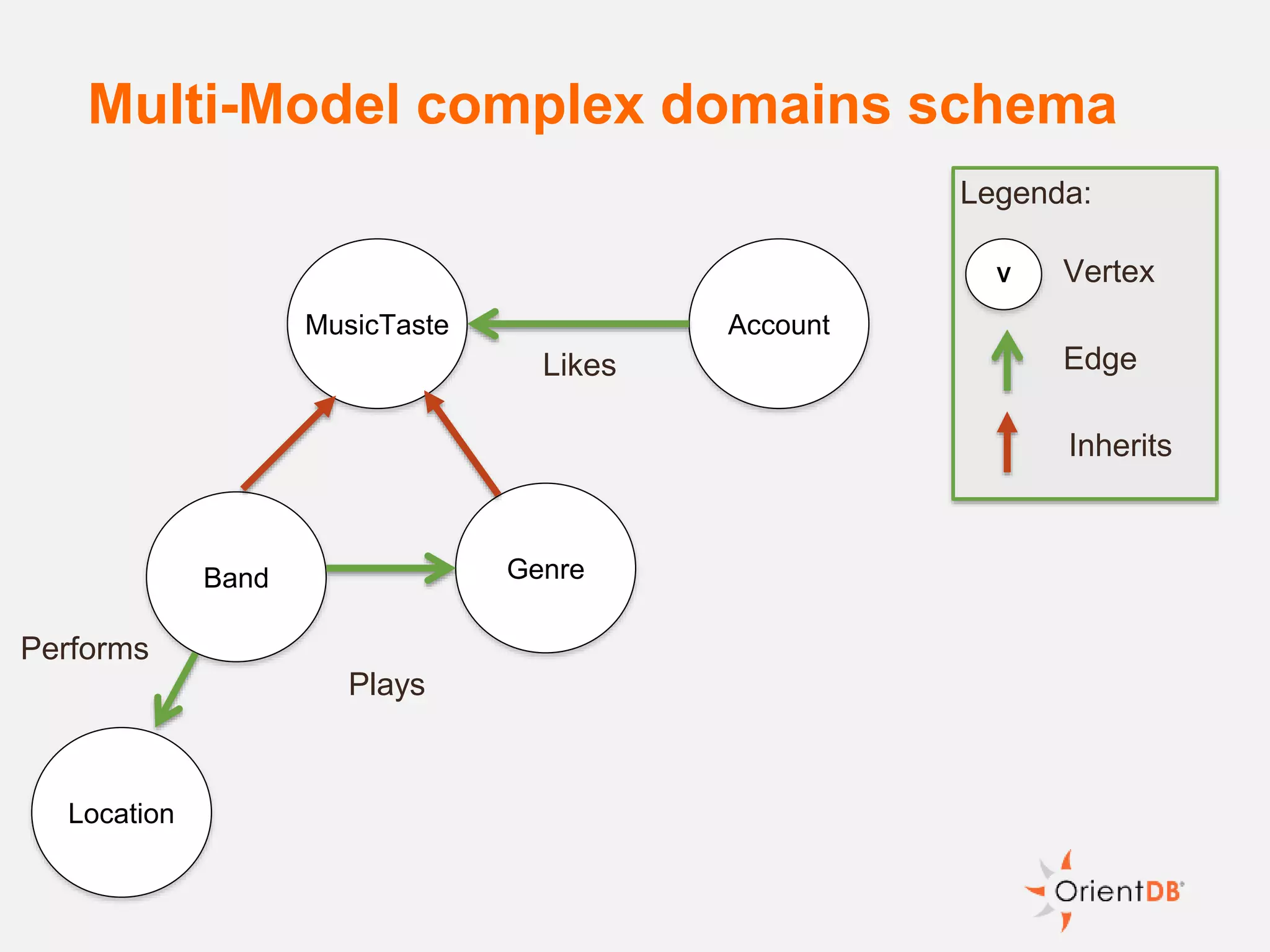

49. Multi-Model complex domains schema
Band Genre
AccountMusicTaste
Location
Likes
Performs
Inherits
Edge
Legenda:
V Vertex
Plays

50. Multi-Model complex domains
Snow Patrol
(Band)
John
(Account)
Indie
(Genre)
123, 1st Street
Austin, TX
(Location)
(Performs)
April 7, 2015
9pm-11.30pm
(Likes)
Frank
(Account)
(Likes)
(Likes)
Rock
(Genre)
(Likes)
(Plays)

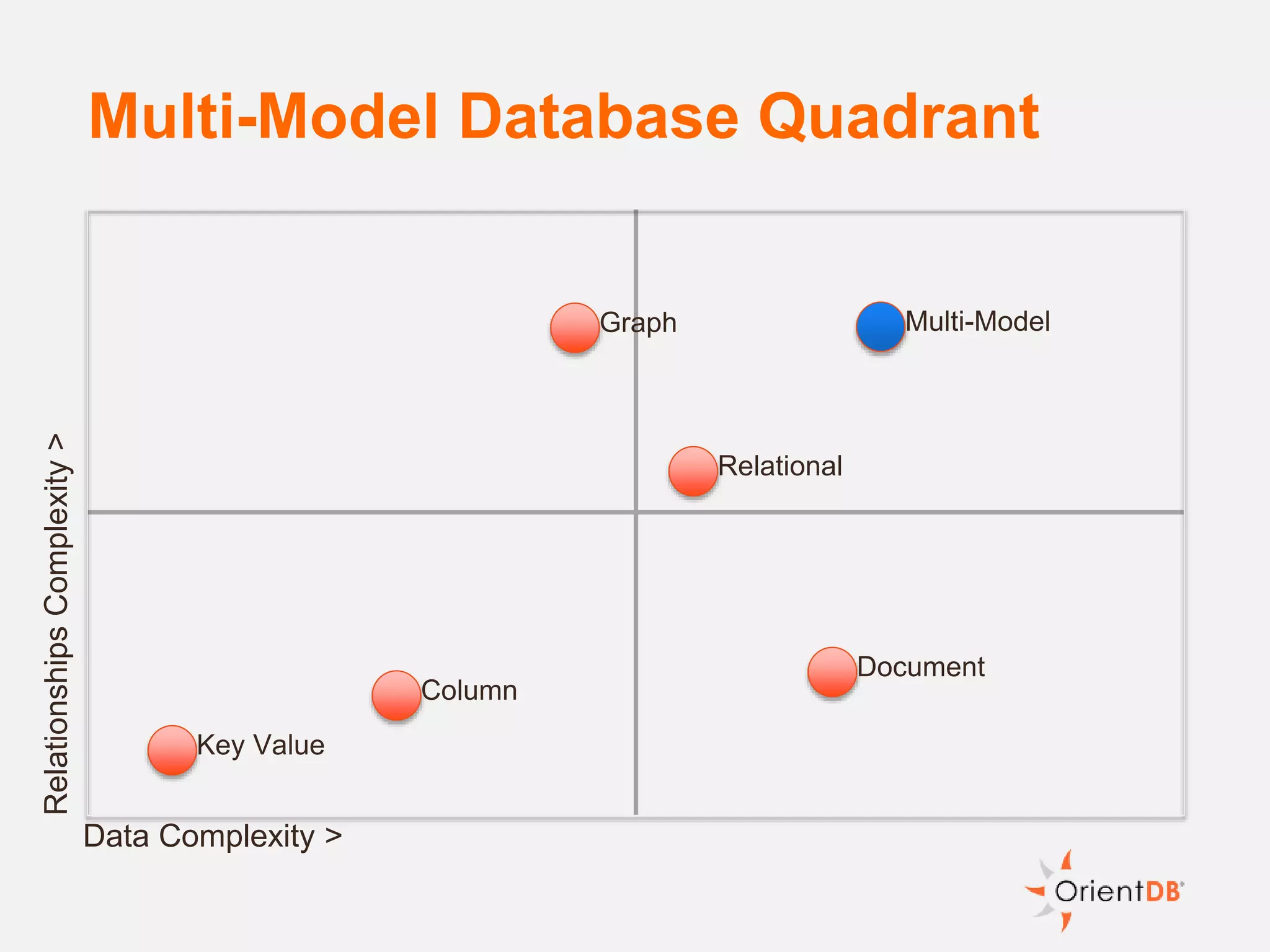

51. Multi-Model Database Quadrant
RelationshipsComplexity>
Data Complexity >
Relational
Key Value
Column
Graph Multi-Model
Document

52. Multi-Model Solutions

53. There are a few DBMSs that claim
to be Multi-Model, but they do not
have a true Graph Engine.
The “Graph” is only a layer on top
of the engine.
Under the hood they do JOINs,
which means traversal time is
affected by database size.

54. Meet OrientDB
The First Ever Multi-Model
Database Combining Flexibility
of Documents with
Connectedness of Graphs

55. With a true Graph, Document,
Key/Value and Object Oriented engine

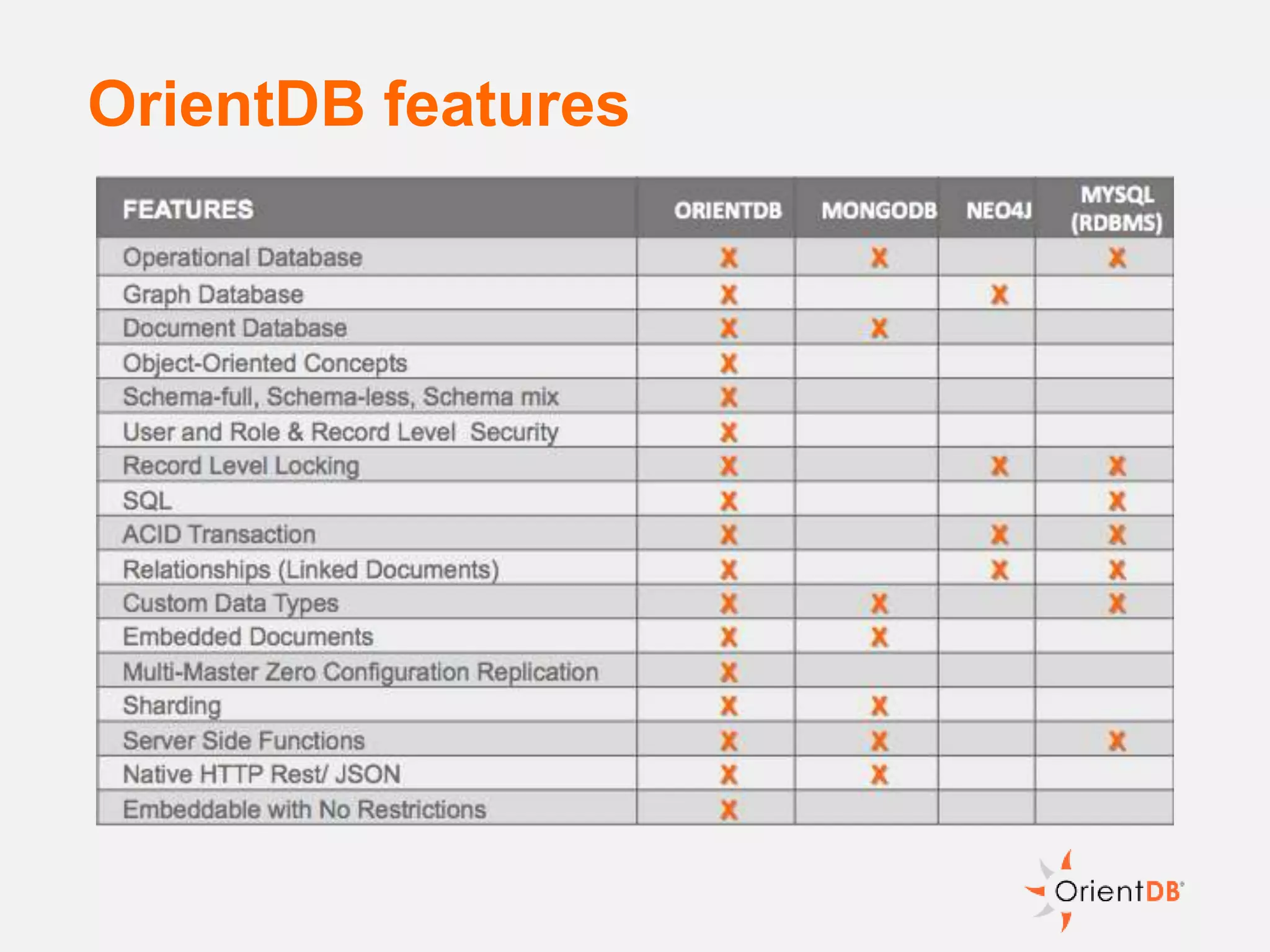

56. OrientDB features

57. DEMO

58. • Support for TinkerPop standard
for Graph DB: Gremlin language
and Blueprints API
• SQL + extensions for graphs
• JDBC driver to connect any BI tool
• HTTP/JSON support
• Drivers in Java, Node.js, Python,
PHP, .NET, Perl, C/C++ and more
API & Standards

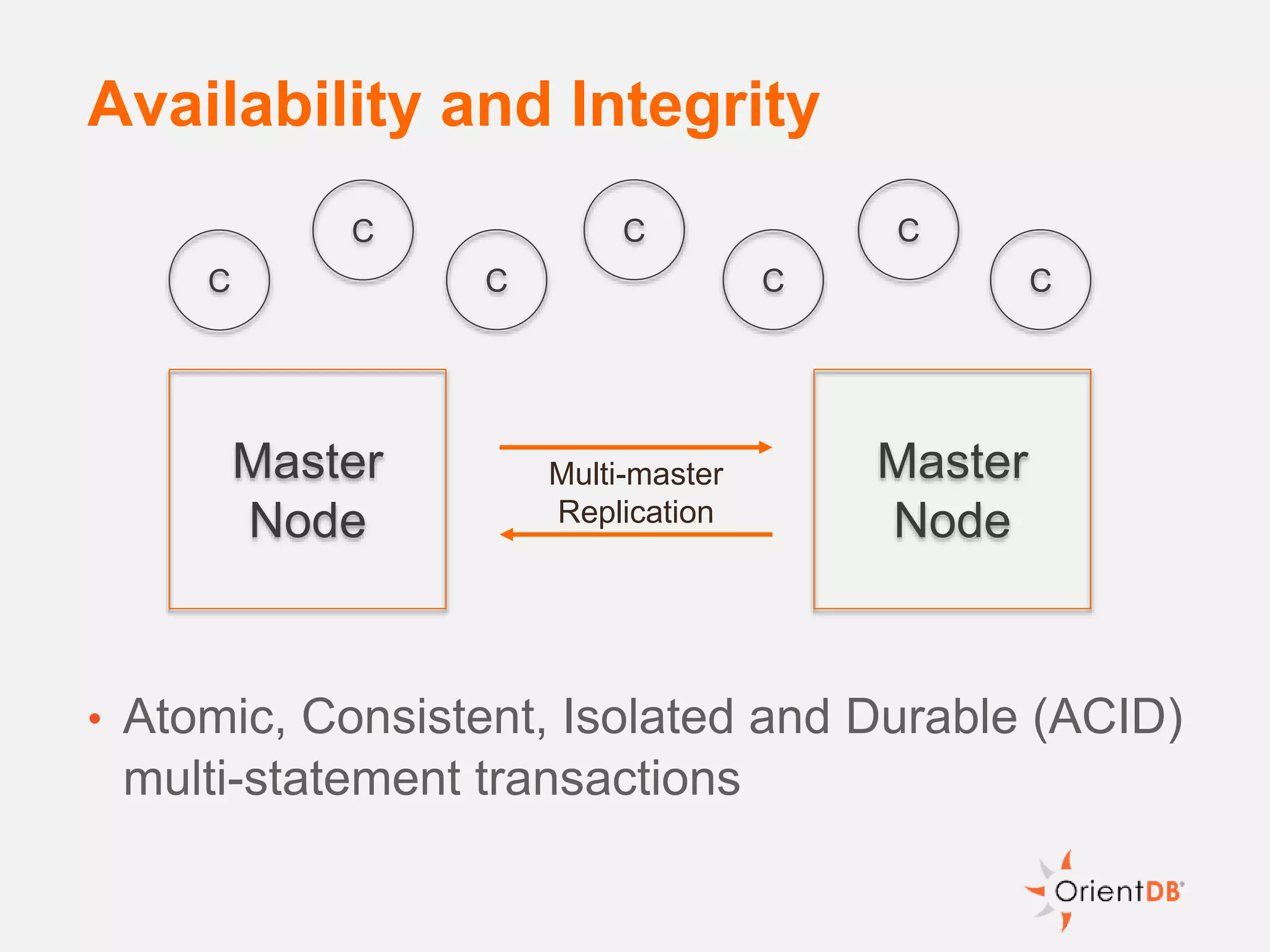

59. Availability and Integrity
• Atomic, Consistent, Isolated and Durable (ACID)
multi-statement transactions
Master
Node
Master
Node
C
C C C
CC
C
Multi-master
Replication

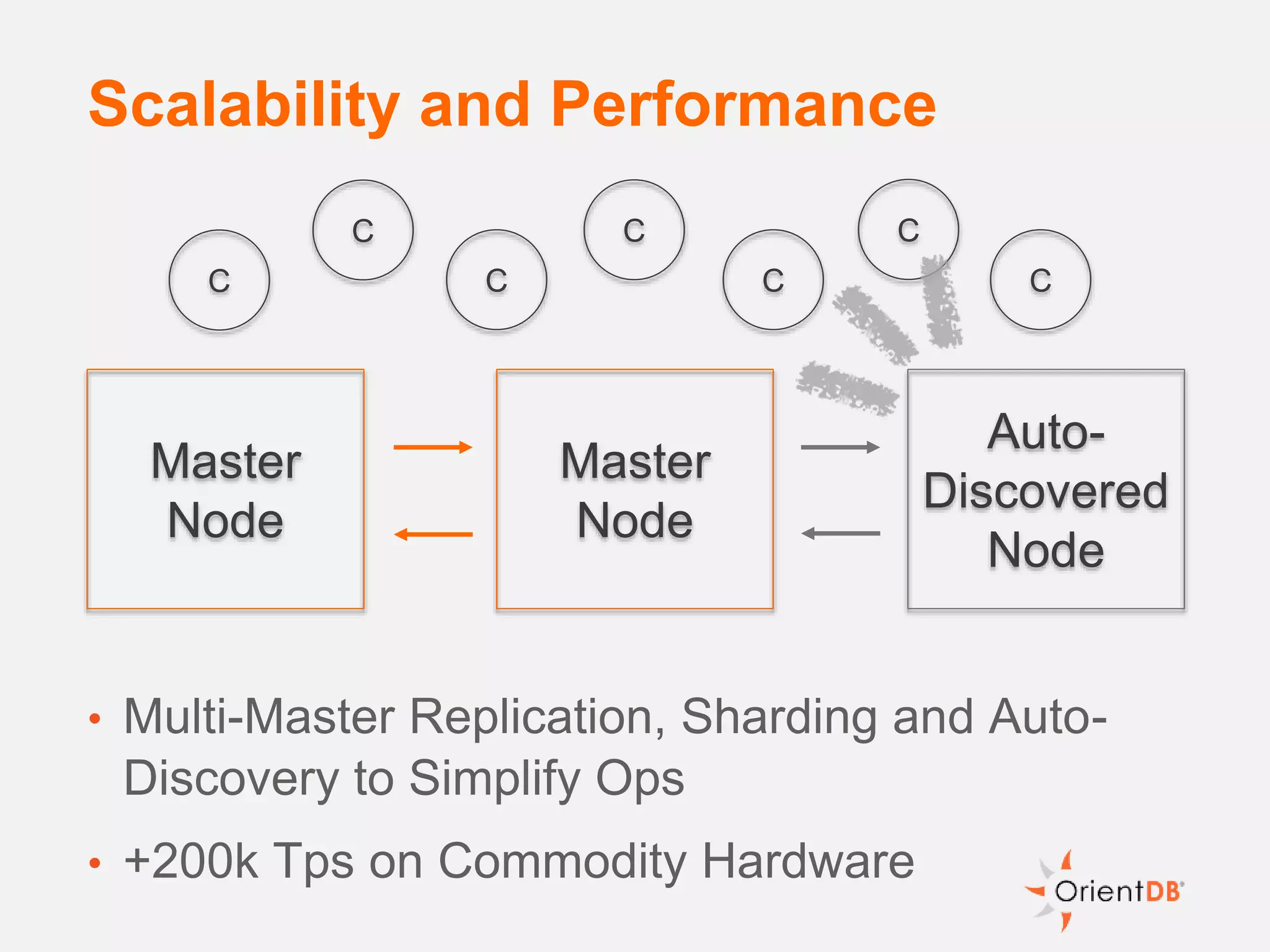

60. Scalability and Performance
• Multi-Master Replication, Sharding and Auto-
Discovery to Simplify Ops
• +200k Tps on Commodity Hardware
Master
Node
Master
Node
C
C C C
CC
C
Auto-
Discovered
Node

61. Some numbers

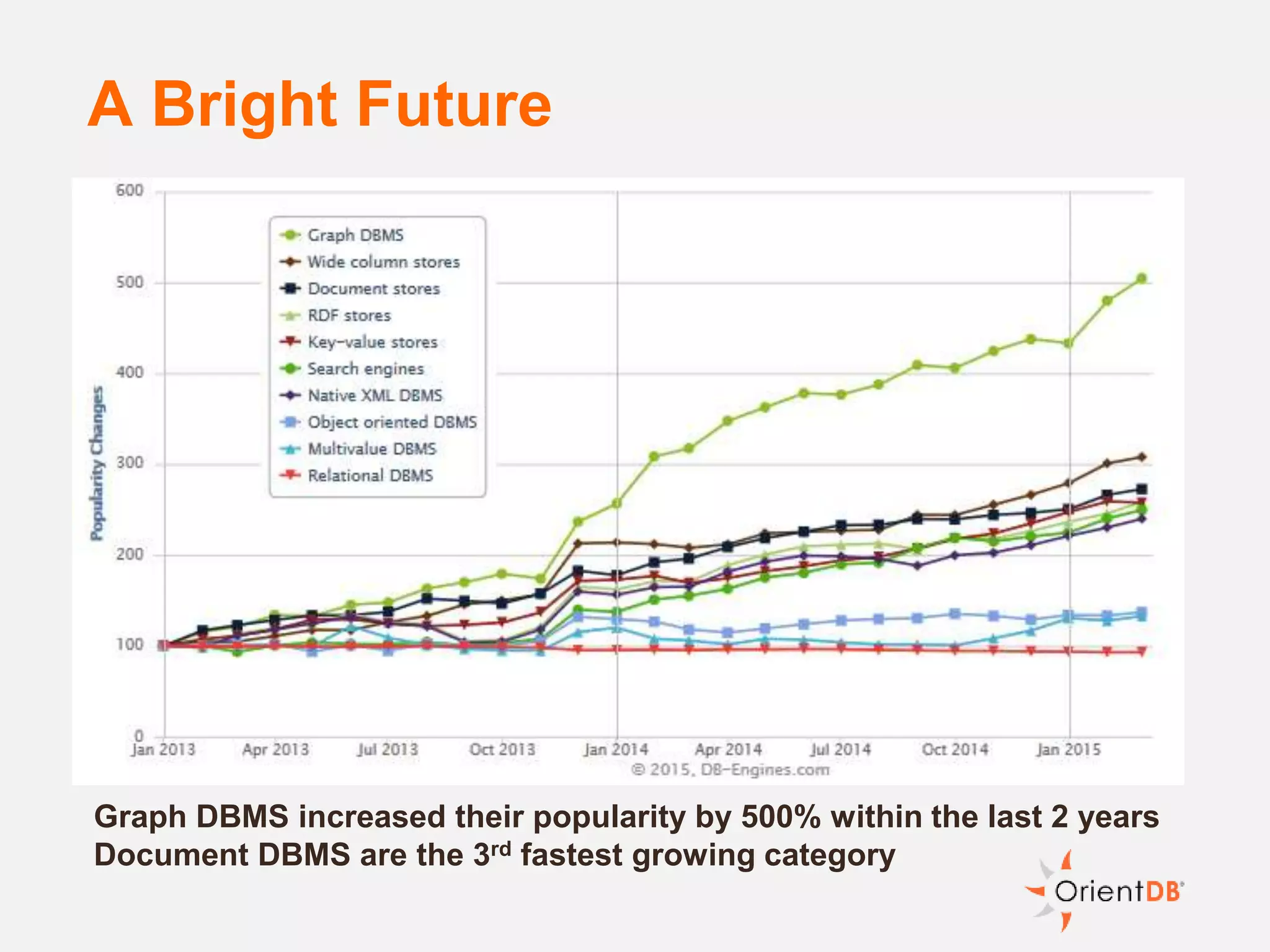

62. A Bright Future
Graph DBMS increased their popularity by 500% within the last 2 years
Document DBMS are the 3rd fastest growing category

63. Some of Our Customers

64. Get Started for Free
OrientDB Community Edition is FREE
for any purpose (Apache 2 license)
Udemy Getting Started Training is
★★★★★ and Free
http://www.orientechnologies.com/getting-started
OrientDB Enterprise is Free for
Development

65. Thank you!
Luigi Dell’Aquila
@ldellaquila
http://www.orientdb.com
