OrientDB Distributed Architecture v2.0
- 2. Short history ! In 2012, we had a Master/Slave replication ! While it scaled up well on reads, users complained of a single Master node bottleneck It’s quite easy to scale up reads, the hard part is to scale up both reads and writes Copyright (c) - Orient Technologies LTD 2
- 3. How Master/Slave works Copyright (c) - Orient Technologies LTD 3 C C C Master Node Slave Node Slave Node Writes Master node is the bottleneck
- 4. Master/Slave ! PROS: - Relatively easy to develop ! CONS: - The master is the bottleneck for writes - No matter how many servers you have, the throughput is limited by the Master node Copyright (c) - Orient Technologies LTD 4
- 5. What happened to OrientDB's M/S architecture? This is the old MASTER/SLAVE replication Copyright (c) - Orient Technologies LTD 5

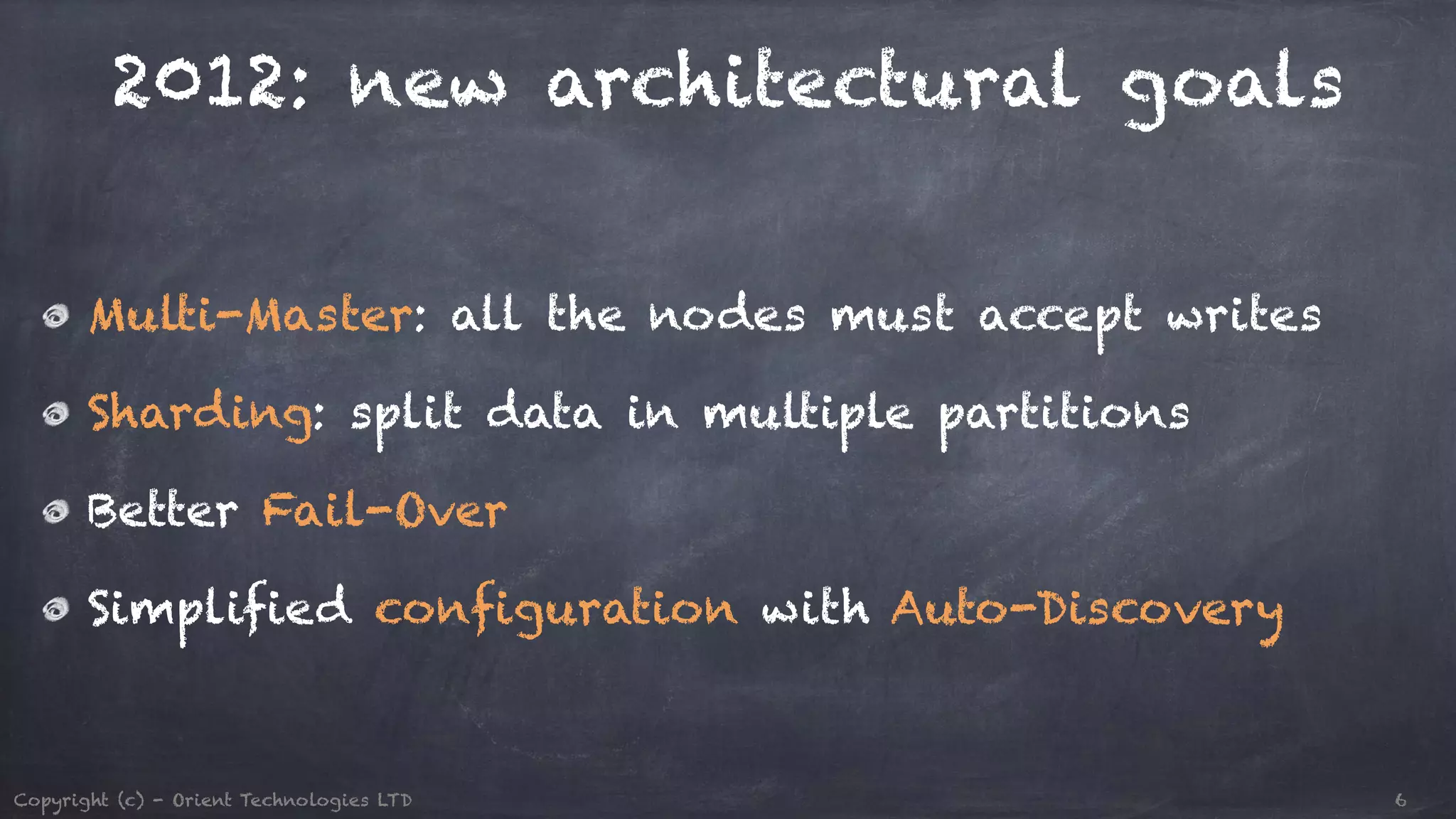

- 6. 2012: new architectural goals Multi-Master: all the nodes must accept writes Sharding: split data in multiple partitions Better Fail-Over Simplified configuration with Auto-Discovery Copyright (c) - Orient Technologies LTD 6

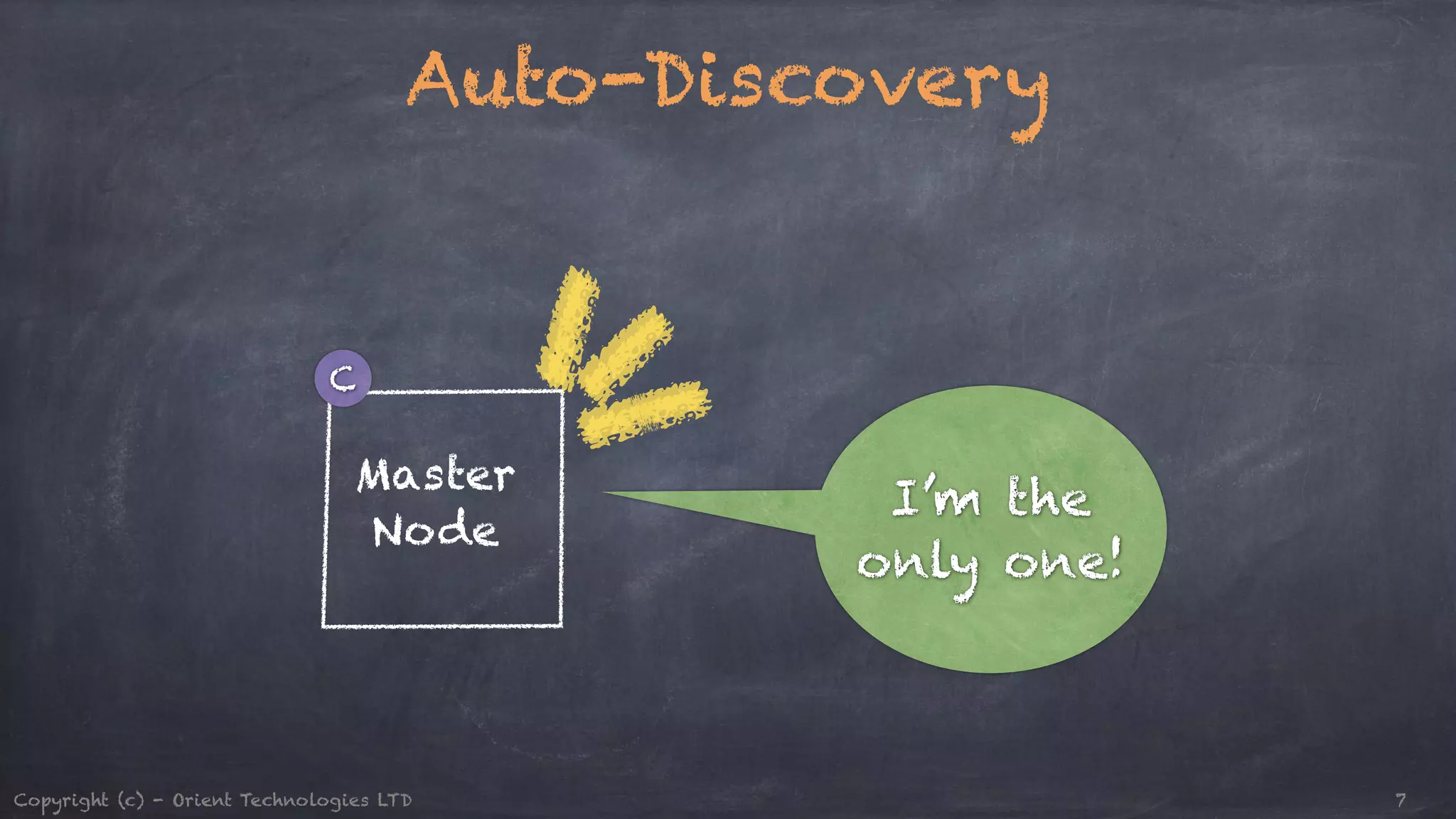

- 7. Auto-Discovery C Master Node I’m the only one! Copyright (c) - Orient Technologies LTD 7

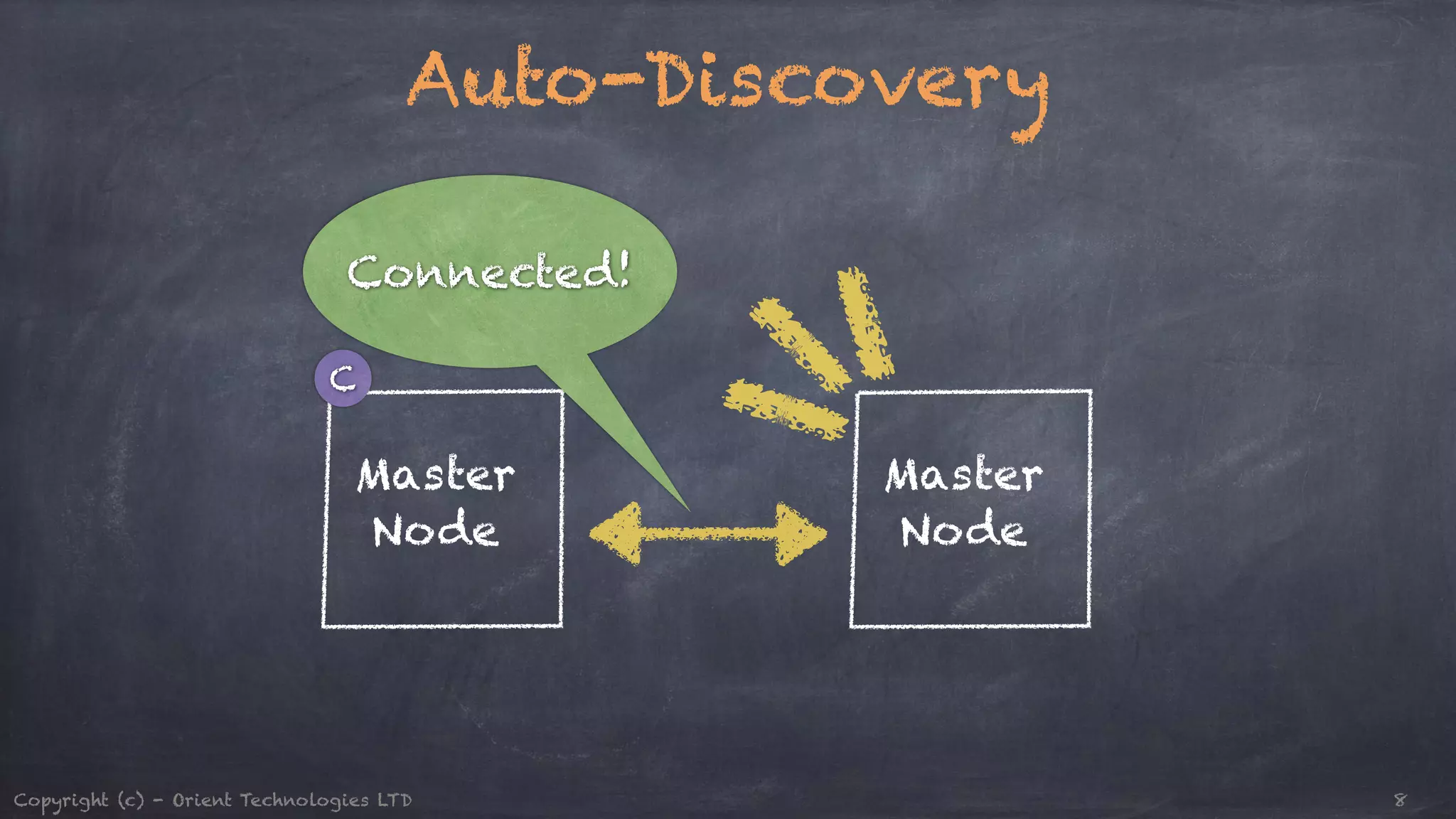

- 8. Auto-Discovery Connected! C Master Node Master Node Copyright (c) - Orient Technologies LTD 8

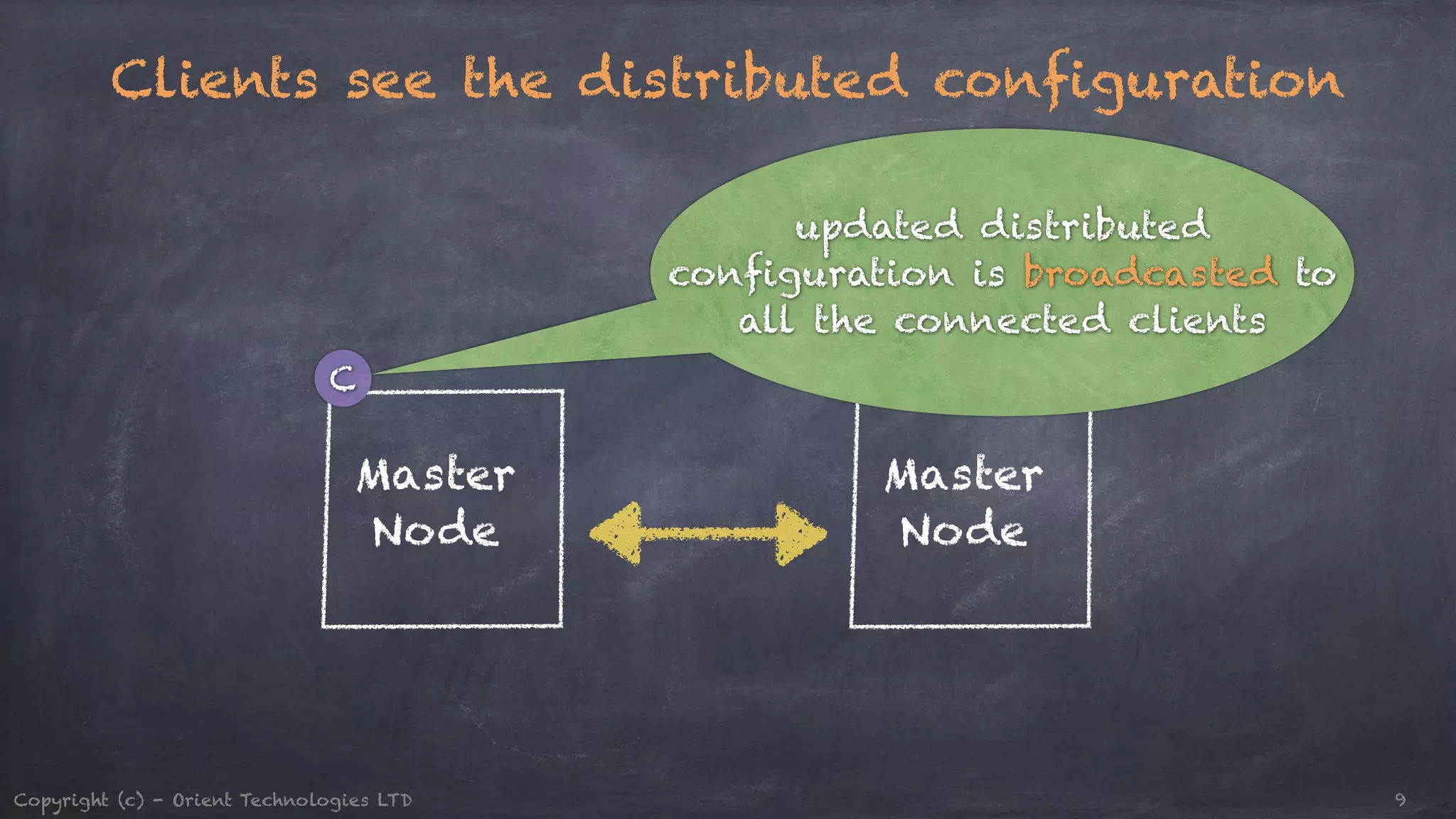

- 9. Clients see the distributed configuration C Master Node updated distributed configuration is broadcasted to all the connected clients Master Node Copyright (c) - Orient Technologies LTD 9

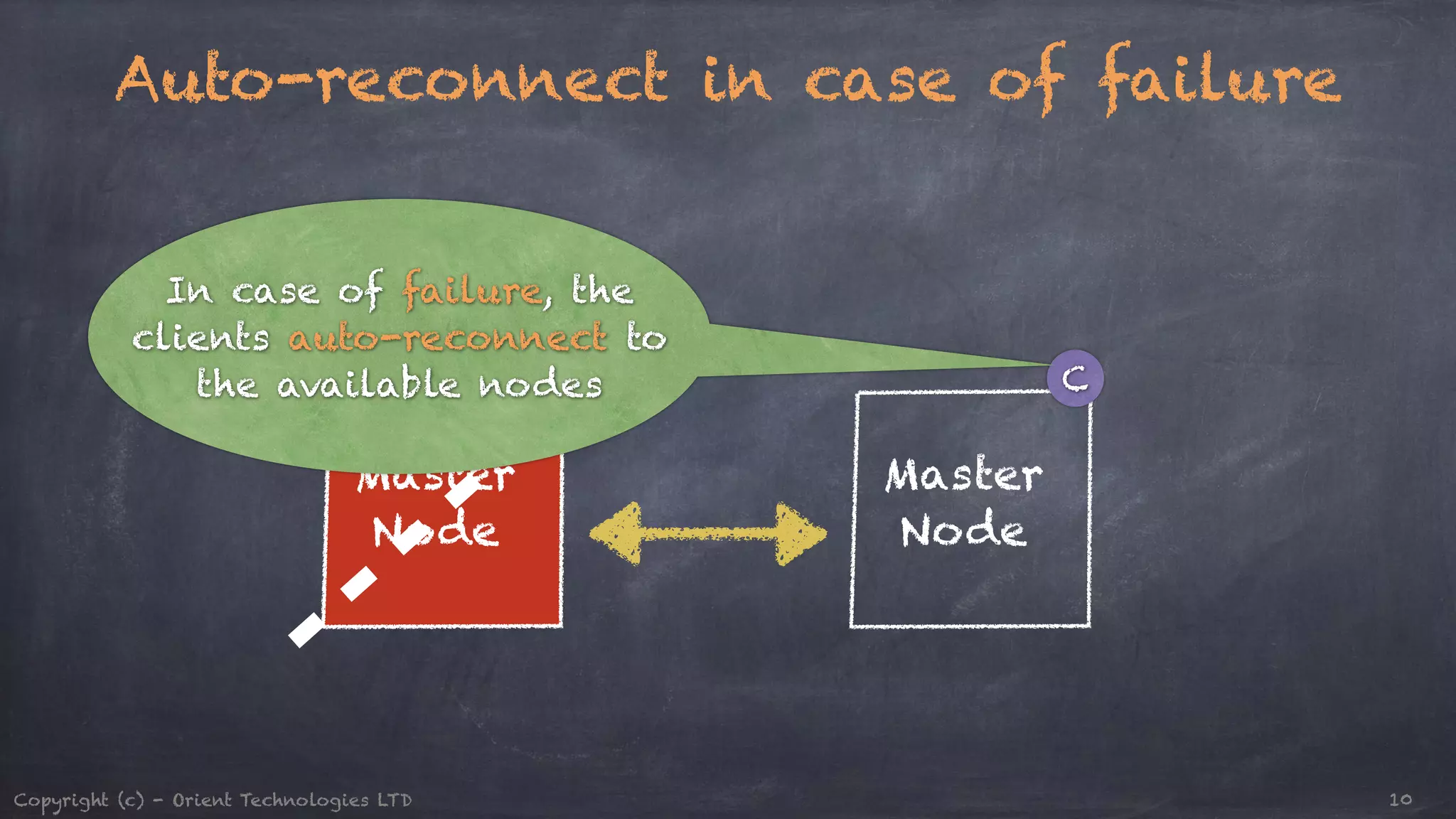

- 10. Auto-reconnect in case of failure In case of failure, the clients auto-reconnect to C C the available nodes Master Node Master Node Copyright (c) - Orient Technologies LTD 10

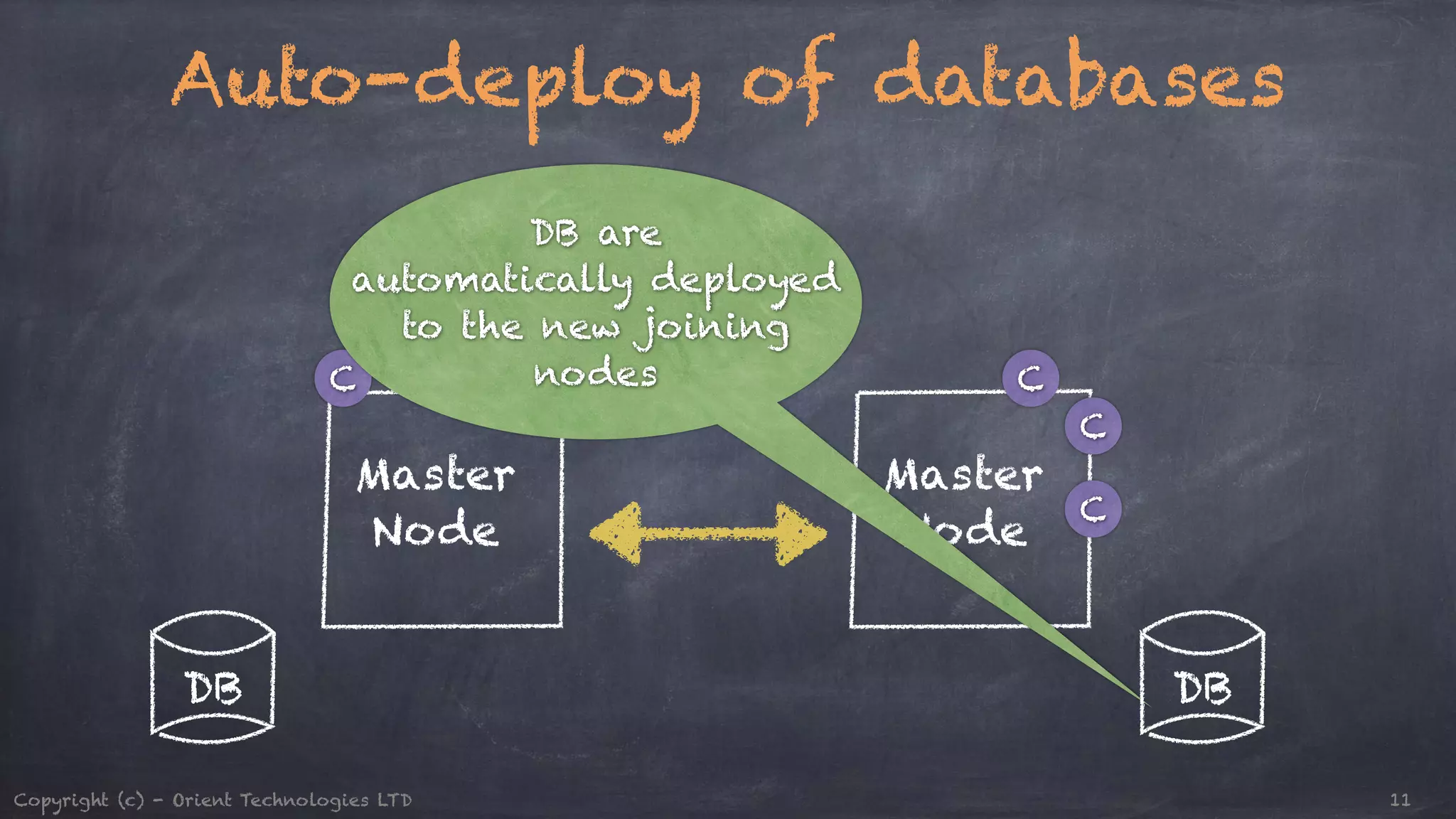

- 11. Auto-deploy of databases automatically deployed C to the new joining Master Node C Master Node DB are nodes C C DB DB Copyright (c) - Orient Technologies LTD 11

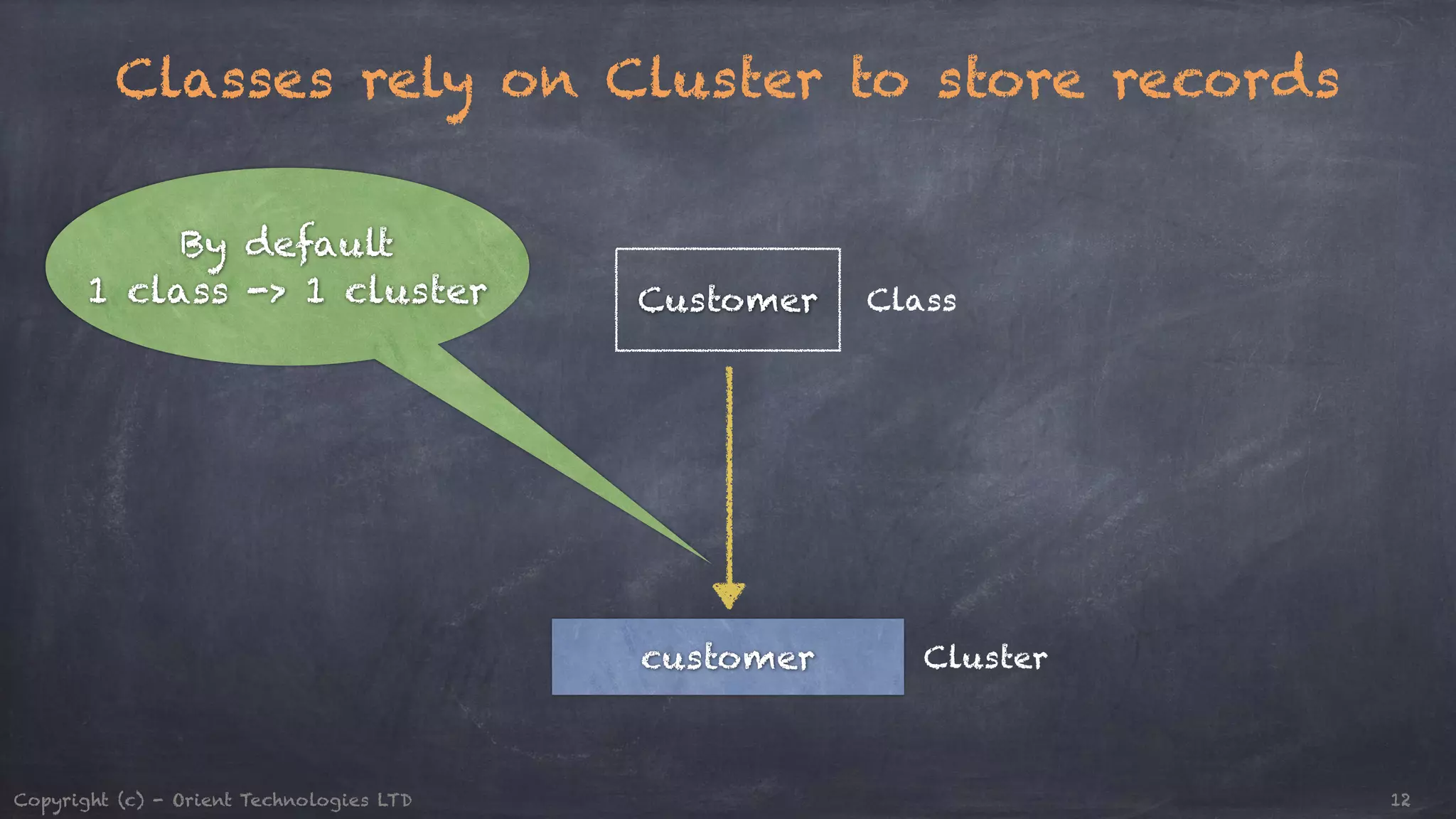

- 12. Classes rely on Cluster to store records 1 class -> 1 cluster Class Customer customer By default Cluster Copyright (c) - Orient Technologies LTD 12

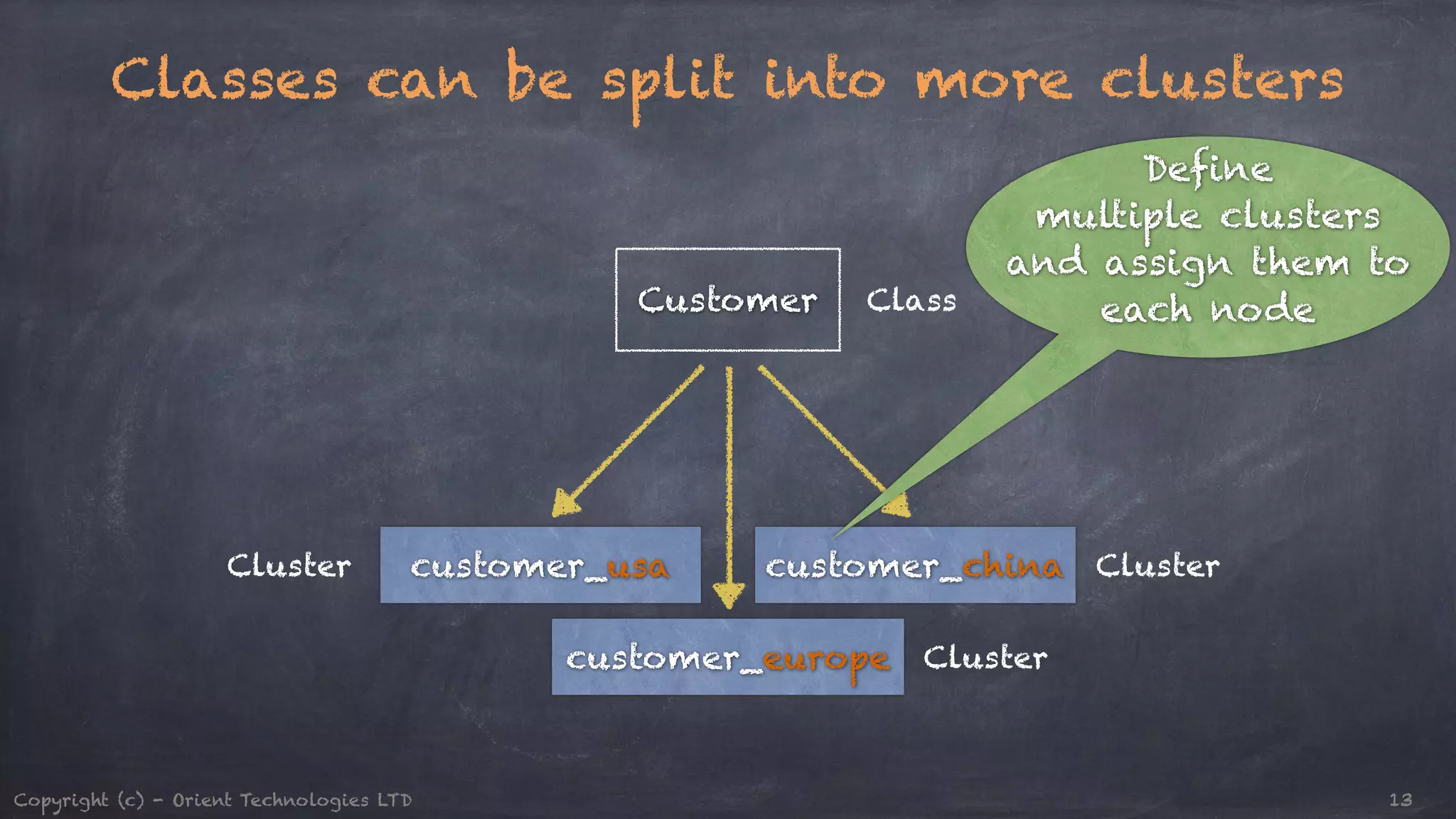

- 13. Classes can be split into more clusters Customer customer_usa Class multiple clusters and assign them to customer_china Define each node Cluster Cluster customer_europe Cluster Copyright (c) - Orient Technologies LTD 13

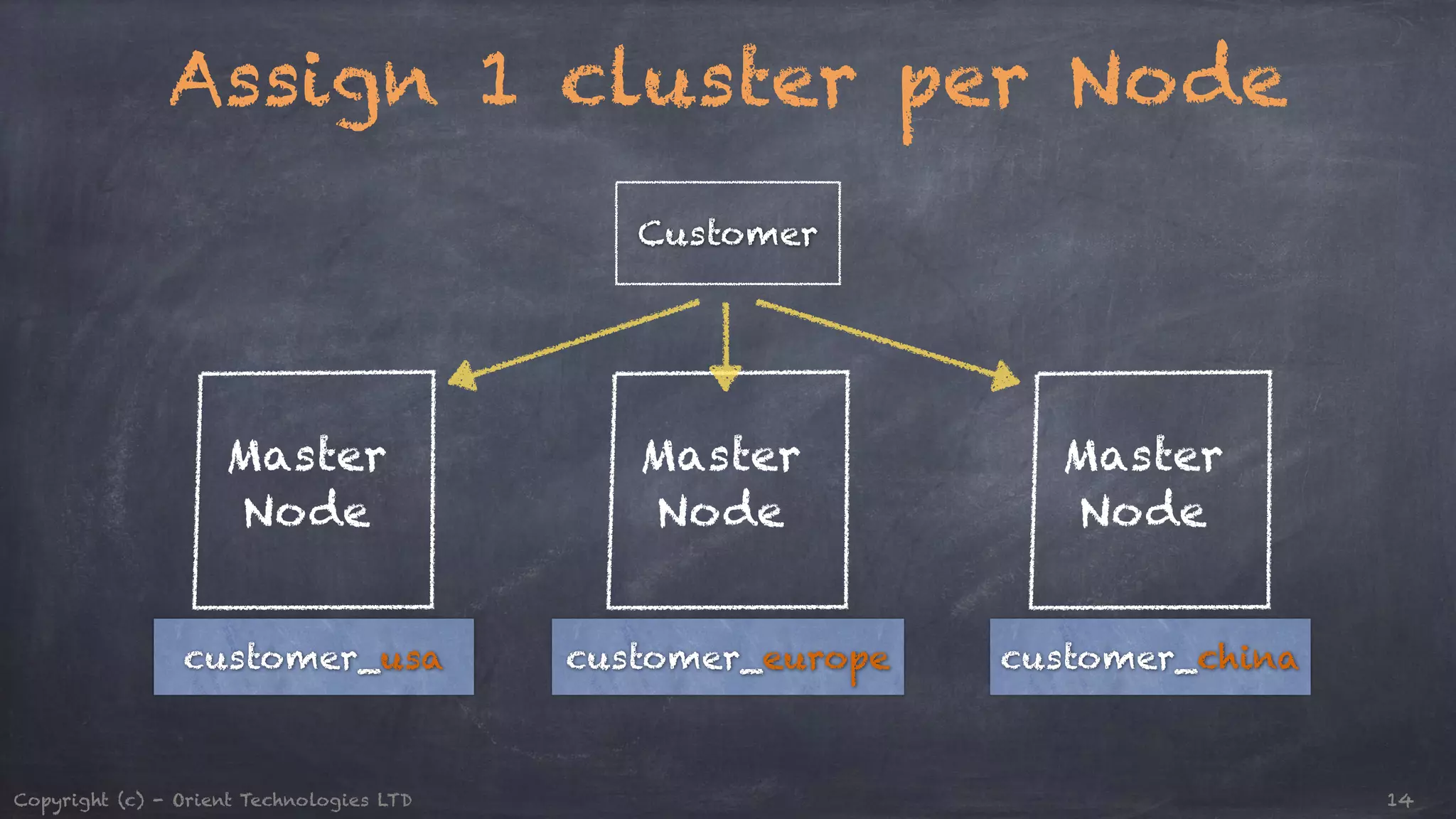

- 14. Assign 1 cluster per Node Master Node Customer Master Node Master Node customer_usa customer_europe customer_china Copyright (c) - Orient Technologies LTD 14

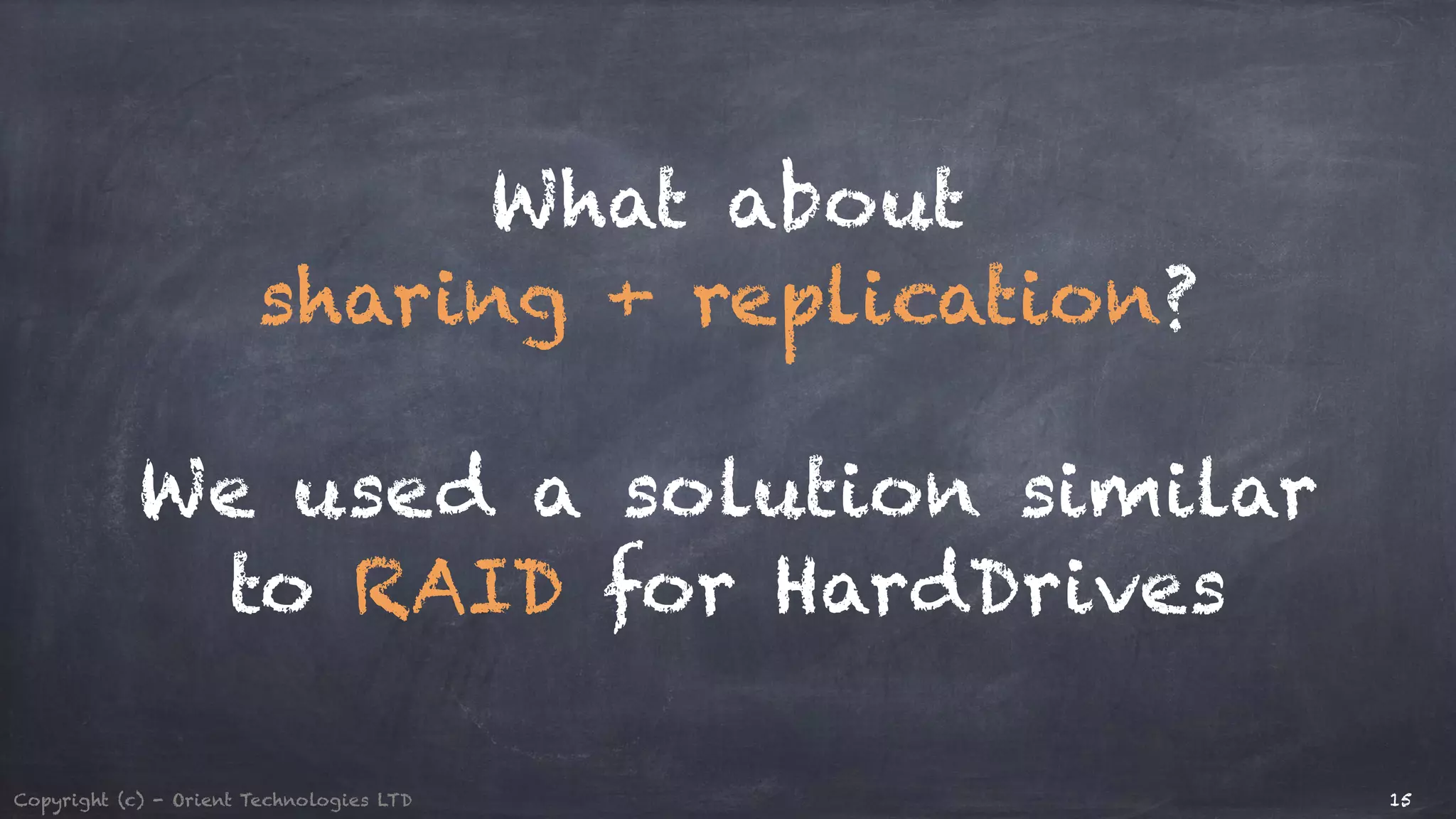

- 15. Copyright (c) - Orient Technologies LTD What about sharing + replication? ! We used a solution similar to RAID for HardDrives 15

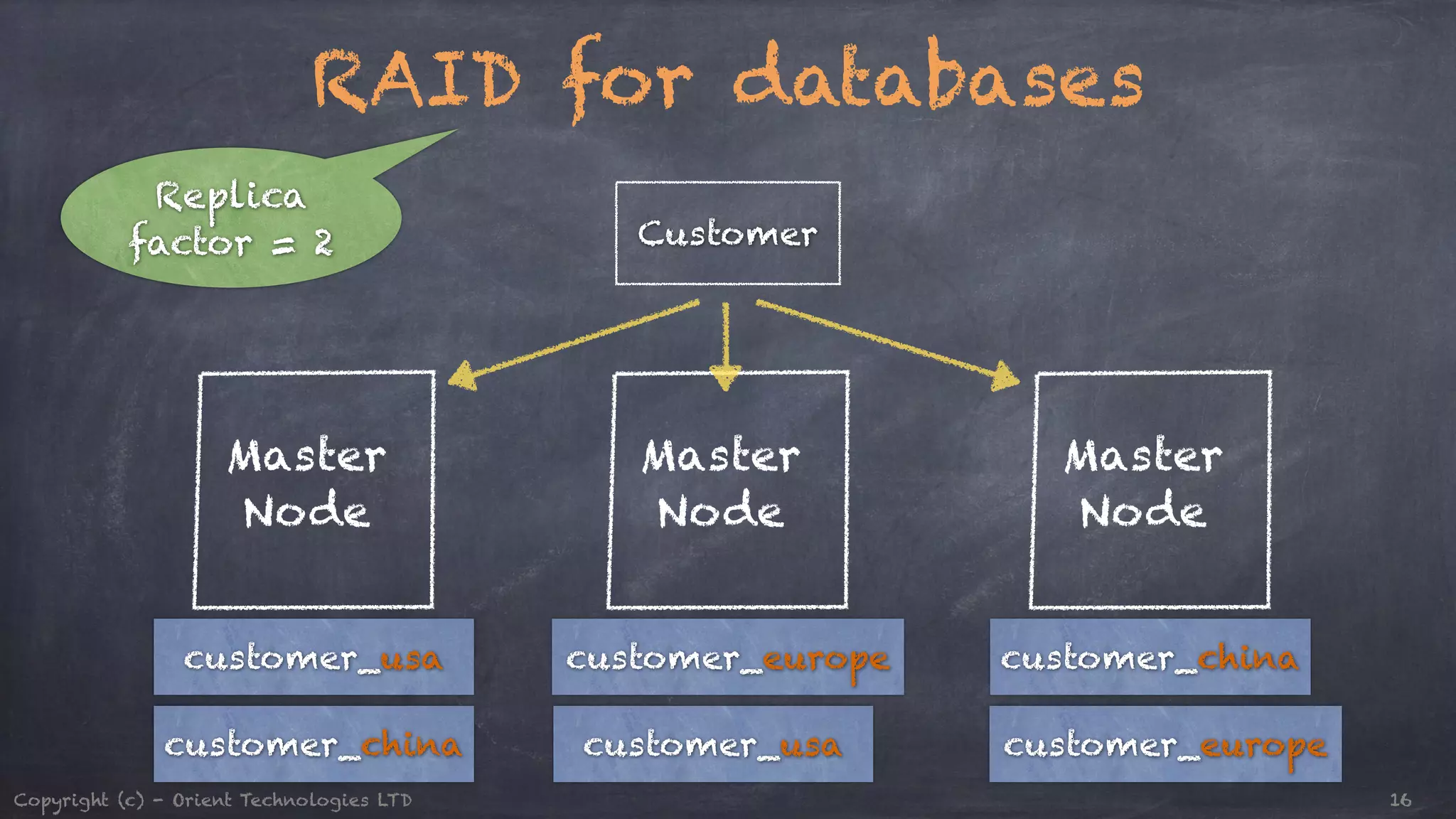

- 16. RAID for databases Replica factor = 2 Master Node Customer Master Node Master Node customer_usa customer_europe customer_china customer_china customer_usa customer_europe Copyright (c) - Orient Technologies LTD 16

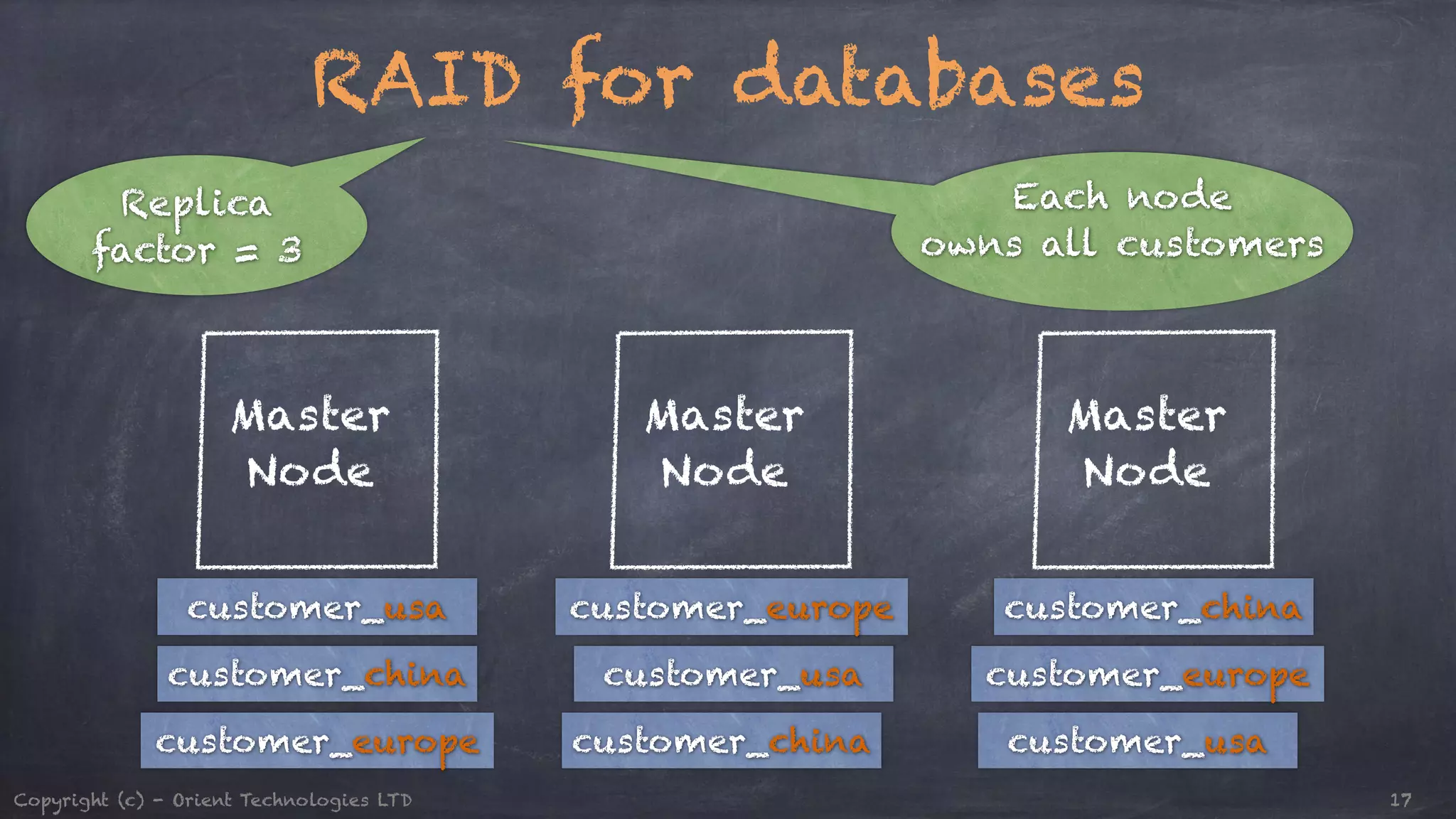

- 17. RAID for databases Replica factor = 3 Master Node Master Node Each node owns all customers Master Node customer_usa customer_europe customer_china customer_customer_china usa customer_europe customer_europe customer_china customer_usa Copyright (c) - Orient Technologies LTD 17

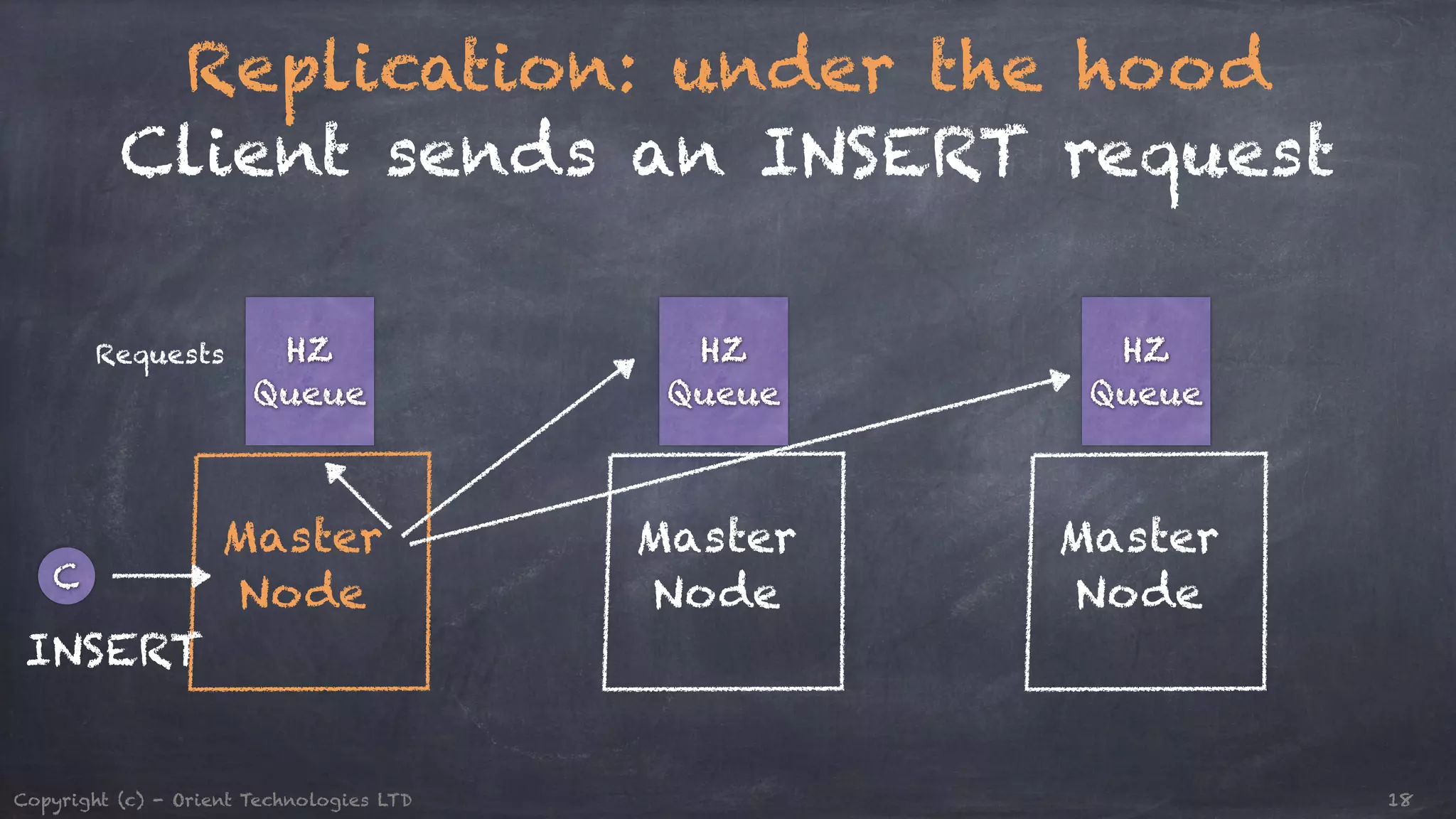

- 18. Replication: under the hood Client sends an INSERT request HZ Queue Requests Master Node HZ Queue Master Node HZ Queue Master Node C INSERT Copyright (c) - Orient Technologies LTD 18

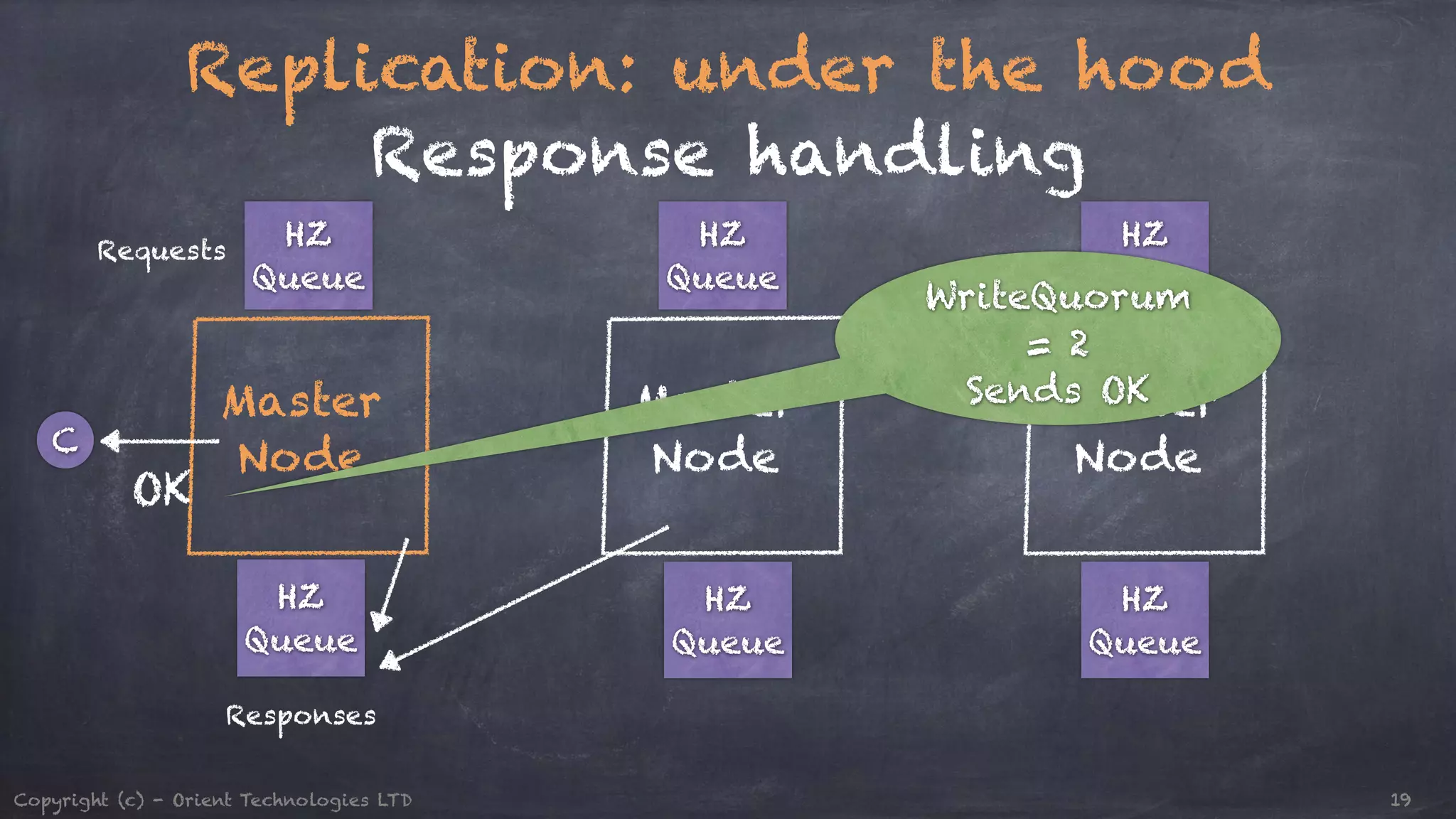

- 19. Replication: under the hood HZ Queue Response handling Requests Master Node HZ Queue Master Node HZ Queue WriteQuorum = 2 Sends OK Master Node C HZ Queue HZ Queue HZ Queue OK Responses Copyright (c) - Orient Technologies LTD 19

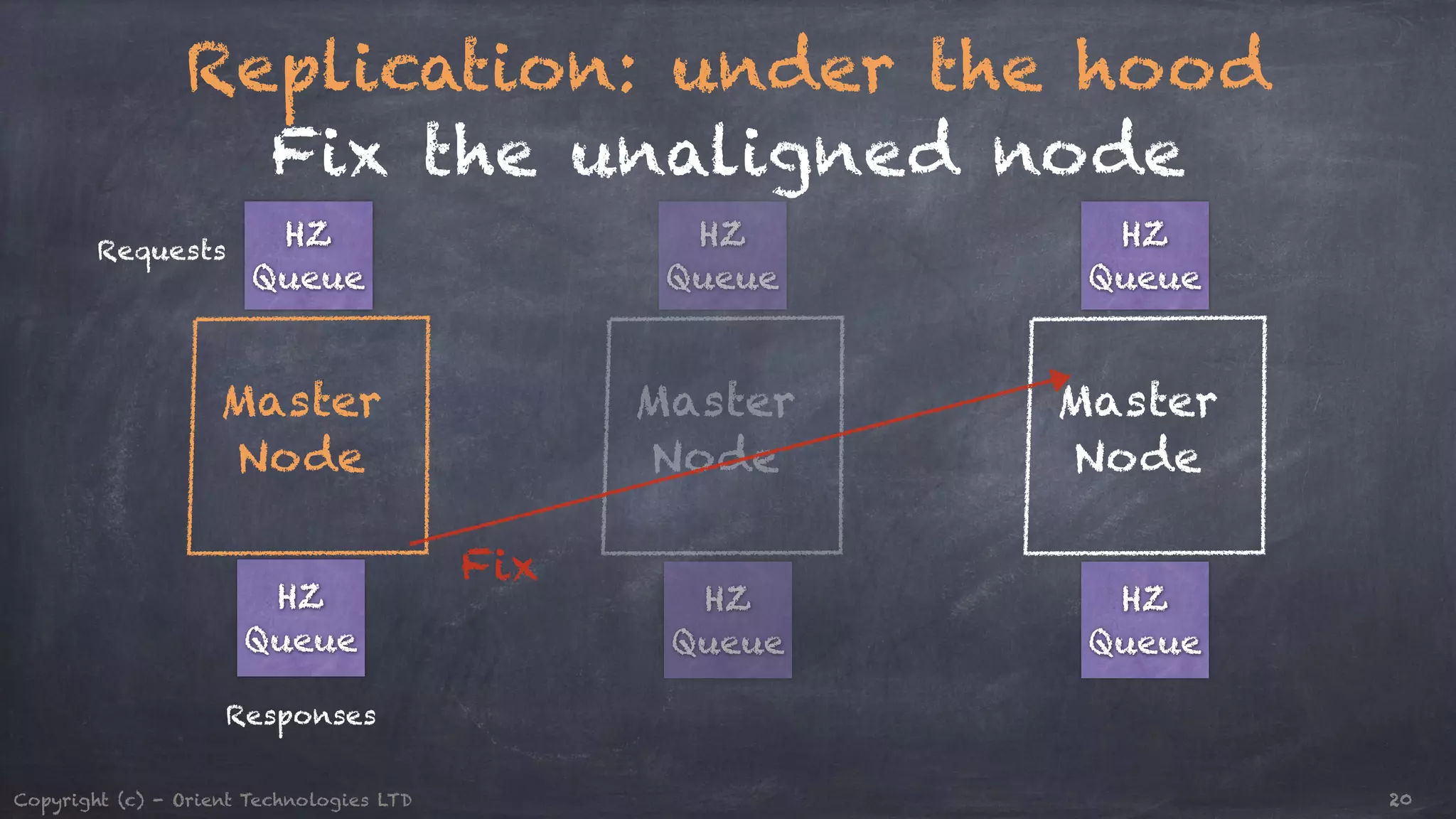

- 20. Replication: under the hood Fix the unaligned node HZ Queue Requests Master Node HZ Queue Master Node HZ Queue Master Node HZ Queue HZ Queue HZ Queue Responses Fix Copyright (c) - Orient Technologies LTD 20

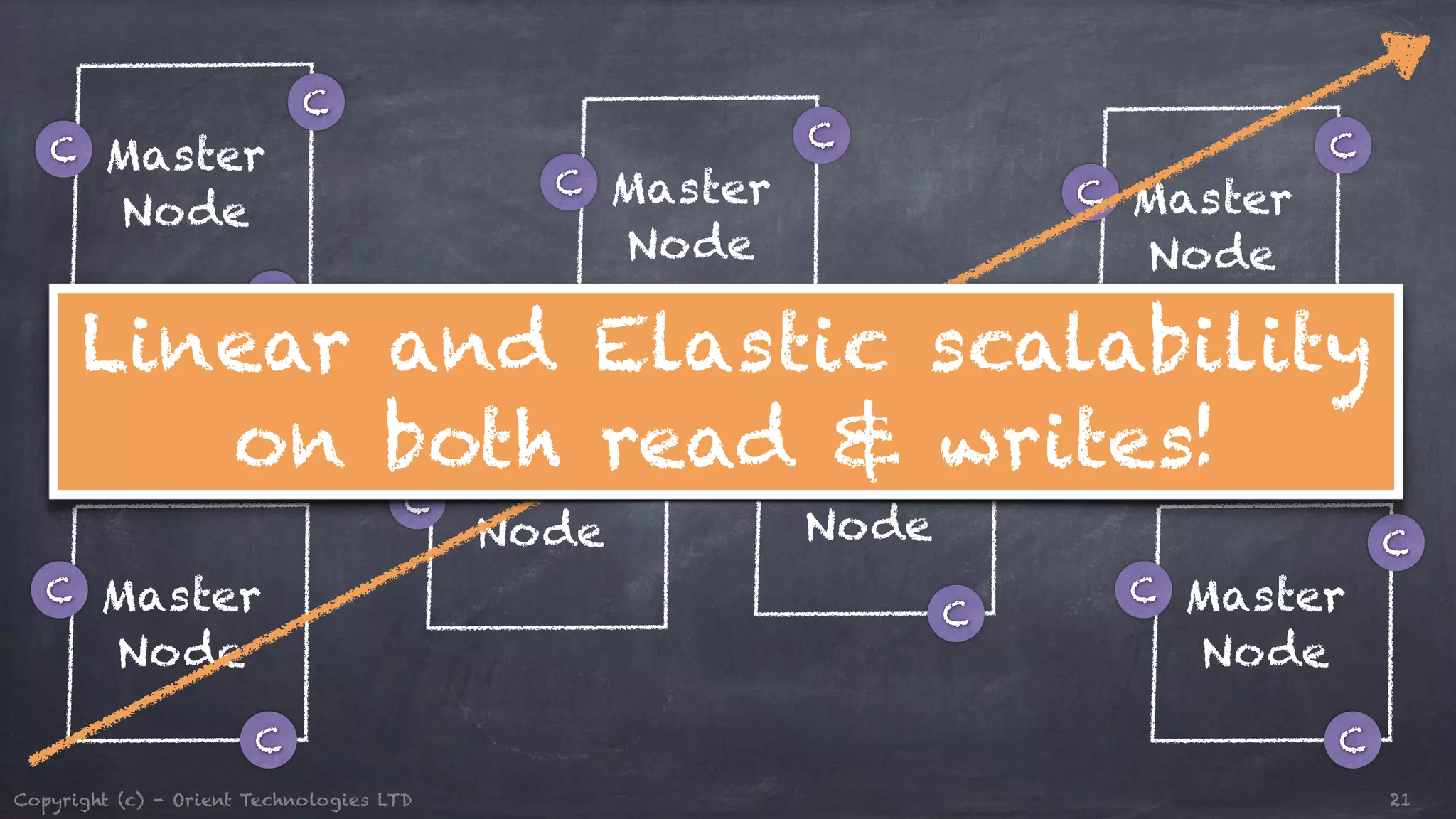

- 21. Linear and Elastic scalability C Master Node C on both read & writes! Master Node C C Master Node C C C C Master Node C C C C Master Node C C C Master Node C C C Master Node C C Copyright (c) - Orient Technologies LTD 21

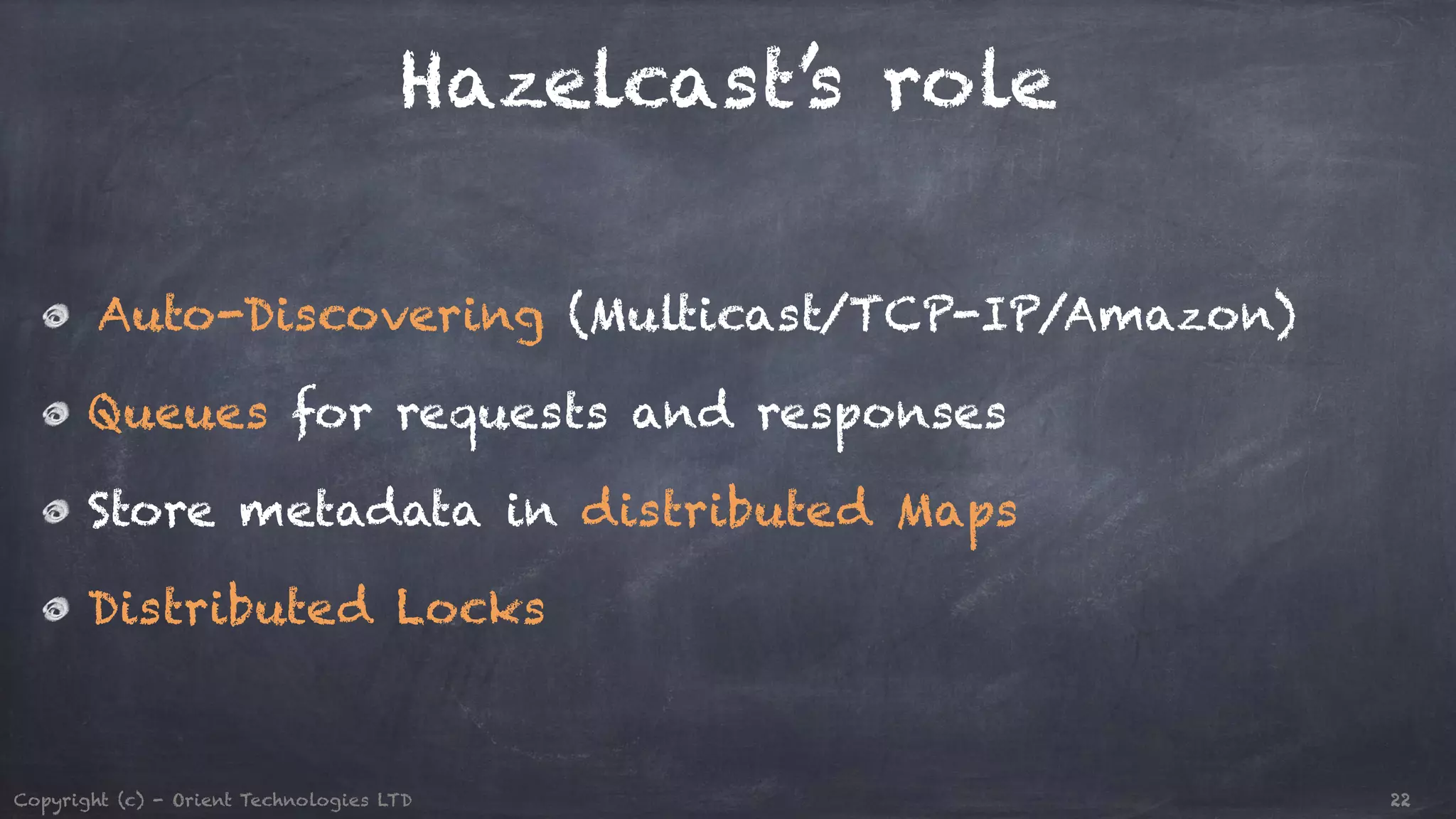

- 22. Hazelcast’s role Auto-Discovering (Multicast/TCP-IP/Amazon) Queues for requests and responses Store metadata in distributed Maps Distributed Locks Copyright (c) - Orient Technologies LTD 22
